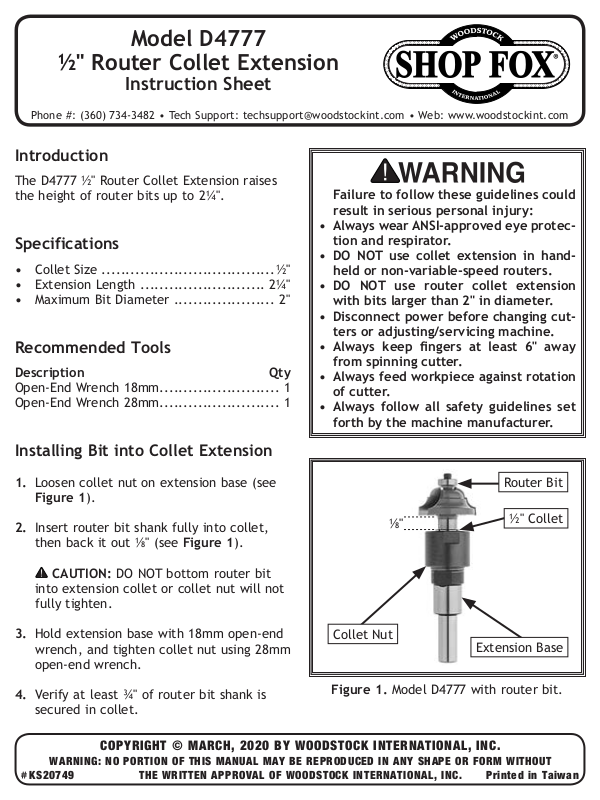

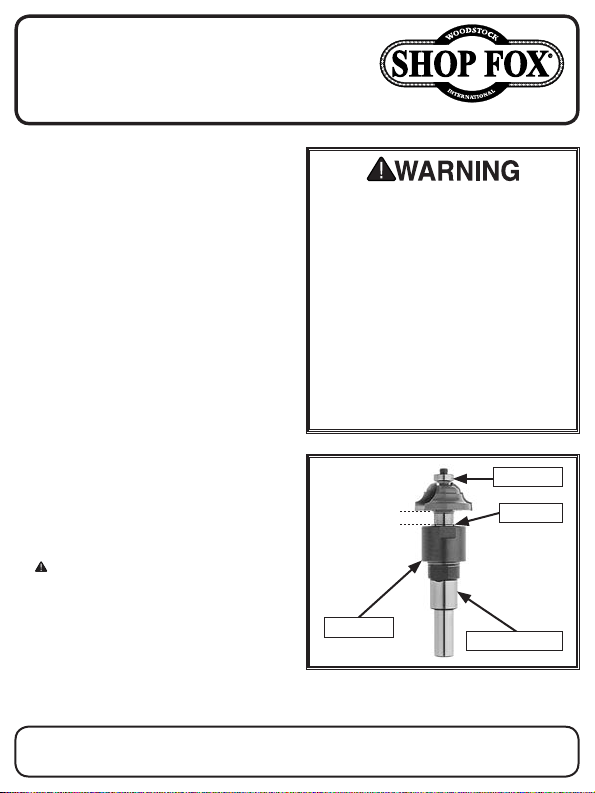

Page 1
Model D4777
½" Router Collet Extension
Instruction Sheet
Phone #: (360) 734-3482 • Tech Support: [email protected] • Web: www.woodstockint.com
Introduction
The D4777 ½" Router Collet Extension raises
the height of router bits up to 2¼".
Specifications
• Collet Size ....................................½"
Extension Length .......................... 2¼"
•
Maximum Bit Diameter ..................... 2"
•
Recommended Tools
Description Qty
Open-End Wrench 18mm
Open-End Wrench 28mm
......................... 1
......................... 1
Installing Bit into Collet Extension
1. Loosen collet nut on extension base (see
Figure 1).
Insert router bit shank fully into collet,
2.
then back it out ⅛" (see Figure 1).
CAUTION: DO NOT bottom router bit
into extension collet or collet nut will not
fully tighten.
Hold extension base with 18mm open-end
3.
wrench, and tighten collet nut using 28mm
open-end wrench.
4. Verify at least ¾" of router bit shank is
secured in collet.
Failure to follow these guidelines could
result in serious personal injury:
• Always wear ANSI-approved eye protection and respirator.
• DO NOT use collet extension in handheld or non-variable-speed routers.
• DO NOT use router collet extension
with bits larger than 2" in diameter.
• Disconnect power before changing cutters or adjusting/servicing machine.
• Always keep fingers at least 6" away
from spinning cutter.
• Always feed workpiece against rotation
of cutter.
• Always follow all safety guidelines set
forth by the machine manufacturer.
Router Bit
⅛"
Collet Nut
Figure 1. Model D4777 with router bit.
½" Collet
Extension Base
COPYRIGHT © MARCH, 2020 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in Taiwan#KS20749
Page 2
Installing Extension into Router
1. DISCONNECT MACHINE FROM POWER!
2.
Remove any guards/shields in place to
gain access to router collet.
Loosen collet nut on router.
3.
4. Insert D4777 shank fully into router collet
(see Figure 2), then back it out ⅛".

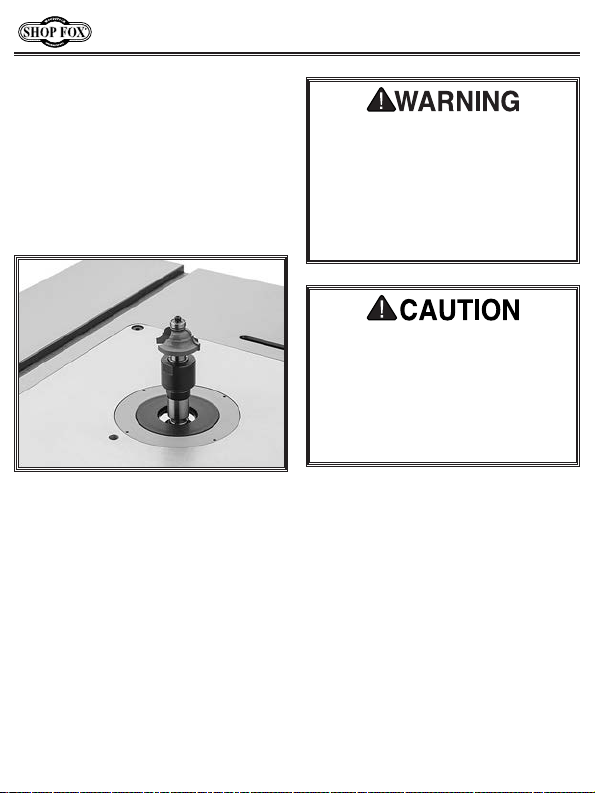

Figure 2. Model D4777 installed in router.
5. Verify at least ¾" of D4777 shank is
secured in router collet.
Note: Follow all manufacturer's guidelines
for using router bit extensions in machine.
6. Tighten collet nut on router.
7.
Re-install any guards/shields removed in
Step 2.
8.
Connect machine to power supply and
follow all manufacturer's instructions for a
typical operation.
D4777 ½" Router Collet Extension Instructions
Serious cuts, amputation, entanglement, or
death can occur from contact with spinning
router bit. Improperly secured bits or spindle
parts/fasteners can fly off and strike nearby
operators or bystanders with great force. Flying dust or debris from cutting operation can
cause eye injuries or blindness. To minimize
risk of getting hurt or killed, anyone operating router MUST completely heed all hazards
and warnings in this instruction manual.
Extending router bits increases the strain
on the bit and the collet. It is important
that you verify the bit is securely installed
in the collet before using the router, or
serious personal injury could result from
the router bit or flying debris. When using
an extended router bit, decrease the cutting depth and make additional passes on
the workpiece.
