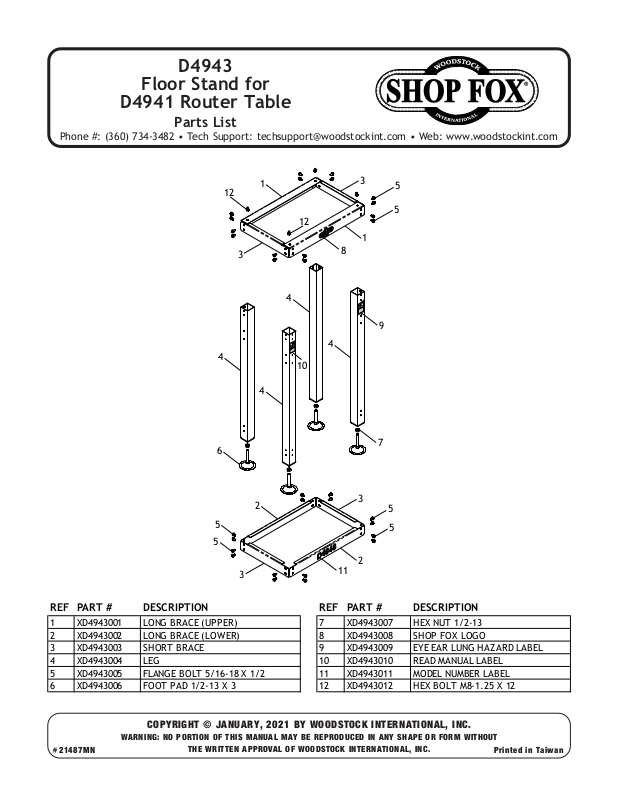

Page 1
D4943
#21487MN
Floor Stand for
D4941 Router Table
Parts List
Phone #: (360) 734-3482 • Tech Support: [email protected] • Web: www.woodstockint.com
12
1
3
5
5
12
1
3
4
8
WARNING!
INJURY HAZARD!
To reduce risk of shortand long-term injury,
wear safety glasses,
hearing protection, and
a respirator when using
this machine.
9
WARNING!
READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
734-3482.
)
machine! Instead, go to
360
(
www.woodstockint.com
4
or call
4
10
4
6
7
2
5
3
5
5
5
D4943
3
2
11
REF PAR T # DESCRIPTION REF PAR T # DESCRIPTION
1 XD4943001 LONG BRACE (UPP ER) 7 XD4943007 HEX NUT 1/2-13
2 XD4943002 LONG BRACE (LOWER) 8 XD4943008 SHOP FOX LOGO
3 XD4943003 SHORT BRACE 9 XD4943009 EYE EAR LUNG HAZ ARD LABEL
4 XD4943004 LEG 10 XD4943010 READ MANUAL LABEL
5 XD4943005 FLANGE BOLT 5/16-18 X 1/2 11 XD4943011 MODEL NUMBER LABEL
6 XD4943006 FOOT PAD 1/2-13 X 3 12 XD4943012 HEX BOLT M8-1.25 X 12
COPYRIGHT © JANUARY, 2021 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in Taiwan
