D4942
#21486MN
8 XD4942008 FLAT WASHER 3/8

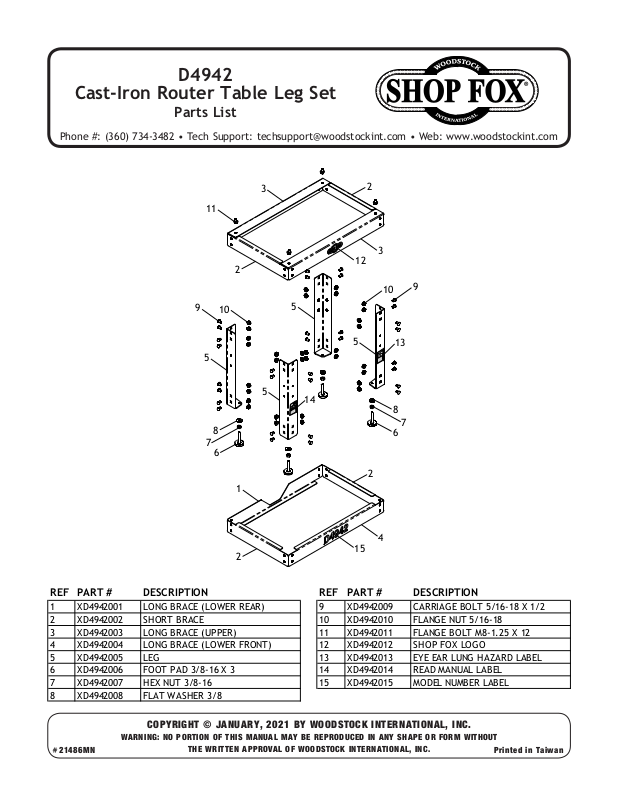

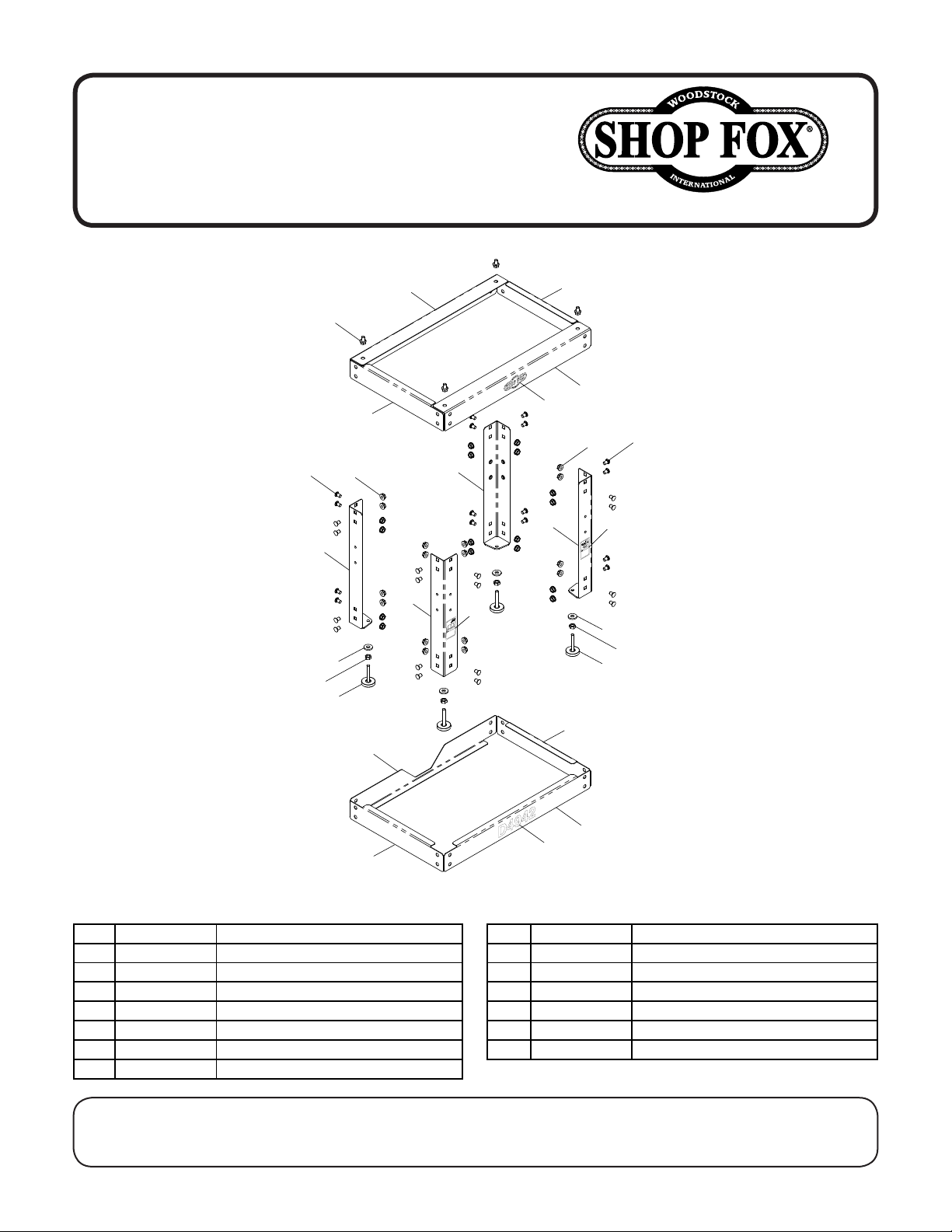

Cast-Iron Router Table Leg Set
Parts List
Phone #: (360) 734-3482 • Tech Support: [email protected] • Web: www.woodstockint.com
3
2
11
3
12
2
10
9
10
5
5
WARNING!
INJURY HAZARD!
To reduce risk of shortand long-term injury,
5
5
14
WARNING!
READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
734-3482.
)
machine! Instead, go to
360
(
www.woodstockint.com
or call
wear safety glasses,
hearing protection, and
a respirator when using
this machine.
8
9
13
8
7
6
7
6
2
1
REF PAR T # DESCRIPTION REF PAR T # DESCRIPTION
1 XD4942001 LONG BRACE (LOWER REAR) 9 XD4942009 CARRIAGE BOLT 5/16-18 X 1/2
2 XD4942002 SHORT BRACE 10 XD4942010 FLANGE NUT 5/16-18
3 XD4942003 LONG BRACE (UPP ER) 11 XD4942011 FLANGE BOLT M8-1.25 X 12
4 XD4942004 LONG BRACE (LOWER FRONT) 12 XD4942012 SHOP FOX LOGO
5 XD4942005 LEG 13 XD4942013 EYE EAR LUNG HAZ ARD LABEL
6 XD4942006 FOOT PAD 3/8-16 X 3 14 XD4942014 READ MANUAL LABEL
7 XD4942007 HEX NUT 3/8-16 15 XD4942015 MODEL NUMBER LABEL
COPYRIGHT © JANUARY, 2021 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
D4942
2
4
15
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in Taiwan
