Sharp XL-UH220H User Manual

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.
MICRO COMPONENT SYSTEM
MODEL
XL-UH220H
XL-UH220H Micro Component System consisting of XL-UH220H (main unit) and CP-UH220H (speaker system).
Note:
This product is not compatible with MTP and AAC file systems.
04/12/15 XL-UH220HA_FRONT.fm
XL-UH220H
Special notes
WARNINGS
When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the ON/ STAND-BY button is set at STAND-BY position, the unit may be brought into operation by the timer mode or remote control.
This unit contains no user serviceable parts. Never remove covers
unless qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any service operation and when not in use for a long period.
 To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
Note for users in Australia:
Copyright may exist in material you wish to record. Copying or broad­casting such material without permission of the relevant licensees or owners of the copyright is prohibited by law. SHARP is not in a posi­tion to authorise the copying or broadcasting of copyright materials and nothing in this OPERATION MANUAL should be implied as giv­ing that authority.
For other countries:
Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the owner of the copyright. Please refer to the relevant laws in your country.
General Information
CAUTION
 This product is classified as a CLASS 1 LASER product.  Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
Laser Diode Properties Material: GaAIAs Wavelength: 795 nm Emission Duration: continuous Laser Output: max. 0.6 mW
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
WARNUNG-UNSICHTBARE LASERSTRAHLUNG WENN GERÄT GEÖFFNET. NICHT IN DIE STRAHLUNG SCHAUEN ODER DIREKT MIT OPTISCHEN HILFSMITTELN BETRACHTEN.
ATTENTION-RAYON LASER INVISIBLE EN CAS D'OUVERTURE. NE PAS REGARDER LE FAISCEAU DIRECTEMENT OU AVEC DES INSTRUMENTS OPTIQUES.
2
Special Note
Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribu­tion channels), revenue-generating streaming applications (via Inter­net, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand appli­cations and the like) or on revenue-generating physical media (com­pact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
Accessories
Please confirm that the following accessories are included.
Remote control 1 AM loop aerial 1
FM aerial 1
Note:
Only the above accessories are included.
Contents
Page
 General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 7
 Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
 Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting the clock (Remote Control only) . . . . . . . . . . . . . . . . . 13
 CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . .14 - 16
Advanced CD or MP3/WMA disc playback . . . . . . . . . . . . 17 - 18
Advanced CD playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
MP3/WMA folder mode (only for MP3/WMA files) . . . . . . .20 - 21
 USB Memory Playback
Listening to USB mass storage device / MP3 Player . . . .22 - 23
To remove USB memory device . . . . . . . . . . . . . . . . . . . . . . . . 23
Advanced USB playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
 Radio

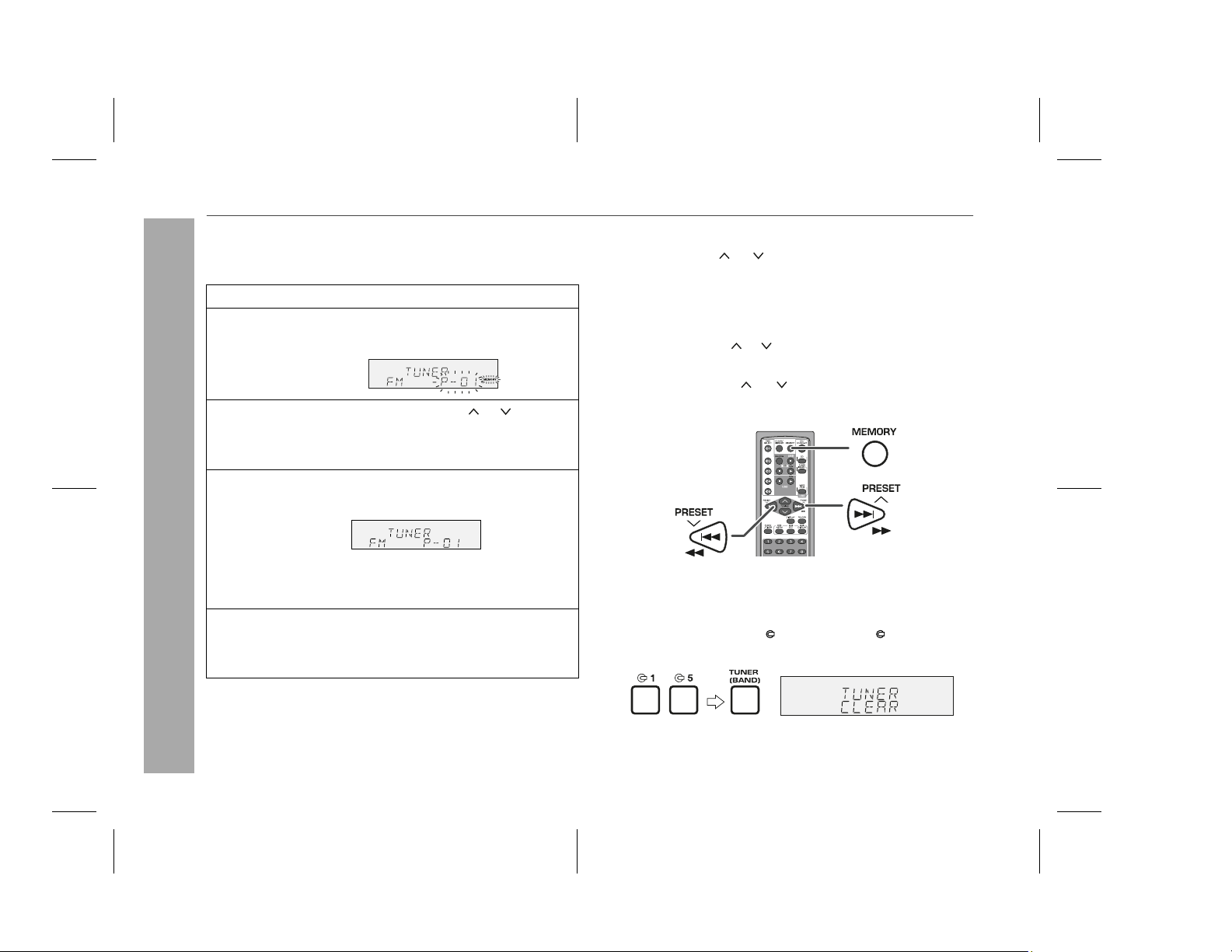

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 - 26
 Advanced Features

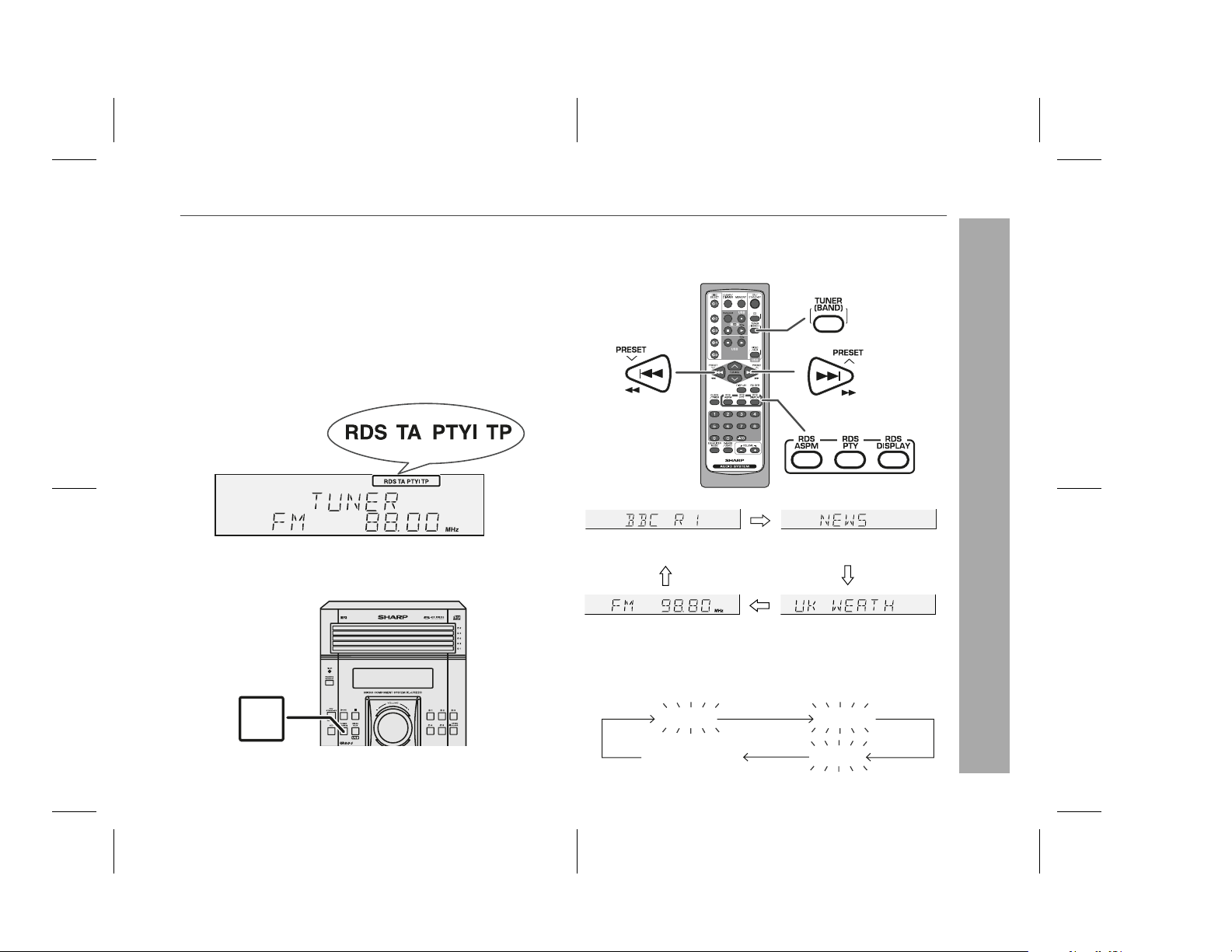

Using the Radio Data System (RDS) . . . . . . . . . . . . . . . . . 27 - 31
Timer and sleep operation (Remote Control only) . . . . . .32 - 35
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . .36 - 37
 References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 - 39
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
XL-UH220H
General Information
3
XL-UH220H
Precautions
 General
 Please ensure that the equipment is positioned in a well-ventilated
area and ensure that there is at least 10 cm (4") of free space along the sides, top and back of the equipment.
 Use the unit on a firm, level surface free from
vibration.
 Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust, humidity and electronic/electrical equip­ment (home computers, facsimiles, etc.) which generate electrical noise.
 Do not place anything on top of the unit.  Do not expose the unit to moisture, to temperatures higher than
General Information
C (140
60
F) or to extremely low temperatures.
˚
˚
 If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and then turn on your system.
 In case of an electrical storm, unplug the
unit for safety.
 Hold the AC power plug by the head when
removing it from the wall socket, as pulling the lead can damage internal wires.
 The AC power plug is used as disconnect
device and shall always remain readily
10 cm (4")10 cm (4")
10 cm (4")
operable.
 Do not remove the outer cover, as this
may result in electric shock. Refer
10 cm (4")
D C
B S U
internal service to your local SHARP service facility.
 The ventilation should not be impeded by
covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.
 No naked flame sources, such as lighted candles, should be
placed on the apparatus.
 Attention should be drawn to the environmental aspects of battery
disposal.
 This unit should only be used within the range of 5˚C - 35˚C
(41˚F - 95˚F).
Warning:
The voltage used must be the same as that specified on this unit. Us­ing this product with a higher voltage other than that which is speci­fied is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any dam­age resulting from use of this unit with a voltage other than that which is specified.
 Volume control
The sound level at a given volume setting depends on speaker effi­ciency, location, and various other factors. It is advisable to avoid ex­posure to high volume levels. Do not turn the volume on to full at switch on and listen to music at moderate levels.
4
Controls and indicators
XL-UH220H
 Front panel
Reference page
1. Disc Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4. Disc or USB Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5. Disc or USB Play or Repeat Button . . . . . . . . . . . . . . . 14, 18
6. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 27
9. Video/Auxiliary/USB Button . . . . . . . . . . . . . . . . . . . . . . . . 22
10. USB Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
12. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
13. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 14
14. Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . 14
General Information
5
XL-UH220H
Controls and indicators (continued)
12
General Information
1
2
AC INPUT
AC INPUT
3
4 5 10 11
17 18
19
ANTENNA
FM
FM
75 OHMS
75 OHMS
SPEAKERS
SPEAKERS
RATED SPEAKER IMPEDANCE:
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
6 OHMS MIN.
RIGHT
LEFT
RIGHT
LEFT
6 7 8 9
20
GND
AM
GND
AM
VIDEO/AUX IN
VIDEO/AUX IN
RIGHT LEFT
RIGHT LEFT
PRE-OUT
PRE-OUT
SUBWOOFER
SUBWOOFER
13 14 15
12
3
4
5
5
6
7
8
16
 Display
1. Disc Number Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. MP3/WMA Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 22
Reference page
3. MP3/WMA Title Indicators . . . . . . . . . . . . . . . . . . . . . . . 21, 23
4. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 22
5. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 22
6. RDS Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7. Traffic Announcement Indicator . . . . . . . . . . . . . . . . . . . . . 27
8. Dynamic PTY Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9. Traffic Programme Indicator . . . . . . . . . . . . . . . . . . . . . . . . 27
10. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
11. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
12. MP3/WMA Total Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 15
13. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
14. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 25
15. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 25
16. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 26
17. Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
18. Disc or USB Repeat Play Indicator . . . . . . . . . . . . . . . . 18, 24
19. Disc or USB Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . 16
20. Disc or USB Play Indicator . . . . . . . . . . . . . . . . . . . . . . 15, 23
 Rear panel
Reference page
1. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2. AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. AM Aerial Earth Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5. AM Loop Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

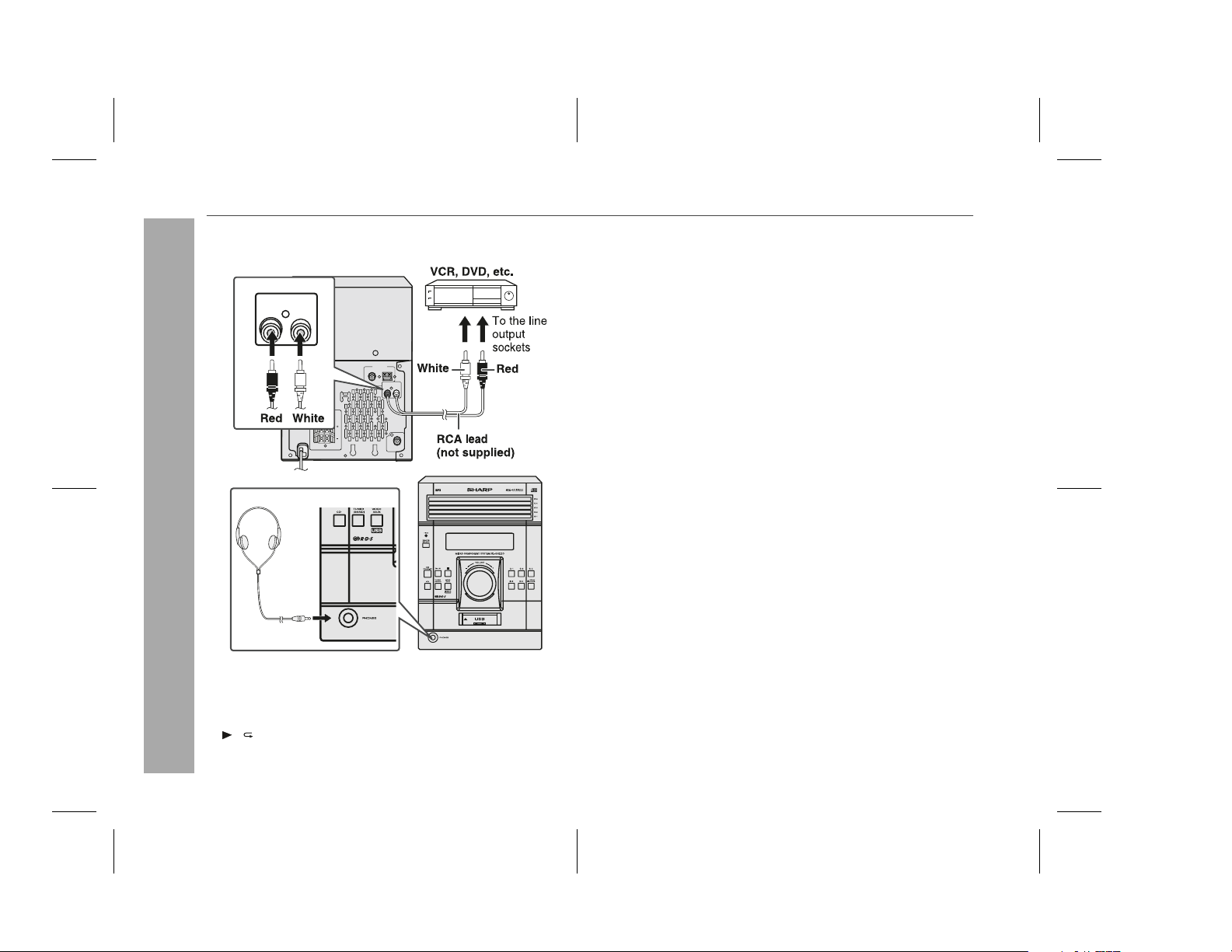

6. Video/Auxiliary (Audio Signal) Input Sockets . . . . . . . . . . 36
7. Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8. Subwoofer Pre-output Socket . . . . . . . . . . . . . . . . . . . . . . . 37
 Speaker system
1. Tweeter
2. Woofer
3. Bass Reflex Duct
4. Speaker Wire
1
3
2
6
4
XL-UH220H
1
7
2
14
8
9
15
16
10
17
22
11
3
4
5 6
12
13
24
26 27
25
18
19
20
21
23
28
 Remote control
Reference page
1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 11
2. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 14
3. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . 13, 32, 35
4. Disc Direct Search Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 17
5. Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . 12
6. Extra Bass/Demo Button . . . . . . . . . . . . . . . . . . . . . . . . 10, 12
7. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 27
10. Video/AUX/USB Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11. MP3/WMA Folder Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12. MP3/WMA Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . 22
13. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 12
14. Clear/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
15. Disc Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
16. Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
17. USB Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
18. Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 19
19. Disc/USB Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
20. Disc Play and Repeat Button . . . . . . . . . . . . . . . . . . . . . . . 14
21. USB Play and Repeat Button . . . . . . . . . . . . . . . . . . . . . . . 22
22. Tuning Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 25
23. Disc Track Up or Fast Forward, Tuner Preset Up,
Time Up Button . . . . . . . . . . . . . . . . . . . 13, 16, 22, 25, 26, 27
24. Disc Track Down or Fast Reverse, Tuner Preset Down,
Time Down Button . . . . . . . . . . . . . . . . . 13, 16, 22, 25, 26, 27
25. Tuning Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 25
26. RDS ASPM Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
27. RDS PTY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
28. RDS Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
General Information
7
XL-UH220H
System connections
Make sure to unplug the AC power lead before any connections.
Right speaker
Preparation for Use
Aerial connection (see page 9)
AM loop aerialFM aerial
ANTENNA
FM
GND
AM
75 OHMS
VIDEO/AUX IN
RIGHT LEFT
SPEAKERS
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
RIGHT
LEFT
PRE-OUT
SUBWOOFER
Left speaker
Speaker connection
Wall socket (AC 230 - 240V, 50 Hz)
(see page 9)
AC power connection (see page 10)
8
XL-UH220H
Aerial connection
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS socket and position the FM aerial wire in the direction where the strongest signal can be received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM and Earth (GND) terminals. Position the AM loop aerial for optimum reception. Place the AM loop aerial on supplied).
Note:
Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
< Assembling > < Attaching to the wall >
a shelf, etc., or attach it to a stand or a wall with screws (not
ANTENNA
FM
GND
ANTENNA
FM
GND
AM
75 OHMS
VIDEO/AUX IN
RIGHT LEFT
SPEAKERS
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
RIGHT
LEFT
PRE-OUT
SUBWOOFER
75 OHMS
AM
 Speaker connection
Connect the black wire to the minus (-) terminal, and the red wire to the plus (+) terminal.
SPEAKERS
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
ANTENNA
FM
GND
AM
75 OHMS
VIDEO/AUX IN
RIGHT LEFT
SPEAKERS
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
RIGHT
LEFT
PRE-OUT
SUBWOOFER
RIGHT
LEFT
BlackRed
Caution:
 Use speakers with an impedance of 6 ohms or more, as lower
impedance speakers can damage the unit.
 Do not mistake the right and the left
channels. The right speaker is the one on the right side when you face the unit.
SPEAKERS
RATED SPEAKER
6 OHM
PEDANCE:
IM
IN.
S M
 Do not let the bare speaker wires touch
each other.
 Do not allow any objects to fall into or to be
placed in the bass reflex ducts.
 Do not stand or sit on the speakers. You may
be injured.
LEFT
RIGHT
Incorrect
 Speaker grilles are removable
Make sure nothing comes into contact with the speaker diaphragm when you remove the speaker grilles.
Preparation for Use
Wall Screws (not supplied)
9
XL-UH220H
System connections (continued)
 AC power connection
After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket. If you plug in the unit first, the unit will enter the demonstration mode.
SPEAKERS
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
RIGHT
LEFT
Note:
 Unplug the AC power lead from the wall socket if the unit will not
be in use for a prolonged period of time.
Cooling fan:
The main unit is built with a cooling fan at the rear of the unit for im­proved cooling. Please do not cover the opening of the fan with any obstacles, as this will block proper ventilation.
Preparation for Use
 Demonstration mode
The first time the unit is plugged in, the unit will enter the demonstration mode. You will see words scroll.
To cancel the demonstration mode:
ANTENNA
FM
GND
AM
75 OHMS
VIDEO/AUX IN
RIGHT LEFT
When the unit is in the power stand­by mode (demonstration mode), press the X-BASS/DEMO button on the remote control. The unit will enter
PRE-OUT
SUBWOOFER
the low power consumption mode.
Wall socket (AC 230 - 240V, 50 Hz)
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the X-BASS/ DEMO button on the remote control again.
Note:
When the power is on, the X-BASS/DEMO button can be used to select the extra bass mode.
 External FM aerial
Use an external FM aerial if you require better reception. Consult your dealer.
ANTENNA
FM
GND
75 OHMS
AM
External FM aerial
AC INPUT
SPEAKERS
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
RIGHT
ANTENNA
FM
GND
AM
75 OHMS
VIDEO/AUX IN
RIGHT LEFT
LEFT
PRE-OUT
SUBWOOFER
10
75 ohms coaxial cable
Note:
When an external FM aerial is used, disconnect the supplied FM aerial wire.
Remote control
 Battery installation
Use 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar). Batteries are not included.
1 Open the battery cover. 2 Insert the batteries according to the direction indicated in
the battery compartment.
When inserting or removing the batteries, push them towards the
battery terminals.
3 Close the cover.
Precautions for battery use:
 Replace all old batteries with new ones at the same time.  Do not mix old and new batteries.  Remove the batteries if the unit will not be used for long periods
of time. This will prevent potential damage due to battery leakage.
Caution:
 Do not use rechargeable batteries (nickel-cadmium battery, etc.).  Installing the batteries incorrectly may cause the unit to
malfunction.
Battery removal:
Open the battery cover and pull up the battery to take out.
XL-UH220H
Notes concerning use:
 Replace the batteries if the operating distance is reduced or if the
operation becomes erratic.
 Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
 Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit if this occurs.
 Keep the remote control away from moisture, heat, shock, and
vibrations.
 Test of the remote control
Check the remote control after checking all the connections (see pages 8 - 10). Point the remote control directly at the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy music.
Preparation for Use
11
XL-UH220H
General control
 To turn the power on
Press the ON/STAND-BY button to turn the power on.
Basic Operation
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
 Illumination light control
When the power is turned on, ring around the volume control light up. To turn on/off the light, hold down the CLEAR/DIMMER button on the remote control for more than 2 seconds.
 Volume auto fade-in
If you turn off and on the main unit with the volume set to 27 or higher, the volume starts at 16 and fades in to the last set level.
 Volume control
Main unit operation:
When the VOLUME control is turned clockwise, the volume will increase. When it is turned anti-clockwise, the volume will decrease.
Remote control operation:
Press the VOLUME (+ or -) button to increase or decrease the volume.
.....
30 MAXIMUM0
 Bass control
When the power is first turned on, the unit will enter the extra bass mode which emphasises the bass frequencies, and "X-BASS" will appear. To cancel the extra button on the remote control
bass mode, press the X-BASS/DEMO .
 Equaliser
When the EQUALIZER MODE button on the remote control is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER MODE button repeatedly until the desired sound mode appears.
FLAT
ROCK
CLASSIC
POPS
VOCAL
JAZZ
No equalisation.
For rock music.
For classical music.
For pop music.
Vocals are enhanced.
For jazz.
12
Setting the clock (Remote Control only)
5
Press the or button to adjust the hour and then press the MEMORY button.
Press the or button once to advance the time by 1 hour. Hold it down to advance continuously.
Press the or button to adjust the minutes and then
6
press the MEMORY button.
In this example, the clock is set for the 24-hour (0:00) display.
1
Press the ON/STAND-BY button to turn the power on.
Press the CLOCK/TIMER button.
2
Within 10 seconds, press the or button to select
3
"CLOCK", and press the MEMORY button.
Press the or button to select 24-hour or 12-hour
4
display and then press the MEMORY button.
"0:00" The 24-hour display will appear. (0:00 - 23:59) "AM 12:00" The 12-hour display will appear. (AM 12:00 - PM 11:59) "AM 0:00" The 12-hour display will appear. (AM 0:00 - PM 11:59)
Press the or button once to advance the time by 1 minute. Hold it down to change the time in 5-minute intervals.
To confirm the time display:
[When the unit is in the stand-by mode] Press the CLOCK/TIMER button. The time display will appear for about 10 seconds.
[When the power is on] Press the CLOCK/TIMER button. Within 10 seconds, press the or button to display the time. The time display will appear for about 10 seconds.
Note:
The "CLOCK" will appear or time will flash to confirm the time display when the AC power supply is restored after a power failure or unplugging the unit. If incorrect, readjust the clock as follows.
To readjust the clock:
Perform "Setting the clock" from step 1. If the "CLOCK" does not appear in step 3, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:

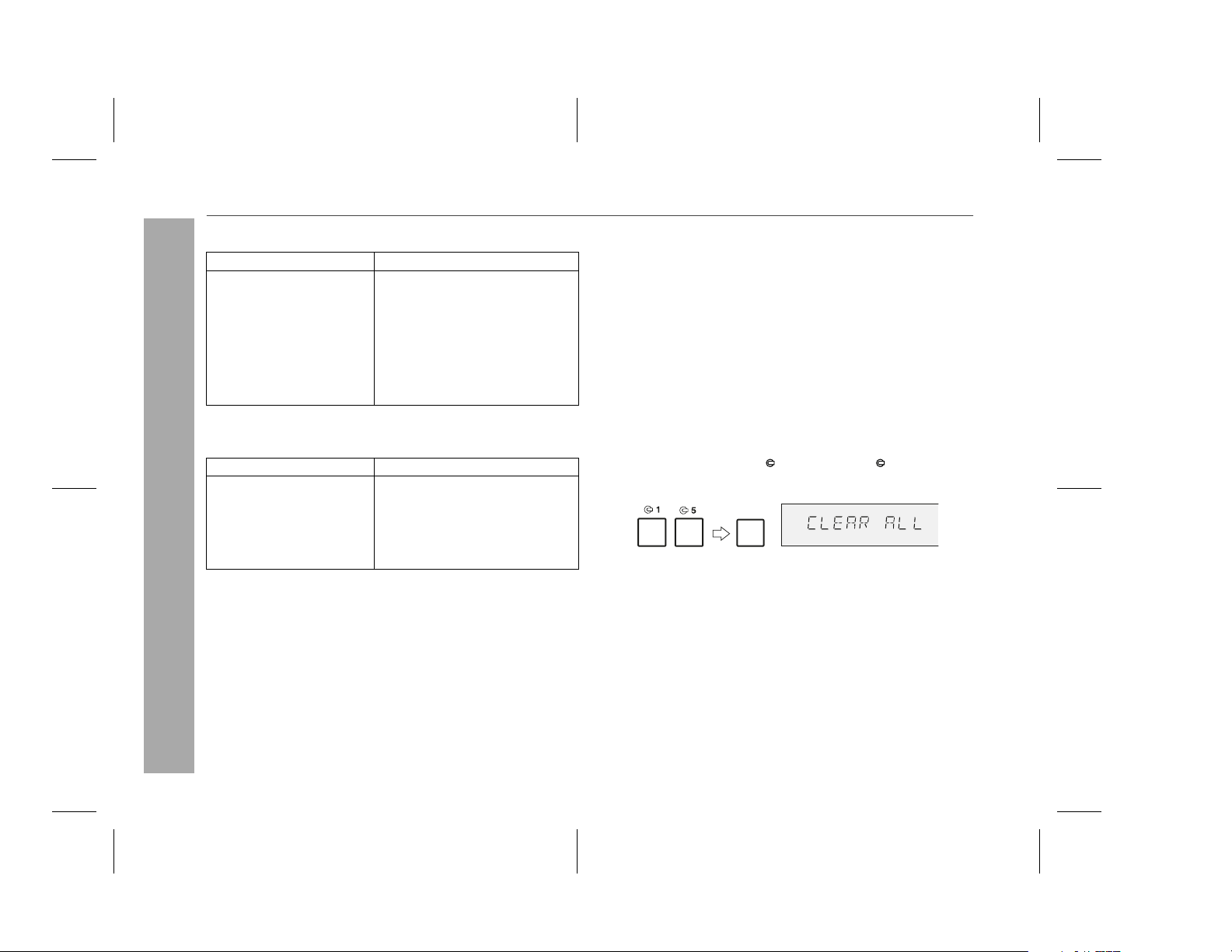

1 Clear all the programmed contents. [Refer to "Clearing all the
memory (reset)" on page 38 for details.]
2 Perform "Setting the clock" from step 1.
XL-UH220H
Basic Operation
13
XL-UH220H
Listening to a CD or MP3/WMA disc
This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.
MP3: MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.
 This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and
VBR files.
 During VBR file playback, time counter in the display may differ
from its actual playback time.
 Bitrate which is supported by MP3 is 32 ~ 320 kbps.
WMA: WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.
 "MP3" and "WMA" indicator will light up after the unit reads
information on an MP3 or WMA disc.
 Bitrate which is supported by WMA is 64 ~ 160 kbps.
Auto power on function:
When you press any of the following buttons, the unit turns on.
 CD button (main unit and remote control): The unit turns on and
the "CD" function is activated.
CD or MP3/WMA disc Playback
 CD / button on the remote control: The unit turns on and CD
playback starts (regardless of the last function).
 / button on the main unit: The unit turns on and playback of
the last function starts (CD,TUNER,VIDEO/AUX/USB).
Auto power off function:
In the stop mode of CD, MP3 or WMA operation, the main unit enters the stand-by mode after 15 minutes of inactivity.
14
XL-UH220H
1 Press the ON/STAND-BY button to turn the power on. 2 Press the CD button. 3 Press the 1 button and within 5 seconds, press the
OPEN/CLOSE button to open the disc tray 1.
4 Place the disc on the disc tray 1, label side up.
Be sure to place 8 cm (3") disc in the middle of the disc trays.
12 cm (5") 8 cm (3")
E M U
L O V
/
N O Y B
­D
N A T S
/
N
E P O
E
S O L C
O E D I V
/
R E N U T
X U A
/
) D N A B (
D C
5 Press the OPEN/CLOSE button to close the disc tray 1.
MP3 indicator
[CD]
Total number of tracks on the disc
Total playing time of the disc
[MP3/WMA]
Total number of files
WMA indicatorTOTAL indicator
Due to the structure of the disc information, it takes longer to
read an MP3/WMA disc than a normal CD (approximately 20 to 90 seconds).
6 You can place discs on the trays 2 - 5 by following steps
3 - 5.
7 Press the / button to start playback.
 Playback will begin from track 1 on DISC 1. After that disc
finishes playing, the next disc will automatically play.
 After the last track on the fifth disc is played, the unit will stop
automatically.
 When there is no disc in one of the disc trays (1 - 5), the empty
tray will be skipped to the next tray with a disc.
To exchange other discs whilst playing a disc:
Press one of the 1 - 5 buttons for the stopped disc and within 5 seconds, press the OPEN/CLOSE button and exchange discs.
To remove the discs:
In the stop mode, press the 1 - 5 button and within 5 seconds, press the OPEN/CLOSE button.
To skip to a desired disc:
Press one of the 1 - 5 buttons and within 5 seconds, press the
(CD ) button.
Caution:
 Do not place two discs in a same tray.  Do not play discs of special shapes (heart, octagon, etc).
It may cause malfunctions.
 Do not push the disc tray whilst it is moving.  If the power fails whilst the tray is open, wait until the power is
restored.
 If the disc tray is stopped with force, "ER-CD20" will appear on the
display for 3 seconds and the unit will not function. If this occurs, press the ON/STAND-BY button to enter the power stand-by mode and then turn the power on again.
 If TV or radio interference occurs during CD operation, move the
unit away from the TV or radio.
If a disc is damaged, dirty, or loaded upside down, the disc will be
skipped.
CD or MP3/WMA disc Playback
Disc play indicator
15
XL-UH220H
Listening to a CD or MP3/WMA disc (continued)
Various disc functions
Function Main unit Remote
Play Press in the stop
Stop Press in the playback
Pause Press in the playback
Track up/ Track down
Fast for­ward/Fast
CD or MP3/WMA disc Playback
reverse
control
Operation
mode.
mode.
mode. Press the / button to resume play­back from the paused point.
Press in the playback or stop mode.
If you press the button in the stop mode, press the / button to start the desired track.
Press and hold down in the playback mode.
Release the button to resume playback.
Notes for CD or MP3/WMA disc:
Track up/track down is possible only within individual discs.Fast forward/fast reverse is possible only within individual discs.When the end of the last track is reached during fast forward,
"END" will appear on the display and CD operation will be paused. When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode.
Rewritable multi session discs which writing is not finished, can
still be played.
16
Advanced CD or MP3/WMA disc playback
XL-UH220H
Direct track search
By using the direct search buttons, the desired tracks on the current disc can be played.
Use the direct search buttons on the remote control to select the desired track whilst playing the selected disc.
Selected track number
The direct search buttons allow you to select up to number 9.When selecting number 10 or higher, use the "+10" button.
A. For example, to choose 13
1 Press the "+10" button once. 2 Press the "1" button. 3 Press the "3" button.
B. For example, to choose 130
1 Press the "+10" button twice. 2 Press the "1" button. 3 Press the "3" button. 4 Press the "0" button.
Notes:
A track number higher than the number of tracks on the disc
cannot be selected.
During random play, direct search is not possible.
To stop playback:
Press the (CD ) button.
CD or MP3/WMA disc Playback
17
XL-UH220H
Advanced CD or MP3/WMA disc playback (continued)
Repeat play
Repeat play can play one disc, all 5 discs or a programmed sequence continuously.
To repeat one disc:
Press the / button twice.
To repeat all tracks on up to 5 discs:
Press the / button three times.
To repeat desired tracks (CD only):
Perform steps 1 - 6 in "Programmed play" section on page19 and then press the / button twice.
To cancel repeat play:
Press the / button again until " " will disappear.
CD or MP3/WMA disc Playback
Random play
The tracks on the disc(s) can be played in random order automatically.
To random play all tracks on up to 5 discs:
Press the RANDOM button on the remote control.
To cancel random play:
Press the / button. "R" will disappear.
Notes:
If you press the button during random play, you can move to
the track selected next by the random operation. On the other hand, the button does not allow you to move to the previous track. The beginning of the track being played will be located.
In random play, the unit will select and play tracks automatically.
(You cannot select the order of the tracks.)
Caution:
After performing repeat or random play, be sure to press the (CD
) button. Otherwise, the disc(s) will play continuously.
18
Advanced CD playback
XL-UH220H
Programmed play
You can choose up to 32 selections for playback in the order you like.
1 Whilst in the stop mode, press
the MEMORY button on the remote control to enter the programming save mode.
2 Press one of the 1 - 5 buttons
to select the desired disc.
Selected disc number
3 Press the direct search buttons
on the remote control to select the desired track.
Selected track number
You can also select a track by pressing the or button.
4 Press the MEMORY button to
save the track number.
5 Repeat steps 2 - 4 for other tracks. Up to 32 tracks can be
programmed.
If you make a mistake, the programmed tracks can be cleared by pressing the CLEAR/DIMMER button.
6 Press the (CD ) button.
The total number in memory will ap­pear.
7 Press the / button to start playback.
To clear the programmed selections:
Press the CLEAR/DIMMER button on the re­mote control whilst the "MEMORY" indicator is flashing.
Each time the button is pressed, one track will be cleared, beginning with the last track pro­grammed.
To cancel the programmed play mode:
Whilst in the stop mode and the "MEMORY" indicator is lit, press the CLEAR/DIMMER button on the remote control. The "MEMORY" in­dicator will disappear and all the programmed contents will be cleared.
Adding tracks to the programme:
If a programme has been previously stored, the "MEMORY" indicator will be displayed. Then follow steps 1 - 6 to add tracks. The new tracks will be stored after the last track of the original programme.
To check which tracks are programmed:
Whilst the unit is stopped in the programmed play mode, press the
or button.
Notes:
When a disc with programmed tracks is ejected, the programme
is automatically cancelled.
Even if you press the ON/STAND-BY button to enter the stand-by
mode or change the function from CD to another, the programmed selections will not be cleared.
During the programme operation, random play is not possible.
CD or MP3/WMA disc Playback
19
XL-UH220H
MP3/WMA folder mode (only for MP3/WMA files)
To playback MP3/WMA (Windows Media Audio) file
There are many music sites on the internet that you can download MP3/WMA (Windows Media Audio) music files. Follow the instructions from the website on how to download the music files. You can then playback these downloaded music files by burning them to a CD-R/RW disc or by connecting a USB Memory Player device. Your downloaded song/files are for personal use only. Any other
usage of the song without owner’s permission, is against the law.
About folder playback order
If MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically.
These folders can be selected by the FOLDER button on the remote control. If there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected.
Example: How to set folder number if MP3/WMA format files are recorded as below figure.
1. ROOT folder is set as folder 1.
2. As for folders inside ROOT folder (Folder A and Folder B), the folder which is recorded earlier on the disc will be set as folder 2.
3. As for folder inside Folder A (Folder C and Folder D), the folder which is recorded earlier on the disc will be set as folder 3.
4. Because there is no folder in Folder C, Folder D will be set as folder 4.
5. Folder E that is inside Folder D will be set as folder 5.
6. Folder B inside ROOT folder will be set as folder 6.
* The folder and file order information which is recorded on the disc depends on the writing software. There maybe possibilities that this
CD or MP3/WMA disc Playback
unit will playback the files not according to our expected playback order.
Folder mode on/off can be operated by the FOLDER button on the remote control. Files that are played when folder mode is set to the on position, may differ from those played back when folder mode is turned off.
Folder Mode Off case:
All the files starting from the selected folder or file will be played back. If file 3 inside Folder C is selected, all the files starting from file 3 will be played back.
Folder Mode On case:
All the files inside the selected folder will be played back. In case Folder D is selected, file 4, 5 and 6 will be played back. File 7 and 8 in Folder E will not be played back.
ROOT (FOLDER 1)
FOLDER A (FOLDER 2)
FOLDER C (FOLDER 3)
FOLDER D (FOLDER 4)
FILE 1 FILE 2 FILE 3
FILE 4 FILE 5 FILE 6 FOLDER E (FOLDER 5)
FILE 7 FILE 8
20
FOLDER B (FOLDER 6)
FILE 9 FILE 10
XL-UH220H
 Procedure to playback MP3/WMA disc
To playback CD-R/RW.
1
Press the CD button, and load a MP3/WMA disc.
 After disc is loaded, the disc info will be displayed.
MP3 indicator
Disc Name
Disc 1 Blinking
 In case folder is selected, proceed to step 2.  In case file is selected, proceed to step 4.
2
Press the FOLDER button, and press the TUNING ( or ) button to select desired playback folder. (Folder mode on)
FOLDER indicator
FOLDER number
 To start playback with folder mode on, go to step 5.  To change the playback folder, press the
select another folder.
3
Select desired file to be played back by pressing the or
button. Proceed to step 5.
WMA indicator
TOTAL indicator
Total number of files
Total files in Folder 3
TUNING ( or )
Select desired file to be played back by pressing the or
4
button. (Folder mode off)
Press the
5
Playback will start and file name will be displayed.
 Title, Artist & Album name is displayed if it is recorded on the disc.  Display content can be changed by pressing the DISPLAY button.
File Name Display Title Display
Function Display Artist Display
Clock Display Album Display
to
In case of playback with the folder mode on, press the or )
button, and the folder can be selected even though it is in playback/pause mode. It will continue playback/pause mode in the 1st track of the selected folder. ( 1)
MP3 ID3-Tag only support version 1.x.
( 2)
Only appears when clock is already set.
Note:
 If "NO SUPPORT" is displayed, it means "Copyright protected
WMA file" or "Not supported playback file" is selected.
/
(CD
/
) button.
TITLE-1 Indicator
TITLE-2 Indicator
TITLE-3 Indicator
( 1)
( 1) ( 2)
TUNING (
CD or MP3/WMA disc Playback
21
XL-UH220H
Listening to USB mass storage device / MP3 Player
USB Memory Playback
USB
Press the VIDEO/AUX/USB (USB/AUX) button, and push up
1
the USB door. Connect the USB Memory device that has MP3/WMA format files on the unit.
When the USB memory is connected to the main unit, the device information will be displayed.
MP3 indicator
Volume ID
 In case folder is selected, proceed to step 2.  In case file is selected, proceed to step 4.
Press the FOLDER button, and press the TUNING ( or )
2
button to select desired playback folder. (Folder mode on)
FOLDER indicator
WMA indicator
TOTAL indicator
Total number of files
Note:
This product is not compatible with MTP and AAC file systems.
22
FOLDER number
 To start playback with folder  To change the playback folder, press the TUNING ( or )
button to select another folder.
3
Select desired file to be played back by pressing the or
button. Proceed to step 5.
mode on
Total files in Folder 2
, go to step 5.
4
Select desired file to be played back by pressing the or
button. (Folder mode off)
Press the
5
Playback will start and the file name will be displayed.
 Title, Artist & Album name are displayed if they are recorded in
the USB memory device.
 Display content can be changed by pressing the DISPLAY button.
File Name Display Title Display
Function Display Artist Display
Clock Display Album Display
 ( 1) MP3 ID3-Tag only supports version 1.x.  ( 2) Only appears when clock is already set.
Note:
To pause playback: Press the
Auto power off function:
In the stop mode of USB operation, the main unit enters the stand-by mode after 15 minutes of inactivity.
/
CD/USB button.
(USB
/
) button.
TITLE-1 Indicator
TITLE-2 Indicator
TITLE-3 Indicator
( 1)
( 1) ( 2)
To remove USB memory device
Press the USB button on the remote control. Wait until
1
"UNPLUG OK" appears on FL display.
Disconnect USB memory device from the USB terminal.
2
Notes:
 SHARP will not be held liable for the loss of data whilst the USB
memory device is connected to the audio system.
 Files compressed in MP3 and / or WMA format can be played
back when connected to the USB terminal.
 This USB memory’s format supports FAT16 or FAT32.
 SHARP cannot guarantee that all USB memory devices will work
on this audio system.
 This USB memory cannot be operated via USB hub.
 If "NO SUPPORT" is displayed, it means "Copyright protected
WMA file" or "Not supported playback file" is selected.
 The USB terminal in this unit is not intended for a PC connection
but is used for music streaming with a USB memory device.
 In case the data inside the USB memory is large, it may take a
longer time for data to be read.
XL-UH220H
USB Memory Playback
23
XL-UH220H
Advanced USB playback
 Repeat play
Repeat play can play all tracks sequence continuously.
To repeat all tracks:
Press the / button twice.
To cancel repeat play:
Press the / button again until " " will disappear.
 Random play
The tracks can be played in random order automatically.
To random play all tracks:
Press the RANDOM button on the remote control.
To cancel random play:
USB Memory Playback
Press the / button. "R" will disappear.
Notes:
 If you press the button during random play, you can move to
the track selected next by the random operation. On the other hand, the button does not allow you to move to the previous track. The beginning of the track being played will be located.
 In random play, the unit will select and play tracks automatically.
(You cannot select the order of the tracks.)
Caution:
After performing repeat, be sure to press the (USB ) button. Otherwise, it will play continuously.
Note:
( ) When folder mode is on, the selected playmode can be used for
the files in the selected folder only.
Notes:
 This unit only supports "MPEG-1 Audio Layer-3" format.
(Sampling Frequency is 32, 44.1, 48kHz) "MPEG-2 Audio Layer-3" , "MPEG-2.5 Audio Layer-3" and MP1, MP2 format are not supported.
 Programme playback for USB memory is not available.
 Playback order for MP3 files may differ sometimes depending on
the writing software used during file download.
 Bitrate which is supported by MP3 is 32~320 kbps, WMA is
64~160 kbps.
 For MP3/WMA files, please put ".MP3" ".WMA" extension. Files
cannot be played back if there is no MP3/WMA extension.
 Playlists are not supported on this unit.
 This unit can display Folder Name or File Name up to 32
characters.
 This unit only supports MP3 ID3-Tag version 1.x.
 The display playback time may not be displayed correctly when
playing back a variable bitrate file.
 Time display cannot be changed by the DISPLAY button.
 Title name and artist name can be displayed by pressing the
DISPLAY button during file playback or pause mode.
 WMA meta tag also supports title, artist and album name which
are recorded in WMA files.
 Copyright protected WMA files cannot be played back.
24
Listening to the radio
Auto power on function:
When you press any of the following buttons, the unit turns on.
 TUNER (BAND) button (main unit and remote control): The unit
turns on and the "TUNER" function is activated.
 / button on the main unit: The unit turns on and playback of
the last function starts (CD,TUNER,VIDEO/AUX/USB).
Note:
This product can receive FM stereo/FM monaural and AM monaural broadcasts. AM stereo broadcasts will not be played in stereo.
 Tuning
1 Press the ON/STAND-BY button to turn the power on. 2 Press the TUNER (BAND) button repeatedly to select the
desired frequency band (FM or AM).
3 Press the TUNING ( or ) button on the remote control to
tune in to the desired station.
Manual tuning:
Press the TUNING ( or ) button as many times as required to tune in to the desired station.
Auto tuning:
When the TUNING ( or ) button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.
Notes:
 When radio interference occurs, auto scan tuning may stop
automatically at that point.
 Auto scan tuning will skip weak signal stations.  To stop the auto tuning, press the TUNING ( or  When an RDS (Radio Data System) station is tuned in, the fre-
quency will be displayed first, and then the RDS indicator will light up. Finally, the station name will appear.
Full auto tuning can be achieved for RDS stations "ASPM", see
page 28.
To receive an FM stereo transmission:
Press the TUNER (BAND) button to display the "ST" indicator.
" " will appear when an FM broadcast is in stereo.If the FM reception is weak, press the TUNER (BAND) button to
extinguish the "ST" indicator. The reception changes to monaural, and the sound becomes clearer.
FM stereo mode indicator
FM stereo receiving indicator
) button again.
XL-UH220H
Radio
25
XL-UH220H
Listening to the radio (continued)
Memorising a station
You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning)
1 Perform steps 1 - 3 in "Tuning" on page 25. 2 Press the MEMORY button to enter the preset tuning
saving mode.
3 Within 30 seconds, press the PRESET ( or ) button to
select the preset channel number.
Store the stations in memory, in order, starting with preset channel 1.
4 Within 30 seconds, press the MEMORY button to store that
station in memory.
Radio
If the "MEMORY" and preset number indicators disappear before the station is memorised, repeat the operation from step
2.
5 Repeat steps 1 - 4 to set other stations, or to change a
preset station.
When a new station is stored in memory, the station previously memorised for that preset channel number will be erased.
Note:
The backup function protects the memorised stations for a few hours should there be a power failure or the AC power lead become disconnected.
To recall a memorised station
Press the PRESET ( or ) button for less than 0.5 seconds to select the desired station.
To scan the preset stations
The stations saved in memory can be scanned automatically. (Preset memory scan)
Press the
1
The preset number will flash and the programmed stations will be tuned in sequentially, for 5 seconds each.
2 Press the PRESET ( or ) button again when the desired
station is located.
PRESET ( or )
button for more than 0.5 seconds.
To erase entire preset memory
1 Press the ON/STAND-BY button to enter the stand-by mode. 2 Whilst pressing down the 1 button and the 5 button, press
the TUNER (BAND) button until "TUNER CLEAR" appears.
26
Using the Radio Data System (RDS)
RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals along with their regular programme signals. They send their station names, and information about the type of programme such as sport, music, etc.
When tuned to an RDS station, "RDS" and the station name will be displayed. "TP" (Traffic Programme) will appear on the display when the received broadcast carries traffic information, and "TA" (Traffic Announcement) will appear whilst a traffic information is on air. "PTYI" (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is received.
You can control the RDS by using the buttons on the remote control only.
TUNER (BAND)
XL-UH220H
Information provided by RDS
Each time the RDS DISPLAY button is pressed, the display will switch as follows:
Station name (PS) Programme type (PTY)
Advanced Features
Frequency Radio text (RT)
When you are tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:
NO PS NO PTY
FM 98.80 MHz
NO RT
27
XL-UH220H
Using the Radio Data System (RDS) (continued)
 Using the Auto Station Programme Memory
(ASPM)
Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored. If you have already stored some stations in memory, the number of new stations you can store will be less.
Press the TUNER (BAND) button to select the FM band.
1 2
Press and hold down the RDS ASPM button on the remote control for at least 3 seconds.
1 After "ASPM" has flashed for about 4 seconds, scanning will
start (87.50 - 108.00 MHz).
2 When an RDS station is found, "RDS" will appear for a short
time and the station will be stored in memory.
Advanced Features
3 After scanning, the number of stations stored in memory will
be displayed for 4 seconds, and then "END" will appear for 4 seconds.
To stop the ASPM operation before it is complete:
Press the RDS ASPM button whilst it is scanning for stations. The stations which are already stored in memory will be kept there.
Notes:
 If the same station is broadcasting on different frequencies, the
strongest frequency will be stored in memory.
 Any station which has the same frequency as one stored in
memory will not be stored.
 If 40 stations have already been stored in memory, the scan will
be aborted. If you want to redo the ASPM operation, erase the preset memory.
 If no stations have been stored in memory, "END" will appear for
about 4 seconds.
 If the RDS signals are very weak, station names may not be
stored in memory.
To erase all of the contents of preset memory:
1 Press the ON/STAND-BY button to enter the power stand-by
mode.
2 Whilst pressing down the 1 button and the 5 button, press the
TUNER (BAND) button until "TUNER CLEAR" appears.
 After performing this operation, all of the preset memory
information will be erased.
To store a station name again if the wrong name was stored in memory:
It may be impossible to store station names in memory using the ASPM function if there is lots of noise or if the signal is too weak. In this case, perform as follows.
1 Press the PRESET (
are correct.
2 If you find a wrong name during receiving the station, wait until the
correct name will be displayed. And then press the MEMORY button.
3 Within 30 seconds, press the MEMORY button whilst the preset
channel number is flashing.
 The new station name has been stored in memory correctly.
or ) button to check whether the names
28
XL-UH220H
Notes:
 The same station name can be stored in different channels.  In a certain area or during certain time periods, the station names
may temporarily be different.
 Notes for RDS operation
If any of the following events occur, it does not mean that the unit is faulty:
 "PS", "NO PS" and a station name appear alternately, and the unit
does not operate properly.
 If a particular station is not broadcasting properly or a station is
conducting tests, the RDS reception function may not work properly.
 When you receive an RDS station whose signal is too weak,
information like the station name may not be displayed.
 "NO PS", "NO PTY" or "NO RT" will flash for about 5 seconds, and
then the frequency will be displayed.
Notes for radio text:
 The first 10 characters of the radio text will appear for 4 seconds
and then they will scroll across the display.
 If you tune in to an RDS station which is not broadcasting any
radio text, "NO RT" will be displayed when you switch to the radio text position.
 Whilst radio text data is received or when the text contents
change, "RT" will be displayed.
 To recall stations in memory
To specify programmed types and select stations (PTY search):
You can search a station by specifying the programme type (news,
sports, traffic programme, etc. ... see pages 30 - 31) from the stations
in memory.
Press the TUNER (BAND) button to select the FM.
1 2
Press the RDS PTY button on the remote control.
"SELECT" and "PTY TI" will appear alternately for about 6 sec­onds.
3
Within 6 seconds, press the PRESET ( or ) button to se­lect the programme type.
Each time the button is pressed, the programme type will ap­pear. If the button is held down for more than 0.5 seconds, the programme type will appear continuously.
Whilst the selected programme type is flashing (within 6
4
seconds), press the RDS PTY button again.
After the selected programme type has been lit for 2 seconds, "SEARCH" will appear, and the search operation will start.
Advanced Features
29
XL-UH220H
Using the Radio Data System (RDS) (continued)
Notes:
 If the display has stopped flashing, start again from step 2. If the
unit finds a desired programme type, the corresponding channel number will flash for about 4 seconds, and then the station name will flash for 7 seconds, which will remain lit.
 If you want to listen to the same programme type of another
station, press the RDS PTY button whilst the channel number or station name is flashing. The unit will look for the next station.
 If no station can be found, "NOT FOUND" will appear for 4
seconds.
If you select the traffic programme:
If you select the traffic programme (TP) in step 3, "TP" will appear. (This does not mean that you can listen to the traffic information at that time.) When the traffic information is broadcast, "TA" will appear.
To specify station names and select stations manually:
You can select a station by specifying the name (BBC R1, BBC R2, etc.) from the stations stored in memory. Before starting this operation, you must store one or more station names in memory.
1 Press the TUNER (BAND) button to select the FM band. 2 Press the PRESET (
Advanced Features
select a desired station.
3 The station name will be displayed for 6 seconds. Then the
display will change.
or ) button on the remote control to
Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and TA (Traffic Announcement).
You can search for and receive the following PTY, TP and TA signals.
NEWS
AFFAIRS Topical programme expanding or enlarging upon
INFO
SPORT
EDUCATE Programme intended primarily to educate, of which
DRAMA
CULTURE Programmes concerned with any aspect of national
SCIENCE Programmes about the natural sciences and
VARIED
POP M
ROCK M
EASY M
Short accounts of facts, events and publicly expressed views, reportage and actuality.
the news, generally in different presentation style or concept, including debate, or analysis.
Programmes whose purpose is to impart advice in the widest sense.
Programme concerned with any aspect of sport.
the formal element is fundamental. All radio plays and serials.
or regional culture, including language, theatre, etc.
technology. Used for mainly speech-based programmes usually
of light-entertainment nature, not covered by other categories. Examples include: quizzes, panel games, personality interviews.
Commercial music, which would generally be considered to be of current popular appeal, often featuring in current or recent record sales charts.
Contemporary modern music, usually written and performed by young musicians.
Current contemporary music considered to be "easy-listening", as opposed to Pop, Rock or Classical, or one of the specialised music styles, Jazz, Folk or Country. Music in this category is often but not always, vocal, and usually of short duration.
30
TP
TA
XL-UH220H
LIGHT M
CLASSICS Performances of major orchestral works,
OTHER M Musical styles not fitting into any of the other
WEATHER Weather reports and forecasts and meteorological
FINANCE Stock Market reports, commerce, trading, etc.
CHILDREN For programmes targeted at a young audience,
SOCIAL
RELIGION Any aspect of beliefs and faiths, involving a God or
PHONE IN Involving members of the public expressing their
TRAVEL
LEISURE Programmes concerned with recreational activities
JAZZ
Classical music for general, rather than specialist appreciation. Examples of music in this category are instrumental music, and vocal or choral works.
symphonies, chamber music, etc., and including Grand Opera.
categories. Particularly used for specialist music of which Rhythm & Blues and Reggae are examples.
information.
primarily for entertainment and interest, rather than where the objective is to educate.
Programmes about people and things that influence them individually or in groups. Includes: sociology, history, geography, psychology and society.
Gods, the nature of existence and ethics.
views either by phone or at a public forum. Features and programmes concerned with travel to
near and far destinations, package tours and travel ideas and opportunities. Not for use for announcements about problems, delays, or roadworks affecting immediate travel where TP/TA should be used.
in which the listener might participate. Examples include, Gardening, Fishing, Antique collecting, Cooking, Food & Wine, etc.
Polyphonic, syncopated music characterised by improvisation.
COUNTRY Songs which originate from, or continue the musical
NATION M Current Popular Music of the Nation or Region in
OLDIES
FOLK M
DOCUMENT Programme concerned with factual matters,
TEST
ALARM ! Emergency announcement made under
NONE
tradition of the American Southern States. Characterised by a straightforward melody and narrative story line.
that country's language, as opposed to International 'Pop' which is usually US or UK inspired and in English.
Music from the so-called "golden age" of popular music.
Music which has its roots in the musical culture of a particular nation, usually played on acoustic instruments. The narrative or story may be based on historical events or people.
presented in an investigative style. Broadcast when testing emergency broadcast
equipment or receivers.
exceptional circumstances to give warning of events causing danger of a general nature.
No programme type (receive only). Broadcasts which carry traffic announcements. Traffic announcements are being broadcast.
Advanced Features
31
XL-UH220H
Timer and sleep operation (Remote Control only)
Timer playback:
The unit turns on and plays the desired source (CD, TUNER, VIDEO/AUX/USB) at a preset time.
This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.
Once timer: Once timer play works for one time only at a preset
Daily timer: Daily timer play works at the same preset time
For example, set the timer as a wake-up call every morning.
Using the once timer and daily timer in combination:
For example, use the once timer to listen to a radio programme, and use the daily timer to wake up.
1 Set the daily timer (pages 32 - 34). 2 Set the once timer (pages 32 - 34).
Advanced Features
Note:
When set times for the daily timer and once timer overlap, the once timer takes priority. Allow an interval of at least 1 minute between operations.
Daily timer
Start
time.
every day.
1 minute or more
Once timer
Stop Start Stop
 Timer playback
Before setting timer:
1 Check that the clock is set to the correct time (refer to page 13).
If it is not set, you cannot use the timer function.
2 For timer playback: Load discs to be played.
1
Press the ON/STAND-BY button to turn the power on.
Press the CLOCK/TIMER button.
2 3
Within 10 seconds, press the or button to select "ONCE" or "DAILY ", and press the MEMORY button.
Set the clock to the correct time if "ONCE" or "DAILY" does not appear.
Continued to the next page
32
XL-UH220H
4
Within 10 seconds, press the or button to select "ONCE SET" or "DAILY SET", and press the MEMORY but-
ton.
Press the or button to adjust the hour and then
5
press the MEMORY button.
The illustrations show the timer playback setting in the daily tim­er mode.
6
Press the or button to adjust the minutes and then press the MEMORY button.
Set the time to finish as in steps 5 and 6 above.
7
8
Switch input with the or button, and then press the MEMORY button.
To select the timer playback source: CD or TUNER.
 When you select the tuner, select a station by pressing the
or button, and then press the MEMORY button.
 If a station has not been programmed, "NO PRESET" will
be displayed and timer setting will be cancelled.
9
Adjust the volume using the VOLUME control, and then press the MEMORY button.
Do not turn the volume up too high.
10
Press the ON/STAND-BY button to enter the power stand- by mode.
The "TIMER" indicator lights up and the unit is ready for timer playback.
Continued to the next page
Advanced Features
33
XL-UH220H
Timer and sleep operation (Remote Control only) (continued)
11
When the preset time is reached, playback will start.
The volume will increase gradually until it reaches the preset volume.
12
When the timer end time is reached, the system will enter the power stand-by mode automatically.
Once timer:
The timer will be cancelled.
Daily timer:
The timer will operate at the same time every day. It will continue until the daily timer setting is cancelled. Cancel the daily timer when it is not in use.
Note:
When performing timer playback using another unit connected to the USB terminal or AUX IN sockets, select "USB" or "AUX" in step 8.
This unit will turn on or enter the power stand-by mode automatically, however, the connected unit to AUX IN sockets will not turn on or off.
Advanced Features
Checking the timer setting in the timer stand-by mode:
1 Press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select "ONCE"
or "DAILY", and press the MEMORY button.
3 Within 10 seconds, press the or button to select "ONCE
CALL" or "DAILY CALL", and press the MEMORY button. The unit returns to the timer stand-by mode after displaying the
settings in order.
Cancelling the timer setting in the timer stand-by mode:
1 Press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select "ONCE"
or "DAILY", and press the MEMORY button.
3 Within 10 seconds, press the or button to select "ONCE
OFF" or "DAILY OFF", and press the MEMORY button. Timer will be cancelled (the setting will not be cancelled).
Reusing the memorised timer setting:
The timer setting will be memorised once it is entered. To reuse the same setting, perform the following operations.
1 Turn the power on and press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select "ONCE"
or "DAILY", and press the MEMORY button.
3 Within 10 seconds, press the or button to select "ONCE
ON" or "DAILY ON", and press the MEMORY button.
4 Press the ON/STAND-BY button to enter the power stand-by
mode.
34
XL-UH220H
 Sleep operation
The radio, compact disc and USB can all be turned off automatically.
1
Play back the desired sound source.
Press the CLOCK/TIMER button.
2 3
Within 10 seconds, press the
or button to select "SLEEP", and press the MEMORY button.
4
Press the or button to select the time.
(Maximum: 3 hours - Minimum: 1 minute)
3 hours - 5 minutes 5-minute intervals5 minutes - 1 minute 1-minute intervals
5 Press the MEMORY button.
"SLEEP" will appear.
6 The unit will enter the power stand-by mode automatically
after the preset time has elapsed.
The volume will be turned down 1 minute before the sleep op­eration finishes.
To confirm the remaining sleep time:
1 Whilst "SLEEP" is indicated, press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select "SLEEP
X : XX". "X : XX" is sleep remaining time.
The remaining sleep time is displayed for about 10 seconds.You can change the remaining sleep time whilst it is displayed by
pressing the MEMORY button (steps 4 - 5).
To cancel the sleep operation:
Press the ON/STAND-BY button whilst "SLEEP" is indicated. To cancel the sleep operation without setting the unit to the stand-by mode, proceed as follows.
1 Whilst "SLEEP" is indicated, press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select "SLEEP
OFF", and press the MEMORY button.
 To use timer and sleep operation together
Sleep and timer playback:
For example, you can fall asleep listening to the radio and wake up to CD in the next morning.
1 Set the sleep time (see left, steps 1 - 5). 2 Whilst the sleep timer is set, set the timer playback (steps 2 -
10, pages 32 - 33).
Sleep timer setting
1 minute - 3 hours Desired time
Sleep operation will automatically stop.
Timer playback setting
Timer playback start time
End time
Advanced Features
35
XL-UH220H
Enhancing your system
The connection lead is not included. Purchase a commercially avail­able lead as shown below.
VIDEO/AUX IN
RIGHT LEFT
ANTENNA
FM
GND
AM
75 OHMS
VIDEO/AUX IN
RIGHT LEFT
SPEAKERS
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
RIGHT
LEFT
SUBWOOFER
PRE-OUT
Advanced Features
Auto power on function (USB/AUX):
When you press any of the following buttons, the unit turns on. VIDEO/AUX/USB button (main unit and remote control): The unit
turns on and the "USB" function is activated.
/ button on the main unit: The unit turns on and playback of
the last function starts (CD,TUNER,VIDEO/AUX/USB).
Listening to the playback sounds from VCR,
DVD, etc.
1 Use a connection lead to connect the VCR, DVD, etc. to the
VIDEO/AUX IN sockets.
When using video equipment, connect the audio output to this unit and the video output to a television.
2 Press the ON/STAND-BY button to turn the power on. 3 Press the VIDEO/AUX/USB (USB/AUX) button. 4 Play the connected equipment.
Note:
To prevent noise interference, place the unit away from the television.
Headphones
Before plugging in or unplugging the headphones, reduce the
volume.
Be sure your headphones have a 3.5 mm (1/8") diameter plug and
impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.
Plugging in the headphones disconnects the speakers
automatically. Adjust the volume using the VOLUME control.
36
Troubleshooting chart
XL-UH220H
Subwoofer connection
When a commercially available subwoofer with a built-in amplifier is connected to this unit, you can enjoy sound with emphasised bass. Connect an RCA lead from a commercially available speaker with a built-in amplifier to the SUBWOOFER PRE-OUT socket.
ANTENNA
FM
GND
AM
75 OHMS
VIDEO/AUX IN
RIGHT LEFT
SPEAKERS
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
RIGHT
LEFT
PRE-OUT
SUBWOOFER
PRE-OUT
SUBWOOFER
Subwoofer with a built-in amplifier
Many potential problems can be resolved by the owner without calling a service technician. If something is wrong with this product, check the following before calling your authorised SHARP dealer or service centre.
General
Symptom Possible cause
The clock is not set to the
correct time.
When a button is pressed,
the unit does not respond.
Did a power failure occur? Reset
the clock.
Set the unit to the power stand-
by mode and then turn it back on.
If the unit still malfunctions, reset
it.
No sound is heard. Is the volume level set to "0"?
Are the headphones connected?Are the speaker wires discon-
nected?
CD player
Symptom Possible cause
Playback does not start. Is the disc loaded upside down?Playback stops in the
middle or is not performed properly.
Playback sounds are
skipped, or stopped in the middle of a track.
Does the disc satisfy the
standards?
Is the disc distorted or
scratched?
Is the unit located near excessive
vibrations?
Is the disc very dirty?Has condensation formed inside
the unit?
References
37
XL-UH220H
Troubleshooting chart (continued)
Remote control
Symptom Possible cause
The remote control does
not operate.
Is the AC power lead of the unit
plugged in?
Is the battery polarity correct?Are the batteries dead?Is the distance or angle
incorrect?
Does the remote control sensor
receive strong light?
Tuner
Symptom Possible cause
The radio makes unusual
noises continuously.
References
Is the unit placed near the TV or
computer?
Is the FM aerial or AM loop aerial
placed properly? Move the aerial away from the AC power lead if it's located nearby.
Condensation
Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, etc.) or on the transmitter on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.
If trouble occurs
When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again. 2 If the unit is not restored in the previous operation, unplug and
plug in the unit, and then turn the power on.
Note:
If neither operation above restores the unit, clear all the memory by resetting it.
Clearing all the memory (reset)
1 Press the ON/STAND-BY button to enter the power stand-by
mode.
2 Whilst pressing down the 1 button and the 5 button, press
the ON/STAND-BY button until "CLEAR ALL" appears.
ON/
STAND-BY
Caution:
This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programme.
38
Maintenance
XL-UH220H
Before transporting the unit
Remove all CDs from the unit. Make sure there is no CD in the disc tray. Then, set the unit to the power stand-by mode. Carrying the unit with discs left inside can damage the unit.
Care of compact discs
Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player. Do not write on either side of the disc, particularly the non-label
side from which signals are read. Do not mark this surface.
Keep your discs away from direct sunlight, heat, and excessive
moisture.
Always hold the CDs by the edges. Fingerprints, dirt, or water on
the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.
NO YES
Correct
Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.
Caution:
Do not use chemicals for cleaning (petrol, paint thinner, etc.). It
may damage the cabinet finish.
Do not apply oil to the inside of the unit. It may cause
malfunctions.
References
39
XL-UH220H
Specifications
As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.
General
Power source AC 230 ~ 240V, 50 Hz Power
consumption Dimensions Width: 175 mm (6-3/4")
Weight 5.3 kg (11.7 lbs.)
( * )This power consumption value is obtained when the
demonstration mode is cancelled in the power stand-by mode. Refer to page 10 to cancel the demonstration mode.
Power on: 100 W Power stand-by: 0.6 W(*)
Height: 240 mm (9-1/2") Depth: 315 mm (12-1/5")
Amplifier
Output power MPO: 182 W (91 W + 91 W) (10% T.H.D.)
References
Output terminals Speakers: 6 ohms
Input terminals Video/Auxiliary (audio signal):
RMS: 100 W (50 W + 50 W) (10% T.H.D.) RMS: 76 W (38 W + 38 W) (0.9% T.H.D.)
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Subwoofer pre-out (audio signal): 200 mV/10 k ohms at 70 Hz
500 mV/47 k ohms
USB
Class Mass storage class Support File MP3/WMA (do not support DRM file) Format support FAT 16 or FAT 32 Bitrate support MP3 (32 ~ 320 kbps)
Other MP3 lD3 - tag only supports version 1.x
WMA (64 ~ 160 kbps)
USB supports version 2.0
CD player
Type 5-disc multi-play compact disc player Signal readout Non-contact, 3-beam semiconductor laser
D/A converter 1-bit D/A converter Frequency
response Dynamic range 90 dB (1 kHz)
pickup
20 - 20,000 Hz
Tuner
Frequency range FM: 87.5 - 108 MHz
AM: 522 - 1,620 kHz
Speaker
Type 2-way type speaker system
Maximum input power
Rated input power 50 W Impedance 6 ohms Dimensions Width: 185 mm ( 7-1/4")
Weight 2.4 kg (5.3 lbs.)/each
5 cm (2") tweeter 13 cm (5-1/8") woofer
100 W
Height: 260 mm (10-1/4") Depth: 205 mm (8-1/16")
40
MEMO
MEMO 11/16/05, 4:41 PM1
MEMO
MEMO 11/16/05, 4:41 PM3
FOR LOCATION ENQUIRIES WITHIN
FOR LOCATION ENQUIRIES WITHIN
AUSTRALIA
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
www.sharp.net.au
OR CALL SHARP CUSTOMER CARE
1300 135 022
(LOCAL CALL COST APPLY WITHIN AUSTRALIA)
SHARP CORPORATION OF AUSTRALIA PTY LTD
NEW ZEALAND
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
www.sharp.net.nz
CONTACT YOUR SELLING DEALER/RETAILER
OR CALL
SHARP CUSTOMER SERVICES
TELEPHONE: 09 573 0111
FACSIMILE: 09 573 0113
SHARP CORPORATION OF NEW ZEALAND LIMITED
SPform019(JUNE 2004)
XL-UH220HA Back 1/4/06, 7:43 PM1
WARRANTY
Consumer Electronic Products
Congratulations on Your Purchase!
This Sharp product is warranted against faults in materials and manufacture for a period of twelve(12) months from the date of original purchase.
If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre. These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
The owner is responsible for any transportation and insurance costs if the product has to be returned for repair.
This warranty does not extend to accessories or defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim.
This warranty is in addition to and in no way limits, varies or excludes any express and implied rights and remedies under any relevant legislation in the country of sale.
IMPORTANT
DO NOT RETURN THIS DOCUMENT TO SHARP
For your reference, please enter the particulars of your purchase below and retain, with your purchase documentation.
Model No.
Serial No.
IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand
Date of Purchase
Retailer
SHARP CORPORATION O
NEW
59 H
SHARP CORPORATION OF
AUSTRALIA PTY. LIMITED
ABN 40 003 039 405
1 Huntingwood Drive
2148
Huntingwood NSW
ZEALAND LIMITED
ugo Johnston Drive
Penrose, Auckland
U
(J
4
1
0
m r
fo
P
S
F
)
4
0
0
2
E
N
XL-UH220HA Back 1/4/06, 7:44 PM2
SHARP CORPORATION
TINSE A126 AWZZ
06B R MW 1
Loading...
