Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.
MICRO COMPONENT SYSTEM
MODEL
XL-MP110E
OPERATION MANUALOPERATION MANUAL
XL-MP110E Micro Component System consisting of XL-MP110E (main
unit) and CP-MP110E (speaker system).
03/12/17 XL-MP110EE_FRONT.fm
TINSEA016AWZZ
XL-MP110E
Special notes
The mains lead of this product is fitted with a non-rewireable
(moulded) plug incorporating a 3A fuse. Should the fuse need to
be replaced, a BSI or ASTA approved BS 1362 fuse marked
and of the same rating as above, which is also indicated on
the pin face of the plug must be used.
Always refit the fuse cover after replacing the fuse. Never use
the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being
compatible with the plug supplied, cut-off the mains plug and fit
an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off
plug destroyed immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet as a serious electric shock may
occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
IMPORTANT:
Important Instruction
The wires in the mains lead are coloured in accordance with the
following code:
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this product may
not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
● The wire which is coloured blue must be connected to the plug
terminal which is marked N or coloured black.
● The wire which is coloured brown must be connected to the
plug terminal which is marked L or coloured red.
NOTES FOR USERS IN THE U.K. AND IRELAND
Ensure that neither the brown nor the blue wire is connected to
the earth terminal in your three pin plug.
or
Before replacing the plug cover, make sure that:
● If the new fitted plug contains a fuse, its value is the same as
that removed from the cut-off plug.
● The cord grip is clamped over the sheath of the mains lead
and not simply over the lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SERVICE INFORMATION
In the unlikely event of your equipment requiring repair, please
contact the dealer or supplier from whom it was purchased. Where
this is not possible, please visit our web-site www. sharp.co.uk/
customersupport.
Customers without internet access may telephone 08705
274277 during office hours (or (01) 676 0648 if telephoning
from lreland).
Please note; all calls will be charged at local rate.
Certain replacement parts and accessories may be obtained from
our main parts distributor.
WILLOW VALE ELECTRONICS LTD.
In the unlikely event of this equipment requiring repair during the
guarantee period, you will need to provide proof of the date of
purchase to the repairing company.
Please keep your invoice or receipt, which is supplied at the
time of purchase.
0121 766 5414
2
03/12/17 XL-MP110EE 2-10.fm
Special notes
WARNINGS:
When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the ON/
STAND-BY button is set at STAND-BY position, the unit may be
brought into operation by the timer mode or remote control.
This unit contains no user serviceable parts. Never remove covers
unless qualified to do so. This unit contains dangerous voltages,
always remove mains plug from the socket before any service
operation and when not in use for a long period.
To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as vases,
shall be placed on the apparatus.
CAUTION:
This product is classified as a CLASS 1 LASER product.
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
As the laser beam used in this compact disc player is harmful to
the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
Laser Diode Properties
Material: GaAIAs
Wavelength: 795 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
NOTES:
Recording and playback of any material may require consent,
which SHARP is unable to give. Please refer particularly to the
provisions of the Copyright Act 1956, the Dramatic and Musical
Performers Protection Acts 1958, the Performers Protection Acts
1963 and 1972 and to any subsequent statutory enactments and
orders.
This equipment complies with the requirements of Directives 89/
336/EEC and 73/23/EEC as amended by 93/68/EEC.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN.
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS.
WARNUNG-UNSICHTBARE LASERSTRAHLUNG WENN GERÄT
GEÖFFNET. NICH IN DIE STRAHLUNG SCHAUEN ODER
DIREKT MIT OPTISCHEN HILFSMITTELN BETRACHTEN.
ATTENTION-RAYON LASER INVISIBLE EN CAS D'OUVERTURE.
NE PAS REGARDER LE FAISCEAU DIRECTEMENT OU AVEC DES
INSTRUMENTS OPTIQUES.
Information on Proper Disposal
A. Information on Disposal for Users (private
households)
1. In the European Union
Attention: If you want to dispose of this equipment,
please do not use the ordinary dust bin!
Used electrical and electronic equipment must be treated
separately and in accordance with legislation that
requires proper treatment, recovery and recycling of used
electrical and electronic equipment.
Following the implementation by member states, private
households within the EU states may return their used
Attention: Your product is marked with
this symbol. It
means that used
electrical and electronic products
should not be mixed
with general household waste. There is
a separate collection system for
these products.
electrical and electronic equipment to designated
collection facilities free of charge*. In some countries*
your local retailer may also take back your old product
free of charge if you purchase a similar new one.
*) Please contact your local authority for further details.
If your used electrical or electronic equipment has
batteries or accumulators, please dispose of these
separately beforehand according to local requirements.
By disposing of this product correctly you will help ensure
that the waste undergoes the necessary treatment,
recovery and recycling and thus prevent potential
negative effects on the environment and human health
which could otherwise arise due to inappropriate waste
handling.
2. In other Countries outside the EU
If you wish to discard this product, please contact your
local authorities and ask for the correct method of
disposal.
For Switzerland: Used electrical or electronic equipment
can be returned free of charge to the dealer, even if you
don't purchase a new product. Further collection facilities
are listed on the homepage of www.swico.ch or
www.sens.ch.
B. Information on Disposal for Business Users
1. In the European Union
If the product is used for business purposes and you
want to discard it:
Please contact your SHARP dealer who will inform you
about the take-back of the product. You might be charged
for the costs arising from take-back and recycling. Small
products (and small amounts) might be taken back by
your local collection facilities.
For Spain: Please contact the established collection
system or your local authority for take-back of your used
products.
2. In other Countries outside the EU
If you wish to discard of this product, please contact your
local authorities and ask for the correct method of
disposal.
XL-MP110E
General Information
3
03/12/17 XL-MP110EE 2-10.fm
XL-MP110E
Special note
Supply of this product does not convey a license nor imply any right
to distribute content created with this product in revenue-generating
broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating
content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives,
memory cards and the like). An independent license for such use is
required. For details, please visit http://mp3licensing.com.
MPEG Layer-3 audio coding technology licensed from Fraunhofer
IIS and Thomson.
Accessories
Please confirm that the following accessories are included.
General Information
Remote control 1 AM loop aerial 1
Contents
Page
General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 9
Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . 16 - 19
Advanced CD or MP3/WMA disc playback . . . . . . . . . . . 20 - 22
Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 - 24
Tape Playback
Listening to a cassette tape . . . . . . . . . . . . . . . . . . . . . . . 25 - 26
Tape Recording
Recording on a cassette tape . . . . . . . . . . . . . . . . . . . . . . 26 - 28
Advanced Features
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . 29 - 32
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 - 34
FM aerial 1
Note:
Only the above accessories are included.
4
References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 - 36
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
TERMS OF GUARANTEE . . . . . . . . . . . . . . . . . . . . . . Back cover
03/12/17 XL-MP110EE 2-10.fm
Precautions
General
Please ensure that the equipment is positioned in a well ventilated
area and ensure that there is at least 10 cm (4") of free space
along the sides, top and back of the equipment.
10 cm (4")10 cm (4")
POWER/
CD
XL-MP110
MICRO COMPONENT SYSTEM
Use the unit on a firm, level surface free from
vibration.
Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust,
humidity and electronic/electrical equipment (home computers, facsimiles, etc.)
which generate electrical noise.
Do not place anything on top of the unit.
Do not expose the unit to moisture, to temperatures higher than
C (140
60
If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
In case of an electrical storm, unplug the
unit for safety.
F) or to extremely low temperatures.
˚
˚
10 cm (4")
10 cm (4")
Hold the AC power plug by the head when
removing it from the wall socket, as pulling
the lead can damage internal wires.
Do not remove the outer cover, as this
may result in electric shock. Refer internal service to your local SHARP service
facility.
The ventilation should not be impeded by
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.
No naked flame sources, such as lighted candles, should be
placed on the apparatus.
Attention should be drawn to the environmental aspects of battery
disposal.
The apparatus is designed for use in moderate climate.
This unit should only be used within the range of 5˚C - 35˚C
(41˚F - 95˚F).
Warning:
The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident
causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which
is specified.
Volume control
The sound level at a given volume setting depends on speaker efficiency, location and various other factors. It is advisable to avoid exposure to high volume levels, which occurs whilst turning the unit on
with the volume control setting up high, or whilst continually listening
at high volumes.
XL-MP110E
General Information
5
03/12/17 XL-MP110EE 2-10.fm
XL-MP110E
Controls and indicators
/
General Information
Front panel
Reference page
1. Disc Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2. Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . 15, 29, 32
5. Tape Record Pause Button . . . . . . . . . . . . . . . . . . . . . . 27, 36
6. Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8. Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . 16, 17
9. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . 16, 17
10. Disc Direct Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
12. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
13. Memory/Set Button . . . . . . . . . . . . . . . . . . . 15, 22, 24, 29, 32
14. Equalizer Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . 14
15. Extra Bass/Demo Mode Button . . . . . . . . . . . . . . . . . . . 14, 36
16. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
17. Tape Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18. Disc Track Down or Fast Reverse, Tape Rewind,
Tuner Preset Down, Time Down Button . . . 15, 18, 24, 26, 29
19. Disc Track Up or Fast Forward, Tape Fast Forward,
Tuner Preset Up, Time Up Button . . . . . . . . 15, 18, 24, 26, 29
20. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
21. Video/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
22. Disc Play or Repeat, Tape Play Button . . . . . . 16, 17, 21, 26
23. Tuning Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 36
24. Tuning Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 24
25. Disc or Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . 18, 26
CD
6
03/12/17 XL-MP110EE 2-10.fm
XL-MP110E
1211
13
976 8321 4 5
14
1615 17
10
Display
1. Disc Number Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2. Disc Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3. Disc Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5. Disc Repeat Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 21
6. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7. CD Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9. Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10. Tape Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
11. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
12. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
13. Timer Recording Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 30
14. Tape Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
15. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 23
16. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
17. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 23
Reference page
General Information
03/12/17 XL-MP110EE 2-10.fm
7
XL-MP110E
Controls and indicators (continued)
1
2
General Information
1
2
AC INPUT
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
SPEAKERS
RIGHT
LEFT
ANTENNA
Rear panel
Reference page
1. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2. AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. Video/Auxiliary (Audio Signal) Input Sockets . . . . . . . . . . 33
6. Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
AM
3
LOOP
FM
75 OHMS
VIDEO/AUX
RIGHT LEFT
4
IN
5
7. Subwoofer Pre-output Socket . . . . . . . . . . . . . . . . . . . . . . . 34
6
SUBWOOFER
7
PRE-OUT
Speaker system
3
1. Tweeter
2. Woofer
3. Bass Reflex Duct
4. Speaker Wire
4
8
03/12/17 XL-MP110EE 2-10.fm
XL-MP110E
10
Remote control
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 13
2. Disc Clear/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . 14, 22
3. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . 16, 17
4. Disc Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5. Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6. Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7. Disc Track Down or Fast Reverse, Tape Rewind,
Tuner Preset Down, Time Down Button . . . . . . 15, 18, 24, 26
8. Equalizer Mode Select Button . . . . . . . . . . . . . . . . . . . . . . 14
9. Extra Bass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10. Disc Direct Search Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 20
11. Memory Button . . . . . . . . . . . . . . . . . . . . . . . 15, 22, 24, 29, 32
12. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
13. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
14. Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
15. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
16. Disc Play or Repeat Button . . . . . . . . . . . . . . . . . . . 16, 17, 21
17. Tape Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18. Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
19. Video/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
20. Tape Record Pause Button . . . . . . . . . . . . . . . . . . . . . . 27, 28
21. Disc Track Up or Fast Forward, Tape Fast Forward,
Tuner Preset Up, Time Up Button . . . . . . . . . . . 15, 18, 24, 26
22. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 14
23. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . 15, 29, 32
24. MP3/WMA Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Reference page
General Information
03/12/17 XL-MP110EE 2-10.fm
9
XL-MP110E
System connections
Make sure to unplug the AC power lead before any connections.
Preparation for Use
Right speaker
Aerial connection (see page 11)
FM aerial
AC INPUT
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
SPEAKERS
RIGHT
LEFT
AM loop aerial
ANTENNA
AM
LOOP
FM
75 OHMS
VIDEO/AUX
IN
RIGHT LEFT
SUBWOOFER
PRE-OUT
Left speaker
10
Speaker connection (see page 11)
Wall socket
(AC 230 - 240V, 50 Hz)
AC power connection (see page 12)
03/12/17 XL-MP110EE 2-10.fm
Aerial connection
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS terminal and position
the FM aerial wire in the direction where the strongest signal can be
received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM LOOP socket. Position the AM
loop aerial for optimum reception. Place the AM loop aerial on a
shelf, etc., or attach it to a stand or a wall with screws (not supplied).
ANTENNA
AM
LOOP
FM
75 OHMS
VIDEO/AUX
IN
RIGHT LEFT
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
SPEAKERS
AC INPUT
RIGHT
SUBWOOFER
LEFT
PRE-OUT
Note:
Placing the aerial on the unit or near the AC power lead may cause
noise pickup. Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
< Assembling > < Attaching to the wall >
FM
75 OHMS
Speaker connection
Connect the black wire to the minus (-) terminal, and the red wire to
the plus (+) terminal.
ANTENNA
AM
LOOP
FM
75 OHMS
VIDEO/AUX
IN
RIGHT LEFT
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
SPEAKERS
AC INPUT
SUBWOOFER
RIGHT
LEFT
PRE-OUT
BlackRed
Caution:
Use speakers with an impedance of 6 ohms or more, as lower im-
pedance speakers can damage the unit.
Do not mistake the right and the left chan-
nels. The right speaker is the one on the right
side when you face the unit.
Do not let the bare speaker wires touch
each other.
Do not allow any objects to fall into or to be
placed in the bass reflex ducts.
Do not stand or sit on the speakers. You may
Incorrect
be injured.
Speaker grilles are removable
Make sure nothing comes into contact
with the speaker diaphragm when you
remove the speaker grilles.
XL-MP110E
Preparation for Use
Wall Screws (not supplied)
11
03/12/17 XL-MP110EE_11-21.fm
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
ANTENNA
RIGHT
RIGHT LEFT
FM
75 OHMS
AM
LOOP
VIDEO/AUX
IN
SUBWOOFER
PRE-OUT
SPEAKERS
LEFT
Wall socket
(AC 230 - 240V, 50 Hz)
XL-MP110E
System connections (continued)
AC power connection
After checking all the connections have been made correctly, plug
the AC power lead of this unit into the wall socket. If you plug in the
unit first, the unit will enter the demonstration mode.
Notes:
The unit will start the tape initialisation when plugged in to the wall
socket. During this process, initialising sound will be heard and
the unit cannot be turned on. Wait until the process is finished.
Unplug the AC power lead from the wall socket if the unit will not
be in use for a prolonged period of time.
Preparation for Use
Cooling fan:
This main unit is built with a cooling fan at the rear of the unit for
improved cooling. Please do not cover the opening of the fan with
any obstacles, as this will block proper ventilation.
Demonstration mode
The first time the unit is plugged in, the
unit will enter the demonstration mode.
You will see words scroll.
To cancel the demonstration mode:
When the unit is in the power standby mode (demonstration mode),
press the X-BASS/DEMO button.
The demonstration mode will be cancelled and the display will disappear.
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the X-BASS/
DEMO button again.
Note:
When the power is on, the X-BASS/DEMO button can be used to select the extra bass mode.
External FM aerial
Use an external FM aerial if you require better reception.
Consult your dealer.
ANTENNA
75 OHMS
AM
LOOP
FM
External FM aerial
VIDEO/AUX
IN
RIGHT LEFT
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
SPEAKERS
AC INPUT
RIGHT
LEFT
SUBWOOFER
PRE-OUT
12
03/12/17 XL-MP110EE_11-21.fm
Remote control
Battery installation
Use 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
Batteries are not included.
1 Open the battery cover.
2 Insert the batteries according to the direction indicated in
the battery compartment (back of the battery cover).
When inserting or removing the batteries, push them towards the
battery terminals.
3 Close the cover.
Precautions for battery use:
Replace all old batteries with new ones at the same time.
Do not mix old and new batteries.
Remove the batteries if the unit will not be used for long periods
of time. This will prevent potential damage due to battery leakage.
Caution:
Do not use rechargeable batteries (nickel-cadmium battery, etc.).
Installing the batteries incorrectly may cause the unit to malfunc-
tion.
Battery removal:
Open the battery cover and pull up the battery to take out.
XL-MP110E
Notes concerning use:
Replace the batteries if the operating distance is reduced or if the
operation becomes erratic.
Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit if this
occurs.
Keep the remote control away from moisture, heat, shock, and vi-
brations.
Test of the remote control
Check the remote control after checking all the connections (see
pages 10 - 12).
Point the remote control directly at the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you
can enjoy music.
/
Preparation for Use
03/12/17 XL-MP110EE_11-21.fm
13
XL-MP110E
General control
/
Basic Operation
To turn the power on
Press the ON/STAND-BY button to turn the power on.
After use:
Press the ON/STAND-BY button to enter the power stand-by
mode.
To change the display brightness
You can switch the display brightness by pressing the CLEAR/
DIMMER button more than 2 seconds.
Volume auto fade-in
If you turn off and on the main unit with the volume set to 27 or
higher, the volume starts at 16 and fades in to the last set level.
14
Volume control
Main unit operation:
When the VOL + / - control is turned clockwise, the volume will
increase. When it is turned anti-clockwise, the volume will decrease.
Remote control operation:
/
Press the VOLUME (+ or -) button to increase or decrease the volume.
.....
30 MAXIMUM0
Bass control
When the power is first turned on, the unit will enter the extra bass
mode which emphasises the bass frequencies, and "X-BASS" will
appear. To cancel the extra bass mode, press the X-BASS/DEMO
(X-BASS) button.
Equalizer
When the EQUALIZER (EQUALIZER MODE) button is pressed, the
current mode setting will be displayed. To change to a different
mode, press the EQUALIZER (EQUALIZER MODE) button repeatedly until the desired sound mode appears.
FLAT No equalisation.
ROCK For rock music.
CLASSIC For classical music.
POPS For pop music.
VOCAL Vocals are enhanced.
JAZZ For jazz.
03/12/17 XL-MP110EE_11-21.fm
Setting the clock
/
/
In this example, the clock is set for the 24-hour (0:00) display.
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CLOCK/TIMER button.
3
Within 10 seconds, press the or button to select "CLOCK", and press the MEMORY/SET(MEMORY)
button.
4
Press the or button to select 24-hour or 12hour display and then press the MEMORY/SET(MEMORY)
button.
"0:00" The 24-hour display will appear.
(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
5
Press the or button to adjust the hour and
then press the MEMORY/SET(MEMORY) button.
Press the or button once to advance the time by
1 hour. Hold it down to advance continuously.
Press the or button to adjust the minutes and
6
then press the MEMORY/SET(MEMORY) button.
Press the or button once to advance the time by
1 minute. Hold it down to change the time in 5-minute intervals.
To confirm the time display:
[When the unit is in the stand-by mode]
Press the CLOCK/TIMER button.
The time display will appear for about 10 seconds.
[When the power is on]
Press the CLOCK/TIMER button.
Within 10 seconds, press the or button to display the
.
time
The time display will appear for about 10 seconds.
Note:
The "CLOCK" will appear or time will flash to confirm the time display when the AC power supply is restored after a power failure or
unplugging the unit. If incorrect, readjust the clock as follows.
To readjust the clock:
Perform "Setting the clock" from step 1. If the "CLOCK" does not
appear in step 3, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:
1 Clear all the programmed contents. [Refer to "Clearing all the
memory (reset)" on page 36 for details.]
2 Perform "Setting the clock" from step 1.
Note:
The clock can also be set with the remote control.
XL-MP110E
Basic Operation
15
03/12/17 XL-MP110EE_11-21.fm
XL-MP110E
Listening to a CD or MP3/WMA disc
This system can play back a standard CD, CD-R/RW in the CD format
and CD-R/RW with MP3 or WMA files, but cannot record on them.
Some audio CD-R and CD-RW discs may not be playable due to the
state of the disc or the device that was used for recording.
MP3:
MP3 is a form of compression. It is an acronym which stands
for MPEG Audio Layer 3.
MP3 is a type of audio code which is processed by significant
compression from the original audio source with very little loss
in sound quality.
This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and
VBR files.
During VBR file playback, time counter in the display may differ
from its actual playback time.
WMA:
WMA files are Advanced System Format files that include audio
files which are compressed with Windows Media Audio codec.
WMA is developed by Microsoft as an audio format file for Windows Media Player.
Notes:
"MP3" or "WMA" indicator will light up after the unit reads infor-
mation on an MP3 or WMA disc.
Auto power on function:
When you press any of the following buttons, the unit turns on.
CD button (main unit and remote control): The unit turns on and
CD or MP3/WMA disc Playback
the "CD" function is activated.
CD / button on the remote control: The unit turns on and CD
playback starts (regardless of the last function).
/ button on the main unit: The unit turns on and playback of
the last function starts (CD, TAPE, TUNER, VIDEO/AUX).
/
ASPM
Auto power off function:
In the stop mode of CD, MP3 or WMA operation, the main unit enters
the stand-by mode after 15 minutes of inactivity.
16
03/12/17 XL-MP110EE_11-21.fm
1 Press the ON/STAND-BY button to turn the power on.
2 Press the CD button.
3 Press the 1 button and within 5 seconds, press the
OPEN/CLOSE button to open the disc tray 1.
4 Place the disc on the disc tray 1, label side up.
Be sure to place 8 cm (3") disc in the middle of the disc trays.
12 cm (5") 8 cm (3")
5 Press the OPEN/CLOSE button to close the disc tray 1.
[CD]
Total number of
tracks on the disc
Due to the structure of the disc information, it takes longer to
read an MP3/WMA disc than a normal CD (approximately 20
to 90 seconds).
CD indicator
Total playing
time of the disc
[MP3/WMA]
WMA indicator
6 You can place discs on the trays 2 - 5 by following steps
3 - 5.
7 Press the / button to start playback.
MP3 indicator
Total number
of track
Playback will begin from track 1 on DISC 1. After that disc fin-
ishes playing, the next disc will automatically play.
After the last track on the fifth disc is played, the unit will stop
automatically.
When there is no disc in one of the disc trays (1 - 5), the empty
tray will be skipped to the next tray with a disc.
To exchange other discs whilst playing a disc:
Press one of the 1 - 5 buttons for the stopped disc and within 5
seconds, press the OPEN/CLOSE button and exchange discs.
To remove the discs:
In the stop mode, press the 1 - 5 button and within 5 seconds,
press the OPEN/CLOSE button.
Caution:
Do not place two discs in one disc tray.
Do not play discs of special shapes (heart, octagon, etc). It may
cause malfunctions.
Do not push the disc tray whilst it is moving.
If the power fails whilst the tray is open, wait until the power is re-
stored.
If the disc tray is stopped with force, "ER-CD20" will appear on the
display for 3 seconds and the unit will not function. If this occurs,
press the ON/STAND-BY button to enter the power stand-by
mode and then turn the power on again.
If TV or radio interference occurs during CD operation, move the
unit away from the TV or radio.
If a disc is damaged, dirty, or loaded upside down, the disc will
skip or not play.
XL-MP110E
CD or MP3/WMA disc Playback
Disc play indicator
17
03/12/17 XL-MP110EE_11-21.fm
XL-MP110E
Listening to a CD or MP3/WMA disc (continued)
Various disc functions

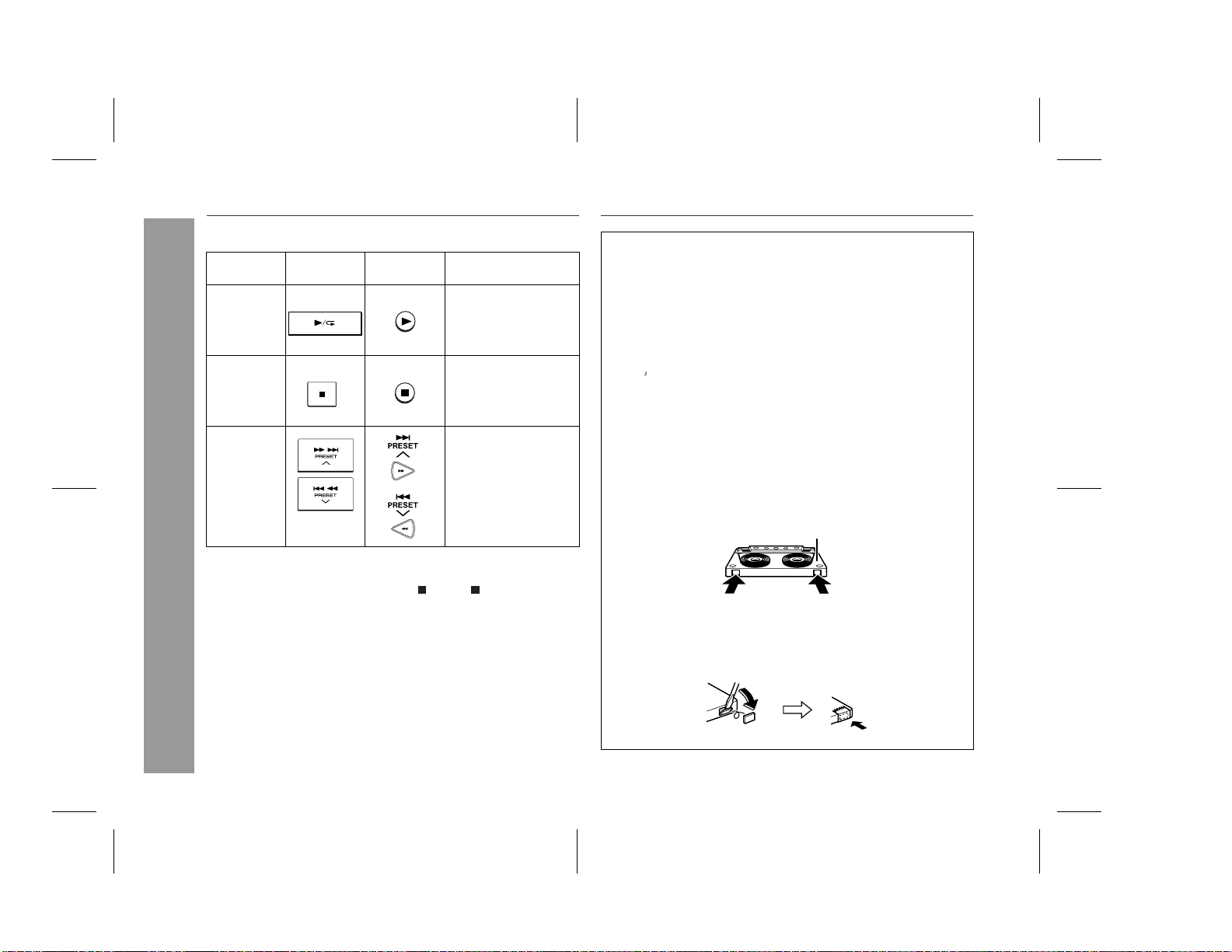

Function Main unit Remote
control
Play Press in the stop
Stop Press in the playback
Pause Press in the playback
Track up/
Track down
Operation
mode.
mode.
mode. Press the /
button to resume playback from the paused
point.
Press in the playback
or stop mode.
If you press the button
in the stop mode,
press the / button
to start the desired
track.
CD or MP3/WMA disc Playback
Fast forward/Fast
reverse
Press and hold down
in the playback mode.
Release the button to
resume playback.
Notes for CD:
Track up/track down is possible only within individual discs.
Fast forward/fast reverse is possible only within individual discs.
When the end of the last track is reached during fast forward,
"END" will appear on the display and CD operation will be paused.
When the beginning of the first track is reached during fast
reverse, the unit will enter the playback mode.
Notes for MP3/WMA discs:
Track up/track down is possible only within individual discs.
The sound is heard during fast forward/fast reverse with a CD, but
not with an MP3/WMA disc. For fast forward or fast reverse of an
MP3/WMA disc, refer to playback time on the display.
Fast forward/fast reverse is possible only within individual tracks.
When the end of the track is reached during fast forward, the next
track will be played. Playback of the track will begin when its beginning is reached during fast reverse.
18
03/12/17 XL-MP110EE_11-21.fm
XL-MP110E
To change the display (MP3/WMA discs only)
Whilst in the stop mode or playback mode, press the DISPLAY
button.
Each time the button is pressed, the display will change as follows.
[When in the stop mode]
Track number
Track name
[When in the playback mode]
Track number Elapsed playback
time
Track name
Folder name
Folder name
To select the desired folder or track by name
(MP3/WMA discs only)
1 Whilst in the stop mode, press the DISPLAY button to
display the folder name.
2
Select the desired folder by pressing the ( ) or ( )
button.
3 Press the DISPLAY button to
display the track name.
4 Select the desired track by pressing the ( ) or ( )
button.
5 Press the / (CD / ) button
to begin playback.
Note:
After selecting a disc with one of the 1 - 5 buttons, the display
will not change even if the DISPLAY button is pressed, and neither
the folder nor track name is displayed.
CD or MP3/WMA disc Playback
03/12/17 XL-MP110EE_11-21.fm
19
XL-MP110E
Advanced CD or MP3/WMA disc playback
To specify a disc to play
You can play a disc by specifying the disc number.
1 Press one of the 1 - 5 buttons to select the desired disc.
Selected disc number
2 Within 5 seconds, press the CD DIRECT PLAY button on
the main unit.
/
Playback will begin from track 1 on the chosen disc.
CD or MP3/WMA disc Playback
After the last track on the chosen disc is played, the unit stops
automatically.
Note:
If a disc tray with no disc is selected, playback will not start and the
disc indicator will go out.
Direct track search
By using the direct search buttons, the desired tracks on the current
disc can be played.
Use the direct search buttons on
the remote control to select the desired track whilst playing the selected disc.
Selected track number
The direct search buttons allow you to select up to number 9.
When selecting number 10 or higher, use the "+10" button.
A. For example, to choose 13
1 Press the "+10" button once.
2 Press the "3" button.
B. For example, to choose 30
1 Press the "+10" button three times.
2 Press the "0" button.
If the direct search buttons are pressed whilst the disc is stopped,
press the / button to start the desired track on the current disc.
Notes:
A track number higher than the number of tracks on the disc can-
not be selected.
During random play, direct search is not possible.
MP3
To stop playback:
Press the (CD ) button.
20
03/12/17 XL-MP110EE_11-21.fm
XL-MP110E
Repeat play
Repeat play can play all 5 discs, all tracks on a chosen disc, or a
programmed sequence continuously.
To repeat all tracks on up to 5 discs:
Press the / button twice.
To repeat desired tracks:
Perform steps 1 - 6 in "Programmed play" section on page 22 and
then press the / button twice.
To cancel repeat play:
Press the / button again.
" " will go out.
To repeat all tracks on the chosen disc:
1 Press one of the 1 - 5 buttons.
2 Within 5 seconds, press the CD DIRECT
PLAY button twice.
To cancel repeat play:
Press the CD DIRECT PLAY button again.
" " will go out.
Random play
The tracks on the disc(s) can be played in random order automatically.
To random play all tracks on up to 5 discs:
Press the RANDOM button on the remote control.
To cancel random play:
Press the / (CD / ) button.
"NORMAL" will appear for 2 seconds.
To random play all tracks on the chosen disc:
1 Press one of the 1 - 5 buttons.
2 Within 5 seconds, press the CD DI-
RECT PLAY button.
3 Press the RANDOM button on the re-
mote control.
To cancel random play:
Press the CD DIRECT PLAY button.
"NORMAL" will appear for 2 seconds.
Notes:
If you press the button during random play, you can move to
the next track by the random operation. On the other hand, the
button does not allow you to move to the previous track. The beginning of the track being played will be located.
In random play, the unit will select and play tracks automatically.
(You cannot select the order of the tracks.)
Caution:
After performing repeat or random play, be sure to press the (CD
) button. Otherwise, the disc(s) will play continuously.
CD or MP3/WMA disc Playback
03/12/17 XL-MP110EE_11-21.fm
21
XL-MP110E
Advanced CD or MP3/WMA disc playback (continued)
Programmed play
You can choose up to 32 selections for playback in the order you like.
Whilst in the stop mode, press
1
the MEMORY/SET (MEMORY)
button to enter the programming
save mode.
Press one of the 1 - 5 buttons
2
to select the desired disc.
3
Press the direct search buttons
on the remote control to select
the desired track.
You can also select a track by pressing the or button.
4
Press the MEMORY/SET
(MEMORY) button to save the
track number.
5
CD or MP3/WMA disc Playback
Repeat steps 2 - 4 for other tracks. Up to 32 tracks can be
programmed.
If you make a mistake, the programmed tracks can be cleared
by pressing the CLEAR/DIMMER button.
6
Press the (CD ) button.
The total number of memory will
appear.
7
Press the / button to start playback.
Selected disc number
Selected track number
To clear the programmed selections:
Press the CLEAR/DIMMER button on the remote control whilst the "MEMORY" indicator
is flashing.
Each time the button is pressed, one track will
be cleared, beginning with the last track programmed.
To cancel the programmed play mode:
Whilst in the stop mode and the "MEMORY" indicator is lit, press the
CLEAR/DIMMER button on the remote control. The "MEMORY" indicator will disappear and all the programmed contents will be
cleared.
Adding tracks to the programme:
If a programme has been previously stored, the "MEMORY" indicator
will be displayed. Then follow steps 1 - 6 to add tracks. The new
tracks will be stored after the last track of the original programme.
To check which tracks are programmed:
Whilst the unit is stopped in the programmed play mode, press the
or button.
Notes:
When a disc with programmed tracks is ejected, the programme
is automatically cancelled.
Even if you press the ON/STAND-BY button to enter the stand-by
mode or change the function from CD to another, the programmed
selections will not be cleared.
During the programme operation, random play is not possible.
During programmed play, the CD DIRECT PLAY button will not
work.
22
03/12/17 XL-MP110EE 22-27.fm
Listening to the radio
/
/
Tuning
1
Press the ON/STAND-BY button to turn the power on.
2
Press the TUNER (BAND) button repeatedly to select the
desired frequency band (FM or AM).
3
Press the TUNING ( or ) button to tune in to the desired
station.
Manual tuning:
Press the TUNING button as many times as required to tune in
to the desired station.
Auto tuning:
When the TUNING button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at
the first receivable broadcast station.
Notes:
When radio interference occurs, auto scan tuning may stop auto-
matically at that point.
Auto scan tuning will skip weak signal stations.
To stop the auto tuning, press the TUNING button again.
To receive an FM stereo transmission:
Press the TUNER (BAND) button to display the "ST" indicator.
" " will appear when an FM broadcast is in stereo.
If the FM reception is weak, press the TUNER (BAND) button to
extinguish the "ST" indicator. The reception changes to monaural,
and the sound becomes clearer.
XL-MP110E
Radio
Auto power on function:
When you press any of the following buttons, the unit turns on.
TUNER (BAND) button (main unit and remote control): The unit
turns on and the "TUNER" function is activated.
/ button on the main unit: The unit turns on and playback of
the last function starts (CD, TAPE, TUNER, VIDEO/AUX).
FM stereo mode indicator
FM stereo receiving indicator
23
03/12/17 XL-MP110EE 22-27.fm
XL-MP110E
Radio
Listening to the radio (continued)
Memorising a station
You can store 40 AM and FM stations in memory and recall them at
the push of a button. (Preset tuning)
1
Perform steps 1 - 3 in "Tuning" on page 23.
2
Press the MEMORY/SET (MEMORY) button to enter the
preset tuning saving mode.
Within 30 seconds, press the PRESET ( or ) button to
3
select the preset channel number.
Store the stations in memory, in order, starting with preset
channel 1.
Within 30 seconds, press the MEMORY/SET (MEMORY)
4
button to store that station in memory.
If the "MEMORY" and preset number indicators go out before
the station is memorised, repeat the operation from step 2.
Repeat steps 1 - 4 to set other stations, or to change a pre-
5
set station.
When a new station is stored in memory, the station previously
memorised for that preset channel number will be erased.
Note:
The backup function protects the memorised stations for a few
hours should there be a power failure or the AC power lead become
disconnected.
To recall a memorised station
Press the PRESET ( or ) button for less than 0.5 seconds to select the desired station.
To scan the preset stations
The stations saved in memory can be scanned automatically. (Preset memory scan)
1 Press the PRESET ( or ) button for more than 0.5 seconds.
The preset number will flash and the programmed stations will be
tuned in sequentially, for 5 seconds each.
2 Press the PRESET ( or ) button again when the desired sta-
tion is located.
/
/
To erase entire preset memory
1 Press the ON/STAND-BY button to enter the stand-by mode.
2
Whilst pressing down the button and the X-BASS/DEMO
button, press the TUNING button until "TUNER CL" appears.
24
03/12/17 XL-MP110EE 22-27.fm
Listening to a cassette tape
Before playback:
For playback, use normal or low-noise tapes for
the best sound. (Metal or CrO tapes are not recommended.)
Do not use C-120 tapes or poor-quality tapes, as
they may cause malfunctions.
Before loading a tape into the cassette compartment,
tighten the slack with a pen or a pencil.
/
/
Tape playback
1
Press the ON/STAND-BY button to turn the power on.
2
Press the TAPE button.
3
Open the cassette door by pushing the area marked " PUSH
EJECT".
Load a cassette into the cas-
4
sette compartment with the side
to be played on facing you.
5
Press the / (TAPE ) button.
Tape Play indicator
Auto power on function:
When you press any of the following buttons, the unit turns on.
TAPE button (main unit and remote control): The unit turns on and
the "TAPE" function is activated.
TAPE button on the remote control: The unit turns on and play-
back starts (regardless of the last function).
/ button on the main unit: The unit turns on and playback of
the last function starts (CD, TAPE, TUNER, VIDEO/AUX).
XL-MP110E
Tape Playback
Auto power off function:
In the stop mode of tape operation, the main unit enters the stand-by
mode after 15 minutes of inactivity.
03/12/17 XL-MP110EE 22-27.fm
25
XL-MP110E
Listening to a cassette tape (continued)
Various tape functions
Function Main unit Remote
Playback
Stop
Fast forward/
Rewind
Tape Recording
Caution:
To remove the cassette, press the (TAPE ) button, and then
open the compartment.
If a power failure occurs during tape operation, the tape head will
remain engaged with the tape and the cassette door will not open.
In this case, wait until the power is restored.
control
Operation
Press in the stop
mode.
Press in the playback,
fast forward or rewind
mode.
Press in the playback
or stop mode.
Recording on a cassette tape
Before recording:
When recording important selections, make a preliminary test to
ensure that the desired material is properly recorded.
SHARP is not liable for damage or loss of your recording arising
from malfunction of this unit.
The volume and sound controls can be adjusted with no effect
on the recorded signal (Variable Sound Monitor).
For recording, use only normal tapes. Do not use metal or
CrO tapes.
Erase-prevention tab of cassette tapes:
When recording on a cassette tape, make sure that the erase-
prevention tabs are not removed. Cassettes have removable
tabs that prevent accidental recording or erasing.
To protect the recorded sound, remove the tab after recording.
Cover the tab hole with adhesive tape to record on the tape without the tab.
Side A
Tab for side B
Tab for side A
26
03/12/17 XL-MP110EE 22-27.fm
XL-MP110E
Recording from a CD or MP3/WMA disc
You can record the desired disc using the CD DIRECT PLAY button.
1
/
/
Press the ON/STAND-BY button to turn the power on.
2
Press the CD button.
3
Load a cassette into the cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be
performed.
4
Press the button.
Recording will be paused.
Press one of the 1 - 5 buttons to select the desired disc.
5
Within 5 seconds, press the CD DIRECT PLAY button to
6
start recording.
Recording is started from the selected disc. When the play-
back of the last track is finished or the end of the tape is
reached, the disc and the cassette will stop automatically.
Playback of the disc will start approximately 7 seconds after
the tape starts.
To stop recording:
Press the (TAPE ) button.
The disc and tape will stop.
Tape Recording
RRMCGA041AWSA
27
03/12/17 XL-MP110EE 22-27.fm
XL-MP110E
Recording on a cassette tape (continued)
Recording from several CDs continuously:
1 Perform steps 1 - 5 in "Recording from a CD or MP3/WMA disc"
on page 27.
2 Within 5 seconds, press the / (TAPE ) button to start record-
ing.
To perform programmed recording:
1 Programme discs and tracks (see page 22).
2 Press the button.
3 Press the / (TAPE ) button to start recording.
To stop recording:
Press the (TAPE ) button.
The CD and tape will stop.
Tape Recording
Recording from the radio
Tune in to the desired station (see page 23).
1
2
Load a cassette into the cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be
performed.
3
Press the button.
Recording will be paused.
Press the / (TAPE ) button to start recording.
4
To interrupt recording:
Press the button.
To resume recording, press the / (TAPE ) button.
To stop recording:
Press the (TAPE ) button.
Note:
If you hear a whistling noise whilst recording an AM station, move the
AM loop aerial.
Erasing recorded tapes
1 Press the TAPE button.
2 Follow steps 2 - 4 in "Recording from the radio".
28
03/12/17 XL-MP110EE 28-38.fm
Timer and sleep operation
Timer playback:
The unit turns on and plays the desired source (CD, tuner, tape) at a
preset time.
Timer recording:
The unit turns on and starts recording from the tuner at the preset
time.
This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.
Once timer: Once timer play or once timer recording works for
For example, if you are away but want to record a programme on a
radio station.
Daily timer: Daily timer play or daily timer recording works at
For example, set the timer as a wake-up call every morning.
Using the once timer and daily timer in combination:
For example, use the once timer to record a radio programme, and
use the daily timer to wake up.
1 Set the daily timer (pages 29 - 31).
2 Set the once timer (pages 29 - 31).
Start
Note:
When set times for the daily timer and once timer overlap, the once
timer takes priority. Allow an interval of at least 1 minute between operations.
one time only at a preset time.
the same preset time every day.
1 minute or more
Daily timer
Stop Start Stop
Once timer
/
/
Timer playback or timer recording
Before setting timer:
1 Check that the clock is set to the correct time (refer to page 15).
If it is not set, you cannot use the timer function.
2 For timer playback: Load a cassette or discs to be played.
For timer recording: Load a cassette for recording in the cas-
Press the ON/STAND-BY button to turn the power on.
1
2
Press the CLOCK/TIMER button.
3
Within 10 seconds, press the or button to select "ONCE" or "DAILY", and press the MEMORY/
SET(MEMORY) button.
Set the clock to the correct time if "ONCE" or "DAILY" does not
appear.
sette compartment.
Continued to the next page
XL-MP110E
Advanced Features
29
03/12/17 XL-MP110EE 28-38.fm
XL-MP110E
Timer and sleep operation (continued)
4
Within 10 seconds, press the or button to select "ONCE SET" or "DAILY SET", and press the MEMORY/
SET(MEMORY) button.
5
Press the or button to select "PLAY" or
"REC", and press the MEMORY/SET(MEMORY) button.
The illustrations show the daily timer setting.
6
Press the or button to adjust the hour and
then press the MEMORY/SET(MEMORY) button.
The illustrations show the timer playback setting in the daily tim-
Advanced Features
er mode.
Press the or button to adjust the minutes and
7
then press the MEMORY/SET(MEMORY) button.
White Red
9
Switch input with the or button, and then
press the MEMORY/SET(MEMORY) button.
To select the timer playback source: CD, TUNER or TAPE.
To select the timer recording source: TUNER.
When you select the tuner, select a station by pressing the
or button, and then press the MEMORY/SET
(MEMORY) button.
If a station has not been programmed, "NO P.SET" will be
displayed and timer setting will be cancelled.
Adjust the volume using the VOLUME control, and then
10
press the MEMORY/SET(MEMORY) button.
Do not turn the volume up too high.
11
Press the ON/STAND-BY button to enter the power standby mode.
The "TIMER" indicator lights up and the unit is ready for timer
playback or timer recording.
/
30
8
Set the time to finish as in steps 6 and 7 above.
Continued to the next page
03/12/17 XL-MP110EE 28-38.fm
12
When the preset time is reached, playback or recording will
start.
The volume will increase gradually until it reaches the preset
volume.
13
When the timer end time is reached, the system will enter
the power stand-by mode automatically.
Once timer:
The timer will be cancelled.
Daily timer:
The timer will operate at the same time every day. It will continue until the daily timer setting is cancelled. Cancel the daily timer when it is not in use.
Note:
When performing timer playback or recording using another unit connected to the VIDEO/AUX IN socket, select "VIDEO" in step 9.
This unit will turn on or enter the power stand-by mode automatically,
however, the connected unit will not turn on or off.
Checking the timer setting in the timer stand-by mode:
1 Press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select
"ONCE" or "DAILY", and press the MEMORY/SET(MEMORY)
button.
3 Within 10 seconds, press the or button to select
"ONCE CAL" or "DAILY CAL", and press the MEMORY/SET
(MEMORY) button.
The unit returns to the timer stand-by mode after displaying the
settings in order.
Cancelling the timer setting in the timer stand-by mode:
1 Press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select
"ONCE" or "DAILY", and press the MEMORY/SET(MEMORY)
button.
3 Within 10 seconds, press the or button to select
"ONCE OFF" or "DAILY OFF", and press the MEMORY/SET
(MEMORY) button.
Timer will be cancelled (the setting will not be cancelled).
Reusing the memorised timer setting:
The timer setting will be memorised once it is entered. To reuse the
same setting, perform the following operations.
1 Turn the power on and press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select
"ONCE" or "DAILY", and press the MEMORY/SET(MEMORY)
button.
3 Within 10 seconds, press the or button to select
"ONCE ON" or "DAILY ON", and press the MEMORY/SET
(MEMORY) button.
4 Press the ON/STAND-BY button to enter the power stand-by
mode.
Note:
The timer can also be set with the remote control.
XL-MP110E
Advanced Features
03/12/17 XL-MP110EE 28-38.fm
31
XL-MP110E
Timer and sleep operation (continued)
Sleep operation
The radio, compact disc and cassette tape can all be turned off automatically.
Play back the desired sound source.
1
2
Press the CLOCK/TIMER button.
Within 10 seconds, press the
3
or button to select
"SLEEP", and press the MEMORY/SET(MEMORY) button.
Press the or button to select the time.
4
(Maximum: 3 hours - Minimum: 1 minute)
3 hours - 5 minutes 5-minute intervals
5 minutes - 1 minute 1-minute intervals
5
Press the MEMORY/SET(MEMORY) button.
"SLEEP" will appear.
6
The unit will enter the power stand-by mode automatically
Advanced Features
after the preset time has elapsed.
The volume will be turned down 1 minute before the sleep operation finishes.
To confirm the remaining sleep time:
1 Whilst "SLEEP" is indicated, press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select
"SLEEP X : XX".
"X : XX" is sleep remaining time.
The remaining sleep time is displayed for about 10 seconds.
You can change the remaining sleep time whilst it is displayed by
pressing the MEMORY/SET(MEMORY) button (steps 4 - 5).
To cancel the sleep operation:
Press the ON/STAND-BY button whilst "SLEEP" is indicated.
To cancel the sleep operation without setting the unit to the stand-by
mode, proceed as follows.
1 Whilst "SLEEP" is indicated, press the CLOCK/TIMER button.
2 Within 10 seconds, press the or button to select
"SLEEP OFF", and press the MEMORY/SET(MEMORY) button.
To use timer and sleep operation together
Sleep and timer playback:
For example, you can fall asleep listening to the radio and wake up
to CD in the next morning.
Sleep and timer recording:
For example, you can fall asleep listening to the CD and record radio
programmes whilst sleeping.
1 Set the sleep time (see left, steps 1 - 5).
2 Whilst the sleep timer is set, set the timer playback or recording
(steps 2 - 10, pages 29 - 30).
Timer playback or
Sleep timer setting
1 minute - 3 hours Desired time
Sleep operation will
automatically stop.
Caution:
When using the cassette deck, be sure the tape length is long
enough to perform both functions. If you want to sleep and wake up
listening to a tape, and the length of the tape is shorter than the
sleep timer setting, timer playback or recording will not be possible.
recording setting
End time
Timer playback or recording
start time
32
03/12/17 XL-MP110EE 28-38.fm
Enhancing your system
The connection lead is not included. Purchase a commercially available lead as shown below.
VCR, DVD, etc.
To the line
output socket
ANTENNA
AM
LOOP
FM
White
75 OHMS
VIDEO/AUX
IN
RIGHT LEFT
Red White
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
SPEAKERS
AC INPUT
RIGHT
LEFT
SUBWOOFER
PRE-OUT
RCA lead
(not supplied)
/
/
Auto power on function:
When you press any of the following buttons, the unit turns on.
VIDEO/AUX button (main unit and remote control): The unit turns
on and the "VIDEO" function is activated.
/ button on the main unit: The unit turns on and playback of
the last function starts (CD, TAPE, TUNER, VIDEO/AUX).
Red
Listening to the playback sounds from VCR,
DVD, etc.
1
Use a connection lead to connect the VCR, DVD, etc. to the
VIDEO/AUX IN socket.
When using video equipment, connect the audio output to this
unit and the video output to a television.
Press the ON/STAND-BY button to turn the power on.
2
3
Press the VIDEO/AUX button.
Play the connected equipment.
4
Note:
To prevent noise interference, place the unit away from the television.
To record on a tape
Insert a cassette in the cassette compartment.
1
Press the VIDEO/AUX button.
2
3
Press the button.
4
Press the / (TAPE ) button.
5
Play the VCR, DVD, etc.
Headphones
Before plugging in or unplugging the headphones, reduce the vol-
ume.
Be sure your headphones have a 3.5 mm (1/8") diameter plug and
impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.
Plugging in the headphones disconnects the speakers automati-
cally. Adjust the volume using the VOLUME control.
XL-MP110E
Advanced Features
33
03/12/17 XL-MP110EE 28-38.fm
XL-MP110E
Enhancing your system (continued)
Subwoofer connection
When a commercially available speaker with a built-in amplifier is
connected to this unit, you can enjoy sound with emphasised bass.
Connect an RCA lead from a commercially available speaker with a
built-in amplifier to the SUBWOOFER PRE-OUT socket.
References
Troubleshooting chart
Many potential problems can be resolved by the owner without calling a service technician.
If something is wrong with this product, check the following before
calling your authorised SHARP dealer or service centre.
General
Symptom Possible cause
The clock is not set to the
correct time.
ANTENNA
AM
LOOP
FM
75 OHMS
VIDEO/AUX
IN
RIGHT LEFT
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
SPEAKERS
AC INPUT
RIGHT
LEFT
SUBWOOFER
PRE-OUT
When a button is pressed,
the unit does not respond.
No sound is heard. Is the volume level set to "0"?
CD player
Speaker with a
built-in amplifier
Playback does not start. Is the disc loaded upside down?
Playback stops in the mid-
Playback sounds are
Symptom Possible cause
dle or is not performed
properly.
skipped, or stopped in the
middle of a track.
Did a power failure occur? Reset
the clock.
Set the unit to the power stand-
by mode and then turn it back on.
If the unit still malfunctions, reset
it.
Are the headphones connected?
Are the speaker wires discon-
nected?
Does the disc satisfy the stan-
dards?
Is the disc distorted or
scratched?
Is the unit located near excessive
vibrations?
Is the disc very dirty?
Has condensation formed inside
the unit?
34
03/12/17 XL-MP110EE 28-38.fm
XL-MP110E
Cassette deck
Symptom Possible cause
Cannot record. Is the erase-prevention tab re-
Cannot record tracks with
proper sound quality.
Cannot erase completely.
Sound skipping. Is there any slack?
Cannot hear treble. Are the capstans, pinch rollers,
Sound fluctuation.
Cannot remove the tape. If a power failure occurs during
moved?
Is it a normal tape? (You cannot
record on a metal or CrO tape.)
Is the tape stretched?
or heads dirty?
playback, the heads remain engaged with the tape. Do not open
the compartment with great
force.
Remote control
Symptom Possible cause
The remote control does
not operate.
Is the AC power lead of the unit
plugged in?
Is the battery polarity correct?
Are the batteries dead?
Is the distance or angle incor-
rect?
Does the remote control sensor
receive strong light?
Tuner
Symptom Possible cause
The radio makes unusual
noises continuously.
Is the unit placed near the TV or
computer?
Is the FM aerial or AM loop aerial
placed properly? Move the aerial
away from the AC power lead if
it's located nearby.
Condensation
Sudden temperature changes, storage or operation in an extremely
humid environment may cause condensation inside the cabinet (CD
pickup, tape heads, etc.) or on the transmitter on the remote control.
Condensation can cause the unit to malfunction. If this happens,
leave the power on with no disc (or cassette) in the unit until normal
playback is possible (about 1 hour). Wipe off any condensation on
the transmitter with a soft cloth before operating the unit.
References
03/12/17 XL-MP110EE 28-38.fm
35
XL-MP110E
Troubleshooting chart (continued)
If trouble occurs
When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage
due to lightning, etc.) or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and
plug in the unit, and then turn the power on.
Note:
If neither operation above restores the unit, clear all the memory by
resetting it.
Clearing all the memory (reset)
1 Press the ON/STAND-BY button to enter the power stand-by
mode.
2 Whilst pressing down the button and the X-BASS/DEMO but-
ton, press the TUNING button until "CLEAR AL" appears.
References
Caution:
This operation will erase all data stored in memory including clock,
timer settings, tuner preset, and CD programme.
Before transporting the unit
Remove all CDs from the unit. Make sure there is no CD in the disc
tray. Then, set the unit to the power stand-by mode. Carrying the
unit with discs left inside can damage the unit.
Care of compact discs
Compact discs are fairly resistant to damage, however mistracking
can occur due to an accumulation of dirt on the disc surface. Follow
the guidelines below for maximum enjoyment from your CD collection and player.
Do not write on either side of the disc, particularly the non-label
side from which signals are read. Do not mark this surface.
Keep your discs away from direct sunlight, heat, and excessive
moisture.
Always hold the CDs by the edges. Fingerprints, dirt, or water on
the CDs can cause noise or mistracking. If a CD is dirty or does
not play properly, clean it with a soft, dry cloth, wiping straight out
from the centre, along the radius.
NO YES
Correct
36
03/12/17 XL-MP110EE 28-38.fm
Maintenance
XL-MP110E
Cleaning the tape-handling parts
Dirty heads, capstans or pinch rollers can cause poor sound and
tape jams. Clean these parts with a cotton swab moistened with
commercial head/pinch roller cleaner or isopropyl alcohol.
When cleaning the heads, pinch rollers, etc., unplug the unit which
contains high voltages.
B
D
C
Pinch roller Erase head
Capstan Recording/Playback head
After long use, the deck's heads and capstans may become mag-
netised, causing poor sound. Demagnetise these parts once
every 30 hours of playing/recording time by using a commercial
tape head demagnetiser. Read the demagnetiser's instructions
carefully before use.
A
Cleaning the CD pickup lens
Poor performance during CD playback (skipping or jumping) can be
caused by a dirty or contaminated CD laser pick up lens. If this happens then the use of a commercially available CD lens cleaning
discs may restore normal operation. Contact your supplier or local
CD software dealer to obtain CD lens cleaning discs. Ensure all
included instructions/documentation are carefully followed.
Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap
solution, then with a dry cloth.
Caution:
Do not use chemicals for cleaning (petrol, paint thinner, etc.). It
may damage the cabinet finish.
Do not apply oil to the inside of the unit. It may cause malfunc-
tions.
References
03/12/17 XL-MP110EE 28-38.fm
37
XL-MP110E
Specifications
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be
some deviations from these values in individual units.
General
Power source AC 230 - 240V, 50 Hz
Power
consumption
Dimensions Width: 185 mm (7-1/4")
Weight 6.1 kg (13.4 lbs.)
100 W
Height: 260 mm (10-1/4")
Depth: 307 mm (12")
Amplifier
Output power RMS: 100 W (50 W + 50 W) (10% T.H.D)
Output terminals Speakers: 6 ohms
References
Input terminals Video/Auxiliary (audio signal):
RMS: 76 W (38 W + 38 W) (0.9% T.H.D)
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Subwoofer pre-out (audio signal):
200 mV/10 k ohms at 70 Hz
500 mV/47 k ohms
38
CD player
Type 5-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
D/A converter 1-bit D/A converter
Frequency
response
Dynamic range 90 dB (1 kHz)
pickup
20 - 20,000 Hz
Tuner
Frequency range FM: 87.50 - 108.00 MHz
AM: 522 - 1,620 kHz
Cassette deck
Frequency
response
Signal/noise ratio 50 dB (recording/playback)
Wow and flutter 0.3 % (WRMS)
50 - 14,000 Hz (normal tape)
Speaker
Type 2-way type speaker system
5 cm (2") tweeter
13 cm (5-1/8") woofer
Maximum input
power
Rated input power 50 W
Impedance 6 ohms
Dimensions Width: 185 mm (7-1/4")
Weight 2.4 kg (5.3 lbs.)/each
100 W
Height: 260 mm (10-1/4")
Depth: 205 mm (8-1/16")
03/12/17 XL-MP110EE 28-38.fm
MEMO
03/11/4 XL-MP110EE MEMO.fm
TINSEA088AWZZ
05C R KI 2
TERMS OF GUARANTEE
Sharp Electronics (UK) Ltd. (“Sharp”) guarantees to provide for the repair, or at its option the replacement, of this product subject to the conditions listed below:-
1. This guarantee shall only apply to faults which are due to inferior workmanship or materials. It does
not cover faults or damage caused by accident, misuse, fair wear and tear, neglect, tampering with
the product, or repair other than by a Service Facility appointed by Sharp.
2. As this product is intended for private domestic use only, the guarantee will not apply if the product
is used in the course of a business, trade or profession.
3. To benefit from this guarantee, any fault which occurs must be notified to Sharp, or its appointed
Service Facility within one year from the date this product was purchased. Proof of purchase must
be provided.
4. The guarantee does not cover carriage costs, audio tapes, compact discs or batteries.
5. In the unlikely event of this product requiring repair, please contact the supplier from whom it was
purchased. Where this is not possible, please contact the Sharp Customer Information Centre on
the telephone number given below.
6. No person has any authority to vary the terms or conditions of this guarantee.
7. This guarantee is offered as an additional benefit to your statutory rights, and does not affect these
rights in any way.
If you have any difficulty operating this product, or would like information on other Sharp products,
please telephone the Sharp Customer Information Centre on the number given below.
Sharp Customer Information Centre - Telephone 08705 274277
(or (01) 676 0648 if telephoning from Ireland)
SHARP ELECTRONICS (U.K) LTD.
Sharp House, Thorp Road, Newton Heath, Manchester, M40 5BE
SHARP CORPORATION
03/12/17 XL-MP110EE BACK.fm
