Sharp XL-555W, XL-DV484, XL-DV555W User Manual

DVD MICRO SYSTEM MICRO-CHAÎNE DVD CADENA MICRO CON DVD

XL-DV484W

MODEL MODÈLE MODELO

XL-DV484W XL-DV555W

OPERATION MANUAL MODE D’EMPLOI MANUAL DE MANEJO

NTSC/PAL

*DV484W(EN)_FRONT 04.2.23, 10:551

XL-DV555W

ENGLISH

FRANÇAIS

ESPAÑOL

Please refer to pages i and E-1 to E-72. Se reporter aux pages i et F-1 à F-72. Consulte las páginas ii y S-1 a S-72.

SHARP CORPORATION

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

I Unauthorized copying, broadcast, public display, transmission,

public performance and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.

I This system is equipped with copy protection technology that

causes substantial degradation of images when the contents of a disc are copied to a video tape.

Copy Protection:

This unit supports Macrovision copy protection. On DVD discs that include a copy protection code, if the contents of the DVD disc are copied using a VCR, the copy protection code prevents the videotape copy from playing normally.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Renseignements sur les droits d’auteur:

I La copie, la diffusion, l’affichage public, la transmission, la

représentation publique ou la location non autorisés (que ces activités soient à but lucratif ou non) du contenu d’un disque sont interdits par la loi.

I Ce système est équipé d’une technologie de protection contre les

copies qui cause une importante dégradation de l’image quand le contenu d’un disque est copié sur une vidéocassette.

Protection contre la copie:

Cet appareil supporte la protection de copie Macrovision. Sur les disques DVD qui comportent un code de protection contre la copie, si le contenu du disque DVD est copié à l’aide d’un magnétoscope, le code de protection contre la copie empêche la lecture normale de la cassette vidéo.

Brevets U.S. N 4 631 603, 4 577 216, 4 819 098 et 4 907 093 sous licence uniquement pour des visualisations à usage limité.

Ce produit utilise une technologie de protection des droits d’auteur protégée par les revendications de méthode de certains brevets U.S. et d’autres droits intellectuels appartenant à la Macrovision Corporation et à d’autres propriétaires des droits.

L’utilisation de cette technologie de protection des droits d’auteur doit être autorisée par la Macrovision Corporation, et est seulement destinée à l’usage domestique et d’autres visionnements limités seulement à moins d’une autorisation spéciale de la Macrovision Corporation.

Les applications techniques inversées ou le démontage sont strictement interdits.

“DTS” et “DTS Digital Out” sont des marques de commerce de Digital Theater Systems, Inc.

Fabriqué sous licence de Dolby Laboratories. “Dolby” et le symbole double D sont des marques de commerce de Dolby Laboratories.

*DV484W(EN)_XP01-02 04.2.20, 17:201

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

SHARP TINSZA032AWZZ

Información sobre los derechos de autor:

La copia, difusión, exposición pública, transmisión, interpretación pública y el alquiler (independientemente de si estas actividades tienen o no fines lucrativos) del contenido de los discos sin autorización están prohibidos por la ley.

Este sistema está provisto de tecnología para protección contra copias que degrada de manera substancial las imágenes cuando se copia el contenido de un disco a una cinta de vídeo.

Protección contra copias:

Este aparato es compatible con la protección contra copias Macrovision. En discos DVD que incluyen un código de protección contra copias, si se copia el contenido del disco DVD empleando una videograbadora, el código de protección contra copias evita que la copia de la videocinta puedan reproducirse con normalidad.

Derechos sobre aparatos de los N.° de patente de EE.UU. 4.631.603, 4.577.216,

4.819.098, y 4.907.093, con licencia otorgada sólo para usuarios de visión limitada.

Este producto incorpora tecnología de protección de los derechos de autor que se protege con derechos de métodos de ciertas patentes de EE.UU. y otros derechos de propiedad intelectual propiedad de Macrovision Corporation y otros propietarios de derechos.

El empleo de esta tecnología de protección contra copias debe estar autorizado por Macrovision Corporation, y el propósito de su aplicación sólo es para usuarios de visión en el hogar y visión adicional limitada a menos que Macrovision Corporation lo haya autorizado para otras aplicaciones.

Se prohíben la manipulación indebida y el desmontaje.

“DTS” y “DTS Digital Out” son marcas registradas de Digital Theater Systems, Inc.

Fabricado bajo licencia de Dolby Laboratories. “Dolby” y el símbolo con una doble D son marcas

(Z)

*DV484W(EN)_XP01-02 04.2.20, 18:042

registradas de Dolby Laboratories.

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

ENGLISH

Introduction

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.

XL-DV484W DVD Micro System consisting of XL-DV484W (main unit), CPDV484 (front speaker) and CP-SW800V (active subwoofer).

XL-DV555W DVD Micro System consisting of XL-DV555W (main unit), CPDV555 (front speaker) and CP-SW800V (active subwoofer).

Special notes

WARNINGS

I When the ON/STAND-BY button is set at STAND-BY position, mains

voltage is still present inside the unit. When the ON/STAND-BY button is set at STAND-BY position, the unit may be brought into operation by the timer mode or remote control.

I This unit contains no user serviceable parts. Never remove covers unless

qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any service operation and when not in use for a long period.

I To prevent fire or shock hazard, do not expose this appliance to dripping

or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

I This product is classified as a CLASS 1 LASER product. I This product contains a low power laser device. T o ensure continued safety

do not remove any cover or attempt to gain access to the inside of the

Important Instruction

product. Refer all servicing to qualified personnel.

Note for users in Australia:

Copyright may exist in material you wish to record. Copying or broadcasting such material without permission of the relevant licensees or owners of the copyright is prohibited by law. SHARP is not in a position to authorise the copying or broadcasting of copyright materials and nothing in this OPERATION MANUAL should be implied as giving that authority.

For other countries:

Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the owner of the copyright. Please refer to the relevant laws in your country.

Note:

The illustrations of the speaker system in this operation manual are for the

E-1

model XL-DV484W.

ENGLISH

Accessories

Please confirm that the following accessories are included.

Note:

Only the above accessories are included.

Remote control × 1

AM loop aerial × 1

Subwoofer cable × 1

(Black)

“AA” size battery (UM/SUM-3,

R6, HP-7 or similar) × 2

FM aerial × 1

Video cable × 1

(Yellow)

*DV484W_EP01 04.2.20, 17:201

XL-DV484W(Z) TINSZA032AWZZ

Contents

H General Information Page

Precautions ...................................................................................3

Controls and indicators ......................................................... 4 - 9

H Preparation for Use

System connections........................................................... 10 - 15

Remote control ...........................................................................16

H Basic Operation

General control ...........................................................................17

Setting the clock ......................................................................... 18

H DVD Explanation

Types of playable discs .......................................................19, 20

Preparing to watch a DVD (DVDs).............................................21

H DVD Setting

Setting up for playback of an NTSC disc .................................22

TV mode setup ............................................................................ 23

Parental setting.....................................................................24, 25

Audio setting.........................................................................26, 27

Disc language setting ........................................................ 27 - 29

Changing the display mode.......................................................30

H DVD Playback

Playing a DVD (DVDs) ................................................................31

Other disc play features.......................................................32, 33

H Advanced DVD Features

Using the function control ................................................. 34 - 39

Repeat play ................................................................................. 40

Programmed play .......................................................................41

Selecting titles from the menu ..................................................42

Setting parameters using the disc menu .................................42

H Video CD/CD Playback Page

Video CD......................................................................................43

Preparation for video CD playback ........................................... 43

Video CD playback ...............................................................44, 45

CD playback ........................................................................ 46 - 49

MP3/WMA disc ......................................................................50, 51

H Karaoke

Playing karaoke ....................................................................52, 53

H Radio

Listening to the radio ...........................................................54, 55

H Tape Playback

Listening to a cassette tape ................................................ 56, 57

H Tape Recording

Recording to a cassette tape............................................. 57 - 61

H Advanced Features

Timer and sleep operation ................................................. 62 - 65

Enhancing your system .......................................................66, 67

H References

Troubleshooting chart........................................................ 67 - 69

Maintenance ................................................................................ 70

Specifications ..................................................................... 70 - 72

XL-DV484W XL-DV555W

ENGLISH

General Information

*DV484W_EP02-05 04.2.20, 17:202

E-2

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

ENGLISH

Precautions

H General

I Please ensure that the equipment is positioned in a well ventilated area

and ensure that there is at least 10 cm (4") of free space along the sides, top and back of the equipment.

10 cm (4") 10 cm (4")

10 cm (4")

Warning:

The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.

Floor

I Do not place active subwoofer system on the same surface as main

unit to prevent sound interruption during playback.

I Use the unit on a firm, level surface free from vibration. I Keep the unit away from direct sunlight, strong magnetic fields, excessive

dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generate electrical noise.

I Do not place anything on top of the unit. I Do not expose the unit to moisture, to temperatures higher than 60°C (140°F)

or to extremely low temperatures.

I If your system does not work properly, disconnect the AC power lead from

the wall socket. Plug the AC power lead back in, and then turn on your system.

I In case of an electrical storm, unplug the unit for safety. I Hold the AC power plug by the head when removing it from the wall socket,

as pulling the lead can damage internal wires.

General Information

I Do not remove the outer cover, as this may result in electric shock.

Refer internal service to your local SHARP service facility.

I The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, tablecloths, curtains, etc.

I No naked flame sources, such as lighted candles, should be placed on the

apparatus.

I Attention should be drawn to the environmental aspects of battery disposal. I This unit should only be used within the range of 5°C - 35°C (41°F- 95°F).

E-3

Table

10 cm (4")

H Volume control

The sound level at a given volume setting depends on speaker efficiency, location and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on and listen to music at moderate levels.

H Care of DVD/Video CD/CD discs

DVD/Video CD/CD discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your DVD/Video CD/CD collection and player. I Do not write on either side of the disc, particularly the non-label side from

which signals are read. Do not mark this surface.

I Keep your discs away from direct sunlight, heat, and excessive moisture. I Always hold the DVD/Video CD/CDs by the edges. Fingerprints, dirt, or

water on the DVD/Video CD/CDs can cause noise or mistracking. If a DVD/ Video CD/CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.

YES

Correct

*DV484W_EP02-05 04.2.20, 17:203

XL-DV484W(Z) TINSZA032AWZZ

Controls and indicators

H Front panel

1. Disc Trays............................................................................................ 21

2. Illumination Light ................................................................................ 17

3. Timer Set Indicator .............................................................................63

4. On/Stand-by Button ...................................................................... 17, 21

5. Clock/Timer Button........................................................... 18, 62, 64, 65

6. DVD/Video CD/CD/MP3/WMA Track Down or Fast Reverse, Tape Fast Wind, Tuner Preset Down, Time Down Button

7. Tape Reverse Play Button.................................................................. 56

8. Tape Reverse Mode Select Button.................................................... 56

9. Cassette Compartment ...................................................................... 56

10. Headphone Socket ............................................................................. 66

11. Disc Tray Open/Close Button ............................................................21

12. Disc Number Select Buttons ....................................................... 21, 31

13. DVD/Video CD/CD/MP3/WMA Direct Play Button.............................31

14. Volume Control ...................................................................................17

15. DVD/Video CD/CD/MP3/WMA Track Up or Fast Forward, Tape

Fast Wind, Tuner Preset Up, Time Up Button .......... 32, 33, 45, 47, 55

16. Memory/Set Button ............................................... 18, 41, 49, 55, 62, 65

17. Equaliser Mode Select Button ...........................................................17

18. Extra Bass/Demo Mode Button ......................................................... 17

DVD/Video CD/CD/MP3/WMA Play, Tape Forward Play Button .....

19.

20. DVD/Video CD/CD/MP3/WMA or Tape Stop Button ................... 31, 56

21. DVD/Video CD/CD/MP3/WMA Button ..........................................21, 31

22. Tuner (Band) Button ........................................................................... 54

23. Tape Button ......................................................................................... 56

24. Video/Auxiliary Button ....................................................................... 66

25. Tape Record Pause Button ........................................ 53, 58, 59, 60, 61

26. Tuning Up Button................................................................................54

27. Tuning Down Button...........................................................................54

Mic Level ...............................................................................................

28. Mic 1

29.

30.

Socket ........................................................................................52

Mic 2

Socket ........................................................................................ 52

Reference page

.......... 32, 33, 47, 55

31, 56

XL-DV484W XL-DV555W

ENGLISH

General Information

*DV484W_EP02-05 04.2.20, 17:204

E-4

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

ENGLISH

Controls and indicators (continued)

General Information

H Display

1. Disc Number Indicators

2. DVD/Video CD/CD/MP3/WMA Play Indicator

3. DVD/Video CD/CD/MP3/WMA Pause Indicator

4. DVD/Video CD/CD/MP3/WMA Repeat Indicator

5. DVD Indicator

6. VCD Indicator

7. CD Indicator

8. MP3 Indicator

9. Extra Bass Indicator

10. Memory Indicator

11. DVD Angle Indicator

12. DVD Chapter Indicator

13. DVD Title Indicator

14. WMA Indicator

15. Virtual Surround Indicator

16. Tape Record Indicator

17. Timer Recording Indicator

18. Timer Play Indicator

19. Sleep Indicator

20. Tape Reverse Play Indicator

21. Tape Forward Play Indicator

22. Tape Reverse Mode Indicator

23. FM Stereo Mode Indicator

24. FM Stereo Receiving Indicator

25. Daily Timer Indicator

26. Tuner Receiving Frequency Indicators

27. Karaoke Mode Indicator

E-5

*DV484W_EP02-05 04.2.20, 17:205

XL-DV484W(Z) TINSZA032AWZZ

H Rear panel

XL-DV484W XL-DV555W

ENGLISH

1. Video Output Socket .................................................................... 12, 21

2. S-Video Output Socket ....................................................................... 21

3. Cooling Fan

4. AC Voltage Selector............................................................................ 13

5. Speaker Terminals ........................................................................ 10, 11

6. AC Power Lead ............................................................................. 10, 13

7. Audio Digital Output Socket ..............................................................67

8. FM 75 Ohms Aerial Terminal ........................................................ 10, 11

9. FM Aerial Earth Terminal .............................................................. 10, 11

10. AM Loop Aerial Socket................................................................. 10, 11

11. Video/Auxiliary (Audio Signal) Input Sockets .................................. 66

12. Span Selector Switch .........................................................................15

13. Subwoofer Pre-output Socket ........................................................... 10

Cooling fan:

This product is equipped with a cooling fan inside, which begins to run at a specified volume level for better heat radiation.

Reference page

General Information

*DV484W_EP06-09 04.2.20, 17:216

E-6

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

ENGLISH

Controls and indicators (continued)

H Speaker system

1. Tweeter

2. Woofer

3. Bass Reflex Duct

4. Speaker Wire

General Information

E-7

*DV484W_EP06-09 04.2.20, 17:217

7 8

H Active subwoofer

1. Bass Reflex Port

2. Power Indicator ................................................................................... 14

3. Subwoofer Unit

4. Cooling Fan

5. Subwoofer Input Socket............................................................... 10, 14

6. AC Voltage Selector............................................................................ 14

7. Power Switch ...................................................................................... 14

8. AC Power Lead ............................................................................. 10, 14

9. Volume Control ...................................................................................14

10. Crossover Frequency Control ...........................................................14

Cooling fan:

This product is equipped with a cooling fan inside, which begins to run once the power is on for better heat radiation.

Reference page

XL-DV484W(Z) TINSZA032AWZZ

12 13 14

2 3

4 5

6 7

8 9

16 17

18 19

XL-DV484W XL-DV555W

20 21

22 23

24 25 26

27 28

29 30 31 32

33 34 35 36

37 38 39 40

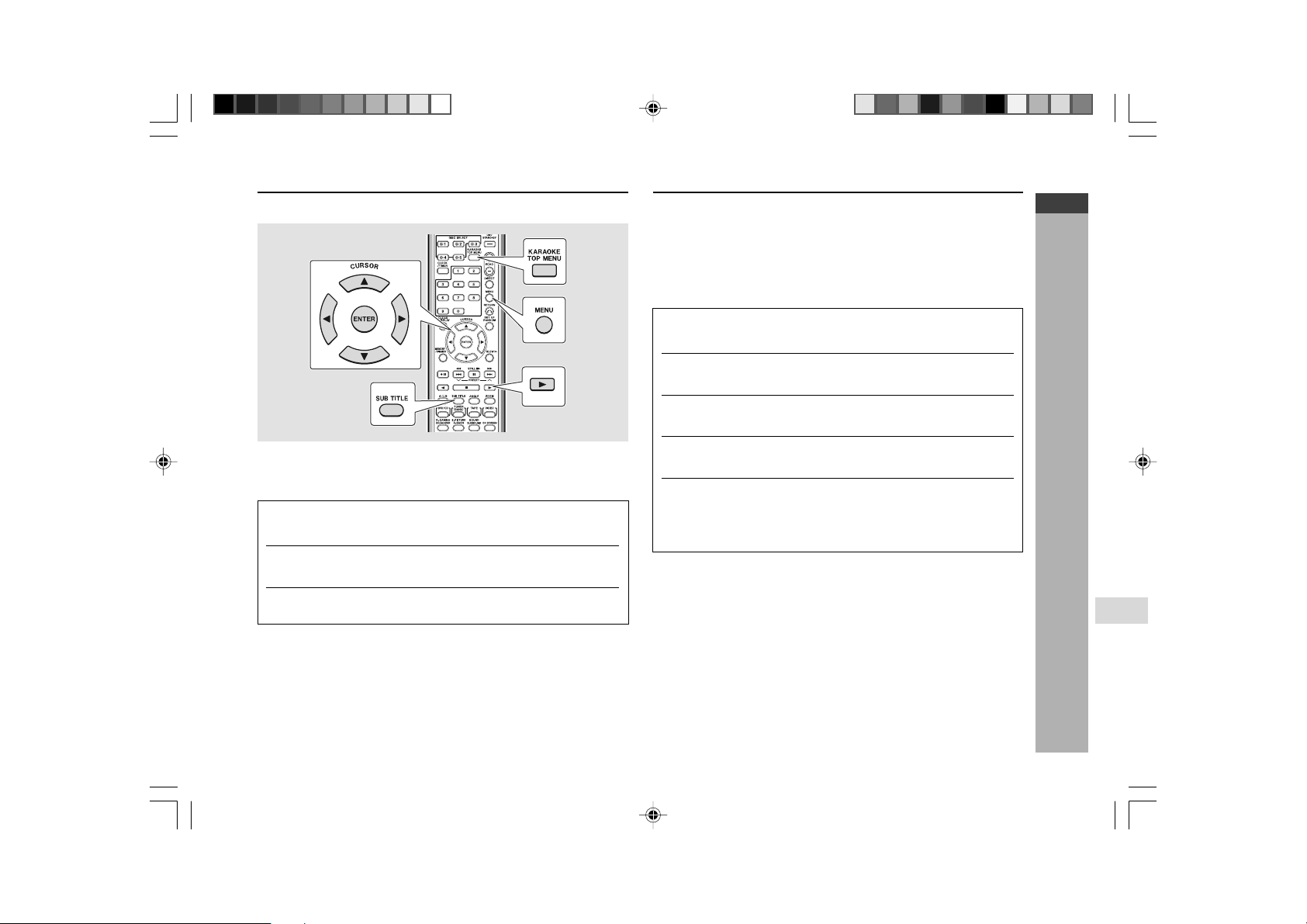

H Remote control

1. Remote Control Transmitter ..............................................................16

2. Disc Number Select Buttons ................................................. 21, 31, 44

3. DVD Top Menu Button........................................................................ 42

4. Clock/Timer Button........................................................... 18, 62, 64, 65

5. Direct Search Buttons ..................................................................49, 50

6. Clear/Display Button .......................................................................... 41

7. Enter Button ..................................................................................22, 26

8. Cursor Left Button ........................................................................ 25, 49

9. Memory/Dimmer Button .................................17, 18, 41, 49, 55, 62, 65

10. Cursor Down Button............................................................... 22, 26, 49

11. Tape Record Pause Button .................................................... 59, 60, 66

12.

DVD Chapter Skip/DVD/Video CD/MP3/WMA Fast Reverse/Video CD/ CD/MP3/WMA Track Down/Tape Fast Wind and Tuner Preset Down,

Time Down Button ..............................................................

13. DVD/Video CD/CD/MP3/WMA Pause Button..................................... 33

14.

DVD Chapter Skip/DVD/Video CD/MP3/WMA Fast Forward/Video CD/ CD/MP3/WMA Track Up/Tape Fast Wind and Tuner Preset Up,

Time Up Button ...........................................................32, 33, 45, 47, 55

15. Tape Reverse Play Button.................................... 56, 57, 58, 59, 60, 61

16. DVD/Video CD/CD/MP3/WMA/Tape Stop Button........................ 31, 56

17. DVD/Video CD/CD/MP3/WMA/Tape Play Button ........................ 31, 56

18. Shift Button ................................................................................... 22, 53

19. Volume Up/Down Buttons.................................................................. 17

20. On/Stand-by Button ...................................................................... 16, 21

21. Echo Level Up/Down Buttons............................................................ 52

22. DVD Direct Button .............................................................................. 35

23. DVD Menu Button ............................................................................... 42

24. Return Button...................................................................................... 25

25. CD Random Button............................................................................. 48

26. Cursor Up Button.................................................................... 22, 26, 49

27. Cursor Right Button ..................................................................... 25, 49

28. DVD/Video CD Slow Button ............................................................... 32

29. DVD/Video CD/CD/MP3/WMA Repeat Button ...................................40

30. DVD Subtitle Button ........................................................................... 36

31. DVD Angle Button ............................................................................... 36

32. DVD Zoom Button ............................................................................... 39

33. DVD/Video CD/CD/MP3/WMA Button ..........................................21, 31

34. Tuner (Band) Button ........................................................................... 54

35. Tape Button ......................................................................................... 56

36. Video Button ....................................................................................... 66

37. Equaliser Mode Select Button ...........................................................17

38. Extra Bass Button .............................................................................. 17

39. DVD 3-D Virtual Surround Button ..................................................... 37

40. DVD On Screen Button....................................................................... 30

Reference page

32, 33, 47, 55

ENGLISH

General Information

E-8

*DV484W_EP06-09 04.2.20, 17:218

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

ENGLISH

Controls and indicators (continued)

H Remote control with shift button

1. Karaoke/Audio Mode Button ............................................................. 53

2. DVD Setup Button......................................................................... 22, 26

3. DVD Sound Button ............................................................................. 37

4. DVD Super Picture Button ................................................................. 39

5. DVD/Video CD/CD A-B Repeat Button ..............................................40

6. DVD Digital Gamma Button ............................................................... 38

Reference page

General Information

E-9

*DV484W_EP06-09 04.2.20, 17:219

XL-DV484W(Z) TINSZA032AWZZ

System connections

XL-DV484W XL-DV555W

ENGLISH

Right speaker

FM aerial

To a wall socket (See page 13)

AM loop aerial

Left speaker

Active subwoofer

To a wall socket (See page 14)

Preparation for Use

Red

*DV484W_EP10-16 04.2.20, 17:2110

Black

Subwoofer cable (Black)

E-10

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

ENGLISH

System connections (continued)

Aerial connection

Supplied FM aerial:

Connect the FM aerial wire to the FM 75 OHMS terminal and position the FM aerial wire in the direction where the strongest signal can be received.

Supplied AM loop aerial:

Connect the AM loop aerial to the AM LOOP socket. Position the AM loop aerial for optimum reception. Place the AM loop aerial on a shelf, etc., or attach it to a stand or a wall with screws (not supplied).

Note:

Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.

Installing the AM loop aerial: < Assembling > < Attaching to the wall >

H Speaker connection

Connect the black wire to the minus (-) terminal, and the red wire to the plus (+) terminal.

Caution:

I Use speakers with an impedance of 6 ohms or more, as lower impedance

speakers can damage the unit.

I Do not mistake the right and the left channels. The right speaker is the one

on the right side when you face the unit.

I Do not let the bare speaker wires touch each other. I Do not allow any objects to fall into or to be placed in the bass reflex ducts. I Do not stand or sit on the speakers. You may be injured.

External FM aerial:

Use an external FM aerial if you require better reception. Consult your dealer.

ANTENNA

GND

75 ohm coaxial cable

LOOP

Preparation for Use

75 OHMS

Note:

When an external FM aerial is used, disconnect the supplied FM aerial wire.

E-11

*DV484W_EP10-16 04.2.20, 17:2111

Wall

External FM aerial

Screws (not supplied)

Incorrect

H Speaker grilles are removable

Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles.

XL-DV484W(Z) TINSZA032AWZZ

H Placing the speaker system

There is no distinction between the right and the left speakers

XL-DV484W XL-DV555W

H TV/monitor connection

If the TV/monitor has a video input, connect it to the VIDEO OUT socket on the rear of the unit.

ENGLISH

Active subwoofer

Left speaker

Floor

Main unit

Right speaker

Table

Caution:

I Do not place active subwoofer system on the same surface as main unit to

prevent sound interruption during playback.

Notes:

I The speakers are magnetically shielded.

Therefore, they do not affect the display even if you use them near the TV. However, some colour variation may occur, depending on the type of TV used.

If colour variation occurs...

Turn off the TV (from the power switch). After 15 - 30 minutes, turn the TV on again.

If the colour variation is still present...

Move the speakers further away from the TV.

I If any kind of magnet or an electromagnet is placed too close to the TV and

the system, irregular colours may appear on the TV screen.

To video input socket

Video cable (Yellow)

Preparation for Use

*DV484W_EP10-16 04.2.20, 17:2112

E-12

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

ENGLISH

System connections (continued)

Preparation for Use

Main Unit

H Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear panel before plugging the unit into a wall socket. If necessary, adjust the selector to correspond to the AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

H AC power connection

After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket. If you plug the unit first, the unit will enter the demonstration mode (see page 15).

Notes:

I The unit will start the tape initialisation when plugged in to the AC socket.

During this process, initialising sound will be heard and the unit cannot be turned on. Wait until the process is finished.

I Unplug the AC power lead from the wall socket if the unit will not be in use

for a prolonged period of time.

AC plug adaptor

In areas (or countries) where a wall socket as shown in illustration 2 is used, connect the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC plug adaptor is not included in areas where the wall socket and AC power plug can be directly connected (see illustration 1

Note for users in Australia and New Zealand:

An AC plug adaptor is not supplied if the lead has an Australian standard plug.

E-13

*DV484W_EP10-16 04.2.20, 17:2113

XL-DV484W(Z) TINSZA032AWZZ

Active Subwoofer

Make sure to unplug the AC power lead of the main unit before any connections.

H Connecting the subwoofer

Use the subwoofer cable to connect the SUBWOOFER PRE-OUT socket on the main unit and the SUBWOOFER IN socket on the active subwoofer.

H Setting the AC voltage selector

Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

H Connecting the AC power lead

After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket.

Note:

Unplug the AC power lead from the wall socket if the unit will not be in use for a prolonged period of time.

AC plug adaptor

Note for users in Australia and New Zealand:

An AC plug adaptor is not supplied if the lead has an Australian Standard plug.

H Power switch

The POWER indicator lights up when you press the POWER switch to ON.

H Volume control

Turn the VOLUME control clockwise to increase the volume, and turn it anticlockwise to decrease the volume.

H Crossover frequency control

Adjust the high frequency cut-off point. Frequencies higher than the set frequency are removed. T o emphasise the bass, turn this control towards 35 Hz and increase the volume.

Notes:

Observe the following to avoid malfunction and sound distortion.

Do not set the volume too high on the main unit. The subwoofer may be damaged.

Before you switch on/off on the main unit, minimise the volume on the main unit.

XL-DV484W XL-DV555W

ENGLISH

Preparation for Use

*DV484W_EP10-16 04.2.20, 17:2114

E-14

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W XL-DV555W

ENGLISH

System connections (continued)

H Setting the FM/AM span selector

The International T elecommunication Union (ITU) has established that member countries should maintain either a 100 kHz or a 50 kHz interval between broadcasting frequencies of FM stations and 10 kHz or 9 kHz for AM station. The illustration shows the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2). Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the interval (span) of your area.

Preparation for Use

To change the tuning zone:

1. Press the ON/STAND-BY button to enter the stand-by mode.

2. Set the SPAN SELECT OR switch (on the rear panel) as follows.

I For 50 kHz FM interval (9 kHz in AM) → 50/9 I For 100 kHz FM interval (10 kHz in AM) → 100/10

3. Whilst pressing down the I6 button and the X-BASS/DEMO button, press the 5 3 PRESET X button until “CLEAR AL” appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programmes.

H Demonstration mode

The first time the unit is plugged in, the unit will enter the demonstration mode. You will see words scroll.

To cancel the demonstration mode:

When the unit is in the power stand-by mode (demonstration mode), press the X-BASS/DEMO button. The demonstration mode will be cancelled and the display will disappear.

To return to the demonstration mode:

When the unit is in the power stand-by mode, press the X-BASS/DEMO button.

Note:

When the power is on, the X-BASS/DEMO button can be used to select the extra bass mode.

SHARP TINSZA032AWZZ

E-15

*DV484W_EP10-16 04.2.20, 17:2115

(Z)

XL-DV484W(Z) TINSZA032AWZZ

Remote control

H Battery installation

1 Open the battery cover. 2 Insert the batteries according to the direction indicated in the battery

compartment.

When inserting or removing the batteries, push them towards the – terminal.

3 Close the cover.

battery

Notes concerning use:

I Replace the batteries if the operating distance is reduced or if the operation

becomes erratic. Purchase 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar).

I Periodically clean the transmitter on the remote control and the sensor on

the unit with a soft cloth.

I Exposing the sensor on the unit to strong light may interfere with operation.

Change the lighting or the direction of the unit.

I Keep the remote control away from moisture, heat, shock and vibrations.

XL-DV484W XL-DV555W

ENGLISH

SHARP TINSZA032AWZZ

(Z)

Precautions for battery use:

I Replace all old batteries with new ones at the same time. I Do not mix old and new batteries. I Remove the batteries if the unit is not to be used for long periods of time.

This will prevent potential damage due to battery leakage.

Caution:

I Do not use rechargeable batteries (nickel-cadmium battery, etc.). I Installing the batteries incorrectly may cause the unit to malfunction.

H Test of the remote control

Check the remote control after checking all the connections have been made correctly. (See pages 10 - 14.) Point the remote control directly at the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now , you can enjoy music.

Remote sensor

0.2 m - 6 m (8” - 20’)

Preparation for Use

E-16

*DV484W_EP10-16 04.2.20, 17:2116

XL-DV484W(Z) TINSZA032AWZZ

XL-DV484W

For tuner, tape, and video other than DVD/VCD disc For DVD/VCD disc only

The sound is not modified. Bass and treble are emphasised. Treble is cut a little. Bass and treble are slightly emphasised. Vocals (midrange tones) are emphasised. Treble is slightly emphasised.

FLAT MODE-1

MODE-2 MODE-3 MODE-4 MODE-5

XL-DV555W

ENGLISH

General control

H To turn the power on

Basic Operation

Press the ON/STAND-BY button to turn the power on.

After Use:

Press the ON/STAND-BY button to enter the power stand-by mode.

H Volume control

Main unit operation:

When the VOLUME control is turned clockwise, the volume will increase. When it is turned anti-clockwise, the volume will decrease.

Remote control operation:

Press the VOLUME (+ or -) button to increase or decrease the volume.

.....

30 MAXIMUM0

H Bass control (X-BASS)

When the power is first turned on, the unit will enter the extra bass mode which emphasises the bass frequencies, and “X-BASS” will appear. To cancel the extra bass mode, press the X-BASS/DEMO (X-BASS) button.

H Equaliser

When the EQUALIZER button is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER button repeatedly until the desired sound mode appears.

H Illumination light control

When the power is turned on, the entire display and ring around the volume control light up. To turn on/off the light, hold down the MEMORY/DIMMER button on the remote control for more than 2 seconds.

E-17

*DV484W_EP17-18 04.2.20, 17:2117

XL-DV484W(Z) TINSZA032AWZZ

Setting the clock

Press the 5 3 or 2 4 button to adjust the hour and then press the MEMORY/SET button.

Press the 5 3 or 2 4 button once to advance the time by 1 hour. Hold it down to advance continuously.

Press the 5 3 or 2 4 button to adjust the minutes and then press the MEMORY/SET button.

XL-DV484W XL-DV555W

ENGLISH

In this example, the clock is set for the 24-hour (0:00) display.

Press the ON/STAND-BY button to turn the power on.

Press the CLOCK/TIMER button.

Within 10 seconds, press the 5 3 or 2 4 button to select “CLOCK”, and press the MEMORY/SET button.

Press the 5 3 or 2 4 button to select 24-hour or 12hour display and then press the MEMORY/SET button.

“0:00” → The 24-hour display will appear.

“AM 12:00” → The 12-hour display will appear.

“AM 0:00” → The 12-hour display will appear.

*DV484W_EP17-18 04.2.20, 17:2218

(0:00 - 23:59)

(AM 12:00 - PM 11:59)

(AM 0:00 - PM 11:59)

Press the 5 3 or 2 4 button once to advance the time by 1 minute. Hold it down to change the time in 5-minute intervals.

To confirm the time display:

[When the unit is in the stand-by mode] Press the CLOCK/TIMER button. The time display will appear for about 10 seconds.

[When the power is on] Press the CLOCK/TIMER button. Within 10 seconds, press the 5 3 or 2 4 button to display the time. The time display will appear for about 10 seconds.

Note:

The “CLOCK” will appear or time will flash to confirm the time display when the AC power supply is restored after a power failure or unplugging the unit. If incorrect, readjust the clock as follows.

To readjust the clock:

Perform “Setting the clock” from step 1. If the “CLOCK” is not appear in step 3, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents. [Refer to “Clearing all the memory

(reset)” on page 69 for details.]

2 Perform “Setting the clock” from step 1.

Note:

The clock can also be set with the remote control.

XL-DV484W(Z) TINSZA032AWZZ

Basic Operation

E-18

XL-DV484W XL-DV555W

ENGLISH

Types of playable discs

The unit can playback discs bearing any of the following marks:

DVD Video

See Note 1. See Note 2. See Note 3.

(*) Playability depends on recording device or disc condition

(special disc, scratches, dirt or dirt on pick-up).

Note 1:

DVD video players and discs are designed with region numbers which dictate the regions in which a disc can be played. If the region number on the disc you want to play does not match the region number in your system, you will not be able to play the disc.

Types of playable DVD discs vary depending on the region. This unit can play back only DVDs with the same region number are written on the back of the unit or with “ALL”.

DVD Explanation

DVD-R DVD-RW Audio CD CD-R/CD-RW

4.7

Disc recorded in video mode (*)

and

CD-R/CD-RW disc recorded in MP3/ WMA format

ALL

Note 2:

The specific playback functionality for some DVD discs is determined by the disc manufacturer. Because this system plays disc data in accordance with the disc manufacturer’s guidelines, some functions may not be available on some discs. Be sure to read the instructions provided with the disc.

The “Prohibited” indicator that such manufacturer-imposed restrictions apply.

or displayed during operation indicates

Note 3:

This product supports the following modes.

I 2-channel (L/R) PCM audio I Dolby Digital I 2-channel MPEG audio I 5.1 channel MPEG audio I DTS audio (External decoder is required.)

H DVD-R/DVD-RW Playback

I DVD-R disc that has been recorded in Video Mode. I DVD-RW disc that has been recorded in Video Mode. I Make sure the DVD-R/DVD-RW disc has been finalized after recording

process before playback on this unit.

I Further information about Video Mode, refer to DVD-R/DVD-RW recorder

operation manual.

H MP3 file format

An MP3 file is compressed in “MPEG 1 audio layer 3” format. MP3 files have [.mp3] extensions. (If the file has the [.mp3] extension but not recorded in MP3 format, only noise could be heard during playback.)

E-19

*DV484W_EP19-21 04.2.20, 17:2219

H WMA file format

WMA is an audio file format developed by Microsoft with [.wma] extension. This type of audio file is recorded through Microsoft Windows operating system.

XL-DV484W(Z) TINSZA032AWZZ

H Disc that cannot be played

I This unit does not support below disc types:

DVDs without the region number on

the back of the unit or “ALL”.

SECAM system DVD

DVD-ROM

DVD-RAM

I The above discs sometimes cannot be played, sometimes only pictures

without sound will appear or only sound can be heard. Playing such a disc may damage the speakers due to the possibility or enormous sound output or may even cause hearing injuries whilst using headphone.

I If DVD disc with DTS is played, no sound can be heard. Select other

sound output format to hear sound.

I Disc that is sold in other region sometimes does not fit to standard. This

type of disc cannot be played.

I Depending on DVD restriction, operation of the disc may be different than

operation manual.

I When the system detects an incompatible disc, it displays indicator

When this happens, check the disc type.

DVD-Audio

CDG

Photo CD

CD-ROM

SACD

Icons used on DVD discs

Sample icons

1. English

2. Japanese

Number of recorded audio tracks

Title, chapter and track

DVDs are divided into “titles” and “chapters”. If the disc has more than one movie on it, each movie would be a separate “title”. “Chapters” are subdivisions of titles.

Example: DVD

Title 1 Title 2

Chapter 1

Audio CDs are divided into “tracks”. You can think of a “track” as one tune on an audio CD.

Example: Audio CD

1. English

2. Japanese

Type of subtitles recorded

Chapter 2

Chapter 3 Chapter 1

Video format

Disc with multiple camera angles

XL-DV484W XL-DV555W

ENGLISH

Region code indicator (See page 19.)

DVD Explanation

Chapter 2

*DV484W_EP19-21 04.2.20, 17:2220

Track 1 Track 2 Track 3 Track 4 Track 5

Note:

Numbers identify each title, chapter and track on a disc. Most discs have these numbers recorded on them.

E-20

XL-DV484W(Z) TINSZA032AWZZ

+ 53 hidden pages
