Sharp XL-3000V User Manual

XL-3000V

SERVICE MANUAL

No. S8149XL3000V/

VIDEO CD COMPACT AUDIO SYSTEM

MODEL XL-3000V

XL-3000V Video CD Compact Audio System consisting of XL­3000V (main unit) and CP-XL3000U (speaker system).

• In the interests of user-safety the set should be restored to its original
condition and only parts identical to those specified should be used.

NTSC/PAL

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL .......................................................................................................... 2

VOLTAGE SELECTION.................................................................................................................................................... 2

AC POWER CORD AND PLUG ADAPTOR ..................................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................ 3

NAMES OF PARTS .......................................................................................................................................................... 4

OPERATION MANUAL..................................................................................................................................................... 6

DISASSEMBLY............................................................................................................................................................... 10

REMOVING AND REINSTALLING THE MAIN PARTS.................................................................................................. 12

ADJUSTMENT................................................................................................................................................................ 13

TEST MODE ................................................................................................................................................................... 16

NOTES ON SCHEMATIC DIAGRAM ............................................................................................................................. 19

TYPES OF TRANSISTOR AND LED.............................................................................................................................. 19

BLOCK DIAGRAM .......................................................................................................................................................... 20

SCHEMATIC DIAGRAM ................................................................................................................................................. 26

WIRING SIDE OF P.W.BOARD...................................................................................................................................... 36

WAVEFORMS OF CD CIRCUIT..................................................................................................................................... 41

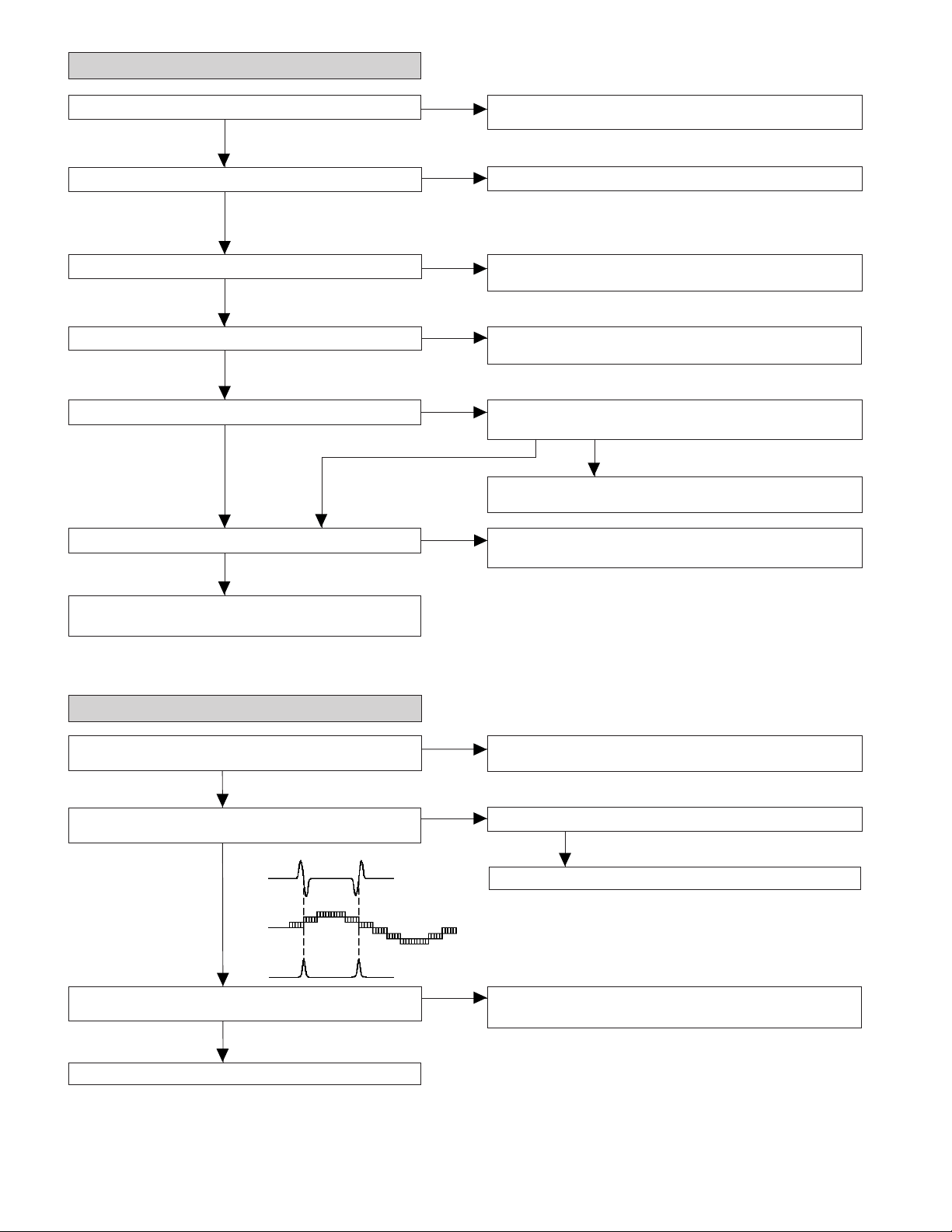

TROUBLESHOOTING .................................................................................................................................................... 42

FUNCTION TABLE OF IC .............................................................................................................................................. 48

LCD DISPLAY................................................................................................................................................................. 62

PARTS GUIDE/EXPLODED VIEW

SHARP CORPORATION

– 1 –

This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

XL-3000V

SAFETY PRECAUTION FOR SERVICE MANUAL

This product is classified as a CLASS 1 LASER PRODUCT.

Precaution to be taken when replacing and servicing the Laser Pickup.

The AEL (Accessible Emission Level) of Laser Power Output is less than Class 1 but the laser component is capable of emitting
radiation exceeding the limit for Class1. Therefore it is important that the following precautions must be observed during servicing
to protect your eyes against exposure to the Laser beam.

(1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than

the lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping.
(3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens at any time.
(5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in

hazardous radiation exposure.

CAUTION Laser Diode Properties

Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW

●

This Video CD Compact Audio System is classified as a CLASS
1 LASER product.

●

The CLASS 1 LASER PRODUCT label is located on the rear
cover.

●

Use of controls, adjustments or performance of procedures oth­er than those specified herein may result in hazardous radiation
exposure.

As the laser beam used in this compact disc player is harmful to

the eyes, do not attempt to disassemble the cabinet. Refer ser­vicing to qualified personnel only.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE. ALA
TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ
IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT INSTRUMENT.

VOLTAGE SELECTION

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows, Turn the selector with a screwdriver unit the appropriate voltage number appears in the window (110 V,127 V, 220 V
or 230 V - 240 V AC).

AC POWER CORD AND PLUG ADAPTOR

QACCE0001SJZZ

QPLGA0250AFZZ

QACCA0001SJ00

QACCB0001SJ00

QPLGA0253AFZZ

– 2 –

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

SPECIFICATIONS

General

■

Power source AC 110/127/220/230 - 240 V, 50/60 Hz
Power

consumption
Dimensions Width: 230 mm (9-1/16")

Weight 3.3 kg (7.3 lbs.)

Amplifier

■

Output power MPO: 60 W (30 W + 30 W) (10 % T.H.D.)

Output terminals Speakers: 6 ohms

Input terminals Video/Auxiliary (audio signal): 500 mV/47

Video CD

■

Video output
format

56 W

Height: 128 mm (5-1/16")
Depth: 293 mm (11-9/16")

RMS: 40 W (20 W + 20 W) (10 % T.H.D.)

Headphones: 16 - 50 ohms (recommended:
32 ohms)

CD digital output (optical)
Video out: 1 Vp-p (75 ohms)

kohms

PAL/NTSC

XL-3000V

CD player

■

Type Compact disc player
Signal readout Non-contact, 3-beam semiconductor laser

D/A converter 1-bit D/A converter
Frequency

response
Dynamic range 90 dB (1 kHz)

Tuner

■

Frequency range FM: 88 - 108 MHz

Speaker

■

Type 2-way type speaker system
5 cm (2") Tweeter

Maximum input
power

Rated input power 20 W
Impedance 6 ohms
Dimensions Width: 140 mm (5-9/16")

Weight 2.3 kg (5.1 lbs.)/each

pickup

20 - 20,000 Hz

AM: 531 - 1,602 kHz

10 cm (4") Woofer
40 W

Height: 288 mm (11-3/8")
Depth: 187 mm (7-3/8")

Specifications for this model are subject to change without
prior notice.

– 3 –

XL-3000V

NAMES OF PARTS

Front panel

■

6

7

1

8

10
11

9

2
3

5

4

6

1

2

4

3

5

1.Disc Compartment

2.Volume Up and Down Buttons

3.On/Stand-by Butt on

4.Function Selector Button

5.Memory/Set Button

6.Bass/Treble Selector Button

7.Video CD/CD Play or Pause,
Tuning Up Button

8.Video CD Stop or Return, CD Stop,
Tuning Down Button

9.Video CD Skip or Previous, CD Track Down,
Tuner Preset Down Butto n

10.Disc Compartment Cover Open/Close Button

11.Video CD Skip or Next, CD Track Up,
Tuner Preset Up Button

Display

■

1.Timer Play Indicator

2.Sleep Indicator

3.Video CD/CD Random Play Indicator

4.Memory Indicator

5.FM Stereo Mode Indicator

6.Video CD/CD Play Indicator

7.Video CD/CD Repeat Play Indicator

8.FM Stereo Receiving Indicator

9.Surround Indicator

8
9

7

Rear panel

■

1

6

2
3
4

5

7

The rating label is located
on the bottom of the unit.

8

9
10
11

1.CD Digital Output Socket

2.AM Aerial Terminal

3.Aerial Earth Terminal

4.FM 75 Ohms Aerial Socket

5.Headphone Socket

6.Video Output Socket

7.Cooling Fan

8.Video/Auxiliary (Audio Signal) Input Sockets

9.AC Voltage Selector

10.AC Power Input Socket

11.Speaker Terminals

Speaker system

■

1.Tweeter

2.Woofer

3.Bass Reflex Duct

4.Speaker Terminals

1

2

3

4

– 4 –

1
2

3
4

5
6

7
8

11
12

13
14
15
16
17

19
20

21

22

23

24
25

26 27

18

9

10

28
29

30
31

Buttons with " " mark in the illustration can be operated on the re­mote control only.
Other buttons can be operated both on the main unit and the re­mote control.

32

33
34
35

Remote control

■

1.Remote Control Transmitter

2.On/Stand-by Button

3.Video CD/CD Button

4.Tuner Button

5.Timer Button

6.Clock Button

7.Memory Button

8.Dimmer Button

9.Surround Button

10.Volume Up and Down Buttons

11.Video/Auxiliary Button

12. Video CD TV Type Button

13.Band Selector Button

14.Video CD/CD Clear Button

15.Sleep Button

16.Random/Repeat Button

17.Disc Compartment Cover Open/Close Button

18.Audio Mode Button

19.Tuner Preset Up Button

20.Video CD Skip or Previous, CD Track Down Button

21.Video CD/CD Fast Reverse, Tuning Down Button

22.Video CD/CD Play Button

23.Video CD Skip or Next, CD Track Up Button

24.Video CD/CD Fast Forward, Tuning Up Button

25.Video CD/CD Pause Button

26.Video CD Stop or Return, CD Stop Button

27.Tuner Preset Down Button

28.Bass Up and Down Buttons

29.Video CD/CD Direct Search Buttons

30. Video C D In tro Button

31.Video CD Track Digest Button

32.Treble Up and Down Buttons

33. Video CD Playback Control Auto/Off Button

34.Video CD/CD Display Button

35.Video CD Time Search Button

XL-3000V

– 5 –

XL-3000V

Troubleshooting

■

If trouble occurs

When this product is subjected to strong external interference
(mechanical shock, excessive static electricity, abnormal supply
voltage due to lightning, etc.) or if it is operated incorrectly, it may
malfunction.

If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and

plug in the unit, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by
resetting it.

■

Clearing all the memory (reset)

1 Press the ON/STAND-BY button to enter the power stand-by

mode.

2 Unplug the AC power lead from the AC INPUT socket on the

unit.

3 Whilst pressing down the MEMORY/SET button and the but-

ton, plug the AC power lead into the AC INPUT socket on the
unit.

Caution:

●

This operation will erase all data stored in memory including
clock, timer settings, tuner preset, and CD programme.

●

After the above operation, interval span setting for AM will be
returned to 9 kHz (50 kHz for FM) automatically.

AC INPUT

Setting the Clock

This may be operated only with the remote control.
In this example, the clock is set for the 24-hour (0:00) display.

1

Press the CLOCK button and within 3 seconds, pres s
the MEMORY button.

2

Within 1 minute, press the PRESET ( or ) button to
select 24-hour or 12-hour d isplay and then press the

MEMORY button.

"0:00" The 24-hour display will appear.

(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
Note that this can only be set when the unit is first installed or it

has been reset.

OPERATION MANUAL

3

Within 1 minute, press the PRESET ( or ) button to
adjust the hour and then press the MEMOR Y but to n.

When the 12-hour display is selected, "AM" will change auto­matically to "PM".

4

Within 1 minute, press the PRESET ( or ) button to
adjust the minutes and then press the MEMORY button.

●

The hour will not advance even if minutes advance from "59"
to "00".

●

The clock starts from "0" second. (Seconds are not dis­played.)

To confirm the time display when the power is on:

Press the CLOCK button.
The time display will appear for about 5 seconds.

Note:

The time will flash at the push of the CLOCK button when the AC
power supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.

To readjust the clock:

Perform "Setting the Clock" from the beginning.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents.
2 Perform " Setting the Clock" from the beginning.

Remote Control

Battery installation

■

1 Remove the battery cover.
2 Insert the batteries according to the direction indicated in

the battery compartment.

When inserting or removing the batteries, push them towards the

battery terminals.

3 Replace the cover.

Precautions for battery use:

●

Replace all old batteries with new ones at the same time.

●

Do not mix old and new batteries.

●

Remove the batteries if the unit will not be used for long periods
of time. This will prevent potential damage due to battery leak­age.

Caution:

●

Do not use rechargeable batteries (nickel-cadmium battery, etc.).

●

Installing the batteries incorrectly may cause the unit to malfunc­tion.

Notes concerning use:

●

Replace the batteries if the operating distance is reduced or if the
operation becomes erratic. Purchase 2 "AAA" size batteries (UM­4, R03, HP-16 or similar).

●

Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.

●

Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit.

●

Keep the remote control away from moisture, heat, shock, and
vibrations.

– 6 –

System Connecti on s

Right speaker

AM loop aerial

FM aerial

Left speaker

XL-3000V

MD recorder

not supplied

TV

Right speaker

Black wire
with white dots

Black wire

Left speaker

System Connections (continued)

Placing the speaker system

■

There is no distinction between the right and the left speakers.

Left speaker Right speaker

Speaker grilles are removable:

Make sure nothing comes into contact
with the speaker diaphragms when you
remove the speaker grilles.

To a wall socket

TV/monitor connection

■

If the TV/monitor has a video input, connect it to VIDEO OUT socket
on the rear of the unit.

TV

To video
input socket

Video cable

Notes:

●

The speakers are magnetically shielded.
Therefore, they do not affect the display even you use them near
the TV. However, some colour variation may occur, depending on
the type of TV used.

If colour variation occurs...

Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.

If the colour variation is still present...

Move the speakers further away from the TV.

●

If any kind of magnet or an electromagnet is placed too close to
the TV and the system, irregular colours may appear on the TV
screen.

Note:

If the TV/monitor does not have a video input, the VIDEO OUT
socket on the unit should be connected to a VCR with a video input,
which in turn should be connected to the TV/monitor through the T V
ANTENNA/CABLE input. (Be sure to turn on the VCR, and set the
VCR's input mode to "auxiliary".)

– 7 –

XL-3000V

System Connections (continued)

Setting the AC voltage selector

■

Check the setting of the AC voltage selector located on the rear
panel before plugging the unit into a wall socket. If necessary, adjust
the selector to correspond to the AC power voltage used in your
area.

Turn the selector with a scre wdriver until the appropriate volt­age number appears in the window (110 V, 127 V, 220 V or 230 V

- 240 V AC).

Connecting the AC po wer lead

■

After checking all the connections have been made correctly,
connect the AC power lead to the AC power input socket, then
into the wall socket.

Wall socket

1

2

Notes:

●

Unplug the AC power lead from the wall socket if the unit will not
be in use for a prolonged period of time.

●

Never use a power lead other than the one supplied. Use of a
power lead other than the one supplied may cause an elec­tric shock or fire.

AC Plug Adaptor

In areas (or countries) where a wall socket as shown in illustration
is used, connect the unit using the AC plug adaptor supplied with
the unit, as illustrated. The AC plug adaptor is not included in areas
where the wall socket and AC power plug can be directly connected
(see illustration ).

System Connections (continued)

Setting the AM/FM interval

■

The International Telecommunication Union (ITU) has established
that member countries should maintain either a 10 kHz or 9 kHz
interval between broadcasting frequencies of AM stations and 100
kHz or 50 kHz for FM stations. The illustration shows the 50/9 kHz
zones (regions 1 and 3), and the 100/10 kHz zone (region 2).

This product is not equipped with a span selector. However, it will be
adjusted to a 9 kHz AM (50 kHz FM) interval when shipped from the
factory .
Before using the unit, be sure to set it to the AM/FM tuning interval
(span) used in your area.

To check the tuning span currently selected:

1 Press the ON/STAND-BY button to turn the power on.
2 Press the FUNCTION button until "AM" appears on the display.

●

If "AM 531 kHz" is displayed, it means that AM stations have
been adjusted for a 9 kHz span and FM stations for 50 kHz
span. If "AM 530 kHz" is displayed, AM stations have been ad­justed for a 10 kHz span and FM stations for 100 kHz span.

To change from a 9 kHz AM (50 kHz FM) interval to a 10 kHz AM
(100 kHz FM) interval:

1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Hold down the button and the MEMORY/SET button for at

least 4 seconds. Release the buttons when "AM SP 10 kHz" and
"FM SP 100 kHz" are displayed alternately.

●

The clock display will reappear.

To return to a 9 kHz AM (50 kHz FM) interval:

1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Hold down the button and the MEMORY/SET button for at

least 4 seconds. Release the buttons when "AM SP 9 kHz" and
"FM SP 50 kHz" are displayed alternately.

●

The clock display will reappear.

Caution:

●

When the unit is left for a few hours after the span has been
switched and the AC power lead disconnected, the AM span will
be automatically returned to 9 kHz (FM span to 50 kHz). If this
happens, set the span again.

●

When the span is switched, all the memorised stations will be
cancelled.

– 8 –

Listening to a CD

XL-3000V

1

Press the ON/STA N D-BY button to turn the power on.

2

Press the FUNCTION button until "CD" or "NO DISC "
appears on th e display.

When operating with the remote control, press the CD button.

3

Press the (OPEN/CLOSE) button to open the disc
compartment.

4

Place a CD on the spindle, label si de up.

Be sure to place 8 cm (3") disc in the middle of a disc holder.

5

Press the (OPEN/
CLOSE) button to

close the disc com­partment.

6

Press the ( ) button to start playback fr om tr ack 1.

When the last track on the disc has finished playing, the unit will
stop automatically.

To interrupt playback:
Main unit operation:

Press the button.
To resume playback from the same point, press the button again.

Remote control operation:

Press the button.
To resume playback from the same point, press the button.

To stop playback:

Press the button.

To remove the CD:

Whilst in the stop mode, press the (OPEN/CLOSE) button.
Press the disc eject button and remove the CD.

Total number of

racks

t

Total playing time

Listening to the Radio

FM stereo mode indicator

FM stereo receiving indicator

1

Press the ON/STA N D-BY button to turn the power on.

2

Press the FUNCTION button until "FM" or "AM" ap­pears on the display.

When operating with the remote control, press the TUNER but­ton, and then the BAND button to select "FM" or "AM".

3

Press the TUN ING ( or ) button to tune in to the de­sired station.

Manual tuning:

Press the TUNING button as many times as required to tune in
to the desired station.

Auto tuning:

When the TUNING button is pressed for more than 0.5 sec­onds, scanning will start automatically and the tuner will stop at
the first receivable broadcast station.

Notes:

●

This can be operated by pressing the TUN. ( or ) button
on the remote control.

●

When radio interference occurs, auto scan tuning may stop
automatically at that point.

●

Auto scan tuning will skip weak signal stations.

●

To stop the auto tuning, press the TUNING button again.

To receive an FM stereo transmission:

Press the FUNCTION (BAND) button to display the "ST" indicator.

●

" " will appear when an FM broadcast is in stereo.

●

If the FM reception is weak, press the FUNCTION (BAND) button
to extinguish the "ST" indicator. The reception changes to mon­aural, and the sound becomes clearer.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

– 9 –

XL-3000V

(B1) x2
ø2.5 x8mm

(B4) x2

(B6) x1

(B4) x4

(B3) x1

(B3) x1

Main PWB

(A3) x1
ø3 x10mm

Lug

Hook
(B2) x3

HooK
(B2) x2

(B4) x1

CD Mechanism

Hook

Up

Slide

Top Cabinet

Top Cabinet

Bottom Cabinet

Bottom Cabinet

(B4) x1

Power
PWB

Video PWB

(B4) x1

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:

1. Take compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.

4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.

(A1) x2
ø3 x10mm

Rear Panel

(A1) x3
ø3 x10mm

Top Cabinet

(A1) x2
ø3 x10mm

Figure 10-1

Fan Motor

(A3) x3
ø3 x12mm

(A4) x2
ø3 x8mm

Rear Panel

(A2) x4

Terminal PWB

STEP REMOVAL

1 Rear Panel/ 1. Screw .................. (A1) x7 10-1

Terminal PWB/ 2. Socket ................. (A2) x4

Fan Motor 3. Screw .................. (A3) x4

2 Top Cabinet/ 1. Screw .................. (B1) x2 10-2

Video PWB 2. Hook .................... (B2) x5

3 Tuner PWB 1. Screw .................. (C1) x2 11-1

4 Power PWB 1. Socket ................. (D1) x2 11-1

5 Main PWB 1. Socket ................. (E1) x1 11-1

6 Display PWB 1. Screw .................. (F1) x4 11-2

7 CD Mechanism 1. Screw .................. (G1) x4 11-2

8 Gear Box 1. Screw .................. (H1) x1 11-2

9 LED PWB 1. Screw .................. (J1) x1 11-2

PROCEDURE

4. Screw .................. (A4) x2 10-1

3. Flat Cable............ (B3) x2

4. Socket ................. (B4) x9

5. Screw .................. (B5) x3 11-1

6. Socket ................. (B6) x1 10-2

2. Socket ................. (C2) x1

2. Hook .................... (D2) x1

2. Screw .................. (E2) x8

2. Hook .................... (F2) x4

2. Holder.................. (H2) x1

3. Lever ................... (H3) x1

4. Screw .................. (H4) x3

5. Lever ................... (H5) x1

FIGURE

10-1,2

Note:

After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.

Figure 10-2

– 10 –

XL-3000V

( A3 ) x2
ø4 x12mm

( A3 ) x4
ø4 x12mm

Tweeter

Woofer

Net Frame
( A1 ) x1

Front Panel
( A2 ) x1

Screwdriver

(B5) x3
ø3 x6mm

Video
PWB

Bracket

Power PWB

(E2) x7
ø3 x8mm

Hook
(D2) x1

Bracket

Main PWB

Tuner PWB

(D1) x2

(C1) x1
ø3 x8mm

Holder

PWB

(E1) x1

(C2) x1

Tuner PWB

Main PWB

Bottom Cabinet

(C1) x1
ø3 x6mm

Washer

(E2) x1
ø3 x14mm

(H1) x1
ø3 x8mm

(J1) x1
ø2.5 x10mm

(H3) x1

Switch
PWB

(H4) x1
ø2.5 x8mm

(H2) x1

LED PWB

CD Mechanism

Gear Box

Bracket

(H4) x2
ø2.5 x10mm

(H5) x1

Shield
Cover

Display PWB

Figure 11-2

Figure 11-1

(G1) x2
ø2.5 x10mm

Top Cabinet

Holder PWB
(G1) x2

ø2.5 x10mm

Holder PWB

(F1) x4
ø2.5 x10mm

Hook
(F2) x4

STEP

1 Speaker 1. Net Frame ........... (A1) x1 11-3

REMOVAL

PROCEDURE

2. Front Panel ......... (A2) x1

3. Screw .................. (A3) x6

FIGURE

Figure 11-3

– 11 –

XL-3000V

(A1) x1
ø2.5 x10mm

(A1) x2
ø2.5 x12mm

(A1) x1
ø2.5 x14mm

(A2) x1

(A3) x1

(A4) x2
ø2 x5mm

Switch PWB

CD Lid Motor

Gear Box Lid

REMOVING AND REINSTALLING THE MAIN PARTS

How to remove the CD lid (See Fig. 12-1.)

Perform steps 1,2 and 8 of the disassembly method to remove
the gear box. (See page 10,11)

1. Remove the switch PWB.

2. Remove the screws (A1) x 4 pcs., to remove the gear box
lid.

3. Remove the gears (A2) x 1 pc. and (A3) x 1 pc.

4. Remove the screws (A4) x 2 pcs., to remove the motor.

Caution:

Be careful so that the gear is not damaged.
(The damage gear emits noise during searching.)

CD MECHANISM SECTION (See Fig. 12-2.)

Perform steps 1,2 and 7 of the disassembly method to remove
the CD mechanism. (See page 10,11)

1. Remove the mechanism cover, paying attention to the
pawls (A1) x 4 pcs.

2. Remove the screws (A2) x 2 pcs., to remove the shaft (A3)
x 1 pc.

3. Remove the stop washer (A4) x 1 pc., to remove the gear

(A5) x 1 pc.

4. Remove the pickup.

Note:

After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.

(A1) x4

Figure 12-1

Mechanism Cover

(A2) x2
ø2.6 x6mm

CD Mechanism

Shaft
(A3) x1

Gear
(A5) x1

Stop Washer
(A4) x1

Pickup unit

Figure 12-2

– 12 –

ADJUSTMENT

AM

GND

FM

75

OHMS

ANTENNA
TERMINAL

SO301

T302

IC301

T306

T304

IC303

T351

L303

L302

VR351

TP301

FM Mute
Level

AM Band
Coverage fL

FM Band
Coverage fL

AM
Tracking fL

AM IF

FM IF

FM OSC.

FM ANT.
FM RF

IC302

20

TUNER PWB-A2

1

TUNER SECTION

fL: Low-range frequency
fH: High-range frequency

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

Frequency

AM IF 450 kHz 1,602 kHz T351 *1

AM Band — 531 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V
AM 990 kHz 990 kHz (fL): T302 *1

Tracking

*1. Input: Antenna, Output: Speaker Terminal
*2. Input: Input is not connected, Output: TP301

• FM Detection

Signal generator: 10.7 MHz, FM sweep generator

Test

Stage

FM IF 10.7 MHz 98.0 MHz T304(Turn Input: Pin 1 of

• FM RF

Signal generator: 1 kHz, 75 kHz dev., FM modulated

FM Band — 87.50 MHz (fL): L303 *1

Coverage 3.4 ± 0.1 V
FM RF 98.00 MHz 98.00 MHz L302 *2

Frequency Display

Frequency Frequency

Frequency

(10~30 db)

Display

Frequency

Display

Setting/

Adjusting

Parts

Setting/

Adjusting

Parts

the core of IC301
T304 fully
counter­clockwise.)

Setting/

Adjusting

Parts

Instrument

Connection

Instrument

Connection

Instrument

Connection

XL-3000V

• FM Mute Level

Signal generator: 1 kHz, 40 kHz dev., FM modulated

Frequency

98.00 MHz 98.00 MHz VR351*1 Input: SO301
(25±1 dBµV) Output: Speaker

Display

*1. Adjust so that an output signal appears.

• Check FM VT

Signal generator: 1 kHz, 40 kHz dev., FM modulated

Frequency

87.5 MHz 87.5 MHz 3.4 V ± 0.1 V TP301
108 MHz 108 MHz 7.8 V ± 1.0 V TP301

Display

• Setting the Test Mode

Keeping the FF/PRESET UP button and MEMORY/SET button
pressed, turn on ON/STAND-BY. Then, the frequency is
initially set in the memory as shown in Table. Call it with the
VOLUME UP/DOWN button to use it for adjustment and check
of tuner circuit.

Preset No.

1 87.50 MHz 6 531 kHz
2 108.00 MHz 7 1,602 kHz
3 98.00 MHz 8 990 kHz
4 90.20 MHz 9 612 kHz
5 106.00 MHz 10 1,404 kHz

FM

Adjusting

Parts

Check Point Instrument

Preset No.

Instrument

Connection

Terminal

Connection

AM

*1. Input: Antenna, Output: TP301
*2. Input: Antenna, Output: Speaker Terminal

Figure 13-1 ADJUSTMENT POINTS

– 13 –

XL-3000V

Color bar signal
waveform

100 100

88.5
75

70

75

41.5

33.5

5

0

-13.5

-25 -25

100 IRE

(0.714V)

(1V)

(0.286V)

140 IRE

Horizontal
sync signal

40 IRE

40 IRE

Color Burst

20

-20

-40

Blue

Red

Green

Magenta

Cyan

Yellow

Gray

(59.94Hz/NTSC)

IH

CD SECTION

Since this CD system incorporates the following automatic
adjustment function, when the pickup is replaced, it is not
necessary to readjust it.

VIDEO CD SECTION

A-BEX
TEST VIDEO CD

••

• Measurement of oscillation frequency

••

Disc Adjusting

CD Stop TC100V 27.00000 MHz1 of R163V and

••

• Checking of video output signal

••

Point

Model No.

Instrument

Connection

± 160 Hz

Checking of color bar

Disc

Track 2 Video output terminal Chroma Peak Level

Adjusting Point

TVD-581
TVD-581A

Specified Value

2

of C183V

Instrument

Connection

100 ± 15 IRE

SET

Video Output Terminal

Video Input Terminal

TV

Figure 14-3 Checking of video output signal

VIDEO PWB-D

1 PCLK2X

IC14V

X1V

R163V

C183V

TC100V

IC15V

2 GND

Figure 14-1 ADJUSTMENT POINTS

SET

VIideo Output Terminal

Yellow

Gray

Figure 14-4

Green

Cyan

Blue

Red

Magenta

75 ohms

Figure 14-2 Measurement of oscillation frequency

GND

Vectorscope
Waveform monitor

or oscilloscope

TV monitor

Figure 14-5

– 14 –

Checking of vector scope waveform

YL

MG

CY

G

75%

B

R-Y

-Q

-I

[NTSC] [PAL]

I

Q

YL

R

R

75%

B-Y

MG

B

CY

cy

G

mg

U

V

g

yl

b

Checking SettingDisc Checking

Item

Track 2 VIDEO OUT Set the phase of Phase check

color burst signal ± 10°
(B) to 180°-360°
line.

( Check that the setting is within the illustrated range.)

XL-3000V

Checking the black-and-white level

Checking Checking ItemDisc

Track 16 VIDEO OUT Output level

100% Luminance

100IRE

100 ± 10 IRE

40IRE

40IRE

Horizontal Interval
reference signal

100% WHITE LEVEL

Figure 15-2

Figure 15-1

– 15 –

XL-3000V

TEST MODE

The test mode applied to this microcomputer has three modes,
namely the ordinary test mode for adjustment or measurement,
the aging test mode, and the self-diagnosis test mode for self­judgment in case of final product inspection.

1. Turning on the test mode

For obtaining each test mode, press the ON/STAND-BY
button, while keeping pressing the following two buttons in
the ordinary stand-by mode (power off ). In this case, the
main unit buttons are valid. When turning the ON/STAND­BY on with remote control buttons, test modes are not
obtained.

[Ordinary test mode]

1. Tuner Test Mode (TEST 2)

.......................REW/PRESET DOWN + CD PLAY

2. Electronic Volume Test Mode (TEST 3)

.......................REW/PRESET DOWN + FF/PRESET UP

3. Timer Test Mode (TEST 4)

.......................FUNCTION + VOLUME UP

4. LCD Test Mode (TEST 5)

.......................FUNCTION + FF/PRESET UP

5. Electric CD Lid Aging Test Mode (TEST 8)

.......................FUNCTION + CD PLAY

[Self-diagnosis Test Mode]

1. Button input diagnosis test mode (TEST6)

.......................FUNCTION + VOLUME

Processes are different depending on destinations at
initial settings.

2. Tuner Test Mode (TEST 2)

1. Outline of tuner (radio) test mode

The tuner test mode is intended to store the adjustment
and measurement frequencies in the preset memory
CH. When adjusting the tuner section in the production
line, adjusting personnel are not required to set frequency.

2. Details of tuner test mode

Press the "REW/PRESET DOWN" and "CD PLAY"
buttons in POWER OFF state and turn on the power by
the use of "ON/STAND-BY" button to preset and store
frequency for adjustment and measurement of destination
specified by the AREA terminal in the preset memory
CH. However, Ordinary 1 and Ordinary 2 are stored in
the destinations (selected by SPAN switching operation)
when the test mode is obtained.

" + "MEMORY/SET" KEY SPAN CHANGE)

("FF
(As for frequencies to be preset and stored for each
destination, refer to item 3.)
The tuner test mode is started from preset No.1.
The operations of test mode are identical with the ordinary
operations of TUNER function. FUNCTION switching is
invalid.

• The TUNER TEST2 mode is obtained with

+ MEMORY + ON/STAND-BY.

Turn off AC in the TEST2 mode to restore the initial state.

Turn off POWER to protect the memory of TEST2 mode.
Turn off POWER again to obtain the ordinary operation
while the data is stored in the memory (besides TUNER).

If AC OFF state is maintained in this state for about 1/2 day,
start is executed in the initial state.

• To clear the whole memory, insert the AC cord, pressing
MEMORY + CD PLAY.

3. Preset frequencies for various destinations (random
preset memory)

CH

1 FM 87.50 MHz
2 FM108.00 MHz
3 FM FM 98.00 MHz
4 STEREO FM 90.20 MHz
5 FM106.00 MHz

6 AM 531 kHz
7 AM1602 kHz
8 AM AM 990 kHz
9 AM 612 kHz
10 AM1404 kHz

CH

16-25
26 FM106.00 MHz

27 FM 90.20 MHz
28 FM FM 98.00 MHz
29 MONO FM108.00 MHz
30 FM 87.50 MHz

• The slant line sections of the table store no memory.

BAND

BAND

BAND

>>

->

FM

AMCH

FM

It is necessary to discard the content of preset memory
when the tuner test mode is ended; be sure to write "0000"
or "1111" bits in the memory to be checked for judging
memory error at initial setting and to initialize memory.

When the tuner test mode is obtained, the following display
lights for one second.

– 16 –

XL-3000V

3. Electronic volume Test Mode (TEST 3)

When this test mode is obtained, the following display lights
for one second.

In this mode, volume is -14 dB (STEP28), BASS/TREBLE
is set to 0 (0 dB) and SURROUND mode to OFF, and start­up function to CD, respectively. The button operations in
the test mode are the same as those of ordinary operation
except volume UP/DOWN.

(1) The display is the same as that of ordinary operation

except test mode setting.

(2) Unlike the ordinary state, the volume is controlled with

the volume UP/DOWN button in accordance with the
following three steps.

Volume-

Volume-14 dB (STEP 23)
Volume-0 (STEP 30)

∞ (STEP 0)

<->

<->

5. LCD Test Mode (TEST 5)

When the LCD test mode is obtained, all the LCD segments
are lighted. Then pressing the "PLAY" button switches
display as below.

Lighting of all segments

Lighting of odd segments

Lighting of even segments

(3) BASS/TREBLE and SURROUND are switched when

button is pressed.

4. Timer test Mode (TEST 4)

When this test mode is obtained, the following display lights
for one second.

Set the current time and timer time according to the following
procedure to reproduce the timer.

1. Set the current time to 1:00, the timer to ON time 1:05, the
function to CD, and volume to STEP 12, respectively. One
minute is counted as one second, and the timer is
reproduced. The fade-in (when playback is started) is
executed at a rate of one step for 1 sec. After completion
of fade-in, the fade-out is executed at a rate of one step for
1 sec (WAIT 1 sec inserted).

After completion of fade-out, the power is turned off (after

WAIT 1 sec), and the mode is shifted to the standby.

The display during operation is the same as that of ordinary

timer operation.

– 17 –

XL-3000V

6. Key input diagnosis Test Mode (TEST 6)

When the test mode is obtained, the following is displayed.

This test mode is intended to check whether all the main
unit buttons can be detected. Accordingly, in this test
mode, it is checked whether the "ON/STAND-BY" button
was pressed after all the buttons shown below were pressed.
If the result is OK, OK is displayed. If any one of keys was
not pressed, an error is displayed. In both cases of OK
termination or error termination, the mode is shifted to the
standby mode if the "ON/STAND-BY" button is pressed
subsequently.

All models using this type of microcomputer are not always
provided with the same buttons. Since the buttons used are
different depending on models, types of buttons to be used
are determined by whether RDS, SURROUND, and an
electric lid are available at the initial setting by MODEL port.

The order of buttons to be pressed is not determined.
Accordingly, it is checked whether all buttons have been
pressed.

1. PU-IN buttons: REW/PRESET DOWN + CD STOP
Since this model is provided with SURROUND (HAVE
OR NOT), RDS (HAVE OR NOT), and electric CD lid, the
following 10 buttons are detected as all buttons.
PLAY, BASS/TREBLE, FUNCTION, VOLUME UP/
DOWN, MEMORY/SET, REW, FF, STOP, CD-OPEN/
CLOSE

The OK/NG display of test result is as follows.

7. Electric CD lid Aging Test Mode (TEST 8) (Only for
model with electric CD lid)

Outline
OPEN/CLOSE operations of electric CD lid are repeated.
The number of repeated times and time period are
monitored. If the lid does not move to the regular position
after the specified time, operation is stopped. When an
error is detected by [CLID_PRO] during CLOSE, operation
is also stopped.

a. POWER ON for function AUX

CD lid position is checked.

CLOSE position: Operation proceeds to the next

process.

Position other than CLOSE:After the lid moves to

CLOSE,operation
proceeds to the next process.

b. CD lid operation started

OPEN operation

WAIT 1 second
CLOSE operation
WAIT 1 second

c. Operations above are repeated.

Specified monitoring time

OPEN operation: 5 seconds
CLOSE operation: 5 seconds

d. Display

OPEN>CLOSE is counted as 1. I to 59999 are counted;
if the count is over 59999, display is returned to 0 to
repeat counting.

Display when the lid does not move to the regular
position after the specified time
(Ex: Defective operation occurring in the middle of

1538.)

– 18 –

Highlight display of stop when an error is detected by
[CLID-PRO]
(Ex: Defective operation occurring in the middle of

1538.)

NOTES ON SCHEMA TIC DIAGRAM

XL-3000V

• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.

• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION

NSW801 PICKUP IN ON—OFF
SW651 VOLTAGE SELECTOR 110V
SW709 ON/STAND-BY ON—OFF
SW710 CD LID OPEN/CLOSE ON—OFF
SW711 FF/PRESET UP ON—OFF
SW712 CD PLAY/PAUSE/TUNING UP ON—OFF
SW713 VOLUME UP ON—OFF

• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas­sis with no signal given.

1. In the tuner section,

( ) : AM mode

: FM stereo mode

2. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

SW718 VOLUME DOWN ON—OFF
SW721 MEMORY/SET ON—OFF
SW722 BASS/TREBLE ON—OFF
SW725 CD STOP/TUNING DOWN ON—OFF
SW726 REW/PRESET DOWN ON—OFF
SW727 FUNCTION ON—OFF
SW802 CD LID ON—OFF

FRONT

VIEW

ECB

(S)(G)(D)
(1) (2) (3)

2SB562 C
2SC535 C
2SK246 GR
2SC1740 SR
2SD1858 R2
KRA102 M
KRC102 M
KRC104 M
KRC107 M
KTA1266 GR
KTA1268 GR
KTC3199 GR
KTC3200 GR

FRONT

VIEW

BCE

2SD2012 Y

Figure 19 TYPES OF TRANSISTOR AND LED

DB5306X

FRONT
VIEW

1 2 3

SVC348S
KDV147C

– 19 –

XL-3000V

N

B

U

N

3

Q804
Q805

Q804
Q805

FROM

DISPLAY PWB

CNP702

+B4

CLID_SW

CLID_UP

CLID_PRO

CLID_DW

FAN_DEC

9

1

5

23

AMP_DEC

Q802

3

45678910

CD_STB

DIMMER

6

2

LIGHT

8

7

1

FAN

IC805

CD LID

TA7291S

MOTOR DRIVER

Q901 Q902

Q908 Q907

Q908

Q908

LED PWB

M_GND

+B4

M_GND

+B8

SWITCH PWB

SW802
CD LID

OPEN/CLOSE

M801

CD LID

OPEN/CLOSE

MOTOR

M

+B4

+B7

GND

OPO

VO2-

VO2+

PO1-

PO1+

VO3-

VO3+

VIN3

16 17 18 19 21 22 23 24 25 26 27 28

VIN2

5V

8

9910111213

6

5

7

TRB

GND

VCC

MUTE

VCC

+B5

REG O

BIAS

VG4

VG1

VIN4

VG2

VG3

CD_6R2V

Q861

1234

VIN1

VO1-

VO1+

VO4+

VO4-

GND

IC804
MM1469XH
FOCUS/TRACKING/
SPIN/SLED DRIVER

+B5

M_GND

+

NM802
SPINDLE

M

MOTOR

–

SP+
SP–
SP+

+

M

–

NSW801
PICKUP IN

NM801
SLED
MOTOR

SL–
PU-IN
GND

CD MOTOR PWB

FO
TR

FROM

VIDEO PWB

1 2 3 4 5 6

L–CH

A_GND

A_GND

R–CH

VDAC

SO401
VIDEO

OUT

VIDEO/AUX

INPUT

M802
FAN

MOTOR

M

CNP807

DIGITAL

+5V

+B2

J801

OUT

7 8

D_GND

+8V

1
2

1
2

1
2
3

11 10 9

CNP307

SD

+B1

R-CH

L-CH

CNP810

TERMI

PW

T

DO

FM ST

CL

1
2
3
4
5
6

TO

7
8

VIDEO PWB

9
10
11
12

CNS801

/RST
BUS0
BUS1
BUS2
BUS3
BUCK
/CCE
PU_IN

LRCK
BCK
DATA

X801

16.93MHz

+B7

5355

FMO

DMO

100

/RST

90

BUS0
BUS1

91

BUS2

92

BUS3

93

BUCK

96

/CCE

97

5

LRCK
BCK

7

AOUT

8

SERVO/SIGNAL CONTROL

XI

78

XO

79

14

VDD

23

VDD

39

AVDD

62

VDD

76

VDD

80

XVDD

94

VDD

AVSS

IC802

TC9462F

VSS

VSS

VSS

TESIOO

TESIN

TESI01

6152436 63 71 72 73 74 77 95 81 86

VSS

M_GND

+B2

DOUT

57

SEL

56

2VREF

TEBC

52

RFGC

51
50

VREF

TRO

49
48

FOO

47

TEZI

46

TEI

TSIN

45
44

SBAD

43

FEI

RFRP

42

RFCT

40

RFI

38
34

VCOREV

33

PVREV

LPFO

32

LPFN

31
30

TMAX

28

PDO

P2VREF

25

XVSS

VSS

PXI

A_GND D_GND

DVSR

DVSL

13

SBAD

14

FEO

15

FEN

16

VRO

17

RFRP

18

RFIS

19

RFGO

20

RFGC

21

AGCI

22

RFO

23

GND

24

RFN

D_GND

TA2109F

SERVO PRE AMP.

IC801

TEO
TEN

2VRO

TEB

SEL

LDO

MDI
TN1

TPI
FPI
FNI

VCC

12
11
10

9
8
7
6
5
4
3
2
1

+B7

E
F
B
A

C

+B7

SWITCHING

Q801

+B7

PICKUP U

FOCUS COIL

TRACKING COIL

LD

MON

1/2V

5V

Figure 20 BLOCK DIAGRAM (1/6)

– 20 –

XL-3000V

TO

TUNER PWB

1 10 9 8 7 6 5 4 3 2 1

DI

CL

CE

DO

A_12V

FM ST

D_GND

+B6

TUN L

TUN R

+B7

MINAL

WB

IC682

KIA7805API

3

VOLTAGE

REGULATOR

2

UNIT

IL

IL

VOLTAGE

REGULATOR

FROM

DISPLAY PWB

1 2 3 4 5 6

SD

DO

A_GND

STEREO

+B1

1

Q610

Q607

CD_6R2V

+B5

CD +B

+B3

+B4

1
2

+B8

CNP652

+B6

5V

A_12V

MAIN PWB

FROM

DISPLAY PWB

7 8 9 10

DI

CL

CE

CD +B

A_24V

VOLTAGE

REGULATOR

Q904

M_12V

Q903

REGULATOR

P_STB

P_MUTE

+B3

D651~D654

D657~D660

VOLTAGE

A_24V

A_GND

Q606

Q605

Q603
Q604

D_GND

MUTE

Q601
Q602

13 12 11

5V

CNP703

+B8

–B

D_GND

Q608

Q609

F651

T3.15A L 250V

F652

T3.15A L 250V

F653

T1.6A L 250V

VOLTAGE

SURROUND
ON/OFF

SURROUND

AUX R
TUN R

CD R

14

15

16

17
CD L
TUN L

IC401

AUX L

LC75342M

FUNCTION/VOLUME

EQUALIZER

IN2

+VCC

IN1

L-CH

CNP801

1
2
3
4
5

REGULATOR

PRE

15 13 12 11 10 9 8 7 6 4 1

R-CH

+B

1
2
3
4
5

4

USWD_5R6V

3
2

D_GND

1

FROM

DISPLAY PWB

CNP707

F654

T.F 2A,250V

POWER PWB-B

Q203

11

13 12

19

20

18

STK40202

POWER AMP.

+VCC

–B

Q102

Q101
Q104

IC681

KIA7805API
VOLTAGE

REGULATOR

3

D688

P_CONT

10

9

21

22

IC601

–VCC

1

2

1N4004

AC 110/127/220/

230~240V, 50/60Hz

R-CH IN

R-CH OUT

76

5

Q201

4

3

L-CH IN

R-CH OUT

8

24

23

L-CH OUT

Q103

TF

TRANSFORMER

D681~D684

7

4 3 2 1

6

5

VSS

NC

26

25

27 28

–VCC

PRE

T651
POWER
(MAIN)

Q681

–VE2

+VE2

–VE1

+VE1

R-CH

L-CH

VOLTAGE

REGULATOR

T681

POWER

TRANSFORMER

(SUB)

AC POWER SUPPLY CORD

+B6
A_12V

8

IC201

1

3 5 5 7 7 9 9

1

3

RLY601

SO655
AC INPUT

SOCKET

KIA4558P

SURROUND CONTROL

110V

127V

SW651

VOLTAGE
SELECTOR

12

L-CH OUT

CE

DI

LOGIC

VDD

29

30

CL

A_12V

+B6

GND

CNP651

Q683

AC 110/127/220/

230~240V, 50/60Hz

SO601

SPEAKER TERMINAL

+

L-CH

R-CH

+

J601
HEADPHONES

3
2
1
4
5
9
10

220V

230~240V

Figure 21 BLOCK DIAGRAM (2/6)

– 21 –

XL-3000V

FM DET

8

MUTE

6

3

AM

GND

FM

75ohms

SO301
ANTENNA
TERMINAL

BAD PASS
FILTER

BF301

2

1

3

AM
Tracking fL

+5V

1

L302

FM ANT.

FM RF

T302

T306

AM Band
Coverage fL

IC301

TA7358AP

FM FRONT END

2

4

56 7 9

3

T304

FM +B

VD303

FM +B

FM IF

L303

FM OSC.

FM Band
Coverage fL

VD301

8

FM +B

VT

VD302

FM IF

CF303

Q302

Q306

+5V

TP301

FM MUTE

LEVEL

VR351

FM IF

CF302

X352

4.5MHz

23 22 21 20 19 1824

OUT

AM OSC

AM MIX

IN

FM IF

IC302

LC72131

AM OSC

OUT

IN

IN

AM RF

FM AFC

REG

AM IF

AM IF

CF352

T351

+5V

22 21 20 19 18 17 1

VSS

AOUT

X OUT

X IN

VSM

AM IF

IN

CEDICL

CUT

AM LOW

GND

AIN

PLL(TUNER)

OUT

FM/AM

SD

DO

X

45

STEREO
7654321

+5V

PD

VDD

FM

765431

CNS707CNS652

1

2

TO

3

4

POWER PWB

1

TO

2

MAIN PWB

DISPLAY PWB

CNW707

D_GND

1

P_CONT

2

USWD_5R6V

3

LAMP PWB

LMP701

GND

SW711~713
SW718
SW721,722
SW725~727

SW709
SW710

RESET

Q701

Q702
Q703

X701

8MHz

X702

32.768kHz

RX701

REMOTE
SENSOR

VLC3

5
6

VLC2
VLC1

7
8

VDD
OSC2

9

OSC1

10
11

VSS
XI

12

XO

13
14

MMOD

15

VREF–
VREF+

24
16

CLID_SW

17

KEY1

18

KEY2

P–CONT

47

Q707

SWITCHING

LCD701

LCD DISPLAY

38541

1

4

COM3

COM0

SYSTEM MICROCOMPUTER/

RESET

Q708

SWITCHING

Q706

FL DRIVER

SYS_STOP

POWER

REMOCON

3837

39 46 49 5032

Q709

100

67

SEG0

IC701

IX0038SJ

DI

A_24V

SEG33

CLDOCE

34272625

5V

SURR

P–STB

P–MUTE

454443

CD+B

CLID_PRO

AMP_DEC

MOT_DEC

CLID_OUT

STEREO

SD

CLID_DW

CLID_UP

FAN

CD_STB

LIGHT

DIMMER

VD_DI

VD_DO

ACK

BUSY

STB

B-LIGHT

Figure 22 BLOCK DIAGRAM (3/6)

– 22 –

AM

OSC

PLL(TUNER)

0

SEG0

X351

456kHz

22 21 20 19 18 17 16 15 14 13

IN

IN

AM RF

FM AFC

REG

AM IF

AM IF

CF352

T351

+5V

22 21 20 19 18 17 16 15 14 13 12

VSS

AOUT

X OUT

X IN

VSM

AM IF

IN

CEDICL

CUT

FM/AM

AM LOW

SD

GND

AIN

DO

OUT

PD

STEREO

+5V

FM

FM DET

VDD

FM IN

MUTE

MPX VCO

CF351

+5V

AM IN

FM

VCC

MO/ST

MPX IN

IF OUT

IF IN

IF REQ

111098765431

OUT

R-CH

PHASE

L-CH

OUT

SWITCHING

Q351

MO/ST

(AM/FM)

PHASE

1211109876543

IC303

LA1832S

FM IF DET./

FM MPX./AM IF

+5V

FM +B

ZD351

Q360

VOLTAGE

REGULATOR

+B

TUNER PWB

SD

FM ST

DO

CL
CE

DI

A_12V

D_GND

TUN_L

TUN_R

A_GND

CNS307

XL-3000V

11
10

9
8

7
6

TO

5

MAIN PWB

4
3
2
1

LCD701
D DISPLAY

38

67

SEG33

701

038SJ

ROCOMPUTER/

RIVER

DI

CLDOCE

SURR

34272625

A_24V

5V

P–STB

454443

CD+B

P–MUTE

46 49 50

CLID_PRO

AMP_DEC

MOT_DEC

CLID_OUT

STEREO

SD

CLID_DW

CLID_UP

FAN

CD_STB

LIGHT

DIMMER

VD_DI

VD_DO

ACK

BUSY

STB

B-LIGHT

CNW702

57
56
20

55
60
52
53
54
21

29
28
30
31
35

40
51

CLID_DW

CLID_UP

CLID_PRO

CLID_SW

CD_STB

AMP_DEC

LIGHT

DIMMER

FAN_DEC

VD_DI

VD_DO

CLID_OUT

SURROUND

FAN

ACK

BUSY

GND
STB

CNW704

STEREO

CD+B

P_MUTE

P_STB
A_24V

D_GND

CNW703A

1
2
3
4
5
6
7
8
9

10

1
2
3
4
5
6
7

SD

1
2

DO

3

CL

4

CE

5

DI

6
7
8

9
10
11
12

5V

13

CNS702

10

9
8
7
6
5
4
3
2
1

1
2
3
4
5
6
7

CNS704

CNS703

1
2
3
4
5
6
7
8

9
10
11
12
13

TO

MAIN PWB

TO

VIDEO PWB

TO

MAIN PWB

Figure 23 BLOCK DIAGRAM (4/6)

– 23 –

XL-3000V

M

VCC

VPP

1

A16

2

A15

3

A12

4

A7

5

A6

6

A5

7

A4

8

A3

9

A2

10

A1

11

A0

12

D0

13

D1

14

D2

15

VSS

16

IC10V

IX0041SJ

ROM 256K x 16

A18
A17
A14
A13
A8
A9
A11

OE

A10
CE
D7
D6
D5
D4
D3

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17

REGULATOR

Q11V

3.3V

R163V

27

81

VCC

LA12

82

LA13

83

LA14

84

LA15

85

LA16

86

LA17

87

AUDIO_CLK

88

AUDIO_DATA

89

BCLK

90

LR

91

DRAS1/DOE

92

RSD

93

RBCLK

94

RWS

95

TDMCLK

96

TDMDR

97

TDMFS

98

DCAS

99

VSS

100

1 2 3 4

LA6

LA7

LA8

LA9

VSS

LA10

LA11

DRAS

DWE

DA0

DA1

DA2

VCC3

DA3

6

5

7

20 19 18 17 16 15 14 13 12 11 10

A2

A3

VCC

LA5

LSCE0

LSCE1

LOE

LROMCE

LWR

LD7

LD6

LD5

LD4

LD3

LD2

LD1

LDO

AUX7/STB

AUX3/VD_DI

AUX2/VD_DO

AUX1/DSADATA

AUX0/DSAACK

PCLK2XSCN

LA0

LA1

LA2

LA3

LA4

IC15V

ES3880F

VIDEO CD DECODER

DA4

DA5

DA6

DA7

DA8

DBUS0

DBUS1

DBUS2

DBUS3

DBUS4

DBUS5

DBUS6

DBUS7

DBUS8

DBUS9

DBUS10

DBUS11

DBUS12

DBUS13

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

8

9

A0

A1

RAS

WE

D4

D5

D6

D7

VCC

D0

D1

D2

D3

DBUS14

1 2 3 4 5 6 7 8 9

VCC

51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 697071727374757677787980

VCC3

VSSK

/MRQ

AUX6

AUX5

AUX4

DSC_STB

PCLKQSCN

DCLK
HSYNC
VSYNC

YUV7

YUV6

YUV5

YUV4

YUV3

YUV2

YUV1

YUV0

VCC3

DBUS15

RESET

VSS

5 0
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

VD_DI

VD_DO

VSS A4A5A6A7A8OE

21

22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

LCASD8D9

UCAS

D10

D11

VSS

D12

D13

D14

D15

Figure 24 BLOCK DIAGRAM (5/6)

– 24 –

VSS

IC16V

IX0025SJ

D-RAM 256K x 16

IC11V

NJM4565M

BUFFER AMP.

7

++

4

8

––

6

5

XL-3000V

CNW802V

VDAC

AGNDV

1

2
3

L_CH

AGNDA

R_CH

+5V

DGND

+12V

CNS802

1
2

1

3

2

4

3
4

5
6

5

7

6
8
9

TO MAIN PWB

7

8

X1V

27MHz

PCLK

VCC

VSS

TC100V

VCC

6

5

XIN

VSS

VCC

DSC_CLK

AUX0

DSC_D0

8

7

VSS

XOUT

AUX3

AUX4

AUX5

AUX6

VCC

ACAP

VDAC

VSSAV

VSSAV

YDAC

VCCA

VCCA

IC14V

ES3883F

VIDEO CD ENCODER

AUX1

DSC_STB

AUX2

DCLK

RST

AUX7

MUTE

VCC

MCLK

AUX8

TWS

AUX9

TSD

9

1110 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

TBCK

27MHz

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

81

DSC_D7

PCLK2X

82

HSYNC
DSC_D6

83

VSYNC

84

DSC_D5

85

YUV7

86

YUV6

87

YUV5

88

YUV4

89

VCC

90

VSS

91

YUV3

92

DSC_D4

93

YUV2

94

DSC_D3

95

YUV1

96

DSC_D2

97

YUV0

98

DSC_D1

99

VSS

100

VSS

1 2 3 4

CDAC

RWS

V_AMP

VSSAV

VSSAV

RSTOUT

VSS

COMP

VSS

RSET

SQCK

Q12V

VSSA

VREF

MIC2

VREFM

MIC1

AOL+

AOL-

AOR­AOR+
VCCA

VREFP

VCM

VSSA

AUX15
AUX14

LA18/AUX13

RBCK

AUX12
AUX11
AUX10

RSD
VCC

VSS

SQSO

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

CNP804V

BUSY

VD_DI

VD_DO

ACK

STB

DGND

1
2
3
4
5
6
7

CLID_OUT

FROM DISPLAY PWB

AUDIO_CLK LRAUDIO_DATA

BCLK

Figure 25 BLOCK DIAGRAM (6/6)

– 25 –

DGND

/RST
BUS0
BUS1
BUS2
BUS3

BUCK

/CCE

PICK_IN

LRCK

BCK

DATA

CNP801V

1
2
3
4
5
6
7
8

9
10
11
12

TO MAIN PWB

XL-3000V

+

7

-

DIGITAL OUT

A

B

VIDEO
OUT

VIDEO/
AUX IN

C

D

E

F

FROM

DISPLAY PWB-A3

CNS707

P32 1-E,F

G

H

CNW653

TERMINAL PWB-A4

1

J801

2
3

C853

0.0047

SO401

R-CH

R405

27K

C411
330P

C412
330P

R406

L-CH

1N4004

4
3
2
1

CNP707

T.F 2A,250V

27K

230~240V

127V

110V

0V

1

3 5 5 7 7 9 9

1

3

D686

REGULATOR

5.7V

USWD_5R6V

D_GND

P_CONT

CNP653

2

1

2

1

F654

D412

1N4148

Q610

2SD2012 Y

Q607

2SD2012 Y

19V

7V

7.8V

220V

TF

IC681

KIA7805API
VOLTAGE

3

2

C665

0.047

D688

1N4004

2200/35

D411

0.6V

C688

C683

POWER PWB-B

L802

C851

0.82µH

100/10

C852

0.0022

L402

0.82µH

2.2K

R407

L401

2.2µH

2.2K

R408

C414
220P

1N4148

TO CHASSIS

GND

LUG(205)

19V

7V

7.8V

POWER

TRANSFORMER(MAIN)

CNP651

ZD684
MTZJ16C

1

9.2V

ZD683

MTZJ16C

R688

1K

R689

C689

0.47/50

1K

0.047

D681

D682

1N4004

1N4004

D683

1N4004

1N4004

CNP805

CNP810

CNP807

CNP608 CNS608

CNP607

C413

0.0047

CFW451CFW452

CNW601

CNW602

T651

9.2V

0.7V

0V

R685

10K

D684

FROM
MAIN PWB-A1(2/2)

3
2
1

CFW852

1

2 1 2

FROM
MAIN PWB-A1(2/2)

1
2

1

2 1 2

1

1

2

2

3

3

CNS607

CNP601

1

1

1

1

2

2

2

2

3

3

3

3

1

1

1

1

2

2

2

2

3

3

3

3

CNP602

CNP801

1

1

2

2

3

3

4

4

5

5

D689

1N4004

R687

2.7K

Q681

Q683

KTC3199 GR

KTC3199 GR

0.72V

CNS805
P28 1-G

TO CHASSIS
GND
LUG(205)

M

CNS807
P28 1-A

0.11V

R686

0V

47K

TRANSFORMER

AC INPUT SOCKET

AC 110/127/220/

230~240V, 50/60Hz

M802

FAN

MOTOR

F651

T3.15A L 250V

F652

T3.15A L 250V

F653

T1.6A L 250V

D685

1N4004

RLY601

T681

POWER

(SUB)

SO655

CHASSIS
GND

FROM
VIDEO PWB-D

CNP802A

CNW608

1
2

CNW607

1
2
3

0.1

C651

0.1

C654

D657

1N4004

0.1

C657

0.1

C660

D660

1N4004

110V

127V

220V

230~240V

SW651
VOLTAGE
SELECTOR

123456

VDAC

A_GNDV

R402

1K

R401

1K

D654

1N5402M

D651

1N5402M

D658

1N4004

D659

1N4004

+BGND

R629

P35 12-A,B

CNS802

78

+5V

–B1

0.1

0.1

C659

C630
4700/25

C620

R-CH

D901

1N4004

C901
220/50

20V

12.2V

20V

470/25

D_GND

1N4004

4.8V
3

R619
47

2SD2012 Y

12.3V

KTC3200 GR

13V

ZD601
DZ130BSA

+8V

C126

2200/35

D902

C902

220/50

Q609

KRC107 M

1

0V

11.7V

Q605
2SD2012 Y

Q604

Q603

R617

33K

L-CH

A_GNDA

D653
1N5402M

D652
1N5402M

C658

+B

+B2

+B

20V

820

R628

100

AC POWER SUPPLY CORD

+B

+B

C125

+B

R612

820

32

0V
Q608
KRA102 M

47

R620

2200/35

11.7V

D602

1N4148

C621

100/25

9.4V

1

1N4148

CNP307

+B

R61447R610

7.7V

20V

9.4V

2

R611
100

C629

4.7/25

R623

22K

R624

22K

D603

AC 110/127/220/

230~240V, 50/60Hz

P31 12-E

CNS307

11 10

9 8 7 6 5 4 3 2 1

DI

CL

CE

SD

DO

FM ST

IC682

KIA7805API

VOLTAGE

REGULATOR

13

7.8V

2

0V

R125
680(3W)

R126
680(3W)

38.9V

R910

2.7K

47

9.3V

Q606

KTC3200 GR

R613

4.7K

ZD602

MTZJ9.1C
C624

0.022

C622

0.022

C625
10/16

CNP652

+B

R913

1

TO
TUNER PWB-A2

A_12V

TUN L

TUN R

A_GND

D_GND

+B

5V

C601

0.047

C602

47/16

Q904

KTC3200 GR

24.4V

R911

100

24.9V

C903
10/50

C904

10/50

ZD901

DZ24BSD

+B

D604

1N4148

R621

22K

C627

C626

100/25

Q903

KTC3199 GR

11.2V

10

2

R912

470

DZ5.6BSB

5.6V

ZD902

P32 1-F

CNS652

123456

DO

STEREO

+B

C628

10/16

0.022

+B

+B

4.9V
C905

100/10

C906

100/10

FROM
DISPLAY PW

SD

P33 12

CNS

CL

CE

+B

DI

–B

D605

D606

CD +B

1N4004

1N4004

• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.

1

23456

Figure 26 SCHEMATIC DIAGRAM (1/10)

– 26 –

C627

47/16

WB-A2

123456

DO

4V

B

C628

10/16

0.022

SD

STEREO

+B

P33 12-F,G

CNS703

DI

CL

CE

+B

–B

D605

1N4004

D606

1N4004

FROM
DISPLAY PWB-A3

78910

A_24V

P_STB

CD +B

P_MUTE

+B

D_GND

+B

131211

CNP703

5V

SURROUND

TUN R

VIDEO SIGNAL
CD SIGNAL

KRC107 M

3

0V

CD R

AUX R

AUX L

CD L
TUN L

R634

3.3K
Q601

KTC3199 GR

C603

0.6V

33/16

R603

10K

0.6V

R604
10K

R607

6.8K
KTC3199 GR

A GND

FM SIGNAL

Q203

2

4.44V

1

0V

C408
10/16

C404
10/16

C402

R404

10/16

1.8K

IC401

LC75342M

R403

FUNCTION/

1.8K

VOLUME

EQUALIZER

C401
10/16

C407
10/16

L

R

R608

1K

1K

R609

0V

0V

0V

0V

Q602

Q104

KTC3200 GR

R118

47K

1.2V

R119

33K

220/16

R207

47K

C403
10/16

IN1

0.1V

C105

0.0015

R103 1K

R101

39K

C101

R122

1K

C120

C212

0.0033

10K

R212

2.7K

R206

5

D

5V

0V

D201

1N4148

NF1

R111

1K

0.1V

R105

C103

10/50

Q102

KTA1268 GR

R121
10K

0.6V

0.6V

R120

1K

G

Q201

2SK246 GR

R416

1K

0V

15 14 13 12 11 10

4.8V

4.8V

4.8V

R1 L1

16 17 18 19 20 21 22 23 24 25 26 27 28

5V

4.8V

1K

R415

R417

R423 1K
R424 1K
R425 1K

0V

BIAS

+VCC

PRE

N.C.

R109

–18.9V

22K

20.6V
C107

100/50

470

R113

100

10/50

R115

56K

C109

3P

R124

47K

R123

10K

Q103

KTC3200 GR

0.6V

Q101
KTC3200 GR

0V

KIA4558P

SURROUND

S

CONTROL

5V

1K

1K

R418

R422

L2L3L4

0V

4.8V

R4

R3

R2

0V

4.8V

1K

1K

R421

IC601

STK40202

POWER AMP.

21.8V

+VCC

–VE1

+VE1

C116

0.022

C112

C111

10/50

10/50

+B

+B

IC201

C416

C415

5.1V

4 3 2 1

0V

10K

R205

C211

0.0033

R438

6.8K
C420

0.0027

3.9K

R440

C418

2.2/50

10/16

4.8V

4.8V

10/16

–B

C422

0.1(ML)

9 8 7 6 5 4 3 1

LIN

LTRE

4.8V

4.8V

4.8V

4.8V

C417

100

2.2/50

+VE2

RTRE

–VE2

C102
10/50

4.8V

C421

C419

4.8V

LBAS1

RBAS1

4.8V

0.1(ML)

R439

3.9K

0.0027

–VCC

PRE

0V

20.2V

R106

LSEL0
RSEL0

R437

–VCC

C114

100/50

C113

0.022

RIN

6.8K

–21.7V

R114

C214

4.7/50

R214

12K

6

5.1V

5.1V

R211

C426

C424

0.1(ML)

4.8V

LOUT

LBAS2

ROUT

RBAS2

4.8V

C423

0.1(ML)

NF2

GND

C108

0.0015
1K

470

R108

C106
10/50

C104

3P

R104

56K

R102

39K

C204

R216

12K

2.7K

C213

C203

1/50

10/16

0V

TEST

4.8V
0V

C425

10/16

IN2

15 14 13 12 11 10 9 8 7 6 5 4 2 1 3

0.1V

R110
1K

MAIN PWB-A1(1/2)

C202

0.0056

R204

100K

1/50

R218

C216

12K

1/50

7

4.7/50

33/16
CL

DI
CE

0.1V

8

10.2V

10K

R209

C215

R217

1/50

12K

5.1V

R215
12K

R213

12K

R203

0.14V

0V

2

CE

VSS

VDD

VREF

29 30

9.6V

4.8V

C430

100/16

1N4004
D401

1N4004

C110

0.001

L603
10µH

100K

D402

0.14V

DI

CL

4.8V

R201

8.2K

C201

0.0056

D403

C209

47/16

1N4004

R637

4.7

C615

0.1

C614

0.1
C616

0.1

5.1V

5.1V

C429

R202

8.2K

R208

C208
100/16

R210

10K

330

C433
220P

C432
220P

C431
220P

R638

C613

0.1

4.7

L602

3µH

R662

330

+B

R661

L601

3µH

330

C640

0.0047

C639

XL-3000V

SO601

SPEAKER TERMINAL

+

L-CH

R-CH

+

0.0047

CHASSIS
GND

CHASSIS
GND

J601
HEADPHONES

3
2
1
4
5
9
10

03

9 GR

5.6V

02
BSB

2 1-F
NS652

+B

4.9V

C906

+B

C905

100/10

+B

100/10

FROM
DISPLAY PWB-A3

7

A
B

8

5V

1

A_GND

2

M_GND

3

M_12V

+B

+B

+B

CD_GND
CD_6R2V

4
5
6

TO

P28 1-F P28 1-C

MAIN PWB-A1(2/2)

P29 11-C,D

8 9 10 11 12

Figure 27 SCHEMATIC DIAGRAM (2/10)

– 27 –

XL-3000V

C813

L801

6

0

2

0

µ

A

B

C

D

E

F

G

TO

TERMINAL

PWB-A4

CNS807

CNP807

P26 3-B

FROM

DISPLAY PWB-A3

CNS702

P33 12-C,D

P27 12-G

TO MAIN PWB-A1(1/2)

1

TO

VIDEO PWB-D

CNP801V

P35 12-G,H

12

CNW801

P27 12-G

TO MAIN PWB-A1(1/2)

TO

TERMINAL PWB-A4

CNP805

P26 3-A

2

1
2
3
4
5
6
7
8
9

10

CNP702

A

B

1
2
3
4
5
6
7
8

9
10
11
12

8

R864

R865

27K

CNS801

3
2
1

CNS805

CNW807

121

FAN
LIGHT

DIMMER

CD_STB
AMP_DEC
FAN_DEC
CLID_SW
CLID_PRO
CLID_UP
CLID_DW

1N4004

27K

D804

1N4004

R836

1K

R834

1K

R832

1K

R830

1K
LRCK
BCK

DATA

D803

R887

R883

8.2

R881
470K

TESIN

MBOV

0.7V

Q806
2SC535 C

0V0V0V0V0V

/DACT

IFP

C820

0.01

R884

8.2

C892
47/16

0V

5V

I02

I03

/CKSE

/DMOUT

IC802

TC9462F

SBOK

CLCK

VDD

VSS

0V0V0V0V0V

5V

5V

1.2V

13

L806
10µH

0V0V0V

5V

I01

DATA

SFSY

2.4V

0V

11.6V

0.57V

0V

1234

R873

3.3K

C87

0.1

+B

C810

0.001
C811

47/10

+B

L8
10

C812

0.01

C8
47

+B

0.1

C818

0.1

R810

3.3K

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

12

LPFO
LPFN

2.1V

R804
100K

R802
47K

2.1V

2.1V

2.2V

2.2V

2.2V

2.1V

2.1V

2.2V

2.1V

2.1V

2.1V
5V

2.1V

2.1V
0V

1.4V

2.1V

2.1V

C817

C821

0.1

R808

3.3K

2.1V

R806
15K

0.1

R809
10K

C807

0.033

C806

0.0047

C804

0.01

C801
100P

C802

0.015

C809

0.0047

R807
10K

C805

0.0027

C803
47/10

R814

2.2V

6

5

2.1V

15

0V

DMO

11

HSSW

0V

C838

47/10

R812

3.3K

2.1V

53 52 515556 54585960616272 71 70 69 68 67 5766 65 64 6380 79 78 77 76 75 74 73

FVO

FMO

1

VCOREV

PVREV

ZDET

PDO

28 29 302625 2723222120199 1011121314 2415 16 17 1812345678

2.1V

2.1V

TEBC
FOO

TEZI

TEI

TSIN

SBAD

FEI

RFRP

RFZI

RFCT

AVDD

RFI
SLCO
AVSS

VCOF

TMAXS

2.1V

R801
10K

R811

2.2K

1.8V

2.1V

3.3K
C819

RFGC

TMAX

C823

0.01

C822
220/10

0V

0V

0V

0V

5V

5V

2.5V

4.3V

I00

VSS

VDD

FLGD

FLGC

14

FLGB

FLGA

4

SEL

2VREF

VREF

50

TRO

49

7

SBSY

SPCY

SPDA

COFS

MONIT

VDD

TESIOO

P2VREF

0V

5V

1.7V

0.6V

C829
100/10

4.3V

+B

Q805

C835

0.056

10.6V

R868
27K

C828
100/10

C867
220P

C865
220P

C837
470P

11.7V

C887

0.0027

C869
220P

11.3V

R885

22K

2.4V

2.3V

2.4V

4.3V

4.3V

4.3V

4.3V

3.3V

4.9V

0V

0V

0V
5V
5V
5V

5V
0V
4V

5V
5V

Q807

KTC3200 GR

0.1V

0V

C825

0.056

X801

16.93MHz

R820

1K

81
82
83

DVDD
DVR

84
85

LO
DVSL

86

TEST1

87

TEST2

88

TEST3

89
90

BUS0
BUS1

91

BUS2

92

BUS3

93

VDD

94

VSS

95

BUCK

96

/CCE

97

TEST4

98
99
100

0.63V

R880

3.3K
R888

10K

R813
10

C826

15P(CH)

C827

0V0V5V

2.2V

2.6V

XI

XO

XVSS

XVDD

81

DVSR

82

RO

99
100

TESTO

/HSO

UHSO

EMPH

0V0V0V0V0V

5V5V5V

R882

6.8K

D805

1N4004

0.9V

C893
47/16

0V

+B

C824

0.056

15P(CH)

5V

PXI

VSS

PXO

VDD

TESI01

SERVO/SIGNAL CONTROL

/TSMOD
/RST

LRCK

VSS

BCK

AOUT

DOUT

1.4V

2.5V

2.5V

R851
330

KTA1266 GR

BUS1

R853

100K

0.67V

Q804

KTC3199 GR

BUS0

R819
220

+B

R852

100K

C864
220P

+B

0.2V

PU_IN

C830

0.056

C840
100/10

C866
220P

C868
220P

C836

0V

C862

0.001

100/10

R867

3.3K

R870
33K

R837
1K

R866

4.7K

4.9V

0.64V

Q803

0V

/CCE

D802

1N4004

DGND
/RST

BUCK

3
2
1

BUS2

BUS3

R855

100K

R854
100K

CNW805

KTC3199 GR

22K

R835
1K

R833
1K

R831
1K

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.

• The numbers 1 to 15 are waveform numbers shown in page 41.

1

23456

Figure 28 SCHEMATIC DIAGRAM (3/10)

– 28 –

XL-3000V

11.6V

0.57V0V0V

234

R873

3.3K

C872

+B

+B

0.1

L803
10µH

11.4V 10.7V

Q902

3.1V

3.2V

11.4V

VO2+

VO3+

R862

2.1V

VIN2

VIN3

2.1V

2.2K

2.1V
91011121314

VG2

VG3

2.1V

0V
8

7.0V

+B

GND

VCC

R863

2.2K

7.0V

KTA1266 GR

Q861

2SB562 C

5V

6.4V

6.4V

5V

4.8V
6

5

7

MUTE

REG O

VCC

BIAS

2.1V

2.1V

VG4

TRB

2.1V

2.1V

7.1V

R861

2.3V

VG1

VIN4

3.2V

Q901

R902

KRC102 M

47K

23

0V

4.1V

R901

1

2.2K

3

C857

0V

1

47/16

0V

R905

47K

0V

2

R904

2.2K

IC804

MM1469XH

11.4V

10.6V

Q907
KTA1266 GR

10.7V

0V0V6.5V

3.2V

GND

OPO

VO2-

PO1-

PO1+

VO3-

15 16 17 18 19 20 21 22 23 24 25 26 27 28

1V

0.8V

3.2V

FOCUS/TRACKING/

SPIN/SLED DRIVER

6.1V

4.6V

4.8V

8

9

MOTOR DRIVER

47/16

R874

Q802

2.2K
KRC102 M

0V

0V

TA7291S

CD LID

R879

3.3K

23

4.5V

1

4.4V

Q908

KRC102 M

+B

C858

0.01

11.6V

6

5

7

C871

+B

L801

10µH

IC805

MAIN PWB-A1(2/2)

C870

0.001

+B+B

2.2K

1.9V

4.4V
1234

VIN1

VO1-

VO1+

C859

470/10

C860

0.1

VO4+

VO4-

GND

3

3.2V

2

R877
68K

CNS701

121

CNP701

CNS806

CNP806

1
2
3

R876
150K

CNP804

CNS804

212

+B+B

5V

M_12V

1
2

3

4

5

6

CNW803
6

5
4
3
2
1

A_GND

M_GND

D_GND

CD_6R2V

R843

1K

SP+ SP+
SP–

SL+
SL–

PU-IN

GND

1

22

1

1

2

2

3

3

CNW804

1

TO

P27 12-G,H

MAIN PWB-A1(1/2)

CNS803

6

5
4
3
2
1

LED PWB-A6

R914

CNW701

470

D801
AUY3333

SWITCH PWB-A5

SW802
CD LID

OPEN/CLOSE

CNW806

M

M801

CD LID

OPEN/CLOSE

MOTOR

CD MOTOR PWB-C

+

NM802
SPINDLE

M

6
5
4
3
2
1

CNP803

SP–
SP+
SL–
PU-IN
GND

MOTOR

–

+

NM801
SLED

M

MOTOR

–

NSW801
PICKUP IN

C844

0.0068

811

/10

R823
1K

R824
47K

2.2V

12

2.1V

11

4.3V

10

2.1V

9

10

2.5V

8

3.4V

7

9

0V

6

2.1V

5

2.1V

4

8

2.1V

3

2.1V

2

5V

1

IC801

TA2109F

8 9 10 11 12

C812

0.01

C863
470P

C813

+B

100/10

C850

7

220/10

C848
39P

C845
100/10

R826

2.7K

R828

1.2K
R827

R829

39K

68K

C849

0.056

+B

C846

0.1

C855
100/10

C839
2P

C847

0.1

15
16
17
18
19
20
21
22
23
24

2.1V

2.1V

2.1V

2.1V

2.1V

2.1V

2.1V

1.7V
0V

2.1V

SERVO PRE AMP.

2.1V

13

R825

2.2V

14

82K

3.4V

C841

100/10

+B

R822
33

4.1V
Q801

KTA1266 GR

2V

C842
47/10

+B

C843

0.1
R80C

82K

R80G
68K

R821
150

R80E
82K

R80A
82K

R80F
82K

R80B
68K

CNP802

FO-

TR+

TR-

FO+

PD
VR

LD

GND

+5V

VREF

PICKUP UNIT(308)

CNW3
16
15
14
13
12
11
10

9

F

8

C

7

B

6

A

5

C

4

E

3
2
1

FO–

16

TR+

15

TR–

14

FO+

13

PD

12

VR

11

LD

10

GND

9

F

8

C

7

B

6

A

5

C

4

E

3

+5V

2

1/2V

1

VCC

1/2VCC

F

B

A

E

C

GND

MON

LD

TR-

FO-

TR+

PO+

ACTUATOR

+

­+

­+

-

+

­+

-

Figure 29 SCHEMATIC DIAGRAM (4/10)

– 29 –

XL-3000V

2

L

IN

C

C

A

B

C

D

E

AM

GND

FM

75ohms

SO301
ANTENNA
TERMINAL

F

CHASSIS
GND

G

C301

0.012

C349

0.001

C302

0.001

D301

1N4148

D302

1N4148

D306

1N4148

BF301

BAND PASS

FILTER

2

1

T302

AM
Tracking

C330

12P(CH)

C329

0.022

C335
560P

R323
68K

T306

AM Band
Coverage

C337

0.022

IC301

TA7358AP

FM FRONT END

KDV147C

R303
33K

5.2V

L303

FM OSC.

Band

FM

C311
10P(CH)

R304
47K

T304

Coverage

0.8V

2.3V

0V

FM IF

R310

4.7K

R307
47

C313

R315

33

4.4V

6P(UJ)

Q302

2SC535 C

C312
33P

VD302

R308
10K

C315
100P

KDV147C

5.2V0V1.5V

1.5V

0.8V

123 4 56 7 8 9

C318

L302

FM ANT.

C306

C307

0.0047

C308

7P(UJ)

0.022

5P

C303

0.001

R301
22

R302

C309

VD303

100K

0.001

3

C304

0.01
FM RF

1N4148

D305

C319

C305

0.0047

18P(CH)

3.8V

R306
10

C331

C334

R305
680

C316
10/16

0.047

27P(UJ)

CF303

123

C332

C314
22P
(CH)

0.022

C317

5.2V

0.8V

0.022

R312

2.2K

R313

VD301

SVC348S

3.6V

0V

680

R309

470

R316
330

Q306

2SC535 C

R314

+B

33

C310

R336

5.6K

0.022

FM Mute
Level

VR351
10K(B)

R351

C351

0.022

TP301

R358

8.2K

L353
1mH

IC303

LA1832S

FM IF DET./

5.6K

123

+B

CF302

C343

33P

C362

3.3/50

5V

2.5V
2324

OUT

AM OSC

AM OSC

AM MIX

OUT

IN

FM IF

FM MPX./AM IF

21
5V

2.1V

C352

10/16

+B

R382
330

R386
330

C381
12P(CH)

X352

4.5MHz

C382
15P(CH)

I

C384

L

0.001

PL

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.

1

23456

Figure 30 SCHEMATIC DIAGRAM (5/10)

– 30 –

OUT

IN

AM SIGNAL

C352

FM SIGNAL

XL-3000V

TUNER PWB-A2

C366

C361

0.022

C360

0.022

C363

FM AFC

T351

AM IF

0.022

0V

VSS

0V

0.022

2.1V (2.7V)

IN

AM RF

CF352

C394

47/16

R381

10K

R380

C393

1.5K

1/50

0V

AOUT

CEDICL

0.1V

R374

1K

0.6V

VSM

R352

123

C392

0.1V

R3731KR372

C362

3.3/50

5V

2.1V (2.7V)

23 22 21 20 19 18 17 16 15 14 13

IN

AM OSC

REG

AM MIX

OUT

5V

2.1V

C350

0.022

10/16

+B

C397

2

6

2.6V

22 21 20 19 18 17 16 15 14 13 12

H)

X OUT

z

X IN

2.6V

H)

IC302

LC72131

PLL(TUNER)

C364

1K

0.001

10/16

C365

0V (0.9V)

AM IF

IN

2.1V

0.9V

AIN

4.8V

1K

0.022

2.3V

CUT

FM/AM

AM LOW

GND

0V

5V

C353

C380

10/16

0.9V

PD

DO

5.1V

R371

1K

0.001

C367
1/50

OUT

SD

0.022

R379

1.7V

R350

2.7K

C354

C387

0.022

2.2K

5.2V

FM

(11.4V)

STEREO

5V

0.022

(0V)

2.6V

VDD

FM IN

MUTE

3.7V

X351

FM DET

2.9V

CF351

0V

AM IN

(0V)

3.9V

456kHz

(4.3V)

R353

R393

L351
100µH

C385

(2.6V)

FM

R377

5.6K

2.3V (0V)

3.5V

R357

R356

C368

MPX VCO

VCC

5V

+B

270

C398

C399

0.022

1K

0.01

MO/ST

1110987654321

(0V)

R359

1.8K

R360

4.7K

470K

1K

1/50

2.1V

MPX IN

100/10

R395

47K

0V

IF IN

IF REQ

0V

C369

IF OUT

0V

C357

2.2/50
C356

0.001

C355

22P

C386

330P

R365

C374

56P

1.3V

R-CH

PHASE

3.8V
(1.9V)

10K

0.018

1.3V

OUT

C371
1/50

C372
1/50

L-CH

C358
1/50

C370

C383

OUT

1/50

0.022

R387

C373

5.6K

0.018
R361

5.6K

R362

5.6K

4V

MO/ST

(AM/FM)

PHASE
12111098765432

3.8V

R364

(2.2V)

(1.2V)

R355

R376

3.3K

10K

3.3K

L352
100µH

C396
100/10

R391
390

+B

4.7V
(0V)

R363

+B

Q351

KRC104 M

1

3.3K

2

R366

2.2K

ZD351
DZ5.1BSB

C395

0.022

R392
390

Q360

KTA1266 GR

11.7V
R383

5.6K

R385

5.6K

R384

6.8K

D308
1N4148

0V

3.7V
(0V)

3

SD

DO
CL
CE

DI

CNS307

11
10

9
8

TO

7

MAIN PWB-A1(1/2)

6

CNP307

5

P26 5,6-A

4
3
2
1

10.9V

10.8V

C391

47/16

FM ST

A_12V

+B

D_GND

TUN_L
TUN_R
A_GND

+B

7

8 9 10 11 12

Figure 31 SCHEMATIC DIAGRAM (6/10)

– 31 –

XL-3000V

25V

M

R765

A

B

C

D

LAMP PWB-A7

24V

5V

GND

LMP701

CFW701B

123

123

CFW701A

1K

R799

E

TO

POWER PWB-B

CNW707

CNS707CNS652

1
2
3

CNP707

4

P26 1-F

F

CNP652

P26 5-H

TO MAIN

PWB-A1(1/2)

1
2

D_GND

1

P_CONT

2

USWD_5R6V

3

D720

1N4148

R7A6

1K

R7A7

1K

0.01

C710

+B

G

+B

DISPLAY PWB-A3

+B

D722

D723

1N4148

1N4148

R7A9

3.3K
Q701

C711

5V

1

0V

R796

Q707

23.7V

3.3/50

4.8V

3

C712

D721

1N4148

100K

R7A2

KTA1266 GR

5V

1K

+B

24.5V

R792

47K

R793

10K

KRC102 M
2

0V

KTA1266 GR

24.5V

5V

0.01

Q708

4.2V

0.1V

FUNCTION

PRESET DOWN

TUNING DOWN

BASS/TREBLE

MEMORY/SET

STAND-BY

OPEN/CLOSE

R7A0

1K

R7A5

10K

0.4V

Q702

KTC3199 GR

0.4V

R7A8

82

5V

R798

4.7K

R797

2.2K

Q706

KRC102 M
2

1

0V

SW727

SW726

REW

SW725

CD STOP

SW722

SW721

SW709

ON/

SW710

CD LID

R7B0

10K

0.4V

0.4V
Q703

KTC3199 GR

Q709

KRC102 M

2

0.1V
1

3

4.1V

1.1V
R7A4

120

0V

3

4.5V

+B

R706

3.9K

R707

2.7K

R708

2.2K

R710

2.7K

R711

1.2K

R7A1

2.2µH

ZD701

1K

VOLUME DOWN

VOLUME UP

CD PLAY/ PAUSE

TUNING UP

PRESET UP

R702

10K

R795

47K

R721

10K

L702

+B

RX701

REMOTE
SENSOR

DZ3.3BSB

C714
560P

5V

+B

SW718

SW713

SW712

SW711

FF

R744

1413121110987654321

R718

1.5K

2.47V

2.47V

3.25V

2.49V

2.47V

2.24V

2.47V

R782

2.47V

1.7V

1K

4.9V

4.9V

R738

0V

5V

0V

0V
0V
5V
5V
5V
5V
0V
0V

0V

0V

2.47V

1K

1

COM3

2

COM2

3

COM1

4

COM0
VLC3

5
6

VLC2
VLC1

7
8

VDD

9

OSC2

10

OSC1

11

VSS

12

XI

13

XO

14

MMOD

15

VREF–

16

CLID_SW
KEY1

17
18

KEY2

19

MODEL
CLID_PRO

20

MOT_DEC

21
22

VSM

23

VREF+

24

DI

25

5V

R739

2.5V

SEG0

100

1K

2.5V

99

DO

0V

R740 1K

CL

98

SEG1

2.5V

SEG2

VD_DO

0V

97

1K

R762

2.5V

2.5V

969594 93

SEG3

SEG4

ACK

VD_DI

4.9V

4.9V

1K

1K

R763

R761

2.5V

2.5V

SEG5

SEG6

SYSTE

BUSY

0V

5V

1K

R760

2.5V

SEG7

RESET

4.9V

R741

2.5V

92

4.9V

1K

SEG8

CE

2.5V

91

35343332313029282726

SEG9

CLID_OUT

0V

R719

1.2K

R720A

1.2K
R720B

1.2K
R727

47K

R729
47K

+B

R723 47K

10K

R722

1K

R7A3

100

C715

100/10

3 2 1

C713

10/16

C704

0.022

C703

0.1

8MHz

32.768kHz

C701

22P(CH)

+B

C705

0.01

+B

R779
47K

R781

47K

R783

33K

X701

R725

+B

+B

10K

R728 1K

X702

22P

C702

R731 1K
R732 1K
R733 1K
R734 1K

R735

1K

CLID_PRO

R778 47K

R780 47K

(CH)

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.

1

23456

Figure 32 SCHEMATIC DIAGRAM (7/10)

– 32 –

SEG4

ACK

LCD701

LCD DISPLAY

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

94 93

95

SEG5

SEG6

SYSTEM MICROCOMPUTER/

RESET

BUSY

0V

5V

1K

1K

R763

R760

SEG7

4.9V

R741

92

SEG8

CE

4.9V

1K

898887

91

90

SEG9

SEG10

SEG11

IC701

IX0038SJ

FL DRIVER

POWER

CLID_OUT

5V5V5V

0V

0V

1K

R749

1K

R765

SEG12

SEG13

REMOCON

SYS_STOP

4.9V

R750 1K

R751 1K

85

86

SEG14

STB

R764

P_CONT

84 83

SEG15

4.9V

1K

SEG16

4.9V

R755

2.5V

SEG17

SURR

4.8V

1K

2.5V

82

SEG18

P–STB

4.8V

R742 1K

2.5V

81

SEG19

P–MUTE

4.8V

R757 1K

2.5V

80

SEG20

CD+B

4.8V

R758 1K

2.5V

79 78

SEG21

P–CONT

4.8V

R759 1K

2.5V

2.5V

SEG23

77

SEG25
SEG26

SEG22

SEG27
SEG28
SEG29
SEG30
SEG31
SEG32
SEG33

CD_STB

CD_RES

PU–IN

CLID_DW

CLID_UP

DIMMER

LIGHT

STEREO

0V

4.9V

R777 1K

SEG24

2.5V

76

FAN

SD

5049484746454443424140393837363534333231

0V

SURROUND

2.5V

75
74

2.5V

73

2.5V

72

2.5V

71

2.5V

70

2.5V

69

2.5V

68

2.5V

67

4.9V

66

5V

65

5V

64

5V

63

5V

62

5V

61

4.9V

60

4.9V

59

4.9V

58

0V

57

4.9V

56

0V

55

4.72V

54

4.76V

53

4.8V

52

4.8V

51

B-LIGHT

1K

R776

STB

SD

STEREO

CLID_OUT

BUSY
CD+B

P_MUTE

P_STB

ACK

VD_DI

VD_DO

CE
CL
DO

DI

CLID_SW

B-LIGHT

2.5V

AMP_DEC

R785

1K

R766 1K

R769 1K
R770 1K

R772 1K
R773 1K

3837363534333231302928272625242322212019181716151413121110

CD_STB

CLID_DW
CLID_UP

R771

1K

R768

1K

XL-3000V

CNW702

CLID_DW

CLID_UP

CLID_PRO

CLID_SW

FAN

CD_STB

AMP_DEC

LIGHT

DIMMER

FAN_DEC

VD_DI

VD_DO

ACK

BUSY

CLID_OUT

GND

STB

CNW704

SD

STEREO

DO
CL
CE

DI

+B+B

+B

CD+B

P_MUTE

P_STB

A_24V

D_GND

SURROUND

CNW703A

5V

CNS702

1

10

2

9

TO

8
7
6
5
4
3
2
1

1
2

TO

3
4
5
6
7

1
2
3
4
5
6

TO

7
8

9
10
11
12
13

MAIN PWB-A1(2/2)

CNP702

P28 1-B,C

VIDEO PWB-D

P35 12-C

CNP804V

MAIN PWB-A1(1/2)

CNP703

P26,27 6,7,8-A

3
4
5
6
7
8
9

10

CNS704

1
2
3
4
5
6
7

CNS703
1
2
3
4
5
6
7
8
9

10
11
12
13

+B

7

8 9 10 11 12

Figure 33 SCHEMATIC DIAGRAM (8/10)

– 33 –

XL-3000V

A
K

A

VIDEO PWB-D

C125V
100/10

+B

0.1

C105V

Q11V

2SD1858 R2

5V

R143V

220

R5V

4.7K

3.8V

4.5V

0.1

C126V

+B

B

C

D

E

F

G

TO CHASSIS

GND

C122V

R157V

820

820

R158V

R97V

3.5V

LOE

LWR

DBUS4

DBUS5

2.8V

0.1

0.5V

D12

D13

2.4V

1.5V

1.2V

LD7

LD6

48

AUX3/VD_DI

DBUS6

DBUS7

1.5V

2.2V

2.9V

1.3V

D0D1D2

D14

D15

40

0.9V

2.4V

1.4V

LD5

DBUS8

1.3V

5V

VCC

VSS

0V

+B

1.4V

LD4

DBUS9

2.9V

C117V

1.4V

LD3

DBUS10

0.9V

+B

0.1

+B

4.7K

R170V

R166V

R169V

33

33

820

R159V

R160V

4.7K

0.1

C108V

R168V
33

R156V

4.7K

C102V
22/25

5V

3.4V

1.6V

1.6V

1.8V

1.8V

1.9V

1.9V

1.9V

2.0V

1.9V

1.7V

1.2V

1.3V

1.6V
0V

R161V
33

0.1

C110V

R162V

VPP

1

A16

2

A15

3

A12

4

A7

5

A6

6

A5

7

A4

8

A3

9

A2

10

A1

11

A0

12

D0

13
14

D1
D2

15

VSS

16

IC10V

IX0041SJ

ROM 256Kx16

C109V

100/10

5V

1.6V

1.3V

2.0V

1.6V

3.4V

3.2V

MCLK

1.5V

TSD

0.1V

TBCK

1.8V

2.1V

TWS

0.1V
0V
0V
5V

2.6V
0V

3.5V

3.0V

0V

+B

4.7K

C115V

5V

22/25

VCC

32

5V

31

PGM/A18

3.2V

A17

30

2.0V

A14

29

1.3V

A13

28

1.7V

A8

27

1.6V

A9

26

1.6V

A11

25

0V

OE

24

1.9V

A10

23

0.3V

CE

22

1.2V

D7

21

1.5V

D6

20

1.4V

D5

19

1.4V

D4

18

1.4V

D3

17

1.7V

1.6V

1.9V

1.6V

0V

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

LA9

LA8

VSS

LA11

81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100

LA10

VCC
LA12

LA13
LA14
LA15
LA16
LA17
AUDIOCLK
AUDATA
BCLK
LR
DRAS1/DOE
RSD
RBCLK
RWS
TDMCLK
TDMDR
TDMFS
DCAS
VSS

DRAS

DWE

DA0

VCC3

1 2 3 4 5 6 7 8 9

3.6V

3.5V

3.5V

1.8V

1.7V

DA1

0.1

C112V

0V

0.3V

3.5V

3.5V

1.7V

1.9V

2.0V

1.9V

1.9V

1.9V

1.8V

1.8V

LA7

LA6

LA5

LA4

LA3

LA2

LA1

LA0

LSCE0

LSCE1

LROMCE

IC15V

ES3880F

VIDEO CD DECODER

DA2

DA3

DA4

DA5

DA6

DA7

DA8

DBUS0

DBUS1

DBUS2

1.8V

1.3V

2.9V

0.5V

DBUS3

0.4V

2.7V

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

1.8V

1.4V

1.8V

1.8V

1.7V

1.8V

C116V

5V

1.4V

1.8V

1.7V

1.8V

3.5V

3.5V

2.2V

1.5V

2.8V

20 19 18 17 16 15 14 13 12 11 10

A0A1A2

A3

VCC

0.1

C111V

A4A5A6A7A8NCUCAS

VSS

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

0V

1.8V

1.8V

1.7V

1.8V

1.8V

WE

RAS

OE

0.1V

3.3V

3.3V

IX0025SJ

D-RAM 256Kx16

2.7V5V0.4V

9 8 7 6 5 4 3 2 1

D4D5D6

D7

NC

NC

D8D9D10

NC

LCAS

1.3V

2.9V

0.4V

0.4V0V2.9V

IC16V

D11

VCC

VSS

D3

1.6V

0.4V

+B

0.1

R91V

4.7K

1.3V

LD2

DBUS11

2.4V

C118V
22/25

4.7K

3.5V

3.3V

1.2V

LD1

LD0

AUX5

DSC_STB

AUX7/STB

AUX2/VD_DO

AUX1/DSADATA

AUX0/DSAACK

PCLKQSCN

PCLK2XSCN

DBUS12

DBUS13

DBUS14

DBUS15

2.4V

0.9V

2.4V

2.6V

2.7V

VSS

VCC3

AUX4

AUX6/SCK

DCLK

HSYNC

VSYNC

YUV7
YUV6
YUV5
YUV4
YUV3
YUV2
YUV1
YUV0

VCC3

RESET

VSS

5V

0V

C119V

0.1

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

0V

0.2V
5V

0.2V
5V

5V

2.3V

2.2V

0.2V

4.5V

4.8V

1.0V

1.2V

1.9V

1.9V

2.3V

0.6V

0.6V

1.8V

3.6V

VD_DI

VD_DO

C120V

+B

22/25

C121V

R93V

4.7K

R163V

33

R164V

10

R165V

10

+B

+B

R98V

4.7K

0.1

AUX0

R08

4.7

R12AV

4.7K

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 19.

• The numbers 16 and 17 are waveform numbers shown in page 41.

1

23456

Figure 34 SCHEMATIC DIAGRAM (9/10)

– 34 –

XL-3000V

B

163V

33

164V

10

165V

10

2AV
7K

VDAC

C168V

C162V

0.1
C164V

47/10

C165V

0.1

R94AV

NTSC

22P(CH)

4.7K

(LOGO)

+B

R94BV

PAL

0

(LOGO)

AGNDV

AGNDA

BUSY

VD_DI

VD_DO

ACK
STB

DGND

CLID_OUT

DGND

/RST
BUS0
BUS1
BUS2
BUS3
BUCK

/CCE

PU_IN

LRCK

BCK

DATA

VDAC

L-CH

R-CH

+5V

DGND

+12V

CNW802V

CNP804V

CNP801V

CNS802

1
2

1

TO

3

2

4

3
4

5
6

5

7

6

8

7

9

8

1
2
3
4
5
6
7

MAIN PWB-A1(1/2)

CNP802A

P26 4-A

FROM

DISPLAY PWB-A3

CNS704

P33 12-E

1

1
2
3
4
5
6
7
8
9

10
11
12

TO

MAIN PWB-A1(2/2)

CNS801

P28 1-D,E

CNW801

12

16

VIDEO SIGNAL
CD SIGNAL

+B

R123V
75

C103V

R121V

22/25

3.3K

R124V

C104V
100/10

+B

+B

R08AV

4.7K
R09AV

4.7K

220

R114V

6.8K

+B +B

33

R167V

27MHz

0.1

C127V

Q12V

5.7V

2SC1740 SR

3.6V

R113V

0.001(CH)

L11V
10µH

C183V

22P(CH)

1.2V

81

4.5V

82

1.5V

83

4.8V

84

1.4V

85

1.0V

86

1.2V

87

1.9V

88

1.9V

89

5V

90

0V

91

2.3V

92

1.4V

93

0.6V

94

1.4V

95

0.8V

96

1.6V

97

0.8V

98

1.3V

99

0V

100

C130V

0.1

100

C131V

R112V

2.9V

56

C101V

1000/6.3

C129V

TC100V

27P(CH)

C184V

0.1

2.3V5V0V0V2.3V5V0V

2.2V

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

NC

VSS

VSS

VCC

PCLK

PCLK2X

DSC_D7
HSYN_B
DSC_D6

VSYN_B
DSC_D5
YUV7
YUV6
YUV5
YUV4
VCC
VSS
YUV3
DSC_D4
YUV2
DSC_D3
YUV1
DSC_D2
YUV0
DSC_D1

VSS

NCNCVCC

VSS

NC

R01AV

4.7K

+B

DSC_CLK

5V

3.5V0V1.2V0V3.5V0V2.7V

1 2 3 4 5 6 7 8 9

0V

C143V

33P

6.1V

(CH)

R107V

R111V

2.2K

10K

R187V

10K

33P

C141V

R189V

10K

5.3V

5.3V

R178V

R171V
100K

10P

X1V

27MHz

2.4V

XIN

VSS

VCC

AUX3

AUX4

AUX5

AUX6

XOUT

IC14V

ES3883F

VIDEO CD ENCODER

DSC_D0

DSC_STB

AUX0

RESET_B

AUX1

AUX2

AUX7

NC

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

5V0V5V

1

C106V

33

R142V

R02AV

4.7K

R03AV

4.7K

IC11V

NJM4565M

BUFFER AMP.

7

+

–

6
5

8

R185V

10K

(CH)

C149V

0.1

R181V

100K

100K

R183V

R195V

100

+B

82

0.1

C124V

5V2V0.8V0V0V0V5V5V0V0V0V

VCC

ACAP

VDAC

VSSAV

VSSAV

VCC

MCLK

TWS

AUX8

NC

5V

1.5V

2.1V

0.1

C135V

+B

+B

YDAC

AUX9

0.1V

C147V

100/10

C148V

100/10

VCCA

VCCA

TBCK

TSD

1.8V

+

–

4

0V10.9V

C136V

0.1

CDAC

RWS

5V5V0V

17

1
2

3

R104V

10K

6.8K

R103V

VSSAV

RSTOUT

C144V
33P(CH)

6.1V

5.3V

5.3V

R186V

10K

R184V

R194V

2.3V5V1.3V

RSET

COMP

VSSAV

BUSY/AUX15

S_EN/AUX14

LA18/AUX13

VSS

VSS

SQCK

0V

R193V

4.7K

R10AV

4.7K

R11AV

4.7K
EAUX0
EAUX01
EAUX02
EAUX03
EAUX08
EAUX04

R108V

C142V

33P(CH)

100K

R182V

100K

L103V

3.3µH

L104V

3.3µH

270

C150V

VREF

VREFM

MIC2

MIC1
AOL+
AOL–

AOR–
AOR+
VCCA

VREFP

VCM
VSSA

RBCK
NC/AUX12
NC/AUX11
NC/AUX10

NC

SQSO

0.1

C159V

10K

0.1

0V

VSSAA

RSD
VCC

VSS

NC

R188V

10K

C158V

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

C166V

C171V
10/25

C172V
10/25

R190V

C139V
10/25

100/10

C160V

2.3V

2.3V

2.3V

2.3V
5V
0V

2.3V
0V

5V
0V

0V
5V

0V

22/25

+B

R06AV

R07AV

10K

C137V
10/25

0.1

4.7K

4.7K

R101V

100K

R139V

R100V

R105V

4.7K

1K

R141V

C169V

4.7K

R115V

R116V

C140V

C138V

10/25

1K

0.1

15K

15K

R102V

10/25

R137V
1K

+B

C161V

100K

R138V
33

R140V
1K

100/10

C167V

22P(CH)

7

8 9 10 11 12

Figure 35 SCHEMATIC DIAGRAM (10/10)

– 35 –

XL-3000V

3

7

R905

0

P

R

0

C

U
B

T

A

B

C

D

E

F

G

TERMINAL PWB-A4

SO601
SPEAKER
TERMINAL

LEFT

RIGHT

R638

J601

HEAD

PHONES

COLOR TABLE

BR

BROWN

RD(R)

RED

OR

ORANGE

YL

YELLOW

GR

GREEN

BL

BLUE

VL

VIOLET

GY

GRAY

WH(W)

WHITE

BK

BLACK

PK

PINK

Q610

Q607

B

B

E

C

CNW602

GY

3

GY

2

BK

1

C

C613

L601

C615

R637

L602

C640

CHASSIS

GND

E

GY
GY
BK

R661

R662

3
2
1

C614

C616

LUG
(205)

LEFT

VIDEO/
AUX IN

RIGHT

VIDEO

OUT

C639

R104

C104

Q102

R122

Q101

Q104

CNW601

SO401

DIGTAL

L603

ECB

B

C

R119

ECB

R120

J801
OUT

CHASSIS

R121

E

R123

C120

GND

R118

L402

C110

R108

C601

C602

Q103

BCE

R124

C413

3
2
1

L802

C109

D412

R115

D411

C414

CNP608

C852

C853

IC682

C412

R408

R406

2
1

CNP810

2
1

CNP807 CNS807

R407

L401

R405

C411

3
2
1

CNP607

2
1

C851

3
2
1

CNP805

CFW852

R111

C101

R101

R103

C105

IC601

R113

1
2
3

R109

4
5
6
7

C116

8

9
10
11

C108

12
13
14

R106

15

R110

R102

C102

Q602

123

CNP601

1
2
3

R864

R865

CFW451

2
1

2
1

CNS607

WH

3
2
1

CFW452

CNS608

2
1

WH

CNS805

WH

3
2
1

RD

TO CHASSIS GND

LUG(205)

R105

C103

C107
C111

C113

C112

R114

C114

R608

C106

Q601

ECB
ECB

R609

R610

1
2

R614

3

CNP602

FROM DISPLAY

PWB-A3

BK

RD

GY

BK

RD

R604

R607

GY

R603

C603

B
C
E

B
C
E

TO CHASSIS GND
LUG(205)

TO CHASSIS GND
LUG(205)

12

D653

D654

C903

R910

R911

ZD901

R620

C622

ECB

Q604

Q603

C624

R619

R623

Q606

Q605

E

C

B

R613

D604

R612

D803

D804

CNS652

P39 10-A

D652

D651

R624

C626

C625

R913

R611

ZD601

D603

ZD602

Q608

C904

R617

Q903

E
C
B

C629

1
2
3

C125

C621

C906

ECB

ZD902

R621

1
2

3

Q904

C620

D602

CNP652

C627

C628
Q609

FROM
VIDEO
PWB-D

M802

FAN MOTOR

C630

T1.6A L 250V

R629
R628

R912

C905

12

R634

FROM

POWER

TRANSFORMER

P38 4-C,D

C659

D660

F653

D657

C658

D658

C126

10121416

111315
CNP802

2

W

1

1

CNW608

2
3
4
5
6

CNP802A

7
8

D605

CNS802

P40 1-A,B

D659

C660

C657

D901

CHASSIS

GND

D902

C902

2468

R873

13579

R821

R80F

R80C

R80E

R80A

123456789

5

CNS307

P38,39 6,7-A

Q901

C901

Q908

CNP801

1
2
3
4
5

C651

C654

1
2
3
R901

TO T

1
2
3

R902

R82

R829

PW

R9

B

C8

C843

CN

C849

1

H

• The numbers 1 to 15 are waveform numbers shown in page 41.

1

23456

Figure 36 WIRING SIDE OF P.W.BOARD (1/5)

– 36 –

XL-3000V

R80C

D659

D901

R80F

R80A

CNS307

C660

R873

Q901

R80E

C901

Q908

CNP801

C651

1
2
3
R901

1
2
3
4
5

C654

1
2
3

R829

TO TUNER

PWB-A2

ER

657

SSIS

ND

02

2

1

123456789

P38,39 6,7-A

T3.15A L 250V

T3.15A L 250V

E
C

R905

B

R904

BCE

R902

122

CNP701
C850

C806

C855

R827

R826

C839

24

1

C843

C849

R80G

10 11

CNP307

R208

F652

F651

Q803

ECB
123

R879

R874

Q907

C838

Q902

C803

C847

510

IC801

L801

R80B

C208

WH

C871

C829

R802
C801

R828

C846

R437

R204

RD

CNW607

R439

R887

Q802

RD

C863

R801

R806

C802

C805

C813

C812

C848

13

1520

12

MAIN PWB-A1

R217

C209

C203

C201

R202

C204

C415

C425

1

30

R807

C807

C844

R402

D802

C820

31
R804

C845

R203

C416

R201

R401

C403

C423

C430

R870

R866

R876

CNP806

WH

CNW805

25

35

C809

C811

R823

C842

R824

C841

BCE

Q801

C214

R440

C408

C407

C404

C417
C421

123

IC805

R851
3

20

40

45

R808

R809

C810

D606

C424

R403

C429

Q805

Q804

CNP702

R877

10

15

IC802

55

51

50

R810

C817

1

C202

1

3

D401

C804

R825

R206

C216

R417

ECB

C872

5

60

C818

C215

R205

C422

R867

123456789

1

100

C213

C418

C426

C402
R404

10987654321

1
2

CNP804

95

65

R811

C821

R822

1511101387 9 6

R218

R418

R421

D402

R868

C837

90

70

R812

R438

R837

C866

85
75

Q861

B
C
E

C859

R416

C401

D403

BCE

C865

R814

C819

C211

Q201

R422

15

R415

16

C892

C893

CNP703

12111098765432

R830

R831

C836

C835

C828

C830

81

80

C827

C824

C822

C823

C857

C860

R862

R213
R211

DGS

D201

IC401

20

CNW807

R881

3245678910111213

CNS801

C867

R855

C825

C826

R215

GY

2

R882

1

R834

C864

R832

R854

R813

R820

X801

L803

CNW803

14

15

25

BK

Q806

C840

10

1234

IC201

8765
R216
R214

C433

1

510

C420

30

C431

R884

D805

1

E

CB

1

R836

R833

R835

C868

C869

R853
R852

R819

C887

R843

1

6

C858

IC804

20 25

Q203

C419

R885

C862

123

C432

R883

5

R888

R861

1

R209

B
C

E

L806

C870

28

R212

R424

R880

R863

C212

Q807

R207

R425

R423

R210

CNS804

CNW804

BK

1

RD

2

RED

SWITCH PWB-A5

GY

3

GY

2

BK

1

CNS806

FROM DISPLAY

PWB-A3

CNS703

P39 10-B,C

1

TO VIDEO

PWB-D

CNP801V

P40 2-B,C

12

CNW801

FROM DISPLAY

PWB-A3

CNS702

P39 10-F

CD MOTOR PWB-C

4

WH

1

GY

2

GY

3

GY

4

GY

5

GY

6

CNS803

14

NM801
SLED
MOTOR

PICKUP UNIT(308)

3
2

CNS701

CNW701

WH

1

BK

1
2

R914

LED PWB-A6

D801

13

CNW806

NM802

SPINDLE
MOTOR

F3895AF

M801
CD LID
OPEN/CLOSE
MOTOR

SW802

CD LID
OPEN/CLOSE

NSW801

PICKUP IN

CNP803

165432

16

16

16

1

1

CNW3

1

7

8 9 10 11 12

Figure 37 WIRING SIDE OF P.W.BOARD (2/5)

– 37 –

XL-3000V

6

O
W

2

A

B

C

D

SO301
ANTENNA
TERMINAL

FM
75
OHMS

GND

AM

CHASSIS

GND

C301

C302

BF301

C316

Q302

R315

123

D306

TUNER PWB-A2

C349

C380

C394

C315

C397

C393

R305

B
C
E

TP301

R379

R380

R381

C317

R304

C304

C319

22
21
20

C392

19
18

R365

17
16

C387

15
14
13
12

IC302

R316

9
8
7
6

C311

5
4

C318

3
2
1

IC301

D301

C381

C305

D302

C383

R301

D305

C382

10
11

R306

C310

1
2
3
4
5
6
7
8
9

C312

L303

C306

R374

C307

L302

R359

R309

C313

C303

C329
T302

R373

R372
R371

R360

VD302

C314

T304

R307

R308

C309

123

VD301

R302

C330

R387

C308

C331

X352

C384

L351

R310

R303

VD303

C332

R323

C334

VR351

CF303

C335

T306

L353

C385

R336

C386

R314

Q306

C343

T351

1

R312

C337

B
C
E

D308

R386

R382

CF352
1

C351

2
3

R352

CF302

23

123456789

R313

R351

C350

C361

R358

C362

YL

5

BK

4

YL

3

BR

2

BR

1

C352

C360

Q360

C398

CF351

R353

IC303

C365

E
C
B

R383

C370

C399
10 1112

R391
R392

R385

R384

R395

L352

C355

R376

C356

C354

C353

X351

131415161718192021222324

C364

C367

TO MAIN

PWB-A1

CNP801

P36,37 6,7-B,C

C358

R393

C363

C366

R350

R377

C357

R355

C369

C396

ZD351

Q351

R363

C368

C391

C395

R361

R356

R366

321

C374

R357

C372

CNS307

C371

CNP307

P36,37 6,7-G

2345678 10119

1

R364

C373

R362

T
P

T651

POWER TRANSFORMER

(MAIN)

F654

T.F 2A,250V

E

AC110/127/220/

230~240V, 50/60Hz

AC POWER SUPPLY CORD

F

G

SW651

VOLTAGE SELECTOR

220V230~240V

127V

110V

SO655
AC POWER
INPUT SOCKET

AC110/127/220/

230~240V, 50/60Hz

BL

RD

RD

H

WH

CNP651

BK

13579

POWER PWB-B

RLY601

13579

T681

POWER TRANSFORMER

(SUB)

D689
D685

R685

Q683

BCE

ECB

Q681

R686

BK

1

C683

1
2

D

RD

CNP653

1

23456

Figure 38 WIRING SIDE OF P.W.BOARD (3/5)

– 38 –

TREBLE

CNP307

P36,37 6,7-G

45678 10119

C373

T.F 2A,250V

9
5

R685

BCE

83

ECB

Q681

R686

F654

TO MAIN
PWB-A1

BK

CNW653

RD

12

1
2

CNP653

D686

C683

4

CNP707

R688

R687

D683

3

R689

XL-3000V

LMP701

TO MAIN

PWB-A1

TO MAIN

PWB-A1
CNP703

P37 8,9-D

TO VIDEO

PWB-D

CNP804V
P40 4,5-C

CNS652

CNS707

1
2
3
4

CNP652

P36 5-F

12

WH

BK
BK

WH

CNS703

CNS704

GY

13

GY

12

GY

11

GY

10

GY

9

GY

8

GY

7

GY

6

GY

5

GY

4

GY

3

GY

2

BK

1

BK

1

GY

2

GY

3

GY

4

GY

5

GY

6

GY

7

COLOR TABLE

BR

BROWN

RD(R)

RED

OR

ORANGE

YL

YELLOW

GR

GREEN

BL

BLUE

VL

VIOLET

GY

GRAY

WH(W)

WHITE

BK

BLACK

PK

PINK

TO MAIN

PWB-A1

CNP702

P37 8-D

2

1

ZD683

ZD684

3

D688

2

D684

C689

1

IC681

D681

D682

C688

C665

CNS702

BK

1

GY

2

GY

3

GY

4

GY

5

GY

6

GY

7

GY

8

GY

9

GY

10

1

3

CFW701B

LAMP PWB-A7

Q706

1
2

21

3

B

R796

C
E

CFW701A

CNW703A

R751

7

CNW704

R759

50

51
R785

R744

R772

CNW702

1

E

CB

R7A5

ECB

R7A8
C712

C710

R7A7

R7A6

D723

D720

3

R793

R792

Q707

1

3

R779

R780

R739

R740

C713
R761

1

45

55

R773

R766

R771

R770

ZD701

R7A1

R7A4

R7A0

R7B0

Q702

321

D721

R7A2

R7A9

CD PLAY/PAUSE

SW710

Q701

CNW707

1

3

13

1

R776

R777

R764

C711

Q703

D722

CD LID
OPEN/CLOSE

R750

R768

10

C715

Q709

R799

ECB

R781

R778

R755
R742
R757
R758

R741

REMOTE

R762

SENSOR

R760

R765 R763

35

40

60

65

SW725

SW712

R797

R798

RX701

26

30

70

75

R769

R783

TUNING

CD STOP

C704

TUNING

UP

1
2
3

25

IC701

80

76

DOWN

Q708

R718

C714

R738

20

85

R731

SW718

R725

R782

15

R735

SW709

R720B

SW713

10

90

R795

FUNCTION

SW727

ON/STAND-BY

VOLUME

DOWN

R719

UP

R721

VOLUME

R749

R722

X702

R723
R727

R729

C702

R732

R734

R733

5

1

100

95

REW

SW726

R707

SW711

R720A

R708

SW721

C703

R7A3

C701

L702

DOWN

PRESET

FF

PRESET

R706

R711

R702

UP

SW722

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

LCD701

BASS/

R710

SET

MEMORY/

X701

R728

FL DISPLAY

DISPLAY PWB-A3

7

8 9 10 11 12

Figure 39 WIRING SIDE OF P.W.BOARD (4/5)

– 39 –

XL-3000V

17

16

VIDEO PWB-D (TOP VIEW)

B

C

A

D

TO MAIN

PWB-A1

CNP802A

P36 5-F

TO MAIN

CNS801

P37 9-D

PWB-A1

CNS802

CNW801

C141V

R181V

R108V

R185V

C160V
C169V

L104V

R115V

C168V
R116V

C159V

R105V

C164V

C162V

R186V

R190V

C142V

R188V
R184V

R103V

R182V

R195V
R187V

C137V

R10AV

R11AV

R07AV

R06AV

30

31

25

35

40

45

50

51

C150V

C158V C161V

R183V

58

R189V

C139V

R94BV

R193V

20

6055

R194V

C136V

IC11V

C140V

C106V

C135V

IC14V

R178V

R09AV

R08AV
R12AV

C122V

1

CNP801V

12
10

8
6
4
2

L103V

9

CNW802V

C166V

11

9
7
5
3
1

R101V

C167V

R102V

R100V

R94AV

C165V

GY

8

GY

7

GY

6

GY

5

GY

4

GY

3

GY

2

GY

1

1

12

14

R142V

7065

C124V

R107V

C138V

R03AV

R02AV

1015 5

C184V

X1V

C143V

C149V

75

R171V

C144V

C130V

R112V
R111V

C172V

C171V

C147V

R01AV

1

95

90

85

80

C129V

R104V

100

81

TC100V

C131V

C104V

C127V

C183V

C148V

L11V

R121V

R114V

C118V

C117V

R165V
R164V
R163V

C103V

R124V

R167V

40

15

C121V

31

C120V

Q12V

EC

C101V

50

30

35

40

45

51

B

R123V

R113V

3035

IC16V

10 15

C116V

20

25

1015 5

IC15V

6055

7065

CNP804V

7654321

R141V

R140V

FROM DISPLAY

CNS704

PWB-A3

P39 10-C,D

R139V

75

R13V8

2125

20

1

100

95

90

85

81

80

C108V

R137V

R97V

C111V

C110V
R158V

R159V

C109V

R93V

C102V

R162V

R157V

R161V

R91V

C115V

R156V
R160V
R169V

R168V
R166V

R170V

C125V

EC

R98V

10
11
12
13
14
15
16

1
2
3
4
5
6
7
8
9

Q11V

C105V

B

C112V

IC10V

R5V

C126V

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17

R143V

VIDEO PWB-D (BOTTOM VIEW)

E

C102V

C115V

EC

C125V

16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

Q11V

B

R5V

IC10V

17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

L11V

C148V

C103V

C118V

C101V

EC

C121V

B

Q12V

7654321

CNP804V

C109V

X1V

C138V

C104V

TC100V

C147V

C171V

C172V

C158V C161V

L104V

L103V

CNP801V

F

G

H

1

2

3

4

5

6

7

8

9

10

11

12

1

CHASSIS

GND

C164V

C166V

CNW802V

9

C137V

C139V

C140V

• The numbers 16 and 17 are waveform numbers shown in page 41.

1

23456

Figure 40 WIRING SIDE OF P.W.BOARD (5/5)

– 40 –

WAVEFORMS OF CD CIRCUIT

NO DISC FOCUS SEARCH STOP PLAY

XL-3000V

1

FOO

IC802 48pin

FO+ 2

2

IC804 26pin

3

FO- 3 DMO 3

IC804 27pin

FOCUS SEARCH TOC IL STOP PLAY

4

SEL 1 TEI 1

IC802 57pin

5

FEI 2 TRO 2

IC802 43pin

TEI 3 FMO 3

6

IC802 46pin IC802 53pin

STOP PLAY CUE

5

IC802 43pin

IC802 44pin

FEI

SBAD 2 TRO 2

7

1 TMAX 1

1 TEI 1

12

IC802 30pin

13

IC802 12pin

14

IC802 55pin

6

IC802 46pin

11

IC802 49pin

15

6

IC802 46pin

11

IC802 49pin

SBOK

2

RFO 3 FMO 3

8

IC801 22pin

STOP PLAY REVIEW

5

FEI

IC802 43pin

RFGO 2 TRO 2

9

IC801 19pin IC802 49pin

RFRP 3

10

IC801 17pin

STOP PLAY TCD-782 TNO-02 PLAYBACK

TEI 1LO 1

6

IC802 46pin

TRO 2

11

IC802 49pin

SBAD 3

7

IC802 44pin

1 TEI 1

15

IC802 53pin

6

IC802 46pin

11
15

IC802 53pin

16

IC11V 7pin

17

IC11V 1pin

FMO

RO 2

3

– 41 –

XL-3000V

TROUBLESHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean
the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check
the following items.
Remove the cabinet and follow the troubleshooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup
lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn off the power, and wipe the lens softly using a cleaning paper moistened with commercially available cleaning solution so
as not to damage it.
Be careful not to touch the lens with bare hands.

Dust gradually accumulates on the objective lens during use, and it may degrade performance.
To avoid this problem, use a cleaning disc designed for CD optical pickup lenses.

HOW TO USE

1. Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the brush on the CD cleaner disc which has
the mark next to it.

2. Place the CD cleaner disc onto the CD disc tray with the brush side down, then press the play button.

3. You will hear music for about 20 seconds and the CD player will automatically stop. If it continues to turn, press the stop button.

CAUTION

The CD lens cleaner should be effective for 30 - 50 operations, however if the brushes become worn out earlier then please
replace the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft cloth.
Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the event of this happening then drink and / or
rinse with clean water and seek medical advice.
The CD cleaner disc must not be used on car CD player or on computer CD ROM drives.
All rights reserved. Unauthorized duplicating, broadcasting and renting product is prohibited by law.

Cleaner Liquid

Cleaning Disc
PARTS CODE: UDSKA0004AFZZ

– 42 –

Make sure that the disc is normal, and set the CD TEST MODE (STEP 1).

XL-3000V

Is the measured voltage as specified in circuit diagram?

Yes

Is "Er-CD01" displayed"?

Yes

Move the pickup to most internal circumference side of disc.
Turn the power off and reset the CD TEST MODE (STEP 1).
Is "PU ERROR " not displayed?

Yes

Is +5V applied to pin 100 (/RST) of IC802?

Yes

Does the CD TEST MODE advance from "STEP 2"?

Yes

Does the laser come on in CD TEST MODE "STEP 2"?

Yes

Does the CD TEST MODE advance from "STEP 3" to "STEP
4"?

Yes

Does the spindle motor rotate normally when the CD TEST
MODE changes from "STEP 4" to "STEP 3"?

Yes

No

No

No

No

No

No

No

Check the main unit power supply circuit.

Check the pattern between pin 58 (PU_IN) of IC701 and

No

CNW803/CNS803.
Check the between CNW803/CNS803 and PU-IN switch.

Check the PWB pattern between pin 59 (CD_RES) of IC701 and
pin 100 (/RST) of IC802.

Is CD Lid switch SW802
ON condition ?

Yes

Check the between pattern IC701 and SW802 If OK.
Check the main unit power supply circuit.

Check the procedure in "LASER FAILURE".

Check the procedure in "FOCUS FAILURE".

Check the procedure in "SPINDLE MOTOR CLV SERVO
FAILURE".

Set ON condition the CD

No

Lid switch.

Is the HF output on pin 38 of IC802 in CD TEST MODE "STEP 5"?

Yes

Does the sound heard when the optical pickup move to the
selected play by the FF /REW key.

Yes

Does the LCD track number and time indicator work properly ?

Yes

Turn the power off and then back on.
Does the unit initialize properly and start playback when PLAY
key is pressed?

Yes

Does the unit play in order in the FF mode?

Yes

Does playback continue for 30 seconds after the start of
playback ?

Yes

Normal

No

No

No

No

No

No

– 43 –

Check the procedure "HF ERROR".

Does the sled motor
move ?

Yes

Check the procedure "NO SOUND"

Check the pattern between IC701 and LCD701.

Is "Er-CD01 "
displayed ?

Yes

Check the pattern between pin 58 (PU_IN) of IC701
and CNW803/CNS803. Check the between CNW803/
CNS803 and PU-IN switch.

Check the procedure in "TRACK SEARCH FAILURE".

Check the procedure in "SLED SERVO FAILURE".

No

Check the procedure in

No

"SLED MOTOR
OPERATING FAILURE ".

Check the procedure in
"HF ERROR".

XL-3000V

• Laser failure.

Is +6.2V applied to the emitter of Q861 ?

Yes

Is +5V applied to the collector of Q861 ?

Yes

Is +5V applied to the pin 62 (VDD) of IC802 ?

Yes

Is +5V applied to the pin 1 (VCC) of IC801 ?

Yes

Is 0V applied to the pin 57 (SEL) of IC802 ?

Yes

Is approx. 2V applied to the collector of Q801.

Yes

No

No

No

No

No

No

No

Check the PWB pattern between emitter of Q607 and emitter of
Q861.

Check the peripheral parts of IC804 and Q861.

Check the PWB pattern between collector of Q861 and pin 62 of
IC802.

Check the PWB pattern between collector of Q861 and pin 1 of
IC801.

Does the laser come on when pattern cut between pin 8 (SEL) of
IC801 and pin 57 (SEL) of IC802 ?

Yes

Check the PWB pattern between IC701 and IC802 (BUCK/CCE/
BUS0~3)

Check the peripheral parts of IC801 and Q801. If it is normal, the
optical pickup is faulty.

Check CNP802/CNW3. If it is normal, the optical pickup is
faulty.

• Focus failure.

Does the optical pickup move up and down when the disc is
removed?

Yes

Is the following waveform output at the pin 43 (FEI) of IC802
when the disc is set?

Yes

pin 43
(FEI)

pin 48
(FOO)

pin 44
(SBAD)

Is the waveform shown above input at the pin 44 (SBAD) of
IC802?

Yes

No

No

No

Check as stated in item "FOCUS SERVO SAWTOOTH WAVE
FAILURE".

Check the periphery of IC801 and CNP802/CNW3. Is it normal?

Yes

The optical pickup is faulty.

Check the pattern between pin 13 of IC801 and pin 44 of IC802.
Check the periphery of IC801 and CNP802/CNW3.

IC801 is faulty.

– 44 –

• Focus servo sawtooth wave failure.

XL-3000V

Is sawtooth wave output to the pin 48 (FOO) of IC802 ?

Yes

1.5~2.5sec

Is +6.2V applied to the pins 21 and 22 (VCC) of IC804 ?

Yes

Is sawtooth wave obtained between pins 26 and 27 of IC804 ?

Yes

1.5~2.5sec

Is sawtooth wave obtained between pins 13 and 16 of
CNP802/CNW3 ? (as shown above)

Yes

CNP802/CNW3 connection failure or optical pickup failure.

No

No

IC802 is faulty.

Check the PWB pattern between emitter of Q607 and IC804.

No

Is +5V applied to the pin 7
(MUTE) of IC804 ?

Yes

Check the PWB pattern
between pin 7 of IC804

No

and pin 60 (CD STB) of
IC701.

Check the PWB pattern between pin 48 (FOO) of IC802 and pins
24 and 25 of IC804. If OK. IC804 is faulty.

Check the PWB pattern between CNP802/CNW3 and IC804.

No

• Spindle motor clv servo failure.

Is following wave output to the pin 55 (DMO) of IC802 when
the CD TEST MODE "STEP 3" is changed to " STEP 4" ?

Yes

DMO

Is above wave obtained between pins 11 and 12 of IC804 ?

Yes

Is above wave obtained between pins 9 and 12 of CNP802/
CNW3 ?

Yes

CNP802/CNW3 connection failure or optical pickup failure.

No

No

No

Check the procedure in "HF ERROR".
If OK. IC802 is faulty.

Check the PWB pattern between pin 55 (DMO) of IC802 and pins
9 and 10 of IC804. If OK. IC804 is faulty.

Check the PWB pattern between CNP802/CNW3 and IC804.

– 45 –

XL-3000V

• HF error.

Is output (tracking error signal) obtained at the pins 46 (TEI)
and 47 (TEZI) of IC802 the CD TEST MODE "STEP 4" is
changed to "STEP 5"?

Yes

test mode "step 4" test mode "step 5"

TEI

TEZI

Is output (HF signal) obtained at the pin 38 (RFI) of IC802
when the CD TEST MODE "STEP 4" is changed to "STEP 5"?

Yes

test mode "step 4" test mode "step 5"

RFI

No

No

Is output obtained at the pins 3 and
8 of CNP802/CNW3.

Optical pickup failure.

No

Yes

Check the periphery of IC801.
Check the PWB pattern between

IC801 is faulty.

No

pin 12 (TEO) of IC801 and pins 46
and 47 of IC802.
Is it normal ?

Yes

Check the PWB pattern between pin 49 (TRO) of IC802 and pin 19
of IC804.
Check the periphery of IC804 and CNP802/CNW3.
If OK. Optical pickup failure.

Is output obtained at the pins 4 and
5,6 of CNP802/CNW3.

Optical pickup failure.

No

Yes

Check the periphery of IC801.
Check the PWB pattern between pin 19 (RFGO) of IC801 and pin
38 (RFI) of IC802.
If OK. IC801 is faulty

Is output (HF signal) obtained at the pins 41 (RFZI) and 42
(RFRP) of IC802 when the CD TEST MODE "STEP 4" is
changed to "STEP 5"?

Yes

test mode "step 4" test mode "step 5"

RFZI

RFRP

Is the following wave output to the pin 55 (DMO) of IC802
when the CD TEST MODE "STEP 4" or "STEP 5"?

Yes

test mode "step 4" test mode "step 5"

DMO

Normal.

• No sound.

Is the wave output at pins 45~48 on IC14V?

Yes

No

No

No

Check the periphery of IC801.
Check the PWB pattern between pin17 (RFRP) of IC801 and pins
41 (RFZI) and 42 (RFRP) of IC802.
If OK. IC801 is faulty.

Check the periphery pins 28~32 of IC802.
If OK. IC802 failure.

Check the soldering and parts of IC14V.

Is the wave output at pins 1 and 7 on IC11V?

Yes

Is the wave output at pins 14 and 17 on IC401?

Yes

Check areas between pins 5 and 26 on IC401 and IC601.

No

Check the soldering and parts of IC11V.

Check the connection between IC11V and IC401.

No

– 46 –

• Track search failure

XL-3000V

Does the sled motor run in FF/REW state when the SERVO
TEST MODE "STEP1" is set?

Yes

Is the following wave output to the pin 49 (TRO) of IC802
during track search in normal playback?

Yes

TRO

Is the following wave output to the pins 12 (TEO) of IC801
during track search in normal playback?

Yes

TEO

TEI

TEZI

Is the above wave output to the pins 46 (TEI) and 47 (TEZI) of
IC802 during track search in normal playback?

Yes

Is the following wave output to the pin 41 (RFZI) and 42
(RFRP) of IC802 during track search in normal playback?

Yes

RFRP

RFZI

No

No

No

No

No

Check as stated in item "SLED MOTOR OPERATION FAILURE".

IC802 failure.

Check the PWB pattern between pin 49 (TRO) of IC802 and pin
19 of IC804.
Check the PWB pattern between pins 17 and 18 of IC804 and
Optical pickup.
If OK. Optical pickup failure.

Check the PWB pattern between pin 12 (TEO) of IC801 and pins 46
and 47 of IC802. If OK. IC801 failure.

Check the PWB pattern between pin 17 (RFO) and 18 (RFIS), 19
(RFRP) of IC801 and pins 41 and 42 of IC802. If OK. IC801 failure.

Normal.

• Sled motor operation failure.

Is following sled feed signal output the pin 53 (FMO) of IC802
when FF /REW key is pressed after the CD TEST
MODE "STEP 1" is set?

Yes

Is following sled feed signal output the pins 3 and 4 of IC804
when FF /REW key is pressed after the CD TEST
MODE "STEP 1" is set?

Yes

Is sled feed signal output the pins 1 and 2 of IC804?

Yes

Is sled feed voltage applied between both terminals of sled
motor?

Yes

Check the CD mechanism (periphery of sled motor).
If the sled motor does not run when DC2.0V is applied to
both terminals of sled motor, the sled motor is faulty.

FF REW

FMO

FF REW

SL ±

No

No

No

No

C802 is faulty.

Check the PWB pattern between pin 53 of IC802 and pins 3 and 4
of IC804.

Check the peripheral parts of IC804. If OK, IC804 is faulty.

Check the CNW803/CNS803.

• Sled servo failure.

Is following sled signal output the pin 53 (FMO) of IC802
during playback?

Yes

FMO

Normal.

No

IC802 is faulty.

– 47 –

XL-3000V

FUNCTION TABLE OF IC

IC401 VHiLC75342M-1: Function/Volume Equalizer (LC75342M)

Pin No.

1 DI Serial data and clock input pin for control.
2 CE Chip enable pin. Data written into an internal latch in a timing of [H] -> [L]. Each analog switch is activated.

3 VSS Ground pin.
4 TEST Electronic volume control pin. To be set to the VSS potential.
5 LOUT Volume + equalizer output pin.
6 LBASS2 Bass-band filter comprising capacitor and resistor connection pin.
7 LBASS1 Bass-band filter comprising capacitor and resistor connection pin.
8 LTRE Capacitor connection pin comprising treble band filter.
9 LIN Volume + equalizer input pin.
10 LSEL0 Input selector output pin.
11 L4 Input signal pin.
12* L3 Input signal pin.
13 L2 Input signal pin.
14 L1 Input signal pin.
15* NC No CONNECT pin. To be open or connected to VSS.
16* NC No CONNECT pin. To be open or connected to VSS.
17 R1 Input signal pin.
18 R2 Input signal pin.
19* R3 Input signal pin.
20 R4 Input signal pin.
21 RSEL0 Input selector output pin.
22 RIN Volume + equalizer input pin.
23 RTRE Capacitor connection pin comprising treble band filter.
24 RBASS1 Bass-band filter comprising capacitor and resistor connection pin.
25 RBASS2 Bass-band filter comprising capacitor and resistor connection pin.
26 ROUT Volume + equalizer output pin.
27* NC No CONNECT pin. To be open or connected to VSS.
28 Vref 0.5 x VDD voltage generation block for analog ground. Capacitor of several 10µF to be connected between

29 VDD Supply pin.
30 CL Serial data and clock input pin for control.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Port Name

Function

Data transfer enabled at [H] level.

Vref and AWSS (VSS) as a counter measure against power ripple.

– 48 –

IC401 VHiLC75342M-1: Function/Volume Equalizer (LC75342M)

XL-3000V

LOUT

LBASS2

LBASS1

TEST

5

6

7

VSS CE DI CL VDD NCVref

30

29

RVref

1234

LVref

CCB

2728

ROUT

26

RBASS2

25

24

RBASS1

INTERFACE

LTRE

LIN

LSEL0

8

9

10

CIRCUIT

CONTROL

11 12 13 14

L1L2L3L4 R1 R2 R3 R4

Figure 49 BLOCK DIAGRAM OF IC

LOGIC

CIRCUIT

CIRCUIT

CONTROL

15 16 17 18 19 20

NCNC

23

22

21

RTRE

RIN

RSEL0

– 49 –

XL-3000V

IC701 RH-iX0038SJZZ: System Microcomputer/FL driver (IX0038SJ) (1/2)

Pin No.

1-4 COM3-COM0 Output LCD common output terminal.
5-7 VLC3-VLC1 — LCD power supply terminal.
8 VDD Input Microcomputer power supply +5V.
9 OSC2 Output Oscillator ground terminal for main clock. f=8MHz
10 OSC1 Input Oscillator ground terminal for main clock. f=8MHz
11 VSS — Microcomputer power supply GND.
12 XI Input Oscillator ground terminal for sub clock. f=32.768kHz
13 XO Output Oscillator ground terminal for sub clock. f=32.768kHz
14 MMOD Input Memory mode selection terminal.
15 VREF- — Power supply GND for AD converter.
16 KEY0 AN0/PA0 Input CD lid status detection input.
17 KEY1 AN0/PA1 Input Operation button input, Max-8 buttons.
18 KEY2 AN0/PA2 Input Operation button input, Max-8 buttons.
19 KEY3 AN0/PA3 Input MODEL/TUNER destination input.
20 KEY4 AN0/PA4 Input Current detection of CD lid control motor.

21 KEY5 AN0/PA5 Input Fan motor auto adjustment mode selection input.
22* KEY6 AN0/PA6 Input
23* KEY7 AN7/PA7 Input Tuner signal meter (S meter) voltage input terminal.
24 VREF+ Input Power supply for A/D converter +5V.
25 TXD SBO0/P00 Output Data output terminal to TUNER PLL IC.
26 RXD SBI0/P01 Input Data input from TUNER PLL IC.
27 SBT0/P02 Output Synchronous clock output with TUNER PLL IC.
28 SBO1/P03 Output VIDEO CD DECORDER DATA output.
29 SBI1/P04 Output VIDEO CD DECORDER DATA input.
30 SBT1/P05 Output VIDEO CD DECORDER CLOCK signal.
31 DK/BZER P06 Output VIDEO CD DECORDER BUSY signal.
32 RST/P27 Input Reset signal input.
33* RMOUT P10 Input CLOCK/TIMER/SLEEP button input.
34 P11 Input Tape run/END detection input.
35 TM2IO P12 Output CD LID output signal.
36* TM3IO P13 Output Recording bias oscillation frequency selection control output.
37 TM4IO P14 Input Power (POWER) button input detection.
38 IRQ0 P20 Input Switches to the HALT mode when changing to . "L" at power failure detection input.
39 SENS IRQ1/P21 Input Remote control signal input.
40 IRQ2 P22 Input VIDEO CD DECORDER STROBE signal.
41* IRQ3 P23 Input
42* IRQ4 P24 Input
43 P30 Output SURROUND control output.
44 P31 Output POWER IC STAND-BY terminal CONTROL.
45 P32 Output Power mute output. "H" = MUTE ON "L" = MUTE OFF
46 LED0 WE/P50 Output CD servo power supply circuit control output. "H" = CD power ON "L" = CD power OFF
47 LED1 RE/P51 Output Main TRANS RELAY CONTROL. "H" = ON "L" = OFF
48* LED2 CS/P52 Input Data input from RDS IC.
49
50
51 SEG49 P60/A0 Output LCD backlight control signal output. "H" = Backlight ON, "L" = Backlight OFF
52 SEG48 P61/A1 Output Amp. signal detection.
53 SEG47 P62/A2 Output LED illumination control. "H" = ON "L" = OFF

LDE3/S51 A16/P53
LED4/S50 A17/P54

Input/Output

Used to decide the CD lid drive error to control it.

Input Radio stereo broadcast reception detection input. "L" = During stereo broadcast reception
Input Broadcast reception status detection input. "L" = During broadcasting signal reception

FunctionTerminal Name

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 50 –

XL-3000V

IC701 RH-iX0038SJZZ: System Microcomputer/FL driver (IX0038SJ) (2/2)

Pin No.

Input/Output

54 SEG46 P63/A3 Output LED dimmer signal.
55 SEG45 P64/A4 Output Fan control signal.
56 SEG44 P65/A5 Output Electric CD lid OPEN.
57 SEG43 P66/A6 Output Electric CD lid CLOSE.
58* SEG42 P67/A7 Input
59* SEG41 P70/A8 Output
60 SEG40 P71/A9 Output ON/OFF output terminal of CD servo control IC. "H" = Servo ON "L" = Servo stand-by
61*-64* SEG39 P72/A10- Input/Output Data input/output terminal control.

SEG36 P75/A13
65* SEG35 P76/A14 Output Data synchronous clock output.
66* SEG34 P77/A15 Output Chip enable terminal. "L" = BUS terminal active
67 SEG33 P87/D7 Output LCD segment output.
68 SEG32 P86/D6 Output LCD segment output.
69-74 SEG31 P85/D5- Output LCD segment output.

SEG26 P80/D0
75-100 SEG25-SEG0 Output LCD segment output.

IC701 RH-iX0038SJZZ: System Microcomputer/FL driver (IX0038SJ)

FunctionTerminal Name

COM3
COM2
COM1
COM0

VLC3
VLC2
VLC1

VDD
OSC2
OSC1

VSS

XI

XO

MMOD

VREF–

CLID_SW

KEY1
KEY2

MODEL

CLID_PRO

MOT_DEC

NC
NC

VREF+

DI

SEG0

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

SEG15

SEG16

SEG17

SEG18

SEG19

SEG20

SEG21

SEG22

SEG23

SEG24

SSSSSSSSSSSSSSSSSSSSSSSSS

9998979695949392919089888786858483828180797877

100

1

O

2

O

3

O

4

O

5
6
7
8
9

O

10

I

11
12

I

13

O

14

I

15
16

I

17

I

18

I

19

I

20

I

21

I

22

I

23

I

24
25

O

76

75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

S
S
S
S
S
S
S
S
S
O

O
I/O
I/O
I/O
I/O

O

O

I
O
O
O
O
O

O

SEG25
SEG26
SEG27
SEG28
SEG29
SEG30
SEG31
SEG32
SEG33

NC
NC
NC
NC
NC

NC
CD_STB
CD_RES

PU-IN

CLID_DW

CLID_UP

FAN

DIMMER

LIGHT

AMP_DEC

B-LIGHT

26272829303132333435363738394041424344454647484950
I

OOOOO

CL

DO

VD_DO

ACK

VD_DI

III

BUSY

RESET

NC

CE

IIIII

O

O

NC

POWER

CLID_OUT

SYS_STOP

I

NC

NC

STB

REMOCON

OOOOOOO

NC

CD+B

SURR

P-STB

P-MUTE

P-CONT

I

SD

STEREO

Figure 51 BLOCK DIAGRAM OF IC

– 51 –

XL-3000V

IC801 VHiTA2109F/-1:Servo Pre Amp. (TA2109F)

Pin No.

Terminal Name

Input/Output

Function

1 VCC — Power voltage terminal
2 FNI Input Main beam amp input terminal
3 FPI Input Main beam amp input terminal
4 TPI Input Sub-beam amp input terminal
5 TNI Input Sub-beam amp input terminal
6 MDI Input Monitor photodiode amp input terminal
7 LDO Output Laser diode amp output terminal
8 SEL Input Laser diode control signal input and APC circuit ON/OFF signal input terminal
9 TEB Input Tracking error balance adjustment signal input terminal

To be controlled by 3-value PWM signal. (PWM carrier = 88.2 kHz)
10 2VRO Output Standard voltage (2VR) output terminal. When Vcc = 5V, 2VR = 4.2V.
11 TEN Input Tracking error signal generation amp reversed phase input terminal
12 TEO Output Tracking error signal generation amp output terminal
13 SBAD Output Sub-beam addition signal output terminal
14 FEO Output Focus error signal generation amp output terminal
15 FEN Input Focus error signal generation amp reversed phase input terminal
16 VRO Output Standard voltage (VR) output terminal. When Vcc = 5V, VR = 2.1V.
17 RFRP Output Track count signal generation amp output terminal
18 RFIS Input RFRP detection circuit input terminal
19 RFGO Output RF signal output terminal
20 RFGC Input RF amplitude adjustment control signal input terminal

The amplitude of RF signal can be controlled by using the 3-value PWM signal (PWM

carrier = 88.2 kHz) which is output from the RFGC terminal of TC9432F.
21 AGCI Input RF signal amplitude adjustment amp input terminal
22 RFO Output RF signal generation amp output terminal
23 GND — GND terminal
24 RFN Input RF reversed phase input terminal

IC801 VHiTA2109F/-1:Servo Pre Amp. (TA2109F)

SBAD

FEO

FEN

VRO

RFRP

RFIS

RFGO

RFGC

AGCI

RFO

GND

RFN

14

15

16

17

18

19

20

21

22

23

24

10pF

10kΩ

20kΩ

20kΩ

23.5kΩ

re = 130Ω

50kΩ

36pF

7.96kΩ

21kΩ 21kΩ

50µA

12kΩ
12kΩ

20kΩ

PEAK

BOTTOM

1.53kΩ

3.3kΩ

3.3kΩ

15kΩ
15kΩ

12kΩ

10kΩ
10kΩ

20µA

10kΩ

180kΩ

40pF

30kΩ

30kΩ

21kΩ 29kΩ

24kΩ

24kΩ

1.74kΩ

65µA

180kΩ

20pF

180kΩ

20pF

60kΩ

60kΩ

40pF

180kΩ

47kΩ

SW3

13kΩ

10kΩ

SW2

7.67kΩ

3 STATE

DET.

SW1

680kΩ

I . I

I . I

20kΩ

20kΩ

1kΩ

2.12kΩ

LDC

20pF

20kΩ

20kΩ

1213

11

10

9

8

7

6

5

4

3

2

1

TEO

TEN

2VRO

TEB

SEL

LDO

MDI

TNI

TPI

FPI

FNI

VCC

SEL

L

HiZ

H

SW1

ON
OFF
OFF

LDC

SW2

SW3

OFF OFF

ONONON

ON

Figure 52 BLOCK DIAGRAM OF IC

– 52 –

IC802 VHiTC9462F/-1: Servo/Signal Control (TC9462F) (1/3)

XL-3000V

Pin No.

1* TEST0 Input Test mode terminal. To be opened usually.
2* /HSO Output Playback speed mode flag output terminal.

3* /UHSO Output

4* EMPH Output Sub-code Q data emphasis flag output terminal. "H": Emphasis ON "L": Emphasis OFF

5 LRCK Output Channel clock (44.1 kHz) output terminal. "L": L channel "H": R channel

6 VSS — Digital ground terminal.
7 BCK Output Bit clock (1.4122 MHz) output terminal.
8 AOUT Output Audio data output terminal.
9 DOUT Output Digital out output terminal.
10* MBOV Output Buffer memory over signal output terminal. "H": Over
11* IPF Output Correction flag output terminal.

12* SBOK Output Sub-code Q data CRCC judgment result output terminal. "H": When judgment result is OK.
13* CLCK Input/Output Sub-code P-W data read clock output/input terminal. Selectable with command bit.
14 VDD Input Digital + power terminal.
15 VSS — Digital ground terminal.
16* DATA Output Sub-code P-W data output terminal.
17* SFSY Output Playback system frame sync signal output terminal.
18* SBSY Output Sub-code block sync output terminal. "H": On S1 position when the sub-code sync is detected.
19* SPCK Output Processor status signal read clock (176.4 kHz) output terminal.
20* SPDA Output Processor status signal output terminal.
21* COFS Output Correction system frame clock (7.35 kHz) output terminal.
22* MONIT Output LSI internal signal monitor terminal.

23 VDD Input Digital + power terminal.
24 TESIO0 Input Test input/output terminal. To be fixed to "L" usually.

25 P2VREF — 2VREF terminal for PLL system.
26* HSSW Output VREF voltage in case of x2 speed/x4 speed.
27* ZDET Output 1-bit DAC zero detection flag output terminal.
28 PDO Output Terminal to output the phase difference between EFM signal and PLCK signal.
29* TMAXS Output TMAX detection result output terminal. To be selected with command bit TMPS.
30 TMAX Output TMAX detection result output terminal. To be selected with command bit TMPS.

Port Name

Input/Output

/UHSO

H H x1 speed playback
H L x2 speed playback
L H x4 speed playback
LL—

The output polarity can be inverted by command.

The output polarity can be inverted by command.

"H": When AOUT output is correction-disabled symbol in case of C2 correction output.

It is possible to monitor the DSP internal flag and PLL system clock with the microcomputer
command. Terminal for serial output of text data according to command.

Terminal to input the text data read clock according to command.

/HSO

TMAX detection result

Longer than specific period "P2VREF"
Shorter than specific period "VSS"
Within specific period "HIZ"

31 LPFN Input Low-pass filter amp inverted input terminal.
32 LPFO Output Low-pass filter amp output terminal.
33 PVREF Input VREF terminal for PLL system.
34 VCOREF Input VCO center frequency standard level terminal. To be fixed to PVref usually.
35 VCOF Output VCO filter terminal.
36 AVSS — Analog system ground terminal.
37 SLCO Output Data slice level generation DAC output terminal.
38 RFI Input RF signal input terminal.

Function

Playback speed

TMAX output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 53 –

XL-3000V

IC802 VHiTC9462F/-1: Servo/Signal Control (TC9462F) (2/3)

Pin No.

39 AVDD Input Analog system power terminal.
40 RFCT Input RFRP signal center level input terminal.
41 RFZI Input RFRP zero cross input terminal.
42 RFIP Input RF ripple signal input terminal.
43 FEI Input Focus error signal input terminal.
44 SBAD Input Sub-beam addition signal input terminal.
45 TSIN Input Test input terminal. To be fixed to Vref usually.
46 TEI Input Tacking error input terminal. (Tracking servo ON: Taking-in).
47 TEZI Input Tracking error, zero cross input terminal.
48 FOO Output Focus equalizer output terminal.
49 TRO Output Tracking equalizer output terminal.
50 VREF Input Analog standard power terminal.
51 RFGC Output RF amplitude adjustment control signal output terminal.

52 TEBC Output Tracking balance control signal output terminal.

53 FMO Output Feed equalizer output terminal. 3-value PWM signal is output. (PWM carrier = 88.2 kHz)
54* FVO Output Speed error signal or feed search EQ output terminal.

55 DMO Output Disc equalizer output terminal.

56 2VREF Input Analog standard power terminal (2xVREF)
57 SEL Output APC circuit ON/OFF signal output terminal.

58* FLGA Output Internal signal monitor external flag output terminal.

59* FLGB Output Internal signal monitor external flag output terminal.

60* FLGC Output Internal signal monitor external flag output terminal.

61* FLGD Output Internal signal monitor external flag output terminal.

62 VDD Input Digital + power terminal.
63 VSS — Digital ground terminal.
64* IO0 Input/Output General-use I/O port.

65* IO1 The input port and output port can be selected with command. In case of input port the terminal
66* IO2 state (H/L) can be read with the read command.
67* IO3 In case of output port the terminal state (H/L/HiZ) can be controlled with command.

68* /DMOUT Input Terminal to set the mode to output 2-value PWM of feed equalizer from IO0,1 terminal and 2-

69* /CKSE Input To be opened usually.
70* /DACT Input DAC test mode terminal. To be opened usually.
71 TESIN Input Test input terminal (externally provided VCO clock input terminal). To be fixed to "L" usually.
72 TESIO1 Input Test input/output terminal. To be fixed to "L" usually.
73 VSS — Digital ground terminal.
74 PXI Input DSP system clock oscillation circuit input terminal. To be fixed to "L" usually.
75* PXO Output DSP system clock oscillation circuit output terminal.
76 VDD Input Digital + power terminal.
77 XVSS — System clock oscillation circuit ground terminal.
78 XI Input System clock oscillation input terminal.
79 XO Output System clock oscillation circuit output terminal.
80 XVDD Input System clock oscillation circuit + power terminal.
81 DVSR Input R channel D/A converting section power terminal.
82* RO Output R channel data forward rotation output terminal.

Port Name

Input/Output

3-value PWM signal is output. (PWM carrier = 88.2 kHz)

3-value PWM signal is output. (PWM carrier = 88.2 kHz)

3-value PWM signal is output. (PWM carrier = 88.2 kHz)

3-value PWM signal is output. (PWM carrier = DSP system 88.2 kHz, sync with PXO)

When laser is ON and UHS = L, "Hi-Z". When UHS = H, "H" output is obtained.

TEZC, FOON, FOK and RFZC signals can be selected with command.

DFCT, FOON, FMON and RFZC signals can be selected with command.

TRON, TRSR, FOK, and SRCH signals can be selected with command.

TRON, DMON, HYS and SHC signals can be selected with command.

value PWM of disc equalizer from IO2,3 terminal. "L" active

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 54 –

IC802 VHiTC9462F/-1: Servo/Signal Control (TC9462F) (3/3)

XL-3000V

Pin No.

Port Name

Input/Output

Function

83 DVDD Input D/A converting section power terminal.
84 DVR Input Reference voltage terminal.
85* LO Output L channel data forward rotation output terminal.
86 DVSL Input L channel D/A converting section power terminal.
87* TEST1 Input Test mode terminal. To be opened usually.
88* TEST2 Input Test mode terminal. To be opened usually.
89* TEST3 Input Test mode terminal. To be opened usually.
90-93 BUS0-BUS3 Input/Output Microcomputer interface data input/output terminal.
94 VDD Input Digital + power terminal.
95 VSS — Digital ground terminal.
96 BUCK Input Microcomputer interface clock input terminal.
97 /CCE Input Microcomputer interface chip enable signal input terminal. "L": BUS0 to 3 is active.
98* TEST4 Input Test mode terminal. To be opened usually.
99* /TSMOD Input Local test mode selection terminal.
100 /RST Input Reset signal input terminal. "L": Reset.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

IC802 VHiTC9462F/-1: Servo/Signal Control (TC9462F)

LPFN

LPFO

PVREF

VCOREF

VCOF
AVSS
SLCO

RFI
AVDD
RFCT

RFZI

RFRP

FEI
SBAD

TSIN

TEI

TEZI
FOO
TRO

VREF

TMAX

TMAXS

PDO

ZDET

HSSW

P2VREF

TESIO0

VDD

MONIT

COFS

SPDA

SPCK

SBSY

SFSY

DATA

VSS

VDD

CLCK

SBOK

IPF

MBOV

DOUT

AOUT

BCK

VSS

LRCK

EMPH

/UHSO

/HSO

TEST0

2

3

4

11

9

10

Clock

generator

21

CLV

servo

19

20

30

33
3435 31

373839

Data

slicer

26

PLL

TMAX

VCO

Status

22

23

24

25

27

28

29

40 36

42
43

A/D

Digital equalizer

adjustment circuit

4445 41

Sub-code

demodulation

circuit

Synchronizing

signal guarantee

EFM demodulation

RAM

ROM

16

Digital

out

16KRAM

Address

circuit

12

13

14

15

17

18

474849

D/A

PWM

Servo control

Audio output

circuit

Correction

circuit

6

1Bit

DAC

interface

Microcomputer

5

7

8

50 46 32

51

RFGC

52

TEBC

53

FMO

54

FVO

55

DMO

56

2VREF

57

SEL

58

FLGA

59

FLGB

60

FLGC

61

FLGD

62

VDD

63

VSS

64

IO0

65

IO1

66

IO2

67

IO3

68

/DMOUT

69

/CKSE

/DACT

71

TESIN

72

TESIO1

73

VSS

74

PXI

75

PXO

76

VDD

77

XVSS

1

/RST

100

/TSMOD

98

TEST4

97

/CCE

96

BUCK

95

VSS

949392

VDD
BUS3
BUS2

91

BUS1
BUS0

89

TEST3

88

TEST2

87

TEST1

86 90

DVSL
LO
DVR

848382

XVDD

DVDD
RO
DVSR

81 85 99

LPF

78

797080

XI

XO

Figure 55 BLOCK DIAGRAM OF IC

– 55 –

XL-3000V

IC804 VHiMM1469XH-1: Focus/Tracking/Spin/Sled Driver (MM1469XH)

Pin No.

1 CH1-OUT-A Driver CH1 negative output
2 CH1-OUT-B Driver CH1 positive output
3 CH1-IN-A Driver CH1 input
4 CH1-IN-B Driver CH1 input, gain adjustment pin
5 Tr-B Connect to external transistor base
6 VREG-OUT Constant voltage output, connects to external transistor collector
7 MUTE Driver mute control input
8 GND GND
9 CH2-IN-B Driver CH2 input, gain adjustment pin
10 CH2-IN-A Driver CH2 input
11 CH2-OUT-B Driver CH2 positive output
12 CH2-OUT-A Driver CH2 negative output
13
14* OP-OUT Operational amplifier output
15* OP-IN(–) Operational amplifier input, negative
16* OP-IN(+) Operational amplifier input, positive
17 CH3-OUT-A Driver CH3 negative output
18 CH3-OUT-B Driver CH3 positive output
19 CH3-IN-A Driver CH3 input
20* CH3-IN-B Driver CH3 input, gain adjustment pin
21 Vcc Vcc
22 Vcc Vcc
23 BIAS-IN Bias amplifier input
24 CH4-IN-B Driver CH4 input, gain adjustment pin
25 CH4-IN-A Driver CH4 input
26 CH4-OUT-B Driver CH4 positive output
27 CH4-OUT-A Driver CH4 negative output
28

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
GND (lowest potential) is connected to the frame of pin center.

Port Name Function

Substrate GND

Substrate GND

Substrate GND

Substrate GND

CH3-IN-A

CH3-IN-B

VCC

50kΩ

50kΩ

8

Vcc

GND

19

20

10kΩ

DRIVER MUTE

10kΩ

10 11 12

9

CH2-IN-B

18 17

D.BUF

Level shift

Level shift

CH2-IN-A

SUBGND

28

T.S.D

D.BUF D.BUF D.BUF D.BUF

1 2 3 4 5 6 7

CH1-OUT-A

27

D.BUF

Level shift

CH1-OUT-B

26

D.BUF

Level shift

10kΩ

CH1-IN-A

25

10kΩ

CH1-IN-B

23 22 21

24

VCC

10kΩ

10kΩ

Tr-B

MUTE

VREG-OUT

Vcc

BIAS-IN

CH4-IN-B

CH4-IN-A

CH4-OUT-B

CH4-OUT-A

Figure 56 BLOCK DIAGRAM OF IC

T.S.D : Thermal Shut Down
D.BUF : Driver Buffer

OP-IN(+)

CH3-OUT-A

CH3-OUT-B

D.BUF

CH2-OUT-B

16

13 14

SUBGND

CH2-OUT-A

OP-IN(–)

15

OP-OUT

– 56 –

XL-3000V

IC14V VHiES3883F/-1: Video CD Encoder (ES3883F) (1/2)

Pin No.

1 VSS Input Ground.
2*-4* NC — No connect. Do not connect to these pins.
5 VCC Input Voltage supply, 5V.
6 DSC_CLK Input Clock for programming to access internal registers.
7 AUX0 Input/Output Servo Forward Control pin.
8 DSC_D0 Input/Output Data for programming to access internal registers.
9 AUX1 Input/Output Servo Reverse Control pin.
10 DSC_STB Input Strobe for programming to access internal registers.
11 AUX2 Input/Output Servo LDON or Control pin.
12* DCLK/EXT_CLK Output Dual-purpose pin. DCLK is the MPEG decoder clock.

13 RESET_B Input Video reset (active low).
14 AUX07 Input/Output Servo BRKM/Sense or Control pin/VFD_DI.
15* MUTE Output Audio mute.
16 VCC Input Voltage supply, 5V.
17 MCLK Input Audio master clock.
18 AUX8 Input/Output Servo Mute/Open or Control pin/VFD_CLK.
19 TWS/SPLL_OUT Input Dual-purpose pin. TWS is the transmit audio frame sync.

20* AUX09 Input/Output Servo SQS0 or Control pin.
21 TSD Input Transmit audio data input.
22 TBCK Input Transmit audio bit clock.
23 RWS/SEL_PLL1 Output Dual-purpose pin. RWS is the receive audio frame sync.
23 RWS/SEL_PLL1 Input Pins SEL_PLL [1:0] select the PLL clock frequency for DCLK output.

24 RSTOUT_B Output Reset output (active low).
25, 26 VSS Input Ground.
27* NC (SQCK) — No connect. Do not connect to these pins.
28* NC (SQSO) — No connect. Do not connect to these pins.
29*, 30* NC — No connect. Do not connect to these pins.
31 VSS Input Ground.
32 VCC Input Voltage supply, 5V.
33 RSD/SEL_PLL0 Output Dual-purpose pin. RSD is the receive audio data input.
33 RSD/SEL_PLL0 Input SEL_PLL0 along with SEL_PLL1 select the PLL clock frequency for the DCLK output.

34 AUX10 Input/Output Servo SQCK or Control pin.
35 AUX11 Input/Output 3880 IRQ or Interrupt Output or Control pin.
36* AUX12 Input/Output CD C2PO or Interrupt or Control pins.
37 RBCK/SER_IN Output Dual purpose pin. RBCK is the receive audio bit clock.

38 AUX13 Input/Output Serial Interrupt/CD-Mute or Control pin.
39 AUX14 Input/Output Servo SCOR(S0S1) or Interrupt Input or Control pin.
40 AUX15 Input/Output Interrupt Input or Control pin.
41 VSSA Input Audio Analog ground.
42 VCM Input ADC Common Mode Reference (CMR) buffer output. CMR is approximately 2.25V.

43 VREFP Input DAC and ADC maximum reference. Bypass to VCMR with 10 µF in parallel with 0.1 µF.
44 VCCAA Input Analog VCC, 5V.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Terminal Name Input/Output

Input EXT_CLK is the extemal clock. EXT_CLK is an input during bypass PLL mode.

Output SPLL_OUT is the select PLL output.

Input SER_IN is serial input DSC mode.

Function

SEL_PLL1 SEL_PLL0 DCLK
0 0 Bypass PLL (Input Mode)
0 1 27MHz (Output Mode)
1 0 32.4MHz (Output Mode)
1 1 40.5MHz (Output Mode)

See the table for pin number 23.

0 = Parallel DSC mode.
1 = Serial DSC mode.

Bypass to analog ground with 47 µF electrolytic in parallel with 0.1 µF.

– 57 –

XL-3000V

IC14V VHiES3883F/-1: Video CD Encoder (ES3883F) (2/2)

Pin No. Terminal Name Input/Output Function

45 AOR + Output Right channel output.
46 AOR - Output Right channel output.
47 AOL - Output Left channel output.
48 AOL + Output Left channel output.
49* MIC1 Input Microphone input 1.
50* MIC2 Input Microphone input 2.
51 VSSAA Input Audio Analog ground.
52 VREF Input Internal resistor divider generates Common Mode Reference (CMR) voltage.

Bypass to analog ground with 0.1 µF.
53 VREFM Input DAC and ADC minimum reference. Bypass to VCMR with 10 µF in parallel with 0.1 µF.
54 RSET Input Full scale DAC current adjustment.
55 COMP Input Compensation pin.
56, 57 VSSAV Input Video Analog ground.
58* CDAC Output Modulated chrominance output.
59, 60 VCCAV Input Video VCC, 5V.
61* YDAC Output Y luminance data bus for screen video port.
62, 63 VSSAV Input Video Analog ground.
64 VDAC Output Composite video output.
65 ACAP Input Audio CAP.
66 VCC Input Voltage supply, 5V.
67* AUX6 Input/Output Servo XLAT or Control pin/VFD_DO.
68* AUX5 Input/Output Servo Data or Control pin.
69 AUX4 Input/Output Servo CCW/Close or Control pin.
70 AUX3 Input/Output Servo CW/Limit or Control pin.
71 XOUT Output Crystal output.
72 VSS Input Ground.
73 VCC Input Voltage supply, 5V.
74 XIN Input 27 MHz crystal input.
75 VSS Input Ground.
76* NC — No connect. Do not connect to these pins.
77 VSS Input Ground.
78 VCC Input Voltage supply, 5V.
79 PCLK Input/Output 13.5 MHz pixel clock.
80 2XPCLK Input/Output 27 MHz (2 times pixel clock).
81 DSC_D7 Input/Output Data for programming to access internal registers.
82 HSYN_B Output Horizontal sync (active low).
83 DSC_D6 Input/Output Data for programming to access internal registers.
84 VSYN_B Output Vertical sync (active low).
85 DSC_D5 Input/Output Data for programming to access internal registers.
86-89 YUV7-YUV4 Input YUV data bus for screen video port.
90 VCC Input Voltage supply. 5V.
91 VSS Input Ground.
92 YUV3 Input YUV data bus for screen video port.
93 DSC_D4 Input/Output Data for programming to access internal registers.
94 YUV2 Input YUV data bus for screen video port.
95 DSC_D3 Input/Output Data for programming to access internal registers.
96 YUV1 Input YUV data bus for screen video port.
97 DSC_D2 Input/Output Data for programming to access internal registers.
98 YUV0 Input YUV data bus for screen video port.
99 DSC_D1 Input/Output Data for programming to access internal registers.
100 VSS Input Ground.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 58 –

ICV14 VHiES3883F/-1 :Video CD Encoder (ES3883F)

1
2
3
4
5
6
7
8
9

10
11
12
13

14
15
16
17
18
19
20

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

Vcc
DQ1
DQ2
DQ3
DQ4

Vcc

Vcc

DQ5
DQ6
DQ7
DQ8

NC
NC

NC

A0
A1
A2
A3

WE
RAS

Vcc
DQ16
DQ15
DQ14
DQ13
Vss

Vss

DQ12
DQ11
DQ10
DQ9

NC
LCAS

A8
A7
A6
A5
A4

UCAS
OE

2XPCLK

PCLK

VCC

VSSNCVSS

XIN

VCC

VSS

XOUT

AUX3

AUX4

AUX5

AUX6/VFD_DO

VCC

8079787776757473727170696867666564636261605958575655545352

NC

DSC_D7
HSYN_B
DSC_D6
VSYN_B
DSC_D5

YUV7
YUV6
YUV5
YUV4

VCC

VSS

YUV3

DSC_D4

YUV2

DSC_D3

YUV1

DSC_D2

YUV0

DSC_D1

VSS

81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100

123456789

NCNCNC

VSS

101112131415161718192021222324252627282930

VCC

AUX0

AUX1

DSC_D0

DSC_CLK

DSC_STB

Figure 59-1 BLOCK DIAGRAM OF IC

NC

IC14V

ES3883F

NC

AUX2

DCLK/EXT_CLK

NC

MUTE

RSTET_B

AUX7/VFD_DI

ACAP

VDAC

VSSAV

VCC

MCLK

AUX8/VFD_CLK

VSSAV

YDAC

VCCAV

VCCAV

CDAC

NC

NC

NC

TSD

TBCK

AUX9/SQSO

TWS/SPLL_OUT

RWS/SEL_PLL1

VSSAV

VSSAV

COMP

VSS

VSS

RSTOUT_B

RSET

VREFM

NC

NC

SQCK

SQSO

VREF

VSSAA
51

NC
NC

NC

NC

NC

50

MIC2

49

MIC1

48

AOL +

47

AOL -

46

AOR -

45

AOR +

44

VCCAA

43

VREFP

42

VCM

41

VSSAA

40

AUX15/IR

39

AUX14/SOS1

38

AUX13/SP

37

RBCK/SER_IN

36

AUX12/C2PO

35

AUX11/RQ

34

AUX10/SQCK

33

RSD/SEL_PLL0

32

VCC

31

VSS

NC

XL-3000V

IC16V RH-iX0025SJZZ: D-RAM 256Kx16 (IX0025SJ)

Pin No. Port Name

1 VCC Power (5V)
2-5 DQ1-DQ4 Data input/data output
6 VCC Power (5V)
7-10 DQ5-DQ8 Data input/data output
11*,12* NC Not used
13 WE Write enable
14 RAS Low address strobe
15* NC Not used
16-19 A0-A3 Address input
20 VCC Power (5V)
21 VSS Ground
22-26 A4-A8 Address input
27 OE Output enable
28 UCAS Upper column address strobe
29 LCAS Lower column address strobe
30* NC Not used
31-34 DQ9-DQ12 Data input/data output
35 VSS Ground
36-39 DQ13-DQ16 Data input/data output
40 VSS Ground

In this unit, the terminal with asterisk mark (*) is (open)
terminal which is not connected to the outside.

Function

Figure 59-2 BLOCK DIAGRAM OF IC

– 59 –

XL-3000V

IC15V VHiES3880F/-1: Video CD Decoder (ES3880F)

Pin No.

1 VDD Input Voltage supply for 3.3V.
2 RAS# Output DRAM row address strobe (active low).
3 DWE# Output DRAM write enable (active low).
4-12 DA0-DA8 Output DRAM multiplaxed row and column address bus.
13-28 DBUS0-DBUS15 Input/Output DRAM data bus.
29 RESET# Input Ayatem reset (active low).
30 VSS Input Ground.
31 VDD Input Voltage supply for 3.3V.
32-39 YUV0-YUV7 Output Y is luminance, UV are chrominance data bus for screen video interface.

40 VSYNC Input/Output Vertival sync for screen video interface, programmable for rising or falling edge.
41 HSYNC Input/Output Horizontal sync for screen video interface, programmable for rising or falling edge.
42* CPUCLK Input RISC and system clock input. CPUCLK is used only if SEL_PLL0, SEL_PLL1=00.
43 PCLK2X Input/Output Pixel clock; two times the actual pixel clock for screen video interface.
44 PCLK Input/Output Pixel clock qualifier in for screen video interface.
45,46*-49
50 VSS Input Ground.
51 VDD Input Voltage supply for 3.3V.
52-54 AUX5-AUX7 Input/Output Auxiliary control pins.
55-62 LD0-LD7 Input/Output RISC interface data bus.
63* LWR# Output RISC interface write enable (active low).
64 LOE# Output RISC interface output enable (active low).
65 LCS3# Output RISC interface chip enable (active low).
66,67* LCS1#, LCS0# Output RISC interface chip enable (active low).
68-79 LA0-LA11 Output RISC interface address bus.
80 VSS Input Ground.
81 VCC Input Digital supply voltage for 5V.
82-87 LA12-LA17 Output RISC interface address bus.
88 ACLK Input/Output Master clock for external audio DAC (8.192 MHz, 11.2896 MHz, 12.288 MHz, 16.9344

89 AOUT/SEL_PLL0 Output Dual-purpose pin. AOUT is the audio interface serial data output.

90 ATCLK Input/Output Audio transmit bit clock.
91 ATFS/SEL_PLL1 Output Dual-purpose pin. ATFS is the audio interface transmit frame sync.

92 DA9/DOE# Output Dual purpose pin: DRAM output enable (active low)/DRAM multiplexed row column

93 AIN Input Audio interface serial data input.
94 ARCLK Input Audio receive bit clock.
95 ARFS Input Audio interface receive frame sync.
96 TDMCLK Input TDM interface serial clock.
97 TDMDR Input TDM interface serial data receive.
98 TDMFS Input TDM interface frame sync.
99 CAS# Output DRAM column address strobe bank 0 (active low).
100 VSS Input Ground.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Terminal Name Input/Output Function

YUV0-YUV7 for 8-bit YUV mode.

AUX0-AUX4 Input/Output Auxiliary control pins (AUX0 and AUX1 are open collectors).

MHz and 18.432 MHz).

Input Pins SEL_PLL0, SEL_PLL1 select phase-lock loop (PLL) clock frequency CPUCLK for the

Visba:

00 = bypass PLL.
01 = 54 MHz PLL.
10 = 67.5 MHz PLL.
11 = 81 MHz PLL.

Input Pins SEL_PLL0, SEL_PLL1 select phase-lock loop (PLL) clock frequency CPUCLK for the

Viaba.
See the SEL_PLL0 pin above for the settings.

address bus.

– 60 –

IC15V VHiES3880F/-1: Video CD Decoder (ES3880F)

81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

VCC
LA12
LA13
LA14
LA15
LA16
LA17

ACLK

AOUT/SEL_PLL0

ATCLK

ATFS/SEL_PLL1

DA9/DOE#

AIN

ARCLK

ARFS

TDMCLK

TDMDR

TDMFS

CAS#

VSS

VSS
AUX4
AUX3
AUX2
AUX1
AUX0
PCLK
PCLK2X
CPUCLK
HSYNC
VSYNC
YUV7
YUV6
YUV5
YUV4
YUV3
YUV2
YUV1
YUV0
VDD

8079 78 77 7675 7473 72 71 7069 6867 6665 64 63 62 616059 5857 565554 53 52 51

1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930

VSS

LA11

LA10

LA9

LA8

LA7

LA6

LA5

LA4

LA3

LA2

LA1

LA0

LCS0#

LCS1#

LCS3#

LOE#

LWR#

LD7

LD6

LD5

LD4

LD3

LD2

LD1

LD0

AUX7

AUX6

AUX5

VDD

VDD

RAS#

DWE#

DA0

DA1

DA2

DA3

DA4

DA5

DA6

DA7

DA8

DBUS0

DBUS1

DBUS2

DBUS3

DBUS4

DBUS5

DBUS6

DBUS7

DBUS8

DBUS9

DBUS10

DBUS11

DBUS12

DBUS13

DBUS14

DBUS15

RESET#

VSS

ES3880F

NC

NC

NC

NC

XL-3000V

Figure 61 BLOCK DIAGRAM OF IC

– 61 –

XL-3000V

LCD701: RV-LX0012SJZZ LCD Display

z1

z4

z2

z3

123456789

PinNo

1
2

com1
com1

com2

com2
3
4
5
6
7
8

z1
h1
g1
a1

r

q

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

b1

j1
n1
p1

com3

com3

c1

l1

m1

f1

com4

com4

z2

k1
d1
e1

PinNo

22
23
24
25
26
27
28
29

com1

h5
g5
a5

RDS

h6
g6
a6

r

com2

j5
n5
p5
b6

j6
n6
p6
b7

com3

l5

m5

f5

c6

l6

m6

f6

c7

com4

k5
d5
e5

ST

k6
d6
e6

q

9
10
11
12
13
14
15
16
17
18
19
20
21

REC

h2
g2
a2

SLEEP

h3
g3
a3

RANDOM

h4
g4
a4

MEMORY

b2

j2
n2
p2
b3

j3
n3
p3
b4

j4
n4
p4
b5

c2

l2

m2

f2

c3

l3

m3

f3

c4

l4

m4

f4

c5

z3

k2
d2
e2

MHz

k3
d3
e3

kHz

k4
d4
e4

z4

Figure 62 LCD SEGMENT

30
31
32
33
34
35
36
37
38
39
40
41
42

h7
g7
a7

TP

h8
g8
a8

EON

com1

j7
n7
p7
b8

j8
n8
p8

PTY

com2

l7

m7

f7

c8

l8

m8

f8
TI

com3

k7
d7
e7

k8
d8
e8

TA

SRS(0)

com4

– 62 –

PARTS GUIDE

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the
following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

XL-3000V

VIDEO CD COMPACT AUDIO SYSTEM

MODEL XL-3000V

XL-3000V Video CD Compact Audio System consisting of XL­3000V (main unit) and CP-XL3000U (speaker system).

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%
carbon-film type.

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

XL-3000V

NO.

PARTS CODE

PRICE
RANK

DESCRIPTION

INTEGRATED CIRCUITS

IC10V RH-IX0041SJZZ J ROM 256×16,IX0041SJ
IC11V VHINJM4565M-1 J AC Buffer Amp.,NJM4565M
IC14V VHIES3883F/-1 J BA Video CD Encoder,ES3883F
IC15V VHIES3880F/-1 J BB Video CD Decoder,ES3880F
IC16V RH-IX0025SJZZ J AW D-RAM 256K×16,IX0025SJ
IC201 VHIKIA4558P-1 J AC Surround Control,KIA4558P
IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

IC401 VHILC75342M-1 J AN Function/Volume Equalizer,
IC601 VHISTK40202-1 J AW Power AMP.,STK40202

IC681,682 VHIKIA7805API J AF Voltage Regulator,KIA7805API
IC701 RH-IX0038SJZZ J

IC801 VHITA2109F/-1 J AL Servo Pre Amp.,TA2109F
IC802 VHITC9462F/-1 J AZ Servo/Signal Control,TC9462F
IC804 VHIMM1469XH-1 J AN Focus/Tracking/Spin/Sled Driver,

IC805 VHITA7291S/-1 J AH CD Lid Motor Driver,TA7291S

LA1832S
LC75342M

System Microcomputer/FL Driver,

IX0038SJ

MM1469XH

TRANSISTORS

Q11V VS2SD1858R2-1 J AC Silicon,NPN,2SD1858 R2
Q12V VS2SC1740SR-1 J AB Silicon,NPN,2SC1740 SR
Q101 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR
Q102 VSKTA1268GR-1 J AC Silicon,PNP,KTA1268 GR
Q103,104 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR
Q201 VS2SK246GR/-1 J AB FET,2SK246 GR
Q203 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q302 VS2SC535-C/-1 J AC Silicon,NPN,2SC535 C
Q306 VS2SC535-C/-1 J AC Silicon,NPN,2SC535 C
Q351 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q601,602 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q603 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR
Q604,605 VS2SD2012Y/-1 J AF Silicon,NPN,2SD2012 Y
Q606 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR

1 Q607 VS2SD2012Y/-1 J AF Silicon,NPN,2SD2012 Y

Q608 VSKRA102M//-1 J AC Digital,PNP,KRA102 M
Q609 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

1 Q610 VS2SD2012Y/-1 J AF Silicon,NPN,2SD2012 Y

Q681 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q683 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q701 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q702,703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q706 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q707,708 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q801 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q802 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q803 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q804 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q805 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q806 VS2SC535-C/-1 J AC Silicon,NPN,2SC535 C
Q807 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR
Q861 VS2SB562-C/-1 J AD Silicon,PNP,2SB562 C
Q901 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q902 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q903 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q904 VSKTC3200GR-1 J AC Silicon,NPN,KTC3200 GR
Q907 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q908 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

DIODES

D201 VHD1N4148//-1 J AA Silicon,1N4148
D301,302 VHD1N4148//-1 J AA Silicon,1N4148
D305,306 VHD1N4148//-1 J AA Silicon,1N4148
D308 VHD1N4148//-1 J AA Silicon,1N4148
D401~403 VHD1N4004//-1 J AB Silicon,1N4004
D411,412 VHD1N4148//-1 J AA Silicon,1N4148
D602~604 VHD1N4148//-1 J AA Silicon,1N4148
D605,606 VHD1N4004//-1 J AB Silicon,1N4004

1 D651~654 VHD1N5402M/-1 J AE Silicon,1N5402M
1 D657~660 VHD1N4004//-1 J AB Silicon,1N4004

D681~686 VHD1N4004//-1 J AB Silicon,1N4004
D688,689 VHD1N4004//-1 J AB Silicon,1N4004
D720~723 VHD1N4148//-1 J AA Silicon,1N4148

NO. PARTS CODE

D801 VHPDB5306X+-1 J AR LED,DB5306X
D802~805 VHD1N4004//-1 J AB Silicon,1N4004
D901,902 VHD1N4004//-1 J AB Silicon,1N4004
ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
ZD601 VHEDZ130BSA-1 J AC Zener,13V,DZ13BSA
ZD602 VHEMTZJ9R1C-1 J AB Zener,9.1V,MTZJ9.1C
ZD683,684 VHEMTZJ160C-1 J AB Zener,16V,MTZJ16C
ZD701 VHEDZ3R3BSB-1 J AB Zener,3.3V,DZ3.3BSB
ZD901 VHEDZ240BSD-1 J AB Zener,24V,DZ24BSD
ZD902 VHEDZ5R6BSB-1 J AC Zener,5.6V,DZ5.6BSB

PRICE

RANK

DESCRIPTION

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter
CF302,303 RFILF0004SJZZ J AG FM RF,10.7 MHz
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0003SJZZ J AF AM IF

TRANSFORMERS

T302 RCILA0007SJZZ J AG AM Tracking
T304 RCILI0005SJZZ J AF FM IF
T306 RCILB0009SJZZ J AG AM Band Coverage
T351 RCILI0004SJZZ J AF AM IF

1 T651 RTRNP0068SJZZ J Power Transformer (Main)
1 T681 RTRNP0061SJZZ J AM Power Transformer (Sub)

COILS

L11V VP-XF100K0000 J AB 10 µH,Choke
L103V,104V VP-XF3R3K0000 J AB 3.3 µH,Choke
L302 RCILR0003SJZZ J AD FM RF
L303 RCILB0010SJZZ J AG FM OSC.
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L353 VP-DH102K0000 J AB 1 mH,Choke
L401 VP-DH2R2K0000 J AB 2.2 µH,Peaking
L402 VP-DHR82K0000 J AE 0.82 µH,Choke
L601,602 RCILZ0024AWZZ J AC 3 µH,Choke
L603 VP-DH100K0000 J AB 10 µH,Choke
L702 VP-DH2R2K0000 J AB 2.2 µH,Peaking
L801 VP-DH100K0000 J AB 10 µH,Choke
L802 VP-XHR82K0000 J AC 0.82 µH
L803 VP-DH100K0000 J AB 10 µH,Choke
L806 VP-DH100K0000 J AB 10 µH,Choke

VARIABLE RESISTOR

VR351 RVR-M0999AFZZ J AB 10 kohm (B),Semi-VR

[FM Mute Level]

VARIABLE CAPACITORS

TC100V RTO-H1004SJZZ J AF Trimmer,10 pF
VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VD302,303 VHCKDV147C/-1 J AH Variable Capacitance,KDV147C

VIBRATORS

X1V RCRSB0002SJZZ J AG Crystal,27 MHz
X351 RCRM-0007SJZZ J AG VCO,456 kHz
X352 RCRSP0006SJZZ J AF Crystal,4.5 MHz
X701 RCRM-0008SJZZ J AG Ceramic,8 MHz
X702 RCRSP0007SJZZ J AE Crystal,32.768 kHz
X801 RCRSP0002SJZZ J AL Crystal,16.93 MHz

CAPACITORS

C101,102 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic
C101V RC-GZV108AF0J J AC 1000 µF,6.3V,Electrolytic
C102V,103V RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C103 RC-EZ0002SJZZ J AD 10 µF,50V,Electrolytic
C104 VCCSCY1HL3R0C J AD 3 pF,50V
C104V RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C105 VCKYPA1HB152K J AA 0.0015 µF,50V
C105V VCKYCY1EF104Z J AA 0.1 µF,25V
C106 RC-EZ0002SJZZ J AD 10 µF,50V,Electrolytic
C106V VCKYCY1CF105Z J 1 µF,16V
C107 RC-EZ0003SJZZ J AD 100 µF,50V,Electrolytic
C108 VCKYPA1HB152K J AA 0.0015 µF,50V
C108V VCKYCY1EF104Z J AA 0.1 µF,25V
C109 VCCSCY1HL3R0C J AD 3 pF,50V
C109V RC-GZA107AF1A J AB 100 µF,10V,Electrolytic

– 1 –

XL-3000V

NO. PARTS CODE

C110 VCKYPA1HB102K J AA 0.001 µF,50V
C110V~112V VCKYCY1EF104Z J AA 0.1 µF,25V
C111,112 RC-EZ0002SJZZ J AD 10 µF,50V,Electrolytic
C113 VCKYPA1HF223Z J AB 0.022 µF,50V
C114 RC-EZ0003SJZZ J AD 100 µF,50V,Electrolytic
C115V RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C116 VCKYPA1HF223Z J AB 0.022 µF,50V
C116V,117V VCKYCY1EF104Z J AA 0.1 µF,25V
C118V RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C119V,120V VCKYCY1EF104Z J AA 0.1 µF,25V
C120 RC-GZA227AF1C J AB 220 µF,16V,Electrolytic
C121V RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C122V VCKYCY1EF104Z J AA 0.1 µF,25V
C124V VCKYCY1EF104Z J AA 0.1 µF,25V
C125,126 RC-GZW228AF1V J AF 2200 µF,35V,Electrolytic
C125V RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C126V,127V VCKYCY1EF104Z J AA 0.1 µF,25V
C129V VCCCCY1HH270J J AA 27 pF (CH),50V
C130V VCKYCY1EF104Z J AA 0.1 µF,25V
C131V VCCCCY1HH102J J AA 0.001 µF (CH),50V
C135V,136V VCKYCY1EF104Z J AA 0.1 µF,25V
C137V~140V RC-GZA106AF1E J AA 10 µF,25V,Electrolytic
C141V~144V VCCCCY1HH330J J AA 33 pF (CH),50V
C147V,148V RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C149V,150V VCKYCY1EF104Z J AA 0.1 µF,25V
C158V RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C159V,160V VCKYCY1EF104Z J AA 0.1 µF,25V
C161V RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C162V VCKYCY1EF104Z J AA 0.1 µF,25V
C164V RC-GZA476AF1A J AB 47 µF,10V,Electrolytic
C165V VCKYCY1EF104Z J AA 0.1 µF,25V
C166V RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C167V,168V VCCCCY1HH220J J AA 22 pF (CH),50V
C169V VCKYCY1EF104Z J AA 0.1 µF,25V
C171V,172V RC-GZA106AF1E J AA 10 µF,25V,Electrolytic
C183V VCCCCY1HH220J J AA 22 pF (CH),50V
C184V VCKYCY1EF104Z J AA 0.1 µF,25V
C201,202 VCKYCY1HB562K J AA 0.0056 µF,50V
C203,204 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C208 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic
C209 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C211,212 VCKYCY1HB332K J AA 0.0033 µF,50V
C213,214 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic
C215 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C216 RC-EZD105AF1H J AB 1 µF,50V,Electrolytic
C301 VCKYPA1HF123Z J AD 0.012 µF,50V
C302 VCKYCY1HB102K J AA 0.001 µF,50V
C303 VCKYCY1HB102K J AA 0.001 µF,50V
C304 VCKYCY1EF103Z J AA 0.01 µF,25V
C305 VCKYCY1HB472K J AA 0.0047 µF,50V
C306 VCCUCY1HJ7R0D J AB 7pF (UJ),50V
C307 VCKYCY1HB472K J AA 0.0047 µF,50V
C308 VCKYCY1EF223Z J AB 0.022 µF,25V
C309 VCKYCY1HB102K J AA 0.001 µF,50V
C310 VCKYCY1EF223Z J AB 0.022 µF,25V
C311 VCCCCY1HH100J J AA 10 pF (CH),50V
C312 VCCSCY1HL330J J AD 33 pF,50V
C313 VCCUCY1HJ6R0D J AB 6 pF (UJ),50V
C314 VCCCCY1HH220J J AA 22 pF (CH),50V
C315 VCKYCY1HB101K J AB 100 pF,50V
C316 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C317 VCKYCY1EF223Z J AB 0.022 µF,25V
C318 VCCSCY1HL5R0C J AD 5 pF,50V
C319 VCCCCY1HH180J J AA 18 pF (CH),50V
C329 VCKYCY1EF223Z J AB 0.022 µF,25V
C330 VCCCPA1HH120J J AA 12 pF (CH),50V
C331 VCKYCY1EF473Z J AB 0.047 µF,25V
C332 VCKYPA1HF223Z J AB 0.022 µF,50V
C334 VCCUPA1HJ270J J AA 27 pF (UJ),50V
C335 VCKYCY1HB561K J AA 560 pF,50V
C337 VCKYPA1HF223Z J AB 0.022 µF,50V
C343 VCCSCY1HL330J J AD 33 pF,50V
C349 VCKYCY1HB102K J AA 0.001 µF,50V
C350,351 VCKYCY1EF223Z J AB 0.022 µF,25V
C352 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C353,354 VCKYCY1EF223Z J AB 0.022 µF,25V
C355 VCCSCY1HL220J J AD 22 pF,50V
C356 VCKYCY1HB102K J AA 0.001 µF,50V
C357 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic
C358 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C360,361 VCKYCY1EF223Z J AB 0.022 µF,25V
C362 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

PRICE

RANK

DESCRIPTION

NO.

C363 VCKYCY1EF223Z J AB 0.022 µF,25V
C364 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C365 VCKYCY1EF223Z J AB 0.022 µF,25V
C366 VCKYCY1HB102K J AA 0.001 µF,50V
C367,368 RC-EZD105AF1H J AB 1 µF,50V,Electrolytic
C369 VCCSCY1HL560J J AD 56 pF,50V
C370 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C371,372 RC-EZD105AF1H J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX183K J AA 0.018 µF,16V
C380 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C381 VCCCCY1HH120J J AA 12 pF (CH),50V
C382 VCCCCY1HH150J J AA 15 pF (CH),50V
C383 VCKYCY1EF223Z J AB 0.022 µF,25V
C384 VCKYCY1HB102K J AA 0.001 µF,50V
C385 VCKYPA1HF103Z J AB 0.01 µF,16V
C386 VCKYPA1HB331K J AA 330 pF,50V
C387 VCKYCY1EF223Z J AB 0.022 µF,25V
C391 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C392 VCKYCY1HB102K J AA 0.001 µF,50V
C393 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C394 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C395 VCKYCY1EF223Z J AB 0.022 µF,25V
C396 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C397 VCKYCY1EF223Z J AB 0.022 µF,25V
C398 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C399 VCKYPA1HF223Z J AB 0.022 µF,50V
C401~404 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C407,408 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C411 VCKYPA1HB331K J AA 330 pF,50V
C412 VCKYPA1HB331K J AA 330 pF,50V
C413 VCKYPA1HB472K J AB 0.0047 µF,50V
C414 VCKYPA1HB221K J AA 220 pF,50V
C415,416 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C417,418 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic
C419,420 VCKYCY1HB272K J AA 0.0027 µF,50V
C421~424 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar
C425,426 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C429 RC-GZA336AF1C J AB 33 µF,16V,Electrolytic
C430 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic
C431~433 VCKYCY1HB221K J AA 220 pF,50V
C601 VCKYCY1EF473Z J AB 0.047 µF,25V
C602 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C603 RC-GZA336AF1C J AB 33 µF,16V,Electrolytic
C613~616 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film
C620 RC-GZV477AF1E J AC 470 µF,25V,Electrolytic
C621 RC-GZA107AF1E J AB 100 µF,25V,Electrolytic
C622 VCKYPA1HF223Z J AB 0.022 µF,50V
C624 VCKYPA1HF223Z J AB 0.022 µF,50V
C625 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C626 RC-GZA107AF1E J AB 100 µF,25V,Electrolytic
C627 VCKYPA1HF223Z J AB 0.022 µF,50V
C628 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C629 RC-GZA475AF1E J AB 4.7 µF,25V,Electrolytic
C630 RC-GZW478AF1E J AG 4700 µF,25V,Electrolytic
C639,640 VCKYPA1HB472K J AB 0.0047 µF,50V

1 C651 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film
1 C654 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film
1 C657~660 VCFYFA1HA104J J AC 0.1 µF,50V,Thin Film

C665 VCFYFA1HA473J J AB 0.047 µF,50V,Thin Film
C683 RC-GZW228AF1V J AF 2200 µF,35V,Electrolytic
C688 VCFYFA1HA473J J AB 0.047 µF,50V,Thin Film
C689 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic
C701,702 VCCCCY1HH220J J AA 22 pF (CH),50V
C703 VCKYCY1EF104Z J AA 0.1 µF,25V
C704 VCKYCY1EF223Z J AB 0.022 µF,25V
C705 VCKYPA1HF103Z J AB 0.01 µF,50V
C710 VCKYCY1EB103K J AA 0.01 µF,25V
C711 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic
C712 VCKYCY1EB103K J AA 0.01 µF,25V
C713 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C714 VCKYCY1HB561K J AA 560 pF,50V
C715 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C801 VCCSCY1HL101J J AA 100 pF,50V
C802 VCKYCY1EB153K J AA 0.015 µF,25V
C803 RC-EZD476AF1A J AC 47 µF,10V,Electrolytic
C804 VCKYCY1EB103K J AA 0.01 µF,25V
C805 VCKYCY1HB272K J AA 0.0027 µF,50V

C806 VCKYCY1HB472K J AA 0.0047 µF,50V
C807 VCKYCY1EB333K J AC 0.033 µF,25V
C809 VCKYCY1HB472K J AA 0.0047 µF,50V
C810 VCKYCY1HB102K J AA 0.001 µF,50V
C811 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic

PRICE

RANK

DESCRIPTIONPARTS CODE

– 2 –

XL-3000V

NO.

C812 VCKYCY1EF103Z J AA 0.01 µF,25V
C813 RC-EZD107AF1A J AB 100 µF,10V,Electrolytic
C817~819 VCKYCY1EB104K J AD 0.1 µF,25V
C820 VCKYCY1EF103Z J AA 0.01 µF,25V
C821 VCKYCY1EB104K J AD 0.1 µF,25V
C822 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic
C823 VCKYCY1EF103Z J AA 0.01 µF,25V
C824,825 VCKYCY1EB563K J AD 0.056 µF,25V
C826,827 VCCCCY1HH150J J AA 15 pF (CH),50V
C828 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C829 RC-EZD107AF1A J AB 100 µF,10V,Electrolytic
C830 VCKYCY1EB563K J AD 0.056 µF,25V
C835 VCKYCY1EB563K J AD 0.056 µF,25V
C836 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C837 VCKYCY1HB471K J AA 470 pF,50V
C838 RC-EZD476AF1A J AC 47 µF,10V,Electrolytic
C839 VCCSCY1HL2R0C J AD 2 pF,50V
C840,841 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C842 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic
C843 VCKYCY1EF104Z J AA 0.1 µF,25V
C844 VCKYCY1HB682K J AA 0.0068 µF,50V
C845 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C846,847 VCKYCY1EF104Z J AA 0.1 µF,25V
C848 VCCSCY1HL390J J AD 39 pF,50V
C849 VCKYCY1EB563K J AD 0.056 µF,25V
C850 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic
C851 RC-EZD107AF1A J AB 100 µF,10V,Electrolytic
C852 VCQYKA1HM222J J AB 0.0022 µF,50V,Mylar
C853 VCKYPA1HB472K J AB 0.0047 µF,50V
C855 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C857 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C858 VCKYCY1EF103Z J AA 0.01 µF,25V
C859 RC-GZA477AF1A J AC 470 µF,10V,Electrolytic
C860 VCKYCY1EF104Z J AA 0.1 µF,25V
C862 VCKYPA1HB102K J AA 0.001 µF,50V
C863 VCKYCY1HB471K J AA 470 pF,50V
C864~869 VCKYCY1HB221K J AA 220 pF,50V
C870 VCKYPA1HB102K J AA 0.001 µF,50V
C871 RC-EZD476AF1C J AC 47 µF,16V,Electrolytic
C872 VCKYCY1EB104K J AD 0.1 µF,25V
C887 VCKYCY1HB272K J AA 0.0027 µF,50V
C892,893 RC-EZD476AF1C J AC 47 µF,16V,Electrolytic
C901,902 RC-GZV227AF1H J AC 220 µF,50V,Electrolytic
C903,904 RC-EZ0002SJZZ J AD 10 µF,50V,Electrolytic
C905,906 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic

PARTS CODE

PRICE
RANK

DESCRIPTION

RESISTORS

R01AV~03AV VRS-CY1JB472J J AA 4.7 kohms,1/16W

VRS-CY1JB000J J AA

R06AV~12AV VRS-CY1JB472J J AA 4.7 kohms,1/16W
R5V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R7A0 VRS-CY1JB102J J AA 1 kohm,1/16W
R7A1 VRS-CY1JB102J J AA 1 kohm,1/16W
R7A2 VRS-CY1JB104J J AA 100 kohm,1/16W
R7A3 VRD-ST2EE101J J AA 100 ohm,1/4W
R7A4 VRS-CY1JB121J J AA 120 ohms,1/16W
R7A5 VRS-CY1JB103J J AA 10 kohm,1/16W
R7A6 VRS-CY1JB102J J AA 1 kohm,1/16W
R7A7 VRS-CY1JB102J J AA 1 kohm,1/16W
R7A8 VRS-CY1JB820J J AA 82 ohms,1/16W
R7A9 VRD-ST2CD332J J A A 3.3 kohms,1/6W
R7B0 VRS-CY1JB103J J AA 10 kohm,1/16W
R80A VRS-CY1JB823J J AA 82 kohms,1/16W
R80B VRS-CY1JB683J J AA 68 kohms,1/16W
R80C VRS-CY1JB823J J AA 82 kohms,1/16W
R80E VRS-CY1JB823J J AA 82 kohms,1/16W
R80F VRS-CY1JB823J J AA 82 kohms,1/16W
R80G VRD-ST2CD683J J AA 68 kohms,1/6W
R91V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R93V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R94AV VRS-CY1JB472J J AA 4.7 kohms,1/16W
R94BV VRS-CY1JB000J J AA
R97V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R98V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R100V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R101,102 VRS-CY1JB393J J AA 39 kohms,1/16W
R101V,102V VRS-CY1JB104J J AA 100 kohm,1/16W
R103 VRS-CY1JB102J J AA 1 kohm,1/16W
R103V VRS-CY1JB682J J AA 6.8 kohms,1/16W
R104 VRD-ST2CD563J J AA 56 kohms,1/6W
R104V VRS-CY1JB103J J AA 10 kohm,1/16W

0 ohm,Jumper,0.8×1.55mm,Green

0 ohm,Jumper,0.8×1.55mm,Green

NO. PARTS CODE

R105,106 VRD-ST2EE471J J AA 470 ohms,1/4W
R105V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R107V,108V VRS-CY1JB103J J AA 10 kohm,1/16W
R108 VRD-ST2CD102J J AA 1 kohm,1/6W
R109 VRD-ST2CD223J J AA 22 kohms,1/6W
R110 VRS-CY1JB102J J AA 1 kohm,1/16W
R111 VRD-ST2CD102J J AA 1 kohm,1/6W
R111V VRS-CY1JB222J J AA 2.2 kohms,1/16W
R112V VRS-CY1JB560J J AA 56 ohms,1/16W

1 R113,114 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R113V VRS-CY1JB101J J AA 100 ohm,1/16W
R114V VRS-CY1JB682J J AA 6.8 kohms,1/16W
R115 VRD-ST2CD563J J AA 56 kohms,1/6W
R115V,116V VRS-CY1JB153J J AA 15 kohms,1/16W
R118 VRD-ST2EE473J J AA 47 kohms,1/4W
R119 VRS-CY1JB333J J AA 33 kohms,1/16W
R120 VRS-CY1JB102J J AA 1 kohm,1/16W
R121 VRS-CY1JB103J J AA 10 kohm,1/16W
R121V VRS-CY1JB332J J AA 3.3 kohms,1/16W
R122 VRS-CY1JB102J J AA 1 kohm,1/16W
R123 VRD-ST2EE103J J AA 10 kohm,1/4W
R123V VRS-CY1JB750J J AA 75 ohms,1/16W
R124 VRS-CY1JB473J J AA 47 kohms,1/16W
R124V VRS-CY1JB221J J AA 220 ohms,1/16W
R125,126 VRS-VV3LA681J J AC 680 ohms,3W,Metal Oxide Film
R137V VRS-CY1JB102J J AA 1 kohm,1/16W
R138V VRS-CY1JB330J J AA 33 ohms,1/16W
R139V~141V VRS-CY1JB102J J AA 1 kohm,1/16W
R142V VRS-CY1JB330J J AA 33 ohms,1/16W
R143V VRS-CY1JB221J J AA 220 ohms,1/16W
R156V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R157V~159V VRS-CY1JB821J J AA 820 ohms,1/16W
R160V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R161V VRS-CY1JB330J J AA 33 ohms,1/16W
R162V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R163V VRS-CY1JB330J J AA 33 ohms,1/16W
R164V,165V VRS-CY1JB100J J AA 10 ohm,1/16W
R166V~169V VRS-CY1JB330J J AA 33 ohms,1/16W
R170V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R171V VRS-CY1JB104J J AA 100 kohm,1/16W
R178V VRS-CY1JB820J J AA 82 ohms,1/16W
R181V~184V VRS-CY1JB104J J AA 100 kohm,1/16W
R185V~190V VRS-CY1JB103J J AA 10 kohm,1/16W
R193V VRS-CY1JB472J J AA 4.7 kohms,1/16W
R194V VRS-CY1JB271J J AA 270 ohms,1/16W
R195V VRS-CY1JB101J J AA 100 ohm,1/16W
R201 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R202 VRS-CY1JB822J J AA 8.2 kohms,1/16W
R203,204 VRS-CY1JB104J J AA 100 kohm,1/16W
R205,206 VRS-CY1JB103J J AA 10 kohm,1/16W
R207 VRD-ST2CD473J J AA 47 kohms,1/6W
R208 VRD-ST2EE331J J AA 330 ohms,1/4W
R209 VRS-CY1JB103J J AA 10 kohm,1/16W
R210 VRD-ST2CD103J J AA 10 kohm,1/6W
R211 VRS-CY1JB272J J AA 2.7 kohms,1/16W
R212 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R213~216 VRS-CY1JB123J J AA 12 kohms,1/16W
R217 VRD-ST2CD123J J AA 12 kohms,1/6W
R218 VRS-CY1JB123J J AA 12 kohms,1/16W
R301 VRD-ST2EE220J J AA 22 ohms,1/4W
R302 VRS-CY1JB104J J AA 100 kohm,1/16W
R303 VRD-ST2CD333J J AA 33 kohms,1/6W
R304 VRS-CY1JB473J J AA 47 kohms,1/16W
R305 VRS-CY1JB681J J AA 680 ohms,1/16W
R306 VRS-CY1JB100J J AA 10 ohm,1/16W
R307 VRD-ST2EE470J J AA 47 ohms,1/4W
R308 VRS-CY1JB103J J AA 10 kohm,1/16W
R309 VRD-ST2EE471J J AA 470 ohms,1/4W
R310 VRS-CY1JB472J J AA 4.7 kohms,1/16W
R312 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R313 VRS-CY1JB681J J AA 680 ohms,1/16W
R314,315 VRS-CY1JB330J J AA 33 ohms,1/16W
R316 VRS-CY1JB331J J AA 330 ohms,1/16W
R323 VRS-CY1JB683J J AA 68 kohms,1/16W
R336 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R350 VRS-CY1JB272J J AA 2.7 kohms,1/16W
R351 VRS-CY1JB562J J AA 5.6 kohms,1/16W
R352 VRS-CY1JB102J J AA 1 kohm,1/16W
R353 VRS-CY1JB271J J AA 270 ohms,1/16W
R355 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R356 VRS-CY1JB102J J AA 1 kohm,1/16W
R357 VRS-CY1JB474J J AA 470 kohms,1/16W

PRICE

RANK

DESCRIPTION

– 3 –

XL-3000V

NO. PARTS CODE

R358 VRS-CY1JB822J J AA 8.2 kohms,1/16W
R359 VRS-CY1JB182J J AA 1.8 kohms,1/16W
R360 VRS-CY1JB472J J AA 4.7 kohms,1/16W
R361,362 VRS-CY1JB562J J AA 5.6 kohms,1/16W
R363 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R364 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R365 VRS-CY1JB103J J AA 10 kohm,1/16W
R366 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R371~374 VRS-CY1JB102J J AA 1 kohm,1/16W
R376 VRD-ST2CD103J J AA 10 kohm,1/6W
R377 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R379 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R380 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R381 VRS-CY1JB103J J AA 10 kohm,1/16W
R382 VRD-ST2EE331J J AA 330 ohms,1/4W
R383 VRS-CY1JB562J J AA 5.6 kohms,1/16W
R384 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R385 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R386 VRD-ST2EE331J J AA 330 ohms,1/4W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R391,392 VRD-ST2EE391J J AA 390 ohms,1/4W
R393 VRS-CY1JB102J J AA 1 kohm,1/16W
R395 VRD-ST2CD473J J AA 47 kohms,1/6W
R401,402 VRS-CY1JB102J J AA 1 kohm,1/16W
R403,404 VRS-CY1JB182J J AA 1.8 kohms,1/16W
R405,406 VRD-ST2CD273J J AA 27 kohms,1/6W
R407,408 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R415~418 VRS-CY1JB102J J AA 1 kohm,1/16W
R421,422 VRS-CY1JB102J J AA 1 kohm,1/16W
R423~425 VRD-ST2CD102J J AA 1 kohm,1/6W
R437,438 VRS-CY1JB682J J AA 6.8 kohms,1/16W
R439,440 VRS-CY1JB392J J AA 3.9 kohms,1/16W
R603,604 VRS-CY1JB103J J AA 10 kohm,1/16W
R607 VRS-CY1JB682J J AA 6.8 kohms,1/16W
R608,609 VRS-CY1JB102J J AA 1 kohm,1/16W
R610 VRD-ST2EE470J J AA 47 ohms,1/4W
R611 VRD-ST2EE101J J AA 100 ohm,1/4W
R612 VRD-ST2EE821J J AA 820 ohms,1/4W
R613 VRS-CY1JB472J J AA 4.7 kohms,1/16W
R614 VRD-ST2EE470J J AA 47 ohms,1/4W
R617 VRD-ST2CD333J J AA 33 kohms,1/6W
R619,620 VRD-ST2EE470J J AA 47 ohms,1/4W
R621 VRS-CY1JB223J J AA 22 kohms,1/16W
R623,624 VRS-CY1JB223J J AA 22 kohms,1/16W
R628 VRD-ST2EE101J J AA 100 ohm,1/4W
R629 VRD-ST2EE821J J AA 820 ohms,1/4W
R634 VRD-ST2EE332J J AA 3.3 kohms,1/4W
R637,638 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
R661,662 VRD-ST2EE331J J AA 330 ohms,1/4W
R685 VRD-ST2CD103J J AA 10 kohm,1/6W
R686 VRD-ST2CD473J J AA 47 kohms,1/6W
R687 VRD-RT2HD272J J AA 2.7 kohms,1/2W
R688 VRD-ST2CD102J J AA 1 kohm,1/6W
R689 VRD-ST2EE102J J AA 1 kohm,1/4W
R702 VRS-CY1JB103J J AA 10 kohm,1/16W
R706 VRS-CY1JB392J J AA 3.9 kohms,1/16W
R707 VRS-CY1JB272J J AA 2.7 kohms,1/16W
R708 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R710 VRS-CY1JB272J J AA 2.7 kohms,1/16W
R711 VRS-CY1JB122J J AA 1.2 kohms,1/16W
R718 VRS-CY1JB152J J AA 1.5 kohms,1/16W
R719 VRS-CY1JB122J J AA 1.2 kohms,1/16W
R720A,B VRS-CY1JB122J J AA 1.2 kohms,1/16W
R721,722 VRS-CY1JB103J J AA 10 kohm,1/16W
R723 VRS-CY1JB473J J AA 47 kohms,1/16W
R725 VRS-CY1JB103J J AA 10 kohm,1/16W
R727 VRS-CY1JB473J J AA 47 kohms,1/16W
R728 VRS-CY1JB102J J AA 1 kohm,1/16W
R729 VRS-CY1JB473J J AA 47 kohms,1/16W
R731~735 VRS-CY1JB102J J AA 1 kohm,1/16W
R738~742 VRS-CY1JB102J J AA 1 kohm,1/16W
R744 VRD-ST2CD102J J AA 1 kohm,1/6W
R749,750 VRS-CY1JB102J J AA 1 kohm,1/16W
R751 VRD-ST2CD102J J AA 1 kohm,1/6W
R755 VRS-CY1JB102J J AA 1 kohm,1/16W
R757,758 VRS-CY1JB102J J AA 1 kohm,1/16W
R759 VRD-ST2CD102J J AA 1 kohm,1/6W
R760~766 VRS-CY1JB102J J AA 1 kohm,1/16W
R768 VRS-CY1JB102J J AA 1 kohm,1/16W
R769~771 VRD-ST2CD102J J AA 1 kohm,1/6W
R772,773 VRS-CY1JB102J J AA 1 kohm,1/16W
R776,777 VRS-CY1JB102J J AA 1 kohm,1/16W

PRICE

RANK

DESCRIPTION

NO.

R778~781 VRS-CY1JB473J J AA 47 kohms,1/16W
R782 VRS-CY1JB102J J AA 1 kohm,1/16W
R783 VRS-CY1JB333J J AA 33 kohms,1/16W
R785 VRS-CY1JB102J J AA 1 kohm,1/16W
R792 VRS-CY1JB473J J AA 47 kohms,1/16W
R793 VRS-CY1JB103J J AA 10 kohm,1/16W
R795 VRD-ST2CD473J J AA 47 kohms,1/6W
R796 VRD-ST2EE102J J AA 1 kohm,1/4W
R797 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R798 VRS-CY1JB472J J AA 4.7 kohms,1/16W
R799 VRD-ST2EE102J J AA 1 kohm,1/4W
R801 VRD-ST2CD103J J AA 10 kohm,1/6W
R802 VRS-CY1JB473J J AA 47 kohms,1/16W
R804 VRS-CY1JB104J J AA 100 kohm,1/16W
R806 VRS-CY1JB153J J AA 15 kohms,1/16W
R807 VRS-CY1JB103J J AA 10 kohm,1/16W
R808 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R809 VRS-CY1JB103J J AA 10 kohm,1/16W
R810 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R811 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R812 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R813 VRD-ST2EE100J J AA 10 ohm,1/4W
R814 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R819 VRD-ST2CD221J J AA 220 ohms,1/6W
R820 VRS-CY1JB102J J AA 1 kohm,1/16W
R821 VRD-ST2CD151J J AA 150 ohms,1/6W
R822 VRD-ST2EE330J J AA 33 ohms,1/4W
R823 VRD-ST2CD102J J AA 1 kohm,1/6W
R824 VRS-CY1JB473J J AA 47 kohms,1/16W
R825 VRS-CY1JB823J J AA 82 kohms,1/16W
R826 VRS-CY1JB272J J AA 2.7 kohms,1/16W
R827 VRS-CY1JB393J J AA 39 kohms,1/16W
R828 VRS-CY1JB122J J AA 1.2 kohms,1/16W
R829 VRD-ST2CD683J J AA 68 kohms,1/6W
R830 VRD-ST2CD102J J AA 1 kohm,1/6W
R831~837 VRS-CY1JB102J J AA 1 kohm,1/16W
R843 VRD-ST2CD102J J AA 1 kohm,1/6W
R851 VRS-CY1JB331J J AA 330 ohms,1/16W
R852~855 VRS-CY1JB104J J AA 100 kohm,1/16W
R861~863 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R864,865 VRD-ST2CD273J J AA 27 kohms,1/6W
R866 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R867 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R868 VRS-CY1JB273J J AA 27 kohms,1/16W
R870 VRS-CY1JB333J J AA 33 kohms,1/16W
R873 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R874 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R876 VRS-CY1JB154J J AA 150 kohms,1/16W
R877 VRS-CY1JB683J J AA 68 kohms,1/16W
R879 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R880 VRS-CY1JB332J J AA 3.3 kohms,1/16W
R881 VRS-CY1JB474J J AA 470 kohms,1/16W
R882 VRS-CY1JB682J J AA 6.8 kohms,1/16W
R883,884 VRD-ST2EE8R2J J AA 8.2 ohms,1/4W
R885 VRS-CY1JB223J J AA 22 kohms,1/16W
R887 VRS-CY1JB223J J AA 22 kohms,1/16W
R888 VRD-ST2CD103J J AA 10 kohm,1/6W
R901 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R902 VRS-CY1JB473J J AA 47 kohms,1/16W
R904 VRS-CY1JB222J J AA 2.2 kohms,1/16W
R905 VRS-CY1JB473J J AA 47 kohms,1/16W
R910 VRD-ST2EE272J J AA 2.7 kohms,1/4W
R911 VRD-ST2EE101J J AA 100 ohm,1/4W
R912 VRD-ST2EE471J J AA 470 ohms,1/4W

1 R913 VRG-ST2EM100J J 10 ohm,1/4W,Fusible

R914 VRD-ST2CD471J J AA 470 ohms,1/6W

PRICE

RANK

DESCRIPTIONPARTS CODE

OTHER CIRCUITRY PARTS

CFW451,452 QCNWN0308SJZZ J AB Lead Wire
CFW701A,B QCNWN0292SJZZ J AD Flat Wire,3Pin
CFW852 QCNWN0303SJZZ J AB Lead Wire
CNP307 QCNCM010LAWZZ J AC Plug,11Pin
CNP601,602 QCNCM999CAFZZ J AG Plug,3Pin
CNP607 QCNCM999CAFZZ J AG Plug,3Pin
CNP608 QCNCM004BAFZZ J AB Plug,2Pin

1 CNP651 QCNCM041ESJZZ J AE Plug,5Pin

CNP652 QCNCM998BAFZZ J AC Plug,2Pin
CNP653 QCNCM998BAFZZ J AC Plug,2Pin
CNP701 QCNCM999BAFZZ J AD Plug,2Pin
CNP702 QCNCM999KAFZZ J Plug,10Pin
CNP703 QCNCM999NAFZZ J AC Plug,13Pin

– 4 –

XL-3000V

NO.

CNP707 QCNCM998DAFZZ J AB Plug,4Pin
CNP801 QCNCM037ESJZZ J AD Plug,5Pin
CNP801V QCNCW010MSJZZ J Plug,12Pin
CNP802 QCNCW007RSJZZ J AF Socket,16Pin
CNP802A QCNCM999HAFZZ J AD Plug,8Pin
CNP803 QCNCM035FSJZZ J AD Plug,6Pin
CNP804 QCNCM038BSJZZ J AB Plug,2Pin
CNP804V QCNCM015GSJZZ J AB Plug,7Pin
CNP805 QCNCM004CAFZZ J AB Plug,3Pin
CNP806 QCNCM999CAFZZ J AG Plug,3Pin
CNP807 QCNCM999BAFZZ J AD Plug,2Pin
CNP810 QCNCM999BAFZZ J AD Plug,2Pin
CNS307 QCNCW010LAWZZ J AD Socket,11Pin
CNS801 QCNCW010MSJZZ J Socket,12Pin
CNW3 QCNWN0288SJZZ J AE Flat Cable,16Pin
CNW601,602 QCNWN0326SJZZ J Connector Ass’y,3Pin
CNW607/CNS607
CNW608/CNS608
CNW653 QCNWN0331SJZZ J Connector Ass’y,2Pin
CNW701/CNS701
CNW702/CNS702
CNW703A/CNS703
CNW704/CNS704
CNW707/CNS707/CNS652
CNW801 QCNWN0312SJZZ J Flat Cable,12Pin
CNW802V/CNS802
CNW803/CNS803
CNW804/CNS804
CNW805/CNS805
CNW806/CNS806
CNW807/CNS807

1 F651,652 QFS-D322ABGNI J AE Fuse,T3.15A L 250V
1 F653 QFS-D162ABGNI J Fuse,T1.6A L 250V
1 F654 QFS-T202BSJNO J Temperature Fuse,2A,250V

J601 QJAKM0001SJZZ J AG Jack,Headphones
J801 VHPPLT130T2-1 J AM Jack,CD Degital Output
LCD701 RV-LX0012SJZZ J AR LCD Display
LMP701 RLMPP0001SJZZ J AT Lamp
M801 RMOTV0004SJM1 J AM Motor with Gear [CD Lid]
M802 RMOTV0006SJZZ J AP Fan Motor
NM801 RMOTV0409AFM1 J AN Motor with Gear [Sled]
NM802 RMOTV0408SJM1 J AR Motor with Chassis [Spindle]
NSW801 QSW-F9001AWZZ J AE Switch,Push Type [Pickup In]

1 RLY601 RRLYD0004SJZZ J AG Relay

RX701 VHLN64H380A-1 J AK Remote Sensor
SO301 QTANC9003SJZZ J AF Terminal,Antenna
SO401 QSOCJ0302SJZZ J AE
SO601 QTANA0007SJZZ J AF Terminal,Speaker

1 SO655 QSOCA0212AWZZ J AD Socket AC Input
1 SW651 QSOCE0008AWZZ J AH Switch,Rotary Type

SW709 QSW-K0004SJZZ J AD Switch,Key Type [On/Stand-by]
SW710 QSW-K0004SJZZ J AD Switch,Key Type

SW711 QSW-K0004SJZZ J AD Switch,Key Type [FF/Preset Up]
SW712 QSW-K0004SJZZ J AD Switch,Key Type

SW713 QSW-K0004SJZZ J AD Switch,Key Type [Volume Up]
SW718 QSW-K0004SJZZ J AD Switch,Key Type [Volume Down]
SW721 QSW-K0004SJZZ J AD Switch,Key Type [Memory/Set]
SW722 QSW-K0004SJZZ J AD Switch,Key Type [Bass/Treble]
SW725 QSW-K0004SJZZ J AD Switch,Key Type

SW726 QSW-K0004SJZZ J AD Switch,Key Type
SW727 QSW-K0004SJZZ J AD Switch,Key Type [Function]

SW802 QSW-B0001SJZZ J AG Switch,Lever Type [CD Lid]

PARTS CODE

QCNWN0291SJZZ J AE Connector Ass’y,3/3Pin
QCNWN0314SJZZ J Connector Ass’y,2/2Pin

QCNWN0271SJZZ J AD Connector Ass’y,2/2Pin
QCNWN0311SJZZ J Connector Ass’y,10/10Pin
QCNWN0332SJZZ J Connector Ass’y,13/13Pin
QCNWN0324SJZZ J Connector Ass’y,7/7Pin
QCNWN0301SJZZ J AD Connector Ass’y,3/4/2Pin

QCNWN0313SJZZ J Connector Ass’y,9/8Pin
QCNWN0276SJZZ J AE Connector Ass’y,6/6Pin
QCNWN0290SJZZ J AD Connector Ass’y,2Pin
QCNWN0296SJZZ J AE Connector Ass’y,3/3Pin
QCNWN0270SJZZ J AE Connector Ass’y,3/3Pin
QCNWN0271SJZZ J AD Connector Ass’y,2/2Pin

PRICE
RANK

DESCRIPTION

Socket,Video/AUX Input/Video Out

[Voltage Selector]

[CD Lid Open/Close]

[CD Play/Pause/Tuning Up]

[CD Stop/Tuning Down]
[REW/Preset Down]

CD MECHANISM PARTS

301 NGERH0586AFZZ J AC Gear,Middle
302 NGERH0587AFZZ J AC Gear,Drive
303 MLEVP0010AWZZ J AC Rail,Guide
304 NSFTM0291AFFW J AD Shaft,Guide
305 PCOVP1333AFSA J AF Cover,Mechanism
306 PCUSG0001AWSA J AD Cushion (Green)
307 PCUSG0004AWSA J AD Cushion (Red-Brown)

1 308 DCTRH8005SJ01 J BA Pickup Unit Ass’y

308- 1 ———— — Pickup Unit
308- 2 NGERR0043AFZZ J AC Gear,Rack

308- 3 MSPRC0961AFZZ J AA Spring,Rack

(Not Replacement Item)

NO. PARTS CODE

701 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
702 XBBSD20P03000 J AA Screw,ø2×3mm
703 XBSSD26P06000 J AA Screw,ø2.6×6mm
704 XHBSD20P05000 J AA Screw,ø2×5mm
NM801 RMOTV0409AFM1 J AN Motor with Gear [Sled]
NM802 RMOTV0408SJM1 J AR Motor with Chassis [Spindle]
NSW801 QSW-F9001AWZZ J AE Switch,Push Type [Pickup In]

PRICE

RANK

DESCRIPTION

CABINET PARTS

200 GCABA1073SJSA J Front Cabinet
201 GCABB1066SJSA J AL Bottom Cabinet
202 GCOVA1013SJSA J Rear Panel
203 GCOVA1005SJSA J AE Cover,Remote Sensor
204 GFTAT1008SJSA J AN CD Lid
205 LANGQ0002SJFW J AB Lug
206 HDECQ0060SJSA J Clear Panel,CD Lid
207 HDECQ0051SJSA J AE Clear Panel,Display
208 JKNBZ0053SJSA J AF Knob,Operation A
209 JKNBZ0054SJSA J AF Knob,Operation B
210 LANGF0033SJFW J AB Bracket,Main PWB
211 LANGF0034SJFW J AB Bracket,Tuner PWB
212 LANGF0035SJFW J AC Bracket,Gear Box
213 LANGK0025SJFW J AE Bracket,Tuner PWB
214 LANGK0026SJFW J AB Cover,Lamp
215 LCHSM0014SJFW J AH Chassis
216 LHLDW1001SJZZ J AD Nylon Band
217 LHLDZ1033SJSA J AD LCD Holder,A
218 LHLDZ1034SJSA J AD LED Holder,A
219 LHLDZ1035SJSA J AE Gear Box
220 LHLDZ1036SJSA J AE Lid,Gear Box
221 LPLTP0001SJSA J AE Cam Plate
222 MLEVP0006SJSA J AE Rotate Lever,CD Lid,Left
223 MLEVP0007SJSA J AE Rotate Lever,CD Lid,Right
224 NGERW0004SJSA J AE Drive Gear,A
225 NGERW0005SJSA J AE Drive Gear,B
226 NGERW0006SJSA J AG Drive Gear,C
228 PCOVU9002SJZZ J AB Felt,CD Lid Cover
229 PCOVZ1005SJSA J AE Indicator Panel
230 PCUSG0003SJZZ J AC Cushion,Leg
231 PGUMS0002SJZZ J AA Cushion,CD Lid
232 PRDAR0051SJFW J Radiator,Main
233 PRDAR0038SJFW J AE Radiator,Transistor
234 PREFL0001SJSA J AD LCD Diffusion Plate
235 PSHEP0003SJZZ J AE Sheet,LCD
236 PSHEP0004SJZZ J AD LCD Reflect Paper
237 QFSHD0001AWZZ J AB Holder,Fuse
238 TLABS0004SJZZ J AC Label,Laser
239 TLABS0036SJZZ J AB Label,Class 3A
240 TSPC-0254SJZZ J Label,Specification

240 TSPC-0271SJZZ J Label,Specification
240 TSPC-0282SJZZ J Label,Specification
241 PCOVS3005SJFW J AE Plate,Shield

242 PRDAR0048SJFW J Radiator,Sub
243 LANGF0037SJFW J AC Bracket,Fan Motor
244 LANGK0029SJFW J AB Bracket,Decode PWB
245 LANGK0028SJFW J Bracket,Decode PWB
246 PCOVP1003SJZZ J Shield Cover,Power PWB (A)
247 PCOVP1004SJZZ J Shield Cover,Power PWB (B)
248 PSPAH0001SJZZ J AC Felt
249 PCOVM3001SJFW J Shield Cover
250 PCOVU9001SJZZ J AC Cover,Lamp
251 PCOVU9001SJZZ J AC Felt
252 LX-WZ9005SJZZ J Thermo Shield Cover
601 LX-EZ0001SJFN J AB Screw,ø2.5×10mm
602 LX-WZ7094AFZZ J A A Washer,Special Type
603 XEBSD25P08000 J AA Screw,ø2.5×8mm
604 XEBSD25P10000 J AA Screw,ø2.5×10mm
605 XEBSD25P12000 J AA Screw,ø2.5×12mm
606 XEBSF25P08000 J AA Screw,ø2.5×8mm
607 XHBSD20P05000 J AA Screw,ø2×5mm
608 XHBSD30P06000 J AA Screw,ø3×6mm
609 XHBSD40P08000 J AA Screw,ø4×8mm
610 XJBSD30P06000 J AA Screw,ø3×6mm
611 XJBSD30P08000 J AA Screw,ø3×8mm
612 XJBSD30P10000 J AA Screw,ø3×10mm
613 XJBSD30P14000 J AA Screw,ø3×14mm
615 XJBSF30P10000 J AA Screw,ø3×10mm

[Except for Thailand/Philip­pines]

[For Thailand]
[For Philippines]

– 5 –

XL-3000V

NO. PARTS CODE

616 XJBSF30P12000 J AA Screw,ø3×12mm
617 XJPSF30P11000 J AA Screw,ø3×11mm
618 XEBSD25P14000 J AA Screw,ø2.5×14mm
619 XHBSD25P08000 J AA Screw,ø2.5×8mm
620 XESSD25P12000 J AA Screw,ø2.5×12mm
621 XWSSE03-01050 J AA Washer,ø3×5mm×0.1mm
622 LX-JZ0001SJFD J AA Screw,ø3×10mm
623 LX-WZ9006SJZZ J

PRICE

RANK

DESCRIPTION

Thermo Shield Washer,Special Type

SPEAKER BOX PARTS

901 CPNLS1006SJ01 J AS Front Panel Ass’y
902 GBOXS0009SJSA J AZ Box Ass’y
903 GWAKP1016SJ01 J AM Net Flame Ass’y
904 PDUC-0001SJZZ J AE Duct Pipe
905 PGUMM0003SJSA J AD Net Catcher
906 PSPAG0002SJZZ J AD Gasket
907 QTANA9011SJZZ J AE Terminal
908 TSPC-0221SJZZ J AD Specification Label
909 HSY042SPK07 J AE Capacitor,3.3 µF,50V (N.P.)
910 XTBSF40P12000 J AA Screw,ø4×12mm
SP1,2 RSPA00005SJ6W J AQ Woofer
SP3,4 RSPA00004SJ6T J AK Tweeter

ACCESSORIES/PACKING PARTS

1 QACCA0001SJ00 J AS AC Power Supply Cord
1 QACCB0001SJ00 J AW AC Power Supply Cord
1 QACCE0001SJZZ J AH AC Power Supply Cord

1 QPLGA0250AFZZ J AF AC Plug Adapter [For Malaysia/
1 QPLGA0253AFZZ J AE AC Plug Adapter

———— — Battery (Not Replacement Item)

[For Saudi Arabia]
[For Hong Kong]
[Except for Saudi Arabia/Hong

QANTL0001SJZZ J AK AM Loop Antenna
QANTW0002SJZZ J AH FM Antenna
QCNWH0005SJ01 J Speaker Cord

SPAKA0058SJZZ J AE Packing Add.,Left
SPAKA0059SJZZ J AE Packing Add.,Right
SPAKA0068SJZZ J Packing Add.,Speaker

SPAKC0178SJZZ J Packing Case
SPAKS0003SJZZ J Sleeve Carton,Speaker
SPAKZ0008SJZZ J Polyethylene Bag,Speaker
SPAKZ0030SJZZ J AC Pad,Accessories
SPAKZ0040SJZZ J AD Pad
SPAKZ0064SJZZ J AC Polyethylene Bag,Unit
SSAKA0002SJZZ J AE Polyethylene Bag,Accessories
TGANE0002SJ15 J Warranty Card [For Philippines]
TINSZ0103SJZZ J Operation Manual [Except for

TINSZ0113SJZZ J Operation Manual [For Thailand]
TLABE0105SJZZ J Label,Bar Code [For Union of

TLABG0001SJZZ J AB Label,Hong Kong
TLABG0044SJZZ J Label,Rated Input

TLABM0044SJZZ J AB Label,MP-3
TLABN0140SJZZ J Label,Serial No.
TLABZ0009SJZZ J AD Label,Made in China

TLABZ0010SJZZ J AD Label,Made in China
TLABZ0011SJZZ J AD Label,SHARP Japan [For Syria/
TLABZ0012SJZZ J AC
TLABZ0015SJZZ J AC Label,VJ No.

TLABZ0019SJZZ J AC Label,M-I-C
TLSTS0004SJZZ J AB Service Station List

Z-SER-NO-LIST J AC List,Serial No.
RRMCG0030SJSA J Remote Control
GCABB1064SJSA J Battery Lid,Remote Control

Kong]

Philippines]
[For Saudi Arabia]

[Top/Bottom]

Thailand]

Arab Emirates/ Hong Kong/
Thailand/ Philippines]

[For Hong Kong]

[For Syria]
[Except for Syria]
Union of Arab Emirates]

Label,SHARP Corporation JAPAN

[

For Syria/Union of Arab Emirates

[For Saudi Arabia]

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~8 DCEKLV035SJ03 J Main/Tuner/Display/Terminal/

1 PWB-B DCEKJV035SJ03 J Power

PWB-C QPWBF3895AFZZ J AC CD Motor (PWB Only)
PWB-D DCEKS0005SJ03 J Video

Switch/Led/Lamp/Holder

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner Disc

]

– 6 –

XL-3000V

A

305

B

308

703

308-2

703

304

308-1

C

308-3

701

302

D

704x2

301

303

E

702x2

F

NM802

307x2

G

306x2

NM801

NSW801

H

PWB-C

1

23456

Figure 7 CD MECHANISM EXPLODED VIEW

– 7 –

,

y

Silicon
Grease

Silicon

Grease
Silicon
Grease

PWB-A2

PWB-A8

PWB-A8

PWB-B

PWB-A7

PWB-A3

PWB-A1

PWB-A6

601x2

206

229

207

204

234

236

235

217

214

250

209

203

238

620x4

602

603

247

246

213

604x2

604x2

603

611

210

611

211

248

251

243

M802

611x2

617x2

610

613

621

608x8

612x2

623x2

611x7

610x3

611x2

613x2

611

612x2

242

245

611

244x2

233

232

205

252

622

221

611

249

611

223

604

604

239

208

228

200

222

219

225

M801

224

226

604

212

218

607
x2

202

201

215

237x6

606x2

230x2

240

216

615x2

616x3

615x2

615x3

231x2

PWB-A4

220

PWB-A5

604x1

605x2

618

619

T651

241

609x4

PWB-D

XL-3000V

A

B

C

D

E

F

G

H

1

23456

Figure 8 CABINET EXPLODED VIEW

– 8 –

XL-3000V

A

908

902

SP3,4

B

C

D

E

F

910x2

910x4

901

905x2

SP1,2

909

906

904

Capacitor

909

White Line

Black

907

Tweeter

SP3 (L-CH)
SP4 (R-CH)

Black

White Line

G

H

1

903

905x2

23456

Figure SPEAKER EXPLODED VIEW

COPYRIGHT 2001 BY SHARP CORPORATION

©

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

Woofer
SP1 (L-CH)
SP2 (R-CH)

Tweeter
SP3 (L-CH)
SP4 (R-CH)

Woofer

SP1 (L-CH)
SP2 (R-CH)

SHARP CORPORATION
AV Systems Group
Audio Systems Division
Higashihiroshima, Hiroshima 739-0192, Japan

Capacitor

3.3µF,50V
(N.P)

909

Printed in Japan

A0108-1009SS•HA•C

EX
