Sharp XG-V10WU, XG-V10XU, XG-V10WM, XG-V10XM User's Guide
Sharp Projector(s) Network Configuration
Operation Manual
For The
XG-V10WU XG-V10XU
XG-V10WM XG-V10XM
Sections:
1.) AN-L10T Optional Card Installation
2.) Projector Menu Configuration

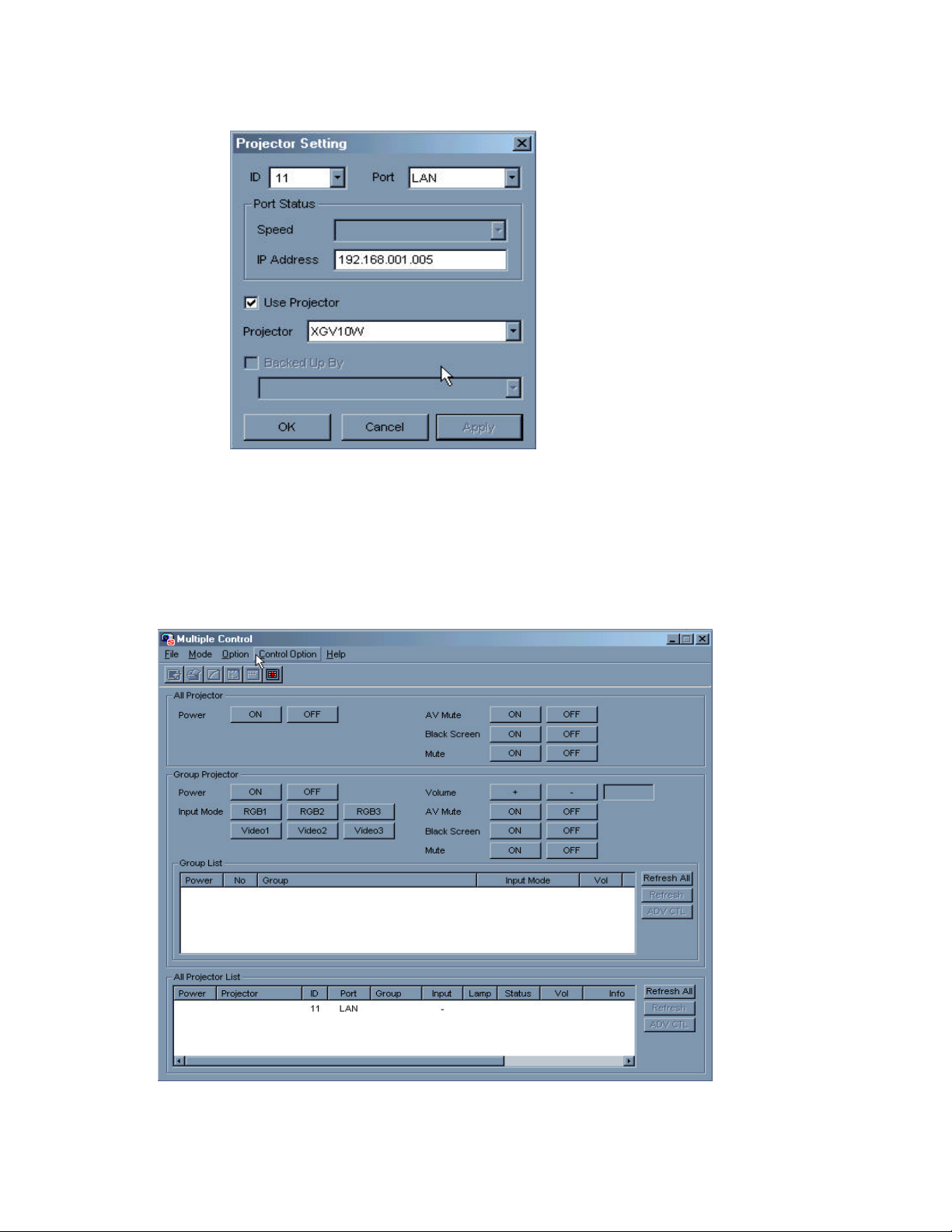

3.) S.A.P.S. Software Configuration
L:\tekcentr\CACTrain\SPS_ntwk
1 10/16/2001
What is a Network?
A network is a group of computers, printers, projectors or other devices that
are connected with cables or wirelessly (without cables). Information travels over the cables
or through the airwaves, allowing network users to exchange documents and data with each other,
print to the same printers, and generally share any hardware or software that is connected
to the network. Each computer, printer, or other peripheral device that is connected to the network
is called a "NODE". Networks can have tens or thousands of nodes, In reference to the S.A.P.S.
software 250 nodes or XG-V10WU/M or XG-V10XU/M projectors can be connected.
The XG-V10W / XU / M projectors are network accessible through the AN-L10T optional 10Base - T
Network adapter. This optional card enables the enduser to control and monitor projector operations
through an existing LAN Network.
In order to configure the XG-V10W / XU / M projectors to an existing LAN the following must occur:
1.) Install AN-L10T Optional LAN Board
2.) Configure XG-V10W / XU / M Projector Menu Setup
2.) Configure S.A.P.S. Software
Installation of the AN-L10T LAN Card into the Projector
The following explains the installation of the AN-L10T Optional LAN Board into the
XG-V10W/XU/M Projectors.
LAN Board
The AN-L10T 10 base-T network adapter board can be installed in the expansion slot on the side
of the XG-V10U projector to allow you to use an existing 10 base-T LAN cabling to connect V10’s
that will be controlled via the SAPS software.
L:\tekcentr\CACTrain\SPS_ntwk
2 10/16/2001
When installing the expansion cards you must do the following:
Figure A
Figure B
NOTE: Number 2 - Only needs to be done if expansion slot is used for first time.
igure C
FIG. A
Expansion Board Installation
1.) Shut projector Off.
2.) Remove the three screws from expansion plate cover. (Refer to
3.) Remove (4) four screws that secure the RF shield (Refer to
)
)
4.) Remove the cover plate from the optional expansion board that will be installed into the slot.
5.) Insert the expansion board into the connector (Refer to F
)
6.) Secure the expansion cover to the board.
Expansion Slot Closed (with cover)
Screws that secure Expansion Plate cover (Fig A).
L:\tekcentr\CACTrain\SPS_ntwk
3 10/16/2001
FIG. B
These (4) four screws secure shield. (Fig B)
NOTE: The RF Shield only needs to be removed if expansion slot is used for first time.
FIG. C
Expansion Slot with RF shield.
Expansion Slot Open (empty)
Expansion Card Connector
L:\tekcentr\CACTrain\SPS_ntwk
4 10/16/2001
The example we are using is ID # 11 as indicated above
Projector Menu SetUp for the AN-L10T Optional Expansion Board
The following "Projector Menu" functions need to be set in order to configure the projector
to be used with the AN-L10T LAN card.
1.) ID Number Setup
2.) Optional Board (LAN Board) Setup
1.) To Setup the ID Number, proceed to the Projector menu "Options 2" and toggle down to the
Set ID Number using the down arrow button on the projector.
2.) When the LAN board is installed, select Menu Button “OPTIONS 2” from the
menu screen. “LAN BOARD” will appear for the option board setting.
L:\tekcentr\CACTrain\SPS_ntwk
5 10/16/2001
There will be three items to configure thru the "LAN Board" menu option through the "Options 2" Menu.
NOTE: The fields following "IP Address Set" will be blank if the LAN Card is used for first time.
(For Example Only)
The IP Address used is an example ONLY
1.) IP Address Set
2.) Gateway Set
3.) Subnet Mask
1.) The first option to be configured is "IP Address Set" When that option is selected, the following
menu will appear.
NOTE:
. This information is obtained through the IT / MIS
Department.
L:\tekcentr\CACTrain\SPS_ntwk
6 10/16/2001
