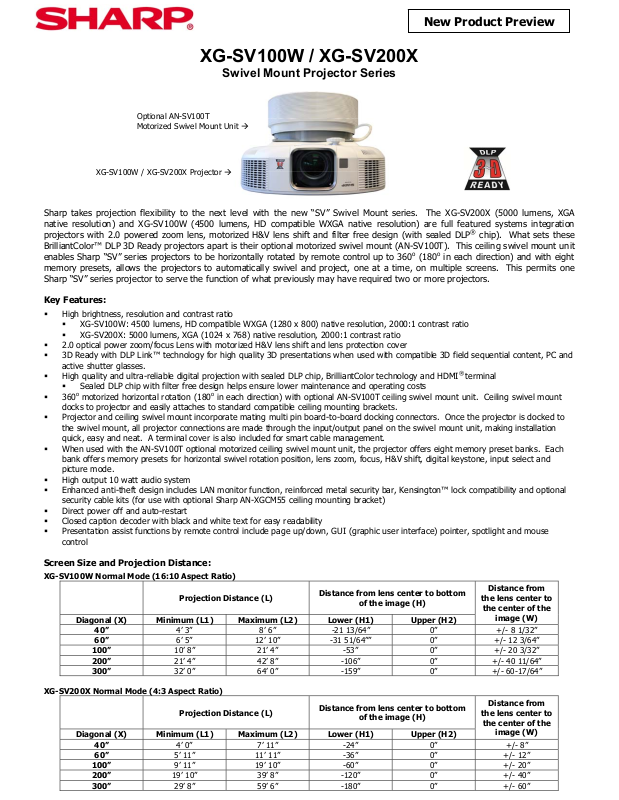

Sharp XG-SV200X, XG-SV100W Product Sheet

New Product Preview

XG-SV100W / XG-SV200X

XG-SV100W / XG-SV200X Projector Æ
Optional AN-SV100T Motorized Swivel Mount Unit Æ
Sharp takes projection flexibility to the next level with the new “SV” Swivel Mount series. The XG-SV200X (5000 lumens, XGA native resolution) and XG-SV100W (4500 lumens, HD compatible WXGA native resolution) are full featured systems integration projectors with 2.0 powered zoom lens, motorized H&V lens shift and filter free design (with sealed DLP BrilliantColor™ DLP
3D Ready projectors apart is their optional motorized swivel mount (AN-SV100T). This ceiling swivel mount unit enables Sharp “SV” series projectors to be horizontally rotated by remote control up to 360 memory presets, allows the projectors to automatically swivel and project, one at a time, on multiple screens. This permits one Sharp “SV” series projector to serve the function of what previously may have required two or more projectors.
Key Features:
High brightness, resolution and contrast ratio
XG-SV100W: 4500 lumens, HD compatible WXGA (1280 x 800) native resolution, 2000:1 contrast ratio
XG-SV200X: 5000 lumens, XGA (1024 x 768) native resolution, 2000:1 contrast ratio 2.0 optical power zoom/focus Lens with motorized H&V lens shift and lens protection cover 3D Ready with DLP Link™ technology for high quality 3D presentations when used with compatible 3D field sequential content, PC and
active shutter glasses.
High quality and ultra-reliable digital projection with sealed DLP chip, BrilliantColor technology and HDMI
Sealed DLP chip with filter free design helps ensure lower maintenance and operating costs 360
o
motorized horizontal rotation (180o in each direction) with optional AN-SV100T ceiling swivel mount unit. Ceiling swivel mount
docks to projector and easily attaches to standard compatible ceiling mounting brackets. Projector and ceiling swivel mount incorporate mating multi pin board-to-board docking connectors. Once the projector is docked to
the swivel mount, all projector connections are made through the input/output panel on the swivel mount unit, making installation
quick, easy and neat. A terminal cover is also included for smart cable management. When used with the AN-SV100T optional motorized ceiling swivel mount unit, the projector offers eight memory preset banks. Each
bank offers memory presets for horizontal swivel rotation position, lens zoom, focus, H&V shift, digital keystone, input select and
picture mode.
High output 10 watt audio system Enhanced anti-theft design includes LAN monitor function, reinforced metal security bar, Kensington™ lock compatibility and optional
security cable kits (for use with optional Sharp AN-XGCM55 ceiling mounting bracket)
Direct power off and auto-restart Closed caption decoder with black and white text for easy readability Presentation assist functions by remote control include page up/down, GUI (graphic user interface) pointer, spotlight and mouse
control
Screen Size and Projection Distance:
XG-SV100W Normal Mode (16:10 Aspect Ratio)
Projection Distance (L)
Diagonal (X) Minimum (L1) Maximum (L2) Lower (H1) Upper (H2)
40” 4’ 3” 8’ 6” -21 13/64” 0” +/- 8 1/32”
60” 6’ 5” 12’ 10” -31 51/64”” 0” +/- 12 3/64” 100” 10’ 8” 21’ 4” -53” 0” +/- 20 3/32” 200” 21’ 4” 42’ 8” -106” 0” +/- 40 11/64” 300” 32’ 0” 64’ 0” -159” 0” +/- 60-17/64”
XG-SV200X Normal Mode (4:3 Aspect Ratio)
Projection Distance (L)
Diagonal (X) Minimum (L1) Maximum (L2) Lower (H1) Upper (H2)
40” 4’ 0” 7’ 11” -24” 0” +/- 8”
60” 5’ 11” 11’ 11” -36” 0” +/- 12” 100” 9’ 11” 19’ 10” -60” 0” +/- 20” 200” 19’ 10” 39’ 8” -120” 0” +/- 40” 300” 29’ 8” 59’ 6” -180” 0” +/- 60”

Swivel Mount Projector Series

Distance from lens center to bottom
of the image (H)
Distance from lens center to bottom
of the image (H)
®
chip). What sets these
o
(180o in each direction) and with eight
®
terminal
Distance from
the lens center to
the center of the
image (W)
Distance from
the lens center to
the center of the
image (W)

XG-SV100W / XG-SV200X

Projector Specifications:
Model Number XG-SV100W XG-SV200X
Display Technology
Sealed 0.65” DLP chip x 1 with BrilliantColor™
technology and 5-segment color wheel (RGBWY)
Pixel Resolution / Aspect Ratio HD compatible WXGA (1280 x 800) / 16:10 XGA (1024 x 768) / 4:3
Maximum RGB Pixel Resolution Analog UXGA (1600 x 1200) with Intelligent ImageACE™ compression
DTV / HDTV compatibility 1080p / 1080i / 720p / 576p / 576i / 540p / 480p / 480i. NTSC / PAL / SECAM Brightness (Eco + Quiet: off) /
Contrast Ratio
4500 lumens / 2000:1 contrast ratio 5000 lumens / 2000:1 contrast ratio
2.0 optical power zoom/focus lens. Vertical Powered Lens Shift Range: +/- 50%; Horizontal
Lens
Powered Lens Shift Range: +/- 23% (XG-SV100W), +/- 25% (XG-SV200X); Throw Ratio: 1.51-3.02
(XG-SV100W, 16:10), 1.49-2.98 (XG-SV200X, 4:3); Effective Focal Length: f=21.2~42.0 mm
Digital Keystone Adjustment Range Vertical: +/- 40o; Horizontal: +/- 30o
Projection Lamp (wattage / part #) 400 W, DC type. Replacement Lamp Part Number: AN-SV10LP or AN-SV10LP/1
Est. Lamp Life Up to 1500 Hours (Eco+Quiet: Off) / Up to 2500 Hours (Eco+Quiet: On)
®
, computer/component input #1 (15-pin mini D-sub), computer/component Input #2 or monitor
HDMI
loop-through output (selectable for input or output) (15-pin mini D-sub);stereo audio-1 input (3.5 mm
Input/Output Terminals
mini jack); stereo audio-2 input (RCA); stereo audio variable line-output (3.5 mm mini jack); S-video
input (4-pin mini DIN), composite video input (RCA), USB (B type), RS-232C (mini DIN 9-pin), LAN (RJ-
45), AC inlet from swivel mount (3-pin); Docking connector (on bottom) for swivel mount (144-pin)
Built-in Audio 10 Watts Monaural
Fan Noise 39 dB A (Eco+Quiet: Off) / 34 dB A (Eco+Quiet: On)
Power Source / Power Consumption 100-240V AC, 50/60Hz (multi-voltage), 5.1A / 516W (Eco+Quiet: Off)
Operating Temperature 41oF to 95oF (+5o C to 35oC) (Applies to both projector and AN-SV100T Swivel Mount Unit) User Controls (on side operation
panel)
Standby / On, Lens, Return, Enter, Adjust down / Input -, Adjust up / Input +, Adjust left / Volume down,
Adjust right / Volume up, Menu, Keystone, Auto Sync, Eco+Quiet
On (power), Standby, Memory (1~8), Memory Menu, HDMI input, Computer-1 input, Computer 2 input,
Remote Control Functions (47 button)
S-Video input, Composite Video input, Keystone, Auto Sync, Resize, Freeze, AV Mute, Menu, Pointer,
Spot, Adjustment (4 direction keys), Enter, Effect / Click (L), Return (Click (R), Zoom+, Zoom-, H&V Shift,
Rotate, Focus+, Focus-, Magnify+, Magnify-, Page Up, Page Down, Volume Up, Volume Down, Break
LED Indicators (on projector) Power, Lamp, Temperature Warning, Swivel
Weight and Dimensions: 16.5 lbs; 15-61/64” W x 16” D x 4-33/64” H
Included Accessories
Wireless remote control; two “AA” batteries; 6’ (1.8m) power cord; 10’ (3m) RGB cable; operation
manual; operation manual on CD-ROM; 3D manual; back terminal cover
Optional Ceiling Swivel Mount Unit Attaches between projector and standard compatible ceiling mounting bracket. See specifications below. Optional Ceiling Mounting Bracket
and Ceiling Mount Accessories
AN-XGCM55: ceiling mounting bracket; AN-EP101B extension tube; AN-JT200: angle mount joint;
AN-CMCSS16: 16" security cable system; AN-CMCSS46: 46" security cable system
Additional Optional Accessories X102 3D active shutter glasses; AN-C3CP2 10’ (3m) component video (3-RCA) to 15-pin D-sub cable
Limited Warranty
3 Years Parts and Labor including 3 Years “ER” 24-Hour Turnaround Express Repair.
(90 day warranty on user-replaceable projection lamp.) Optional extended warranties also available.
Optional AN-SV100T Ceiling Swivel Mount Unit* Specifications (compatible with Sharp XG-SV100W and XG-SV200X projectors):
Input Signals
Rotation Angle Horizontal (motorized) Right / Left (each): 0 ~ 180o. 0o center position. Vertical (manual): 0 ~ -10o
Rotation Life
Rotation Speed Approx. 6o per second
Memory Preset Banks (8)
Position Accuracy +/- 1.5o (when position memory function is used)
Power Source AC 100 – 240V, 50/60 Hz, 5.2 A; 516W power consumption (with XG-SV100W or XG-SV200X projector)
Weight and Dimensions 9.3 lbs; 10-15/16” W x 10-15/16” D x 4-45/64” H
Input/Output Terminals
Included Accessories
* AN-SV100T not designed for table-top or wall mount usage.
Design and specifications are subject to change without notice. Sharp, ImageACE and related trademarks are trademarks or registered trademarks of Sharp Corporation and/or its affiliated entities. DLP, DLP Link and BrilliantColor are trademarks or registered trademarks of Texas Instruments. HDMI is a registered trademark of HDMI Licensing LLC. Kensington is a trademark of ACCO World Corporation with issued registrations and pending applications in other countries throughout the world. All other trademarks are property of their respective owners. © 2011 Sharp Electronics Corporation. All rights reserved. 07/14/11 LC-02-384 SIICA 11096
\
SHARP ELECTRONICS CORPORATION, PROFESSIONAL DISPLAY DIVISION
Sharp Plaza, Mahwah, NJ 07495 1-866-4-VISUAL (1-866-484-7825); www.SharpLCD.com; e-mail: ProLCD@SharpUSA.com
VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA (analog); PAL/PAL-M/PAL-N/PAL60/SECAM/
NTSC3.58/NTSC4.43; 1080p / 1080i / 1035i / 720p / 576p / 576i / 540p / 480p / 480i
Minimum 40,000 rotations. (Based on 0-180
Each memory bank includes presets for horizontal swivel rotation position, lens zoom, focus, H&V shift,
The AN-SV100T includes the same input/output connections as the XG-SV100W / XG-SV200X projectors with the following exceptions: the AN-SV100T includes an AC outlet for projector power (3-pin), and the docking connector (on bottom of swivel unit) mates with the similar docking connector on the projector.
Terminal cover; installation bracket; anti-sway plate “A”; anti-sway plate “B”; M4 type bolt (x4); M3 type

Timer, Picture Mode, Eco+Quiet, 3D Mode
o
rotation; 10 second interval time; ceiling mount installation;
o
77
F room temperature.)
digital keystone, input select, picture mode
bolt (x 2); instruction manual

Swivel Mount Projector Series

Sealed 0.7” DLP chip x 1 with BrilliantColor
technology and 5-segment color wheel (RGBWY)
