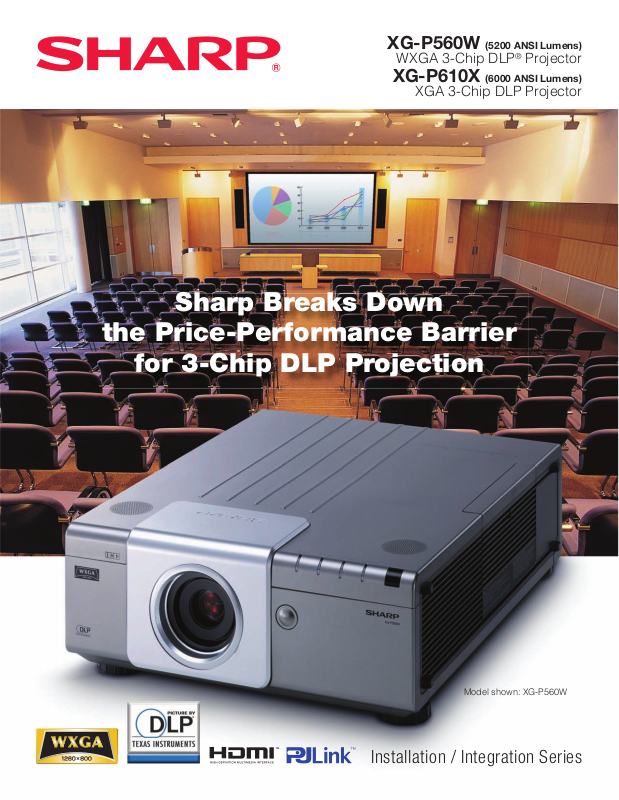

Page 1
XG-P560W (5200 ANSI Lumens)
WXGA 3-Chip DLP® Projector
XG-P610X (6000 ANSI Lumens)
XGA 3-Chip DLP Projector
Sharp Breaks Down
the Price-Performance Barrier
for 3-Chip DLP Projection
Model shown: XG-P560W
Installation / Integration Series
Page 2
Sharp 3-Chip DLP® Projectors Offer Among the Highest Color Accuracy,
W X 20% W X 20%
W
H X 31%
H X 31%
H X 55%
H
H X 55%
W X 35% W X 35%
W X 11% W X 11%
W
H X 18%
H
H X 18%
• The adjustab le range is show n below. Horizont al range: ±35% Verti cal range: ±55%
• The image can be adjusted as shown in the diagram.
XG-P610X Adjusta ble Ran ge
AN-P15EZ, AN-P18EZ, AN-P23EZ,
AN-P30EZ a nd AN-P45EZ
Position of the image when the
image is c entered both verti cally
and horizontall y in lens shift.
Position of the image when the
image is c entered both verti cally
and horizontall y in lens shift.
AN-P8EZ and AN-P12E X
H: Height of the image W: Width of the image
W X 20% W X 20%
W
H X 37%
H X 37%
H X 66%
H
H X 66%
W X 35% W X 35%
W X 11% W X 11%
W
H X 22%
H
H X 22%
• The adjustab le range is show n below. Horizont al range: ±35% Vertical range: ±66%
• The image can be adjusted as s hown in the diagram.
XG-P560W Adjusta ble Ran ge
AN-P15EZ, AN-P18EZ, AN-P23EZ,
AN-P30EZ a nd AN-P45EZ
Position of the image when the
image is c entered both verti cally
and horizontall y in lens shift.
Position of the image when the
image is c entered both verti cally
and horizontall y in lens shift.
AN-P8EZ and AN-P12E X
H: Height of the image W: Width of the image
Image Quality and Reliability in Front Projection.
Cutting Edge Optical Technology
3-Chip DLP Projection System
In a 3-Chip DLP system, the white light generated by
the lamp passes through a prism that divides it into red,
green and blue. Each DLP chip is dedicated to one of
these three colors; the colored light that the micromirrors reflect is then combined and passed through
the projection lens to form an image. This results in
unparalleled picture quality and reliability for use in
rental/staging, corporate, university, government, house
of worship, cinema and other large venue installations.
Optics
Color Filtering Prism
Light Source
®
DLP
Up to 6000 ANSI Lumens Brightness
with Unique Dual-Lamp System
With advanced 3-Chip DLP Optical Engine and dual
280W lamps, the XG-P610X achieves 6000 ANSI
Lumens and the XG-P560W achieves 5200 ANSI
Lumens delivering bright, clear images even in large,
high ambient light rooms. [Brightness values indicate
overall average values of the product at the time
of shipment and are stated based on international
standard ISO 21118-2005.]
Choice of WXGA or XGA Native
Resolution
The XG-P560W offers WXGA (1280 x 800) native
resolution for pixel-perfect display from the latest
generation WXGA PCs (16:10 aspect ratio) and
superior compatibility with 720p HDTV sources. The
XG-P610X offers XGA (1024 x 768) native resolution
for optimum performance with standard 4:3 XGA
and video sources.
Intelligent Dual Lamp Design
This unique dual lamp system allows users to choose
the lamp arrangement to suit their needs. Options
include single or dual lamp projection, and the choice
of standard brightness or “eco” mode projection.
The Sharp dual lamp system additionally provides
“redundant” reliability. In the event one lamp should
fail, projection performance can be maintained by
using the other lamp without interruption.
Long-Life, High Performance DLP Chips
Three DLP chips, with finely structured mirrors that
reflect heat, provide stable performance and are
with
dual-lamp
projection
with
single-lamp
projection
immune to Red, Green or Blue fade, so they deliver
high quality pictures for longer periods. The three
DLP chips in these models achieve an estimated
lifetime of 20,000 hours. (This measurement is at a
surrounding temperature of 25°C and is a reference
value, not a guarantee.)
Sealed DLP Chips
The sealed DLP chips in these projectors helps ensure lower maintenance and a longer operating life.
1800:1 Contrast Ratio
This exceptionally high contrast ratio provides sharper,
more detailed images with higher black levels.
Sharp Computer and Video Integrated Composer (CV-IC™) II System
Color Management System
The level of color shade, chroma and tone can be individually set for each of the six primary and secondary
colors (red, yellow, green, cyan, blue, magenta), permitting much more subtle and accurate color adjustments.
Example of Color Management: User can select only the red portion
of a picture to be enhanced
Flexible Installation Capabilities
Powered Vertical and Horizontal
Lens Shift
The powered lens shift control mechanism enables
easy horizontal and vertical lens shift positioning to get
the best viewing picture.
Seven Interchangeable Lenses
Both projectors are available with or without a standard
lens. When purchased without a lens, Sharp offers
seven optional interchangeable lenses to meet a wide
variety of projection applications. Plus, the bayonet
system enables quick and easy lens replacement.
Pattern Matching Motion-Detective
PMD-IP Conversion
With Pattern Matching Motion-Detective PMD-IP
Conversion, correlated pattern matching that was
impossible with pixel conversion is measured by
sampling the pattern information with a length of
visual data. The resulting new pattern in the middle
produces horizontally slanted lines and smoothes
edges, providing higher quality images.
Enhanced Three-Two Pulldown
(NTSC).
Using the Film mode, both the XG-P560W and
XG-P610X can beautifully reproduce movie film
recorded in 24 Hz progressive format (This mode also
includes Two-Two Pulldown for PAL signals including
50-fps images.)
Video Noise Reduction
Helps reduce picture blur for clearer pictures.
Scaling
Helps to provide a high quality image.
Picture-in-Picture (PiP)
Adds video images onto a data screen image.
Page 3
Sharp Network Control
Room A
Room B
Managem ent PC
Mainten ance Se rvice Pr ovider
Internet
LAN
e-mail
CAUTION receive d!
High
Temper ature!
Room A
Room B
A truly networked projector for remote access, diagnosis, adjustment and theft prevention
Presentation Convenience
Web Browser Control
Web browser control enables remote access and management of the projector by utilizing built-in firmware
without the need for additional special software.
Seamless Remote Access
for Control and Adjustment
Key projector control functions, including power on,
input select, volume, etc.
can be controlled and
adjusted by a computer
even in another room.
Diagnosis and Auto Email Alert
Email is automatically sent
to appointed addresses
when detecting an error
message, such as the lamp
going out, unusual heating,
or cooling fan breakdown.
Link to Specific Website for Service
and Support
The projector can be registered to a specific website
URL for notification of required maintenance, service and
support. For example, the projector can send an error
message, such as to notify that the lamp is burnt out, to
a web address automatically selected. The address accessed for maintenance is also shown on the display.
Network Projector Control
with Downloadable Display
Manager Software
A wide range of network projector control options may
be accessed when Sharp Display Manager Software is
installed on the main computer. This software may be
downloaded at no charge from the Sharp USA Website
(www.SharpUSA.com) or the Sharp Global website
(www.Sharp-World.com/projector).
Remote Access for Multiple and
Group Projector Control.
A management computer with Sharp Display Manager
Software can control multiple projectors individually. In
addition, group settings are possible for groups formed
from these projectors. These settings enable each
group to be controlled independently.
Periodic / Error Diagnosis and
Auto Email Alert
The Display Manager sends periodic reports as well as
an error message if a problem occurs.
Theft Detection and Message
(Network Surveillance System)
A warning message will appear on the screen of a computer
when the projector CAT5 cable is cut or disconnected.
PJLink™ Capability
The XG-P560W and XG-P610X are compatible
with devices that support PJLink, enabling
systems to be easily built for centralized
management and operation using an external
controller. For information on PJLink, please visit
http://pjlink.jbmia.or.jp/english/
Control System Compatibility
The XG-P560W and XG-P610X provides superior
compatibility with industry standard control
systems from vendors such as Crestron, AMX
and Extron.
34 dB Low Fan Noise (Eco Mode On)
The intelligent multiple fan control system in these
models virtually eliminates annoying sound during
presentations and meetings.
Mechanical Shutter
Both the XG-P560W and XG-P610X are equipped with
a mechanical shutter that can momentarily black out
a projected image when necessary. Also, the remote
control has separate buttons for opening and closing
the shutter.
Backlit Wireless (or Wired)
Remote Control with Mouse
Applications with screen displaying presentation
software such as PowerPoint
®
can be easily moved
forward and backward and the cursor can be
moved by remote control. (An optional AN-MR2
remote receiver is required.) Plus, the remote
control can be easily operated with a backlight.
Wide Range of Connection Terminals
These projectors are equipped with a full range of AV/
PC terminals including HDMI and HDCP-compatible DVI
terminals to meet the needs of digital content.
Digital Keystone Correction
Conventional systems have difficulty adjusting to a
slanted screen horizontally and vertically without jag
lines. The XG-P560W and XG-P610X easily compensate for pictures projected on angles both horizontally
and vertically by only spotting points on the screen.
Even when projection on an angle is needed, preparation and adjustment are quick and easy, allowing
presentations to start smoothly and without hassle.
Presentation Support Tools
Break Timer, Enlarge, Image Freeze
Sharp Network Control Additional Outstanding Features
Low-Cost Video Wall
Built-in circuitry enables video wall projection without the
need for costly external image processing equipment.
Video
Source
Simple Multi-Screen Display with X/Y Designation and Segment Expansion
Note: A video distribution device is needed
Stacking Function
Multiple projectors can be assigned master and slave
functionality and connected with standard commercially
available LAN cables. This allows you to control multiple
projectors with one remote control during projection in a
Low-Cost
Video
Distributor
stack or video wall format. The design of the XG-P560W
and XG-P610X permits multiple projectors to be easily
and reliability stacked using third party stacking cages.
Direct Power Off and Auto Restart
Function
The Direct Power Off function enables the cooling fan
to keep operating even after the power supply has been
turned off or unplugged from the power source. Auto
Restart restores power status following a power failure,
or if a master power switch is being used to turn on and
off the projector(s).
Customizable Gamma Correction
The projector’s gamma values can be set directly
from a computer using Sharp Gamma Manager
software. This software may be downloaded
at no charge from the Sharp Global website
(www.Sharp-World.com/projector).
• High Speed Auto Response Adjust (ARA)
• Sharp Original Pull-Down Menu Graphic User
Interface (GUI) – 16 languages selectable
• High Quality Video Circuits
(3D Y/C Separation Digital Comb Filter, Noise Reduction, Color Transient and Y Delay, Color Temperature
Adjustment)
• Custom Startup “Watermark” Image Capture
• Keylock™ and System Lock Functions
Page 4
3
39
/64
(91.5)
4
7
/8
(123.5)
7
31
/64
(190)
13
/64
(5)
63
/64
(25)
21
/
64
(8)19 11/
16
(500)
7
7
/8 (200) 1 31/32 (50)
19
/64
(7.5)
25
3
/32 (637)
M6
M6
M6
M6
21
15
/16 (557)
12
11
/64 (309)
5
7
/8
(149)
8
19
/64 (210.5) 11
61
/64 (303.5)
2
41
/
64
(67)
3 5/64
(78)
2 39/
64
(66)
1 31/32
(50)
6
5
/32
(156)
6
41
/64
(168.5)
Units: inches (mm)
FRONT
XG-P560W Projection Distances for a Normal (16:10) 100" Screen
5
246810 12 14 15
40 (ft)
(m)
35 453025201510 50
AN-P8EX
1.7 m
5’9”
AN-P12EX
2.6 m
8’7”
AN-P15EZ
3.3 - 3.9 m
10’9” - 12’10”
AN-P18EZ
3.9 - 4.9 m
12’10” - 16’1”
AN-P23EZ
4.9 - 6.5 m
16’1” - 21’6”
AN-P30EZ
6.5 - 9.8 m
21’6” - 32’3”
AN-P45EZ
9.8 - 15.3 m
32’3” - 50’1”
* The XG-P560W is equipped with the same class of lens as the AN-P18EZ.
TOP
BOTTOM
3
39
/64
(91.5)
4
7
/8
(123.5)
7
31
/64
(190)
13
/64
(5)
63
/64
(25)
21
/64 (8)19 11/16 (500)
7
7
/8 (200) 1 31/32 (50)
19
/64
(7.5)
25
3
/32 (637)
M6
M6
M6
M6
21
15
/16 (557)
12
11
/64 (309)
5
7
/8
(149)
8
19
/64 (210.5) 11
61
/64 (303.5)
2
41
/64
(67)
3 5/64
(78)
2 39/
64
(66)
1 31/32
(50)
6
5
/32
(156)
6
41
/64
(168.5)
Units: inches (mm)
FRONT
XG-P560W Projection Distances for a Normal (16:10) 100" Screen
5
246810 12 14 15
40 (ft)
(m)
35 453025201510 50
AN-P8EX
1.7 m
5’9”
AN-P12EX
2.6 m
8’7”
AN-P15EZ
3.3 - 3.9 m
10’9” - 12’10”
AN-P18EZ
3.9 - 4.9 m
12’10” - 16’1”
AN-P23EZ
4.9 - 6.5 m
16’1” - 21’6”
AN-P30EZ
6.5 - 9.8 m
21’6” - 32’3”
AN-P45EZ
9.8 - 15.3 m
32’3” - 50’1”
* The XG-P560W is equipped with the same class of lens as the AN-P18EZ.
XG-P610X Projection Distances for a Normal (4:3) 100" Screen
5
246810 12 14
40 (ft)
(m)
35 453025201510
AN-P8EX
1.6 m
5’4”
AN-P12EX
2.4 m
8’
AN-P15EZ
3.0 - 3.7 m
10’ - 12’
AN-P18EZ
3.7 - 4.6 m
12’ - 15’
AN-P23EZ
4.6 - 6.1 m
15’ - 20’
AN-P30Z
6.1 - 9.1 m
20’ - 30’
AN-P45EZ
9.1 - 14.2 m
30’ - 46’8”
* The XG-P610X is equipped with the same class of lens as the AN-P18EZ.
TOP
BOTTOM
XG-P560W / XG-P610X
3
39
/
64
(91.5)
4
7
/
8
(123.5)
7
31
/64
(190)
13
/64
(5)
63
/64
(25)
21
/64 (8)19 11/16 (500)
7
7
/8 (200) 1 31/32 (50)
19
/64
(7.5)
25
3
/32 (637)
M6
M6
M6
M6
21
15
/16 (557)
12
11
/64 (309)
5
7
/
8
(149)
8
19
/64 (210.5) 11
61
/64 (303.5)
2
41
/
64
(67)
3 5/64
(78)
2 39/
64
(66)
1 31/32
(50)
6
5
/32
(156)
6
41
/64
(168.5)
Units: inches (mm)
FRONT
TOP
BOTTOM
Model shown:
XG-P610X
Optional Accessories
Lenses
AN-P8EX
Fixed wide lens
F2.5
f = 11.6 mm
T/R 1:0.8
AN-P12EX
Fixed wide lens
F2.5
f = 17.1 mm
T/R 1:1.2
AN-P15EZ
Wide zoom lens
F2.5
f = 21.5 - 25.8 mm
T/R 1:1.5 - 1.8
AN-P18EZ
Standard zoom lens
F2.5
f = 25.5 - 32 mm
T/R 1:1.8 - 2.25
Specifi cations
Model XG-P560W XG-P610X
Display device 0.65" DLP
Resolution WXGA (1,280 x 800) XGA (1,024 x 768)
Brightness 5,200 ANSI lumens 6,000 ANSI lumens
Contrast ratio 1,800:1
Standard lens F number F2.5
Projected image size (diagonal) 60" (152 cm) to 280” (711 cm)*
Projection distance 60" : 2.4 – 2.9 m, 100" : 3.9 – 4.9 m, 280" : 11.0 – 13.7 m 60" : 2.2 – 2.7 m, 100" : 3.7 – 4.6 m, 280" : 11.0 – 13.7 m
Input signals Computer RGB UXGA*
Input terminals HDMI x1
Output terminals
Control and
communication terminals
Horizontal frequency 15 – 126 kHz
Vertical frequency 43 – 200 Hz
Audio system 3 W x 2 (stereo)
Fan noise 37 dB (Eco mode off), 34 dB (Eco mode on)
Projection lamps 280 W x 2. Part Number (for each lamp): AN-P610LP or AN-P610LP/1
Estimated lamp life 2,000 hours (Eco mode off), 3,000 hours (Eco mode on)
On-screen display languages English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Russian, Polish, Turkish, Arabic, Persian, Simplifi ed Chinese, Korean, Japanese
Rated Power Source AC 100-240 V. 50 / 60 Hz (multi-voltage), 7.7 A
Power consumption (standby) 755 W (16.7 W) with AC 100 V, 710 W (16.9 W) with AC 240 V
Heat dissipation 2,832 BTU/hour (Eco mode off) with AC 100 V, 2,663 BTU/hour (Eco mode off) with AC 240 V
Operation temperature 41°F to 104°F (+5°C to +40°C)
Limited Warranty*
Dimensions (main body only) W x H x D 19.7" x 7.5" x 25.1" (500 x 190 x 637 mm)
Weight (approx.) 58.5 lbs. (26.5 kg) (with lens) / 55.2 lbs. (25.0 kg) (without lens) 57.4 lbs. (26.0 kg) (with lens) / 54.0 lbs. (24.5 kg) (without lens)
Supplied accessories Remote control (with backlight), two R-6 AA batteries, power cord (6' (1.8 m)), RGB cable (10' (3.0 m)), lens cap (attached), opera tion manual, CD-ROM
UPC
1
*
5
*
lenses, screen size is 60” to 250” diagonal. *
• The above projectors are also available without lens as models XG-P560WN and XG-P610XN. • The above specifi cation fi gures are measured with the standard lens (or optional AN-P18EZ lens).
• Only computer signals and component signals input from the 15-pin mini D-sub input terminal or 5-BNC terminal are output from the 15-pin mini D-sub output terminal. • Audio signals input to the projector are output through the audio output terminals.
• Lamp life will vary depending on the usage condition. • Brightness values indicate overall average values of the product at the time of shipment and are stated based on ISO 21118-2005.
• Sharp and related trademarks are trademarks or registered trademarks of Sharp and/or its affi liated entities. • Texas Instruments, the DLP logo and the DLP medallion are trademarks or registered trademarks of Texas Instruments. • Mac is a trademark of Apple, Inc.
registered in the U.S. and other countries. • HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of
America and other countries and areas. • PowerPoint is a registered trademark of Microsoft Corporation.• All other trademarks are the property of their respective owners. • Product specifi cations and design are subject to change without notice.
Compatible in the advanced intelligent compression. *2 Compatible in intelligent compression *3 Analog RGB signal only *4 When this signal is input, the image is compressed before it is displayed on the screen.
For the AN-P18EZ standard lens only. For the AN-P8EX, screen size is 80” to 140” diagonal. For other optional lenses, screen size is 60” to 230” diagonal. *6 For the AN-P18EZ standard lens only. For the AN-P8EX, screen size is 80” to 150” diagonal. For other optional
Zoom Power, x1.25 (f=25.5 – 32.0 mm)
Focus Power
Lens shift Power (V : ±66%, H : ±35%) Power (V : ±55%, H : ±35%)
DTV 1080p*
DVI-D (Compatible with HDCP) x1
Computer / Component (5-BNC) x1
Computer / Component (mini D-sub 15 pin) x1
S-Video (mini DIN 4pin) x1
Video (RCA) x1
Audio (ø3.5 mm stereo mini jack) x3
Audio (RCA) x2 (L/R)
Computer / Component (mini D-sub 15 pin) x1
Audio (ø3.5 mm stereo mini jack) x1 (variable audio output)
LAN (RJ-45) x1
RS-232C (D-Sub 9 pin) x1
Wired remote (ø3.5 mm stereo mini jack) x1
With standard lens 074000365650 074000365339
Without standard lens 074000365667 074000365346
7
See warranty statement included in the product operation manual, or as a PDF download at www.sharpusa.com.
7
Dimensions
Lamp - AN-P610LP or AN-P610LP/1
AN-P23EZ
Tele-zoom lens
F2.5
f = 31.9 - 42.5 mm
T/R 1:2.25 - 3.00
SHARP ELECTRONICS CORPORATION
Professional Display Division
Sharp Plaza, Mahwah, NJ 07495-1163
For more information: call 1-866-4-VISUAL (1-866-484-7825) or email www.sharpusa.com/projectors
© 2009 Sharp Electronics Corporation. All rights reserved. Printed in the U.S.A. 7-20-09 LC-02-346 09021
AN-P30EZ
Tele-zoom lens
F2.5
f = 40.8 - 62.8 mm
T/R 1:3.0 - 4.5
®
3 years parts and labor including 3 years of Sharp “ER” 24-hour turnaround Express Repair. 90-day lamp warranty.
AN-P45EZ
Tele-zoom lens
F2.5
f = 62.1 - 97.8 mm
T/R 1:4.5 - 7.0
Remote IR Receiver - AN-MR2
Shipping Case - AN-P60SC
Component Cable - AN-C3CP2
chip x 3 0.7" DLP chip x 3
5
1*2*3
, SXGA+*1, SXGA*1, WXGA*1, XGA, SVGA, VGA / Mac 21"*1, 19", 16", 13"
4
, 1080i, 1035i, 720p, 576p, 576i, 540p, 480p / NTSC, PAL, SECAM
60" (152 cm) to 300” (762 cm)*
Ceiling Mount Options
AN-PCM60 Ceiling Mount
AN-EP101B Extension Tube
AN-JT200 Angle Joint
AN-CMCSS16 16" Security Cable Kit
AN-CMCSS46 46" Security Cable Kit
6
Loading...
