MODEL
OVEN CAPACITY:
COOKING UNIFORMITY
SMART & EASY
TOUCH SCREEN DISPLAY
SPECIAL FEATURES
SENSOR SETTINGS
OUTPUT POWER
OUTSIDE DIMENSIONS
(W xH xD)
OVEN DIMENSIONS
(W xH xD)
OVEN INTERIOR
APPROX. WEIGHT
AC LINE VOLTAGE
AC POWER REQUIRED
SAFETY COMPLIANCE
OPTIONAL ACCESSORIES
(AVAILABLE AT EXTRA COST)
UPC CODES
R-540DK
R-540DW
2.0 cu. ft.
Carousel Turntable System:
16” diameter glass
Large LCD Screen
10 lines - 26 characters
3 Instant Sensors
27 Sensor Settings
1200W
24" x 13 3/8" x 19 1/8"
17 3/8" x 10 1/2" x 18 5/8"
Net: 41 lb. Shipping: 46 lb.
1.65kW, 14.6A
R-540DK:
Built-in-Kit RK-51 (Black)+
R-540DW:
Built-in-Kit RK-51W (White)+
R-540DK: 074000638440
R-540DW: 074000638457
R-440DK
R-440DW
1.6 cu. ft.
Carousel Turntable System:
14 1/8” diameter glass
Large LCD Screen
10 lines - 26 characters
3 Instant Sensors
27 Sensor Settings
1200W
21 5/8" x 12 3/8" x 18 7/16"
15 3/4" x 9 5/8" x 17 7/8"
Net: 37 lb. Shipping: 41 lb.
1.65kW, 14.6A
R-440DK:
Built-in-Kit RK-46K (Black)+
R-440DW:
Built-in-Kit RK-46W (White)+
R-440DK: 074000638334
R-440DW: 074000638341
R-340DK
R-340DW
1.2 cu. ft.
Carousel Turntable System:
13 1/8” diameter glass
Large LCD Screen
10 lines - 26 characters
3 Instant Sensors
27 Sensor Settings
1150W
20 1/2" x 11 7/8" x 17 1/8"
14 3/4" x 8 3/4" x 15 3/4"
Net: 33 lb. Shipping: 37 lb.
1.62kW, 13A
R-340DK: 074000608184
R-340DW: 074000608191
R-435DK
R-435DW
1.6 cu. ft.
Carousel Turntable System:
14 1/8” diameter glass
Large LCD Screen
10 lines - 26 characters
1200W
21 5/8" x 12 3/8" x 18 7/16"
15 3/4" x 9 5/8" x 17 7/8"
Net: 37 lb. Shipping: 41 lb.
1.65kW, 14.6A
R-435DK:
Built-in-Kit RK-46K (Black)+
R-435DW:
Built-in-Kit RK-46W (White)+
R-435DK: 074000638310
R-435DW: 074000638327
R-335DK
R-335DW
1.2 cu. ft.
Carousel Turntable System
13 1/8” diameter glass
Large LCD Screen
10 lines - 26 characters
1150W
20 1/2" x 11 7/8" x 17 1/8"
14 3/4" x 8 3/4" x 15 3/4"
Net: 33 lb. Shipping: 37 lb.
1.62kW, 13A
R-335DK: 074000608160
R-335DW: 074000608177
All Sharp Microwave Ovens require a minimum 15 amp circuit. Specifications subject to change without notice. Output wattage based on IEC Test Procedure. +Refer to operation manual for installation instructions.
OPTIONAL BUILT-IN-KIT
All models: 120V, single phase, 60Hz, AC only
All models: FCC, DHHS, UL listed
All models: Acrylic interior with oven light
MW-06-068
Your Sharp Microwave Oven can be built into your kitchen wall or cabinet using the appropriate Sharp Built-in
Kit. Complete hardware and easy-to-follow instructions are included. Prepare cabinet or wall opening according to
the illustration at left, providing access to a separate 3-pronged, 120V AC outlet, 15 amps. or larger.
AB C D E
RK-46W/RK-46K
171⁄8"23
1
⁄2"15
13
⁄
16
"±1⁄8"22
3
⁄16"±1⁄8" min. 203⁄8"
RK-51/RK-51W
181⁄8"26
7
⁄8"16
7
⁄8 "±1⁄8"24
1
⁄2"±3⁄16" min. 20"
Sharp Electronics Corporation
Sharp Plaza, Mahwah, NJ 07430-2135
For more information call: 1-800-BE-SHARP
www.sharp-usa.com
©2000 Sharp Electronics Corporation
On-Screen Recipes - 24 choices; No Guess Cooking - 36 choices; SuperDefrost - 3 foods;
CompuDefrost™- 6 foods; More From Your Microwave; Breakfast Bar - 6 foods; Lunch on the Run - 6 foods;
One Dish Dinners - 6 recipes; Low Calorie Entrees - 6 recipes; Supper Soups and Sauces - 6 recipes;
Delicious Desserts - 6 recipes. Beverage Center - 2 choices.
Lunch and Snacks - 6 foods; One Dish Dinners - 6 recipes;
Instant Action - 12 choices; CompuDefrost™- 6 choices.
Specifications
SMART & EASY
touch screen microwaves
You Won’t Believe What They Can Do
LCD Display
The Smart & Easy Touch Screen “talks” with
users through an advanced, two-color LCD.
Improve Meals by Just a Touch
No-Guess Cooking
More From Your Microwave Touch Screen
More From Your Microwave offers a selection
of step-by-step, interactive recipes — along
with Breakfast Bar and Lunch on the Run,
pre-programmed cooking options!
one
As consumers continue to squeeze more out of life, they increasingly value
their time — and their health. That’s why Sharp, a world leader in
microwave ovens, has developed Smart & Easy™Touch Screen microwaves.
They’re fast, they’re simple, and they’ve taken the guesswork out of
microwave cooking! With Smart & Easy, even the busiest consumers can
cook complete and healthy meals.
You won’t believe what they can do! Breakfasts, lunches, soups, snacks,
beverages, you name it. All are prepared by following the step-by-step
directions displayed on the Smart & Easy Touch Screen. And, like all Sharp
microwaves, these ovens feature the Sharp Carousel®turntable, ensuring
that foods heat, defrost and cook evenly.

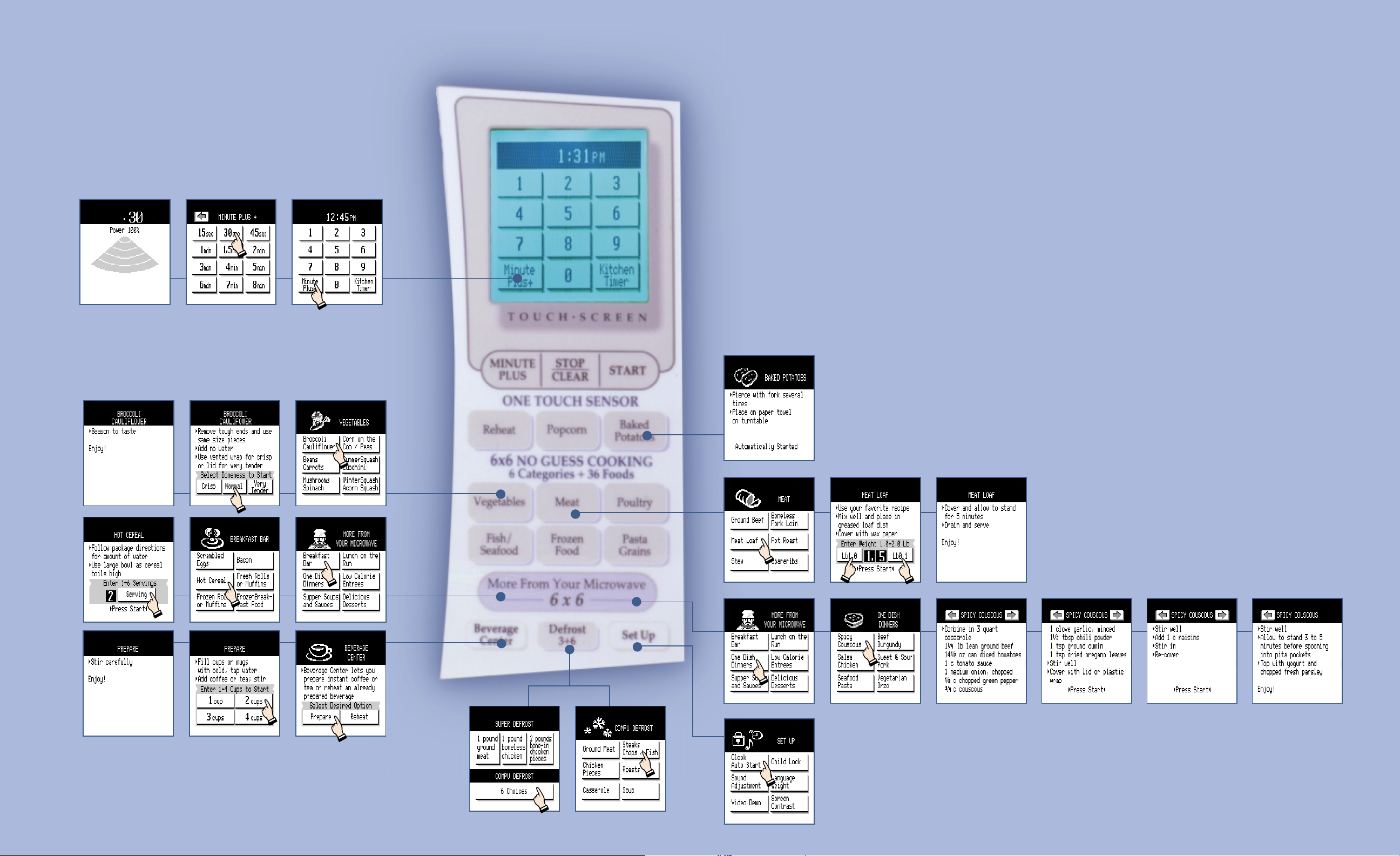

THE TOUCH SCREEN
Smart & Easy microwaves literally lead users through the preparation of
meals with an interactive, step-by-step Touch Screen. Users follow simple
instructions, selecting menu and cooking options by touching the Touch
Screen LCD. Smart & Easy Touch Screen microwaves do the rest, automati-
cally determining when cooking is done, resulting in perfectly cooked foods
each time, every time.
INGREDIENTS
1 c sliced carrots
1 c sliced celery
1/2 c chopped red pepper
1/2 c chopped green pepper
1/2 c sliced green beans
1 large onion, minced
2 cloves garlic, minced
28 oz. can crushed tomatoes
19 oz. can kidney beans, rinsed and drained
19 oz. can black beans, rinsed and drained
1 1/2 c water
1/2 c barley
2 tbsp chili powder
1 tsp cumin
2 tsp Italian seasoning
1 tsp salt
1/4 tsp pepper
Garnish: Parmesan cheese or sour cream
PROCEDURE
Combine in a 3-quart casserole the first
twelve ingredients. Then stir in remaining
five ingredients. Cover. When you touch
START, the oven will take over to cook
the chili perfectly.
VEGETARIAN CHILI

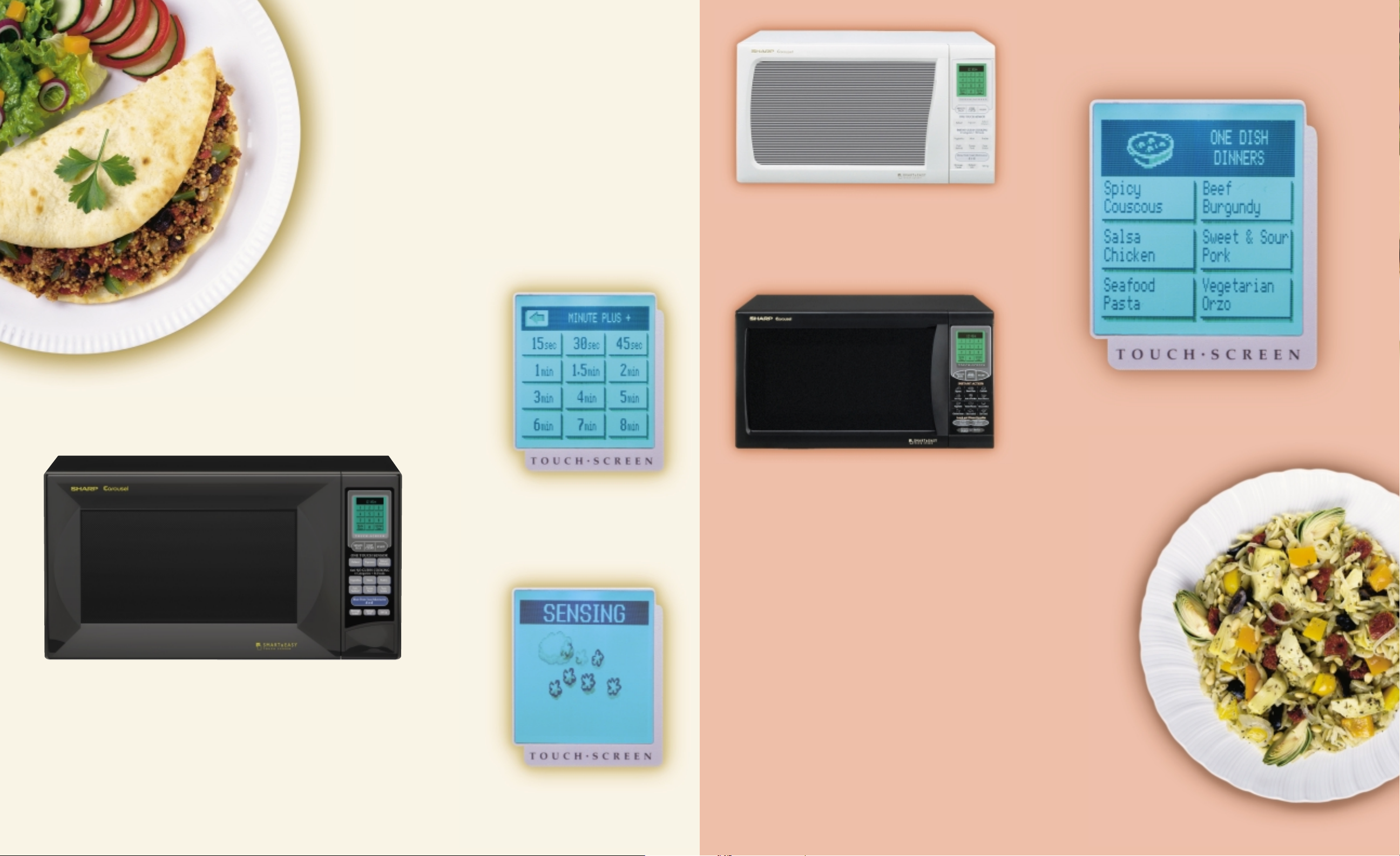

R-440DW
The R-440D has 1.6 cubic feet of cookin space, a 14 1/8"
diameter Carousel turntable, and 1200 watts of power!
(Shown in white, also availabe in black.)
Smart & Easy’s exclusive No-Guess Cooking technology combines Sharp’s
No-Guess Sensor with programmed “intelligence” to automatically determine when
food is defrosted, heated, or cooked. 6x6 No-Guess Cooking offers a selection of six
food categories, each of which offers a choice of six foods. That’s 36 different foods
that can be cooked by following the simple, foolproof, cooking steps offered by the
interactive Touch Screen!
MORE FROM YOUR MICROWAVE
Smart & Easy’s More From Your Microwave goes even further, leading the user
through quick and complete recipes for One Dish Dinners, Low Calorie Entrees, Supper
Soups & Sauces, and Delicious Desserts. Following the simple instructions on the
Touch Screen, users can easily prepare appealing recipes such as Salsa Chicken,
Seafood Pasta, and Stuffed Acorn Squash — along with many other delicious foods!
