Sharp LC-32LD164E, LC-32LD165E, LC-32LD166K, LC-32LD165RU Schematic
LC-32LD164
160mm
125mm
100mm
80mm
63mm
50mm
A-data-1
Corporate Trademark
Supplied accessories
DE
Mitgeliefertes Zubehör
SK
Dodané príslušenstvo
FR
Accessoires fournis
DA
Medfølgende tilbehør
IT
Accessori forniti
NO
Tilbehør som følger med
NL
Meegeleverde accessoires
ET
Komplekti kuuluvad tarvikud
ES
Accesorios suministrados
LV
Komplektā ietvertie piederumi
EL
Παρεχόμενα εξαρτήματα
LT
Pateikiami priedai
PT
Acessórios fornecidos
SL
Dobavljeni dodatki
SV
Medföljande tillbehör
BU
Принадлежности в комплекта
SU
Toimitukseen kuuluvat lisävarusteet
SE
Isporučena dodatna oprema
RU
Аксессуары
RO
Accesorii furnizate
PL
Dostarczone akcesoria
SR
Приложена додатна опрема
TR
Verilen aksesuarlar
UK
Аксесуари в комплекті
HU
Mellékelt tartozékok
KK
Ұсынылатын қосымша керек-жарақтар
CS
Dodávané příslušenství
Operation Manual
Quick Start Guide
LC-32LD165
LC-32LD166
SERVICE MANUAL
SE00LC32LD164
Issued:12
LED LCD COLOUR TELEVISION
th
May 2014
DVB-T /T2/ DVB-C (HDTV), PAL
TABLE OF CONTENTS ....................................................................................................................... 2
ELECTRICAL SPECIFICATIONS ....................................................................................................... 3
IMPORTANT SERVICE SAFETY PRECAUTIONS ................................................................................ 4
OPERATION MANUAL ........................................................................................................................... 7
DIMENSIONS .................................................................................................................................... 13
INTRODUCTION ............................................................................................................................... 14
REMOVING MAJORS PARTS ...................................................................................................... 16
CIRCUIT DESCRIPTIONS.................................................................................................................... 20
SERVICE ADJUSTMENTS.............................................................................................................. 35
SOFTWARE UPDATE .............................................................................................................................. 40
TROUBLESHOOTING ............................................................................................................................ 46
SCHEMATIC DIAGRAMS ........................................................................................................................ 53
PRINTED WIRING BOARD............................................................................................................. 76
OVERALL WIRING DIAGRAM ....................................................................................................... 81
CABINET AND MAIN COMPONENTS ............................................................................................... 82
REPLACEMENT PART LISTING.......................................................................................................... 87
PACKING ASSEMBLY ..................................................................................................................... 103
B/G, I / SECAM B/G, D/K, L/L’ SYSTEM COLOUR TELEVISION
MODEL
In the interests of user safety (required by safety
regulations in some countries) the set should be restored to its original condition and only parts identical
to those specied should be used.
CONTENTS
LC-32LD164E
LC-32LD165E
LC-32LD166K
LC-32LD165RU
SHARP CORPORATION
1
This document has been published to
be used for after sales service only.
The contents are subject to change without notice.
LC-32LD164
LC-32LD165
LC-32LD166
1. SPECIFICATIONS….................................................................................................................... 3
2. IMPORTANT SERVICE SAFETY PRECAUTIONS..................................................................... 4
3. OPERATION MANUAL............................................................................................................... 7
4. DIMENSIONS.............................................................................................................................. 13
5. INTRODUCTION ........................................................................................................................ 14
6. ASSY PANEL REMOVAL……………………………………………………………………………… 16
7. MAJORS INFORMATIONS……………………………………………………………………………. 20
TABLE OF CONTENTS
5.1. General Block Diagram .............................................................................................. 14
5.2. MB60 Placement of Blocks.......................................................................................... 15
7.1 U401 (HT5561JUDT / HT5561PUDT)……………………………………………………… 20
7.2 U101 (CXD2837ER)…………………………………………………………………………. 23
7.3 U405 (TC58NVG0S3HTAI0)………………………………………………………………... 24
7.4 U414 (74HC4052PW)……………………………………………………………………….. 25
7.5 U601 (TSD5721)…………………………………………………………………………….. 25
7.6 IC9101 (SSC9522S-TL)…………………………………………………………………….. 26
8. DETAILED ICS INFORMATION………………………………………………………………………. 27
8.1 U401 (HT5561JUDT / HT5561PUDT)……………………………………………………… 27
8.2 U101 (CSD2837ER)………………………………………………………………………….. 30
8.3 U405 (TC58NVG053HTAI0)…………………………………………………………………. 31
8.4 U414 (74HC4052PW)………………………………………………………………………… 32
8.5 U601 (TAS5721)………………………………………………………………………………. 33
8.6 IC9101 (SSC9522S-TL)……………………………………………………………………… 34
9. ADJUSTMENT PROCEDURE…………………………………………………………………………. 35
9.1 OSD MENU……………………………………………………………………………………. 35
9.2 ADC ADJUSTMENT AND WHITE BALANCE ADJUSTAMENT………………………… 39
10. SOFWARE UPDATE.................................................................................................................. 40
10.1 Introduction.................................................................................................................. 41

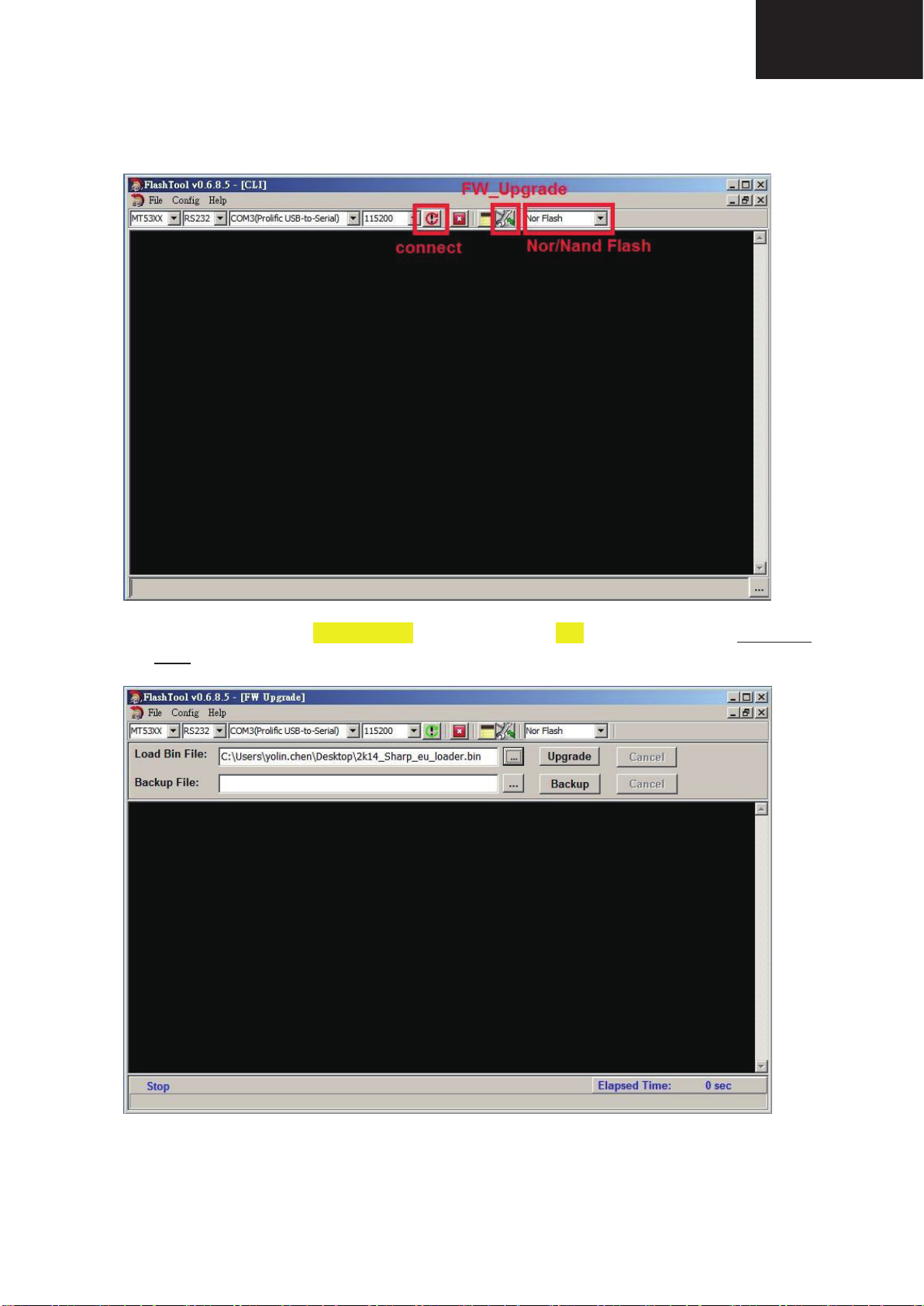

10.2 Connect to ISP board to upgrade board loader…………………………………………. 41
10.3 Connect to USB port to upgrade the software…………………………………………… 44
11. TROUBLESHOOTING TABLE……………………………………………………….…….….….…. 46
12. POWER TREE........................................................................................................................... 52
13. SCHEMATIC DIAGRAMS ………………………........................................................................ 53
14. PRINTED WIRING BOARD………………………………………………………………………….. 76
15. OVERALL WIRING DIAGRAM………………………………....................................................... 81
16. CABINET AND MAIN COMPONENTS...................................................................................... 82
17. REPLACEMENT PART LISTING……………………………………………………………………. 87
18. PACKING ASSEMBLY……………………………………………………………………………….. 103
2
ELECTRICAL SPECIFICATIONS
OPERATION MANUAL
LC-32LD164
LC-32LD165
LC-32LD166
SPECIFICATIONS
Item
TVStandard
TV Function
Receiving
Channel
TV-Tuning System Auto Preset 1599ch, Auto Label, Auto Sort
Stereo/bilingual NICAM/A2
Digital
VHF/UHF ATV: IRA-E69, DVB-T: E5-E69
CATV S-band, S1-S41ch
DVB-T(2K/8K OFDM),DVB-C,
DVB-T2 (only LD165)
W5 reifilpma oiduA × 2
LC-32LD164E
LC-32LD165E
LC-32LD165RU
lanogaid ” / 80cm32 ezis neercs DCL
)H(231 )mm( rekaepS × 34(W) × 30(D)
57 FHV/FHU ANNETNA Ω
LC-32LD166K
)stod 3 x 867 x 6631( stod 462,471,3 stod fo rebmuN
06 LAP/34.4 CSTN/85.3 CSTN/MACES/LAP metsys ruoloc oediV
-----
)K/D,I,G/B(RICC eugolanA
DVB-T(2K/8K OFDM),DVB-T2
DVB-T: E5-E69
-----
-----
Rear
Side
OSD language
Weight
CVBS/Y/Pb(Cb)/Pr(Cr),RCA pin (L/R)
Digital Audio out Optical Digital audio output × 1 (PCM)
C.I.(Common Interface) EN50221, R206001, CI Plus specification
English, German, French, Italian, Dutch, Spanish, Greek, Portuguese, Swedish,
Finnish, Russian, Polish, Turkish, Hungarian, Czech, Slovak, Danish, Norwegian,
Estonian, Latvian, Lithuanian, Slovenian, Bulgarian, Croatian, Romanian, Serbian,
Ukrainian
Without stand 5.84 kg
With stand 6.2 kg
TNENOPMOC
CRA ,tupni oidua dna oediv latigiD 1 IMDH
tupni oidua dna oediv latigiD 2 IMDH
yalp aidem-itlum ,etadpu erawtfoS BSU
)tuptuo oiduA( kcaj mm5.3 Ø ENOHPDAEH
zH05 ,V042-022 CA tnemeriuqeR rewoP
tuptuo VT ,tupni BGR ,tupni C/Y ,tupni VA(TRACS TRACS
rotcennoc krowteN A/N TENREHTE
)78026CEI dohteM( )W 3.0 < ybdnatS( W 35 noitpmusnoC rewoP
Operating temperature
• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement
ithout prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from
individual units.
0°C to + 40°C
3
LC-32LD164
LC-32LD165
LC-32LD166
IMPORTANT SERVICE SAFETY PRECAUTION
Service work should be performed only by qualied service technicians who are thoroughly familiar with all
safety checks and the servicing guidelines which follow:
WARNING
1. For continued safety, no modication of any circuit should be attempted.
2. Disconnect AC power before servicing.
CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF
FIRE REPLACE ONLY WITH SAME TYPE
F9901, F9902 (T 5A/250V)
BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)
Before returning the receiver to the user, perform the following safety checks:
1. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the
chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and
compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.
3. To be sure that no shock hazard exists, check for leakage current in the following manner.
• Plug the AC cord directly into a 220~240 volt AC outlet. (Do not use an isolation transformer for this test).
•Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15µF capacitor in series with all exposed metal
cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.
•A true RMS reading multimeter should be used for this test, especially where the equipment uses a switch mode
power supply which may result in very non-sinusoidal leakage current.
•Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor.
All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must
be used only for the purpose of completing these checks.)
Any reading of 1.05V peak (this corresponds to 0.7 mA. peak AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the monitor to the owner.
DVM
AC SCALE
1.5k ohm
10W
0.15 µF
TEST PROBE
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
SAFETY NOTICE
Many electrical and mechanical parts in LCD television have special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily
increased by using replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are identied in this manual; electrical components
having such features are identied by “ “.
!
For continued protection, replacement parts must be identical to those used in the original circuit.
The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended
replacement parts shown in this service manual, may create shock, re or other hazards.
4
LC-32LD164
LC-32LD165
LC-32LD166
PRECAUTIONS FOR USING LEAD-FREE SOLDER
1 Using lead-free wire solder
When xing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead
wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend you to
use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our
service station or service branch in your area.
2 Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead solder by
40°C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended
period of time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be
exceeded, remove the bit from the PWB as soon as you conrm the steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and
off the power of the bit as required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every
use of it.
When the tip of the soldering bit is blackened during use, le it with steel wool or ne sandpaper.
Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing.
5
LC-32LD164
A. Information on Disposal for Users (private households)
1. In the European Union
Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!
Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires
proper treatment, recovery and recycling of used electrical and electronic equipment.
Following the implementation by member states, private households within the EU states may return their used
electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local
retailer may also take back your old product free of charge if you purchase a similar new one.
*) Please contact your local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately
beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery
and recycling and thus prevent potential negative effects on the environment and human health which could otherwise
arise due to inappropriate waste handling.
2. In other Countries outside the EU
If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.
For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t
purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.
B. Information on Disposal for Business Users
1. In the European Union
If the product is used for business purposes and you want to discard it:
Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for
the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local
collection facilities.
For Spain: Please contact the established collection system or your local authority for take-back of your used
products.
2. In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.
Attention: Your product
is marked with this
symbol. It means that
used electrical and
electronic products
should not be mixed
with general household
waste. There is a
separate collection
system for these
products.
End of life disposal
The battery supplied with this product contains traces of Lead.
For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste!
There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with
legislation. Please contact your local authority for details on the collection and recycling schemes.
For Switzerland: The used battery is to be returned to the selling point.
For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.
LC-32LD165
LC-32LD166
END OF LIFE DISPOSAL
6
Introduction
Remote control unit
26
27
28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
29
30
31
1.
I
(POWER)
Press to turn the LCD TV on or to
enter standby mode�
2. 0-9 DIGIT BUTTONS
Press to select a TV channel directly�
3. PRE PR
Press to display the previous
selected TV channel�
4. ECO
Press to switch Power Saving
between On and Off�
5.
Press to display programme
information, if available�
6.
Press to toggle audio on and off�
You can also press
(k/l) to
restore the previous volume level�
7. P (
/ )
Press to select programme channel�
8. VIDEO (ADJ)
Press to set the LCD TV to a
predefined picture setting:
Dynamic / Standard / Movie /
Power Saver�
9. SLEEP
Press to turn the LCD TV off within
an amount of time (10 ~ 120
minutes�)
10.
Press to navigate and confirm your
selection�
11. EXIT
Press to exit the LCD TV OSD or
return to the previous layer�
12. R/G/Y/B (Colour Button)
Press to select the pictures with
various colours of text� Different
channels display different functions�
13. SIZE
Press to change the font size: Full
screen, Top half, and Bottom half�
14. SUBPAGE
Press to select the subpage
when the current page contains
subpage(s)�
15. REVEAL
Reveal hidden information such as
answers to a quiz�
16. FREEZE
Press to freeze a moving image on
the screen (only available when your
input source is TV)�
The SCART output signal will also
be frozen when you are watching
digital channels�
Caution: Do not freeze the video
image for long periods of time,
as this may damage the LCD TV
screen�
17.
(INPUT SOURCE)
Press to select an input source�
18. EPG
Press to display electronic
programme guide when watching
digital channels�
19. PR LIST
Press to display channel list�
20. DTV/ATV
Press to switch between DTV and
ATV �
21.
(View Mode)
Press to select picture formats:
Auto / 16:9 / 14:9 / Full Screen /
4:3 / Zoom1 / Zoom2 / Zoom3�
22.
(k/l)
Press to adjust the volume�
23. AUDIO (ADJ)
Press to set the LCD TV to a
predefined sound setting: User /
Music / Speech�
24. DUAL
Press to select MONO / STEREO /
DUAL 1 / DUAL 2 for ATV channel�
Press to select Audio language for
DTV channel�
25. OK
Press to activate a setting�
26. MENU
Press to activate the LCD TV OSD�
27. SUBTITLE
For DTV, press to toggle
off / between available subtitle
languages�
For ATV, press to toggle off /
between available subtitle pages in
Teletext�
28. TELETEXT
Press to activate Teletext�
Press again to activate Teletext
with TV�
Press again to turn off Teletext�
29. HOLD
Press to stop the scrolling of pages�
The text decoder stops receiving
data�
30. INDEX
Press to return to page 100 or the
index page; and then press 0 to 9�
The teletext page will be numbered
and added to the page you select or
the secondary item�
31. In USB mode:
(You need to programme the setting
with remote control to control
connected devices�)
Press to skip back to the previous
title or track�
Press to stop playback�
Press to start/pause playback�
Press to skip forward to the next title
or track�
LC-32LD164
LC-32LD165
LC-32LD166
OPERATION MANUAL
7
LC-32LD164
LC-32LD165
LC-32LD166
Operation Manual (Continued)
Front view
Remote control sensor
Control Button - Rear view
42”
32”
46”
50”
42”
Power indicator
P
Volume
Programme
(Channel)
Input Source
Menu
Power
32”
46”
50”
LD166 / LD266
ENTERNET
SCART
(CVBS Tuner out)
Digital Audio out
HDMI 2 HDMI 1
(ARC)
DIGITAL AUDIO
VIDEO IN
VIDEO INPUT
COMPON ENT
COMPONENT
(VIDEO INPUT)
Common Interface slot
Headphone Output
USB
Tuner Input
AUDI O
L/R AUDIO INPUT
8
Operation Manual (Continued)
LC-32LD164
LC-32LD165
LC-32LD166
RF cable
SCART cable
SCART
75Ω
DVD recorder / VCR
75Ω
YPbPrLR
RF cable
AV INPUT
Digital camera
Game console
AV Composite cable
VIDEO IN
75Ω
Digital Audio out
Amplifier with
Speaker system
Digital audio cable
Component cable
VIDEO IN
COMPO NENT
Audio cable
AUD IO
DVD player
Blu-ray player
LD266 / LD166
Internet
PC
ETHERNET
HDMI
Broadband router
Modem
LAN
ETHERNET cable
ETH ERNET
9
LC-32LD164
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
Preparation
Supplied Accessories
Note
• Always use the AC cord supplied with the TV.
• The illustrations above are for explanation purposes and may vary slightly from the actual accessories
LC-32LD165
LC-32LD166
Operation Manual (Continued)
Connecting external devices
HDMI cable
HDMI 1 / HDMI 2
DVD player
HDMI
Amplifier with
Speaker system
Blu-ray player
HDMI
PC
HDMI Out
HDMI cable
HDMI In
HDMI Out
HDMI cable
SCART
Decoder
SCART cable
Attaching/Detaching the Stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC IN terminal.
• Before attaching (or detaching) the stand, spread a cushion under the TV to prevent it from being damaged.
Caution
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
1 Put the TV face down on a safe surface that is covered by a soft and smooth cloth.
2 Adjust the TV stand to the bottom of the TV.
3 Fasten the screws by using a cross-head screwdriver (Not supplied).
Caution
• To avoid damages, do not push too hard or put excessive pressure to the stand neck while turning the TV
to suit your comfortable viewing angle.
Note
• To detach the stand, perform the steps in reverse order.
10
Operation Manual (Continued)
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
LC-32LD164
LC-32LD165
LC-32LD166
Wall Mounting
TV screen size (Inches)
Using the Remote Control Unit
Use the remote control unit by pointing towards the remote control sensor on the TV. Objects between the remote control unit
and the remote control sensor may prevent proper operation.
VESA-compatible wall bracket
(millimeters) (W x H)
Screw type(Metric)
mm 81 x 6M mm 004 x 004 "05
11
LC-32LD164
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
Wall Mounting
TV screen size (Inches)
VESA-compatible wall bracket
(millimeters) (W x H)
Screw type(Metric)
mm 81 x 6M mm 004 x 004 "05
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
LC-32LD165
LC-32LD166
Operation Manual (Continued)
Preparation
Installing Batteries in the Remote Control Unit
1 Remove the battery compartment from the remote control.
2 Insert two “ AAA” size batteries (supplied with the product).
• Place the batteries with their terminals corresponding to the (+) and (-) indications in the battery compartment.
Caution
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical
leakage of old batteries.
• Remove batteries as soon as they are worn out. Chemicals that leak from batteries come in contact with skin can cause
a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove batteries from it.
• The batteries (batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
Preparation
Supplied Accessories
Note
• Always use the AC cord supplied with the TV.
• The illustrations above are for explanation purposes and may vary slightly from the actual accessories
12
32” Dimensional Drawings
14.0 704.6 14.0
LC-32LD164
LC-32LD165
LC-32LD166
DIMENSIONS
66.0
732.6
14.0
63.6
399.1
453.4
483.0
.
.
165.0
53.0
317.5
316.3 100.0
138.5100.0
CAUTIO N
TO PREVENT ELEC TRIC SH OCK
，
DO NOT REMOVE COV ER.
NO-USER SERVI CEABL E PARTS IN SIDE.
REFER SERVICI NG TO QUA LIFIE D
SERVICE PERSO NNEL.
P
AUDIO IN
VIDEO IN
Engraved l etter f or 0.3m m and pol ish ins ide (in clude d ecora tive ga p).
MT-11020
13
LC-32LD164
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Block Diagram
20.0VUE cinosanaP 41k2
CUE cinosanaP 41K2
3 23Wednesday, January 22, 2014
715G6173-M0A
<備註>
03_Block Diagram
G6173-M0A
eziSLEDOM MEO
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
備註
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
線 路 圖 編
號
LC-32LD165
LC-32LD166
5.1 General Block Diagram
14
INTRODUCTION
5.2 Placement of Blocks
LC-32LD164
LC-32LD165
LC-32LD166
MAIN BOARD LD164 / LD165
15
LC-32LD164
LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166
Fig 3
LC-32LD165
LC-32LD166
6. ASSY / PANEL REMOVAL
Note: Put the TV face down on a safe surface that is covered by a soft and smooth cloth to avoid damaging LCD Panel.
Front View
REMOVING OF MAJOR PARTS
Back View
Step 1. Remove the base.
Remove 4 screws as fig 3 and pull out the base.
Fig 1
Fig 2
16
Step 2. Remove the rear cover.
Remove 18 screws as Fig 4.
LC-32LD164
LC-32LD165
LC-32LD166
Step 3. Remove the power board.
Remove 6 screws and unplug 2 cables as Fig 5.
Fig 4
Fig 5
17
LC-32LD164
LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166
LC-32LD165
LC-32LD166
Step 4. Remove the scaler board and BKT.
Remove 5 screws and unplug 4 cables as Fig 6.
Step 5. Remove the speakers and connection wire as Fig 7.
Step 6. Remove the bracket, keypad.
Remove 8 screws as Fig 8.
Fig 6
Fig 7
18
LC-32LD164
LC-32LD165
LC-32LD166
Step 7. Remove the Deco, IR board, LVDS cable.
Remove 6 screws as Fig 9 and finish detaching.
Fig 8
Fig 9
19
LC-32LD164
CHAPTER 5.
MAJOR IC INFORMATIONS
7. MAJOR IC INFORMATION
7.1. U401 (MT5561JUDT) & U401 (MT5561PUDT only for LC-50LD266)
General Description The MediaTek MT5561JUDT 1Gb & The MediaTek MT5561PUDT 2Gb family consists of a front-end
demodulator, a backend decoder and a TV controller and offers high integration for advanced applications. It integrates a
transport de-multiplexer, a high definition video decoder, an audio decoder, a two-link LVDS transmitter, a mini-LVDS
transmitter, and an NTSC/PAL/SECAM TV decoder with a 3D comb filter (NTSC/PAL). The MT5561PUDT 2Gb enables
consumer electronics manufacturers to build high quality, low cost and feature-rich DTV. World-Leading Audio/Video
Technology: The MediaTek MT5561JUDT 1Gb & The MT5561PUDT 2Gb support Full-HD MPEG1/2/4/h.264 / VC1/ AVS
video decoder standards, and JPEG. The MediaTek MT5561JUDT 1Gb & The MT5561PUDT 2Gb also support MediaTek
MDDiTM de-interlace solution which can reach very smooth picture quality for motions. A 3D comb filter added to the TV
decoder recovers great details for still pictures. The special color processing technology provides a natural, deep colors and true
studio quality video. Moreover, the MediaTek MT5561JUDT 1Gb & the MT5561PUDT 2Gb family has built-in high resolution
and high-quality audio codec. Rich Features for High Value Products: The MediaTek MT5561JUDT 1Gb & The
MT5561PUDT 2Gb family enable true single-chip experience. It integrates high-quality HDMI1.4a, high speed VGA ADC,
two-link LVDS, , USB2.0 receiver, Ethernet MAC+PHY, single core CPU, and DVB-T/DVB-C demodulators . WW Common
Platform Capability: The MediaTek MT5561JUDT 1Gb & The MT5561PUDT 2Gb family supports, DVB-T, and DVB-C
demodulation functions. It reserves transport stream inputs for external demodulators for other countries or areas. TV maker
can easily port the same UI to worldwide TV models. First-class adjacent and co-channel rejection capability grants excellent
reception. Professional error-concealment provides stable, smooth and mosaic-free video quality
.
Key Features
Worldwide multi-standard analog TV demodulator/DVB-T/DVB-C demodulators demodulators
1. Powerful CPU core
2. A transport de-multiplexer
3. A muti-standard video decoder
4. Rich format audio codec
5. Ethernet MAC+PHY
6. Local dimming (LED backlight) (option)
7. Panel overdrive control
8. Two-link LVDS
FEATURE LIST
Host CPU
• ARM based CPU 700MHz
• I-Cache and D-Cache for core ARM
• Supports booting from serial flash, NAND flash
• Supports security boot
• JTAG ICE interface
• Watchdog timers
Transport Demultiplexer
• New generation demux design for transport stream (TS) process
• Supports internal CI condition : 1 parallel TS input/ 2 serial inputs.
• Supports CI/CI+ interface and controller
• Supports DVB-T/T2, DVB-C and input data rate and format
MPEG1/2 Decoder
• MPEG MP@ML, MP@HL
• Supports de-blocking filter
• Full-HD 60FPS decoder
MPEG4 Decoder
LC-32LD165
LC-32LD166
CIRCUIT DESCRIPTIONS
20
• Full-HD 60FPS decoder
H.264 HD Decoder
• Full-HD 60P decoder
Still Image decoding
• JPEG decoder (base-line or progressive), hardware accelerator
De-mosquito engine
• For all AV inputs
2D Graphics
• Supports multiple color modes
• Direct color mode ARGB8888, ARGB4444, ARGB1555, RGB565
• Palette mode, 256 color indexed mode (8bpp), 16 color indexed mode (4bpp), 4 color indexed mode (2bpp)
• Point, horizontal/vertical line primitive drawings
• Rectangle fill and gradient fill functions
• Bitblt with color key
• Alpha composition and optional pre-multiplied format
• Stretch Bitblt
• YCbCr to RGB color space conversion
• Supports index to direct color mode bitblt
• ROP bitblt
Video Plane
• Supports video freeze and over scan
• Flesh tone management
• Gamma correction
• Color Transient Improvement (CTI)
• 2D Peaking
• Saturation/hue adjustment
• Brightness and contrast adjustment
• Black and White level extender
• Adaptive Luma management
• Automatic detect video, film and mixed-mode source
• 3:2/2:2 pull down source detection
• Supports FHD motion-adaptive de-interlace
• Supports excellent low angle image processing
• Brilliant boundary shaping for moving object
• Advanced non-linear panorama scaling
• Programmable zoom viewer
• Progressive scan output
• Supports alpha blending for OSD on video plane
• Dithering processing for flat panel display
• Frame rate conversion
• Supports FHD panel and VGA dot-to-dot
OD (option)
• Supports 60Hz Full-HD and WXGA panel over drive
LVDS
• Supports 6/8-bit one-link or 6/8-bit dual-link LVDS transmitter
• Built-in spread spectrum for EMI performance
• Programmable panel timing output
CVBS In
• On-chip 108 MHz 10-bit video ADC
• Supports PAL (B,G,D,H,I), NTSC, NTSC-4.43, SECAM
• NTSC/PAL supports 3D/2D comb filter
• Built-in motion-adaptive 3D Noise Reduction
• Supports 2-channel CVBS
• Supports SCART connector
Component Video In
• Supports two component video inputs
• Supports 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
21
LC-32LD164
LC-32LD165
LC-32LD166
LC-32LD164
Audio ADC
♦ Supports 4-pair L/R input
HDMI Receiver
• Three-port two-channel HDMI 1.4b
• Maximum data rate can be up to 2.97 GHz
• Audio return channel
• CEC
Video bypass
• TV bypass
• CVBS Monitor (any AV input)
TV audio demodulator
• Supports BTSC / EIA-J / A2 / NICAM / PAL FM / SECAM world-wide formats
• Standard automatic detection
• Stereo demodulation, SAP demodulation
• Mode selection (Main/SAP/Stereo)
Audio DAC
• Supports 2-pair audio DACs
DRAM Controller
• 16-bit DDR3 interface
• Embedded DDR3-1333 DRAM
Audio DSP
•
Supports AC-3 (Dolby Digital) dec
oding and E-AC3 (Dolby Digital Plus) decoding
• MPEG-1 layer I/II decoding
• Supports HE-AAC
• Supports Dolby DDCO.
• Audio output: 5.1ch + 2ch (down mix) + 2ch(bypass)
• Pink noise and white noise generator
• Equalizer
• Bass management
• Audio and video lip synchronization
• Supports bass/treble
• Automatic volume control
S/PDIF interface
• Supports SPDIF in bypass
• One SPDIF out
Analog TV IF Demodulator
• Supports analog TV standard
• Accept direct IF and low IF
• Full digital AGC control and carrier recovery
• Embedded SAW filter and IF Amplifier. Cost effective TV front-end structure and no more cost on:
♦ External analog SAW filters (Video/Audio)
♦ External analog IF demodulator
♦ External peripheral circuit on CVBS signal data path
♦ External SAW filter and IF VGA on tuner
Digital TV (DVB-T) Demodulator
• ETSI 300 744 & NorDig Unified compliant
• Excellent performance for SFN & Indoor reception
• Supports 2k and 8k modes
• Supports QPSK,16-, and 64-QAM constellations
• Supports 1/4, 1/8, 1/16, and 1/32 guard intervals
• Supports hierarchical & non-hierarchical modes
• Accepting 6,7,8 MHz channel bandwidth
• Automatic mode detection
• Full-digital timing/frequency with wide acquisition range
• Supports triple offset
LC-32LD165
LC-32LD166
22
• Excellent adjacent channel interference (ACI) rejection capability
• Excellent co-channel interference (CCI) rejection capability
• Fast channel lock time
• Accept direct IF and low IF
• Embedded SAW filter and IF Amplifier. Cost effective TV front-end structure and no more cost on:
♦ External analog IF demodulator
♦ External SAW filter and IF VGA on tuner
Digital TV (DVB-C) Demodulator
• ETSI 300 429, ITU J.83 Annex A, NorDig Unified, and C-Book compliant
• Wide symbol rate support: 1 to 7 Msps
• Supports 16-, 32-, 64-, 128-, and 256-QAM
• Full-digital timing/frequency with wide acquisition range
• Automatic symbol rate and modulation type detection for fast channel scan
• Excellent narrow-band interference rejection capability
• Accept direct IF and low IF
• Embedded SAW filter and IF Amplifier. Cost effective TV front-end structure and no more cost on:
♦ External analog IF demodulator
♦ External SAW filter and IF VGA on tuner
Peripherals
• Three built-in UARTs with Tx and Rx FIFO
• Built-in 10/100M Ethernet MAC and Ethernet PHY
•
Eight basic serial interfaces: Four are the masters for general purpose and two of them can be active in standby mode
one is the slave for VGA DDC or for general purpose, the other three extra slave serial interfaces are used for HDMI
EDID data, all of the ten serial
interfaces can support up to 400KHz.
• Three PWMs, two of them can be active in standby mode
• IR receiver
• Real-time clock and watchdog controller
• Built-in one USB2.0/1.1 port support external hub with 8 OUT and 8 IN endpoints, and one simplified USB2.0/1.1
port with 1 OUT and 2 IN endpoints.
• Built-in uP for standby mode
♦ Fast boot from standby mode ( should corresponding to specific PCB Hardware)
• Supports SDIO interface
• Supports smart card interface
• Supports two serial flash or one serial and one NAND flash
• Supports eight-input low-speed ADC
• Supports boundary scan (JTAG)
IC Outline
• PBGA Package
• 3.3V/1.2V and 1.5V for DDR3
7.2. U101 (CXD2837ER except for LC-50LD264)
General Description
The CXD2837ER is a combined DVB-T2, DVB-T and DVB-C demodulator that conforms to the ETSI EN 302-755 v1.3.1
(second generation Terrestrial), ETSI EN 300-744 V1.6.1 (Terrestrial) and ETSI EN 300-429 v1.2.1 (Cable) standards. The
CXD2837ER demodulator offers class-leading performance, optimized BOM requiring no external memory and low processor
overhead.
Features
• Features DVB-T2
• Complies with DTG D-BOOK 7.0 V2.0, NorDig-Unified Test Specification ver2.2.1 and targeting upcoming Digital
Europe Ebook requirements
• Supports 5 MHz, 6 MHz, 7 MHz, 8 MHz and 1.7 MHz BW
• Supports all DVB-T2 modes, including
• Single and multiple-PLPs
• T2-Lite profile
• SISO and MISO transmission
♦ Simple API
• Fully-automatic acquisition
• Fully-automatic L1-signalling decoding
• Automatic guard-interval detection
23
LC-32LD164
LC-32LD165
LC-32LD166
LC-32LD164
• Automatically-calculated constant-rate TS output (using L1 signalling and ISSY)
• Frequency offset detection range up to +/-600 kHz allows acquisition and performance optimization via tuner frequency
offset compensation
• Stream processor for automatic common-PLP and data-PLP combination
• Null-packet insertion
• Improved performance for multipath channel (outside the guard interval)
Features DVB-T
• Complies with all European standards for static and portable equipment including NorDig-Unified Test Specification
ver2.2.1 DTG D-BOOK 7.0 V2.0, IEC 62216 and targeting upcoming Digital Europe Ebook requirements
• Smart Auto Acquisition controller with fast 2k/8k acquisition, low processor overhead and re-acquisition mode
• Frequency offset detection range up to +/-600 kHz allows acquisition and performance optimization via tuner
frequency offset compensation
• Advanced channel corrector for low multipath loss and enhanced Doppler performance
• Improved CNR performance
Features DVB-C
• Complies with NorDig-Unified Test specification Ver2.2.1
• Wide symbol range, 1.8 to 7.2 Msym/s
• Integrated matched filter 0.15 roll-off factor
• Frequency offset detection range up to ±500 kHz allows acquisition and performance optimization via tuner frequency
offset compensation
• Excellent equalization for cancellation of reflections at larger delays
• Improved performance against large continuous wave interference
• General Features
• Single, 41 MHz or 20.5 MHz crystal with tolerance up to ±100 ppm. (Targeting support for crystal sharing with Sony
SiTuner or other Sony Analogue/Digital demodulator)
• High performance ADC
• RF power level monitor ADC
• Low IF and high IF (36 MHz) mode input
• Fast 400 kHz I2C compatible bus interface
• Quiet I2C interface for dedicated tuner control
• Programmable I2C addresses allowing up to four devices to be connected in a single system
• Automatic IF AGC and optional programmable RF AGC/GPIO functions
• Configurable parallel and serial MPEG-2 TS outputs with smoothing buffer
• Simple API
• 3.3 V, 1.1 V supplies
• 48 pin VQFN 7 mm x 7 mm package
• Supplied with full reference design, including software driver, printed circuit board schematic/layouts and
documentation
Applications
• Set Top Boxes
• IDTV with Digital only or Hybrid Tuner Support
• PC TV
• PVRs and recordable Blu-rayTM/DVD players
• Professional equipment
7.3. U405 (TC58NVG0S3HTAI0 only for LC-50LD266)
General Description
The TC58NVG0S3HTAI0 is a single 3.3V 1Gbit (1,140,850,688bits) NAND Electrically Erasable and Programmable Read-Only
Memory (NAND E
2
PROM) organized as (2048 +128) bytes × 64 pages × 1024blocks. The device has a 2176-byte static
registers which allow program and read data to be transferred between the register and the memory cell array in 2176-byte
increments. The Erase operation is implemented in a single block unit (128 Kbytes + 8 Kbytes: 2176 bytes × 64 pages). The
TC58NVG0S3HTAI0 is a serial-type memory device which utilizes the I/O pins for both address and data input/output as well as
for command inputs. The Erase and Program operations are automatically executed making the device most suitable for
applications such as solid-state file storage, voice recording, image file memory for still cameras and other systems which
require high-density non-volatile memory data storage.
Features
‧Organization
x8
Memory cell array 2176 64K 8
LC-32LD165
LC-32LD166
24
Register. 2176 8
Page size 2176 bytes
Block size (128K 8K) bytes
• Modes Read, Reset, Auto Page Program, Auto Block Erase, Status Read, Page Copy
• Mode control
Serial input/output Command control
• Number of valid blocks
Min 1004 blocks Max 1024 blocks ‧
• Power supply VCC = 2.7V to 3.6V
• Access time Cell array to register 25μs max Serial Read Cycle 25 ns min (CL=50pF)
• Program/Erase time
Auto Page Program 300μs/page typ. Auto Block Erase 2.5 ms/block typ.
• Operating current
Read (25 ns cycle) 30 mA max.
Program (avg.) 30 mA max
Erase (avg.) 30 mA max
Standby 50μA max
• Package TSOP I 48-P-1220-0.50 (Weight: 0.53 g typ.)
•
8 bit ECC for each 512Byte is required.
7.4. U414 (74HC4052PW)
General Description
The 74HC4052 is a high-speed Si-gate CMOS device and is pin compatible with the HEF4052B. The device is specified in
compliance with JEDEC standard no. 7A. The 74HC4052 is a dual 4-channel analog multiplexer/demultiplexer with common
select logic. Each multiplexer has four independent inputs/outputs (pins nY0 to nY3) and a common input/output (pin nZ). The
common channel select logics include two digital select inputs (pins S0 and S1) and an active LOW enable input (pin E). When
pin E = LOW, one of the four switches is selected (low-impedance ON-state) with pins S0 and S1. When pin E = HIGH, all
switches are in the high-impedance OFF-state, independent of pins S0 and S1. VCC and GND are the supply voltage pins for
the digital control inputs (pins S0, S1 and E). The VCC to GND ranges are 2.0 V to 10.0 V for the 74HC4052.The analog
inputs/outputs (pins nY0 to nY3 and nZ) can swing between VCC as a positive limit and VEE as a negative limit. VCC − VEE
may not exceed 10.0 V. For operation as a digital multiplexer/demultiplexer, VEE is connected to GND (typically ground).
Features
♦ Wide analog input voltage range from − 5 V to +5 V
♦ Low ON resistance:
‧80 Ω (typical) at VCC − VEE = 4.5 V
‧70 Ω (typical) at VCC − VEE = 6.0 V
‧60 Ω (typical) at VCC − VEE = 9.0 V
♦ Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
♦ Typical ‘break before make’ built-in
♦ Complies with JEDEC standard no. 7A
♦ ESD protection:
‧HBM JESD22-A114F exceeds 2000 V
‧MM JESD22-A115-A exceeds 200 V
♦ Specified from − 40 °C to +85 °C and − 40 °C to +125 °C
Applications
♦ Analog multiplexing and demultiplexing
♦ Digital multiplexing and demultiplexing
♦ Signal gating
7.5. U601 (TAS5721)
General Description
The TAS5721 is an efficient, digital-input audio amplifier for driving 2.0 speaker systems configured as a bridge tied load (BTL),
2.1 systems with two satellite speakers and one subwoofer, or in PBTL systems driving a single speaker configured as a parallel
bridge tied load (PBTL). One serial data input allows processing of up to two discrete audio channels and seamless integration
to most digital audio processors and MPEG decoders. The device accepts a wide range of input data formats and sample rates.
A fully programmable data path routes these channels to the internal speaker drivers.
LC-32LD164
LC-32LD165
LC-32LD166
25
LC-32LD164
The TAS5721 is a slave-only device, receiving all clocks from external sources. The TAS5721 operates with a PWM carrier
frequency between a 384-kHz switching rate and a 288-KHz switching rate, depending on the input sample rate. Oversampling,
combined with a fourth-order noise shaper, provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
An integrated ground centered DirectPath™ combination headphone amplifier and 2VRMS line driver is integrated in the
TAS5721.
Features
• Audio Input/Output– 10 W x 2 into 8 Ω With PVDD = 24 V
– Supports 2.0.
– Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I
2
S)
– Integrated DirectPath™ Headphone Amplifier and 2 VRMS Line Driver
• Audio/PWM Processing
– Independent Channel Volume Controls With 24-dB to Mute in 0.5 dB Steps
– Separate Dynamic Range Control for Satellite and Sub Channels
– 21 Programmable Biquads for Speaker EQ
– Programmable Two-Band Dynamic Range Control
– Support for 3D Effects
• General Features
– I
2
C™ Serial Control Interface Operational Without MCLK
– Configurable I
2
C Address (0x34 or 0x36)
– Automatic Sample Rate Detection
– Thermal and Short-Circuit Protection
– Wide PVDD Supply Range (4.5 V to 24 V)
Applications
• LED/LCD TVs, Soundbar, Docking Stations, PC Speakers
Output Power vs. PVDD in 2.0 Mode
7.6. IC9101 (SSC9522S-TL)
General Description
The SSC9522S is a controller IC (SMZ method) for half-bridge resonant type power supply, incorporating a floating drive circuit
for High-side MOSFET drive.
※SMZ = Soft-switched Multi-resonant Zero Current switch.
All switching periods work with soft switching operation.
The IC is in SOP18 package, and suitable for high performance power supply system with small size, high efficiency and low
noise, because for various power supply specifications, more effective and easier design works are achievable with effective
functions as the Automatic Dead Time Adjustment, the Uncontrollable Operation Detection and so on.
※Uncontrollable Operation Detection = there are two areas in resonant circuit impedance; capacitance area and inductance
area. The Uncontrollable Operation occurs in capacitance area (the frequency is lower than the resonant frequency, fO), the
output voltage can not be controlled and the switching operation becomes hard switching.
Features
• SOP18 package
• Built-in floating drive circuit for High-side MOSFET
• Soft Start Function, reducing of power MOSFET stress and preventing Uncontrollable Operation, at startup
• Uncontrollable Operation Detection Function on pulse-by-pulse basis, improving the ability of transformer output wattage
because the frequency range is available up to the resonant frequency, fO, and reducing power MOSFET stress
• Automatic Dead Time Adjustment Function, not being necessary to make the dead time adjustment for each power supply
specification
• Protection Functions
- Line Undervoltage Protection Function-(Brown-In／Brown-Out Function)------------------Prevention of excessive input current
and overheat at low input voltage
- External Latch Function--------------------------------------Latch shutdown by external signal input
- Overcurrent Protection Function (OCP) ------------------Three steps protection corresponding to overcurrent levels
- Overvoltage Protection Function (OVP)------------------Latch shutdown
- Overload Protection Function (OLP) ----------------------Latch shutdown
LC-32LD165
LC-32LD166
26
8 DETAILED ICS INFORMATION
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
[2] DETAILED ICS INFORMATION
8.1 U401 (MT5561JUDT) & (MT5561PUDT only for LC-50LD266 )
Block Diagram
LC-32LD164
LC-32LD165
LC-32LD166
27
LC-32LD164
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
Pin Connections and Short Description
LC-32LD165
LC-32LD166
28
LC-32LD164
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
LC-32LD165
LC-32LD166
29
LC-32LD164
LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266
8.2 U101 (CXD2837ER except for LC-50LD264)
Block Diagram
Pin Connections and Short Description
LC-32LD165
LC-32LD166
30
Loading...
