Sharp LC-32L400X User Manual

MODEL

LC-32L400X

LCD COLOUR TELEVISION

OPERATION MANUAL

Supplied accessories

Remote control unit

Operation manual Stand unit

Safety restrains

“AA” size battery (g1)

Stand base

Screws (g 4)

Restraining

band

Screw for

band

Clamps

Contents

Supplied accessories ..............................................1

Dear SHARP customer ............................................2

Important Safety Precautions ................................2

Important information .............................................2

Trademarks ..............................................................2

Attaching the stand .................................................3

Antenna connection ................................................3

Connecting external devices ..................................4

Remote control unit ................................................5

Part names ...............................................................6

Turning the TV on/off ..............................................7

Supplying electric power to the antenna ..............7

Initial auto installation .............................................7

Checking Signal information ..................................7

Auto installation .......................................................8

Programme setup ...................................................8

Selecting a preset AV mode .................................10

Menu operation .....................................................10

Picture menu ..........................................................11

Audio menu ............................................................11

Page

Screws for

clamps

Page

ECO menu ............................................................. 12

Setup menu ........................................................... 12

Option menu ......................................................... 14

Digital setup menu ............................................... 16

Programme Guide ................................................ 17

Info ......................................................................... 17

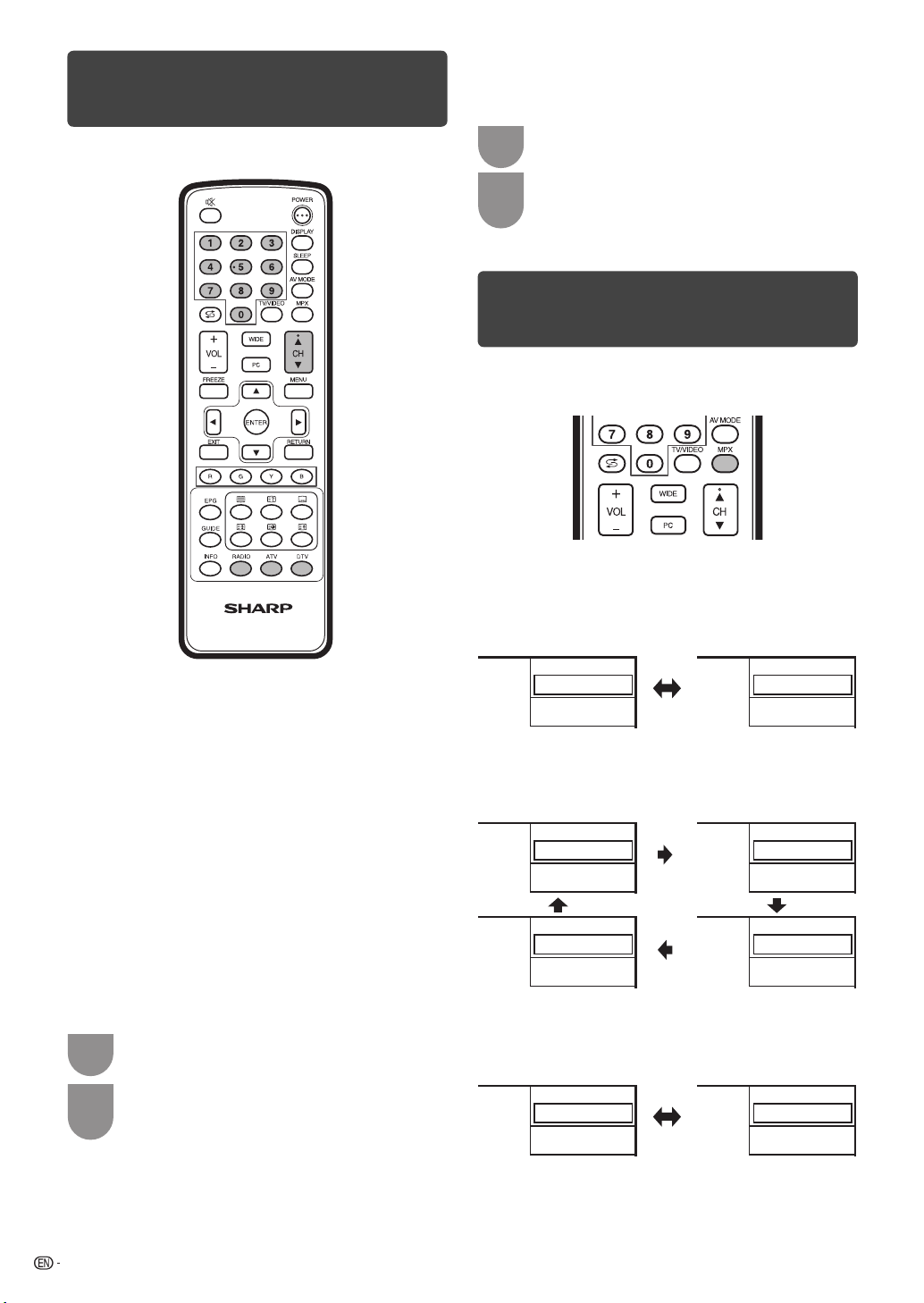

ATV (Analogue/DTV/RADIO buttons) .................. 18

Switching the analogue audio format ................ 18

EPG ........................................................................ 20

Picture and still image ......................................... 21

Wide Mode ............................................................ 21

Teletext function ................................................... 22

PC Control of the TV ............................................ 22

PC compatibility chart ......................................... 23

RS-232C commands list ...................................... 23

Appendix ............................................................... 24

Specifi cations ....................................................... 25

Protection against overturning ........................... 26

Dimensional drawings.......................................... 26

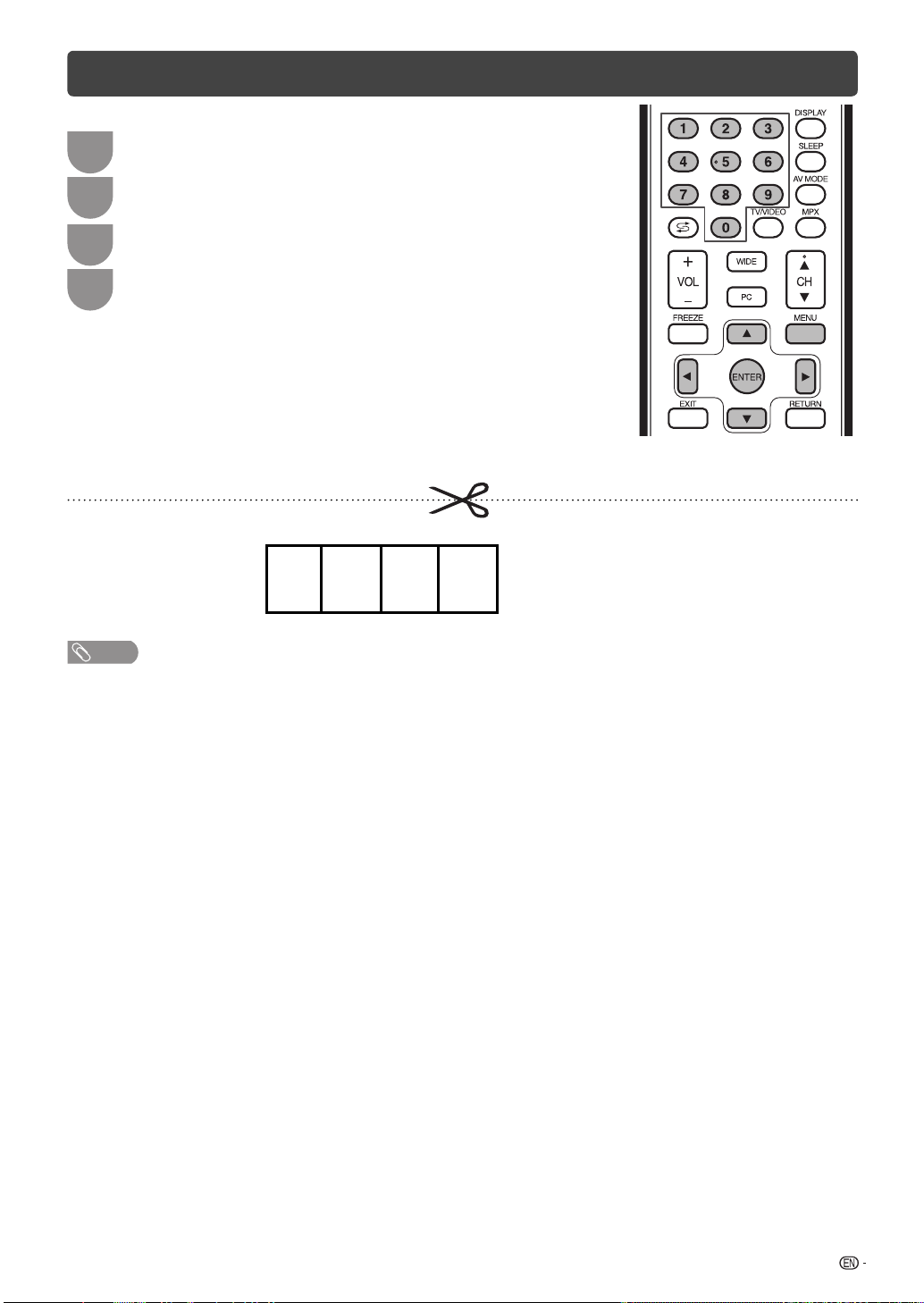

CLEARING THE PASSWORD ............................... 27

1

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of
trouble-free operation of your product, please read the Important Safety Precautions carefully before
using this product.

Important Safety Precautions

• Cleaning — Unplug the AC cord from the AC outlet before cleaning the product. Use a soft damp cloth to clean the product.
Do not use liquid cleaners, aerosol cleaners or chemical cloth to clean it, as such materials may damage the product.

• Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming
pool and in a wet basement.

• Do not place vases or any other water-fi lled containers on this product.

The water may spill onto the product causing fi re or electric shock.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting
in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended
by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s
instructions. Use only the mounting hardware recommended by the manufacturer.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven
fl oor surface can cause the product to fall from the cart.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and
openings since insuffi cient ventilation can cause overheating and/or shorten the life of the product. Do not place the product
on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in
installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or
the manufacturer’s instructions are followed.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a
sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.

• Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating
products (including amplifi ers).

• To prevent fi re, never place any type of candle or naked fl ames on the top or near the TV set.

• To prevent fi re or shock hazard, do not place the AC power cord under the TV set or other heavy items.

• Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take special
care near children and pets.

• The LCD panel is a very high technology product with 1,049,088 pixels, giving you fi ne picture details.

Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fi xed point of blue,

green or red.

This is within product specifi cations and does not constitute a fault.

• Precautions when transporting the TV

When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry the

TV by two people holding it with two hands — one hand on each side of the TV.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT terminal
on the rear of the product.

• If a television is not positioned in a suffi ciently stable location, it can be potentially hazardous due to falling. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television.

• Only using furniture that can safely support the television.

• Ensuring the television is not overhanging the edge of the supporting furniture.

• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the

television to a suitable support.

• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television or its controls.

Important information

This product qualifi es for ENERGY STAR when “Home” is selected for “TV location”.
Setting “TV Location” to “Home” allows the TV to achieve an energy-saving status for household use.

Trademarks

• “HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC.”

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• Products that have earned the ENERGY STAR® are designed to protect the environment through energy effi ciency.

2

Attaching the stand

• Before attaching (or detaching) the stand, unplug the AC cord from the AC outlet.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.

5

Confi rm the screws supplied with the TV.

1

Screws (m4)

(used in step 3)

Insert the stand base to the stand post on the

2

bottom of the TV. (1)

Insert and tighten the 4 screws into the 4 holes

3

on the bottom of the stand base. (2)

NOTE

• To detach the stand, perform the steps in reverse order.

5

Soft cushion

Screw

Screw driver

Antenna connection

Connecting the antenna cable

To enjoy a clearer picture, use an outdoor antenna.

Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)

Antenna cable
(commercially available)

Room antenna terminal
(75-ohm type)

CAUTION

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
AC CORD CONNECTED.

To antenna
terminal

3

Connecting external devices

You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player,
Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from
TV/VIDEO on the remote control unit or TV/VIDEO on the TV.

CAUTION

• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital TV
STB (Set Top Box), PC or other external equipment.

• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

Connecting a VCR, game console or camcorder

A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using the
INPUT 2/INPUT 3 or INPUT 4 terminals.

When using component cable
(commercially available)

When using composite cable or S-VIDEO cable
(commercially available)

Y

B

P

(CB)

P

R

(CR)

S-VIDEO

or

L

L

AUDIO

R

VCR/Game console/Camcorder

AUDIO

R

VIDEO

VCR/Game console/Camcorder

Connecting a DVD player/Digital TV STB (Set Top Box)

You can use the INPUT 1 (HDMI), INPUT 4 terminals when connecting to a DVD player/Digital TV STB (Set Top
Box) and other audiovisual equipment.

When using HDMI-certifi ed cable
(commercially available)

DVD player/
Digital TV STB
(Set Top Box)

When using component cable
(commercially available)

Y

B

P

(CB)

P

R

(CR)

L

AUDIO

R

DVD player/Digital TV STB (Set Top Box)

Connecting a PC Using Digital Audio Output

You can use the INPUT 5 (PC) terminals when
connecting to a PC.

ANALOG

RGB

It is possible to output audio through the DIGITAL
AUDIO OUTPUT terminal. PCM audio outputs from the
terminal.

Optical fi bre cable
(commercially available)

AUDIO

(L/R)

PC

To optical digital input of external audio devices

NOTE

• The DIGITAL AUDIO OUTPUT terminal usually outputs the same audio from the speakers. (The audio of the content you are

viewing is output from the terminal.)

• The DIGITAL AUDIO OUTPUT terminal does not output some signals, depending on devices and software.

4

Remote control unit

1

2

3
4
5

6

7
8

9

10

11

12

1 e (Mute)

Press e s Mutes sound.
Press e again s Restores sound.
Mute will be cancelled after 30 minutes. However, the TV

will not suddenly output loud sound as the volume level
will be set to 0 automatically. Increase the volume level by
pressing VOL k.

2 0 – 9

Set the channel.
TELETEXT mode: Set the page. (See page 22.)

3 A (Flashback)

Press A to return to the previous selected channel or

external input mode.

4 WIDE

Change the wide image mode. (See page 21.)

5 VOLk/VOL

Set the volume.
(VOLk) Increase the volume.
(VOLl) Decrease the volume.

6 FREEZE

Freeze a motion picture on the screen. (See page 21.)

7 EXIT

Return to the default screen.

8 Colour (Red/Green/Yellow/Blue)

TELETEXT mode: Select a page. (See page 22.)

9 EPG

DTV mode: To display EPG (Electronic Programme Guide)

screen. (See pages 20 to 21.)

10 GUIDE

DTV mode: Display the programme list. (See page 17.)

l

Inserting the battery

13

14
15
16

17
18

19
20

21
22

23

24

25

26

11 INFO

DTV mode: Display the programme information. (See page 17.)

12 RADIO

Press to access RADIO mode. (See page 18.)

13 POWER (STANDBY/ON)

To switch the power on and off. (See page 7.)

14 DISPLAY

Display the channel or input information.

15 SLEEP

Set the Sleep timer.

0hr.30min. 1hr.00min.

Off

16 AV MODE

Select an audio and video setting. (See page 10.)

17 MPX

Select the sound multiplex mode.

18 TV/VIDEO (INPUT SOURCE)

Select an input source.

19 CHa/CH

TV input mode: Select the channel.
(CHa) Increase the channel number.
(CHb) Decrease the channel number.
TELETEXT mode: Select the page. (See page 22.)

20 PC

Directly select the PC terminal.

21 MENU

Display the menu screen.

22 a/b/c/d (Cursor)

Select a desired item on the setting screen.
ENTER
Execute a command.

23 RETURN

MENU mode: Return to the previous menu screen.

24 m (TELETEXT)

Select the TELETEXT mode. (all TV image, all TEXT

image, TV/TEXT image) (See page 22.)

k

(Reveal hidden for TELETEXT)

TELETEXT mode: Display hidden characters. (See page 22.)

[

(SUBTITLE for TELETEXT)

To turn the subtitles on. (See page 22.)

3

(Hold)

TELETEXT mode: Stop updating Teletext pages

automatically. Press 3 again to release the hold mode.
(See page 22.)

1

(Subpage)

Display the Teletext subpage directly when in Teletext

mode. (See page 22.)

v

(Top/Bottom/Full)

TELETEXT mode: Set the area of magnifi cation.

(See page 22.)

25 DTV

Press to access DTV mode. (See page 18.)

26 ATV

Press to access ATV mode. (See page 18.)

2hr.30min.

b

1hr.30min.

2hr.00min.

Before using the TV for the fi rst time, insert a “AA” size battery (supplied). When the battery become depleted and
the remote control fails to operate, replace the battery with new “AA” size battery.

Open the battery cover.

1

CAUTION

• Battery (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fi re or the like.

Insert the supplied “AA” size battery.

2

•

Place battery with their terminals corresponding to the (e)
and (f) indications in the battery compartment.

Close the battery cover.

3

5

Part names

TV (Front)

TV (Rear)

OPC sensor

Remote control sensor

POWER indicator

Light off Power off

Lighted (Red) The TV is in standby mode.

Lighted (Green) The TV is on.

1 POWER (On/Off) button
2 MENU button
3 TV/VIDEO button
4 Channel up (r)/down (s) buttons
5 Volume up (e)/down (f) buttons
6 RS-232C terminal
7 DIGITAL AUDIO OUTPUT terminal
8 INPUT 5 (PC) terminals*

* The INPUT 1 and INPUT 5 terminals can both use the same analogue audio input terminal. However, the proper item must be

selected in the “PC audio select” menu. (See page 14.)

** Usually do not connect anything to this terminal as it is reserved only for service personnel.

• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

9 INPUT 1 (HDMI) terminal*
10 Antenna input terminal
11 INPUT 2 terminals
12 INPUT 3 terminals
13 INPUT 4 terminals
14 SERVICE ONLY terminal**
15 Headphone jack

Regarding the headphone jack

• Use headphones with a stereo mini plug ( 3.5 mm).

• Be sure to unplug headphones from the jack when they are not
in use.

• The speakers do not output volume when headphones are
plugged in.

• The “Audio” menu cannot be operated when headphones are
plugged in.

6

Volume display when headphones are plugged in

20

Turning the TV on/off

Turning on/off the power

• To turn on the power

Press POWER on the TV. (After a few seconds, an image

appears with sound.)

• To turn off the power

Switch it off by pressing POWER on the TV.

Selected item Description

Yes

No

Select “Yes” when your antenna is set­up and connected independently.

Select “No” when you do not need to
supply voltage to your antenna, i.e.
when your antenna is connected to
a community antenna. (The factory
default setting of this function is “No”.)

Standby mode

• To standby mode

If the TV is switched on, you can switch it to standby by

pressing POWER on the remote control.

• Switching on from standby

From standby, press POWER on the remote control.

NOTE

• If you are not going to use this TV for a long period of time,
be sure to remove the AC cord from the AC outlet.

• Minor power is consumed when the unit is in standby mode.

Supplying electric
power to the antenna

When you set-up the DTV antenna for the fi rst time, or
connect the antenna to a community antenna, you need
to proceed to set the antenna by following this manual.

Initial auto installation

When the TV powers on for the first time after
purchase, the initial auto installation wizard appears.
Follow the menus and make the necessary settings
one after another.

Press POWER on the TV.

1

• The initial auto installation wizard appears.

Press c/d to select “HOME” or “STORE”,

2

and then press ENTER.
Press c/d to select your country channels
listed on the screen, and then press ENTER.
Press a/b/c/d to select “DTV”, “ATV” or
“ATV + DTV”, and then press ENTER.
Press a/b to select the desired sound
system, and then press ENTER.

• Sound system is selectable when the signal search
is set to “ATV” or “ATV + DTV” mode only.

• Auto installation will be executed.

• You do not need to do anything during the auto
search.

• HOME: “STANDARD” will be the default value for

the “AV mode” setting.

• STORE: “DYNAMIC (FIXED)” will be the default

value for the “AV mode” setting. If the “AV mode”
is changed, the TV will automatically switch back
to “DYNAMIC (FIXED)” when there is no further
change to TV setting for 30 minutes.

• To change the STORE mode to HOME mode,

please refer to page 14 to reset the unit.

Press DTV to access DTV mode.

1

Press MENU and the MENU screen displays.

2

Press c/d to select “Setup”.

3

Press a/b to select “Digital programme

4

setup” and then press ENTER.

Press a/b to select “Antenna power” and

5

then press ENTER.

Press c/d to select “Yes” and then press

6

ENTER.

Checking Signal
information

If you install a DVB-T antenna for the fi rst time or
relocate it, you should adjust the alignment of the
antenna to receive a good reception while checking
the antenna setup screen.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Digital programme

3

setup”, and then press ENTER.

7

Checking Signal

Programme setup

information (Continued)

H

Checking Signal information

Press a/b to select “Signal information”.

Auto search

Manual search

Manual adjust

Signal information

Antenna power

Position and align the antenna so that the

4

maximum possible values for “Signal strength”
and “Signal quality” are obtained.

NOTE

• The values of “Signal strength” and “Signal quality” indicate
when to check the appropriate alignment of the antenna.

Channel number

Signal strength

Current Maximum

Signal quality

Current Maximum

100

68

100

98

98

Auto installation

You can run auto installation again, even after setting
up the preset channels.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Auto installation”, and

3

then press ENTER.

If you have already set the password, enter it

4

here.

• See page 12 for setting a password.

Digital settings

You can reconfi gure DTV services settings automatically
or manually.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Digital programme

3

setup”, and then press ENTER. If you have
already set the password, enter it here.

• See page 12 for setting a password.

Press a/b to select the desired menu item,

4

and then press ENTER.

Press c/d to select “Yes”, and then press

5

ENTER.

H

Auto search (Digital)

Use this menu to add new services automatically after
auto installation has been completed.

H

Manual search (Digital)

Add new services within a specifi ed frequency band.

•

Press c/d to select the frequency and then press
ENTER.

H

Manual adjust (Digital)

Confi gure various settings for each service using the
Colour (R, G, B) buttons.

Digital programme setup]

Press c/d to select “Yes”, and then press

5

ENTER.

Press a/b/c/d to select “DTV”, “ATV” or

6

“ATV + DTV”, and then press ENTER.
Press a/b to select the desired sound
system, and then press ENTER.

• Sound system is selectable when the signal search
is set to “ATV” or “ATV + DTV” mode only.

You do not need to do anything during the
auto search. Press MENU to exit.

8

Press a/b to select desired service.

1

Press the colour button on the remote control

2

corresponding with the item you want to
reconfi gure.

• Each time the colour button is pressed, you can
switch the corresponding operation on/off.

Buttons for Manual adjust operation

Menu
items

Lock R

CH
Skip

Sort B

Remote

control

buttons

G

Description

When the service is locked,
you must enter your password
whenever you tune to the service.

Services with “Skip” are passed
over when pressing r/s in the
TV/remote control unit.

The item position of services can be
sorted.

Programme setup (Continued)

5

The item position of services can be sorted

Press a/b to select the service whose item

1

6

position you want to move, and then press B.

DTV 005 Maori Television

DTV 022 Parliament TV

DTV 100 Freeview I HD

Press a/b to move it to the desired position, and

2

then press ENTER.

DTV 100 Freeview I HD

DTV 022 Parliament TV

DTV 005

Repeat steps 1 and 2 until all desired service

3

Maori Television

items are sorted.

Analogue settings

H Auto search (Analogue)

You can also automatically search by performing
the procedure below. This is the same function as
programme auto search in auto installation.

Press MENU and the MENU screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Analogue programme

3

setup”, and then press ENTER.

If you have already set the password, enter it

4

here.

• See page 12 for setting a password.

Press a/b to select “Auto search”, and then

5

Search

The next channel will be search in order.

Fine

You can adjust the frequency to your desired position.

NOTE

• Adjust while checking the background picture as a
reference.

• Instead of pressing c/d to adjust the frequency, you can
set by directly entering the frequency number of the channel
with 0 — 9.

a

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 4 s 9 s 2 s 5 s ENTER.

Colour system

Select the optimum colour system to receive. (Auto,
PAL, SECAM, NTSC 4.43, PAL-60)

Sound system (Broadcasting system)

Select the optimum sound system (Broadcasting
system) to receive. (B/G, D/K, I)

Label

To enter the name of the channel. Maximum 5
alphanumeric can be input.

• Press a/b/c/d: To select a desired alphanumeric, and
then press ENTER.

Repeat until the name is fully spelt out.

press ENTER.

Press c/d to select “Yes”, and then press

6

ENTER.

Press a/b to select the desired sound
system, and then press ENTER.
You do not need to do anything during the
auto search. Press MENU to exit.

H

Manual adjust (Analogue)

You can set some channel item manually.

Repeat steps 1 to 4 in Auto search.

1

• To exit, select END and then press ENTER.

• If the wrong alphanumeric is entered, select CLEAR to
clear, and then press ENTER.

Booster

Enhance the picture quality during weak signal. It is
not recommended to turn on during strong signal
condition. It may induced unwanted noise. (On, Off)

Skip

Channels with “Skip” set to “On” are passed over when
using CHr/s even if selected while watching the image
from the TV.

Lock

Press a/b to select “Manual adjust”, and

2

then press ENTER.

Press c/d to select “Yes”, and then press

3

ENTER.

Press a/b/c/d to select the channel you

4

want to edit, and then press ENTER.

• The selected channel information displays.

You can block the viewing of any channel.

NOTE

• See “Child lock” for setting a password.

• If “Lock” is set to “On” for a channel, “Child lock has been
activated” is displayed when you select the channel, and the
image and sound of the channel is blocked.

• When pressing ENTER while “Child lock has been activated”
is displayed, password input menu will be displayed. Inputting
the correct password lifts the child lock temporarily until the
power is turned off.

Press a/b to select the desired menu, and
then press ENTER.

Press a/b or c/d to select the desired item
or adjust the item to the desired level. Press
ENTER if necessary.

Search

Fine

Colour system

Sound system

Label

Booster

Skip

Lock

Auto

[ ]

B/G

[ ]

[ ]

Off

[ ]

Off

[ ]

Off

[ ]

Broadcasting station name settings

ABCDEFGHIJ

KLMNOPQRST

UVWXYZ+–._

0123456789

CLEAR

BACK

END

9

Programme setup (Continued)

Selecting a preset AV

H

Sort (Analogue)

Channel position can be sorted freely.

Repeat steps 1 to 4 in Auto search.

1

Press a/b to select “Sort”, and then press

2

ENTER.

Press c/d to select “Yes”, and then press

3

ENTER.

Press a/b/c/d to select the channel you

4

want to move, and then press ENTER.

Move it to the desired position by pressing

5

a/b/c/d

Repeat the steps 4 and 5 until all desired

6

channels are sorted.

H

Erase programme (Analogue)

The individual programme can be erased.

Repeat steps 1 to 4 in Auto search.

1

Press a/b to select “Erase programme”, and

2

then press ENTER.

Press c/d to select “Yes”, and then press

3

ENTER.

Press a/b/c/d to select the channel you

4

want to erase, and then press ENTER.

Press ENTER to erase the channel.

5

Repeat the step 4 and 5 until all desired

6

channels are erased.

, and then press ENTER.

mode

“AV mode” gives you several viewing options to
choose from to best match the system environment,
which can vary due to factors like room-brightness,
type of programme watched or the type of image input
from external equipment.

Press AV MODE.

1

Each time you press AV MODE, the mode

2

changes.

• You can also switch the mode in the “AV mode”
menu on the “Picture” menu screen.

Selected item Description

STANDARD

MOVIE

GAME

PC

USER

DYNAMIC
(FIXED)

DYNAMIC

NOTE

•

You can select a different AV mode item for each input mode.
(For example, select STANDARD for TV input and DYNAMIC for
VIDEO input.)

•

During PC input mode, only “STANDARD”, “PC” and “USER”
can be selected under the AV mode selection.

For a highly defi ned image in a normally
bright room.

For a movie.

For game play.

For PC. (Available only when inputting an
HDMI or PC signal.)

Allows the user to customise settings as
desired. You can set the mode for each
input source.

Changes the image and sound settings to
the factory preset values. No adjustments
are allowed.

For a clear-cut image emphasising high
contrast for sports viewing.

Menu operation

Press MENU and the MENU screen displays.

1

Press c/d to select the desired menu.

2

(Picture, Audio, ECO, Setup, Option, Digital
setup)

Press a/b to select the desired menu item.

3

Press ENTER to proceed if necessary.

Press a/b or c/d to select the desired item

4

or adjust the item to the desired level. Press
ENTER if necessary.

10

Picture menu


AV mode

OPC

Backlight

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

H

OPC (Optical Picture Control) setting

Audio

[]

+16

–16

]

[

+30

[

]

0

–30

]

[

4

+

–30

[

]

0

–30

]

[

2

+

–10

0

You can set the TV to automatically adjust the screen
to suitable backlight brightness according to the
lighting conditions.

Selected item Description

On:Display

Displays the OPC effect on the screen while
adjusting the brightness of the screen.

On

Off

Automatically adjusts.

The brightness is fi xed at the value set in
“Backlight”.

NOTE

• Make sure no object obstructs the OPC sensor, which
could affect its ability to sense surrounding light.

H

Picture adjustments

Selected item

Backlight

Contrast

Brightness

Colour

c

button

The screen dims The screen brightens

For less contrast For more contrast

For less brightness For more brightness

For less colour
intensity

Tint

Skin tones become
purplish

Sharpness

H

Advanced

For less sharpness For more sharpness

Colour temp. (Colour Temperature)

Adjusts the colour temperature to give the best white
image.

Selected item Description
High

Mid-High

White with bluish tone

Middle
Mid-Low
Low

White with reddish tone

Film mode

Automatically detects a fi lm-based source (originally
encoded at 24/25 frames/second, depending on the
vertical frequency), analyses it then recreates each still fi lm
frame for high-defi nition picture quality. (On, Off)

ECO

[

]

STANDARD

[

]

Off

+16

+40

+30

+30

+30

+10

d

button

For more colour
intensity

Skin tones become
greenish

Active contrast

Automatically adjusts the contrast of an image according
to the scene. (On, Off)

3D-Y/C

Provides high quality images with minimal dot crawl and
cross colour noise. (On, Off)

NOTE

• 3D-Y/C is not selectable depending on the input signal type.

• 3D-Y/C may not operate depending on the input signal type
or noisy input signal.

Monochrome

For viewing images in monochrome. (On, Off)

DNR (Digital Noise Reduction)

Reduces noise on screen and produces a clearer video
image. (Off, High, Low, Auto)

NOTE

• For resetting all Picture adjustment items to factory preset
values, press a/b to select “Reset”, press ENTER, press

to select “Yes”, and then press ENTER.

c/d

Audio menu

Audio

STANDARD

Treble

Bass

Balance

Surround

Reset

H

Audio adjustments

Selected item

Treble

Bass

Balance

ECO

[ 0]

–15

[ 0]

–15

[ 0]

L

c

button

For weaker treble For stronger treble

For weaker bass For stronger bass

Decrease audio from
the right speaker

H

Surround

When you set to “On”, you can enjoy surround sound,
the same as if you were in a movie theatre.

Selected item Description

On

Off

NOTE

• For resetting all Audio adjustment items to the factory preset
values, press a/b to select “Reset”, press ENTER, press

to select “Yes”, and then press ENTER.

c/d

Makes it possible to enjoy natural, realistic
surround sound.

Outputs the normal sound.

Setup

+15

+15

R

[

]

Off

d

button

Decrease audio
from the left speaker

11

ECO menu

Setup menu

Setup

[

Enable

Option

]

[

]

3hr.

No signal off

4

Power management

No operation off

Ecology

H

No signal off

ECO

You can set the TV to automatically power off in about
15 minutes after the TV goes into a state of receiving
no programme signals, such as the end of a broadcast
day. (Enable, Disable)

• Five minutes before the power shuts down, the remaining
time displays every minute.

NOTE

• “Disable” is the factory preset value.

• When a TV programme fi nishes, and the TV receives signal
input, this function may not operate.

H

Power management (PC input mode only)

You can set the TV to automatically power off when no
image is displayed on PC.

Selected item Description

Off

• No power management

• Factory preset value.

Mode1

• If no signal inputs for approximately
8 minutes, the power shuts down.

• Even if you start using the PC and the
signal inputs again, the TV stays off.

• The TV turns on again by pressing

POWER. (See page 7.)

Mode2

• If no signal inputs for approximately
8 seconds, the power shuts down.

• When you start using the PC and the
signal inputs again, the TV turns on.

• The TV turns on again by pressing
POWER. (See page 7.)

H

No operation off

You can set the TV to automatically power off when no
TV operation is performed for more than 3 hours.
(30 min., 3 hr., Disable)

• Five minutes before the power shuts down, the remaining
time displays every minute.

NOTE

• “Disable” is the factory preset value.

H

Ecology

When set to “Yes”, the TV activates the following
power saving mode.

• “OPC” set to “On” (Page 11)

• “No signal off” set to “Enable” (Page 12)

• “Power management” set to “Mode1” (Page 12)

• “No operation off” set to “3 hr.” (Page 12)

• “Quick start” set to “Off” (Page 14).

NOTE

• Ecology mode cannot be deactivated by selecting “No”.
Each setting must be changed individually to deactivate
Ecology mode.

[

Panorama

[On]

[

Off

Digital setup

]

]

]

Setup

Auto installation

4

Analogue programme setup

Digital programme setup

Child lock

Input skip

4

Input label

Position

4

HDMI auto view

WSS

4:3 mode

Quick start

Text language

Identification

Reset

H

Child lock (ATV and DTV input mode only)

Option

[

West Europe

Allows you to use a password to protect certain
settings from being accidentally changed.

Setting a password

Repeat steps 1 to 2 in Menu operation.

1

Press a/b to select “Child lock”, and then

2

press ENTER.

If you already set the password, enter it here.

3

Press a/b to select “Change password”, and

4

then press ENTER.

Enter the 4-digit number as a password using

5

0 — 9.

Change password

Clear password

Parental rating

Enter the same 4-digit number as in step 5 to

6

confi rm.

NOTE

Enter your new password. Use 4 digits

Reconfirm

– – – –

– – – –

New password

• To view a locked channel (Lock setting in Analogue
programme setup “Manual adjust” is set to “On”), you must
enter a password. When you select a locked channel, “Child
lock has been activated” is displayed.

• Press ENTER to display the password input window.

Clearing the password

Allow you to clear your password.

Repeat steps 1 to 3 in Setting a password.

1

Press a/b to select “Clear password”, and

2

then press ENTER.

Press c/d to select “Yes”, and then press

3

ENTER.

12

Setup menu (Continued)

Parental rating

This function allows TV channels to be restricted.
It prevents children from watching violent or sexual
scenes that may be considered inappropriate.

Repeat steps 1 to 3 in Setting a password.

1

Press a/b to select “Parental rating”, and

2

then press ENTER.

Press a/b to select your desired rating, and

3

then press ENTER.

H

Input label

You can assign each input source a label as you
prefer.

Press TV/VIDEO to select the desired input

1

source.

Press MENU and the MENU screen displays.

2

Press c/d to select “Setup”.

3

Press a/b to select “Input label”, and then

4

press ENTER.

When the country setting is set to “Australia”.

Selected item Description

General and
above (G)

Parental
guidance and
above (PG)

Mature and
above (M)

Mature adult
and above
(MA)

Adult violence
(AV)

Restricted
and above (R)

No block (–)

Content is not offensive to most viewers.

Content is such that parents may not want
their children to view the programme.

Mature audience only. This programme is
specifi cally designed to be viewed by adults
and therefore may be unsuitable for children
under 15.

Mature adult only. Mature audience only.
This programme is specifi cally designed to
be viewed by adults and therefore may be
unsuitable for children under 15.

Not for children under age 15. Strong
elements of sex and/or violence.

Not for children under age 18. Strong
elements of sex and/or violence.

Cancel the blocking.

When the country setting is set to “New Zealand” or
“Singapore”.

Block 5 age and below

Block 11 age and below

Block 13 age and below

Block 15 age and below

Block 17 age and below

Block 18 age and below

No block

H

Input skip

This setting allows you to skip the HDMI or RGB input
on the input source selection operation.

INPUT1(HDMI)

INPUT5(RGB)

Skip input selection of HDMI

Yes No

Press a/b/c/d to select a desired

5

alphanumeric, and then press ENTER. Repeat
until the name is fully spelt out. Maximum 6
alphanumeric can be input.

External equipment name settings

A BCDEFGHIJ

KLMNOPQRST

UVWXYZ+–._

0123456789

CLEAR

BACK

END

To exit, select END and then press ENTER.
If the wrong alphanumeric is entered, select
CLEAR to clear and then press ENTER.

NOTE

• You cannot change labels if the input source is ATV and
DTV.

H

Position

For adjusting a picture’s horizontal and vertical
position.

Selected item Description

H-Position

V-Position

Reset

H

HDMI auto view (HDMI input mode only)

Selected item Description

Enable/
Disable

H

WSS

Centres the image by moving it to the left
or right.

Centres the image by moving it up or
down.

Reset position to factory preset values.

Set whether or not to use WIDE MODE
based on signal recognition, including an
HDMI signal.

WSS allows a television to switch automatically among
the different screen formats. (On, Off)

NOTE

• Try to set WIDE mode if an image does not switch to the
correct screen format. When the broadcast signal contains
no WSS information, the function will not work even if
enabled.

• Not available for COMPONENT, PC and HDMI signal.

13

H

4:3 mode

The WSS signal has 4:3 auto-switching that allows you
to select between Panorama and Normal.

Selected item Description

Panorama

Normal

Wide image without side bars

Normal range keeping 4:3 or 16:9 aspect
ratio

WSS signal 4:3 screen

4:3 mode “Panorama” 4:3 mode “Normal”

H

Quick start

You can reduce the TV’s start-up time after turning on
the power with the remote control unit.

Selected item Description

On

The TV quickly starts up from standby,

8.5W or more of power consumption is
required during standby.

Off

H

Text language

Power consumption is less than 1W.

Select from among 3 kinds of language: West Europe,
Arabic, Farsi.

NOTE

• Teletext can display only when it is sent by a network. Not
used to convert between languages.

H

Identification

You can check the current version of the software on the
screen.

H

Reset

If complex adjustments are made and the settings
cannot be restored to normal, you can reset the
settings to the factory preset values.

NOTE

• If you execute “Reset”, all the settings such as Picture,
Audio and Programme will be reset to the factory preset
values.

Option menu

Option

Input select

PC audio select

Auto volume

Digital audio output

Audio only

4

Game play time

4

Colour system

4

Fine sync.

Version up

H

Input select

For setting the signal type of external equipment.

Input source Selectable item

INPUT2

H

PC audio select

Auto, S-VIDEO, VIDEO

When using the INPUT5 terminal or HDMI1 terminal,
you must select which terminal uses the AUDIO (R/L)
jack for analogue audio input.

Selected item Description

HDMI1

When connecting devices (including a
PC) with DVI/HDMI cable to the INPUT1
terminal and inputting analogue audio
signals from the AUDIO (R/L) jack.

INPUT5 (RGB)

When connecting a PC to the INPUT5
terminal, and inputting analogue audio
signals from the AUDIO (R/L) jack.

NOTE

•

You must set this to “INPUT5(RGB)” when connecting devices
(including a PC) with an HDMI-certified cable to the INPUT 1
terminal. If “HDMI1” is set, there will be no sound output.

H

Auto volume

Different sound sources, fairly often do not have the
same volume level, for example the changing from
movie to the advertisements. Auto volume solves this
problem and equalises the volume levels. (On, Off)

H

Digital audio output

This function allows you to select your favourite audio
output system.

Selected item Description

PCM

Dolby Digital

The optical output format is normally in
PCM.

Dolby Digital audio will be output when
there is a Dolby Digital audio signal.
The output will be in PCM when there
is no Dolby Digital audio signal.

Digital setup

[HDMI1]

[On]

[PCM]

14

Option menu (Continued)

H

Audio only

When listening to music from a music programme, you
can set the display off and enjoy audio only.

Selected item Description

On

Off

NOTE

• When you make operations that change the picture on the TV
such as by changing the input source, the Audio only function
is set to “Off”.

H

Game play time

This function displays the elapsed game time so you
do not lose track of the time.
To display the elapsed time, select “GAME” under
“AV mode” for the input mode of the terminal connected
to the game console before starting the game.

Selected item Description

On

Off

H

Colour system

You can change the colour system to one that is
compatible with the image on the screen. (Auto, PAL,
SECAM, NTSC 3.58, NTSC 4.43, PAL-60)

NOTE

• If “Auto” is selected, colour system for each channel is
automatically set. If an image does not display clearly, select
another colour system (e.g. PAL).

• “Colour system” is selectable only when inputting an
S-VIDEO or composite signal.

Audio is output without screen image.

Both screen images and audio are output.

The elapsed time is displayed every
30 minutes when you switch to GAME
mode in external input mode.

Hides the time.

Adjusting the PC image manually

Ordinarily you can easily adjust the picture as
necessary to change image position using Auto sync.
In some cases, however, manual adjustment is needed
to optimise the image.

Selected item Description

H-Position

V-Position

Clock

Phase

NOTE

• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, press ENTER, press

to select “Yes”, and then press ENTER.

c/d

• Images may not be displayed properly depending on the
settings and/or input signals.

Centres the image by moving it to the left
or right.

Centres the image by moving it up or
down.

Adjusts when the image fl ickers with
vertical stripes.

Adjusts when characters have low contrast
or when the image fl ickers.

Input signal

• Some input signals may have to be registered
manually to display properly.

• The pairs of input signals (resolutions) in the list below
are not distinguishable when received. In such case,
you have to set the correct signal manually. After
setting once, it will display when the same signal
(resolution) is input again.

1280 g 768 1360 g 768

H

Version up

This function is only for service personnel to use for
software updates.

H

Fine sync. (PC input mode only)

Adjusting the PC image automatically

Auto sync.

This function enables the screen to be automatically
adjusted to its best possible condition when the
analogue terminals of the TV and PC are connected
with a commercially available RGB cable, etc.

NOTE

• Auto sync. is likely to succeed when an input PC image has
wide vertical stripes (e.g. pattern with high contrast stripes,
or cross-hatched).

It may fail when an input PC image is solid (low contrast).

• Be sure to connect the PC to the TV and switch it on before
starting Auto sync.

15

Digital setup menu

Option

Audio language

Subtitle language

Hearing impaired

Time zone

Summer time

OAD setup

Selecting the language

H

Set up to two preferred multi audio languages to
display if the audio languages are available.

Press MENU and the MENU screen displays.

1

Press c/d to select “Digital setup”.

2

Digital setup

[Off]

[Off]

[Off]

Set “Hearing impaired” to “On”

(Hearing impaired) 1st Language

••••••••

Off

2nd Language

Set “Hearing impaired” to “Off”

1st Language 2nd Language

••••

Off

NOTE

• This function is valid only if broadcaster is transmitting
multilingual subtitles.

Time zone

H

This function enables you to select your local time zone.

Press MENU and the MENU screen displays.

1

(Hearing impaired)

Press a/b to select “Audio language”, and

3

then press ENTER.

Press a/b to select “1st Language” or “2nd

4

Language”, and then press ENTER.

Press a/b/c/d to select the desired

5

language, and then press ENTER.

NOTE

• If audio for the selected languages is not included in
a received broadcast, audio will not be output for that
language.

Displaying subtitles for the hearing impaired

H

You can display subtitles for the hearing impaired in
the Teletext broadcast if the subtitle languages are
available.

Press MENU and the MENU screen displays.

1

Press c/d to select “Digital setup”.

2

Press a/b to select “Subtitle language”, and

3

then press ENTER.

Press a/b to select “1st Language” or “2nd

4

Language”, and then press ENTER.

Press a/b/c/d to select the desired

5

language, and then press ENTER.

Press c/d to select “Digital setup”.

2

Press a/b to select “Time zone”, and then

3

press ENTER.

Press c/d to select the desired time zone

4

and then press ENTER.

• This function lets you select the right time zone in case the
time displayed in the EPG does not match the local time of
your area.

Summer time

H

When the Summer time is set to “On”, the Standard
Time is plus one hour. (Auto, On, Off)

OAD setup

H

• This function is for automatically download the

data for the version update software over digital
broadcasts when the “OAD setup” is set to “On”.

• To download, follow the instructions when the

download message appears during a digital
broadcast.

CAUTION

• Do not disconnect the AC cord when the software

upgrade is in progress, as this may cause the upgrade
to fail. If problem arises ask a qualifi ed service
personnel before the software upgrade period expires.

NOTE

• If subtitles for the selected language are not included in
a received broadcast, subtitles will not be shown for that
language.

Switching subtitle languages (DVB Subtitle)

H

Each time you press [ on the remote control, the
subtitle switches when the broadcast contains subtitle
information.

16

Programme Guide

You can check the current schedule of DTV events
and view detailed information about current events.

Press GUIDE to display the programme guide

1

list.

Press a/b to display your desired

2

programme, and then press ENTER.

• When you press ENTER, the TV jumps to the

channel.

Channel list

020 ABC HDTV

002 ABC TV Sydne

020 ABC HDTV

021 ABC2

022 ABC TV

Dorothy The Dinosaur

[Mon.] 18/6 13:27

13:23 - 13:30

Dorothy The Dinosaur

Dorothy The Dinosaur

Gardening Australia

Dorothy The Dinosaur

Info

While watching DTV you can check the extended
programme information on the screen using INFO on
the remote control.

1

ABC2

People Dimensions

2

13:30 - 14:00

3

Input Info.

Video : 576i

4

Audio : MPEG

5

Age : 09

6

RETURN

ENTER

Select channel
Page up/down

Press R to view programme information.

3

Press RETURN or MENU to exit.

4

: Enter

R

: Back Exit

Program informati..

MENU

General INFO screen

Station name

1

Title

2

Time for the current programme

3

Video system

4

Audio system (Dolby D or MPEG)

5

Parental rating

6

• If there is more information, pressing a/b allows you to go
to the next page or return to the previous page.

• You can cancel this info by pressing INFO or EXIT.

17

ATV (Analogue)/DTV/
RADIO buttons

Use the following buttons on the remote control to
operate the menu.

ATV: Press to switch to ATV mode. After switching
from DTV, radio or external input mode to ATV
mode, the TV jumps to the most recently viewed ATV
channel.

DTV: Press to switch to DTV mode. After switching
from ATV, radio or external input mode to DTV
mode, the TV jumps to the most recently viewed DTV
channel.

RADIO: Press to switch to radio mode. After switching
from DTV, ATV or external input mode to radio mode,
the TV jumps to the most recently tuned radio channel.

When you watch the TV for the fi rst time

When the TV powers on for the fi rst time after
purchase, perform the auto installation.

ATV (Analogue TV)

You can run the auto installation to set channels
automatically.

To watch the analogue TV, select “Auto

1

installation” from Setup menu. (See page 8.)

After setting the channels, you can select

2

a channel using CH r/s or 0 – 9 on the
remote control unit. (See page 5.)

DTV

When the TV accesses to DTV mode for the fi rst time,
you need to run the auto search. To scan all available
services in your area, follow the procedures below.

To watch DTV broadcasts, select “DTV” from

1

auto installation menu. (See page 8.)

After setting the channels, you can select

2

a channel using CH r/s or 0 – 9 on the
remote control unit. (See page 5.)

Switching the analogue
audio format

You can switch between multiple audio modes
when watching a multiple audio or stereo broadcast
programme.

In the NICAM TV broadcasts
When receiving a stereo signal

Each time you press MPX, the mode switches
between NICAM STEREO and MONO.

Stereo mode

BBC1

ATV ATV

PAL
NICAM

01

B/G

STEREO

PAL

When receiving a bilingual signal

Each time you press MPX, the mode switches among
NICAM CH A, NICAM CH B, NICAM CH AB and MONO.

Bilingual mode

BBC1

ATV ATV

PAL
NICAM

ATV ATV

PAL PAL

01

B/G

CH A

BBC1

01

B/G

MONO

PAL
NICAM

NICAM

When receiving a monaural signal

Each time you press MPX, the mode switches
between NICAM MONO and MONO.

Monaural mode

BBC1

ATV ATV

PAL
NICAM

01

B/G

MONO

PAL

BBC1

01

B/G

MONO

BBC1

01

B/G

CH B

BBC1

01

B/G

CH AB

BBC1

01

B/G

MONO

18

Switching the analogue
audio format (Continued)

In the TV mode of A2 TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches
between STEREO and MONO.

Stereo mode

BBC1

ATV ATV

PAL PAL

01

B/G

STEREO

When receiving a bilingual signal

Each time you press MPX, the mode switches among
CH A, CH B and CH AB.

Bilingual mode

BBC1

ATV ATV

PAL PAL

01

B/G

CH A

ATV

PAL

BBC1

01

B/G

CH AB

BBC1

01

B/G

MONO

BBC1

01

B/G

CH B

When receiving a monaural signal
When you press MPX, “MONO” displays.

Monaural mode

BBC1

ATV

PAL

NOTE

• “BBC1”, “01” and “PAL” are tentative network name,
channel and colour system.

01

B/G

MONO

19

20, 21

EPG

What is an EPG?

An “EPG (Electronic Programme Guide)” is a programme schedule, which is displayed on the TV screen. The EPG
is broadcasted together with DTV. The TV screen shows the EPG when the viewer presses EPG on the remote
control, provided that the TV is receiving the digital broadcasting signal. The EPG enables you to search for a
programme, do timer view the programme schedule in detail.

Basic Operation

Display the EPG screen

H

Press EPG.

1

ABC TV Syd..002

ABC HDTV

ABC2

ABC TV

3

Press c/d/R/G to select the time span you want to search.

2

• Continue to press d to display programmes in the next time span.

Press a/b to select the desired programme.

3

Close the EPG screen

H

4 Press EPG again or MENU to exit.

NOTE

• For “New Zealand delivery model”, the EPG screen and operation differ due to the use of MHEG EPG. The EPG screen and

operation vary depending on the broadcasts.

Reminder timer setting

You can schedule a reminder for future programmes. Channel will automatically change on time as scheduled.

Press EPG.

1

[Tue.] 19 [Wed.] 20 [Thurs.] 21 [Fri.] 22 [Sat.] 23 [Sun.] 24 [Mon.] DTV

002 ABC TV Sydney Play School

13:30 - 13:55

: Select

020

021

022

ENTER

: Enter

Play School

Play School

People Dimensions

Play School

13:30 14:30

...

...

Australia Wide

...

MENU

: End

Previous d..

R

2

Next dayGScheduleYReminder

B

2

Press

2

Press B to set reminder time.

3

Press ENTER to save reminder timer.

4

to select the programme you want to watch.

/b/c/d/R/G

a

• “Timer Save Success” will display.

NOTE

•

“Timer Overlap” will display if same time is set twice.

•

“Timer Past” will display if past time is set.

Press ENTER to display the reminder schedule list.

5

Press MENU or EPG to exit.

6

20

EPG (Continued)

Wide Mode

Viewing the reminder schedule list

Press EPG.

1

Press Y to display the reminder schedule list.

2

/

a

Press

3

Press MENU or EPG to exit.

4

to display next or previous screen.

b

Cancelling the reminder timer setting

Press EPG.

1

Press Y to display the reminder schedule list.

2

/

a

Press

3

to cancel.

Press R to delete a programme from reminder list.

4

Press MENU or EPG to exit.

5

to select a programme you want

b

Picture and still image

You can freeze a motion picture on the Display.

Press FREEZE.

1

• A still image displays.

Press FREEZE or RETURN again to exit still

2

image.

NOTE

• The still image automatically goes out after 30 minutes.

• FREEZE doesn’t function for PC input (all resolution).

Auto Selection

If you set “WSS” and “4:3 mode” in the Setup menu,
the optimum WIDE mode is automatically chosen for
every broadcast containing the WSS information.

“WSS” menu

To enable Auto Selection, set “WSS” in the Setup
menu to “On”. (See page 13.)

“4:3 mode” menu

To set the type of the wide screen, select “Panorama”
or “Normal” in the 4:3 mode menu. (See page 14.)

4:3 mode set to “Panorama” 4:3 mode set to “Normal”

NOTE

•

If the broadcast signal contains no WSS information, Auto
Selection will not function even when the WSS option is enabled.

Manual Selection

You can select different picture sizes that account for
the kind of each picture.

Press WIDE.

1

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable
for the type of video signal currently received.

Press WIDE or a/b while the WIDE MODE

2

menu displays on the screen.

• As you toggle down the options, each mode is
immediately refl ected on the TV.

Selected item Description

Normal

Zoom14:9

Panorama

Full

Cinema16:9

Cinema14:9

Underscan

For 4:3 “standard” pictures. A side bar
appears on each side.

For 14:9 letterbox pictures. A thin side bar
appears on each side, and you may also
see bars on the top and bottom with some
programmes.

In this mode the picture is progressively
stretched toward each side of the screen.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may
appear on the top and bottom with some
programmes.

For 14:9 letterbox pictures. Bars may
appear on the top and bottom with some
programmes.

Display with an Underscan image only
when receiving a 720p/1080i/1080p signal.
Display with the High-Defi nition image
adjusted optimally. Noise may appear
on the edge of the screen with some
programmes.

NOTE

• Some picture size may not be displayable depending on the
input signal.

21

Teletext function

What is Teletext?

Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
News, weather reports, sports information, stock
exchange prices and programme previews are among
the many services available.

Turning on and off Teletext

Select a TV channel or external input source

1

providing the Teletext programme.

Press m to display the Teletext.

2

Each time you press m, the screen switches

3

as shown below.

TELETEXT

NOTE

• If you select a programme with no Teletext signal,
“No teletext available.” is displayed.

• The same message displays during other modes if
no Teletext signal is available.

• New Zealand delivery model can receive MHEG
data broadcasting.

Button functions

Buttons Description

CH (r/s)

Colour
(Red/Green/
Yellow/Blue)

0 — 9

(Top/

v

Bottom/Full)

(Reveal

k

hidden
TELETEXT)

(Hold)

3

(Subtitle

[

for TELETEXT)

(Subpage)

1

NOTE

• Teletext can display only when it is sent by network. Not
used to convert between languages.

Increase or decrease the page number.

You can select a group or block of pages
displayed in the coloured brackets at
the bottom of the screen by pressing
the corresponding Colour (Red/Green/
Yellow/Blue) on the remote control unit.

Directly select any page from 100 to 899
by using 0 — 9.

Switch the Teletext image to Top, Bottom
or Full.

To reveal hidden information such as an
answer to a quiz.

To stop updating Teletext pages
automatically or release the hold mode.

Display the subtitle during Teletext page.

• Subtitle will not be displayed when
the service does not contain subtitle
information.

Display the subpage during Teletext page.

TELETEXT

PC Control of the TV

• When a programme is set, the TV can be controlled from
the PC using the RS-232C terminal.

The input signal (PC/video) can be selected, the volume

can be adjusted and various other adjustments and
settings can be made, enabling automatic programmed
playing.

• Attach an RS-232C cable cross-type (commercially
available) to the Din/D-sub RS-232C for the connections.

NOTE

• This operation system should be used by a person who is
accustomed to using PCs.

Communication conditions

Set the RS-232C communications settings on the PC
to match the communications conditions of the TV.
The communications settings of the TV are as follows:

Baud rate:

Data length:

Parity bit:

Stop bit:

Flow control:

Communication procedure

Send the control commands from the PC via the RS­232C connector.
The TV operates according to the received command
and sends a response message to the PC.
Do not send multiple commands at the same time.
Wait until the PC receives the OK response before
sending the next command.

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Command 4-digits Parameter 4-digits Return code

Command 4-digits: Command. The text of four characters.
Parameter 4-digits: Parameter 0 – 9, space, ?

Parameter

Input the parameter values, aligning left, and fi ll with
space(s) for the remainder. (Be sure that four values
are input for the parameter.)
When the input parameter is not correct, “ERR”
returns. (Refer to “Response code format”.)

0

Response code format

Problem response (communication error or incorrect command)

9,600 bps

8 bits

None

1 bit

None

0009

Normal response

OK

Return code (0DH)

ERR

a 30

Return code (0DH)

22

PC compatibility chart

Resolution

VGA

SVGA

XGA

WXGA

NOTE

• This TV has only limited PC compatibility, correct operation can only be guaranteed if the video card conforms exactly to the
VESA 60Hz standard. Any variations from this standard will result in picture distortions.

640 g 480

800 g 600

1024 g 768

1360 g 768

Horizontal
Frequency

31.5 kHz 60 Hz

37.9 kHz 60 Hz

48.4 kHz 60 Hz

47.7 kHz 60 Hz

Vertical

Frequency

Analogue

(D-Sub)

✔✔✔

✔✔✔

✔✔✔

✔✔✔

Digital (HDMI) VESA Standard

DDC is a registered trademark of Video Electronics Standards Association.
Power Management is a registered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks of International Business Machines Corp.

RS-232C commands list

Commands

• Commands not indicated here are not guaranteed to operate.

NOTE

• If an underbar (_) appears in the parameter column, enter a
space.

• If an asterisk (*) appears, enter a value in the range
indicated in brackets under CONTROL CONTENTS.

23

Appendix

Troubleshooting

The problems described below are not always caused by malfunctions. Check the TV again before having the TV
serviced.

Problem Possible Solution

• No power. • Check if you pressed POWER on the remote control unit. (See page 7.)

• Unit cannot be operated. • External infl uences such as lightning, static electricity, etc., may cause improper operation. In

• Remote control unit does
not operate.

• Picture is cut off. • Is the image position correct? (See page 15.)

• Strange colour, light
colour, or dark, or colour
misalignment.

• Power is suddenly turned
off.

• No picture. • Is the connection to external equipment correct? (See page 4.)

• No sound. • Is the volume too low? (See page 5.)

• The TV sometimes makes
a cracking sound.

If the indicator on the TV lights up red, press POWER.

• Is the AC cord disconnected?

• Has the power been turned on? (See page 7.)

this case, operate the unit after fi rst turning the power off the TV or unplugging the AC cord
and re-plugging it in after 1 or 2 minutes.

• Is battery inserted with polarity (e, f) aligned? (See page 5.)

• Is battery worn out? (Replace with new battery.)

• Are you using it under strong or fl uorescent lighting?

• Is a fl uorescent light shining on the remote control sensor?

• Are screen mode adjustments such as picture size made correctly? (See pages 14 to 15.)

• Adjust the picture tone. (See page 11.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting. (See pages 11, 15.)

• Check the input signal setting. (See page 15.)

• Check the HDMI auto view setting. (See page 13.)

• The unit’s internal temperature has increased.
Remove any objects blocking the vent or clean.

• Check the ECO setting. (See page 12.)

• Is the sleep timer set? (See page 5.)

• Has the input signal setup been performed correctly after connection? (See page 7.)

• Is the correct input selected?

• Is the picture adjustment correct? (See page 11.)

• Is the antenna connected properly? (See page 3.)

• Is “On” selected in “Audio only”? (See page 15.)

• Make sure that headphones are not connected.

• This is not a malfunction. This happens when the cabinet slightly expands and contracts
according to changes in temperature. This does not affect the TV’s performance.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, offi ce), the picture may leave trails or appear slightly delayed.
This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the LCD panel to malfunction.

Storage temperature: f20°C to e60°C.

24

Specifi cations

Item

LCD panel

Resolution

Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV
Function

Backlight life 60,000 hours (at Backlight Standard position)

Viewing angles H : 176º V : 176º

Audio amplifi er

Speakers

Terminals Rear Antenna input

OSD language English

Power Requirement AC 110 — 240 V, 50/60 Hz

Power Consumption 119 W (0.9 W Standby)

Dimensions

Weight

Operating Temperature 0°C — 40°C

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for product
improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of production units. There
may be some deviations from these values in individual units.

TV- Standard Analogue PAL: B/G, D/K, I SECAM: B/G, D/K, K/K

Receiving
Channel

TV-Tuning System Auto Preset 99 ch

STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G

INPUT 1 HDMI (HDMI input) (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,

INPUT 2 S-VIDEO in, VIDEO in, AUDIO in

INPUT 3 VIDEO in, AUDIO in

INPUT 4 AUDIO in, COMPONENT in (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz,

INPUT 5 (PC input) 15 pin mini D-sub, AUDIO in (common use with INPUT 1) ( 3.5 mm jack)

RS-232C 9 pin D-sub male connector

Digital Audio Output Optical Digital Audio Output

Headphone

without stand

with stand

without stand 10.0 kg

with stand 11.0 kg

Model

Digital DVB-T

VHF/UHF 44.25—863.25 MHz

CATV S1—S41ch (including Hyperband)

LC-32L400X

31.5o (800 mm) Advanced Super View & BLACK TFT LCD

1,049,088 pixels (1366 g 768)

1

10 W g 2

9 g 5 cm 2pcs

UHF/VHF 75 q DIN type

1080I/60Hz, 1080P/24Hz, 1080P/50Hz, 1080P/60Hz), AUDIO in ( 3.5 mm jack)

1080I/50Hz, 1080I/60Hz)

3.5 mm stereo

φ

797 (W) g 535 (H) g 115 (D) mm

797 (W) g 580 (H) g 262 (D) mm

Optional accessory

• Additional optional accessories may be available in the near future.
When purchasing, please read the newest catalogue for compatibility
and check the availability.

CAUTION

• This TV should be mounted on the wall only with the AN-37AG5 (SHARP) wall mount bracket. The use of other wall mount
brackets may result in an unstable installation and may cause serious injuries.

• Installing the Liquid Crystal Television requires special skill that should only be performed by qualifi ed service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting
that results in accident or injury.

• Carefully read the instructions that come with the bracket before beginning work.

Part name Model number

Wall mount bracket AN-37AG5

25

Protection against overturning

There is a danger of the product overturning in the case of a disaster or sudden collision. Carry out the following
tip-resistant measurement for your safety.

Anchoring the TV to the wall or a pillar

Fix the product with the 2 clamps

1

(supplied), using the screws (supplied).

Fix the TV to the wall using extrastrong

2

ties (commercially available).

Fixing the TV to the table

Lay the TV down on cushioning

1

(such as a blanket) over a table.

Attach the band (supplied) to

2

the bottom of the stand using
the screw (supplied).

Transfer the product to the table

3

where you intend to fi x the TV.

Fix the TV to the table by

4

the band with a screw
(commercially available).

• Use a screw (commercially available)
whose shape is compatible with the
band.

Restraining band
(supplied)

Thick soft cloth
(ex. Blanket)

Cup hook (commercially available) Tie (commercially available)

Stand

View from the top

Screws for attaching clamps (supplied)

Screw
(commercially

5

5

available)

Table

Screw for
band
(supplied)

Table

Restraining band
(supplied)

Wall

Clamps
(supplied)

5

5

CAUTION

• As this product is heavy, use a table that is wide enough to support the product and capable of withstanding the
product’s weight. The table should be set where it will not be overturned.

Dimensional drawings

Unit: mm

451

200

POWER

MENU

TV
VIDEO

CH

VOL

535

797

699.2

393.8
334

580

200

43.7

92 115

262

26

CLEARING THE PASSWORD

If you forget the password, clear the password using the following procedure.

Press MENU to display the MENU screen, and then press c/d to

1

select “Setup”.

Press a/b to select “Child lock”, and then press ENTER and the

2

password input screen display.

If you enter “3001” using 0 – 9, the “Child lock” setting menu will

3

be displayed.

Enter the 4-digit number as a password using 0 – 9. The new

4

password is now set.

The Password is .

NOTE

• As a precautionary measure, make a note of your password above, remove it from this manual, and keep it in a familiar place.

27

Memo
