Sharp LC-30HV2M Operating Manual

LC-30HV2M
LCD COLOUR TELEVISION
ENGLISH
OPERATION MANUAL
Printed on post-consumer recycled paper.
TINS-A244WJZZ 02P06-JKG
LC-30HV2M
LCD COLOUR TELEVISION
ENGLISH
OPERATION MANUAL
Contents
Contents …………………………………………………… 1 Dear SHARP customer …………………………………… 2 Important Safety Precautions ………………………… 2 Supplied accessories …………………………………… 4 Preparation ………………………………………………… 5
Setting the system …………………………………… 5 How to route the system cable ……………………… 6 Using the remote control unit ………………………… 7
Cautions regarding remote control unit ……… 7 Inserting the batteries …………………………… 7 Cautions regarding batteries …………………… 7
Part names ………………………………………………… 8
Display ………………………………………………… 8 AVC System …………………………………………… 9 Remote control unit …………………………………… 10
Watching TV ……………………………………………… 11
Basic connection ……………………………………… 11
Connecting to an antenna ……………………… 11
Connecting to the power outlet ………………… 11 Using Headphones …………………………………… 12 Turning on the power ………………………………… 13 Turning off the power ………………………………… 13 Initial auto installation ………………………………… 14 Simple button operations for changing channels … 15 Using FLASHBACK (A)
on the remote control unit ………………………… 15
Simple button operation for changing
volume/sound ……………………………………… 16
Basic adjustment settings ……………………………… 19
AV Input mode menu items ………………………… 19 PC Input mode menu items ………………………… 20 Auto installation ……………………………………… 21
Language setting ………………………………… 21
Programme auto search ………………………… 21
Auto labelling …………………………………… 22
Auto sorting ……………………………………… 22 Programme setup……………………………………… 23
Auto search ……………………………………… 23
Programme auto search ………………………… 23
Auto labelling …………………………………… 23
Auto sorting ……………………………………… 24
Manual setting for each channel ……………… 25
Additional channels entry ………………… 25 Search tuning………………………………… 26 Fine tuning …………………………………… 27 Colour system ……………………………… 27 Sound system ……………………………… 28 Labelling channels ………………………… 28 Skipping channels ………………………… 28 Setting the child lock ……………………… 29
Sort ………………………………………………… 30 Language setting ……………………………………… 31 Picture adjustments …………………………………… 33
Colour temperature ……………………………… 34
Film mode ………………………………………… 34
Black ……………………………………………… 35
ENGLISH
Monochrome ……………………………………… 35 I/P Setting ………………………………………… 36 Cool Climate ……………………………………… 37
Vivid Colour ……………………………………… 37 Sound adjustment …………………………………… 38 Power control ………………………………………… 39
Power control for AV source …………………… 39
Power control for PC source …………………… 41
Using external equipment ……………………………… 42
Watching a DVD image ……………………………… 43
Connecting a DVD player ……………………… 43
Displaying a DVD image ………………………… 43 Watching a VCR image ……………………………… 44
Connecting a VCR ……………………………… 44
Displaying a VCR image ………………………… 44 Watching broadcasts via an HDTV tuner …………… 45
Connecting an HDTV tuner ……………………… 45
Displaying broadcasts via an HDTV tuner …… 45 Enjoying a game player or viewing camcorder
images ……………………………………………… 46
Connecting a game player or camcorder …… 46
Displaying an image of the game player or
camcorder ……………………………………… 46
Viewing an image from a computer ………………… 47
Connecting a computer ………………………… 47
Displaying an image from a computer ………… 47 Removing the speakers ……………………………… 48
Useful adjustment settings ……………………………… 49
Image position (AV Input mode only) ……………… 49 Moving the picture on the screen …………………… 50 Auto Sync. adjustment (PC Input mode only) ……… 51 Fine Sync. adjustment (PC Input mode only) ……… 51 Input signal source …………………………………… 52 Colour system setting (AV Input mode only) ……… 53 AV mode ……………………………………………… 53 WIDE mode (AV Input mode) ………………………… 54 WIDE mode (PC Input mode) ……………………… 55 Wide screen signalling (WSS)
(AV Input mode only) ……………………………… 56 Picture aspect ratio (AV Input mode only) ………… 56 Selecting Full Mode display (AV Input mode only)… 57 Audio out ……………………………………………… 58 Sleep timer …………………………………………… 58 Password setting for child lock
(AV Input mode only) ……………………………… 59
Useful features …………………………………………… 60
Dual screen functions ………………………………… 60 Teletext function ……………………………………… 62 Time display …………………………………………… 64
Appendix ………………………………………………… 65
Troubleshooting ……………………………………… 65 Computer compatibility chart ………………………… 66 RS-232C port specifications ………………………… 67 Specifications ………………………………………… 69
Dimensional drawings …………………………………… 70
1
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble­free operation of your product, please read the Important Safety Precautions carefully before using this product.
Important Safety Precautions
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD colour TV product, please read the following precautions carefully before using the product.
1. Read instructions—All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings—All warnings on the product and in the instructions must be observed closely.
4. Follow instructions—All operating instructions must be followed.
5. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
6. Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
7. AC cord protection—The AC cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.
8. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
9. Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
10. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
11. Repair—If any of the following conditions occurs, unplug the AC cord from the AC outlet, and request a qualified service person to perform repairs.
a. When the AC cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment
work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that
the product needs servicing.
12. Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorised parts can result in fire, electric shock and/or other danger.
13. Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
14. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
15. Unplug the AC cord from the AC outlet before installing the speakers.
2

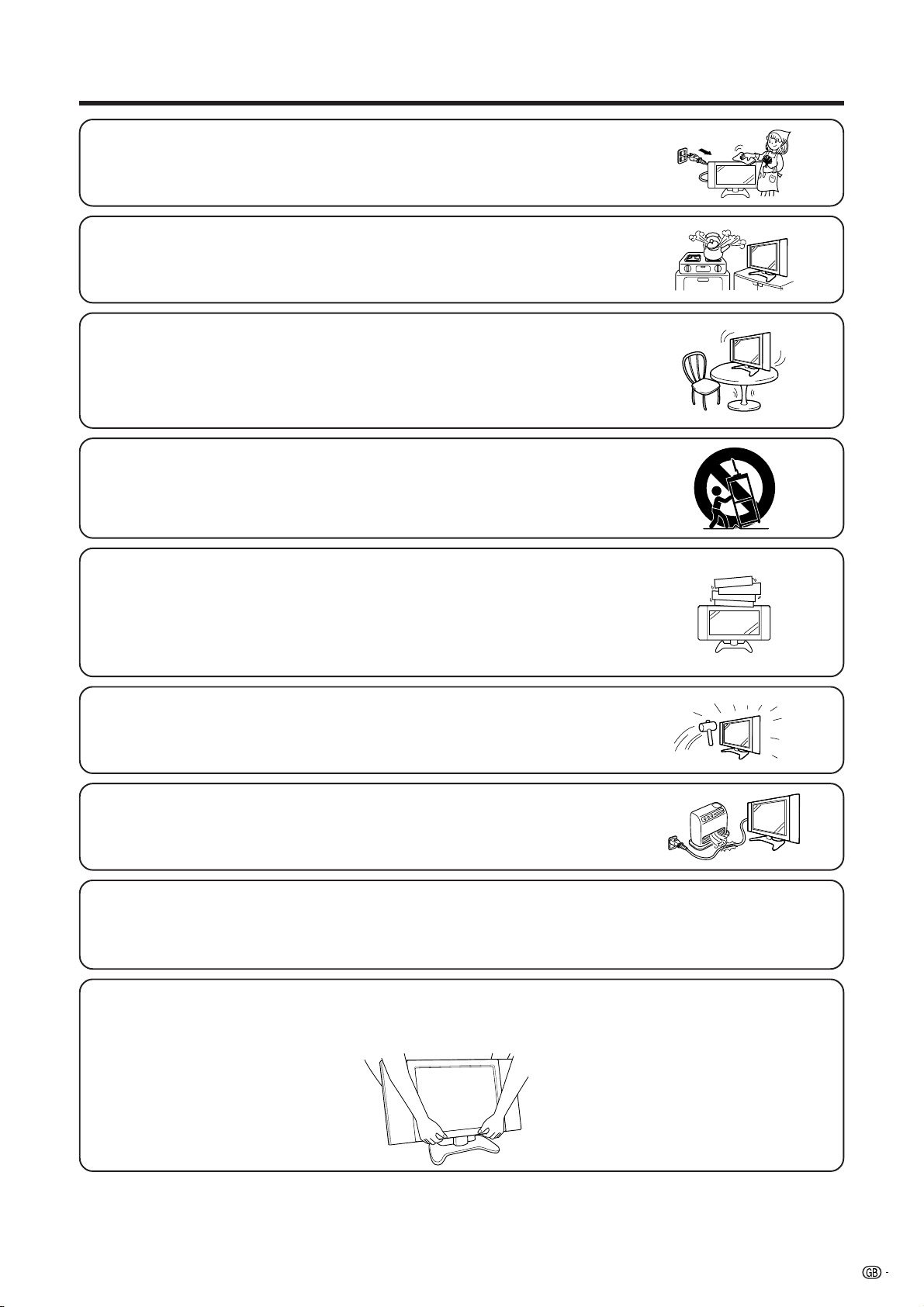

Important Safety Precautions
• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
•Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.
• Stand—Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product.
• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.
•Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.
• The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.
• Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).
The LCD panel is a very high technology product with 2,949,120 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.
Precautions when transporting the display
When transporting the display, never carry it by holding onto the speakers. Be sure to always carry the display by two people holding it with two hands-one hand on each side of the display.
3
Supplied accessories
Make sure the following accessories are provided with the product.
Remote control unit (g1) AA size battery (Alkaline battery) (g2)
System cable (g1)
Operation manual (g1) Cable clamp (g1)
AC cord (g2)
Antenna cable (g1)
4
AC INPUT 110V–240V
DISPLAY INPUT2 DISPLAY INPUT1
HEADPHONE
AC INPUT 110V–240V
DISPLAY INPUT2 DISPLAY INPUT1
Preparation

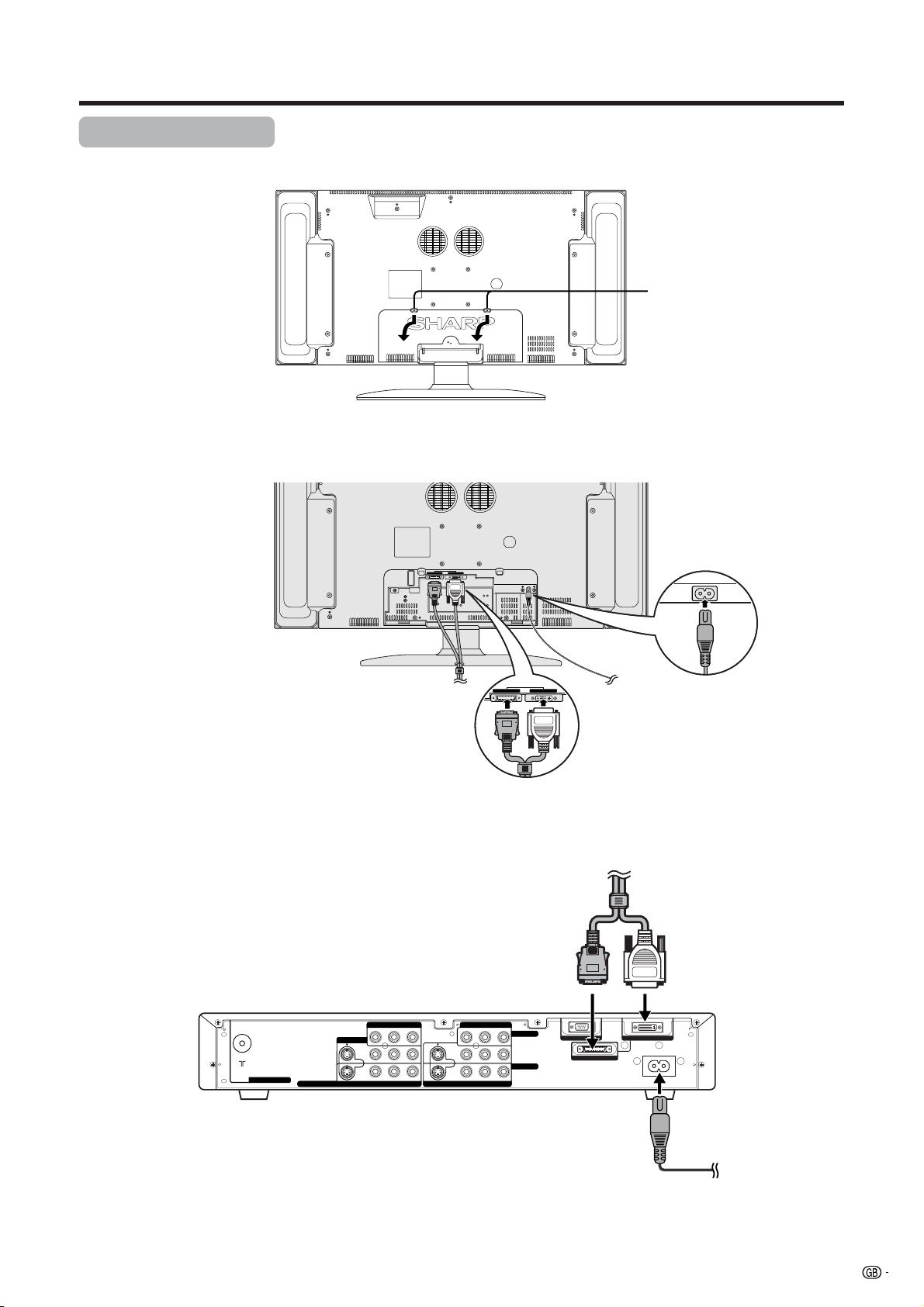

Setting the system
Removing the terminal cover
DISPLAY OUTPUT-2 DISPLAY OUTPUT-1
1. Connecting the system cable and the AC cord to the Display
Display (rear view)
AC INPUT 110V–240V
Press down the two upper hooks to remove the cover toward you.
(GRAY)
Connect the plug firmly
until the hooks on both
sides click.
System cable
2. Connecting the system cable and the AC cord to the AVC System
(GRAY) (WHITE)
AVC System (rear view)
COMPONENT
B PR
YP
INPUT 3
ANT
ANT/CABLE 75
MONITOR OUTPUT
S-VIDEO
VIDEO R-AUDIO-L
COMPONENT
B PR
YP
S-VIDEO VIDEO R-AUDIO-L
INPUT 1
INPUT 2
RS-232C
AC cord
(WHITE) Connect the plug into the terminal and secure it by tightning the thumb screws.
System cable
DISPLAY OUTPUT-1
DISPLAY OUTPUT-2
AC INPUT 110-240V
AC cord
L
TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC
CORD CONNECTED.
5
Preparation

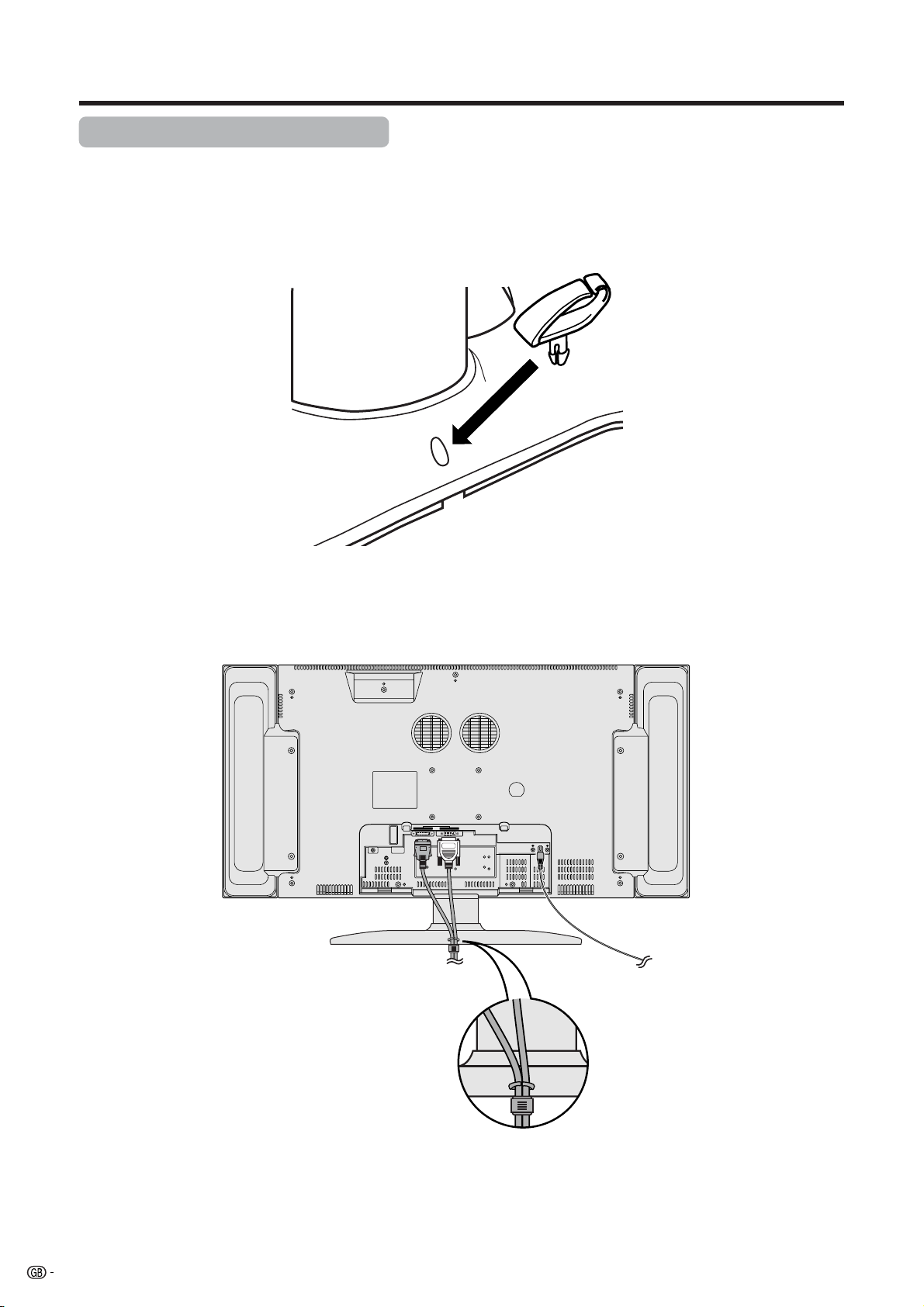

How to route the system cable
A cable clamp is included with the system for cable management.
1. Attaching the clamp to the leg of the Display
2. Bundling the cables with the clamp
As viewed from the rear of the Display.
HEADPHONE
DISPLAY INPUT2 DISPLAY INPUT1
AC INPUT 110V–240V
6
Preparation
Using the remote control unit
Use the remote control unit by pointing it towards the remote sensor window. Objects between the remote control unit and sensor window may prevent proper operation.
Cautions regarding remote control unit
• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote sensor window of the Display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Display, or operate the remote control unit closer to the remote sensor window.
Inserting the batteries
If the remote control unit fails to operate LCD colour TV functions, replace the batteries in the remote control unit.
1 Open the battery cover. 2 Insert batteries (two AA size
3 Close the battery cover.
batteries, supplied with product).
+
_
• Place batteries with their terminals
corresponding to the (e) and (f) indicators in the battery compartment.
_
+
Cautions regarding batteries
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
• Do not use manganese batteries. When you replace the batteries, use alkaline ones.
• Place the batteries with their terminals corresponding to the (e) and (f) indicators.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.
L
•WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTRUCTION RULES THAT APPLY IN YOUR COUNTRY/AREA.
7
Part names
Display
VOLUME buttons
(VOLl/k )
CHANNEL buttons
(CHs/r)
INPUT button
POWER button
MAIN POWER button
Remote control sensor
OPC sensor
POWER indicator
8
Sleep timer indicator
OPC indicator* (See pages 39 and 41.)
*OPC: Optical Picture Control
Part names

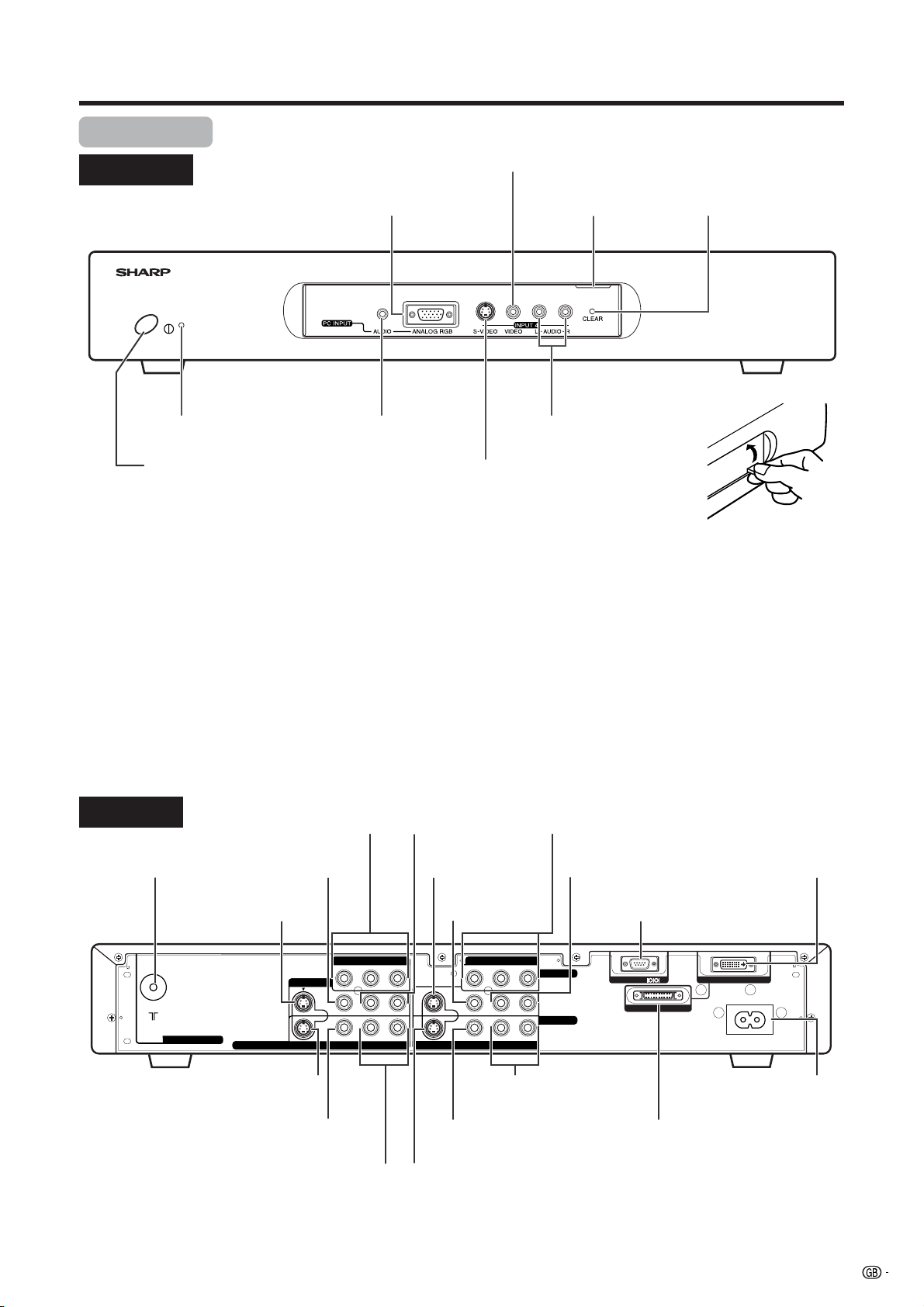

AVC System
Front view
STANDBY/ON indicator
PC INPUT terminal (ANALOG RGB)
PC INPUT terminal
INPUT 4 terminal (VIDEO)
Door knob
INPUT 4 terminals (AUDIO)
CLEAR*
(AUDIO)
POWER button
INPUT 4 terminal (S-VIDEO)
(How to open the door)
* If the AVC System is switched on but it does not appear to be operating correctly, it may need resetting. In this
case press CLEAR on the front of the unit as shown in the diagram. Press CLEAR lightly with the end of a ballpoint pen or other pointed object. This will reset the System as shown below.
•AV MODE resets to STANDARD
• TV channel resets to channel 1
• Dual screen resets to normal
• Audio setting initialises
• SRS resets to OFF
• Image position is initialised
A
•Pressing CLEAR will not work if the System is in standby mode (indicator lights red).
•Pressing CLEAR will not delete channel preset or password. See page 59 for initialising factory preset settings when you know your password. See page 72 for initialising factory preset values when you have forgotten your password.
Rear view
INPUT 3 COMPONENT VIDEO terminals (Y, P
ANTENNA INPUT
terminal
INPUT 3 terminal (VIDEO)
INPUT 3 terminal (S-VIDEO)
INPUT 3
ANT
ANT/CABLE 75
MONITOR OUTPUT
S-VIDEO
MONITOR OUTPUT terminal (S-VIDEO)
MONITOR OUTPUT terminal (VIDEO)
MONITOR OUTPUT terminals (AUDIO)
B, PR)
COMPONENT
YP
BPR
VIDEO R-AUDIO-L
INPUT 3 terminals (AUDIO)
INPUT 1 COMPONENT VIDEO terminals (Y, P
INPUT 1 terminal (S-VIDEO)
INPUT 1 terminal (VIDEO)
COMPONENT
BPR
YP
S-VIDEO VIDEO R-AUDIO-L
INPUT 1
INPUT 2
INPUT 2 terminals (AUDIO)
INPUT 2 terminal (VIDEO)
INPUT 2 terminal (S-VIDEO)
B, PR)
INPUT 1 terminals (AUDIO)
RS-232C terminal
RS-232C
DISPLAY OUTPUT-2
DISPLAY OUTPUT-2 terminal
DISPLAY OUTPUT-1
terminal
DISPLAY OUTPUT-1
AC INPUT
110-240V
AC INPUT terminal
9
Part names
Remote control unit
13 1 2 3
14
15
16 4 5
17 6 7 8
18
19 9
20
10 11 12
21
22
23
24
25
A
• When using the remote control unit, point it at the Display.
* “TV”, “INPUT1”, “INPUT2”, “INPUT3”,
“INPUT4” and “PC” modes can each store the WIDE mode setting separately. The same for AV mode and volume.
** SRS and the R symbol are trademarks
of SRS Labs, Inc. SRS technology is incorporated under license from SRS Labs, Inc. FOCUS and the R symbol are trademarks of SRS Labs, Inc. FOCUS technology is incorporated under license from SRS Labs, Inc.
1 B (STANDBY/ON)
To switch the power on and off.
2 du (FREEZE/HOLD for TELETEXT)
TV/External input mode: Change the still image mode. TELETEXT mode: Freeze a multi-page on screen while other pages are automatically updated. Press d again to return to the normal image.
3 c (DUAL screen)
Set the dual picture mode. Press c again to return to normal view.
4 fv (WIDE MODE/ T/ B/ F)*
TV/External input mode: Change the wide image mode. TELETEXT mode: Set the area of magnification. (full/upper half/ lower half)
5AV MODE*
Select a video setting. AV MODE (STANDARD, DYNAMIC, MOVIE, GAME, USER) PC MODE (STANDARD, USER)
6 SOUND
Select the sound multiplex mode.
7 h (SRS and FOCUS)**
Select SRS and FOCUS Sound System.
8 A (FLASHBACK)
Press to return to the previous channel in normal viewing mode. Press to return to the previous page in TELETEXT mode.
9 il/ik (VOLUME)*
Set the volume.
10 k (Reveal hidden for TELETEXT)
TELETEXT mode: Display hidden characters.
11 j (SUBPAGE for TELETEXT)
TELETEXT mode: Change the picture mode for sub-page selecting.
12 MENU
Display the Menu screen.
13 C (CHANNEL INFORMATION)
Display the channel information and time. (See page 64 for details on the time display.)
14 b (INPUT SOURCE)
Select an input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4, PC)
15 SLEEP
Set the SLEEP TIMER.
16 e (MUTE)
Mute the sound.
17 0 – 9
TV/External input mode: Set the channel. TELETEXT mode: Set the page.
18 o (Digit for channel select)
Change the digits of the selected TV channel.
19 Colour (RED/GREEN/YELLOW/BLUE)
TELETEXT mode: Select a page.
20 CHa/CHb(w/x )
TV/External input mode: Select the channel. TELETEXT mode: Set the page.
21 l (TOP Overview for TELETEXT)
TELETEXT mode: Display an index page for CEEFAX/FLOF information. TOP OVER VIEW for TOP programme.
22 m (TELETEXT)
Select the TELETEXT mode. (all TV image, all TEXT image, TV/TEXT image)
23 RETURN
MENU mode: Return to the previous menu screen.
24 ENTER
Execute a command. Return to the initial image position after moving with a/b/c/d.
25 a/b/c/d (Cursor)
Select a desired item on the setting screen. Move the picture on the screen.
10
Watching TV
Simple operations for watching a TV programme.
Basic connection
Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable.
COMPONENT
BPR
YP
S-VIDEO VIDEO R-AUDIO-L
INPUT 1
DISPLAY OUTPUT-1
RS-232C
DISPLAY OUTPUT-2
INPUT 2
AC INPUT 110-240V
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable) (commercially available)
Antenna cables-commercially available
If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC169-2), plug it into the ANTENNA INPUT terminal at the rear of the AVC System.
ANT
ANT/CABLE 75
MONITOR OUTPUT
COMPONENT
BPR
YP
INPUT 3
S-VIDEO
VIDEO R-AUDIO-L
Connecting to the power outlet
Display (rear view)
DISPLAY INPUT2 DISPLAY INPUT1
HEADPHONE
AVC System (rear view)
COMPONENT
YP
BPR
MONITOR OUTPUT
INPUT 3
VIDEO R-AUDIO-L
S-VIDEO VIDEO R-AUDIO-L
S-VIDEO
ANT
ANT/CABLE 75
YP
COMPONENT
AC INPUT 110V–240V
Plug in to wall outlet
BPR
INPUT 1
DISPLAY OUTPUT-1
RS-232C
DISPLAY OUTPUT-2
INPUT 2
AC INPUT 110-240V
Plug in to wall outlet
A
• Always turn off the main power of Display and AVC System when connecting the AC cords.
• Disconnect the AC cords from the AC outlet, Display and AVC System when the TV will not be used for a long period of time.
11
Watching TV
Using Headphones
You can use any pair of headphones (3.5 ø mm mini-jack) to listen to the sound.
HEADPHONE
Headphones (3.5 ø mm mini-jack) (commercially available)
HEADPHONE
DISPLAY INPUT2 DISPLAY INPUT1
AC INPUT 110V–240V
A
• When connecting headphones, the sound from the display speakers is muted.
12
Watching TV
POWER button
POWER indicator
STANDBY/ON indicator
POWER button
Display
MAIN POWER button
AVC System
Turning on the power
1 Press MAIN POWER on the Display.
• The POWER indicator on the Display flashes red.
2 Press POWER on the AVC System.
• The System turns the power on.
• The POWER indicator on the Display lights up green and the STANDBY/ON indicator on the AVC System lights up green.
• If the POWER indicator on the Display and the STANDBY/ON indicator on the AVC system still light up red, press B on the remote control unit or POWER button on the Display to turn the System on.
When turning the AVC System on first
1 Press POWER on the AVC System.
• The STANDBY/ON indicator on the AVC System lights up red.
2 Press MAIN POWER on the Display.
• The System turns the power on.
• The POWER indicator on the Display lights up green and the STANDBY/ON indicator on the AVC System lights up green.
• If the STANDBY/ON indicator on the AVC system and the POWER indicator on the Display still light up red, press B on the remote control unit or POWER button on the Display to turn the System on.
A
• In this manual, “System” above means the Display and AVC System.
• The initial auto installation starts when the System powers on for the first time. If the System has been turned on before, the initial auto installation will not be invoked. See page 21 to try auto installation from the Setup menu.
Display status indicators
Off
Flashing red
Red
Green
Power off
AVC System does not turn on or its AC cord is disconnected.
The System is in standby mode.
The System turns the power on.
Turning off the power
1 Press B on the remote control unit or POWER button on
the Display.
• The System enters standby mode and the image on the screen disappears.
• Both the POWER indicator on the Display and the STANDBY/ ON indicator on the AVC System change from green to red.
2 Press POWER on the AVC System.
• The STANDBY/ON indicator on the AVC System turns off and the POWER indicator on the Display flashes red.
3 Press MAIN POWER on the Display.
• The POWER indicator on the Display turns off immediately.
A
• If you are not going to use this System for a long time, be sure to remove the AC cords from the power outlet.
AVC System status indicators
Off
Red
Green
Power off
Only the AVC System is in standby mode or the System is in standby mode.
The System turns the power on.
13
Watching TV
Initial auto installation
When the System powers on for the first time after purchase, the initial auto installation is invoked. You can automatically set language and channels in successive operations.
Language menu
Auto Installation-Language
English
Español
Português
Searching TV channels
Auto Installation - Programme Setup “Auto”
1011142.25
010255.25
85.25
03 102.25
04
05
06
07
08
09
148.25
Labelling TV channels
Auto Installation - Programme Setup “Auto”
10 142.25
0102SAT.1
03 KABEL
04
05
06
07
130.25
08
136.25
09
PRO7
11 148.25
12 155.25
1. Setting a language
1 Press a/b to select the desired language listed
on the screen.
2 Press ENTER to enter the setting.
2. Automatic channel searching
Channel auto search makes the System look for all channels viewable in your area.
A
• If no channel is found, “No programme found. Is antenna connected properly?” displays. And the auto installation is finished.
• If you want to try auto installation again, see page 21.
3. Automatic channel labelling
After finding TV channels, the System starts naming each TV channel found.
A
• The TV can only name channels with labelling information. If no information is available, the TV displays “-----”.
• Cancel the setting by pressing RETURN and the TV automatically returns to the status before programme auto search.
14
Sorting TV channels
Auto Installation - Programme Setup “Auto”
10 -----
0102SAT.1
03 KABEL
04
05
06
07
08
09
PRO7
VOX
QVC
11 -----
12 -----
4. Automatic channel sorting
When channel auto labelling finishes, the System starts sorting the labelled channels.
A
• Cancel the setting by pressing RETURN and the TV automatically returns to the status before programme auto search.
Watching TV
Display
CHs/r
Simple button operations for changing channels
aa
Using CH
•Press CH
•Press CH
A
CHs/r on the Display operates the same as
bb
CH
b/
aon the remote control unit.
bb
bb
a/
bon the remote control unit
aa
bb
aa
a to increase channel number.
aa b b
b to decrease channel number.
b b
aa
aa
Using FLASHBACK (A) on the remote control unit
Press A to switch the currently tuned channel to the previously tuned channel. Press A again to switch back to the currently tuned channel.
Channel display
SAT.1
12
PAL
B/G
SAT.1
12
MONO
( Displays after 3 secs. )
Using 0 – 9 on the remote control unit
Select the channels directly by pressing buttons 0 to
9.
a
To select a 1-digit channel (e.g. channel 2):
•Press 2. If “2” is indicated and the picture does not change, press o to switch over to the 1-digit select mode and press 2 again.
To select a 2-digit channel (e.g. channel 12):
•Press o to set the 2-digit select mode. Press 1, followed by 2.
A
• Complete this procedure within 3 seconds, otherwise the selection will not be made on the 2-digit channel mode.
When viewing Teletext information
View a page directly which is a 3-digit page number from 100 to 899 by pressing buttons 0 to 9. With Teletext, you do not use o. (See page 62.)
15
Watching TV
VOL
ll
l/
ll
Display
kk
k
kk
Simple button operation for changing volume/sound
•To increase the volume, press VOL or i
kk
k on the remote control unit.
kk
•To decrease the volume, press VOL or i
A
• “TV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4” and “PC” modes can each store volume adjustment values separately.
ll
l on the remote control unit.
ll
Audio status
Output device
Speaker
MONITOR OUTPUT
* When “Audio Out” is set to “Variable”, the indicator on
the screen changes as shown below.
Variable sound
Constant as
specified
kk
k on the Display
kk
ll
l on the Display
ll
Audio out
Variable sound
VariableFixed
Mute
Volume adjustment
Mute
20
20
A
• See page 58 for details on the audio out function.
Using e on the remote control unit
e mutes the current sound output.
1 Press e.
•“e” has been displayed on the screen for 8 minutes,
and the sound is silenced.
• The System does not suddenly output a loud sound as the volume level is set to 0.
2 Press e again to cancel the mute.
A
Pressing i
also cancel the mute.
Changing channels by pressing 0 – 9 button can also cancel the
mute.
Mute will be canceled after 8 minutes have elapsed.
However, the system will not suddenly output a loud sound as the volume level is set to 0 automatically.
ll
l/i
ll
kk
k, SOUND, CH
kk
aa
bb
a/CH
b, b or A can
aa
bb
16
Watching TV
Using h on the remote control unit
h produces SRS and FOCUS effect from the speakers. Each time you press h, the mode changes among SRS, FOCUS, FOCUS e SRS and OFF.
SRS sound options
•SRS (Sound Retrieval System): Creates more natural sound retrieving the spatial information from any stereo recording and restoring the original three­dimensional sound field.
• FOCUS: Repositions a sound image from two speakers to a more optimal listening position or height without moving them.
• FOCUS e SRS: Produces both SRS and FOCUS effects.
: OFF
: SRS
: FOCUS
: FOCUS+SRS
• OFF: Outputs the normal sound.
17
Watching TV
NICAM
MONO
99
BBC2
MONO
99
BBC2
NICAM broadcasts (Display examples)
Stereo mode
BBC2
99
NICAM
STEREO
BBC2
99
MONO
Bilingual mode
BBC2
NICAM
CH A
BBC2
NICAM
CH B
Using SOUND on the remote control unit
In the NICAM TV broadcasts
When receiving a stereo signal
Each time you press SOUND, the mode switches between NICAM STEREO and MONO.
When receiving a bilingual signal
Each time you press SOUND, the mode switches among NICAM CH A, NICAM CH B, NICAM CH AB and MONO.
When receiving a monaural signal
Each time you press SOUND, the mode switches between NICAM MONO and MONO.
In the TV mode of IGR TV broadcasts
When receiving a stereo signal
Each time you press SOUND, the mode switches
99
between STEREO and MONO.
When receiving a bilingual signal
Each time you press SOUND, the mode switches among CH A, CH B and CH AB.
99
When receiving a monaural signal
When you press SOUND, “MONO” displays.
Monaural mode
IGR broadcasts (Display examples)
Stereo mode
BBC2
99
STEREO
BBC2
99
MONO
Bilingual mode
Monaural mode
BBC2
99
MONO
BBC2
NICAM
CH AB
BBC2
MONO
BBC2
CH A
BBC2
CH B
BBC2
CH AB
99
A
•When no signal is input, the sound mode will display “MONO”.
99
99
99
99
• “BBC2” and “99” are tentative network name and channel.
18
Basic adjustment settings
AV Input mode menu items
List of AV menu items to help you with operations
Page 39–40
Power control
Power Save [Standard]
No Signal off [Disable]
First MENU
MENU
Power control
Audio
Setup
Option
No Operation off
RETURN
Page 33–37
USER
Contrast
Bright
Colour
Tint
Sharp
Advanced
Reset
RETURN
Page 38
Audio
USER
Treble
Bass
Balance
Reset
RETURN
[+35]
[0]
[0]
[0]
[0]
[0]
[0]
[0]
[Disable]
0
–30
–30
–30
–7
–15
–15
Left
+40
+30
+30
+30
+7
Power Save
No Signal off
No Operation off
Contrast
Bright Colour
Tint
Sharp
Advanced
Reset
+15
+15
Right
MENU
MENU
MENU
Treble Bass
Balance
Reset
Description
Saves power by decreasing picture brightness.
System automatically shuts down if no video signal inputs for 15 minutes.
System automatically shuts down if you do not operate the System for 3 hours.
Description
Adjusts the picture between light and shade.
Adjusts picture brightness. Adjusts colour intensity. Adjusts skin colour to a more natural
tone. Adjusts picture sharpness. Adjusts “Colour Temp”, “Film Mode”,
“Black”, “Monochrome”, “I/P Setting”, “Cool Climate” and “Vivid Colour”.
All image adjustment settings return to the factory preset values.
Description
Adjusts the treble weaker or stronger.
Adjusts the bass weaker or stronger.
Adjusts audio output between left and right speakers.
All audio adjustment settings return to the factory preset values.
Page 21–30, 59
Setup
Auto Installation
Programme Setup
Child Lock
RETURN
Page 31-32, 49, 53, 56–58
Option
Input Select
WSS
4:3 Mode
Full Mode [Mode1]
Position
Audio Out
Colour System
Language
Text Lang.
RETURN
[On]
[Panorama]
[Fixed]
[AUTO]
[English]
[West Europe]
MENU
Auto Installation
Programme Setup
Child Lock
MENU
Input Select
WSS
4:3 Mode
Full Mode
Position
Audio Out
Colour System
Language
Text Lang.
Description
Runs auto installation again the same as when the System powers on for the first time after purchase.
Sets the channel preset.
Sets a password to restrict operations.
Description
Selects the kind of input signal of each input source.
When wide screen signal bits are present in the TELETEXT data, you can view information in wide screen mode.
When you receive a 4:3 or 14:9 mode signal, select “Normal” or “Panorama” display.
Selects Full mode display setting.
Adjusts the horizontal/vertical position of the image displayed.
Selects the type of audio output. You can adjust volume for the main speaker or audio output.
Selects the colour system of an image currently input.
Selects the on screen display language.
Selects the language setting at Teletext mode.
19
Basic adjustment settings
PC Input mode menu items
List of PC menu items to help you with operations
Page 41
Power Control
Power Save [Standard]
First MENU
MENU
Power Control
Audio
Option
Power Management
RETURN
Page 33
USER
Contrast
[+30]
Bright
[0]
Red
[0]
Green
[0]
Blue
[0]
Reset
RETURN
Page 38
Audio
USER
Treble
Bass
Balance
Reset
RETURN
[0]
[0]
[0]
[Off]
0
–30
–30
–30
–30
–15
–15
Left
+40
+30
+30
+30
+30
+15
+15
Right
MENU
Power Save
Power Management
MENU
Contrast
Bright
Red
Green
Blue
Reset
MENU
Treble
Bass
Balance
Reset
Description
Saves power by decreasing picture brightness.
System automatically shuts down if you set the time. Select mode 1 or mode 2.
Description
Adjusts the picture between light and shade.
Adjusts picture brightness.
Adjusts red colour intensity.
Adjusts green colour intensity.
Adjusts blue colour intensity.
All image adjustment settings return to the factory preset values.
Description
Adjusts the treble weaker or stronger.
Adjusts the bass weaker or stronger.
Adjusts audio output between left and right speakers.
All audio adjustment settings return to the factory preset values.
Page 51, 58
Option
Auto Sync.
Fine Sync.
Audio Out
RETURN
[Fixed]
MENU
Auto Sync.
Fine Sync.
Audio Out
Description
Provides a clear input image.
Adjusts image “H-Pos.”, “V-Pos.”, “Clock”, “Phase”.
After selecting type of monitor output, adjusts the volume of the main speaker or monitor output.
20
Basic adjustment settings
Auto installation
You can run auto installation again, even after setting up the preset channels.
Password menu
MENU
Setup
Password
A
• This menu displays when setting the password for the child lock. (See page 59.)
- ---
Setup menu
MENU
Setup
Auto Installation
Programme Setup
Child Lock
RETURN
Language setting
Select from among 4 languages: English, Spanish, Portuguese and Chinese.
1 Press MENU. 2 Press a/b to select “Setup”, and then press
ENTER.
• Password setting menu displays only when the password for the child lock is set. (See page 59.)
• Setup menu displays when the password for the child lock is not set. Skip step 3.
3 Enter your 4-digit password with 0 – 9 to temporarily
lift the child lock.
• See page 59 for details on temporarily lifting the child lock.
4 Press a/b to select “Auto Installation”, and then
press ENTER.
• Language menu displays.
5 Press a/b to select the desired language listed
on the screen, and then press ENTER.
Language menu
(Display example)
Auto Installation-Language
English
Español
Português
Searching TV Programmes
(Display example)
Auto Installation - Programme Setup “Auto”
1011142.25
010255.25
85.25
03 102.25
04
05
06
07
08
09
148.25
Programme auto search
This function performs the procedure below to search TV channels.
A
• Cancel the setting by pressing RETURN and the System automatically returns the status before programme auto search.
• If no channels were found, you should check your antenna connection, and try Auto installation again because it is finished. (See page 11.)
21
Basic adjustment settings
Labelling TV channels
(Display example)
Auto Installation - Programme Setup “Auto”
10 142.25
0102SAT.1
03 KABEL
04
05
06
07
130.25
08
136.25
09
PRO7
11 148.25
12 155.25
Auto labelling
After finding new TV channels, each network name is searched and displayed.
A
• Cancel the setting by pressing RETURN and the System automatically returns the status before programme auto search.
Sorting TV channels
(Display example)
Auto Installation - Programme Setup “Auto”
10 -----
0102SAT.1
03 KABEL
04
05
06
07
08
09
PRO7
VOX
QVC
11 -----
12 -----
MENU
Setup
Auto Installation
Programme Setup
Child Lock
RETURN
Auto sorting
Automatically sorts TV channels.
A
• Cancel the setting by pressing RETURN and the System automatically returns the status before programme auto search.
Do not shut down the System until “Auto Installation
completed.” displays.
When Auto Installation is completed, the display is returned to the menu shown left.
22
Basic adjustment settings
Programme setup
You can run the auto installation procedure again at any time, by accessing the Setup menu, then Programme Setup. Channels can be turned automatically or manually.
Searching TV programmes
(Display example)
Programme Setup “Auto”
010255.25
85.25
03 102.25
MENU
Setup
Auto Installation
Programme Setup
Child Lock
RETURN
MENU
Setup
Programme Setup
Auto Search
Manual Adjust
Sort
RETURN
Auto search
You can also automatically search TV channels by performing the procedure below.
1 Press MENU. 2 Press a/b to select “Setup”, and then press
ENTER.
3 Press a/b to select “Programme Setup”, and then
press ENTER.
4 Press a/b to select “Auto Search”, and then press
ENTER.
A
• Return to the previous menu by pressing RETURN before programme auto search starts.
Programme auto search
This function performs the procedure below to search TV channels.
A
• Cancel the setting by pressing RETURN and the System automatically returns the status before programme auto search.
If no channels were found, you should check your
antenna connection, and try Auto search again because it is finished. (See page 11.)
Labelling TV channels
(Display example)
Programme Setup “Auto”
10
224.25
0102SAT.1
85.25
03 102.25
110.25
04
125.25
05
175.25
06
199.25
07
210.25
08
216.0
09
Auto labelling
After finding new TV channels, each network name is searched and displayed.
A
• Cancel the setting by pressing RETURN and the System automatically returns the status before programme auto search.
23
Basic adjustment settings
Sorting TV channels
(Display example)
Programme Setup “Auto”
10 -----
0102SAT.1
PRO7
03 KABEL
04
05
06
07
08
09
-----
Sorts channels.
Auto sorting
Automatically sorts TV channels.
A
• Cancel the setting by pressing RETURN and the System automatically returns the status before programme auto search.
Do not shut down the System until “Sorts channels.”
displays.
MENU
Setup
Programme Setup
Auto Search
Manual Adjust
Sort
RETURN
When Programme auto search is completed, the display is returned to the menu shown left.
24
Basic adjustment settings
MENU
Setup
Programme Setup
Auto Search
Manual Adjust
Sort
RETURN
Manual setting for each channel
You can set some channel items manually. They are Single channel search, Fine (TV frequency), Colour sys., Sound sys., Label (Network name), Skip and Lock (Child Lock).
1 Press MENU. 2 Press a/b to select “Setup”, and then press
ENTER.
3 Press a/b to select “Programme Setup”, and then
press ENTER.
4 Press a/b to select “Manual Adjust”, and then
press ENTER.
•Programme Setup “Manual” menu displays.
A
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
Programme Setup “Manual” menu
(Display example)
Programme Setup “Manual”
10
01
02
03
04
05
06
07
08
09
Please select channel to be edited.
SAT.1
PRO7
KABEL
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
[NEXT]
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
47.25MHz
AUTO
B/G
SAT.1
Off
Off
Additional channels entry
On Programme Setup “Manual” menu
Press a/b/c/d to select a channel number, and then press ENTER.
• The selected channel information displays.
A
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
25
Basic adjustment settings
Programme Setup “Manual”
10
01
02
03
04
05
06
SAT.1
PRO7
KABEL
11
12
13
14
15
16
20
21
22
23
24
25
26
30
31
32
33
34
35
36
40
41
42
43
44
45
46
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
Programme Setup “Manual”
10
01
02
03
04
05
06
SAT.1
PRO7
KABEL
11
12
13
14
15
16
20
21
22
23
24
25
26
30
31
32
33
34
35
36
40
41
42
43
44
45
46
Search
NEXT
STORE
CANCEL
Selecting “STORE” displays the following.
Programme Setup “Manual”
10
01
02
03
04
05
06
07
SAT.1
PRO7
KABEL
11
12
13
14
15
16
17
20
21
22
23
24
25
26
27
30
31
32
33
34
35
36
37
40
41
42
43
44
45
46
47
Search
Fine
Colour sys.
Sound sys.
Label
Skip
Lock
47.25MHz
AUTO
B/G
SAT.1
On
Off
57.25 MHz
57.25MHz
AUTO
B/G
SAT.1
On
Off
Search tuning
1 Press a/b to select “Search” and then press
ENTER.
2 Press ENTER to begin searching from the
frequency currently displayed.
Press a/b to select item and press ENTER.
NEXT: Search the next channel.
STORE: Memorise the current display channel.
CANCEL: Returns to the previous screen. (The search result is not stored.)
26
Basic adjustment settings
Fine tuning menu
Programme Setup “Manual”
10
01
02
03
04
05
06
SAT.1
PRO7
KABEL
11
12
13
14
15
16
20
21
22
23
24
25
26
Programme Setup “Manual”
10
01
02
03
04
05
06
SAT.1
PRO7
KABEL
11
12
13
14
15
16
20
21
22
23
24
25
26
Colour system menu
Programme Setup “Manual”
10
01
02
03
04
05
06
07
08
09
SAT.1
PRO7
KABEL
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Fine tuning
On Programme Setup “Manual” menu
30
31
32
33
34
35
36
40
41
42
43
44
45
46
Fine
49.05 MHz
1 Press a/b/c/d to select the channel you want to
edit, and then press ENTER.
• The selected channel information displays.
2 Press a/b to select “Fine”, and then press ENTER.
• Fine tuning bar displays.
3 Press c/d to adjust the frequency, and then press
ENTER.
• Adjust with checking the back image as a reference.
30
31
32
33
34
35
36
40
41
42
43
44
45
46
Fine
196.25MHz
• Instead of the above, you can also set by directly entering the frequency number of the channel with 0 –
9.
a
• 179.75 MHz: Press 1 / 7 / 9 / 7 / 5 / ENTER.
• 49.25 MHz: Press 4 / 9 / 2 / 5 / ENTER.
A
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
Colour system
On Programme Setup “Manual” menu
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
[NEXT]
Colour sys.
AUTO
PAL
SECAM
NTSC 3.58
NTSC 4.43
1 Press a/b/c/d to select the channel you want to
edit, and then press ENTER.
• The selected channel information displays.
2 Press a/b to select “Colour sys.”, and then press
ENTER.
• Receivable colour systems are listed.
3 Press a/b to select the optimum colour system,
and then press ENTER.
A
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
27
Basic adjustment settings
Sound menu
Programme Setup “Manual”
10
01
02
03
04
05
06
07
08
09
SAT.1
PRO7
KABEL
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Labelling menu
Programme Setup “Manual”
10
01
02
03
04
05
06
07
08
09
SAT.1
PRO7
KABEL
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Sound system
On Programme Setup “Manual” menu
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
[NEXT]
Sound sys.
B/G
D/K
I
M
1 Press a/b/c/d to select the channel you want to
edit, and then press ENTER.
• The selected channel information displays.
2 Press a/b to select “Sound sys.”, and then press
ENTER.
• Receivable sound systems (Broadcasting systems) are
listed.
3 Press a/b to select the optimum sound system,
and then press ENTER.
A
• If you adjust this setting, please check the colour system information on page 27.
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
Labelling channels
Auto installation automatically assigns names to all
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
[NEXT]
Label
SAT.1
A
H
O
V
2
9+–
G
B
C
D
E
F
CLEAR
I
J
K
L
M
N
P
Q
R
S
T
U
W
X
Y
Z
0
1
NEXT
3
4
5
6
7
8
BACK
END.
viewable networks. However, you can change individual channel names.
On Programme Setup “Manual” menu
1 Press a/b/c/d to select the channel you want to
edit, and then press ENTER.
• The selected channel information displays.
2 Press a/b to select “Label”, and then press
ENTER.
• Alphabet and numbers are listed.
3 Press a/b/c/d to select each character of the
new name for the channel, and then press ENTER.
4 Repeat the above until the name is fully spelt out.
• The name can be 5 characters or less.
Skip menu
Programme Setup “Manual”
10
01
02
03
04
05
06
07
08
09
SAT.1
PRO7
KABEL
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
A
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
Skipping channels
Channels with “Skip” set to “On” are passed over when
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Skip
Off
On
[NEXT]
using CHa/CHb even if selected while watching the TV.
On Programme Setup “Manual” menu
1 Press a/b/c/d to select the channel you want to
edit, and then press ENTER.
• The selected channel information displays.
2 Press a/b to select “Skip”, and then press ENTER.
• Skip menu displays.
3 Press a/b to set “Skip” to “On”, and then press
ENTER.
A
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
28
Basic adjustment settings
Setting the child lock
You can block the viewing of any channel.
On Programme Setup “Manual” menu
1 Press a/b/c/d to select the channel you want to
edit, and then press ENTER.
• The selected channel information displays.
2 Press a/b to select “Lock”, and then press
ENTER.
• Child lock menu displays.
3 Press a/b to set “Lock” to “On”, and then press
ENTER.
A
Even if set to “On”, this function never works if not setting password. See page 59 for the details on password setting.
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
Lock menu
Programme Setup “Manual”
10
01
02
03
04
05
06
07
08
09
SAT.1
PRO7
KABEL
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Lock
Off
On
[NEXT]
29
Basic adjustment settings
Sort
Sort menus
Programme Setup “Sort”
0102SAT.1
03 KABEL
04
05
06
07
08
09
Please select channel to replace.
10 -----
PRO7
VOX
MENU
Setup
Programme Setup
Auto Search
Manual Adjust
Sort
RETURN
Press b.
Programme Setup “Sort”
0102PRO7
SAT.1
03 KABEL
04
05
06
07
08
09
VOX
Channel positions can be sorted freely.
1 Press MENU. 2 Press a/b to select “Setup”, and then press
ENTER.
3 Press a/b to select “Programme Setup”, and then
press ENTER.
4 Press a/b to select “Sort”, and then press ENTER.
• The channels are listed. Black ones are set “Skip” to “Off” and blue are set “Skip” to “On”.
5 Press a/b/c/d to select the channel you want to
move, and then press ENTER.
6 Move it to the desired position by pressing a/b/
c/d, and then press ENTER.
7 Repeat the steps 5 and 6 until all desired channels
have been sorted.
A
• Return to the previous menu by pressing RETURN.
• Exit the menu by pressing MENU.
10 -----
Press b.
30
Sorts channels.
Programme Setup “Sort”
0102PRO7
03 SAT.1
04
05
06
07
08
09
10 -----
KABEL
VOX
Basic adjustment settings
Language setting
MENU
Option
Input Select
WSS
4:3 Mode
Full Mode
Position
Audio Out
Colour System
Language
Text Lang.
RETURN
[Panorama]
[Mode1]
[Fixed]
[English]
[West Europe]
MENU
Option
Language [English]
English
Español
Português
[On]
[Auto]
You can also select a language from option menu. Select from among 4 languages: English, Spanish, Portuguese, and Chinese.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
• Option menu displays.
3 Press a/b to select “Language”, and then press
ENTER.
• Language menu displays.
4 Press a/b to select the desired language listed
on the screen, and then press ENTER.
5 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
31
Basic adjustment settings
MENU
Option
Input Select
WSS
4:3 Mode
Full Mode
Position
Audio Out
Colour System
Language
Text Lang.
RETURN
MENU
Option
Text Lang.
West Europe
East Europe
Greek/Turkish
Cyrillic
[On]
[Panorama]
[Mode1]
[Fixed]
[Auto]
[English]
[West Europe]
[West Europe]
Teletext Language Setting
If Teletext information does not display correctly, perform the setting procedure below. Select from among 4 kinds of language tables: West Europe, East Europe, Greek/Turkish, Cyrillic. Each table is compatible with the Teletext languages listed below.
A
•Teletext is broadcast in Europe and Asia, excluding regions that use Chinese and Arabic characters.
1 Press MENU. 2 Press a/b to select “Text Lang.”, and then press
ENTER.
• Option menu displays.
3 Press a/b to select the desired language, and
then press ENTER.
•West Europe - English, French, Skandinavian, Czech, German, Spanish, Italian
• East Europe - Polish, French, Skandinavian, Czech, German, Slovenian/Croatian, Italian, Rumanian
•Greek/Turkish - English, French, Skandinavian, Turkish, German, Spanish, Italian, Greek
• Cyrillic - English, Russian, Estonian, Czech, German, Spanish, Ukrainian, Lettish
A
•Teletext can display only when it is sent by a network. Not used to convert between languages.
• Return to the previous menu by pressing RETURN.
32
Basic adjustment settings
Picture adjustments
Adjust the picture to your preference with the following picture settings.
1 Press MENU. 2 Press a/b to select “Picture”, and then press
ENTER.
• Picture menu displays.
3 Press a/b to select a specific adjustment item. 4 Press c/d to adjust the item to your desired
position.
5 Press MENU to exit the menu.
A
• When all adjustments set to factory preset values,
1 Press a/b to select “Reset”, and then press ENTER. 2 Press a/b to select “Yes”, and then press ENTER.
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the
remote control unit, these items will display in grey and not be selectable. (See page 53.)
Adjustments items for AV source
MENU
USER
Contrast
Bright
Colour
Tint
Sharp
Advanced
Reset
RETURN
Selected item
Contrast
Bright
Colour
[+35]
0
[0]
–30
[0]
–30
[0]
–30
[0]
–7
cbutton
For less contrast
For less brightness
For less colour intensity
Currently selected AV mode
+40
+30
+30
+30
+7
dbutton
For more contrast
For more brightness
For more colour intensity
Adjustments items for PC source
MENU
USER
Contrast
Bright
Red
Green
Blue
Reset
RETURN
Selected item
Contrast
Bright
Red
[+30]
0
[0]
–30
[0]
–30
[0]
–30
[0]
–30
cbutton
For less contrast
For less brightness
For weaker red
Currently selected AV mode
+40
+30
+30
+30
+30
dbutton
For more contrast
For more brightness
For stronger red
Tint
Sharp
Skin tones become purplish
For less sharpness
Skin tones become greenish
For more sharpness
A
• Select “Advanced” and then press ENTER to set “Colour Temp”, “Film Mode”, “Black”, “Monochrome”, “I/P setting”, “Cool Climate” and “Vivid Colour”. See pages 34 to 37.
Green
Blue
For weaker green
For weaker blue
For stronger green
For stronger blue
33
Basic adjustment settings
MENU
USER
Advanced
Colour Temp [Mid]
High
Mid-High
Mid
Mid-Low
Low
Colour temperature
Adjust the colour temperature to give a better white balance.
1 Press MENU. 2 Press a/b to select “Picture”, and then press
ENTER.
3 Press a/b to select “Advanced”, and then press
ENTER.
4 Press a/b to select “Colour Temp”, and then press
ENTER.
5 Press a/b to select the desired level, and then
press ENTER.
6 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the remote
control unit, this item will display in grey and not be selectable. (See page 53.)
Selected item
High Mid-High Mid Mid-Low Low
Description
White with Bluish tone
White with Reddish tone
MENU
USER
Advanced
Film Mode [On]
Off
On
Film mode
Automatically detects a film-based source (originally encoded at 24 frames/second), analyses it then recreates each still film frame for high-definition picture quality.
1 Press MENU. 2 Press a/b to select “Picture”, and then press
ENTER.
3 Press a/b to select “Advanced”, and then press
ENTER.
4 Press a/b to select “Film Mode”, and then press
ENTER.
5 Press a/b to select “On”, and then press ENTER. 6 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the remote
control unit, or input sources with 1080I, 720P or 480P component signals, this item will display in grey and not be selectable. (See page 53.)
Selected item
Description
34
Off On
Normal viewing mode
Detects, analyses, converts film source. Occasionally, when you select “On” for a non-film-based 580i source, the picture becomes unstable. In that case, select “Off”.
Basic adjustment settings
MENU
USER
Advanced
Black [Low]
Off
High
Low
Black
Select a level for automatically adjusting blackish tone to suit viewing conditions.
1 Press MENU. 2 Press a/b to select “Picture”, and then press
ENTER.
3 Press a/b to select “Advanced”, and then press
ENTER.
4 Press a/b to select “Black”, and then press
ENTER.
5 Press a/b to select the desired level, and then
press ENTER.
6 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the remote
control unit, this item will display in grey and not be selectable. (See page 53.)
Selected item
Off High Low
No adjustment
For high detail in black portions
For low detail in black portions
Description
MENU
USER
Advanced
Monochrome [On]
Off
On
Monochrome
For viewing a video in monochrome.
1 Press MENU. 2 Press a/b to select “Picture”, and then press
ENTER.
3 Press a/b to select “Advanced”, and then press
ENTER.
4 Press a/b to select “Monochrome”, and then press
ENTER.
5 Press a/b to select “On”, and then press ENTER. 6 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the remote
control unit, this item will display in grey and not be selectable. (See page 53.)
Selected item
Off On
Normal colour
For viewing in monochrome
Description
35
Basic adjustment settings
MENU
USER
Advanced
I/P Setting [Progressive]
Interlace
Progressive
I/P Setting
For viewing a more beautiful (high quality) picture.
A
• I/P Setting is set to Progressive when Film Mode is “On”.
1 Press MENU. 2 Press a/b to select “Picture”, and then press
ENTER.
3 Press a/b to select “Advanced”, and then press
ENTER.
4 Press a/b to select “I/P Setting”, and then press
ENTER.
5 Press a/b to select “Interlace” or “Progressive”,
and then press ENTER.
6 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the remote
control unit, this item will display in grey and not be selectable. (See page 53.)
Selected item
Interlace
Progressive
Use this setting when you cannot get a clear picture with Progressive. (Especially suitable for media with special effects like game software.)
Normally, you should select this setting.
Description
36
Basic adjustment settings
MENU
USER
Advanced
Cool Climate [On]
Off
On
MENU
USER
Advanced
Vivid Colour [On]
Off
On
Cool Climate
Improves LCD response when viewing fast-moving images. The effect is greater at low room temperatures (at or below 15˚C/59˚F).
1 Press MENU. 2 Press a/b to select “Picture”, and then press
ENTER.
3 Press a/b to select “Advanced”, and then press
ENTER.
4 Press a/b to select “Cool Climate”, and then press
ENTER.
5 Press a/b to select “On”, and then press ENTER. 6 Press MENU to exit the menu.
A
• Cool climate may cause image noise. If this occurs turn the function “Off”.
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the remote
control unit, this item will display in grey and not be selectable. (See page 53.)
Vivid Colour
Sets a more brilliant colour reproduction.
1 Press MENU. 2 Press a/b to select “Picture”, and then press
ENTER.
3 Press a/b to select “Advanced”, and then press
ENTER.
4 Press a/b to select “Vivid Colour”, and then press
ENTER.
5 Press a/b to select “On”, and then press ENTER. 6 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the remote
control unit, this item will display in grey and not be selectable. (See page 53.)
37
Basic adjustment settings
Sound adjustment
You can adjust the sound quality to your preference with the following settings.
1 Press MENU. 2 Press a/b to select “Audio”, and then press
ENTER.
• Audio menu displays.
3 Press a/b to select a specific adjustment item. 4 Press c/d to adjust the item to your desired
position.
5 Press MENU to exit the menu.
A
• When all adjustments set to factory preset values,
1 Press a/b to select “Reset”, and then press ENTER. 2 Press a/b to select “Yes”, and then press ENTER.
• Return to the previous menu by pressing RETURN.
If you select “STANDARD” with AV MODE on the remote
control unit, these items will display in grey and not be selectable. (See page 53.)
Adjustments items for AV source
MENU
Audio
USER
Treble
Bass
Balance
Reset
RETURN
[0]
–15
[0]
–15
[0]
Left
+15
+15
Right
Selected item
Treble
Bass
Balance
cbutton
For weaker treble
For weaker bass
Decrease audio from the right speaker
dbutton
For stronger treble
For stronger bass
Decrease audio from the left speaker
38
Basic adjustment settings
Power control
Power Control setting allows you to reduce the display brightness to save energy.
Power control for AV source
MENU
Power control
Power Save [Save1]
Standard
Save1
Save2
Auto
Power save
When set to “Save1”, “Save2” or “Auto”, power consumption is reduced by decreasing picture brightness.
1 Press MENU. 2 Press a/b to select “Power control”, and then
press ENTER.
3 Press a/b to select “Power Save”, and then press
ENTER.
4 Press a/b to select the desired mode, and then
press ENTER.
5 Press MENU to exit the menu.
Selected item
Save1
Save2
AUTO (OPC)
A
• When setting to “Auto”, make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.
• “Standard” is factory preset value.
• Return to the previous menu by pressing RETURN.
The screen darkens slightly to conserve power consumption.
The screen darkens more significantly to conserve power consumption.
Screen brightness adjusts according to the ambient light of the room to conserve power consumption.
Description
MENU
Power control
No Signal off [Enable]
Disable
Enable
No signal off
When set to “Enable”, the power will automatically shut down if no signal inputs for 15 minutes.
1 Press MENU. 2 Press a/b to select “Power control”, and then
press ENTER.
3 Press a/b to select “No Signal off”, and then press
ENTER.
4 Press a/b to select “Enable”, and then press
ENTER.
5 Press MENU to exit the menu.
• Five minutes before the power shuts down, a warning will display every minute.
A
• “Disable” is factory preset value.
• Return to the previous menu by pressing RETURN.
• When a TV programme finishes, but the AVC System receives signal input, this function may not operate.
39
Basic adjustment settings
MENU
Power control
No Operation off [Enable]
Disable
Enable
No operation off
When set to “Enable”, the power will automatically shut down if there is no operation for 3 hours.
1 Press MENU. 2 Press a/b to select “Power control”, and then
press ENTER.
3 Press a/b to select “No Operation off”, and then
press ENTER.
4 Press a/b to select “Enable”, and then press
ENTER.
5 Press MENU to exit the menu.
• Five minutes before the power shuts down, a warning will display every minute.
A
• “Disable” is factory preset value.
• Return to the previous menu by pressing RETURN.
40
Basic adjustment settings
MENU
Power control
Power Save [Save1]
Standard
Save1
Save2
Auto
Power control for PC source
Power control allows you to reduce display brightness and save energy.
Power save
1 Press MENU. 2 Press a/b to select “Power Control”, and then
press ENTER.
3 Press a/b to select “Power Save”, and then press
ENTER.
4 Press a/b to select the desired mode, and then
press ENTER.
5 Press MENU to exit the menu.
A
• When setting to “Auto”, make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.
• “Standard” is factory preset value.
• Return to the previous menu by pressing RETURN.
MENU
Power Control
Power Management [Mode1]
Off
Mode1
Mode2
Power management
When set, the power will automatically shut down.
1 Press MENU. 2 Press a/b to select “Power Control”, and then
press ENTER.
3 Press a/b to select “Power Management”, and
then press ENTER.
4 Press a/b to select “Mode1” or “Mode2”, and then
press ENTER.
5 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
Selected item
Off
Mode1
Mode2
• No power management
• Factory preset value.
• If no signal inputs for 8 minutes, the power shuts down.
• Even if you start using the computer and the signal inputs again, the System stays off.
• The System turns on again by pressing POWER button on the Display or B on the remote control unit. (See page 13.)
• If no signal inputs for 8 seconds, the power shuts down.
• When you start using the computer and the signal inputs again, the System turns on.
Description
41
Using external equipment
You can connect many types of external equipment to your System, like a DVD player, VCR, HDTV tuner, computer, game player and camcorder. To view external source images, select the input source from b on the remote control unit or INPUT on the Display.
HDTV tuner
S-VIDEO
ANT
AV Receiver
(Built-in Tuner Amp)
ANT/CABLE 75
AV
MONITOR OUTPUT
S-VIDEO
INPUT 3
S-VIDEO
Y/PB/PR
YP
VIDEO R-AUDIO-L
AV
COMPONENT
B PR
S-VIDEO
COMPONENT
YPB PR
S-VIDEO VIDEO R-AUDIO-L
S-VIDEO
Y/PB/PR
INPUT 1
INPUT 2
DVD player
AV
AVC System
RS-232C
DISPLAY OUTPUT-2
AV
DISPLAY OUTPUT-1
AC INPUT 110-240V
(rear view)
VCR
AVC System (front view)
PC-AUDIO
AV
Game player/
Computer
ANALOG RGB
L
•To protect all equipment, always turn off the AVC System before connecting a DVD player, VCR, HDTV tuner, computer, game player, camcorder or other external equipment.
A
• Please refer to the relevant operation manual (DVD player, computer, etc.) carefully before making connections.
S-VIDEO
Camcorder
42
Using external equipment
Watching a DVD image
Connecting a DVD player
You can use the INPUT 1 terminal when connecting a DVD player and other audiovisual equipment.
AVC System (rear view)
ANT
ANT/CABLE 75
MONITOR OUTPUT
INPUT 3
S-VIDEO
COMPONENT
YP
BPR
VIDEO R-AUDIO-L
S-VIDEO VIDEO R-AUDIO-L
S-video cable (commercially available)
MENU
Option
Input Select
Input1 [AUTO]
AUTO
AV-Y/C
COMPONENT
Component video cable (commercially available)
COMPONENT
YP
BPR
INPUT 1
INPUT 2
AV cable (commercially available)
Displaying a DVD image
When connecting to the INPUT 1 terminals, select “INPUT1” and set the correct input signal type on “Input Select” in the menu. (See page 52.)
The setting is stored and can be selected on the “INPUT SOURCE” menu.
RS-232C
DISPLAY OUTPUT-2
When using component
DISPLAY OUTPUT-1
video cable, select “COMPONENT” for “Input Select” in the
AC INPUT
110-240V
menu.
DVD player
INPUT SOURCE
TV
INPUT1
INPUT2
INPUT3
INPUT4
PC
To watch a DVD image, select “INPUT1” from “INPUT SOURCE” menu using b on the remote control unit or INPUT on the Display. (See page 52.)
A
• Each time b is pressed, the input source toggles.
• If the DVD image does not come in clearly, you may need to change the input signal type setting on the “Input Select” menu.
• Refer to your DVD player operation manual for the signal type.
43
Using external equipment
Watching a VCR image
Connecting a VCR
You can use the INPUT 2 terminal when connecting a VCR and other audiovisual equipment.
AVC System (rear view)
COMPONENT
YP
BPR
INPUT 1
INPUT 2
S-VIDEO VIDEO R-AUDIO-L
AV cable (commercially available)
S-video cable (commercially available)
RS-232C
DISPLAY OUTPUT-2
DISPLAY OUTPUT-1
AC INPUT
110-240V
ANT
ANT/CABLE 75
MONITOR OUTPUT
INPUT 3
S-VIDEO
COMPONENT
YP
BPR
VIDEO R-AUDIO-L
VCR
INPUT SOURCE
TV
INPUT1
INPUT2
INPUT3
INPUT4
PC
Displaying a VCR image
When connecting to the INPUT 2 terminals, select “INPUT2”.
You only need to select the input source on the “INPUT SOURCE” menu.
To watch a VCR image, select “INPUT2” from the “INPUT SOURCE” menu using b on the remote control unit or INPUT on the Display. (See page 52.)
A
• Each time b is pressed, the input source toggles.
• Refer to your VCR operation manual for the signal type.
44
Using external equipment
Watching broadcasts via an HDTV tuner
Connecting an HDTV tuner
You can use the INPUT 3 terminal when connecting an HDTV tuner and other audiovisual equipment.
AVC System (rear view)
ANT
ANT/CABLE 75
MONITOR OUTPUT
COMPONENT
YP
INPUT 3
S-VIDEO
BPR
VIDEO R-AUDIO-L
AV cable (commercially available)
S-video cable (commercially available)
MENU
Option
Input Select
Input3 [AUTO]
AUTO
AV-Y/C
COMPONENT
COMPONENT
YP
BPR
S-VIDEO VIDEO R-AUDIO-L
Component video cable (commercially available)
When using component
INPUT 1
INPUT 2
RS-232C
DISPLAY OUTPUT-2
DISPLAY OUTPUT-1
AC INPUT 110-240V
video cable, select “COMPONENT” for “Input Select” in the menu.
HDTV tuner
Displaying broadcasts via an HDTV tuner
When connecting to the INPUT 3 terminals, select “INPUT3” and set the correct input signal type on “Input Select” in the menu. (See page 52.)
INPUT SOURCE
TV
INPUT1
INPUT2
INPUT3
INPUT4
PC
The setting is stored and can be selected on the “INPUT SOURCE” menu.
To watch an HDTV tuner image, select “INPUT3” from the “INPUT SOURCE” menu using b on the remote control unit or INPUT on the Display. (See page 52.)
A
• Each time b is pressed, the input source toggles.
• If the HDTV tuner image does not come in clearly, you may need to change the input signal type setting on the “Input Select” menu.
45
Using external equipment
Enjoying a game player or viewing camcorder images
Connecting a game player or camcorder
A game player, camcorder and some other audiovisual equipment are conveniently connected using the INPUT 4 terminals.
A
• The S-video terminal has priority over the video terminals.
AVC System (front view)
AV cables (commercially available)
S-video cable (commercially available)
INPUT SOURCE
TV
INPUT1
INPUT2
INPUT3
INPUT4
PC
Game player/Camcorder
Displaying an image of the game player or camcorder
When connecting to the INPUT 4 terminals, select “INPUT4”.
You only need to select the input source on the “INPUT SOURCE” menu.
To connect a game player or view a camcorder, select “INPUT4” from the “INPUT SOURCE” menu using b on the remote control unit or INPUT on the Display. (See page 52.)
A
• Each time b is pressed, the input source toggles.
46
Using external equipment
Viewing an image from a computer
Connecting a computer
Use the PC terminals to connect a computer.
A
• The PC input terminals are DDC1/2B-compatible.
• Refer to page 66 for a list of computer signals compatible with the System.
AVC System (front view)
RGB cable (commercially available)
ø 3.5 mm stereo minijack cable (commercially available)
Signal names for 15-pin mini D-sub connecter
5
4 321
10
9
15
141312
6
7
8
11
Pin No. Signal name Pin No. Signal name Pin No. Signal name
1 R 6 GND (Ground) q Not connected 2 G 7 GND (Ground) w SDA 3 B 8 GND (Ground) e HD 4 Not connected 9 5V r VD 5 CSYNC 0 GND (Ground) t SCL
A
• Macintosh adaptor may be required for use for some Macintosh computers.
INPUT SOURCE
TV
INPUT1
INPUT2
INPUT3
INPUT4
PC
Displaying an image from a computer
When connecting to a computer, the correct input signal type is automatically detected. If the computer image does not come in clearly, you may need to set the Auto Sync. adjustment on the “Auto Sync.” in the menu. (See page 51.)
You only need to select the input source on the “INPUT SOURCE” menu.
Computer
To view an image from a computer, select “PC” from the “INPUT SOURCE” menu using b on the remote control unit or INPUT on the Display. (See page 52.)
A
• Each time b is pressed, the input source toggles.
• PC INPUT terminals cannot be used for audiovisual equipment.
47
Using external equipment
Removing the speakers
This unit has detachable type speakers.
You can detach the system speakers when using external amplifier/speakers.
Before attaching/detaching speakers
• Before performing work make sure to turn off the System.
• Before performing work spread cushioning over a flat surface to lay the Display on. This will prevent it from being damaged.
123
Unfasten the screws used to secure the speakers in place.
L
• The speaker terminals on the Display is only for the attached speakers. Do not connect any third party plug or speaker to the terminal.
• Insert the speaker plug completely into the terminal.
• Do not handle or move the display by the speakers.
A
• Perform the same steps for both left and right speakers.
•To attach the speakers, perform the above steps in reverse order.
Take hold of the speaker and slowly slide it sideways. (The speaker plug is still inserted, so make sure not to pull the speaker too far.)
Speaker plug
Remove the speaker plug from the terminal on the Display. (Do not remove the plug by pulling the cord.) Now the speaker can be detached from the display.
48
Useful adjustment settings
MENU
Option
Position
[0]
H-Pos.
V-Pos.
Reset
RETURN
–15
[0]
–30
+15
+30
Image position (AV Input mode only)
For adjusting a picture’s horizontal and vertical position.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “Position”, and then press
ENTER.
4 Press a/b to select “H-Pos.” or “V-Pos.”. 5 Press c/d to adjust the item to your desired
position.
6 Press MENU to exit the menu.
A
• For resetting all adjustment items set to the factory preset values,
1 Press a/b to select “Reset”, and then press ENTER. 2 Press a/b to select “Yes”, and then press ENTER.
• Return to the previous menu by pressing RETURN.
Adjustments are stored separately according to input
source.
•You can easily move the image position as shown on page 50, but when the power is switched off the image will return to the previously memorised position.
Selected item
Description
H-Pos.
V-Pos.
Centres the image by moving it to the left or right.
Centres the image by moving it up or down.
49
Useful adjustment settings
Moving the picture on the screen
You can move the picture around on the screen.
Press a/b/c/d to move an image on the screen to the desired position. Press ENTER to return to the initial image position.
A
• While pressing a/ b/c/d , an on-screen image, “Adjusting Position” displays to the desired position.
• This setting cannot be stored. Once the System shuts down or enters standby mode, the setting is erased. To move the picture around the screen again, you must perform the above procedure again.
• The image position setting using the steps on page 49 can be stored. Select either according to your objectives.
• “TV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4” and “PC” modes can each adjust the image position setting on this page. The same for WIDE modes.
• An on-screen image from a PC source cannot be moved.
• Even when the image fills the screen, its position can be adjusted with this function.
50
Useful adjustment settings
MENU
Option
Auto Sync.
Fine Sync.
Audio Out
RETURN
Auto Sync.
Adjusting the image 32%
MENU
Option
Fine Sync.
–90
H-Pos.
V-Pos.
Clock
Phase
Reset
RETURN
[0]
–60
[0]
–90
[0]
–20
[0]
[Fixed]
+90
+60
+90
+20
Auto Sync. adjustment (PC Input mode only)
For automatically adjusting the computer image.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “Auto Sync.”, and then press
ENTER.
• Auto Sync. starts and “Adjusting the image.” displays.
A
• Return to the previous menu by pressing RETURN.
• When Auto Sync. is successful, “Auto Sync completed successfully” displays. If not, Auto Sync. failed.
• Auto Sync. may fail even if “Auto Sync completed successfully” displays.
• Auto Sync. may fail with a PC image composed of similar patterns or monochrome. If not successful, change the PC image and try again.
• Be sure to connect the computer to the AVC System and switch it on before starting Auto Sync.
Fine Sync. adjustment (PC Input mode only)
Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimise the image.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “Fine Sync.”, and then press
ENTER.
4 Press a/b to select the specific adjustment item. 5 Press c/d to adjust the item to your desired
position.
6 Press MENU to exit the menu.
A
• When all adjustments are set to factory preset values,
1 Press a/b to select “Reset”, and then press ENTER. 2 Press a/b to select “Yes”, and then press ENTER.
• Return to the previous menu by pressing RETURN.
Selected item
H-Pos.
Centres the image by moving it to the left or right.
Description
V-Pos.
Clock
Phase
Centres the image by moving it to the up or down.
Adjusts the clock frequency.
Adjusts the clock phase.
51
Useful adjustment settings
INPUT 1 signal menu
MENU
Option
Input Select
Input1 [AUTO]
AUTO
AV-Y/C
COMPONENT
INPUT 3 signal menu
MENU
Option
Input Select
Input3 [AUTO]
AUTO
AV-Y/C
COMPONENT
Input signal source
Input signal setting
For setting the signal type of external equipment.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “Input Select”, and then press
ENTER.
4 Press a/b to select an input source you want to
set, and then press ENTER.
5 Press a/b to select a signal type, and then press
ENTER.
• If the selected signal type is incorrect, an image does not display or no colour image displays.
6 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
• The System automatically sets input signals from “INPUT2, INPUT4” and “PC”.
If no image displays, try to change the signal type.
• Check the operation manual of the external equipment for the signal type.
• Setting INPUT 1 and INPUT 3 signal selection to “AUTO” when other equipment is connected will result in the following connectivity priority.
INPUT SOURCE
TV
INPUT1
INPUT2
INPUT3
INPUT4
PC
INPUT 1
1. COMPONENT VIDEO
2. S-VIDEO
3. VIDEO
INPUT 3
1. COMPONENT VIDEO
2. S-VIDEO
3. VIDEO
Input selection
Can use for selecting the input source.
1 Press b on the remote control unit or INPUT on
the Display.
• INPUT SOURCE menu displays.
2 Hold down b on the remote control unit or INPUT
on the Display to select the input source.
• An image from the selected source automatically displays.
•You can also select the input source by pressing
a/b.
A
• Items grayed out are not selectable.
• Return to the previous menu by pressing RETURN.
52
Useful adjustment settings
MENU
Option
Colour System [AUTO]
AUTO
PAL
SECAM
NTSC 3.58
NTSC 4.43
Colour system setting (AV Input mode only)
You can change the colour system to one that is compatible with the image on the screen.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “Colour System”, and then
press ENTER.
4 Press a/b to select a compatible video signal
system of your equipment, and then press ENTER.
5 Press MENU to exit the menu.
A
• Factory preset value is “AUTO”.
• If “AUTO” is selected, colour systems for each channel are automatically set. If an image does not display clearly, select another colour system (e.g. PAL, NTSC 4.43).
• Return to the previous menu by pressing RETURN.
Mode selection for the TV, INPUT 1 to 4 terminals
AV MODE: STANDARD
AV MODE: DYNAMIC
AV MODE: MOVIE
AV MODE: GAME
AV MODE: USER
Mode selection for the PC terminal
AV MODE: STANDARD
AV MODE: USER
AV mode
AV mode gives you five viewing options to choose from to best match the System environment, which can vary due to factors like room brightness, type of programme watched or the type of image input from external equipment.
1 Press AV MODE.
•Present AV MODE displays.
2 Press AV MODE again before the mode displayed
on the screen disappears.
• The mode changes as shown left.
Selected item
STANDARD
DYNAMIC
MOVIE
GAME
For a highly defined image in a normally bright room
For a clear-cut image emphasising high contrast for sports viewing.
For a movie
Lowers image brightness for easier viewing
Description
USER
Allows the user to customise settings as desired. You can set the mode for each input source.
53
Useful adjustment settings
WIDE MODE
Normal
Full 14:9
Zoom 14:9
Panorama
Full
Cinema 16:9
Cinema 14:9
4:3 Mode set to “Normal” 4:3 Mode set to “Panorama”
WIDE mode (AV Input mode)
Manual Selection
1 Press f.
• The WIDE MODE menu displays.
• The menu lists the wide mode options selectable for the type of video signal currently received.
2 Press f or a/b while the WIDE MODE menu
displays on the screen.
• As you toggle down the options, each is immediately reflected on the Display. No need to press ENTER.
Auto Selection
If you set “WSS” and “4:3 Mode” in the Option menu on page 56, the optimum WIDE mode is automatically chosen for every broadcast containing the WSS information.
“WSS” menu
To enable Auto Selection, set “WSS” in the Option menu to “On”. (See page 56.)
“4:3 Mode” menu
To set the type of the wide screen, select “Normal” or “Panorama” in the 4:3 Mode menu. (See page 56.)
A
• If the broadcast signal contains no WSS information, Auto Selection will not function even when the WSS option is enabled.
Selected item
Normal
Full 14:9
Zoom 14:9
Panorama
Full
Cinema 16:9
Cinema 14:9
Normal Full 14:9
Description
For 4:3 “standard” pictures. A side bar appears on each side.
For 14:9 squeeze pictures. A thin side bar appears on each side.
For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and bottom with some programmes.
In this mode the picture is progressively stretched toward each side of the screen.
For 16:9 squeeze pictures. There are two display settings to choose from. (See page 57.)
For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
Zoom 14:9
Panorama
FullCinema 16:9Cinema 14:9
54
Useful adjustment settings
a
WIDE mode (PC Input mode)
Wide Mode display
640 480 800 600
WIDE MODE
Normal
Full
Dot by Dot
1024 768 1280 768
WIDE MODE
Full
Dot by Dot
Dot by Dot (W)
1 Press f.
• The WIDE MODE menu displays.
2 Press f or a/b to select an item while the WIDE
MODE menu displays on the screen.
• Items you can select from the menu list are shown
Below are examples of input signals and the image displayed.
Normal Full Dot by Dot
below.
Input signal
640g480 800g600
Image size varies with signal input.
Image fully fills the screen. Image with the same
number of pixels as input resolution.
Full Dot by Dot Dot by Dot (W)
Input signal
1024g768 1280g768
A
• Selectable items may vary with signal input type.
• What is “Dot by Dot”? This function detects the resolution of the signal from a computer and displays an image with the same number of pixels, dot by dot.
Image fully fills the screen. Select WXGA mode when
Image with the same number of pixels as input resolution.
a 1280g768 signal is input.
55
Useful adjustment settings
MENU
Option
WSS [On]
Off
On
MENU
Option
4:3 Mode [Normal]
Normal
Panorama
Wide screen signalling (WSS) (AV Input mode only)
WSS allows a television to switch automatically among the different screen formats.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “WSS”, and then press
ENTER.
4 Press a/b to select “Off” or “On”, and then press
ENTER.
5 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
•Try to set WIDE mode if an image does not switch to the correct screen format. When the broadcast signal contains no WSS information, the function will not work even if enabled. (See page 54.)
Picture aspect ratio (AV Input mode only)
Allows you to select the aspect ratio of a video signal for standard 4:3 or full screen images.
WSS signal 4:3 screen
4:3 mode “Normal”
4:3 mode “Panorama”
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “4:3 Mode”, and then press
ENTER.
4 Press a/b to select “Normal” or “Panorama”, and
then press ENTER.
5 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
•Try to set WIDE mode if an image does not switch to the correct screen format. When the broadcast signal contains no WSS information, the function will not work even if enabled. (See page 54.)
Selected item
Normal
Panorama
Normal range keeping 4:3 or 16:9 aspect ratio
Wide image without sidebars
Description
56
Useful adjustment settings
Selecting Full Mode display (AV Input mode only)
Full Mode screen
Full mode “Mode1”
MENU
Option
Full Mode [Mode1]
Mode1
Mode2
Full mode “Mode2”
Select the display type in Full Mode.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “Full Mode”, and then press
ENTER.
4 Press a/b to select “Mode1” or “Mode2”, and then
press ENTER.
5 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
Selected item
Mode1
Mode2
Projects 16:9 squeeze image evenly over entire screen.
Displays a 16:9 squeeze image without distortion. However, black bands appear at the top and bottom.
Description
57
Useful adjustment settings
MENU
Option
Audio Out [Fixed]
Fixed
Variable
Audio out
Allows you to select what controls the audio output.
1 Press MENU. 2 Press a/b to select “Option”, and then press
ENTER.
3 Press a/b to select “Audio Out”, and then press
ENTER.
4 Press a/b to select “Fixed” or “Variable”, and then
press ENTER.
5 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
Selected item
Fixed
Variable
• Sound from the Display speakers is
adjusted with ik/l on the remote control unit or VOL l/k on the Display.
• Sound via the MONITOR OUT terminal is not adjustable and constantly outputs.
• Sound via the MONITOR OUT terminal is adjusted with ik/l on the remote control unit or VOL l/k on the Display.
• Sound from the Display speakers is muted.
Description
Sleep Timer: 30
Sleep Timer: Remain 30
Sleep timer
Allows you to set a time when the TV automatically switches to standby.
1 Press SLEEP.
• Remaining time displays when sleep timer has been set.
2 Each time you press SLEEP, the remaining time
switches as shown below.
• When set the time, countdown automatically starts.
• If you want to adjust the sleep timer, you can press “SLEEP” twice then change the time setting.
• Five minutes before time expires, the remaining time displays each minute.
30 60 90
(cancel)
A
• Select “0” by pressing SLEEP to cancel the sleep timer.
• When the sleep timer is working, its indicator on the Display lights red.
0
120
(minutes)
58
Useful adjustment settings
MENU
Setup
Child Lock
Password
New Password
Reconfirm
–––
––––
Password setting for child lock (AV Input mode only)
Allows you to use a password to protect certain settings from being accidentally changed.
Setting a password
1 Press MENU. 2 Press a/b to select “Setup”, and then press
ENTER.
3 Press a/b to select “Child Lock”, and then press
ENTER.
4 Press a/b to select “Password”, and then press
ENTER.
5 Enter the 4-digit number as a password using 0 –
9.
6 Enter the same 4-digit number as in step 5 to
confirm.
• “New Password is registered.” displays.
7 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
•To view a locked channel (Lock setting in Programme Setup “Manual” is set to “On”), you must enter a password. (See page 29.) When you select a locked channel, a password prompt message pops up. Press ENTER to display the password input window.
MENU
Setup
Child Lock
Password Clear
No
Yes
Clearing the password
Allows you to clear your password.
1 Press MENU. 2 Press a/b to select “Setup”, and then press
ENTER.
• Password input menu displays.
3 Enter your 4-digit password with 0 – 9, and then
press ENTER.
• Setup menu displays.
4 Press a/b to select “Child Lock”, and then press
ENTER.
5 Press a/b to select “Password Clear”, and then
press ENTER.
6 Press a/b to select “Yes”, and then press ENTER.
•Your password is cleared.
7 Press MENU to exit the menu.
A
• Return to the previous menu by pressing RETURN.
• As a precautionary measure, make a note of your password and keep it in a familiar place. If you lose or forget your password, initialise the System to return all settings except for the TV channel settings to factory preset values. (See page 72.)
59
z
Useful features
Dual screen functions
Allows you to display two pictures on the screen at one time.
Dual screen
You can display two same-sized pictures except when inputting from a PC INPUT terminal.
1 Press c.
2 Press c/d to set either screen to be active.
3 Press b to select another input source on the
4 Press c to exit dual screen.
A
• This function does not work under the following input conditions:
1PC INPUT mode, 2Two pictures from the same source (e.g. INPUT 1 and
3Images from a high frequency signal source, 4Two pictures with different vertical frequency (e.g. PAL
• When this function is not available, “No dual screen display available” will display.
• Dual screen displays and a selected input source image displays.
•“z” displays on the active screen, which has sound output.
active screen.
•A selected image displays.
INPUT 1),
and PAL 60).
60
Useful features
Picture and still image
You can display two same-sized pictures – one moving and one still – when inputting from an AV source.
1 Press d.
•A moving image displays on the left screen and a still image displays on the right screen. The still image is one frame captured from a moving image at the moment you press d.
2 Update the still image by pressing ENTER.
• Each time you press ENTER, the image on the right screen updates.
3 Press d to exit still image.
A
• This function does not work under the following input conditions:
1PC INPUT mode, 2Images from a high frequency signal source.
• When this function is not available, “No still image display available.” will display.
• The still image automatically goes out after eight minutes.
FREEZE
61
Useful features
Teletext function
What is Teletext?
Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your System receives Teletext signals broadcast by TV networks, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.
A
•Teletext is broadcast in Europe and Asia, excluding regions that use Chinese and Arabic characters.
Teletext mode
Teletext is turned on/off with m on the remote control unit. You can operate your system in Teletext mode directly by inputting commands with the remote control unit.
A
•You can select the Language setting at Teletext mode. (See page 32.)
Turning on and off Teletext
1 Select a TV channel or external input source
aa
CH
a/CH
aa
(w/x)
bb
b
bb
providing the Teletext programme.
2 Press m to display the Teletext. 3 Press m again to display the Teletext on the right
screen and normal image on the left screen.
• Each time you press m, the screen switches as shown
left.
• If you select a programme with no Teletext signal, “No Teletext available.” displays.
When viewing the Teletext information
•Press CH
•Press CH
aa
a (w) to increase the page number.
aa bb
b (x) to decrease the page number.
bb
RED
TELETEXT
TELETEXT
TELETEXT
GREEN
YELLOW BLUE
Button functions
Colour (RED/GREEN/YELLOW/BLUE):
You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding Colour (RED/GREEN/
YELLOW/BLUE) on the remote control unit.
0 – 9: Directly select any page from 100 to 899 by using 0 – 9.
v:
Each time you press v, the TELETEXT image switches as shown below.
Full
Upper half
Lower half
k:
To reveal hidden information such as an answer to a quiz, press k.
•Press k again to hide the information.
u:
To stop updating Teletext pages automatically, press u.
•Press u again to release the hold mode.
62
Bracket
Useful features
GREEN
RED
aa
CH
a/CH
aa
(w/x)
Displaying Subpages
You can display several subpages as they are transmitted.
1 Press m to display Teletext. 2 Press j to display the subpage as shown below. 3 Select the desired subpage by using c/d/RED/
GREEN.
0 – 9 directly selects the desired subpage.
4 Press j to exit the subpage screen.
• If you press w/x (CHa/CHb), the present page will change to the next/previous page and simultaneously exit the subpage screen.
bb
b
bb
203 203TEXT 01:44:37
Subpage screen
TOP Overview screen
INDEX
BLOCK PAGES
TV PROGRAMS COLOR BAR WEATHER NEWS MOVIE LOCAL
SPORTS
BLOCK 1 BLOCK 2 BLOCK 3
GROUP PAGES
FOOT BALL BASKETBALL
TENNIS
SKI JUDO SWIM GROUP 1 GROUP 2 GROUP 3 GROUP 4
–+
0005 ‹‹ 02 03 04 05 06
Displaying TOP Overview
When receiving TOP Teletext, you can read a TOP text overview.
1 Press m to display Teletext. 2 Press l to display the TOP Overview as shown
left.
3 Select the desired block or group by using a/b/
c/d.
4 Press ENTER to display the selected block or group
pages.
5 Press l to exit the TOP Overview screen.
63
Useful features
Time display
You can display the time information included in the Teletext. Follow the steps below to display the time.
1 Select a TV channel providing Teletext information.
(The time information is automatically captured.)
A
• The time is not captured when a selected channel has no Teletext information.
2 Press C. The channel display will appear on the
upper right of the screen.
3 Press C again within the three-second interval the
channel display is on the screen. Time information will display on the lower left of the screen for about three seconds.
4 When you change the TV channel, you can display
the time information using steps 2 – 3 if that channel carries Teletext information.
A
• The time display cannot be stored once the power is turned off. When you turn on the power, perform steps 1 – 4 again.
64
Appendix
Troubleshooting
Problem Possible Solution
• No power.
• Unit cannot be operated.
• Remote control unit does not operate.
• Picture is cut off.
• Strange colour, light colour, dark, or colour misalignment.
• Power is suddenly turned off.
• No picture.
• No sound.
• Picture is not clear.
• No sound. (Even though the System is receiving bilingual and stereo signals, there is no sound and the mode menu does not display.)
• Make sure the Display and the AVC System are connected correctly. (See page
5.)
• Check if you pressed B on the remote control unit. (See page 13.)
If the indicator on the Display lights up red, press POWER.
• Is the AC cord disconnected? (See page 11.)
• Has the main power been turned on? (See page 13.)
• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the power of the Display and the AVC System, or unplugging the AC cord and re-plugging it in after 1 or 2 minutes.
•Are batteries inserted with polarity (e, f) aligned? (See page 7.)
•Are batteries worn out? (Replace with new batteries.)
•Are you using it under strong or fluorescent lighting?
• Is a fluorescent light illuminated to remote control sensor?
• Is the image position correct? (See pages 49 and 50.)
•Are screen mode adjustments such as picture size made correctly? (See pages 54 to 56.)
• Adjust the picture tone. (See pages 33 to 37.)
• Is the room too bright? The picture may look dark in a room that is too bright.
• Check the colour system setting. (See page 27 and 53.)
• Check the input signal setting. (See page 52.)
• Is the sleep timer set? (See page 58.)
• Check the power control setting. (See pages 39 and 40.)
• Is connection to other components correct? (See pages 42 to 47.)
• Has setup been done correctly after connection? (See page 52.)
• Is the correct input selected? (See page 52.)
• Is a non-compatible signal being input? (See page 66.)
• Is picture adjustment correct? (See pages 33 to 37.)
• Is the volume too low? (See page 16.)
• Is “Variable” selected in “Audio Out”? (See page 58.)
• During Auto search, the sound system should automatically be detected. However, auto-detect may not find some signals, in which case choose Manual. (See page 28.)
• The Auto search (or Auto Installation) automatically searches for compatible sound systems, but may not detect them depending on electric field conditions. In that case, adjust to optimum sound system position by following directions on page 28.
Use in hot and cold rooms (locations)
• When the unit is used in low temperature rooms (locations), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns normal.
• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction. (Storage temperature: f20°C to e60°C)
65
Appendix
Computer compatibility chart
Resolution
640g400 720g400
640g480
800g600
832g624 1024g768
1280g768 1280g1024 60 Hz
Frequency
85 Hz
70 Hz
85 Hz
60 Hz
65 Hz
72 Hz
75 Hz
85 Hz
56 Hz
60 Hz
72 Hz
75 Hz
85 Hz
74.5 Hz
60 Hz
70 Hz
75 Hz
85 Hz
60 Hz
Remarks
Macintosh 13(67 Hz)
Macintosh 16
Macintosh 19
Apple and Macintosh are registered trademarks of Apple Computer, Inc. DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Co., Inc.
66
Appendix
RS-232C port specifications
Computer Control of the System
• When a programme is set, the display can be controlled from the computer using the RS-232C terminal. The input signal (computer/video) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing.
Attach an RS-232C cable cross-type (commercially available) to the supplied Din-D/sub RS-232C for the
connections.
A
• This operation system should be used by a person who is accustomed to using computers.
Communication conditions
Set the RS-232C communications settings on the computer to match the display’s communications conditions. The display’s communications settings are as follows:
Baud rate: Data length: Parity bit:
Stop bit:
Flow control:
9,600 bps
8 bits None 1 bit None
Communication procedure
Send the control commands from the computer via the RS-232C connector. The display operates according to the received command and sends a response message to the computer. Do not send multiple commands at the same time. Wait until the computer receives the OK response before sending the next command.
Command format
Eight ASCII codes e CR
C1 C2 C3 C4 P1 P2 P3 P4
Parameter
Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that four values are input for the parameter.) When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.) No problem to input any numerical value for “x” on the table.
Command 4-digits: Command. The text of four characters. Parameter 4-digits: Parameter 0 – 9, x, blank, ?
Return codeCommand 4-digits Parameter 4-digits
0
0009
30
100
0055
When “?” is input for some commands, the present setting value responds.
?
????
67
Appendix
Response code format
Normal response
OK
Return code (0DH)
Problem response (communication error or incorrect command)
ERR
Return code (0DH)
Command table
• About the command except being indicated here, it is outside the guarantee range of operation.
CONTROL ITEM COMMAND PARAMETER
0
R
W
O
POWER SETTING
INPUT SELECTION A
INPUT SELECTION B
AV MODE
SELECTION
VOLUME
POSITION
P
x
D
G
T
I
0
D
V
T
I
*
D
V
T
I
*
D
V
A
I
x
D
C
P
I
0
1
P
N
I
1
1
P
N
I
2
1
P
N
I
0
3
P
N
I
1
3
P
N
I
2
3
P
N
I
0
D
M
V
A
1
D
M
V
A
2
D
M
V
A
3
D
M
V
A
4
D
M
V
A
5
D
M
V
A
*
M
L
O
V
*
S
O
P
H
*
S
O
P
H
*
S
O
P
V
*
S
O
P
V
*
K
C
L
C
*
E
S
H
P
_
_
_
POWER OFF (STANDBY)
INPUT SWITCHING (TOGGLE)
_
_
_
TV (CHANNEL FIXED)
_
_
*
TV (CHANNEL SELECTION) (1 – 99)
_
_
_
INPUT1 – 4 (1 – 4)
PC
_
_
_
INPUT1 (AUTO)
_
_
_
INPUT1 (AV-Y/C)
_
_
_
INPUT1 (COMPONENT)
_
_
_
INPUT3 (AUTO)
_
_
_
INPUT3 (AV-Y/C)
_
_
_
INPUT3 (COMPONENT)
_
_
_
(TOGGLE)
_
_
_
STANDARD
_
_
_
DYNAMIC
_
_
_
MOVIE
_
_
_
GAME
_
_
_
USER
_
_
*
VOLUME (0 – 60)
_
*
*
H-POSITION (AV) (15 – 15)
_
*
*
H-POSITION (PC) (90 – 90)
_
*
*
V-POSITION (AV) (30 – 30)
_
*
*
V-POSITION (PC) ( 60 – 60)
_
*
*
CLOCK (90 – 90) (PC ONLY)
_
*
*
PHASE (20 – 20) (PC ONLY)
CONTROL
CONTENTS
CONTROL ITEM COMMAND PARAMETER
WIDE MODE
SRS
DUAL SCREEN
CHANNEL
TEXT
W
W
W
W
AV
W
W
W
W
W
W
PC
W
W
S
S
S
S
S
T
T
D
C
C
T
T
D
0
E
D
I
1
E
D
I
2
E
D
I
3
E
D
I
4
E
D
I
5
E
D
I
6
E
D
I
7
E
D
I
8
E
D
I
9
E
D
I
1
E
D
I
1
E
D
I
0
S
S
R
1
S
S
R
2
S
S
R
3
S
S
R
4
S
S
R
0
N
I
W
1
N
I
W
*
H
C
C
x
P
U
H
x
W
D
H
0
T
X
E
1
T
X
E
*
G
P
C
CONTROL
CONTENTS
_
_
_
TOGGLE
_
_
_
NORMAL
_
_
_
FULL 14:9
_
_
_
ZOOM 14:9
_
_
_
PANORAMA
_
_
_
FULL
_
_
_
CINEMA 16:9
_
_
_
CINEMA 14:9
_
_
_
NORMAL
_
_
_
FULL
_
_
0
DOT BY DOT
_
_
1
DOT BY DOT (W)
_
_
_
TOGGLE
_
_
_
OFF
_
_
_
SRS
_
_
_
FOCUS
_
_
_
FOCUSSRS
_
_
_
DUAL SCREEN OFF
_
_
_
DUAL SCREEN ON
_
_
*
DIRECT CHANNEL (01 – 99)
CHANNEL UP
CHANNEL DOWN
_
_
_
TEXT OFF
_
_
_
TEXT ON (AV-TEXT1-TEXT2-AV) (TOGGLE)
_
*
*
DIRECT PAGE JUMP (100 – 899)
A
• If an underbar (_) appears in the parameter column, enter a space.
• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.
• If a cross (g) appears in the parameter column, run the commands without the parameters.
68
Appendix
Specifications
Item 30o LCD COLOUR TV, Model: LC-30HV2M
LCD panel 30o Advanced Super View & BLACK TFT LCD
Number of dots 2,949,120 dots (1280 m 3 m 768dots)
Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV Function
TV-standard (CCIR)
Receiving Channel
VHF/UHF 44.25-863.25 MHz
CATV
PAL: B/G, D/K, I SECAM: B/G, D/K NTSC: M
Hyper-band, S1–S41ch
TV-Tuning System
STEREO/BILINGUAL NICAM/IGR
Lamp life 60,000 hours (at normal mode)
Viewing angles H : 170° V : 170°
Audio amplifier 10W m 2
Speakers 8cm Ø 2pcs
Te rminals
DISPLAY Headphones
OSD language English/Spanish/Portuguese/Chinese
Power Requirement AC 110–240 V, 50/60 Hz
Power Consumption
Weight
Rear INPUT 1
AVC System
Front
AVC System
Display
AVC System
INPUT 2
INPUT 3
ANTENNA
Monitor Out
INPUT 4 S-VIDEO, AV in
PC
Auto Preset 99 ch, Auto Label, Auto Sort
AV in, S-VIDEO in, COMPONENT VIDEO in
AV in, S-VIDEO in
AV in, S-VIDEO in, COMPONENT VIDEO in
75 q Din Type
Audio (Variable, Fixed), S-VIDEO out, AV out
15 Pin mini D-Sub, Audio in (3.5mm Ø jack)
3.5mm Ø jack
40 W (0.8W Standby)
109 W (0.9W Standby) (Method IEC60107)
4.4 kg
Display
Accessories Operation manual (m1), Remote control unit (m1), System cable (m1), AC cord
• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.
20.1 kg
(m2), AA size battery (Alkaline battery) (m2), Cable clamp (m1), Antenna Cable (m1)
69
Dimensional drawings
Display
545
766.4
Unit: mm
84.5
497 304.5101
598
1002.4
DISPLAY OUTPUT-2 DISPLAY OUTPUT-1
354
304.5
AC INPUT 110V–240V
70
Dimensional drawings
AVC System
Unit: mm
10
823
330
47.5 235
430
70
326
71
HOW TO SET THE FACTORY PRESETS
Press and hold down CLEAR on the AVC System while it is in standby mode. Then press POWER on the Display or B on the remote control unit to turn the System on. All setting items (except TV channel) return to the factory presets.
A
• Running the factory preset operation also clears the password.
You can run the Auto Installation again by using the following steps.
1 Tu rn on the power of the Display and the AVC System. 2 Press MENU. (Make sure the menu screen displays.) 3 Press b to select “Setup”. 4 Press ENTER.
A
• If the password setting screen displays, you need to enter your password.
• If you forget your password, refer to HOW TO SET THE FACTORY PRESETS above.
5 Press a/b to select “Auto Installation”. 6 Press ENTER.
“Auto Installation completed.” displays. After that, the screen changes to the TV mode.
The password is .
A
• As a precautionary measure, make a note of your password above, scissor it from this manual, and keep it in a familiar place.
72
SHARP CORPORATION
Loading...
