Sharp LC26GA3 User Manual

LC-26GA3E

LCD COLOUR TELEVISION LCD-FARBFERNSEHGERÄT

ENGLISH

DEUTSCH

TÉLÉVISION COULEUR À ÉCRAN À CRISTAUX LIQUIDES (LCD) TELEVISORE A COLORI LCD LCD-KLEURENTELEVISIE TELEVISORE A COLORI LCD

OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUALE DI ISTRUZIONI GEBRUIKSAANWIJZING MANUAL DE MANEJO

FRANÇAIS

ITALIANO

NEDERLANDS

ESPAÑOL

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or

ASA

and of the same rating as above, which is also indicated on the pin face of the plug, must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral Brown: Live

As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.

• The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red. Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin plug. Before replacing the plug cover make sure that:

• If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.

• The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

LC-26GA3E

LCD COLOUR TELEVISION

ENGLISH

OPERATION MANUAL

Contents

Contents …………………………………………………… 1 Dear SHARP customer …………………………………… 3 Important Safety Precautions ………………………… 3 Supplied accessories …………………………………… 5 Preparation ………………………………………………… 6

Setting the TV ………………………………………… 6 Inserting the batteries ………………………………… 7 Using the remote control unit ………………………… 7

Cautions regarding remote control unit ……… 7

Basic connection ……………………………………… 8

Connecting to an antenna ……………………… 8

Initial auto installation ………………………………… 9

Part names ………………………………………………… 10

TV ……………………………………………………… 10 Remote control unit …………………………………… 12

Watching TV ……………………………………………… 13

Turning on the power ………………………………… 13 Turning off the power ………………………………… 13 Simple button operations for changing channels … 14 Using Flashback (A) on the remote control unit … 14 Simple button operation for changing

volume/sound …………………………………… 15

Basic adjustment settings ……………………………… 17

Menu operation buttons ……………………………… 17 On-Screen Display …………………………………… 17 TV/AV input mode menu items ……………………… 18 PC input mode menu items ………………………… 18 Auto installation ……………………………………… 19 Programme setup………………………………………19

Auto search ……………………………………… 19 Manual setting for each channel ……………… 20

Fine tuning …………………………………… 20 Colour system ……………………………… 21 Sound system (Broadcasting system) …… 21 Labelling channels ………………………… 21 Skipping channels ………………………… 22 Setting the decoder ………………………… 22 Setting the child lock ……………………… 22

Setting the booster ………………………… 22 Sort ………………………………………………… 23 Erase Programme ………………………………… 23

ENGLISH

Language setting for on-screen display …………… 24 OPC setting …………………………………………… 24 Picture adjustments …………………………………… 25

C.M.S. (Colour Management System) ………… 26 Colour temperature ……………………………… 26 Black ……………………………………………… 26 3D-Y/C …………………………………………… 27 Monochrome ……………………………………… 27 Film mode ………………………………………… 27

I/P setting ………………………………………… 27 Audio adjustment ……………………………………… 28 Dolby Virtual …………………………………………… 28 Power control ………………………………………… 29

Power control for AV source …………………… 29

Power control for PC source …………………… 29

Using external equipment ……………………………… 30

Displaying an external equipment image ………… 30 Displaying a DVD image (Example) ………………… 30 Connecting a decoder ……………………………… 31 Connecting a VCR …………………………………… 31 Using AV Link function ……………………………… 32 Connecting a DVD player …………………………… 33 Connecting a game console or camcorder ………… 33 Connecting a PC ……………………………………… 34 Connecting external speakers ……………………… 35 External Audio Bypass ……………………………… 35

Contents

Useful adjustment settings ……………………………… 36

Image position (for TV/AV input mode) ……………… 36 Audio Only ……………………………………………… 36 Auto Sync. adjustment (PC input mode only) ……… 36 Fine Sync. adjustment (PC input mode only) ……… 37 Input Select …………………………………………… 37 Input Label …………………………………………… 38 Colour system setting (for TV/AV input mode) …… 38 AV mode selection …………………………………… 39 Wide screen signalling (WSS)

(for TV/AV input mode) …………………………… 39 Picture aspect ratio (for TV/AV input mode) ……… 39 WIDE mode (for TV/AV input mode) ………………… 40 WIDE mode (for PC input mode) …………………… 41 Input signal (PC input mode only) …………………… 42 DNR (Digital Noise Reduction) ……………………… 42 Quick Shoot …………………………………………… 42 Rotate …………………………………………………… 43 Audio Out ……………………………………………… 44 Sleep timer …………………………………………… 44 PIN setting for child lock

(for TV/AV input mode) …………………………… 45 Centre Channel Input ………………………………… 46

Useful features …………………………………………… 47

Dual screen functions ………………………………… 47 Teletext function ……………………………………… 48

Appendix ………………………………………………… 50

Troubleshooting ……………………………………… 50 PC compatibility chart ………………………………… 51 RS-232C port specifications ………………………… 52 Connecting pin assignments for SCART …………… 54 Specifications ………………………………………… 55

Dimensional drawings …………………………………… 56

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of troublefree operation of your product, please read the Important Safety Precautions carefully before using this product.

Important Safety Precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD colour TV product, please read the following precautions carefully before using the product.

1. Read instructions—All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for future reference.

3. Observe warnings—All warnings on the product and in the instructions must be observed closely.

4. Follow instructions—All operating instructions must be followed.

5. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.

6. Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

7. AC cord protection—The AC cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

8. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

9. Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

10. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

11. Repair—If any of the following conditions occurs, unplug the AC cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the AC cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment

work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates

that the product needs servicing.

12. Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

13. Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

14. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

Important Safety Precautions

• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

• Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.

• Do not place vases or any other water-filled containers on this product. The water may spill onto the product causing fire or electric shock.

• Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

• Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or impact applied. If the LCD panel is broken, be careful not to be injured by broken glass.

• Heat sources—Keep the product

away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

• To prevent fire, never place any

type of candle or naked flames on the top or near the TV set.

• To prevent fire or shock hazard,

do not place the AC power cord under the TV set or other heavy items.

The LCD panel is a very high technology product with 3,147,264 thin film transistors, giving you fine picture details. Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of blue, green or red. This is within product specifications and does not constitute a fault.

Precautions when transporting the TV

When transporting the TV, never carry it by holding onto the speaker. Be sure to always carry the TV by two people holding it with two hands—one hand on each side of the display.

Supplied accessories

Make sure the following accessories are provided with the product.

Remote control unit (g1) “AAA” size battery (g2)

Page 12 Page 7

Operation manual

LC-26GA3E

AC cord (g1)

Product shape varies in some

countries.

Page 6

Preparation

Setting the TV

After putting the TV in place, connect the AC cord.

Removing the terminal cover

TV (rear view)

Connecting the AC cord to the TV

Press down the hooks to remove the cover toward you.

AC cord

Product shape varies in some countries.

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE

AC CORD CONNECTED.

Bundling the cables

CAUTION

Adjust the screen with both hands. Put one hand on the Display and tilt the screen while steadying the stand with your other hand.

You can adjust the screen vertically up to 5 degrees forward or 10 degrees backward, or rotate 50 degrees horizontally.

Preparation

Inserting the batteries

Before using the TV for the first time, insert two “AAA” size batteries (supplied). When the batteries become depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.

1 Press and slide the battery cover to open it.

2 Insert two supplied “AAA” size batteries.

• Place batteries with their terminals corresponding to

the (e) and (f ) indications in the battery compartment.

3 Close the battery cover.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

Using the remote control unit

Use the remote control unit by pointing it towards the remote sensor window. Objects between the remote control unit and sensor window may prevent proper operation.

Cautions regarding remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote sensor window of the Display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Display, or operate the remote control unit closer to the remote sensor window.

30°

7 m

23 feet

30°

Remote

control sensor

Preparation

Simple operations for watching a TV programme

Basic connection

Connecting to an antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of connecting to an antenna with a coaxial cable.

Antenna cables–commercially available

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC 169-2), plug it into the IN terminal at the rear of the TV.

Preparation

Initial auto installation

When the TV powers on for the first time after purchase (see page 13), the initial auto installation is invoked. You can automatically set language, country and channels in successive operations.

NOTE

• The initial auto installation functions only once. If the initial auto installation is not completed, (ex: When menu screen disappeared by not operating for a few minutes, when the power shut down, etc.), try Auto Installation from the set up menu. (See page 19.)

• The initial auto installation stops by pressing RETURN.

Setting the on-screen display language

1 Press a/b/c/d to select the desired

language listed on the screen.

2 Press OK to enter the setting.

Language list

Dutch English Finnish French German Greek Italian

Setting the country or area

1 Press a/b/c/d to select your country

or area listed on the screen.

2 Press OK to enter the setting.

• The programme auto search starts at the same time.

Polish Portuguese Russian Spanish Swedish Turkish

Country list

Austria Belgium Denmark Finland France Germany Greece Ireland Italy Luxembourg Netherlands Norway

Poland Portugal Russia Spain Sweden Switzerland Turkey United Kingdom West Europe East Europe

After this setting, auto search starts with the following order.

1 Programme auto search 2 Auto labelling 3 Auto sorting 4 Preset download

You do not need to do anything during the auto search.

NOTE

• The illustrations and on-screen displays in this manual are for explanation purposes and may vary slightly from the actual operations.

Automatic channel searching

Channel auto search finds all channels viewable in your area.

01 55.25 02 85.25 03 102.25

NOTE

• If no channel is found, “No programme found.” displays. And the auto installation finishes.

Automatic channel labelling

After finding TV channels, the TV starts naming each TV channel found.

01 SAT.1 02 PR07 03 KABEL

NOTE

• The TV can only name channels where the channel labelling information is provided. If no channel labelling information is provided, the TV only displays the channel number, leaving the channel name blank.

Automatic channel sorting

When channel auto labelling finishes, the TV starts sorting the labelled channels.

01 SAT.1 02 PR07 03 KABEL

Preset download

When auto sorting finishes, the TV automatically downloads and stores each sorted channel from VCR.

• When a VCR is connected via INPUT 2, the TV sends all preset channel information to the VCR. (See page 31.)

• “Auto Installation completed.” displays. After that, the screen changes to the auto installation menu.

Watching TV

The setup menu disappears and you can watch the programme on channel 1.

Part names

VOLUME buttons ( il/k )

CHANNEL buttons

(Ps/r)

POWER button (a)

INPUT button

Remote control sensor

OPC sensor

POWER indicator

Headphone jack

Remote control sensor indicator

OPC indicator

SLEEP timer indicator

*OPC: Optical Picture Control

(See page 24.)

Part names

INPUT 2 terminal

AUDIO OUTPUT terminals

INPUT 3 terminals

INPUT 4 terminals

RS-232C terminal

AC INPUT terminal

SPEAKER terminals

CENTRE CHANNEL INPUT terminal

INPUT 1 terminal

SYSTEM RESET**

RESET*

DC OUTPUT terminal (Terminal for expanded functionality in the near future.)

Antenna input terminal

* Press RESET if the TV cannot return to its original state after performing various operations.

• AV MODE resets to USER.

• Analogue TV channel resets to channel 1.

• Dual picture resets to normal.

• Audio setting initializes.

• Dolby Virtual resets to Off.

• Image position initializes.

** Press SYSTEM RESET if the TV does not operate after starting up.

NOTE

• Pressing RESET will not work if the TV is in standby mode (indicator lights red).

• Pressing RESET will not delete channel preset and PIN. See page 45 for resetting the PIN when you know it. See page 57 for initializing to the factory preset values when you forget your PIN.

Part names

Remote control unit

3 4 5

6 7

10 11

12 13

NOTE

• When using the remote control unit, point it at the Display.

17 18

21 22

1 B (STANDBY/ON)

To switch the power on and off. (See page 13.)

2 OPC

To switch the Optical Picture Control on and off. (See page

24.)

3 c (DUAL screen)

Set the dual picture mode. Press c again to return to normal view. (See page 47.)

SELECT

To select either screen to be active in Dual screen mode.

4 d (FREEZE/HOLD)

TV/External input mode: Change the still image mode. TELETEXT mode: Freeze a multi-page on screen while other pages are automatically updated. Press d again to return to the normal image. (See pages 47 and 48.)

5 f (WIDE MODE)

TV/External input mode: Change the wide image mode. (See pages 40 and 41.)

TELETEXT mode: Set the area of magnification. (full/upper half/ lower half) (See page 48.)

6ROTATE

Rotates the display in every direction. (See page 43.)

80 – 9

9 A (Flashback)

10 [ (SUBTITLE for TELETEXT)

11 k (Reveal hidden for TELETEXT)

12 SOUND

13 il/ik (VOLUME)

14 e (MUTE)

15 EXIT

16 SLEEP

17 p (DISPLAY INFORMATION)

18 AV MODE

19 3D-Y/C

20 o (Digit for channel select)

21 m (TELETEXT)

22 l (TOP Overview for TELETEXT)

23 Pr/Ps

24 b (INPUT SOURCE)

25 MENU

26 a/b/c/d (Cursor)

Virtual

Select Virtual Dolby Surround settings. (See page 16.)

TV/External input mode: Set the channel. TELETEXT mode: Set the page.

Press to return to the previous image in normal viewing mode. (See page 14.)

TV/External input mode: To turn the subtitles on and off. (See page 49.)

TELETEXT mode: Display hidden characters. (See page 48.)

Select the sound multiplex mode. (See page 15.)

Set the volume. (See page 15.)

Mute the sound. (See page 16.)

Turn off the On Screen Display.

Set the Sleep timer. (See page 44.)

Display the programme information.

Select a video setting: AV MODE (STANDARD, MOVIE, GAME, USER, DYNAMIC), PC MODE (STANDARD, USER) (See page

39.)

To switch the 3D-Y/C function on and off. (See page 27.)

Change the digits of the selected TV channel. (See page 14.)

Select the TELETEXT mode. (all TV image, all TEXT image, TV/ TEXT image) (See pages 48 and 49.)

TELETEXT mode: Display an index page for CEEFAX/FLOF information. TOP Overview for TOP programme. (See page 49.)

TV/External input mode: Select the channel or switch to either TV input mode. TELETEXT mode: Set the page. (See page 48.)

Select an input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT

4) (See pages 30, 37, 38 and 47.)

Display the menu screen.

Select a desired item on the setting screen.

Execute a command.

27 RETURN

MENU mode: Return to the previous menu screen.

28 Colour (RED/GREEN/YELLOW/BLUE)

TELETEXT mode: Select a page. (See page 48.)

Watching TV

POWER indicator

POWER

Turning on the power

Press POWER on the TV.

• POWER indicator (Green): The TV is on. (After a few seconds, a window appears with sound.)

NOTE

• The initial setup starts when the TV powers on for the first time. If the TV has been turned on before, the initial auto installation will not be invoked. See page 19 to try Auto installation from the Setup menu.

Turning off the power

Press B on the remote control.

• The TV enters standby mode and the image on the screen disappears.

• The POWER indicator on the TV changes from green to red.

Press POWER on the TV.

• The POWER indicator on the TV gradually turns off.

• When the TV is turned off by POWER, you cannot turn on the power by pressing B on the remote control.

Display status indicator

Off

Red

Green

Power off

The TV is in standby mode.

The TV is on.

NOTE

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the power outlet.

• Weak electric power is still consumed even when POWER is turned off.

Watching TV

Simple button operations for changing channels

You can change channels in several ways.

Using Pr/son the remote control unit

• Press Pr to increase channel number.

• Press Ps

NOTE

• Ps/r on the Display operates the same as Ps/ron

the remote control unit.

to decrease channel number.

Channel display

Channel display changes approximately after 3 seconds as shown below.

(Example)

SAT.1

PAL

B/G

MONO

Using Flashback (A) on the remote control unit

Ps/r

Using 0 – 9 on the remote control unit

Select the channels directly by pressing buttons 0 to

To select a 1-digit channel (e.g. channel 2):

• Press 2. If “2” is indicated and the picture does not

change immediately, press o to switch over to the 1-digit select mode and press 2 again.

To select a 2-digit channel (e.g. channel 12):

• Press o to set the 2-digit select mode. Press 1,

followed by 2.

NOTE

• Complete this procedure within 3 seconds, otherwise the selection will not be made on the 2-digit channel mode.

Press A to switch the currently tuned channel to the previously tuned channel. Press A again to switch back to the currently tuned channel.

Press A to toggle between the currently selected input source and the previously selected one.

Press A to return to the previous page in TELETEXT mode.

When viewing Teletext information

View a page directly which is 3-digit page number from 100 to 899 by pressing buttons 0 to 9.

Watching TV

Using SOUND on the remote control unit

In the NICAM TV broadcasts

When receiving a stereo signal

Each time you press SOUND, the mode switches between NICAM STEREO and MONO.

When receiving a bilingual signal

Each time you press SOUND, the mode switches among NICAM CH A, NICAM CH B, NICAM CH AB and MONO.

When receiving a monaural signal

Each time you press SOUND, the mode switches between NICAM MONO and MONO.

Simple button operation for changing volume/sound

Changing the volume

You can change the volume on the Display or on the remote control unit.

• To increase the volume, press i

• To decrease the volume, press i

In the TV mode of A2 TV broadcasts

When receiving a stereo signal

Each time you press SOUND, the mode switches between STEREO and MONO.

When receiving a bilingual signal

Each time you press SOUND, the mode switches among CH A, CH B and CH AB.

When receiving a monaural signal When you press SOUND, “MONO” displays.

NOTE

• When no signal is input, the sound mode will display “MONO”.

NOTE

• “TV”, “INPUT1”, “INPUT2”, “INPUT3” and “INPUT4” modes can each store volume adjustment values separately.

When “Audio Out” is set to “Variable”, the indicator on the screen changes as shown below.

Audio status

Output device

Speaker

AUDIO OUTPUT

Variable sound

Constant as

specified

Audio out

VariableFixed

Mute

Variable sound

NOTE

• See page 44 for details on the audio out function.

Watching TV

Using e on the remote control unit

e mutes the current sound output.

Press e.

•“e” has been displayed on the screen for 30

minutes, and the sound is silenced.

Mute

Using Virtual on the remote control unit

Virtual produces Dolby Virtual effect from the speaker. Each time you press Virtual, the mode changes between On and Off.

Dolby Virtual sound options

• On: Makes it possible to enjoy natural, realistic

surround sound.

• Off: Outputs the normal sound.

Dolby Virtual : Off

Dolby Virtual : On

NOTE

• Within 30 minutes of pressing e, mute can be cancelled

by using the methods below.

• Pressing i

• Mute will be cancelled after 30 minutes have elapsed.

However, the TV will not suddenly output a loud sound as the volume level is set to 0 automatically.

f/i

e or e can also cancel the mute.

Within 30 minutes, Press e again to cancel the mute.

• Before 30 minutes, the volume level returns to the previous setting.

• After 30 minutes, increase the volume level by pressing ie.

NOTE

• You can have the same settings by choosing “Dolby Virtual” on the menu items. (See page 28.)

Basic adjustment settings

Menu operation buttons

Use the following buttons on the remote control to operate the menu.

On-Screen Display

Example

...

[

Audio Only

DNR

Input Select

Audio Out

Quick Shoot

Colour System

Centre Channel Input

Option

Quick Shoot

1 Item displayed in yellow

• This indicates the item currently selected.

• Press OK to go to the adjustment screen for this item.

2 Item in brackets

• This indicates the current setting for the item.

3 Item displayed in white

• This indicates an item can be selected.

[Off]

[CVBS]

[On]

[Auto]

[On]

]

MENU: Press to open or close the menu

screen.

a/b/c/d: Press to select a desired item on the

screen or adjust a selected item.

OK: Press to go to the next step or

complete the setting.

RETURN: Press to return to the previous step.

4 Item displayed in grey

• This indicates the item cannot be selected. *There are various reasons why items cannot

be selected, but the main reasons are as follows:

1. Nothing is connected to the selected input terminal.

2. The function is not compatible with the current input signal.

NOTE

• Menu options differ in the selected input modes, but the operating procedures are the same.

• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the actual screens.

Basic adjustment settings

TV/AV input mode menu items

List of AV menu items to help you with operations


OPC ................................................ Page 24

Backlight ........................................ Page 25

Contrast ......................................... Page 25

Brightness ..................................... Page 25

Colour ............................................ Page 25

Tint ................................................. Page 25

Sharpness ...................................... Page 25

Advanced

C.M.S. ................................... Page 26

Colour Temp. ....................... Page 26

Black .................................... Page 26

3D-Y/C .................................. Page 27

Monochrome ....................... Page 27

Film Mode ............................ Page 27

I/P Setting ............................ Page 27

Audio

*PC input mode menu items

List of PC menu items to help you with operations


OPC ................................................ Page 24

Backlight ........................................ Page 25

Contrast ......................................... Page 25

Brightness ..................................... Page 25

Red ................................................. Page 25

Green .............................................. Page 25

Blue ................................................ Page 25

Advanced

C.M.S. ................................... Page 26

Audio

Treble.............................................. Page 28

Bass ............................................... Page 28

Balance .......................................... Page 28

Dolby Virtual .................................. Page 28

Power Control

No Signal Off ................................. Page 29

No Operation Off ........................... Page 29

Setup

Auto Installation ............................ Page 19

Programme Setup .................. Pages 19-23

Child Lock ...................................... Page 45

Input Label ..................................... Page 38

Speaker Setup ............................... Page 35

Position .......................................... Page 36

WSS ................................................ Page 39

4:3 Mode ........................................ Page 39

Rotate ............................................. Page 43

Language ....................................... Page 24

Treble.............................................. Page 28

Bass ............................................... Page 28

Balance .......................................... Page 28

Dolby Virtual .................................. Page 28

Power Control

Power Management ...................... Page 29

Setup

Speaker Setup ............................... Page 35

Input Signal ................................... Page 42

Auto Sync. ..................................... Page 36

Fine Sync. ...................................... Page 37

Input Label ..................................... Page 38

Rotate ............................................. Page 43

Language ....................................... Page 24

Option

Audio Only ..................................... Page 36

DNR ................................................ Page 42

Input Select.................................... Page 37

Audio Out ....................................... Page 44

Quick Shoot ................................... Page 42

Colour System............................... Page 38

Centre Channel Input ................... Page 46

Option

Audio Only ..................................... Page 36

Input Select.................................... Page 37

Audio Out ....................................... Page 44

Quick Shoot ................................... Page 42

Centre Channel Input ................... Page 46

*When INPUT4 is set to PC

Basic adjustment settings

Auto installation

You can run auto installation again, even after setting up the preset channels.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Auto Installation”, and then press OK.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Speaker Setup

Position

WSS

4:3 Mode [Panorama]

Rotate

Language

Auto Installation

[Normal]

[English]

]

[On]

If you already set the PIN, enter it here.

• See page 45 for setting PIN.

––––

Programme setup

You can run the auto installation procedure again at any time, by accessing the Setup menu, then Programme Setup. Channels can be tuned automatically or manually.

Auto search

You can also automatically search and download TV channels by performing the procedure below. This is the same function as from programme auto search to preset download in auto installation.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press OK. If you already set the PIN, enter it here.

• See page 45 for setting PIN.

...

[

Setup

Setup Option

Auto Installation

Programme Setup

Child Lock

Speaker Setup

Position

WSS

4:3 Mode [Panorama]

Rotate

Language

Programme Setup

[Normal]

[English]

]

[On]

Press a/b to select “Auto Search”, and then press OK.

Press c/d to select “Yes”, and then press

OK.

You can set language and country the same as in the initial auto installation. Follow steps 1 and 2 on page 9. After this setting, auto search starts with the following order.

1 Programme auto search 2 Auto labelling 3 Auto sorting 4 Preset download

You do not need to do anything during the auto search.

NOTE

• Do not turn off the TV while the message “Auto Installation completed” is displayed, for the TV is saving the data found while the message is displayed.

Press c/d to select “Yes”, and then press OK.

• Auto search starts with the following order.

1 Programme auto search 2 Auto labelling 3 Auto sorting 4 Preset download

NOTE

• See page 9 for details.

• Do not turn off the TV while the message “Programme set-up completed” is displayed, for the TV is saving the data found while the message is displayed.

Basic adjustment settings

[

Setup

...

Programme Setup

]

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

[179.25]

[AUTO]

[B/G]

[Off]

[SAT.1]

[Off]

Booster [Off]

179.25 MHz

Manual setting for each channel

You can set some channel items manually. They are Fine (TV frequency), Colour sys., Sound sys., Label (Network name), Skip, Decoder, Lock (Child Lock) and Booster.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press OK. If you already set the PIN, enter it here.

• See page 45 for setting PIN.

Press a/b to select “Manual Adjust”, and then press OK.

Press c/d to select “Yes”, and then press OK.

Programme Setup “Manual Adjust” menu

You can select one of the following settings.

1Fine 2Colour system (See page 21.) 3Sound system (See page 21.) 4Label (See page 21.) 5Skip (See page 22.) 6Decoder (See page 22.) 7Lock (See page 22.) 8Booster (See page 22.)

Fine tuning

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Fine”, and then press OK.

Press c/d to adjust the frequency, and then press OK.

• Adjust while checking the background picture as a reference.

01 SAT.1 02 PR07 03 KABEL

NOTE

• When you exit Programme Setup “Manual Adjust” menu, preset download automatically runs if you change information on that menu.

• Instead of the above, you can also set by directly entering the frequency number of the channel with 0 – 9.

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 4 s 9 s 2 s 5 s OK.

Basic adjustment settings

Manual setting for each channel (continued)

Colour system

Sound system (Broadcasting system)

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Colour sys.”, and then press OK.

• Receivable colour systems are listed. (AUTO, PAL, SECAM, NTSC4.43, PAL-60)

Press a/b to select the optimum colour system, and then press OK.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Sound sys.”, and then press OK.

• Receivable sound systems (Broadcasting systems) are listed. (B/G, D/K, I, L, L’)

Press a/b to select the optimum sound system, and then press OK.

Labelling channels

When a TV channel sends its Network Name, the auto installation detects the information and assigns a name to it. However, you can change individual channel names.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Label”, and then press OK.

• Alphabets and numbers are listed.

Labelling menu

[179.25]

[AUTO]

[B/G]

[SAT.1]

[Off]

– _

0123456789

CLEAR

BACK

END

Fine

Colour sys.

Sound sys.

Label

Skip

Decoder

Lock

Booster [Off]

Press a/b/c/d to select each character of the new name for the channel, and then press OK.

Repeat the above until the name is fully spelt out.

• The name can be 5 characters or less.

Basic adjustment settings

Manual setting for each channel (continued)

Skipping channels

Channels with “Skip” set to “On” are passed over when using Pr/Ps even if selected while watching the image from the TV.

Setting the decoder

When connecting a decoder to the unit, you need to assign the terminal input.

• “Off” is factory preset value.

• “INPUT1” is the recommended selection.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Skip”, and then press OK.

• Skip menu displays.

Press a/b to set “Skip” to “On”, and then press OK.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Decoder”, and then press OK.

• Terminal inputs information displays. (Off, INPUT1, INPUT2)

Press a/b to set “Decoder” to “INPUT1”, or “INPUT2” and then press OK.

NOTE

Setting the child lock

You can block the viewing of any channel.

• See page 45 for setting PIN.

• When “Lock” is set to “On” for a channel, “Child lock has been activated.” displays , and the image and sound of the channel are blocked.

• When pressing OK while “Child lock has been activated.” displays, PIN input menu will display. Inputting the correct PIN lifts the child lock temporarily until the power is turned off.

Setting the booster

Picture quality may improve in regions with weak signal strength using this function.

• If signal strength is strong enough for the selected channel, the effect is negligible and may produce instability. In such case, select “Off”.

Press a/b/c/d to select the channel you want to edit, and then press OK.

• The selected channel information displays.

Press a/b to select “Lock”, and then press OK.

• Child lock menu displays.

Press a/b to set “Lock” to “On”, and then press OK.

NOTE

Press a/b/c/d to select the channel you want to edit, and then press OK.

Press a/b to select “Booster”, and then press OK.

• Booster menu displays.

Press a/b to set “Booster” to “On”, and then press OK.

NOTE

Basic adjustment settings

Sort

Channel positions can be sorted freely.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Programme Setup”, and then press OK. If you already set the PIN, enter it here.

• See page 45 for setting PIN.

Press a/b to select “Sort”, and then press OK.

Press c/d to select “Yes”, and then press OK.

Press a/b/c/d to select the channel you want to move, and then press OK.

Move it to the desired position by pressing

a/b/c/d, and then press OK.

Erase Programme

The individual programme can be erased.

Repeat steps 1 to 3 in Sort.

Press a/b to select “Erase Programme”, and then press OK.

Press c/d to select “Yes”, and then press OK.

Press a/b/c/d to select the channel you want to erase, and then press OK.

• A message screen pops up.

Press c/d to select “Yes”, and then press OK to erase the selected programme. All the subsequent programmes move up.

Repeat the step 5 until all desired channels are erased.

Erase programme menus

Repeat the steps 6 and 7 until all desired channels are sorted.

Sort menus

01 SAT.1

0106SAT.1 KABEL

02 03 04 05

01 SAT.1 02 KABEL

01 SAT.1 KABEL02

01 KABEL

01 KABEL SAT.102

01 SAT.1

SAT.1

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

01 SAT.1 03 KABELPro702

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

01 SAT.1 02 KABEL

06 07 08 09 10

11 12 13 14 15

16 17 18 19 20

Pro702 KABEL03 04 05

02 Pro7

04 05

02 KABEL

03 04 05

Basic adjustment settings

Language setting for on-screen display

You can also select a language from setup menu. Select from among 13 languages.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Language”, and then press OK.

Press a/b/c/d to select the desired language listed on the screen, and then press OK.

Language list

Dutch English Finnish French German Greek Italian

Polish Portuguese Russian Spanish Swedish Turkish

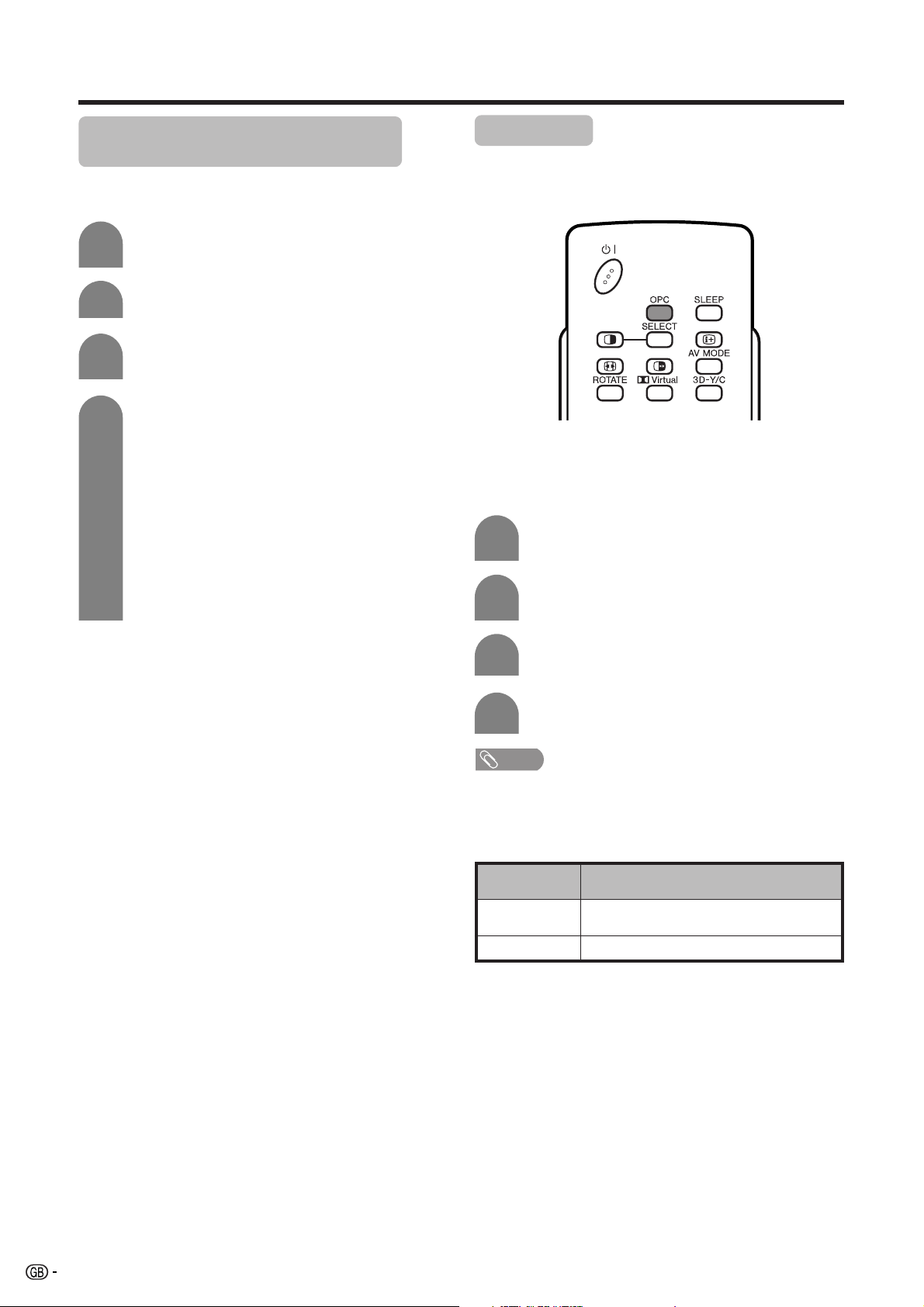

OPC setting

Automatically adjusts the brightness of the screen.

Using OPC on the remote control unit

Press OPC to switch the Optical Picture Control on and off.

Using OPC on the menu screen

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

• When set to “On”, the System senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

Selected item

Off

Press a/b to select “OPC”.

Press c/d to select “On”.

NOTE

Description

The brightness is fixed at the value set in “Backlight” (see page 25).

Automatically adjusts

Basic adjustment settings

Picture adjustments

Adjust the picture to your preference with the following picture settings.

[

]


Picture Audio

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press OK.

Adjustments items for PC sourceAdjustments items for AV source

[

]


Picture Audio

USER [TV]

OPC

Backlight [+8] –8

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

Selected item

Backlight

Contrast

Brightness

Colour

Off On

[+30]

[0]

–30

[0]

–30

[0]

–30

[0]

–10

cbutton

The screen dims

For less contrast

For less brightness

For less colour intensity

+40

+30

+10

dbutton

The screen brightens

For more contrast

For more brightness

For more colour intensity

USER [PC]

OPC

Backlight [+8] –8

Contrast

Brightness

Red

Green

Blue

Advanced

Reset

Selected item

Backlight

Contrast

Brightness

Red

Off On

[+30]

[0]0–30

[0]

–30

[0]

–30

[0]

–30

cbutton

The screen dims

For less contrast

For less brightness

For weaker red

+40

+30

dbutton

The screen brightens

For more contrast

For more brightness

For stronger red

Tint

Sharpness

Skin tones become purplish

For less sharpness

Skin tones become greenish

For more sharpness

NOTE

• Select “Advanced” and then press OK to set “C.M.S-Hue”, “C.M.S-Saturation”, “C.M.S-Value”, “Colour Temp”, “Black”, “3D-Y/C”, “Monochrome”, “Film Mode” or “I/P Setting”. See pages 26 and 27.

Green

Blue

For weaker green

For weaker blue

For stronger green

For stronger blue

NOTE

• Select “Advanced” and then press OK to set “C.M.S-Hue”, “C.M.S-Saturation” and “C.M.S-Value”.

Basic adjustment settings

C.M.S. (Colour Management System)

Colour tone is managed using the six-colour adjustment setting.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press OK.

Press a/b to select “C.M.S.-Hue”, and then press OK.

Press a/b to select a specific adjustment item.

C. M. S-Hue

C. M. S-Saturation

C. M. S-Value

Changing reds

closer to

magenta or yellow.

Reset

–30

[ 0]

–30

[ 0]

–30

[ 0]

–30

[ 0] –30

+30

Colour temperature

Adjusts the colour temperature to give the best white image.

Repeat steps 1 to 3 in C.M.S. (Colour Management System).

Press a/b to select “Colour Temp.”, and then press OK.

Press a/b to select the desired level, and then press OK.

Selected item

High Mid-High Mid Mid-Low Low

Description

White with bluish tone

White with reddish tone

Black

For easier viewing, change the viewing depth by selecting a level for automatically adjusting the dark portion of an image.

Repeat steps 1 to 3 in C.M.S. (Colour Management System).

• You can select “C.M.S-Saturation” or “C.M.SValue” here instead of selecting “C.M.S-Hue”.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press OK.

Selected item

C.M.S-Hue

C.M.SSaturation

C.M.S-Value

This is a standard to adjust the colour either more reddish or more bluish in tone.

Increases or decreases the saturation of a selected colour

A higher value makes the image brighter. A lower value makes the image darker.

Description

Press a/b to select “Black”, and then press

OK.

Press a/b to select “On”, and then press

OK.

Selected item

Off On

Description

No adjustment

For high detail in black portions

Basic adjustment settings

3D-Y/C

Provides high quality images with minimal dot crawl and cross colour noise.

Selected item

Standard Fast Slow

• “3D-Y/C” is not selectable depending on the input signal type.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press OK.

Press a/b to select “3D-Y/C”, and then press OK.

Press a/b to select the desired level, and then press OK.

Description

Normal adjustment

For movie image

For still image

NOTE

Activating 3D-Y/C on the remote control unit

Monochrome

For viewing a video in monochrome.

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select “Monochrome”, and then press OK.

Press c/d to select “On”, and then press

OK.

Film mode

Automatically detects a film-based source (originally encoded at 24/25 frames/second, depending on the vertical frequency), analyses it then recreates each still film frame for high-definition picture quality.

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select “Film Mode”, and then press OK.

• Some items may be greyed out. They are not selectable.

Press c/d to select “On”, and then press OK.

Press 3D-Y/C to switch the 3D-Y/C function on and off.

NOTE

• “3D-Y/C” is set to “On” when the TV is turned back on.

• 3D-Y/C may not operate depending on the input signal type or noisy input signal.

• 3D-Y/C is automatically set to “On” when you change channels or input sources.

I/P setting

Adjusting the image and input signal can give you a more beautiful picture.

• The I/P Setting is set to Progressive when Film Mode is “On”.

Repeat steps 1 to 3 in 3D-Y/C.

Press a/b to select “I/P Setting”, and then press OK.

• Some items may be greyed out. They are not selectable.

Press c/d to select “Interlace” or “Progressive”, and then press OK.

NOTE

Basic adjustment settings

Audio adjustment

You can adjust the sound quality to your preference with the following settings.

Selected item

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

[

]

Audio

Audio Power Control

USER [TV]

Treble

Bass

Balance

Dolby Virtual

Reset

[0] –15

[0]

–15

[0]

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

cbutton

+15

[Off]

dbutton

Dolby Virtual

You can also produce Dolby Virtual effects from the “Audio” setting.

• You can choose Dolby Virtual by pressing Virtual on the remote control unit. See page 16 for Dolby Virtual.

• Audio menu items are greyed out when Audio output is variable or when headphones are in use.

• External Audio Bypass is greyed out when Dolby Virtual is set to “On”.

• Balance is greyed out when Dolby Virtual is set to “On”.

• For some discs, setup may be required on your DVD. In this case, please refer to the operation manual of your DVD player.

• You may not get the Dolby Virtual Surround effect if you adjust “Treble” or “Bass” setting.

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

Press a/b to select “Dolby Virtual”, and then press OK.

Press c/d to select “On”, and then press

OK.

NOTE

Treble

Bass

Balance

NOTE

• For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press OK, press c/d to select “Yes”, and then press OK.

• Audio menu items are greyed out when Audio output is variable or when headphones are in use.

• Balance is greyed out when Dolby Virtual is set to “On”.

For weaker treble

For weaker bass

Decrease audio from the right speaker

For stronger treble

For stronger bass

Decrease audio from the left speaker

Basic adjustment settings

Power control

Power control setting allows you to save energy.

Power control for AV source

No signal off

When set to “Enable”, the power will automatically shut down if no signal inputs for 15 minutes.

• “Disable” is factory preset value.

• When a TV programme finishes, this function may not operate.

No Operation off

When set to “Enable”, the power will automatically shut down if there is no operation for 3 hours.

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

Press a/b to select “No Signal Off”, and then press OK.

Press c/d to select “Enable”, and then press OK.

• Five minutes before the power shuts down, remaining time displays every minute.

NOTE

Press MENU and the MENU screen displays.

Power control for PC source

Power control setting allows you to save energy.

Power management

When set, the power will automatically shut down.

Selected item

Off

Mode1

Mode2

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

Press a/b to select “Power Management”, and then press OK.

Press a/b to select “Mode1” or “Mode2”, and then press OK.

Description

• No power management

• Factory preset value.

• If no signal inputs for 8 minutes, the power shuts down.

• Even if you start using the PC and the signal inputs again, the TV stays off.

• The TV turns on again by pressing a on the Display or B on the remote control unit. (See page 13.)

• If no signal inputs for 8 seconds, the power shuts down.

• When you start using the PC and the signal inputs again, the TV turns on.

• The TV turns on again by pressing a on the Display or B on the remote control unit. (See page 13.)

• “Disable” is factory preset value.

Press c/d to select “Power Control”.

Press a/b to select “No Operation Off”, and then press OK.

Press c/d to select “Enable”, and then press OK.

• Five minutes before the power shuts down, remaining time displays every minute.

NOTE

Using external equipment

You can connect many types of external equipment to your TV, like a decoder, VCR, DVD player, PC, game console and camcorder. To view external source images, select the input source from b on the remote control unit or INPUT on the Display.

Displaying an external equipment image

Explanation here is for the setting when connecting DVD to INPUT3 terminal.

CAUTION

• To protect all equipment, always turn off the TV before connecting to a decoder, VCR, DVD player, PC, game console, camcorder or other external equipment.

NOTE

• See pages 31 to 35 for external equipment connection.

• Please refer to the relevant operation manual (DVD player, PC, etc.) carefully before making connections.

• Each time b is pressed, the input source toggles.

• If the image does not come in clearly, you may need to change the input signal type setting on the “Input Select” menu.

• Refer to your external equipment operation manual for the signal type.

Displaying a DVD image (Example)

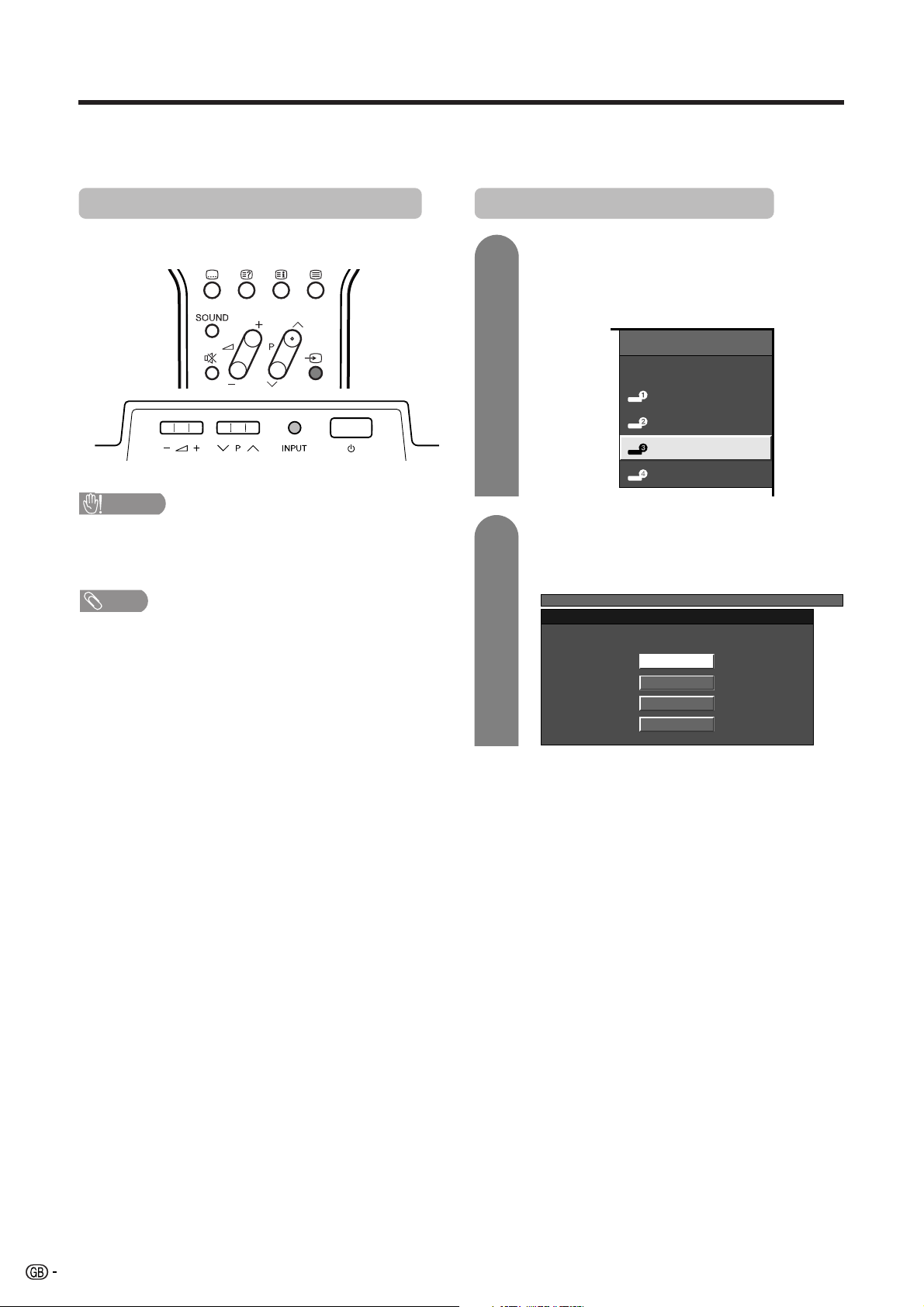

To watch a DVD image, select “INPUT3” from “INPUT SOURCE” menu using b on the remote control unit or INPUT on the Display.

INPUT SOURCE

INPUT1

INPUT2

INPUT3

INPUT4

The setting is stored and can be selected on the “INPUT SOURCE” menu.

Select the desired signal type on “Input Select” in the “Option” menu. (See page 37.)

For INPUT3 signal

...

[

Option

Input Select

]

AUTO

COMPONENT

S-Video

Video

Using external equipment

Connecting a decoder

You can use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.

NOTE

• In cases when the decoder needs to receive signal from the TV, make sure to set “Decoder” to “INPUT1” in the Programme Setup “Manual Adjust” menu. (See page 22.)

SCART cable (commercially available)

To watch an image from this input terminal, you may select the input source (see page 37) and the input signal type (see page 42).

Decoder

Connecting a VCR

You can use the INPUT 2 terminal when connecting a VCR and other audiovisual equipment. If your VCR supports TV-VCR advanced “AV Link” systems (see page 32), you can connect the VCR to the INPUT 2 terminal of the TV using the fully-wired SCART cable.

NOTE

• TV-VCR advanced “AV Link” systems may not be compatible with some external sources.

• It is recommended to connect to the INPUT 2 terminal when using a decoder for ground wave signal input with a VCR. If INPUT 2 signals preset in auto installation or programme setup, make sure to set “Decoder” to “INPUT2” in the Programme Setup “Manual Adjust” menu. (See page 22.)

To watch an image from this input terminal, you may select the input source (see page 37) and the input signal type (see page 42).

SCART cable (commercially available)

VCR

Decoder

Using external equipment

Using AV Link function

This TV incorporates four typical AV Link functions for smooth connections between the TV and other audiovisual equipment.

NOTE

• Only works when the audiovisual equipment is connected to the INPUT 2 terminal on the TV with AV Link via a fully wired SCART.

One Touch Play

While the TV is in standby mode, it automatically turns on and plays back the image from the audiovisual source (e.g. VCR, DVD).

TV Standby

When the connected audiovisual equipment (e.g. VCR, DVD) enters standby mode, so does the TV.

WYSIWYR (What You See Is What You Record)

When the remote control unit of the connected VCR has the WYSIWYR button, you can automatically start recording by pressing the WYSIWYR button.

Preset Download

Automatically transfers the channel preset information from the tuner on the TV to the one on the connected audiovisual equipment (e.g. VCR) via the INPUT 2 terminal.

NOTE

• Refer to operation manuals of each external equipment for the details.

SCART cable (commercially available)

VCR

Using external equipment

Connecting a DVD player

You can use the INPUT 3 terminal when connecting to a DVD player and other audiovisual equipment.

To watch an image from this input terminal, you may select the input source (see page 37) and the input signal type (see page 42).

Component

(commercially available)

AUDIO cable

cable (commercially available)

When using component cable,

DVD player

select “COMPONENT” for “Input Select” in the menu.

Connecting a game console or camcorder

A game console, camcorder and some other audiovisual equipment are conveniently connected using the INPUT 3 terminals.

NOTE

• The S-video terminal has priority over the video terminals.

• You can also connect the game console to INPUT 1 or 2 terminals to enjoy clearer picture.

S-video cable (commercially available)

To watch an image from this input terminal, you may select the input source (see page 37) and the input signal type (see page 42).

Composite video cable (commercially available)

Game console/Camcorder

Using external equipment

Connecting a PC

Use the INPUT4 terminals to connect a PC.

NOTE

• The PC input terminals are DDC1/2B-compatible.

• Refer to page 51 for a list of PC signals compatible with the TV.

ø 3.5 mm stereo minijack cable (commercially available)

To watch the image from this input terminal, you may select input source (see page 37) and input signal type (see page 42).

DVI cable (commercially available)

ø 3.5 mm stereo minijack cable (commercially available)

NOTE

• Macintosh adaptor may be required for use for some Macintosh computers.

• When connecting to a PC, the correct input signal type is automatically detected. (See page 42.) If the PC image does not come in clearly, you may need to set the Auto Sync. adjustment in the “Setup” menu. (See page 36.)

RGB/DVI conversion cable (commercially available)

Using external equipment

Connecting external speakers

Rear view

How to connect the

speaker cable

Pull up the

lid.

Insert the

edge of the cable.

External Audio Bypass

External Audio Bypass automatically optimises the audio quality to suit internal (supplied) speaker.

Selected item

Yes

• External Audio Bypass is greyed out when Dolby Virtual is set to “On”.

• When Dolby Virtual is on, External Audio Bypass automatically sets to “Yes”.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Speaker Setup”, and then press OK.

Press a / b to select “External Audio Bypass”, and then press OK.

Press c/d to select “Yes” or “No”, and then press OK.

Description

Sets the optimum audio for the internal (supplied) speaker.

When you are using your own speakers, output the original sound.

NOTE

Put the lid

back down.

Make sure to disconnect the connected speaker cables in advance when connecting external speakers.

Make sure to connect the speaker terminal and cable polarity (L, +) properly.

• The speaker terminals have plus (L) and minus (+) polarity.

• Plus is red and minus is black.

• The cables are also divided into plus and minus.

• When connecting the left/right speakers, be sure to connect the plus/minus terminals with the correct cables.

NOTE

• Unplug the AC cord from the AC outlet before installing the speakers.

CAUTION

• Make sure external speakers have 4 ohm and 10 watt specifications.

• Connect the plus/minus terminals with the correct cables. Incorrect connection may cause a short.

Useful adjustment settings

Image position (for TV/AV input mode)

For adjusting a picture’s horizontal and vertical position.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press OK.

• Adjustments are stored separately according to input

source.

• This function is available for AV input mode and TV tuner mode.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Position”, and then press OK.

Press a/b to select “H-Pos.” or “V-Pos.”.

H-Pos. [0] –10 +10

V-Pos. [0] –20

Reset

Press c/d to adjust the item to your desired position.

NOTE

+20

Audio Only

When listening to music from a music programme, you can set the Display off and enjoy audio only.

Selected item

Off

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Audio Only”, and then press OK.

Press c/d to select “On”, and then press

OK.

Description

Audio is output without screen image.

Both screen images and audio are output.

Auto Sync. adjustment (PC input mode only)

For automatically adjusting the PC image.

Press MENU and the MENU screen displays.

Selected item

H-Pos.

V-Pos.

Description

Centres the image by moving it to the left or right.

Centres the image by moving it up or down.

• When Auto Sync. is successful, “Auto Sync completed successfully” displays. If not, Auto Sync. failed.

• Auto Sync. may fail even if “Auto Sync completed successfully” displays.

• Auto Sync. is likely to succeed when an input PC image has wide vertical stripes (ex. pattern with high contrast stripes, or cross-hatched). It may fail when an input PC image is solid (low contrast).

• Be sure to connect the PC to the TV and switch it on before starting Auto Sync.

Press c/d to select “Setup”.

Press a/b to select “Auto Sync.”, and then press OK.

Press c/d to select “Yes”, and then press OK.

• Auto Sync. starts and “Adjusting the image” displays.

30%

NOTE

Useful adjustment settings

Fine Sync. adjustment (PC input mode only)

Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimise the image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Fine Sync.”, and then press OK.

Press a/b to select the specific adjustment item.

H-Pos. [90] – +

V-Pos.

Clock

Phase

Reset

[39]

[90]

[20]

–

Input Select

Selecting input source

Can use for selecting the input source.

Selecting input signal type

For setting the signal type of external equipment.

Press b on the remote control unit or INPUT on the Display.

Press b on the remote control unit or INPUT on the Display to select the input source.

• An image from the selected source automatically displays.

• You can also select the input source by pressing a/b.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press OK.

Selected item

H-Pos.

V-Pos.

Clock

Phase

Centres the image by moving it to the left or right.

Centres the image by moving it to the up or down.

Adjusts when the image flickers with vertical stripes.

Adjusts when characters have low contrast or when the image flickers.

Description

Press a/b to select “Input Select”, and then press OK.

Press a/b/c/d to select a signal type you want to set, and then press OK.

Input type

INPUT 1

INPUT 2

INPUT 3

INPUT 4

NOTE

• If no (colour) image displays, try to change the other signal type.

• Check the operation manual of the external equipment for the signal type.

CVBS, RGB

Y/C, CVBS

AUTO, COMPONENT, S-Video, Video

PC digital, PC analogue, AV digital, AV analogue

Signal type

Useful adjustment settings

Input Label

You can assign each input source a label you like.

Press b to select the desired input source.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Label”, and then press OK.

Press a/b/c/d to select each character of the new name for the channel, and then press OK.

Colour system setting (for TV/AV input mode)

You can change the colour system to one that is

compatible with the image on the screen.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Colour System”, and then press OK.

Press a/b to select a compatible video signal system of your equipment, and then press OK.

• Some items may be greyed out. They are not selectable.

AUTO

PAL

SECAM

NTSC 3.58

NTSC 4.43

PAL-60

DVD

– _

0123456789

Repeat the above until the name is fully spelt

CLEAR

BACK

END

out, and then press OK.

• The name can be 6 characters or less.

INPUT SOURCE

INPUT1

INPUT2

DVD

INPUT4

(Example)

NOTE

• You cannot change labels if the input source is TV.

NOTE

• Factory preset value is “AUTO”.

• If “AUTO” is selected, colour system for each channel is automatically set. If an image does not display clearly, select another colour system (e.g. PAL, NTSC 4.43).

• This function is available for AV input mode and TV tuner mode.

Useful adjustment settings

AV mode selection

AV mode gives you five viewing options to choose from to best match the system environment, which can vary due to factors like room-brightness, type of programme watched or the type of image input from external equipment.

Press AV MODE.

• Present AV mode displays.

Press AV MODE again before the mode displayed on the screen disappears.

• The mode changes as shown below.

AV input mode

Wide screen signalling (WSS) (for TV/AV input mode)

WSS allows a television to switch automatically among the different screen formats.

• Try to set WIDE mode if an image does not switch to the correct screen format. When the broadcast signal contains no WSS information, the function will not work even if enabled.

• This function is available for AV input mode and TV tuner mode.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “WSS”, and then press OK.

Press c/d to select “On” or “Off”, and then press OK.

NOTE

AV MODE: STANDARD

AV MODE: DYNAMIC

AV MODE: STANDARD

Selected item

STANDARD

MOVIE

GAME

USER

AV MODE: MOVIE

AV MODE: GAME

AV MODE: USER

PC input mode

AV MODE: USER

Description

For a highly defined image in a normally bright room

For a movie

Lowers image brightness for easier viewing.

Allows the user to customise settings as desired. You can set the mode for each input source.

Picture aspect ratio (for TV/AV input mode)

The WSS signal has 4:3 auto-switching that allows you to select between Normal and Panorama.

4:3 mode “Normal”

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “4:3 Mode”, and then press OK.

Press c /d to select “Normal” or “Panorama”, and then press OK.

WSS signal 4:3 screen

4:3 mode “Panorama”

DYNAMIC

NOTE

• You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for VIDEO input.)

For a clear-cut image emphasising high contrast for sports viewing

Selected item

Normal

Panorama

Description

Normal range keeping 4:3 or 16:9 aspect ratio

Wide image without side bars

Useful adjustment settings

WIDE MODE

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

WIDE mode (for TV/AV input mode)

Manual Selection

Press f.

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable for the type of video signal currently received.

Auto Selection

If you set “WSS” and “4:3 Mode” in the Setup menu on page 39, the optimum WIDE mode is automatically chosen for every broadcast containing the WSS information.

“WSS” menu

To enable Auto Selection, set “WSS” in the Setup menu to “On”. (See page 39.)

“4:3 Mode” menu

To set the type of the wide screen, select “Normal” or “Panorama” in the 4:3 Mode menu. (See page 39.)

Press f or a/b while the WIDE MODE menu displays on the screen.

• As you toggle down the options, each is immediately reflected on the Display. No need to press OK.

4:3 Mode set to “Normal” 4:3 Mode set to “Panorama”

Selected item

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

For 4:3 “standard” pictures. A side bar appears on each side.

For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and bottom with some programmes.

In this mode the picture is progressively stretched toward each side of the screen.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

Normal Zoom 14:9

NOTE

• If the broadcast signal contains no WSS information, Auto Selection will not function even when the WSS option is enabled.

• This function is available for AV input mode and TV tuner mode.

Description

Panorama

FullCinema 16:9Cinema 14:9

Useful adjustment settings

Screen size images.

Input Signal

Input signal

(640m480)

WIDE MODE

Normal

Cinema

Full

Dot by Dot

Input signal (1024m768)

WIDE MODE

Cinema

Full

Dot by Dot

Normal Dot by DotFullCinema

WIDE mode (for PC input mode)

You can select the screen size.

NOTE

• Connect the PC before making adjustments. (See page

34.)

• Selectable screen size may vary with input signal type.

Press f.

• The WIDE MODE menu displays.

Press f or a/b to select a desired item on the menu.

640g480 Keeps the original

Input Signal

1024g768

aspect ratio in a full screen display.

Normal Dot by DotFullCinema

Keeps the original aspect ratio in a full screen display. The top and bottom of the image are slightly cropped.

An image fully fills the screen.

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

Useful adjustment settings

Input signal (PC input mode only)

• Some input signals may have to be registered manually to display properly.

• The pairs of input signals (resolutions) in the list below are not distinguishable when received. In such case, you have to set the correct signal manually. After setting once, it will display when the same signal (resolution) is input again.

640g400

640g480

1024g768

NOTE

• You can only select the “Input Signal” on the Setup menu when receiving one of the 6 input signals listed above.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Signal” and then press OK.

720g400

848g480

1280g768

DNR (Digital Noise Reduction)

Produces a clearer video image.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “DNR”, and then press OK.

• Some items may be greyed out. They are not selectable.

Press a/b to select the desired level (Off, High, Low), and then press OK.

Quick Shoot

Improves LCD response when viewing fast-moving images. The effect is greater at low room temperatures (at or below 15˚C/59˚F).

Press MENU and the MENU screen displays.

Press a/b to select the desired input signal on the display.

• Quick Shoot may cause image noise. If this occurs, turn the function “Off”.

Press c/d to select “Option”.

Press a/b to select “Quick Shoot”, and then press OK.

Press c/d to select “On”, and then press

OK.

NOTE

Useful adjustment settings

Rotate

You can set the orientation of the picture.

[Normal]: normal image. [Mirror]: mirror image.

[Upside Down]: upside

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Rotate”, and then press OK.

Press a/b to select the desired mode, and then press OK.

ABC

[Rotate]: rotated image.

down image.

ABC

Useful adjustment settings

Audio Out

Allows you to select what controls the audio output.

NOTE

• This setting is available only in TV input mode.

Selected item

Fixed

Variable

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Audio Out”, and then press OK.

Press c/d to select “Fixed” or “Variable”, and then press OK.

Description

• Sound via speakers is adjusted with

il/k on the remote control unit or the Display.

• Sound via the AUDIO OUTPUT terminal is not adjustable and constantly outputs.

• Sound via the AUDIO OUTPUT terminal is adjusted with il/k on the remote control unit or the Display.

• Sound via speakers is muted.

Sleep timer

Allows you to set a time when the TV automatically switches to standby.

Press SLEEP.

• Remaining time displays when sleep timer has been set.

Sleep Timer: Remain 2 hr. 00 min.

Each time you press SLEEP, the remaining time switches as shown below.

• When the time has been set, countdown automatically starts.

• Five minutes before the preset of time expires, the remaining time displays each minute.

0 hr. 30 min. 1 hr. 00 min. 1 hr. 30 min.

Off

NOTE

• Select “Off” by pressing SLEEP to cancel the sleep timer.

2 hr. 30 min. 2 hr. 00 min.

Useful adjustment settings

PIN setting for child lock (for TV/AV input mode)

Allows you to use a PIN to protect certain settings from being accidentally changed.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then press OK.

If you already set the PIN, enter it here.

––––

Press a/b to select “Change PIN”, and then press OK.

Change PIN

Cancel PIN

Resetting the PIN

Allows you to reset your PIN.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Child Lock”, and then press OK.

Enter the PIN.

––––

Press a/b to select “Cancel PIN”, and then press OK.

Press c/d to select “Yes”, and then press

OK.

NOTE

• As a precautionary measure, make a note of your PIN

and keep it in a familiar place. If you lose or forget your PIN, initialise the TV to return all settings except for the TV channel settings to factory preset values. (See page 57.)

• This function is available for TV tuner mode.

New PIN

Reconfirm

Enter the 4-digit number as a PIN using 0 –

–––

–

––––

Change PIN

Cancel PIN

New PIN

Reconfirm

Enter the same 4-digit number as in step 6

–––

–

––––

to confirm.

• “The system PIN has been changed successfully” displays.

NOTE

• To view a locked channel (Lock setting in Programme Setup “Manual Adjust” is set to “On”), you must enter a PIN. (See page 22.) When you select a locked channel, a PIN prompt message pops up. Press OK to display the PIN input window.

Useful adjustment settings

Centre Channel Input

You can use the speaker as the centre speaker when using a 5.1ch surround system.

AV amplifier

* Connect to external audio equipment

that supports a 5.1ch surround system. Refer to your external equipment operation manual for details.

DVD player, etc.

Press MENU and the MENU screen displays.

Press c/d to select “Option”, and then press OK.

Press a/b to select “Centre Channel Input”, and then press OK.

Press c/d to select “On” , and then press OK.

• Only the sound from the Centre Channel Input terminal is output from the speaker.

Useful features

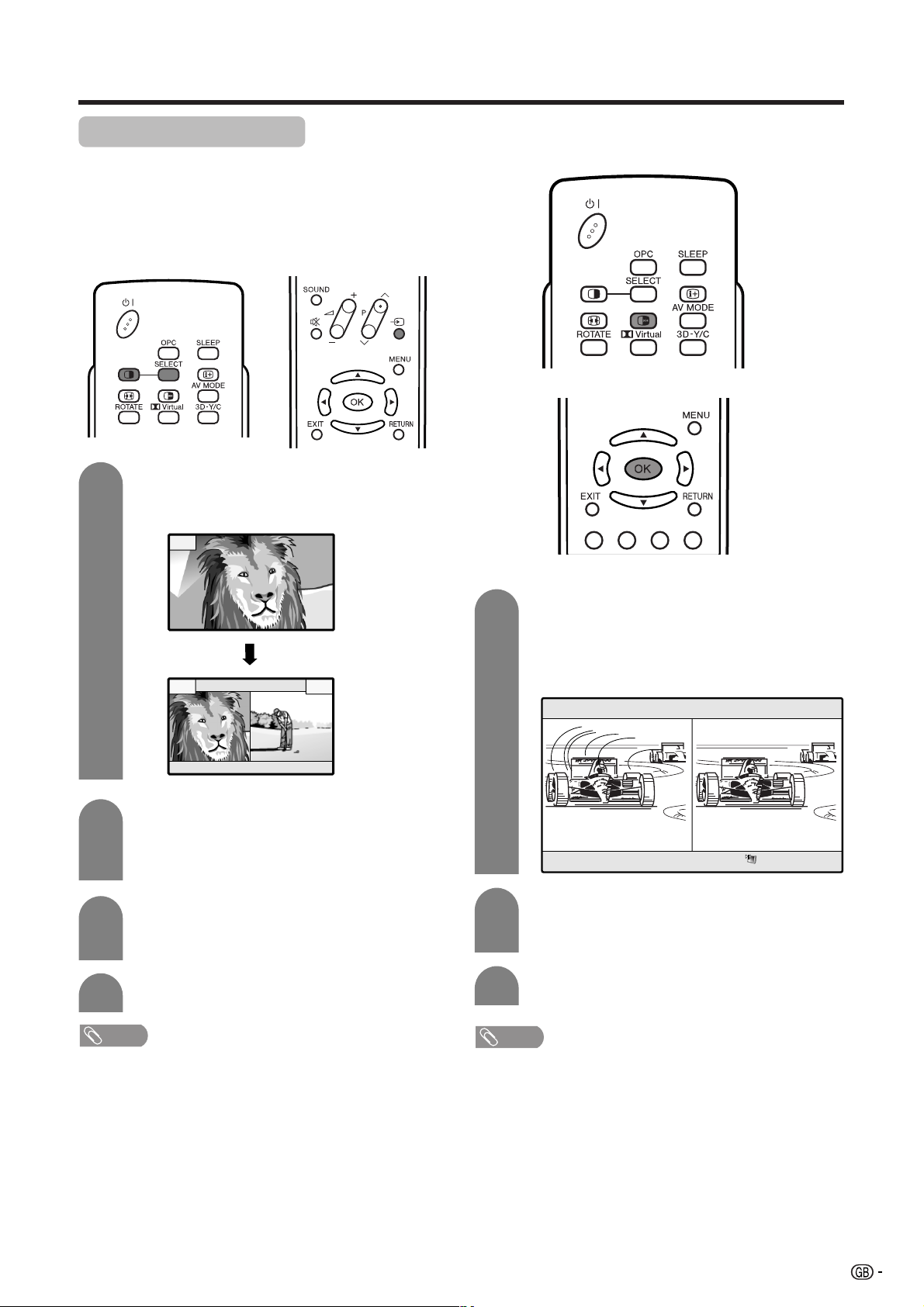

Dual screen functions

Allows you to display two pictures on the screen at one time.

Dual screen

You can display two pictures except when inputting from the INPUT 4 terminal.

Press c.

• Dual screen displays and a selected input source image displays.

Picture and still image

You can freeze a motion picture on the display.

• This function does not work under the following input conditions:

1INPUT 4 mode, 2Two pictures from the same source (e.g. INPUT 1 and

3Two pictures with different vertical frequency (e.g. PAL

4HDTV signal source (480P/1080i/720P) is input on the

• When this function is not available, “No dual screen display available.” will display.

Press SELECT to set either screen to be active.

•“z” displays on the active screen, which has

sound output.

Press b to select another input source on the active screen.

• A selected image displays.

Press c to exit dual screen.

NOTE

INPUT 1),

and PAL-60),

right side screen display.

• This function does not work in INPUT 4.

• When this function is not available, “No still image display available.” will display.

• The still image automatically goes out after 30 minutes.

Press d.

• A moving image displays on the left screen and a still image displays on the right screen. The still image is one frame captured from a moving image at the moment you press d.

FREEZE

Update the still image by pressing OK.

• Each time you press OK, the image on the right screen updates.

Press d to exit still image.

NOTE

Useful features

Teletext function

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your TV receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.

Teletext mode

Teletext is turned on/off with m on the remote control unit. You can operate your TV in Teletext mode directly by inputting commands with the remote control unit.

TELETEXT

When viewing the Teletext information

• Press Pr to increase the page number.

• Press Ps to decrease the page number.

Turning on and off Teletext

Button functions

Colour (RED/GREEN/YELLOW/BLUE):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding Colour (RED/GREEN/

YELLOW/BLUE) on the remote control unit.

TELETEXT

GREEN

RED

0 – 9: Directly select any page from 100 to 899 by using 0 – 9.

f: Each time you press f, the TELETEXT image switches as shown below.

YELLOW BLUE

Select a TV channel or external input source providing the Teletext programme.

Press m to display the Teletext.

Press m again to display the Teletext on the right screen and normal image on the left screen.

• Each time you press m, the screen switches

as shown upper right.

• If you select a programme with no Teletext signal, “No Teletext available.” displays.

• The same message displays during dual screen or other modes if no Teletext signal is available.

Full

Upper half

Lower half

k: To reveal hidden information such as an answer to a quiz, press k.

• Press k again to hide the information.

d: To stop updating Teletext pages automatically, press d.

• Press d again to release the hold mode.

Useful features

Displaying Subtitle

You can display several subtitles as they are transmitted.

• Subtitle will not be displayed when the service does not contain the subtitle information.

Press [ to display the subtitle.

• Subtitle is updated by the information sent by the broadcasting station.

• To stop updating Subtitle automatically, press d.

Press [ to exit the subtitle screen.

NOTE

Displaying TOP Overview

When receiving TOP Teletext, you can read a TOP text overview.

Press m to display Teletext.

Press l to display the TOP Overview as shown below.

TOP Overview screen

Time display

You can display the time information included in the Teletext broadcasts.

• The time display cannot be stored once the power is turned off. When you turn on the power, perform steps 1 – 4 again.

• If acquired successfully, the time information will appear in the upper-right corner of the screen by pressing MENU.

Select a TV channel providing Teletext information. (The time information is automatically captured.)

Press p. The channel display will appear on the Display.

Press p again within the three-second interval the channel display is on the screen. Time information will display on the lower left of the screen for about three seconds.

Even when you change the TV channel, you can display the time information with steps 2 – 3 above.

NOTE

INDEX

BLOCK PAGES

TV PROGRAMS COLOR BAR WEATHER NEWS MOVIE LOCAL

SPORTS

BLOCK 1 BLOCK 2 BLOCK 3

GROUP PAGES

FOOT BALL BASKETBALL

TENNIS

SKI JUDO SWIM GROUP 1 GROUP 2 GROUP 3 GROUP 4

Select the desired block or group by using a/b/c/d.

Press OK to display the selected block or group pages.

Press l to exit the TOP Overview screen.

Appendix

Troubleshooting

Problem Possible Solution

• No power.

• Unit cannot be operated.

• Remote control unit does not operate.

• Picture is cut off.

• Strange colour, light colour, or dark, or colour misalignment.

• Power is suddenly turned off.

• Check if you pressed B on the remote control unit. (See page 13.) If the indicator on the Display lights up red, press B.

• Is the AC cord disconnected? (See page 6.)

• Has the power been turned on? (See page 13.)

• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the power off, or unplugging the AC cord and re-plugging it in after 1 or 2 minutes.

• Are batteries inserted with polarity (e, f) aligned? (See page 7.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated to remote control sensor?

• Is the image position correct? (See page 36.)

• Are screen mode adjustments such as picture size made correctly? (See pages 39 to 42.)

• Adjust the picture tone. (See pages 25 and 27.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting. (See pages 21 and 38.)

• Check the input signal setting. (See page 37.)

• The unit’s internal temperature has increased. Remove any objects blocking vent or clean.

• Check the power control setting. (See page 29.)

• Is sleep timer set? (See page 44.)

• No picture.

• No sound.

• Is connection to other components correct? (See pages 30 to 34.)

• Has input signal setup been done correctly after connection? (See page 37.)

• Is the correct input selected? (See page 37.)

• Is a non-compatible signal being input? (See page 51.)

• Is picture adjustment correct? (See pages 25 to 27.)

• Is the antenna connected properly? (See page 8.)

• Is “On” selected in “Audio Only”? (See page 36.)

• Is the volume too low? (See page 15.)

• Is “Variable” selected in “Audio Out”? (See page 44.)

• Is the speaker connected properly?

• Is “On” selected in “Centre Channel Input”? (See page 46.)

• Make sure that headphones are not connected. (See page 10.)

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction. Storage temperature: –20°C to +60°C (–4°F to +140°F).

Appendix

PC compatibility chart

PC/MAC Resolution Horizontal Frequency

MAC13" MAC16" MAC19"

640 x 400

720 x 400

VGA

640 x 480

WVGA 848 x 480

SVGA

WXGA

SXGA

VGA

SVGA

XGA

800 x 600

1024 x 768XGA

1280 x 720 1280 x 768

1366 x 768

1280 x 1024

640 x 480 832 x 624

1024 x 768

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

37.5 kHz

43.3 kHz

31.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

53.7 kHz

48.4 kHz

56.5 kHz

60.0 kHz

68.7 kHz

45.0 kHz

48.1 kHz

48.4 kHz

64.0 kHz

34.9 kHz

49.7 kHz

60.2 kHz

Vertical Frequency

60 Hz 85 Hz 60 Hz 85 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 56 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 70 Hz 75 Hz 85 Hz 60 Hz 60 Hz 60 Hz 60 Hz 67 Hz 75 Hz 75 Hz

VESA Standard

O O O O O

O O O O O O O O O

Apple and Macintosh are registered trademarks of Apple Computer, Inc. DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Co., Inc.

Appendix

RS-232C port specifications

PC Control of the System

• When a program is set, the display can be controlled from the PC using the RS-232C terminal. The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing.

• Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-sub RS-232C for the

connections.

NOTE

• This operation system should be used by a person who is accustomed to using PCs.

Communication conditions

Set the RS-232C communications settings on the PC to match the display’s communications conditions. The display's communications settings are as follows:

Baud rate: Data length: Parity bit:

Stop bit:

Flow control:

Communication procedure

Send the control commands from the PC via the RS-232C connector. The Display operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command.

9,600 bps

8 bits None 1 bit None

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Parameter

Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that four values are input for the parameter.) When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.)

Command 4-digits: Command. The text of four characters. Parameter 4-digits: Parameter 0 – 9, x, blank, ?

Return codeCommand 4-digits Parameter 4-digits

0009

– 30

100

0055

When “?” is input for some commands, the present setting value responds.

????

Appendix

Response code format

Normal response

Problem response (communication error or incorrect command)

ERR

Commands

Return code (0DH)

CONTROL ITEM COMMAND PARAMETER

POWER SETTING

INPUT SELECTION A

CHANNEL

INPUT SELECTION B

AV MODE SELECTION

VOLUME

POWER OFF (STANDBY)

INPUT SWITCHING (TOGGLE)

TV (CHANNEL FIXED)

INPUT1 – 4 (1 – 4)

TV DIRECT CHANNEL (1 – 99)

CHANNEL UP

CHANNEL DOWN

INPUT1 (CVBS)

INPUT1 (RGB)

INPUT2 (CVBS)

INPUT2 (Y/C)

INPUT3 (AUTO)

INPUT3 (COMPONENT)

INPUT3 (S-VIDEO)

INPUT3 (VIDEO)

INPUT4 (DIGITAL PC)

INPUT4 (ANALOGUE PC)

INPUT4 (DIGITAL AV)

INPUT4 (ANALOGUE AV)

TOGGLE

STANDARD

MOVIE

GAME

USER

DYNAMIC

VOLUME (0 – 60)

CONTROL

CONTENTS

CONTROL ITEM COMMAND PARAMETER

POSITION

WIDE MODE

MUTE

DOLBY VIRTUAL

DUAL SCREEN

AUDIO CHANGE

SLEEP TIMER

TEXT

H-POSITION (AV) (ⳮ10 – Ⳮ10)

H-POSITION (PC) (0 – 180)

V-POSITION (AV) (ⳮ20 – Ⳮ20)

V-POSITION (PC) (0 – 100)

CLOCK (0 – 180)

PHASE (0 – 40)

TOGGLE (AV)

NORMAL (AV)

ZOOM 14:9 (AV)

PANORAMA (AV)

FULL (AV)

CINEMA 16:9 (AV)

CINEMA 14:9 (AV)

NORMAL (PC)

CINEMA (PC)

FULL (PC)

DOT BY DOT (PC)

TOGGLE

MUTE

MUTE OFF

TOGGLE

OFF

DUAL SCREEN OFF

DUAL SCREEN ON

TOGGLE

OFF

SLEEP TIMER 30 MIN

SLEEP TIMER 1 HOUR

SLEEP TIMER 1 HOUR 30 MIN

SLEEP TIMER 2 HOUR

SLEEP TIMER 2 HOUR 30 MIN

TEXT OFF

TEXT ON (TOGGLE)

DIRECT PAGE JUMP (100 – 899)

CONTROL

CONTENTS

NOTE

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

Appendix

Connecting pin assignments for SCART

Various audio and video devices may be connected via the SCART terminals.

13579111315171921

2468101214161820

SCART (INPUT 1)

1. Audio right output

(TV Monitor out)

2. Audio right input

3. Audio left output

(TV Monitor out)

4. Common earth for audio

5. Earth for blue

6. Audio left input

7. Blue input

8. Audio-video control

9. Earth for green

10. Not used

11. Green input

12. Not used

13. Earth for red

14. Not used

15. Red input

16. Red/Green/Blue control

17. Earth for video

18. Earth for Red/Green/Blue

19. Video output

20. Video input

21. Plug shield

control

(TV Monitor out)

SCART (INPUT 2)

1. Audio right output

2. Audio right input

3. Audio left output

4. Common earth for audio

5. Earth

6. Audio left input

7. Not used

8. Audio-video control

9. Earth

10. AV LINK control

11. Not used

12. Not used

13. Earth

14. Not used

15. Chroma S-Video input

16. Not used

17. Earth for video

18. Earth

19. TV Monitor output

20. Video input/S-video input

21. Plug shield

Appendix

Specifications

Item 26o LCD COLOUR TV, Model:LC-26GA3E

LCD panel

Number of dots 3,147,264 dots (1366 g 768 g 3 dots)

Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV Function

Brightness 450 cd/m

Backlight life 60,000 hours (at Backlight Standard position)

Viewing angles H : 170° V : 170°

Audio amplifier 10W g 2

Speakers Ø 8 cm 2pcs, Ø 2.5 cm 2pcs

Terminals

OSD language English/German/French/Italian/Spanish/Dutch/Swedish/Portuguese/Finnish/Turkish/Greek/

Power Requirement AC 220–240 V, 50 Hz

Power Consumption

Weight

Accessories Operation manual, Remote control unit (g1), AC cord (g1), “AAA” size battery (g2)

TV-Standard (CCIR)

Receiving Channel

TV-Tuning System Auto Preset 99 ch, Auto Label, Auto Sort

STEREO/BILINGUAL NICAM/A2

VHF/UHF E2–E69ch, F2–F10ch, I21–I69ch, IR A–IR Jch

CATV Hyper-band, S1–S41ch

Rear

ANTENNA IN

INPUT 1

INPUT 2

INPUT 3 RCA pin (Component input), S-VIDEO (Y/C input), RCA pin (AV input)

INPUT 4 Ø 3.5 mm jack (Audio input), DVI-I (DVI-I input)

AUDIO OUTPUT

DC OUTPUT DC9V 7W MAX

SPEAKER External speaker output terminal (L and R)

CENTRE CHANNEL INPUT

RS-232C D-sub 9pin male connector

Front

Headphones

26o Advanced Super View & BLACK TFT LCD

B/G, I, D/K, L, L’

UHF/VHF 75 q Din type

SCART (AV input, RGB input, TV output)

SCART (AV input/output, Y/C input, AV Link)

RCA pin (Variable/Fixed)

RCA pin

Ø 3.5mm jack (Audio output)

Russian/Polish

117 W (2 W Standby) (Method IEC60107)

12 kg (Display only), 15 kg (with Display and speaker), 18.5 kg (with Display, speaker and stand)

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

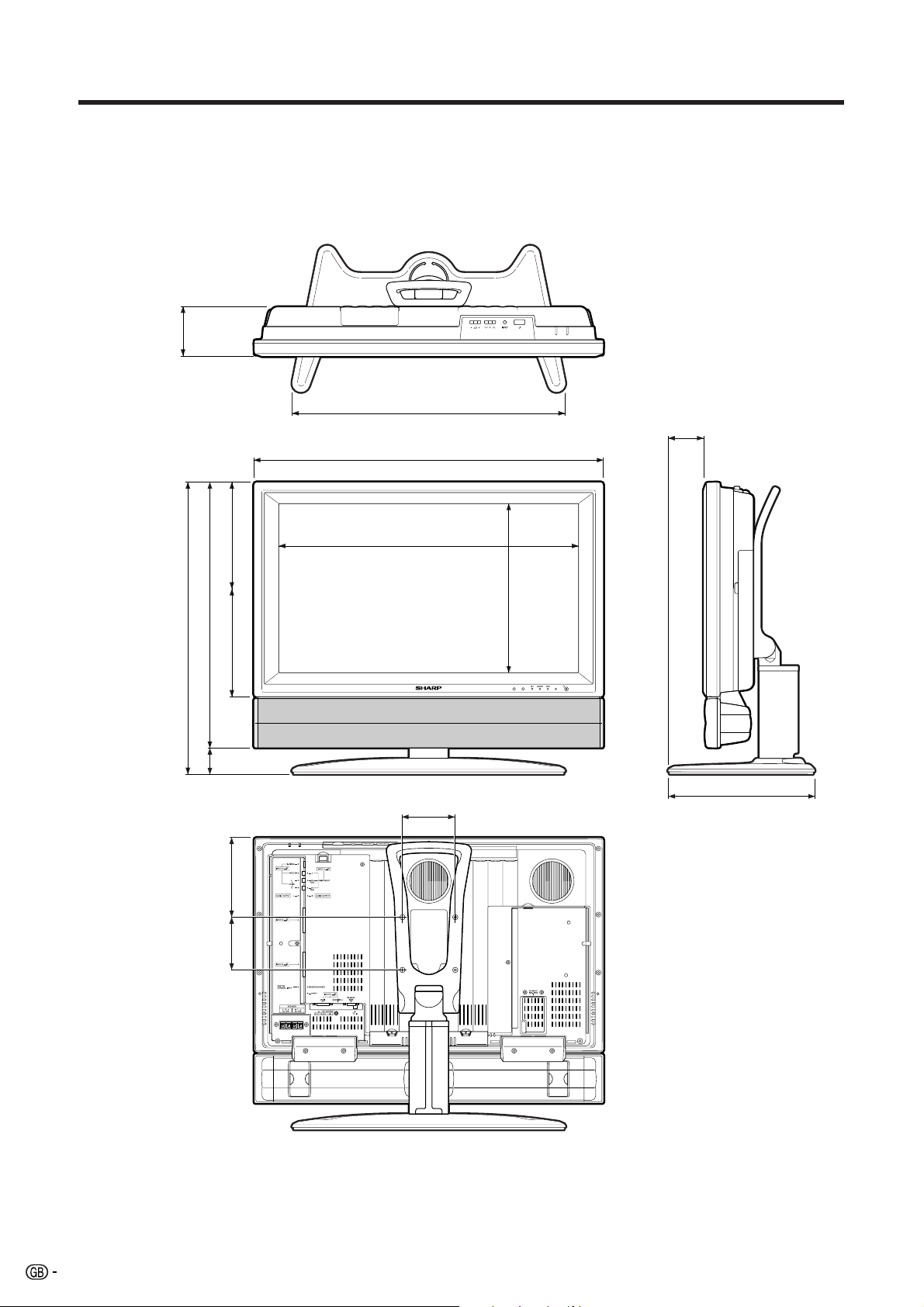

Dimensional drawings

Unit: mm

519

663

556

504

201

206

100 151

568

321

279

100

Information for Customers

on environmentally friendly disposal of this SHARP product

If this product cannot be used any more, it should be disposed of in a legally correct and environmentally sound way.

DO NOT DISPOSE OF THIS PRODUCT WITH YOUR HOUSEHOLD WASTE

OR MIXED WITH OTHER WASTES! YOU MIGHT ENDANGER THE ENVIRONMENT!

Sharp Corporation is committed to protecting the environment and conserving energy. Our goal is to minimize the

environmental impact of our products by continually implementing and improving product technologies, designs, and

(1) For our customers in Belgium, The Netherlands, Sweden, and Switzerland

SHARP takes part in the respective national recycling systems for electronic equipment, which have been founded on the base of the environmental laws in these countries.

Please see here details on the respective countries.

customer information aimed at environmental conservation.

Country

Sweden

The Netherlands

Belgium

Switzerland

(2) For our customers in United Kingdom, Germany, France, and Italy

Please contact your local authorities for collection and recycling facilities, or contact a recycling service company, which is licensed for the recycling of electronic equipment.

Please use the Swedish electronics recycling system called “ELRETUR”, and see the website at http://www.el-kretsen.se

Please use the Dutch electronics recycling system called “ICT-Milieu”, and see the website at http://www.nederlandict.nl/index.php

Please use the Belgian electronics recycling system called “Recupel”, and see the website at http://www.recupel.be

Please use the Swiss electronics recycling system called “SWICO”, and see the website at http://www.swico.ch

Recycling Information for that Country

HOW TO SET THE FACTORY PRESETS

Turn off the TV by pressing POWER. Press and hold down RESET and press POWER on the TV to turn it on. All setting items (except TV channel) return to the factory presetting.

You can run the Auto Installation again by using the following steps.

1 Turn on the power of the TV. 2 Press MENU. (Make sure the menu screen displays.) 3 Press c/d to select “Setup”. 4 Press a/b to select “Auto Installation”, and then press OK. 5 Press c/d to select “Ye s”, and then press OK.

The PIN is .

NOTE

• As a precautionary measure, make a note of your PIN above, scissor it from this manual, and keep it in a familiar place.

SHARP CORPORATION

Printed on 100% post-consumer recycled paper. Gedruckt auf 100% wiederverwertungs Papier. Imprimé sur 100% de papier recyclé. Stampato su carta riciclata al 100%. Gedrukt op 100% kringlooppapier. Impreso en 100% de papel reciclado de postconsumo.

Printed in Japan Gedruckt in Japan Imprimé au Japon Stampato in Giappone Gedrukt in Japan Impreso en Japón

TINS-B448WJZZ

04P06-JKG

Sharp LC26GA3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
