Sharp FO 4400 - B/W Laser - All-in-One, FO-4400, FO-CS1 Service Manual

1 - 1

FO-4400U FO-CS1

No. 00ZFO4400USME

Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used for after sales service only. The contents are subject to change without notice.

SHARP CORPORATION

SERVICE MANUAL

Laser Wave Length : 770-795 nm Laser Pulse Times

: 51.3 ns

Laser Output Power : 5 mW

CAUTION

This laser printer is a class 1 laser product that complies with 21CFR 1040.10 and 1040.11 of the CDRH or IEC60825-1 standard. This means that this machine does not produce a hazardous laser radiation. The use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This laser radiation is not a danger to the skin, but when an exact focusing of the laser beam is achieved on the eyes retina, there is danger of spot damage to the retina.

The following cautions must be observed to avoid exposure of the laser beam to your eyes at the time of servicing.

1) When a problem in the laser optical unit has occurred, the whole optical unit must be exchanged as a unit, not an individual part.

2) Do not look into the machine with the main switch turned on after removing the toner/developer unit and drum cartridge.

3) Do not look into the laser beam exposure slit of the laser optical unit with the connector connected when removing and installing the optical system.

4) The cover of Laser Printer Unit contains the safety interlock switch. Do not defeat the safety interlock by inserting wedges or other items into the switch slot.

Illustration: FO-4400

FACSIMILE

FO-4400

MODEL

OPTION:PAPER CASSETTE

FO-CS1

MODEL

MODEL SELECTION CODE DESTINATION

FO-4400 U U.S.A./Canada

Illustration: FO-CS1

OPTION Toner cartridge: FO-50ND Drum cartridge: FO-47DR Option memory: FO-8MK Verification stamp: FO-45VS Paper cassette: FO-CS1

1 – 2

FO-4400U FO-CS1

CONTENTS

• CAUTION FOR BATTERY REPLACEMENT

• PRECAUTIONS FOR USING LEAD-FREE SOLDER

CHAPTER 1. GENERAL DESCRIPTION

[1] Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

[2] Life of consumable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

[3] Operation panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

[4] Transmittable documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

[5] Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

[6] Quick reference guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

CHAPTER 2. ADJUSTMENTS

[1] Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

[2] Diagnostics and service soft switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

[3] Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-35

[4] Error code table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-36

[5] Overseas communication mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-38

[6] Administrator mode in the personal book function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-38

CHAPTER 3. MECHANICAL DESCRIPTION

[1] Mechanical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

[2] Printer description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

[3] Disassembly and assembly procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

[4] How to install the verification stamp (FO-45VS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

CHAPTER 4. DIAGRAMS

[1] Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

[2] Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

[3] Point-to-point diagram and connector signal name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

CHAPTER 5. CIRCUIT DESCRIPTION

[1] Circuit description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

[2] Circuit description of control PWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

[3] Circuit description of CIS unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

[4] Circuit description of LIU PWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16

[5] Circuit description of operation panel PWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18

[6] Circuit description of power supply PWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19

CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT

[1] Control PWB circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

[2] LIU PWB circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18

[3] Printer PWB circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21

[4] Power supply PWB circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25

[5] Operation panel PWB circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27

[6] 2nd paper cassette PWB circuit (FO-CS1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-31

CHAPTER 7. OPERATION FLOWCHART

[1] G3 protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

[2] Super G3 protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

[3] Power on sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

CHAPTER 8. OTHERS

[1] Service Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

[2] Rewriting version up the FLASH ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

PARTS GUIDE

1 - 3

FO-4400U FO-CS1

(Danish) ADVARSEL !

Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri af samme fabrikat og type.

Levér det brugte batteri tilbage til leverandoren.

(English) Caution !

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

recommended by the equipment manufacturer.

Discard used batteries according to manufacturer’s instructions.

(Finnish) VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu.

Vaihda paristo ainoastaan laitevalmistajan suosittelemaan

tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

(French) ATTENTION

Il y a danger d’explosion s’ il y a remplacement incorrect

de la batterie. Remplacer uniquement avec une batterie du

même type ou d’un type recommandé par le constructeur.

Mettre au rébut les batteries usagées conformément aux

instructions du fabricant.

(Swedish) VARNING

Explosionsfare vid felaktigt batteribyte.

Använd samma batterityp eller en ekvivalent

typ som rekommenderas av apparattillverkaren.

Kassera använt batteri enligt fabrikantens

instruktion.

(German) Achtung

Explosionsgefahr bei Verwendung inkorrekter Batterien.

Als Ersatzbatterien dürfen nur Batterien vom gleichen Typ oder

vom Hersteller empfohlene Batterien verwendet werden.

Entsorgung der gebrauchten Batterien nur nach den vom

Hersteller angegebenen Anweisungen.

Employing lead-free solder

The Power supply PWB of this model employs lead-free solder. This is indicated by the “LF” symbol printed on the PWB and in the service manual. The suffix letter indicates the alloy type of the solder. Example:

Indicates lead-free solder of tin, silver and copper.

Using lead-free solder

When repairing a PWB with the “LF” symbol, only lead-free solder should be used. (Using normal tin/lead alloy solder may result in cold soldered joints and damage to printed patterns.) As the melting point of lead-free solder is approximately 40ºC higher than tin/lead alloy solder, it is recommended that a dedicated bit is used, and that the iron temperature is adjusted accordingly.

Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is higher and has poorer wettability (flow), to prevent damage to the land of the PWB, extreme care should be taken not to leave the bit in contact with the PWB for an extended period of time. Remove the bit as soon as a good flow is achieved. The high content of tin in lead free solder will cause premature corrosion of the bit. To reduce wear on the bit, reduce the temperature or turn off the iron when it is not required. Leaving different types of solder on the bit will cause contamination of the different alloys, which will alter their characteristics, making good soldering more difficult. It will be necessary to clean and replace bits more often when using lead-free solder. To reduce bit wear, care should be taken to clean the bit thoroughly after each use.

CAUTION FOR BATTERY REPLACEMENT

PRECAUTIONS FOR USING LEAD-FREE SOLDER

FO-4400U FO-CS1

To avoid problems with supplies, please don’t use supplies from other units. Please use new supplies, when supply changes are required.

CHAPTER 1. GENERAL DESCRIPTION

[1] Specifications

• GENERAL

Automatic dialing: Conventional Auto Dialing:

Rapid Key Dialing: 59 numbers Speed Dialing: 75 numbers Personal Auto Dial Books: 10 books (59 Rapid Keys, 16 Speed Dial numbers per book)

Memory size* : 2 MB (approx. 124 pages)

Optional memory: FO-8MK (8 MB; approx. 500 pages)

Modem speed: 33,600 bps (max.) with automatic

fallback to lower speeds

Transmission time* : Approx. 3 seconds Toner cartridge yield: Initial starter cartridge (included with

(continuous printing, fax machine): Approx. 3000 pages 4% page coverage, Replacement cartridge (FO-50ND):

letter paper) Approx. 6000 pages Drum cartridge yield: Initial starter cartridge (included with

fax machine): 20,000 pages (avg.)

Replacement cartridge (FO-47DR):

20,000 pages (avg.)

Resolution: Horizontal:

203 pixels/inch (8 dots/mm)

Vertical:

Standard: 98 lines/inch (3.85 lines/mm) Fine/Halftone: 196 lines/inch

(7.7 lines/mm)

Super fine: 391 lines/inch (15.4 lines/mm)

Automatic document feeder: Letter paper (20 lb): Max. 50 pages

Legal paper: Max. 20 pages (Note: 11” x 17” paper must be loaded one page at a time.)

Paper capacity: 250 sheets (20 lb)

(500-sheet cassette available as option)

Compression scheme: MMR, MR, MH, Sharp (H2)

Halftone (grayscale): 64 levels Applicable telephone line: Public switched telephone network Compatibility: ITU-T (CCITT) G3 mode, Super G3

mode

Printing resolution: Horizontal: 406 lines/inch (16 lines/mm)

Vertical: 391 lines/inch (15.4 lines/mm)

Input document size: Automatic feeding:

Width: 5.8 to 10.1” (148 to 256mm) Length: 5.0 to 14.3” (128 to 364 mm)

Manual feeding:

Width: 5.8 to 11.0” (148 to 279 mm) Length: 5.0 to 19.0” (128 to 483 mm)

Effective scanning width: 8.2” (208 mm) max. Effective printing width: 8.0” (203 mm) max. Reception modes: Auto/Manual Instascan speed: 1.3 sec/page (letter paper; scan time

only, excludes document feeding time)

Full Dual Access: Yes Copy function: Single/Multi/Sort (99 copies/page) Power requirements: 120 V AC, 60 Hz Operating temperature: 50 - 86°F(10 - 30°C) Humidity: 20 to 85 % RH Power consumption: Stand-by: 9 W

Maximum: 760 W

Dimensions: Width: 21.5” (546 mm)

Depth: 16.2” (412 mm) Height: 13.6” (346 mm) (Not including paper tray or attachments)

Weight: Approx. 31.3 lbs. (14.2 kg)

(Not including supplies paper tray or attachments)

* Based on ITU-T T est Chart #1 at standard resolution, excluding time for

protocol signals (i.e., ITU-T phase C time only).

1 – 1

Toner cartridge Replacement cartridge 6,000 prints User

(FO-50ND) (at Letter/4% chart)

Drum cartridge Replacement cartridge 20,000 prints User

(FO-47DR) (at Letter/4% chart)

Paper feed Transfer roller

(Refer to the P/G No. 10-8)

50,000 prints Service Engineer

(0KW4127410302)

Fuser Fusing unit

(Refer to the P/G No. 9-14)

50,000 prints Service Engineer

(0KW4127035501)

Paper transport

Paper transfer roller (Refer to the P/G No. 8-6)

Cleaning as needed ———————

(0KW4127300101)

Unit FO-4400 5 years or 75,000 prints ———————

of early either

[2] Life of consumable

Section Part Estimated Life Replaced by

FO-4400U FO-CS1

[3] Operation panel

Q / ! W / " E / # R / $ T / % Y / & U / ' I / ( O / ) P / =

SYMBOL

A / |S D F G / { H / } J / [ K / ] L / +

Caps Lock

Z / < X / > C V B N / * M / ? @ .com

SHIFT

/ ^

/ / \ ; / :

Space

- . / , DEL

Q / ! W / " E / # R / $ T / % Y / & U / ' I / ( O / ) P / =

SYMBOL

A / |S D F G / { H / } J / [ K / ] L / +

Caps Lock

PAGE COUNTER

CONFIDENTIAL

TIMER

COVER SHEET

LIFE

MEM.STATUS

REPORT

DOCUMENT

Z / < X / > C V B N / * M / ? @ .com

SHIFT

/ ^

/ / \ ; / :

Space

- . / , DEL

01 02 03 04 05 06 07 08 09 10

11 12 13 14 15 16 17 18 19 20

40 41 42 43 44 45 46 47 48 49

50 51 52 53 54 55 56 57 58 59

21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39

8 10 11 12 13 14 15 16

PLAIN PAPER LASER FACSIMILE

HALF TONE

Toner Cartridge Drum Cartridge Paper Supply

Paper Jam Paper Size Error Printer Cover Open Out Put Tray Error

ALARM Guide

ALARM

TONER

LINE IN USE

CONTRAST RESOLUTION

STANDARD

FINE

SUPER FINE

2 3 4

JKL

ABC1DEF

WXYZ

GHI

MNO

PQRS

TUV

8 0

2 3

OPER

PERSONAL

BOOK

SPEED DIAL

REDIAL

SPEAKER

JOB STATUS

DUPLEX SCAN

PRIORITY

BROADCAST

DOWN

START/ ENTER

COPY/HELP

STOP

1717 24241818 1919 2020 2525

2626 3030 31312727 2929

2323

2828

22222121

PAGE COUNTER key

Press this key to include a slash and the total number of pages after each page number on the pages of a transmitted document.

CONFIDENTIAL key

Press this key to send or print out a confidential document.

TIMER key

Press this key to set an operation to be performed automatically at a later time.

COVER SHEET key

Press this key to include a cover sheet when sending a fax.

LIFE key

Press this key, followed b y , to check the total number o f pages printed by the fax machine.

MEM. ST ATUS key

Press this key to chec k the status of fax transmission jobs, copy jobs, and

receptions.

fax This key can also be used to cancel a job.

REPORT key

Press this key to print out a report on the most recently completed transmission or reception.

DOCUMENT key

Press this key to transmi t a docu ment dire ctly from t he f e eder without

it into memory.

JOB STATUS key

Two types of information appear in the display: prompts related to operations

you are performing, and information about how the fax machine

using the telephone line (transmitting, receiving, etc.). Press this key to

between the two types of information.

DUPLEX SCAN key

Press this key to transmit or copy a two-sided document.

PRIORITY key

Press this key when you need to transmit a document ahead of other documents waiting in memory for transmission.

BROADCAST key

Press this key to send a fax to a group of receiving fax machines.

PERSONAL BOOK

Press this key to use or store an auto-dial number in a personal book. If

book has a passcode, enter the passcode; otherwise, select the book

with

or and press .

SPEED DIAL key

Press this key to dial a Speed Dial number.

MENU key

Press this key to select special functions and settings.

UP and DOWN arrow keys Volume setting: Press these keys to change the speaker volume when the SPEAKER key has been pressed, or the ringer volume at any other time.

COPY/HELP key

When a document is in the feeder, press this key to make a copy of a document. At any other time, press this key to print out the Help List, a

reference guide to the operation of your fax machine.

Dial keypad (numeric keys)

Use these keys to dial and program fax numbers.

REDIAL key

Press this key to automatically redial the last number dialed.

SPEAKER key

Press this key when trans mitting a document by N ormal Dialing to l isten to the

line and verify the response of the receiving fax machine.

START /ENTER key

Press this key to begin fax transmission when using Speed Dialing, Direct Keypad Dialing, or Normal Dialing. This key is also use d to sel ect s etting s

and

complete entries when storing names and numbers.

Left and right arrow keys Auto-dial numbers: Press these keys to search for an auto-dial number

when sending a fax. MENU key settings: Press these keys after pressing the MENU key to scroll

through the MENU key settings.

STOP key

Press this key to cancel an operation before it is completed.

START/ ENTER

27 28

Display

This displays messages and prompts to help you operate the machine.

ALARM indicator

This blinks when one of the paper sources is empty or the drum cartridge is near the end of its life (printing is still possible). This lights steadily when the drum cartridge has reached the end of its lif e, all paper sources are empty, the print compartment cover is open, or a paper jam has occurred (printing is not possible). A message will appear in the display to indicate the problem.

TONER indicator

This blinks when the to ner ca rtridge nears empt y, and lights steadily when

the

toner cartridge needs replacement.

LINE IN USE light

This lights when the fax machine is using the telephone line.

CONTRAST key

Press this key to adjust the contrast before sending or copying a document.

RESOLUTION key

Press this key to adjus t the res ol ution before sending or copying a documen t. An indicator will light next to the selected setting (HALFTONE, STANDARD, FINE or SUPER FINE).

reading

change

the

quick

Rapid Dial Keys

Press one of these keys to dial a fax number automatically. (Note that you must attach the Rapid Key labels.) When navigating through the display menu, a Rapid Key can also be pressed in place of the numeric keys to enter a two-digit number (for example, you can press Rapid Key 01 to enter the number “01”).

SYMBOL key

When entering a name, press this key to enter the symbol on a letter key (the character to the right of the slash). Press the key again to turn off symbol entry mode.

1 – 2

FO-4400U FO-CS1

[4] Transmittable documents

1. Document Sizes

* With special sizes, only one sheet can be fed into the machine at a

time. Insert next page into feeder as current page is being scanned.

2. Paper Thickness & Weight

3. Document Types

• Normal paper Documents handwritten in pencil (No. 2 lead or softer), fountain pen,

ball point pen, or felt-tipped pen can be transmitted. Documents of normal contrast duplicated by a copying machine can

also be transmitted.

• Diazo copy (blueprint) Diazo copy documents of a normal contrast may be transmitted.

• Carbon copy A carbon copy may be transmitted if its contrast is normal.

Normal size

width 5.8" – 10.1" (148 – 256 mm)

length 5.0" – 14.3" (128 – 364 mm)

4. Cautions on Transmitting Documents

• Documents written in yellow, greenish yellow, or light blue ink cannot be transmitted.

• Ink, glue, and correcting fluid on documents must be dry before the documents can be transmitted.

• All clips, staples and pins must be removed from documents before transmission.

• Patched (taped) documents should be copied first on a copier and then the copies used for transmission.

• All documents should be fanned before insertion into the feeder to prevent possible double feeds.

5. Automatic Document Feeder Capacity

Number of pages that can be placed into the feeder at anytime is as follows:

Normal size: max. 50 sheets (14 lbs - 20 lbs) Special size: single sheet only (manual feed)

NOTES: • If you need to send or copy more 50 pages, place the ad-

ditional pages and carefully in the feeder just before the last page is scanned. Do not try to force them in, as this may cause double-feeding or jamming.

• If your document consists of several large or thick pages

which must be loaded one at a time, insert each page into the feeder as the previous page is being scanned. Insert gently to prevent doublefeeding.

6. Readable Width & Length

The readable width and length of a document are slightly smaller than the actual document size.

Note that characters or graphics outside the effective document scanning range will not be read.

• Readable width

8.2" (208 mm) max.

• Readable length

This is the length of the document sent minus 0.16" (4 mm) from the top and bottom edges.

Readable width

0.16"(4mm)

0.16"

(

4mm

)

Readable length

(Min.)

(Max.)

128 mm

364 mm

483 mm

148 mm 256 mm

[

Normal size

]

279 mm

[Sp

ecial size

]

Product specifications

Indication Lower Limit Upper Limit Weight Japanese indication 45kg paper 70kg paper indication Size 4 × 6

Metric system 52g/m

80g/m

indication American indication 14 LB 20 LB

LB system indication Thickness Metric system 0.06mm 0.1mm indication indication

Inch system indication 0.0024

0.0035

" Document Document size (148mm × 128mm) ~ size Range W letter (279mm × 483mm)

A4 (210mm × 297mm)

Letter (216mm × 279mm) Number of Document size B6 ~ Letter/A4 size 50 sheets ADF sheets

Weight B4 size/Legal 20 sheets

W letter size 1 sheet

90 kg (104g/m2) or more

135 kg (157g/m2) or less1 sheet Paper Kind Paper of fine quality/bond paper/ quality Kent paper

1 – 3

FO-4400U FO-CS1

[5] Installation

1. Site selection

T ake the following points into consideration when selecting a site for this model.

ENVIRONMENT

• The machine must be installed on a level surface.

• Keep the machine away from air conditioners, heaters, direct sun-

light, and dust.

• Provide easy access to the front, back, and sides of the machine. In

particular, keep the area in front of the machine clear, or the original document may jam as it comes out after scanning.

• The temperature should be between 50° and 86°F (10° and 30°C).

• The humidity should be between 30% and 85% (without condensa-

tion).

ELECTRICITY

AC 120 V, 60 Hz, grounded (3-prong) AC outlet is required.

Caution!

• Connection to a power source other than that specified will cause

damage to the equipment and is not covered under the warranty.

• If your area experiences a high incidence of lightning or power surges,

we recommend that you install a surge protector for the power and telephone lines. Surge protectors can be purchased at most telephone specialty stores.

TELEPHONE JACK

A standard RC11C telephone jack must be located near the machine. This is the telephone jack commonly used in most homes and offices.

• Plugging the fax machine into a jack which is not an RC11C jack may

result in damage to the machine or your telephone system. If you do not know what kind of jack you have, or need to have one installed, contact the telephone company.

If the machine is moved from a cold to a warm place...

If the machine is moved from a cold to a warm place, it is possible that the reading glass may fog up, preventing proper scanning of documents for transmission. T o remove the fog, turn on the power and wait approximately 2 hours before using the machine.

2. Assembly and connections

Connecting the power cord

Connect the female end of the power cord to the fax machine as shown. Insert the male end into a 120 V, 60 Hz, grounded (3-prong) AC outlet.

Important!: The fax machine requires its own dedicated power outlet. The power outlet must not be shared with any other devices. In particular, do not use an extension cord to connect multiple devices to the outlet.

Note: If your area experiences a high incidence of lightning or power surges, we recommend that you install surge protectors for the power and telephone lines. Surge protectors can be purchased at most telephone specialty stores.

Attaching the ADF exit tray

Insert the protrusion on the right side of the machine into the hole in the right side of the ADF exit tray 1, then bend the tray slightly and insert so that the protrusion on the left side of the machine goes into the hole on the left side of the ADF exit tray 2. Pull out the tray extension 3.

Press the power switch to turn on the power.

Connecting the telephone line cord

Insert one end of the line cord into the jack on the back of the machine marked TEL. LINE. Insert the other end into a standard (RJ1 1C) single-line wall telephone jack.

Note: The fax machine is set for touch-tone dialing. If you are on a pulse dial (rotary) line, you must set the fax machine for pulse dialing by changing Option Setting 22.

Attaching the received document tray

Slide the received document tray into the machine as shown. When it stops, lift the end slightly and push in so that the tray locks into place.

Important!: The received document tray must be attached for the fax machine to operate properly.

Verification Stamp option (FO-45VS)

Note: This feature is available as an option. Consult your dealer if

you wish to use this feature.

When transmitting a document, you can have the fax machine stamp each document page as it is scanned. After scanning, you can check to see if all document have been stamped to verify that no double feeds occurred. (A double feed occurs when two pages are fed through the scanner at once, which means that one of the pages is not scanned.) To use this function, have your dealer install the Verification Stamp option, and then set Option Setting 29 to ON.

1 – 4

FO-4400U FO-CS1

3. Installing the printer cartridges (Toner cartridge: FO-50ND) (Drum cartridge: FO-47DR)

Follow the steps below to install or replace the toner and drum cartridges.

• The initial starter toner cartridge included with the fax machine can

print approximately 3000 letter-size pages (4% coverage of each page; continuous printing).

• The replacement toner cartridge (FO-50ND) can print approximately

6000 letter-size pages.

• The drum cartridge (FO-47DR) can print approximately 20,000 let-

ter-size pages.

Press the cover release to open the print compartment cover.

• Caution! The fusing unit inside the print compartment becomes

very hot during operation. Be careful not to touch the inside of the compartment.

If you are replacing the toner cartridge, remove the old cartridge and dispose of it according to local regulations.

Go directly to STEP 6 if you are only replacing the toner cartridge and not the drum cartridge.

• If you are replacing the drum cartridge but not the toner cartridge,

remove the toner cartridge and place it on a sheet of paper.

To make the cartridge more compact for disposal, press the buttons on the ends of the handle and fold the handle down.

If you are replacing the drum cartridge, remove the old cartridge and dispose of it according to local regulations.

Remove the new drum cartridge from its packaging. Insert the drum cartridge into the print compartment.

• Caution! Excessive exposure to light will damage the drum

cartridge. Install the cartridge promptly after removing it from its packaging.

• Make sure the drum cartridge is inserted in as far as it will go.

GREEN

BLUE

If you are installing a new toner cartridge, remove the new toner cartridge from its packaging. Remove the tape from the cartridge and then open the cartridge handle so that it stands straight up.

Shake as indicated by the arrows to distribute the toner evenly within the cartridge.

• If the toner is still lumpy after shaking, the gears in the cartridge

may make a noticeable sound when the print compartment cover is closed after installing the cartridge. This is normal and does not indicate a problem.

1 – 5

FO-4400U FO-CS1

Hold the toner cartridge by the handle and insert it into the print compartment.

• Make sure the toner cartridge clicks into place.

• The handle can be left standing up.

GREEN

BLUE

Close the print compartment cover.

Reset the drum counter by pressing

LIFE

(flip up the Rapid Key

overlay), 3, and

START/ ENTER

• Note: The toner counter automatically resets each time you re-

place the toner cartridge. There is normally no need to reset the toner counter manually. Should you find it necessary to manually reset the

toner counter, press

LIFE

(flip up the Rapid Key overlay), 2 ,

and

START/ ENTER

Note: The print compartment cover may become noticeably warm if a large number of pages are successively printed. This is normal and does not indicate a problem in the machine.

When to replace the toner cartridge When the toner cartridge nears empty (about 100 pages can still be

printed), the toner cartridge indicator on the operation panel will blink. When the toner cartridge is empty, the toner cartridge indicator will light steadily and REPLACE TONER will appear in the display . Printing will no longer be possible. Use the following replacement toner cartridge.

Sharp FO-50ND toner cartridge Hint:

When the toner cartridge nears empty, try taking it out of the machine and shaking it. This may increase the number of pages that can be printed before the toner runs out.

When to replace the drum cartridge When the drum cartridge nears the end of its life, the ALARM indica-

tor on the operation panel will blink and DRUM LIFE REACHED will appear in the display. (this message appears when approximately 1000 pages can still be printed). Use the following replacement drum cartridge.

Sharp FO-47DR drum cartridge

4. Loading printing paper

You can load up to 250 sheets of letter or legal paper (max. 20 lbs.) in the paper tray.

• A paper cassette is available as an option. Up to 500 sheets of letter

or legal paper can be loaded in the paper cassette. To have the cassette installed, consult your dealer.

Important: Do not use the back side of paper that has already been printed on.

Note: If you need to add paper to the tray or cassette while paper still remains, remove the remaining paper and combine it into a single stack with the new paper.

Loading paper in the paper tray

Remove the received document tray.

Insert a stack of paper into the tray, print side up.

• Important! The stack of paper must not be higher than the red line

on the paper tray.

Red line

Squeeze the paper guide and move it to match the length of the paper you are loading.

Attach a letter or legal label here to indicate the paper size.

Replace the received document tray.

• The received document tray must be attached for the fax machine

to operate properly.

1 – 6

FO-4400U FO-CS1

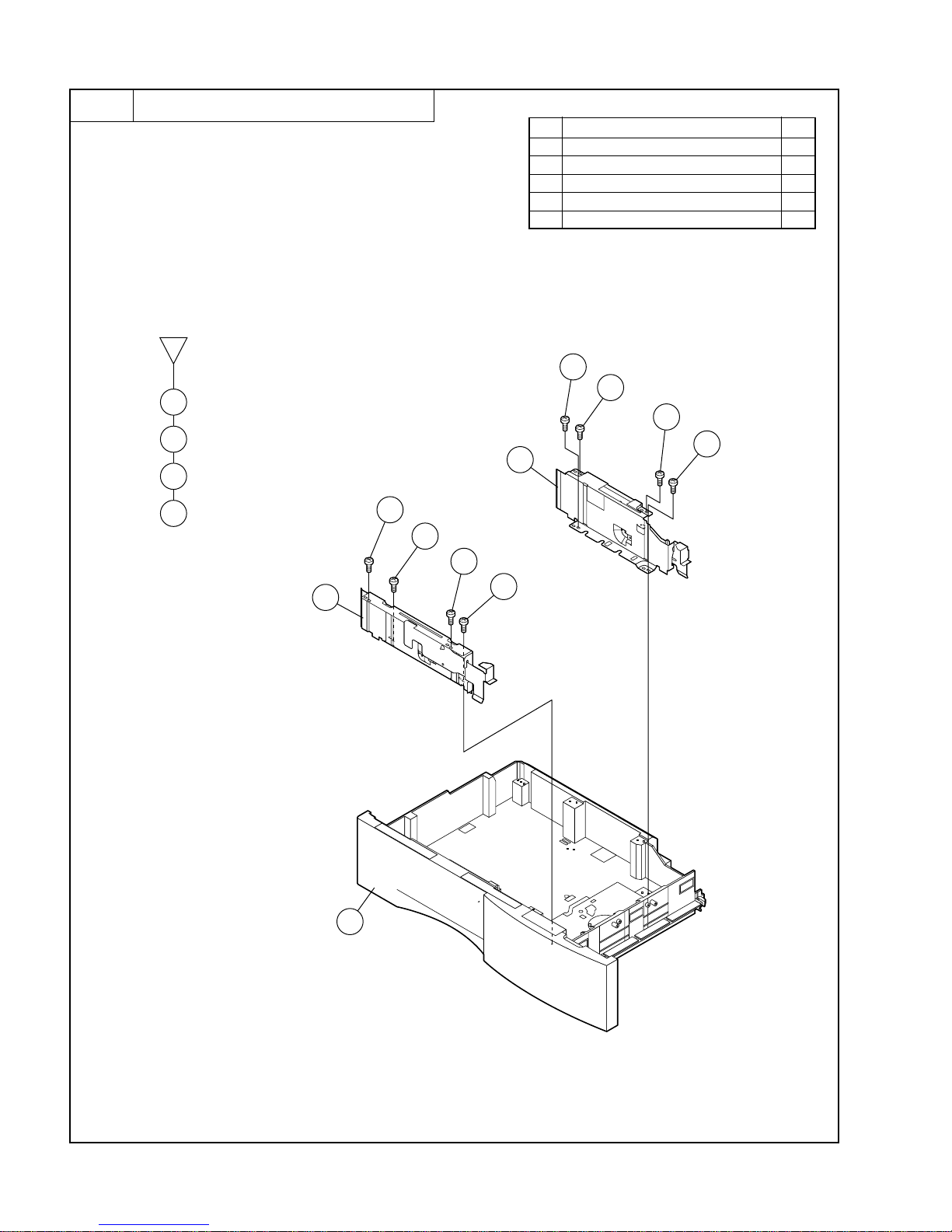

Loading paper in the paper cassette (if installed FO-CS1)

Note: To use A4 paper in the paper cassette, you must have a service

technician adjust the cassette.

Grasp the hand-hold on the cassette and pull the cassette out until it stops.

Push the pressure plate down until it locks into position.

Squeeze the paper guide and pull up to move it to the appropriate holes for the length of the paper. Push the guide down into the holes.

Place a stack of paper in the cassette, print side up.

• Make sure the stack of paper is not higher than the two tabs on the

paper guide and the two metal tabs. If it is, remove some of the paper.

• If you find it difficult to load the paper, remove the cassette from the

machine. (Pull the cassette out as far as it will go, grasp the left side of the cassette with your left hand, and then lift it up and out with both hands.)

Push the cassette back into the machine, making sure it clicks into place.

5. Clearing paper jams

Clearing a jammed document

If the original document doesn’t feed properly during transmission or copying, or REMOVE ORIGINAL(S) appears in the display , fist try press-

ing

START/ ENTER

. If the document doesn’t feed out, open the operation panel and remove it. Important: Do not try to remove a document without opening the opera-

tion panel. This may damage the feeder mechanism.

Open the operation panel.

• Squeeze the release marked PANEL RELEASE and pull up.

Remove the document.

Close the operation panel, making sure it clicks into place.

1 – 7

FO-4400U FO-CS1

Remove the toner cartridge and place it on a sheet of paper.

Remove the drum cartridge.

Remove the jammed paper.

• Make sure no torn pieces of paper remain in the print compartment

and rollers.

Replace the drum cartridge.

• Make sure the drum cartridge is inserted in as far as it will go.

GREEN

BLUE

Clearing a jammed printing paper

If the printing paper jams, PAPER JAM will appear in the display . Follow the steps below to clear the jam.

Press the green release and open the print compartment cover.

• Caution! The fusing unit inside the print compartment becomes

very hot during operation. Be careful not to touch the inside of the compartment.

Replace the toner cartridge and then close the print compartment cover.

GREEN

BLUE

If you have a paper cassette and the display still indicates that paper is jammed, pull out the cassette and remove the jammed paper.

Replace the paper cassette.

1 – 8

FO-4400U FO-CS1

6. Installing the paper cassette (FO-CS1)

Installing the second paper cassette

Important: Be sure to turn off the power and unplug the power cord

before proceeding.

Press the cover release to open the print compartment cover.

Remove 6 screws from the rear cover. Remove the small cover on the left side of the rear cover, and then remove the screw underneath. Remove the rear cover.

Remove 2 screws from the right cover of the machine. From inside the print compartment, push the 3 tabs indicated in the blowup out. (Note: The blowup shows the inside of the print compartment.) Insert your left index finger in between the cover and the machine as shown, and then close the print compartment cover. With your index finger still inserted, grasp both sides of the cover and pull it off.

Remove the packing material and tape from the paper cassette.

Place the machine on top of the cassette.

1. Insert the cable guide into the cut-out in the edge of the metal plate, and then fold it in half and hook the top and bottom edges together.

2. Insert the 15pin cable through the ferrite core, and then connect the cable to the connectors on the machine and the cassette as shown. Position the ferrite core in the gap between the bottom left-hand corner of the circuit board and the side of the compartment. Insert the cable into the cable guide, and then insert the remainder of the cable into the slot in the cassette below the cable guide. Tie the wires with the band.

Replace the small cover over the circuit board and secure it with a 10 mm screw.

Attach the support plates to the right side of the machine.

1. Remove the indicated screw.(In Step 8 below, replace it in the same hole.)

2. Mount the large plate, making sure that the guides fit into the holes

as shown.

3. Mount the small plate, making sure that the guides fit into the holes

as shown.

1 – 9

FO-4400U FO-CS1

Secure the plates with screws as shown. Use 6 mm screws for the holes marked with “A”, and 10 mm screws for the holds marked with “”P”. Secure the screws in the order indicated by the numbers.

Replace the right side cover on the machine, inserting the tabs into the holes. Attach the longer cassette cover to the right side of the cassette, inserting the tabs into the holes (first top, then bottom).

Replace the screws in the side cover on the machine. Secure the cassette cover with two 10 mm screws.

Attach the support plate to the left side of the machine, inserting the top edges of the plate under the machine housing. Make sure that the guides fit into the holes as shown. Secure the plate with screws as shown. Use 6 mm screws for the holes marked with “A”, and 10 mm screws for the holes marked with “P”. Secure the screws in the order indicated by the numbers. (Note that the top hole on the right does not require a screw.)

Attach the shorter cassette cover to the left side of the cassette, inserting the tabs into the holes (first top, then bottom).

Secure the cassette cover with two 10 mm screws.

Replace the rear cover (replace the screw under the small cover on the left side of the rear cover first, and then replace the small cover).

1 – 10

FO-4400U FO-CS1

STORING AUTO DIAL NUMBERS

1. Press

, 3 , 0 , 1 .

2. Press 1 to store a number. (Press 2 to clear a number.)

3. To store a Rapid Key number, press the desired Rapid Key. To store a Speed Dial number, press

SPEED DIAL

and enter a number

from 1 to 75 (press

START/ ENTER

if you entered a 1-digit number).

(If clearing a number, select it as explained above and then perform

Step 7 and 9.)

4. Enter the full fax number.

5. Press

START/ ENTER

6. Enter a name by pressing the letter keys.

7. Press

START/ ENTER

8. Press 1 if this is a Chain Dial number. Press 2 if this is a regular number.

9. Press

STOP

repeatedly to exit.

[6] Quick reference guide

SENDING FAXES

Place your document (up to 50 letter-size pages) face down in the document feeder.

(Note: For Normal Dialing and Direct Keypad Dialing, you can also load the document after dialing the number.)

Press

RESOLUTION

CONTRAST

if needed.

BROADCASTING

1. Load the document and press

BROADCAST

2. Dial destination numbers: Press a Rapid Key. Press a Group Key.

Press

SPEED DIAL

and enter a Speed Dial number (press

START/ ENTER

to com-

plete entry if only one digit is entered).

Enter a full number and press

START/ ENTER

3. When finished, press

START/ ENTER

4. Press

RESOLUTION

CONTRAST

if needed.

5. Press

START/ ENTER

Rapid Key Dialing

1. Press the desired Rapid Key.

Speed Dialing

1. Press

SPEED DIAL

and enter the desired Speed Dial number (press

START/ ENTER

if you entered a 1-digit number).

2. Press

START/ ENTER

Direct Keypad Dialing

1. Dial the fax number.

2. Press

START/ ENTER

Normal Dialing

1. Lift extension phone or press

SPEAKER

2. Dial the fax number (if using an extension phone, dial on the exten-

sion phone keypad).

3. Wait for the reception tone (if a person answers, ask them to press

their Start key).

4. Press

START/ ENTER

7. Replacing the Verification Stamp (FO-45VS)

If you are using the Verification Stamp function, you will need to replace the ink cartridge in the stamp unit when it runs out of ink (when the stamped mark on original documents becomes faint). A new ink cartridge can be obtained from your dealer.

Remove the ADF exit tray.

Press down on the protruding tab of the green ink cartridge and pull the cartridge out with your fingers.

Insert the new ink cartridge into the machine (make sure that the tab is facing out).

Replace the ADF exit tray.

1 – 11

FO-4400U FO-CS1

Output Voltage limits Note +5V MAIN 4.947V~5.25V CN5 7pin ↔ 8pin +24V SUB 23.04V~24.96V CN5 1pin ↔ 2pin

CHAPTER 2. ADJUSTMENTS

[1] Adjustments

General

Since the following adjustments and settings are provided for this model, make adjustments and/or setup as necessary.

1. Adjustments

Adjustments of output voltage (FACTORY ONLY)

1. Install the power supply unit in the machine.

2. Set the recording paper and document.

3. When the document is loaded, power is supplied to the output lines. Confirm that outputs are within the limits below.

Output voltage settings

Fig. 1

POWER SUPPLY PWB

CONTROL PWB

PRINTER PWB

HIGH VOLTAGE PWB

CN5

CN1

CNPW1

CNPRT1

112

130

CN1

130

CN1

VR51

[DO NOT TOUCH!]

CN7

CN4

DISPLAY:

KEY:

22: DIAL MODE 1=TONE, 2=PULSE

(step 2) Select "DIAL MODE".

(step 1) Select "OPTIONAL SETTING".

DISPLAY:

DISPLAY: TONE SELECTED

KEY:

MENU 4

KEY:

4:OPTIONAL SETTING ENTER #(01-36, , )

KEY:

22: DIAL MODE

KEY:

KEY: DISPLAY:

(step 4) End, using the "STOP" key.

(step 3) Select, using "1" or "2".

(step 2) Select "DIAL MODE".

PULSE SELECTED

STOP

2. IC protectors replacement

ICPs (IC Protectors) are installed to protect the CIS unit, panel PWB unit, TX motor drive circuit and verification stamp drive circuit. ICPs protect various ICs and electronic circuits from an overcurrent condition. The location of ICPs are shown below:

(1) F1 (ICP-S0.5) F2 (ICP-S1.0) is installed in order to protect IC’s from

an overcurrent generated in the CIS unit. If F1 or F2 are open, replace it with a new one.

(2) F5 (ICP-S1.0) is installed in order to protect IC’s from an overcurrent

generated in the panel PWB unit. If F5 is open, replace it with a new one.

(3) F100 (ICP-S1.0) is installed in order to protect IC’s from an

overcurrent generated in the verification stamp drive circuit. If F100 is open, replace it with a new one.

(4) F101 (ICP-S1.8) is installed in order to protect IC’s from an

overcurrent generated in the TX motor drive circuit. If F101 is open, replace it with a new one. In addition to the replacement of F1, F2, F5, F100 and F101, the factor causing F1, F2, F5, F100 and F101 to open must also be repaired. If not, F1, F2, F5, F100 and F101 will open again. Replacement parts ICP-S0.5 (Sharp code: VHViCPS05//-1) ICP-S1.0 (Sharp code: VHViCPS10//-1) ICP-S1.8 (Sharp code: VHViCPS18//-1)

Fig. 2

CONTROL PWB

(TOP SIDE)

CNLIU1

CNSP1

CNSEN1

CNCIS1

CNPN1

CNSTP1

F1/F2/F5:Top side F100/F101:Bottom side

CNTXM1

IC3

1 8

10 1

1214

228

F5 F100

F101

CNPW1

12 1

2 – 1

Connector CN4 No. Pin No. CN1

1 11 +5V 2 10 CH LREM 39T VR 4 8 T MON V 5 7 T MON I 6 6 B VR 7 5 V REM 8 4 C MON 93MG

10 2 +24V

Connector CN1 No. Pin No. CN7

1 +24V MAIN 2MG 3DG 4DG 5 +5V MAIN 6 +5V MAIN 7 HEATER ON 8 H-RELAY OFF

Connector CN5 No. Pin No. CNPW1

1 +24V SUB 2MG 3MG 4MG 5 +24V MAIN 6 +24V MAIN 7 +5V MAIN 8DG 9DG

10 DG

11 +5V MAIN

12 +5V MAIN

3. Settings (1) Dial mode selector

OPTION SETTING: DIAL MODE (Soft Switch No. SW2 DATA No. 1) Use this to set the fax machine to the type of telephone line you are on.

• The factory setting is "TONE".

FO-4400U FO-CS1

[2] Diagnostics and service soft switches

1. Operating procedure

Two kinds of diagnoses are supported.

1-1. Fax diagnosis

This diagnosis is concerned with the main body of fax which is used for production and service support.

Entering the diagnostic mode

1-2. Print diagnosis

This diagnosis is concerned with the print which is used for production and service support.

Entering the diagnostic mode

Memory clear when power is turned on

Pressing the START and STOP keys, turn on the main power, and the following message will be displayed.

1 = All the data will be deleted including initially registered data. 2 = Delete the image file to be used in transmission. This will delete all

the data related to communication such as reserved transmission or intercepting. However, the data initially registered will not be deleted.

3 = Memory will not be cleared and the machine enters stand-by mode.

Press

, and

the

following

display will appear.

9 8

PCU ROM VER.:

(Diag•specifications)

9 8 6

START

AREA PRINT MODE 1

START

CHECK PATTERN 1

START

CHECK PATTERN 2

START04

CHECK PATTERN 3

START05

CHECK PATTERN 4

START06

PAPER FEED AGING 1

START07

PAPER FEED AGING 2

START

BIAS ADJUST MODE2

START

LIFE SET MODE

START

Then press the

key. Select the desired item with the

key and the keyor select with the rapid key. Enterthe mode with the key.

START10

LIFE ALL CLEAR

START11

LIFE ENTRY MODE

PCU ROM Ver.:

START12

LIFE CLEAR MODE

MEMORY CLEAR ? 1 = ALL , 2 = IMAGE , 3 = NO

9 8 7

STARTA SOFT SWITCH MODE START

B PRINT AREA

START

C ROM & RAM CHECK

START

D AUTO FEEDER MODE

START

E AGING MODE

START

F PANEL CHECK MODE

START

G OPTICAL ADJUST MODE

START

H PRODUCT CHECK

START

SIGNAL SEND MODE

START

COMM. CHECK MODE

START

MEMORY CLEAR MODE

START

FLASH MEMORY CHECK

START

ALL FAX/TEL. ENTRY MODE

START

O CONF. PASSCODE

START

SIGNAL SEND MODE 2

START

TA68

START

DEPT. PASSCODE

9 8

Press

, and

the

following

display will appear.

MAIN:TA68

START

Then press the

key. Select the desired item with the

key

and the key or select with the rapid key. Enter the mode with the

START

key.

(Diag

•

specifications)

MEMORY SET MODE

START

STAMP AGING MODE

START

DIAL TEST MODE

START

T U

COPY DIAG MODE LCD CHECK MODE

PERSONAL BOOK LIST

START

NO FUNCTION

START START

NO FUNCTION

START

2 – 2

FO-4400U FO-CS1

2. Diagnostic items description

2-1. Fax diagnosis

A) Soft switch mode

In this mode, the soft switch are set and the soft switch list is printed.

• OFF to ON of department control function during use of image

memory. (Note: In the existing set, the department control function is set from OFF to ON when the timer communication (including the batch sending) or the memory hold is set.)

• ON to OFF of continuous serial polling function when the con-

tinuous serial polling is started. (Note: In the existing set, "ON to OFF of the continuous serial polling function when the continuous serial polling is registered" has been applied, but the conditions are now moderated. However, registration is impossible to the program of the new continuous serial polling when the continuous serial polling function is OFF.)

• In addition, change of all soft switches during communication

Switch number selection

• Press START key for setting of the next soft switch. If the soft

switch number is the final, pressing START key will exit the soft switch mode.

• Enter two digits of a soft switch number to set the switch number.

If a switch number of nonexistent soft switch is entered, key error buzzer sounds to reject the input.

Data number selection

The cursor position shows the data to be set. Pressing # key or → key moves the cursor to the right. If, however, the cursor is on data number 8, pressing # key or → key shifts the cursor to data number 1 of the next switch number. If the switch number is the final, pressing # key or → key will exit the soft switch mode. Pressing key or ← key moves the cursor to the left. If, however, the cursor is on data number 1, pressing key or ← key shifts the cursor to data number 1 of the former switch number. If the switch number is 1, pressing key or ← key will not move the cursor and the error buzzer will sound.

Data setting method

Press the MENU key, and the data at the position of the cursor will be reversed to 0 when it is 1, or to 1 when it is 0. (If the soft switch can be changed at the bit (Refer to 6.), the error buzzer will sound with the process not received.)

Outputting method of soft switch list

In the soft switch mode, press the REPORT key, and the soft switch list will be output. If the recording paper runs out or is clogged, the key error buzzer will sound with the process not received.

Storage of data

In the following case, the data of the soft switches set will be stored.

• It is shifted to set the next soft switch by pressing the START

switch.

• It is shifted to set the next soft switch with the [#] key.

• It is shifted to set the last soft switch with the [ ] key.

• It is shifted to set another soft switch by inputting two digits as the

switch number. (When 2 digits are completely input.)

• Output of the soft switch list is started.

Inhibition of data change

(This is also applicable for the optional setting.) In the following case, it is inhibited to change the data with the key error buzzer.

• Switching ON/OFF of ECM during the use of image memory.

• OFF to ON of telephone billing function which is using the image

memory is used (Note: In the existing set, the telephone billing code function is specified from OFF to ON when the timer system communication (including the batch communication) is set.)

Here, the memory is usable when the telephone billing code function is on. It can be set from ON to OFF while the memory is used. However, if setting is practically changed even once, it can not be returned from OFF to ON.

S O F T S W I T C H M O D E S W 0 1 = 0 0 0 0 0 0 0 0

Soft switch mode screen

Switch

No.

1 2 3 4 5 6 7 :DATA No.

Data

S O F T S W I T C H M O D E S W 0 1 = 0 0 0 0 0 0 0 0

E N T E R L A S T D I G I T S W 1

S O F T S W I T C H M O D E S W 1 6 = 0 0 0 1 0 1 1 0

1 6

Cursor

ROM SRM DRM1 DRM2

• • • •

ROM SRM DRM1 DRM2 P P P E

Display during check Display after check

P=PASS E=ERROR

2 – 3

No. Device checked

Number of buzzer sound

Remarks

ROM (PROGRAM FLASH)

<Short sound> 1 time <Short sound>:

2 SRAM <Short sounds> 2 times

0.5 sec.ON / 0.5 sec.OFF 3 Main D-RAM1 (*1) <Short sounds> 3 times <Long sounds>: 4 D-RAM2 (*2) <Short sounds> 4 times 1.0 sec.ON / 0.5 sec.OFF 5 ——

*1: Work memory (SDRAM 8MB) *2: Page memory (SDRAM 8MB)

(Example of display) In case that DRAM2 is erroneous.

B) Print area

According to the size of the specified sheet, the effective printing area is printed.

C) ROM & RAM check

This is an item to check if the loaded memory device acts normally.

• The memory devices shown in the following table are checked.

• In case that an error occurs in the device check, the alarm buzzer

shown in the table sounds.

Check device and alarm buzzer

After the check is complete, the result is outputted.

D) Auto feeder mode

By executing the document insertion and discharge, the automatic feeding function can be checked. And the document sensor can be checked as well.

Set the document Before pressing the “START” key , only the document sensor check is carried out. And as the document sensor is ON, the document size (A4/B4) and the sensor information (A4/B4/ORG) are displayed.

The automatic feeding starts by pressing the “START” key. This mode ends when the document ends, and the result is printed.

AUTO FEEDER MODE ( )

AUTO FEEDER MODE B4 (A4 B4 ORG)

After setup of the document

Only the sensor which is activated (fallen down) is displayed.) The paper sheet size (A4/B4) is displayed.

FO-4400U FO-CS1

E) Aging mode

This is a mode to execute the copying action and the check pattern printing action once every 60 minutes and continue the action until 10 sheets are outputted in total.

The printing action on the 1st sheet starts by pressing down the “START” key and entering the mode. When document is set at the time of the mode start-up the copy action is carried out, and when the document is not set the “check pattern 1” of the print dialog is printed.

The number of printouts is displayed after printing.

F) Panel check mode

This is to check that each key acts normally and this is displayed on the LCD according to the key input. And during execution, the document reading lamp is ON. After inspection start, the LEDs light on sequentially. At the mode end with the “STOP” key, all of them go OFF. As to the test result, it is printed out after the mode end.

When the “NUMERIC” key is pressed during the panel check execution, sending of the DTMF signal corresponding to the key starts, and when another key is pressed sending of the DTMF signal stops.

• After inputting all the keys, input the “STOP” key at last, and then the

result is displayed.

a) In case that all the keys are pressed.

• After the mode end, the test result is printed.

b) In case that there is a key that is not pressed.

• At the time of NG, the keys that are not pressed are displayed

sequentially, and it becomes the mode to input the key again.

• With the “STOP” key, the re-check is complete.

• After the mode end, the test result is printed.

G) Optical adjust mode

The optical system is adjusted.

• By pressing down the “START” key, the document reading lamp “100%:

ON” is turned ON.

H) Product check

This is a dialog used in the production process and a mode to execute a specific mode in the series of the flow. After the mode end, the rest result as to the checked items is printed.

• After moving to the mode, the following actions are sequentially ex-

ecuted.

Memory clear (Same as Diagnosis K)

Panel check (Same as Diagnosis F)

ROM & RAM test check (Same as the Diagnosis C)

Test result print

Memory clear printing Panel check result printing ROM & RAM test result printing

Print area (The specification of each item is the same as the specifi

cation of the simple mode.)

I) Signal send mode

After shift to the mode, press the START key, and the signals will be transmitted in the following sequence. It can be used to check the modem and so on.

[ 1] No signals [ 2] 4800BPS (V. 27ter) [ 3] 14400BPS (V. 33) [ 4] 12000BPS (V. 33) [ 5] 14400BPS (V. 17) [ 6] 12000BPS (V. 17) [ 7] 9600BPS (V. 17) [ 8] 7200BPS (V. 17) [ 9] 9600BPS (V. 29) [10] 7200BPS (V. 29) [11] 4800BPS (V. 29ter) [12] 2400BPS (V. 29ter) [13] 300BPS (FLAG) [14] 2100Hz (CED) [15] 1100Hz (CNG)

J) Comm. check mode

Turn on the Line Monitor. (SW7 No.7, SW37 No.7)

Turn off the Cover Sheet Function. (SW2 No.6, SW32 No.6)

Set Line Equivalence at 0 km. (SW8 No.1/No.2, SW38 No.1/No.2)

After the check, it is necessary to be sure to return the aforementioned soft switches into the initial state. (Clear the memory with the diagnosis.)

K) Memory clear mode

Clear the back-up memory to initialize the soft switches. The Flash Memory will be initialized. Then, the initialized list be output.

Memory clear is executed.

The result that says initialized is printed.

NOTE: The life system counter is not cleared.

2 – 4

PANEL CHECK MODE ALL KEY OK !!

PANEL CHECK MODE KEY ERROR !!

FO-4400U FO-CS1

L) Flash Memory check

This is a mode to check that the flash memory acts normally. The flash memories shown in the following table are checked.

• NAND-Flash (optional) is valid only when the optional memory is

mounted.

The NOR flash memory test is executed.

The concerned alarm buzzer sounds only when the error occurs.

The NAND flash memory test is executed.

The concerned alarm buzzer sounds only when the error occurs.

The result is printed.

NOTE:

• During operation of this diagnosis, dual operation is not possible at all.

• If this is excessively repeated, it will shorten the life of the flash memory.

M) All FAX/TEL. entry mode

This is a function to copy the FAX and TEL numbers registered in the one-touch dialing (RAPID) key [01] to the all one-touch dialing (RAPID) key and the all abbreviated number (SPEED DIAL) to simplify the FAX and TEL number registration at the time of aging.

Copy the Fax and Tel numbers (including agency) registered in the one-touch dialing (RAPID) key [01] to all one-touch dialing (RAPID) key.

Copy the FAX and TEL numbers registered in the one-touch dialing (RAPID) key [01] to the all abbreviated number (SPEED DIAL).

In case the chain dial is not set in the one-touch dialing (RAPID) key [01], register the one-touch dialing (dialing) keys [02] – [59] and all abbreviated number (SPEED DIAL) to the group number [01]. In case that the chain dial is set, do not create a group, but cancel only the chain dial setting of the one-touch dialing (RAPID) key [01]. (All except for the one-touch dialing (RAPID) key [01], chain dial is kept set.)

Enter all registered one-touch send (RAPID) keys and speed dial

numbers (SPEED DIAL) on the personal books [01] - [10]. Following this, set the password registration and the password setting to ON, and set the TTI setting to OFF.

The call-receiver names and book names are specified as follows:

(The letters after 16th letter of the call-receiver’s name registered in the one-touch dialing [01] are cut off.) NOTE: Before entering this mode, FAX and TEL numbers must be reg-

istered in the one-touch dialing (RAPID) key [01]. (In case that they are not registered, or a program or a group is registered, it is not executed.)

N) Dept. passcode

The department passcode list is printed.

O) Conf. passcode

The confidential passcode list is printed. Differing from printing of one box alone soon after registration, the confidential passcodes of all boxes are printed.

P) Signal send mode 2

The signals concerned with V.34 & V.8 are checked. After this mode is activated, press the START key, and the signals will be sent in the following sequence. It can be used to check the modem.

[ 1] No signal [ 2] 33600BPS (V. 34) [ 3] 31200BPS (V. 34) [ 4] 28800BPS (V. 34) [ 5] 26400BPS (V. 34) [ 6] 24000BPS (V. 34) [ 7] 21600BPS (V. 34) [ 8] 19200BPS (V. 34) [ 9] 16800BPS (V. 34) [10] 14400BPS (V. 34) [11] 12000BPS (V. 34) [12] 9600BPS (V. 34) [13] 7200BPS (V. 34) [14] 4800BPS (V. 34) [15] 2400BPS (V. 34)

[16] 0 - 300BPS (V. 34) [17] ANSam

Q) Memory set mode

The set and dump list of the memory content is output.

• The address (8 digits (P) generally including the bank information is

input, and the data of 2 digits is continuously input. Inputting is done in the hexadecimal mode. The ten-key is used for 0 through 9, and the alphabetic keys A (RAPID 01 through 06) are used for A through F.

• During data inputting, the address can be moved forward and back-

ward one byte by one byte with " " and "#". (The address prior to the address 0 is looped as the maximum address.)

• The Validity of the address is not checked. Accordingly , writing/ read-

ing operations are possible in the address of the memory not assigned, the address of ROM and so on. (However, as practical, writing is not done, and the data content runs short each reading.) Though writing is possible in the flash memory, a little time is required. It is also necessary to take care that the life of the flash memory is excessively shortened if much data is written in the flash memory. Since it may run away depending the written content, take minute care for the writing address.

• When the REPORT key is input, the memory dump list is produced

from the displayed address (here, it is limited at the 16-byte boundary address (address with end 0) which does not exceed the specified address and is just in front.). The dump list is output to a maximum of 99 pages. If any data of one page can be repeatedly developed and printed, the list is sufficient. But it is not desired that the content of plural pages are developed in the memory once and are then printed. If the STOP key is pressed, it will pass to the diagnosis after the page which is now being printed is completed printed. If the address exceeds the maximum address, it will return to the address 0 and printing will be continued.

Rapid R XX XX : Rapid key send SPEED DIAL S XXX XXX

: Speed dial number

Personal book BOOK XX XX : Book number

2 – 5

NOR FLASH CHECK S — — — — — — — E

MEMORY SET MODE AD = 00000000

Cursor

MEMORY SET MODE AD = A02800F6 DATA = 0B

No. Flash memory

Number of buzzer sound

Remarks

NOR-Flash (Standard)

<Long sound> 1 time <Short sound>:

NAND-Flash (Standard)

<Long sounds> 2 times

0.5 sec.ON / 0.5 sec.OFF

NAND-Flash (Option)

<Long sounds> 3 times <Long sounds>: 4 ——1.0 sec.ON / 0.5 sec.OFF 5 ——

NAND FLASH CHECK S — — — — — — — E

FO-4400U FO-CS1

R) Stamp aging mode

This is a mode to execute the continuous drive aging of the Verification stamp.

Set the document and press down the “START” key and the continuous drive of the Verification stamp starts.

Send the document at the interval of 10 mm and stamp the Verification stamp continuously. The total number of times of Verification stamp printing after entering this mode is displayed on the display.

• Displayed screen during execution

By pressing down the “STOP” key during the action, or when no more document is left, the continuous drive of the Verification stamp stops.

NOTE:

• In case that the document is not set, this cannot be executed.

• The normal action aging that one Verification stamp is pressed on one

sheet of document is executed in the normal copying.

S) Dial test mode

The mode is used to inspect whether dialing is accurate in two kinds of dial modes . All data which can be dialed in this mode are automatically called up in both PB mode and DP mode.

[In case that 2 line optional is not mounted.]

Turn on CML, and dial the following in the PB mode. 1, 2, 3, 4, 5, 6, 7, 8, 9, , 0, #

Dial the following in the DP mode. 1, 5, 9, 0

After dialing, turn off CML. NOTE: This mode uses the ordinary auto dial. (Accordingly, the signal sending time and minimum pause are all the same as ordinary. The measurement result in this mode is completely all the same as in the ordinary dial mode.)

T) Copy diag mode

This mode is for automatic mode selection of copy to reduce the time for treatment at the time of production.

Set 2 sheets of document. (No problem if there are 2 sheets or

more.)

3 sheet continuous copy: 1st sheet in the FINE AUTO

2nd sheet and after that are copied in the H-TONE DARK.

NOTE: Input of the image quality and the darkness keys is invalid in this mode.

U) LCD check mode

This is an item to check that the LCD acts normally.

[In case of a 2 lines LCD]

Display “H” to all the digits. (20 letters x 2 lines)

V) Personal book list

The PASSCODE of the personal book 00 to 10 are output.

W) No function X) No function

2 – 6

STAMP AGING

TIMES = 13 PAGES = 1

Print total number of times

Page number

HHHHHHHHHHHHHHHHHHHH HHHHHHHHHHHHHHHHHHHH

2-2. Print diagnosis

Rapid key 01: Area print mode 1

The effective printing area frame is printed in the specified sheet size.

The data pattern used here are as follows and 1 data 30 mm is printed.

1 2 3 4 5 6 7 8 9

The left pattern is repeated.

5. [Longitudinal strip 2 pattern] Black 2 dot and white 2 dot are repeated in line.

6. [Lateral strip 2 pattern] Black 2 line and white 2 line are repeated.

7. [Longitudinal strip 1 pattern] Black 1 dot and white 1 dot are repeated in line.

8. [Lateral strip 1 pattern] Black 1 line and white 1 line are repeated.

9. [Full White pattern]

1. [Full black pattern]

2. [Intermediate tone 2 pattern]

3. [Intermediate tone 1 pattern]

4. [Mesh point pattern]

FO-4400U FO-CS1

2 – 7

Rapid key 02: Check pattern 1

The lateral stripe 2 pattern is printed on one sheet. (Black 2 line and white 2 line are repeated.)

Rapid key 03: Check pattern 2

The lateral stripe 2 pattern is printed on multiple pages. Press the STOP key to end the printing.

Rapid key 04: Check pattern 3

The intermediate tone 1 is printed on one sheet.

Rapid key 05: Check pattern 4

In this mode, 1 sheet is printed as to the square frame pattern for the skew measurement.

Rapid key 06: Paper feed aging 1

The mode is used for aging related to the printing. In this mode, the following modes are provided.

Blank paper aging mode (ALL WHITE AGING)

Whole black print aging mode (ALL BLACK AGING)

5% printing aging mode (5% AGING)

4% printing aging mode (4% AGING)

Outer frame check pattern

4% check pattern After selecting the paper-pass aging mode in the print diagnosis mode, input the number of each mode above with the ten-key, and the mode will be executed. The detailed specifications of each mode are described as follows. Here, the operation in each mode is stopped only when the STOP key is pressed by the operator or a printing-impossible error occurs.

• Blank paper aging mode

In the mode, printing is continued in the whole white (white paper) printing pattern until the STOP key is pressed by the operator . (In the printing area)

• Whole black printing aging mode

In the mode, printing is continued in the whole black (whole black) printing pattern until the STOP key is pressed by the operator. (In the printing area)

• 5% aging mode

In this mode, the 5% print pattern is repeatedly printed until the [STOP] key is pressed by the operator.

• Outer frame pattern aging mode

In this mode, the outer frame check pattern is repeatedly printed until the [STOP] key is pressed by the operator. For the outer frame, only the frame showing the printing area is printed.

• 4% chart aging mode

In this mode, the 4% chart is repeatedly printed until the [STOP] key is pressed by the operator.

Rapid key 07: Paper feed aging 2

This is a mode that is used for aging related to printing, and there are following modes. And also as to the print interval 5 sec. – 12 hour can be set.

Blank paper aging mode (ALL WHITE AGING)

Whole black print aging mode (ALL BLACK AGING)

5% printing aging mode (5% AGING)

4% printing aging mode (4% AGING)

Outer frame check pattern aging mode

4% check pattern aging mode After entering this mode and selecting the paper feeding aging mode, each mode is executed by inputting the number of the above each mode with the numeric number keys and then inputting the print interval with the numeric number keys. Refer to the paper feeding aging mode 1 for each mode. Each mode stops the action only when the STOP key is pressed by an operator or when an error for print impossible occurs.

Image printing density Thin ←→Thick

12345 67

Default value

Rapid key 08: Bias adjust mode

The mode is used to adjust the printing density of the printed image. The image printing density is adjustable in seven steps of 1 to 7. For details, refer to the following table. (For selection, use the keys 1 through 7.)

Rapid key 09: Life set mode

The mode is used to set the life counter of the printer and the counter of the auto feeder at desired values. For setting, proceed with the following procedure.

When the life counter setting mode is selected, the following will be

is displayed.

The cursor blinks at the top data. Five counters can be selected with the "#" and " " keys.

In the state 1, input a desired setting number of 6 digits with the ten-

key.

After input of 6 digits, shift to another counter with the "#" and " "

keys as necessary. When all necessary counters are completely input, press the START key.

"STORED" will be displayed with the set values stored into the

memory. For checking, retry this mode.

NOTE: The counter shows the operational state of the printer (how many

sheets have been printed since start of use?). The ordinary memory does not reset the counter. Accordingly , it is necessary to reset this counter in addition to the ordinary memory clear if the content in the memory on the control PWB is broken because of PWB repair, etc. (In the production stage, it is necessary to execute this in the last process.)

Rapid key 10: Life all clear

The mode is used to clear the life counter of the printer of the counter of the auto feeder.

NOTE: The counter shows the operational state of the printer (how many

MACH I NE

DRUM

LIFE

IFE1

= 0123

FEEDER L I FE=

LIFE2

LIFE3

key

# key

001230

FEEDER L I FE= 001230

FO-4400U FO-CS1

2 – 8

Rapid key 11: Life entry mode (For Serviceman temporary counter)

The mode is used to set a desired value for the judgment value (alarm judgment counter value) of the general purpose life counters 1 through 3 of the printer. If the life of a consumable part (developer , imprinter , etc) is set, the model which has the error display and RMS function will inform RMS when the counter reaches the set value. For setting, proceed with the following procedure.

When the life counter setting mode is selected, the following will be displayed.

The cursor blinks at the top data. Three counters can be selected with the "#" and " " keys.

In the state 1 , input a desired setting number of 6 digits with the ten-key.

After input of 6 digits, shift to another counter with the "#" and " " keys as necessary. When all necessary counters are completely input, press the START key.

"STORED" will be displayed with the set values stored into the memory. For checking, retry this mode.

NOTE: The counter shows the operational state of the printer (how many

sheets have been printed since start of use?). The ordinary memory does not reset the counter. Accordingly, it is necessary to reset this counter in addition to the ordinary memory clear if the content in the memory on the control PWB is broken because of PWB repair, etc. (In the production stage, it is necessary to execute this in the last process.)

LI FE1= 0000

LI FE2= 0000

LI FE3= 0000

# key

key

Rapid key 12: Life clear mode

The mode is used to respectively clear the life counter of the printer and the counter of the auto feeder. For setting, proceed with the following procedure.

When the life counter clearing mode is selected, the following will be is displayed.

MACH I NE

DRUM

LIFE

IFE1

LEAR

FEEDER L I FE LEAR

TONER L I FE LEAR

LEAR

LIFE2

LEAR

LIFE3

LEAR

key

# key

Seven counters can be selected with the "#" and " " keys.

In the state 1, input the DEL key , and the counter will be respectively

cleared.

“CLEARED” is displayed and clearing is complete. After ending one

clear, move to another counter to clear with the “#” key, “ ” key, if necessary. After clearing the necessary counter press down the “STOP” key.

NOTE: The counter shows the operational state of the printer (how many

sheets have been printed since start of use?). The ordinary memory does not reset the counter. Accordingly, it is necessary to reset this counter in addition to the ordinary memory clear if the content in the memory on the control PWB is broken because of PWB repair, etc. (In the production stage, it is necessary to execute this in the last process.)

FO-4400U FO-CS1

2 – 9

3. How to make soft switch setting

To enter the soft switch mode, make the following key entries in sequence.

Press

9 8 7 START ASTART

Press MENU key.

Press key.

Bit1 - 8 are set.

Soft SW2 - 99 are set.

S F T S W 1 = 1 0 0 0 0 0 0 0 S F T S W 1 = 1 0 0 0 0 0 0 0 S F T S W 1 = 1 0 0 0 0 0 0 0 S F T S W 1 = 1 0 0 0 0 0 0 0

S F T S W 2 = 0 0 0 0 0 0 0 0 S F T S W 99 = 0 0 0 0 0 0 0 0

Press key during setting.

To finish the settings halfway between SW1 and SW99, press the STOP key. In this case, the setting being done to the SW No. on display will be nullified while settings done to the preceding SW No. remain in effect.

The soft switch mode is terminated.

S F T S W 1 = 0 0 0 0 0 0 0 0

START

FO-4400U FO-CS1

4. Soft switch description

• Soft switch

NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

10 1 Recall interval Binary input 8 4 2 1 0 OPTION 2 No. = 1 2 3 4 (Data No.) 1 Set to 1~15 3 EX 0101 0

SW1

4 eg. Recall interval is set to 5 min. 1 5 Recall times Binary input 8 4 2 1 0 OPTION 6 No. = 5 6 7 8 (Data No.) 0 Set to 0~14 7 EX 0010 1 8 eg. Recall times is set to 2 times. 0 1 Dial mode PULSE TONE 0 2 Receive mode AUTO MANUAL 1 3 ECM mode Off On 0 OPTION

SW2

4 Reserved 0 5 Polling security On Off 1 OPTION 6 Auto cover sheet No Yes 1 OPTION 7 JUNK-FAX function in manual reception Yes No 0 8 JUNK-FAX function Yes No 0 OPTION 1 Number of rings for auto-receive Binary input 8 4 2 1 0 OPTION 2 (0: No ring receive) No. = 1 2 3 4 (Data No.) 0 Set to 0~9 3 EX 0001 0

SW3

4 eg. Number of rings for auto receive is set to 1 time. 1 5 Switch to auto-receive from manual receive Binary input 8 4 2 1 0 OPTION 6 (0: No switch) No. = 5 6 7 8 (Data No.) 0 Set to 0~9 7 EX 0000 0 8 eg. Switch to auto receive is set to disable. 0

Communication results printout Printed at Printed at Printed at

Not printed

Printed OPTION

error only

error/timer/

transmis- every time memory sion mode only only

1 No. 1 0 0 0 1 1 0 2 No. 2 0 0 1 0 1 0

SW4 3 No. 3 1 0 0 0 0 1

4 Image addition function to the communication On Off 1 OPTION

result table (for memory transmission only) 5 Reserved 0 6 TEL billing code function On Off 0 OPTION 7 Billing code position Before After 1 OPTION 8 Multi-TTI feature On Off 0 OPTION 1 Time display format 24 hours 12 hours-AM/PM 0 2 Date display format Month-Day-Year Day-Month-Year 1 3 Header print Off On 0

SW5

4 Footer print On Off 0 5 Reserved 0 6 Substitute reception Off On 0 7 Substitute reception conditions Reception disable without TSI Reception enable without TSI 0 8 CSI transmission Off On 0

2 – 10

FO-4400U FO-CS1

1 JBIG (Joint Bi-level Image Group) On Off 0 2 JBIG (Joint Bi-level Image Group) option On Off 0 3 MMR On Off 1 4MR On Off 1

SW6

Modem speed V.33 V.17 V. 29 V. 27ter

14400 12000 14400 12000

9600 7200 9600 7200 4800 2400 5 No. 5 0011110000 1 6 No. 6 1100000000 0 7 No. 7 0101010110 0 8 No. 8 0000111100 0

Reception speed fixed NO V. 17- V. 29- V. 27ter-

14400bps 9600bps 4800bps 1 No. 1 0 1 0 1 0 2 No. 2 0 1 1 0 0 3 DIS receive acknowledge during Twice Once in NSF reception, twice 0 Effective to

G3 transmission in DIS reception international

SW7 comm.

4 Non-modulated carrier in V.29 On Off 0

transmission mode 5 CNG send when manual TX On Off 1 6 Protocol monitor On Off 0 7 Line monitor On Off 0 8 Reserved 0

Compromised equalizer 0Km 1.8Km 3.6Km 7.2Km Valid when 1 No. 1 0 0 1 1 0 transmitting 2 No. 2 0 1 0 1 0 3 H2 mode No Yes 0

Signal transmission level Binary input 16 8 4 2 1

For For

No. = 4 5 6 7 8 (Data No.)

U.S.A Canada

SW8

4 EX 0 1 1 0 1 (For U.S.A.) 0 0 5 EX 0 1 0 0 0 (For Canada) 1 1 6 eg. Signal transmission level is set to -10dBm 1 0 7 00 8 10

CED tone signal interval 75ms 500ms 750ms 1000ms 1 No. 1 0 0 1 1 0 2 No. 2 0 1 0 1 0 3 Equalizer freeze On Off 0

SW9

4 Equalizer freeze conditions All 7200bps 0 5 CED detection time 500ms 1000ms 0

Alarm buzzer 3sec 1sec No BEEP No BEEP 6 No. 5 0 0 1 1 0 7 No. 6 0 1 0 1 0 8 Action when RTN received Handle to error Handle to no error 0

NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 11

When 14400

bps MODEM used, setting to 14400

bps

ignored.

FO-4400U FO-CS1

1 Memory retransmission times Binary input 8 4 2 1 1 OPTION 2 No. = 1 2 3 4 (Data No.) 0 3 EX 1010 1

SW10

4 eg. Retransmission time set to 10 times. 0 5 Memory retransmission interval Binary input 8 4 2 1 0 OPTION 6 No. = 5 6 7 8 (Data No.) 0 7 EX 0010 1 8 0 1 V.34 mode transmission speed Sending speed = 2400 (bps) x (N+1) 1 2 Example : 1 3 2400 (bps) x 12 = 28800 (bps) 1 4 2400 (bps) is set for N=0. 33600 (bps) is set for N=14. 0

SW11

5 V.34 mode receiving speed Receiving speed = 2400 (bps) x (N+1) 1 6 Example : 1 7 2400 (bps) x 12 = 28800 (bps) 1 8 2400 (bps) is set for N=0. 33600 (bps) is set for N=14. 0 1

V.34 mode function in case of manual communication

On Off 1 2 V.34 mode function On Off 1 3 V.34 control channel communication speed 2400bps 1200bps 0

EOL detection timer 13sec 25sec 5sec 5sec

4 No. 4 0 0 1 1 0

SW12

5 No. 5 0 1 0 1 0

Processing of DIS reception after DIS

Command

A line is Apply to T .30+ α

transmission

retransmitting

cut T.30 6 No. 6 0 0 1 1 0 7 No. 7 0 1 0 1 0 8 The change to DB from DP by Yes No 0

DTMF output level (High) Binary input 16 8 4 2 1

For For

No. = 1 2 3 4 5 (Data No.) n x 0.5dBm

U.S.A Canada 1 EX 0 1 1 0 0 (For U.S.A.) 0 0 2 EX 0 1 0 0 0 (For Canada) 1 1 3 eg. Signal transmission level is set to -10dBm 1 0

SW13

4 00 5 00 6 Reserved 0 7 Reserved 0 8 Reserved 0

DTMF output level (Low) Binary input 16 8 4 2 1

For For

No. = 1 2 3 4 5 (Data No.) n x 0.5dBm

U.S.A Canada 1 EX 1 0 0 0 0 (For U.S.A.) 1 0 2 EX 0 1 1 0 0 (For Canada) 0 1 3 eg. Signal transmission level is set to -10dBm 0 1 4 00

SW14

5 00 6 Reserved 0 7 Reserved 0 8 Reserved 0

SW NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 12

FO-4400U FO-CS1

1 Reserved 0 2 Reserved 0 3 Reserved 0

SW15

4 Reserved 0

Cl Signal OFF detect enable time

(ms)

200 300 350 400 500 700 1200 5 No. 5 0 0 0 0 0 0 0 0 6 No. 6 0 0 0 0 1 1 1 1 7 No. 7 0 0 1 1 0 0 1 0 8 No. 8 0 1 0 1 0 1 0 1 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW16

4 Reserved 0

Distinctive ringing OFF STD RING1RING2 RING3 RING4 RING5 5 No. 5 0 0 1 0 1 0 1 0 6 No. 6 0 0 0 1 1 0 0 0 7 No. 7 0 0 0 0 0 1 1 0 8 No. 8 0 1 0 0 0 0 0 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW17

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 1 1 Reserved 1 2 Reserved 0 3 Reserved 0

SW18

4 Reserved 0 5 Reserved 1 6 Reserved 1 7 Reserved 0 8 Reserved 0 1 Reserved 1 2 Reserved 0 3 Reserved 0

SW19

4 Reserved 0 5 Reserved 1 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW20

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 13

FO-4400U FO-CS1

1 Reserved 0 2 Reserved 0 3 Reserved 0

Busy tone detection frequency

520~640Hz 300~600Hz 380~500Hz

Reserve Reserve

SW21

4 No. 4 0 0 0 0 1 0 5 No. 5 0 0 1 1 0 0 6 No. 6 0 1 0 1 0 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW22

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 1 3 Reserved 0

SW23

4 Reserved 1 5 Reserved 0 6 Reserved 0 7 Reserved 1 8 Reserved 0 1 Reserved 0 2 Reserved 1 3 Reserved 0

SW24

4 Reserved 0 5 Reserved 1 6 Reserved 1 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW25

4 Reserved 1 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 1

SW26

4 Reserved 1 5 Reserved 0 6 Reserved 0 7 Reserved 1 8 Reserved 0 1 Reserved 0 2 Reserved 1 3 Reserved 0

SW27

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

SW NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 14

FO-4400U FO-CS1

1 Reserved 0 2 Reserved 0 3 Reserved 1

SW28

4 Reserved 1 5 Reserved 1 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW29

4 Reserved 0 5 Reserved 1 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

For For

SW30

U.S.A. Canada 4 Reserved 00 5 Reserved 11 6 Reserved 10 7 Reserved 00 8 Reserved 10 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW31

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 1 2 Reserved 0 3 Reserved 1

SW32

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 1 8 Reserved 0 1 Reserved 1 2 Reserved 1 3 Reserved 1

SW33

4 Reserved 0 5 Reserved 1 6 Reserved 1 7 Reserved 1 8 Reserved 0

NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 15

FO-4400U FO-CS1

1 Reserved 1 2 Reserved 1 3 Reserved 0

SW34

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

For For

U.S.A. Canada 1 Reserved 00 2 Reserved 11

SW35

3 Reserved 10 4 Reserved 00 5 Reserved 00 6 Reserved 0 7 Reserved 0 8 Reserved 0

For For

U.S.A. Canada 1 Reserved 10 2 Reserved 01

SW36

3 Reserved 01 4 Reserved 00 5 Reserved 00 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW37

4 Reserved 0 5 Reserved 0 6 Reserved 1 7 Reserved 0 8 Reserved 1 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW38

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW39

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 1

2 – 16

SW NO.

DATA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

FO-4400U FO-CS1

2 – 17

1 Reserved 1 2 Reserved 0 3 Reserved 0

SW40

4 Reserved 0 5 Reserved 1 6 Reserved 1 7 Reserved 0 8 Reserved 0 1 Reserved 1 2 Reserved 0 3 Reserved 0

SW41

4 Reserved 0 5 Reserved 1 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW42

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW43

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW44

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW45

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

NO.

DAT A

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

FO-4400U FO-CS1

2 – 18

Switch setting and function

SW NO.

DATA

NO.

ITEM

Remarks

Initial

setting

10 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW46

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW47

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW48

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW49

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW50

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW51

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

FO-4400U FO-CS1

Switch setting and function

1 Reserved 0 2 Reserved 0 3 Reserved 0

SW52

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW53

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW54

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW55

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW56

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW57

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

NO.

DA TA

NO.

ITEM

Remarks

Initial

setting

2 – 19

FO-4400U FO-CS1

1 Reserved 0 2 Reserved 0 3 Reserved 0

SW58

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW59

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW60

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 F.A.S.T. (RMS) mode On Off 0 2 Reserved 0 3 Verification stamp Yes No 0 4 Day light saving No Yes 1

SW61

Key buzzer volume Off High Low Low 5 No. 5 0 0 1 1 1 6 No. 6 0 1 0 1 0 7 Reserved 0 8 Reserved 0

High High Middle Low 1 Speaker volume No. 1 0 0 1 1 1 2 No. 2 0 1 0 1 1 3 Reserved 1

SW62

4 Reserved 0

Off High Middle Low 5 Ringer volume No. 5 0 0 1 1 1 6 No. 6 0 1 0 1 1 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 1 3 Reserved 0

SW63

4 Reserved 0 5 Reserved 1 6 Reserved 0 7 Reserved 1 8 Reserved 0

SW NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 20

FO-4400U FO-CS1

1 Header registration On Off 0 2 Reserved 0 3 Continuous serial polling On Off 0

Time interval for continuous serial polling OPTION

SW64

0 min. 30 min. 60 min. 120 min.

When SW64 -No.3

4 No. 4 0 0 1 1 0

is on, option setting

5 No. 5 0 1 0 1 0

can be set up 6 Reserved 0 7 Reserved 0 8 Quick on line function Yes No 1

Cassette selection Manual Auto-1 Auto-2 Auto-1 OPTION 1 No. 1 0 0 1 1 0 2 No. 2 0 1 0 1 1

The 1st priority cassette None Tray

1st Cass. 2nd Cass.

Tray OPTION

3 No. 3 0 0 0 0 Other 0

SW65

4 No. 4 0 0 1 1

Combination

5 No. 5 0 1 0 1 0

The 2nd priority cassette None Tray

1st Cass. 2nd Cass.

Tray OPTION 6 No. 6 0 0 0 0 Other 0 7 No. 7 0 0 1 1

Combination

8 No. 8 0 1 0 1 1

The 3rd priority cassette None Tray

1st Cass. 2nd Cass.

Tray OPTION 1 No. 1 0 0 0 0 Other 0 2 No. 2 0 0 1 1

Combination

3 No. 3 0 1 0 1 1

SW66

Cassette selection of separate page None Tray

1st Cass. 2nd Cass.

OPTION 4 No. 4 0 0 1 1 0 5 No. 5 0 1 0 1 1 6 Reserved 0 7 Reserved 0 8 Reserved 0

Power save mode OFF ON OPTION 1 No.1 0 0 0 2 No.2 0 1 0

Density adjustment of print bias Binary input 4 2 1 set to 1~7.

SW67

3 No. = 3 4 5 (Data No.) 1: faint 6: deep 1 set to 0, is 4 EX 1 0 0 0 equal to 4 5 eg. Bias is set to level 4. 0 (100)

Drum life detection

No Detection

Over only

Near and Over Near and Over 6 No. 6 0 0 1 1 1 7 No. 7 0 1 0 1 1 8 Reserved 0

Distinctive ring pattern U.S.A. Canada Australia Hong Kong

For For

U.S.A. Canada 1 No. 1 0 0 1 1 0 0 2 No. 2 0 1 0 1 0 1

SW68

3 Reserved 0 4 Reserved 1 5 Reserved 0 6 Reserved 0 7 Reserved 1 8 Reserved 0

NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

It is effective only when No.31-1/2 are set up of manual

2 – 21

FO-4400U FO-CS1

1 Reserved 1 2 Reserved 0 3 Reserved 0

SW69

4 Reserved 1 5 Reserved 0 6 Reserved 1 7 Reserved 1 8 Reserved 0 1 Reserved 1 2 Reserved 0 3 Reserved 1

SW70

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 1

The default resolution for copying Standard Fine S-Fine U-Fine OPTION 1 No. 1 0 0 1 1 0 2 No. 2 0 1 0 1 1

Reserved 0

SW71

4 Reserved 1 5 Reserved 0

Picture quality priority mode Standard Fine S-Fine U-Fine OPTION 6 No. 6 0 0 1 1 0 7 No. 7 0 1 0 1 0 8 Reserved 0 1 Reserved 1 2 Reserved 0 3 Reserved 1

SW72

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0 4 Reserved 0

SW73

5 Reserved 0

Data reduction AUTO 100%

The number in ( ) is

6 (Except notation: Setting prohibition) No. 6 0 1 Set up to 100% except the 0

applicable for the

7 No. 7 0 0 notation 0

footer print on. Auto

8 No. 8 0 0 0

is equivalent to 100%.

1 Automatic printing of activity report Yes (When memory full)

No (First data is cleared when memory full)

0 OPTION

Print out of total time and total number of pages on activity report

Off On 0

3 Reserved 0

SW74

4 Department function On Off 0 5 Department ID digit Binary input 8 4 2 1 0 OPTION 6 No. = 5 6 7 8 (Data No.) 1 set to 3~9 7 EX 0100 0 8 eg. Department ID is set to 4 digits 0

SW NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 22

FO-4400U FO-CS1

1 Copy protect switch On Off 0 2 Cut-off mode (when copy mode) Continue Cut-off 0 OPTION 3 Scanning ratio in memory input 1 : 1 Reduce 0

Memory scanning

Overseas communication mode selection function

Yes No 0

SW75

5 Reserved 0

Reduce ratio when copy mode AUTO 100% 6 (Except notation: Setting prohibition) No. 6 0 1 Set up to 100% except the 1 7 No. 7 0 0 notation 0 8 No. 8 0 0 0 1 Reserved 0 2 Reserved 0

Density adjustment (when Fine/STD mode) Normal Faint Deep

Deep (when Dark mode)

3 No. 3 0 0 1 1 0

SW76

4 No. 4 0 1 0 1 0

Density adjustment (when Half-tone mode) Normal Faint Deep

Deep (when Dark mode) 5 No. 5 0 0 1 1 0 6 No. 6 0 1 0 1 0 7 MTF correction in half-tone mode On Off 1 8 MTF intensity in half-tone mode Strong Weak 0 1 Cassette define LTR/A4: Tray A4 LTR 0 2 Cassette define LTR/A4: Upper A4 LTR 0

When W cassette

3 Cassette define LTR/A4: Lower A4 LTR 0

Ignore when W cassette

4 Reserved 1

SW77

5 Reserved 1 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 1 2 Reserved 0 3 Reserved 0

SW78

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Secure billing code Yes No 0 2 Pause with SHIFT key Yes No 0

Only when special

billing code is given.

3 Reserved 0

SW79

4 Z key pause time Binary input 16 8 4 2 1 0

Only when the

5 (250ms unit) No. = 4 5 6 7 8 (Data No.) 0

special billing code

6 EX 00000 0

is given. The

7 eg. Pause time 250ms 0

ordinary pause is

8 Time=(n+1) x 250ms 0

not affected. 1 Separate feature On Off 0 2 Reserved 0 3 Reserved 0

SW80

4 Reserved 0 5 Addition of header (Sender information) On Off 1 6 DTMF sending by the panel test On Off 0 7 Power save mode Real time Timer 1 8 Reserved 0

NO.

DA TA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 23

FO-4400U FO-CS1

1 Reserved 1 2 Reserved 0 3 Reserved 1

SW81

4 Reserved 1 5 Reserved 1 6 Reserved 1 7 Reserved 1 8 Reserved 1 1 Reserved 0 2 Reserved 1 3 Reserved 0

SW82

4 Reserved 1 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW83

4 Reserved 0 5 Reserved 0 6 Reserved 1 7 Reserved 0 8 Reserved 1 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW84

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW85

4 Reserved 0 5 Reserved 1 6 Reserved 0 7 Reserved 1 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW86

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

SW NO.

DATA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 24

FO-4400U FO-CS1

1 Reserved 0 2 Reserved 0 3 Reserved 0

SW87

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW88

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW89

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 1 1 Reserved 0 2 Reserved 0 3 Reserved 1

SW90

4 Reserved 0 5 Reserved 0 6 Reserved 1 7 Reserved 0 8 Reserved 1 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW91

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 1 3 Waiting time after dialing 90sec

The specification of each country is followed

SW92

4 Show receiver’s name Yes (Show) No (Hide) 1 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW93

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0

NO.

DAT A

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 25

FO-4400U FO-CS1

1 Reserved 0 2 Reserved 0 3 Reserved 0

SW94

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW95

4 Reserved 0 5 Reserved 1 6 Reserved 1 7 Reserved 0 8 Reserved 1 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW96

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW97

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0 2 Reserved 0 3 Reserved 0

SW98

4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 0 8 Reserved 0 1 Reserved 0

For For

U.S.A. Canada

2 Reserved 10

For For

SW99

U.S.A. Canada 3 Reserved 10 4 Reserved 0 5 Reserved 0 6 Reserved 0 7 Reserved 1 8 Reserved 1

SW NO.

DATA

NO.

ITEM

Switch setting and function

Remarks

Initial

setting

2 – 26

FO-4400U FO-CS1

• Soft switch function description

SW1 No. 1 ~ No. 4 Recall interval

Choice is made for a recall interval for speed and rapid dial numbers. Use a binary number to program this. If set to 0 accidentally, 1 will be assumed.

SW1 No. 5 ~ No. 8 Recall times

Choice is made as to how many recall times should be made. Use a binary number to program this.

SW2 No. 1 Dial mode

Switch the type according to the telephone circuit connected to the facsimile.

0: PULSE DIAL 1: TONE DIAL

SW2 No. 2 Receive mode

Auto/manual receiving mode is set.

SW2 No. 3 ECM mode

Used to determine ECM mode function.

SW2 No. 4 Reserved

Set to "0".

SW2 No. 5 Polling security

This switch is employed to enable or disable the polling operation using the ID code verification function, in order to prevent unauthorized polling operation.

SW2 No. 6 Auto cover sheet

When "1" (=YES) is selected, the cover sheet is automatically sent after transmission of the original to notify the receiver of the number of original sheets transmitted.

SW2 No. 7 JUNK-FAX function in manual reception

It is set whether JUNK-FAX is functioned in the manual receiving mode or not.

SW2 No. 8 JUNK-FAX function

This function is used to receive data from a specific remote machine (station registered in entry mode). It is the function that refused a reception in the case that TSI of remote machine matched with fax number of the station registered.

0: No 1: Yes

SW3 No. 1 ~ No. 4 Number of rings for auto-receive (0: No ring receive)

When the machine is set in the auto receive mode, the number of rings before answering can be selected. It may be set from one to nine rings using a binary number. If the soft switch was set to 1, a direct connection is made to the facsimile. If it was set to 0 accidentally, receive ring is set to 1. If it was above 9, receive rings are set to 9.

SW3 No. 5 ~ No. 8 Switch to auto-receive from manual receive (0: No switch)

This setting allows machine to switch from manual to Auto Receive mode. Setting this number to 0 forces machine to stay in Manual receive mode. Entering the binary number 0 forces the machine to remain in the manual answer mode. If a number between 1 and 9 is entered, the machine will go into the answer mode after the given number of rings. However, it can be used as an ordinary telephone if the handset is taken off the hook before this programmed number is finished. If entry of a number above 9 by accident, it will be set to 9. In this case, it must be corrected to the proper number.

SW4 No. 1 ~ No. 3 Communication results printout

It is possible to obtain communication results after each transaction. Normally, the switch is set (No. 1: 0, No. 2: 0, No. 3: 1) so that the communication result is produced only a communication error is encountered. If No. 1 was set to 1, No. 2 was set to 1 and No. 3 was set to 0, the communication result will be produced every time a communication is done, even if the communication was successful.

If No. 1 was set to 0, No. 2 to 1 and No. 3 to 0, the communication result will be produced every transmission.

Setting No. 1 to 1 No. 2 to 0 and No. 3 to 0 will disable this function. No transaction report will be printed.

If No. 1 was set to 0, No. 2 to 0 and No. 3 to 0, the communication result is produced only after a timer and memory transmission or when a communication error is encountered.

SW4 No. 4 Image addition function to the communication result table (for memory transmission only)

Used to set addition of sending image to the communication result table.

SW4 No. 5 Reserved

Set to "0".

SW4 No. 6 TEL billing code function

When set to "1", the TEL billing code function is enabled.

SW4 No. 7 Billing code position

When set to "1", the billing code is delivered before dialing the remote number. When set to "0", the billing code is delivered after dialing.

SW4 No. 8 Multi-TTI feature

When this switch is set to "1", Multi TTI function is enabled.

SW5 No. 1 Time display format

When this switch is set to "0", time is displayed in 12-hour system. When set to "1", 24-hour system.

SW5 No. 2 Date display format

Used to select date display/print formats.

0: DAY-Month-Y ear 1: Month-DAY -Year

SW5 No. 3 Header print

When it is set at 0, sender’s name, sending page number and so on are automatically printed in the recording paper on the receiving side during transmission. Thus, the sender can be known on the receiving side.

0: Applied. 1: Not applied.

SW5 No. 4 Footer print

When set to "1", the date of reception, the sender machine No., and the page No. are automatically recorded at the end of reception.

SW5 No. 5 Reserved

Set to "0".

SW5 No. 6 Substitute reception

Selection of substitute reception in the case of recording paper ex-hausted or paper jam. If set to "NO", auto receive is disabled even when the receive memory is ready to receive.

Substitute reception is not performed even during receive operation.

SW5 No. 7 Substitute reception conditions

Selection of substitute reception according to existence of TEL number from transmitting side. Initial setting allows substitute reception without CSI. If set to "no", the receiver cannot receive any documents

SW5 No. 8 CSI transmission

CSI signal contains the sender’s phone number registered in the machine. If this switch is set to "1", no sender’s name will be printed at the receiving side.

SW6 No. 1 JBIG (Joint Bi-level Image Group)

An image compression encoding method recommended by ITU-T . It realizes 2-second transmission when the power is turned on.

SW6 No. 2 JBIG (Joint Bi-level Image Group) option

An optional function for JBIG.

SW6 No. 3 MMR

MMR (Modified MR) selects presence of the compression function.

2 – 27

FO-4400U FO-CS1

2 – 28

SW6 No. 4 MR

MR (Modified READ) selects presence of the compression function.

SW6 No. 5 ~ No. 8 Modem speed

Used to determine the initial modem speed. The default is 14400BPS(V.17). It may be necessary to program it to a slower speed when frequent line fallback is encountered, in order to save the time required for the fallback procedure.

SW7 No. 1, No. 2 Reception speed fixed

The transferable speed of modem in the receiving mode is set.

SW7 No. 3 DIS receive acknowledge during G3 transmission

Used to make a choice of whether reception of NSF (DIS) is acknowledged after receiving two NSFs (DISs) or receiving one NSF (two DISs).

It may be useful for overseas communication to avoid an echo suppression problem, if set to 1.

SW7 No. 4 Non-modulated carrier in V.29 transmission mode

Though transmission of a non-modulated carrier is not required for transmission by the V29 modem according to the CCITT Recommendation, it may be permitted to send a non-modulated carrier before the image signal to avoid an echo suppression problem. It may be useful for overseas communication to avoid an echo suppression problem, if set to 1.

SW7 No. 5 CNG send when manual TX

CNG signal sending ON/OFF in case of manual transmission is set.

SW7 No. 6 Protocol monitor

Normally set to "0". If set to "1", communication can be checked, in case of troubles, without using a G3 tester or other tools.

When communication FSK data transmission or reception is made, the data is taken into buffer. When communication is finished, the data analyzed and printed out. When data is received with the line monitor (SW7-No. 7) set to "1" the reception level is also printed out.

SW7 No. 7 Line monitor

Normally set to "0". If set to "1", the transmission speed and the reception level are displayed on the LCD. Used for line tests.

SW7 No. 8 Reserved

Set to "0".

SW8 No. 1, No. 2 Compromised equalizer

The specific line equalizer is inserted.

No. 1 No. 2

0 0 The line equalizer built in the modem is turned off. 0 1 Line equalizer corresponding to 1.8 km 1 0 Line equalizer corresponding to 3.6 km 0 1 Line equalizer corresponding to 7.2 km

SW8 No. 3 H2 mode

Used to determine H2 mode (15sec transmission mode). When set to OFF, H2 mode is inhibited even though the transmitting machine has H2 mode.

SW8 No. 4 ~ No. 8 Signal transmission level

Used to control the signal transmission level in the range of –0dB to –31dB.

SW9 No. 1, No. 2 CED tone signal interval

For international communication, the 2100Hz CED tone may act as an echo suppresser switch, causing a communication problem. Though this soft switch is normally set to "0", it should be set to "1" so as to change the time between CED tone and DIS signal from 75ms to 500ms to eliminate the communication problem caused by echo.

SW9 No. 3 Equalizer freeze

This switch is used to perform reception operation by fixing the equalizer control of modem for the line which is always in an unfavorable state and picture cannot be received. Usually, the control is executed according to the state of line where the equalizer setting is changed always.

SW9 No. 4 Equalizer freeze conditions

Setting which specifies SW9 No.3 control only in condition of 7200bps modem speed.

SW9 No. 5 CED detection time

The detection time of the CED signal from the called side in the auto calling mode is set.

SW9 No. 6, No. 7 Alarm buzzer

The length of the buzzer for normal end of operation is set.

SW9 No. 8 Action when RTN received

The operation is set when the RTN signal is received in the G3 transmission mode.

SW10 No. 1 ~ No. 4 Memory retransmission times

The number of memory retransmissions is set.

SW10 No. 5 ~ No. 8 Memory retransmission interval

The interval between memory retransmissions is set.

SW11 No. 1 ~ No. 4 V.34 mode transmission speed

Used to determine the initial modem speed when communication method is V.34 transmission mode.

SW11 No. 5 ~ No. 8 V.34 mode receiving speed

Used to determine the initial modem speed when communication method is V.34 reception mode.

SW12 No. 1 V.34 mode function in case of manual communication

Used to select whether the V .34 mode is made valid when automatically transmitting/receiving.

SW12 No. 2 V.34 mode function

Used to select the V.34 mode for communication when set to “1”, communication method is V.34 mode..

SW12 No. 3 V.34 control channel communication speed

Used to select the control channel communication speed for V .34 mode.

SW12 No. 4, No. 5 EOL detection timer

Used to make a choice of whether to use the 25-second or 13-second timer for detection of End of line This is effective to override communication failures with some facsimile models that have longer End of line detection.

SW12 No. 6, No. 7 Processing of DIS reception after DIS transmission

When receiving , operation in case of DIS reception after DIS transmission is selected. Retransmitting command: To retransmit DIS in disregard of DIS reception. Breaking circuit: To break circuit instantly. (Abnormal finish) T. 30: To operate in accordance with T.30. T. 30+α: To operate in accordance with T.30+α. (To operate differently according to cases.)

SW12 No. 8 The change to DB from DP by

When setting to 1, the mode is changed by pressing the key from the pulse dial mode to the tone dial mode.

SW13 No. 1 ~ No. 5 DTMF output level (High)

To set the level to output high group DTMF signals. –15 to 0 dBm (0.5 dBm unit)

SW13 No. 6 ~ No. 8 Reserved

Set to "0".

SW14 No. 1 ~ No. 5 DTMF output level (Low)

To set the level to output low group DTMF signals. –15 to 0 dBm (0.5 dBm unit)

SW14 No. 6 ~ No. 8 Reserved

Set to "0".

SW15 No. 1 ~ No. 4 Reserved

Set to "0".

SW15 No. 5 ~ No. 8 Cl signal OFF detect enable time

Used to set the continuous detection time during OFF period of Cl signal.

SW16 No. 1 ~ No. 4 Reserved

Set to "0".

FO-4400U FO-CS1

1.5S

0.8S

0.3S

0.4S

3.5S

0.5S

0.5S 3S

0.5S

0.2S

0.8S

0.4S

0.3S

0.2S

0.4S 0.8S

0.2S 0.2S

0.5S 1S 0.5S

0.5S0.5S

0.5S

0.5S0.5S

STANDARD

RING

PATTERN 1

for USA

RING

PATTERN 2

for USA

RING

PATTERN 3

for USA

RING

PATTERN 1

for CANADA

RING

PATTERN 2

for CANADA

RING

PATTERN 3

for CANADA

RING

PATTERN 4

for USA

SW21 No. 7, No. 8 Reserved

Set to "0".

SW22 No. 1 ~ No. 8 Reserved

Set to "0".

SW23 No. 1 Reserved

Set to "0".

SW23 No. 2 Reserved

Set to "1".

SW23 No. 3 Reserved

Set to "0".

SW23 No. 4 Reserved

Set to "1".

SW23 No. 5, No. 6 Reserved

Set to "0".

SW23 No. 7 Reserved

Set to "1".

SW23 No. 8 Reserved

Set to "0".

SW24 No. 1 Reserved

Set to "0".

SW24 No. 2 Reserved

Set to "1".

SW24 No. 3, No. 4 Reserved

Set to "0".

SW24 No. 5, No. 6 Reserved

Set to "1".

SW24 No. 7, No. 8 Reserved

Set to "0".

SW25 No. 1 ~ No. 3 Reserved

Set to "0".

SW25 No. 4 Reserved

Set to "1".

SW25 No. 5 ~ No. 8 Reserved

Set to "0".

SW26 No. 1, No. 2 Reserved

Set to "0".

SW26 No. 3, No. 4 Reserved

Set to "1".

SW26 No. 5, No. 6 Reserved

Set to "0".

SW26 No. 7 Reserved

Set to "1".

SW26 No. 8 Reserved

Set to "0".

SW27 No. 1 Reserved

Set to "0".

SW27 No. 2 Reserved

Set to "1".

SW27 No. 3 ~ No. 8 Reserved

Set to "0".

SW28 No. 1, No. 2 Reserved

Set to "0".

SW28 No. 3 ~ No. 5 Reserved

Set to "1".

SW28 No. 6 ~ No. 8 Reserved

Set to "0".

SW29 No. 1 ~ No. 4 Reserved

Set to "0".

SW29 No. 5 Reserved

Set to "1".

SW29 No. 6 ~ No. 8 Reserved

Set to "0".

2 – 29

SW17 No. 1 ~ No. 7 Reserved

Set to "0".

SW17 No. 8 Reserved

Set to "1".

SW18 No. 1 Reserved

Set to "1".

SW18 No. 2 ~ No. 4 Reserved

Set to "0".

SW18 No. 5 , No. 6 Reserved

Set to "1".

SW18 No. 7 , No. 8 Reserved

Set to "0".

SW19 No. 1 Reserved

Set to "1".

SW19 No. 2 ~ No. 4 Reserved

Set to "0".

SW19 No. 5 Reserved

Set to "1".

SW19 No. 6 ~ No. 8 Reserved

Set to "0".

SW20 No. 1 ~ No. 8 Reserved

Set to "0".

SW21 No. 1 ~ No. 3 Reserved

Set to "0".

SW21 No. 4 ~ No. 6 Busy tone detection frequency

To select frequency range of signals to be detected as Busy Tone.

SW16 No. 5 ~ No. 8 Distinctive ringing

When the ringing setting is turned off, all of the CI signal are received. When any of the standard, and ring patterns 1 through 3 is selected for the ringing setting, only the selected CI signal is received.

CI signal patterns The CI signal patterns consists of the standard pattern, and ring patterns 1 through 7. The standard pattern is the conventional one.

FO-4400U FO-CS1

SW36 No. 3 Reserved (For U.S.A.)

Set to "0".

SW36 No. 3 Reserved (For Canada)

Set to "1".

SW36 No. 4 ~ No. 8 Reserved

Set to "0".

SW37 No. 1 ~ No. 5 Reserved

Set to "0".

SW37 No. 6 Reserved

Set to "1".

SW37 No. 7 Reserved

Set to "0".

SW37 No. 8 Reserved

Set to "1".

SW37 No. 5 ~ No. 8 CI signal off detect enable time

Used to set the continuous detection time during OFF period of CI signal. Normally set to 700ms, where the short ring (500ms: OFF period) cannot be detected. Therefore, selection of 350ms is allowed.

SW38 No. 1 ~ No. 8 Reserved

Set to "0".

SW39 No. 1 ~ No. 7 Reserved

Set to "0".

SW39 No. 8 Reserved

Set to "1".

SW40 No. 1 Reserved

Set to "1".

SW40 No. 2 ~ No. 4 Reserved

Set to "0".

SW40 No. 5, No. 6 Reserved

Set to "1".

SW40 No. 7, No. 8 Reserved

Set to "0".

SW41 No. 1 Reserved

Set to "1".

SW41 No. 2 ~ No. 4 Reserved

Set to "0".

SW41 No. 5 Reserved

Set to "1".

SW41 No. 6 ~ No. 8 Reserved

Set to "0".

SW42 No. 1 ~ No. 8 Reserved

Set to "0".

SW43 No. 1 ~ No. 8 Reserved

Set to "0".

SW44 No. 1 ~ No. 8 Reserved

Set to "0".

SW45 No. 1 ~ No. 8 Reserved

Set to "0".

SW46 No. 1 ~ No. 8 Reserved

Set to "0".

SW47 No. 1 ~ No. 8 Reserved

Set to "0".

SW48 No. 1 ~ No. 8 Reserved

Set to "0".

SW49 No. 1 ~ No. 8 Reserved

Set to "0".

SW50 No. 1 ~ No. 8 Reserved

Set to "0".

SW51 No. 1 ~ No. 8 Reserved

Set to "0".

2 – 30

SW30 No. 1 ~ No. 4 Reserved

Set to "0".

SW30 No. 5 Reserved (For U.S.A.)

Set to "1".

SW30 No. 6 Reserved (For U.S.A.)

Set to "1".

SW30 No. 6 Reserved (For Canada)

Set to "0".

SW30 No. 7 Reserved

Set to "0".

SW30 No. 8 Reserved (For U.S.A.)

Set to "1".

SW30 No. 8 Reserved (For Canada)

Set to "0".

SW31 No. 1 ~ No. 8 Reserved

Set to "0".

SW32 No. 1 Reserved

Set to "1".

SW32 No. 2 Reserved

Set to "0".

SW32 No. 3 Reserved

Set to "1".

SW32 No. 4 ~ No. 6 Reserved

Set to "0".

SW32 No. 7 Reserved

Set to "1".

SW32 No. 8 Reserved

Set to "0".

SW33 No. 1 ~ No. 3 Reserved

Set to "1".

SW33 No. 4 Reserved

Set to "0".

SW33 No. 5 ~ No. 7 Reserved

Set to "1".

SW33 No. 8 Reserved

Set to "0".

SW34 No. 1, No. 2 Reserved

Set to "1".

SW34 No. 3 ~ No. 8 Reserved

Set to "0".

SW35 No. 1 Reserved

Set to "0".

SW35 No. 2 Reserved

Set to "1".

SW35 No. 3 Reserved (For U.S.A.)

Set to "1".

SW35 No. 3 Reserved (For Canada)

Set to "0".

SW35 No. 4 ~ No. 8 Reserved

Set to "0".

SW36 No. 1 Reserved (For U.S.A.)

Set to "1".

SW36 No. 1 Reserved (For Canada)

Set to "0".

SW36 No. 2 Reserved (For U.S.A.)

Set to "0".

SW36 No. 2 Reserved (For Canada)

Set to "1".

FO-4400U FO-CS1

2 – 31

SW52 No. 1 ~ No. 8 Reserved

Set to "0".

SW53 No. 1 ~ No. 8 Reserved

Set to "0".

SW54 No. 1 ~ No. 8 Reserved

Set to "0".

SW55 No. 1 ~ No. 8 Reserved

Set to "0".

SW56 No. 1 ~ No. 8 Reserved

Set to "0".

SW57 No. 1 ~ No. 8 Reserved

Set to "0".

SW58 No. 1 ~ No. 8 Reserved

Set to "0".

SW59 No. 1 ~ No. 8 Reserved

Set to "0".

SW60 No. 1 ~ No. 8 Reserved

Set to "0".

SW61 No. 1 F.A.S.T. (RMS) mode

Used to determine a function of remote maintenance system (F.A.S.T.).

SW61 No. 2 Reserved

Set to "0".

SW61 No. 3 Verification stamp

End stamp: It is set whether the red round mark is stamped at the bottom margin of the document of every page in the memory input mode and document sending mode or not.

SW61 No. 4 Day light saving

The day light saving function ON/OFF is set.

SW61 No. 5, No. 6 Key buzzer volume

Key buzzer volume: The sound volume of key inputting buzzer and other buzzers is set.

SW61 No. 7, No. 8 Reserved

Set to "0".

SW62 No. 1, No. 2 Speaker volume

Speaker volume: The sound volume of the speaker in the on-hook mode is set.

SW62 No. 3 Reserved

Set to "1".

SW62 No. 4 Reserved

Set to "0".

SW62 No. 5, No. 6 Ringer volume

Ringer volume: The calling sound volume of CI signal receiving is set.

SW62 No. 7, No. 8 Reserved

Set to "0".

SW63 No. 1 Reserved

Set to "0".

SW63 No. 2 Reserved

Set to "1".

SW63 No. 3, No. 4 Reserved

Set to "0".

SW63 No. 5 Reserved

Set to "1".

SW63 No. 6 Reserved

Set to "0".

SW63 No. 7 Reserved

Set to "1".

SW63 No. 8 Reserved

Set to "0".

SW64 No. 1 Header registration

When setting this switch to "1", registering senders is protected.

SW64 No. 2 Reserved

Set to "0".

SW64 No. 3 Continuous serial polling

Turns ON/OFF the continuous polling function.

SW64 No. 4, No. 5 Time interval for continuous serial polling

Used to set the interval time for continuous serial polling. Normally set to no interval (0 minute).

SW64 No. 6, No. 7 Reserved

Set to "0".

SW64 No. 8 Quick on line function

It is selected whether auto dial call is activated in the memory input mode when one document is completely read or when all pages are completely read.

SW65 No. 1, No. 2 Cassette selection

To set selective modes for detail paper cassettes of the printer.

00: Manual

01: Automatic 1

10: Automatic 2

11: Except the above

To select detail paper in the first priority cassette in accordance with setting by SW65 3-8 and SW65 1-3. If the detail paper in the first priority cassette runs short, the second priority cassette will be used.

T o automatically select detail paper with optimum size among the first to third priority cassettes in accordance with setting by SW65 3-8 and SW65 1-3. The optimum paper is selected by every page. If all the cassettes have the same size paper, paper will be selected according to the cassette priority.

T o automatically select detail paper with optimum size among the first to third priority cassettes in accordance with setting by SW65 3-8 and SW65 1-3. At the start of printing, the optimum paper is adopted only for the first page. Thereafter the same cassette selected for the first page will be used from the second page and after. If all the cassettes have the same size paper, paper will be selected according to the cassette priority.

01: the same setting as in the case of Automatic 1

SW65 No. 3 ~ No. 5 The 1st priority cassette

To select the first priority cassette.

001: 1st paper feeder (MP-TRAY) 010: 2nd paper feeder 011: 3rd paper feeder Except the above

Printing started from the possible paper feeder

000: Not used (To set in case of using only paper

feeder that has been set in the first priority

cassette) 001: 1st paper feeder (MP-TRAY) 010: 2nd paper feeder 011: 3rd paper feeder Except the above Not used

SW65 No. 6 ~ No. 8 The 2nd priority cassette

To select the second priority cassette.

FO-4400U FO-CS1

2 – 32

000: Not used (To set in case of using only paper

feeder that has been set in the first /second

priority cassette) 001: 1st paper feeder (MP-TRAY) 010: 2nd paper feeder 011: 3rd paper feeder Except the above Not used

SW66 No. 1 ~ No. 3 The 3rd priority cassette

To select the third priority cassette.

SW66 No. 4, No. 5 Cassette selection of separate page

The supply origin of a separate page is set.

SW66 No. 6 ~ No. 8 Reserved

Set to "0".

SW67 No.1, No. 2 Power save mode

The heater mode of a printer is set.

SW67 No. 3 ~ No. 5 Density adjustment of print bias

The density of printing is set. It can be also set in the print diagnosis mode.

SW67 No. 6, No. 7 Drum life detection

The detection mode of Drum life is set.

SW67 No. 8 Reserved

Set to "0".

SW68 No. 1, No. 2 Distinctive ring pattern

The distinctive ring patter is set for country.

SW68 No. 3 Reserved

Set to "0".

SW68 No. 4 Reserved

Set to "1".

SW68 No. 5, No. 6 Reserved

Set to "0".

SW68 No. 7 Reserved

Set to "1".

SW68 No. 8 Reserved

Set to "0".

SW69 No. 1 Reserved

Set to "1".

SW69 No. 2, No. 3 Reserved

Set to "0".

SW69 No. 4 Reserved

Set to "1".

SW69 No. 5 Reserved

Set to "0".

SW69 No. 6, No. 7 Reserved

Set to "1".

SW69 No. 8 Reserved

Set to "0".

SW70 No. 1 Reserved

Set to "1".

SW70 No. 2 Reserved

Set to "0".

SW70 No. 3 Reserved

Set to "1".

SW70 No. 4 ~ No. 7 Reserved

Set to "0".

SW70 No. 8 Reserved

Set to "1".

SW71 No. 1, No. 2 The default resolution for copying

In case of copying without pressing the RESOLUTION key, resolution will be super fine.

SW71 No. 3 Reserved

Set to "0".

SW71 No. 4 Reserved

Set to "1".

SW71 No. 5 Reserved

Set to "0".

SW71 No. 6, No. 7 Picture quality priority mode

Used to set the transmission mode which is automatically selected when the MODE key is not pressed. In the copy mode, however, the fine mode is automatically selected unless the MODE key is manually set to another mode.

SW71 No. 8 Reserved

Set to "0".

SW72 No. 1 Reserved

Set to "1".

SW72 No. 2 Reserved

Set to "0".

SW72 No. 3 Reserved

Set to "1".

SW72 No. 4 ~ No. 8 Reserved

Set to "0".

SW73 No. 1 ~ No. 5 Reserved

Set to "0".

SW73 No. 6 ~ No. 8 Data reduction

Reduction ratio of receiving is set . It can be changed even in the optional mode. To set printing reduction rate of received images.

SW74 No. 1 Automatic printing of activity report

This soft switch is used to select; whether or not to produce the activity report when the memory is full (about 50 items). An activity report can be produced when the following key entry command is made.

"FUNC", "2", "#", "START" After producing the activity report, all the data in the memory will be

cleared. When the switch function is set to "0" (NO), the data in memory will be

deleted from the oldest as it reaches the maximum memory capacity (approx. 50 items).

SW74 No. 2 Print out of total time and total number of pages on activity report

Used to make a choice of whether the total communication time and pages are recorded in the activity report.

SW74 No. 3 Reserved

Set to "0".

SW74 No. 4 Department function

This model has the department audit feature, it has to be set to 1 to utilize this feature.

SW74 No. 5 ~ No. 8 Department ID digit

Used to set the department ID digit number . When set to "D" , the number is "4" .

SW75 No. 1 Copy protect switch

When this switch is set to “1”, copy is for bidden.

SW75 No. 2 Cut-off mode (when copy mode)

When in copy, if the scanned data is out of the range of recording, the operator has one of the choices below using the switch.

0: Continue: Data is printed onto the next page with the last 20mm

also printed at the beginning of the next page.

1: Cut off: Data scanned out of the limit is cut off (a page is printed.)

000: Automatic 100: 100% Except the above 100%

FO-4400U FO-CS1

2 – 33

SW75 No. 3 Scanning ratio in memory input

In the case of memory transmission, etc., only letter size (A4) documents can be stored in the memory. To input B4 documents into the memory, therefore, the B4 documents must be reduced to letter size (A4) or the both ends of the B4 documents will be cut off to input the center letter-size (A4) portion. This switch provides the selection.

0: Reduced to A4 size and inputted. 1: Both ends are cut off and the center portion (A4 size) is inputted.

SW75 No. 4 Overseas communication mode selection function

When this switch is set to "1", the communication is Super G3 mode can be turned off by pressing the "SPACE" key before sending operation, for the transmission set after that (including polling).

SW75 No. 5 Reserved

Set to "0".

SW75 No. 6 ~ No. 8 Reduce ratio when copy mode

Reduction ratio of copying is set . It can changed even in the optional mode.

SW76 No. 1, No. 2 Reserved

Set to "0".

SW76 No. 3, No. 4 Density adjustment (when Fine/STD mode)

This is used for density adjustment in fine/standard mode. Adjust the density according to that of frequently used original.

Set to "Dark" for darker reading (either in the auto or the dark mode) of light original. Set to "Light" for lighter reading (either in the auto or the dark mode) of dark original.

Set to "Dark only in dark mode" for darker reading only in the dark mode.

SW76 No. 5, No. 6 Density adjustment (when half-tone mode)

This is used for density adjustment in the half tone. Setting procedures are the same as SW46 No. 3 and No. 4.

SW76 No. 7 MTF correction in half-tone mode

In the half tone mode, image area is separated from character area and processed separately to eliminate unclear character transmission. This switch is used to change the criteria of judgement of separation. When "Strong" (= 1) is selected, more area is judged as character area, providing clearer characters.

On the contrary, however, edges of image area may be emphasized. It is advisable to restrict the use of this function only when clear charac-

ters must be transmitted, and to use the function of "Weak" (= 0) for general cases.

SW76 No. 8 MTF intensity in half-tone mode

This allows selection of MTF correction (dimness correction) in the half tone mode. When "NO" (= 1) is selected, the whole image becomes soft and mild, On the contrary, however, mildness of characters will be reduced. Normally set to "NO" (= 1).

SW77 No. 1 Cassette define LTR / A4:Tray

A4 cassette can be used . Set "0" or "1" for all of three bits. Do not change the setting during printing.

SW77 No. 2 Cassette define LTR / A4:Upper

A4 cassette can be used . Set "0" or "1" for all of three bits. Do not change the setting during printing.

SW77 No. 3 Cassette define LTR / A4:Lower

A4 cassette can be used . Set "0" or "1" for all of three bits. Do not change the setting during printing.

SW77 No. 4, No. 5 Reserved

Set to "1".

SW77 No. 6 ~ No. 8 Reserved

Set to "0".

SW78 No. 1 Reserved

Set to "1".

SW78 No. 2 ~ No. 8 Reserved

Set to "0".

SW79 No. 1 Secure billing code

When the tel. billing code function is ON, the operation of secure billing code is enabled .

SW79 No. 2 Pause with SHIFT key

The SHIFT key pause time is set.

SW79 No. 3 Reserved

Set to "0".

SW79 No. 4 ~ No. 8 Z key pause time (250ms unit)

The Z key pause time is set.

SW80 No. 1 Separate feature

The separate mode ON/OFF is set.

SW80 No. 2 ~ No. 4 Reserved

Set to "0".

SW80 No. 5 Addition of header (Sender information)

ON/OFF of addition of header (sender information) to various list is set.

SW80 No. 6 DTMF sending by the panel test

When ten keys are pressed in the Panel T est Mode of the diagnosis, the corresponding DTMF signals are output.

SW80 No. 7 Power save mode

To switch power save mode system either to real time or to timer.

SW80 No. 8 Reserved

Set to "0".

SW81 No. 1 Reserved

Set to "1".

SW81 No. 2 Reserved

Set to "0".

SW81 No. 3 ~ No. 8 Reserved

Set to "1".

SW82 No. 1 Reserved

Set to "0".

SW82 No. 2 Reserved

Set to "1".

SW82 No. 3 Reserved

Set to "0".

SW82 No. 4 Reserved

Set to "1".

SW82 No. 5 ~ No. 8 Reserved

Set to "0".

SW83 No. 1 ~ No. 5 Reserved

Set to "0".

SW83 No. 6 Reserved

Set to "1".

SW83 No. 7 Reserved

Set to "0".

SW83 No. 8 Reserved

Set to "1".

SW84 No. 1 ~ No. 8 Reserved

Set to "0".

SW85 No. 1 ~ No. 4 Reserved

Set to "0".

SW85 No. 5 Reserved

Set to "1".

SW85 No. 6 Reserved

Set to "0".

SW85 No. 7 Reserved

Set to "1".

SW85 No. 8 Reserved

Set to "0".

SW86 No. 1 ~ No. 8 Reserved

Set to "0".

SW87 No. 1 ~ No. 8 Reserved

Set to "0".

FO-4400U FO-CS1

2 – 34

SW88 No. 1 ~ No. 8 Reserved

Set to "0".

SW89 No. 1 ~ No. 7 Reserved

Set to "0".

SW89 No. 8 Reserved

Set to "1".

SW90 No. 1, No.2 Reserved

Set to "0".

SW90 No. 3 Reserved

Set to "1".

SW90 No. 4, No. 5 Reserved

Set to "0".

SW90 No. 6 Reserved

Set to "1".

SW90 No. 7 Reserved

Set to "0".

SW90 No. 8 Reserved

Set to "1".

SW91 No. 1 ~ No. 8 Reserved

Set to "0".

SW92 No. 1 Reserved

Set to "0".

SW92 No. 2 Reserved

Set to "1".

SW92 No. 3 Waiting time after dialing

The set up of the call time of the auto dial. 90 sec. or depends on each country’s specifications.

SW92 No. 4 Show receiver’s name

This switch is used to note the receiver’s name on the transaction report and activity report. When this switch is set to “0”, the receiver’s dial number is printed on the report.

SW92 No. 5 ~ No. 8 Reserved

Set to "0".

SW93 No. 1 ~ No. 8 Reserved

Set to "0".

SW94 No. 1 ~ No. 8 Reserved

Set to "0".

SW95 No. 1 ~ No. 4 Reserved

Set to "0".

SW95 No. 5, No. 6 Reserved

Set to "1".

SW95 No. 7 Reserved

Set to "0".

SW95 No. 8 Reserved

Set to "1".

SW96 No. 1 ~ No. 8 Reserved

Set to "0".

SW97 No. 1 ~ No. 8 Reserved

Set to "0".

SW98 No. 1 ~ No. 8 Reserved

Set to "0".

SW99 No. 1 Reserved

Set to "0".

SW99 No. 2, No. 3 Reserved (For U.S.A.)

Set to "1".

SW99 No. 2, No. 3 Reserved (For Canada)

Set to "0".

SW99 No. 4 ~ No. 6 Reserved

Set to "0".

SW99 No. 7, No. 8 Reserved

Set to "1".

FO-4400U FO-CS1

[3] Troubleshooting

1. Fax troubleshooting

Refer to the following actions to troubleshoot any of the problems mentioned in 1-4.

[1] A communication error occurs. [2] Image distortion produced. [3] Unable to do overseas communication. [4] Communication speed slow due to FALLBACK.

• Increase the transmission level SOFT SWITCH 8-4, 5, 6, 7, 8

May be used in case [1] [2] [3].

• Decrease the transmission level SOFT SWITCH 8-4, 5, 6, 7, 8

May be used in case [3].

• Apply line equalization SOFT SWITCH 8-1, 2

May be used in all cases.

• Slow down the transmission speed SOFT SWITCH 6-5, 6, 7, 8

May be used in case [2] [3].

• Replace the LIU PWB.

May be used in all cases.

• Replace the control PWB.

May be used in all cases.

* If transmission problems still exist on the machine, use the following

format and check the related matters.

TO: ATT: Ref.No. : CC: ATT: Date : FM: Dept :

Sign :

***** Facsimile communication problem ***** Ref.No.:

Date:From: Mr. Fax T el No.:

Our customer Name T el No.

Address Fax No. Contact person Model name

Other party Name T el No.

Address Fax No. Contact person Model name

Problem mode Line: Domestic / international Mode: G3 Phase: A. B. C. D.

Reception / Transmission

Automatic reception / Manual reception Automatic dialing / Manual dialing / Others

Frequency: % ROM version:

Confirmation item

Please mark problem with an X No problem is: 0 A1 A2 B1 B2 C1 C2 D1 D2 E1 E2

Transmission level setting is ( ) dB at our customer Transmission level ( ) dBm Reception level ( ) dBm By level meter at B1 and B2

Comment

**** Please attach the G3 data and activity report on problem. ****

Countermeasure

Our customer

Our service

A1 A2

C1 D2

B1 B2

E1 E2

C2 D1

Other party

Other

arty's service

2 – 35

FO-4400U FO-CS1

[4] Error code table

1. Communication error code table G3 T ransmission

G3 Reception

2 – 36

Code Final received signal Error Condition (Receiver side)

0 Incomplete signal frame Cannot recognize bit stream after flag 1 NSF, DIS Cannot recognize DCS signal by echo etc.

Cannot recognize NSS signal (FIF code etc) 2 CFR Disconnects line during reception (carrier missing etc) 3 FTT Disconnects line by fallback 4 MCF Disconnects line during reception of multi page

Cannot recognize NSS, DCS signal in the case of mode change 5 PIP or PIN The line is hung up without replying to telephone request from the receiving party. 6 RTN or RTP Cannot recognize NSS, DCS signal after transmit RTN or RTP signal.

7 No signal or DCN No response on receiver side or DCN signal received* (transmitter side) 8 − Owing to error in some page the error could not be corrected although the specified number of

error retransmission was attempted.

11 − Error occurred after or while reception by the remote (receiving) machine was revealed to be

impossible.

12 − Error occurred just after fallback. 13 − Error occurred after a response to retransmission end command was received.

Code Final received signal Error Condition (Receiver side)

0 Incomplete signal frame Cannot recognize bit stream after flag 1 NSS, DCS Cannot recognize CFR or FTT signal

Disconnects line during transmission (line error) 2 NSC, DTC Cannot recognize NSS signal (FIF code etc)

3 EOP Cannot recognize MCF, PIP, PIN, RTN, RTP signal 4 EOM Cannot recognize MCF, PIP, PIN, RTN, RTP signal in the case of mode change

5 MPS The line is hung up without replying to communication request. 6 PR1-Q Cannot recognize PIP, PIN signal in the case of TALK request 7 No signal or DCN No response in transmitter (cannot recognize DIS signal) or DCN signal received* (receiver side) 8 − Error occurred upon completion of reception of all pages. 9 − Error occurred when mode was changed or Transmission/Reception switching was performed.

10 − Error occurred during partial page or physical page reception. 11 − Error occurred after or during inquiry from the remote (transmitting) machine as to whether

reception is possible or not.

12 − Error occurred during or just after fallback. 13 − Error occurred after the retransmission end command was received.

14 − Error occurred after the voice communication command was received.

FO-4400U FO-CS1

2 – 37

2. Service call error massage

REMOVE ORIGINAL (S) Document is stuck at the auto-feeder. NO PAPER (TRAY) No recording paper on the tray. NO PAPER (UPPER) No recording paper in the upper cassette. NO PAPER (LOWER) No recording paper in the lower cassette. NO PAPER (BOTH CASS.) No recording paper in either cassette. NO PAPER (TRAY, UPPER) No recording paper in the tray nor in the upper cassette. NO PAPER (TRAY, LOWER) No recording paper in the tray nor in the lower cassette. NO PAPER No recording paper anywhere. SIZE ERROR The size of the recording paper is wrong. LASER ERROR The laser unit abnormal. POLYGON ERROR The polygon motor abnormal. FAN MOTOR ERROR The fan motor abnormal. CHECK UPPER CASSETTE The upper cassette is not set properly. CHECK LOWER CASSETTE The lower cassette is not set properly. CHECK BOTH CASSETTES Neither cassette is set properly. TONER EMPTY There is no toner left. PCU COMM. ERROR No data communication between the PCU and the control PWB. RX DOCUMENT TRAY OFF The document-receiving tray is not set properly. HIGH VOLTAGE ERROR Abnormality with the high-voltage portion. HEATER LOW ERROR Heater temperature is too low. HEATER HIGH ERROR Heater temperature is too high. WARMING UP ERROR Warming up is not done properly. CHECK COVER OR DRUM Printer cover may be open, or the drum cartridge may not be set properly. DRUM LIFE OVER Drum life is over. PAPER JAM Recording paper is stuck inside.

Message Description

Super G3 mode

<Reference> Details of E-29 ~ 31

Error Code Transmission Errors Reception Errors

E-16 Same as E-0 Same as E-0 E-17 Same as E-1 Same as E-1 E-18 Same as E-2 Same as E-2 E-19 - Same as E-8 E-20 Same as E-4 Same as E-9 E-21 - Same as E-10 E-22 - E-23 Same as E-7 Same as E-7 E-24 Same as E-8 E-25 Same as E-11 Same as E-11 E-26 Same as E-12 Same as E-12 E-27 Same as E-13 Same as E-13 E-28 - Same as E-14 E-29 E-30

Error occurred during handshaking for super G3

mode

E-31

E-29 Handshaking error in V.8 negotiation procedure E-30 Handshaking error in V.34 line probing procedure

E-31 Handshaking error in V.34 HDX training procedure

FO-4400U FO-CS1

2 – 38

(3) Original transmission

Since retransmission is not provided for the original transmission, recovery by the method 1 is impossible. Accordingly, for the original transmission set Super G3 to OFF, and apply V.17 mode.

(4) Super G3 function setting to OFF by operator

A function to set Super G3 function to OFF is provided for operator in addition to the functions described in items (2) and (3) above. However, this function is invalid in the default mode.

It is made valid only when requested by using the soft switch.

SW75 No.4 = 0: Operation invalid (Default) 1: Operation valid

(4)-1 Setting method

Before communication operation, lift the key overlay and press the SPACE key to set the communication to OFF in the Super G3 mode.

Perform the transmission/polling operation.

The operations which are taken as objects are the following.

* Instantaneous single station auto-dial transmission (original/memory) * Time-specified single station transmission * Program instantaneous single station transmission * Program time-specified single station transmission * Time-specified single station polling * Program instantaneous single station polling * Program time-specified single station polling * Manual transmission (original/memory) * Batch transmission

INTERNATIONAL MODE CANCELED

SPACE

Normally, communication is per-formed in the G3 (V.17) mode.

APR-24 THU 03: 00PM M: 00% STAND-BY AUTO

INTERNATIONAL MODE ENTERED

Object addition function :

Confidential information Relay

Object party specifying method:

Rapid Speed Key-pad

[5] Overseas communication mode

(1) Function

The Super G3 (V.34) mode is susceptible to influence of line. It is better to use the G3 (V.17) mode for communication in specific line conditions. This function is provided to support this status.

(2) Memory retransmission

In case of memory transmission the retransmission is performed in the following conditions.

1 When a communication error occurred in communication in the

Super G3 mode due to page 1 MCF reception failure.

2 When a communication error occurred in communication in the

Super G3 mode after reception of page 1 MCF. 3 When a communication error occurred in retransmission. 4 When a communication error occurred in sequential system commu-

nication.

The retransmission of this communication is performed after setting Super G3 to OFF (in V.17 mode). The retransmission of this communication is performed without setting Super G3 to OFF (in V.34 mode). Retransmission is performed again according to 1 and 2 above. Retransmission is performed according to 1 and 2 above for each station.

No. Conditions Operation

↓

(4)-2 Canceling method (this setting is not canceled while one of the following operations is not performed)

After setting operation (pressing the SPACE key) press the STOP key on the WAIT screen.

After setting operation (pressing the SPACE key) hold for one minute. In case of operation 1 and 2 the display shown right will appear for 2 seconds.

Perform the communication operation (all the communication operations).

Start up again the machine (turn on power).

(4)-3 Others

The operation to set Super G3 to OFF is valid only for one communication which is per-formed

successively.

[6] Administrator mode in the personal bookfunction

In the personal book function, 30 books from 01 to 30 may be set. It is also possible to set the administrator as a special book.

(a) Setting : Same as the normal personal book, except for the book number to be specified as "00". (b) Switching to the administrator mode : Press the "PERSONAL BOOK" key and enter the "passcode of the book00" in the stand-by mode. (c) Cancellation of the administrator mode : Press the "STOP" key and enter "1" in the stand-by mode. (d) Function in the administrator mode : When the following list is output, the information of all books is read out.

1) TELEPHONE NUMBER LIST

2) RELAY GROUP LIST

3) PROGRAM/GROUP LIST

4) TIMER LIST

5) MEMORY STATUS REPORT "PERSONAL BOOK LIST" may be output in item 16 of the "MENU + 2 : LISTMODE".

FO-4400U FO-CS1

3 – 1

CHAPTER 3.

MECHANICAL DESCRIPTION

[1] Mechanical description

1. Facsimile block 1-1. Document feed block and diagram

Fig. 1

2. Document feed operation

1) As shown in Fig.1, the document set in the hopper (the front sensor is on) is fed with the let out roller and paper feed roller which rotate together with the pulse motor.

2) When a specified number of pulses are received from the document sensor after the document lead edge is sensed, scanning will be started.

3) When a specified number of pulses are received from the document sensor after the document rear edge is sensed, scanning will be ended to discharge the document to the tray.

4) If the front sensor is on (the document is set up in the hopper), the next document is supplied and fed nearly when the last document is completely read and discharged. If the front sensor is off (no document is set up in the hopper), the drive will be stopped when the document is discharged to the tray.

3. Hopper mechanism

3-1. General view

Fig. 2

The hopper is used to align documents with the document guides adjusted to the paper width.

NOTE: Adjust the document guides before and after inserting the docu-

ment.

3-2. Automatic document feed

1) The structure with secure paper feed of the transfer roller and secure separation of the separation rubber plate system is employed. The transfer roller is semicircular as to be rotated only when the paper feed roller is driven with the 2-step paper feed clutch mechanism. Moreover, the separation securely done by running the paper feed and transfer rollers more slowly than the feed roller.

2) Document separation system: Friction + speed reduction ratio + roller backlash separation system

Fig. 3

3-3. Loading the documents

1) Make sure that the documents are of suitable size and thickness, and free from creases, folds, curls, wet glue, wet ink, clips, staples and pins.

2) Place documents face down in the hopper.

• Adjust the document guides to the document width.

• Align the top edge of documents and gently place them into the

hopper. The first page under the stack will be taken up by the feed roller to get ready for transmission. NOTE: 1) Curled edge of documents, if any, must be straighten out.

2) Do not load the documents of different sizes and/or

thicknesses together.

3-4. Documents applicable for automatic feed

NOTE: Double-side coated documents and documents on facsimile re-

cording paper should be inserted manually.

Documents corresponding to a paper weight heavier than 90kg and lighter than 135kg are acceptable for manual feed.

Documents heavier than 135kg in terms of the paper weight must be duplicated on a copier to make it operative in the facsimile.

Scanner drive roller(1)

CIS unit

Scanner drive roller(2)

Scanner feed roller

Transfer roller

Document

Transfer plate

Front sensor

Separate rubber

Back guide

Document sensor

Scanner feed roller

Transfer roller

First page of document

Separate rubber

Transfer plate

Last page of document

Document

Product specifications

Indication Lower Limit Upper Limit Weight Japanese indication 45kg paper 70kg paper indication Size 4 × 6

Metric system 52g/m

80g/m

indication American indication 14 LB 20 LB

LB system indication Thickness Metric system 0.06mm 0.1mm indication indication

Inch system indication 0.0024

0.0035

" Document Document size (148mm × 128mm) ~ size Range W letter (279.4mm × 432mm)

A4 (210mm × 297mm)

Letter (216mm × 279mm) Number of Document size B6 ~ Letter/A4 size 50 sheets ADF sheets

Weight B4 size/Legal 20 sheets

W letter size 1 sheet

90 kg (104g/m2) or more

135 kg (157g/m2) or less1 sheet Paper Kind Paper of fine quality/bond paper/ quality Kent paper

FO-4400U FO-CS1

3 – 2

[2] Printer description

1. COMPONENTS LAYOUT

Fig. 1

123456 7 8

121314

1. Scanner Drive Roller 2

2. Operation Panel

3. CIS Unit

4. Scanner Drive Roller 1

5. Scanner Feed Roller

6. Transfer Roller

7. Upper Cover

8. Printer Head

9. Drum Cartridge

10. Toner Cartridge

11. Paper Empty Sensor (PE1)

12. 2nd PU Roller Unit

13. 2nd Paper Sensor lever

14. Cassette Push Up Plate

15. 2nd Option Cassette (Option : FO-CS1)

17. Received Document Tray

18. ADF Exit Tray

2. DRIVE SECTION 2-1. Overview

The main motor (M1) transmits the drive to the rollers of the printer and the 2nd paper cassette unit via each gear as shown below.

Backup Roller

Heat Roller

Drum Charge Brush

Image Transfer Roller

Sleeve Roller

PC Drum

Toner Transport Roller

Paper Take-up Roller

2nd Paper Cassette Unit (Option: FO-CS1)

2nd Paper Take-up Roller

Main Motor (M1)

Drive Transmission Gear

Paper Exit Roller (Face-up)

Paper Exit Roller (Face-down)

Fig. 2

FO-4400U FO-CS1

3 – 3

3. PRINTER ENGINE ELECTRICAL COMPONENTS LAYOUT

Fig. 3

PS3

TH1

TS1

PWB-B

PWB-A

PWB-G

PWB-D

PS1

PS5A

PS5B

SL1

HV1

PS4

PE1

Symbol Name Function PWB-A Printer PWB unit Communicates with the control PWB and controls all printer operation. PWB-B Power Supply PWB unit Converts the power voltage from AC voltage into DC voltage and supplies that to H1. PWB-D Laser Diode Drive PWB unit Detects the start point of printing via the laser diodes and SOS sensor, and illuminates the PC Drum with

(Inside of the Print Head Unit) the laser beam according to the image signals.

PWB-G Toner Empty PWB unit Toner quantity is read by the analog signal. (Use of LED)

M1 Main Motor Provides the drive source for the printer. M3 Polygon Motor A regular heptagon mirror is installed, and rotates at high speed and makes the laser scan in scanning

(Inside of the Print Head Unit) direction. M2 Cooling Fan Motor Exhausts heat from the body. H1 Heater Lamp A halogen lamp that supplies heat to the Fusing Rollers. (600 W)

HV1 High Voltage PWB unit Supplies power to the following sections:

- Drum Charge Brush: Charged voltage

- Developing Sleeve Roller: Developing bias voltage

- Developing Toner Regulation Plate: Developing blade voltage

- Developing Toner Collecting Plate: Developing Lower Seal voltage

- Image Transfer Roller: Image transfer voltage PE1 Paper Empty Sensor Detects that a sheet of paper is taken up. The signal is L when paper is detected. PS1 Paper Take-Up Sensor Detects that a sheet of paper is taken up. The signal is H when paper is detected. PS3 Paper Exit Sensor Detects when the paper is fed out. The signal is H when the paper is detected. PS4 Paper Out Sensor Paper out detection signal. The signal L when the paper is detected.

PS5A

Received Docuent Tray Sensor

The signal is L when there is a tray cover.

PS5B Paper Size Sensor Detects the size of the paper. Letter: signal H, Legal: signal L.

S2 Interlock Switch Detects the opening or closing of the Top Cover. Cuts output voltage (except 5 VDC) when the Top Cover

is open. SL1 Paper Take-Up Solenoid Transmits the drive of the Main Motor to the Paper Take-up Roller. TH1 Thermistor Detects the temperature of the Heat Roller, measures the temperature on the surface of the Heat Roller

and sends to the Heater control circuit. TS1 Thermostat Cuts power to the Heater Lamp (H1) when overheating (215ºC) is detected at the Fusing Section.

4. ELECTRICAL PARTS IDENTIFICATION

FO-4400U FO-CS1

3 – 4

5. P APER P A TH

Paper can be fed into the printer from the Multi Purpose Tray (250 sheets) or from the Manual Feed Port (1 sheet).

Installing the 2nd Paper Cassette Unit (FO-CS1) (500sheets) adds another feeding method.

The paper fed by the Paper Take-Up Roller is transported to the Image Transfer Roller, Fusing Roller and then Paper Exit Roller. After this, the paper is fed out onto the Print Tray.

6. PAPER TAKE-UP SECTION 6-1. Multi-Purpose T ray

When the Paper Take-Up Solenoid (SL1) is energized, the drive of the Main Motor (M1) is transmitted to the Paper Take-Up Roller via the Paper Take-Up Gear (one-way clutch) to turn the Paper Take-Up Roller one revolution. At the same time, the Depressing Cam turns and lifts the Paper Lifting Plate, and the first (top) sheet of paper on the tray is fed to the printer. The Fixed Separating Pad is used for the paper separation system. It prevents the second and subsequent sheets of paper from being fed together with the top sheet. The actual length of the paper is detected using the period of time through which the Paper T ake-up Sensor (PS1) remains energized (or through which the paper moves past the sensor) and it is determined whether the actual length matches the paper length specified by the controller.

Fig. 6

Print Head Unit

Exposure

Print Exit

Image Transfer

Fusing

PC Drum

Development

Drum Cartridge

Toner Cartridge

2nd Option Cassette Unit

Paper Take-up Sensor (PS1)

Paper Take-up Roller

Depressing Cam

Paper Empty Sensor (PE1)

Paper Tray

Paper Take-up Solenoid (SL1

)

Paper Take-up Gear

Drum Cartridge

Rotating Charge Brush

Paper Dust Remover

Pre-charge Film

Image Transfer Roller

PC Drum charged surface: approx. -800V

Drum Cover

Development Sleeve Roller

Laser Exposure

1. Drum Charge Brush

2. PC Drum

3. Earth

4. Drum Charge Brush Voltage

Fig. 5

7. DRUM CHARGE

The PC Drum is charged with static electricity before laser exposure. The Drum Charge Brush and the Pre-charge Film are used for the charging method. The Drum Charge Brush and Pre-charge Film charging generate little ozone in the printer. Because the charge is directly applied to the PC Drum, the PC Drum can be charged by low voltage. In addition, the charg applied to the PC Drum is stable and even. The Pre-charge Film supplies the charge to the PC Drum before being charged by the Drum Charge Brush to improve the charging efficiency. The Drum Charge Brush is turned by the drive of the Main Motor (M1) via a gear. The electric potential on the surface of the charged PC Drum is approximately-800 V.

Fig. 4

FO-4400U FO-CS1

3 – 5

Fig. 7

Fig. 8

8. LASER EXPOSURE

Laser exposure is the process of creating an invisible static charge image on the PC Drum by the laser beam emitted from the Print Head Unit. This process is controlled as follows in order to appropriately time image printing.

In the sub-scanning direction (vertical direction)

· When the printer receives the PRINT signal, the Polygon Motor and the Main Motor rotate and the paper is fed into the printer.

· The printing in the sub-scanning direction is started when the Controller PWB sends the VIDEO signal to the Print Head a certain time after the leading edge of the paper activates the Paper Sensor (TOD signal).

· The print starting position for the 2nd line is decided by delaying the VIDEO signal sending timing.

In the scanning direction (horizontal direction)

· The SOS Sensor is installed on the Laser Diode Control PWB to unify

the laser emission timing for each scan line.

SOS Sensor

Laser Diode

Polygon Motor (M3)

Charged Surface

PC Drum

Laser exposed surface: approx. -50V

Reflector Mirror

Print Head Unit

PWB-D

9. DEVELOPMENT

9-1. Overview

T oner is applied to the invisible static image on the PC Drum and a toner image (developed image) is created on the drum surface.

VBL

VSS

Toner Cartridge

1 2

Developing Lower Seal Voltage terminal (VSS)

Developing Voltage terminal (VB)

Developing Blade Voltage terminal (VBL)

VSS: DC-300V (DC-400 V max.) VB: DC-300V (DC-400 V max.)

VBL: DC-550V (DC-700 V max.)

No. Part Name Function

1 Toner Hopper Contains toner. 2 Toner Agitating Screw Agitates the toner in the Toner Hopper and sends the toner to the Toner Transport Roller. 3 T oner Transport Roller Transports the toner to the Sleeve Roller. 4 Sleeve Roller Turns the Resin Sleeve. 5 Resin Sleeve Carries the toner to the PC Drum surface for development. 6 PC Drum Exposed to laser to create an invisible image and rotates to carry the developed image to the paper surface. 7 Toner Blade Spreads a thin, even coat of toner over the Resin Sleeve. The toner is negatively charged when passing

between this Blade and the Resin Sleeve.

8 Bias Seal Separates toner, which has not been attracted to the PC Drum, from the Resin Sleeve and returns it back to

the Buffer Section.

FO-4400U FO-CS1

3 – 6

Fig. 9

Fig. 10

10. IMAGE TRANSFER 10-1. Overview

· Image transfer is the process of transferring the toner image created on the PC Drum in the developing process to paper.

· Roller image transfer is used instead of corona image transfer as the image transfer method.

· In roller image transfer, there is little generation of ozone due to corona discharge. Also, there is no blur of toner because the paper is always pressed by the PC Drum and the Image Transfer Roller.

· When cleaning the Image Transfer Roller and before printing, reverse bias is applied.

· The residual electric potential on the paper is dissipated via a discharge needle.

PC Drum

Paper

Image Transfer Roller

PC Drum

Paper

Image Transfer Roller

Image Transfer

Bias

Reverse Bias

Discharge Needle

11. FUSING

11-1. Overview

· The toner image transferred onto the paper is securely fixed to the

paper.

· A heat roller system is used as the fusing system. The toner image is fused by the Heat Roller heated by the Heater Lamp (H1), and securely fixed by the pressure between the Heat Roller and Backup Roller.

Paper Separator

Thermostat (TS1)

Thermistor (TH1)

Heater Lamp (H1)

Heat Roller

Paper

Backup Roller

Fusing Entrance Guide

11-2. Fusing Temperature Control Circuit

· The Thermistor (TH1) detects the surface temperature of the Heat Roller and inputs that analog voltage into IC4-78. Corresponding to this data, the Heater Lamp (H1) ON/OFF signal is output from IC4-55, causing the Heater Lamp (H1) to turn ON or OFF to control the fusing temperature.

· When the Heater Lamp (H1) is not turned OFF even if the Thermistor (TH1) detects a high temperature malfunction (if the surface temperature of the Heat Roller exceeds 230°C), the signal from IC4-79 changes from L to H to turn OFF the Heater Lamp (H1) forcibly.

1 2

CN2

TH1

1 2

CN2

TS1

DC5V

IC4

3 2

Q103

GND

DC5V

IC3

79 55

CMPOUT P01

CMPIN/AN8/P63

GND

H1: ON H1: OFF

L H

L L

1 2 3

CN7

4 5

1 2 3 4 5

CN1

6 7

+24VMAIN

GND(MG) GND(DG) GND(DG)

HEATER ON

+5VSUB

+5VMAIN

N.C.

HEAT_N

HEAT_L

Heater Lamp

Thermostat

Thermistor

Printer PWB (PWB-A)

Power Supply PWB

HEATER-RELAY OFF

Fig. 11

(At 600 dpi) The printer is initialized upon power supply. The Heater Lamp then turns on and the printer starts warming up. The temperature is controlled as follows. Mode 1: The temperature is controlled to maintain 125°C during standby

and 210°C during printing. If this mode continues for 300 seconds, the control will shift to mode 2.

Mode 2: The temperature of the Heat Roller falls gradually to about 190°C

from about 210°C. If this mode continues for 208 seconds, the control will shift to mode 3.

Mode 3: The temperature is controlled to maintain 125°C during standby

and 190°C during printing. Unless an error occurs or the control is opened, this mode is maintained.

Fig. 12

125°C

190°C

210°C

Temperature (°C)

Warming-up

Mode 1: 300sec

Mode 2: 208sec Mode 3

Standby

Printing (600 dpi)

155°C

160°C

Printing

(1200 dpi)

Thermistor detecting temperature

Temperature immediately after temperature control start

The state before

Less than 50°C

50°C or more, 125°C or more,

discontinuation of

less than 125°C

temperature control Mode 1, warming-up

Mode 1

Mode 2, 3 Mode 1 Mode 2 Mode 3 or Power OFF

FO-4400U FO-CS1

3 – 7

12. PRINT SEQUENCE

Printing is carried out following communication between the engine and controller that determines the timing to be used. A general outline of the printing sequence is described below.

Fig. 13

Prepares for printing

- Print head

- Feeds a sheet of paper, etc.

Sends the vertical direction synchronizing signal when the Paper Take-Up Sensor is ON.

Sends the main-scanning direction synchronizing signal.

Prints out video data for one scan.

Printing is completed.

Initiates the printing command.

Receives the vertical direction synchronizing signal.

Receives the mainscanning direction synchronizing signal.

Sends video data for one scan.

Has one page been completed?

YES

/VIDEO

/HSYNC

/TOD

/PRINT

EngineController

FO-4400U FO-CS1

3 – 8

13. Timing chart 13-1. Print Starting

13-2. Print Ending

Fig. 14

Fig. 15

OFF

DC Charge

AC Charge

DC Charge

Charge

OFF

Printing Command

(/PRINT)

Polygon Motor(M3)

Paper Take-Up Sensor (PS1)

Drum Charge

Exposure (output)

Development (output)

Image Transfer (output)

Main Motor (M1)

Paper Take-Up Solenoid (SL1)

OFF

OFF OFF

OFF

ON ON

Polygon Motor (M3)

Main Motor (M1)

Drum Charge (output)

Exposure (output)

Development (output)

Image Transfer (output)

Paper Exit Sensor (PS3)

DC Charge

AC Charge

OFF

Charge

FO-4400U FO-CS1

3 – 9

[3] Disassembly and assembly procedures

• This chapter mainly describes the disassembly procedures. For the assembly procedures, reverse the disassembly procedures.

• Easy and simple disassembly/assembly procedures of some parts and units are omitted. For disassembly and assembly of such parts and units,

refer to the Parts List.

• The numbers in the illustration, the parts list and the flowchart in a same section are common to each other.

• To assure reliability of the product, the disassembly and the assembly procedures should be performed carefully and deliberately.

Fig. 1

Front cabinet

Parts list (Fig. 1)

2 3 4

HOOK

1 Main unit 1 2 Screw (3×10) 2 3 Screw (3×10) 1 4 Front cabinet 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 10

Parts list (Fig. 2)

Fig. 2

2 Rear cabinet

2 3 4 5

HOOK

1 Main unit 1 2 Screw (3×10) 1 3 ROM cover 1 4 Screw (3×10) 6 5 Rear cabinet 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 11

Fig. 3

Parts list (Fig. 3)

PWB plate, Right cabinet

2 3 4 5

LIU PWB

Printer

PWB

Control

PWB

HOOK

1 Main unit 1 2 Screw (3×6) 6 3 PWB plate 1 4 Screw (3×10) 2 5 Right cabinet 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 12

Parts list (Fig. 4)

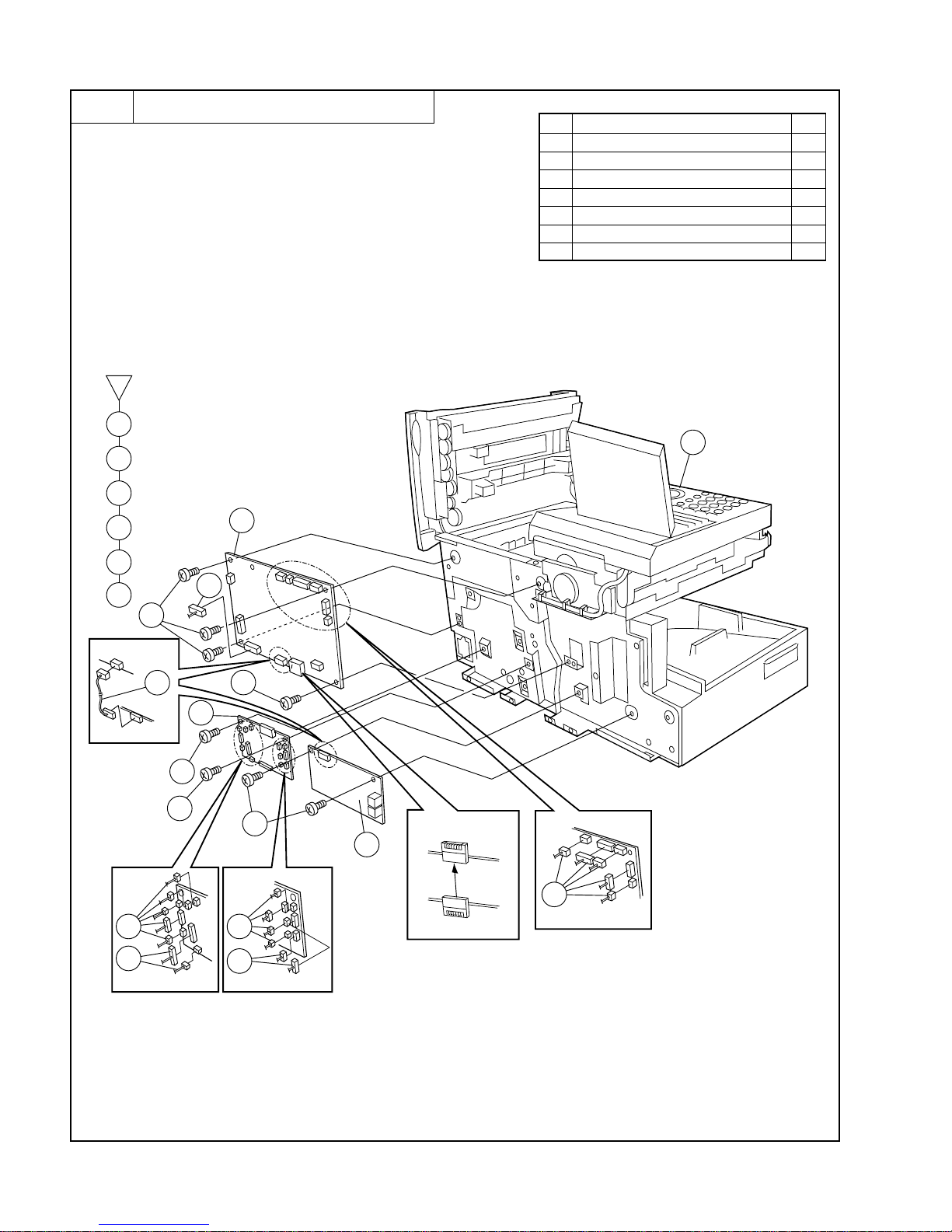

Fig. 4

3 4 5 6

Printer PWB

Printer PWBPrinter PWB

Control PWB

LIU PWB

4 4

4 PWB unit

No. Part name Q’ty

1 Main unit 1 2 Screw (3×6) 7 3 Screw (3×10) 1 4 Connector 20 5 LIU PWB unit 1 6 Control PWB unit 1 7 Printer PWB unit 1

FO-4400U FO-CS1

3 – 13

Parts list (Fig. 5)

Fig. 5

5 Operation panel unit, Upper cover unit

2 3

5 6

1 Main unit 1 2 Screw (3×10) 1 3 Screw (3×6) 6 4 Operation panel unit 1 5 Screw (3×8) 1 6 Upper cover unit 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 14

Fig. 6

Front left frame, Paper feed tray

Parts list (Fig. 6)

2 3 4 5 6 7 8 9

14 15

10 11 12 13

17 18 19

Hook

Insert the Boss to center of hole.

11 Screw (3×6) 1 12 Paper feed tray unit 1 13 Screw (3×10) 1 14

Tray width guide, front

1 15 Screw (3×10) 1 16

Tray width guide, rear

1 17 Connector 2 18 Sensor 2 19 Paper feed tray 1

1 Main unit 1 2 Screw (3×6) 5 3 Screw (3×10) 2 4 Screw (3×6) 1 5 Front left frame 1 6 Screw (3×10) 2 7

Speaker holder plate spring

1 8 Speaker ass’y1 9 Inner front cabinet 1

10 Screw (3×10) 2

No. Part name Q’ty No. Part name Q’ty

FO-4400U FO-CS1

3 – 15

Fig. 7

7 Rear left frame, Bottom left frame

Parts list (Fig. 7)

Fig. 8

Inner left cabinet unit

Parts list (Fig. 8)

2 3 4 5

1 Main unit 1 2 Screw (3×8) 4 3 Inner left cabinet unit 1

No. Part name Q’ty

2 3

1 Main unit 1 2 Screw (3×6) 7 3 Rear left frame 1 4 Screw (3×6) 1 5 Bottom left frame 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 16

Fig. 9

9 Power supply PWB

Parts list (Fig. 9)

2 3 4

5 6 7 8

1 Main unit 1 2 Screw (3×6) 4 3 Connector 4 4

Power supply PWB unit

1 5 Screw (3×6) 3 6 Screw (4×6) 1 7 Power supply PWB plate 1 8 Power supply PWB 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 17

Parts list (Fig. 10)

Fig. 10

Scanner frame unit (1/2)

1 Scanner frame unit 1 2 Screw (3×8) 1 3 Operation panel unit 1 4 Screw (3×10) 5 5 Screw (3×10) 2 6

Document guide upper

1 7 Stopper 1 8 Left upper cabinet 1

No. Part name Q’ty

2 3 4 5 6 7 8

FO-4400U FO-CS1

3 – 18

Fig. 11

Scanner frame unit (2/2)

Parts list (Fig. 11)

1 Scanner frame unit 1 2 Transfer bearing 2 3 Feed gear (49z) 2 4 DR bearing 2 5 Scanner drive roller 2 1 6 Scanner drive roller 1 1 7 Scanner bearing 1 2 8 Feed gear (73z) 1 9 Bearing 1

10 Scanner feed shaft 1 1

11 Scanner feed clutch 1 12 Scanner feed roller 1 13 E type ring (5mm) 1 14 ADF feed gear 1

15 Scanner feed shaft 2 1 16 Screw (3×10) 1 17 Stopper spring 1 18 Transfer idler gear 1 19 Screw (3×10) 3 20 Drive unit 1 21 Transfer roller 1 22 ADF transfer gear 1 23 CIS unit 1 24 CIS cable 1 25 Core 1 26 CIS spring 2 27 Screw (3×6) 1 28 FD1 earth spring 1

29 Screw (3×6) 1 30 Screw (3×10) 1 31 SD2 earth spring 1 32 Verification stamp (FO-45VS) 1 33 Document sensor switch 1 34 Transfer sensor switch 1 35 Front sensor switch 1 36 Document sensor cable 1 37 Pinch roller spring 2 38 PO pinch roller 2 39 Screw (3×10) 2 40 Scanner support plate 1 41 Paper earth brush 1 42 Screw (3×10) 2 43 Anti curl piece 2

No. Part name Q’ty No. Part name Q’ty No. Part name Q’ty

Red

Yellow

White

2 3 4 5 6 7 8

9 10 11

13 14 15

27 28 29

31 32

18 21 22

171620

42 43

FO-4400U FO-CS1

3 – 19

Fig. 12

Document guide upper unit, Operation panel unit

Parts list (Fig. 12)

2 3 4 5

6 7 8

9 10 11 12

13 14 15 16 17

18 19 20 21 22

25 26 27

23 24

30 31

33 34 35 36 37 38 39 40

Rib

36 37

Long

Short

No. Part name Q’ty No. Part name Q’ty No. Part name Q’ty

1 Operation panel unit 1 2 Screw (3×10) 3 3 Document guide upper unit 1 4 Release lever 1 5 Release lever spring 1 6 Screw (3×10) 2 7 Document upper plate 1 8 Brush earth spring 1 9 Separate spring 1

10 Pinch roller spring 2 4

11 Pinch roller shaft 2 12 Pinch roller 4 13 Separate plate 1

14 Separate gum 1 15 Separate sheet 1 16 Transfer plate piece 1 17 Input pressure spring 1 18 Back sheet 1 19 Paper brush 1 20 Back guide 1 21 Back bracket 1 22 Document guide upper 1 23 Screw (3x10) 1 24 LCD support plate 1 25 Flat cable 2 26 LCD panel unit 1

27 Screw (2×8) 9 28 Switch cover plate 1 29 Panel cable 1 30 Operation panel PWB unit 1 31 Contrast key 1 32 Resolution key 1 33 Direct key 1 34 10 key 1 35 Start key 1 36 Menu key 1 37 Copy key 1 38 Stop key 1 39 Page plate 1 40 Operation panel case 1

FO-4400U FO-CS1

3 – 20

Fig. 13

13 Upper cover

Parts list (Fig. 13)

5 6 7

9 10 11

16 17 18 19 20 21

12 13 14 15

1 2

3 4

20 19 18

23 24

13 Upper cover gear 1

plate spring

Drum cartridge press spring

Paper exit guide, under

Paper exit guide, upper

1 17 Pinch roller ass’y2 18 Screw (3×8) 1 19 Pinion gear 1 20 Hopper spring 1 21

Upper cover lock button

1 22 Hopper guide, left 1 23 Hopper guide, right 1 24 Upper cover 1

1 Screw (3×10) 5 2 Screw (3×8) 2 3

Upper cover lock spring

Upper cover lock nail

Drum cartridge detect

lever spring

Drum cartridge detect lever

1 7 Shutter lever 1 8 Idler gear (32z) 5 9 Upper cover roller 1

10 Idler gear 2 (17Z) 1

11 Idler gear 1 (50Z) 1

Upper cover gear plate

No. Part name Q’ty No. Part name Q’ty

FO-4400U FO-CS1

3 – 21

Wire treatment

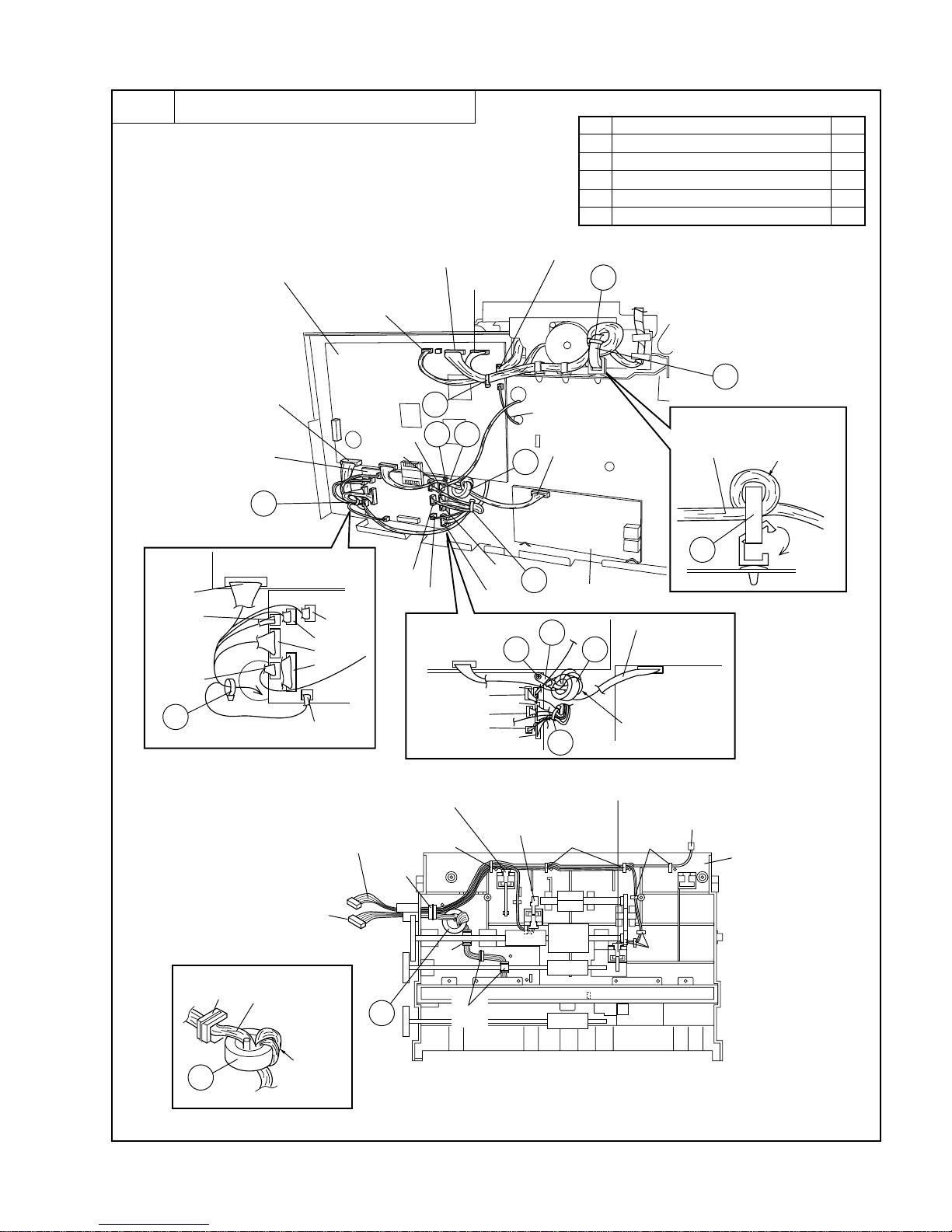

Fig. 14

Parts list (Fig. 14)

Rib

CN4

CN10 CN7

CN8

CN15

CN5

CN9

CN12 CN14

CN3

CN13

CN2

CNPW

CN6

Printer PWB

Control PWB

5 4

2 times

3 times

Panel cable

Motor cable

CIS cable

CNPW

Sensor cable

Control PWB

Printer PWB

Printer

PWB

Speaker cable

LIU PWB

LIU

cable

LIU cable

CN15

CN12

CN14

CN3 CN9

CN5

2 times

CIS cable

Rib

Scanner frame

Front sensor cable: Red

CIS cable

Not used

Rib

Document sensor

cable:White Transfer sensor cable:Yellow

Rib

1 Band (100mm) 4 2 Core (F2125) 1 3 Core (F2124) 2 4 Band 1 5 Screw (3x10) 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 22

High voltage

PWB(HV1)

CN1

CN3

Cooling Fan

Motor

Fig. 15

High voltage PWB unit (HV1)

1. Remove the Cooling Fan Motor.(2 screws)

2. Remove the 2 covers. (9 screws)

3. Remove the 2 connectors.

4. Remove the High Voltage PWB.(2 screws)

1. Remove the Paper Take-up Sensor (PS1). (1 connector)

FO-4400U FO-CS1

3 – 23

Main motor (M1)

Fig. 16

1. Remove the gear plate.(4 screws)

2. Remove 2 gears.

3. Remove the left side plate. (4 screws and 1 connector)

5. Remove the cartridge positioning plate. (Tabs at 4 places)

6. Remove the Main Motor Unit (M1). (4 screws)

FO-4400U FO-CS1

3 – 24

Fig. 18

1. Place the printer with its backside down.

2. Unhook the spring and remove the right-hand side of the Paper Take-up Roller shaft from its bushing.

3. Remove the Paper Take-up Roller.

Paper take-up roller

(a)

(b)

(c)

Fig. 17

Print head unit (PH)

Paper empty sensor (PE1)

1. Unplug the connector from the Main Motor Unit and remove the harness from the cord holder.

2. Unplug the connectors from the cord holder.

3. Remove the Print Head Unit (PH). (6 screws)

Fig. 19

1. Remove the sensor fixing bracket and remove the Paper Empty Sensor. (1 connector)

FO-4400U FO-CS1

3 – 25

Fusing unit (1/2)

Fig. 20

1. Remove the Fusing unit. (3 screws, 3 connectors)

NOTE:

• The Fusing Unit is to be replaced as a unit at about every

50,000 printed pages.

*: Use the following procedure when a part comprising the Fusing Unit

is to be replaced individually to correct an image problem or the defective part.

2. Remove the sensor fixing bracket and the Paper Exit Sensor (PS3).

3. Remove the Heater Lamp holding cover. (1 screw and 1 spring)

4. Remove the 2 mounting screws.

5. Pressing the right and left tabs (at 2 places), separate the upper half of the Fusing Unit from the lower half.

(a)

(b)

(c)

Bushing

Backup Roller

Fusing

Entrance

Guide

6. Remove the bushings and the Backup Roller.

7. Remove the Fusing Entrance Guide.

(a) Push the Fusing Entrance Guide to the left. (b) Pull out the right end of the Fusing Entrance Guide. (c) Pull out the left end of the Fusing Entrance Guide.

FO-4400U FO-CS1

3 – 26

Fig. 21

Fusing unit (2/2)

Heater Lamp

Voltage Mark

8. Remove the lamp holder. (2 screws)

9. Pull out the Heater Lamp (H1).

NOTE:

• Use care not to touch the lamp surface with bare hands.

• Position the voltage mark on the gear side when rein-

stalling the lamp.

(a)

(b)

(c)

Harness

Fig. A Backside of

Fusing Unit

Thermostat (TS1)

Thermistor (TH1)

10. Remove the drive gear from the Heat Roller.

11. Slide the Heat Roller to the right (a), swing out the left end (b), and then slide the roller in the direction of (c) and pull it out.

NOTE:

• To prevent the surface of the Heat Roller from being

scratched by the Fusing Separators, lift the separators when removing and reinstalling the roller. Use utmost care not to damage the surface of the roller.

12. Remove the Fusing Paper Separators. (At 4 places)

13. Remove the Thermistor (TH1). (1 screw)

NOTE:

• Route the harness as shown in Fig. A when reinstalling

the Thermistor (TH1).

14. Remove the Thermostat (TS1). (2 screws)

FO-4400U FO-CS1

3 – 27

Fig. 22

Paper cassette (FO-CS1)

Parts list (Fig. 22)

1 2

3 4

1 Paper cassette ass’y1 2 Screw (3×10) 3 3 Screw (3×10) 4 4 Screw (3×6) 1 5 Screw (3×12) 1 6 Bottom plate 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 28

Cassette case unit, Option cassette PWB unit (FO-CS1)

Fig. 23

1 2

3 4

5 6

Hook

Parts list (Fig. 23)

1 Cassette cabinet unit 1 2 Cassette case unit 1 3 Paper sensor lever 1 4 Sensor guide plate 1 5 Connector 4 6 Screw (3×10) 2 7 Cassette PWB unit 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 29

Drive system unit (FO-CS1)

Fig. 24

1 2

3 4 5 6 7

8 9

Hook

15 16

11 12 13

Parts list (Fig. 24)

1 Cassette cabinet unit 1 2 Screw (3×8) 1 3 Screw (3×10) 1 4 Screw (3×10) 1 5 Front support bracket 1 6 Screw (3×10) 3 7 Clutch spring 1 8 Paper feed clutch gear 1

9 PU roller bearing 1 10 PU roller unit/Cassette up roller shaft 1 11 Drive roller 1 12 Drive roller bearing 1 13 Drive system unit 1 14 Cassette size sensor 1 15 Screw (3x8) 2 16 Paper size sensor 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 30

Cassette cabinet (FO-CS1)

Fig. 25

1 2

3 4 6 7 8

9 10 11 12 13 14

Parts list (Fig. 25)

1 Cassette cabinet unit 1 2 Screw (3×10) 2 3 Cassette paper guide 1 4 Idler gear 1 5 Earth spring 1 6 Lever joint 1 1 7 Pinch roller 2 8 Pinch roller shaft 1

9 Pinch roller spring 2 10 Release lever spring 1 11 Lever joint 2 1 12 Release lever/Gear plate 1 13 Release shaft 1 14 Cassette cabinet 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 31

Cassette case (1/2) (FO-CS1)

Fig. 26

4 4

15 17

11 11

2 3 4 5

6 7 8

11 12 13 14

15 16 17

Parts list (Fig. 26)

1 Cassette case unit 1 2 Screw (3×10) 2 3 Cassette push up plate holder 2 4 Screw (3×10) 2 5 Cassette back guide plate 1 6 Cassette back guide 1 7 Cassette push up plate 1 8 Cassette push up plate spring 2

9 Screw (Special) 2 10 Slide roller 2 11 Screw (3x10) 2 12 Lock down spring 2 1 13 Lock down piece 2 1 14 Lock down holder 1 15 Screw (3x8) 1 16 Lock down spring 1 17 Lock down piece 1 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 32

Cassette case (2/2) (FO-CS1)

Fig. 27

2 3 4 5

Parts list (Fig. 27)

1 Cassette case unit 1 2 Screw (3×10) 4 3 Cassette width guide/separate nail, front 1 4 Screw (3×10) 4 5 Cassette width guide/separate nail, rear 1

No. Part name Q’ty

FO-4400U FO-CS1

3 – 33

[4] How to install the verification stamp (FO-45VS)

1. Open the operation panel unit.

2. Remove the screw (A1) x 1 pc. and open the operation panel more widely.

3. Remove the screws (B1) x 5 pcs., to remove

document guide under.

4. Remove CIS unit

Carefully bend 2 hooks and remove CIS cable.

5. Install the verification stamp (FO-45VS) with the

screw (B2) x 1pc.

Operation panel unit

Document guide stopper

Screw (A1) x 1

Open

Hook

Scanner frame unit

Stamp cable to Control PWB

Document guide under

Screw (B1) x 5

Screw (B2) x 1

CIS cable

CIS unit

FO-45VS

FO-4400U FO-CS1

3 – 34

6. Wire treatment Stamp cable must be passed through six ribs as shown in fig.1. Connect the stamp cable to CNSTP (2 pin) of control PWB

Stamp cable to Control PWB (CNSTP) 2pin

Rib

Sensor cable

Scanner frame unit

Front sensor cable: Red

CIS cable

Not used

Rib

Document sensor cable:White

Transfer sensor cable:Yellow

Rib

Stamp (FO-45VS)

On account of the length of the stamp cable to the control PWB, it is wired at shortest.

7. Soft switch setting When you install the verification stamp (FO-45VS), set the soft SW 27. No. 3 initial setting to "1".

8. Replacing the verification stamp

Remove the original document OUT tray.

Fig. 1

Stamp (Ink cartridge) only (20 pieces) Parts code : UINK-2009SC01

Press down on the protruding tab of the green ink cartridge

and pull the cartridge out with your fingers.

Insert the new ink cartridge into the machine (make sure that

the tab is facing out).

Replace the original document OUT tray.

FO-4400U FO-CS1

4 – 1

CHAPTER 4. DIAGRAMS

[1] Block diagram

Lithium Battery

+5V/+24V

Power supply Unit

SH7706(SH-3) SCIF RS-232C

Driver

external 33MHz

Only for Firmware Download from PC

Program Memory

(No Production)

Operation Panel Unit

LCD Module

Entry Data Memory

20 x 2Line

NOR Flash 4MB

New ASIC-1 Panel PWB

Working Memory

("COSMOS")

Tact SW

SDRAM

• MMR CODEC<1ch>

8MB • JBIG CODEC <2ch>

• SDRAM Controller

Backup Memory

8 • Image Processor

Page Memory

Scanner

SRAM 32KB

: up to 400dpi/B4

SDRAM 8MB 8.3"/30ppm

Option (FO-8MK)

based on LC821033

A4 CIS

Memory PWB Image Memory

8 • Run length Converter

203dpi(8pixel/mm)

Image Memory

NAND Flash 8MB

• Panel Controller

NAND Flash

8 • Motor Controller Scan Mechanism

8MB

• CPU I/F, Mapper (Stepping Motor)

• GPIO port

serial

RTC(Backup)

• Print Data Processor SM8578BV

LIU PWB MODEM(Line1) 8 • ECC Code Generator

HSYNC,TOD etc

Printer PWB

MINOLTA NC-L601/16ppm

Line-1 FM336Plus

(PCU Output)

(MINOLTA CPU

: 406 x 391dpi

New ASIC-2

("SPIDER")

• RTC I/F

SCI & PCU-input

• SCI ch0(for PCU)

• SCI ch1(for PCL)

• Video I/F Switch

• GPIO

• DPO Bus Switch

(Arbitrator)

•

Buzzer Clock Generator

Main CPU

133MHz

SANYO IP CORE

USER LOGIC

Control PWB

board)

FO-4400U FO-CS1

[2] Wiring diagram

4 – 2

MEMORY PWB

VERIFICATION

STAMP

CIS

UNIT

COOLING

FAN

MOTOR

TS1

THERMOSTAT

H1 HEATER

LAMP

S2 INTERLOCK

SWITCH

CNPRT1

CNOP1

CNTXM1

CNCIS1

CNSP1

CNPW1

CNPN1

CNSTP1

CNSEN1

CONTROL PWB

TH1

THERMISTOR

PWB-D

LASER DIODE

DRIVE PWB

SL1 PAPER

TAKE-UP

SOLENOID

M2 POLYGON

MOTOR UNIT

PS1

PAPER TAKE-UP

SENSOR

PS3

PAPER EXIT

SENSOR

PS5A RECEIVED

DOCUMENT

TRAY SENSOR

HV1 HIGH

VOLTAGE PWB

UNIT

PWB-G

TONER EMPTY

SENSOR

PRINTER PWB

PE1

PAPER EMPTY

SENSOR

TEL LINE

LIU PWB

CNLIU1

POWER SUPPLY PWB

410

TRANSFER

SENSOR

FRONT

SENSOR

DOCUMENT

SENSOR

CN1

CN7

CN14

CN2

CN10

CN15

CN4

CN6

CN13

CN11

CN12

CN3

CN8

CN5

CN9

LED

PWB

COG(LCD) 20x2 Characters

CNCOGA

JOINT PWB

CNCOGB

CNLEDACNCOG

OPERATION PANEL PWB

CNPNA

TX MOTOR

PS4

PAPER OUT

SENSOR

OPTION

FO-45VS

SPEAKER

CN5

CN1

CN2

CN3

CNAC

MAIN

MOTOR

PS5B

PAPER

SIZE SENSOR

PH PRINT HEAD UNIT

2ND PAPER

CASSETTE

PWB

OPTION

FO-CS1

OPTION

FO-8MK

CNOP

CNLEDB

OPERATION

PANEL

UNIT

REWRITING

VERSION UP

FLASH ROM

CNRS1

LCD

PANEL

UNIT

FO-4400U FO-CS1

[3] Point- to-point diagram and connector signal name (1)

4 – 3

CNSTP1

VSTP

/STPON

VSTP

/STPON

CNSP1

SP+

SP–

SP+

SP–

CNSEN1

/FRTS

/ORGS

/B4FRS

ROLSNS

/FRTS

/ORGS

/B4FRS

ROLSNS

CNCIS1

SIG

GND

VDD

GND

CLK

GLED

VLED

SIG

GND

VDD

GND

CLK

GLED

VLED

CNTXM1

TMA

/TMA

TMB

/TMB

TMA

/TMA

TMB

/TMB

LIU PWB

CNLIUCNLIU1

RXIN

TXOUT

/EXHS

DPON

CML

+5V

+24VA

RXIN

TXOUT

EXHS

DPON

CML

+5V

+24VA

OPERATION

PANEL

PWB

CNPN1

CNPNA

GND

PLTSW

LEDEN1

SEN7

LD5

SEN6

LD4

SEN5

LD3

SEN4

LD2

SEN3

LD1

SEN2

LD0

SEN1

LEDEN2

SEN0

TH1

+5V

TH2(GND)

/BKLON

GND

LD7

LD6

GND

PLTSW

LEDEN1

SEN7

LD5

SEN6

LD4

SEN5

LD3

SEN4

LD2

SEN3

LD1

SEN2

LD0

SEN1

LEDEN2

SEN0

TH1

+5V

TH2(GND)

/BKLON

GND

LD7

LD6

COG

(LCD)

CN6

+24V

GND

/MOTOR REM

/MOTOR LOCK

N.C.

MOTOR LOW

MAIN

MOTOR

COOLING

FAN MOTOR

CN13

GND(DG)

/FAN REM

FAN LOCK

/FAN CNT

POWER

SUPPLY

PWB

PRINTER

CONTROL

PWB

CN10

/PS1

GND(DG)

CN14

+5V

TONER LEVEL

/TONERLED REM

GND(DG)

PWB-G

TONER

EMPTY

SENSOR

PS1

PAPER TAKE-UP

SENSOR

PS5A RECEIVED

DOCUMENT

TRAY SENSOR

PS5B

PAPER SIZE SENSOR

CN7

CN1

+24V MAIN

GND(MG)

GND(DG)

+5V MAIN

/FUSER LAMP

/FUSER RL

+24V MAIN

GND(MG)

GND(DG)

+5V MAIN

HEATER ON

HEATER-RELAY OFF

CN1

POLYGON

MOTOR

CN9

+24V

GND(MG)

/POLYGON.M.REM

/POLYGON.M.LCCK

/POLYGON.M.CLK

PWB-D

LASER DIODE

DRIVE PWB

CN5

/SOS

+5V

LD POWER LOW

/LD EN

/SH,N

GND(DG)

/L DATA

+5V

/SOS

+5V

LD POWER LOW

/LD EN

/SH,N

GND(DG)

/L DATA

+5V

HV1

HIGH VOLTAGE

PWB UNIT

CN4

CN1

+5V

CH LREM

T VR

T MON V

T MON I

B VR

C REM

C MON

GND(MG)

+24V

+5V

CH LREM

T VR

T MON V

T MON I

B VR

C REM

C MON

GND(MG)

+24V

SL1

PAPER TAKE-UP SOLENOID

2ND

PAPER

CASSETTE

PWB

CN11

+24V

/FEED2

/FEED3

+5V

GND(DG)

2ND/3RD SIZE

2ND/3RD SET

/UNIT

2ND/3RD EMP

CHECK2

/2ND,3RD

/M3 ON

M3 CLK

CHECK0

CHECK1

+24V

/FEED2

/FEED3

+5V

GND(DG)

2ND/3RD SIZE

2ND/3RD SET

/UNIT

2ND/3RD EMP

CHECK2

/2ND,3RD

/M3 ON

M3 CLK

CHECK0

CHECK1

CN3

+24V

/FEED1

PS3

PAPER EXIT SENSOR

CN8

PS3 AN

GND(DG)

PS3

PS4

PAPER OUT SENSOR

CN12

/PS4

GND(DG)

P EMP1 AN

GND(DG)

/P EMP1

CN2

CN3

TS1

THERMOSTAT

HEATER N

N.C.

HEATER L

H1 HEATER LAMP

TH1

THERMISTER

+5V

THERMISTER

+5V

CN2

INTERLOCK SWITCH

+24V SUB

+24V MAIN

CN5 CNPW1

GND(DG)

/RESET

GND(DG)

/HSYNC

/EPRDY

/PRRDY

/TOD

/ETBSY

/STS

/CMD

/CTBSY

/PRINT

/SRCLK

GND(DG)

/VIDEO

+5V

GND(DG)

+5V

GND(DG)

+5V

/CPRDY

+5V

/TEST

GND(DG)

/RESET

GND(DG)

/HSYNC

/EPRDY

/PRRDY

/TOD

/ETBSY

/STS

/CMD

/CTBSY

/PRINT

/SRCLK

GND(DG)

/VIDEO

+5V

GND(DG)

+5V

GND(DG)

+5V

/CPRDY

+5V

/TEST

CNPRT1

CNAC

AC-L

AC-N

CORD

CN15

TRAY OPEN

GND(DG)

MP SIZE

+24V SUB

+24V MAIN

+5V SUB

+5V MAIN

+24V SUB

+24V MAIN

+5V SUB

+5V MAIN

DOCUMENT

SENSOR

FRONT

SENSOR

B4 FRONT

SENSOR (N.M.)

TRANSFER

SENSOR

CIS

UNIT

SPEAKER

TX MOTOR

VERIFICATION

STAMP

OPTION

FO-45VS

CONTROL PWB

(1/2)

PE1

PAPER EMPTY SENSOR

OPTION

FO-CS1

PRINT HEAD

UNIT

FO-4400U FO-CS1

Point- to-point diagram and connector signal name (2)

4 – 4

CNRS1

DTR

GND

DTR

GND

REWRITING

VERSION UP

FLASH ROM

CNOP

CLEO

ALEO

/WP1

+3.3V

/NANDWR

+3.3V

/OPCS

+3.3V

/BUSYOP

R/W

/NANDRD

/DEN

OPD7

OPD6

OPD5

OPD4

OPD3

OPD2

OPD1

OPD0

MEMDTC0

MEMDTC1

CLEO

ALEO

/WP1

+3.3V

/NANDWR

+3.3V

/OPCS

+3.3V

/BUSYOP

R/W

/NANDRD

/DEN

OPD7

OPD6

OPD5

OPD4

OPD3

OPD2

OPD1

OPD0

MEMDTC0

MEMDTC1

CNOP1

CONTROL PWB

(2/2)

MEMORY

PWB

OPTION

FO-8MK

FO-4400U FO-CS1

5 – 1

2. Description of each block (1) Main control block

This block consists of 32 bit RISC microcomputer HD6417706F133 (main component), flash ROM, 64 Mbit SDRAM, Main ASIC, Sub ASIC, etc. Each device is controlled either by the microcomputer directly or via Main ASIC.

1) HD6417706F133 (IC24): pin-176, QFP (main CPU)

This is a microcomputer with a core of 32 bit RISC (Reduced Instructions Set Computer) CPU, which periphery functions are integrated into. This device is equipped with the following function. The clock inputs

33.1776 MHz from outside and operates at 4-times frequency (approx. 133 MHz) internally.

Feature

· Original Hitachi SuperH architecture

· Object code level compatible with SH-1, SH-2 and SH-3

· 32-bit RISC-type instruction set — Instruction length: 16-bit fixed length — Improved code efficiency — Load-store architecture — Delayed branch instructions — Instruction set oriented for C language

· Five-stage pipeline

· Instruction execution time: one instruction/cycle for basic instructions

· General-register: Sixteen 32-bit general registers

· Control-register: Eight 32-bit control registers

· System-register: Four 32-bit system registers

· 32-bit internal data bus

· Logical address space: 4 Gbytes

· Space indentifier ASID: 8 bits, 256 logical address space

· Abundant Peripheral Functions — Memory Management Unit (MMU)

— User Break Controller (UBC) — Bus state Controller (BSC) — Direct Memory Access Controller (DMAC) — Clock Pulse Generator (CPG) — Watchdog Timer (WDT) — Timer Unit (TMU) — Realtime Clock (RTC) — Serial Communication Interface (SCI) — Smartcard Interface — Serial Communication Interface with FIFO (SCIF) — 10-bitits A/D converter (ADC) — 8-bitit D/A converter (DAC) — Hitachi User Debugging Interface (H-UDI) — Advanced User Debugger (AUD)

2) LH28F320BFHE-PBTLZA (IC12): pin-48, TSOP (32 Mbit FLASH MEMORY)

This is a flash memory writing program and is also used for the registration data, such as telephone directory. 32 Mbit area is divided into 2 for every 16 Mbit; the lower-order and higher-order address sides are used for the program and for the registration data, respectively.

3) W986416DH or MT48LC4M16A2TG (IC25): pin-54, TSOP (64 Mbit SDRAM)

The program stored in the flash memory (IC12) mentioned in the above item 2) is downloaded to this SDRAM and used as a program execution memory. It is also used as various work memories and communication buffers. The devices manufactured by 2 enterprises are acknowledged. (Former model No.: manufactured by WINBOND, later model No.: manufactured by MICRON)

CHAPTER 5. CIRCUIT DESCRIPTION

[1] Circuit description

1. General description

In this machine, the facsimile control block except the printer control is mainly composed of the units shown in Fig. 1.

2. PWB configuration

Fig. 1

1) Control PWB

The control PWB controls all the other operations except the printing operation of the printer.

2) CIS unit

CIS UNIT converts the image of the sending or copying draft into the photoelectric signals and transmits the signals to the control PWB.

3) LIU PWB

The LIU PWB controls the I/F telephone function of the circuit with the control signals from the control PWB.

4) Operation panel PWB

The operation panel PWB detects the key input, turns on and off LED and displays LCD according to the control signals from the control PWB.

5) Power supply PWB

DC voltages (+5V, +24V) are produced from AC120V, and are supplied to the printer unit and control PWB unit.

[2] Circuit description of control PWB

1. General description

The control PWB is composed of the following blocks. (1) Main control block (2) Backup memory block (3) Modem block (4) Scanner control block (5) Speaker amplifier (6) Page memory block (7) Drive block

AC CORD

OPERATION PANEL

PWB

CONTROL PWB

LIU PWB

LINE

CIS

UNIT

POWER SUPPLY PWB

PRINTER

PWB

PRINTER

UNIT

FO-4400U FO-CS1

5 – 2

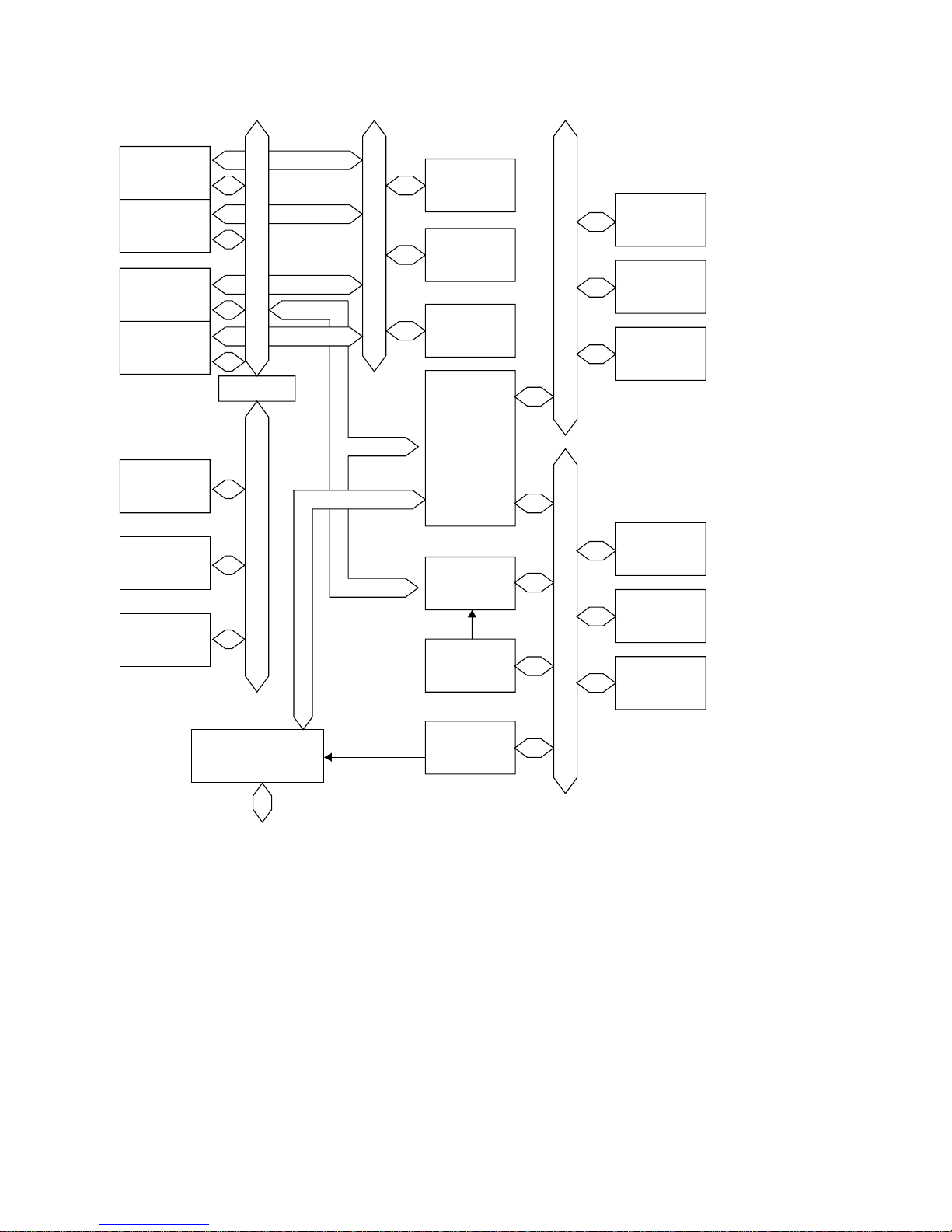

Fig. 2 HD6417706F133 BLOCK DIAGRAM

MMU

CPU

SCI

TMU

RTC

SCIF

ADC

DAC

UBC

AUD

BSC

DMAC

CMT

I/O PORT

EXTERNAL BUS

INTERFACE

Legend: ADC: AUD: BSC: CACHE: CCN: CMT: CPG/WDT: CPU: DAC:

A/D converter Advanced user debugger Bus state controller Cache memory Cache memory controller Compare match timer Clock pulse generator/watchdog timer Central processing unit D/A converter

DMAC: H-UDI: INTC: MMU: RTC: SCI: SCIF: TLB: TMU: UBC:

Direct memory access controller Hitachi user-debugging interface Interrupt controller Memory management unit Realtime clock Serial communication interface (with smart card interface) Serial communication interface (with FIFO) Address translation buffer Timer unit User break controller

TLB

CCN

L BUS

PERIPHERAL BUS 1PERIPHERAL BUS 2

CACHE

H-UDI

INTC

CPG/WDT

BRIDGE

I BUS 1I BUS 2

FO-4400U FO-CS1

5 – 3

PIN I/O Name Function

1 — Vcc-RTC*

RTC power supply (1.9 V) 2 O XTAL2 On-chip RTC crystal oscillator pin 3 I EXTAL2 On-chip RTC crystal oscillator pin 4 — Vss-RTC*

RTC power supply (0 V) 5 I/O D31/PTB[7] Data bus/input/output port B 6 I/O D30/PTB[6] Data bus/input/output port B 7 I/O D29/PTB[5] Data bus/input/output port B 8 I/O D28/PTB[4] Data bus/input/output port B 9 I/O D27/PTB[3] Data bus/input/output port B

10 I/O D26/PTB[2] Data bus/input/output port B

11 — VssQ Input/output power supply (0 V) 12 I/O D25/PTB[1] Data bus/input/output port B 13 — VccQ Input/output power supply (3.3 V) 14 I/O D24/PTB[0] Data bus/input/output port B 15 I/O D23/PTA[7] Data bus/input/output port A 16 I/O D22/PTA[6] Data bus/input/output port A 17 I/O D21/PTA[5] Data bus/input/output port A 18 I/O D20/PTA[4] Data bus/input/output port A 19 — Vss

Internal power supply (0 V) 20 I/O D19/PTA[3] Data bus/input/output port A 21 — Vcc Internal power supply (1.9 V) 22 I/O D18/PTA[2] Data bus/input/output port A 23 I/O D17/PTA[1] Data bus/input/output port A 24 I/O D16/PTA[0] Data bus/input/output port A 25 — VssQ Input/output power supply (0 V) 26 I/O D15

Data bus 27 — VccQ Input/output power supply (3.3 V) 28 I/O D14

Data bus 29 I/O D13

Data bus 30 I/O D12

Data bus 31 I/O D11

Data bus 32 I/O D10

Data bus 33 I/O D9

Data bus 34 I/O D8

Data bus 35 I/O D7

Data bus 36 I/O D6

Data bus 37 — VssQ Input/output power supply (0 V) 38 I/O D5

Data bus 39 — VccQ Input/output power supply (3.3 V) 40 I/O D4

Data bus 41 I/O D3

Data bus 42 I/O D2

Data bus 43 I/O D1

Data bus 44 I/O D0

Data bus 45 O A0 Address bus 46 O A1 Address bus 47 O A2 Address bus 48 O A3 Address bus 49 — VssQ Input/output power supply (0 V) 50 O A4 Address bus 51 — VccQ Input/output power supply (3.3 V)

HD6417706F133 (IC24) Terminal description (1/2)

PIN I/O Name Function

52 O A5 Address bus 53 O A6 Address bus 54 O A7 Address bus 55 O A8 Address bus 56 O A9 Address bus 57 O A10 Address bus 58 O A11 Address bus 59 O A12 Address bus 60 O A13 Address bus 61 — VssQ Input/output power supply (0 V) 62 O A14 Address bus 63 — VccQ Input/output power supply (3.3 V) 64 O A15 Address bus 65 O A16 Address bus 66 O A17 Address bus 67 O A18 Address bus 68 O A19 Address bus 69 O A20 Address bus 70 O A21 Address bus 71 — Vss Internal power supply (0 V) 72 O A22 Address bus 73 — Vcc Internal power supply (1.9 V) 74 O A23 Address bus 75 O A24 Address bus 76 O A25 Address bus 77 O/ I/O BS-/PTC[0]

Bus cycle start signal/ input/output port C 78 O RD- Read strobe 79 O WE-/DQMLL-

D7-D0 select signal/ DQM (SDRAM) 80 O

WE1-/DQMLU-/WE-

D15-D8 select signal/DQM (SDRAM)/write strobe (PCMCIA) 81

O/O/O/I/O

WE2-/DQMUL-/ICIORD/PTC[1]

D23-D16 select signal/DQM (SDRAM)/PCMCIA

input/output read/ input/output port C 82

O/O/O/I/O

WE2-/DQMUU-/ICIOWR/PTC[2]

D31-D24 select signal/DQM (SDRAM)/PCMCIA

input/output write/ input/output port C 83 O RD/WR- Read/write 84 — VssQ Input/output power supply (0 V) 85 O CS0- Chip select 86 — VccQ Input/output power supply (3.3 V) 87 O /I/O CS2-/PTC[3]

Chip select 2/input/output port C 88 O /I/O CS3-/PTC[4]

Chip select 3/input/output port C 89 O /I/O CS4-/PTC[5]

Chip select 4/input/output port C 90 O/O/I/O

CS5-/CE1A/PTC[6]

Chip select 5/CE1 (area 5 PCMCIA)/input/output port C 91 O/O/I/O

CS6-/CE1B/PTC[7]

Chip select 6/CE1 (area 6 PCMCIA)/input/output port C 92 O/ I/O CE2A-/PTD[6]

Area 5 PCMCIA CE2/ input/output port D 93 — VssQ Input/output power supply (0 V) 94 O/ I/O CE2B-/PTD[7]

Area 6 PCMCIA CE2/ input/output port D 95 — VccQ Input/output power supply (3.3 V) 96 O/ I/O RASL-/PTD[0]

Lower 32 Mbytes address RAS(SDRAM)/input output port D 97 O/ I/O RASU-/PTD[1]

Upper 32 Mbytes address RAS(SDRAM)/input output port D 98 O/ I/O CASL-/PTD[2]

Lower 32 Mbytes address CAS(SDRAM)/input output port D 99 O/ I/O CASU-/PTD[3]

Upper 32 Mbytes address CAS(SDRAM)/input output port D

100 O/ I/O CKE/PTD[4]

CK enable(SDRAM)/input/output port D

FO-4400U FO-CS1

5 – 4

PIN I/O Name Function 101 I/I/O IOIS16-/PTD[5] IOIS16(PCMCIA)/input port D 102 O BACK- Bus acknowledge 103 I BREQ- Bus request 104 i WAIT- Hardware wait request 105 O/I/O DACK0/PTE[0]

DMA acknowledge 0/input/output port E

106 O/I/O DACK1/PTE[1]

DMA acknowledge 1/input/output port E

107 O/I/O DRAK0/PTE[2]

DMA request acknowledge/input/output port E

108 O/I/O DRAK1/PTE[3]

DMA request acknowledge/input/output port E 109 I/O AUDATA[0]/PTF[0] AUD data/ input/output port F 110 I/O AUDATA[1]/PTF[1] AUD data/ input/output port F 111 I/O AUDATA[2]/PTF[2] AUD data/ input/output port F 112 I/O AUDATA[3]/PTF[3] AUD data/ input/output port F 113 O/I/O AUDSYNC-/PTF[4]

AUD synchronous/ input/output

port F 114 I TDI/PTG[0] Data input(H-UDI)/input port G 115 — Vss Internal power supply (0 V) 116 I TCK/PTG[1] Clock(H-UDI)/input port G 117 — Vcc Internal power supply (1.9 V) 118 I TMS/PTG[2] Mode select(H-UDI)/input port G 119 I TRST-/PTG[3] Reset(H-UDI)/input port G 120 O/I/O TDO/PTF[5]

Data output(H-UDI)/input/output port F

121 O/I/O

ASEBRKAK-/PTF[6]

ASE break acknowledge(H-UDI)/input/output port F

122 I ASEMD0-*

ASE mode(H-UDI)

123 — Vcc-PLL1*

PLL1 power supply (1.9 V) 124 — CAP1 PLL1 external capacitance pin 125 — Vss-PLL1*

PLL1 power supply (0 V) 126 — Vss-PLL2*

PLL2 power supply (0 V) 127 — CAP2 PLL2 external capacitance pin 128 — Vcc-PLL2*

PLL2 power supply (1.9 V) 129 I MD1

Clock mode setting 130 — Vss

Internal power supply (0 V) 131 O XTAL

Clock oscillator pin 132 I EXTAL

External clock/crystal oscillator pin 133 O/I/O STATUS0/PTE[4]

Processor status/input/output port E 134 O/I/O STATUS1/PTE[5]

Processor status/input/output port E 135 I/O TCLK/PTE[6]

TMU or RTC clock input/output/input/output port E 136 O/I/O IRQOUT-/PTE[7]

Interrupt request notification/output/input/output port E 137 — VssQ Input/output power supply (0 V) 138 I/O CKIO

System clock input/output

HD6417706F133 (IC24) Terminal description (2/2)

PIN I/O Name Function 139 — VccQ Input/output power supply (3.3 V) 140 O TxD0/SCPT[0]

SCI transmit data 0/SC port

141 I/O SCK0/SCPT[1]

SCI clock 0/SC port

142 O TxD2/SCPT[2]

SCIF transmit data 2/SC port

143 I/O SCK2/SCP[3]

SCIF clock 2/SC port

144 O/I/O RTS2-/SCPT[4]

SCIF transmit request 2/SC port 145 I RxD0/SCPT[0] SCI receive data 0/SC port 146 I RxD2/SCPT[2] SCIF receive data 2/SC port 147 I

CTS2-/IRQ5/SCPT[5]

SCIF transmit clear/external interruption request/SC port 148 — Vss Internal power supply (0 V) 149 I RESETM- Manual reset request 150 — Vcc Internal power supply (1.9 V) 151 I/I/I/O IRQ0/IRL0-/PTH[0]

External interrupt request/input/output port H 152 I/I/I/O IRQ1/IRL1-/PTH[1]

External interrupt request/input/output port H 153 I/I/I/O IRQ2/IRL2-/PTH[2]

External interrupt request/input/output port H 154 I/I/I/O IRQ3/IRL3-/PTH[3]

External interrupt request/input/output port H 155 I/I/O IRQ4/PTH[4]

External interrupt request/input/output port H 156 — VssQ Input/output power supply (0 V) 157 I NMI Nonmaskable interrupt request 158 — VccQ Input/output power supply (3.3 V) 159 I AUDCK/PTG[4] AUD clock/input port G 160 I/I/O DREQ0-/PTH[5] DMA request/input/output port H 161 I/I/O DREQ1-/PTH[6] DMA request/input/output port H 162 I ADTRG-/PTG[5] Analog trigger/input port G 163 I MD0 Clock mode setting 164 I MD2 Clock mode setting 165 I RESETP- Power-on reset request 166 I CA

Chip activate/hardware standby

request 167 I MD3 Area 0 bus width setting 168 I MD4 Area 0 bus width setting 169 I MD5 Endian setting 170 — AVss Analog power supply (0 V) 171 I AN[0]/PTJ[0] A/D converter input/input port J 172 I AN[1]/PTJ[1] A/D converter input/input port J 173 I/O/I

AN2[2]/DA[1]/PTJ[2]

A/D converter input/ D/A converter output/ input port J

174 I/O/I

AN3[3]/DA[0]/PTJ[3]

A/D converter input/ D/A converter output/ input port J 175 — AVcc Analog power supply (3.3 V) 176 — AVss Analog power supply (0 V)

Notes: *1 Must be connected to the power supply even when the RTC is not used.

*2 Must be connected to the power supply even when the on-chip PLL circuits are not used.(EXcept in hardware standby mode.) *3 Must be high level when the user system is used independently without using the emulator or H-UDI.

1. Except in hardware standby mode, all Vcc/Vss pins must be connected to the system power supply. (Supply power constantly.) In hardware standby mode, power must be supplied at least to Vcc-RTC and Vss-RTC. If power is not supplied to Vcc and Vss pins other than Vcc-RTC and Vss-RTC, hold the CA pin low.

2. A1, A2, A3, A7, A12, B1, C4, C7, D1, D2, D4, D7, D14, D15, E1, E2, E3, E4, F14, F17, G17, H14, H15, K14, P14, R10, T13, T15, T16, U11, U15, and U16 must be connected to Vss.

FO-4400U FO-CS1

5 – 5

Fig. 3 LC272D0BT-WA6 BLOCK DIAGRAM

4) LC272D0BT-WA6 (IC6): pin-216, QFP (MAIN ASIC)

The device is the embed-array, which has the following functions.

CPU interface

The block has the following functions. That is, mapping executed in memory areas CS0 and CS4, that are generated by main CPU (SH-3), and then wait control and access control to the peripheral devices.

NOR type flash memory interface

The block has control the protections to each block of a NOR flash memory. The NOR flash memory is used as two provided blocks; programming memory block and the entry and history data block.

NAND type flash memory interface

The block has the following functions. That is, access control to flash memory (standard setting memory and optional setting memory), and generates ECC code at accessing NAND flash memory.

DMA request control

The block has the following functions. That is, generate the two internal DMA requests; read request from FIFO buffer for encodes and write request from FIFO buffer for decodes. And set each request to the DMA request channels, ch0 and ch1 by setting register.

Interrupt request control

The block has the following functions. That is, encode interrupt request signal code by each generated interrupt priority level. And then at the each interrupt, set priority level, mask and clear interrupt factor.

CIS control and image processing

The block has the following functions. That is control the CIS and A/ D converts the scanning image data from analogue to digital, and executes the converted image data processing.

Print image processing and output printing data

The block has the following functions. That is, converts the image data for printing into 400dpi, and applies smoothing processing. And then, output the printing data, according to /HSYNC signal from PCU.

CODEC

The block has the following functions. The One, the encoding from the image data (bit map data) in the page memory to the code data (MMR/MH) in the system memory. The other, the decoding from the code data (MMR/MH) in system memory to the image data (bit map data) in the page memory.

Page memory (SDRAM) interface

SDRAM is used as Page memory. The block has the controller of SDRAM and the arbiter of the accesses to SDRAM.

Scanner motor control

The block has the following function. That is, controls the PWM current control type stepping motor driver that uses a bipolar drive scheme.

Panel/LCD control

The block has I/O port for key sense and LCD control.

CLOCK DIVIDER BLOCK

CPU INTERFACE

DMA REQUEST

CONTROL BLOCK

RUN-LENGTH DECODE

FIFO(CH0)BLOCK

RUN-LENGTH DECODE

FIFO(CH0)BLOCK

RUN-LENGTH DECODE

FIFO(CH1)BLOCK

RUN-LENGTH ENCODE

FIFO(CH1)BLOCK

JBIG CODEC

(CH1)

JBIG CODEC

(CH0)

SCANNER MOTOR

CONTROL BLOCK

PANEL/LCD

CONTROL BLOCK

BUS INTERFACE

(BUS OR CIRCUIT)

INTERRUPT REQUEST

CONTROL BLOCK

PRINTING DATA

PROCESSING BLOCK

MMR/MH FIFO

BLOCK

AT DECODE MODE

MMR/MH FIFO

BLOCK

AT ENCODE MODE

MMR/MH CODEC

PRINTING IMAGE

DATA PROCESSING

BLOCK

S/P CONVERSION

& FIFO BLOCK

SCANNING IMAGE

DATA PROCESSING

BLOCK(INCLUDE ADC)

REQ

ARBITER

SDRAM

CONTROLLER

DREQ IREQ

FO-4400U FO-CS1

5 – 6

LC272D0BT-WA6 (IC6) Terminal description (1/2)

PIN I/O Name Function PIN I/O Name Function

1 VSS Ground 55 P VSS Ground 2 B D7 Data bus 56 O XNICACK Acknowledge signal for NIC 3 B D6 Data bus 57 I XNICINT Interrupt request from NIC board 4 B D5 Data bus 58 O XNICCS Chip select (NIC Board) 5 B D4 Data bus 59 O XJBG1 Reserved 6 B D3 Data bus 60 O XJBG0 Reserved 7 B D2 Data bus 61 B MAD0 Data bus of page memory 8 B D1 Data bus 62 B MAD1 Data bus of page memory

9 B D0 Data bus 63 P VDD Power supply 10 I 64 P VSS Ground 11 I XCS4 65 B MAD2 Data bus of page memory 12 O DMA acknowledge (Ch0) 66 B MAD3 Data bus of page memory 13 O XDACK1 DMA acknowledge (Ch1) 67 B MAD4 Data bus of page memory 14 O XDRAK0 DMA request acknowledge (Ch0) 68 B MAD5 Data bus of page memory 15 O XDRAK1 DMA request acknowledge (Ch1) 69 B MAD6 Data bus of page memory 16 I XDREQ0 70 B MAD7 Data bus of page memory 17 I XDREQ1 71 B MAD8 Data bus of page memory 18 P VDD Power supply

VDD Power supply 19 P VSS Ground 73 P VSS Ground 20 O XFLCS Chip select (Flash memory) 74 B MAD9 Data bus of page memory 21 I XFLSHINTA Interrupt request of flash memory 75 B MAD10 Data bus of page memory 22 I XFLSHINTB Interrupt request of flash memory 76 B MAD11 Data bus of page memory 23 O XINT0 Interrupt request signal 77 B MAD12 Data bus of page memory 24 O XINT1 Interrupt request signal 78 B MAD13 Data bus of page memory 25 O XINT2 Interrupt request signal 79 B MAD14 Data bus of page memory 26 O XINT3 Interrupt request signal 80 B MAD15 Data bus of page memory 27 O XPGMCS 81 P VDD Power supply 28 O XWROUT 82 P VSS Ground 29 O XRDOUT 83 O SDCLK Clock of page memory 30 O XWAIT Wait request signal 84 O DQMUL Data mask of page memory 31 I XBUSYDP Busy signal of Dual port RAM 85 CKE CK enable of page memory 32 I XMDMINT1 86 O CASB CAS of page memory 33 I XMDMINT0 87 O RASB RAS of page memory 34 O XMDMCS1

Chip select (Modem Chip 1)

88 DWEB Write strobe of page memory 35 O XMDMCS0 Chip select (Modem Chip 0) 89 XCSDRM0 Chip select of page memory 36 P VDD Power supply 90 VDD Power supply 37 P VSS Ground 91 P VSS Ground 38 I XINPRT 92 MA0 Address bus of page memory 39 O XOUTPRT Print block clock out 93 O MA1 Address bus of page memory 40 P VSS Ground 94 O MA2 Address bus of page memory 41 I TODB Top of data 95 O MA3 Address bus of page memory 42 I HSYNC Synchronous signal of horizontal anxious 96 MA4 Address bu s of page memory 43 O PDATA Print data 97 O MA5 Address bus of page memory 44 I XJBGINT1 Reserved 98 MA6 Address bus of page memory 45 I XJBGINT0 Reserved 99 VDD Power supply 46 I XSGAINT Interrupt request from modem chip 0 100 P VSS Ground 47 I XSBGA Chip select (Sub Gate array) 101 O MA7 Address bus of page memory 48 I JBGDREQ00 Reserved 102 O MA8 Address bus of page memory 49 I JBGDREQ01 Reserved 103 O MA9 Address bus of page memory 50 I JBGDREQ10 Reserved 104 O MA10 Address bus of page memory 51 I JBGDREQ11 Reserved 105 O MA11 Address bus of page memory 52 O XJBGACK1 Reserved 106 O MA12 Address bus of page memory 53 O XJBGACK0 Reserved 107 O MA13 Address bus of page memory 54 P VDD Power supply 108 P VDD Power supply

Chip select (Erea 0) Chip select (Erea 4)

DMA request (Ch0)

Chip select (Program memory) Write strobe signal

Read strobe signal

Interrupt request from modem chip 1 Interrupt request from modem chip 0

Print block clock in

DMA request (Ch1)

XCS0

XDACK0

O O

O P

FO-4400U FO-CS1

5 – 7

LC272D0BT-WA6 (IC6) Terminal description (2/2)

PIN I/O Name Function PIN I/O Name Function

109 P VSS Ground 163 P VSS Ground 110 I TEST0 Test pin 0 164 O TXAI1 Current control 1 (Phase A) 111 I TEST1 Test pin 1 165 O TXAI0 Current contorl 0 (Phase A) 112 I XINSC Image block Clock in 166 O CRNT0 Current change signal 0 113 O XOUTSC 167 O CRNT1 Current change signal 1 114 P VSS Ground 168 O XLBE Low byte(D7-D0) enable signal 115 O TOUT Test pin 169 I XRESET System Reset Signal 116 O LININT Monitor for line interval signal 170 O XMANRES Manual Reset Signal 117 O SAMP Monitor for sampling point 171 O XNANDOPCS Chip select (Optional memory) 118 O Line shift clock (CIS) 172 O XNANDSTDCS Chip select (Standard memory) 119 O CLK1 Transfor clock (CIS) 173 O XNANDRD Read signal (Nand flash) 120 P AVDD Power supply (Analogue) 174 O XNANDWR Write signal (Nand flash) 121 P AVSS Analogue Ground 175 O XWP0 122 I ADREFL 176 O XWP1 123 I TEMP 177 O ALEO Address latch enable (Flash memory) 124 I AVO Video signal for scanning 178 O CLEO Command latch enable (Flash memory) 125 O ATAPH 179 I SHCK CPU Outer bus Clock 126 P AVDD Power supply (Analogue) 180 P VDD Power supply 127 P AVSS Analogue Ground 181 P VSS Ground 128 P VDD Power supply 182 I RXW Read/Write signal 129 P VSS Ground 183 I XBS Bus cycle start signal 130 O PLTSW Plate SW detect 184 I A25 Address bus bit25 131 O BKLON Back light on/off control 185 I A24 Address bus bit24 132 I SEN7 Key sense signal 186 I A23 Address bus bit23 133 I SEN6 Key sense signal 187 I A22 Address bus bit22 134 I SEN5 Key sense signal 188 I A21 Address bus bit21 135 I SEN4 Key sense signal 189 I A20 Address bus bit20 136 I SEN3 Key sense signal 190 I A13 Address bus bit13 137

EN2 Key sense signal 191

12 Address bus bit12 138 I SEN1 Key sense signal 192 I A11 Address bus bit11 139 I SEN0 Key sense signal 193 I A10 Address bus bit10 140 B LD15 LED 194 I A9 Address bus bit9 141 B LD14 LED 195 I A8 Address bus bit8 142 B LD13 LCD drive signal 196 I A7 Address bus bit7 143 B LD12 LCD drive signal 197 I A6 Address bus bit6 144 P VDD Power supply 198 P VDD Power supply 145 P VSS Ground 199 P VSS Ground 146 B LD11 Reserved 200 I A5 Address bus bit5 147 B LD10 Reserved 201 I A4 Address bus bit4 148 B LD9 Reserved 202 I A3 Address bus bit3 149 B LD8 Reserved 203 I A2 Address bus bit2 150 B LD7 LCD drive 204 I A1 Address bus bit1 151 B LD6 LCD drive 205 I A0 Address bus bit0 152 B LD5 LED/LCD drive 206 B XWE0 D7-D0 select signal 153 B LD4 LED/LCD drive 207 B XOPDEN Bus buffer enable control 154 B LD3 Key matrix select/LED/LCD drive 208 B D15 Data bus bit15 155 B LD2 Key matrix select/LED/LCD drive 209 B D14 Data bus bit14 156 B LD1 Key matrix select/LED/LCD drive 210 B D13 Data bus bit13 157 B LD0 Key matrix select/LED/LCD drive 211 B D12 Data bus bit12 158 O TXB Current direction (Phase B) 212 B D11 Data bus bit11 159 O TXBI1 Current control 1 (Phase B) 213 B D10 Data bus bit10 160 O TXBI0 Current control 0 (Phase B) 214 B D9 Data bus bit9 161 O TXA Current direction (Phase A) 215 B D8 Data bus bit8 162 P VDD Power supply 216 P VDD Power supply

Image block Clock out

Low reference voltage (ADC) Temperature detect

High reference voltage (ADC)

Write protect (Standard) Write protect (Optional)

FO-4400U FO-CS1

5 – 8

5) LC24199B-WJ0-E (IC21): pin-216, QFP (SUB ASIC)

The device is the gate-array, which has the following functions.

PCU (Print Control Unit) interface

The block has the serial communication to PCU, and using this circuitry, controls/detects PCU.

I/O port

The block has the following functions; LIU interface, Speaker control and sensor detect, which are controlled with software.

Generator of buzzer’s frequency

The block has the generated buzzer’s frequency by the software.

RTC (Real Time Clock) LSI control

Using serial communication to RTC, the device set and read the time.

Verification stamp control

The software control on/off of the verification stamp. And the control

block has hardware timer instead of the continuous stamp-on status.

Original sensor detect

The software detects the original sensor. And then the control block

has the generated interrupt circuitry by detecting the sensor signal risen/fallen.

Fig. 4 LC24199B-WJ0-E BLOCK DIAGRAM

BUS INTERFACE

(BUS OR CIRCUIT)

PCU(INCLUDE PCL) INTERFACE BLOCK

NIC BOARD INTERFACE

LIU CH0,CH1 I/F

SPEAKER CONTROL

SENSOR DETECT

GENERATED INTERRUPT

REQUEST BLOCK

RTC LSI

INTERFACE BLOCK

VERIFICATION STAMP

CONTROL BLOCK

GENERATED BUZZER'S

FREQUENCY BLOCK

ORG SENSOR

DETECT BLOCK

GPIO BLOCK

16BIT

INT

CPU

INTERFACE BLOCK

FO-4400U FO-CS1

5 – 9

LC24199B-WJ0-E (IC21) Terminal description (1/2)

PIN I/O Name Function PIN I/O Name Function

1 P VSS 55 P VSS Ground 2 Not connect 56 N.C Not connect 3 I XCI1 CI detect signal 57 B DPOPCL10 GPO bus for PCL board 4 O ERLY0 Reserved for 200V 58 B DPOPCL11 GPO bus for PCL board 5 O GAINC0 Reserved for 200V 59 B DPOPCL12 GPO bus for PCL board 6 O DPMUTE0 Reserved for 200V 60 B DPOPCL13 GPO bus for PCL board 7 O CML0 CML relay control signal 61 B DPOPCL14 GPO bus for PCL board 8 O TXMUTE0 Mute control for TX signal 62 B DPOPCL15 GPO bus for PCL board

9 O DPON0 Active choke control 63 DPAPCL0 Address bus for NIC board (PCL) 10 I XEXHS0 Hook detect signal for external telephone 64 DPAPCL1 11 I XCI0 CI detect signal 65

DPAPCL2 12 I Print data form main 66 DPAPCL3 13 O CTBSYB Controller status busy 67 DPAPCL4 14 O CPRDYB Controller power ready 68 DPAPCL5 15 I ETBSYB Engine status busy 69 DPAPCL6 16 P VDD Power supply 70 VDD Power supply 17 P VSS Ground 71 VSS Ground 18 I PRRDYB Printer ready 72 DPAPCL7 19 I EPRDYB Engine power ready 73 DPAPCL8 20 O PDATA Video data of printer 74 DPAPCL9 21 O PCURESB PCU reset signal 75 DPAPCL10 22 O PCLK Serial communication clock 76 DPAPCL11 23 I PSTS Status data from PCU 77 DPAPCL12 24 O PCMD Command data to PCU 78 DPAPCL13 25 I CTBSYPCLB Controller status busy in PCL mode 79 DPAPCL14 26 I CPRDYPCLB Controller power ready in PCL mode 80 DPAPCL15 27 O ETBSYPCLB Engine status busy in PCL mode 81 DPAPCL16 28 O PRRDYPCLB Printer ready in PCL mode 82 XCSNICP Chip select signal 29 O EPRDYPCLB Engine power ready in PCL mode 83

PONIC0 DPO bus for NIC board 30 I PDATAINPCL Video data from PCL 84 B DPONIC1 DPO bus for NIC board 31 O PCLRESB PCL reset signal 85 B DPONIC2 DPO bus for NIC board 32 O XNICACKP Acknowledge signal for NIC in PCL mode 86 B DPONIC3 33 I RXWP READ/WRITE signal from PCL 8 DPONIC4 34 P VDD Power supply 88 VDD Power supply 35 P VSS Ground 89 P VSS Ground 36 I PCLKPCL Serial communication clock in PCL mode 90 DPONIC5 37 O PSTSPCL Status data from PCU in PCL mode 91 B DPONIC6 38 I PCMDPCL Command data to PCL in PCL mode 92 B DPONIC7 39 O PACK Printing acknowledge signal 93 B DPONIC8 40 I PREQ Printing request signal 94 B DPONIC9 DPO bus for NIC board 41 B DPOPCL0 GPO bus for PCL board 95 B DPONIC10 42 B DPOPCL1 GPO bus for PCL board 96 B DPONIC11 43 B DPOPCL2 GPO bus for PCL board 97 B DPONIC12 DPO Bus for NIC Board(*2) 44 B DPOPCL3 GPO bus for PCL board 98 B DPONIC13 DPO Bus for NIC Board(*2) 45 B DPOPCL4 GPO bus for PCL board 99 B DPONIC14 DPO Bus for NIC Board(*2) 46 B DPOPCL5 GPO bus for PCL board 100 B DPONIC15 DPO Bus for NIC Board(*2) 47 B DPOPCL6 GPO bus for PCL board 101 O NICRESB Reset for NIC 48 B DPOPCL7 GPO bus for PCL board 102 O RXWNIC R/W signal for NIC 49 B DPOPCL8 GPO bus for PCL board 103 O XNICACKH XACK to HOST 50 B DPOPCL9 GPO bus for PCL board 104 O XCSNIC Chip Select Signal for NIC 51 N.C Not connect 105 N.C Not connect 52 P VDD Power supply 106 P VDD Power supply

—

I I

I I I

I P P

PDATAM

Ground

Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL)

Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL) Address bus for NIC board (PCL)

DPO bus for NIC board DPO bus for NIC board

DPO bus for NIC board DPO bus for NIC board DPO bus for NIC board DPO bus for NIC board

DPO bus for NIC board DPO bus for NIC board

N.C

FO-4400U FO-CS1

5 – 10

LC24199B-WJ0-E (IC21) Terminal description (2/2)

6) SM8578BV (IC22): pin-8, SOP (Real time clock IC)

It is oscillated with the quartz oscillator of 32.768 kHz, and the clock and calendar functions are provided. Even if the power supply of the main body is turned off, it is backed up with lithium battery (BAT1). This device executes the clock-synchronous type serial communication with the Sub ASIC, and CPU can know the time and date through the Sub ASIC.

PIN I/O Name Function PIN I/O Name Function 105 P VSS Ground 157 P VSS Ground 106 I SDDCT 158 I A3 Address bus 107 I DPANIC0 Address bus for NIC board 159 I A2 Address bus 108 I DPANIC1 Address bus for NIC board 160 I A1 Address bus 109 O DPANIC2 Address bus for NIC board 161 I A0 Address bus 110 P DPANIC3 Address bus for NIC board 162 I XWE Write strobe signal from COSMOS 111 O DPANIC4 Address bus for NIC board 163 I RXW Read/Write Signal 112 O DPANIC5 Address bus for NIC board 164 I XRD Read strobe signal from COSMOS 113 O DPANIC6 Address bus for NIC board 165 B D15 Data bus 114 O DPANIC7 Address bus for NIC board 166 B D14 Data bus 115 O DPANIC8 Address bus for NIC board 167 B D13 Data bus 116 P DPANIC9 Address bus for NIC board 168 B D12 Data bus 117 P DPANIC10 Address bus for NIC board 169 B D11 Data bus 118 I DPANIC11 Address bus for NIC board 170 B D10 Data bus 119 I DPANIC12 Address bus for NIC board 171 B D9 Data bus 120 I VDD Power supply 172 P VDD Power supply 121 O VSS Ground 173 P VSS Ground 122 N.C Not connect 174 B D8 123 P DPANIC13 Address bus for NIC board 175 B D7 124 P DPANIC14 Address bus for NIC board 176 B D6 125 P DPANIC15 Address bus for NIC board 177 B D5 126 O DPANIC16 Address bus for NIC board 178 B D4 127 O XCSNICIN 179 B D3 128 I GPIO4 PWSAVE: Powr save control for PS-unit 180 B D2 129 I GPIO5 LEDON: Light ON/OFF for LED in CIS 181 B 130 I GPIO6 VPPCN: VPP control of nor flash memory 182 B 131 I GPIO7 XWP: Write protect for nor flash memory 183 N.C Not connect 132 I XNICACK Acknowlede signal for NIC 184 O INTR 133

XROLSNS Roller position sensor 185

RESET 134 I XORGSNS Document sensor 186 I TEST Test pin 135 I XFRSNS Front sensor 187 O RTCCE Chip select (RTC) 136 B XB4FRS B4 width sensor 188 O RTCCK Serial communication clock (RTC) 137 B PLNGON Plunger contorl signal 189 B RTCDT Serial communication data (RTC) 138 B VDD Power supply 190 P VDD Power supply 139 B VSS Ground 191 P VSS Ground 140 P External bus Clock(33.3MHz) 192 O 141 P Chip select signal 193 O 142 B A16 Address bus 194 O 143 B A15 Address bus 195 O 144 B A14 Address bus 196 O 145 B A13 Address bus 197 O 146 B A12 Address bus 198 O 147 B A11 Address bus 199 O Buzzer signal 148 B A10 Address bus 200 O 149 B A9 Address bus 201 O Reserved for 200V 150 B A8 Address bus 202 O DPMUTE1 151 B A7 Address bus 203 O 152 B A6 Address bus 204 O TXMUTE1 Mute control for TX signal 153 B A5 Address bus 205 O DPON1 Active choke control 154 O A4 Address bus 206 O MONSEL Monitor select/DC character measured 155 N.C Not connect 207 N.C Not connect 156 P VDD Power supply 208 P VDD Power supply

—

SD DICT in

—

Chip select of NIC in FAX mode

SHCLK

XCS

—

CML relay control signalCML1

Reserved for 200V

ERLY1

Reserved for 200V

GAINC1

BZOUT

Speaker mute control signal

SPMUTE

Speaker volume control signal

VOLC

Speaker volume control signal

VOLB

Speaker volume control signal

VOLA

Change control of sound sourceBZCONT

Reset signal for modem chip 0

XMDMRST0

Reset signal for modem chip 1

XMDMRST1

Reset signal

Interrupt request signal

—

Data busD0

Data bus

Sharp FO 4400 - B/W Laser - All-in-One, FO-4400, FO-CS1 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
