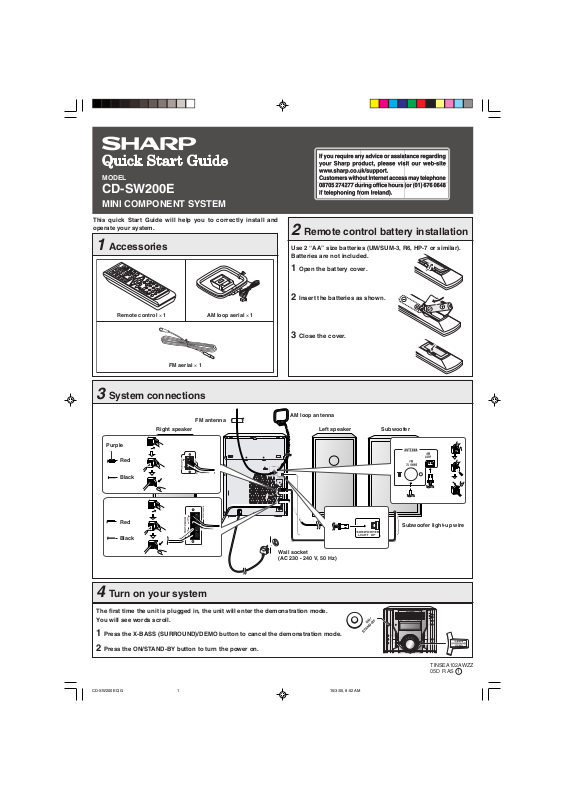

Sharp CD-SW200E User Manual

MODEL

CD-SW200E

MINI COMPONENT SYSTEM

This quick Start Guide will help you to correctly install and operate your system.

Remote control battery installation

Accessories

Remote control × 1

FM aerial × 1

System connections

Right speaker

AM loop aerial × 1

FM antenna

Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar). Batteries are not included.

1 Open the battery cover.

2 Insert the batteries as shown.

3 Close the cover.

AM loop antenna

Left speaker

Subwoofer

Purple

Red

Black

Red

Black

Wall socket (AC 230 - 240 V, 50 Hz)

Turn on your system

The first time the unit is plugged in, the unit will enter the demonstration mode.

You will see words scroll.

1 Press the X-BASS (SURROUND)/DEMO button to cancel the demonstration mode.

Subwoofer light-up wire

CD-SW200

2 Press the ON/STAND-BY button to turn the power on.

CD-SW200E QG 15/3/05, 8:52 AM1

TINSEA102AWZZ 05D R AS 1

Listening to a CD or MP3/WMA disc

CD-SW200

Listening to the radio

FM stereo mode indicator

CD-SW200

FM stereo receiving indicator

1 Press the CD button.

2 Press the 1 button and within 5 seconds, press the OPEN/CLOSE

button to open the disc tray 1.

3 Place the disc on the disc tray 1, label side up.

12 cm (5”)

8 cm (3”)

4 Press the OPEN/CLOSE button to close the disc tray 1.

5 You can place discs on trays 2 - 5 by following steps 2 - 4.

6 Press the / button to start playback.

Listening to a cassette tape

CD-SW200

1 Press the TUNER (BAND) button repeatedly to select the desired

frequency band (FM or AM).

2 Press the TUNING ( or ) button to tune in to the desired sta-

tion. When the TUNING button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

To receive an FM stereo transmission:

Press the TUNER (BAND) button to display the “ST” indicator.

“ ” will appear when an FM broadcast is in stereo.

If trouble occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1. Set the unit to the stand-by mode and turn the power on again.

2. If the unit is not restored in the previous operation, unplug and plug in the unit, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

1 Open the cassette compartment

by pushing the area marked “ ”.

2 Load a cassette into the TAPE 1 compartment or

TAPE 2 compartment with the side to be played facing towards you.

TAPE 1

TAPE 2

3 Press the TAPE (1 2) button to select the cassette you want to

listen to.

4 Press the / (TAPE ) button to start playback.

CD-SW200E QG 10/3/05, 4:03 PM2

Clearing all the memory (reset)

1. Press the ON/STAND-BY button to enter the power stand-by mode.

2. Whilst pressing down the button and the X-BASS (SURROUND)/DEMO button, press the TUNING button until "CLEAR ALL" appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programme.

Maintenance

Routine maintenance is required for continued optimum performance, refer to the operation manual.
