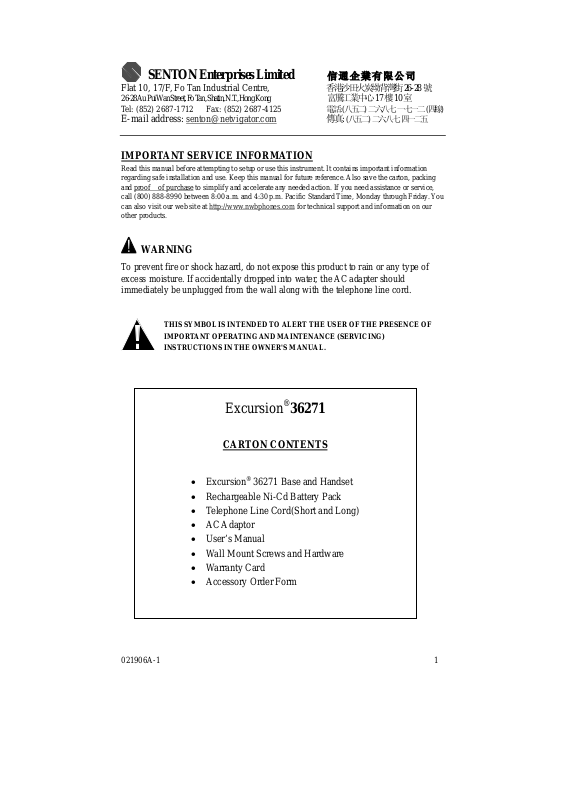

Senton 36271 Users Manual

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui W an Street, Fo Tan, Shatin, N.T ., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

IMPORTANT SERVICE INFORMATION

Read this manual before attempting to setup or use this instrument. It contains important information
regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing
and proof of purchase
call [phone] between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through Friday. You
can also visit our web site at http://www.nwbphones.com
other products.

WARNING

To prevent fire or shock hazard, do not expose this product to rain or any type of
excess moisture. If accidentally dropped into water, the AC adapter should
immediately be unplugged from the wall along with the telephone line cord.

THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE OWNER'S MANUAL.

021906A-1 1

to simplify and accelerate any needed action. If you need assistance or service,

for technical support and information on our

Excursion®36271

CARTON CONTENTS

• Excursion® 36271 Base and Handset

• Rechargeable Ni-Cd Battery Pack

• Telephone Line Cord(Short and Long)

• AC Adaptor

• User’s Manual

• Wall Mount Screws and Hardware

• Warranty Card

• Accessory Order Form

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui W an Street, Fo Tan, Shatin, N.T ., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry
tub, in a wet basement or near a swimming pool.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it
from overheating. These openings should never be blocked or covered. The openings should never
be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register. This product should not be placed in
a built-in installation unless proper ventilation is provided.

7. This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your dealer or local power
company.

8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be
abused by persons walking on it.

9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric
shock.

10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid
of any kind on the product.

11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service
contractor when some service or repair work is required. Opening or removing covers may expose
you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the
appliance is subsequently used.

12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:

A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust

only those controls that are covered by the operating instructions. Improper adjustments
of other controls may result in damage and will often require extensive work by a qualified

technician to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F . If the product exhibits a distinctive change in performance.

13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning.

14. Do not use the telephone to report a gas leak in the vicinity of the leak.

021906A-1 2

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui W an Street, Fo Tan, Shatin, N.T ., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

INSTALLATION

PRECAUTIONS

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.

3. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.

4. Use caution when installing or modifying telephone lines.

MAINTENANCE

1. Use a damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil. Never
use polish, solvents, abrasives or strong detergents since these can damage the finish.

2. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other
appliance that produces heat.

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instruction. read and follow these instructions:

1. Use only the 3.6V, 450mAh, Ni-Cd battery pack.

2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible
special disposal instructions.

3. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the

eyes or skin. It may be toxic if swallowed.

4. Exercise care in handling the battery in order not to short the battery with conducting material such
as rings, bracelets and keys. The battery or conductor may overheat and cause burns.

5. Recharge only the battery provided with or identified for use with this product. The battery may leak
corrosive electrolyte or explode if it is not the correct type.

6. Do not attempt to rejuvenate the battery provided with or identified for use with this product by
heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes
or skin.

7. When inserting the battery into this product, the proper polarity or direction must be observed.
Reverse insertion of batteries can cause charging that may result in leakage or explosion.

8. Do not store this product, or the battery provided with or identified for use with this product, in
high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of
extending shelf life should be stabilized at room temperature prior to use after cold storage.

9. Disconnect telephone lines before installing batteries

SAVE THESE INSTRUCTIONS
FCC NOTICE

The FCC requires that you be advised of certain requirements involving the use of this telephone.

1. This telephone is hearing aid compatible.

2. This equipment complies with 47 CFR Part 68 requirement. On the bottom of this equipment is a
label that contains, among other information, the ACTA registration number and Ringer Equivalence
Number (REN) for this equipment. If requested, provide this information to your telephone
company.

021906A-1 3

r

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui W an Street, Fo Tan, Shatin, N.T ., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

3. The REN is useful to determine the quantity of devices you may connect to your telephone line and
still have all of those devices ring when your number is called. In most, but not all areas, the su m of
the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you
may connect to your line, as determined by the REN, you should call your local telephone company
to determine the maximum REN for your calling area.

4. If your telephone causes harm to the telephone network, the telephone company may discontinue
your service temporarily. If possible, they will notify you in advance. But if advance notice is not
practical, you will be notified as soon as possible. You will be advised of your right to file a
complaint with the FCC.

5. Your telephone company may make changes to its facilities, equipment,

operations or procedures that could affect the proper operation of your equipment. If they do, you
will be given advance notice so as to give you an opportunity to maintain uninterrupted service.

6. If you experience trouble with the telephone, please contact VTC Service & Manufacturing Co., Inc
at [phone] or write to: VTC Customer Service, 16988 Gale Ave., City of Industry, CA 91745
for repair/warranty information. The telephone company may ask you to disconnect this equipment
from the network until the problem has been corrected or you are sure that the equipment is not
malfunctioning.

7. This equipment may not be used on coin service provided by the telephone company. Connection to
party lines is subject to state tariffs. (Contact your state public utility commission or corporation
commission for information.) .

8. USOC jack type is RJ11C and the compatible jack is part 68 compliance.

NOTICE: If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this [equipment ID] does not disable your alarm equipment. If you
have questions about what will disable alarm equipment, consult your telephone company or a
qualified installer.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and, (2) his device must accept
any interference received, including interference that may cause desired operation. Privacy of
communications may not be ensured when using this phone.

Changes or modifications not expressly approved in writing by Northwestern Bell Phones ma y
void the user's authority to operate this equipment.

Some cordless phones operate at frequencies that may cause interference to nearby TVs and VCRs;
to minimize or prevent such interference, the base of the cordless phone should not be placed nea
or on top of a TV or VCR; and, if interference is experienced, moving the cordless telephone
farther away from the TV or VCR will often reduce or eliminate the interference.

021906A-1 4

AC ADAPTOR:

Use only with Class 2 Transformer, 9VDC output ,

200mA, center pin positive.

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui W an Street, Fo Tan, Shatin, N.T ., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

Excursion® 36271 CONTROLS DIAGRAM

MSG /NEW
CALL
/IN USE
LED Indicator

TALK Button

(DOWN)

Button

OPT.(OPTION)/
SCAN Button

* /

Button

MUTE/MENU
Button

SAVE/MEMO
Button

T/P(TONE/PULSE)
Switch

msg/new call

2

.

4

opt.

scan

MUTE

e

n

G

o

H

h

p

z

s

c

o

s

r

d

l

e

talk

flash

memomenu

SAVE

EDIT RE/PA

del.

Base Unit
(Rear View)

LCD Display

CALLS Button

PAGE Button

IN USE/
CHARGER LED

calls

Indicator

# /

RE(Redial)/PA(Paus
e)/DEL.(DELETE)

EDIT/FLASH
Button

(UP) Button

Button

9VDC
200mA

TEL.

DC 9V Telephone Line
Jack Jack

In use/cha rge

GHz

2.4

021906A-1 5

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui W an Street, Fo Tan, Shatin, N.T ., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

DESCRIPTIONS

Handset Controls:
LCD Display - Shows call information, phone status, prompts and Phonebook items.

MSG LED Indicator/NEW CALL LED Indicator/ IN USE LED Indicator – (MSG LED) Red LED

blinks when you have new message(s). (NEW CALL LED Indicator) The LED Indicator will blinks
when you have new call(s). (IN USE LED Indicator) Lights solid whenever the handset is in Talk mode.
Turns off when the handset is not in use and out of the base unit.

NOTE: This LED will turn off once you have reviewed all your call records.

TALK Button - Press this button to place a call, answer a call, or end a call.

SAVE/MEMO Button – Allows you to retrieve a memory (name and phone number)for the personal

Phonebook (up to 20 memories). Saves the changes on the listed items.

* /

Button - Press to move left on the large LCD Display.
Button - Press to move right on the large LCD Display.

# /

EDIT/FLASH Button - (EDIT) Press to edit listed items. (FLASH) Momentarily hangs up the phone to

access custom calling features such as Call waiting or Three-way calling provided by you local phone
company.

(UP) or (DOWN) Button -Allows you to adjust the handset receiver volume (3 steps) in TALK

mode. It also allows you to view the caller list or /and Phone.

Microphone - Used for speaking with callers.

Headset Jack – A jack located on the side of the handset used for connecting your headset to enjoy a

hands-free communication.

RE/PA/DEL(Redial/Pause/Delete) Button – (Redial)Press to redial the last number you
dialed.(Pause)Press to insert pause while dialing. (Delete)Press and hold down to delete items.

Calls Button - Press to see the caller list.

OPT(OPTION)/SCAN Button –During you view the caller list, press to place a long distance call or to

place a local call. While in Talk mode. It is used to manually select one of the 40 operating channels when
you experience interference on the handset.

MUTE/MENU–In talk mode, this button allows you to temporarily disable the handset microphone.
While in standby mode, this button allows you to set the handset in Programming mode.

Receiver – Allows you to hear calls.

021906A-1 6

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui W an Street, Fo Tan, Shatin, N.T ., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

BASE UNIT CONTROLS:

Base Unit Charge Terminals - Used for charging handset batteries. We recommend that you clean these
contacts periodically with an alcohol-moistened cloth or cotton swab.

IN USE LED Indicator / CHARGE LED Indicator -Lights up steadily when the phone is in talk mode
and turns off when the handset is not in use. Also lights up steadily when paging the handset.
Lights up steadily when the handset is being charged on the base and turns off when the handset is
removed from its cradle.

PAGE Button - Allows you to locate the handset when it is not on the base, or to alert the person near the
handset.

TONE/PULSE Switch - A switch located on the rear of the base unit, which allows you to set the dialing
mode to either Tone dialing or Pulse(rotary) dialing.

DC 9V jack - A jack located on the rear side of the base unit used for connecting the AC adaptor to the
base unit.

LINE jack – Accepts line cord to make connection with modular type telephone outlet.

INSTALLATION

CAUTION: USE ONLY THE NICKEL CADMIUM(Ni-Cd) BATTERY TYPE INCLUDED

WITH THIS UNIT. USE OF OTHER BATTERY TYPES MAY CAUSE INJURIES OR DAMAGE.

1. Remove the battery compartment cover of the handset by pressing the top of the cover and sliding it
down.

2. Connect the Ni-Cd battery pack plug along the slot into the handset’s battery connector as shown
below.

3. Insert the Ni-Cd battery into the battery compartment.

4. Replace the battery compartment cover by sliding it up towards the handset.

NOTE: Use the type and size of Ni-Cd battery pack, 3.6V, 450mAh. It is recommended that the Ni-Cd

Handset
Battery
Compartment

Red
wire

Black
Wire

Battery
Connector

(Figure 1)

021906A-1 7

k

t

r

SENTON Enterprises Limited 信 通 企 業 有 限 公 司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號

26-28 Au Pui W an Street, Fo Tan, Shatin, N.T ., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)

E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

battery pack should be fully charged overnight prior to initial use.

Belt Clip Installation
With the back of handset facing up, insert one side of the belt clip hook into the matching slots at the top
side of handset as shown in Figure2. Slide the other hook until it locks into place from the opposite side
of the handset.

9VDC
200mA

Belt clip hoo

(Figure 2)

AC Outle

TEL.

AC Adapto

(Figure3)

POWER CONNECTION

CAUTION: You must use a Class II, 120 Volt AC/9 Volt DC adaptor that delivers at least 200mA.

The center tip must be positive and the plug must correctly fit the unit’s DC 9V jack.

1. Plug the AC adaptor into a standard AC outlet.

2. Insert the small plug inot the DC 9 jack on the rear of the base unit as shown in Figure 3.

DC 9V Jack

AC Adaptor
Plug

INITIAL SETUP

Please follow these steps before using the cordless telephone for the first time.

1. Ensure that the handset battery pack is installed and charged fully for at least 14 hours.

2. Ensure that all connections(line cord and adaptor cord) are properly inserted into rear of the base
unit.

SETTING THE TONE/PULSE MODE

Select the appropriate dialing service by moving the TONE/PULSE switch at the rear of the base unit:

· TONE for Tone service , or

· PULSE for Rotary service.

021906A-1 8
