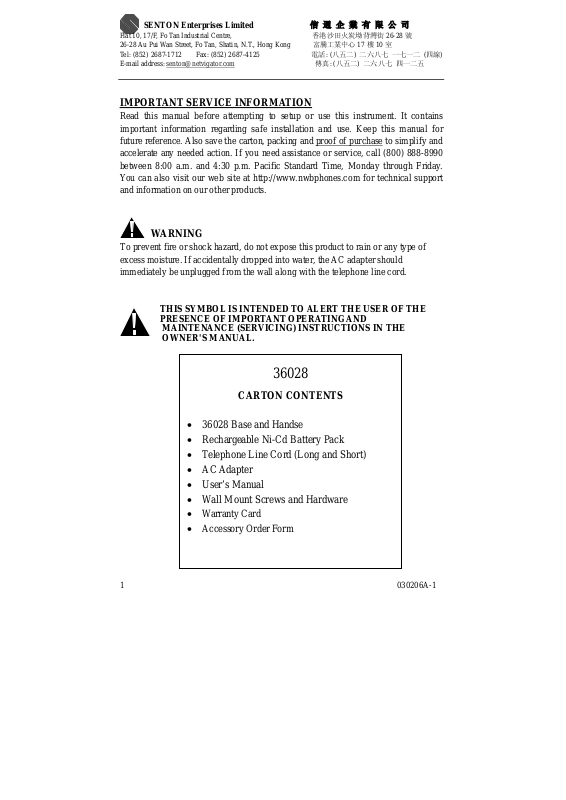

IMPORTANT SERVICE INFORMATION
Read this manual before attempting to setup or use this instrument. It contains
important information regarding safe installation and use. Keep this manual for
future reference. Also save the carton, packing and proof of purchase
accelerate any needed action. If you need assistance or service, call (800) 888-8990
between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through Friday.
You can also visit our web site at http://www.nwbphones.com for technical support
and information on our other products.
to simplify and
WARNING
To prevent fire or shock hazard, do not expose this product to rain or any type of
excess moisture. If accidentally dropped into water, the AC adapter should
immediately be unplugge d from the wall along with the telephone line cord.
THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
OWNER'S MANUAL.
• 36028 Base and Handse
• Rechargeable Ni-Cd Battery Pack
• Telephone Line Cord (Long and Short)
• AC Adapter
• User’s Manual
• Wall Mount Screws and Hardware
•
Warranty Card
•
Accessory Order Form
36028
CARTON CONTENTS
1 030206A-1
Page 2
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry
tub, in a wet basement or near a swimming pool.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing
serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it
from overheatin g. These open ings should never be block ed or covered. Th e openin gs should never
be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register. This product should not be placed in
a built-in installation unless proper ventilation is provided.
7. This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your dealer or local power
company.
8. Do not allow anything to rest on the power c ord. Do not locate thi s product where th e cord will be
abused by persons walking on it.
9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric
shock.
10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage point s or sh ort out parts th at cou ld resu lt in a ri sk of fi re or elec t ric sh oc k. Never sp i ll liq u id
of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service
contractor when s ome service or r epair work is required. Opening or remo ving covers ma y expose
you to dangerous volta ges or other risks. Incorrect reas sembly can cause electri c shock when the
appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does no t op erat e norm ally b y fol lowin g th e opera ti ng in str ucti ons. Ad ju st on ly
those controls th at are c overed b y the operat ing in structi ons. Improp er adjustments of oth er
controls may result in da mage an d will often req u i re exten si ve work b y a qu ali fi ed t ech nici an
to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinctive change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
INSTALLATION
PRECAUTIONS
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.
2 030206A-1
Page 3
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
3. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
4. Use caution when installing or modifying telephone lines.
MAINTENANCE
1. Use a damp cloth t o clea n the pla s tic ca bin et . A mild soap will help to remove gr eas e or oil. Never
use polish, solvents, abrasives or strong det ergents sinc e these can damage the finish.
2. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other
appliance that produces heat.
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instruction. read and follow these instructions:
1. Use only the 3.6V, 450mAh, Ni-Cd battery pack .
2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible
special disposal instructions.
3. Do not open or mu tilat e the ba ttery. Released e lectro lyte is corrosi ve an d may cau se da mage to th e
eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling the battery in order not to short the battery with conducting material such
as rings, bracelets and keys. The battery or conductor may overheat and cause burns.
5. Recha rge on ly the battery provided with or identified for use with this product. The battery may leak
corrosive electr olyt e or explode if it is not the correct type.
6. Do not attempt to rejuvenate the battery provided with or identified for use with this product by
heating them. Sudd en relea se of th e batt ery electrol yte ma y occu r causin g burns or irritati on to eyes
or skin.
7. When inserting the battery into this product, the proper polarity or direction must be observed.
Reverse insertion of batteries can cause charging that may result in leakage or explosion.
8. Do not s tore this product, or the battery provi ded with or identified for use with thi s product, in
high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of
extending shelf life should be stabilized at room temperature prior to use after c o ld storage.
9. Disconnect telephone lines before installing batteries.
SAVE THESE INSTRUCTIONS
FCC NOTICE
The FCC requires that you be advised of certain requirements involving the use of this telephone.
1. This telephone is hearing aid compatible.
2. This equipmen t compli es with 47 CFR Par t 68 requiremen t. On th e bott om of this equi pment is a
label that contains, among other information, the ACTA registration number and Ringer Equivalence
Number (REN) for this equipment. If requested, provide this information to your telephone
company.
3. The REN is useful to determine the quantity of devices you may connect to your telephone line and
still have all of those devi ces ring when your number is called . In most, but not all areas, th e
sum of the RENs of all devices should not exceed five (5.0 ). To be certain of the number of devi ces
you may connect to your line, as determined by the REN, you should call your local telephone
company to determine the maximum REN for your calling area.
4. If your telephone causes harm to the telephone network, the telephone company may discontinue
your service temporarily. If possible, they will notify you in advance. But if advance notice is not
practical, you will be notified as soon as possible. You will be advised of your right to file a
complaint with the FCC.
5. Your telephone company may make changes to its facilities, equipment, operations or procedures
that could affect the proper operation of your equipment. If they do, you will be given advance
3 030206A-1
Page 4
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
o
n
y
r
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
notice so as to give you an opportunity to maintain uninterrupted service.
6.
7. If you experience trouble with the telephone, please contact VTC Service & Manufacturing Co.,
Inc at (800) 888-8990 or write to: VTC Customer Service, 16988 Gale Ave., City of Industry, CA
91745 for repair/warranty information. The telephone company may ask you to disconnect this
equipment from the network until the problem has been corrected or you are sure that the equipment
is not malfunctioning.
8. This equipment may not be used on coin service provided by the telephone company. Connection
to party lines is subject to state tariffs. (Contact your state public utility commission or corporation
commission for informati on.).
9. USOC jack type is RJ11C and the compatible jack is part 68 compliance.
NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the
installati on of this [equipment ID] does n ot disable your alarm eq uipment. If you have ques tions about
what will disable alarm equipment, consult your telephone company or a qualified installer.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and, (2) his device must accept any
interference received, including interference that may cause desired operation. Privacy of
communications may not be ensured when using this phone.
Changes or modifications not expressly approved in writing by Northwestern Bell Phones may void
the user's authority to operate this equipment.
Some cordless phones operate at frequencies that may cause interference to nearby TVs and VCRs; t
minimize or p reven t su ch int erfer en c e, th e b a se of t h e c ord les s ph on e sh ould n ot b e p lac ed near or o
top of a TV or VCR; and, if interference is experienced, moving the cordless telephone farther awa
from the TV or VCR will often reduce or eliminate the interference.
AC ADAPTOR: Use only with Class 2 Transformer, 9VDC output ,
200mA for base unit and 9VDC output , 200mA fo
charger, center pin positive.
4 030206A-1
Page 5
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
36028 CONTROLS DIAGRAM
ERASE
ANS.
ON/OFF
OGM
E
M
E
T
S
Y
IN USE LED
Indicator
ANS. ON/OFF
Button
OGM Button
SKIP Button
Button
VOL
Play/Stop Button
MSG WTG
/NEW CALL
LED Indicator
Talk Button
UP Button
Handset Jack
TONE(*)/
Button
EDIT/FLASHB
utton
SAVE/Phone
book Butt on
RE/PA/DEL
(Redial/Pause/
Delete) Button
LCD Display
Handset 1 Charge
LED Indicator
DN Button
Time Button
2.4 Ghz
dual-handset system
Code Button
n
d
6
Memo Button
Repeat Button
Vol
Button
Page Button
# /
Button
MENU/SCAN
u
p
TALK
calls
DEF
ABC
1
GHI
4
PQRS
7
*
2
JKL
5
TUV
8
OPER
0
3
MNO
WXYZ
9
#
TIME
CODE
MEMO
T
D
A
-
D
u
a
l
H
a
s
d
n
CHARGE IN USE
REPEAT
PAGE
V
O
L
PLAY
STOP
m
e
t
s
y
S
t
e
SKIP
L
O
V
Button
OPT .TRANSFER
Button
Handset 2
CHARGE
C
H
2
.
S
A
A
R
B
G
4
I
N
G
S
D
T
U
E
A
S
L
-
D
H
A
N
CHARGE LED
Indicator
Base Unit
(Rear View)
T
TS4R2R
LINE
P
TONE/PULSE DC 9V Jack LINE Jack TS/4R/2R
Switch Switch
DC 9V Jack
5 030206A-1
Page 6
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
DESCRIPTIONS
HANDSET CONTROL:
LCD Display - Shows call information, phone status, prompts and Phonebook items.
MSG WTG /NEW CALL Indic ator - Red LED blinks when you have new message(s) and call(s).
TALK Button - Press this button to place a call, answer a call, or end a call.
SAVE/PHONE BOOK button – Saves the changes on the listed items. Allows you to retrieve a
memory(name and phone number)for the personal Phonebook (up to 20 memories).
TONE * /
# /
EDIT/ FLASH Button -(EDIT) Press to ed it lis ted items . (FLASH) Moment arily h angs up the phon e to
access custom calling features such as Call waiting or Three-way calling provided by you local phone
company.
UP
view the caller list or /and Phone.
Microphone - Used for speaking with callers.
Headset Jack – A jack located on the side of th e handset used for connect ing your headset t o enjoy a
hands-free communication.
RE/PA/DEL(Redial/Pause/Delete) Button – (Redial)Press to redial the last number you
dialed.(Pause)Press to insert pause while dialing. (Delete)Press and hold down to delete items.
Calls Button - Press to see the caller list.
OPT (Option) /TRANSFER Button – During you view the caller list, press to place a long distance call
or to place a local call. Allow you to transfer to other handset during a call. During a call, the source
handset user can press the OPT/TRANSFER button followed by destination handset. The call is quick
transferred to the destination handset, it starts ringing and shows “TRANSFER”. If destination handset
user does not answer the call with 30 sec, source handset will be ring back for 30 sec.
MENU/SCAN – While in standby mode, this button allows you to set the handset in
Programming mode. While in Talk mode. It is used to manually select one of the 40
operating channels when you experience interference on the handset.
Receiver – Allows you to hear calls.
BASE UNIT CONTROLS:
Base Unit Charge Terminals - Used for charging handset batteries. We recommend that you clean these
contacts periodically with an alcohol-moistened cloth or cotton swab.
IN USE Indicator -Lights up stead ily when the ph one is in talk mode and tur ns off when the hand set is
not in use.
Button - Press to move left on the large LCD Display
Button - Press to move right on the large LCD Display.
/DN Button - Allows you to adjust th e hand set volu me (3 st eps ) in TALK mode. It also allows you t o
CHARGE LED Indicator – Lights up steadily when paging the handset. Lights up steadily when the
6 030206A-1
Page 7
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
handset is being charged on the base and turns off when the handset is removed from its cradle.
PAGE Butto n - Allows you to locate the handset when it is not on the base, or to alert the person near the
handset.
Volume Control
PLAY/STOP Butto n – Press to play back the in coming Message(s)(ICM) and M emo message(s) or to
stop current activity.
ANS. ON/OFF – Press to activate or deactivate answer function.
REPEAT
SKIP
ERASE Button – Press to erase a single message or all messages in order to conserve message space in
memory.
Memo Button – Press to record Memo message.
OGM Button – Press to record Outgoing Message(OGM).
TIME SET Button – Press to set the day and time stamp.
CODE Button – Press to set the password for remote operation.
Ring (TS/4R/2R) Switch -Allows you to select the appropriate dialing service. TONE for tone dialing or
PULSE for rotary service..
TONE/P U L SE Sw i t c h - A switch located on the rea r of th e ba se uni t , whi ch allo ws you t o set th e di alin g
mode to either Tone dialing or Pulse(rotary) dialing.
DC 9V jack - A jack locat ed on the rear sid e of the base unit used for connect ing the AC adapt or to the
base unit.
Button – Press to skip to the previous message during playback.
Button – Press to skip to the next message during playback.
/ Button -Adjusts the base unit speaker volume level..
TEL LINE jack – Accepts line cord to make connection with modular type telephone outlet.
INSTALLATION
CAUTION: USE ONLY THE NICKEL CADMIUM(Ni-Cd) BATTERY
TYPE INCLUDED WITH THIS UNIT. USE OF OTHER BATTERY TYPES MAY CAUSE INJURIES
OR DAMAGE.
Battery Installation
1. Remove the bat t ery comp a rt men t cover of th e h and set b y press in g the t op of t h e c over and s lidin g it
down.
2. Connect the Ni-Cd battery pack plug alon g the slot into the handset’s battery conn ector as shown
below.
7 030206A-1
Page 8
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
Handset
Battery
compartment
Red
wire
Black
Wire
Battery
Connector
3. Insert the Ni-Cd battery into the battery compartment.
4. Replace the battery compartment cover by sliding it up towards the handset.
NOTE: Use the type and size of Ni-Cd battery pack, 3.6V, 450mAh. It is
recommended that the Ni-Cd battery pack should be fully charged overnight prior
to initial use.
Belt Clip Installation
With the back of handset fa cin g up, in sert on e side of t he b elt clip hook int o th e matchi ng slot s at the top
side of handset as shown in Figure2. Slide th e other hook until it loc ks into place from the opp osite side
of the handset.
(Figure 1)
Belt clip hook
(Figure 2)
POWER CONNECTION
CAUTION: You must use a Class II, 220 Volt AC/9 Volt DC adaptor that delivers at
least 500mA for base unit and 200mA for charger. The center tip must be positive and the
plug must correctly fit the base unit’s DC 9V 500mA jack and fit the charger DC 9V
200mA jack.
1. Plug the AC adaptor into a standard AC outlet.
2. Insert the small plug into the DC 9V 500mA jack on the rear of the base unit and Insert the small
plug into the DC 9V 200mA on the rear of the charger as shown in Figure 3.
8 030206A-1
Page 9
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
J
Charge
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
DC 9V Jack
AC Adaptor
Plug
HEADSET CONNECTION
One of the special features of your phone is that your handset could utilize a headset
(not included) for hands-free communication. Insert the small plug at the end of your
headset cord to the headset jack at the side of the handset as shown in Figure 4. Follow
the procedures discussed in “Placing a Call” when to place and receive a call.
Note: The headset jack of your cordless telephone is compatible with 2.5mm headset plugs only. When
you plug in the headset into the headset jack, it automatically mutes the microphone and speaker of
the handset. Unplug the headset to return the handset to normal use.
T P TS4R2R LINE
Base Unit
9VDC
Adaptor
AC Outlet
(Figure3)
DC 9V Jack
AC Adaptor
Plug
Handset
r
AC Outlet
9VDC Adaptor
ack
INITIAL SETUP
Please follow these steps before u sing the cordless telep hone for the first time.
1. Ensure that the handset battery pack is installed and charged fully for at least 14 hours.
2. Ensure that all connections(line cord and adaptor cord) are properly inserted into rear of the base
unit.
(Figure 4)
SETTING THE TO N E/PU LSE MOD E
Select the appropriate dialing service by moving the TONE/PULSE switch at the bottom of the base
unit:
· TONE for Tone service , or
· PULSE for Rotary service.
SETTING THE HANDSET RINGER ON/OFF MODE
The handset must be set to ring ON mode in order to ring when receiving an incoming call. See Programs
Operation section on “RING ON/OFF SETTING”.
9 030206A-1
Page 10
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
TELEPHONE OPERATION
Place a Call
1. Pick up the handset and press the TALK button. The Call Timer starts to count. The base unit IN
USE LED indicator will light up.
2. Listen for a dial tone.
3. Dial the telephone number. The phone numbers appear on the LCD Display as you
enter the number.
4. When finished with your call, press the TALK button or place the handset on the
base unit.
NOTE: The call timer will start to count once you press the TALK button.
Receive a Call
NOTE: If you are expecting incoming calls, the handset must be programmed to RING
ON mode.
If the handset is on the base
1. When the phone rings, simply pick up the handset from the base cradle if the unit is set to
auto-answer ON mode. If the unit is set to auto-answer OFF mode, press the TALK button. See the
“AUTO ANSWER ON/OFF” section to set auto-answer mode. The LCD Display will show
“TALK”.
2. Start your conversation.
3. To end your conversation, either press the TALK button or place the handset on the base unit.
If the handset is out of the base:
1. When the phone rings, press the TALK button on the handset. The LCD Display will show “ TALK”
and the base unit IN USE LED will light up.
2. Start your conversation.
3. To end your conversation, either press the TALK button or place the handset on the base unit.
Last Number Redial
A. AFTER HEARING A BUSY TONE WHEN PLACING A CAL.L
1. If you get a busy tone, press handset TALK button to hang up.
2. Press the handset TALK button again and listen for a dial tone.
3. Press the handset RE/PA/DEL button. This will automatically redial the last telephone number you
called (up to 32 digits).
4. When finished with your call, press the TALK button or place the handset on the base unit.
:
B. WHEN THE HANDSET IS OFF THE BASE UNIT AND IN STANDBY MODE
1. Press the TALK button on the handset and listen for a dial tone.
2. Press the RE/PA/DEL button. This will automatically redial the last telephone number you called
(up to 32 digits).
3. When finished with your call, press the TALK button or place the handset on the base unit.
SAVING IN THE PHONEBOOK
1. Press the SAVE/PHONE BOOK button.
2. Press the EDIT/FLASH button.
3. Use the TELEPHONE KEYPAD button(0-9) to enter t he name, (s ee the “TE LEPHONE KEY PAD
CHARACTERS SETTING” section ) you can store up to 15 characters.
4. Press the DN button once.
5. Enter the telephone number using the TELEPHONE KEYPAD button(0-9). You can store up to 16
digits.
6. Press the SAVE/ PHONE BOOK button to save into memory
7. Press the SA/PHONE BOOK button to go back to standby mode.
NOTE: If there are no memory locations left in the phonebook, the unit will display
“ MEMORY FULL”. To continue with memory programming, you must delete
or edit existing speed dial num bers.
If no active buttons are pressed for 20 seconds, the LCD Display will automatically return to STANDBY
10 030206A-1
Page 11
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
mode.
It will not save a duplicate telephone number or a name without the corresponding telephone number in
the Phonebook.
A. PREFERRED CALLS(VIP)
You an assign PREFERRED CALL which will generate a special ringer sound at start of the second ring
to any welcome caller in the Phonebook.
1. Press the SAVE/PHONE BOOK button.
2. Press the UP
3. Press the MENU/SCAN button once. The LCD Display will show “VIP”.
4. Press the SAVE /PHONE BOOK button to sa ve the preferred call and go b ack to STANDBY mode.
JOHN SMITH
B. BLOCKED CALLS
You can assign a BLOCKED CALL which will disable the ringer sound from the second ring to any
caller in the Phonebook.
1. Press the SAVE/PHONE BOOK button.
2. Press the UP
3. Press the MENU/SCAN button twice. The LCD Display will show “RE J”.
4. Press the SAVE /PHONE BOOK button to sa ve the preferred call and go b ack to STANDBY mode.
JOHN SMITH
TELEPHONE KEYPAD CHARACTERS
The TELEPHONE KEYPAD buttons(0-9) are used to enter the charact ers when entering names. Press the
appropriate KEYPAD button to get the following characters.
KEYPAD
BUTTON
or DN button to find the one you need.
VIP
888-555-1212
#
1 TOTAL20
or DN button to find the one you need.
REJ
888-555-1212
#
2 TOTAL20
CHARACTERS
1 Space &
2 A B C 2
3 D E F 3
4 G H I 4
5 J K L 5
6 M N O 6
7 P Q R S 7
8 T U V 8
9 W X Y Z 9
0 0
,
( ) * . 1
11 030206A-1
Page 12
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
b
N
A
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
For example, If you want t o enter th e charac ter “C” , press th e “2” KEYPAD button, th e first ch aract er
displayed will b e “A” . Press the “2 ” button again t o display “B”, and press again to disp lay the letter
“C”. To enter the next c haract er, press th e approp riate but ton. If ,however , th e next ch aract er is on the
same button as the previous character, you will first need to press the SHIFT RIGHT
Pressing the SHIFT RIGHT
any character, you can go back to the incorrect character by pressing the SHIFT LEFT
delete the character inside the cursor “
VIEWING THE PHONEBOOK
This Phonebook lets you scroll through the list to find the person you need for one touch dialing. You can
store up to 20 names and telephone numbers in the Memory.
PHONE BOOK
1. Press the SAVE/PHONE BOOK button.
2. Press the UP
name or telephone number is more than 11 digits.
ALEX BROWIN
NOTE: To exit the Phonebook at anytime, Press the SAVE/PHONE BOOK button.
EDITING NAME AND NUMBER IN THE PHONEBOOK
1. Press the SAVE/PHONE BOOK button.
2. Press the UP
3. Press the EDIT/FLASH button to edit the name.
ALEX BROWIN
4. Press the SHIFT LEFT
number you want to change.
To erase, press the RE/ PA/DEL Button
To add, use the TELEPHONE KEYPAD buttons(0-9).
5. Press the
6. Press and hold the SHIFT LEFT
want to change.
To erase, press the RE/PA/DEL button .
To add, use the TELEPHONE KEYPAD buttons(0-9).
ALEX BROWIN
7. Press the SAVE/ PHONE BOOK button to confirm.
TOTAL 20
or DN button to fi nd the one you need , press the SH IFT RIGHT button if the
6045551212
or DN button to find the one you want to edit.
6045551212
DN button to edit the number.
6045551212
but ton a second time will prod uce a space. If you want to cha nge
”, press the RE/PA/DEL button.
o. of memory store
LEX BROWIN
6045551212
cursor is blinking
or RIGHT
or RIGHT b utton to move th e cursor to th e number you
utton to move the cursor to the letter or
cursor is blinking
button.
bu tton . To
12 030206A-1
Page 13
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
L
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
IMPORTANT: It is not advisable to save a telephone number without the corresponding name in the
Phonebook. Thi s wi ll lead to improper displays on Private and Out of Area calls.
NOTE: When no active buttons are pressed for 20 seconds, the LCD Display will
PLACING CALLS FROM THE PHONEBOOK
1. Press the SAVE/PHONE BOOK button.
2. Press the UP
3. Press the TALK button to dial out the telephone number.
4. Start your conversation.
5. To end your conversation, either press the TALK button or place the handset on the base unit.
NOTE: Be sure to check that the line is not in use by another extension.
DELETING A STORED NUMBER
1. Press the SAVE/PHONE BOOK button.
2. Press the UP
3. Press the RE/PA/DEL button. The unit will ask you to delete the selected telephone number and the
4. Press again the “RE/PA/DEL button to delete. The LCD Display will show “ERASED”.
5. Press the SAVE/PHONE BOOK button to return to STANDBY mode.
MIXED MODE DIALING (Temporary Pulse to Tone Dialing)
1. If you only have pulse (rotary dialing) service in your area and want to access Tone services (Bank
2. Press the TONE(*) button once to switch from Pulse to Tone dialing temporarily.
PAUSE FUNCTION
• In some cases, such as PABX or long distance service, a pause may be needed in the dialing
FLASH FUNCTION
• Used to access custom calling features such as Call Waiting or Three-Way Calling
CHANNEL SELECTION(40 Channels)
• Your cordless telephone lets you select a channel from the 40 frequencies available to transmit
OUT OF RANGE WARNING
• The handset and base unit communicate up to a certain maximum range. The distance can be
• If you are far away from the base unit, the handset beeps and “ OUT RANGE” is
automatically return to STANDBY mode.
or DN button to find the one you want to call.
or DN button to find the one you want to delete.
LCD Display will show “ERASE ITEM?”.
ERASE ITEM?
604-555-1212
by Phone , etc.), en sure th at the Tone/Pulse swit ch on the bott om of the base un it is set to th e Pulse
position.
Pulse dialing mode resumes when the call is ended.
sequence. Pressing the handset RE/PA/DEL button inserts the programmed time interval between
dialed numbers.
provided by your local phone company. Flash can also be used to restore a dial tone to make a new
call.
signals between the base unit and handset. If the existing channel becomes noisy or starts having
interferenc e, you can either move closer to the bas e unit or press the MENU/S CAN button on the
handset until a better reception is found.
affected by weather, power lines, or even other cordless telephone.
shown on the LCD Display to warn you that the background noise level is too
high for proper communication between the handset and the base unit.
#
1
TOTA
20
13 030206A-1
Page 14
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
•
• When you hear this sound and see the “OUT RANGE” display, you should move
closer to the base unit. Otherwise, the call will automatically cut off after 20 seconds.
LOW BATTERY WARNING
• When the handset battery voltage level is low, the handset LCD Display shows “LOW BATTERY”.
• Return the handset on the base cradle to charge.
PAGING FUNCTION
• If you have misplaced the handset or need to alert person nearly the handset, press the PAGE button
on the base unit. Each p ress of thi s button will a cti vate the han ds et to beep for 20 sec onds and LCD
Display shows “PAGING” while it is being paged by the base unit.
NOTE: Even if the handset is in RING OFF mode, the base unit can page the handset.
CALLER ID OPERATION
GETTING TO KNOW YOUR NEW PHONE
IMPORTANT: Subscription to Caller ID (CID)/Call Waiting ID services from your local phone company
is required for using the Caller ID/Call Waiting ID features of the 36028. Your new 36028 telephone gives
you the ultimate in cordless t elephone sou nd quali ty with the lu xury of Caller ID and Call Waiting ID. If
this is your first cordless telephone, you will soon discover that your cordless is similar to regular
telephones, except without the cord. If you have owned a cordless in the past, you will discover that the
36028 telephone is the most powerful and full-functioned Call Waiting ID cordless telephone on the
market, some key featur es are:
• 40 name and number Caller ID/Call Waiting ID memory(Call List)
• 20 name and number programmable memory (Phonebook)
• Hearing – aid compatibility
• Automatic or manual selection of the clearest of 40 channels
Unlike regular telephones, your cordless telephone does not work during power failures.
We do not recommend you to use a cordless telephone as the only phone in your residence
INTRODUCTION TO CALLER ID AND CALL WAITING ID
The 36028 Caller ID/Calling Waiting ID devices allow you to take advantage of the Caller
identification delivery service offered by your local telephone company. For more information, you can
refer to the following Question and Answer table:
QUESTIONS ANSWERS
What is Caller ID? Caller ID is a device that identifies the calling party before you
What is Caller Waiting ID? Call Waiting ID is a device that can als o identifies the call waitin g
How does Caller ID and
Call Waiting ID work?
Who provides Caller ID
service?
How can I activate my
Caller ID?
answer a call. This device can be used to screen unwanted calls and
eliminate harassment from annoying calls.
party before you answer a call.
When used with Caller ID/Call Waiting service, the Caller ID/Call
Waiting ID device displays the name(if available), and the telephone
number (if available) of the person calling before you answer your
telephone.
Your local telephone company. However, not all local telephone
companies provide Caller ID service. Please call you local phone
company to confirm that the service is available before you install the
device.
For you Caller ID unit to function, you must first arrange with your
local telephone company to have Caller ID/Call Waiting ID service
installed on you line. There is an extra charge added to your monthly
telephone bi ll for this service. B efore using this unit , please read thi s
instruction manual carefully.
14 030206A-1
Page 15
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
a
f
a
m
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
RECEIVING NEW CALL
• When you recei ve a new call, th e call informa tion is stored under CALLER ID List. The “NEW”
segment of LCD Display and NEW CALL LED indicator will flash if there is new call(s).
• When you receive a call, th e system d ispla ys the caller infor mation s ent by the telep hon e compan y,
called a Call Record. The Call R ecord consists of the following information:
a. The caller’s name(if available)
b. The caller’s telephone number
c. The time and date of a call
d. A call record number
• If there is no call records, the LCD display shows “NO CALLS”.
JOHN SMITH
555-555-1212
AM
10:00
12/15
NEW
#8
VIEWING THE CALLER ID LIST
1. In standby mode, press CALLS button to enter Caller ID list. If there is new call(s), the new call(s)
will be displayed at first. If the name or number is more than 11 characters, press the SHIFT RIGHT
button to view the rest of the display.
ALEX BROWIN
6045551212
10:00AM 11/ 18 #1
TOTAL
20
ALEX BROWIN
10:00
6045551212
AM
11/18 #1
TOTAL
20
2. Press UP
last call rec ei ved t o t h e fi rs t . Th e UP
or DN butt on to scroll t o the n ext ca ll. The DN button will go throu gh the ca lls from th e
or DN button will allow you to view th e c alls from t h e firs t
call received to the last.
3. Press CALLS button to finish.
NOTE: If no active buttons a re pressed for 20 seconds, the LCD Display will au tomatically return to
STANDBY mode.
CALLER ID DISPLAY
JOHN SMITH
555-555-1212
AM
8:05
12/25 #38
LCD Display shows na me and number, time and da te o
the call.
555-555-1212
8:05AM 12/25 #38
LCD Display shows number-only service.
UNAVAILABLE
----------------------------
11:23AM 12/25
PRIVATE
----------------------------
11:23AM 12/25
ERROR
AM
9:07
12/25
2
N EW
#
#
TOTAL
“U NAVA ILA BLE” will be displayed when Caller ID
information is not av ailable. This call was mad e from
telephone company that does not offer Caller ID
20
services(including international calls).
“PRIVATE” will be shown when a call i s rec ei ved from
a blocked number. For privacy reasons, some states
allow callers th e option to prevent their t elephone dat
40
from being displayed on the other party’s Caller ID
display.
Display shows when the Caller ID information was
received incorrectly or only part of the data was
8
received.
NOTE: When an error is received, none of th e date fro
This call is saved in memory.
15 030206A-1
Page 16
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
n
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
MSG
RING: ON
9:07AM 12/25
NEW0 TOTAL
Display shows when a voice mail message has bee
received and is stored by message waiting service
provided by the phone company.
39
VIP
JOHN SMITH
888-555-1212
9:07AM 12/25
N EW1 TOTAL
Display shows when the incoming call is a priority call.
10
NO CALLS
9:07AM 12/25
N EW0 TOTAL
NOTE: If a call is rec ei ved fr om t h e sa me n u mb er mo re t han on c e s inc e the rec or d s were la st vi ewed , n o
new entry is made, but the repeat call icon “RPT” and the number of repeat calls is displayed.
CALL WAITING
When you subscribe to Call Waiting service from your local telephone Company, this
telephone will display the name and number of the second caller while you are having a
conversation.
1. When a second call comes in while you are having a conversation, you will hear a
notification tone from the handset and volume is momentarily muted. The LCD
Display will automatically shows the name and number of the second caller.
2. P ress the EDIT/FLAS H button to answer t he second caller. The fi rst caller’s name a nd number
will be displayed.
3. When you have finished, press the EDIT/FLASH button to continue with your
conversation with the first caller.
JIM CARRY
800-2-10-8950
’
MESSAGE WAITING
If you have subscribed to Voice Mail message service and if you have requested Visual
Message Indication from your local telephone company, the MSG WTG /NEW CALL LED indicator will
blink and the LCD Display will show “MSG” when there is voice message(s) for you from your
telephone co mpany. To remove the MESSAGE WAITING indicator, see th e “Message Waiting Settin g”
section.
PLACING A CALL FROM THE CALLER LIST
1. Press the CALLS button.
2. Press the UP
or DN button to select the call record you wish to call back.
3. If the number displayed is not correct(needing 7,10,11 digits), press the OPTION
button to select call number.
This is displayed when CALLS button is pressed and
there is no Caller ID date stored.
0
ALEX BROWN
800-2-10-8950
’
MSG
RING: ON
9:07AM 12/25
N EW0 TOTAL
39
16 030206A-1
Page 17
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
4. Press TALK button to dial out or press CALLS button to cancel dialing.
5. To end you conversation, either press the TALK button or place the handset on the
base unit.
SAVING THE NAME AND NUMBER FROM THE CALLER LIST INTO PHONE BOOK
1. Press the CALLS button.
2. Press the UP
3. Press SAVE/PHONE BOOK button. The LCD Display shows “SAVE”.
4. Press CALLS button to return to standby mode.
NOTE: When call records with 10 digits is stored in the phonebook, a “1” is inserted in
front of the number. If you must dial out a 10-digit number for loc al calls, you must edit the
number to exclude that digit to dial out correctly.
SELECTIVE DELETING IN THE CALLER LIST
1. Press the CALLS button
2. Press the UP
3. Press RE/PA/DEL button. The LCD Display will show “ERASE ITEM?”
ERASE ITEM?
10:00AM 12/25 #6
4. To delete the selected call record, press RE/PA/DEL button.
5. Press the CALLS button to return to STANDBY mode.
DELETING ALL RECORDS IN THE CALLER LIST
1. Press the CALLS button.
2. Press and hold RE/PA/DEL button. The LCD Display will show “ E RASE ALL?”
3. To delete all Caller ID records, press RE/PA/DEL button. The LCD Display will show “ERASE
ALL” and return to standby mode.
ERASE ALL?
10:00AM 12/25 #6
or DN button to scroll to the call record you wish to store into the phonebook.
or DN button to scroll to the call record you wish to delete.
555-1212
555-1212
JOHN SMITH
55-555-1212
AM
9:07
12/25 #8
JOHN SMITH
555-1212
AM
9:07
12/25 #8
JOHN SMITH
15555551212
AM
9:07
12/25 #8
17 030206A-1
Page 18
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
PROGRAMS OPERATION
This unit contains the following special Programs:
F. RING ON/OFF
G. LANGUAGE
H. FIRST RING ON/OFF
I. TIME SET
J. AREA CODE
A. RING ON/OFF
K. CONTRAST
To turn on or off the ringing sound.
1. Press and hold the MENU/SCAN button.
2. Press the TELEPHONE KEYPAD #1 button.
A. MSG WAITING
B. AUTO ANSWER ON/OFF
C. PRIVATE RING ON/OFF
D. UNAVAIL RING ON/OFF
E. IT SET
RING:ON
#
01
TOTAL
11
3. Press the EDIT/FLASH button.
4. Press the UP
or DN button to select ON or OFF. RING ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/SCAN button to go back to standby mode.
B. LANGUAGE
This telephone offers English, Spanish and French languages for your convenience.
1. Press and hold the MENU/SCAN button.
2. Press the TELEPHONE KEYPAD #2 button.
3. Press the EDIT/FLASH button.
4. Press the UP
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/SCAN button to go ba ck to standby mode.
or DN button to select the language you desire. English is the preset language.
ENGLISH
#
02
TOTAL
11
C. FIREST RING ON /OFF
You can turn off the first ring of the telephone so that it does not ring until caller ID
information has been displayed.
1. Press and hold the MENU/SCAN button.
2. Press the TELEPHON KEYPAD #3 button.
3. Press the EDIT/FLASH button.
4. Press the UP
or DN button to select the ON or OFF.
FIRST RING
On
#
03
11
FIRST RING ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/SCAN button to go back to standby mode.
D. TIME SET
Set the date and time.
1. Press and hold the MENU/SCAN button.
2. Press the TELEPHONE KEYPAD #4 button.
3. Press the EDIT/FLASH button.
4. Use the TELEPHONE KEYPAD button to enter the month, date, hour and minute. The cursor
moves automatically after entering each item.
Press the TELEPHONE KEYPAD #1 for AM setting, or
Press the TELEPHONE KEYPAD #2 for PM set ting.
5. When the final setting is programmed, the time and date are automatically saved.
6. Press the MENU/SCAN button to go back to STANDBY mode.
NOTE: The date and time will aut omatically set, if you h ave subscribed to th e Caller ID service
from your local telephone company.
E. AREA CODE
1. Press and hold the MENU/SCAN button.
2. Press the TELEPHON KEYPAD #5 button.
3. Press the EDIT/FLASH button.
4. Use th e TELEPHONE KEYPAD buttons to enter the three digit area cod e.
TIME SET
AM
AREA CODE
- - -
#
05
TOTAL
#
11
18 030206A-1
Page 19
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/SCAN button to go back to standby mode.
F. CONTR AS T
This unit enables you to select 3 brightness levels for the Large LCD Display.
1. Press and hold the MENU/SCAN button.
2. Press the TELEPHON KEYPAD #6 button.
3. Press the EDIT/FLASH button.
4. Press the UP
or DN button to adjust the brightness of the
display. Level 2 is the preset brightness.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/SCAN button to go back to standby mode.
G. MSG WAITING (Message Waiting)
To turn off the Message Waiting LCD/LED indicator.
1. Press and hold the MENU/SCAN button.
2. Press the TELEPHON KEYPAD #7 button.
MSG WAITING
delete
#
07
3. Press the EDIT/FLASH button.
4. Press the SAVE/PHONE BOOK button, the Message Waiting LCD/LED indicator turn off.
5. Press the MENU/SCAN button to go back to STANDBY mode.
IMPORTANT: Message Waiting LCD/LED indicator will automatically tu rn on, If you have
subscribed to Voice Mail message service and if you have Visual Message indication from your local
telephone company.
H. AUTO ANSWER ON/OFF
Turn on or off the auto ans wer featur e. When in on mode, th e phone
will automatically answer an incoming call if the handset is lifted
from the base unit.
1. Press and hold the MEMU/SCAN button.
2. Press the TELEPHON KEYPAD #8 button.
3. Press the EDIT/FLASH button.
4. Press the UP
or DN button to select ON or OFF. AUTO ANSWER ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/SCAN button to go back to STANDBY mode.
I. PRIVATE RING ON/OFF
Turn on or off ring or all calls where the caller has b locked their caller ID.
1. Press and hold the MENU/SCAN button.
2. Press the
#9 button twice.
RRIVATE RNG
3. Press the EDIT/FLASH button.
4. Press the UP
or DN button to select ON or OFF.
PRIVATE RING ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/SCAN button to go back to standby mode.
NOTE: The phone will ring once when set to OFF mode unless first ring is set to OFF mode.
J. UNAVAILABLE RING ON/OFF
Turn on or off ring or all calls where the caller has b locked their caller ID.
1. Press and hold the MENU/SCAN button.
2. Press the
#0 button once.
3. Press the EDIT/FLASH button.
4. Press the UP
or DN button to select ON or OFF.
UNAVAIL RING ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/SCAN button to go back to standby mode.
NOTE: The phone will ring once when set to OFF mode unless first ring is set to OFF mode.
CONTRAST
#
11
TOTAL
AUTO ANSWER
#
08
On
#
09
TOTAL
11
UNAVAI L RNG
On
#
10
TOTAL
06
On
11
2
TOTAL
TOTAL
11
11
19 030206A-1
Page 20
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
K. ID SET (for Hand set 1 and Hand set 2) [ NOTE: ID SET had been preset at the fa ctory. The user
doesn’t need to do the ID SET. If the handset can not be linked up with base unit properly, please
reset the ID SET. (Reset ID SET: The user must delete the base ID, and then do the ID SET.) ]
1. Press and hold the SCAN/MENU button.
2. Press the
3. Press the SAVE/PHONE BOOK button.
The LCD will indicate PRESS PAGE.
4. Press and hold the page button until beeping on the handset, and then the handset will indicate
ID success.
DELETE BASE ID:
1. Press and hold the page button about 4 seconds, and then the base IN USE LED will light up .
2. Press and hold the page button about 2 seconds, and then the base IN USE LED will flash.
3. Press again the page button , and then the base IN USE LED will turn off.
* button once.
ID SET
#
11
TOTAL
11
ANSWERING MACHINE OPERATION
The 36028 featu res a sophisticated Digital Answerin g System. Incoming Messages (ICMs), Outgoing
Message (OGM) and Memo messages are stored electronically into digital memory. Messages are
accessed instantly and arranged compactly in this memory. The 36028 can store 15 minutes of message
(ICMs, OGM and Memos Combined).
NOTE: The maximum incoming Message (ICM) recording time is 1 minutes. The minimum incoming
Message (ICM) recording time is 3 seconds.
VOICE MENU SYSTEM
A sophisticated Voice Menu System h as been design ed and pre-p rogrammed into the 360 28. Th is system
will verbally guide you through key operational procedures.
TIME/DAY STAMP
ICMs and Memo messages are automatically voice-stamped with the current time and day.
NOTE: After power failure, the time/day stamp will be lost. In this case, the time will be incorrect. Please
refer to the INITIAL SETUP section on how to set the system time and day.
SETTING ANSWER ON/OFF/A(Announce)
The unit defaults to Answer ON automatically after power up.
1. With recording OGM in standby mode ( “ON” mode) and without recordi ng OGM in “A” mode.
A. TO TURN ANSWER MODE OFF
1. In standby mode, press the ANS. ON/OFF button on the base unit until you hear “Answering machine
is off ”.
2. The 36028 will announce “Answering machine is off ”.
NOTE: If the Answering Mode is OFF, the 36028 will answer after the 10
call in. The “OFF” mod e will automatically return to “ON” mode)
B. TO TURN ANSWER MODE ON
1. In standby mode, press the ANS. ON/OFF button until you hear “Answering machine is on ”.
NOTE: The 36028 will answer after ringing.
C. TO TURN ANSWER MODE A
1. In standby mode, press the ANS. ON/OFF button until you hear “Answering machine is A”.
Note: THE 36028 will sa y “ Sorry mailbox is full, pleas e try again later” after ringing, and then will
automatically hang up after hold seven seconds.
2. With recording OGM in “A” mode and in “ON” mode.
TO TURN ANSWER MODE A: THE 36028 will indicate “ host recorded OGM in the “A” mode” after
ringing, and then will automatically hang up.
th
ring. (When the second caller
20 030206A-1
Page 21
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
3. With recording OGM in “A” mode and without recording OGM in “ON” mode.
A. TO TURN ANSWER MODE ON: THE 36028 will say “ Please leave your message and we will
return your call” after ringing, and then will answer.
B. TO TURN ANSWER MODE OFF: THE 36028 will say “ Please leave your message and we wil l
return your call” after the 10
th
ring , and then will answer.
C. TO TURN ANSWER MODE A: After ringing and will ring a beep, and then will automatically hang
up.
SETTING THE RINGS SWITCH(TS/4R/2R)
The number of ri ngs befo re th e ans wering s ystem a ns wers a ca ll be select ed by set tin g the R INGS swit ch
on the base unit to :
TS – Toll Saver
4 - Four rings
2 - Two rings
Toll Saver lets you avoid unnecessary toll charges when calling long distance to remotely retrieve your
messages.
The 36028 ca n be set to answer t he first c all on the 4
setting the R INGS switch on the Toll Saver (TS) posi tion. If your 3 6028 fails t o answer on the 2
th
ring, and all subsequent calls on the 2
nd
ring by
nd
ring ,
then you know that you do not have any new incoming Message(s)(ICM). You can hang up before the
unit answers and save the cost of the call.
SETTING TIME/D AY
1. Press “TIME SET” button. You will hear current Time/Day setting the time and day.
2. Press and hold “TIME SET” button for about 3 seconds. You will hear “Sunday”.
3. Press “SKIP
” or “REPEAT ” button (on the base) until the correct day is announced.
4. Press “TIME SET” button to confirm and then set the hours. You will hear “12AM” as the “12AM” is
displayed in message counter.
5. Press “SKIP
” button to advance or “REPEAT ” button to reverse the hour show in the display.
6. Press “TIME SE T” button to confirm and then set the minutes, you will hear “00 ” as the “00” is
displayed in message counter.
7. Press “SKIP
” button to increment or “REPEAT ” button to decrement the minute in the
display.
8. Press “TIME SET” button to confirm. The new day and time will announced.
SETTING CODE
1. Press CODE button on the base. Then you will hear the current setting, “one, two, three”.
2. Press and hold “code” button for about 3 seconds.
3. Press Skip
4. Press the CODE button to confirm.
5. Press Skip
6. Press the CODE button to confirm.
7. Press Skip
8. Press the CODE button to confirm.
You will hear the newly programmed 3-digit security code.
NOTE: When the 36028 is disconnec ted the AC Adap tor from the ba se beyond five hou rs, the code will
be returned to the original setting “159”.
OUTGOING MESSAGE (OGM)
This is the a nnouncement callers will hear when 36028 answers a call. The 36028 also has a d efault
OGM(factory preset) which is active when ther e is no OGM present.
Default OGM: “Please record your message after the beep. ”
or Repeat button (on the base) to select the first digit you desired.
or Repeat button to select the second digit you desired.
or Repeat button to select the third digit you desired.
21 030206A-1
Page 22
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
RECORDING THE OUTGOING MESSAGE (OGM) (The maximum recording time is 59 s econds.
The minimum recording time is 3 second s)
1. In standby mode, Press the OGM button.
2. Press and hold the OGM button.
3. Record your greeting after you hear a beep tone.
4. Press the OGM button after you finish recording your greeting. Your recorded greeting will be
played.
CHECKING THE OUTGOING MESSAGE (OGM)
1. In standby mode, press the OGM button on the base unit to hear your previously recorded OGM.
2. You can stop OGM playback anytime during playback by pressing the PLAY/STOP button.
RECORDING A MEMO
Memo message(s) is recorded on the base unit. The maximum recording time is 1 minutes. The minimum
recording time is 3 seconds.
1. In standby mode, Press the MEMO button.
2. Press and hold the MEMO button.
3. Record your greeting after you hear a beep tone.
4. Press the PLAY/STOP button after you finish recording your greeting.
PLAYING BACK MESSAGE
If the NEW/MSG LED in dicator is on, it indicates that you have Memo or ICM mess age(s). If it is
blinking, it indicates that there is new message(s). The blinking counts mean the number of new
messages.
A. PLAYING MESSAGES
In standby mode, press the PLAY/STOP button on the base unit. The 36028 will announce “You have
(number)(Memo) message.” And begins playing the first message to the end. It will announce the
message number before each message.
B. SKIPPING MESSAGES
Press the SKIP button on the base unit during message playback to skip forward to the next
message.
C. PREVIOUS MESSAGES
Press REPEAT button once on the base unit during message playback to skip backward one
message.
D. STOP MESSAGE PLAYBACK
Press the PLAY/STOP button to stop message playback.
ERASING MESSAGES
A. SELECTIVE ERASING
1. Press the ERASE button on the base unit during message playback.
2. The 36028 will announce “ (Message)(Memo)(Number) erased.” And then start the next message.
NOTE: Erased message can not be retrieved. There is a momentary delay after erasing messages to allow
the 36028 to reorganize and optimize its memory space.
B. ERASING ALL ICM AND MEMO
1. In standby mode, press and hold the ERASE button for about 2 seconds.
2. The 36028 will announce “Message (number) erased. You have no message.”
C. ERASING OGM
1. During OGM playback, press ERASE button.
2. The 36028 will announce “Erase your announcement. You have no announcement.”
NOTE: After erasing messages during memory full or near memory full, you may hear a continuous beep
22 030206A-1
Page 23
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
for several seconds in dicatin g memory sorting of the unit.
MEMORY FULL DETECTION
The memory full condition occurs:
. If 15 minutes of recording time is reached, or
. If 59 message (i.e. Memo, OGM, ICM) have been recorded.
If there is an incoming call, the unit will answer at the 10
erase any or all the messages remotely after listen ing to them.
NOTE: Sometimes you may fail to escape from memory full condition when erasing a short message. In
this case, you must erase more messages (at least 1 minute message).
CALL SCREENING
You can listen to the caller leave their ICM and decide if you want to answer the call.
VOX (VOICE ACTIVATED) DETECTION
During OGM, ICM or Memo r ecording, The 36028 us es VOX (voice activation) to con serve message
storage space. The conditions for the 36028 terminating a recording are:
. Continuous silence for seven seconds.
. Seven seconds after the caller hangs up.
CALLING THE 36028 FROM A TONE PHONE
NOTE: The factory preset password for remote operation is “159”.
1. Call the 36028 from a tone dialing phone.
2. While the OGM is playing or during ICM recording, enter your 3 digits password.
3. After a successful password entry , the Remote Operation function is on.
Once you have act ivated th e Remote Opera tion func tion throu gh a tone diali ng phone t o call th e 36028.
The 36028 will announce the total number of new message(s) in Message (MSG) box.
According to Voice indication. The following table shows the Voice Help Menu:
th
ring and announce “Memory full”. You can
Main menu
Key press Action
announcement
Pla y memos 3 Pla ys memos only
Play messages 4 Plays all messages
Play new messages 5 Plays only new messages
Delete all messages *4 Deletes all messages
To stop function 7 Stop current func tion
To play the
message/Played menu
The following table lists announcements made after you have pressed 9:
9 To hear message menu; See
the table below
Message main menu Key Action
Repeat message 3 Repeats the current message
To skip message 5 Skips forward to the next message
Delete message 6 Deletes current message
To stop function 7 Stops current function
23 030206A-1
Page 24
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
During message or memo playback Key press
Replay previous message 33
Pause message 4
Change OGM1 *1
Record new MEMO *2
Change security code *3
Switch answerphone off *5
Delete current message 6
Key(s) Function
* Skip OGM play
1 Play OGM1
2 Room Monitor
# End remote control operation
65,536 Combination Security Coding
The cordless telephone have a digital coding security system to prevent unauthorized use of your
telephone line by other cordless phones nearly. The cordless telephone have 65,536 possible security code
combinations. Each combination of the code is randomly generated every time the handset is picked up.
Resetting Security Code and Channel
Communication between the handset and the base unit may not be possible in any of the
following situations:
1. After a power failure.
2. After relocating the base unit by disconnecting the AC adapter..
3. After replacing the handset battery.
4. The handset goes out of range from the base unit.
To reset, place the handset on the cradle of the base unit for five seconds.
IMPROVING CORDLESS RECEPTION
Follow these guidelines to improve cordless sound quality:
• Select an ar ea to install the un it where it is clos est to the cent er of your home or office. This will
improve the op erating ran ge of the unit.
• Keep the base unit away from electrical equipment. Radio Frequency Interference (RFI) is
sometimes generated by these appliances, which can cause a degradation in cordless reception.
• Keep the ha ndset ba tteries cha rged as much as pos sible. Weak handset batteries can limit the ran ge
of cordless operation.
MAXIMIZING BATTERY LIFE
Repeated use or recharge of Ni-Cd batteries without periodic full discharge results in reduced useable
charge time. When you notice the usable charge duration decreasing, fully discharge the Ni-Cd battery
and recharge as described:
DISCHARGING
1. Unplug the telephone line cord from the 36028.
2. Make sure that the adapter is connected.
3. Lift the handset out of the base cradle.
4. Press the TALK button of the handset and start discharging.
Once the Symbol Low Battery appears on LCD Display, it means that the battery level is low. Let it fully
24 030206A-1
Page 25
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
y
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
discharge for 12 hours. Once the Ni-Cd battery is fully discharged, you may now charge the battery to its
full capacity.
CHARGING
1. Make sure the adapter and telephone line cord are connected to the 36028.
2. Place the handset on the base cradle. The CHARGE LED indicator of the base unit will light
steadily.
3. Leave the handset charging on the base for 14 hours continuously to get a maximum charge.
4. The 36028 is now ready for regular use. Discharge and charge the Ni-Cd
battery again once you notice a decrease in the useable charge time.
MAINTENANCE
1. Your phone should be situated away fr o m he at s o ur ce s s uch as r adiato r s , heaters, stoves or any o the r
appliance that produces heat.
2. Use a slightly damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil.
Never use polish, solvents, abrasives or strong detergents since thes e can damage the fin ish.
TECHNICAL INFORMATION
This cordless phone uses radio frequencies to allow mobility. There are certain difficulties in using radio
frequencies with a cordless telephone. While these are normal, the following could affect the operation of
your system.
NOISE: Electric pulse noise is present in most homes at one time or another. This noise is most in tense
during electrical storms. Certain kinds of electric equipment such as light dimmers, fluorescent bulbs,
motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise
pulses, you may occasionally hear them in your handset. Generally, they are minor annoyances and
should not be interpreted as defects in your system.
RANGE: Because radio frequencies are used, location of the base unit can affect operating range. Try
several locations in your home or business and pick the one that gives you the clearest signal.
INTERFERENCE: Some electron ic devices operate in and/or generate int erference near the op erating
frequencies of your cordless telephone. While several protection circuits are used to prevent unwanted
signals, there may be periods when these unwanted signals cause interference. If interference occurs
frequently, it can be minimized or eliminated by lowering the height of your base antenna or by relocating
the base unit. You can check for interference before selecting the final base unit location by plugging in
the phone.
TROUBLESHOOTING
A. TELEPHONE UNIT TROUBLESHOOTING TABLE
SYMPTOM SOLUTION
No dial
tone
Does not
ring
• Check the telephone line cord connectors at both ends that they are pushed in
firmly until they click.
• If you had a power failure or had unplugged the base unit, replace the handset on
the base unit for two to five seconds to reset the system.
• Check the RING ON/OFF mode on the handset. Set to RING ON mode to
enable th e handset ringer.
• Check the telephone line cord connectors at both ends that they are pushed in
firmly until they click.
• Yo u m a
have exceeded the Ringer Equivalence Number(REN) limit of how
25 030206A-1
Page 26
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
many phones can be connected to the same line. The REN total of all
devices(printed on the bottom label of each unit)should not exceed five(5).
No power on
the handset
unit
Does not
charge
Range is
limited
Calls
received
flutters or
fades
Interference
on reception
Excessive
static
B. CALLER ID SYSTEM TROUBLESHOOT ING TABLE
SYMPTOM SOLUTION
The Caller ID
panel is blank
The Caller ID does
not show the caller’s
name and/or phone
number
Random characters
and/or “NO DATA”
appear on the LCD
display
Cannot get call
W aiting ide ntification
on the LCD panel
Disconnect the appropriate units to lower the REN total.
• Check the Ni-Cd battery pack for proper connection inside the battery
compartm ent on th e handset.
• The handset rechargeable Ni-Cd pack may need charging.
• Check the Ni-Cd battery pack for proper connection inside the battery
compartm ent on th e handset.
• Made sure the charging contacts on both the base unit and the handset are in
contact during charging.
• The charging contacts and terminals may need cleaning with an
alcohol-dampened swab.
• Move the base unit so that it is centrally located in your residence or office and
make sure that the base unit is not located near appliances.
• The handset Ni-Cd battery may be weak. Recharge the Ni-Cd battery.
• Refer to the section “ Improving Cordless Reception”.
• The handset rechargeable Ni-Cd battery pack may need charging.
• Choose an alternate channel using the MENU/SCAN button on the handset.
• Refer to the section “Improving Cordless Reception”.
• Refer to the section “Improving Cordless Reception”.
• Check the power connection.
• Check the telephone line cord connections.
• Check the batteries for proper installation.
• The Caller ID unit will not function until you have Caller ID service
provided by your local phone company. Call your local phone company
to have Caller ID installed on your telephone line.
• If you pick up the phone before the second ring, the caller information
will not be correctly received. If you have telephone answering device
(TAD) connected with the unit, set the TAD to answer after two rings or
more.
• If it is a blocked call or an out-of-area call, the caller’s name and/or
phone number will not appear on the display.
• If only the caller’s phone number appears on the display, it may be
Single Data M es s age Format (SDMF) call, as opposed to a Multiple
Data Message Format (MDMF) call. Please call your local phone
company to see which service you have.
• On rare occasions, the Caller ID information sent by the telephone
company may have an error in the transmission. This is not the fault of
your Caller ID unit. It can only capture and store the data that was
received.
• Subscription to Caller ID Call Waiting (CIDCW) is requ ired from your
local phone c ompany for th e CIDCW fu nction to operat e properly. Call
you local phone company for details.
26 030206A-1
Page 27
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
C ADAPTOR: USE ONLY WITH CLASS 2 POWER SOURCE, OUTPUT 9VDC, 500mA for
THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF
base unit and 200mA for charger .
IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE OWNER’S MANUAL.
Distributed Exclusively Worldwide by Unical Enterprises, Inc., Industry, California, USA
36028/030206A-1 www.nwbphones.com
27 030206A-1
