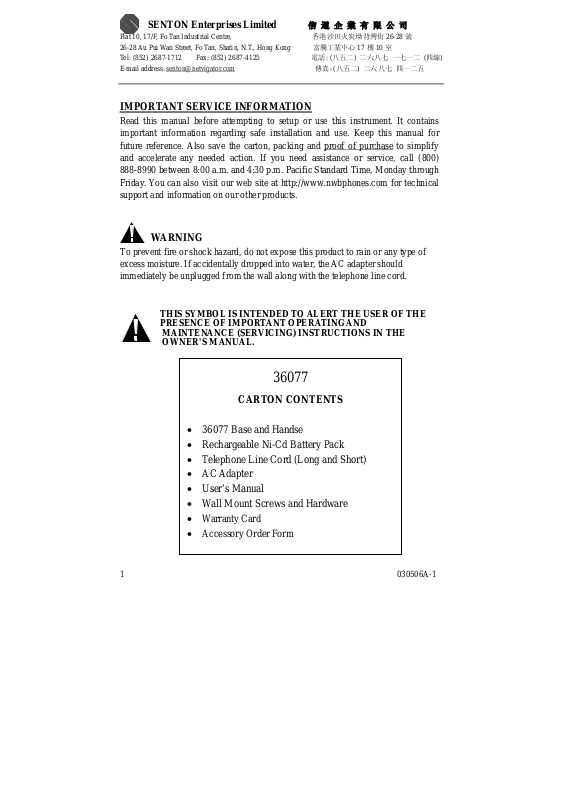

IMPORTANT SERVICE INFORMATION
Read this manual before attempting to setup or use this instrument. It contains
important information regarding safe installation and use. Keep this manual for
future reference. Also save the carton, packing and proof of purchase
and accelerate any needed action. If you need assistance or service, call (800)
888-8990 between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through
Friday. You can also visit our web site at http://www. nwbphones.com for technical
support and information on our other products.
to simplify
WARNING
To prevent fire or shock hazard, do not expose this product to rain or any type of
excess moisture. If accidentally dropped into water, the AC adapter should
immediately be unplugge d from the wall along with the telephone line cord.
THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
OWNER'S MANUAL.
1 030506A-1
• 36077 Base and Handse
• Rechargeable Ni-Cd Battery Pack
• Telephone Line Cord (Long and Short)
• AC Adapter
• User’s Manual
• Wall Mount Screws and Hardware
•
Warranty Card
Accessory Order Form
•
36077
CARTON CONTENTS
Page 2
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this produc t from the wall outlet before cleanin g. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or
laundry tub, in a wet basement or near a swimming pool.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing
serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it
from overheating. Th ese open ings shou ld never b e blocked or c overed. The op enin gs shou ld never
be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register. This product should not be placed in
a built-in installation unless proper ventilation is provided.
7. This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your dealer or local power
company.
8. Do not allow anythin g to rest on the power cord . Do not loca te thi s product wh ere the c ord will be
abused by persons walking on it.
9. Do not overload wall out lets and extension cords as thi s can result in the risk of fire or electric
shock.
10. Never push objects of any kind into this product th rough cabinet slots as they may touch dangerous
voltage point s or short out parts that could result in a ri sk of fire or electric shock. Never spi ll
liquid of any kind on the product.
11. To reduce the risk of electri c shock, do not disassemble th is product, but take it to a quali fied
service contract or when some servi ce or rep air work is req uired . Openin g or removin g covers ma y
expose you to dan gerous voltages or other risks. Incorrect rea ssembly can cause electri c shock
when the appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adju st only
those controls that are covered by the operating instructions. Improper adjustments of
other controls may result in damage and will often require extensive work by a qualified
technician to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinctive change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightnin g
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
INSTALLATION
PRECAUTIONS
1. Never install telephone wiring during a lightning storm.
2 030506A-1
Page 3
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.
3. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
4. Use caution when installing or modifying telephone lines.
MAINTENANCE
1. Use a damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil.
Never use polish, solvents, abrasives or strong detergents since these can damage the finish.
2. Your ph one should be situated away from heat sources such as radiators, heaters, stoves or any
other appliance that produces heat.
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instruction. read and follow these instructions:
1. Use only the 3.6V, 450mAh, Ni-Cd battery pack .
2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible
special disposal instructions.
3. Do not open or m ut i late t h e ba tt ery. Released elec t rol yte i s c or rosi v e a n d may ca u se d a mage t o t h e
eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling the battery in order not to short the battery with conducting material such
as rings, bracelets and keys. The battery or conductor may overheat and cause burns.
5. Rech arge only the battery provi ded with or id entified for use with this product. The ba ttery may
leak corrosiv e electrolyte or explode if it is not the correct type.
6. Do not attempt to rejuvenate the battery provided with or identified for use with this product by
heating them. Sudden release of the battery el ectrolyte may occur cau sing burns or irritation to
eyes or skin.
7. When insertin g the battery into this product, the proper polari ty or direction must be obs erved.
Reverse insertion of batteries can cause charging that may result in leakage or explosion.
8. Do not store this product, or the battery provided with or identified for use with this product, in
high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of
extending shelf life should be sta bilized at room tempera ture prior to use after cold storage.
9. Disconnect telephone lines before installing batteries.
SAVE THESE INSTRUCTIONS
FCC NOTICE
The FCC requires that you be advised of certain requirements involving the use of this telephone.
1. This telephone is hearing aid compatible.
2. This equipment complies with 47 CFR Part 68 requir ement. On the bottom of this equipment is a
label that contains, among other information, the ACTA registration number and Ringer
Equivalence Number (REN) for this equipment. If requested, provide this information to your
telephone company.
3. The REN is useful to determine the quantity of devices you may connect to your telephone line
and still have all of those d evices ring when your number is called. In most, but not all areas,
the sum of the RENs of all devices should not exceed five (5.0 ). To be certain of the number of
devices you may connect to your line, as determined by the REN, you should call your local
telephone company to determine the maximum REN for your calling area.
4. If your telephone causes harm to the telephone network, the telephone company may discontinue
your service temporarily. If possible, they will notify you in advance. But if advance notice is not
practical, you will be notified as soon as possible. You will be advised of your right to file a
3 030506A-1
Page 4
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
o
n
y
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
complaint with the FCC.
傳真: (八五二) 二六八七 四一二五
5. Your telephone company may make changes to its facilities, equipment, operations or procedures
that could affect the proper operation of your equipment. If they do, you will be given advance
notice so as to give you an opportunity to maintain uninterrupted service.
6. If you experience trouble with the telephone, please contact VTC Service & Manufacturing Co.,
Inc at (800) 888-8990 or write to: VTC Customer Service, 16988 Gale Ave., City of Industry, CA
91745 for repair/warranty information. The telephone company may ask you to disconnect this
equipment from the network until the problem has been corrected or you are sure that the
equipment is not malfunctioning.
8. This equipment may not be used on coin service provided by the telephone company. Connection
to party lines is subject to state tariffs. (Contact your state public utility commission or
corporation commission for information.).
9. USOC jack type is RJ11C and the compatible jack is part 68 compliance.
NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure
the installation of this [equipment ID] does not disable your alarm equipment. If you have questions
about what will disable alarm equipment, consult your telephone company or a qualified installer.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and, (2) his device must accept any
interference received, including interference that may cause desired operation. Privacy of
communications may not be ensured when using this phone.
Changes or modifications not expressly approved in writing by Northwestern Bell Phones may void
the user's authority to operate this equipment.
Some cordless phones operate at frequencies that may cause interference to nearby TVs and VCRs; t
minimize or p reven t su ch int erfer en c e, th e b a se of t h e c ord les s ph on e sh ould n ot b e p lac ed near or o
top of a TV or VCR; and, if interference is experienced, moving the cordless telephone farther awa
from the TV or VCR will often reduce or eliminat e the interference.
AC ADAPTOR: Use only with Class 2 Transformer, 9VDC output ,
200mA for base unit, center pin positive.
4 030506A-1
Page 5
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
36077 CONTROLS DIAGRAM
ERASE
ANS.
ON/OFF
OGM
IN USE LED
Indicator
ANS. ON/OFF
Button
OGM Button
SKIP Button
Button
VOL
Play/Stop Button
MSG WTG /NEW
CALL
LED Indicator
Talk Button
CALLS Button
UP Button
Handset Jack
TONE(*)/
Button
EDIT/FLASH
Button
SAVE/Phone book
Button
RE/PA/DEL
(Redial/Pause/
Delete) Button
2.4 Ghz
u
PQRS
LCD Display
Handset 1 Charge
LED Indicator
DN Button
Time Button
Code Button
Memo Button
p
TALK
calls
DEF
ABC
1
2
GHI
4
7
MNO
JKL
5
WXYZ
TUV
8
OPER
*
0
n
d
3
6
9
#
Repeat Button
Vol
Button
Page Button
# /
Button
MENU/MUTE
TIME
CODE
MEMO
T
D
A
-
D
u
a
l
H
a
s
d
n
CHARGE IN USE
REPEAT
PAGE
V
O
L
PLAY
STOP
m
e
t
s
y
S
t
e
SKIP
L
O
V
Button
SCAN/OPTION
Button
Base Unit
(Rear View)
T
TS4R2R
P
LINE
TONE/PULSE DC 9V Jack LINE Jack TS/4R/2R
Switch Switch
5 030506A-1
Page 6
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
DESCRIPTIONS
HANDSET CONTROL:
LCD Display - Shows call information, phone status, prompts and Phonebook items.
MSG WTG LED Indicator/NEW CALL LED Indicator/ IN USE LED Indicator – (MSG WTG
LED) Red LED blinks when you have new message(s). (NEW CALL LED Indicator) The LED
Indicator will blinks when you have new call(s). (IN USE LED Indicator) Lights solid when ever the
handset is in Talk mode. Turns off when the handset is not in use and out of the base unit.
NOTE: This LED will turn off once you have reviewed all your call record s.
TALK Button - Press this button to place a call, answer a call, or end a call.
SAVE/PHONE B OOK Button – Allows you to ret rieve a memory (name an d phone number)for the
personal Phonebook (up to 20 memories). Saves the changes on the listed items.
* /
Button - Press to move left on the large LCD Display.
# /
Button - Press to move right on the large LCD Display.
EDIT/FLASH Button - (EDIT) Press to edit li st ed it ems . (FLASH) M ome n ta ri ly ha n gs up the ph on e to
access custom calling features such as Call waiting or Three-way calling provided by you local phone
company.
UP/DN Button - Allows you to adjust the handset receiver volume (3 steps) in TALK mode. It also
allows you to view the ca ller list or /and Phone.
Microphone - Used for speaking with callers.
Headset Jack – A jack located on the side of the handset used for connecting your headset to enjoy a
hands-free communication.
RE/PA/DEL(Redial/Pause/Delete) Button – (Redial)Press to redial the last number you
dialed.(Pause)Press to insert pause while dialing. (Delete)Press and hold down to delete items.
Calls Button - Press to see the caller list.
SCAN/OPT(OPTION) Button – While in Talk mode. It is used to manually select one of the 40
operating cha nnels when you experi ence interferenc e on the handset. Duri ng you view the caller li st,
press to place a long distance call or to place a local call.
MENU/MUTE – While in stan dby mode, this button allows you to set the handset in Programmi ng
mode. In talk mode, this button allows you to temporarily disable the handset microphone.
Receiver – Allows you to hear calls.
6 030506A-1
Page 7
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
BASE UNIT CONTROLS:
Base Unit Charge Terminals - Used for charging handset batteries. We recommend that you clean these
contacts periodically with an alcohol-moistened cloth or cotton swab.
IN USE Indicator -Lights up st eadi ly when the ph one is in talk mo de and tur ns off when the hand set is
not in use.
CHARGE LED Indicator – Lights up steadily when paging th e handset. Ligh ts up stea dily when th e
handset is being charged on the base and turns off when the handset is removed from its cradle.
PAGE Button - Allows you to locate the hand set when it is not on the ba se, or to alert t he person near
the handset.
Volume Control
PLAY/STOP Button – Press to play back the incoming Message(s)(ICM) and Memo message(s) or to
stop current activity.
ANS. ON/OFF – Press to activate or deactivate answer function.
REPEAT
SKIP
ERASE Button – Press to erase a single message or all messages in order to conserve message space in
memory.
Memo Button – Press to record Memo message.
OGM Button – Press to record Outgoing Message(OGM).
TIME SET Button – Press to set the day and time stamp.
CODE Button – Press to set the password for remote operation.
Ring (TS/4R/2R) Switch -Allows you to select the appropriate dialing service. TONE for tone dialing
or PULSE for rotary service..
TONE/P ULSE Switc h - A swit ch located on the rear of the ba se unit, which allows you to set t he
dialing mode to either Tone dialing or Pulse(rotary) dialing.
DC 9V jack - A jack located on the rear side of the base unit used for connecting the AC adaptor to the
base unit.
Button – Press to skip to the previous message during playback.
Button – Press to skip to the next message during playback.
/ Button -Adjusts the base unit speaker volume level.
7 030506A-1
Page 8
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
p
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
TEL LINE jack – Accepts line cord to make connection with modular type telephone outlet.
INSTALLATION
CAUTION: USE ONLY THE NICKEL CADMIUM(Ni-Cd) BATTERY
TYPE INCLUDED WITH THIS UNIT. USE OF OTHER BATTERY TYPES MAY CAUSE INJURIES
OR DAMAGE.
Battery Installation
1. Remove the battery compartment cover of the handset by pressing the top of the cover and sliding
it down.
2. Connect the Ni-Cd battery pack plug along the slot into the handset’s battery connector as shown
below.
Handset
Battery
compartment
Red
wire
Black
Wire
Battery
Connector
3. Insert the Ni-Cd battery into the battery compartment.
4. Replace the battery compartment cover by sliding it up towards the handset.
NOTE: Use the type and size of Ni-Cd battery pack, 3.6V, 450mAh. It is
recommended that the Ni-Cd battery
to initial use.
Belt Clip Installation
With the back of handset facing up, insert on e sid e of the belt c lip hook int o th e matc hi n g slots at th e top
side of handset as sh own in Figu re2. Slid e the oth er hook unti l it loc ks into p lace from th e oppos ite si de
of the handset.
(Figure 1)
ack should be fully charged overnight prior
Belt clip hook
(Figure 2)
POWER CONNECTION
CAUTION: You must use a Class II, 220 Volt AC/9 Volt DC adaptor that delivers at
8 030506A-1
least 500mA for base unit. The center tip must be positive and the plug must correctly fit
the base unit’s DC 9V 500mA jack.
Page 9
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
1. Plug the AC adaptor into a standard AC outlet.
2. Insert the small plug into the DC 9V 500mA jack on the rear of the base unit as shown in Figure 3.
Base Unit
DC 9V Jack
HEADSET CONNECTION
One of the special features of your phone is that your handset could utilize a headset
(not included) for hands-free communication. Insert the small plug at the end of your
headset cord to the headset jack at the side of the handset as shown in Figure 4. Follow
the procedures discussed in “Placing a Call” when to place and receive a call.
Note: The headset jack of your cordless telephone is compatible with 2.5mm headset plugs only. When
you plug in the head set into the h eadset jack, it automatic ally mutes the mi crophone and sp eaker
of the handset. Unplug the headset to return the handset to normal use.
AC Adaptor
Plug
T P TS4R2R LINE
9VDC
Adaptor
(Figure3)
AC Outlet
Handset Jack
INITIAL SETUP
Please follow these steps before using th e cordless telephone for the first time.
1. Ensure that the handset battery pack is installed and charged fully for at least 14 hours.
2. Ensure that all connections(line cord and adaptor cord) are properly inserted into rear of the base
unit.
(Figure 4)
SETTING THE TO N E/PU LSE MOD E
Select the appropriate dialing service by moving the TONE/PULSE switch at the bottom of the base
unit:
· TONE for Tone service , or
· PULSE for Rotary service.
SETTING THE HANDSET RINGER ON/OFF MODE
The handset must be set to ring ON mode in order to ring when receiving an incoming call. See
Programs Operation section on “RING ON/OFF SETTING”.
9 030506A-1
Page 10
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
TELEPHONE OPERATION
SETTING HANDSET RECEIVER VOLUME
When you are in TALK mode, you can adjust the handset receiver volume (3 steps) by pressing UP/DN
Button. The receiver volume can be increased up to 15dB at the setting of volume HIGH.
PLACE A CALL
1. Pick up the handset and press the TALK button. The Call Timer starts to count. The base unit IN
USE LED indicator will light up.
2. Listen for a dial tone.
3. Dial the telephone number. The phone numbers appear on the LCD Display as you enter the
number.
4. When finished with your call, press the TALK button or place the handset on the base unit. The
base IN USE LED indicator will turn off.
NOTE: The call timer will start to count once you press the TALK button.
RECEIVE A CALL
NOTE: If you are expecting incoming calls, the handset must be programmed to RING ON mode.
If the handset is on the base
1. When the phone rings, simply pick up the handset from the base cradle if the unit is set to
auto-answer ON mode. If the unit is set to auto-answer OFF mode, press the TALK button. See the
“AUTO ANSWER ON/OFF SETTING” section to set auto-answer mode. The LCD Display will
show “TALK”.
2. Start your conversation.3
3. To end your conversation, either press the TALK button or place the handset on the base unit. The
base IN USE LED indicator will turn off.
If the handset is out of the base:
1. When the phone rings, press the TALK button on the handset. The LCD Display will show
“ TALK” and the base unit IN USE LED will light up.
2. Start your conversation.
3. To end your conversation, either press the TALK button or place the handset on the base unit. The
base IN USE indicator will turn off.
LAST NUMBER REDIAL
A. AFTER HEARING A BUSY TONE WHEN PLACING A CALL
1. If you get a busy tone, press handset TALK button to hang up.
2. Press the handset TALK button again and listen for a dial tone.
3. Press the handset RE/PA/DEL button. This will automatically redial the last telephone number you
called (up to 32 digits).
4. When finished with your call, press the TALK button or place the handset on the base unit. The
base
IN USE LED indicator will turn off.
B. WHEN THE HANDSET IS OFF THE BASE UNIT AND IN STANDBY MODE
1. Press the TALK button on the handset and listen for a dial tone.
:
10 030506A-1
Page 11
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
2. Press the RE/PA/DEL button. This will automati cally redial t he last telephon e number you ca lled
(up to 32 digits).
3. When finished with your call, press the TALK button or place the handset on the base unit. The
base IN USE LED indicator will turn off.
SAVING IN THE PHONEBOOK
1. Press the SAVE/ PHONE BOOK button.
2. Press the EDIT/FLASH button.
3. Use the TELEPH O NE KEY PAD button(0 -9 ) to ent er t h e n am e, (s ee th e “T E LEPH ONE KEYPAD
CHARACTERS SETTING” section ) you can store up to 15 characters.
4. Press the DN
5. Enter the telephone number using the TELEPHONE KEYPAD button(0-9). You can store up to 16
digits.
6. Press the SAVE/PHONE BOOK button to save into memory
7. Press the SAVE/ PHONE BOOK button to go back to standby mode.
NOTE: If there are no memory locations left in the phonebook, the unit will display “ MEMORY
FULL”. To continue with memory programming, you must delete or edit existing speed dial numbers.
If no active buttons are pressed for 20 seconds, the LCD Display will automatically return to STANDBY
mode.
It will not save a duplicate telephone number or a name without the corresponding telephone number in
the Phonebook.
A. PREFERRED CALLS(VIP)
You an assign PREFERRED CALL which will generate a special ringer sound at start of the second ring
to any welcome caller in the Phonebook.
1. Press the SAVE/ PHONE BOOK button.
2. Press the UP or DN button to find the one you need.
3. Press the MENU/ MUTE button once. The LCD Display will show “VIP”.
4. Press the SAVE/PHONE BOOK button to save the preferred call and go back to STANDBY mode.
JOHN SMITH
B. BLOCKED CALLS
You can assign a BLOCKED CALL which will disable the ringer sound from the second ring to any
caller in the Phonebook.
1. Press the SAVE/ PHONE BOOK button.
2. Press the UP or DN button to find the one you need.
3. Press t he MENU/ MUTE button twice. The LCD Displa y will s how “REJ”.
4. Press the SAVE/PHONE BOOK button to save the preferred call and go back to STANDBY mode.
JOHN SMITH
11 030506A-1
button once.
VIP
888-555-1212
#
1 TOTAL20
REJ
888-555-1212
#
2 TOTAL20
傳真: (八五二) 二六八七 四一二五
Page 12
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
A
N
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]

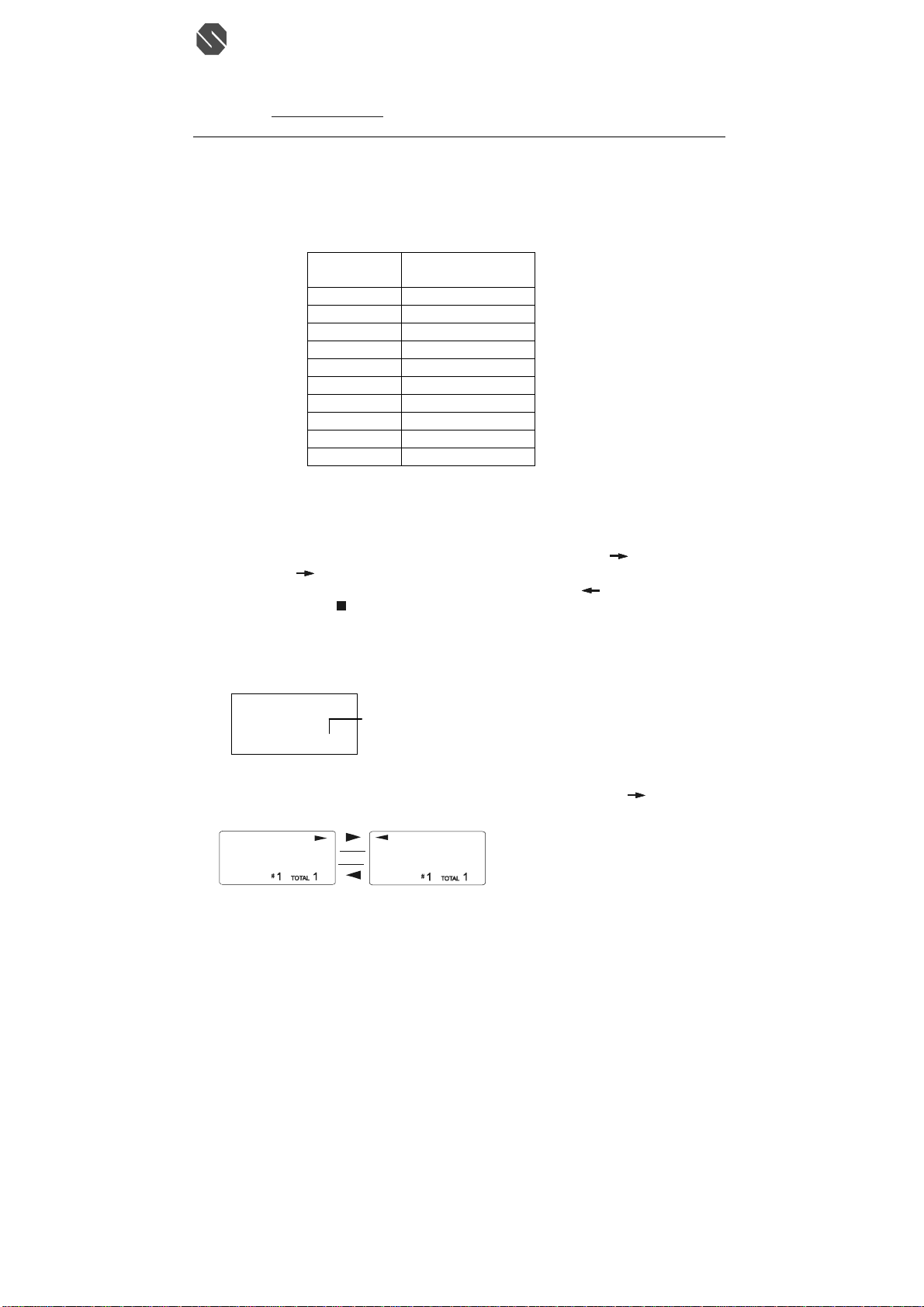

TELEPHONE KEYPAD CHARACTERS
The TELEPHONE KEYPAD but tons(0-9 ) are used to ent er the char acters when enterin g names. Press
the appropriate KEYPAD button to get the following characters.
For example, If you wan t t o ent er the c h a rac t er “C ” , p res s th e “2” KEYPAD button, the f ir st ch a rac t er
displayed will be “A” . Press the “2” button again to display “B”, and press again to display the letter
“C”.
To enter the next charac ter, press the app ropria te butt on. If ,howev er , t he next cha racter is on the s ame
button as the previous character, you will first need to press the SHIFT RIGHT
the SHIFT RIGHT
you can go back to the incorrect character by pressing the SHIFT LEFT
character inside the cursor “
VIEWING THE PHONEBOOK
This Phonebook let s you scroll through the list to find the person you nee d for one touch di aling. You
can store up to 20 names and telephone numbers in the Memory.
1. Press the SAVE/ PHONE BOOK button.
2. Press the UP or DN button to find the one you need , press the SHIFT RIGHT
NOTE: To exit the Phonebook at anytime, Press the SAVE /PHONE BOOK button.
PHONE BOOK
name or telephone number is more than 11 digits.
ALEX BROWIN
6045551212
KEYPAD
BUTTON
button a second time will produce a space. If you want to change any character,
TOTAL 20
12 030506A-1
傳真: (八五二) 二六八七 四一二五
CHARACTERS
1 Space &
2 A B C 2
3 D E F 3
4 G H I 4
5 J K L 5
6 M N O 6
7 P Q R S 7
8 T U V 8
9 W X Y Z 9
0 0
,
( ) * . 1
button. To delete t he
”, press the RE/PA/DEL button.
o. of memory store
LEX BROWIN
6045551212
button. Pressing
button if the
Page 13
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
EDITING NAME AND NUMBER IN THE PHONEBOOK
1. Press the SAVE/ PHONE BOOK button.
2. Press the UP or DN button to find the one you want to edit.
3. Press the EDIT/FLASH button to edit the name.
ALEX BROWIN
4. Press the SHIFT LEFT
5. Press the DN button to edit the number.
6. Press and hold the SHIFT LEFT
7. Press the SAVE/PHONE BOOK button to confirm.
IMPORTANT: It is not advisable to save a telephone number without the corresponding name in the
Phonebook. Thi s wi ll lead to improper displays on Private and Out of Area calls.
NOTE: When no active buttons are pressed for 20 seconds, the LCD Display will automatically return
to STANDBY mode.
PLACING CALLS FROM THE PHONEBOOK
1. Press the SAVE/ PHONE BOOK button.
2. Press the UP or DN button to find the one you want to call.
3. Press the TALK button to dial out the telephone number.
4. Start your conversation.
5. To end your conversation, either press the TALK button or place the handset on the base unit.
NOTE: Be sure to check that the line is not in use by another extension.
DELETING A STORED NUMBER
1. Press the SAVE/ PHONE BOOK button.
2. Press the UP or DN button to find the one you want to delete.
3. Press the RE/PA/DEL button. The unit will ask you to delete the selected telephone number and
6045551212
want to change.
To erase, press the RE/ PA/DEL Button
To add, use the TELEPHONE KEYPAD buttons(0-9).
want to change.
To erase, press and hold the RE/PA/DEL button.
To add, use the TELEPHONE KEYPAD buttons(0-9).
ALEX BROW IN
6045551212
the LCD Display will show “ERASE ITEM?”.
13 030506A-1
傳真: (八五二) 二六八七 四一二五
cursor is blinking
or RIGHT button to move the cursor to the letter or number you
or RIGHT button to move the cursor t o the number you
cursor is blinking
Page 14
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
ERASE ITEM?
604-555-1212
#
1
TOTAL
4. Press again the “RE/PA/DEL button to delete. The LCD Display will show “ERASED”.
5. Press the SAVE/ PHONE BOOK button to return to STANDBY mode.
MIXED MODE DIALING (Temporary Pulse to Tone Dialing)
1. If you only have pulse (rotary dialing) service in your area and want to access Tone services (Bank
by Phone , etc .), ensure th at the Tone/Pulse switc h on the rear of t he base unit i s set to the Pu lse
position.
2. Press the * button once to switch from Pulse to Tone dialing temporarily. Pulse dialing mode
resumes when the call is ended.
PAUSE FUNCTION
• In some cases, such as PABX or long distance service, a pause may be needed in the dialing
sequence. Pressing the handset RE/PA/DEL button inserts the programmed time interval between
dialed numbers.
FLASH FUNCTION
• Used to access cu stom calling features such a s Call Wai ting or Three-Way Calling provided by
your local phone company. Flash can also be used to restore a dial tone to make a new call.
CHANNEL SELECTION(40 Channels)
• Your cordless telephone lets you select a channel from the 40 frequencies available to transmit
signals between the base unit and handset. If the existing channel becomes noisy or starts having
interference, you can ei th er move c loser t o th e bas e unit or press th e SCAN/OPTION b u tton on th e
handset until a better reception is found.
OUT OF RANGE WARNING
• The handset and base unit communicate up to a certain maximum range. The distance can be
affected by weather, power lines, or even other cordless telephone.
• If you a re far away from the ba se unit, the hand set beeps and “ OUT RANGE” is shown on the
LCD Display to warn you that the back ground noise level is t oo high for proper com munication
between the handset and the base unit.
• When you hear this sound and see the “OUT RANGE” display, you should move closer to the base
unit. Otherwise, the call will automatically cut off after 20 seconds.
LOW BATTERY WARNING
• When the handset battery voltage level is low, the handset LCD Display shows “LOW
BA TTERY”.
• Return the handset on the base cradle to charge.
PAGING FUNCTION
• If you have misplaced the handset or need to alert person nearly the handset, press the PAGE
14 030506A-1
傳真: (八五二) 二六八七 四一二五
20
Page 15
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
•
button on the ba se unit. Each press of thi s button will activat e the handset to beep for 20 sec onds and
LCD Display shows “PAGING” while it is being paged by the base unit.
NOTE: Even if the handset is in RING OFF mode, the base unit can page the handset.
CALLER ID OPERATION
GETTING TO KNOW YOUR NEW PHONE
IMPORTANT: Subscription to Caller ID (CID)/Call Waiting ID services from your local phone
company is required for using the Caller ID/Call Waiting ID features of the 36077. Your new 36077
telephone gives you the ultim ate in cordless telep hone sound qua lity with the luxu ry of Caller ID and
Call Waiting ID.
If this is your first cordless telephone, you will soon discover that your cordless is similar to regular
telephones, except without the cord. If you have owned a cordless in the past, you will discover that the
36077 telephone is the most powerful and full-functioned Call Waiting ID cordless telephone on the
market, some key features are:
• 40 name and number Caller ID/Call Waiting ID memory(Call List)
• 20 name and number programmable memory (Phonebook)
• Hearing – aid compatibility
• Automatic or manual selection of the clearest of 40 channels
Unlike regular telephones, your cordless telephone does not work during power failures. We do not
recommend you to use a cordless telephone as the only phone in your residence
15 030506A-1
Page 16
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
INTRODUCTION TO CALLER ID AND CALL WAITING ID
The 36077 Caller ID/C a lli n g Wait ing ID devi ces allo w you t o take ad va nt age of th e Ca ller i d en tific at io n
delivery service offered by your local telephone company. For more information, you can refer to the
following Question and Answer table:
QUESTIONS ANSWERS
What is Caller ID? Caller ID is a device that identifies the calling party
before you answer a call. This device can be used to
screen unwanted calls and eliminate harassment from
annoying calls.
What is Caller Waiting ID? Call Waiting ID is a device that can also identifies the
call waiting party before you answer a call.
How does Calle r ID a nd
Call Waiting ID work?
Who provides Caller ID
service?
When used with Caller ID/Call Waiting service, the Caller ID/Call
Waiting ID device displays the name(if available), and the telephone
number (if available) of the person calling before you answer your
telephone.
Your local telephone company. However, not all local
telephone companies provide Caller ID service. Please
call you local phone company to confirm that the
service is available before you install the device.
How can I activa te my
Caller ID?
RECEIVING NEW CALL
• When you receive a new call, the call information is stored under CALLER ID List. The “NEW”
segment of LCD Display and NEW CALL LED indicator will flash if there is new call(s).
• When you receive a call, the system displays the caller information sent by the telephone company,
called a Call Record. The Call Record consists of the following information:
a. The caller’s name(if available)
b. The caller’s telephone number
c. The time and date of a call
d. A call record number
• If there is no call records, the LCD display shows “NO CALLS”.
VIEWING THE CALLER ID LIST
1. In standby mode, press CALLS button to enter Caller ID list. If there is new call(s), the new call(s)
will be displayed at first. If the name or number is more than 11 characters, press the SHIFT
RIGHT
button to view the rest of the display.
For you Caller ID unit to function, you must first arrange with your
local telephon e company to have Caller ID/Call Waiting ID service
installed on you line. There is an extra charge added to your monthly
telephone bill for this service. Before using this unit, please read this
instruction manual carefully.
JOHN SMITH
555-555-1212
AM
10:00
12/15
NEW
#8
16 030506A-1
Page 17
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
A
N
a
f
8:05
38
a
m
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
ALEX BROWIN
6045551212
Month/Date
2. Press UP or DN button to scroll to the next call. The DN button will go through the calls from the
last call receiv ed to the first. The UP button will al low you to view the calls from the first call
received to the last.
3. Press CALLS button to finish.
NOTE: If no active buttons are pressed for 20 seconds, the LCD Display will automatically return to
STANDBY mode.

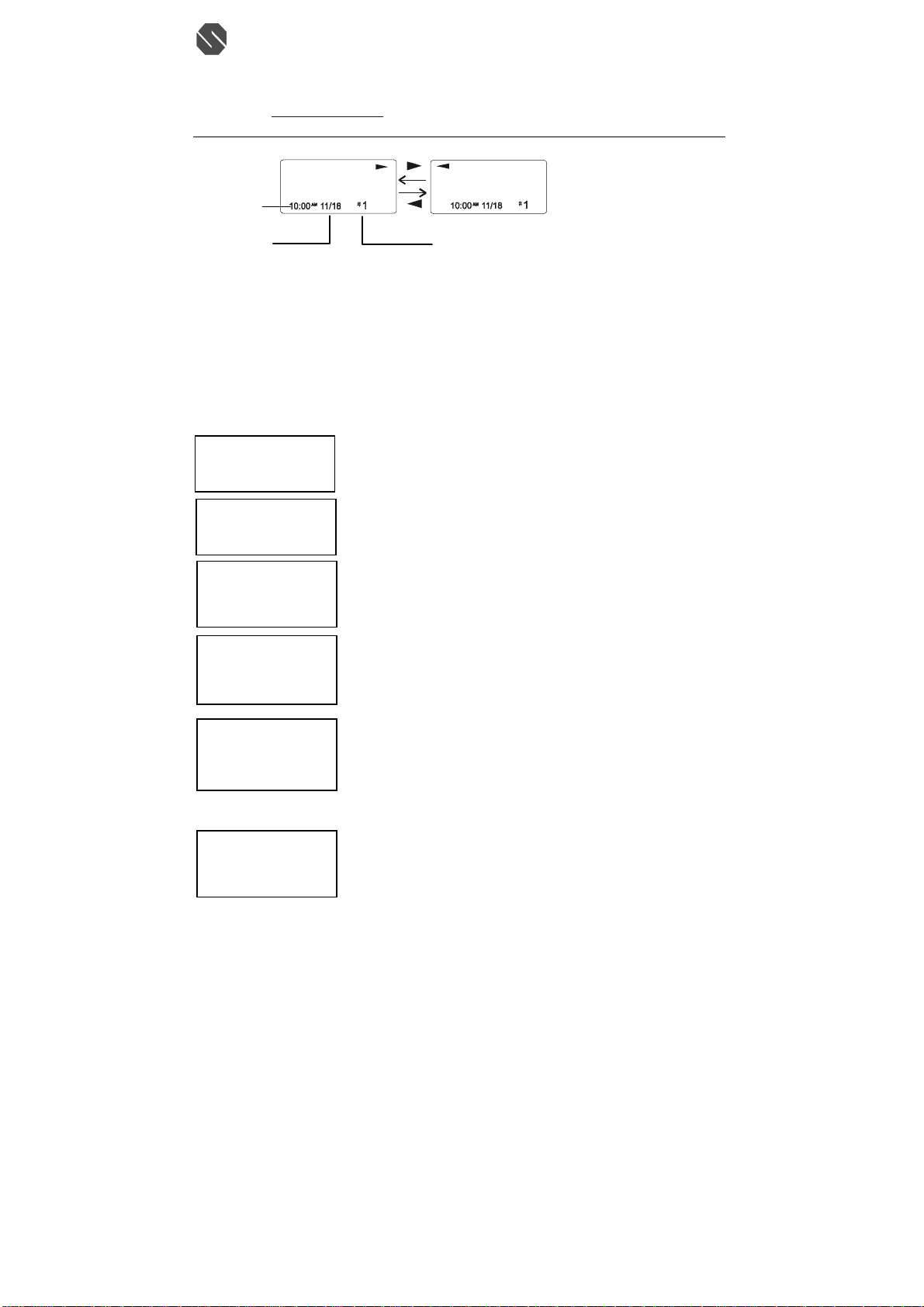

CALLER ID DISPLAY
JOHN SMITH
555-555-1212
AM
12/25
555-555-1212
8:05AM 12/25 #38
#
UNAVAIL ABLE
----------------------------
11:23AM 12/25
#
20
PRIVATE
----------------------------
11:23AM 12/25
#
40
ERROR
AM
9:07
12/25
2
TOTAL
8
NEW
MSG
RING: ON
9:07AM 12/25
NEW
0
TOTAL
39
17 030506A-1
傳真: (八五二) 二六八七 四一二五
LEX BROWIN
6045551212
umber of calls recorded
LCD Display shows na me and number, time a nd date o
the call.
LCD Display shows number-only service.
“UNAVAI L ABLE” will be displayed when Caller ID
information is not a vailable. This call was mad e from
telephone company that does not offer Caller ID
services(including international calls).
“PRIVATE” will be shown when a ca ll is rec eived from
a blocked number. For privacy reasons, some states
allow callers th e option to prevent their t elephone dat
from being displayed on the other party’s Caller ID
display.
Display shows when the Caller ID information was
received incorrectly or only part of the data was
received.
NOTE: When an error is received, none of the date fro
This call is saved in memory
Display shows when a voice mail message has been
received and is stored by message waiting service
provided by the phone company.
Page 18
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
N
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
VIP
JOHN SMITH
888-555-1212
9:07AM 12/25
NO CALLS
9:07AM 12/25
NEW1 TOTAL
0
NEW
TOTAL
10
0
NOTE: If a call is recei ved from t he same nu mber more th an once si nce the record s were last viewed,
no new entry is made, but the repeat call icon “RPT” and the number of repeat calls is displayed.
CALL WAITING
When you subscribe to Call Waiting service from your local telephone Company, this telephone will
display the name and number of the second caller while you are having a conversation.
1. When a second call comes in while you are having a conversation, you will hear a notification tone
from the handset an d volume is momenta rily muted. The LCD Displa y will automatica lly shows
the name and number of the second caller.
2. Press the EDIT/FLASH button to answer the second caller. The first caller’s name and number will
be displayed.
3. When you have finished, press the EDIT/FLASH button to continue with your conversation with
the first caller.
JIM CARRY
800-2-10-8950
MIN
18
00
2’ND CALLER
MESSAGE WAITING
If you have subscribed to Voice Mail message service and if you have requested Visual Message
Indication from your local telephone company, the MSG WTG/NEW CALL LED indicator will blink
and the LCD Display wil l show “MSG” when there i s voice message(s) for you from your telephone
company. To remove the MESSAGE WAITING indicator, see the “ Message Waiting Setting” section..
PLACING A CALL FROM THE CALLER LIST
1. Press the CALLS button.
2. Press the UP or DN button to select the call record you wish to call back.
3. If the number displayed is not correct(needing 7,10,11 digits), press the OPTION button to select
call number.
18 030506A-1
傳真: (八五二) 二六八七 四一二五
Display shows when the incoming call is a priority call.
This is displayed when CALLS button is pressed and
there is no Caller ID date stored.
ALEX BROWN
SEC
800-2-10-8950
MIN
00
18
1’ST CALLER
SEC
MSG
RING: ON
9:07AM 12/25
0
39
EW
TOTAL
Page 19
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
4. Press TALK button to dial out or press CALLS button to cancel dialing.
5. To end you conversation, either press the TALK button or place the handset on the base unit.
SAVING THE NAME AND NUMBER FROM THE CALLER LIST INTO PHONE BOOK
1. Press the CALLS button.
2. Press the UP or DN button to scroll to the call record you wish to store into the phonebook.
3. Press SAVE/PHONE BOOK button. The LCD Display shows “SAVE”.
4. Press CALLS button to return to standby mode.
NOTE: When call records with 10 digits is stored in the phonebook, a “1” is inserted in front of th e
number. If you must dial out a 10-digit number for local calls, you must edit the number to exclude that
digit to dial out correctly.
SELECTIVE DELETING IN THE CALLER LIST
1. Press the CALLS button
2. Press the UP or DN button to scroll to the call record you wish to delete.
3. Press RE/PA/DEL button. The LCD Display will show “ERASE ITEM?”
ERASE ITEM?
10:00AM 12/25 #6
4. To delete the selected call record, press RE/PA/DEL button.
5. Press the CALLS button to return to STANDBY mode.
DELETING ALL RECORDS IN THE CALLER LIST
1. Press the CALLS button.
2. Press and hold RE/PA/DEL button. The LCD Display will s how “ ERASE ALL?”
3. To delete all Caller ID records, press RE/PA/DEL button. The LCD Display will show “ERASE
ALL” and return to standby mode.
555-1212
19 030506A-1
傳真: (八五二) 二六八七 四一二五
JOHN SMITH
555-555-1212
9:07AM 12/25 #8
Press OPTION button
JOHN SMITH
555-1212
9:07AM 12/25 #8
Press OPTION button
JOHN SMITH
15555551212
9:07AM 12/25 #8
Page 20
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
R
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
ERASE ALL ?
10:00AM 12/25 #6
555-1212
PROGRAMS OPERATION
This unit contains the following special Programs:
A. RING ON/OFF
B. LANGUAGE
C. FIR ST RING ON/OFF
D. TIME SET
E. AREA CODE
F. CONTRAST
G. PBX NUMBE
A. RING ON/OFF
To turn on or off the ringing sound.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHONE KEYPAD #1 button.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button to select ON or OFF. RING ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to standby mode.
B. LANGUAGE
This telephone offers English, Spanish and French languages for your convenience.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHONE KEYPAD #2 button.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button to select the language you desire. English is the preset language.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MUTE/MNUE button to go back to standby mode.
C. FIREST RING ON /OFF
You can turn off the first ring of the telephone so that it does not ring until caller ID
information has been displayed.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHON KEYPAD #3 button.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button to select the ON or OFF. FIRST RING ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to standby mode.
傳真: (八五二) 二六八七 四一二五
H. PBX MODE ON/OFF
I. PAUSE TIME
J. MSG WAITING
K. AUTO ANSWER ON/OFF
L. PRIVATE RING ON/OFF
M. UNAVAILABLE RING ON/OFF
RING:ON
#
1
13
TOTAL
ENGLISH
FIRST RING
On
#
3
TOTAL
#
2
13
TOTAL
13
20 030506A-1
Page 21
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
D. TIME SET
Set the date and time.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHONE KEYPAD #4 button.
3. Press the EDIT/FLASH button.
4. Use the TELEPHONE KEYPAD button to enter the month, date, hour and minute.
The cursor moves automatically after entering each item.
Press the TELEPHONE KEYPAD #1 f or AM settin g, or
Press the TELEPHONE KEYPAD #2 for PM sett ing.
5. When the final setting is programmed, the time and date are automatically saved.
6. Press the MENU/ MUTE button to go back to STANDBY mode.
NOTE: The date and time will au tomatically set, i f you have subsc ribed to the Caller ID service
from your local telephone company.
E. AREA CODE
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHON KEYPAD #5 button.
3. Press the EDIT/FLASH button.
4. Use th e TELEPH O NE KEYPAD buttons to enter the three digit area code.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to standby mode.
F. CONTRAST
This unit enables you to select 3 brightness levels for the Large LCD Display.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHON KEYPAD #6 button.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button to adjust the brightness of the display. Level 2 is the preset
brightness.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to standby mode.
TIME SET
AM
10:03
12/25 #4
13
TOTAL
AREA CODE
- - -
#
5
13
TOTAL
CONTRAST
2
#
6
13
TOTAL
G. PBX NUMBER
This unit enables you to preset the PBX number (such as an 8 or 9) while you are using a
switchboard system.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHON KEYPAD #7 button.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button to select PBX number.(9 is the preset PBX number)
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to standby mode.
PBX NO.
#
9
7
TOTAL
13
21 030506A-1
Page 22
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
R
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
H. PBX MODE
This unit enables you to turn ON/OFF the PBX system depending on the telephone system you are
using.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHON KEYPAD #8 button.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button.
PBX MODE OFF- set for direct line access. The preset PBX mode is off.
PBX MODE ON- When connected to a switchboard system.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to STANDBY mode.
NOTE: When placing a call in PBX mod e ON, this telephone wil l automatically ad d the PBX
number and a pause time before the dialed telephone numbers.
I. PAUSE TIME
This unit enables you to adju st the paus e time when p lacing a call u sing a swit chboard system or
dialing long distance calls.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHON KEYPAD #9 button.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button to adjust the pause time.
The preset pause time is 2 seconds.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to STANDBY mode.
PBX MODE
PUASE TIME
2
#
9
TOTAL
OFF
#
8
TOTAL
13
13
J. MSG WAITING (Message Waiting)
To turn off the Message Waiting LCD/LED indicator.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHON KEYPAD #0 button.
3. Press the EDIT/FLASH button.
4. Press the SAVE/PHONE BOOK button, the Message Waiting LCD/LED indicator turn off.
5. Press the MENU/ MUTE button to go back to STANDBY mode.
IMPORTANT: Message Waiting LCD/LED indicator will automatically turn on, If you have
subscribed to Voice Mail message service and if you have Visual Message indication from your local
telephone company.
K. AUTO ANSWER ON/OFF
Turn on or off the auto answer feature. When in on mode, the ph one will a uto matic ally ans wer an
incoming call if the handset is lifted from the base unit.
1. Press and hold the MENU/ MUTE button.
2. Press the TELEPHON KEYPAD * button.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button to select ON or OFF.
AUTO ANSWER ON is the preset mode.
22 030506A-1
MSG WAITING
delete
#
10
TOTAL
AUTO ANSWE
On
#
11
13
TOTAL
13
Page 23
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to STANDBY mode.
L. PRIVATE RING ON/OFF
Turn on or off ring or all calls where the caller has blocked their caller ID.
1. Press and hold the MENU/ MUTE button.
2. Press the DN button twice.
3. Press the EDIT/FLASH button.
4. Press the UP or DN button to select ON or OFF.
PRIVATE RING ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to standby mode.
NOTE: The phone will ring once when set to OFF mode unless first ring is set to OFF mode.
M. UNAVAILABLE RING ON/OFF
Turn on or off ring or all calls where the caller has blocked their caller ID.
1. Press and hold the MENU/ MUTE button.
2. Press the DN button once.
3. Press the EDIT/FLASH button.
4. Press the UP or DN
UNAVAIL RING ON is the preset mode.
5. Press the SAVE/PHONE BOOK button to save the setting.
6. Press the MENU/ MUTE button to go back to standby mode.
NOTE: The phone will ring once when set to OFF mode unless first ring is set to OFF mode.
button to select ON or OFF.
RRIVATE RNG
On
#
12
TOTAL
UNAVA I L RNG
On
#
13
TOTAL
13
13
ANSWERING MACHINE OPERATION
The 36077 featu res a sophisticated Digit al Answering System. Incoming Mess ages(ICMs), Outgoing
Message(OGM) and Memo messages are stored electronically into digital memory. Messages are
accessed instantly and arranged compactly in this memory. The 36077 can store 15 minutes of
message(ICMs, OGM and Memos Combined).
NOTE: The maximum incoming Message(ICM) recording time is 1 minutes. The minimum incoming
Message(ICM) recording time is 3 seconds.
VOICE MENU SYSTEM
A sophisticated Voice Menu System has been designed and pre-programmed into the 36077. This system
will verbally guide you through key operational procedures.
TIME/DAY STAMP
ICMs and Memo messages are automatically voice-stamped with the current time and day.
NOTE: After power failure, the time/day stamp will be lost. In this case, the time will be incorrect.
Please refer to the INITIAL SETUP section on how to set the system time and day.
SETTING ANSWER ON/OFF/A(Announce)
The unit defaults to Answer ON automatically after power up.
1. With recording OGM in standby mode( “ON” mode) and without recording OGM in “A”
mode.
23 030506A-1
Page 24
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
A. TO TURN ANSWER MODE OFF
1. In standby mode, press the ANS. ON/OFF button on the base unit until you hear “Answering machine
is off ”.
2. The 36077 will announce “Answering machine is off ”.
NOTE: If the Answerin g Mode is OFF, the 36077 will answer af ter the 10
caller call in. The “OFF” mode will aut o m atically return to “ON” mode)
B. TO TURN ANSWER MODE ON
1. In standby mode, press the ANS. ON/OFF button until you hear “Answering machine is on ”.
NOTE: The 36077 will answer after ringing.
C. TO TURN ANSWER MODE A
1. In standby mode, press the ANS. ON/OFF button until you hear “Answering machine is A”.
Note: THE 36077 will sa y “ Sorry mailbox is full, p lease try again later” after ringing, and then will
automatically hang up after hold seven seconds.
2. With recording OGM in “A” mode and in “ON” mode.
TO TURN ANSWER MODE A: THE 36077 will indicate “ host recorded OGM in the “A” mode” after
ringing, and then will automatically hang up.
3. With recording OGM in “A” mode and without recording OGM in “ON” mode.
A. TO TURN ANSWER MODE ON: THE 36077 will say “ Please leave your message and we will
return your call” after ringing, and then will answer.
B. TO TURN ANSWER MODE OFF: THE 36077 will say “ Please leave your message and we will
return your call” after the 10
th
ring , and then will answer.
C. TO TURN ANSWER MODE A: After ringing and will ring a beep, and then will automatically hang
up.
SETTING THE RINGS SWITCH(TS/4R/2R)
The number of rings before the answering system answers a call be selected by setting the RINGS
switch on the base unit to :
TS – Toll Saver
4 - Four rings
2 - Two rings
Toll Saver lets you avoid unnecessary toll charges when calling long distance to remotely retrieve your
messages.
The 36077 can be set to answer the firs t call on the 4
th
ring, and all subsequent calls on the 2
setting the RINGS switch on th e Toll Saver (TS) position. If your 36077 fails t o answer on the 2
then you know that you do not have any new incoming Message(s)(ICM). You can hang up before the
unit answers and save the cost of the call.
SETTING TIME/D AY
1. Press “TIME SET” button. You will hear current Time/Day setting the time and day.
2. Press and hold “TIME SET” button for about 3 seconds. You will hear “Sunday”.
3. Press “SKIP
” or “REPEAT ” button (on the base) until the correct day is announced.
4. Press “TIME SET” button to confirm and then set the hours. You will hear “12AM” as the “12AM” is
displayed in message counter.
5. Press “SKIP
” button to advance or “REPEAT ” button to reverse the hour show in the
display.
6. Press “TIME SET” button to confirm and then set the minutes, you will hear “00” as the “00” is
displayed in message counter.
7. Press “SKIP
” button to inc rement or “REPEAT ” button to decremen t the minute in the
display.
24 030506A-1
th
ring. (When the second
nd
ring by
nd
ring ,
Page 25
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
8. Press “TIME SET” button to confirm. The new day and time will announced.
SETTING CODE
1. Press CODE button on the base. Then you will hear the current setting, “one, two, three”.
2. Press and hold “code” button for about 3 seconds.
3. Press Skip
4. Press the CODE button to confirm.
5. Press Skip
6. Press the CODE button to confirm.
7. Press Skip
8. Press the CODE button to confirm.
You will hear the newly programmed 3-digit security code.
NOTE: When the 36077 is disconnected the AC Adaptor from the base beyond five hours, the code will
be returned to the original setting “159”.
OUTGOING MESSAGE (OGM)
This is the announcement callers will hear when 36077 answers a call. The 36077 also has a default
OGM(factory preset) which is active when there is no OGM present.
Default OGM: “Please record your message aft er the beep.”
RECORDING THE OUTGOING MESSAGE (OGM) (The maximum recording time is 59 second s.
The minimum recording time is 3 second s)
1. In standby mode, Press the OGM button.
2. Press and hold the OGM button.
3. Record your greeting after you hear a beep tone.
4. Press the OGM button after you finish recording your greeting. Your recorded greeting will be
CHECKING THE OUTGOING MESSAGE (OGM)
1. In standby mode, press the OGM button on the base unit to hear your previously recorded OGM.
2. You can stop OGM playback anytime during playback by pressing the PLAY/STOP button.
RECORDING A MEMO
Memo message(s) is recorded on the base unit. The maximum recording time is 1 minutes. The
minimum recording time is 3 secon ds.
1. In standby mode, Press the MEMO button.
2. Press and hold the MEMO button.
3. Record your greeting after you hear a beep tone.
4. Press the PLAY/STOP button after you finish recording your greeting.
PLAYING BACK MESSAGE
If the NEW/MSG LED indicator is on, it indicates that you have Memo or ICM message(s). If it is
blinking, it indicates that there is new message(s). The blinking counts mean the number of new
messages.
A. PLAYING MESSAGES
In standby mode, pr ess the PLAY/STOP button on the base unit . The 36077 will announc e “You have
(number)(Memo) message.” And begins playing the first message to the end. It will announce the
message number before each message.
or Repeat button (on the base) to select the first digit you desired.
or Repeat button to select the second digit you desired.
or Repeat button to select the third digit you desired.
played.
25 030506A-1
Page 26
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
B. SKIPPING MESSAGES
Press the SKIP button on the base unit during message playback to skip forward to the next
message.
C. PREVIOUS MESSAGES
Press REPEAT button once on the base unit during message playback to skip backward one
message.
D. STOP MESSAGE PLAYBACK
Press the PLAY/STOP button to stop message playback.
ERASING MESSAGES
A. SELECTIVE ERASING
1. Press the ERASE button on the base unit during message playback.
2. The 36077 will announce “ (Message)(Memo)(Number) erased.” And then start the next message.
NOTE: Erased message can not be retrieved. There is a momentary delay after erasing messages to
allow the 36077 to reorganize and optimize its memory space.
B. ERASING ALL ICM AND MEMO
1. In standby mode, press and hold the ERASE button for about 2 seconds.
2. The 36077 will announce “Message(number) erased. You have no message.”
C. ERASING OGM
1. During OGM playback, press ERASE button.
2. The 36077 will announce “Erase your announcement. You have no announcement .”
NOTE: After erasing messages during memory full or near memory full, you may hear a continuous
beep for several seconds indicating memory sorting of the unit.
MEMORY FULL DETECTION
The memory full condition occurs:
. If 15 minutes of recording time is reached, or
. If 59 message (i.e. Memo, OGM, ICM) have been recorded.
If there is an inc oming call, th e unit will an swer at the 10
erase any or all the messages remotely after listening to them.
NOTE: Sometimes you may fail to escape from memory full condition when erasing a short message.
In this case, you must erase more messages (at least 1 minute message).
CALL SCREENING
You can listen to the caller leave their ICM and decide if you want to answer the call.
VOX(V OICE ACTI VATED) DETECTION
During OGM, ICM or Memo recording, Th e 36077 uses VOX(voice activation ) to conserve message
storage space. The conditions for the 36077 terminating a recording are:
. Continuous silence for seven seconds.
. Seven seconds after the caller hangs up.
CALLING THE 36077 FROM A TONE PHONE
NOTE: The factory preset password for remote operation is “159”.
1. Call the 36077 from a tone dialing phone.
2. While the OGM is playing or during ICM recording, enter your 3 digits password.
3. After a successful password entry , the Remote Operation function is on.
Once you have activated the Remote Operation function through a tone dialing phone to call the 36077.
The 36077 will announce the total number of new message(s) in Message (MSG) box.
傳真: (八五二) 二六八七 四一二五
th
ring and announce “Memory full”. You can
26 030506A-1
Page 27
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
According to Voice indication. The following table shows the Voice Help Menu:
傳真: (八五二) 二六八七 四一二五
Main menu
Key press Action
announcement
Pla y memos 3 Pla ys memos onl y
Play messages 4 Plays all messages
Play new messages 5 Plays only new messages
Delete all messages *4 Deletes all messages
To stop function 7 Stop current func tion
To play the
message/Played menu
The following table lists announcements made after you have pressed 9:
9 To hear message menu;
See the table below
Message main menu Key Action
Repeat message 3 Repeats the current message
To skip message 5 Skips forward to the next message
Delete message 6 Deletes current message
To stop function 7 Stops current function
During message or memo playback Key press
Replay previous message 33
Pause message 4
Change OGM1 *1
Record new MEMO *2
Change security code *3
Switch answerphone off *5
Delete current message 6
Key(s) Function
* Skip OGM p lay
1 Play OGM1
2 Room Monitor
# End remote control operation
27 030506A-1
Page 28
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
65,536 Combination Security Coding
The cordless telephone have a digital coding security system to prevent unauthorized use of your
telephone line by other cordless phones nearly. The cordless telephone have 65,536 possible security
code combinations. Each combination of the code is randomly generated every time the handset is
picked up.
Resetting Security Code and Channel
Communication between the handset and the base unit may not be possible in any of the
following situations:
1. After a power failure.
2. After relocating the base unit by disconnecting the AC adapter..
3. After replacing the handset battery.
4. The handset goes out of range from the base unit.
To reset, place the handset on the cradle of the base unit for five seconds.
IMPROVING CORDLESS RECEPTION
Follow these guidelines to improve cordless sound quality:
• Select an area t o install th e unit where it is closest t o the center of you r home or office. Thi s will
improve the op erating range of the uni t.
• Keep the base unit away from electrical equipment. Radio Frequency Interference (RFI) is
sometimes generated by these appliances, which can cause a degradation in cordless reception.
• Keep the hand set ba tt eri es c ha rged a s mu ch as po ssi b le. Weak handset bat teri es ca n li mit th e r ang e
of cordless operation.
MAXIMIZING BATTERY LIFE
Repeated use or recharge of Ni-Cd batteries without periodic full discharge results in reduced useable
charge time. When you notice the usable charge duration decreasing, fully discharge the Ni-Cd battery
and recharge as described:
DISCHARGING
1. Unplug the telephone line cord from the 36077.
2. Make sure that the adapter is connected.
3. Lift the handset out of the base cradle.
4. Press the TALK button of the handset and start discharging.
Once the Symbol Low Battery appears on LCD Display, it means that the battery level is low. Let it fully
discharge for 12 hours. Once the Ni-Cd battery is fully discharged, you may now charge the battery to its
full capacity.
CHARGING
1. Make sure the adapter and telephone line cord are connected to the 36077.
2. Place the handset on the base cradle. The CHARGE LED indicator of the base unit will light
steadily.
3. Leave the handset charging on the base for 14 hours continuously to get a maximum charge.
4. The 36077 is now ready for regular use. Discharge and charge the Ni-Cd
battery again once you notice a decrease in the useable charge time.
MAINTENANCE
1. Yo ur phone sho ul d be situate d away from he at s o ur ce s such as r adiato r s , he aters, stoves o r any other
appliance that produces heat.
2. Use a slightly damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil.
Never use polish, solvents, abrasives or strong detergents since these can d amage the finish.
TECHNICAL INFORMATION
This cordless phone uses radio frequencies to allow mobility. There are certain difficulties in using radio
frequencies with a cordless telephone. While these are normal, the following could affect the operation of
your system.
28 030506A-1
Page 29
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
NOISE: Electric pulse noise is pres ent in most homes at one time or another. This noise is most intense
during electrical storms. Certain kinds of electric equipment such as light dimmers, fluorescent bulbs,
motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise
pulses, you may occasionally hear them in your handset. Generally, they are minor annoyances and
should not be interpreted as defects in your system.
RANGE: Because radio frequencies are used, location of the base unit can affect operating range. Try
several locations in your home or business and pick the one that gives you the clearest signal.
INTERFERENCE: Some elec tronic d evices operat e in and/or gen erate interfer ence nea r the operat ing
frequencies of your cordless telephone. While several protection circuits are used to prevent unwanted
signals, ther e may be periods when these un wanted signals cause interfe rence. If interference oc curs
frequently, it can be minimized or eliminated by lowering the height of your base antenna or by
relocating th e base unit. You can check for interference before s electin g the final base unit loc ation by
plugging in the phone.
傳真: (八五二) 二六八七 四一二五
29 030506A-1
Page 30
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
TROUBLESHOOTING
A. TELEPHONE UNIT TROUBLESHOOTING TABLE
SYMPTOM SOLUTION
No dial
tone
Does not
ring
No power on
the handset
unit
Does not
charge
Range is
limited
Calls
received
flutters or
fades
Interference
on reception
Excessive
static
• Check the telephone line cord connectors at both ends that they are pushed in
firmly until they click.
• If you had a power failure or had unplugged the base unit, replace the handset on
the base unit for two to five seconds to reset the system.
• Check the RING ON/OFF mode on the handset. Set to RING ON mode to
enable th e handset ringer.
• Check the telephone line cord connectors at both ends that they are pushed in
firmly until they click.
• You may have exceeded the Ringer Equivalence Number(REN) limit of how
many phones can be connected to the same line. The REN total of all
devices(printed on the bottom label of each unit)should not exceed five(5).
Disconnect the appropriate units to lower the REN total.
• Check the Ni-Cd battery pack for proper connection inside the battery
compartm ent on the hands et.
• The handset rechargeable Ni-Cd pack may need charging.
• Check the Ni-Cd battery pack for proper connection inside the battery
compartm ent on the hands et.
• Made sure the charging contacts on both the base unit and the handset are in
contact during charging.
• The charging contacts and terminals may need cleaning with an
alcohol-dampened swab.
• Move the base unit so that it is centrally located in your residence or office and
make sure that the base unit is not located near appliances.
• The handset Ni-Cd battery may be weak. Recharge the Ni-Cd battery.
• Refer to the section “ Improving Cordless Reception”.
• The handset rechargeable Ni-Cd battery pack may need charging.
• Choose an alternate channel using the MENU/SCAN button on the handset.
• Refer to the section “Improving Cordless Reception”.
• Refer to the section “Improving Cordless Reception”.
30 030506A-1
Page 31
SENTON Enterprises Limited 信 通 企 業 有 限 公 司
r
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室
Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [email protected]
傳真: (八五二) 二六八七 四一二五
B. CALLER ID SYSTEM TROUBLESHOOT ING TABLE
SYMPTOM SOLUTION
The Caller ID
panel is blank
The Caller ID does
not show the caller’s
name and/or phone
number
Random characters
and/or “NO DATA”
appear on the LCD
display
Cannot get call
W aiting ide ntification
on the LCD panel
• Check the power connection.
• Check the telephone line cord connections.
• Check the batteries for proper installation.
• The Caller ID unit will not function until you have Caller ID service
provided by your local phone company. Call your local phone company
to have Caller ID installed on your telephone line.
• If you pick up the phone before the second ring, the caller information
will not be correctly received. If you have telephone answering
device(TAD) connected with the unit, set the TAD to answer after two
rings or more.
• If it is a blocked call or an out-of-area call, the caller’s name and/or
phone number will not appear on the display.
• If only the caller’s phone number appears on the display, it may be
Single Data M es s age Format(SDMF) call, as opposed to a Multiple
Data Message Format (MDMF) call. Please call your local phone
company to see which service you have.
• On rare occasions, the Caller ID information sent by the telephone
company may have an error in the transmission. This is not the fault of
your Caller ID unit. It can only capture and store the data that was
received.
• Subscription to Caller ID Call Waiting (CIDCW) is requ ired from your
local phone c ompany for th e CIDCW fu nction to operat e properly. Call
you local phone company for details.
C ADAPTOR: USE ONLY WITH CL ASS 2 POWER SOURCE, OUTPUT 9VDC, 500mA fo
THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF
base unit and 200mA for charger .
IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE OWNER’S MANUAL.
Distributed Exclusively Worldwide by Unical Enterprises, Inc., Industry, California, USA
36077/030506A-1 www.nwbphones.com
31 030506A-1
