Senton 36000 Users Manual

SENTON Enterprises Limited 信通企業有限公司

Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓 10 室 Tel: (852) 2687-1712 Fax: (852) 2687-4125 電話: (八五二) 二六八七一七一二 (四線) E-mail address: senton@netvigator.com

傳真: (八五二) 二六八七四一二五

IMPORTANT SERVICE INFORMATION

Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and

proof of purchase to simplify and accelerate any needed action. If you need assistance or service, call (800) 888-8990 between 8:00 a.m. and 4:30 p.m. Pacific Standard Tim e , Monday through Friday. You can also visit our web site at other products.

http://www.nwbphones.com for technical support and information on our

WARNING

To prevent fire or shock hazard, do not expose this product to rain or any type of excess moisture. If accidentally dropped into water, the AC adapter should immediately be unplugged from the wall along with the telephone line cord.

THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL.

• Excursion® 36000 Base and Handset

• Rechargeable Ni-Cd Battery Pack

• Telephone Line Cord(Short and Long)

• AC Adaptor

• User’s Manual

• Warranty Card

• Accessory Order Form

• Wall Mount Screws and Hardware

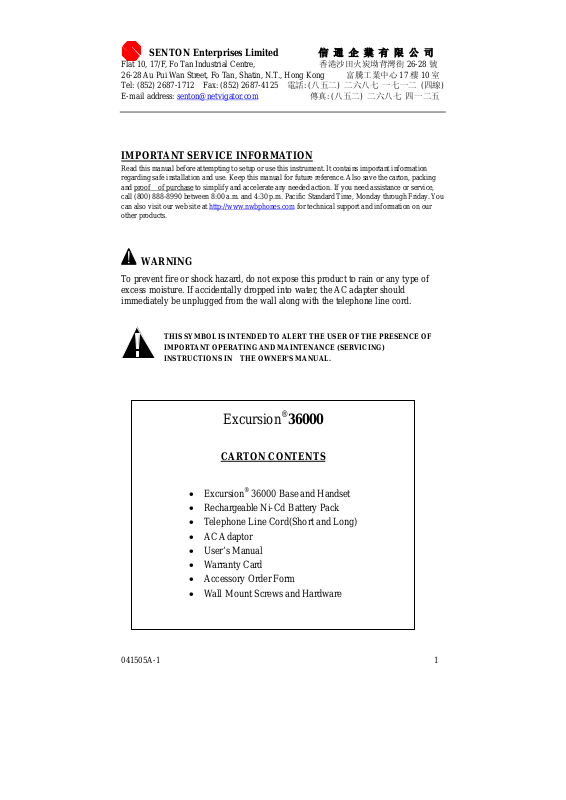

Excursion®36000

CARTON CONTENTS

041505A-1 1

SENTON Enterprises Limited 信通企業有限公司

傳真: (八五二) 二六八七四一二五

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol

4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it

7. This product should be operated only from the type of power source indicated on the marking label.

8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be

9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric

10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous

11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service

12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the

13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a

14. Do not use the telephone to report a gas leak in the vicinity of the leak.

INSTRUCTIONS

cleaners. Use a damp cloth for cleaning.

tub, in a wet basement or near a swimming pool.

damage to the product.

from overheating. These openings should never be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided.

If you are not sure of the type of power supply to your home, consult your dealer or local power company.

abused by persons walking on it.

shock.

voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

contractor when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause elect ric shock when the appliance is subsequently used.

following conditions:

A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only

those controls that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician

to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F . If the product exhibits a distinctive change in performance.

remote risk of electric shock from lightning.

041505A-1 2

SENTON Enterprises Limited 信通企業有限公司

傳真: (八五二) 二六八七四一二五

INSTALLATION

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet

3. Never touch uninsulated telephone wires or terminals unless the telephone line has been

4. Use caution when installing or modifying telephone lines.

1. Use a damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil. Never

2. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instruction. read and follow these instructions:

1. Use only the 3.6V, 450mAh, Ni-Cd battery pack .

2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible

3. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the

4. Exercise care in handling the battery in order not to short the battery with conducting material such

5. Recharge only the battery provided with or identified for use with this product. The battery may leak

6. Do not attempt to rejuvenate the battery provided with or identified for use with this product by

7. When inserting the battery into this product, the proper polarity or direction must be observed.

8. Do not store this product, or the battery provided with or identified for use with this product, in

9. Disconnect telephone lines before installing batteries

SAVE THESE INSTRUCTIONS FCC NOTICE

The FCC requires that you be advised of certain requirements involving the use of this telephone.

1. This telephone is hearing aid compatible.

2. This equipment complies with 47 CFR Part 68 requirement. On the bottom of this equipment is a

041505A-1 3

PRECAUTIONS

locations.

disconnected at the network interface.

MAINTENANCE

use polish, solvents, abrasives or strong detergents since these can damage the finish.

appliance that produces heat.

special disposal instructions.

eyes or skin. It may be toxic if swallowed.

as rings, bracelets and keys. The battery or conductor may overheat and cause burns.

corrosive electrolyte or explode if it is not the correct type.

heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin.

Reverse insertion of batteries can cause charging that may result in leakage or explosion.

high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be stabilized at room temperature prior to use after cold storage.

label that contains, among other information, the ACTA registration number and Ringer Equivalence Number (REN) for this equipment. If requested, provide this information to your telephone company.

SENTON Enterprises Limited 信通企業有限公司

3. The REN is useful to determine the quantity of devices you may connect to your telephone line and still have all of those devices ring when your number is called. In most, but not all areas, the su m of the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should call your local telephone company to determine the maximum REN for your calling area.

4. If your telephone causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice is not practical, you will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC.

5. Your telephone company may make changes to its facilities, equipment,

operations or procedures that could affect the proper operation of your equipment. If they do, you will be given advance notice so as to give you an opportunity to maintain uninterrupted service.

6. If you experience trouble with the telephone, please contact VTC Service & Manufacturing Co., Inc at (800) 888-8990 or write to: VTC Customer Service, 16988 Gale Ave., City of Industry, CA 91745 for repair/warranty information. The telephone company may ask you to disconnect this equipment from the network until the problem has been corrected or you are sure that the equipment is not malfunctioning.

7. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs. (Contact your state public utility commission or corporation commission for information.) .

8. USOC jack type is RJ11C and the compatible jack is part 68 compliance.

NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this [equipment ID] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a

installer. qualified

傳真: (八五二) 二六八七四一二五

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) his device must accept any interference received, including interference that may cause desired operation. Privacy of communications may not be ensured when using this phone.

Changes or modifications not expressly approved in writing by Northwestern Bell Phones ma y void the user's authority to operate this equipment.

Some cordless phones operate at frequencies that may cause interference to nearby TVs an VCRs; to minimize or prevent such interference, the base of the cordless phone should not be

laced near or on top of a TV or VCR; and, if interference is experienced, moving the cordless

telephone farther away from the TV or VCR will often reduce or eliminate the interference.

AC ADAPTOR:

041505A-1 4

Use only with Class 2 Transformer, 9VDC output ,

200mA, center pin positive.

SENTON Enterprises Limited 信通企業有限公司

傳真: (八五二) 二六八七四一二五

Excursion® 36000 CONTROLS DIAGRAM

T ALK Button

VOL + Button

SPK ON/OFF Button

FLASH Button

TONE(*)/Button

MEMO Button

GHI

PQRS

2.4 GHz

TALK

ON/OFF

SPK

ABC

JKL

TUV

OPER

CHN

DEF

MNO

WXYZ

MUTE

3 6

MEMO

DC 9V Jack LINE Jack TONE/PULSE Switch

041505A-1 5

VOL - Button

REDIAL Button

IN USE/CHARGE LED Indicator

PAGE Button

MUTE Button

CHN Button

Base Unit (Rear View)

9V AC 300mA

LINELINE

Button

T P

PAGE

IN USE CHG

SENTON Enterprises Limited 信通企業有限公司

傳真: (八五二) 二六八七四一二五

DESCRIPTIONS

Handset Controls:

NEW CALL indicator - Handset Visual ringer blinks when you have new call(s).

TALK Button - Press this button to place a call, answer a call, or end a call. When the unit is in

speakerphone mode, it will be change to Phone mode. And when the unit is already in PHONE mode, this key will be ST ANDBY mode.

SPK ON/OFF Button - Press this button to enter the SPEAKERPHONE mode. When the unit is already in Phone mode, it will be change to SPEAKERPHONE mode. And when the unit is already in SPEAKERPHONE mode, this key will be STANDBY mode.

TONE/* Button - In programming mode & tone dialing mode, this key is used as a normal number key. In pulse dialing mode, it is used to initiate temporary DTMF dialing. This key can also be stored into directory numbers.

# Button - In directory entry/editing & tone dialing mode, this key is used as a normal number key, In pulse dialing mode, it will be inactive. This key can also be stored into directory numbers.

FLASH Button - Momentarily hangs up the phone to access custom calling features such as Call waiting or Three-way calling provided by you local phone company.

VOL +/VOL - Button -Allows you to adjust the handset volume( 7 steps) in TALK mode.

MEMO Button memory.

MUTE Button

Microphone -Used for speaking with callers.

Headset Jack – A jack located on the side of the handset used for connecting your headset to enjoy a

hands-free communication.

Redial Button –Press to redial the last number you dialed.

CHN (Channel ) Button – While in Talk mode. It is used to manually select one of the 40 operating channels when you experience interference on the handset.

RINGER+MOTOR/RINGER/OFF Switch – This slide switch is used to control the ringer buzzer and

vibrator. When the slide switch is in OFF position. The ringer buzzer and vibrator is not operation. When in RINGER+MOTOR position, the ringer and vibrator is following the ring cadence. And in RINGER position, only the ringer buzzer is operated.

Receiver – Allows you to hear calls.

– Used to program phone numbers into memory. Recalls and dials a phone number from

- Allows you to talk privately without being over heard by the calling party .

041505A-1 6
