Schulthess Spirit Eco TW 4740 User Manual

1 2 3 4 5

6

Contents Page

ʋPreparation . . . . . . . . . . . . . . . . . . . . . . 2

ʋSetting the programmes . . . . . . . . . . . . . 2

ʋDrying . . . . . . . . . . . . . . . . . . . . . . . . 3/4

ʋNotes on laundry . . . . . . . . . . . . . . . . . . 5

ʋFine adjustment of the drying result . . . . 6

ʋImportant Information . . . . . . . . . . . . . . . 6

ʋOverview of programmes . . . . . . . . . . . . 7

ʋInstallation . . . . . . . . . . . . . . . . . . . . . . . 8

ʋFrost protection / Transport. . . . . . . . . . . 8

ʋCare and cleaning . . . . . . . . . . . . . . . . . . 9

ʋTechnical data . . . . . . . . . . . . . . . . . . . 10

ʋOptional accessories . . . . . . . . . . . . . . . 10

ʋNormal noises . . . . . . . . . . . . . . . . . . . . 11

ʋWhat to do if ... / After-sales service . . . 12

ʋSafety instructions . . . . . . . . . . . . . . . . 13

Select On/Off for buzzer at the end of the programme. ˎ& (Buzzer)

Reduced temperature for delicate fabrics ' that require a longer

drying time; e.g. polyacrylics, polyamide, elastane, acetate silk.

ˎÙ (Low heat)

Reduces creasing and prolongs the 'reduced ironing' phase after

the programme has finished.

ˎÚ](Reduced

ironing)

... and adapt to individual requirements

Never start the dryer if it is damaged.
Inform your after-sales service.

Inspecting the

dryer

Sorting and loading laundry

Remove all items from pockets.
Check for cigarette lighters.
The drum must be empty prior to loading.

See programme overview on page 7.

Your new dryer

Intended use

Preparation Installation a page 8

Selecting and adjusting the programme

Additional

functions

Select the drying programme ...

Press the Start/Stop button

Make sure your hands are dry.
Hold the plug only.

Connecting the

mains plug

Display

status/

service

Programme selector

All buttons are sensitive and only
need to be touched lightly.

ʋFor domestic use only.

ʋOnly to be used for drying fabrics that have been

washed with water.

.

Do not leave children unsupervised near the dryer.
Keep pets away from the dryer.

3

2

1

Drying

Drying

Condensation container with filter

Control panel

Air inlet

Two-part
fluff filter

Drum

End of programme as soon as the Ý](AntiCrease/End) indicator

lamp lights up.

Interrupt programme Adding or removing laundry.

The drying operation can be interrupted briefly to add or remove laundry. However, it must then be
continued until it has finished.

1. Open the door. The drying process is interrupted.

2. Add or remove laundry then close the door.

3. If required, select a new programme and additional functions.

4. Press the Start/Stop button. The remaining time is updated after a few minutes.

Display/

Remaining

time

7(h:min) End of programme after 1-24 hours (button may need to be pressed several times) can always be

set to the nearest full hour.

Cln Automatic cleaning of the heat exchanger.
Fine

adjustment of
the drying
result

The drying result (e.g. cupboard dry) can be adjusted over three levels (1 - max. 3) for the

A (Cottons), 8(Easy-care), Mix Þ and Express (Super 40) programmes apresetting = 0. After

one of these programmes has been finely adjusted, the setting is retained for the others.

Further information apage 6.

0, 1, 2, 3

Only use the dryer with the fluff filter
inserted.

Emptying condensation

Empty the container after each drying cycle, not during drying.

1. Remove the condensation container and hold it level.

2. Pour out the condensation.

3. Always push container in fully until it clicks into place.

If the Ü(Container) indicator lamp flashes despite the container having

been emptied a Filter in condensation container, page 9.

Cleaning the fluff filter

The fluff filter consists of two parts.

Clean the inner fluff filter after every drying cycle.

1. Open the door. Remove fluff from the door/door area.

2. Pull out the inner fluff filter and open it out.

3. Remove the fluff (by wiping the filter with your hand).

If the fluff filter is heavily soiled or blocked, rinse it under
running water and dry thoroughly.

Clean the outer fluff filter after every 5 drying cycles:

4. Remove the outer fluff filter.

5. Open it and remove any fluff.

Rinse under running water and dry thoroughly.

6. Close and re-insert the fluff filter.

Switching off the dryer

Turn the programme selector to >(Off).

Do not leave laundry in the dryer.

Removing the laundry

Your dryer is equipped with an automatic reduced ironing function. The drum is moved at specific time
intervals for 60 minutes once the programme has ended. The laundry stays loose and fluffy (or
120 minutes if the additional

Ú(Reduced ironing) function is selected).

Congratulations - you have chosen to buy a modern, high-quality
domestic appliance.

The condensation dryer with heat pump and automatic cleaning of
the heat exchanger is outstanding in terms of efficient energy

consumption and low maintenance requirements apage 6.

Every dryer which leaves our factory is carefully checked to ensure
that it functions correctly and is in perfect condition.

Should you have any questions, our after-sales service will be
pleased to help.

Environmentally-responsible disposal

Dispose of packaging in an environmentally-responsible manner.
This appliance is designated according to European directive



2002/96/EC which governs waste electrical and electronic
equipment - WEEE).
The directive provides an EU-wide framework for the return and
recycling of used appliances.

You can find further information and a selection of our products on
our websites, www.schulthess.ch or www.merker.ch.

Do not pull out/empty the
condensation container when drying is in progress.

Drum interior light

(depending on the
model)

Important Information

Your dryer is designed to be particularly energy efficient. Its technical features include a
refrigeration circuit, which uses energy efficiently in a similar way to a refrigerator.
The dryer's heat exchanger is cleaned automatically during drying.
The fluff filters and filter in the condensation container must be cleaned regularly.

Never operate the dryer without the fluff filters and/or condensation container with filter.

ʑ

Fluff filters

During drying, fluff and hair from the laundry is trapped by the fluff filter. Blocked fluff filters
may impair the heat exchange process.
The fluff filters must therefore be cleaned after every drying cycle. Rinse regularly under

running water apage 4.

ʑ

Filter in the condensation container

The filter in the condensation container cleans the condensation. This condensation is
required for the automatic cleaning process. The filter should be cleaned regularly under

running water. Empty the condensation container before cleaning the filter apage 4/9.

ʑ

Fabrics

Do not dry any fabrics that have come into contact with solvents, oil, wax, grease or paint:
e.g. hair styling products, nail varnish remover, stain remover, cleaning solvent. etc.
Empty all pockets.
Do not dry non-breathable fabrics.
Avoid drying items that produce a lot of fluff.
Woollens should be refreshed only, using the woollens programme.

Information on laundry ...

Labelling of fabrics

Follow the manufacturer's care information.

(Dry at normal temperature.

'cDry at low temperature a in addition, select Ù(Low heat).

)cDo not machine dry.

Always observe the safety instructions on page 13.

Do not tumble-dry the following fabrics, for example:
– Non-breathable fabrics (e.g. rubber-coated).

– Delicate materials (silk, curtains made from synthetic material) a these may crease.

– Oil-stained laundry.

Drying tips

– To ensure an even result, sort the laundry by fabric type and drying programme.
– Always dry very small fabrics (e.g. baby socks) together with

large items of laundry (e.g. towels).

– Close zips, hooks and eyelets, and button up covers.

Tie fabric belts, apron strings, etc. together

– Do not over-dry easy-care laundry a Risk of creasing.

Allow laundry to finish drying in the air.

– Do not dry woollens in the dryer. They may, however, be refreshed apage 7

6 min

;

(Wool finish) programme.

– Do not iron laundry immediately after drying; fold items up and leave for a while a residual

moisture will then be distributed evenly.

– The drying result depends on the type of water used during washing. aFine adjustment

of the drying result page 6.

– Knitted fabrics (e.g. T-shirts, jerseys) often shrink slightly the first time they are tumble-dried.

aDo not use the {(Cupboard dry extra) programme.

– The drying of starched laundry should be limited. a Starch leaves behind a coating that

impairs drying.

– When washing laundry that is to be tumble-dried afterwards, use the correct amount of

fabric softener as specified in the manufacturer's instructions.

– For pre-dried, multi-layered fabrics or small, individual items of laundry, use the Timed

programme. Also suitable for subsequent drying.

Environmental protection/energy-saving tips

– Before drying, spin the laundry thoroughly in the washing machine a the higher the spin

speed, the shorter the drying time will be, thus less energy is consumed. Also spin easy­care laundry.

– Use the maximum recommended capacity, but do not exceed it

a Programme overview page 7.

– Make sure the room is well ventilated during drying.
– Do not cover or seal the air inlet.

ò4Þ]]ÝDrying, Iron dry, Cupboard dry, AntiCrease/End

Ü (Container) Empty the condensation container.

Clean the filter in the condensation container if necessary a page 9.

Û (Filter) Rinse the fluff filters under running water apage 4.

Fine adjustment of the drying result

Adjustment of the levels of dryness

1 x to
the right

Press and hold Ù(Low heat)

and turn 5 x to the right

Press Ù(Low heat) until the

required level is reached

Turn to

>(Off)

Turn to

>(Off)

L:00, L:01, L:02, L:03 are shown in sequence.
Short signal when changing from level 3 to 0, otherwise long
signal.

7

Programme overview see also page 5 .

Sort the laundry according to type of textile and fabric. Fabrics must be suitable for tumble drying.

After drying, laundry is to be ......

c

ironed



lightly ironed

@c

not ironed

c

mangled

PROGRAMMES TEXTILE TYPE AND INFORMATION

**A (Cottons)

max. 7 kg

Hard-wearing fabrics, boil-proof fabrics made of cotton or linen.

**8 (Easy-care)

max. 3,5 kg Non-iron laundry made of synthetic fibres and mixed fabric, easy-care cotton.

**Mix Þ

max. 3 kg

Mixed load of fabrics made of cotton and synthetic fabrics (mix).

4

(Iron dry) cø@c The condition of the laundry means it is suitable for ironing (iron clothes in order to avoid creases).

Þ (Cupboard dry) @

For single-layered laundry.

*{ (Cupboard dry extra) @

For laundry with thick, multi-layered parts.

6 min ;(Wool finish)

max. 3 kg

Waschmaschinenfeste Wolle-Textilien. Textilien werden flauschiger, aber nicht getrocknet. Textilien nach Programmende

entnehmen und trocknen lassen.

Express (Super 40)

max. 2 kg

Laundry which needs to be dried quickly, e.g. made from synthetics, cotton or mixed fabrics. The values may deviate from the

values shown here, because of type of fabric, composition of the laundry to be dried, residual moisture in the material and size

of the load.

Sportswear

max. 1,5 kg

Textilien mit Membranbeschichtung, wasserabweisende Textilien, Funktionsbekleidung, Fleecetextilien (Jacken/Hosen mit

herausnehmbaren Innenfutter separat trocknen).

Ø30 min ò

(

Timed programme

warm 30 min)

max. 3 kg

Pre-dried, multi-layered, delicate fabrics made of acrylic, or separate small items of laundry. Also for subsequent drying.

*For A (Cottons) and 8 (Easy-care) programmes only.

**Dryness levels can be selected individually a{(Cupboard dry extra), Þ(Cupboard dry) and 4

(Iron dry) (depending on the model).

Degree of dryness can be finely adjusted; multi-layered textiles require a longer drying time than single-layered items of clothing.

Recommendation: Dry separately.

0711 / 9000682421

*562060*

Schulthess Maschinen AG

Landstrasse 37

CH - 8633 Wolfhausen

Merker AG

Althardstrasse 70

CH - 8105 Regensdorf

WTW843SH1CH

8

Installation

– Scope of delivery: dryer, installation and operating instructions.
– Check dryer for transport damage.
– The dryer is very heavy. Do not attempt to lift it on your own.
– Be careful to avoid sharp edges.
– Do not set up in a room that is susceptible to frost. Freezing water may cause damage.
– If in doubt, have the appliance connected by a specialist.
– Do not lift the dryer by protruding parts (e.g. the door) - risk of breakage.

Setting up the dryer

– The appliance plug must always be accessible.
– Ensure that the appliance is installed on a clean, level

and firm surface.

– Do not obstruct the air inlet on the front of the

dryer.
– Keep the area around the dryer clean.
– Make the dryer level using the threaded feet

and a spirit level.
– Do not remove the threaded feet under any

circumstances.

Mains connection see Safety instructions a page 13.

– Connect to an AC earthed socket. If in doubt have the socket checked by a specialist.

– The mains voltage and the voltage shown on the rating plate (apage 10) must be the

same.
– The connected load and necessary fuse protection are specified on the rating plate.

Frost protection

Preparation

1. Empty the condensation container apage 4.

2. Select any programme using the programme selector.

3. Press the Start/Stop button a condensed water is pumped into the container

4. Wait 5 minutes and then empty the condensation container again.

5. Turn the programme selector to >(Off).

Transport

– Prepare the dryer a see Frost protection.

– Transport the dryer in a vertical upright position.
– Following transportation, do not use the dryer for two hours.

The dryer contains residual water;
this can flow out if the dryer is tilted.

1.

Take all accessory parts out
of the drum.
The drum must be empty.

Make sure that the air inlet
remains unobstructed

Clean and level

Do not set up the dryer behind a door or sliding
door, as this may obstruct the dryer door or prevent
it from opening. This will prevent a potentially fatal
danger to children from locking themselves in.

2.

Do not operate the dryer if
there is a danger of frost.

9

Care and cleaning

Heat exchanger

The dryer's heat exchanger is cleaned automatically during drying. Cln appears in the display
panel. Do not pull out the condensation container during the cleaning process.

Dryer housing, control panel, air intake

Remove detergent residues immediately.
Wipe with a soft, damp cloth.

Filter in the condensation container

The filter is cleaned automatically when the condensation container is emptied.

However, the filter should still be cleaned regularly under running water a This prevents

stubborn deposits/dirt from building up.

1. Pull out the condensation container.

2. Pull the filter out of its snap-in lock.

3. Clean the filter under running water or in the dishwasher.

4. Refit the filter.

5. Insert the condensation container so that it locks into place.

Only operate the dryer with the filter inserted.

Moisture sensor

The dryer is equipped with stainless steel moisture sensors. Moisture sensors measure how
damp the laundry is. A thin layer of limescale may build up on the moisture sensors after
prolonged use.

1. Open the door.

2. Clean the moisture sensors using a damp sponge with a rough surface.

Do not use steel wool or abrasive materials.

Appliance must be switched off.

10

Technical data

ʠ

Dimensions (DxWxH) 60 x 60 x 85 cm (height adjustable)

Weight approximately 51 kg
Max. capacity 7 kg
Condensation container 4.0 l
Connection voltage 220-240 V
Connected load max. 1000 W
Fuse protection 10 A
Ambient temperature 5 - 35 °C
Product number

Production number

under the door

The rating plate can be found on the back of the dryer.

ʠ

Consumption rates

These are guide values determined under standard
conditions.

Spin speed

in rpm

(residual moisture)

Drying time

in min.**

Energy

consumption

in kWh**

A (Cottons) 7 kg

Þ](Cupboard Dry)* 1400 (approx. 50 %) 128 1.62

1000 (approx. 60 %) 149 1.90

800 (approx. 70 %) 169 2.19

4 (Iron Dry)* 1400 (approx. 50 %) 92 1.13

1000 (approx. 60 %) 113 1.42

800 (approx. 70 %) 133 1.70

8 (Synthetics) 3.5 kg

Þ](Cupboard Dry)* 800 (approx. 40 %) 54 0.57

600 (approx. 50 %) 68 0.72

*Test programs according to DIN EN 61121
**The values may differ from those given, depending on overvoltage and undervoltage, the
type of fabric, composition of the laundry to be dried, the residual moisture in the fabric and
the size of the load.

ʠ

Drum interior light (bulb E14, 25 W)

The drum lights up after the door is opened or closed, and after the programme starts, and

switches off automatically. Changing the bulb apage 12.

Optional accessories (from after-sales service using order number)

Washer-dryer stack connection set

The dryer can be placed on top of a suitable washing machine with the same width and depth
to save space. The dryer must be fastened to the washing machine using this connection set.

Installation underneath the worktop

Instead of the appliance covering plate, you must have a metal cover fitted by a specialist.

51363

WTZ
10290

11

Normal noises

During drying, the compressor and the pump generate some noise which is entirely normal.

The compressor in the dryer may occasion-

ally generate a humming noise.

The compressor in the dryer is ventilated

from time to time, which creates a whirring

sound.

The automatic cleaning process causes a

clicking noise.

The process of pumping the condensation
into the condensation container generates

pumping noises.

12

What to do if...

If you cannot rectify a fault yourself (f.e. switching off/on), please contact our after-sales
service. We will always find an appropriate solution and will avoid unnecessary visits by
engineers. Trust the expertise of the manufacturer and rest assured that the repair will be
carried out by trained service technicians using original spare parts. Telephone numbers for
After Sales headquarters in Switzerland:
– Schulthess Maschinen AG Tel. [phone]/Fax [phone]
– Merker AG Tel. [phone]/Fax [phone]
When contacting the after-sales service, please quote the machine number and type
designation of the appliance (underneath the door).

Turn the programme selector to >(Off) and unplug the mains plug from the socket.

ʠ

The Start/Stop indicator lamp
does not light up.

Mains plug plugged in?
Programme selected?

ʠ

The Ü(Container) indicator

lamp and the Start/Stop button
are flashing.

Empty the condensation container apage 4.

Clean the condensation container filter if necessary

apage 9.

Dryer transported? a Wait 2 hours and start again.

ʠ

The Û(Filter) indicator lamp and

Start/Stop button are flashing.

Rinse the fluff filter under running water apage 4.

ʠ

Cln appears in the display panel. Not an error. Automatic cleaning of the heat exchanger. Do

not empty the condensation container.

ʠ

Dryer does not start. Start/Stop button selected?

Door closed?
Programme set?
Ambient temperature greater than 5 °C?

ʠ

Water is leaking out. Make sure the dryer is level.

ʠ

The door opens by itself. Push the door closed until you hear it click into place.

ʠ

Creasing. Laundry load exceeded?

Remove articles of clothing immediately after the end of the
programme, hang up and pull into shape.

Unsuitable programme selected a page 7.

ʠ

Drying result is not satisfactory
(laundry feels too damp).

Warm laundry feels damper than it actually is.
The selected programme does not suit the load. Use
another drying programme or, in addition, select the time

programme apage 7 .

Use fine adjustment for the drying result apage1/2 and 6.

Fine layer of limescale on the humidity sensors

a Clean the humidity sensors apage 9.

Programme termination, e.g. tank full, mains power supply
failure, door open or maximum drying time reached.

ʠ

Drying time too long. Rinse the fluff filters under running water a page 4.

Insufficient supply of air a ensure that air can circulate.

Air inlet possibly blocked a Clear inlet aPage 8.

Ambient temperature higher than 35 °C a ventilate the

room.

ʠ

The humidity in the room
increases significantly.

Make sure the room is sufficiently ventilated.

ʠ

Power failure. Remove laundry from the dryer immediately and spread out.

This allows the heat to dissipate.

ʠ

Other intermittent noises and
vibrations.

Not an error.

Normal noises apage 11.

ʠ

Loud humming noise for several
seconds.

Has the condensation container been properly inserted?

a Push the condensation container all the way in.

Not an error. Normal noises apage 11.

ʠ

The interior light (depending on
the model) is not working.

Pull out the appliance plug, remove the cover cap in the
interior above the door (use Torx 20 screwdriver) and

replace the bulb apage 10. Close the cover cap. Never

operate the dryer without a cover cap.

13

Safety instructions

Emergency

– Pull the appliance plug out of the socket immediately or disconnect the fuse.

ONLY use the
dryer...

– In rooms inside the house.
– To dry fabrics.

The dryer must
NEVER...

– Be used for purposes other than those described above.
– Be modified in terms of its technology or properties.

Hazards

– The dryer must not be used by children or persons who have not been

instructed in its use.
– Do not leave children unsupervised near the dryer.
– Keep pets away from the dryer.
– Remove all objects from pockets,

and lighters in particular a Risk of explosion.

– Do not lean or sit on the door a Risk of tipping.

Installation

– Secure loose cables a Risk of tripping.

– Do not operate a dryer if there is a risk of frost.

Mains
connection

– Connect the dryer to an AC earthed socket according to specifications,

otherwise it cannot be guaranteed that the appliance is completely safe.
– The cable cross-section must be sufficient.

– Only use earth-leakage circuit breakers with the following symbol:
– The appliance plug and socket must be compatible.
– Do not use multiple plugs/connectors and/or extension cables.
– Do not touch or hold the appliance plug with wet hands

a Risk of electric shock.

– Never pull the appliance plug out of the socket by its cable.

– Do not damage the mains lead a Risk of electric shock.

Operation

– Only load the drum with laundry.

Check the contents before you switch the dryer on.
– Do not use the dryer if the laundry has been in contact with solvents, oil, wax,

grease or paint (e.g. hair styling products, nail varnish remover, stain remover,

cleaning solvent, etc.) a Risk of fire/explosion.

– Dust (e.g. coal dust, flour) poses a danger: Do not use the dryer

aRisk of explosion

– Do not put laundry containing foamed material/rubber in the dryer a elastic

material may be destroyed and the dryer be damaged due to possible

deformation of the foamed material.
– When cleaning the fluff filter, make sure that no foreign material (down or filling

material) gets into the air duct opening. If necessary, clean the drum

beforehand with a vacuum cleaner. If foreign material should still get into the

air duct a call the after-sales service a Risk of fire/explosion.

– Switch off the dryer once the programme has ended.
– The water from condensation is not drinking water and may be contaminated

with fluff.

Defect

– Do not use the dryer if it is defective or if you suspect that it is.

Repairs must only be carried out by the after-sales service.
– Do not use the dryer if the mains cable is defective. To avoid danger, only have

the defective mains cable replaced by the after-sales service.
– Always pull the mains plug out of the socket before changing the bulb for the

interior light a Risk of electric shock.

Spare parts

– Only use genuine spare parts and accessories for safety reasons.

Disposal

– Pull out the appliance plug, then cut off the mains cable from the appliance.

Dispose of at a municipal waste disposal facility.
– Heat exchangers contain a fluorinated greenhouse gas covered by the Kyoto

protocol (R134a) a dispose of in a proper manner. Capacity: 0.22 kg.

– Packaging: Keep all packaging out of reach of babies and children

a Risk of suffocation.

– All materials are environmentally sound and can be reused. Dispose of in an

environmentally-responsible manner.

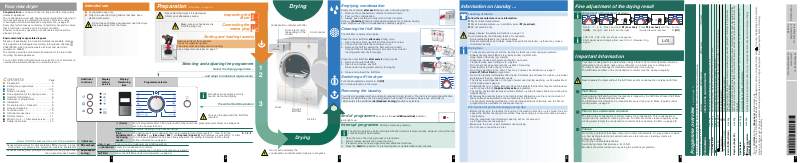

Instructions for the use and installation

of condensing dryers

Product No. 4740
Instruction No. 636 853

Read these instructions before
operating the dryer.
Observe the safety instructions on
page 13.

en

SPIRIT Eco TW 4740

Vento WP 360

1 2

Contents Page

ʋPreparation . . . . . . . . . . . . . . . . . . . . . . 2

ʋSetting the programmes . . . . . . . . . . . . . 2

ʋDrying . . . . . . . . . . . . . . . . . . . . . . . . 3/4

ʋNotes on laundry . . . . . . . . . . . . . . . . . . 5

ʋFine adjustment of the drying result . . . . 6

ʋImportant Information . . . . . . . . . . . . . . . 6

ʋOverview of programmes . . . . . . . . . . . . 7

ʋInstallation . . . . . . . . . . . . . . . . . . . . . . . 8

ʋFrost protection / Transport. . . . . . . . . . . 8

ʋCare and cleaning . . . . . . . . . . . . . . . . . . 9

ʋTechnical data . . . . . . . . . . . . . . . . . . . 10

ʋOptional accessories . . . . . . . . . . . . . . .10

ʋNormal noises . . . . . . . . . . . . . . . . . . . . 11

ʋWhat to do if ... / After-sales service . . . 12

ʋSafety instructions . . . . . . . . . . . . . . . . 13

Select On/Off for buzzer at the end of the programme. ˎ& (Buzzer)

Reduced temperature for delicate fabrics ' that require a longer

drying time; e.g. polyacrylics, polyamide, elastane, acetate silk.

ˎÙ (Low heat)

Reduces creasing and prolongs the 'reduced ironing' phase after

the programme has finished.

ˎÚ](Reduced

ironing)

... and adapt to individual requirements

Never start the dryer if it is damaged.
Inform your after-sales service.

Inspecting the

Sorting and loading laundry

Remove all items from pockets.
Check for cigarette lighters.
The drum must be empty prior to loading.

See programme overview on page 7.

Your new dryer

Intended use

Preparation Installation a page 8

Selecting and adjusting the programme

Additional

functions

Select the drying programme ...

Press the Start/Stop button

Make sure your hands are dry.
Hold the plug only.

Connecting the

Display

status/

service

Programme selector

All buttons are sensitive and only
need to be touched lightly.

ʋFor domestic use only.

ʋOnly to be used for drying fabrics that have been

washed with water.

.

Do not leave children unsupervised near the dryer.
Keep pets away from the dryer.

Display/

Remaining

time

7(h:min) End of programme after 1-24 hours (button may need to be pressed several times) can always be

set to the nearest full hour.

Cln Automatic cleaning of the heat exchanger.
Fine

adjustment of
the drying
result

The drying result (e.g. cupboard dry) can be adjusted over three levels (1 - max. 3) for the

A (Cottons), 8(Easy-care), Mix Þ and Express (Super 40) programmes apresetting = 0. After

one of these programmes has been finely adjusted, the setting is retained for the others.

Further information apage 6.

Only use the dryer with the fluff filter
inserted.

Congratulations - you have chosen to buy a modern, high-quality
domestic appliance.

The condensation dryer with heat pump and automatic cleaning of
the heat exchanger is outstanding in terms of efficient energy

consumption and low maintenance requirements apage 6.

Every dryer which leaves our factory is carefully checked to ensure
that it functions correctly and is in perfect condition.

Should you have any questions, our after-sales service will be
pleased to help.

Environmentally-responsible disposal

Dispose of packaging in an environmentally-responsible manner.
This appliance is designated according to European directive



2002/96/EC which governs waste electrical and electronic
equipment - WEEE).
The directive provides an EU-wide framework for the return and
recycling of used appliances.

You can find further information and a selection of our products on
our websites, www.schulthess.ch or www.merker.ch.

ò4Þ]]ÝDrying, Iron dry, Cupboard dry, AntiCrease/End

Ü (Container) Empty the condensation container.

Clean the filter in the condensation container if necessary a page 9.

Û (Filter) Rinse the fluff filters under running water apage 4.
