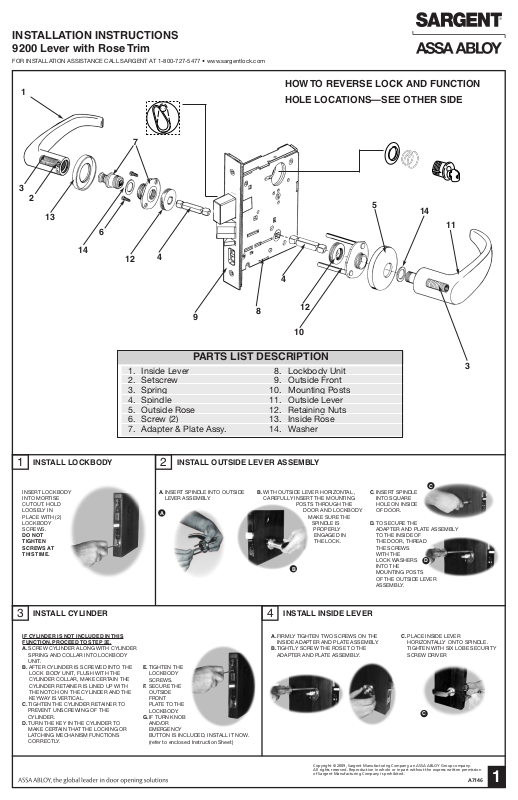

SARGENT 9200 User Manual

INSTALLATION INSTRUCTIONS
9200 Lever with Rose Trim

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

1

7

3

2

13

6

HOW TO REVERSE LOCK AND FUNCTION

OLE LOCATIONS—SEE OTHER SIDE

H

5

1

4

11

14

12

4

9

PARTS LIST DESCRIPTION

1. Inside Lever

2. Setscrew

3. Spring

4. Spindle

5. Outside Rose

6. Screw (2)

7. Adapter & Plate Assy.

4

8

12

10

8. Lockbody Unit

9. Outside Front

10. Mounting Posts

11. Outside Lever

12. Retaining Nuts

13. Inside Rose

14. Washer

3

INSTALL LOCKBODY

1 2

INSERT LOCKBODY
INTO MORTISE
CUTOUT. HOLD
LOOSELY IN
PLACE WITH (2)
LOCKBODY
SCREWS.

DO NOT
TIGHTEN
SCREWS AT
THIS TIME.

INSTALL CYLINDER

3 4

IF CYLINDER IS NOT INCLUDED IN THIS
FUNCTION, PROCEED TO STEP 3E.
A. SCREW CYLINDER ALONG WITH CYLINDER

SPRING AND COLLAR INTO LOCKBODY
UNIT.

B. AFTER CYLINDER IS SCREWED INTO THE

LOCK BODY UNIT, FLUSH WITH THE
CYLINDER COLLAR, MAKE CERTAIN THE
CYLINDER RETAINER IS LINED UP WITH
THE NOTCH ON THE CYLINDER AND THE
KEYWAY IS VERTICAL.

C. TIGHTEN THE CYLINDER RETAINER TO

PREVENT UNSCREWING OF THE
CYLINDER.

D. TURN THE KEY IN THE CYLINDER TO

MAKE CERTAIN THAT THE LOCKING OR
LATCHING MECHANISM FUNCTIONS
CORRECTLY.

E. TIGHTEN THE

LOCKBODY
SCREWS.

F. SECURE THE

OUTSIDE
FRONT
PLATE TO THE
LOCKBODY.

G.IF TURN KNOB

AND/OR
EMERGENCY
BUTTON IS INCLUDED, INSTALL IT NOW.
(refer to enclosed Instruction Sheet)

INSTALL OUTSIDE LEVER ASSEMBLY

A. INSERT SPINDLE INTO OUTSIDE

LEVER ASSEMBLY.

A

B. WITH OUTSIDE LEVER HORIZONTAL ,

CAREFULLY INSERT THE MOUNTING

C. INSERT SPINDLE

POSTS THROUGH THE

DOOR AND LOCKBODY.

MAKE SURE THE

SPINDLE IS

PROPERLY

ENGAGED IN

THE LOCK.

B

D. TO SECURE THE

INSTALL INSIDE LEVER

A. FIRMLY TIGHTEN TWO SCREWS ON THE

INSIDE ADAPTER AND PLATE ASSEMBLY.

B. TIGHTLY SCREW THE ROSE TO THE

ADAPTER AND PLATE ASSEMBLY.

C

INTO SQUARE
HOLE ON INSIDE
OF DOOR.

ADAPTER AND PLATE ASSEMBLY
TO THE INSIDE OF
THE DOOR, THREAD
THE SCREWS
WITH THE
LOCK WASHERS
INTO THE
MOUNTING POSTS
OF THE OUTSIDE LEVER
ASSEMBLY.

C. PLACE INSIDE LEVER

D

HORIZONTALLY ONTO SPINDLE.
TIGHTEN WITH SIX LOBE SECURITY
SCREW DRIVER

C

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission
of Sargent Manufacturing Company is prohibited.

A7146

1

Locking

g

uide slot

Red color
l

ocking piece

4

. RED indicates locked (outside) side!

3

. Push locking piece toward front of

lockbody and rotate until RED shows.

2. Insert blade screwdriver into locking
piece slot.

1. Turn lockbody to side NOT marked

with RED locking piece.

If It Is Necessary
T

o Change Hand of Locking Piece

R

IGHT HAND

S

HOWN

FLAT TO 1/8" IN 2" FRONT BEVEL

REQUIRED HOLES

FUNCTION

1

2345678

1 1/8" DIA.

1 1/8" DIA.

1 1/4" DIA.

1 1/4" DIA.

1/2" DIA.

1/2" DIA.

1/4" DIA.

1/4" DIA.

03

04

05

15

16

17

20

21

22

23

24

25

26

37

65

7/8"

7/32"

2 3/4"

BACKSET

1"

11/32"

1/2"

3/4"

1

"

(TYP.)

7/16"

(TYP.)

4 1/8"

INSIDE

OF

DOOR

3

5

7

B

1

DETAIL OF SUGGESTED DOOR-CUT

2 3/16" REF

1 51/64"

2 1/2"

3 7/8"

15/16"

MIN.

5/8" (TYP.)

C OF

LOCK FRONT

L

C

OF

STRIKE

L

C OF

LEVER

OR KNOB

L

SEE STRIKE
TEMPLATE
FOR DETAILS

3/8"

MOUNTING SCREWS

DRILL & TAP FOR

#12-24 X 3/4 SCREW

(2 PLACES)

6"

MIN.

OUTSIDE
OF DOOR

4

6

8

2

C OF

LOCK FRONT

L

C OF

BOLTS

L

C OF

MOUNTING

SCREWS

L

OUTSIDE FRONT

A

TTACHING SCREW

7/16"

(TYP.)

1"

3 5/8"

5/8"

7 1/4"

1 1/4"

5/8"

1 1/4"

1 3/16"

1 1/32"

8"

4"

4

3

2

1

DIMENSIONS SHOWN ARE MAXIMUM PART DIMENSIONS

SUITABLE REINFORCEMENTS REQUIRED FOR METAL DOORS

REFER TO TRIM TEMPLATE FOR ADDITIONAL HOLE REQUIREMENTS

DENOTES HOLES REQUIRED FOR FUNCTION LISTED. (CHECK BEFORE CUTTING HOLES)

TEMPLATE: MORTISE LOCK
FOR 9100 AND 9200 SERIES
(LOCKBODIES ONLY)

RELEASE DATE:

TEMPLATE NO.

7150A

From this

1. Remove cap from lock
2

. Reverse or turn latchbolt

If It Is Necessary
To Change Hand of the Latchbolt:

T

o this

5

HOW TO REVERSE LOCK

9100/9200 TEMPLATE

This template covers 9100 & 9200 Series Locksets in accordance with
the specifications indicated below.

SARGENT Manufacturing Company

100 Sargent Drive, New Haven, CT 06511

2

All rights reserved. Reproduction in whole or in part without the express written permission
of Sargent Manufacturing Company is prohibited.

A7146

Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company.
