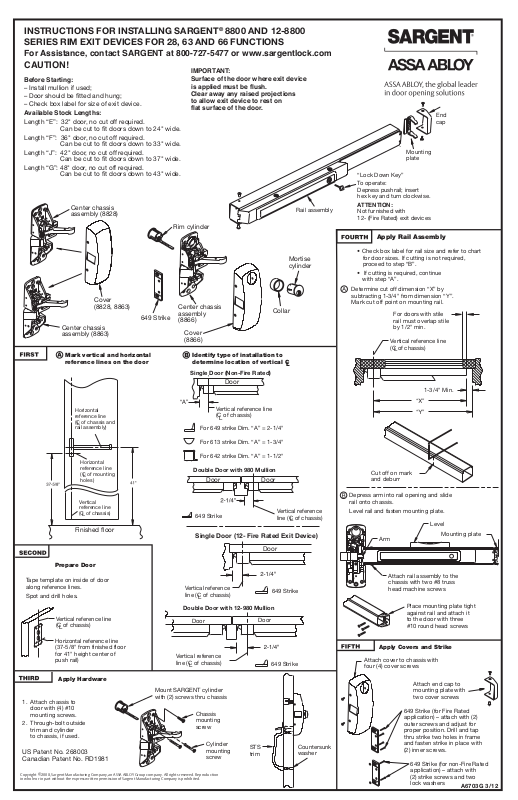

INSTRUCTIONS FOR INSTALLING SARGENT® 8800 AND 12-8800
SERIES RIM EXIT DEVICES FOR 28, 63 AND 66 FUNCTIONS
For Assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com
CAUTION!
Before Starting:
– Install mullion if used;
– Door should be fitted and hung;
– Check box label for size of exit device.
Available Stock Lengths:
Length “E”: 32" door, no cut off required.
Can be cut to fit doors down to 24" wide.
Length “F”: 36" door, no cut off required.
Can be cut to fit doors down to 33" wide.
Length “J”: 42" door, no cut off required.
Can be cut to fit doors down to 37" wide.
Length “G”: 48" door, no cut off required.
Can be cut to fit doors down to 43" wide.
Center chassis
assembly (8828)
Rim cylinder
Cover
(8828, 8863)
649 Strike
Center chassis
assembly (8863)
Mark vertical and horizontal
reference lines on the door
IMPORTANT:
Surface of the door where exit device
is applied must be flush.
Clear away any raised projections
to allow exit device to rest on
flat surface of the door.
Center chassis
assembly
Collar
(8866)
Cover
(8866)
Identify type of installation to
determine location of vertical C
Single Door (Non-Fire Rated)
Door
Rail assembly
Mortise
cylinder
L
End
cap
Mounting
plate
“Lock Down Key”
To operate:
Depress pushrail; insert
hex key and turn clockwise.
ATTENTION:
Not furnished with
12- (Fire Rated) exit devices
Apply Rail Assembly
• Check box label for rail size and refer to chart
for door sizes. If cutting is not required,
proceed to step “B”.
• If cutting is required, continue
with step “A”.
Determine cut off dimension “X” by
subtracting 1-3/4" from dimension “Y”.
Mark cut off point on mounting rail.
For doors with stile
rail must overlap stile
by 1/2" min.
Vertical reference line
(C of chassis)
L
1-3/4" Min.
Horizontal
reference line
(C of chassis and
L
rail assembly)
Horizontal
reference line
(C of mounting
L
holes)
Vertical
reference line
(C of chassis)
L
Finished floor
Prepare Door
Tape template on inside of door
along reference lines.
Spot and drill holes.
Vertical reference line
(C of chassis)
L
Vertical reference line
(C of chassis)
L
For 649 strike Dim. “A” = 2-1/4"
For 613 strike Dim. “A” = 1-3/4"
For 642 strike Dim. “A” = 1-1/2"
Double Door with 980 Mullion
Door
649 Strike
Door
Vertical reference
line (C of chassis)
Single Door (12- Fire Rated Exit Device)
Door
Vertical reference
line (C of chassis)
L
Double Door with 12-980 Mullion
Door
649 Strike
Door
Cut off on mark
and deburr
Depress arm into rail opening and slide
rail onto chassis.
Level rail and fasten mounting plate.
L
Arm
Attach rail assembly to the
chassis with two #8 truss
head machine screws
Place mounting plate tight
against rail and attach it
to the door with three
#10 round head screws
Level
Mounting plate
Horizontal reference line
(37-5/8" from finished floor
for 41" height center of
push rail)
Apply Hardware
Mount SARGENT cylinder
1. Attach chassis to
door with (4) #10
mounting screws.
2. Through-bolt outside
trim and cylinder
to chassis, if used.
with (2) screws thru chassis
US Patent No. 268003
Canadian Patent No. RD1981
Copyright ©2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction
in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Vertical reference
line (C of chassis)
L
Chassis
mounting
screw
Cylinder
mounting
screw
STS
trim
649 Strike
Countersunk
washer
Apply Covers and Strike
Attach cover to chassis with
four (4) cover screws
Attach end cap to
mounting plate with
two cover screws
649 Strike (for Fire Rated
application) – attach with (2)
outer screws and adjust for
proper position. Drill and tap
thru strike two holes in frame
and fasten strike in place with
(2) inner screws.
649 Strike (for non-Fire Rated
application) – attach with
(2) strike screws and two
lock washers
A6703G 3/12
INSTRUCTIONS FOR INSTALLING SARGENT®
8816 AND 12-8816 SERIES RIM EXIT DEVICES
For Assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com
CAUTION!
Before Starting:
– Install mullion if used;
– Door should be fitted and hung;
– Check box label for size of exit device.
Available Stock Lengths:
Length “E”: 32" door, no cut off required.
Can be cut to fit doors down to 24" wide.
Length “F”: 36" door, no cut off required.
Can be cut to fit doors down to 33" wide.
Length “J”: 42" door, no cut off required.
Can be cut to fit doors down to 37" wide.
Length “G”: 48" door, no cut off required.
Can be cut to fit doors down to 43" wide.
Rim cylinder
IMPORTANT:
Surface of the door where exit device
is applied must be flush.
Clear away any raised projections
to allow exit device to rest on
flat surface of the door.
“Lock Down Key”
To operate: Depress pushrail;
insert hex key and turn clockwise.
Rail assembly
End
cap
Mounting
bracket
Apply Rail Assembly
• Check box label for rail size and refer
to chart for door sizes. If cutting is not
required, proceed to step “B”.
• If cutting is required, continue
with step “A”.
649 Strike
shown
Center chassis
assembly
Cover
Mark vertical and horizontal
reference lines on the door
Horizontal
reference line
(C of chassis and
L
rail assembly)
Horizontal
reference line
(C of mounting
L
holes)
Vertical
reference line
(C of chassis)
L
Finished Floor
Mortise
cylinder
Collar
Identify type of installation to
determine location or vertical C
Single Door (Non-Fire Rated)
Vertical reference line
(C of chassis)
L
For 649 strike Dim. “A” = 2-1/4"
For 613 strike Dim. “A” = 1-3/4"
For 642 strike Dim. “A” = 1-1/2"
Double Door with 980 Mullion
Door
649 Strike
Single Door (12- Fire Rated Exit Device)
Door
Vertical reference
line (C of chassis)
Determine cut off dimension “X” by
subtracting 1-3/4" from dimension “Y”.
Mark cut off point on mounting rail.
For doors with stile
rail must overlap stile
by 1/2" min.
Vertical reference line
(C of chassis)
L
L
1-3/4" Min.
Cut off on mark
and deburr
Depress arm into rail opening and slide
rail onto chassis.
Level rail and fasten mounting plate.
L
Arm
Level
Mounting plate
Prepare Door
Tape template on inside of door
along reference lines.
Spot and drill holes.
Vertical reference
line (C of chassis)
L
Double Door with 12-980 Mullion
Vertical
reference line
(C of chassis)
L
Horizontal reference line
(37-5/8" from finished floor
for 41" height center of
push rail.)
Apply Hardware
1. Attach chassis to
door with (4) #10
mounting screws.
2. Through-bolt outside
trim and cylinder
to chassis, if used.
Door
Vertical reference
line (C of chassis)
L
Mount SARGENT cylinder
with (2) screws thru chassis
US Patent No. 268003
Canadian Patent No. RD1981
Copyright ©2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction
in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Chassis
mounting
screw
Cylinder
mounting
screw
Door
Door
649 Strike
649 Strike
Attach rail assembly to the
chassis with two #8 truss
head machine screws
Place mounting plate tight
against rail and attach it
to the door with three #10
round head screws
Apply Covers and Strike
Attach cover to chassis with
four (4) cover screws
Attach end cap to
mounting plate with
two cover screws
649 Strike (for Fire Rated
application) – attach with (2)
outer screws and adjust for
proper position. Drill and tap
thru strike two holes in frame
and fasten strike in place with
(2) inner screws
649 Strike (for non-Fire Rated
application) – attach with
(2) strike screws and two
lock washers
A6703G 3/12
