SERVICE AND OPERATING MANUAL
Model SLUDGEMASTER® SMA3-A
OPERATING INSTRUCTIONS
This pump has been tested prior to shipment from factory. The oil reservoir has
been partially lled at testing with air motor lubricant and should be completely lled
before operation. When reservoir is full, the pump will not require relling for approxi-
mately 50 hours of use. (See Lubrication Instructions.)
OPERATION
Your SludgeMaster is equipped with a mufer located at side of unit. Air exhaust
port is located at top of mufer and a ¾" NPT thread is provided to extend exhaust
port above liquid being pumped. Exhaust port must be extended above liquid to
prevent liquid and foreign material from entering air motor when not in operation. This can be done with a standard pipe, rigid plastic pipe, or hose as desired.
Connect air supply to air inlet tting and submerge into liquid to be pumped. Unit
requires 70 CFM maximum at 80 PSI (5.51 bar) air pressure. Operation at pressures
in excess of 120 PSI (8.27 bar) is not recommended.
When handling liquid with large stones or similar solid objects, it is desirable to
run unit at full speed. This provides greater inertia for handling heavy foreign objects
without stoppage due to lodging between impeller and pump casing.
Should a foreign object lodge and prevent pump from rotating, insert a rod or bar
through hole provided at bottom of strainer into impeller vanes and bump impeller
backwards (clockwise facing strainer end) until free. Strainer can be removed when
necessary; however, this normally will not be required.
LUBRICATION
The only regular servicing required is maintaining oil reservoir which is just
as important on this unit for proper lubrication as the oil supply is for an engine.
A one quart capacity oil reservoir is provided for bearing and shaft seal lubrication and
provides oil for automatic air motor lubricator. Five drops of oil per minute is automati-
cally dispensed into air stream for continuous air motor lubrication and to prevent rust
formation due to moisture which is present in any air supply. Check and rell reservoir
to oil ll plug level regularly with Shell TELLUS
Hydraulic Oil air motor lubricant, or an equivalent lightweight oil with rust inhibitor.
The automatic oiler will consume approximately 1 pint (473 cc) of oil in 50 hours of
operation. Oil reservoir should be completely drained and relled after approximately
100 hours operation to remove accumulated moisture.
It is benecial to pour a little oil into air inlet connection and run for a few minutes
before storing for long periods.
This unit is not harmed by running without liquid.
®
T Oil 32 Premium Multigrade AW
IMPORTANT
Read these safety
warnings and
instructions in this
manual completely,
before installation and start-up of the pump.
It is the responsibility of the purchaser to
retain this manual for reference. Failure to
comply with the recommendations stated
in this manual will damage the pump, and
void factory warranty.
WARNING
Airborne particles and
loud noise hazards.
Wear ear and eye
protection.
Figure 1
DISASSEMBLY
Remove upper row of six bolts and lift off air motor and upper housing assembly.
Filter element and lter housing are now exposed and can be removed. Lower half
of jaw type coupling is threaded on pump shaft and is removed by inserting drift pin
through hole in shaft to prevent rotation while turning coupling counterclockwise with
pipe wrench. DO NOT USE JAWS OF COUPLING TO LOOSEN AS THEY CAN BE
BROKEN.
Remove spacer (item 25 on Repair Parts List) from shaft and remove governor
housing assembly by lifting with screwdriver from each side. This is done by inserting
screwdriver under male connectors (see Figure 1) and prying down on intermediate
housing. Intermediate housing can now be removed by removing lower row of six
bolts.
Warren Rupp, Inc. A Unit of IDEX Corporation P.O. Box 1568 Manseld, Ohio 44901-1568 USA (419) 524-8388 Fax (419) 522-7867 • www.warrenrupp.com
sma3dl1sm-REV0714 Model SMA3-A Page 1
Figure 2
Remove strainer assembly secured with four cap nuts. Impeller is removed by
inserting block of wood, hammer handle, or similar object between impeller vane and
pump casing (see Figure 2) to prevent rotation and turn shaft counterclockwise from
air motor end with drift pin inserted through hole in shaft. Remove shaft assembly
from volute casing by removing snap ring above oil seal, bump shaft and bearing from
casing. Rotating portion of shaft seal can now be removed from shaft and stationary
seal seat can be removed from casing.
REASSEMBLY
When installing shaft seal on shaft use a lightweight oil and locate seal at extreme
end of shaft so that carbon face of seal will contact seal seat before bearing enters
housing bore during assembly. This eliminates the possibility of carbon washer falling
out of position in seal cage while bumping shaft and bearing assembly into correct
position. Push oil seal and retainer into bore above bearing and install snap ring. Install
governor weights, spool and spring if removed. Lay o-ring into casing bore and install
intermediate housing. Install o-ring and drop governor housing into position and push
down into place. Slide sleeve and spacer onto shaft with spacer and shaft holes in
alignment. Install coupling and tighten securely with drift pin and pipe wrench with
same procedure as removal. (See Figure 3.) Insert o-ring into lter housing bore and
press lter element and housing into position as shown. (See Figure 4.) Install o-ring
into intermediate bore and o-ring on to counter bore at upper end of lter housing.
Assembly is now ready to receive air motor and housing assembly. If coupling half
on air motor shaft is removed, make certain coupling is relocated to correct position as indicated dimensionally in Figure 5. Line up coupling jaws for engagement
by using bolt holes of castings as a reference. Rubber spider should be installed in
lower coupling half. Lower air motor and housing into place slowly to feel for correct
coupling engagement. When coupling is properly engaged, assembly can be pushed
down by hand. DO NOT FORCE ASSEMBLY TOGETHER WITH BOLTS. If air motor
assembly is lifted back up in attempting to engage blind coupling, make certain that
o-ring on top end of lter housing is still in position. If o-ring is out of position during
this blind assembly, air will by-pass the governor and over-speeding can occur. Fill
with recommended oil and run unit without pumping to check for possible oil leakage
at shaft seal or o-ring joints. Turn air supply on slowly to make certain that governor
is operating properly.
Figure 3
WARRANTY
This unit is guaranteed for a period of ve years against defective material and
workmanship.
PERMANENT INSTALLATIONS
NOTE: As mentioned, the SMA3-A pump does require that oil be in the reservoir
for bearing and motor lubrication. For permanent installations remove item 66, then
plug the hole with a
make sure that an in-line oiler (type oil as recommended) is used in the air supply to
the pump. Set lubricator at a usage rate of 1 pint (473 cc) every 50 hours. The motor
will then be lubricated by the in-line oiler and the bearing by the oil in the reservoir.
1
/8" pipe plug, part number 618-002-330. Fill the reservoir and
Figure 4
Figure 5
Figure 6
Warren Rupp, Inc. A Unit of IDEX Corporation P.O. Box 1568 Manseld, Ohio 44901-1568 USA (419) 524-8388 Fax (419) 522-7867 • www.warrenrupp.com
sma3dl1sm-REV0714 Model SMA3-A Page 2

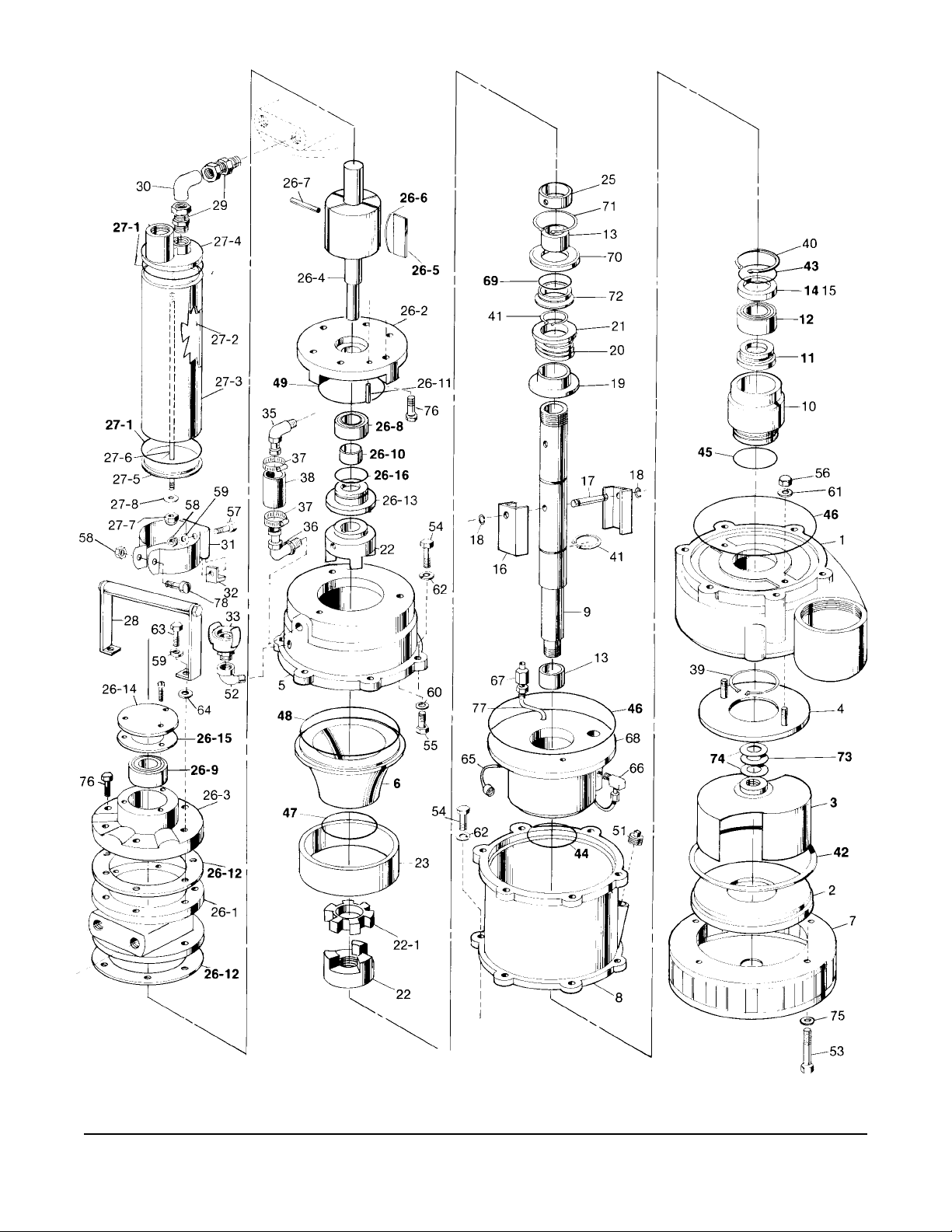

SERVICE AND OPERATING MANUAL
Model SLUDGEMASTER® SMA3-
A
ITEM TOTAL
NO. PART NUMBER DESCRIPTION RQD.
1 180-002-155 Volute Casing 1
2 258-003-010 Suction Cover 1
3 444-002-010 Impeller 1
4 612-002-080 Wear Plate 1
5 430-008-155 Motor Housing 1
6 775-002-155 Filter Spool 1
7 800-003-330 Strainer Assembly 1
8 430-007-155 Intermediate Housing 1
9 730-009-120 Shaft 1
10 430-010-150 Bearing Housing 1
11 720-002-000 Shaft Seal 1
12 070-002-000 Ball Bearing 1
13 755-001-000 Sleeve 2
14 552-001-000 Oil Seal 1
15 670-004-162 Seal Retainer 1
16 914-002-330 Governor Weight 2
17 590-002-115 Governor Pin 1
18 675-001-115 Retaining Ring 2
19 775-003-162 Governor Spool 1
20 780-002-115 Governor Spring 1
21 670-003-115 Spring Retainer 1
22 255-001-000 Coupling Assembly 1
22-1 770-013-000 Spider Insert 1
23 320-002-000 Filter Element 1
25 770-001-162 Spacer 1
26 525-003-000 Air Motor Assembly 1
Consists of:
26-1 AD-665 Body 1
26-2 AD-666 End Plate, Drive 1
26-3 AD-651 End Plate, Dead 1
26-4 AD-652 Rotor Assembly 1
26-5 AD-691 Vane 4
26-6 AD-692 Spring, Vane 4
26-7 AD-655-A Push Pin 2
26-8 AD-638-A Bearing, Drive 1
26-9 AC-437 Bearing, Dead 1
26-10 AC-849 Seal, Shaft 1
26-11 AB-162 Pin, Dowel 5
26-12 AD-641-F Gasket, End Plate 2
26-13 AD-642-A End Cap, Dead 1
26-14 AD-643 End Cap, Dead 1
26-15 AD-644 End Cap, Gasket 1
26-16 560-003-360 O-Ring 1
27 530-001-000 Mufer Assembly 1
Consists of:
27-1 560-199-360 O-Ring 2
27-2 538-001-555 Nipple 1
27-3 860-009-150 Tube 1
27-4 165-001-155 Cap, Upper 1
27-5 165-002-155 Cap, Lower 1
27-6 685-001-080 Rod 1
27-7 546-002-115 Cap Nut 1
27-8 901-024-180 Sealing Washer 2
Repair Parts shown in bold face (darker)
type are more likely to need replacement
after extended periods of normal use.
They are readily available from most Warren Rupp distributors. The pump
owner may prefer to maintain a limited
inventory of these parts in his own stock to
reduce repair downtime to a minimum.
IMPORTANT: When ordering repair parts
always furnish pump model number, serial
number and type number.
MATERIAL CODES
The Last 3 Digits of Part Number
000... Assembly, sub-assembly; and some
purchased items
010... Cast Iron
015... Ductile Iron
080... Carbon Steel, AISI B-1112
100... Alloy 10
110... Alloy Type 316 Stainless Steel
112... Alloy “C”
114... 303 Stainless Steel
115... 302/304 Stainless Steel
117... 440-C Stainless Steel (Martensitic)
120... 416 Stainless Steel (Wrought Martensitic)
123... 410 Stainless Steel (Wrought Martensitic)
148... Hardcoat Anodized Aluminum
149... 2024-T4 Aluminum
150... 6061-T6 Aluminum
151... 6063-T6 Aluminum
152... 2024-T4 Aluminum (2023-T351)
154... Almag 35 Aluminum
155 or 156...356-T6 Aluminum
157... Die Cast Aluminum Alloy #380
159... Anodized Aluminum
162... Brass, Yellow, Screw Machine Stock
165... Cast Bronze, 85-5-5-5
170... Bronze, Bearing Type, Oil Impregnated
180... Copper Alloy
310... PVDF Coated
330... Plated Steel
331... Chrome Plated Steel
332... Electroless Nickel Plated
335... Galvanized Steel
354... Injection Molded #203-40 Santoprene —
Duro 40D + /-5. Color coded: RED
357... Rupplon (Urethane Rubber)
Color coded: PURPLE (Injection mold)
358... Rupplon (Urethane Rubber)
Color coded: PURPLE (Some Applications)
(Compression Mold)
360... Nitrile Rubber. Color coded: RED
363... FKM (Fluorel). Color coded: YELLOW
364... E.P.D.M. Rubber. Color coded: BLUE
365... Neoprene Rubber. Color coded: GREEN
366... Food Grade Neoprene. Color coded: WHITE
370... Butyl Rubber. Color coded: BROWN
405... Cellulose Fibre
408... Cork and Neoprene
425... Compressed Fibre
465... Fibre
500... Delrin 500
505... Acrylic Resin Plastic
540... Nylon
550... Polyethylene
555... PVC
570... Rulon II
580... Ryton
590... Valox
591... Nylatron G-S
592... Nylatron NSB
600... PTFE (virgin material) Tetrauoracarbon (TFE)
601... PTFE (Bronze and moly lled)
602... Filled PTFE
603... Blue Gylon
604... PTFE — Diaphragm
Warren Rupp, Inc. A Unit of IDEX Corporation P.O. Box 1568 Manseld, Ohio 44901-1568 USA (419) 524-8388 Fax (419) 522-7867 • www.warrenrupp.com
sma3dl1sm-REV0714 Model SMA3-A Page 3
ITEM TOTAL
NO. PART NUMBER DESCRIPTION RQD.
28 406-001-000 Handle Assembly 1
29 866-007-162 Male Connector 2
30 312-007-180 Elbow 1
31 200-004-330 Mufer Clamp 1
32 115-004-080 Bracket 1
33 254-004-000 Coupler 1
35 312-006-000 Elbow, Motor 1
36 312-004-162 Elbow, Motor Housing 1
37 200-005-115 Hose Clamp 2
38 427-006-000 Hose, ¾ I.D. 1
39 675-006-000 Retaining Ring 1
40 675-005-000 Retaining Ring 1
41 675-003-080 Retaining Ring 2
42 360-004-440 Gasket 6 Minimum
43 560-013-360 O-Ring 1
44 560-007-360 O-Ring 1
45 560-012-360 O-Ring 1
46 560-009-360 O-Ring 2
47 560-006-360 O-Ring 1
48 560-008-360 O-Ring 1
49 560-005-360 O-Ring 1
51 618-005-330 Pipe Plug ½" NPT 1
52 312-008-335 Street Elbow 1
53 170-033-330 Capscrew 4
54 170-006-330 Capscrew 12
55 170-005-330 Capscrew 3
56 546-001-115 Cap Nut 2
57 170-002-330 Capscrew 1
58 545-003-330 Hex Nut 2
59 900-001-330 Lock Washer 5
60 901-014-180 Washer, Sealing 3
61 901-009-330 Flat Washer 2
62 900-005-330 Lock Washer 11
63 170-007-115 Capscrew 2
64 901-024-180 Sealing Washer 2
65 861-001-000 Metering Tube Assembly 1
66 312-003-000 Elbow 1
67 866-006-162 Male Connector 2
68 430-009-155 Governor Housing 1
69 560-011-360 O-Ring 1
70 670-002-162 Retainer, Seal Ring 1
71 675-004-000 Ring, Retainer 1
72 675-002-165 Seal Ring 1
73 740-002-115 Shim (.010) 3
74 740-003-115 Shim (.030) 2
75 901-005-330 Flat Washer
3
/8" 4
76 170-008-115 Capscrew 10
77 860-022-180 Tubing, Soft Copper 2
78 170-063-330 Capscrew, Hex Head 1
535-069-000 (NOT SHOWN) 1
710-010-115 (NOT SHOWN) 4
Repair Parts shown in bold face (darker)
type are more likely to need replacement
after extended periods of normal use.
They are readily available from most Warren Rupp distributors. The pump
owner may prefer to maintain a limited
inventory of these parts in his own stock to
reduce repair downtime to a minimum.
IMPORTANT: When ordering repair parts
always furnish pump model number, serial
number and type number.
MATERIAL CODES
The Last 3 Digits of Part Number
000... Assembly, sub-assembly; and some
purchased items
010... Cast Iron
015... Ductile Iron
080... Carbon Steel, AISI B-1112
100... Alloy 10
110... Alloy Type 316 Stainless Steel
112... Alloy “C”
114... 303 Stainless Steel
115... 302/304 Stainless Steel
117... 440-C Stainless Steel (Martensitic)
120... 416 Stainless Steel (Wrought Martensitic)
123... 410 Stainless Steel (Wrought Martensitic)
148... Hardcoat Anodized Aluminum
149... 2024-T4 Aluminum
150... 6061-T6 Aluminum
151... 6063-T6 Aluminum
152... 2024-T4 Aluminum (2023-T351)
154... Almag 35 Aluminum
155 or 156...356-T6 Aluminum
157... Die Cast Aluminum Alloy #380
159... Anodized Aluminum
162... Brass, Yellow, Screw Machine Stock
165... Cast Bronze, 85-5-5-5
170... Bronze, Bearing Type, Oil Impregnated
180... Copper Alloy
310... PVDF Coated
330... Plated Steel
331... Chrome Plated Steel
332... Electroless Nickel Plated
335... Galvanized Steel
354... Injection Molded #203-40 Santoprene —
Duro 40D + /-5. Color coded: RED
357... Rupplon (Urethane Rubber)
Color coded: PURPLE (Injection mold)
358... Rupplon (Urethane Rubber)
Color coded: PURPLE (Some Applications)
(Compression Mold)
360... Nitrile Rubber. Color coded: RED
363... FKM (Fluorel). Color coded: YELLOW
364... E.P.D.M. Rubber. Color coded: BLUE
365... Neoprene Rubber. Color coded: GREEN
366... Food Grade Neoprene. Color coded: WHITE
370... Butyl Rubber. Color coded: BROWN
405... Cellulose Fibre
408... Cork and Neoprene
425... Compressed Fibre
465... Fibre
500... Delrin 500
505... Acrylic Resin Plastic
540... Nylon
550... Polyethylene
555... PVC
570... Rulon II
580... Ryton
590... Valox
591... Nylatron G-S
592... Nylatron NSB
600... PTFE (virgin material) Tetrauoracarbon (TFE)
601... PTFE (Bronze and moly lled)
602... Filled PTFE
603... Blue Gylon
604... PTFE — Diaphragm
Warren Rupp, Inc. A Unit of IDEX Corporation P.O. Box 1568 Manseld, Ohio 44901-1568 USA (419) 524-8388 Fax (419) 522-7867 • www.warrenrupp.com
sma3dl1sm-REV0714 Model SMA3-A Page 4
©2009 Warren Rupp, Inc. All rights reserved.
®SANDPIPER and Warren Rupp are registered tradenames of Warren Rupp, Inc.
Printed in U.S.A.
Warren Rupp, Inc. A Unit of IDEX Corporation P.O. Box 1568 Manseld, Ohio 44901-1568 USA (419) 524-8388 Fax (419) 522-7867 • www.warrenrupp.com
sma3dl1sm-REV0714 Model SMA3-A Page 5
Loading...
