Samsung VP-L980, VP-L320, VP-L330, VP-L300, SCL320 User Manual

© Samsung Electronics Co.,Ltd. MAR. 1999

Printed in Korea

AD68-00079B

SERVICE MANUAL

SCL300/L310/L320/L330/L350/L800/L850/VP-L300/L320/L330/L350/L980

8mm CAMCORDER

SCL300/L310/L320/L330/L350
SCL800/L850
VP-L300/L320/L330/L350
VP-L980

SERVICE

1. Precautions

2. Service Tips

3. Product Specifications and
Comparison Chart

4. Disassembly and Reassem

5. Alignment and Adjustment

6. Exploded View and Parts L

7. Electrical Parts List

8. PCB Diagrams

9. Wiring Diagram

10. Schematic Diagrams

Manua

8mm CAMCORDER

CONTENTS

For mechanical disassembly and adjustment, refer to the “Mechanical Manual”
(DE-6 AD68-30200A).

cover 5/11/95 9:42 AM Page 1

Samsung Electronics 1-1

1. Be sure that all of the built-in protective devices
are replaced. Restore any missing protective
shields.

2. When reinstalling the chassis and its assem­blies, be sure to restore all protective devices,
including :

control knobs and compartment covers.

3. Make sure that there are no cabinet openings

through which people--particularly children

--might insert fingers and contact dangerous
voltages. Such openings include the spacing
between the picture tube and the cabinet mask,
excessively wide cabinet ventilation slots, and
improperly fitted back covers.

If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.

4. Leakage Current Hot Check (See Fig. 1) :

Warning : Do not use an isolation transformer
during this test. Use a leakage current tester or
a metering system that complies with American
National Standards Institute (ANSI C101.1,
Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication
UL1410, 59.7).

5. With the unit completely reassembled, plug the
AC line cord directly the power outlet. With the
unit’s AC switch first in the ON position and
then OFF, measure the current between a
known earth ground (metal water pipe, con­duit, etc.) and all exposed metal parts, includ­ing : antennas, handle

brackets, metal cabinets, screwheads and con­trol shafts. The current measured should not
exceed 0.5 milliamp. Reverse the power-plug
prongs in the AC outlet and repeat the test.

6. X-ray Limits :

The picture tube is designed to prohibit X-ray
emissions. To ensure continued X-ray protec­tion, replace the picture tube only with one that
is the same type as the original.

Fig. 1 AC Leakage Test

7. Antenna Cold Check :
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong.
Connect the other lead to the coaxial connector.

8. High Voltage Limit :
High voltage must be measured each time
servicing is done on the B+, horizontal deflec­tion or high voltage circuits.

Heed the high voltage limits. These include the
X-ray protection Specifications Label, and the
Product Safety and X-ray Warning Note on the
service data schematic.

9. Some semiconductor (“solid state”) devices are
easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect transis­tors.
The following techniques will reduce the
occurrence of component damage caused by
static electricity.

10. Immediately before handling any semiconduc-

tor components or assemblies, drain the elec­trostatic charge from your body by touching a
known earth ground. Alternatively, wear a dis­charging Wrist-strap device. (Be sure to
remove it prior to applying power--this is an
electric shock precaution.)

1. Precautions

Device

Under

Test

(Reading should
not be above

0.5mA)
Leakage

Currant
Tester

Earth
Ground

Test all

exposed metal

surfaces

Also test with
plug reversed
(using AC adapter
plug as required)

2-Wire Cord

11. High voltage is maintained within specified
limits by close-tolerance, safety-related compo­nents and adjustments. If the high voltage
exceeds the specified limits, check each of the
special components.

12. Design Alteration Warning :

Never alter or add to the mechanical or elec­trical design of this unit. Example : Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturer’s warranty.

13. Hot Chassis Warning :

Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.
To confirm that the AC power plug is inserted
correctly, do the following : Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the read­ing is greater than 1.0V, remove the AC power
plug, reverse its polarity and reinsert. Re-mea­sure the voltage between the chassis and
ground.

14. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.

15. Never defeat any of the B+ voltage interlocks.

Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.

16. Always connect a test instrument’s ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument’s ground lead last.

17. Observe the original lead dress, especially near
the following areas : Antenna wiring, sharp
edges, and especially the AC and high voltage
power supplies. Always inspect for pinched,
out-of-place, or frayed wiring. Do not change
the spacing between components and the
printed circuit board. Check the AC power
cord for damage. Make sure that leads and
components do not touch thermally hot parts.

18. Picture Tube Implosion Warning :
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.

19. Do not remove, install or handle the picture

tube without first putting on shatterproof gog­gles equipped with side shields. Never handle
the picture tube by its neck. Some “in-line”
picture tubes are equipped with a permanently
attached deflection yoke; do not try to remove
such “permanently attached” yokes from the
picture tube.

20. Product Safety Notice :
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement compo­nent differs from the original--even if the
replacement is rated for higher voltage,
wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
( or ).
Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.

Samsung Electronics1-2

Precautions

Samsung Electronics 2-1

✤ The Service materials (Lamp, Plier) will be supplied by SEC Korea.

1. Disassemble the screw from the camcorder with a
small screw driver as figure.

2. Pull out the video light cover unit carefully as figure.

❚ Do not apply excessive force because the cover is

easy to be broken.

❚ The right side of the cover is fixed by hitch, and the

left by a screw.

3. Pull out the bulb with flat pliers supplied as a service
tool.

❚ Do not apply excessive force because the cover is

easy to be broken.

4. Insert a new BULB(JC 6V-3W/G2.5) with a pliers as
figure.

❚ Do not apply excessive force because the cover is

easy to be broken.

❚ Make sure that the bulb is in place exactly.
❚ To prevent the smudge of the finger prints reducing

the life of the bulb, do not touch the bulb with fingers.

5. Reassemble the video light cover unit to the cam­corder carefully as figure.

❚ Do not apply excessive force because the cover is

easy to be broken.

6. Reassemble the screw with a small screw driver to
the camcorder.

2. Service Tip

2-1 Replacing The Bulb For The Video Light

1

2

3

4

5

6

Samsung Electronics2-2

Service Tips

MEMO

MEMO

Samsung Electronics 3-1

3. Product Specifications and Comparison Chart

3-1 NTSC Models (SCL300/L310/L320/L330/L350/L800/L850)

System SCL300/L310/L320/L330/L350/L800/L850

Recording time P6-120: 120 min.
FF or REW time P6-120: approx. 6.5 min.
Image device CCD (Charge Coupled Device)
Optical zoom ratio SCL300/L310/L320/L330: 16X, SCL350/L800/L850:22X
Focal length:f SCL300/L310/L320/L330: 3.9~62.6 mm, SCL350/L800.L850: 4.0~88.0 mm
F SCL300/L310/L320/L330: 1.4, SCL350/L800/L850: 1.6
Filter diameter 46 mm
Focus system Inner
Macro Auto wide macro
Min. Illumination 0.3 lux (visible)

LCD monitor

Size/Pic. cell SCL300/L310/L320: 2.5 inch/62k, SCL330/L350/L800/L850: 3 inch/89k
Method TFT

Connectors

Video out Mini jack, 1 Vp-p, 75 ohms, Unbalanced
Audio out Mini jack, 7.7 dBs, imp.: less than 2.2 kohms
External mic Monaural (SCL800/L850: stereo), ø3.5

General

Power requirement 6.0~7.2 V DC
Power consumption SCL300/L310: 5.3 W,

SCL320: 5.4 W, SCL330: 5.6 W
SCL350: 5.7 W

SCL800: 6.1 W, SCL850: 6.2 W
Built-in mic Condenser mic, omni-directional
Built-in speaker Dynamic, 0.5 W standard
Operating temperature 0°C to 40°C (32°F to 104°F)
Dimension (WXHXD) SCL300/L310/L320/L330 : 109X104X215 mm (4.29X4.09X8.46 inch)

SCL350/L800/L850 : 109X104.5X221mm (4.29X4.09X8.7 inch)
Weight SCL300/L310/L320 : 860 g (1.89 lbs), SCL330 : 870 g (1.92 lbs)

SCL350 : 900 g (1.98 lbs), SCL800/L850 : 900 g (1.98 lbs)

✤ The technical specifications and design may be changed without notice.

*Conditions:

LCD on/EVF off/EIS off/LIGHT off
Recording

System VP-L300/L320/L330/L350/L980

Recording time P5-120: 120 min.
FF or REW time P5-120: approx. 8 min.
Image device CCD (Charge Coupled Device)
Optical zoom ratio VP-L300/L320/L330: 16X, VP-L350/L980:22X
Focal length:f VP-L300/L320/L330: 3.9~62.6 mm, VP-L350/L980: 4.0~88.0 mm
F VP-L300/L320/L330: 1.4, VP-L350/L980: 1.6
Filter diameter 46 mm
Focus system Inner
Macro Auto wide macro
Min. Illumination 0.3 lux (visible)

LCD monitor

Size/Pic. cell VP-L300/L320: 2.5 inch/62k, VP-L330/L350/L980: 3 inch/89k
Method TFT

Connectors

Video out Mini jack, 1 Vp-p, 75 ohms, Unbalanced
Audio out Mini jack, 7.7 dBs, imp.: less than 2.2 kohms
External mic Monaural (VP-L980: stereo), ø3.5

General

Power requirement 6.0~7.2 V DC
Power consumption VP-L300: 5.3 W

VP-L320: 5.4 W
VP-L330: 5.6 W
VP-L350: 5.7 W

VP-L980: 6.2 W
Built-in mic Condenser mic, omni-directional
Built-in speaker Dynamic, 0.5 W standard
Operating temperature 0°C to 40°C (32°F to 104°F)
Dimension (WXHXD) VP-L300/L320/L330 : 109X104X215, VP-L350/L980 : 109X104.5X221
Weight VP-L300/L320 : 860 g, VP-L330 : 870 g

VP-L350 : 900 g, VP-L980 : 900 g

Samsung Electronics3-2

Product specifications and comparison chart

3-2 PAL Models (VP-L300/L320/L330/L350/L980)

✤ The technical specifications and design may be changed without notice.

*Conditions:

LCD on/EVF off/EIS off/LIGHT off
Recording

Hi8 mm

3´´

O
O
O
O

O
Ni-MH
Stereo
B & W

O

Auto

x22 (x440)

570 K

8 mm

3´´

O
O
O
O
O

Ni-MH

Mono

B & W

O

Auto

x22 (x440)

570 K

8 mm

3´´

X
X
O
O
O

Ni-MH

Mono

B & W

O

Auto

x16 (x320)

320 K

8 mm

2.5´´
X
X
X
O
O

Ni-Cd
Mono

B & W

O

Auto

x16 (x320)

320 K

NTSC

Features

Format

LCD Size

V/Light

EIS

XDR

BLC

Remocon

Battery

Audio

V/Finder

P.Title

Focus System

Z/Ratio

CCD

Model

Features

Samsung Electronics 3-3

Product specifications and comparison chart

3-3 Comparison Chart

Format

LCD Size

V/Light

EIS

I-BLC

BLC

Remocon

Battery

Audio

V/Finder

P.Title

Focus System

Z/Ratio

CCD

8 mm

2.5´´
X
X
X

O

X

Ni-Cd
Mono

B & W

O

Auto

x16 (x320)

270 K

8 mm

2.5´´
X
X
X
O
O

Ni-MH

Mono

B & W

O

Auto

x16 (x220)

270 K

8 mm

2.5´´
X
O
X
O
O

Ni-Cd
Mono

B & W

O

Auto

x16 (x320)

270 K

8 mm

3´´

X

X
O
O
O

Ni-MH

Mono

B & W

O

Auto

x16 (x320)

270 K

8 mm

3´´

O
O
O
O
O

Ni-MH

Mono

B & W

O

Auto

x22 (x440)

270 K

Hi8 mm

3´´

X
X
O
O
O

Ni-MH
Stereo
B & W

O

Auto

x22 (x440)

470 K

Hi8 mm

3´´

O
O
O
O

O
Ni-MH
Stereo
B & W

O

Auto

x22 (x440)

470 K

8 mm

2.5´´
X
O
O
O
O

Ni-Cd
Mono

B & W

O

Auto

x16 (x320)

320 K

SCL300 SCL310 SCL320 SCL330 SCL350 SCL800 SCL850

VP-L300 VP-L320 VP-L330 VP-L350 VP-L980

Model

PAL

Samsung Electronics3-4

Product specifications and comparison chart

MEMO

MEMO

Samsung Electronics 4-1

4. Disassembly and Reassembly

4-1 Cabinet Disassembly

4-1-1 Ass’y Cover Housing Removal

1

Remove 2 screws.

2

Remove the ass'y cover
housing in the direction
of arrow .

A

A

Fig. 4-1 Ass’y Cover Housing Removal

*

It is recommended to eject the cassette
housing for removal the cover housing.

*

You don’t need to disassemble the Cover
Housing except that you change the Deck
Mechanism.

Samsung Electronics4-2

Disassemblr and Reassembly

4-1-2 Ass’y Case Top Removal

1

Remove ass'y case top by gentlely releasing
2 locking tabs with a small screw driver.
(see DETAIL "A")

REASSEMBLY : Put the 7 tabs into the slot,
while sliding it as shown in DETAIL "B".

2 locking tabs

Precision screw driver

< DETAIL "A" >

"B"

< DETAIL "B" >

Fig. 4-2 Ass’y Case Top Removal

*

You don’t need to disassemble the Case Top except that

you change the Deck Mechanism.

Samsung Electronics 4-3

Disassemblr and Reassembly

1

1

1

Remove 4 screws.

3

Disconnect the FPC
or wire from the audio block
of MAIN PCB.

(Ass'y front for
EIS models)

(Ass'y front for
Non-EIS models)

2

Pull out the ass'y front in
the direction of arrow , .

B

A

A B

4-1-3 Ass’y Front Removal

Fig. 4-3 Ass’y Front Removal

Samsung Electronics4-4

Disassemblr and Reassembly

4-1-4 Ass’y Case Right Removal

1

Remove 4 screws.

Pull out the unit case
in the direction of arrow .

Disassemble after turning
knob to be "LOCK".

1

1

2

A

A

Fig. 4-4 Ass’y Case Right Removal

Samsung Electronics 4-5

Disassemblr and Reassembly

2

Pull out the case left
assembly in the direction
of arrow .

1

1

Remove 5 screws.

1

1

1

A

A

Disconnect wire
of 15 pins.

Disconnect wire
of 10 pins.

4-1-5 Ass’y Case Left Removal

Fig. 4-5 Ass’y Case Left Removal

4

Pull out the LCD assembly
in the direction of arrow .

1

Remove 1 screw.

Remove 2 screws.

3

Pull out the cover
in the direction of arrow .

2

B

B

A

A

Samsung Electronics4-6

Disassemblr and Reassembly

Fig. 4-6 Ass’y LCD Removal

4-1-6 Ass’y LCD Removal

Samsung Electronics 4-7

Disassemblr and Reassembly

4-1-7 Ass’y EVF Removal

1

Remove 2 screws.

A

A

Remove 1 screw.

4

Pull out the EVF ass'y in the direction of arrow .

2

Disconnect wire of 3 pins from
the FUNCTION PCB.

3

Fig. 4-7 Ass’y EVF Removal

Samsung Electronics4-8

Disassemblr and Reassembly

1

Remove 1 screw.

A

A

2

Remove 1 screw.

3

Pull out the ass'y REAR board
in the direction of arrow .

4-1-8 Ass’y Rear Board Removal

Fig. 4-8 Ass’y Case Rear Removal

Samsung Electronics 4-9

Disassemblr and Reassembly

4-1-9 Ass’y 8mm Deck Removal

1

1

Remove 3 screws.

2

Pull out the MAIN PCB from the ass'y DECK
in the directiob of arrow .

A

A

Disconnect connector
from the MAIN PCB.

Disconnect connector
from the Head-Drum.

Fig. 4-9 Ass’y 8mm Deck Removal

Samsung Electronics4-10

Disassemblr and Reassembly

1

2

Remove 2 screws.

A

A

4

Disconnect connector and pull out the
ass'y LENS in the direction of arrow .

3

Disconnect FPC from the connector of the MAIN PCB.

Remove solder with an iron
to isolate PCB and LENS.

4-1-10 Ass’y Camera Removal

Fig. 4-10 Ass’y Camera Removal

Samsung Electronics 4-11

Disassemblr and Reassembly

4-2 Circuit Boards Location

ASS'Y MAIN BOARD

ASS'Y CCD BOARD

ASS'Y LCD BOARD

ASS'Y FUNCTION BOARD

ASS'Y EVF BOARD

ASS'Y REAR BOARD

ASS'Y EIS BOARD (EIS MODEL)
ASS'Y FRONT BOARD (NON EIS MODEL)

Fig. 4-11 Circuit Boards Location

DIRECTION
DECK MAIN PCB
DECK MAIN PCB

MAIN PCB REAR PCB
MAIN PCB FUNCTION PCB
MAIN PCB LCD
MAIN PCB CCD PCB
MAIN PCB LENS FPC
MAIN PCB LENS FPC
MAIN PCB FRONT FFC (EIS,STEREO)
MAIN PCB FRONT FFC (EIS, MONO)

MAIN PCB FRONT PCB (NO EIS)
FRONT PCB MIC ASS’Y
FRONT PCB MIC ASS’Y
FRONT PCB MIC ASS’Y
FRONT PCB LIGHT ASS’Y

FUNCTION PCB EVF
FUNCTION PCB SPEAKER

LCD HINGE

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

37

38

39

40

41

42

43

44

Samsung Electronics4-12

Disassemblr and Reassembly

NO. NO.

4-3 Connector Diagrams

Fig. 4-12 Connector Diagrams

CONNECTOR

CN51

––
CN601
CN603
CN604
CNP01
CNP03
CNP02

CNP801

CN801
CN802
CN891
CN893
CN893
CN895
CN472
CN473

––

CONNECTOR

CN501

CN52

CN771

––
––

CNC01

––

––
CN894
CN894
CN890

––

––

––

––

––

––

––

1

357

9

111313

16

16

19

21

23

252628

38

31

2

468

10

12

14

15

17

18

20

22

242527

29

39

30

Samsung Electronics 5-1

5. Alignment and Adjustment

5-1. Mechanism Alignment

¥ Refer to mechanical manual ÒDE-6 (AD68-30200A)Ófor the adjustment and checks of mechanism section.

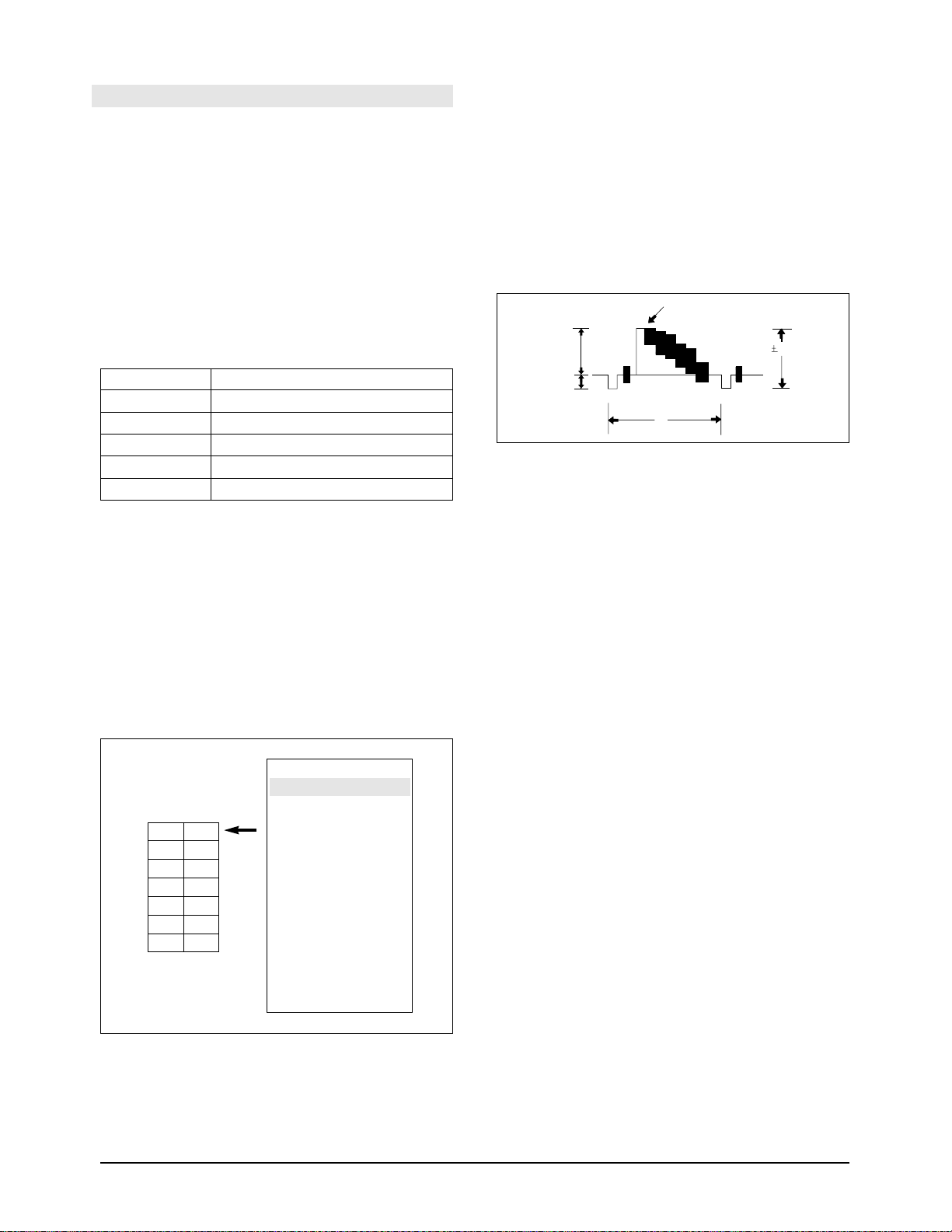

Test Points for Mechanism Alignment

1. PB RF - Pin 11 of CN605

2. Head Switching (Trigger) - Pin 9 of CN605

14
12
10

8
6
4
2

13

11

9
7
5
3
1

PB RF

Head Switching - Trigger

CN605

Fig. 1 Test point

Fig. 2 Test location of test point

Samsung Electronics5-2

Alignment and Adjustment

POSITION

IC601 IC601 IC601

ACTION MODE

28PIN 27PIN 26PIN

L H H EJECT

L L H UNLOADING STOP
H L L LOADING STOP

H H L PLAY, FF, Z/RTN, STILL....

EJECT

UNLOADING STOP

LOADING STOP

PB

IC601

27PIN

GROUND

IC601

26PIN

COMMON

IC601

28PIN

OPEN

EJECT

PLAY

LOADING

STOP

UNLOADING

STOP

LOADING

UNLOADING

Reference

¥ Mechanical Transition Chart of MODE switch.

Samsung Electronics 5-3

Alignment and Adjustment

5-2 Camera Section Adjustment

Note :

1. This system has

1) EEPROM to store the confirmed adjustment data.

2) DSP (Digital Signal Process ; ICP01 - Main board) chip to process the signal of camera parts.

3) One test point for the frequency adjustment of DSP main clock (P. CLK).

4) The special mode for camera adjustment using the function keys on the left case.

2. Keep in mind

1) All adjustment steps should performed using the remote controller.

5-2-1 Preparations

4. The function keys on the left case

The following is a chart explaining the use of each button :

1. Equipment to be used

1) DC Power supply

2) Oscilloscope

3) Frequency counter

4) Vectorscope

5) Waveform monitor

6) Color monitor or TV

7) Various charts

- Color bar chart

- Gray-scale chart, etc...

2. Composition of camera P.C.Boards

1) Main PCB

2) CCD PCB

3) EVF PCB

4) LCD PCB

3. Adjustment preparations

1) The function keys on the left case is used as a
camera adjust tool.

2) Press the confirm button when each manual

adjustment step is completed to write the
adjustment data to the EEPROM.

3) After each adjustment step is completed, OSD
shows ÒOK!Ó.

4) To cancel the adjustment mode, remove the
power source.

Using Button

MENU/ENTER (CONFIRM)
EDIT – (DATA DOWN)
EDIT + (DATA UP)
TITLE (MODE UP)
DATE/TIME (MODE DOWN)
MF
(FAR/NEAR)
ZOOM TELE/ZOOM WIDE

Adjustment

Data store after finishing adjustment by DATA UP/DOWN button.

When change data value of adjust state.

Mode change.

Manual focus adjustment.

Move the zoom position of lens.

Samsung Electronics5-4

Alignment and Adjustment

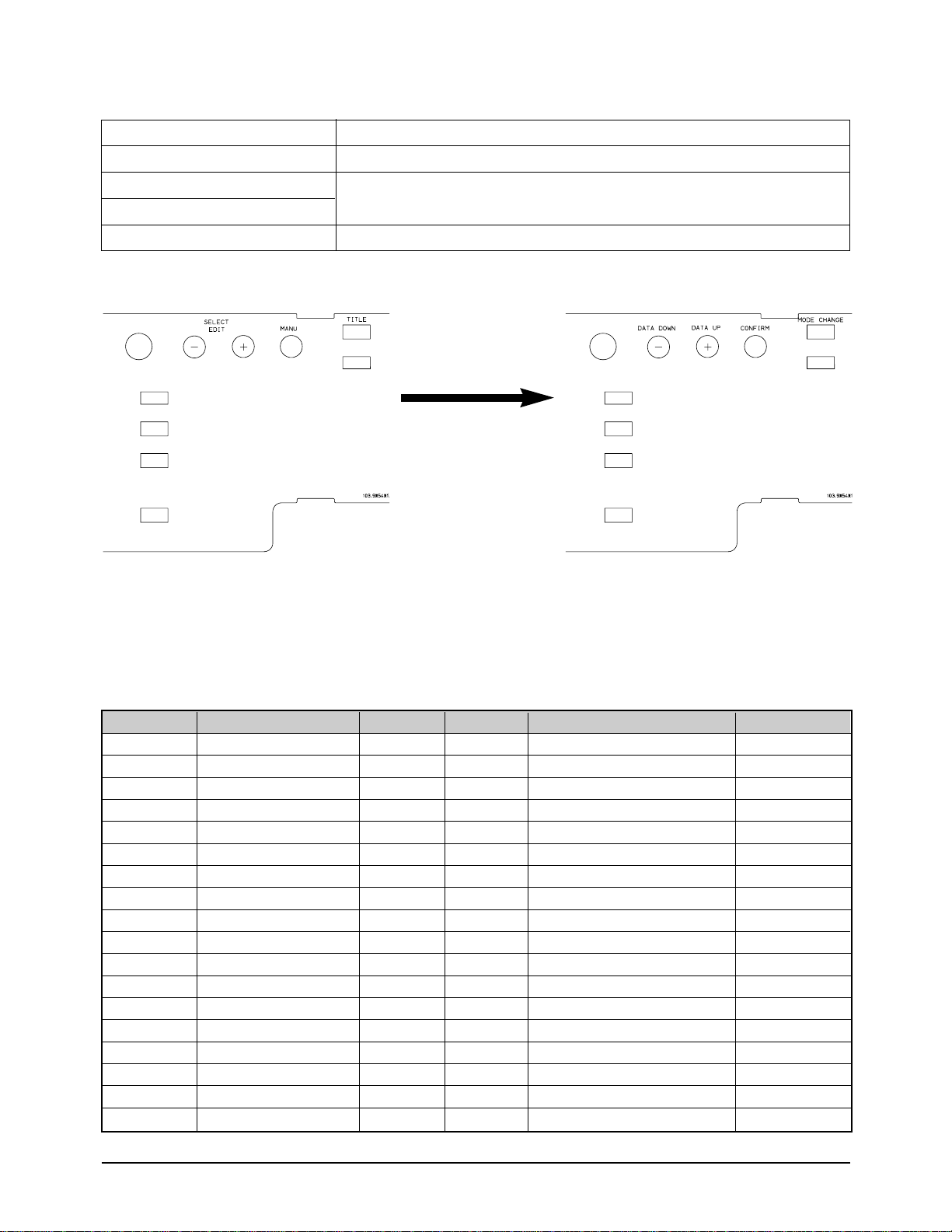

The function keys left case is required to adjust the camera section.

✤ ZOOM LEVER : ZOOM TELE/WIDE

Note : In service adjustment mode, button names are different from those in customer camera function con-

trol mode. EX) MENU/ENTER button is the same as confirm.

5. How to get into service ÒADJUSTÓ mode

1. Remove the lithium battery from the camcorder.

2. Connect the power source (battery/DC cable).

3. Eject the tape if it is in the unit.

4. Set the power switch of the camcorder to “CAM­ERA” position.

5. Set OSD on state.

STEP 1

1. Press and hold the “EJECT” button and “STOP”
button on the camcorder at the same time for
more than 5 seconds.
Then unit goes into service mode.

STEP 2

On screen display show “ODF. T.INI XX XX” CAM­ERAADJUSTMENT mode has successfully been
activated.

STEP 3

Note : When ÒXX XXÓ is shown in service adjustment procedures, this indicates variable values.

DATA DOWN

DATA UP

MODE DOWN

MODE UP

CONFIRM

ZERO RETURN

XDR/BLC

SELECT MENU

EDIT

_

DSE
ON/OFF

COUNTER
RESET

DISPLAY

+

ENTER

TITLE

DATE/TIME

ADDR OSD-DISPLAY CONTENT

0DF T.INI TABLE INITIAL

0CD HALL HALL AUTO ADJUST

0CE IRIS IRIS AUTO ADJUST

0CF AWB AWB AUTO ADJUST

0D0 LENS LENS AUTO ADJUST( WARNING! DONÕT USE WITHOUT AN INFINITE COLLIMATOR)

0D6 ZVR.C ZOOM LEVER CENTER DATA CHECKING

0DB AGCM AGC AUTO ADJUST (NORMALLY NO USED)

0DE 3MLENS 3M LENS AUTO ADJUST AT SERVICE FIELD (DISTANCE: 3M +/- 1Cm)

NO-OSD-DISPLAY

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 0)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

001 54 54 54 54 OPTION AGC TARGET- 0'=FIX WDR='1' PASTEL COLOR KEY/RING CAN/SECREM EMBOSS COLOR

002 00 00 00 00 @IRIS CONTROL-LOW

003 08 08 08 08 @IRIS CONTROL-HIGH

004 F0 F0 F0 F0 * AWB-HSS MODE * AWB STOP HALL

005 80 80 80 80 @P.CLK PWM-HIGH

006 30 30 30 30 AGC TARGET DOWN VALUE AT 001H D6='1' OPTION

007 00 00 00 00 AGC MAX, DARK SLICE-B CONTROL

008 08 08 08 08 @UPD16835 INIT 4th

009 66 66 66 66 @UPD16835 INIT 6th

00A 66 66 66 66 @UPD16835 INIT 7th

00B 00 00 00 00 @UPD16835 standard data current set A(4th.7) : D0, current set B(7th.7) : D1

00C 03 03 03 03 @CDS F-REG(f1,f0) CAM : BIT0:f0,BIT1:f1

00D A0 A0 A0 A0 changed by AUTO HALL ADJ(0CD) "@CDS F-REG(f9,f2) CAM ;PGA GAIN -HIGH(0.00dB~ 30.0dB)"

00E 60 60 60 60 changed by AUTO HALL ADJ(0CD) "@CDS G-REG CAM ;DAC1(HALL REFERENCE CONTROL;0V~3.0V);"

00F 3A 3A 3A 3A "@CDS H-REG CAM ;DAC2(HALL GAIN CONTROL;0V~3.0V); "

010 87 87 87 87 "@CDS E-R(e1,e0),J-R(j0),M-R;D0:e0,D1:e1,D2:j0(CAM),D4:e0,D5:e1,D6:j0(VCR),D7:cds-rev='1'"

011 90 90 90 90 "@CDS F-REG(f9,f2) VCR ;PGA GAIN -HIGH(0.00dB~ 10.0dB)"

012 00 00 00 00 @WDR REGISTER[7,0] *AEINSEL=D7,AELPFSEL=D6,X[5:0]

013 80 80 80 80 @WDR REGISTER[15,8] *AECLIP_TH[7:0]

014 00 00 00 00 @WDR REGISTER[23,16] *AEL_TH[7:0]

015 FF FF FF FF @WDR REGISTER[31,24] *AEH_TH[7:0]

016 8B 8B 76 76 @WDR REGISTER[39,32] *AEW2VE[7:0]

017 24 24 24 24 @WDR REGISTER[47,40] *AEW2VS[7:0]

018 ED ED F1 F1 @WDR REGISTER[55,48] *AEW2HE[7:0]

019 07 07 13 13 @WDR REGISTER[63,56] *AEW2HS[7:0]

01A 81 81 6E 6E @WDR REGISTER[71,64] *AEW1VE[7:0]

01B 26 26 20 20 @WDR REGISTER[79,72] *AEW1VS[7:0]

Samsung Electronics 5-5

Alignment and Adjustment

ÒCAMERA ADJUST MODE, EEPROM ADDRESS SEQUENCE & DATA OF PAGE 0Ó

NO-OSD-DISPLAY

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 0)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

01C B4 B4 C1 C1 @WDR REGISTER[87,80] *AEW1HE[7:0]

01D 32 32 43 43 @WDR REGISTER[95,88] *AEW1HS[7:0]

01E 00 00 00 00 @WDR REGISTER[103,96] *SP_ADJ START POINT ADJUSTMENT

01F FF FF FF FF @WDR REGISTER[111,104] *TEST_ADDR[7:0]

020 00 00 00 00 @WDR REGISTER[119,112] *TEST_CNTL[7:0]

021 88 88 88 88 @WDR REGISTER[127,120] *ALPF_TH3[7:4],ALPF_TH4[3:0]

022 88 88 88 88 @WDR REGISTER[135,128] *ALPF_TH1[7:4],ALPF_TH2[3:0]

023 2A 2A 2A 2A @WDR REGISTER[143,136] *ALPF_WTSFT[7:5],ALPF_THSFT[4:3],SHPF_SFT[2:0]

024 99 99 99 99 @WDR REGISTER[151,144] *COLOR127[7:4],COLOR55[3:0]

025 99 99 99 99 @WDR REGISTER[159,152] *COLOR31[7:4],COLOR63[3:0]

026 49 49 49 49 @WDR REGISTER[167,160] *CH_SEL[7:4],COLOR12[3:0]

027 F0 F0 F0 F0 @WDR REGISTER[175,168] *BACK_SP[7:4].BACK_WT[3:0]

028 44 44 44 44 @WDR REGISTER[183,176] *LUT_TAB[7:5],LUT_HPF_SFT[4:2],X[1:0]

029 E0 E0 E0 E0 @WDR REGISTER[191,184] *LTIC[7:0]

02A C0 C0 C0 C0 @WDR REGISTER[199,192] *LIT_ON,LSI_ON,HLOG_ON,X[4:0]

02B 68 68 68 68 @WDR REGISTER[207,200] *HIST_WT HISTOGRAM WEIGHT

02C 18 18 18 18 @WDR REGISTER[215,208] *LTU-GAIN[7:0]

02D FF FF FF FF @WDR REGISTER[223,216] *LP-V[7:0] LENGTH OF VERTICAL ACTIVE AREA

02E 28 28 28 28 @WDR REGISTER[231,224] *SP-V[7:0] START OF VERTICAL ACTIVE AREA

02F B2 B2 B2 B2 @WDR REGISTER[239,232] *LP-H[7:0] LENGTH OF HORIZONTAL ACTIVE AREA

030 2E 2E 2E 2E @WDR REGISTER[247,240] *SP-H[7:0} START OF HORIZONTAL ACTIVE AREA

031 00 00 00 00 @WDR REGISTER[255,248] *GR_MODE[7:0] WDR COMMAND'00=WDR OFF, C0=WDR ON'

032 ~03F ~03F ~03F ~03F NO USED

040 10 18 18 18 * AWB- STABLE MODE THRESHOLD

041 ~048 ~048 ~048 ~048 NO USED

049 04 06 07 06 * AWB- TRACKING AREA SETTING

04A D0 D0 D0 D0 "@WDR ON ; AE A-READ(SMALL)DATA CUTTING -LOW"

04B 01 01 01 01 "@WDR ON ; AE A-READ(SMALL)DATA CUTTING -HIGH"

04C 04 04 04 04 "* AWB- R-CTRL UP/DOWN VALUE ( W/B TARGET CENTER(=80) +/- ADDR;04C )"

04D 80 80 80 80 "* AWB- B-CTRL UP/DOWN VALUE ( W/B TARGET CENTER(=80) +/- ADDR;04D )"

04E 8A 80 8A 80 * AWB- OUTDOOR HALL VALUE

04F E0 E0 E0 E0 WDR AE TARGET -LOW

050 00 00 00 00 WDR AE TARGET-HIGH

051 44 44 44 44 changed by AUTO 3MLENS ADJ(0DE) ZOOM PULSE LOW 16X LENS

052 FF FF FF FF changed by AUTO 3MLENS ADJ(0DE) ZOOM PULSE HIGH 16X LENS

053 31 33 48 2D changed by AUTO AWB ADJ(0CF) R-CONTROL 3100K

054 A0 89 C8 78 changed by AUTO AWB ADJ(0CF) B CONTROL 3100K

055 5F 60 88 5E changed by AUTO AWB ADJ(0CF) R-CONTROL 5100K

Samsung Electronics5-6

Alignment and Adjustment

NO-OSD-DISPLAY

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 0)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

056 5A 54 68 4E changed by AUTO AWB ADJ(0CF) B CONTROL 5100K

057 00 00 00 00 @DSP#12C( HAPGN) at AGC

058 00 00 00 00 @DSP#12C (HAPGN) at AGC

059 03 03 03 03 "* AWB- RATIO ; 1/3 CENTER TRACKING"

05A 03 03 03 03 "* AWB- RATIO HIGH ; CENTER AXIS OVER 5100K(OUTDOOR)"

05B 04 04 04 04 "* AWB- RATIO LOW ; CENTER AXIS BELOW 3100K(INDOOR)"

05C E0 E0 E0 E0 SHUTTER START POINT OF IRIS CONTROL PERCENT(FF=100% IRIS MAX)

05D 80 80 80 80 "@WDR ON; AE DATA CUTTING -LOW"

05E 02 02 02 02 "@WDR ON; AE DATACUTTING -HIGH"

05F 50 50 50 50 "@WDR ON; BLACK BALANCE MAX-DATA (MIN DATA+31)"

060 40 40 40 40 "@WDR ; AE-TARGET MARGIN; #087,#088 -#060, AT CLIP-COUNTER ON "

061 10 10 10 10 "@WDR ; CLIP_COUNTER-TH-'HIGH' BYTE "

062 15 15 15 15 @EIS H-TH-COUNTER

063 35 35 35 35 @EIS H-TH

064 15 15 15 15 @EIS V-TH-COUNTER

065 35 35 35 35 @EIS V-TH

066 08 08 04 04 "@WDR ON; Y ,C GAMMA 1 "

067 0D 0D 07 07 "@WDR ON; Y ,C GAMMA 2 "

068 1B 1B 15 15 "@WDR ON; Y,C GAMMA 3 "

069 32 32 2C 2C "@WDR ON; Y ,C GAMMA 4 "

06A 57 57 4D 4D "@WDR ON; Y,C GAMMA 5 "

06B 82 82 70 70 "@WDR ON; Y,C GAMMA 6"

06C C0 C0 B4 B4 "@WDR ON; Y ,C GAMMA 7"

06D F0 F0 F8 F8 "@WDR ON; Y,C GAMMA 8"

06E EE EE EE EE "@WDR ON; ADDR#12C ;YVBKT,YVBK,HBLK,YHBK"

06F 08 08 08 08 "@WDR ON; ADDR#123;YHPSC,YAPC"

070 50 50 50 50 "@WDR ON; ADDR#126;YLPFSEL"

071 10 10 10 10 "@WDR ON; ADDR#134;RED DARK SLICE"

072 03 03 03 03 "@WDR ON; ADDR#135;BLUE DARK SLICE"

073 00 00 00 00 "@WDR ON; ADDR#136;GREEN DARK SLICE"

074 11 11 10 10 @CINEMA F-ZONE LIMIT UP

075 7D 7D 68 68 @CINEMA F-ZONE LIMIT UP

076 5A 60 4B 50 @R-GAIN POSITIVE(ADDR.147) at OUTDOOR

077 55 60 3D 4A @R-GAIN NEGATIVE(ADDR.148) at OUTDOOR

078 25 2C 12 29 @R-HUE POSITIVE (ADDR.149) at OUTDOOR

079 28 3B 17 35 @R-HUE NEGATIVE (ADDR.14A) at OUTDOOR

07A 33 39 2C 31 @B-GAIN POSITIVE(ADDR.14B) at OUTDOOR

07B 2B 30 1D 21 @B-GAIN NEGATIVE(ADDR.14C) at OUTDOOR

Samsung Electronics 5-7

Alignment and Adjustment

NO-OSD-DISPLAY

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 0)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

07C 1C 1A 24 26 @B-HUE POSITIVE (ADDR.14D) at OUTDOOR

07D 0E 0E 15 0D @B-HUE NEGATIVE (ADDR.14E) at OUTDOOR

07E 50 50 50 50 @NEGA BLC TARGET-'L'

07F 00 00 00 00 @NEGA BLC TARGET-'H'

080 04 04 04 04 "@AE; AE A-WINDOW WEIGHT '05'=50%"

081 5E 5E 5E 5E "@AE; SPOTLIGHT AE-TARGET 'L'"

082 00 00 00 00 "@AE; SPOTLIGHT AE-TARGET 'H'"

083 90 90 90 90 @DIGITAL CLAMP CONTROL START AGC

084 0C 0C 0C 0C @AGC MAX , DIGITAL CLAMP CONTROL(ADDR.#118)

085 90 90 90 90 * AWB- W/B DATA-TH

086 02 02 02 02 * AWB- LUMINANCE AREA NUMBER

087 00 00 00 00 "@AE; BLC/WDR , AE TARGET 'L'"

088 02 02 02 02 "@AE; BLC /WDR, AE TARGET 'H'"

089 75 75 75 75 @SEPIA CDS-R

08A 3A 3A 3A 3A @SEPIA CDS-G

08B 00 00 00 00 "@AE; SAND&SNOW MODE AE TARGET 'L'"

08C 02 02 02 02 "@AE; SAND&SNOW MODE AE TARGET 'H'"

08D 00 00 00 00 changed by AUTO 3MLENS ADJ(0DE) @FOCUS TELE MARGIN LOW BYTE(CANON X22 LENS)

08E 00 00 00 00 changed by AUTO 3MLENS ADJ(0DE) @FOCUS TELE MARGIN HIGH BYTE(CANON X22 LENS)

08F F0 F0 F0 F0 changed by AUTO 3MLENS ADJ(0DE) @FOCUS WIDE MARGIN LOW BYTE(CANON X22 LENS)

090 FF FF FF FF changed by AUTO 3MLENS ADJ(0DE) @FOCUS WIDE MARGIN HIGH BYTE(CANON X22 LENS)

091 F8 09 00 0A @CCD H-PIXEL NUMBER -LOW BYTE

092 02 02 03 02 @CCD H-PIXEL NUMBER -HIGH BYTE

093 23 23 F7 F7 @CCD V LINE NUMBER -LOW BYTE

094 01 01 00 00 @CCD V LINE NUMBER -HIGH BYTE

095 1C 0C 16 09 @CCD V SKIP LINE DEFAULT VALUE

096 B9 46 50 EE @CCD V LINE NUMBER LOW BYTE

097 02 02 02 01 @CCD V LINE NUMBER HIGH BYTE

098 98 98 98 98 "@DSP IC ADDR #41H ;ART DSE LEVEL"

099 B8 B8 B8 B8 "@DSP IC ADDR #1CH ;NEGA MODE WHITE CLIP LEVEL"

09A 30 30 30 30 * AWB- START HALL VALUE

09B 1C 1C 1C 1C "@DSE- MOSAIC SIZE; DSP IC ADDR #39H "

09C F4 F4 F4 F4 "@D/ZOOM MAX RATIO; CO=4X, EE=14.3X, F4= 20X "

09D 68 68 68 68 @ NOISE SLICE START AGC VALUE

09E 0B 0B 0B 0B @ HAP(DSP #10BH) MIN VALUE AT AGC MAX

09F 0B 0B 0B 0B @ VAP(DSP 310C) MIN VALUE AT AGC MAX

0A0 18 20 18 20 @ YAP(DSP #10DH) MAX VALUE AT AGC MAX

0A1 A0 A0 A0 A4 @ CHROMA SUPPRESS PERCENT

Samsung Electronics5-8

Alignment and Adjustment

NO-OSD-DISPLAY

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 0)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

0A2 60 60 60 60 @ CHROMA SUPPRESS START AGC VALUE

0A3 00 00 00 00 changed by AUTO IRIS ADJ(0CE) @ IRIS CONTROL MAX LOW BYTE

0A4 05 05 05 05 changed by AUTO IRIS ADJ(0CE) @ IRIS CONTROL MAX HIGH BYTE

0A5 B4 B4 B4 B4 * AWB -AT OUTDOOR,TRACKING AMOUNT(IN CASE,INDOOR DATAINPUT) ,B4=70%,FF=0%(NO TRACKING)

0A6 C0 C0 C0 C0 * AWB- WB AGC% , STOP POINT ( 80=50%, C0=75%)

0A7 89 89 89 89 @HALL WIDTH AT HALL ADJUST

0A8 E5 E5 E5 E5 changed by AUTO 3MLENS ADJ(0DE) @ZOOM RESET LOW(16X, 22X LENS)

0A9 88 88 88 88 changed by AUTO 3MLENS ADJ(0DE) @ZOOM RESET HIGH(16X, 22X LENS)

0AA 80 80 80 80 changed by ZOOM VR CENTER(0D6) @ZOOM VR CENTER VALUE

0AB 20 20 20 20 @ZOOM VR CENTER MARGIN( ZOOM STOP PERIOD)

0AC 34 30 34 30 changed by AUTO AGC ADJ(0DB) @AGC MIN VALUE

0AD A8 A8 A8 A8 changed by AUTO AGC ADJ(0DB) @AGC MAX VALUE

0AE 0B 0B 09 09 "REMOCON ZOOM SPEED; 22X LENS -PAL:0B NTSC:09 "

0AF 02 02 02 02 AF ZIGZAG AMOUNT AT BASIC ZOOM SPEED

0B0 68 28 5B 30 @IN AGC AUTO ADJUST (ADDR.0DB), SHUTTER CONTROL OF AGC MIN ADJUST OPERATING(D0='0'FIX)

0B1 2A 2B 08 01 @IN AGC AUTO ADJUST (ADDR.0DB), SHUTTER CONTROL OF AGC MAX ADJUST OPERATING(D7='1'FIX)

0B2 ~0B6 ~0B6 ~0B6 ~0B6 NO USED

0B7 1A 1A 16 16 "ZOOM MAX SPEED ;22X LENS PAL:19H,NTSC:15H"

0B8 3A 3A 3A 3A @HALL REF START, AT AUTO HALL ADJUST ADDR.0CD

0B9 4C 4C 4C 4C @HALL GAIN START, AT AUTO HALL ADJUST ADDR.0CD

0BA 40 40 40 40 changed by AUTO HALL ADJ(0CD) @HALL MIN VALUE

0BB C0 C0 C0 C0 changed by AUTO HALL ADJ(0CD) @HALL MAX VALUE

0BC E0 D0 D0 D0 @AE TARGET-LOW BYTE

0BD 00 00 00 00 @AE TARGET-HIGH BYTE

0BE B0 B0 B0 B0 changed by AUTO IRIS ADJ(0CE) @IRIS CONTROL MIN LOW BYTE

0BF 09 09 09 09 changed by AUTO IRIS ADJ(0CE) @IRIS CONTROL MIN HIGH BYTE

0C0 18 18 18 18 changed by AUTO 3MLENS ADJ(0DE) @FOCUS RESET LOW(16X,22X LENS)

0C1 82 82 82 82 changed by AUTO 3MLENS ADJ(0DE) @FOCUS RESET HIGH(16X,22X LENS)

0C2 40 40 40 40 @HALL CLOSE TARGET

0C3 ~C6 ~C6 ~C6 ~C6 NO USED

0C7 12 12 12 12 EIS GYRO-RESET TIME '0C=3.7SEC'

0C8 13 13 13 13 EIS START TIME ('10'=4.4SEC) AFTER EIS GYRO-RESET

0C9 65 64 65 60 @IRIS CONTROL OF ZOOM WIDE POSITION AT LENS ADJUSTMENT

0CA 24 24 24 24 @QB_GCTRL

0CB 48 48 48 48 @AETAR L (FLEX-ZONE)

0CC 00 00 00 00 @AETAR H (FLEX-ZONE)

0CD FF FF FF FF @@HALL AUTO ADJUST

0CE FF FF FF FF @@IRIS AUTO ADJUST

Samsung Electronics 5-9

Alignment and Adjustment

NO-OSD-DISPLAY

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 0)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

0CF FF FF FF FF @@W/B AUTO ADJUST

0D0 FF FF FF FF @@LENS AUTO INFINITE ZOOM TRACK(DON'T USE IN SERVICE FIELD)

0D1 68 68 A0 A0 FIND AGC ADJUST TARGET SHUTTER CONTROL AT AGC AUTO ADJUST (ADDR.0DB)

0D2 ~0D5 ~0D5 ~0D5 ~0D5 NO USED

0D6 FF FF FF FF @@ZOOM VR LEVER CENTER FINDING

0D7 01 01 01 01 @@ZOOM/FOCUS CHK=ONE AF ENABLE BIT 00~03

0D8 ~0DA ~0DA ~0DA ~0DA NO USED

0DB FF FF FF FF @@AGC AUTO ADJUST (ADDR. 0B0,0B1,0D1,0AC,0AD)

0DC FF FF FF FF "@LENS ZOOM TRACK CHECKING ;CONFIRM,DATA UP,DOWN KEY"

0DD FF FF FF FF NO USED

0DE FF FF FF FF "@@LENS 3M ZOOM TRACK ADJUST =SERVICE FIELD MODE (KEEP DISTANCE; 3M+/-1Cm)"

0DF A0 A0 A0 A0 @EEPROM -TABLE -INITIAL ('99'+CONFIRM =CAMERA ONLY, 'AA'+CONFIRM=CAM+VCR INITIAL)

0E0 ~0FF ~0FF ~0FF ~0FF VCR ADDRESS & DATA

Samsung Electronics5-10

Alignment and Adjustment

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 1)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

100 00 00 00 00 EMODE(2:0)='000'internal reset VSKIP='0' CINEMA ='0' ND TEST DSYNC JITNSYNC

101 A0 A0 A0 A0 ADCK FWCK SCK LALT HSP DOSEL H_MAX_SEL(1:0)

102 C0 C0 C0 C0 SHTR='11' HSS H2DEL(3:0) 0~15nSEC DELAY ADJUST PBLK_SEL HSSC(8)

103 00 00 00 00 |---- HIGH SHUTTER SPEED CONTROL (8:0) ----|

104 0D 19 0D 19 |---- GHDLY(7:0) -128 ~+ 127 ----|

105 07 03 06 03 |---- H1DLY[3:0] 0~+15nS ----| |---- RGDLY[3:0] -8~+7nS ----|

106 50 48 4E 38 |---- SHP_DLY[3:0] -8~+7nS |---- SHD_DLY[3:0] -8~+7nS ----|

107 70 40 50 40 FLALTSEL ADCKDLY[2:0] 0~+7nS DSCKSEL FWCKDLY[2:0] 0~+7nS

108 0D 0D 0D 0D |---- HCNTSET[7:0] ----|

109 00 00 00 00 |---- LSSC[7:0] low speed shutter ----|

10A 00 00 00 00 DCKSEL |---- VCNTSET[6:0] ----|

10B 0D 0D 0D 0D * WDR-AF CLIMB NOISE THRESHOLD

10C 50 50 50 50 * WDR-AF CENTER DATA THRESHOLD LOW

10D 01 01 01 01 * WDR-AF CENTER DATA THRESHOLD HIGH

10E 0C 0C 0C 0C * WDR-AF PEAK NOISE THRESHOLD LOW

10F 09 09 09 09 * WDR-AF PEAK NOISE THRESHOLD HIGH

CLUSTER 1 (HEADER[3:0] = 4'b0001) ENCODER/ DEFECT COMPENSATION

110 50 52 50 52 |---- C-SYNC[7:0] c.sync level 0~255 ----|

111 01 01 01 03 |---- SETUP[7:0] setup level 0~255 ----|

112 00 00 00 00 |---- EBURST[7:0] burst phase control :NTSC only ----|

113 50 10 50 10 FSC4 EYDLY[2:0]000=-4PCK,111=+3PCK UV_CTRL |---- EBURST_H[2:0] ----|

114 D8 D8 C8 CC |---- EUSC[7:0] "-128~+127 ;B-Y BURST VALUE" ----|

115 28 28 00 00 |---- EVSC[7:0] "-128~+127 ;R-Y BURST VALUE" ----|

116 00 00 00 00 X X X X X NOTBC EXTDAC PD1

117 03 03 03 03 X X AD[1:0] AD CLK DLY D-CLP S2 S1 S0

118 0D 10 0E 10 |----- CLAMP_OFFSET[7:0] ----|

119 40 40 40 40 |----- DEFECY_THRESHOLD[7:0] 0~255 ----|

11A 00 00 00 00 X X X X RAM-OUT |---- RAM-OUT[8:6]

11B 00 00 00 00 |---- RAM-OUT[5:0] ----| RAM-OUT[9:8]

11C 00 00 00 00 |---- RAM-OUT[7:0] ----|

11D 00 00 00 00 X |---- PFINDCNT[5:0] ----|

11E 0E 0A 0A 0A * AWB- AREA INTERVAL FORM CENTER AXIS

11F 03 03 03 03 LENS HYSTERESIS ZOOM TRACKING CURVE

CLUSTER 2 (HEADER[3:0] = 4'b0010) LUMINANCE

120 66 66 66 66 "YVBKTH[1;0]" YVBKG[1:0] "YHBKTH[1;0]" YHBKG[1:0]

121 D9 0C D9 10 Y_H_GAIN[1:0] X |---- Y_H_POSI_GAIN[4:0] ----|

122 94 54 94 4D Y_L_GAIN[1:0]

YOLD-GAMMA

|---- Y_V_POSI_GAIN[4:0] ----|

Samsung Electronics 5-11

Alignment and Adjustment

ÒCAMERA ADJUST MODE, EEPROM ADDRESS SEQUENCE & DATA OF PAGE 1Ó

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 1)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

123 01 03 01 03 X X |---- YA_NOISE_SLICE[5:0] ----|

124 98 78 A0 78 |---- YHL_SC[7:0] ----|

125 37 37 37 37 |---- YEDGE_SC[7:0] ----|

126 50 50 50 50 X YVAPPSEL YEGCS

YHLCS'0'=ON

YLPFSEL |---- "YSCDLY[2;0]" ----|

127 0A 30 0A 30 |---- YHINS[6:0] aperture noise slice level after gamma correction. ----| YNEGA/POSI

128 E4 E8 E4 E0 |---- YWC[7:0] ----|

129 84 8A 84 8A |---- YGAIN[7:0] X0~X2 ----|

12A 00 00 00 00 X YENHANTH[2:0] X X YENHANG[1:0]

12B 08 08 08 08 |---- YART[2:0] ----| |---- YHI-A-GAIN[1:0] ----|

12C AF 6E AF 7F |---- HAPGN[4:0] ----| YHCLIP[3:2] H_C_SUP[4]

12D 81 81 81 81 |---- VAPGN[4:0] ----| YHCLIP[1:0] E_C_SUP[4]

12E 88 B8 88 B8 H_C_SUPP_GAIN[3:0]high light color suppress F_FALL[3:0] edge color suppress

12F 58 50 50 50 |---- Y_APERTUTR_CLIP[7:0] ----|

CLUSTER 3 (HEADER[3:0] = 4'b0011) LUMINANCE & CHROMA

130 2B 2B 2B 2B YHPEG[1:0] YVPEG[1:0] YHEMBSEL[1:0] YVEMBSEL[1:0]

131 30 30 30 30 |---- YPST[7:0] pastel level ----|

132 30 30 30 30 |---- YEMB[7:0] embossing level ----|

133 00 00 00 00 X X X X YEMBOSS YPASTEL YIN-OUT YWINDOW

134 04 06 05 05 |---- CRDS[7:0] r-dark-slice ----|

135 00 03 FE 04 |---- CBDS[7:0] b-dark-slice

136 FD 00 00 00 |---- CGDS[7:0] g-dark-slice

137 31 34 53 34 |---- CRWB[7:0] R-white-balance-control

138 A0 8C 8F A0 |---- CBWB[7:0] B-white-balance-control

139 24 24 24 24 |---- CGWB[7:0] G-white-balance-control

13A 07 07 07 07 |---- "CSLOPE1[7:0]COLOR_KEY_SLOPE_1;-64~+64"

13B E6 E6 E6 E6 |---- "CSLOPE2[7:0]COLOR_KEY_SLOPE_2;-64~+64"

13C 29 29 29 29

"COLOR KEY OPTION :0(RED)~4;13A,13B,13C ADDRESS"

CSLOPE1 H[9] CSLOPE1 H[8] CSLOPE2 H[9] CSLOPE2 H[9]

13D 00 00 00 00 X X X CNEGA CBAR CMONO CKEY CKEY-NEGA

13E FF FF FF FF DUMMY

13F FF FF FF FF DUMMY

CLUSTER 4 (HEADER[3:0] = 4'b0100) CHROMA

140 17 07 17 37 X X

CHCON(S1/S2)

CVCON(cr/cb)

CYLSEL CRMS CBMS C-GAMMA-SEL

141 42 42 42 42 |---- CRCOEF[7:0] cr-matrix-coefficient ----|

142 66 66 66 66 |---- CBCOEF[7:0] cr-matrix-coefficient ----|

143 59 59 59 59 |---- CRRG[7:0] R-G signal coeff. for R-Y signal creating. ----|

144 D9 D9 D9 D9 |---- CBRG[7:0] R-G signal coeff. for B-Y signal creating. ----|

145 F2 F2 F2 F2 |---- CRBG[7:0] B-G signal coeff. for R-Y signal creating. ----|

146 72 72 72 72 |---- CBBG[7:0] B-G signal coeff. for B-Y signal creating. ----|

147 70 76 6C 67 |---- CRYGP[7:0] R-Y GAIN CONTROL + ----|

Samsung Electronics5-12

Alignment and Adjustment

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 1)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

148 78 7E 60 70 |---- CRYGN[7:0] R-Y GAIN CONTROL - ----|

149 1D 1D 19 20 |---- CRYHP[7:0] R-Y HUE CONTROL + ----|

14A 2A 29 1A 40 |---- CRYHN[7:0] R-Y HUE CONTROL - ----|

14B 3D 3E 33 34 |---- CBYGP[7:0] B-Y GAIN CONTROL + ----|

14C 33 35 24 24 |---- CBYGN[7:0] B-Y GAIN CONTROL - ----|

14D 50 3C 34 39 |---- CBYHP[7:0] B-Y HUE CONTROL + ----|

14E 08 04 23 0A |---- CBYHN[7:0] B-Y HUE CONTROL - ----|

14F 80 80 80 80 |---- CGAIN[7:0] x0~ x2 ----|

CLUSTER 5 (HEADER[3:0] = 4'b0101) GAMMA

150 08 08 04 04 |---- YG1[7:0] @Y GAMMA POINT 1 ----|

151 0D 0D 07 07 |---- YG2[7:0] @Y GAMMA POINT 2 ----|

152 1B 1B 15 15 |---- YG3[7:0] @Y GAMMA POINT 3 ----|

153 32 32 2C 2C |---- YG4[7:0] @Y GAMMA POINT 4 ----|

154 57 57 4D 4D |---- YG5[7:0] @Y GAMMA POINT 5 ----|

155 82 82 70 70 |---- YG6[7:0] @Y GAMMA POINT 6 ----|

156 C0 C0 B4 B4 |---- YG7[7:0] @Y GAMMA POINT 7 ----|

157 F0 F0 F8 F8 |---- YG8[7:0] @Y GAMMA POINT 8 ----|

158 06 04 04 04 |---- CGAMMA1[7:0] @C GAMMA POINT 1 ----|

159 0C 08 07 07 |---- CGAMMA2[7:0] @C GAMMA POINT 2 ----|

15A 1A 15 18 18 |---- CGAMMA3[7:0] @C GAMMA POINT 3 ----|

15B 2C 2B 30 30 |---- CGAMMA4[7:0] @C GAMMA POINT 4 ----|

15C 4C 4C 50 50 |---- CGAMMA5[7:0] @C GAMMA POINT 5 ----|

15D 78 78 78 78 |---- CGAMMA6[7:0] @C GAMMA POINT 6 ----|

15E B6 B6 B8 B8 |---- CGAMMA7[7:0] @C GAMMA POINT 7 ----|

15F F0 F0 F8 F8 |---- CGAMMA8[7:0] @C GAMMA POINT 8 ----|

CLUSTER 6 (HEADER[3:0] = 4'b0110) D.ZOOM & EIS

160 AE AE AE AE D.ZOOM ZOOM-BYPASS

D.EFFECT

VADJ[1:0] HADJ[1:0] Z_DELAY

161 00 00 00 00 |---- VZOOM[7:0] ----|

162 1C 0C 18 09 |---- VZSKIP[7:0] ----|

163 00 00 00 00 |---- VZOFFE[7:0] EVEN FIELD LINE OFFSET ----|

164 00 00 00 00 |---- VZOFFO[7:0] ODD FIELD LINE OFFSET ----|

165 2A 00 2A 00 |---- HZOOM[7:0] ----|

166 00 00 00 00 MOSAIC H-ADJ[1:0] X X X X X HZSTR[8]

167 3E 00 38 00 |---- HZSTR[7:0] ----|

168 09 00 AF 00 |---- HZOFS[7:0] ----|

169 00 00 00 00 |---- MOSAIC[5:0] 4d=8x8,5d=10x10,63d=126x126 ----| MOSAIC V-ADJ[1:0]

16A 02 02 03 02 FE MODE[1:0] 01=F,10=H.M X X X X FCM[9:8]

16B F8 09 00 0A |---- FCM[7:0] ----|

16C 01 01 01 01 X X X X X X HMIRROR[9:8]

Samsung Electronics 5-13

Alignment and Adjustment

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 1)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

16D 7C 07 84 05 |---- HMIRROR[7:0] ----|

16E 00 00 00 00 |---- CBLK-ADJ[3:0] ----| CCIR-Y CCIR-C X SCKIV

16F FF FF FF FF DUMMY

CLUSTER 7 (HEADER[3:0] = 4'b0111) AF/AE

170 06 06 03 03 |---- OAFHS-W1 "@AF WINDOW 1 H-START POINT;3~252" ----|

171 EC EC EC EC |---- OAFHE-W1 "@AF WINDOW 1 H-END POINT;5~254" ----|

172 04 04 03 03 |---- OAFVS-W1 "@AF WINDOW 1 V-START POINT;3~152" ----|

173 8D 8D 76 76 |---- OAFVE-W1 "@AF WINDOW 1 V-END POINT;5~154" ----|

174 4D 4D 52 52 |---- OAFHS-W2 "@AF WINDOW 2 H-START POINT;1~254" ----|

175 A8 A8 AC AC |---- OAFHE-W2 "@AF WINDOW 2 H-END POINT;3~256" ----|

176 29 29 25 25 |---- OAFVS-W2 "@AF WINDOW 2 V-START POINT;1~154" ----|

177 71 71 5F 5F |---- OAFVE-W2 "@AF WINDOW 2 V-END POINT;3~156" ----|

178 37 37 43 43 |---- OAEHS-WA "@ AE WINDOW A H-START POINT;1~254" ----|

179 B8 B8 C1 C1 |---- OAEHE-WA "@ AE WINDOW A H-END POINT;3~256" ----|

17A 26 26 20 20 |---- OAEVS-WA "@ AE WINDOW A V-START POINT;1~155" ----|

17B 81 81 6E 6E |---- OAEVE-WA "@ AE WINDOW A V-END POINT;3~156" ----|

17C 07 07 0A 0A |---- OAEHS-WB "@ AE WINDOW B H-START POINT;1~254" ----|

17D ED ED EE EE |---- OAEHE-WB "@ AE WINDOW B H-END POINT;3~256" ----|

17E 24 24 1E 1E |---- OAEVS-WB "@ AE WINDOW B V-START POINT;1~155" ----|

17F 8B 8B 73 73 OAEVE-WB "@ AE WINDOW B V-END POINT;3~156" ----|

CLUSTER 8 (HEADER[3:0] = 4'b1000) AWB

180 07 0A 0A 0A |---- OAWBHS "@ AWB WINDOW H-START POINT;1~254" ----|

181 ED ED EE EE |---- OAWBHE "@ AWB WINDOW H-END POINT;3~256" ----|

182 24 24 1E 1E |---- OAWBVS "@ AWB WINDOW V-START POINT;1~155" ----|

183 8B 8B 73 73 |---- OAWBVE "@ AWB WINDOW V-END POINT;1~156" ----|

184 FF FF FF FF |---- OYH-AE "@Y-HIGH-THRESHOLD FOR AE;0~255" ----|

185 00 00 00 00 |---- OYL-AE @Y-LOW -THRESHOLD FOR AE ----|

186 90 90 90 90 |---- OYH-AWB @Y-HIGH-THRESHOLD FOR AWB ----|

187 30 30 30 30 |---- OYL-AWB @Y-LOW -THRESHOLD FOR AWB ----|

188 C0 C0 C0 C0 |---- OAF_CLIP_TH[7:0] AF CLIP COUNTER THRESHOLD ----|

189 80 80 80 8A |---- OAE_CLIP_TH[7:0] AE CLIP COUNTER THRESHOLD ----|

18A 02 02 02 02 OVAF OLPFSEL

OFILPASS

OYISEL OAWBSEL |---- OZNSEL[2:0] ----|

18B 00 00 00 00 X X X X ODMTST OAWBC SEL ORBSEL OAWB AREA

18C FF 00 FF 00 DUMMY

18D FF 16 FF 16 DUMMY

18E FF 53 FF 53 DUMMY

18F FF 9F FF 9F DUMMY

CLUSTER 9 (HEADER[3:0]=4'b1001 ,AWB

190 1F 1F 1F 1F X X X |---- ORYTH[4:0] ----|

Samsung Electronics5-14

Alignment and Adjustment

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 1)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

191 1F 1F 1F 1F X X X |---- OBYTH[4:0] ----|

192 30 30 30 30 |---- "OAWBSL 1[7:0]; 0~15, R-Y/B-Y CHART SLOPE 1 FOR AWB" ----|

193 15 15 15 15 |---- "OAWBSL 2[7:0]; 0~15, R-Y/B-Y CHART SLOPE 2 FOR AWB" ----|

194 70 70 70 70 |---- "OAWBSL 3[7:0]; 0~15, R-Y/B-Y CHART SLOPE 3 FOR AWB" ----|

195 60 60 60 60 |---- "OAWBSL 4[7:0]; 0~15, R-Y/B-Y CHART SLOPE 4 FOR AWB" ----|

196 20 20 20 20 |---- "OAWBSL 5[7:0]; 0~15, R-Y/B-Y CHART SLOPE 5 FOR AWB" ----|

197 05 05 05 05 |---- "OAWBSL 6[7:0]; 0~15, R-Y/B-Y CHART SLOPE 6 FOR AWB" ----|

198 34 34 34 34 X X |---- "OAWB_DETECT_R-Y_POINT A[5:0] ;0~63" ----|

199 1C 1C 1C 1C X X |---- "OAWB_DETECT_R-Y_POINT B[5:0] ;0~63" ----|

19A 18 18 18 18 X X |---- "OAWB_DETECT_R-Y_POINT C[5:0]; 0~63" ----|

19B 28 28 28 28 X X |---- "OAWB_DETECT_R-Y_POINT D[5:0] ;0~63" ----|

19C 18 18 18 18 X X |---- "OAWB_DETECT_B-Y_POINT A[5:0] ;0~63" ----|

19D 28 28 28 28 X X |---- "OAWB_DETECT_B-Y_POINT B[5:0] ;0~63" ----|

19E 1E 1E 1E 1E X X |---- "OAWB_DETECT_B-Y_POINT C[5:0]; 0~63" ----|

19F 16 16 16 16 X X |---- "OAWB_DETECT_B-Y_POINT D[5:0] ;0~63" ----|

CLUSTER 10 (HEADER[3:0] = 4'b1010) AF DATA1

1A0 03 03 03 03 * AF CENTER AREA DATA SHIFT COEFF. ----|

1A1 02 02 02 02 * AF ALL AREA DATA SHIFT COEFF. ----|

1A2 C0 C0 C0 C0 * AF ALL AREA FILTER1 DATA CUTTING LEVEL-LOW ----|

1A3 01 01 01 01 * AF ALL AREA FILTER1 DATA CUTTING LEVEL-HIGH ----|

1A4 00 00 00 00 * AF ALL AREA FILTER2 DATA CUTTING LEVEL-LOW ----|

1A5 01 01 01 01 * AF ALL AREA FILTER2 DATA CUTTING LEVEL-HIGH ----|

1A6 A0 A0 A0 A0 * AF CENTER AREA FILTER1 DATA CUTTING LEVEL-LOW. ----|

1A7 00 00 00 00 * AF CENTER AREA FILTER1 DATA CUTTING LEVEL-HIGH ----|

1A8 80 80 80 80 * AF CENTER AREA FILTER2 DATA CUTTING LEVEL-LOW. ----|

1A9 00 00 00 00 * AF CENTER AREA FILTER2 DATA CUTTING LEVEL-HIGH ----|

1AA 18 18 18 18 * AE VARIATION THRESHOLD FOR AF ----|

1AB 20 20 20 20 * AF INITIAL DATA STABLE COEFF. ----|

1AC 0A 0A 0A 0A * AF CLIMB NOISE THRESHOLD

1AD 16 16 16 16 * AF CLIMB SPEED DOWN THRESHOLD1

1AE 10 10 10 10 * AF CLIMB DATA VARIATION THRESHOLD

1AF 80 80 80 80 * AF PEAK CHECKING THRESHOLD

CLUSTER 11 (HEADER[3:0] = 4'b1011) ,AF DATA2

1B0 10 10 10 10 * AF ZIGZAG NOISE THRESHOLD1 ----|

1B1 23 23 28 28 * AF ZIGZAG CHECKING TIME1 ----|

1B2 30 30 30 30 * AF ZIGZAG NOISE THRESHOLD2 ----|

1B3 32 32 3C 3C * AF ZIGZAG CHECKING TIME2 ----|

1B4 20 20 20 20 * AF ZIGZAG NOISE THRESHOLD3 ----|

1B5 08 08 08 08 * AF PEAK CONFIRM THRESHOLD1 ----|

Samsung Electronics 5-15

Alignment and Adjustment

ADDR MODEL/DATA CONTENT (EEPROM DATA PAGE 1)

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

ADDR DATA D7 D6 D5 D4 D3 D2 D1 D0

1B6 07 07 07 07 * AF PEAK CONFIRM CONTINUE COUNT ----|

1B7 1F 1F 1F 1F * AF PROGRAM OPTION1 ----|

1B8 18 18 18 18 * AF CENTER AREAAGC CUTTING PERCENT ----|

1B9 30 30 30 30 * AF ALL AREA AGC CUTTING PERCENT ----|

1BA 16 16 16 16 * AF CLIMB SPEED DOWN THRESHOLD2 ----|

1BB 14 14 14 14 * AF PEAK CLIMB RATIO ----|

1BC 10 10 10 10 * AF CENTER AREA CUTTING DATA FOR PATROL-LOW

1BD 10 10 10 10 * AF OPTION2

1BE 20 20 20 20 * AF ALL AREA CUTTING CUTTING DATA FOR PATROL-LOW

1BF 00 00 00 00 * AF ALL AREA CUTTING CUTTING DATA FOR PATROL-HIGH

"CLUSTER 12 (HEADER[3:0] = 4'b1100); AWB/AE"

1C0 1E 1E 1E 1E * AF PEAK CONFIRM SPEED UP RATIO

1C1 25 25 25 25 * AE AUTO MODE CONTROL SPEED DOWN RANGE ----|

1C2 40 40 40 40 * AE SPOTLIGHT MODE CONTROL SPEED DOWN RANGE ----|

1C3 04 04 04 04 * AE AUTO MODE CONTROL SPEED DOWN REFERENCE ----|

1C4 10 10 10 10 * AWB CUTTING THRESHOLD1 ----|

1C5 10 10 10 10 * AWB CUTTING THRESHOLD2 ----|

1C6 40 40 40 40 * AWB CUTTING THRESHOLD3 ----|

1C7 40 40 40 40 * AWB CUTTING THRESHOLD4 ----|

1C8 00 00 00 00 * AWB CUTTING THRESHOLD15 ----|

1C9 24 24 24 24 * AE OFFSET BORDER ----|

1CA 0C 0C 0C 0C * AE SPEED OFFSET COUNTER ----|

1CB 6A 60 6A 60 * AWB HALL STOP AT SPOTLIGHT MODE ----|

1CC 8A 80 8A 80 * AWB HALL AT EIS MODE ----|

1CD F0 F0 F0 F0 * AWB HALL STOP AT SPORTS MODE ----|

1CE F0 F0 F0 F0 * AWB HALL AT PORTRAIT MODE

1CF F0 F0 F0 F0 * AWB HALL AT SAND&SNOW MODE

"CLUSTER 13 (HEADER[3:0] = 4'b1101); DECODER 1"

1D0 ~1FC ~1FC ~1FC ~1FC FIXED ----|

1FD ~1FF ~1FF ~1FF ~1FF MICOM VERSION

Samsung Electronics5-16

Alignment and Adjustment

ADDR DATA

PAL NTSC

HI8 NORMAL HI8 NORMAL BIT SEGMENTATION EXPLAIN

001 - 44 - 44 * OPTION SELECT( WDR ,M/FOCUS RING,REMOCON)

104 - 07 - 07 * GLOBAL DELAY

Samsung Electronics 5-17

Alignment and Adjustment

CHANGED DATA BY MODEL

CONTENT APPLY MODEL

VP-L300/SCL300
SCL310/SCL320

Samsung Electronics5-18

Alignment and Adjustment

5-2-2 Camera System Adjustment

1. Focus to zoom tracking

Note : To maintain proper focus throughout the zoom range, the focus lens position must be changed as

the zoom lens is moved.
During this adjustment the microprocessor will measure the focus positioning requirements at the
wide and telephoto position of the zoom lens.

1) Camera ÒE-EÓ.

2) Focus chart (Attached on the last page of this manual).

3) Aim the camera at the focus chart placed 3 meters away and perpendicular to the center of the lens.
The chart should be placed on the flat, gray or white wall.

4) Connect monitor TV jack to video output jack.

5) Press the ÒTITLE (MODE UP)Ó and ÒDATE/TIME (MODE DOWN)Ó button, so that the OSD start is
Ò0DE. 3M LEN XX XXÓ.

6) Press ÒMENU/ENTER (CONFIRM)Ó button.
The camera will move both zoom and focus lens. Be sure to do not tremble the lens.
The adjustment is finished when the O.K! message appears on the TV screen.

At the wide zoom position, the brightness of picture depends on data of Addr. 0C9, if the picture is dark,

decrease the data of Addr. 0C9.

Note : The on-screen display information.

ÒXX XXÓ means arbitrary value.
It can be different number depend on the
conditions.

ODF T.INI XX XX

(3M±1cm)

(Be sure to maintain the distance.)

LENS

CCD

Samsung Electronics 5-19

Alignment and Adjustment

2. P. CLK Adjustment

1) ÒCameraÓ, no signal input.

2) P.CLK and AF MICOM.

3) Connect a frequency counter to P.CLK.

4) Press the ÒTITLE (MODE UP)/DATE/TIME (MODE DOWN)Ó button so that the OSD state is
Ò005 XX XXÓ.

5) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA DOWN)Ó button and MENU/ENTER(CONFIRM) but­ton so that frequency is
PAL : VP-L300/320/330 --> 9.453125MHz ± 50Hz.

VP-L350/980 --> 14.18750MHz ± 50Hz.

NTSC : SCL300/310/320/330/350 --> 9.534964MHz ± 50Hz.

SCL800/850 --> 14.318182MHz ± 50Hz.

3. Zoom VR Center

1) Camera ÒE-EÓ, 3100¡K gray-scale chart.

2) Video(output) jack and EVR.

3) Connect monitor TV to video(output) jack.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is ÒOD6. ZVR.C XX XXÓ.

5) Press ÒMENU/ENTER(CONFIRM)Ó button.

6) Then, the microprocessor will work ;

- Find the Zoom VR Center position

- Store the data to mode 0AA.

4. Auto hall

1) Camera ÒE-EÓ, 3100¡K gray-scale chart.

2) Video(output) jack and EVR.

3) Connect monitor TV to video(output) jack.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is ÒOCD. HALL XX XXÓ.

5) Press ÒMENU/ENTER(CONFIRM)Ó button.

6) Then, the microprocessor will work ;

- IRIS open, HALL maximum value found,

- IRIS closed, HALL minimum value found,

- Store the HALL REF/GAIN data to mode 00E

and mode 00F.

- Store the HALL min./max. data to mode 0BA

and mode 0BB.

P.CLK ADJUSTMENT

X-TAL

ICP01

DSP

Main PCB (Solder side)

Samsung Electronics5-20

Alignment and Adjustment

5. AUTO IRIS

1) Camera ÒE-EÓ, 3100¡K gray-scale chart.

2) Video(output) jack and AF MICOM.

3) Connect video(output) jack to waveform moni­tor input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the
OSD state is ÒOCE. IRIS XX XXÓ.

5) Press ÒMENU/ENTER(CONFIRM)Ó Button.

6) Then, the micro process will work;

- IRIS open, IRIS control MAXIMUM Value

found.

- IRIS close, IRIS control minimum Value found.

- Store the MIN/MAX data to mode 0BE, 0BF

and mode 0A3, 0A4.

7) The OSD shows ÒO.KÓ.

6. Auto white balance

1) Camera ÒE-EÓ, 3100¡K/5100¡K gray-scale chart.

2) Video(output) jack and AF MICOM.

4) Connect vectorscope input jack to video(out­put) jack.

3) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is ÒOCF. AWB XX XXÓ.

a. W/B Indoor
a-1. Aim the camera at a 3100¡K gray-scale chart

illuminated at 1500 to 2000 lx. (40us)

a-2. Press ÒMENU/ENTER(CONFIRM)Ó button

so that the white vector moves to the center
on screen of the vectorscope.

a-3. During the control W/B indoor, OSD shows

Ò0CF, AWB xx 01Ó.

The OSD shows ÒOK!Ó.

b. W/B Outdoor
b-1. Aim the camera at a 5100¡K gray-scale (or,

3100¡K+C16 filter) chart illuminated at 1500
to 2000 lx. (40us)

b-2. Press ÒMENU/ENTER(CONFIRM)Ó button

so that the white vector moves to the center
on screen of the vectorscope.

b-3. During the control W/B outdoor, OSD shows

Ò0CF, AWB xx 00Ó.
The OSD shows ÒOK!Ó.

b-4. Store the data to mode 053, 054, 055 and 056.

7. Pre white balance (I)

1) Camera ÒE-EÓ, 3100¡K gray-scale chart.

2) Video(output) jack and AF MICOM.

3) Connect vectorscope input jack to video(out­put) jack.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the
OSD state is Ò137. XX XX.Ó (R-Y axial)

5) Aim the camera at a 3100¡K gray-scale chart
illuminated at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the white vector moves
to the R-Y axial on screen of the
vectorscope.

Note : Bright dot shifts after the confirm button is

pressed.

Center of

white level

100IRE

Optical

black level

H

40US

Match the white luminance

point with the

black luminance

point

Match the white luminance
point with the

black luminance

point

Samsung Electronics 5-21

Alignment and Adjustment

8. Pre white balance (II)

1) Camera ÒE-EÓ, 3100¡K gray-scale chart.

2) Video(output) jack and AF MICOM.

4) Connect vectorscope input jack to video(out­put) jack.

3) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is Ò138. XX XXÓ.

5) Aim the camera at a 3100¡K gray-scale chart
illuminated at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the white vector moves
to the B-Y axial on screen of the vectorscope.

Note : Bright dot shifts after the confirm button is

pressed.

9. R-Y Positive Gain

1) Camera ÒE-EÓ, 3100¡K color bar chart.

2) Video(output) jack and register of EEPROM.

3) Connect video(output) jack to waveform moni­tor input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the
OSD state is Ò147. XX XXÓ.

5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the red level is 70IRE.

7) Be sure to press the ÒMENU/ENTER(CON­FIRM)Ó button to memorize setting.

Note : Bright dot shifts after the confirm button is

pressed.

10. R-Y Negative Gain

1) Camera ÒE-EÓ, 3100¡K color bar chart.

2) Video(output) jack and register of EEPROM.

3) Connect video(output) jack to waveform moni­tor input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the

OSD state is Ò148. XX XXÓ.

5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so that the cyan level is
65IRE.

7) Be sure to press the ÒMENU/ENTER/CON­FIRM)Ó button to memorize setting.

Note : Bright dot shifts after the confirm button is

pressed.

11. B-Y Positive Gain

1) Camera ÒE-EÓ, 3100¡K color bar chart.

2) Video(output) jack and register of EEPROM.

3) Connect video(output) jack to waveform moni­tor input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is Ò14B XX XXÓ.

5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the blue level is

50IRE.

7) Be sure to press the ÒMENU/ENTER(CON­FIRM)Ó button to memorize setting.

Note : Bright dot shifts after the confirm button is

pressed.

Match the white luminance

point with the

black luminance

point

70IRE

65IRE

50IRE

Samsung Electronics5-22

Alignment and Adjustment

12. B-Y Negative Gain

1) Camera ÒE-EÓ, 3100¡K color bar chart.

2) Video(output) jack and register of EEPROM.

3) Connect video(output) jack to waveform moni­tor input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the
OSD state is Ò14C XX XXÓ.

5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the yellow level is
50IRE.

7) Be sure to press the ÒMENU/ENTER(CON­FIRM)Ó button to memorize setting.

Note : Bright dot shifts after the confirm button is

pressed.

13. R-Y Positive Hue

1) Camera ÒE-EÓ, 3100¡K color bar chart.

2) Video(output) jack and register of EEPROM.

3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is Ò149 XX XXÓ.

5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the yellow vector is

165.

7) Be sure to press the ÒMENU/ENTER (CON­FIRM)Ó button to memorize setting.

Note : Bright dot shifts after the confirm button is

pressed.

14. R-Y Negative Hue

1) Camera ÒE-EÓ, 3100¡K color bar chart.

2) Video(output) jack and register of EEPROM.

3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is Ò14A XX XXÓ.

5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the blue vector is 346.

7) Be sure to press the ÒMENU/ENTER (CON­FIRM)Ó button to memorize setting.

Note : Bright dot shifts after the confirm button is

pressed.

50IRE

YELLOW VECTOR
165 DEG

BLUE VECTOR
346 DEG.

Samsung Electronics 5-23

Alignment and Adjustment

15. B-Y Positive Hue

1) Camera ÒE-EÓ, 3100¡K color bar chart.

2) Video(output) jack and register of EEPROM.

3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is Ò14D XX XXÓ.

5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the cyan
vector is 284.

7) Be sure to press the ÒMENU/ENTER (CON­FIRM)Ó button to memorize setting.

Note : Bright dot shifts after the confirm button is

pressed.

16. B-Y Negative Hue

1) Camera ÒE-EÓ, 3100¡K color bar chart.

2) Video(output) jack and register of EEPROM.

3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.

4) Press the ÒTITLE (MODE UP)/DATE/TIME
(MODE DOWN)Ó button so that the OSD state
is Ò14E XX XXÓ.

5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.

6) Adjust the ÒEDIT + (DATA UP)/EDIT Ð (DATA
DOWN)Ó button so that the red vector is 104.

7) Be sure to press the ÒMENU/ENTER(CON­FIRM)Ó button to memorize setting.

Note : Bright dot shifts after the confirm button is

pressed.

RED VECTOR
104 DEG.

CYAN VECTOR
284 DEG.

Samsung Electronics5-24

Alignment and Adjustment

1. AFC

1) VCR ÒPBÓ, color bar tape.

2) TP¥AFC and VRE01.

3) Connect digital voltmeter probe to TP¥AFC.

4) Adjust VRE01 so that the voltage is DC

2.5V ±0.1V.

2. V. Size

1) CAMERA ÒAUTOÓ, Aim circle object.

2) Viewfinder and VRE02.

3) Adjust VRE02 so that the circle object in viewfinder is round perfectly.

3. Bright

1) CAMERA ÒAUTOÓ, Aim the gray scale chart.

2) Viewfinder and VRE03.

3) Adjust VRE03 so that all steps of the gray scale can be distinguished.

5-2-3 EVF Adjustment

EVF PCB (Solder side)

VRE02
V.SIZE

VRE03

BRIGHT

VRE01

AFC

ICE01

TP1

AFC

1. AFC2. V. Size 3. Bright

Samsung Electronics 5-25

Alignment and Adjustment

5-2-4 (a) PREPARATION

Note :

1) The LCD adjustment is possible by using the each key of unit.

2) The value completed adjustment are stored at ICL 202(EPROM).

3) When finish adjustment, it is needed to off the power to store adjusted value.

4) After each adjustment step is completed, OSD shows "CONFIRM!".

1.How to select the LCD adjust mode.

5-2-4 LCD Adjustment

1. Connect the power (battery or power cable).

2. Switch to "PLAYER" mode.

3. Set OSD on state.

STEP1

1. Press and hold "FF" and "EJECT" buttons
on the unit for more than 3 ~ 4 seconds
simultaneously.

2. There is OSD on screen as below.

STEP2

On screen display shows "A VCO EPR:XX
EVR:XX" LCD adjustment mode has suc­cessfully been activated.

Note : "XX XX" indicates variable value.

TV OSD

VCO

A EPR : XX

EVR : XX

EJECT

BUTTON

CAMERA/VIDEO

SELECT SWITCH

STOP

BUTTON

FF

BUTTON

PLAY/STILL

BUTTON

REW

BUTTON

Samsung Electronics5-26

Alignment and Adjustment

2. Unit Key Operation :

Remocon for camcorder operation For service adjustment

Reassignment

in the adjustment

mode

Using Button

TITLE (MODE CHANGE)
EDIT + (DATA UP)
EDIT – (DATA DOWN)
MENU (CONFIRM)

Adjustment

When changing the adjustment mode.

When changing data value of adjust state.

Data store after finishing adjustment by "DATA UP/DATA DOWN" button.

ADDRESS MODE EPR EVR MEAN REMARK

0A VCO XX XX VCO ADJUST

05 BRIGHT XX XX BRIGHT ADJUST
08 CONTRAST 96 96 CONTRAST FIXED

0B GAMMA 82 82 GAMMA FIXED

03 TINT XX XX TINT

ADJUST(PAL“00”FIXED)
04 COLOR XX XX COLOR ADJUST
07 R-SUB A7 A7 R-SUB BRIGHT FIXED
09 B-SUB A4 A4 B-SUB BRIGHT FIXED
06 COM XX XX V-COM ADJUST

0C LED CONT FF FF LED CONTROL TIME FIXED
0D BRIG MIN 01 01 BRIGHT MIN FIXED
0E BRIG MAX 01 01 MRIGHT MAX FIXED

0F COLOR MIN 06 (02) 06 (02) COLOR MIN FIXED
10 COLOR MAX 04 (02) 04 (02) COLOR MAX FIXED
11 TINT MIN 06 (00) 06 (00) TINT MIN FIXED
12 TINT MAX 04 (00) 04 (00) TINT MAX FIXED
13 CHECK 1 19 19 CHECK 1 FIXED
14 CHECK 2 20 20 CHECK 2 FIXED

Note :

In service adjustment mode, button names are different from those in customer LCD function control mode
EX: "MENU" button is the same as "CONFIRM".

3. Adjust mode table *( ) : PAL MODE DATA

Samsung Electronics 5-27

Alignment and Adjustment

5-2-4 (b) adjustment

Note :

LCD ADJUST MODE Short.

1. VCO

1) Color bar pattern

2) TP-VCO and EVR.

3) Connect the probe of digital voltmeter to TP-VCO.

4) By using "EDIT +/Ð"button of unit, adjust DC 1.3V ± 0.05V.

5) Confirm with "MENU" button of unit.

2. BRIGHT

1) Color bar pattern

2) TP-VCOM and EVR.

3) Connect the probe of oscilloscope to TP-VCOM.

4) By using "TITLE" button of unit, change the adjustment address to 05 Bright EPR:XX LVR:XX.

5) By using "EDIT +/Ð" button of unit, adjust the voltage VCOM 6.5V ± 0.1 Vp-p.

6) Confirm with " MENU" button of unit.

1VDC 20uS

6.5 Vp-p

LCD PCB (COMPONENT SIDE)

Samsung Electronics5-28

Alignment and Adjustment

3.CCOM (VP-L300/L350 only)

1) Color bar pattern

2) TP-B and LL205.

3) Connect the probe of oscilloscope to TP-B.

4) By using the "LL205" of LCD PCB, adjust the
red level carrier is minimized.

4. TINT (SCL300/L350 only)

1) Color bar pattern

2) TP B and EVR

3) Connect the probe of oscilloscope to TP-B.

4) By using "TITLE" button of unit, change the
adjustment address to 03 TINT EPR:XX
EVR:XX.

5) By using the "EDIT +/Ð" button of unit,
adjust so that the red level is same as green
level.

6) Confirm with "MENU" button of unit.

5. COLOR

1) Color bar pattern

2) TP-B and EVR

3) Connect the probe of oscilloscope to TP-B.

4) By using "TITLE" button of unit, change the
adjustment address to 04 COLOR EPR:XX
EVR:XX.

5) By using the "EDIT +/Ð" button of unit,
adjust the yellow level is same as pedestal
level.

6) Confirm with "MENU" button of unit.

6.VCOM

1) Color bar pattern

2) TP-VCOM and EVR.

3) Connect the probe of Digital Voltmeter to TP­VCOM.

4) By using "TITLE" button of unit, change the
adjustment address to 03 TINT EPR:XX
EVR:XX.

5) Confirm with "MENU" button of unit.

1VDC 20uS

1VDC 20uS

RED : CARRIER

LEVEL : MINIMUM

RED
LEVEL

GREEN

LEVEL

1VDC 20uS

PEDESTAL

LEVEL

YELLOW
LEVEL

LCD PCB (COMPONENT SIDE)

Samsung Electronics 5-29

Alignment and Adjustment

1. Equipment :

1) Monitor TV.

2) Dual trace oscilloscope of over 20MHz band, incorporates delay mode. (Use 10 : 1 probe unless otherwise
specified.)

3) Frequency counter

4) DC power supply.

5) Alignment tape (Color bar : SP)

6) 8mm Video Tape for record.

2. Composition of VCR P.C.Boards

1) Main PCB (system control/servo, video, audio, camera, DC/DC CONVERTER)

2) Rear PCB

3) Function PCB

4) Front PCB

5-3 VCR Section Adjustment

5-3-1 Preparations

Fig. 1 Video Signal Connection

14
12
10

8
6
4
2

13
11

9
7
5
3
1

13

VIDEO OUT

12
11
10

9
8
7
6
5
4
3
2
1

AUDIO OUT R

PB RF

AUDIO OUT L

HD SW

VCR UNREG

JIG CS

VCR UNREG

JIG SCK
SS GND

JIG SO

JIG DETECT

JIG SI

AUDIO OUT R

14

MAIN PCB

FRONT PCB

SW772

REAR PCB

FUNCTION PCB

Press the SW772 (START/STOP)
button to record in the VCR
adjustment mode.

❊ Test Point

Samsung Electronics5-30

Alignment and Adjustment

3. How to get into service ÒADJUSTÓ mode.

1. Connect the power source (battery/DC cable).

2. Set the power switch of the camcorder to
PLAYER position.

3. Press the eject button to eject mode.

STEP 1

1. Press and hold “EJECT” button and “STOP”
button on the Camcorder at the same time
for more than 5 seconds.

2. If the color bar generated internally appears
on the monitor and adjustment mode dis­played like the figure below, VCR adjust­ment mode has been successfully activated.

STEP 2

01.CAPSTAN FG
EPR:XX EVR:XX

TV, LCD or EVF monitor

Address of the adjustment mode.
: there are 01 to 1C.(refer 5-32)

Name of the adjustment mode.
: every address have a name

like this (refer 5-32)

Present data
: be adjusted before.

New data
: be adjusted newly.

4. The location of function button.

5. If you want to finish the adjustment mode, you have to do Battery Reset.
The Battery Reset means that you pull out the power source and pull in it again.
Then, the adjustment ended and the camcorder works normally.

Samsung Electronics 5-31

Alignment and Adjustment

❊ Top Side

❊ Left Side

ZERO RETURN

SELECT MENU

ENTER

EDIT

_

+

TITLE

DATE/TIME

COUNTER
RESET

DISPLAY

XDR/BLC

DSE
ON/OFF

DATA DOWN

DATA UP

MODE DOWN

MODE UP

CONFIRM

EJECT

BUTTON

CAMERA/VIDEO

SELECT SWITCH

STOP

BUTTON

FF

BUTTON

PLAY/STILL

BUTTON

REW

BUTTON

1. Kinds of adjustment in PLAYER mode.

Samsung Electronics5-32

Alignment and Adjustment

5-3-2 Adjustment

ADDRESS

NAME

NORMAL MODELS HI 8 MODELS

NTSC PAL NTSC PAL

01

CAPSTAN FG

80 80 80 80

02

Y-EMPHASIS IN (NOR)

Adjustment
Adjustment
Adjustment
Adjustment

Adjustment
Adjustment
Adjustment
Adjustment

03

PB OUT-LEVEL (NOR)

04

Y-FM CARRIER (NOR)

05

Y-FM DEVIATE (NOR)

06

C-EMPHASIS

CD CD A9 CD

07

AUDIO BPF-ADJ

Adjustment

—
—

Adjustment
Adjustment
Adjustment

08

AUDIO DEV-1.5M

09

AUDIO DEV-1.7M (ST)

0A

HD SW P

Adjustment Adjustment

0B

MTQ (PB)

D0 D0 D0 D0

0C

MTFQ (NOR)

7A 7A 7A 7A

0D

WHITE CLIP (NOR)

80 80 80 80

0E

REC C LEVEL

8C 99 BC E0

0F

REC Y FM LEVEL

C8 B8 AC C0

10

PB DEL ADJ

85 65 C/RESET C/RESET

11

D CLIP (NOR)

65 65 65 65

12

DEL ADJ

85 65 C/RESET C/RESET

13

SMEAR CONT

00 00 00 00

14

PB OUT LEVEL (HI8)

—
—
—
—
—

—
—

Adjustment
Adjustment15

Y-FM CARRIER (HI8)

16

WHITE CLIP (HI8)

65 55

17

MTFQ (HI8)

9A 9A

18

D CLIP (HI8)

8E 8E

19

MODEL CODE

Model code setting

Adjustment

Model code setting

1A

Y-EMPHASIS IN (HI8)

Adjustment
Adjustment
Adjustment

1B

Y-FM DEVIATE (HI8)

1C

COLOR BAR LEVEL

Samsung Electronics 5-33

Alignment and Adjustment

2-2. Head Switching Point

: This adjustment is performed after the

replacement of deck mechanism.

¥ Without this adjustment, there will be a noise

in playback picture.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE(MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so
as to select the address 0A.

e. Insert the Standard Color Bar Tape and press

the PLAY button.

Note : If there is no video out, when you pressed

the PLAY button, you can not adjust the
Head Switching Point.

It may be caused by maladjusted VIDEO
block.
In this case, adjust the VIDEO block before
the Head Switching Point.
VIDEO block adjustments are 2-3~2-11.

f. The data of Head Switch is set to 6.2H~6.7H

automatically.

g. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

h. Reset the power source so as to fix the new data

to the camcorderÕs EEPROM.

2. Adjustment

* Please keep the order according to explanation.

2-1. Setting of the model name

a. Preparation

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE(MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so
as to select the address 19.

e. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó so that OSD shows ÓERR:XX EVR:
XXÓ ÒXXÓ is different dependent on the model
as below.

f. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

g. Reset the power source so as to fix the new data

to the camcorderÕs EEPROM.

TAPE

STANDARD COLOR BAR TAPE
RECORDED WITH SP SPEED

DC POWER SUPPLY

0A
HD SWP

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

0A.HD SW P

EPR : XX EVR : YY

6.5H

MODEL NAME MODEL NAMEADDRESSED CODE ADDRESSED CODE

30 30

3240
3332
3533

9835
80
85

SCL300 VP-L300

VP-L320SCL310
VP-L330SCL320
VP-L350SCL330

VP-L980SCL350
SCL800
SCL850

TAPE NONE

DC POWER SUPPLY
NONE
NONE
19
MODEL CODE

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

2-4. Adjusting Y-Emphasis Input

: This adjustment is performed to set the Y level

which is recorded in tape.
Maladjusted Y level impact to the next adjust­ment.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so

as to select the address 02.
e. Insert a Normal Tape to the camcorder.
f. Connect the oscilloscope to the addressed Test

Point.

g. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so that the IC201 PIN13 is

0.5±0.02Vp-p from SYNC tip to peak level.

h. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize

setting.
i. Reset the power source so as to fix the new data

to the EEPROM.

Samsung Electronics5-34

Alignment and Adjustment

2-3. Adjusting Color Bar Level

: This adjustment is performed to set the stan-

dard level of color bar signal which is generat­ed internally.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so
as to select the address 1C.

e. Connect the oscilloscope to the addressed Test

Point.

f. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so as to set the P-P level of
composite to 0.5V±0.02Vp-p.

Note : The level is changed after the confirmation.
g. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

h. Reset the power source so as to fix the new data

to the EEPROM.

DC POWER SUPPLY, OSCILLOSCOPE

IC 201 PIN 13
02
Y-EMPHASIS IN (NOR)

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

8MM (NORMAL) TAPE

APPROX.

0.35V

APPROX.

0.15V

WHITE ( APPROX. 100% )

H

0.5 0.02Vp-p

TAPE

0.5 0.02Vp-p

TAPE NONE

DC POWER SUPPLY, OSCILLOSCOPE

IC201 PIN 24
1C
COLOR BAR LEVEL

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

2-5. Adjusting PB OUT LEVEL

: This adjustment is performed to set the video

out level to the regulated level.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so
as to select the address 03.

e. Insert the Standard Color Bar Tape and press

the PLAY button.

f. Connect the oscilloscope to the addressed Test

Point.

g. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so that the CN605 PIN13 is

1.0±0.02Vp-p from SYNC to peak level.

Samsung Electronics 5-35

Alignment and Adjustment

h. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

i. Reset the power source so as to fix the new data

to the camcorderÕs EEPROM.

APPROX.

0.7V

APPROX.

0.3V

WHITE ( APPROX. 100% )

H

1.0 0.02Vp-p

TAPE

STANDARD COLOR BAR TAPE
RECORDED WITH SP SPEED

DC POWER SUPPLY, OSCILLOSCOPE
You need a monitor terminated with 75Ω.
CN605 PIN13
03
PB OUT-LEVEL (NOR)

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

14
12
10

8
6
4
2

13
11

9
7
5
3
1

13

VIDEO OUT

12
11
10

9
8
7
6
5
4
3
2
1

AUDIO OUT R

PB RF

AUDIO OUT L

HD SW

VCR UNREG

JIG CS

VCR UNREG

JIG SCK
SS GND

JIG SO

JIG DETECT

JIG SI

AUDIO OUT R

14

Samsung Electronics5-36

Alignment and Adjustment

2-7. Y-FM DEVIATION (NOR)

: This adjustment sets the Y-FM modulation

level in recording. For adjustment, playback
the self-recorded signal and observe the
VIDEO OUT signal.

Note : It is a little difficult to adjust because you

can check the waveform in playback mode
even though the adjustment is performed
in VCR record mode.

So you have to do it carefully.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so

as to select the address 05.
e. Insert a NORMAL Tape to the camcorder.
f. Press the START/STOP button on the Rear

board so as to set the camcorder to RECORD­ING mode.

g. Record for enough time to check the waveform

when you playback where you recorded in
step f).

* 1 minute may be enough to check the waveform

in playback mode.

h. Connect the oscilloscope to the addressed Test

Point.

14

12
10

8
6
4
2

13
11

9
7
5
3
1

13

VIDEO OUT

12

11

10

9
8
7
6
5
4
3
2
1

AUDIO OUT R

PB RF

AUDIO OUT L

HD SW

VCR UNREG

JIG CS

VCR UNREG

JIG SCK
SS GND

JIG SO

JIG DETECT

JIG SI

AUDIO OUT R

14

2-6. Y-FM Carrier (NOR)

: This adjustment is performed to set the sync-

tip level of the composite video signal.
Maladjusted Y-FM carrier impact to the play­back picture, there may be black or white dot
noise.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒDATE/TIME(MODE UP)/TITLE

(MODE DOWN)Ó button of CAMCORDER so

as to select the address 04.
e. Insert a Normal Tape to the camcorder.
f. Press the START/STOP button on the Rear

board so as to set the camcorder to RECORD­ING mode.

g. Connect the frequency counter to the addressed

Test Point.

h. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so as to set the frequency to

4.38MHz ± 0.02MHz

i. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

j. Reset the power source so as to fix the new data

to the camcorderÕs EEPROM.

TAPE NORMAL TAPE FOR RECORDING

DC POWER SUPPLY, FREQUENCY COUNTER

IC201 PIN41
04
Y-FM CARRIER (NOR)

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

TAPE NORMAL TAPE FOR RECORDING

DC POWER SUPPLY, OSCILLOSCOPE

CN605 PIN13
05
Y-FM DEVIATE (NOR)

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

2-8. Y-EMPHASIS INPUT (HI8)

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so

as to select the address 1A.
e. Insert the Hi-8 tape to the camcorder.
f. Connect the oscilloscope to the addressed Test

Point.

g. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so that the IC201 PIN13 is

0.5±0.02Vp-p from SYNC tip to peak level.

h. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

i. Reset the power source so as to fix the new data

to the camcorderÕs EEPROM.

Samsung Electronics 5-37

Alignment and Adjustment

0.5 0.02Vp-p

TAPE HI8 TAPE

OSCILLOSCOPE

IC201 PIN13
1A
Y-EMPHASIS IN (HI8)

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

i. Make sure that the waveform is to be as below.

If OK, go to step l).

j. In case of the waveform level is bigger than

1Vp-p, press the Data Down button so as to set
to down the waveform level and if the wave­form level smaller than 1Vp-p, press the Data
Up button so as to set to up the waveform level.

k. Repeat step g), h), i).

l. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

m. Reset the power source so as to fix the new

data to the camcorderÕs EEPROM.

APPROX.

0.7V

APPROX.

0.3V

WHITE ( APPROX. 100% )

H

1.0 0.02Vp-p

Samsung Electronics5-38

Alignment and Adjustment

2-9. PB Output Level (Hi8)

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so
as to select the address 14.

e. Insert a Hi-8 standard color bar tape and press

the PLAY button.

f. Connect the oscilloscope to the addressed Test

Point.

g. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so that the CN605 PIN13 is

1.0±0.02Vp-p from SYNC to peak level.

h. Be sure to press the ÒMENU/ENTER(CONFIRM)Ó

button of CAMCORDER to memorize setting.

i. Reset the power source so as to fix the new data

to the camcorderÕs EEPROM.

2-10. Y-FM Carrier (Hi8)

: This adjustment is performed to set the sync-

tip level of the composite video signal.
Maladjusted Y-FM carrier impact to the play­back picture, there may be black or white dot
noise.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so

as to select the address 15.
e. Insert a Hi-8 Tape to the camcorder.
f. Press the START/STOP button on the Rear

board so as to set the camcorder to RECORD­ING mode.

g. Connect the frequency counter to the addressed

Test Point.

h. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so as to set the frequency to

5.99MHz ±0.02MHz

i. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

j. Reset the power source so as to fix the new data

to the camcorderÕs EEPROM.

DC POWER SUPPLY, FREQUENCY COUNTER

IC 201 PIN 41
15
Y-FM CARRIER (HI-8)

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

HI8 TAPE FOR RECORDINGTAPE

APPROX.

0.7V

APPROX.

0.3V

WHITE ( APPROX. 100% )

H

1.0 0.02Vp-p

TAPE

HI8 STANDARD COLOR BAR TAPE
RECORDED WITH SP SPEED

DC POWER SUPPLY, OSCILLOSCOPE
You need a monitor terminated with 75Ω.
CN605 PIN13
14
PB OUT-LEVEL (HI8)

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

14
12
10

8
6
4
2

13
11

9
7
5
3
1

13

VIDEO OUT

12
11
10

9
8
7
6
5
4
3
2
1

AUDIO OUT R

PB RF

AUDIO OUT L

HD SW

VCR UNREG

JIG CS

VCR UNREG

JIG SCK
SS GND

JIG SO

JIG DETECT

JIG SI

AUDIO OUT R

14

Samsung Electronics 5-39

Alignment and Adjustment

2-11. Y-FM Deviation (Hi8)

: This adjustment sets the Y_FM modulation

level in recording. For adjustment, playback
the self-recorded signal and observe the
VIDEO OUT signal.

Note : It is a little difficult to adjust because you

can check the waveform in playback mode
even though the adjustment is performed
in VCR record mode.
So you have to do it carefully.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so

as to select the address 1B.
e. Insert a Hi-8 Tape to the camcorder.
f. Press the START/STOP button on the Rear

board so as to set the camcorder to RECORD­ING mode.

g. Connect the oscilloscope to the adressed Test

Point.

h. Record for enough time to check the waveform

when you playback where you recorded in step f).

* 1 minute may be enough to check the wave-

form in playback mode.

i. Make sure that the waveform is to be as below.

If OK, go to step l).

j. In case of the waveform level is bigger than

1Vp-p, press the Data Down button so as to set
to down the waveform level and if the wave­form level smaller than 1Vp-p, press the Data
Up button so as to set to up the waveform level.

k. Repeat step w), i), j).

l. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

m. Reset the power source so as to fix the new

data to the camcorderÕs EEPROM.

APPROX.

0.7V

APPROX.

0.3V

WHITE ( APPROX. 100% )

H

1.0 0.02Vp-p

TAPE HI-8 TAPE FOR RECORDING

DC POWER SUPPLY, OSCILLOSCOPE

CN605 PIN13
1B
Y-FM DEVIATE (HI8)

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

14
12
10

8
6
4
2

13
11

9
7
5
3
1

13

VIDEO OUT

12
11
10

9
8
7
6
5
4
3
2
1

AUDIO OUT R

PB RF

AUDIO OUT L

HD SW

VCR UNREG

JIG CS

VCR UNREG

JIG SCK
SS GND

JIG SO

JIG DETECT

JIG SI

AUDIO OUT R

14

Samsung Electronics5-40

Alignment and Adjustment

2-12. BAND Pass Filter

: This adjustment is performed to set the band-

width of the 1.5MHz BPF.

By this adjustment, we can playback the audio
without distortion.
In case of normal models especially, you must
set the 1Vp-p level also.
In case of HI8 models, the 1Vp-p level is set in
the step 2-13.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so as
to select the address 07.

e. Insert the Standard Color Bar Tape(monaural)

and press the PLAY button.

f. Connect the oscilloscope to the addressed Test

Point.

g. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button so as to set the wave­form to be as below.

h. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

i. Reset the power source so as to fix the new data

to the EEPROM.

MINIMIZE THE DISTORTION.
THE BEST IS SINE WAVE.

1.0±0.02Vp-p

14
12
10

8
6
4
2

13
11

9
7
5
3
1

13

VIDEO OUT

12
11
10

9
8
7
6
5
4
3
2
1

AUDIO OUT R

PB RF

AUDIO OUT L

HD SW

VCR UNREG

JIG CS

VCR UNREG

JIG SCK
SS GND

JIG SO

JIG DETECT

JIG SI

AUDIO OUT R

14

DC POWER SUPPLY, OSCILLOSCOPE

CN605 PIN 10
07
AUDIO BPF-ADJ

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

STANDARD COLOR BAR
TAPE(MONAURAL)

TAPE

2-13. Audio Deviation 1.5MHz (Hi8)

: This adjustment is performed to set the

1.5MHz deviation of the audio recording
processor and the adjustment perform in play-

back mode.
If the audio output level is 1Vp-p, the devia­tion is to be a regulated deviation.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so
as to select the address 08.

e. Insert the Standard Color Bar Tape(monaural)

and press the PLAY button.

f. Connect the oscilloscope to the addressed Test

Point.

g. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so as to set the waveform to
be as below.

h. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

i. Reset the power source so as to fix the new data

to the EEPROM.

Samsung Electronics 5-41

Alignment and Adjustment

1.0±0.02Vp-p

DC POWER SUPPLY, OSCILLOSCOPE

CN605 PIN 10
08
AUDIO DEV-1.5M

EQUIPMENT
OTHER
TEST POINT
ADDRESS
NAME

STANDARD COLOR BAR TAPE
(MONAURAL)

TAPE

14
12
10

8
6
4
2

13
11

9
7
5
3
1

13

VIDEO OUT

12
11
10

9
8
7
6
5
4
3
2
1

AUDIO OUT R

PB RF

AUDIO OUT L

HD SW

VCR UNREG

JIG CS

VCR UNREG

JIG SCK
SS GND

JIG SO

JIG DETECT

JIG SI

AUDIO OUT R

14

Samsung Electronics5-42

Alignment and Adjustment

2-14. Audio Deviation 1.7MHz (Hi8)

: This adjustment is performed to set the

1.7MHz deviation of the audio recording
processor and the adjustment perform in play-

back mode.
If the amplitude difference of two waves mini­mized, the deviation is to be a regulated devia­tion.

a. Preparations

b. Connect a power source.
c. Get into the VCR adjustment mode.
d. Press the ÒTITLE (MODE UP)/DATE/TIME

(MODE DOWN)Ó button of CAMCORDER so
as to select the address 09.

e. Insert the Standard Color Bar Tape(STEREO)

and press the PLAY button.

f. Connect the oscilloscope to the addressed Test

Point.

g. Press the ÒEDIT + (DATA UP)/EDIT Ð (DATA

DOWN)Ó button so as to set the waveform to
be as below.

h. Be sure to press the ÒMENU/ENTER(CON-

FIRM)Ó button of CAMCORDER to memorize
setting.

i. Reset the power source so as to fix the new data

to the EEPROM.

DC POWER SUPPLY, OSCILLOSCOPE

CN605 PIN 12
09
AUDIO DEV-1.7M (ST)

EQUIPMENT
OTHER
TEST POINT
ADDRESS

NAME

STANDARD COLOR BAR
TAPE(STEREO)

TAPE

MINIMIZE

14
12
10

8
6
4
2

13
11

9
7
5
3
1

13

VIDEO OUT

12
11
10

9
8
7
6
5
4
3
2
1

AUDIO OUT R

PB RF

AUDIO OUT L

HD SW

VCR UNREG

JIG CS

VCR UNREG

JIG SCK
SS GND

JIG SO

JIG DETECT

JIG SI

AUDIO OUT R

14

Samsung Electronics 6-1

6-1 Cabinet Assembly (1) 6-2
6-2 Cabinet Assembly (2) 6-4
6-3 Cabinet Assembly (3) 6-6
6-4 Cabinet Assembly (4) 6-8
6-5 Cabinet Assembly (5) 6-10
6-6 EVF 6-12
6-7 Mechanical Parts (1) 6-14
6-8 Mechanical Parts (2) 6-16
6-9 Mechanical Parts (3) 6-18

6. Exploded View and Parts List

Samsung Electronics6-2

Exploded View and Parts List

6-1 Cabinet Assembly (1)

600

905

903

903

903

100

112

113

904

902

903

904

904109

108

107

905

CN451

114

111

106

904

904

105

906

905

102

104

101

103

Samsung Electronics 6-3

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

101 AD64-30995A CASE-LEFT;-,ABS94,HB,-,-,-,VP-L300,- SCL300/SCL310/SCL320/VP-L300

AD64-30995B CASE--LEFT;-,ABS94HB,-,-,-,D/GRAY,-,SC-L SCL350/SCL850
AD64-30995E CASE-LEFT;-,ABS,HB,-,-,D/G,-,SC-L330 SCL330/SCL800
AD64-30995F CASE-LEFT;-,ABS,HB,-,-,D/G,-,VP-L330 VP-L320/VP-L330

AD64-30995G CASE-LEFT;-,ABS,HB,-,-,D/G,-,VP-L350 VP-L350/VP-L980
102 AD61-11086A BRACKET-HINGE;-,SUS,-,T1.0,-,-,SC-L300 ALL
103 AD63-32008A COVER-LEFT BOT;-,ABS94,HB,-,-,SC-L300,-, ALL
104 AD63-32007A COVER-LEFT TOP;-,ABS94,HB,-,-,SC-L300,-, SCL300/SCL310/SCL320/SCL330

SCL350/SCL800/SCL850

AD63-32007B COVER-LEFT-TOP;-,ABS,HB,-,L/G,-,-,VP-L30 VP-L300/VP-L320/VP-L330

VP-L350/VP-L980
105 AD61-21149A HOLDER-LOCK EVF;-,POM,-,BLK,-,VP-A850 ALL
106 AD98-12026W ASSY-BASE TRIPOD;VP-A85,BLK/AL ALL
107 AD61-70087A RAIL-EVF;-,POM,-,-,BLK,-,- ALL
108 AD61-70088A RAIL-LOCK;-,ABS94,HB,-,BLK,-,- ALL
109 AD61-50785A GUIDE-EVF;-,ABS94,HB,-,BLK,-,- ALL
111 AD61-12042A BRACKET-LEFT;-,SBHG T1.0,SC-L300 ALL
112 AD73-10048A RUBBER-SPACKER;RUBBER,-,SC-L300,- ALL
113 AD97-00244A ASSY--SPEAKER;SC-L300,-,S3-PJ ALL
114 AD90-10852D ASSY-FUNCTION BOARD;S3-PJ,(CASE-LEFT) ALL
100 AD97-00060A ASSY-CASE LEFT;SC-L350,-,- SCL350/SCL850

AD97-00061A ASSY-CASE LEFT;SC-L800,-,- SCL330/SCL800
AD97-00340A ASSY-CASE LEFT;VP-L300,-,- VP-L300
AD97-00341A ASSY-CASE LEFT;VP-L330,-,- VP-L320/VP-L330
AD97-00342A ASSY-CASE LEFT;VP-L350,-,- VP-L350/VP-L980
AD97-00838A ASSY-CASE LEFT; SCL310
AD98-11264V ASSY-CASE LEFT;SC-L300,- SCL300/SCL320

600 AD90-10842M ASSY-EVF;SC-L300,NTSC,B/W,S3-PJ SCL300/SCL310/SCL330/SCL800

AD90-10851Y ASSY-EVF;VP-L300,PAL,B/W,S3-PJ VP-L300/VP-L330
AD94-00038A ASSY-EVF;VP-L350,B/W VP-L320/VP-L350/VP-L980

AD94-00039A ASSY-EVF;SC-L350,B/W SCL320/SCL350/SCL850
902 AD60-10543A SCREW-MACHINE;-,BH,+,-,M2,9,BLK,-,BLK ALL
903 AC60-10020A SCREW-MACHINE;BH,+,M2,X5,FZB,FE,UP,-,- ALL
904 AC60-10055A SCREW-TAPPING;BH,+,-,M2,X4,FZB ALL
905 AC60-10054A SCREW-TAPPING;BH,+,-,M2,X6,FZB ALL
906 AD60-00002A SCREW MACHINE;-,-,-,-,-,-,M2X4, -FH, FEN ALL
CN451 AD39-20826U LEAD CONNECTOR-ASSY;51004,51021,10P,110 ALL

Samsung Electronics6-4

Exploded View and Parts List

6-2 Cabinet Assembly (2)

136

122

123

903

903

192

123

126

127

128

906

904

904

131

196

158

904

904

144

157

131

904

904

904

131

144

129

303

125

904

196

157

143

195

142

141

140

906

906

128

149

147

127

126

125

124

192

123

903

903

123

136

122

138

146

145

126

127

128

906

157

196

124

136

303

129

136

124

125

124

125

303

129

Samsung Electronics 6-5

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

122 AD63-30584A COVER-JACK(C);-,TPE,-,-,BLK,-,-,VP-A850 SCL350/SCL850/VP-L350/VP-L980

AD63-30585A COVER-JACK(B);-,TPE,-,-,BLK,-,-,VP-A80 SCL300/SCL310/SCL320/SCL330

SCL800/VP-L300/VP-L320/VP-L330
123 AD63-70074A SHEET-MIC;-,HIMERON,-,-,-,-,-,VP-A850 ALL
124 AD63-40954A SHIELD-MIC(C);-,SPTE,T0.25,-,VP-A850 SCL350/SCL850/VP-L350/VP-L980

AD63-40956A SHIELD-MIC B;-,SPTE,T0.25,-,VP-A80 SCL300/SCL310/SCL320/SCL330

SCL800/VP-L300/VP-L320/VP-L330
125 AD98-12027C ASSY-MIC;VP-A850/XEU,STEREO(1),- SCL800/SCL850/VP-L980

AD98-12027L ASSY-MIC;SCL300,MONO SCL300/SCL310/SCL320/SCL330

SCL350/VP-L300/VP-L320/VP-L330

VP-L350
126 AD64-40691A WINDOW-REMOCON(C);-,PMMA,-,-,BLU,-,VP-A8 SCL350/SCL850/VP-L350/VP-L980

AD64-40691B WINDOW-REMOCON(C);-,PMMA,-,-,BLU,22X,MON SCL300/SCL310/SCL320/SCL330

SCL800/VP-L300/VP-L320/VP-L330
127 AD67-10203A LENS-HOOD(B);-,-,PA+ABS BLK,-,-,-,VP-A80 SCL800

AD67-10204A LENS-HOOD(C);-,-,PC+ABS BLK,-,-,22X/BILC SCL350/SCL850/VP-L350/VP-L980
AD67-10211A LENS-HOOD;-,-,PC+ABS,-,-,-,SCL300 SCL300/SCL310/SCL320/SCL330

VP-L300/VP-L320/VP-L330
128 AD64-10895A KNOB-POWER;-,PC+ABS,-,BLK,-,SC-L300 ALL
129 AD64-32018A CASE-FRONT(B);-,ABS,94HB,-,-,-,-,VP-A800 SCL800

AD64-32028A CASE-FRONT(B);-,PC+ABS,94HB,-,-,-,S-JACK VP-L300/VP-L320/VP-L330/SCL300

SCL320/SCL330

AD64-32028C CASE-FRONT(B); SCL310
AD64-32029B CASE-FRONT(C);-,PC+ABS,94HB,-,-,-,S-JACK VP-L350/SCL350
AD64-32017A CASE-FRONT(C);-,PC+ABS,94HB,-,-,-,-,VP-A VP-L980/SCL850

131 AD61-21146A HOLDER-POWER;-,POM,-,-,22X,16X,SC-L350 SCL350/SCL850/VP-L350/VP-L980

AD61-21152A HOLDER-POWER;-,ABS,94HB,BLK,-,VP-A80 SCL300/SCL310/SCL320/SCL330

SCL800/VP-L300/VP-L320/VP-L330
136 AD63-30587A COVER-FRONT(C);-,ABS94,HB,-,-,-,22X,VP-A SCL350/SCL850/VP-L350/VP-L980

AD63-30588A COVER-FRONT(B);-,ABS94,HB,-,-,-,22X,VP-A SCL300/SCL310/SCL320/SCL330

SCL800/VP-L300/VP-L320/VP-L330
138 AD60-42042A RING-HOOD(AL);-,-,-,-,-,AL SCL350/SCL850/VP-L350/VP-L980
140 AD63-32013A COVER-LENS TOP;-,PC+ABS,-,BLK,-,SC-L300, SCL350/SCL850/VP-L350/VP-L980
141 AD63-32014A COVER-LENS BOTTOM;-,PC+ABS,-,BLK,-,SC-L3 SCL350/SCL850/VP-L350/VP-L980
142 AD61-21139A HOLDER-COVER;-,PC+ABS,-,BLK,-,SC-L350 SCL350/SCL850/VP-L350/VP-L980
143 AD61-21140A HOLDER-RING;-,POM,-,-,-,SC-L350 SCL350/SCL850/VP-L350/VP-L980
144 AD90-10850K ASSY-FRONT BOARD;VP-A85/SC-A85,EIS,REMOC VP-L980/SCL850

AC90-10800F ASSY-MIC BOARD;SC-A33,MO SCL310/SCL330/VP-L300/VP-L330
AC90-10800E ASSY-MIC BOARD;SC-A30,MO SCL300
AC90-10800H ASSY-MIC BOARD;SC-A800,ST SCL800
AD97-00724A ASSY-FRONT BOARD;VP-L320,MONO,X16,EIS,-, SCL320/VP-L320

AD90-10850Z ASSY-FRONT BOARD;VP-L350,NOR,MONO,EIS SCL350/VP-L350
145 AD64-20624A MASK-LAMP;-,PC,-,-,CLR,VP-A85 SCL350/SCL850/VP-L350/VP-L980
146 4713-001007 LAMP-HALLOGEN;6V,500mA,3W,YEL,45Lm,-,4.8 SCL350/SCL850/VP-L350/VP-L980
147 AD98-12027B ASSY-LIGHT;VP-A850/XEU,-,- SCL350/SCL850/VP-L350/VP-L980
149 AC61-32047A PLATE-NUT;SECC,T0.8,-,-,SV-V40 SCL350/SCL850/VP-L350/VP-L980
157 AD64-10896A BUTTON-LOCK;-,ABS94HB,-,-,-,SC-L300 SCL350/850/VP-L350/980

AD64-11020A BUTTON-LOCK;-,POM,-,RED,-,VP-A30 SCL300/SCL310/SCL320/SCL330

SCL800/VP-L300/VP-L320/VP-L330
195 AD61-60631A SPRING-COVER;-,-,SWPB,-,-,-,SC-L300 SCL350/SCL850/VP-L350/VP-L980
196 AD61-60601A SPRING-KNOB POWER;-,-,SUS304 WPB,-,-,-,- ALL
303 AD97-00050A ASSY-CASE FRONT;SC-L300M,-,- SCL300

AD97-00841A ASSY-CASE FRONT;VP-L320,SCL320,-,- SCL320/VP-L320
AD97-00879A ASSY-CASE FRONT; SCL310
AD98-12026Y ASSY-CASE FRONT;VP-A85,22X/Hi8 SCL850/VP-L980
AD98-12027H ASSY-CASE FRONT;SC-L300,16X SCL330/VP-L300/VP-L330
AD98-12028F ASSY-CASE FRONT;VP-A34,- SCL350/VP-L350

AD98-12028G ASSY-CASE FRONT;VP-A80,- SCL800
903 AC60-10020A SCREW-MACHINE;BH,+,M2,X5,FZB,FE,UP,-,- ALL
905 AC60-10054A SCREW-TAPPING;BH,+,-,M2,X6,FZB ALL
906 AD60-00002A SCREW MACHINE;-,-,-,-,-,-,M2X4, -FH, FEN ALL

Samsung Electronics6-6

Exploded View and Parts List

6-3 Cabinet Assembly (3)

199

198

133

134

905

148

904

904

135

148

134

133

198

905

199

904

904

135

191

500

190

188

189

901

901

907

186

187

907

X22 Model

(VP-L350/VP-L980
SCL350/SCL800/SCL850)

X16 Model

(VP-L300/VP-L320/VP-L330
SCL300/SCL310/SCL320
SCL330)

Samsung Electronics 6-7

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

133 AD63-62002A SPACER-CCD;-,SILICONE,T1,BLK,-,VP-A57 SCL300/SCL310/SCL320/SCL330

VP-L300/VP-L320/VP-L330

AD63-62008A SPACER-CCD;-,SILICON,22X,-,-,SC-L350 SCL350/SCL800/SCL850

VP-L350/VP-L980

134 AD29-92001D FILTER-OLP;SV-2C04MM,KSS,SPACE,TR SCL300/SCL310/SCL320/SCL330

VP-L300/VP-L320/VP-L330

AD29-92001E FILTER;SV-3C08MM,KSS,SPACE,TR SCL350/SCL800/SCL850

VP-L350/VP-L980
135 AD61-12048A BRACKET-LENS;-,SUS T0.5,SC-L300 ALL
148 AD90-10854B ASSY-LENS;X16,LENS SCL300/SCL310/SCL320/SCL330

VP-L300/VP-L320/VP-L330

AD97-00597A ASSY-LENS;-,-,X22,HI8,SAMSUNG VP-L350/VP-L980/SCL350

SCL800/SCL850
186 AD90-10841D ASSY-MAIN BOARD;VP-L300/XEU,S8C-PAL LCD VP-L300

AD94-00076A ASSY-MAIN BOARD;VP-L320,S8C-PAL VP-L320
AD94-00017A ASSY-MAIN BOARD;VP-L330/XEU,S8C-PAL VP-L330
AD94-00016A ASSY-MAIN BOARD;VP-L350/XEU,S8C-PAL VP-L350
AD94-00023A ASSY-MAIN BOARD;VP-L980/XEU,S8C-PAL,HI8 VP-L980
AD90-10841Q ASSY-MAIN BOARD;SC-L300/XAA,S8C-NTSC LCD SCL300/SCL310
AD94-00077A ASSY-MAIN BOARD;SC-L320,S8C-NTSC SCL320
AD94-00018A ASSY-MAIN BOARD;SC-L330/XAA,S8C-NTSC SCL330
AD90-10847V ASSY-MAIN BOARD;SC-L350,S8C-NTSC 3LCD N SCL350
AD94-00041A ASSY-MAIN BOARD;SC-L800/XAA,S8C-NTSC,HI8 SCL800

AD94-00024A ASSY-MAIN BOARD;SC-L850/XAA,S8C-NTSC,HI8 SCL850
187 AD94-00005A ASSY-FPC,C;A3/S3,ROTARY-FPC ALL
188 AD61-00054A CHASSIS-BOTTOM;-,STS,-,0.6,-,-,VP-A850 ALL
189 AD90-10832B ASSY-FPC DECK;VP-A20,DECK ALL
190 AD61-11074A CHASSIS-TOP;-,STS,-,T0.6,-,-,VP-A85 ALL
191 AD98-12027D ASSY-CASE TOP;SC-L300,- ALL
198 AD90-10849X ASSY-CCD BOARD;VP-A85,Hi8,EIS VP-L350/VP-L980

AD90-10849Y ASSY-CCD BOARD;SC-A85,Hi8,EIS SCL800/SCL850

AD97-00076A ASSY--CCD;A3,PAL,-,- VP-L300/VP-L320/VP-L330

AD97-00077A ASSY--CCD;A3,NTSC,-,- SCL300/SCL310/SCL320/SCL330

AD97-00232A ASSY--CCD;270K,X22,-,- SCL350
199 AD90-10854W ASSY-CAMERA;SC-A30,NTSC SCL300/SCL310/SCL320/SCL330

VP-L300/VP-L320/VP-L330

AD97-00592A ASSY-CAMERA;A3,-,X22,570K,SAMSUNG VP-L350/VP-L980/SCL350/SCL800

SCL850

500 AD97-00282A ASS'Y-DECK SCL300/SCL310/SCL320/SCL330

SCL350/SCL800/SCL850

AD97-00283A ASS'Y-DECK VP-L300/VP-L320/VP-L330

VP-L350/VP-L980
901 AC60-10017A SCREW-MACHINE;BH,+,M1.7,X3.5,FEFZY,SWCH1 ALL
904 AC60-10055A SCREW-TAPPING;BH,+,-,M2,X4,FZB ALL
905 AC60-10054A SCREW-TAPPING;BH,+,-,M2,X6,FZB ALL
907 AC60-10024A SCREW-MACHINE;BH,+,M2,X3,FZW,FE,-,-,- ALL

Samsung Electronics6-8

Exploded View and Parts List

6-4 Cabinet Assembly (4)

173

908

185

903

180

181

182

183

184

176

150

150

904

177

178

914

904

179

902

903

903

302

301

903

172

160

149

149

300

904

161

910

162

163

907

165

904

166

167 168

169

170

Samsung Electronics 6-9

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

149 AC61-32047A PLATE-NUT;SECC,T0.8,-,-,SV-V40 ALL
150 AC61-20223A HOLDER-LOCK;SECC,T1.0,NAT,-,-,- ALL
160 AD64-32006A CASE-REAR;-,ABS94,HB,-,-,-,-,SC-L300 ALL
161 AD61-22014A HOLDER-ZOOM;-,ABS94HB,T0.8,-,-,- ALL
162 AD61-60568A SPRING-ZOOM;-,-,SUS304,-,D0.55,-,SV-S99 ALL
163 AD64-10893A KNOB-ZOOM;-,PC+ABS,-,-,-,SC-L300 ALL
165 AD61-21155A HOLDER-PUSH BATT;-,POM,-,BLACK,SCL300,- ALL
166 AD61-12047A BRACKET-BATT.EJECT;SUS T0.5 SC-L300,-,- ALL
167 AD61-21138A HOLDER-BATTERY EJECT;-,POM94,HB,BLK,-,SC ALL
168 AD61-60636A SPRING-BATT.;-,-,SUS304,-,PWD,-,SCL300 ALL
169 AD61-30234A LOCKER-BATTERY EJECT;-,PC94,HB,BLK,-,SC- ALL
170 AD64-10892A KNOB-BATTERY;-,ABS94,HB,-,-,SC-L300 ALL
172 AC63-30040A COVER-LI BATTERY;PP,HB,T1.5,BLK,H3.5,-,V ALL
173 AD59-10566A UNIT-CAP HOOD;A3/S3,- SCL300/SCL310/SCL320/SCL330

SCL800/VP-L300/VP-L320/VP-L330
176 AD64-32005A CASE-RIGHT;-,ABS94,HB,-,-,-,-,SC-L300 ALL
177 AD61-12045A BRACKET-GRIP FRONT;-,SUS T1.2,SC-L300,-, ALL
178 AD61-21137A HOLDER-START/STOP;-,POM,-,-,-,SC-L300 ALL
179 AD61-12046A BRACKET-GRIP BACK;-,SUS T0.8,SC-L300 ALL
180 AD64-10890A BUTTON-REC/STOP;-,ABS94,HB,-,-,SC-L300 ALL
181 AD61-60521A SPRING-REC;-,TS,SWPB,0.25,4.3,-,SC-80 ALL
182 AD64-10891A KNOB-START/STOP;-,ABS94,HB,-,-,SC-L300 ALL
183 AD61-60533A SPRING-REC STOP;-,-,STS,T0.2,-,-,VP-A57 ALL
184 AD63-10219A GRIP-BELTASSY;-,LEATHER,-,-,BLK,-,SC-L3 ALL
185 AD97-00246A ASSY-COVER HOUSING;VP-A800,-,HI8,LABEL(X SCL800

AD97-00247A ASSY-COVER HOUSING;VP-A34,-,NORMAL,L(O), SCL350/VP-L350
AD98-12027A ASSY-COVER HOUSING;VP-A850,HI8,- SCL850/VP-L980
AD98-12027E ASSY-COVER HOUSING;SC-L300,- SCL300/SCL310/SCL320/SCL330

VP-L300/VP-L320/VP-L330
300 AD90-10852M ASSY-REAR BOARD;VP-L350/XEU,LIGHT,S8C-PA ALL
301 AD98-12029U ASSY-CASE REAR;SC-L350,NTSC ALL
302 AD98-12027F ASSY-CASE RIGHT;SC-L300,- SCL300/SCL310/SCL320/SCL330

SCL800/VP-L300/VP-L320/VP-L330

AD98-12029Y ASSY-CASE RIGHT;SV-L350,NTSC,- SCL350/SCL850/VP-L350/VP-L980
902 AD60-10543A SCREW-MACHINE;-,BH,+,-,M2,9,BLK,-,BLK ALL
903 AC60-10020A SCREW-MACHINE;BH,+,M2,X5,FZB,FE,UP,-,- ALL
904 AC60-10055A SCREW-TAPPING;BH,+,-,M2,X4,FZB ALL
907 AC60-10024A SCREW-MACHINE;BH,+,M2,X3,FZW,FE,-,-,- ALL
908 AD60-10001A SCREW-MACHINE;BH,B,1.7*5.5,-,FE,BLACK,-, ALL
910 AD60-10510A SCREW-MACHINE;-,PLAN,+,-,M1.4X5,5,BLK,FE ALL
914 AD60-00003A SCREW-TAPTITE;-,+,-,H8.5,2X6,- ALL

Samsung Electronics6-10

Exploded View and Parts List

6-5 Cabinet Assembly (5)

913

903

212

905

912

213

214

215

905

911

905

219

211

208

209

207

206

205

204

250

216

911

201

202

904

904

250

201

216

911

217

218

913

912

903

202

905

212

213

214

215

905

911

905

211

206

207

209

208

219

3

´´

(VP-L330/VP-L350/VP-L980
SCL330/SCL350/SCL850
SCL800)

2.5

´´

(VP-L300/VP-L320
SCL300/SCL310/SCL320)

Samsung Electronics 6-11

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

201 AD64-30997B CASE--LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,- SCL300

AD64-30997C CASE--LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,- SCL350

AD64-30997D CASE--LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,- VP-L300

AD64-30997E CASE--LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,- VP-L350

AD64-30997F CASE-LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,-, SCL330

AD64-30997G CASE-LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,-, VP-L330

AD64-30997J CASE-LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,-, SCL850

AD64-30997K CASE-LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,-, VP-L980

AD64-30997M CASE-LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,-, SCL800

AD64-30997N CASE-LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,-, SCL320

AD64-30997Q CASE-LCD TOP;ABS 94 V0,-,-,-,-,D/GRAY,-, VP-L320

AD64-30997R CASE-LCD TOP; SCL310
202 AD39-20826T LEAD CONNECTOR-ASSY;-,51021,51021,15P-2P ALL
204 AD90-10851M ASSY-BL;VP-L350,3 SCL330/SCL350/SCL800/SCL850

VP-L330/VP-L350/VP-L980

205 AD07-10032Q LCD-PANNEL;DP,COD30T3018TC,SV-L150,3 SCL330/SCL350/SCL800/SCL850

VP-L330/VP-L350/VP-L980
206 AD61-11088A BRACKET-CASE LCD;-,SUS,-,T1.0,-,-,SC-L35 ALL
207 AD64-10889A KNOB-LCD LOCK;-,POM,-,BLK,-,SC-L300 ALL
208 AD61-60628A SPRING-LCD LOCK;-,-,SWBP,-,-,-,SC-L300 ALL
209 AD64-30998A CASE-LCD BUTTON;-,ABS94,HB,-,-,SC-L300,- ALL
211 AD61-21136A HOLDER-RING LCD;-,POM,-,BLK,-,SC-L300 ALL
212 AD63-32009A COVER-HINGE TOP;-,ABS94,HB,-,-,SC-L300,- ALL
213 AD98-12026S ASSY-HINGE;SC-L300,- ALL
214 AD92-00004A ASSY-PCB-HINGE;VP-L350,HINGE ALL
215 AD63-32010A COVER-HINGE BOT;-,ABS94,HB,-,-,SC-L300,- ALL
216 AD90-10842T ASSY-LCD BOARD;VP-L300,PAL 2.5LCD VP-L300/VP-L320

AD90-10853B ASSY-LCD BOARD;VP-L350,PAL 3LCD VP-L330/VP-L350/VP-L980
AD90-10852T ASSY-LCD BOARD;SC-L300,NTSC 2.5LCD SCL300/SCL310/SCL320

AD90-10853A ASSY-LCD BOARD;SC-L350,NTSC 3LCD SCL330/SCL350/SCL800/SCL850
217 AD90-10851L ASSY-BL;VP-L300,2.5 ALL
218 AD07-10032N LCD-PANNEL;DP,COD25T2025LC,S3-PJ,2.5 SCL300/SCL310/SCL310/SCL320

VP-L300/VP-L320

219 AD64-30996B CASE--LCD BOTTOM;-,ABS,94V0,-,-,D/GRAY,- SCL300/SCL310/SCL320/VP-L300

VP-L300

AD64-32007B CASE--LCD BOTTOM;-,ABS,94V0,-,-,D/GRAY,- SCL330/SCL350/SCL800/SCL850

VP-L330/VP-L350/VP-L980

250 AD90-10842N ASSY-LCD;SC-L300,S8C-NTSC LCD NOR SCL300

AD90-10847T ASSY-LCD;SC-L350,S8C-NTSC 3LCD NOR SCL350

AD90-10848D ASSY-LCD;VP-L350/XEU,S8C-PAL 3LCD NOR VP-L350

AD90-10852U ASSY-LCD;SC-L330,S8C-NTSC LCD NOR SCL330

AD90-10852V ASSY-LCD;SC-L850,S8C-NTSC LCD HI8 SCL850

AD90-10852W ASSY-LCD;VP-L330,S8C-PAL LCD NOR VP-L330

AD90-10852X ASSY-LCD;VP-L850,S8C-PAL LCD HI8 VP-L980

AD97-00055A ASSY--LCD;SC-L800,-,- SCL800

AD97-00802A ASSY-LCD;VP-L320,-,- VP-L320

AD97-00803A ASSY-LCD;SV-L320,-,- SCL320

AD97-00839A ASSY-LCD; SCL310

AD97-10842Y ASSY-LCD;VP-L300,S8C-PAL LCD NOR VP-L300

Samsung Electronics6-12

Exploded View and Parts List

6-6 EVF

300

407

408

409

410

301

302

303

413

414

304

420

416

418

417

904

421

415

306

305

906

905

Samsung Electronics 6-13

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

300 AC90-10012V ASSY-CRT;CS96(SPORTS),- ALL
301 AD98-11265G ASSY-EVF LENS;A3-PJ,B/W ALL
302 AC67-12070A LENS-EVF(MD);PMMA D19.1 ASP ,-,-,-,-,- ALL
303 AD61-22029A HOLDER-LENS A;-,ABS94,HB,BLK,-,- ALL
304 AD90-10850M ASSY-EVF BOARD;SC-L350,NTSC -A3/S3/CS99 NTSC

AD90-10850N ASSY-EVF BOARD;VP-L350,PAL-A3/S3/CS99 PAL
305 AC67-10066A LENS-EVF GJ;-,OPT,GRASS-F1,D11.5,-,CG819 ALL
306 AD61-21142A HOLDER-LENS B;-,ABS94,HB,BLK,-,- ALL
407 AD73-10049A RUBBER-EYE CUP;TPR BLK,-,-,- ALL
408 AD61-50783A GUIDE-LOCK;-,ABS94,HB,-,-,-,- ALL
409 AD61-50782A GUIDE-CAP;-,ABS94,HB,-,-,-,- ALL
410 AD61-60632A SPRING-EVF;-,-,SUS304 T0.3,-,-,-,- ALL
413 AD60-42038A RING-EVF;-,ABS94,HB,-,-,- ALL
414 AD60-42039A RING-GUIDE;-,ABS94,HB,-,-,- ALL
415 AD61-20918B CAP-FOCUS;-,MBR,-,BLK,-,VP-K70 ALL
416 AD64-32012A CASE-EVF R;-,ABS94,V0,-,-,-,-,- ALL
417 AD61-50781A SHAFT-LOCK;-,C3602BD,-,-,-,-,- ALL
418 AD66-80165A LINK-EVF;-,POM,-,-,- ALL
420 AD64-32011A CASE-EVF L;-,ABS94,V0,-,-,B/W,NTSC,SC-A3 ALL
421 AD61-00032A PLATE--EVF;-,-,-,SECC-P, T0.8,A3-PJ ALL
904 AC60-10055A SCREW-TAPPING;BH,+,-,M2,X4,FZB ALL
905 AC60-10054A SCREW-TAPPING;BH,+,-,M2,X6,FZB ALL
906 AD60-00002A SCREW MACHINE;-,-,-,-,-,-,M2X4, -FH, FEN ALL

Samsung Electronics6-14

Exploded View and Parts List

6-7 Mechanical Parts (1)

004

305

302

005

401

021
402

005

301

303

001

304

003

002

Samsung Electronics 6-15

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

001 AC60-12083A SCREW-MACHINE;B,BH,-,M1.7,L5,FE,WHT,-,­002 AD60-10500E SCREW-MACHINE;-,BWSH,+,UP,M2,L5,ZPCNYLOK
003 AD60-10500D SCREW-MACHINE;-,BWSH,+,UP,M2,L7,ZPCNYLOK
004 AC60-10017A SCREW-MACHINE;BH,+,M1.7,X3.5,FEFZY,SWCH1
005 AC60-12112A SCREW-BH;-,BH,+,M1.4,L2,­021 AC60-30015A WASHER-SLIT;ID 1.1,OD 2.6,T 0.4,POLYSLID
301 AD96-10473P ASS’Y-HOUSING;DE-6B,­302 AD96-10471Z ASS’Y-DRUM;DE6A-PH-SS,- VP-L300/VP-L330/VP-L320

VP-L350/VP-L980

AD96-10471Y ASS’Y-DRUM;DE6A-NH-SS,- SCL300/SCL310/SCL320/SCL330

SCL350/SCL800/SCL850
303 AD66-40153A ROLLER-IMP ASS’Y;-,YF-10,OD7,-,DE-6
304 AC61-72009A CONTACT-EARTH BRUSH;SECC/PBSP/CR/C,-,-,­305 AC63-32091A COVER-DRUM;DURACON(M90-44),-,-,-,-,-,DE­401 AC63-30009A COVER-REELASS’Y;ABS 95,HB,-,-,-,-,DE-6,­402 AC66-12035A IDLER-ASS’Y;-,-,DE-6

Samsung Electronics6-16

Exploded View and Parts List

6-8 Mechanical Parts (2)

005

501

020

504

503

004

512

509

506

506

507

505

511

510

508

502

Samsung Electronics 6-17

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

004 AC60-10017A SCREW-MACHINE;BH,+,M1.7,X3.5,FEFZY,SWCH1
005 AC60-12112A SCREW-BH;-,BH,+,M1.4,L2,­020 AC60-30017A WASHER-SLIT;ID 1,OD 2.6,T 0.4,POLYSLIDER
501 AC31-12001Q MOTOR-CAPSTAN;DMCCHL06A(DE-6),-,­502 AC66-22123A GEAR-CAPSTAN(ASS’Y);-,-,-,-,-,DE-6
503 AC66-22124A GEAR-PULLEY(ASS’Y);-,-,-,-,-,DE-6
504 AC66-62001A BELT-TIMMING;POLYURETHAN,L137 T0.4,-,-,­505 AC66-32197A LEVER-CAM;SUS430-CP,T0.6,-,-,DE-6,­506 AC66-42005A ROLLER-CAM MAIN;SUS303,-,-,PI3.5X1.1
507 AC66-22092A GEAR-CAM MAIN;SUS304-CSP,M0.5,Z64,-,-,­508 AC66-82055A SLIDER-MAIN(ASS’Y);-,-,-,-,DE-6
509 AC66-32198A LEVER-EJECT;DURANEX #3300,-,-,-,DE-6,­510 AC34-22001C SWITCH-MODE ASS’Y ;HMW0484-01W A,DE-6,-,-,­511 AC66-22126A GEAR-LOADING;DURACON(99-44),M0.4,Z37 WO,
512 AC31-12001P MOTOR-LOADING ASS’Y;DE-6,-,-

Samsung Electronics6-18

Exploded View and Parts List

6-9 Mechanical Parts (3)

407

405

412

411

409

413 414

410

408

415

417

416

406

Samsung Electronics 6-19

Exploded View and Parts List

Loc. No New Part No Description and Specification Remark

405 AD61-60622A SPRING-REVIEW ARM;PS SUS304-WPB PI0.3
406 AC61-52014A POLE-BASE S(ASS’Y);ZDC2/SUS303,-,-,-,-,DE
407 AC61-52015A POLE-BASE T(ASS’Y);ZDC2/SUS303,-,-,-,-,DE
408 AC66-32221A BRAKE-SUB S(ASS’Y);-,-,-,-,DE-6,­409 AC66-12042A REEL-T(ASS’Y);-,-,-,DE-6
410 AC66-12041A REEL-S(ASS’Y);-,-,-,DE-6
411 AC66-32217A ARM-PINCH ROLLER(ASS;-,-,-,-,DE-6
412 AC66-32213A ARM-REVIEW ASS’Y;-,-,-,-,DE-6
413 AC66-32223A BRAKE-MAIN(T);DURACON(M904-44),-,-,-,-,­414 AC66-30120A BRAKE-SOFT T (ASS’Y);-,-,-,-,DE-6,­415 AC66-30093A ARM-TENSION (ASS’Y);SUS304-CSP POM FELT,­416 AC61-62022A SPRING-SOFT BRAKE(S);-,SUS304,-,-,-,-,­417 AC61-62023A SPRING-TENSION;-,SUS304-WPB,-,-,-,-,-

Samsung Electronics 7-1

7. Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

RE18 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE19 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE20 2007-000130 R-CHIP;39Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE21 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE22 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE23 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 PAL/NTSC
RE24 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 PAL/NTSC
RE25 2007-000689 R-CHIP;3.3MOHM,5%,1/10W,DA,TP,2012 PAL/NTSC
RE26 2007-000689 R-CHIP;3.3MOHM,5%,1/10W,DA,TP,2012 PAL/NTSC
RE27 2007-000462 R-CHIP;18OHM,5%,1/10W,DA,TP,2012 PAL/NTSC
VRE01 2104-001024 VR-SMD;68KOHM,25%,0.15W,TOP PAL/NTSC
VRE02 2104-001013 VR-SMD;220ohm,25%,0.15W,TOP PAL/NTSC
VRE03 2104-000178 VR-SMD;1MOHM,30%,1/20W,TOP PAL/NTSC

ASS'Y CCD BOARD

CC01 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
CC02 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CC03 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528,­CC04 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CC05 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528,­CC06 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CNC01 3711-004241 CONNECTOR-HEADER;BOX,18P,2R,1MM,SMD-A,SN
DC02 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
ICC01 0605-001016 CCD;COLOR,DIP-14,14,400MIL,270K,7. OPTION
ICC01 0605-001017 CCD;COLOR,DIP,14,400MIL,320K,7.3x4 OPTION
ICC01 0605-001037 CCD;COLOR,DIP,14P,400MIL,570K,4.85 OPTION
ICC01 0605-001043 CCD;COLOR,DIP,14P,394MIL,470K,7.15X5.55U OPTION
QC01 0505-000180 FET-SILICON;2SK1070PIETR,-,150MW,SOT
RC01 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
RC02 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
RC03 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
RC05 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RC07 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608

ASS'Y MAIN BOARD

C001 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C002 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C002 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C003 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C004 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C005 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C006 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608 OPTION
C006 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C007 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C008 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C008 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C009 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C010 2203-000783 C-CERAMIC,CHIP;330pF,5%,50V,NPO,TP,1608, OPTION
C010 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C011 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C011 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C012 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,

ASS'Y-EVF BOARD

CE01 2203-000315 C-CERAMIC,CHIP;120pF,5%,50V,NPO,TP,1608, PAL/NTSC
CE02 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20 PAL/NTSC
CE03 2404-000275 C-TA,CHIP;100uF,20%,10V,-,TP,7343,7.3mm PAL/NTSC
CE04 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608 PAL/NTSC
CE05 2404-000167 C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,- PAL/NTSC
CE06 2309-001001 C-FILM,CHIP;100nF,5%,16V,3.2x2.5x2.0mm,- PAL/NTSC
CE07 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, PAL/NTSC
CE08 2404-000128 C-TA,CHIP;10uF,20%,16V,-,TP,6032,- PAL/NTSC
CE09 2203-000357 C-CERAMIC,CHIP;150pF,5%,50V,NPO,TP,1608, PAL/NTSC
CE10 2402-000144 C-AL,SMD;3.3uF,20%,50V,GP,TP,4.3x4.3x5. PAL/NTSC
CE11 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20 PAL/NTSC
CE12 2404-000275 C-TA,CHIP;100uF,20%,10V,-,TP,7343,7.3mm PAL/NTSC
CE13 2404-000275 C-TA,CHIP;100uF,20%,10V,-,TP,7343,7.3mm PAL/NTSC
CE14 2404-000275 C-TA,CHIP;100uF,20%,10V,-,TP,7343,7.3mm PAL/NTSC
CE15 2309-000143 C-FILM,CHIP;3.9nF,5%,100V,-,-,TP PAL/NTSC
CE16 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, PAL/NTSC
CE17 2402-000144 C-AL,SMD;3.3uF,20%,50V,GP,TP,4.3x4.3x5. PAL/NTSC
CE18 2201-000911 C-CERAMIC,DISC;1.2nF,10%,1KV,Y5P,BK,10x5 PAL/NTSC
CNE01 3711-000862 CONNECTOR-HEADER;BOX,3P,1R,1.25mm,SMD-A, PAL/NTSC
CNE02 3711-002173 CONNECTOR-HEADER;BOX,4P,1R,1.5,STRAIGHT, PAL/NTSC
CNE03 AC03-12001B SOCKET-CRT;SOCKET FINDER,PI10 40MM,-,-,- PAL/NTSC
DE01 0407-000151 DIODE-ARRAY;MA153,40V,100mA,C2-3,SOT-23, PAL/NTSC
DE02 0401-000138 DIODE-SWITCHING;KDS193,80V,100mA,150mW,4 PAL/NTSC
DE03 0401-000166 DIODE-SWITCHING;MA158-TX,200V,100mA,-,-, PAL/NTSC
FTB01 AC26-32001B TRANS-FLYBACK;ECX-C2806D,0.6INCH,4.8V PAL/NTSC
ICE01 AC14-12006W IC-LINEAR;KA7007,SOP,- PAL/NTSC
LE01 2703-001756 INDUCTOR-SMD;47uH,10%,3.2x2.5x2.2mm PAL/NTSC
LE02 AC27-32001B COIL-LINEARITY;230UH-15%,PI0.12,T,-,- PAL/NTSC
QE01 0501-000424 TR-SMALL SIGNAL;KTA1504-Y,PNP,150mW,SOT- PAL/NTSC
QE02 0501-000238 TR-SMALL SIGNAL;2SD968A,NPN,1W,SC-62,-,1 PAL/NTSC
QE03 0501-000424 TR-SMALL SIGNAL;KTA1504-Y,PNP,150mW,SOT- PAL/NTSC
RE01 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE02 2007-000113 R-CHIP;33ohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE03 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE04 2007-000107 R-CHIP;470Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE05 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE06 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE07 2007-000103 R-CHIP;120Kohm,5%,1/16W,DA,TP,1608 NTSC
RE07 2007-000637 R-CHIP;270Kohm,5%,1/16W,DA,TP,1608 PAL
RE08 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE09 2007-000695 R-CHIP;3.3ohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE10 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE11 1404-001138 THERMISTOR-NTC;470ohm,10%,3100K,140mW/C, PAL/NTSC
RE12 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 PAL/NTSC
RE13 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE14 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE15 2007-000965 R-CHIP;5.1Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE16 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC
RE17 2007-001056 R-CHIP;6.2Kohm,5%,1/16W,DA,TP,1608 PAL/NTSC

Samsung Electronics7-2

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

C013 2203-001640 C-CERAMIC,CHIP;390pF,10%,50V,X7R,TP,1608 OPTION
C013 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­C014 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C014 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­C015 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C015 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C016 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C016 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C017 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C017 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C018 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C018 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­C019 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608, OPTION
C019 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­C020 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C020 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C021 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C022 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C022 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­C023 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C024 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C025 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­C026 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C027 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C028 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C029 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C030 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C031 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C032 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C033 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C034 2203-001113 C-CERAMIC,CHIP;62pF,5%,50V,NPO,TP,1608,- OPTION
C034 2203-001417 C-CERAMIC,CHIP;36pF,5%,50V,NPO,TP,1608,1
C035 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C037 2203-001408 C-CERAMIC,CHIP;270pF,5%,50V,COG,TP,1608,
C038 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C039 2203-000426 C-CERAMIC,CHIP;18pF,5%,50V,NPO,1608,-,TP
C044 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C045 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C046 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C047 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C048 2203-000332 C-CERAMIC,CHIP;12pF,5%,50V,NPO,TP,1608,­C049 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C050 2203-000815 C-CERAMIC,CHIP;33pF,5%,50V,NPO,TP,1608,­C052 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C053 2203-001686 C-CERAMIC,CHIP;75pF,5%,50V,CH,TP,1608,1.
C054 2203-000357 C-CERAMIC,CHIP;150pF,5%,50V,NPO,TP,1608,
C055 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
C056 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C060 2203-000332 C-CERAMIC,CHIP;12pF,5%,50V,NPO,TP,1608,- OPTION
C060 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,-

C061 2203-001408 C-CERAMIC,CHIP;270pF,5%,50V,COG,TP,1608,
C1 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C10 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C10 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C101 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C102 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C103 2203-000426 C-CERAMIC,CHIP;18pF,5%,50V,NPO,1608,-,TP
C104 2203-000426 C-CERAMIC,CHIP;18pF,5%,50V,NPO,1608,-,TP
C105 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C106 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C107 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C108 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C109 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­C11 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C110 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­C111 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C112 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C113 2203-000315 C-CERAMIC,CHIP;120pF,5%,50V,NPO,TP,1608,
C114 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C115 2203-000851 C-CERAMIC,CHIP;39pF,5%,50V,NPO,TP,1608,­C116 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C117 2203-000426 C-CERAMIC,CHIP;18pF,5%,50V,NPO,1608,-,TP
C118 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C119 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­C12 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C120 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­C121 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C122 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C123 2203-001195 C-CERAMIC,CHIP;7pF,0.25pF,50V,NPO,TP,160
C124 2203-002605 C-CERAMIC,CHIP;8pF,0.25pF,50V,CH,TP,1608
C125 2203-000426 C-CERAMIC,CHIP;18pF,5%,50V,NPO,1608,-,TP
C126 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­C127 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C128 2203-001640 C-CERAMIC,CHIP;390pF,10%,50V,X7R,TP,1608
C129 2203-001083 C-CERAMIC,CHIP;5pF,0.1pF,50V,NPO,TP,1608
C13 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C130 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C131 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C132 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C133 2203-000815 C-CERAMIC,CHIP;33pF,5%,50V,NPO,TP,1608,­C134 2203-000315 C-CERAMIC,CHIP;120pF,5%,50V,NPO,TP,1608,
C135 2203-000998 C-CERAMIC,CHIP;47pF,5%,50V,NPO,TP,1608,­C136 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­C137 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C138 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C139 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­C14 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C140 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C141 2203-000405 C-CERAMIC,CHIP;180pF,5%,50V,NPO,TP,1608,
C142 2203-001683 C-CERAMIC,CHIP;68pF,5%,50V,CH,TP,1608,1.

Samsung Electronics 7-3

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

C143 2203-001113 C-CERAMIC,CHIP;62pF,5%,50V,NPO,TP,1608,­C144 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C15 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C150 2203-001071 C-CERAMIC,CHIP;56pF,5%,50V,NPO,TP,1608,­C151 2203-000998 C-CERAMIC,CHIP;47pF,5%,50V,NPO,TP,1608,­C152 2203-000815 C-CERAMIC,CHIP;33pF,5%,50V,NPO,TP,1608,­C153 2203-000041 C-CERAMIC,CHIP;10pF,0.25pF,50V,NPO,TP,16
C154 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C155 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C156 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C16 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C17 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C18 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216,­C19 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216,­C2 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C20 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C201 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C202 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C203 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C204 2402-001008 C-AL,SMD;220uF,20%,4V,-,6.6x6.6x5.4mm,2
C205 2404-000167 C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,­C206 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C207 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C208 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C209 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C21 2404-000250 C-TA,CHIP;470nF,20%,25V,-,TP,3216,­C210 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C211 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
C212 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C213 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C214 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C215 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C216 2203-000332 C-CERAMIC,CHIP;12pF,5%,50V,NPO,TP,1608,- OPTION
C216 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­C218 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C219 2203-000062 C-CERAMIC,CHIP;47nF,+80-20%,50V,Y5V,TP,1 OPTION
C219 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C22 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C220 2404-000167 C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,­C221 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216,­C222 2404-000218 C-TA,CHIP;330nF,20%,35V,-,TP,3216,­C223 2404-000167 C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,­C224 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C224 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1 OPTION
C224 2203-001656 C-CERAMIC,CHIP;470pF,5%,50V,CH,TP,1608,1
C225 2203-000715 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608 OPTION
C225 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1 OPTION
C225 2203-001656 C-CERAMIC,CHIP;470pF,5%,50V,CH,TP,1608,1
C226 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C227 2203-001640 C-CERAMIC,CHIP;390pF,10%,50V,X7R,TP,1608

C228 2203-001640 C-CERAMIC,CHIP;390pF,10%,50V,X7R,TP,1608
C229 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C229 2203-000357 C-CERAMIC,CHIP;150pF,5%,50V,NPO,TP,1608,
C23 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C230 2203-000357 C-CERAMIC,CHIP;150pF,5%,50V,NPO,TP,1608,
C231 2203-000929 C-CERAMIC,CHIP;470pF,10%,50V,X7R,TP,1608 OPTION
C231 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C232 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20 OPTION
C232 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C234 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C235 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C236 2203-000315 C-CERAMIC,CHIP;120pF,5%,50V,NPO,TP,1608, OPTION
C236 2203-000357 C-CERAMIC,CHIP;150pF,5%,50V,NPO,TP,1608, OPTION
C236 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C237 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C238 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C239 2203-005148 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C24 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216,­C240 2203-001683 C-CERAMIC,CHIP;68pF,5%,50V,CH,TP,1608,1.
C241 2203-000315 C-CERAMIC,CHIP;120pF,5%,50V,NPO,TP,1608,
C243 2404-000250 C-TA,CHIP;470nF,20%,25V,-,TP,3216,­C244 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C245 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C246 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C247 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C248 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C249 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C25 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C250 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C251 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C26 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C260 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C27 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C270 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C271 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
C272 2203-001408 C-CERAMIC,CHIP;270pF,5%,50V,COG,TP,1608,
C273 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C28 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C281 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C282 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C283 2203-000405 C-CERAMIC,CHIP;180pF,5%,50V,NPO,TP,1608,
C29 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C292 2203-001113 C-CERAMIC,CHIP;62pF,5%,50V,NPO,TP,1608,­C293 2203-000815 C-CERAMIC,CHIP;33pF,5%,50V,NPO,TP,1608,­C3 2404-000218 C-TA,CHIP;330nF,20%,35V,-,TP,3216,­C30 2203-001652 C-CERAMIC,CHIP;470NF,+80-20%,16V,Y5V,TP, OPTION
C30 2203-005148 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C31 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C311 2203-005148 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C312 2203-000405 C-CERAMIC,CHIP;180pF,5%,50V,NPO,TP,1608,

Samsung Electronics7-4

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

C519 2203-001630 C-CERAMIC,CHIP;330nF,+80-20%,16V,Y5V,TP,
C520 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C521 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C522 2203-000715 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C523 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C524 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C525 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C526 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C527 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C528 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216,­C529 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C530 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C531 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C532 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C534 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C535 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C536 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C537 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C538 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C539 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C541 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528,­C542 2203-001640 C-CERAMIC,CHIP;390pF,10%,50V,X7R,TP,1608
C543 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608
C544 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608
C545 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C546 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C547 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C548 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C549 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C550 2404-000232 C-TA,CHIP;4.7uF,20%,10V,-,TP,3216,­C551 2404-000232 C-TA,CHIP;4.7uF,20%,10V,-,TP,3216,­C552 2203-000815 C-CERAMIC,CHIP;33pF,5%,50V,NPO,TP,1608,­C553 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C601 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­C602 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C603 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C604 2203-000332 C-CERAMIC,CHIP;12pF,5%,50V,NPO,TP,1608,­C605 2203-000332 C-CERAMIC,CHIP;12pF,5%,50V,NPO,TP,1608,­C606 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C609 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C610 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C611 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C612 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C613 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C615 2203-001640 C-CERAMIC,CHIP;390pF,10%,50V,X7R,TP,1608
C63 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C64 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C65 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C66 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C67 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-

C313 2203-000998 C-CERAMIC,CHIP;47pF,5%,50V,NPO,TP,1608,­C314 2203-001697 C-CERAMIC,CHIP;.082NF,5%,50V,NPO,TP,1608
C315 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C32 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C33 2402-001008 C-AL,SMD;220uF,20%,4V,-,6.6x6.6x5.4mm,2
C331 2203-000332 C-CERAMIC,CHIP;12pF,5%,50V,NPO,TP,1608,- OPTION
C331 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­C34 2404-000167 C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,­C35 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C355 2203-000405 C-CERAMIC,CHIP;180pF,5%,50V,NPO,TP,1608,
C36 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C37 2404-000335 C-TA,CHIP;3.3uF,20%,16V,-,TP,3216,­C38 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C39 2404-000335 C-TA,CHIP;3.3uF,20%,16V,-,TP,3216,­C4 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­C40 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C401 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C401 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C41 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C42 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C43 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C44 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C45 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C451 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C452 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C453 2203-000681 C-CERAMIC,CHIP;27pF,5%,50V,NPO,1608,-,TP
C454 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­C46 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C47 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C48 2203-000041 C-CERAMIC,CHIP;10pF,0.25pF,50V,NPO,TP,16
C49 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C5 2203-000315 C-CERAMIC,CHIP;120pF,5%,50V,NPO,TP,1608,
C50 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­C501 2402-000198 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C502 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C503 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­C505 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C506 2203-001640 C-CERAMIC,CHIP;390pF,10%,50V,X7R,TP,1608
C507 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C508 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C509 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C510 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C511 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C512 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C513 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C514 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C515 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C516 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C517 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C518 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,

Samsung Electronics 7-5

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

C724 2404-000275 C-TA,CHIP;100uF,20%,10V,-,TP,7343,7.3mm
C725 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608 OPTION
C725 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­C726 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C726 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C727 2404-000246 C-TA,CHIP;4.7uF,20%,6.3V,-,TP,3216,- OPTION
C727 2404-000266 C-TA,CHIP;680nF,20%,25V,-,TP,3216,­C728 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216,- OPTION
C728 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C729 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP, OPTION
C729 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C73 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C730 2404-000246 C-TA,CHIP;4.7uF,20%,6.3V,-,TP,3216,- OPTION
C730 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C731 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C731 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C732 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C732 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C733 2404-000167 C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,­C734 2404-000167 C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,­C735 2404-000259 C-TA,CHIP;47uF,20%,6.3V,-,TP,6032,­C736 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 OPTION
C736 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C737 2404-000250 C-TA,CHIP;470nF,20%,25V,-,TP,3216,­C738 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C739 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C74 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C740 2203-001071 C-CERAMIC,CHIP;56pF,5%,50V,NPO,TP,1608,­C75 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C751 2404-000275 C-TA,CHIP;100uF,20%,10V,-,TP,7343,7.3mm
C752 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C753 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C754 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C8 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C801 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C802 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
C803 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C804 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C805 2203-001554 C-CERAMIC,CHIP;1.8nF,10%,50V,X7R,TP,1608
C806 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
C807 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
C808 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
C809 2203-000929 C-CERAMIC,CHIP;470pF,10%,50V,X7R,TP,1608
C810 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C811 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
C812 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C813 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C814 2404-000167 C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,­C815 2203-000929 C-CERAMIC,CHIP;470pF,10%,50V,X7R,TP,1608
C816 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,

C68 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C69 2203-001640 C-CERAMIC,CHIP;390pF,10%,50V,X7R,TP,1608
C70 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C701 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, OPTION
C701 2404-000250 C-TA,CHIP;470nF,20%,25V,-,TP,3216,­C702 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, OPTION
C702 2404-000250 C-TA,CHIP;470nF,20%,25V,-,TP,3216,­C703 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C703 2404-000250 C-TA,CHIP;470nF,20%,25V,-,TP,3216,­C704 2404-000275 C-TA,CHIP;100uF,20%,10V,-,TP,7343,7.3mm
C705 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608, OPTION
C705 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C706 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C706 2404-000226 C-TA,CHIP;33uF,20%,6.3V,WT,6032,-,TP
C707 2404-000246 C-TA,CHIP;4.7uF,20%,6.3V,-,TP,3216,­C708 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C708 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C709 2404-000246 C-TA,CHIP;4.7uF,20%,6.3V,-,TP,3216,- OPTION
C709 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C71 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C710 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP, OPTION
C710 2404-000246 C-TA,CHIP;4.7uF,20%,6.3V,-,TP,3216,­C711 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C711 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C712 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608 OPTION
C712 2404-000246 C-TA,CHIP;4.7uF,20%,6.3V,-,TP,3216,­C713 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C713 2404-000246 C-TA,CHIP;4.7uF,20%,6.3V,-,TP,3216,­C714 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608 OPTION
C714 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608
C715 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C715 2404-000275 C-TA,CHIP;100uF,20%,10V,-,TP,7343,7.3mm
C716 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C716 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C717 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C717 2203-000925 C-CERAMIC,CHIP;470nF,+80-20%,50V,Y5V,TP,
C718 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C718 2203-000715 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C719 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608, OPTION
C719 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C72 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,- OPTION
C72 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
C720 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C720 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C721 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C722 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
C722 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C723 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608 OPTION
C723 2404-000151 C-TA,CHIP;1uF,20%,16V,-,TP,3216,­C724 2404-000246 C-TA,CHIP;4.7uF,20%,6.3V,-,TP,3216,- OPTION

Samsung Electronics7-6

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

C817 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
C818 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,
C819 2203-001554 C-CERAMIC,CHIP;1.8nF,10%,50V,X7R,TP,1608
C820 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
C821 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C822 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
C823 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C824 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C825 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C826 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C827 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C828 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C829 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C9 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C901 2404-000128 C-TA,CHIP;10uF,20%,16V,-,TP,6032,­C902 2203-002376 C-CERAMIC,CHIP;2.2uF,+80-20%,50V,Y5V,TP,
C903 2203-001724 C-CERAMIC,CHIP;4700NF,+80-20%,16V,Y5V,TP
C904 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528,­C905 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C906 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C907 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C908 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­C909 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C910 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C911 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C912 2203-002376 C-CERAMIC,CHIP;2.2uF,+80-20%,50V,Y5V,TP,
C913 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528,­C914 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528,­C915 2203-002376 C-CERAMIC,CHIP;2.2uF,+80-20%,50V,Y5V,TP,
C916 2203-000483 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,32
C917 2203-000483 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,32
C918 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C919 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C920 2203-000483 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,32
C921 2203-000483 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,32
C922 2203-001724 C-CERAMIC,CHIP;4700NF,+80-20%,16V,Y5V,TP
C923 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
C924 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C925 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
C926 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C927 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
C928 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C929 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C930 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C931 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
C932 2203-001607 C-CERAMIC,CHIP;220pF,5%,50V,CH,TP,1608,1
C933 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C934 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C935 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C936 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-

C937 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C938 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C939 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C940 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C941 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C942 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C943 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­C944 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528,­CG03 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
CG04 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
CG05 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
CN001 3708-001243 CONNECTOR-FPC/FC/PIC;11P,1MM,SMD-A,SN OPTION
CN001 3708-001345 CONNECTOR-FPC/FC/PIC;11P,-,SMD-A,SN
CN501 3710-001301 CONNECTOR-SOCKET;48P,2R,0.8mm,SMD-S,SN
CN601 3710-000551 CONNECTOR-SOCKET;24P,2R,1.0MM,SMD-S,SN
CN603 3711-000386 CONNECTOR-HEADER;3WALL,10P,1R,1.25mm,SMD
CN604 3708-000457 CONNECTOR-FPC/FC/PIC;15P,1.25mm,SMD-S,SN
CN605 3710-001479 CONNECTOR-SOCKET;14P,2R,1MM,SMD-S,SN
CN801 3708-001025 CONNECTOR-FPC/FC/PIC;30P,0.5mm,ANGLE,SN
CN802 3711-000556 CONNECTOR-HEADER;BOX,12P,1R,1.25mm,SMD-A
CN851 3711-002127 CONNECTOR-HEADER;BOX,8P,1R,1.25mm,SMD-A,
CNP01 3710-001478 CONNECTOR-SOCKET;18P,2R,1MM,SMD-S,SN
CNP02 3708-001070 CONNECTOR-FPC/FC/PIC;22P,0.5MM,SMD-A,SN
CNP03 3708-001069 CONNECTOR-FPC/FC/PIC;20P,0.5MM,SMD-A,SN
CP01 2404-000156 C-TA,CHIP;1uF,20%,35V,-,TP,3528,1.4mm
CP02 2203-005148 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
CP03 2203-000357 C-CERAMIC,CHIP;150pF,5%,50V,NPO,TP,1608,
CP04 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
CP05 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP06 2203-000715 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
CP07 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
CP08 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
CP09 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP10 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CP100 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP101 2203-000426 C-CERAMIC,CHIP;18pF,5%,50V,NPO,1608,-,TP OPTION
CP101 2203-000681 C-CERAMIC,CHIP;27pF,5%,50V,NPO,1608,-,TP
CP102 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP104 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CP105 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CP11 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP110 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP111 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP12 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CP129 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­CP13 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
CP14 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP15 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­CP16 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP17 2404-000190 C-TA,CHIP;22uF,20%,16V,-,TP,5832,-

Samsung Electronics 7-7

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

CP18 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP19 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP20 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP21 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP22 2203-001634 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,1608,
CP23 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
CP24 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP25 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP26 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP27 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP28 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP29 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP30 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CP31 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP32 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP33 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP34 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP35 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
CP36 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP37 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
CP38 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP, OPTION
CP38 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP39 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP40 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528,­CP41 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528,­CP42 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP43 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP44 2404-001131 C-TA,CHIP;22UF,10%,10V,GP,TP,3528
CP45 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CP46 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP47 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP48 2203-000815 C-CERAMIC,CHIP;33pF,5%,50V,NPO,TP,1608,­CP49 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­CP50 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP51 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­CP52 2203-001222 C-CERAMIC,CHIP;820pF,10%,50V,X7R,TP,1608
CP53 2203-000681 C-CERAMIC,CHIP;27pF,5%,50V,NPO,1608,-,TP
CP54 2203-001630 C-CERAMIC,CHIP;330nF,+80-20%,16V,Y5V,TP,
CP55 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP57 2203-000426 C-CERAMIC,CHIP;18pF,5%,50V,NPO,1608,-,TP
CP58 2203-000998 C-CERAMIC,CHIP;47pF,5%,50V,NPO,TP,1608,­CP59 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3528,­CP60 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP61 2203-000041 C-CERAMIC,CHIP;10pF,0.25pF,50V,NPO,TP,16
CP62 2203-000041 C-CERAMIC,CHIP;10pF,0.25pF,50V,NPO,TP,16
CP63 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CP64 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP65 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP66 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
CP67 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

CP68 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP70 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP71 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,­CP72 2203-000815 C-CERAMIC,CHIP;33pF,5%,50V,NPO,TP,1608,­CP73 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP74 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP75 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CP76 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP77 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP79 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP80 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP81 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP82 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP83 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP84 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP85 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP86 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP87 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP88 2203-000384 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,1608,- OPTION
CP88 2203-000626 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,1608,­CP89 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP90 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP91 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608,
CP92 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP93 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP94 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP95 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP96 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP97 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
CP98 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CP99 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
D001 0407-000122 DIODE-ARRAY;KDS226,80V,300mA,C2-3,SOT-23
D101 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
D201 0401-001058 DIODE-SWITCHING;KDS121,85V,300mA,SOT-323
D202 0401-001058 DIODE-SWITCHING;KDS121,85V,300mA,SOT-323
D203 0401-001058 DIODE-SWITCHING;KDS121,85V,300mA,SOT-323
D204 0401-001058 DIODE-SWITCHING;KDS121,85V,300mA,SOT-323
D205 0401-001058 DIODE-SWITCHING;KDS121,85V,300mA,SOT-323
D206 0401-001058 DIODE-SWITCHING;KDS121,85V,300mA,SOT-323
D207 0401-001058 DIODE-SWITCHING;KDS121,85V,300mA,SOT-323
D311 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
D501 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
D502 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
D503 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
D701 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
D901 0407-000139 DIODE-ARRAY;IMN10,80V,100mA,CX3,IMD,TP
DG01 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
DG02 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
DG03 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
DP01 0407-000148 DIODE-ARRAY;MA141WK,40V,150mA,CA2-3,SC-7

Samsung Electronics7-8

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

L034 2703-000381 INDUCTOR-SMD;180uH,5%,3.2x2.5x2.2mm
L041 2703-000381 INDUCTOR-SMD;180uH,5%,3.2x2.5x2.2mm
L042 2703-000372 INDUCTOR-SMD;56uH,5%,2.5x2x1.8mm
L043 2703-000363 INDUCTOR-SMD;10uH,5%,2.5x2x1.8mm
L051 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm
L052 2703-000363 INDUCTOR-SMD;10uH,5%,2.5x2x1.8mm
L061 2703-000367 INDUCTOR-SMD;33uH,5%,2.5x2x1.8mm
L1 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
L101 2703-000425 INDUCTOR-SMD;27uH,5%,2x2.5x1.8mm
L102 2703-000380 INDUCTOR-SMD;18uH,5%,3.2x2.5x2.2mm
L103 2703-000380 INDUCTOR-SMD;18uH,5%,3.2x2.5x2.2mm
L104 2703-000425 INDUCTOR-SMD;27uH,5%,2x2.5x1.8mm
L105 2703-000349 INDUCTOR-SMD;120uH,5%,3.2x2.5x2.2mm
L106 2703-000371 INDUCTOR-SMD;4.7uH,5%,2.5x2x1.8mm
L107 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm
L108 2703-000370 INDUCTOR-SMD;47uH,5%,2.5x2x1.8mm
L109 2703-000187 INDUCTOR-SMD;3.3uH,5%,2x2.5x1.8mm
L110 2703-000380 INDUCTOR-SMD;18uH,5%,3.2x2.5x2.2mm
L111 2703-000371 INDUCTOR-SMD;4.7uH,5%,2.5x2x1.8mm
L141 2703-000365 INDUCTOR-SMD;15uH,5%,2.5x2x1.8mm
L142 2703-000374 INDUCTOR-SMD;6.8uH,5%,2.5x2x1.8mm
L143 2703-000363 INDUCTOR-SMD;10uH,5%,2.5x2x1.8mm
L2 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
L202 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L203 2703-000372 INDUCTOR-SMD;56uH,5%,2.5x2x1.8mm
L204 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L238 2703-000396 INDUCTOR-SMD;10uH,10%,2.5x2x1.8mm
L251 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm
L252 2703-000349 INDUCTOR-SMD;120uH,5%,3.2x2.5x2.2mm
L253 2703-000417 INDUCTOR-SMD;220uH,5%,3.2x2.5x2.2mm
L291 2703-000366 INDUCTOR-SMD;22uH,5%,2.5x2x1.8mm
L311 2703-000380 INDUCTOR-SMD;18uH,5%,3.2x2.5x2.2mm
L312 2703-000425 INDUCTOR-SMD;27uH,5%,2x2.5x1.8mm
L331 2703-000372 INDUCTOR-SMD;56uH,5%,2.5x2x1.8mm
L4 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm
L401 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm
L451 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm
L452 2703-000365 INDUCTOR-SMD;15uH,5%,2.5x2x1.8mm
L502 2007-000033 R-CHIP;0OHM,5%,1/8W,DA,TP,3216
L503 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L6 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm
L601 2703-000409 INDUCTOR-SMD;47uH,10%,3.2x2.5x2.2mm
L701 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm
L702 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm OPTION
L702 2703-001758 INDUCTOR-SMD;100uH,10%,3.2x2.5x2.2mm
L710 2703-000425 INDUCTOR-SMD;27uH,5%,2x2.5x1.8mm
L751 2703-000407 INDUCTOR-SMD;330uH,10%,3.2x2.5x2.2mm
L901 2703-000402 INDUCTOR-SMD;1uH,20%,3.2x2.5x2.2mm
L902 2703-000408 INDUCTOR-SMD;3.3uH,20%,3.2x2.5x2.2mm
L903 2703-000414 INDUCTOR-SMD;22uH,20%,7x7x3.2mm

DP02 0405-000151 DIODE-VARACTOR;1T379,30V,10nA,USMD,TP
DP03 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
DP04 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
DP05 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
DP06 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
DP07 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
IC001 1201-001091 IC-PREAMP;2002,QFP,48P,-,SINGLE,1000MV/V OPTION
IC001 1201-001312 IC-PREAMP;CXA2032Q,QFP,32P,7.0MIL,SINGLE
IC002 1209-001044 IC-DELAY LINE;CXL5517N,SOP,20P,173MIL,PL OPTION
IC002 AC14-12014E IC-CCD;CXL5502N,DIP,­IC004 1209-001052 IC-ETC, LINEAR;CXA2003N,SOP,24P,-,PLASTI
IC101 1201-001092 IC-RF AMP;1509,QFP,48P,-,SINGLE,-,PLASTI
IC201 AD14-12001D IC-VIDEO PROCESS;CXA2085R,LQFP,64P OPTION
IC201 AD14-12001E IC-VIDEO PROCESS;CXA2081R,LQFP,64P,NOR
IC202 AD14-00001A IC--VIDEO PROCESS;CXA2083R,VQFP,64P
IC401 1002-001125 IC-D/A CONVERTER;M62366GP,8BIT,SSOP,20P,
IC451 1204-001458 IC-OSD PROCESSOR;M35040-064FP(SEC),DIP,2
IC501 1204-001124 IC-VIDEO SYSTEM;CXA1814N,SOP,30P,-,PLAST
IC502 1003-001188 IC-MOTOR DRIVER;LB1990W,QFP,64P,400MIL,S
IC503 AC14-12012T IC-OP AMP;TA75S01F(TE85L),QFP,­IC601 AD09-00012A IC-MCU;CXP87140-121R,-,TRAY,-,8BIT,100P OPTION
IC601 AD09-00013A IC-MCU;CXP87140-122R,-,TRAY,-,8BIT,100P
IC701 1201-001406 IC-AUDIO AMP;7458,SQFP,64P,393MIL,-,-,PL OPTION
IC701 1204-001416 IC-AUDIO PROCESSOR;LA74000W,QFP,64P,-,PL
IC751 1201-001207 IC-AUDIO AMP;7052A,DIP,8P,-,SINGLE,35.5M
IC801 1201-001108 IC-AUDIO AMP;7471,SOP,36P,-,SINGLE,-,PLA
IC901 1203-001534 IC-PWM CONTROLLER;TL1466I,QFP,64P,-,PLAS
ICP01 AD14-10002D IC-DSP;KS7331,VQFP,128P
ICP02 AD09-00016A IC-MICOM;P81840A-519R,X16,2ND,100,TRAY,- OPTION
ICP02 AD09-00024A IC-MICOM;P81840A-521R,X22,4TH,100,TRAY,­ICP03 1002-001127 IC-A/D CONVERTER;AD9803,10BIT,LQFP,48P,3
ICP04 1003-001200 IC-MOTOR DRIVER;UPD16835,SOP,38P,300MIL,
ICP06 1201-000240 IC-OP AMP;2902,SOP,14P,173MIL,QUAD,15V/m
ICP07 1201-000246 IC-OP AMP;3403,SOP,14P,173MIL,QUAD,20V/m
ICP08 1003-001065 IC-CLOCK DRIVER;KS7221D,SOP,20P,225MIL,Q
ICP09 1203-001021 IC-VOLTAGE REGULATOR;8423,SOP,8P,251MIL,
ICP10 1103-001134 IC-EEPROM;24C040,512x8BIT,SOP,8P,150MIL,
ICP11 0801-002417 IC-CMOS LOGIC;TC7SU04F,INVERTER,SSOP,5P
ICW01 AD14-10002E IC-WDR;KS7332,QFP,48P
L001 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm OPTION
L001 2703-000404 INDUCTOR-SMD;220uH,10%,3.2x2.5x2.2mm
L002 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm OPTION
L002 2703-000404 INDUCTOR-SMD;220uH,10%,3.2x2.5x2.2mm
L003 2703-000404 INDUCTOR-SMD;220uH,10%,3.2x2.5x2.2mm OPTION
L003 2703-001758 INDUCTOR-SMD;100uH,10%,3.2x2.5x2.2mm
L004 2703-000404 INDUCTOR-SMD;220uH,10%,3.2x2.5x2.2mm
L031 2703-000381 INDUCTOR-SMD;180uH,5%,3.2x2.5x2.2mm OPTION
L031 2703-000385 INDUCTOR-SMD;330uH,5%,3.2x2.5x2.2mm
L032 2703-000388 INDUCTOR-SMD;470uH,5%,3.2x2.5x2.2mm
L033 2703-000397 INDUCTOR-SMD;33uH,10%,2.5x2x1.8mm

Samsung Electronics 7-9

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

Q105 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q106 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q107 0506-000151 TR-ARRAY;UMZ1N,NPN/PNP,1,50V,40V,100MA,
Q108 0506-000150 TR-ARRAY;UMX2N,NPN,2,50V,40V,100MA,300M
Q109 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q12 0506-000146 TR-ARRAY;UMH6N,NPN,2,150mW,UM6,TP,68
Q2 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q201 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q202 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q203 0504-001037 TR-DIGITAL;KRC401,NPN,100MW,4.7K/4.7K,SO
Q204 0504-001037 TR-DIGITAL;KRC401,NPN,100MW,4.7K/4.7K,SO
Q211 0506-000150 TR-ARRAY;UMX2N,NPN,2,50V,40V,100MA,300M
Q212 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP OPTION
Q212 0506-000150 TR-ARRAY;UMX2N,NPN,2,50V,40V,100MA,300M
Q213 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q214 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q216 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q237 0506-000151 TR-ARRAY;UMZ1N,NPN/PNP,1,50V,40V,100MA,
Q238 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
Q241 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
Q242 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q243 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
Q244 0504-001036 TR-DIGITAL;KRA304,PNP,100mW,47K/47Kohm,S
Q291 0506-000151 TR-ARRAY;UMZ1N,NPN/PNP,1,50V,40V,100MA,
Q292 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
Q293 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q3 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
Q311 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
Q312 0506-000150 TR-ARRAY;UMX2N,NPN,2,50V,40V,100MA,300M
Q313 0506-000151 TR-ARRAY;UMZ1N,NPN/PNP,1,50V,40V,100MA,
Q314 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q355 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q4 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q501 0501-000172 TR-SMALL SIGNAL;2SB1121,PNP,500MW,PCP,TP
Q502 0504-001038 TR-DIGITAL;KRC402,NPN,100MW,10K/10K,SOT­Q503 0506-000150 TR-ARRAY;UMX2N,NPN,2,50V,40V,100MA,300M
Q504 0506-000150 TR-ARRAY;UMX2N,NPN,2,50V,40V,100MA,300M
Q602 0504-001040 TR-DIGITAL;KRC403,NPN,100MW,22K/22K,SOT­Q701 0501-000546 TR-SMALL SIGNAL;KSA1298,PNP,200mW,SOT-23 OPTION
Q701 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q702 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP OPTION
Q702 0504-001038 TR-DIGITAL;KRC402,NPN,100MW,10K/10K,SOT­Q703 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q704 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q706 0501-000172 TR-SMALL SIGNAL;2SB1121,PNP,500MW,PCP,TP
Q707 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q751 0501-000426 TR-SMALL SIGNAL;KTA1664Y,PNP,500mW,SOT-8
Q752 0504-001038 TR-DIGITAL;KRC402,NPN,100MW,10K/10K,SOT­Q761 0504-001036 TR-DIGITAL;KRA304,PNP,100mW,47K/47Kohm,S
Q762 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP

L904 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L905 2703-000400 INDUCTOR-SMD;15uH,10%,3.2x2.5x2.2mm
L906 2703-000408 INDUCTOR-SMD;3.3uH,20%,3.2x2.5x2.2mm
L907 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L908 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L909 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L910 2703-000408 INDUCTOR-SMD;3.3uH,20%,3.2x2.5x2.2mm
L911 2703-001194 INDUCTOR-SMD;100uH,20%,7x7x3.2mm
L912 2703-001194 INDUCTOR-SMD;100uH,20%,7x7x3.2mm
L913 2703-000408 INDUCTOR-SMD;3.3uH,20%,3.2x2.5x2.2mm
L914 2703-001758 INDUCTOR-SMD;100uH,10%,3.2x2.5x2.2mm
L915 2703-000002 INDUCTOR-SMD;100uH,10%,2.5x3.2x2mm OPTION
L915 2703-001758 INDUCTOR-SMD;100uH,10%,3.2x2.5x2.2mm
L916 2703-001758 INDUCTOR-SMD;100uH,10%,3.2x2.5x2.2mm
L917 2703-000408 INDUCTOR-SMD;3.3uH,20%,3.2x2.5x2.2mm
L918 2703-000414 INDUCTOR-SMD;22uH,20%,7x7x3.2mm
L919 2703-000402 INDUCTOR-SMD;1uH,20%,3.2x2.5x2.2mm
L920 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L921 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L922 2703-000398 INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM
L923 2703-001020 INDUCTOR-SMD;47uH,20%,7x7x3.2mm
LP01 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP02 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP03 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP04 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP07 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP09 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP10 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP14 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP17 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LP18 2703-000373 INDUCTOR-SMD;68uH,5%,2.5x2x1.8mm
LP19 2703-000366 INDUCTOR-SMD;22uH,5%,2.5x2x1.8mm
Q001 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q003 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q031 0506-000150 TR-ARRAY;UMX2N,NPN,2,50V,40V,100MA,300M
Q032 0506-000150 TR-ARRAY;UMX2N,NPN,2,50V,40V,100MA,300M
Q033 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q034 0501-000448 TR-SMALL SIGNAL;KTC3880Y,NPN,100mW,SOT-2
Q035 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q036 0504-001036 TR-DIGITAL;KRA304,PNP,100mW,47K/47Kohm,S
Q037 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q038 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q051 0506-000148 TR-ARRAY;UMT2N,PNP,2,-50V,-40V,-100MA,3
Q052 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q1 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
Q10 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q101 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q102 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q103 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
Q104 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT-

Samsung Electronics7-10

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

Q765 0501-000172 TR-SMALL SIGNAL;2SB1121,PNP,500MW,PCP,TP
Q766 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q8 0504-001036 TR-DIGITAL;KRA304,PNP,100mW,47K/47Kohm,S
Q9 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q901 0501-000681 TR-SMALL SIGNAL;FP101,PNP,1.3W,PCP4,TP,1
Q902 0501-000546 TR-SMALL SIGNAL;KSA1298,PNP,200mW,SOT-23
Q903 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q904 0501-000546 TR-SMALL SIGNAL;KSA1298,PNP,200mW,SOT-23
Q905 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­Q906 0501-000681 TR-SMALL SIGNAL;FP101,PNP,1.3W,PCP4,TP,1
Q907 0501-000681 TR-SMALL SIGNAL;FP101,PNP,1.3W,PCP4,TP,1
Q908 0501-000172 TR-SMALL SIGNAL;2SB1121,PNP,500MW,PCP,TP
Q909 0501-000681 TR-SMALL SIGNAL;FP101,PNP,1.3W,PCP4,TP,1
Q910 0501-000681 TR-SMALL SIGNAL;FP101,PNP,1.3W,PCP4,TP,1
QP01 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­QP02 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
QP03 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
QP04 0501-000596 TR-SMALL SIGNAL;2SB970R,PNP,200MW,SOT-23
QP05 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­QP06 0501-002171 TR-SMALL SIGNAL;KTA2014,PNP,100mW,SOT-32
QP09 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­QP10 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­QP11 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­QP12 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­QP15 0504-001032 TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT­QP16 0501-002128 TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP
R001 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R002 2007-000107 R-CHIP;470Kohm,5%,1/16W,DA,TP,1608 OPTION
R002 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R003 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608 OPTION
R003 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R004 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 OPTION
R004 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R005 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 OPTION
R005 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
R006 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R007 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 OPTION
R007 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
R008 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 OPTION
R008 2007-000458 R-CHIP;18Kohm,5%,1/16W,DA,TP,1608
R009 2007-000107 R-CHIP;470Kohm,5%,1/16W,DA,TP,1608 OPTION
R009 2007-000458 R-CHIP;18Kohm,5%,1/16W,DA,TP,1608
R010 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608 OPTION
R010 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R011 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608 OPTION
R011 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R012 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608 OPTION
R012 2007-000130 R-CHIP;39Kohm,5%,1/16W,DA,TP,1608
R013 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608
R014 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608

R015 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608 OPTION
R015 2007-000130 R-CHIP;39Kohm,5%,1/16W,DA,TP,1608
R016 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608 OPTION
R016 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R017 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 OPTION
R017 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R018 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R019 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R020 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R021 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R022 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R023 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R024 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 OPTION
R024 2007-000120 R-CHIP;680ohm,5%,1/16W,DA,TP,1608
R025 2007-000643 R-CHIP;270ohm,5%,1/16W,DA,TP,1608
R026 2007-000071 R-CHIP;22ohm,5%,1/16W,DA,TP,1608
R027 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R031 2007-000458 R-CHIP;18Kohm,5%,1/16W,DA,TP,1608
R032 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
R033 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608
R034 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R035 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608 OPTION
R035 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R036 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 OPTION
R036 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R037 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R038 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R039 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R040 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R041 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R042 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
R043 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R044 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R045 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R046 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R049 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R050 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R051 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 OPTION
R051 2007-000091 R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R052 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R053 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608 OPTION
R053 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R054 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608 OPTION
R054 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608
R055 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608
R056 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R057 2007-000458 R-CHIP;18Kohm,5%,1/16W,DA,TP,1608
R058 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R059 2007-000458 R-CHIP;18Kohm,5%,1/16W,DA,TP,1608
R060 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

Samsung Electronics 7-11

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

R061 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R071 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R072 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R073 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R1 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608
R101 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R102 2007-000120 R-CHIP;680ohm,5%,1/16W,DA,TP,1608
R103 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608
R104 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R105 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
R106 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608
R107 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R108 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R109 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R110 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R111 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R112 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R113 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R114 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608
R115 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R116 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R117 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R118 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R119 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R12 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R120 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R121 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R122 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R123 2007-000643 R-CHIP;270ohm,5%,1/16W,DA,TP,1608
R124 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R125 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R126 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R127 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R128 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R129 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R13 2007-001134 R-CHIP;68ohm,5%,1/16W,DA,TP,1608
R130 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R131 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R132 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R133 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R134 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R135 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608
R136 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R140 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R141 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R142 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R143 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R144 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608 OPTION
R144 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608
R145 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608

R146 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R147 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608
R148 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608
R149 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R15 2007-000839 R-CHIP;39ohm,5%,1/16W,DA,TP,1608
R150 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
R16 2007-000113 R-CHIP;33ohm,5%,1/16W,DA,TP,1608
R18 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R2 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R201 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R204 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R205 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R206 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
R207 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R208 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 OPTION
R208 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608 OPTION
R208 2007-000120 R-CHIP;680ohm,5%,1/16W,DA,TP,1608
R209 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608
R21 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R210 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608
R211 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 OPTION
R211 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R212 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R213 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R214 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R215 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 OPTION
R215 2007-000120 R-CHIP;680ohm,5%,1/16W,DA,TP,1608
R216 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R217 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R218 2007-000929 R-CHIP;470ohm,1%,1/16W,DA,TP,1608
R219 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 OPTION
R219 2007-000821 R-CHIP;390ohm,1%,1/16W,DA,TP,1608
R22 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R221 2007-000219 R-CHIP;1.2Kohm,1%,1/16W,DA,TP,1608
R222 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R223 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R225 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 OPTION
R225 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608
R23 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R230 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R232 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
R234 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R235 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
R236 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
R237 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R238 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R239 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608
R24 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R240 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R241 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

Samsung Electronics7-12

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

R317 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608
R318 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R319 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608
R32 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R320 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608
R321 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R322 2007-000839 R-CHIP;39ohm,5%,1/16W,DA,TP,1608
R323 2007-000120 R-CHIP;680ohm,5%,1/16W,DA,TP,1608
R324 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608
R33 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R34 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R35 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R355 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R356 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R36 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R37 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R38 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R39 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R40 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R401 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R402 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R403 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R41 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R42 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R43 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R44 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R451 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R452 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R453 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R454 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R455 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608 OPTION
R455 2007-000450 R-CHIP;180ohm,5%,1/16W,DA,TP,1608
R456 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R457 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R458 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R459 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R460 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R461 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R462 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R463 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R501 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R502 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R503 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R504 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608
R507 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R508 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R509 2007-000107 R-CHIP;470Kohm,5%,1/16W,DA,TP,1608
R510 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R511 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R512 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

R242 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R243 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R244 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R245 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608 OPTION
R245 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
R246 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R250 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 OPTION
R250 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R251 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 OPTION
R251 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R252 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R253 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
R254 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R256 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R27 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R279 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R28 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R280 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R281 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R282 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R283 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R284 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R285 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R286 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R287 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R288 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R289 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R29 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R291 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R292 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R293 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R294 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R296 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608
R297 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
R298 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R30 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R300 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R301 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R302 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R303 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R304 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R305 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R31 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 OPTION
R31 2007-000116 R-CHIP;120ohm,5%,1/16W,DA,TP,1608
R311 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R312 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R313 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R314 2007-000081 R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1608
R315 2007-000120 R-CHIP;680ohm,5%,1/16W,DA,TP,1608
R316 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608

Samsung Electronics 7-13

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

R605 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R606 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R608 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R609 2007-000065 R-CHIP;2.2Mohm,5%,1/16W,DA,TP,1608
R610 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R612 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R613 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R614 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R615 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R616 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R617 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R618 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R619 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R620 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R621 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R622 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R623 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R624 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R625 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R626 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R627 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R628 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R629 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R63 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R630 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R631 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R632 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R634 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R635 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R636 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R637 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R638 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R639 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R64 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R641 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608
R642 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R643 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R644 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608
R645 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608
R646 2007-000052 R-CHIP;10Kohm,1%,1/16W,DA,TP,1608
R647 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608
R648 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R65 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R650 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R651 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R652 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R653 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R654 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R655 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R656 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608

R513 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R514 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R515 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R516 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R517 2007-000130 R-CHIP;39Kohm,5%,1/16W,DA,TP,1608
R518 2007-000503 R-CHIP;2.2ohm,5%,1/16W,DA,TP,1608
R519 2007-000503 R-CHIP;2.2ohm,5%,1/16W,DA,TP,1608
R520 2007-000503 R-CHIP;2.2ohm,5%,1/16W,DA,TP,1608
R521 2007-000483 R-CHIP;1ohm,5%,1/10W,DA,TP,2012
R522 2007-000483 R-CHIP;1ohm,5%,1/10W,DA,TP,2012
R523 2007-000483 R-CHIP;1ohm,5%,1/10W,DA,TP,2012
R524 2007-000483 R-CHIP;1ohm,5%,1/10W,DA,TP,2012
R525 2007-000483 R-CHIP;1ohm,5%,1/10W,DA,TP,2012
R526 2007-000483 R-CHIP;1ohm,5%,1/10W,DA,TP,2012
R527 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R528 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R529 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R530 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R531 2007-000091 R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R532 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R533 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R534 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R535 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R536 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R537 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R538 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R539 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R540 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R541 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R542 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R544 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R545 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R547 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R548 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R549 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R550 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R551 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
R552 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
R553 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R554 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R555 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R556 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R557 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R558 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R559 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R560 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R601 2007-000755 R-CHIP;330Kohm,1%,1/16W,DA,TP,1608
R602 2007-000772 R-CHIP;33Kohm,1%,1/16W,DA,TP,1608
R603 2007-000060 R-CHIP;100Kohm,1%,1/16W,DA,TP,1608
R604 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608

Samsung Electronics7-14

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

R657 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R658 2007-000755 R-CHIP;330Kohm,1%,1/16W,DA,TP,1608
R659 2007-000755 R-CHIP;330Kohm,1%,1/16W,DA,TP,1608
R660 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R661 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R662 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R664 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R665 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R666 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R667 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R668 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R671 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R672 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R676 2007-000455 R-CHIP;18Kohm,1%,1/16W,DA,TP,1608
R677 2007-000772 R-CHIP;33Kohm,1%,1/16W,DA,TP,1608
R678 2007-000772 R-CHIP;33Kohm,1%,1/16W,DA,TP,1608
R679 2007-001125 R-CHIP;68Kohm,1%,1/16W,DA,TP,1608
R68 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R684 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R685 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R686 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R687 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R689 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R69 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R690 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R691 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R693 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R695 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R7 2007-001134 R-CHIP;68ohm,5%,1/16W,DA,TP,1608
R701 2007-000099 R-CHIP;62Kohm,5%,1/16W,DA,TP,1608 OPTION
R701 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R702 2007-000099 R-CHIP;62Kohm,5%,1/16W,DA,TP,1608 OPTION
R702 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R703 2007-000096 R-CHIP;30Kohm,5%,1/16W,DA,TP,1608
R704 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608 OPTION
R704 2007-000130 R-CHIP;39Kohm,5%,1/16W,DA,TP,1608
R705 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R706 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R708 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R709 2007-000462 R-CHIP;18OHM,5%,1/10W,DA,TP,2012
R71 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R710 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R711 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608 OPTION
R711 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R712 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R713 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608 OPTION
R713 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R714 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 OPTION
R714 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
R715 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 OPTION

R715 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
R716 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R717 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R718 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R719 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R720 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608 OPTION
R720 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R721 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R722 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608 OPTION
R722 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R723 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R724 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R725 2007-000450 R-CHIP;180ohm,5%,1/16W,DA,TP,1608
R726 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R727 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R728 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R729 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R73 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R730 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R731 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R732 2007-000450 R-CHIP;180ohm,5%,1/16W,DA,TP,1608
R733 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R734 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 OPTION
R734 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R735 2007-000450 R-CHIP;180ohm,5%,1/16W,DA,TP,1608
R736 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608 OPTION
R736 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R737 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
R738 2007-000462 R-CHIP;18OHM,5%,1/10W,DA,TP,2012
R739 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R74 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R741 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R742 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R743 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R746 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R747 2007-000766 R-CHIP;330OHM,5%,1/10W,DA,TP,2012
R748 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R751 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
R752 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R753 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R754 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608
R755 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608
R756 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R757 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R76 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R761 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R762 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R763 2007-000072 R-CHIP;47ohm,5%,1/16W,DA,TP,1608
R765 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608
R766 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608

Samsung Electronics 7-15

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

R77 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R781 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R782 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R788 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608
R801 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608
R802 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R803 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R804 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R805 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R806 2007-000130 R-CHIP;39Kohm,5%,1/16W,DA,TP,1608
R807 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R808 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R809 2007-000655 R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R81 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R810 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
R811 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
R812 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
R813 2007-000106 R-CHIP;220Kohm,5%,1/16W,DA,TP,1608
R814 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R815 2007-000130 R-CHIP;39Kohm,5%,1/16W,DA,TP,1608
R816 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R817 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R818 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R819 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R82 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R820 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608
R821 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R822 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R823 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608
R824 2007-000087 R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1608
R83 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608 OPTION
R83 2007-000093 R-CHIP;20Kohm,5%,1/16W,DA,TP,1608 OPTION
R83 2007-000458 R-CHIP;18Kohm,5%,1/16W,DA,TP,1608
R84 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608 OPTION
R84 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R85 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 OPTION
R85 2007-000091 R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
R86 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R87 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608 OPTION
R87 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608 OPTION
R87 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
R88 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R901 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R902 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R903 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R904 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608
R905 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R906 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R907 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R908 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608

R909 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608
R910 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R911 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R912 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608
R913 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R914 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R915 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R916 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R917 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R918 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R919 2007-001694 R-CHIP;12Kohm,0.5%,1/16W,DA,TP,1608
R920 2007-001650 R-CHIP;8.2Kohm,0.5%,1/16W,DA,TP,1608
R921 2007-001643 R-CHIP;100Kohm,0.5%,1/16W,DA,TP,1608
R922 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R923 2007-001644 R-CHIP;10Kohm,0.5%,1/16W,DA,TP,1608
R924 2007-001694 R-CHIP;12Kohm,0.5%,1/16W,DA,TP,1608
R925 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R926 2007-001694 R-CHIP;12Kohm,0.5%,1/16W,DA,TP,1608
R927 2007-001644 R-CHIP;10Kohm,0.5%,1/16W,DA,TP,1608
R928 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608
R929 2007-001697 R-CHIP;18Kohm,0.5%,1/16W,DA,TP,1608
R930 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R931 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R932 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R933 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
R934 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R935 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R936 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
R937 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R939 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608
R940 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RG30 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RG31 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RG32 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP01 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP02 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP03 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
RP04 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP05 2007-000104 R-CHIP;150Kohm,5%,1/16W,DA,TP,1608
RP06 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
RP07 2007-000134 R-CHIP;33Kohm,5%,1/16W,DA,TP,1608
RP08 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP09 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
RP10 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RP100 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP101 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608
RP102 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
RP103 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP104 2007-000052 R-CHIP;10Kohm,1%,1/16W,DA,TP,1608
RP106 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608

Samsung Electronics7-16

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

RP158 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP16 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
RP160 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RP161 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RP165 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP166 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP167 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP168 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP169 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP17 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RP170 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP171 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP172 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RP173 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RP174 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
RP176 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608
RP18 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP19 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012
RP20 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012
RP21 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012
RP22 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012
RP23 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
RP24 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608
RP25 2007-000076 R-CHIP;330ohm,5%,1/16W,DA,TP,1608
RP26 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RP27 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RP28 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP29 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP30 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP31 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP32 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP33 2007-000113 R-CHIP;33ohm,5%,1/16W,DA,TP,1608
RP34 2007-000096 R-CHIP;30Kohm,5%,1/16W,DA,TP,1608
RP35 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP36 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RP37 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP38 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP39 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP40 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
RP41 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608
RP42 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP43 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP46 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP47 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP48 2007-000863 R-CHIP;4.3OHM,5%,1/10W,DA,TP,2012
RP50 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP52 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP53 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP54 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP59 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608

RP107 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP109 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP11 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP110 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP111 2007-000091 R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
RP112 2007-000091 R-CHIP;12Kohm,5%,1/16W,DA,TP,1608
RP113 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
RP114 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP115 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RP116 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RP117 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP118 2007-000075 R-CHIP;220ohm,5%,1/16W,DA,TP,1608
RP119 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP12 2007-000637 R-CHIP;270Kohm,5%,1/16W,DA,TP,1608
RP120 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP121 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP122 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP123 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP125 2007-000637 R-CHIP;270Kohm,5%,1/16W,DA,TP,1608
RP126 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
RP127 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
RP128 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
RP129 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
RP13 2007-000094 R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
RP130 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP131 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP132 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP133 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP134 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP135 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP136 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP137 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP138 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP139 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP14 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP140 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
RP141 2007-000125 R-CHIP;3.9Kohm,5%,1/16W,DA,TP,1608
RP142 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
RP144 2007-000763 R-CHIP;330ohm,1%,1/16W,DA,TP,1608
RP145 2007-000763 R-CHIP;330ohm,1%,1/16W,DA,TP,1608
RP146 2007-000309 R-CHIP;10ohm,5%,1/16W,DA,TP,1608
RP147 2007-000309 R-CHIP;10ohm,5%,1/16W,DA,TP,1608
RP148 2007-000309 R-CHIP;10ohm,5%,1/16W,DA,TP,1608
RP15 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608
RP152 2007-000084 R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
RP153 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
RP154 2007-000763 R-CHIP;330ohm,1%,1/16W,DA,TP,1608
RP155 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608
RP156 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RP157 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608

Samsung Electronics 7-17

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

SW473 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW474 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW475 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW476 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW477 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW478 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW479 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW480 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW481 3409-001083 SWITCH-DETECTOR;DC3-5V,10MA,-,35.7GF,-

ASS'Y FRONT BOARD

C890 2401-002206 C-AL;47uF,20%,6.3V,GP,TP,5x7,5mm
CG01 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­CG02 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CG06 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CG07 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­CG08 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CG09 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CG10 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­CG11 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CG12 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
CG15 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,­CG16 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CG17 2203-000604 C-CERAMIC,CHIP;22nF,10%,25V,X7R,TP,1608,
CG18 2203-000560 C-CERAMIC,CHIP;220nF,+80-20%,25V,Y5V,TP,
CG19 2203-005221 C-CERAMIC,CHIP;15nF,10%,50V,X7R,TP,1608,
CG20 2203-000560 C-CERAMIC,CHIP;220nF,+80-20%,25V,Y5V,TP,
CG21 2203-005221 C-CERAMIC,CHIP;15nF,10%,50V,X7R,TP,1608,
CG22 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­CG23 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­CG24 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­CG25 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­CG26 2203-001630 C-CERAMIC,CHIP;330nF,+80-20%,16V,Y5V,TP,
CG27 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
CG28 2203-001630 C-CERAMIC,CHIP;330nF,+80-20%,16V,Y5V,TP,
CG29 2203-000236 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,1608,
CG30 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CG31 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CG32 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2
CG33 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CG34 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
CG35 2203-000332 C-CERAMIC,CHIP;12pF,5%,50V,NPO,TP,1608,­CG36 2203-000332 C-CERAMIC,CHIP;12pF,5%,50V,NPO,TP,1608,­CG37 2203-002793 C-CERAMIC,CHIP;1uF,+80-20%,25V,Y5V,TP,20
CN890 AD39-00010A LEAD CONNECTOR-ASSY;-,35023,51021,12P,70 OPTION
CN890 AD39-20826V LEAD CONNECTOR-ASSY;-,35023,51021,8P,70M
CN891 3711-000779 CONNECTOR-HEADER;BOX,2P,1R,1.25MM,ANGLE, OPTION
CN891 3711-000922 CONNECTOR-HEADER;BOX,4P,1R,1.25mm,SMD-A,
CN893 3711-000456 CONNECTOR-HEADER;3WALL,4P,1R,1.25mm,SMD­CN894 3708-001114 CONNECTOR-FPC/FC/PIC;30P,0.5mm,SMD-S,SN
CN895 3711-002162 CONNECTOR-HEADER;3WALL,2P,1R,1.25mm,SMD-

RP61 2007-000052 R-CHIP;10Kohm,1%,1/16W,DA,TP,1608
RP63 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
RP65 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP71 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RP72 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RP73 2007-000122 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1608
RP74 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608
RP75 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
RP76 2007-000124 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1608
RP77 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP78 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
RP79 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
RP80 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
RP81 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP82 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RP84 2007-000309 R-CHIP;10ohm,5%,1/16W,DA,TP,1608
RP85 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
RP86 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP87 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
RP88 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608
RP89 2007-000402 R-CHIP;150ohm,5%,1/16W,DA,TP,1608
SW601 3404-001083 SWITCH-TACT;12V,50mA,200gf,6x7.4x2.3mm,S
SW603 3404-001083 SWITCH-TACT;12V,50mA,200gf,6x7.4x2.3mm,S
SW604 3404-001083 SWITCH-TACT;12V,50mA,200gf,6x7.4x2.3mm,S
SW605 3404-001083 SWITCH-TACT;12V,50mA,200gf,6x7.4x2.3mm,S
SW606 3404-001083 SWITCH-TACT;12V,50mA,200gf,6x7.4x2.3mm,S
T901 AD26-20120P TRANS-CONVERTOR;REEL,-,CST063-S3/3
X601 2801-003239 CRYSTAL-SMD;11.71875MHz,50ppm,28-ABL,13p OPTION
X601 2801-003242 CRYSTAL-SMD;11.895104MHz,50ppm,28-ABL,13
XP01 2801-001428 CRYSTAL-SMD;28.375MHz,30ppm,28-ABL,7pF,6 OPTION
XP01 2801-001430 CRYSTAL-SMD;28.63636MHz,30ppm,28-ABL,7pF
XP03 2801-003710 CRYSTAL-SMD;12MHz,100ppm,28-ABN,9.2pF,60
XP04 2801-000258 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAW,12.5

ASS'Y FUNCTION BOARD

CN451 AD39-20826U LEAD CONNECTOR-ASSY;51004,51021,10P,110
CN471 3711-000595 CONNECTOR-HEADER;BOX,10P,1R,2mm,ANGLE,SN
CN472 3711-000906 CONNECTOR-HEADER;BOX,3P,1R,2mm,ANGLE,SN
CN473 3711-000826 CONNECTOR-HEADER;BOX,2P,1R,2mm,ANGLE,SN
R471 2004-000971 R-METAL;470ohm,1%,1/8W,AA,TP,1.8x3.2mm
R472 2004-000413 R-METAL;18Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R473 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8
R474 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8
R475 2004-001199 R-METAL;68Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R476 2004-000971 R-METAL;470ohm,1%,1/8W,AA,TP,1.8x3.2mm
R477 2004-000413 R-METAL;18Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R478 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8
R479 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8
R480 2004-001199 R-METAL;68Kohm,1%,1/8W,AA,TP,1.8x3.2mm
SW471 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS
SW472 3404-001081 SWITCH-TACT;15V,20mA,130gf,6x6x4.3mm,SPS

Samsung Electronics7-18

Electrical Parts List

Loc. No Part No Desc & Spec Remark Loc. No Part No Desc & Spec Remark

SW891 3409-001036 SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE
SW892 3409-001036 SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE
XG01 2801-003246 CRYSTAL-SMD;10MHz,10ppm,28-ABR,12pF,70oh

ASS'Y REAR BOARD

BT771 AD61-30197A PLATE-TERMINAL +;-,S-F RM23,T0.5,OD20.7*
BT772 AD61-30197A PLATE-TERMINAL +;-,S-F RM23,T0.5,OD20.7*
BT773 AD61-60630A SPRING-LITHUM;-,-,C5210R,H,0.25,-,-,SC-L
BT774 AD61-60629A SPRING-LITHUM +;-,-,C5210R,H,0.25,-,-,SC
CN771 3711-004242 CONNECTOR-HEADER;BOX,24P,2R,1MM,SMD-A,SN
D771 0402-001166 DIODE-RECTIFIER;RL203,200V,2.0A,DO-15,TP
JA771 AD90-10847B ASSY-DC JACK;SC-L300,­JA772 3722-001202 JACK-PHONE;7P,3.6MM,AG,YEL,NO
PS771 3601-000418 FUSE-SMD;125V,2A,SLOW-BLOW,CERAMIC,6.1x
PS772 3601-001154 FUSE-SMD;125V,2.5A,SB,CERAMIC,2.69X6.1MM
R771 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R772 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R775 2007-000565 R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
SW771 3409-001036 SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE
SW772 3404-001084 SWITCH-TACT;15V,20mA,-,6X6X7mm,4
VR771 2101-001018 VR-ROTARY;50Kohm,30%,1/30W,TOP,-

CT891 2404-001039 C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,­D890 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DG04 0401-001054 DIODE-SWITCHING;KDS160,85V,300mA,SOD-323
GY01 AD32-92001C SENSOR;3V,-,-5to75C,-,0.66V,L33AB0
GY02 AD32-92001D SENSOR;3V,-,-5to75C,-,0.66V,L33AB1
ICG01 AD09-00019A IC-MICOM;HD6433292 V06X,80,TRAY,-,16 BIT
ICG03 1201-001193 IC-OP AMP;2112,SOP,14P,173MIL,DUAL,10000
ICG04 1201-000200 IC-OP AMP;3414,SOP,8P,173MIL,DUAL,-,PLAS
ICG05 AC14-12007X IC-LOGIC;TC4S66F,SSOP-5,5P
ICG06 AC14-12007X IC-LOGIC;TC4S66F,SSOP-5,5P
J890 3722-001308 JACK-PHONE;5P,3.6mm,AG,BLK,NO OPTION
J890 3722-001313 JACK-PHONE;3P,3.6mm,AG,BLK,NO
J891 AC37-22002Q JACK-DC;12.5mm,DUAE-9811,4P,BULK,8PIN
JA891 AC37-22002Q JACK-DC;12.5mm,DUAE-9811,4P,BULK,8PIN
JA892 3722-001308 JACK-PHONE;5P,3.6mm,AG,BLK,NO OPTION
JA892 3722-001313 JACK-PHONE;3P,3.6mm,AG,BLK,NO
LG01 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LG02 2703-000403 INDUCTOR-SMD;22uH,10%,3.2x2.5x2.2mm
LG03 2703-001758 INDUCTOR-SMD;100uH,10%,3.2x2.5x2.2mm
RE890 AD59-60060E MODULE-REMOCON;DP,PNA4612M00XC,38KHz,940
RG03 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
RG04 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
RG05 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
RG06 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
RG07 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
RG08 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608
RG09 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608
RG10 2007-000086 R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1608
RG11 2007-000107 R-CHIP;470Kohm,5%,1/16W,DA,TP,1608
RG12 2007-000107 R-CHIP;470Kohm,5%,1/16W,DA,TP,1608
RG13 2007-000107 R-CHIP;470Kohm,5%,1/16W,DA,TP,1608
RG14 2007-000107 R-CHIP;470Kohm,5%,1/16W,DA,TP,1608
RG15 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RG16 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
RG17 2007-001026 R-CHIP;560Kohm,5%,1/16W,DA,TP,1608
RG18 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RG19 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RG21 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RG22 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
RG23 2007-001026 R-CHIP;560Kohm,5%,1/16W,DA,TP,1608
RG24 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
RG25 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RG27 2007-000090 R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
RG28 2007-000077 R-CHIP;470ohm,5%,1/16W,DA,TP,1608
RG29 2007-000781 R-CHIP;33OHM,5%,1/10W,DA,TP,2012
RG36 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RG37 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
RM891 AD59-60060E MODULE-REMOCON;DP,PNA4612M00XC,38KHz,940
SW890 3409-001035 SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE
SW891 3409-001035 SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE OPTION
