1.3Megapixel 20x Zoom Network Camera
05-2011

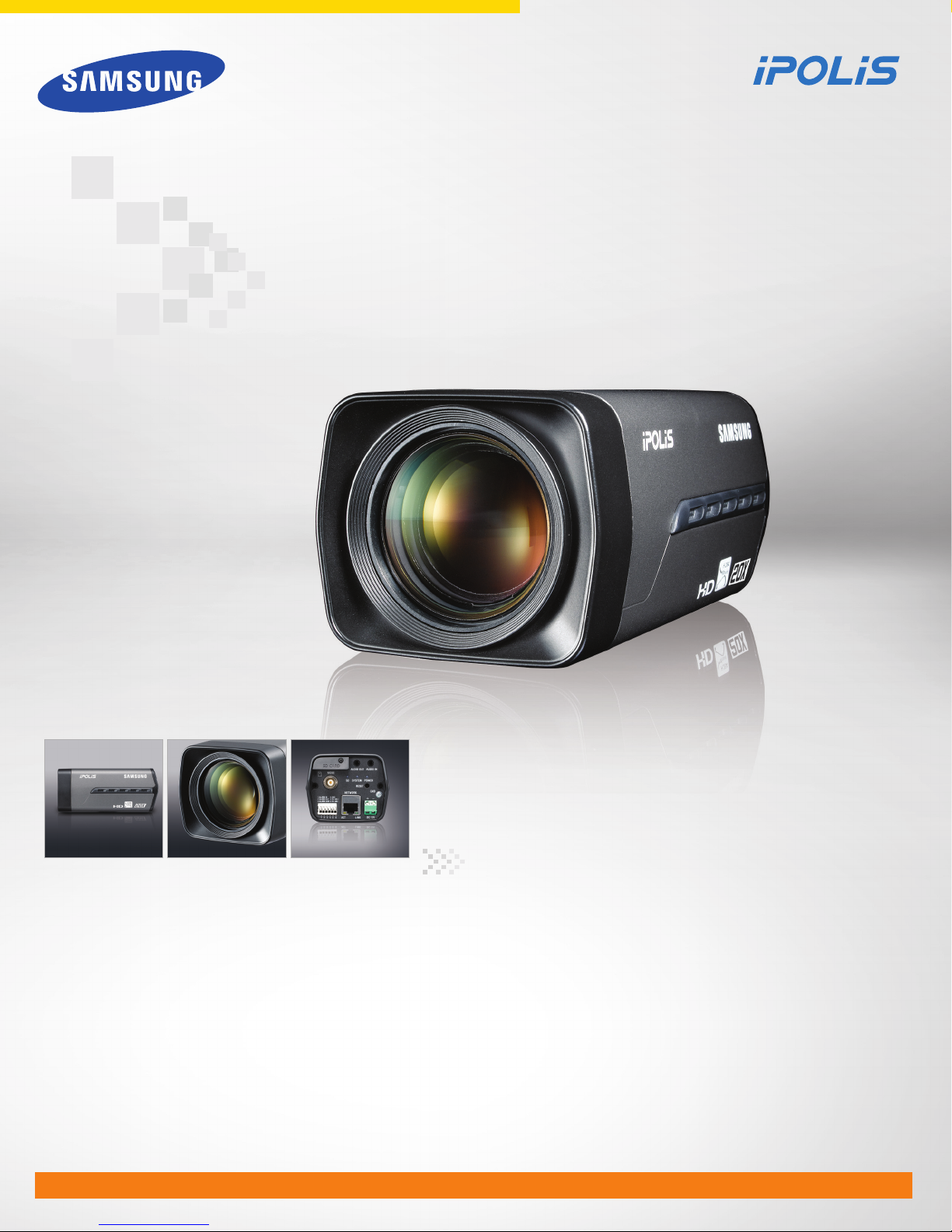

1.3Megapixel HD 20x Zoom Network Camera
SNZ-5200
The SNZ-5200 is a high performance 1.3 megapixel zoom
camera and provides 20x optical zoom in HD images. This fully
ONVIF compliant camera feature multiple displaying resolution
from CIF (320 x 240) through to 16:9 format 720p High
Definition and up to full 1.3 megapixel (1280 x 1024) and
provides simultaneous transmission, which allows the optimal
streaming to your viewing or recording device for
simultaneous viewing/recording with data transmission. Now
users can monitor a scene far away from the camera in more
detail, at higher quality of image.
• Max. 1.3M (1280 x 1024) resolution
• 16:9 HD (720p) resolution support
• Built-in 20x optical zoom lens (4.45~89mm)
• H.264 / MPEG-4 / MJPEG multiple codecs
• PoE, SD memory slot
www.samsung-security.com
Page 2
1.3Megapixel HD 20x Zoom Network Camera
72 (2.83")
136 (5.35")
60 (2.36")
SNZ-5200
1.3M
Specifications
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Min. Illumination
S / N Ratio
Video Output
LENS
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Focus Control
Dimensions
Unit : mm (inch)
Accessories (Optional)
USE
WITH
STB-400
SHB-4300H1
STH-500
SHB-4200/SHB-4200H
OR
STH-200
STB-4150V
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Road, Suite 700, Ridgefield Park, NJ 07660, UNITED STATES
Tol Free : 1-877-213-1222 Fax : 1-201-373-0124
www.samsungsecurityusa.com
Lens Type
Mount Type
PAN / TILT / ROTATE
Preset
OPERATIONAL
Camera Title
Day & Night
Backlight Compensation
Contrast Enhancement
Digital Noise Reduction
Digital Image Stabilization
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Digital Zoom
Flip / Mirror
Intelligent Video Analytics
Alarm I/O
Remote Control Interface
RS-485 Protocol
NETWORK
Ethernet
Video Compression Format
Resolution
Max. Framerate
Video Quality Adjustment
Bitrate Control Method
Streaming Capability
Audio I/O
Audio Compression Format
Audio Communication
IP
Protocol
Security
Streaming Method
Max. User Access
Memory Slot
ONVIF Conformance
Webpage Language
Web Viewer
Central Management Software
ENVIRONMENTAL
Operating Temperature / Humidity
ELECTRICAL
Input Voltage
Power Consumption
MECHANICAL
Color / Material
Dimensions (WxHxD)
Weight
20x
1/3" 1.3M PS CMOS
1,384(H) x 1,076(V)
1,329(H) x 1,049(V)
Progressive
Color : 0.7Lux (F1.2, 50IRE), 0.01Lux (Sens-up 60x, 50IRE)
B/W : 0.08Lux (F1.6, 50IRE), 0.001Lux (Sens-up 60x, 50IRE)
52dB
CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
4.45 ~ 89mm (20x)
F1.6(Wide) / F2.9(Tele)
H : 56.56˚(Wide) ~ 3.10˚(Tele) / V : 43.32˚(Wide) ~ 2.34˚(Tele)
1m (3.28ft)
AF / One-shot AF / Manual (Remote control via Network)
DC auto iris
Board-in type
128ea
Off / On (Displayed up to 15 characters)
Auto (ICR) / Color / B/W
Off / BLC / HLC
SSDR (Samsung Super Dynamic Range) (Off / On)
SSNR
Off / On
Off / On (4 programmable zones)
Off / On (8 programmable zones)
Off / Auto (2x ~ 60x)
Off / Low / Medium / High / Manual
ATW / AWC / Manual / Indoor / Outdoor
Auto / A.FLK / Manual (1/30 ~ 30,000sec)
16x
Off / On
Scene change, Virtual line, Enter / Exit, Appear / Disappear
Input 1ea / Output 1ea (Relay)
RS-485
Samsung-T/E, Pelco-P/D
RJ-45 (10/100BASE-T)
H.264, MPEG-4, MJPEG
1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
30fps
H.264, MPEG-4 : Compression level, Target bitrate level control
MJPEG : Quality level control
H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 10 profiles)
Mic / Line in, Line out
G.711 u-law
Bi-directional audio
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Unicast / Multicast
10 users at unicast mode
SD/SDHC memory slot
Yes
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Apple Safari
NET-i viewer
-10°C ~ +50°C (+14°F ~ +122°F) / 20 ~ 80% RH
12V DC, PoE (IEEE802.3af)
12V DC : Max. 8W, PoE : Max. 7.5W
Dark gray / Metal
72.0 x 60.0 x 136.0mm (2.83" x 2.36" x 5.35")
540g (1.19 lb)
D&N ICR
III
(2D+3D noise filter) (Off / On)
Design and specifications are subject to change without notice.
PoE
SNZ-5200N/P
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
