Samsung UE46ES8000S, D7090 Quick Setup Manual

English - 1

BN68-04471F-01

1

2

1"*3*/(

1"*3*/(

1"*3*/(

OPEN

OPEN

OPEN

OPEN

1

1

2

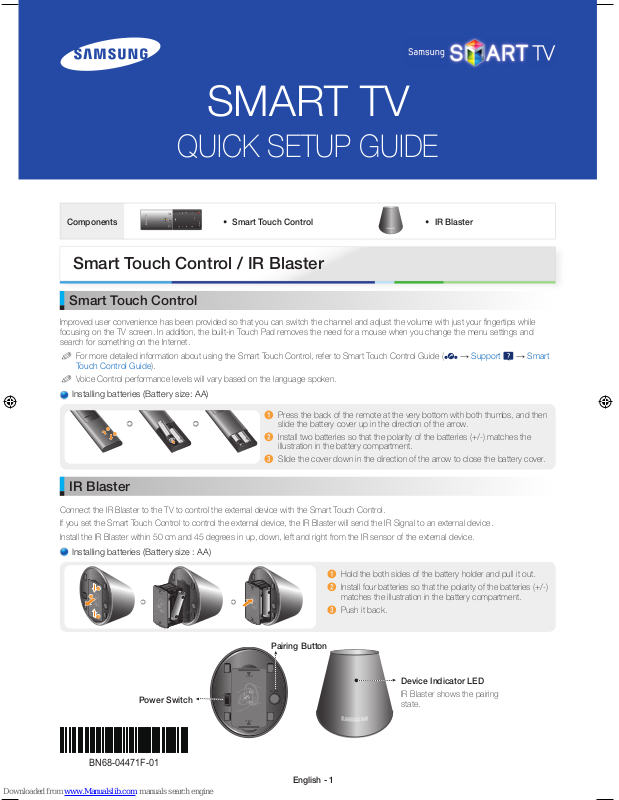

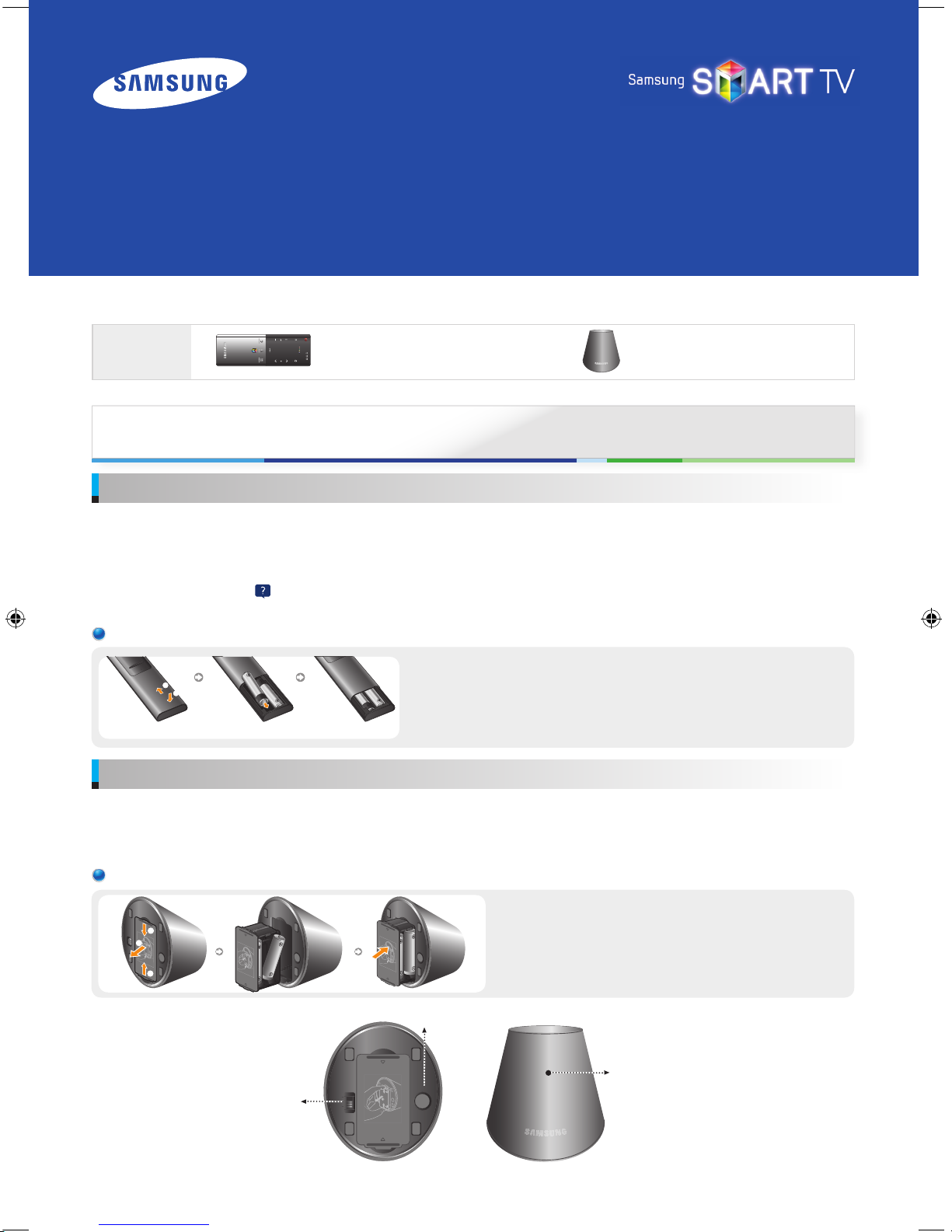

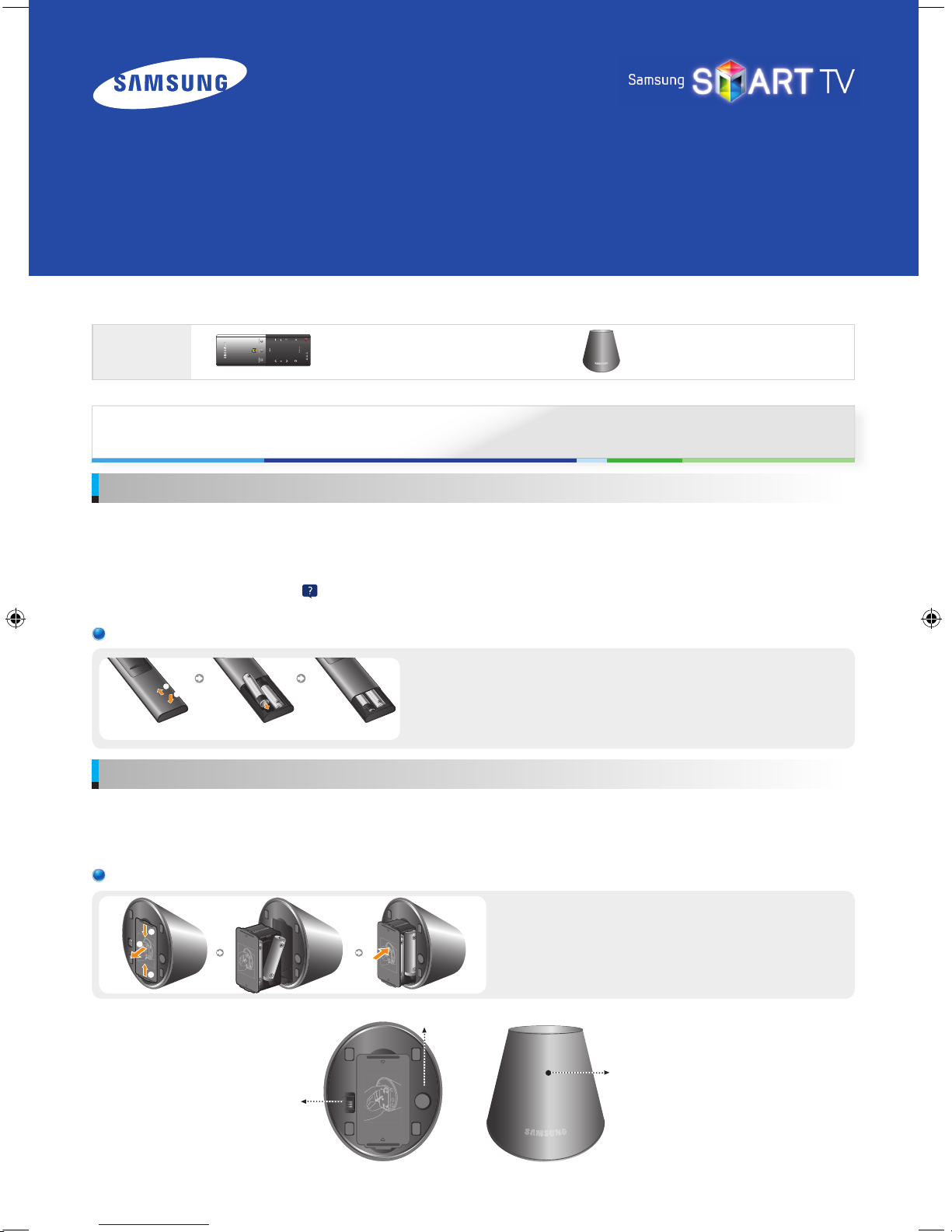

Components

TV STB BD

VOICE NUMBER

RETURN

• Smart Touch Control

TVSTBBD

RETURN VOICE NUMBER

• IR Blaster

Improved user convenience has been provided so that you can switch the channel and adjust the volume with just your fingertips while
focusing on the TV screen. In addition, the built-in Touch Pad removes the need for a mouse when you change the menu settings and
search for something on the Internet.

% For more detailed information about using the Smart Touch Control, refer to Smart Touch Control Guide (

‹ →

Support → Smart

Touch Control Guide).

% Voice Control performance levels will vary based on the language spoken.

Smart Touch Control / IR Blaster

Smart Touch Control

Installing batteries (Battery size: AA)

1

Press the back of the remote at the very bottom with both thumbs, and then
slide the battery cover up in the direction of the arrow.

2

Install two batteries so that the polarity of the batteries (+/-) matches the
illustration in the battery compartment.

3

Slide the cover down in the direction of the arrow to close the battery cover.

Connect the IR Blaster to the TV to control the external device with the Smart Touch Control.
If you set the Smart Touch Control to control the external device, the IR Blaster will send the IR Signal to an external device.
Install the IR Blaster within 50 cm and 45 degrees in up, down, left and right from the IR sensor of the external device.

Installing batteries (Battery size : AA)

IR Blaster

ൾઘࠫ

ಯீ

תீ

0/

0''

OPEN

OPEN

1"*3*/(

2

Device Indicator LED

IR Blaster shows the pairing
state.

Power Switch

Pairing Button

1

Hold the both sides of the battery holder and pull it out.

2

Install four batteries so that the polarity of the batteries (+/-)
matches the illustration in the battery compartment.

3

Push it back.

SMART TV

QUICK SETUP GUIDE

English - 2

TV STB BD

VOICE NUMBER

RETURN

.*$

w= v

: Adjusts the Volume.

Brings up the Smart Hub applications.

Turns the TV on and off.

Touch Pad

• Scratch on the Touch Pad to move the focus on the
screen.

• Press the Touch Pad to run the focused item.

• Press and hold the Touch Pad to select the function
the same as the MUTE

M

button of the remote

control. However, this action scrolls the page on a

Web Browser.

• Press the Touch Pad or RETURN

R

button to return

to the general mode.

% If no button is pressed for 30 seconds, the Touch

Pad is automatically turned off.

% To use the Touch Pad again, press any button.

Shows the colour button, exit button and play control
buttons.

Displays the shortcut functions list. You can

select a desired function (e.g. Menu(

m

),

Source(s), Info(`), etc.) easily.

< P >

: Changes channels.

RETURNR: Go to previous menu screen.

VOICE

˜

: Take your voice command and

enter a text using your voice.

NUMBER

š

: Displays the Number button

screen. Select a digit using the Touch Pad.

LED to show the active device.

MIC: You can use MIC to instruct a Voice Control

command. To activate MIC, simply press the

VOICE

˜

button.

Š

: Displays a list of recently used

functions.

T

: Quickly select frequently used functions.

ൾઘࠫ

ಯீ

תீ

0/

0''

OPEN

OPEN

1"*3*/(

IR Blaster

1

When you turn on the IR Blaster, Indicator LED is blinks.

2

Move the IR Blaster to the direction of your TV’s Remote receiver, and then press the PAIRING button
once shortly on the bottom of the IR Blaster.

3

The connection icons appear on the bottom left of the screen, and the TV connects to IR Blaster
automatically.

% If the connection process failed, please turn off and on the IR Blaster, try again from step2.

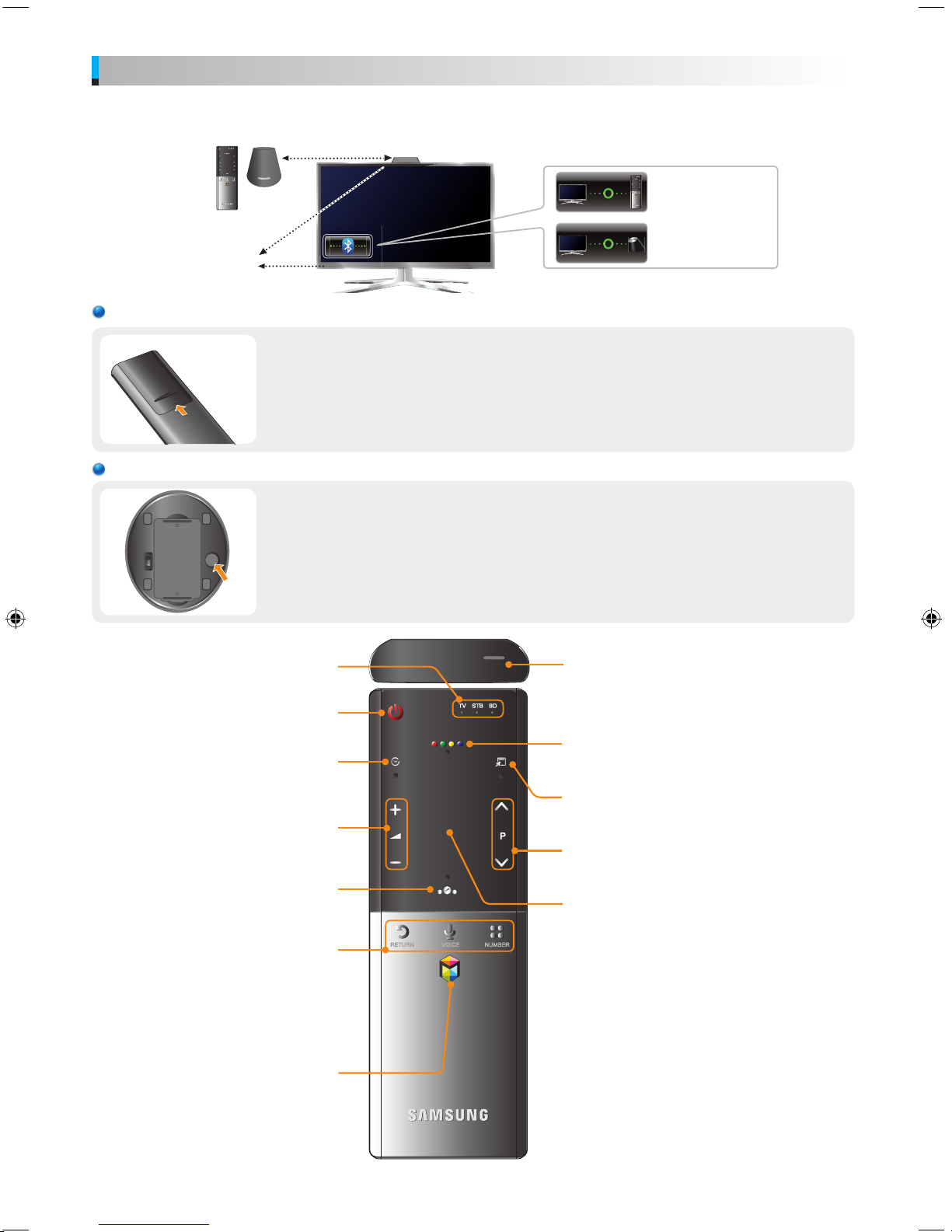

Initial Pairing

Smart Touch Control

1

Press any buttons on the Smart Touch Control toward the Remote receiver of the TV.

2

The connection icons appear on the bottom left of the screen, and the TV connects to your Smart
Touch Control automatically.

% If you want to perform the pairing process again, press the PAIRING button in the centre of the back

cover. The Smart Touch Control will be initialized.

TVSTBBD

VOICE NUMBER

RETURN

TVSTB BD

VOICE NUMBER

RETURN

Remote receiver

<Connecting>

• Smart Touch
Control

• IR Blaster

<Pairing complete>

30cm ~ 4m

% The product colour and shape may vary depending on the model.
% The position of Remote receiver may vary depending on the model.

English - 3

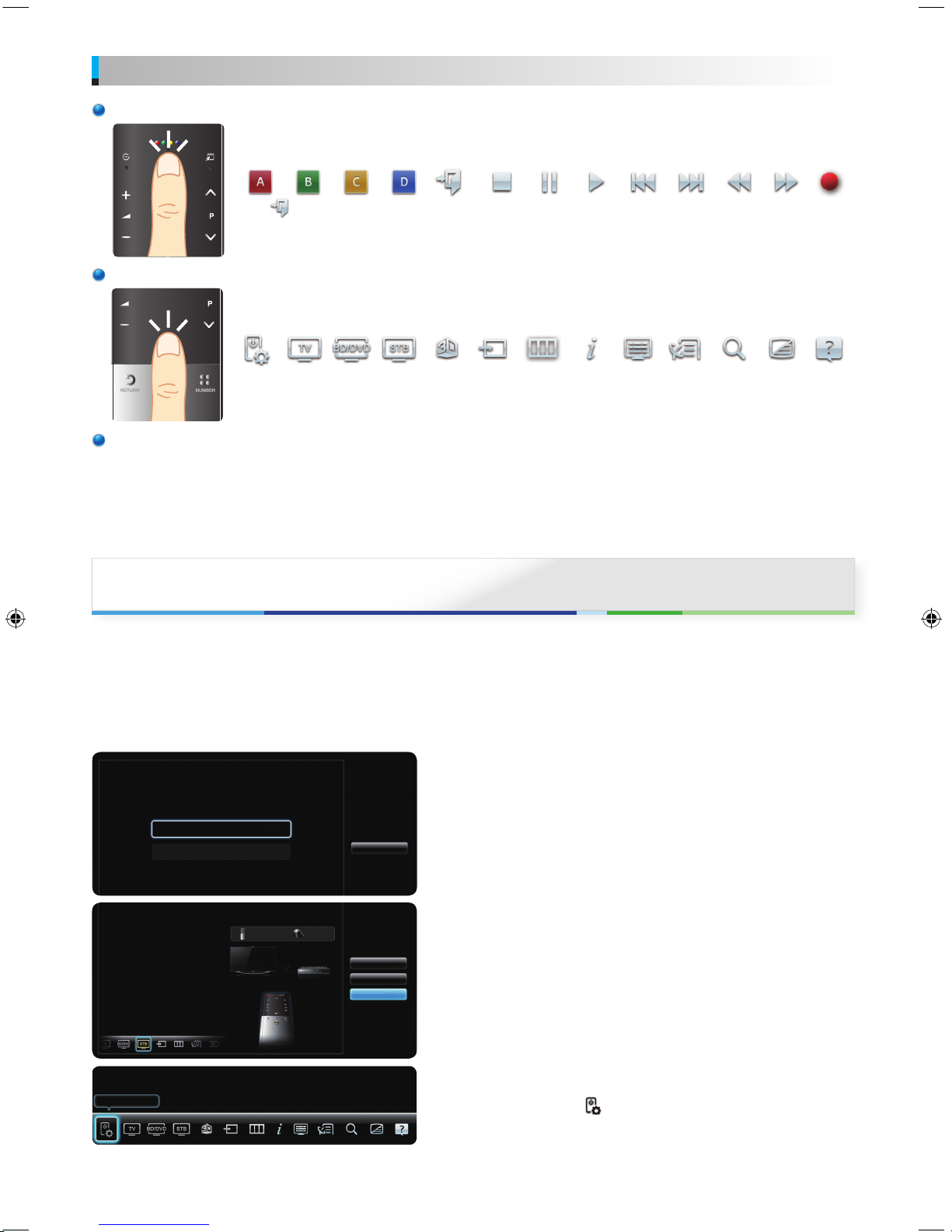

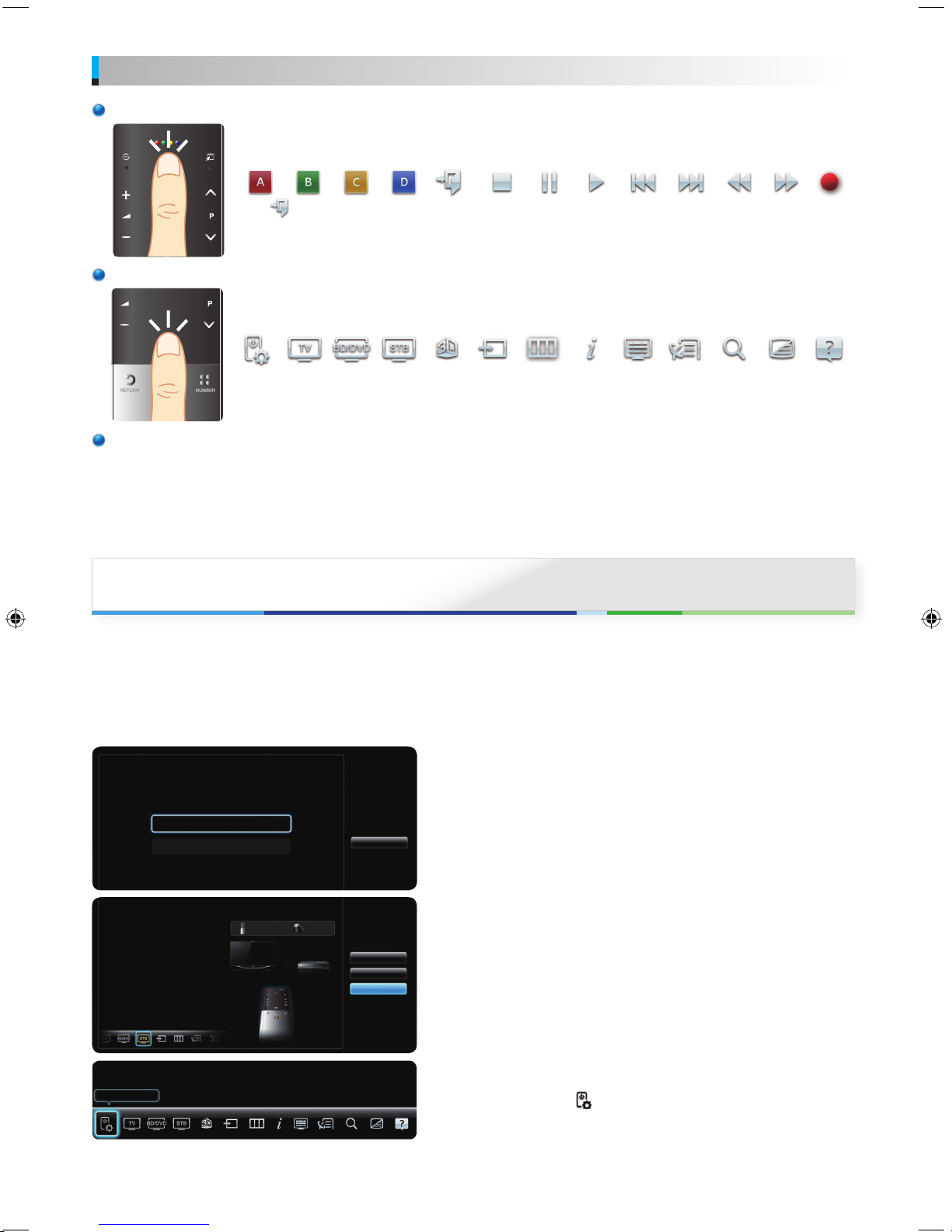

Using the Touch Pad

Open the colour button, play control buttons and exit button.

To display the colour button, exit button and play control buttons on the top of the screen, press the

∏∏∏∏

button on the top of the Touch Pad.

% : Close all the menu shown on the screen.

TV STB BD

Open the shortcut functions screen.

Press the ‹ button in the bottom centre of the Touch Pad. You can select a desired function (e.g. Menu(m),

Source(s), Info(`), etc.) easily.

TV STB BD

VOICE NUMBER

RETURN

Calibrating the Touch Pad

If the Touch Pad looses accuracy, recalibrate the Touch Pad by repeating Steps 1 and 2.

1

Press the NUMBERš button for 3 seconds. The calibration starts.

2

When done, all the LEDs on the top of the Smart Touch Control blink twice simultaneously.

% While calibrating, don’t touch the Touch Pad.

Setting up the Universal Remote

Lets you control a Set-Top Box (STB) or a BD player or both connected to the TV using your Smart Touch Control.

% Universal Remote Control can adjust TV’s volume, but Set-Top Box’s volume cannot be adjusted. Watch Set-Top Box after adjusting

Set-Top Box’s volume to appropriate level.

% Depending on the version of an application, the Universal Remote Setup instructions may differ. In this case, please follow the

instructions on the screen.

% The displayed image may differ depending application version.

For more detailed information, refer to the e-Manual.

What do you want to do?

Add a device to control

View remote control settings

Previous

1

Select Add a device to control, and then set up the Universal Remote
following the instructions on the screen.

Congratulations! Your
Set-top Box-Samsung
connected via Component
is now ready to use.
Now you can use Watch
TV(set-top box) option to
control your set-top box

Previous

Set up another

Complete

Universal Remote setup complete

2

The Recommended code data is downloaded to your Smart Touch
Control and the IR Blaster.

% When setting the set-top box, you can search by the cable TV

broadcaster’s name in the step of searching manufacturer.

% If the search for model name does not work properly, search with a part

of the model name or use the Recommended model.

Universal Remote Setup

% If you want to set up the Universal Remote again, press ‹ on the

bottom centre of the Smart Touch Control. Select Universal Remote

Setup .

• The displayed image may differ depending on the model.

Complete Skipped

English - 4

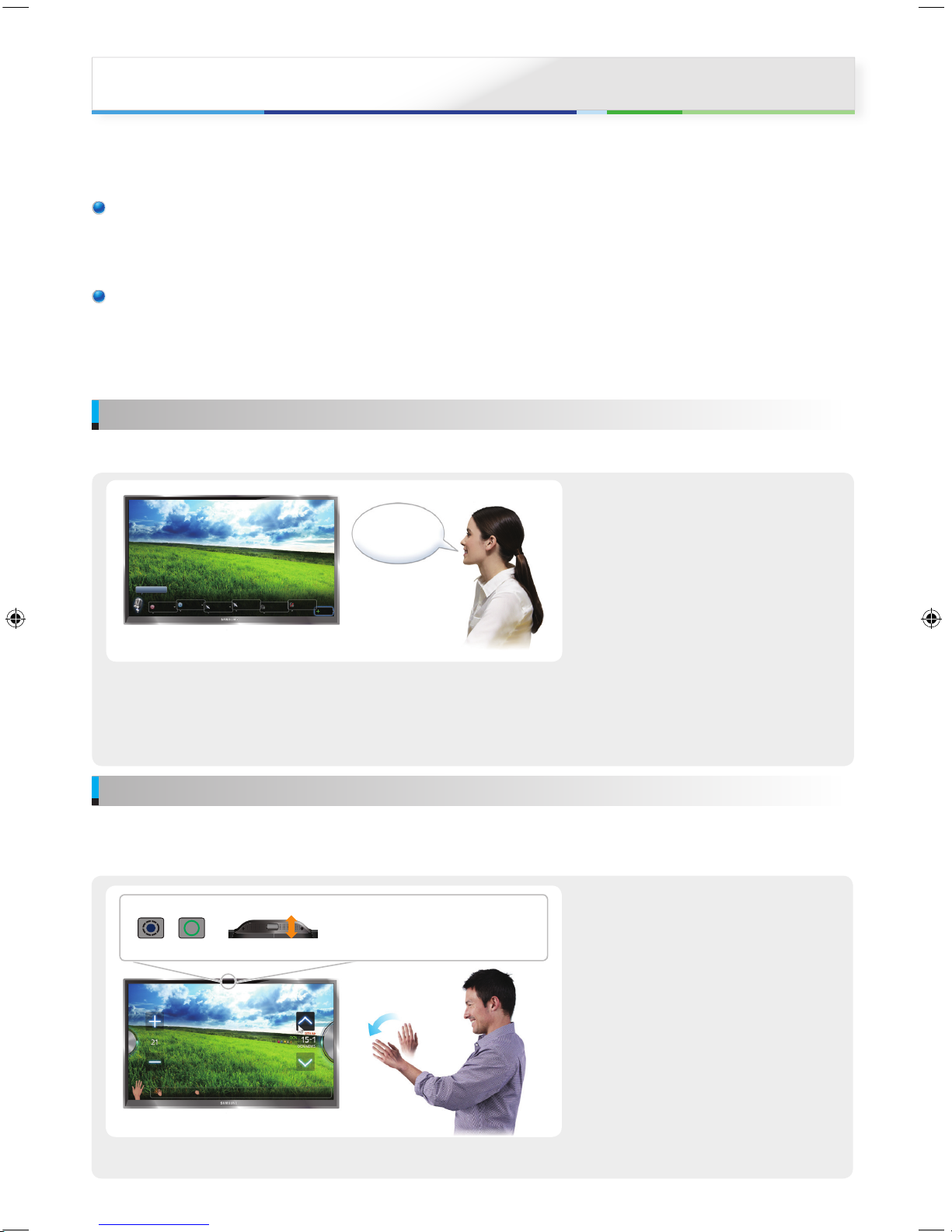

Using this function, you can access and control menu options and functions using speech, motions or face recognition.

% Refer to the e-Manual or User Manual for more detailed information on Smart Interaction.
% Note that the illustrations in this guide may differ from the actual interface on the TV.

Voice Control Environment

• We recommend using the Voice Control function via the microphone attached to your TV from within 4M of your TV.
You can check the usable distance by using Voice Control Environment Test (System

→

Voice and Motion Control → Voice Control

→

Voice Control Environment Test).

• Voice Control performance may vary depending on the language spoken, your pronunciation, the volume of your voice and your
surrounding environment, including ambient noise levels.

Motion Control Environment

• We recommend using the Motion Control function within about 1.5M ~ 4M with your TV. The TV Camera’s recognition range may differ
depending on the angle of camera or other conditions.
You can check the recognition range of TV camera by using Motion Control Environment Test (System

→

Voice and Motion Control →

Motion Control

→

Motion Control Environment Test).

• Motion Control recommended to run a Motion Control Environment Test (as described below) which measures the ambient light in the
room, and ensures the built-in TV Camera is able to see you.

Menu → System → Voice and Motion Control → Voice Control

“More Commands”

Volume Up/
Down

TV Power Off

Source

Channel
Number

Channel Up/
Down

Mute

More Commands

More Commands.

% You can also turn your TV on or off using your Trigger Words. For example, if

you selected “Hi TV”, say “Hi TV Power On” to turn your TV on.

− If the Trigger Words is set to Hi TV, say Hi TV Power On.

− If the Trigger Words is set to Smart TV, say Smart TV Power On.

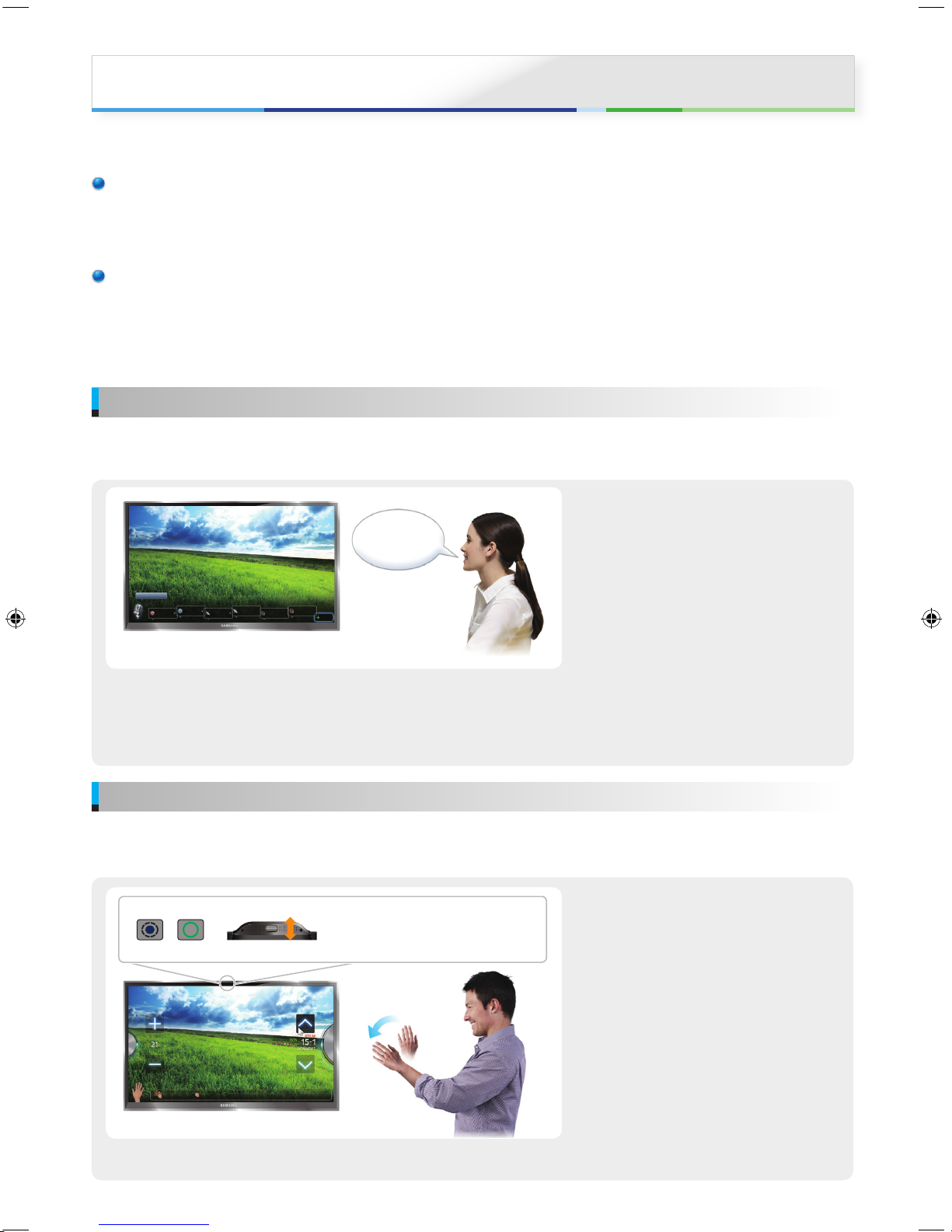

Voice Control lets you activate and access certain menus and functions on your Smart TV with the sound of your voice.

Voice Control

SMART Interaction (Voice and Motion Control)

Motion Control

Menu → System → Voice and Motion Control → Motion Control

1

Select “On” for Motion Control.

2

With Motion Control configured and
activated, stand or sit in front of your TV.
Make sure your hand is flat and palm is
directly toward the TV wave three or four
times side to side in a deliberate manner.
When the TV recognizes you, the arrow
cursor will appear on the screen. You are now
able to control the TV with motion.

% If you drop your hand out of range of the

TV camera Motion Control will close.
Simply raise your hand within 3 seconds
to reactivate Motion Control.

3

Control the TV using your hands.

% While using the Motion Control, if you use other devices (i.e. remote control, keyboard, etc.), Motion Control closes.

Pointing Navigation

Run

All

Motion Control works with the Smart TVs built-in camera and allows you to use motion to open apps in Smart Hub, navigate web pages,

and control certain TV functions.

• Scroll wheel on the back of your TV
to adjust camera angle.

<Front Camera>

(ON) (OFF)

<Back of TV>

1

Select “On” for Voice Control.

2

Speak the Trigger Words that you selected
into the microphone embedded in the TV or
press the VOICE˜ button on your remote.
The TV displays the Voice Command Bar.

3

Say a word or phrase listed in the Voice
Command Bar.

% Pronounce the word or phrase clearly and

correctly in the language you selected in

Language.

4

Wait until recognition is complete, and then
say the next command in the same fashion.

% To exit the Voice Control mode, speak the

Trigger Words or “Cancel” using the TV’s

microphone, or press the RETURNR button.

English - 5

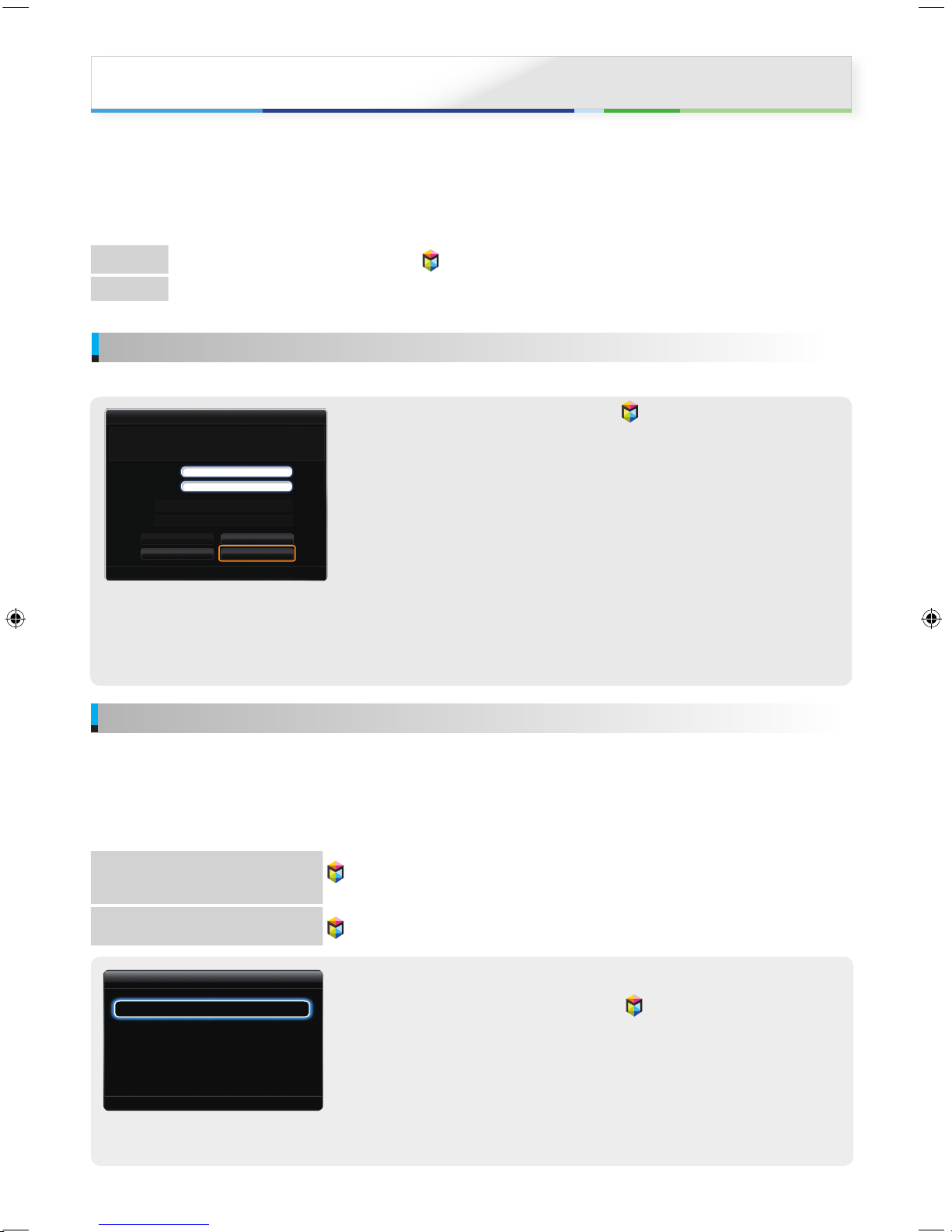

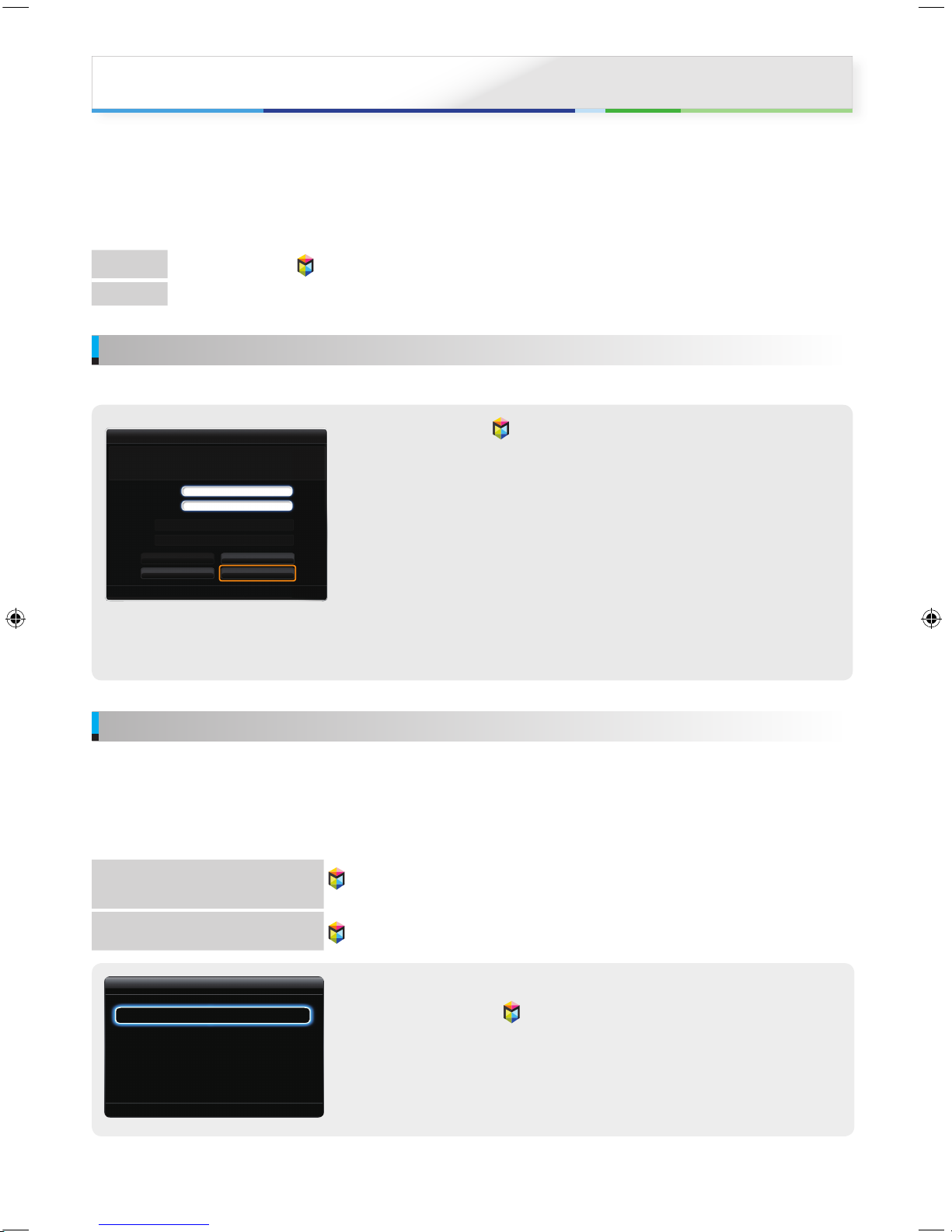

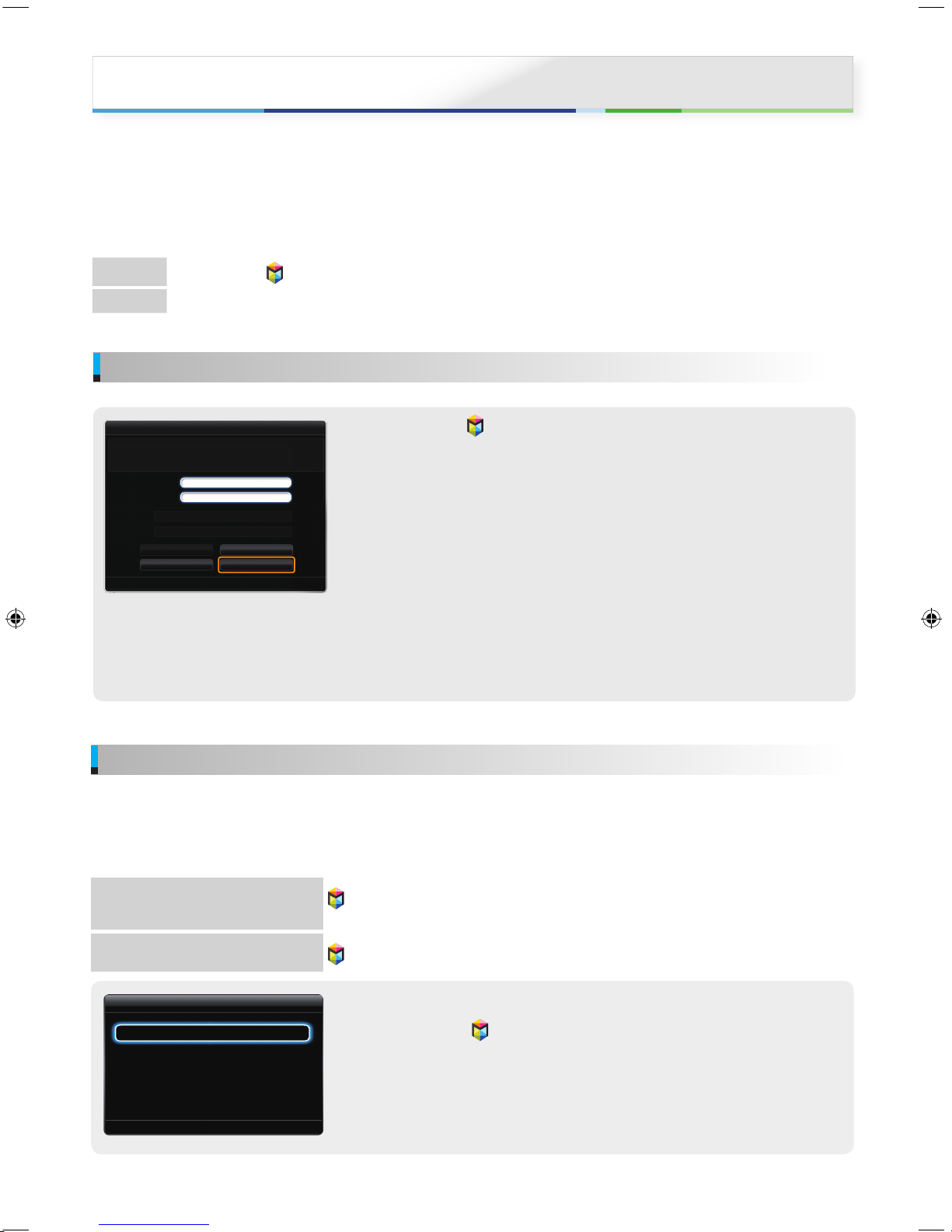

Creating Your Samsung Account

If you have Samsung account, you can use Smart Hub easily.

1

Press the button on the remote control, Press the red a button on the remote
control to display the Login window.

% When using the Smart Touch Control, press the RETURN

R

button to close the

button screen and use.

2

When the Login window appears, select the Create Account button.

3

Move to the Samsung account field, and then press the E button. A window appears
with an entry screen and a keypad. The ID must be a valid e-mail address in the
following format: [e-mail] or [e-mail]. The same password in
the confirm password field in the same fashion.

% If you have a Bluetooth or USB keyboard connected to the TV, enter your e-mail

address using a Bluetooth or USB keyboard. When done, enter the password in the
same way.

4

After entering all items, move to the Create Account item, and then the E button.
Your account will be created.

Login

What is Samsung Account? A Samsung Account is an integrated
membership account that lets you access all the services provided
by Samsung through a single registered account.

Password

Samsung account

Press [Enter]

Press [Enter]

□ Remember my password

□ Sign me in automatically

Login

Face Recognition Mode

Cancel

R

Return

Create Account

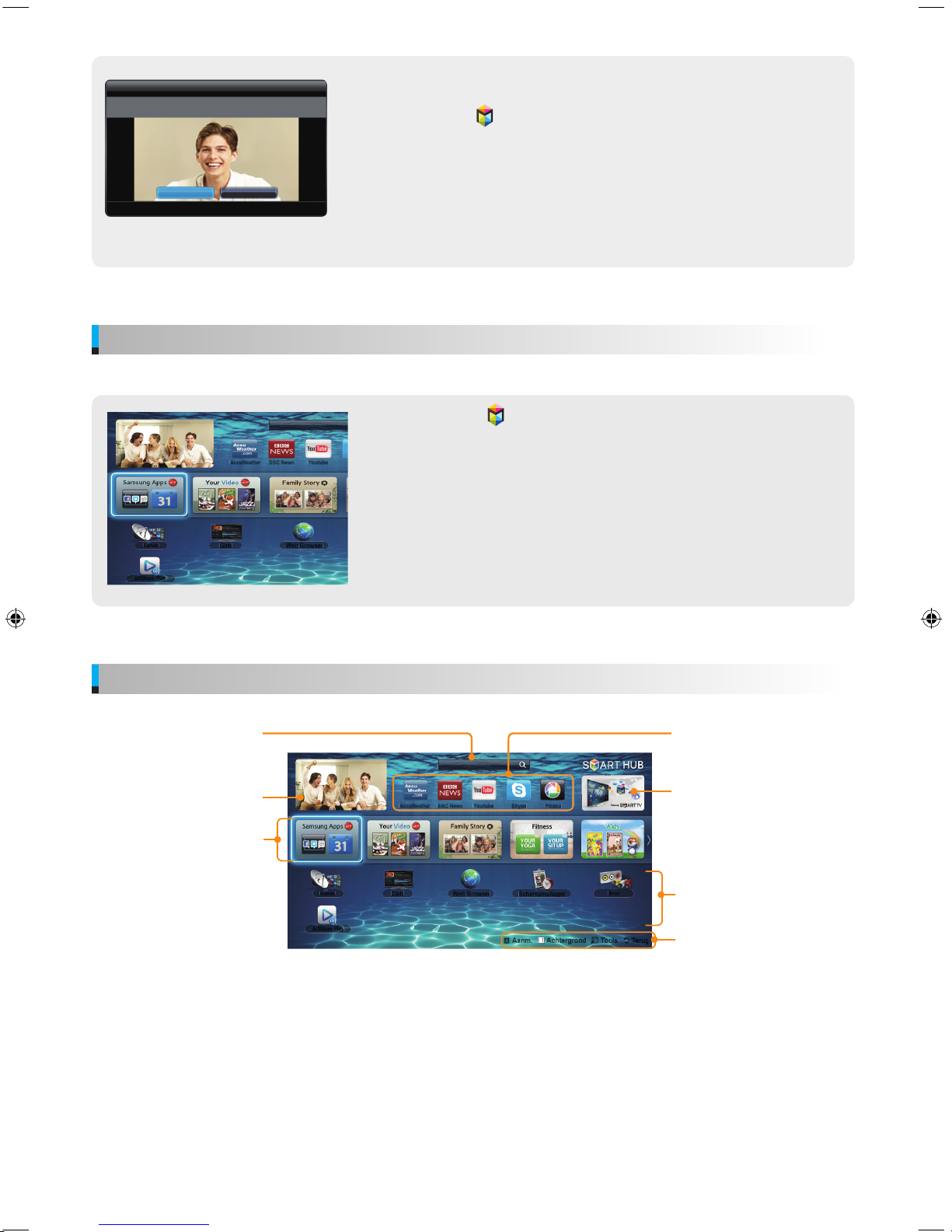

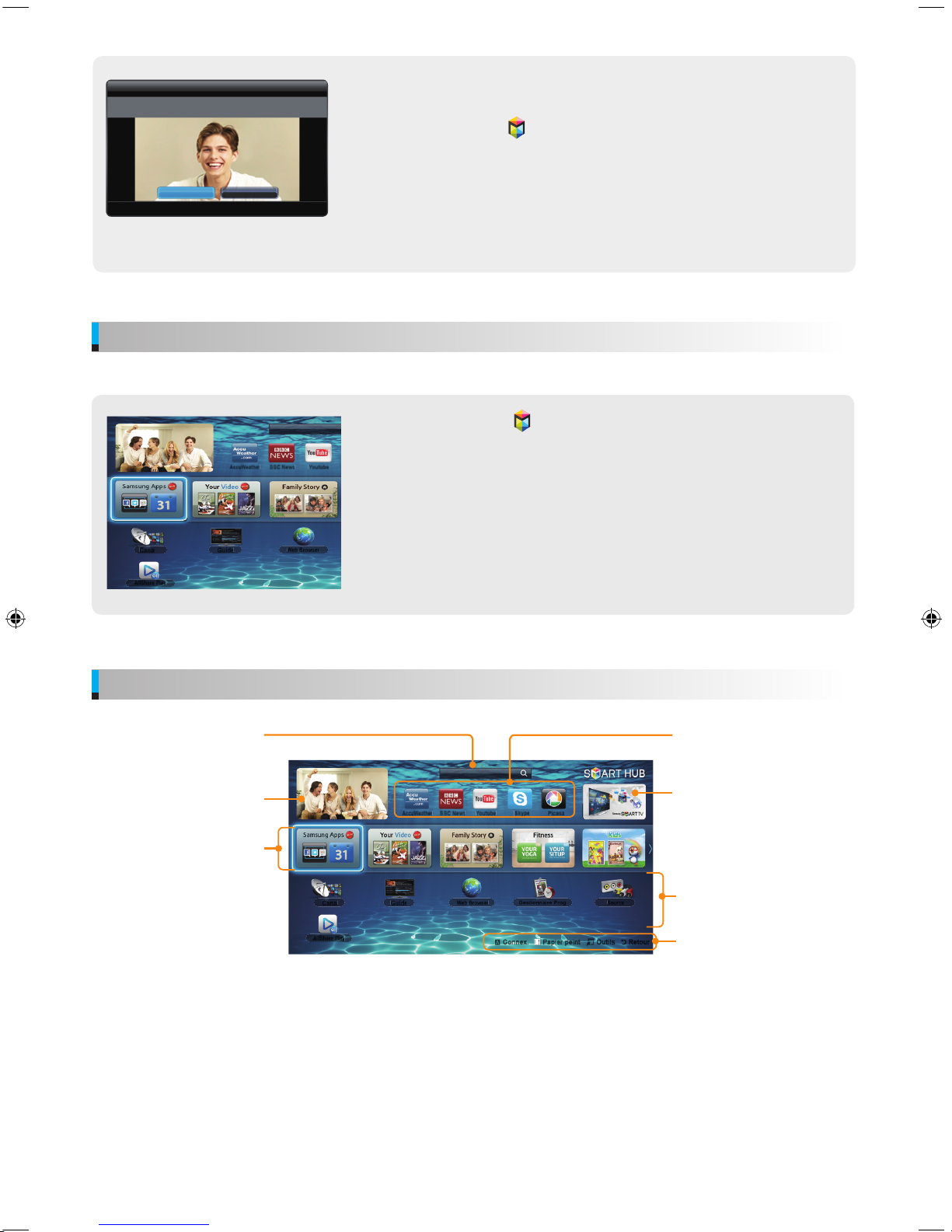

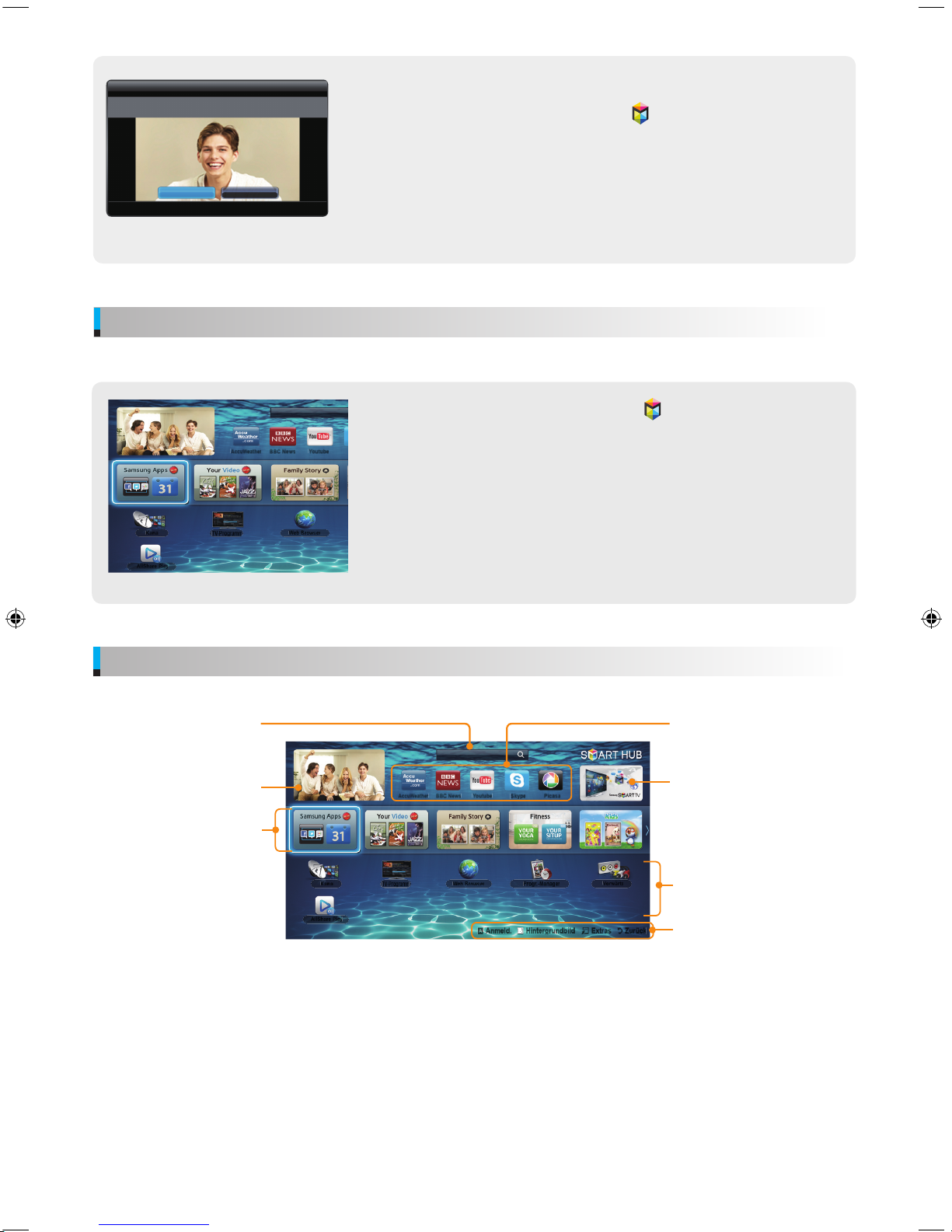

Using Smart Hub, you can stream movies, videos, and music from the Internet, access various for pay or free of-charge applications and
view them on your TV.

Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games.
For more detailed information about Smart Hub, see “Smart Hub” in e-Manual.

% The illustration of the manual may vary from the actual shape partially.

Method 1

Press the button on the remote control.

Method 2

Menu → Support → Smart Hub

Smart Hub

Face recognition

Face recognition lets you register your face with your Samsung account so that you can log into your Smart Hub account using the Face
recognition function without inputting your account ID or your account password.

% In order for Face recognition to function, a thumbnail image of your face will be stored in your TV for logging-in purposes.
% If you use Face recognition to log into Smart Hub, it may be less secure than logging in with an ID and password.

Method 1 (When your Samsung
account is logged in the Smart Hub)

→

T →

Settings → Account Manager → Change account information

→

Register Face

Method 2 (When your Samsung
account is not logged in the Smart Hub)

→

a →

Face Recognition Mode → Face recognition

• To register your face in your Samsung account

1

Press the → T button on the remote control, and then select Settings.

2

Select Account Manager → Change account information.

3

Select Register Face. A pop-up message appears. If you agree to use Face

recognition, select OK.

% The lighting of environment , and degree of lightness or darkness of a recognized

face to face, depending on your TV may not be able to recognize exactly.

Settings

R

Return

Account Manager

Service Manager
Reset
About Smart Hub

English - 6

Log In

R

Return

You can log in using Face recognition. Turn your face towards the

TV with your face level with the camera.

Password mode Pause

• To log in to your Samsung account using Face recognition

1

Press the → a button on the remote control, and then select Face Recognition

Mode. The Face recognition screen appears.

2

The TV starts Face recognition. Face the front of the TV screen. Try to hold still.

Once the TV recognizes your face, it will log you into your Samsung account
automatically.

% If you do not register face, appears as unregistered.
% If no face is registered, create a new account or select the Password mode.

Main Features

Downloading an app from Samsung Apps

Samsung Apps is a store from which you can download applications to use on Samsung TV/AV equipment.

Search

a

Log In b Wallpaper T Tools R Return

Channel

AllShare Play

Guide

Web Browser Schedule Manager Source

Displays the current input

source screen.

You can experience

various service provided by

Samsung.

Displays notices, new
applications, and
advertisements brought to
you by Samsung product
introductions.

Displays the recommended
service by Samsung.

Displays the installed
applications in the TV.

Operation button

You can search for various

types of content that can be

used on your TV.

AccuWeather

BBC News Youtube Skype Picasa

• The displayed image may differ depending on the model.

1

Press the button on the remote control, and select Samsung Apps on the
screen.

2

Go to your desired category, and select an app.

3

In the information screen for the selected app that appears, choose

Download to install it.

4

After it is downloaded, choose Run to launch and enjoy it.

% You can find the icon of the newly installed app on the SMART HUB screen.
% Paid App in Samsung Apps Account registration is required.

Search

Channel

AllShare Play

Guide

Web Browser

AccuWeather

BBC News Youtube

Français - 7

1

2

1"*3*/(

1"*3*/(

1"*3*/(

OPEN

OPEN

OPEN

OPEN

1

1

2

Composants

TV STB BD

VOICE NUMBER

RETURN

• Smart Touch Control

TVSTBBD

RETURN VOICE NUMBER

• IR Blaster

Des fonctions pratiques ont été incluses, de sorte que vous pouvez changer de chaîne et régler le volume du bout des doigts tout en
continuant à regarder l'écran du téléviseur. En outre, le Touch Pad intégré élimine la nécessité d'une souris pour la modification des
paramètres du menu et la recherche sur Internet.

% Pour plus d’informations sur la télécommande Smart Touch Control, reportez-vous au Guide Smart Touch Control

(

‹ →

Assistance → Guide Smart Touch Control).

% Les performances de la fonction Commande vocale peuvent varier en fonction de la langue.

Smart Touch Control / IR Blaster

Smart Touch Control

Installation des piles (type de pile: AA)

1

Appuyez des deux pouces sur l’arrière de la télécommande, tout en bas, puis
faites glisser le capot de la batterie vers le haut dans le sens de la flèche.

2

Placez deux piles en respectant les polarités (+/-) illustrées dans le logement
des piles.

3

Faites glisser le capot vers le bas dans le sens de la flèche pour le refermer.

Connectez l'IR Blaster au téléviseur pour pouvoir contrôler le périphérique externe à l'aide du Smart Touch Control.
Si vous configurez le Smart Touch Control de sorte qu'il contrôle le périphérique externe, l'IR Blaster enverra le signal IR à un périphérique

externe.
Installez le récepteur Smart dans les 50 cm et dans les 45 degrés autour du capteur IR du périphérique externe.

Installation des piles (type de pile: AA)

IR Blaster

ൾઘࠫ

ಯீ

תீ

0/

0''

OPEN

OPEN

1"*3*/(

1

2

Témoin LED de l'appareil

Le IR Blaster affiche l'état de
pairage.

Interrupteur d'alimentation

Bouton de pairage

1

Maintenez les deux côtés du support des piles et retirez-le.

2

Placez quatre piles en respectant les polarités (+/-)
illustrées dans le logement des piles.

3

Remettez le support en place.

SMART TV

GUIDE D’INSTALLATION RAPIDE

Français - 8

ൾઘࠫ

ಯீ

תீ

0/

0''

OPEN

OPEN

1"*3*/(

TV STB BD

VOICE NUMBER

RETURN

.*$

w= v

: permet de régler le volume.

Affiche les applications SmartHub.

permet d'allumer et d'éteindre le téléviseur.

Touch pad

• Déplacez votre doigt sur le Touch Pad pour déplacer
le zoom sur l'écran.

• Appuyez sur le Touch Pad pour exécuter l'élément
mis en surbrillance.

• Maintenez une pression sur le Touch Pad pour
sélectionner la même fonction qu'avec le bouton

MUTE

M

de votre télécommande. Cependant,

cette action fait défiler la page sur un Web Browser.

• Appuyez sur le Touch Pad ou sur le bouton

RETURN

R

pour revenir au mode général.

% Si aucun bouton n'est enfoncé pendant 30

secondes, le Touch Pad s'éteint automatiquement.

% Pour réutiliser le Touch Pad, appuyez sur n'importe

quel bouton.

Affiche le bouton de couleur, les boutons de contrôle
de la lecture et le bouton de sortie.

Permet d'afficher la liste des raccourcis.

Il est aisé de sélectionner une fonction

souhaitée (p.ex.Menu(

m

), Source(s),

Infos(`), etc.).

< P >

: permet de changer de chaîne.

RETURNR: permet de revenir au menu

précédent.

VOICE

˜

: permet de prendre votre

commande vocale et d'entrer du texte à

l'aide de votre voix.

NUMBER

š

: affiche l'écran des numéros.

Sélectionnez un nombre à l’aide du

Touch Pad

Voyant LED indiquant le périphérique actif.

MIC: la fonction MIC vous permet de donner une

commande vocale. Pour activer la fonctionMIC,
appuyez simplement sur le bouton VOICE

˜

.

Š

: affiche la liste des dernières fonctions

utilisées.

T

: permet de sélectionner rapidement les

fonctions fréquemment utilisées.

IR Blaster

1

Quand vous activez l'IR Blaster, le témoin LED clignote.

2

Orientez l'IR Blaster vers le récepteur distant de votre téléviseur, puis appuyez brièvement sur le bouton
PAIRING, situé au bas de l'IR Blaster.

3

Les icônes de connexion s'affichent en bas à gauche de l'écran et le téléviseur se connecte
automatiquement à l'IR Blaster.

% Si le processus de connexion a échoué, activez et désactivez le IR Blaster et réessayez à partir de

l'étape2.

Pairage initial

Smart Touch Control

1

Appuyez sur n’importe quel bouton du Smart Touch Control en direction du récepteur distant du téléviseur.

2

Les icônes de connexion s'affichent en bas à gauche de l'écran, et le téléviseur se connecte
automatiquement à votre Smart Touch Control.

% Si vous souhaitez exécuter à nouveau le processus de pairage, appuyez sur le bouton PAIRING, situé

au milieu du capot arrière. Le Smart Touch Control sera réinitialisé.

TVSTBBD

VOICE NUMBER

RETURN

TVSTB BD

VOICE NUMBER

RETURN

Récepteur distant

<Connexion>

• Smart Touch
Control

• IR Blaster

<Pairage accompli>

30cm à 4m

% La couleur et la forme de l'appareil peuvent varier en fonction du modèle.
% La position du récepteur distant peut varier en fonction du modèle.
