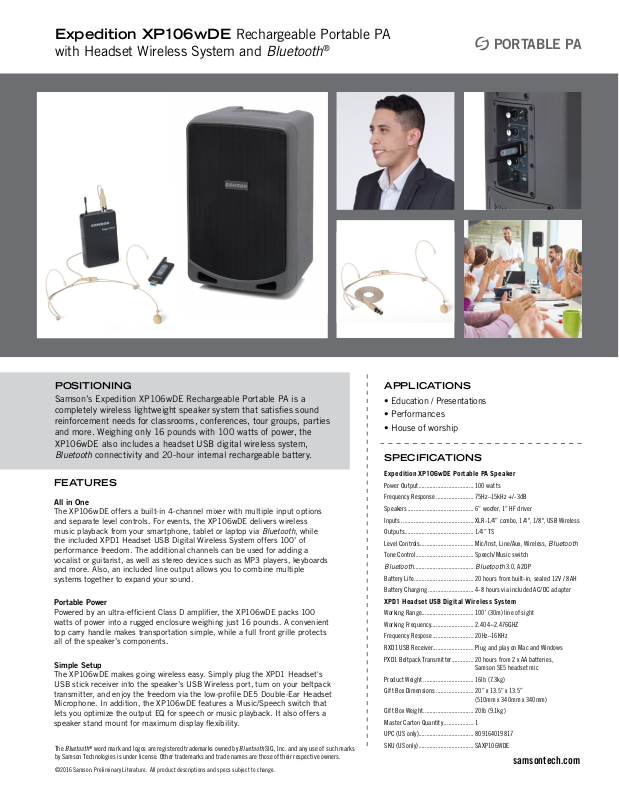

Samson XP106WDE Datasheet

Expedition XP106wDE Rechargeable Portable PA

with Headset Wireless System and Bluetooth

PORTABLE PA

POSITIONING

Samson’s Expedition XP106wDE Rechargeable Portable PA is a completely wireless lightweight speaker system that satisﬁes sound reinforcement needs for classrooms, conferences, tour groups, parties and more. Weighing only 16 pounds with 100 watts of power, the XP106wDE also includes a headset USB digital wireless system, Bluetooth connectivity and 20-hour internal rechargeable battery.

FE AT UR E S

All in One

The XP106wDE offers a built-in 4-channel mixer with multiple input options and separate level controls. For events, the XP106wDE delivers wireless music playback from your smartphone, tablet or laptop via Blueto oth, while the included XPD1 Headset USB Digital Wireless System offers 100’ of performance freedom. The additional channels can be used for adding a vocalist or guitarist, as well as stereo devices such as MP3 players, keyboards and more. Also, an included line output allows you to combine multiple systems together to expand your sound.

Portable Power

Powered by an ultra-efﬁcient Class D ampliﬁer, the XP106wDE packs 100 watts of power into a rugged enclosure weighing just 16 pounds. A convenient top carry handle makes transportation simple, while a full front grille protects all of the speaker’s components.

Simple Setup

The XP106wDE makes going wireless easy. Simply plug the XPD1 Headset's USB stick receiver into the speaker’s USB Wireless port, turn on your beltpack transmitter, and enjoy the freedom via the low-proﬁle DE5 Double-Ear Headset Microphone. In addition, the XP106wDE features a Music/Speech switch that lets you optimize the output EQ for speech or music playback. It also offers a speaker stand mount for maximum display ﬂexibility.

The by Samson Technologies is under license. O ther trademarks and trade names are those of their respe ctive owners.

Bluetooth

word mark and logos are registered trademarks owned by

Bluetooth

SIG, Inc. and any use of such marks

APPLICATIONS

• Education / Presentations

• Performances

• House of worship

SPECIFICATIONS

Expedition XP106w DE Por table PA Speaker

Power Output ................................... 100 wat ts

Frequency Response ........................ 75Hz–15kHz +/-3dB

Speakers .......................................... 6” woofer, 1” HF driver

Inputs .............................................. XLR-1⁄4” combo, 1/4", 1/8", USB Wir eless

Outputs ............................................ 1 ⁄4” TS

Level Controls .................................. Mic/Inst, Line/Aux, Wireless, Bluet ooth

Tone Control ..................................... Speech/Music switch

Blueto oth ...................................... Bluet ooth 3.0, A2DP

Battery Life ...................................... 20 hours from built-in, sealed 12V / 8 AH

Battery Charging ............................. 4-8 hours via included AC/ DC adapter

XPD1 Headset USB Digi tal Wireless System

Working Range ................................. 100’ (30m) line of sight

Working Frequency ........................... 2.404~2.476GHZ

Frequency Respose .......................... 20Hz–16KHz

RXD1 USB Receiver .......................... Plug and play on Mac and Windows

PXD1 Beltpack Transmitter .............. 20 hours from 2 x A A batteries,

Samson SE5 headset mic

Product Weight ................................ 16 lb (7.3kg)

Gift Box Dimensions ........................ 20” x 13.5” x 13.5”

(510mm x 340mm x 340mm)

Gift Box Weight ................................ 20lb (9.1kg)

Master Carton Quantity ................... 1

UPC (US only)................................... 80916 4019817

SKU (US only) ................................... SAXP106WDE

samsontech.com
