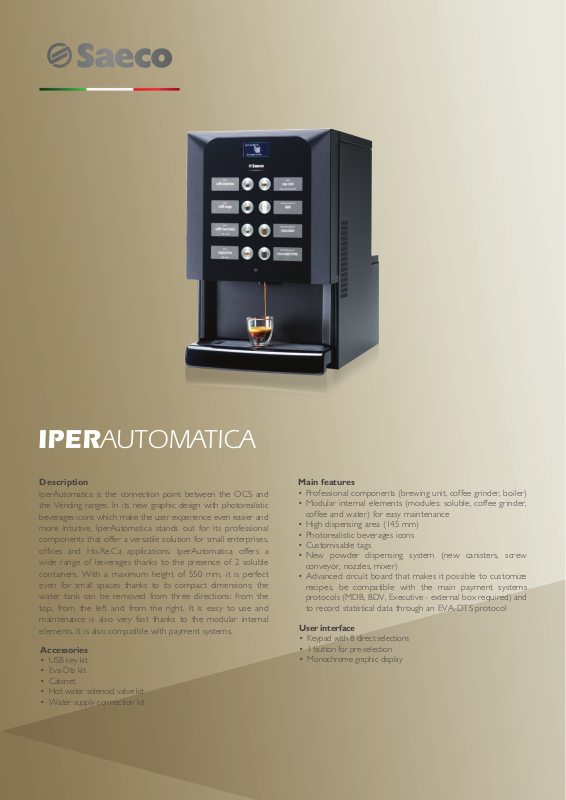

Saeco IperAutomatica Espresso Product brochure

Description

IperAutomatica is the connection point between the OCS and
the Vending ranges. In its new graphic design with photorealistic
beverages icons which make the user experience even easier and
more intuitive, IperAutomatica stands out for its professional
components that offer a versatile solution for small enterprises,
offices and Ho.Re.Ca applications. IperAutomatica offers a
wide range of beverages thanks to the presence of 2 soluble
containers. With a maximum height of 550 mm, it is perfect
even for small spaces thanks to its compact dimensions; the
water tank can be removed from three directions: from the
top, from the left and from the right. It is easy to use and
maintenance is also very fast thanks to the modular internal
elements. It is also compatible with payment systems.

Accessories

• USB key kit

• Eva-Dts kit

• Cabinet

• Hot water solenoid valve kit

• Water supply connection kit

Main features

• Professional components (brewing unit, coffee grinder, boiler)

• Modular internal elements (modules: soluble, coffee grinder,
coffee and water) for easy maintenance

• High dispensing area (145 mm)

• Photorealistic beverages icons

• Customisable tags

• New powder dispensing system (new canisters, screw
conveyor, nozzles, mixer)

• Advanced circuit board that makes it possible to customize
recipes, be compatible with the main payment systems
protocols (MDB, BDV, Executive - external box required) and
to record statistical data through an EVA-DTS protocol

User interface

• Keypad with 8 direct selections

• 1 button for pre-selection

• Monochrome graphic display

Technical data IperAutomatica Espresso

Structural specications

Dimensions (w x h x d) 346 x 547 x 542 mm
Weight 31.5 kg

Electrical specications

Power supply 220-240-120 V/50-60 Hz
Power pack switching
Power consumption 1550 W

Water specications

Boiler 1
Boiler capacity 300 cc (1400 W)
Boiler material brass
Water supply with independent water tank (with lock)

Other specications

Coffee beans canister 1
Instant products canister 2
Number of selections 8
Pre-selection 1
Mixer 1
Brewing unit 7 gr or 9 gr

Capacities

Water canister 4 l
Coffee grounds tray 25 coffee grounds
Drip tray 1 l

Canisters capacity

Coffee beans 1.0 kg
Milk 0.35 kg
Chocolate 0.90 kg

ENG-32001721-05-09/19

Technical specifications

• Full welded and painted metal structure

• Containers and tanks in food-contact approved resin

• No water signal (capacitive water level sensor)

• Software function setting the maximum number of coffee
cycles permitted before the dump box/drip tray is removed
and emptied

• Electronically controlled boiler temperature

• Internal humidity exhaust and air flow grids

• 48 W electromagnetic vibration pump

• Boiler safety valve

• General safety relay for 24 V components

• CE, VDE, CSA approved
