Roland VH-12 User Manual
Owner’s Manual
When using the VH-12, you will need to make the settings for the sound
module. Refer to p. 8
The VH-12 V-Hi-Hat is to be used in combination with the Roland TD-20 or TD-12 Percussion
Sound Module.
fig.Structure
*
Hi-hat stand is not included.
For details on compatible stands, refer to p. 10.
03458434 ’05-10-6N
202
Copyright © 2004 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of ROLAND CORPORATION.
USING THE UNIT SAFELY
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic
animals or pets.
The
001
• Before using this unit, make sure to read the
instructions below, and the Owner’s Manual.
................................................................................................
002a
• Do not open or perform any internal modifications
on the unit.
................................................................................................
003
• Do not attempt to repair the unit, or replace parts
within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland
distributor, as listed on the “Information” page.
................................................................................................
004
• Never use or store the unit in places that are:
• Subject to temperature extremes (e.g., direct
sunlight in an enclosed vehicle, near a heating
duct, on top of heat-generating equipment); or
are
• Damp (e.g., baths, washrooms, on wet floors); or
are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
................................................................................................
007
• Make sure you always have the unit placed so it is
level and sure to remain stable. Never place it on
stands that could wobble, or on inclined surfaces.
................................................................................................
011
• Do not allow any objects (e.g., flammable material,
coins, pins); or liquids of any kind (water, soft
drinks, etc.) to penetrate the unit.
013
• In households with small children, an adult should
provide supervision until the child is capable of
following all the rules essential for the safe
operation of the unit.
................................................................................................
014
• Protect the unit from strong impact.
(Do not drop it!)
................................................................................................
104
• Try to prevent cords and cables from becoming
entangled. Also, all cords and cables should be
placed so they are out of the reach of children.
................................................................................................
106
• Never climb on top of, nor place heavy objects on
the unit.
................................................................................................
115b(modified)
• Install the unit only on the hi-hat stand which
satisfies the specifications described on p. 10.
Remove only the specified screws during the
installation.
................................................................................................
118
• Should you remove clutch/clamp bolts, make sure
to put them in a safe place out of children’s reach,
so there is no chance of them being swallowed
accidentally.
................................................................................................
• Be careful not to allow your fingers or hands to be
caught between the top and bottom hi-hat.
................................................................................................
................................................................................................
2
IMPORTANT NOTES
291a
In addition to the items listed under “USING THE UNIT SAFELY” on page 2, please read and observe the
following:
558d
• This instrument is designed to minimize the extraneous
Placement
354a
• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Excessive heat can deform or discolor the unit.
355b
• When moved from one location to another where the
temperature and/or humidity is very different, water
droplets (condensation) may form inside the unit. Damage
or malfunction may result if you attempt to use the unit in
this condition. Therefore, before using the unit, you must
allow it to stand for several hours, until the condensation
has completely evaporated.
356
• Do not allow rubber, vinyl, or similar materials to remain
on the unit for long periods of time. Such objects can
discolor or otherwise harmfully affect the finish.
Maintenance
401a
• For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a
mild, non-abrasive detergent. Afterwards, be sure to wipe
the unit thoroughly with a soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or
deformation.
sounds produced when it’s played. However, since sound
vibrations can be transmitted through floors and walls to a
greater degree than expected, take care not to allow these
sounds to become a nuisance to neighbors, especially
when performing at night and when using headphones.
559a
• When you need to transport the unit, package it in the box
(including padding) that it came in, if possible. Otherwise,
you will need to use equivalent packaging materials.
add
• The hi-hat stand is supported by means of a tripod. When
installing the hi-hat, make sure the legs of the tripod are
opened wide enough to keep the equipment from falling
over.
add
• The hi-hat’s rubber surface may turn white, but this has
no effect on the hi-hat’s function.
add

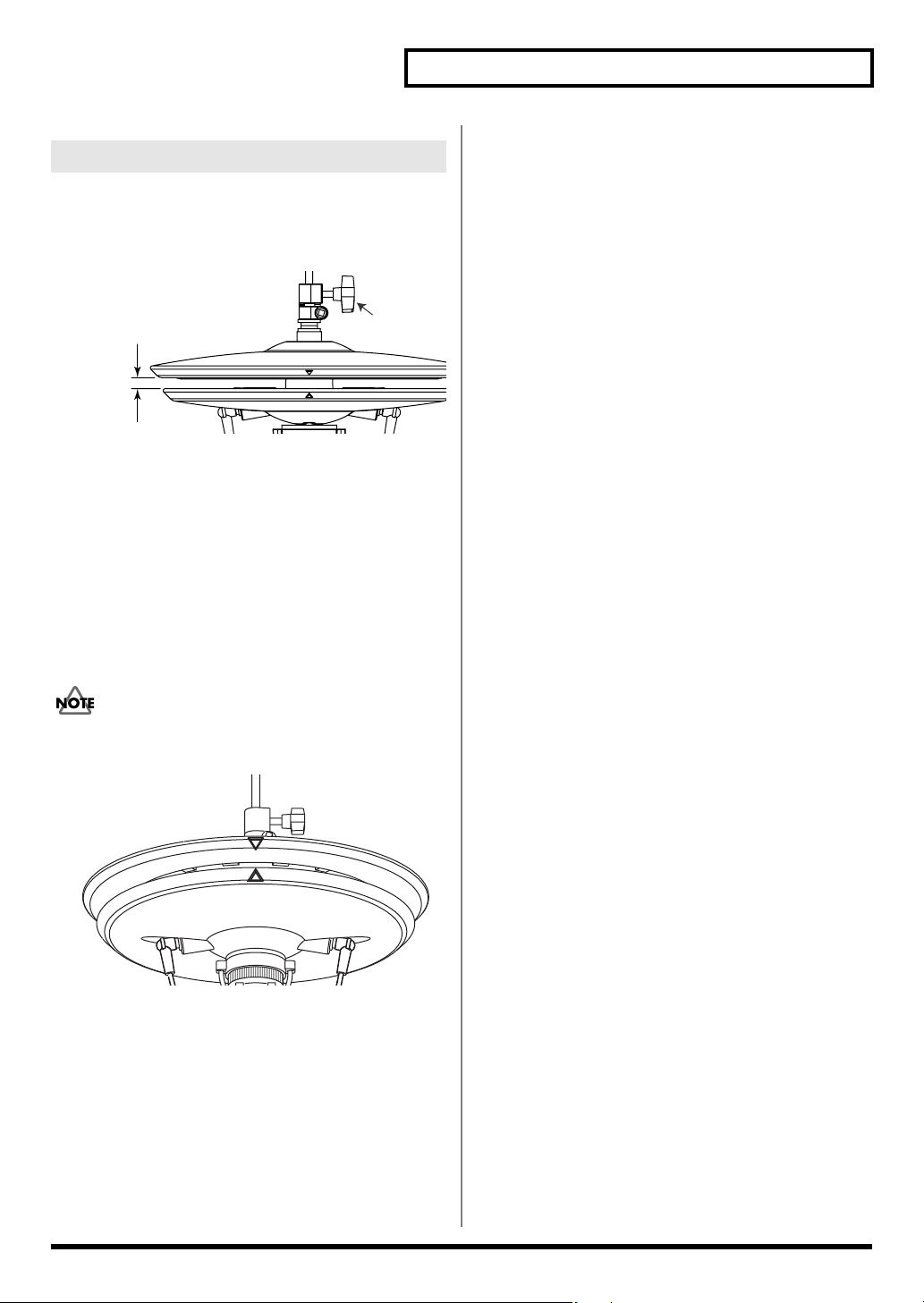

• The section indicated by the arrows in the figure below
contains high-precision sensors. Take care not to subject
this to excessive shock, and do not allow any foreign
objects to enter the gap.
Top Hi-Hat
fig.Top2
Additional Precautions
553
• Use a reasonable amount of care when using the unit’s
buttons, sliders, or other controls; and when using its jacks
and connectors. Rough handling can lead to malfunctions.
556
• When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way you
will avoid causing shorts, or damage to the cable’s
internal elements.
558a
• To avoid disturbing your neighbors, try to keep the unit’s
volume at reasonable levels. You may prefer to use
headphones, so you do not need to be concerned about
those around you (especially when it is late at night).
Bottom Hi-Hat
fig.Bottom2
3
Getting Started
Features
Similar Touch and Feel as with an
Acoustic Hi-Hat
The superior design has taken into account not only the shape
of the hi-hat, but also the bounce of the stick, and even the
movement caused by playing, making it possible to play with
the same feel as an acoustic hi-hat.
Smooth Transition Between Closed
and Open Tones
When you strike the pad while gradually opening the pedal,
the tone smoothly opens in response to how much the pedal is
opened.
Pressure Sensitive
You can alter the closed tone by continuing to press harder on
the pedal after it is closed (p. 10).
Allows Foot Splashes
You can play foot splashes by pressing the pedal and then
instantly opening it.
Quick-Open Tone Changes
Get realistic tonal changes by hitting the closed hi-hat and
immediately opening it.
Natural-Feeling Action
The top hi-hat weight, gap between the top and bottom
cymbals, and hi-hat stand tension gives the pedal action an
extremely natural feel.
Package Contents
Top Hi-Hat
fig.Top
Bottom Hi-Hat
fig.Bottom
fig.Accessories
Special VH-12 Clutch
* The clutch included with the hi-
hat stand will not be used.
Clamp
Holder (3 types)
Dual Trigger Capability
Sensors in both the top and edge portion make it possible to
get different sounds by striking the bow (upper surface) and
the edge (p. 10).
They’re Quiet!
Rubber is used on the striking surface for a damping effect.
Compatible with Commercially
Available Hi-Hat Stands (p. 10)
4
Link Cable
Cable Tie
Tuning Key
