About the Wireless LAN Function

2. Insert the wireless USB Adapter (WNA1100-RL; sold

Check the version

The wireless LAN function was added in TD-15/TD-11 version

1.10. If the version is earlier than 1.10, download the update from the support page (http://www.roland.com/support/)

g Downloads g product name (“TD-15” or “TD-11”) g TD-15/TD-11 System Program Version 1.10, and update

your TD-15/TD-11.

* If this supplementary manual was included with a new

TD-15/TD-11 you purchased, your instrument has already been updated to version 1.10 or later; you do not need to update.

How to check the version

Select the [MENU] button g “SYSTEM” g “Information.”

What is Wireless LAN function?

separately) into the TD-15/TD-11’s USB MEMORY port.

3. Turn ON the TD-15/TD-11.

Wait until the following icon appears in the upper right of the DRUM KIT screen.

4. Press the button of the Wireless USB Adapter (sold

separately: WNA1100-RL).

The WPS screen will appear.

By inserting the wireless USB Adapter (WNA1100-RL; sold separately) into the TD-15/TD-11’s USB MEMORY port, you’ll be able to use wireless-compatible applications (such as the “V-Drums Friend Jam for iPhone” iPhone app).

iPhone etc.

Wireless LAN access point

(e.g., wireless LAN router)

Wireless LAN Wireless LAN

TD-15/TD-11

Wireless

USB Adapter (sold

separately: WNA1100-RL)

Items required to use the wireless LAN function

Wireless USB Adapter (sold separately: WNA1100-RL)

Wireless LAN access point (e.g., wireless LAN router) *1 *2 *3

iPhone or iPod touch etc.

*1 The wireless LAN access point you use must support WPS. If your

wireless LAN access point does not support WPS, you can connect using the procedure described in “Connecting to a Wireless LAN Access Point That You Select (SELECT ACCESS POINT)” (p. 2).

*2 The ability to connect with all kinds of wireless LAN access points

is not guaranteed.

*3 If you’re unable to connect to the wireless LAN access point, try

connecting using Ad-Hoc mode (p. 3).

Basic Connection Method (Connect by WPS)

NOTE

* If you apply excessive force to the USB adapter when pressing

the button, you may damage it. Please use caution.

5. Perform the WPS operation on your wireless LAN access

point (e.g., press the WPS button on your wireless LAN access point).

For details on WPS operation of your wireless LAN access point, refer to the documentation for your wireless LAN access point.

6. Press the [F3] (OK) button of the TD-15/TD-11.

Once successfully connected, the status (WIRELESS STATUS) screen (p. 2) will appear.

7. Press the [EXIT] button several times to return to the DRUM

KIT screen.

You can use the wireless connection from an iPhone app such as V-Drums Friend Jam for iPhone. Choose “TD-15” or “TD-11” in the instrument select screen of your iPhone app.

NOTE

* The device (e.g., iPhone) running the app must be connected to

the same network.

MEMO

• The connection data is stored in memory when you perform the WPS procedure; the device will automatically connect to the wireless network the next time.

• All connection data will be erased if you perform a factory reset.

* Connection data is not included in a backup saved in the USB

ash drive.

Icons in the display

The wireless LAN status is shown in the upper part of the display.

The rst time you connect the TD-15/TD-11 to a wireless network, you’ll need to perform the following procedure (WPS) to join the wireless network.

This procedure is required only the rst time. (Once you’ve joined the network, this procedure will no longer be necessary.)

What is WPS?

This is a standard that makes it easy to make security settings when connecting to a wireless LAN access point. We recommend that you use WPS when connecting to a wireless LAN access point.

Icon Explanation

Currently connected to the wireless LAN access point. Three bars are used to indicate the signal level (the strength of the connected wireless LAN access point’s radio signal).

The wireless USB adapter is inserted, but not connected with a wireless LAN access point.

The wireless USB adapter is not inserted (nothing is displayed).

Ad-Hoc mode (p. 3).

1. Turn OFF the TD-15/TD-11.

TD-15/TD-11 1PS

Wireless LAN Function Settings

You can view or edit the wireless settings.

Status Indication (WIRELESS STATUS)

This shows the wireless LAN status.

1. Select the [MENU] g “SYSTEM” g “Wireless.”

The WIRELESS STATUS screen will appear.

Display Explanation

CONNECTED

NOT CONNECTED

NOT AVAILABLE The wireless USB adapter is not inserted.

AD-HOC MODE

What the function buttons do

Button Explanation

[F1] (SEL AP)

[F2] (WPS) Move to a screen for performing WPS.

[F3] (OPTIONS)

* If the wireless USB adapter is not inserted, the [F1] (SEL AP) and

[F2] (WPS) buttons will not be shown.

Currently connected to the wireless LAN access point.

The identier (name) of the connected wireless LAN access point is shown.

The wireless USB adapter is inserted, but not connected to a wireless LAN access point.

Ad-Hoc mode (p. 3).

The Ad-Hoc SSID and Ad-Hoc Key are shown. For details, refer to “Connecting in Ad-Hoc mode (Ad-Hoc Mode)” (p. 3).

Move to a screen where you can choose a wireless LAN access point and connect to it.

Make settings for Wireless ID or Ad-Hoc mode (Ad-Hoc Mode) (p. 3).

About the Wireless LAN Function

2. Perform the WPS operation on your wireless LAN access

point (e.g., press the WPS button on your wireless LAN access point).

For details on WPS operation of your wireless LAN access point, refer to the documentation for your wireless LAN access point.

3. Press the [F3] (OK) button of the TD-15/TD-11.

Connection via WPS will take place.

Once successfully connected, you’ll be returned to the status (WIRELESS STATUS) screen.

Connecting to a Wireless LAN Access Point That You Select (SELECT ACCESS POINT)

This method lets you connect by choosing a wireless LAN access point from the list that is displayed.

* Wireless standards 802.11g/n (2.4 GHz) and authentication

methods WPA/WPA2 are supported.

1. Select the [MENU] button g “SYSTEM” g “Wireless” g

[F1] (SEL AP) button.

The SELECT ACCESS POINT screen will appear.

• A “ ” symbol is shown for the currently-connected wireless LAN access point.

• You can update the list by pressing the [F2] (REFRESH) button.

2. Choose the wireless LAN access point to which you want to

connect, and press the [F3] (SELECT) button.

• You will be connected to the selected wireless LAN access point.

• If you’re using this wireless LAN access point for the rst time, you’ll proceed to the authorization (AUTHORIZATION) screen.

• If this is a wireless LAN access point to which you have connected in the past, just press the [F3] (SELECT) button and you’ll be connected. Once successfully connected, you’ll be returned to the status (WIRELESS STATUS) screen.

Connecting by WPS (WPS)

Here’s how you can use WPS to connect to a wireless LAN access point.

MEMO

You can also make the WPS connection by pressing the button of the wireless USB adapter (WNA1100-RL; sold separately). For the procedure, refer to “Basic Connection Method (Connect by WPS)” (p. 1).

1. Select the [MENU] button g “SYSTEM” g “Wireless” g

[F2] (WPS).

The WPS screen will appear.

Authorization screen (AUTHORIZATION)

3. Enter the security code (passphrase) of your wireless LAN

access point, and press the [F3] (CONNECT) button.

For details on how to enter characters, refer to the TD-15/TD-11 Owner’s Manual.

* You cannot enter a space at the end of the passphrase.

Once successfully connected, you’ll be returned to the status (WIRELESS STATUS) screen.

About the Wireless LAN Function

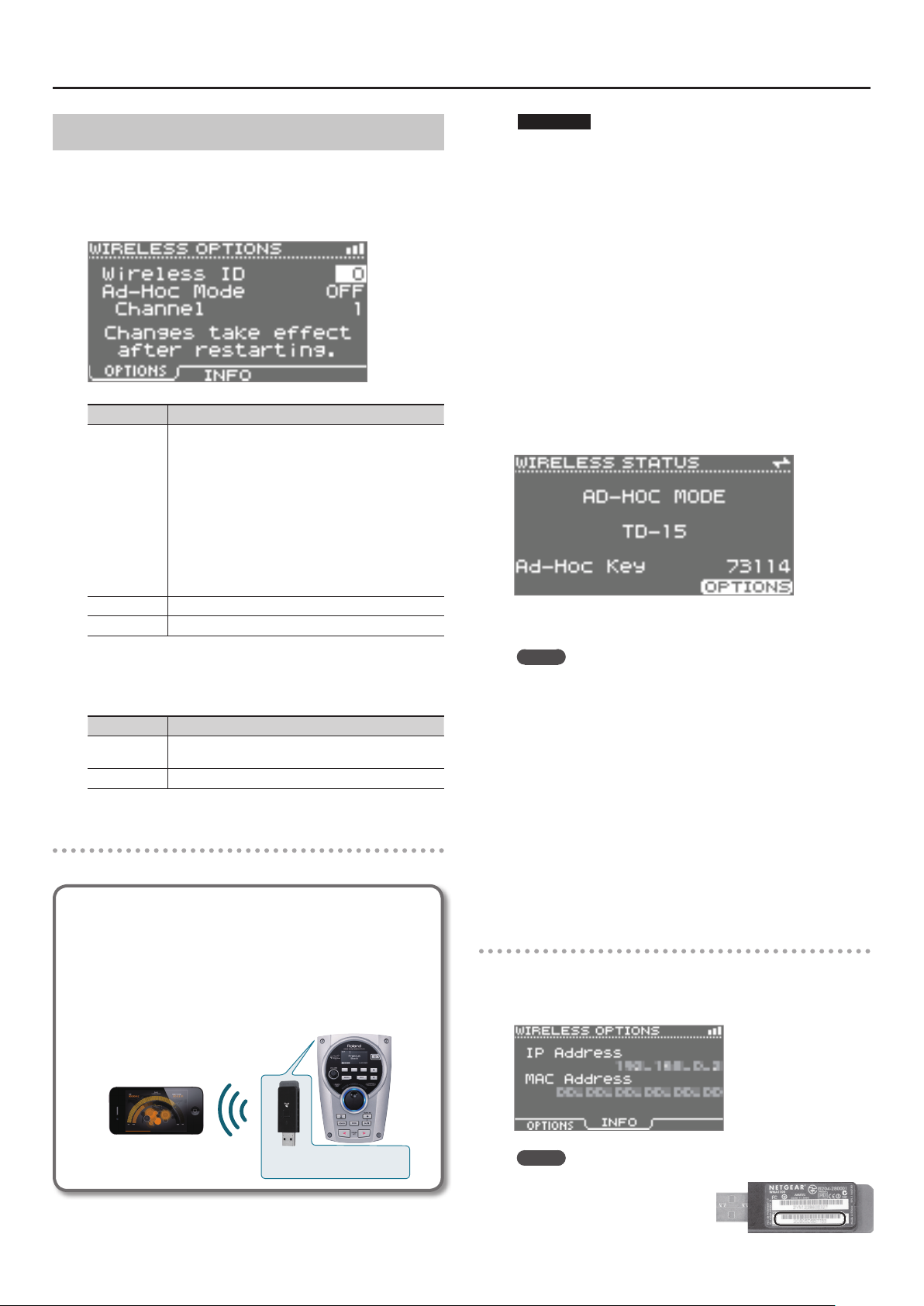

Other Settings (WIRELESS OPTIONS)

Make settings for Wireless ID or Ad-Hoc mode (Ad-Hoc Mode).

1. Select the [MENU] button g “SYSTEM” g “Wireless” g

[F3] (OPTIONS) button.

The WIRELESS OPTIONS screen will appear.

Parameter Explanation

Species the nal digits of the and Ad-Hoc SSID (“TD-15” or “TD-11”) that will be shown as the instrument in the wirelessly connected app.

Normally, you should specify “0,” but if you have more than one of the same instrument, you can set the Wireless ID in

Wireless ID

Ad-Hoc Mode Turns Ad-Hoc mode on/o.

Channel Species the channel (1–11) for Ad-Hoc mode.

* These settings will take eect after you’ve turned the unit o,

then back on again.

What the function buttons do

Button Explanation

[F1] (OPTIONS)

[F2] (INFO) View the IP address and MAC address.

the range of 1–99 to change the device name and Ad-Hoc SSID for each instrument, as follows.

If Wireless ID=0, “TD-15” (default value)

If Wireless ID=1, “TD-15-1”

If Wireless ID=99, “TD-15-99”

Make settings for Wireless ID or Ad-Hoc mode (Ad-Hoc Mode).

Connecting in Ad-Hoc mode (Ad-Hoc Mode)

Here’s how to connect in Ad-Hoc mode.

What is Ad-Hoc mode?

Ad-Hoc mode lets you connect the TD-15/TD-11 directly to an iPhone or other wireless device without using a wireless LAN access point. This is a convenient way to use the TD-15/TD-11 with an iPhone or other wireless device if you’re in a location where the wireless LAN access point you normally use is unavailable, such as when you’re away from home.

TD-15/TD-11

’s device name

Limitations

The iPod touch or other wireless device connected in Ad-Hoc mode will be unable to communicate with the Internet or with another wireless device. However, an iPhone or other wireless device that has cellular capability will be able to connect to the Internet via the cellular connection.

Please be aware that if you use a cellular connection for Internet connectivity, you may incur costs depending on your rate plan.

1. Select the [MENU] button g “SYSTEM” g “Wireless” g

[F3] (OPTIONS) button.

The WIRELESS OPTIONS screen will appear.

2. Turn the Ad-Hoc Mode “ON.”

You can use Channel to specify a channel (1–11) for Ad-Hoc mode. Normally, you won’t need to change the channel. Try changing the channel only if you have problems connecting.

3. Turn the unit o, then on again.

4. Select the [MENU] g “SYSTEM” g “Wireless” to access the

WIRELESS STATUS screen.

The Ad-Hoc SSID (“TD-15” or “TD-11”) and the Ad-Hoc Key (a vecharacter text string) will be displayed.

MEMO

The Ad-Hoc SSID (“TD-15” or “TD-11”) will be the value that you specied in the WIRELESS OPTIONS screen “Wireless ID” setting.

5. On the iPhone or other wireless device that you want to

connect, select the Ad-Hoc SSID shown in the above screen to make the connection. (For example, on an iPhone, choose [Settings] g [Wi-Fi] g [Choose a Network] to select the above Ad-Hoc SSID. A password entry screen will appear; enter the above Ad-Hoc key.)

For details on how to connect to a wireless LAN from an iPhone or other device, refer to the owner’s manual of that device.

6. When you want to end the Ad-Hoc mode connection,

restore the iPhone settings in [Settings] g [Wi-Fi] g [Choose a Network] to their previous state.

Checking the IP Address and MAC Address (INFO)

Here’s how to check the IP address and MAC address.

1. Select the

[F3] (OPTIONS) button g [F2] (INFO) button.

[MENU] button

“SYSTEM”

“Wireless” g

iPhone etc.

Wireless LAN

Wireless USB Adapter (sold separately: WNA1100-RL)

MEMO

The MAC address shows the value

indicated on the bottom of the wireless USB adapter (WNA1100RL; sold separately).

Troubleshooting

* For problems related to communication, refer also to the owner’s manual of your wireless LAN access point.

* For details on operating your wireless LAN access point, refer to its owner’s manual.

Problem Action

• Make sure that your wireless LAN access point supports WPS. If your wireless LAN access point does not support WPS, you can connect using the procedure described in “Connecting to a Wireless LAN Access Point That You Select (SELECT ACCESS POINT)” (p. 2).

• The 802.11a/b wireless standard is not supported. Please use the 802.11g/n (2.4 GHz) wireless standard.

• The WEP authentication method is not supported. Please use the WPA or WPA2 authentication method.

Can’t connect to a wireless LAN access point

The TD-15/TD-11 indicates “Could not make the wireless connection.”

The display indicates “This Access Point is not supported,” and can’t connect to the wireless LAN access point

Communication is unstable

The TD-15/TD-11 is not found in the instrument connections of the app (such as the iPhone app V-Drums Friend Jam for iPhone)

Your iPhone or iPod touch won’t connect to the Internet

The TD-15/TD-11 indicates “When streaming wirelessly, songs can not play back.”

The changes of Ad-Hoc or Wireless ID settings does not became eective.

• Make sure that DHCP is enabled for your wireless LAN access point.

• If you don’t get connected to the previously-connected wireless LAN access point when you turn on the unit, check and make sure the setting described in “Connecting in Ad-Hoc mode (Ad-Hoc Mode)” (p. 3) is OFF.

• The connection might not occur successfully due to the state of the radio signal. If so, use the procedure described in “Connecting to a Wireless LAN Access Point That You Select (SELECT ACCESS POINT)” (p. 2), and select your wireless LAN access point and reconnect.

• There is a limit to the connection data that can be remembered. Making a new connection may cause older connection data to be deleted. All connection data will be deleted if you execute a factory reset. If the connection data has been deleted, please re-connect to the wireless LAN access point.

• Connection data is not included in a backup saved in the USB ash drive, please re-connect to the wireless LAN access point.

• This Access Point is not supported. Please use the WPA or WPA2 authentication method.

Communication may be unstable depending on the usage of the radio frequency spectrum.

If communication is unstable, the response may be sluggish, or if using audio communication, there may be dropouts in the audio.

The following actions may improve the situation.

• Move the wireless LAN access point and the TD-15/TD-11 closer to each other.

• Change the channel setting of the wireless LAN access point.

• Is the TD-15/TD-11 powered up?

• Is the wireless USB adapter (WNA1100-RL) inserted to the TD-15/TD-11?

• Is the TD-15/TD-11 connected to the wireless LAN?

• Are the TD-15/TD-11 and the iPhone connected to the same network (the same wireless LAN access point)?

• Is the wireless LAN access point set to allow communication between wireless LAN devices? For details on settings, refer to the owner’s manual of your wireless LAN access point.

• Is the wireless LAN access point connected to the Internet?

• Could you be connected in Ad-Hoc mode? The iPod touch or other wireless device connected in Ad-Hoc mode will be unable to communicate with the Internet or with another wireless device. However, an iPhone or other wireless device that has cellular capability will be able to connect to the Internet via the cellular connection. Please be aware that if you use a cellular connection for Internet connectivity, you may incur costs depending on your rate plan. A wireless device such as an iPod touch that does not have cellular capability will become unable to connect to the Internet in this case.

• When using the wireless LAN audio functionality, it is not possible to play back songs at the same time.

• These settings will take eect after you’ve turned the unit o, then back on again.

About the Wireless LAN Function

The TD-15/TD-11 indicates “When using USB, wireless can not send audio/MIDI data.” and is unable to communicate with the app.

The TD-15/TD-11 indicates “When using wireless, USB can not send audio/MIDI data.” and is unable to use the USB audio/MIDI.

Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.

Concerning the limitations on the USB audio/MIDI functionality and the wireless LAN functionality

When the USB COMPUTER port of the TD-15/TD-11 is connected via USB to your computer, it is not possible to use wireless LAN functionality at the same time as the USB audio/MIDI functionality.

• When the TD-15/TD-11 and your computer are connected via USB, it is possible to establish a wireless connection using the specied method; however, you won’t be able to carry out audio or MIDI communications with the wirelessly connected application. You must disconnect the USB connection between the TD-15/TD-11 and your computer before using the wireless LAN functionality.

• Although you can specify the “TD-15” or “TD-11” (USB) as the output destination for your personal computer’s audio and MIDI data even when you’re using a wirelessly connected application, no audio or MIDI data will be input or output using the TD-15/TD-11’s USB connection. You must disconnect the wireless connection between the TD-15/TD-11 and a wirelessly connected application before using the USB audio/MIDI functionality.

Roland TD-15 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
