V-Pad
PDX-8
PDX-6
Owner’s Manual
Contents of the Package
*
PDX-8 or PDX-6 (pad unit)
*
Connection Cable
*
Drum Key
)
Owner’s Manual (this manual)

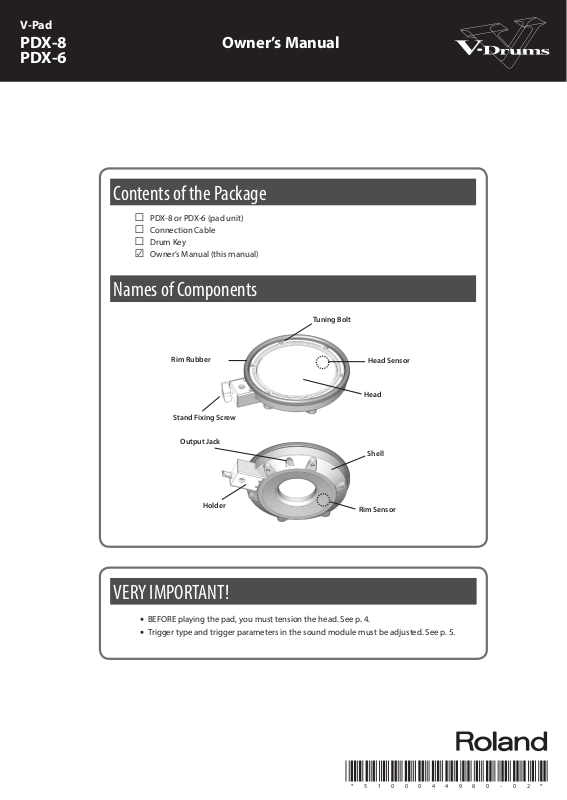

Names of Components
Rim Rubber
Tuning Bolt
Head Sensor
Head
Stand Fixing Screw
Output Jack
Shell
Holder
Rim Sensor
VERY IMPORTANT!
5 BEFORE playing the pad, you must tension the head. See p. 4.
5 Trigger type and trigger parameters in the sound module must be adjusted. See p. 5.
* 5 1 0 0 0 4 4 9 8 0 - 0 2 *
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES.” These
sections provide important information concerning the proper operation of the unit. Additionally, in order to feel
assured that you have gained a good grasp of every feature provided by your new unit, Owner’s Manual should be read
in its entirety. The manual should be saved and kept on hand as a convenient reference.
USING THIS UNIT SAFELY
About WARNING and CAUTION Notices
Used for instructions intended to alert the
user to the risk of death or severe injury
should the unit be used improperly.
Used for instructions intended to alert the
user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic animals
or pets.
ALWAYS OBSERVE THE FOLLOWING
WARNING
• Do not open or perform any internal
modications on the unit. (The only
exception would be where this manual
provides specic instructions which
should be followed in order to put in
place user-installable options; see p. 6.)
• Do not attempt to repair the unit,
or replace parts within it (except
when this manual provides specic
instructions directing you to do so).
Refer all servicing to your retailer, the
nearest Roland Service Center, or an
authorized Roland distributor, as listed
on the “Information” page.
• Never install the unit in any of the
following locations.
6 Subject to temperature extremes
(e.g., direct sunlight in an enclosed
vehicle, near a heating duct, on top
of heat-generating equipment);
or are
6 Damp (e.g., baths, washrooms, on
wet oors); or are
6 Exposed to steam or smoke; or are
6 Subject to salt exposure; or are
6 Humid; or are
6 Exposed to rain; or are
6 Dusty or sandy; or are
6 Subject to high levels of vibration
and shakiness.
About the Symbols
The symbol alerts the user to important instructions or
warnings.The specific meaning of the symbol is
determined by the design contained within the triangle. In
the case of the symbol at left, it is used for general
cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never be
carried out (are forbidden). The specific thing that must
not be done is indicated by the design contained within
the circle. In the case of the symbol at left, it means that
the unit must never be disassembled.
The symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In the
case of the symbol at left, it means that the power-cord
plug must be unplugged from the outlet.
WARNING
• This unit should be used only with a
rack or stand that is recommended by
Roland.
• When using the unit with a rack or
stand recommended by Roland, the
rack or stand must be carefully placed
so it is level and sure to remain stable. If
not using a rack or stand, you still need
to make sure that any location you
choose for placing the unit provides a
level surface that will properly support
the unit, and keep it from wobbling.
• Do not allow any objects (e.g.,
ammable material, coins, pins); or
liquids of any kind (water, soft drinks,
etc.) to penetrate the unit.
• In households with small children, an
adult should provide supervision until
the child is capable of following all the
rules essential for the safe operation of
the unit.
• Protect the unit from strong impact.
(Do not drop it!)
2
CAUTION
IMPORTANT NOTES
• This (PDX-8 or PDX-6) for use only with
Roland stand MDS series. Use with
other stands is capable of resulting in
instability causing possible injury.
• Try to prevent cords and cables from
becoming entangled. Also, all cords
and cables should be placed so they
are out of the reach of children.
• Never climb on top of, nor place heavy
objects on the unit.
• Should you remove the stand xing
screw or tuning bolts, keep them in
a safe place out of children’s reach,
so there is no chance of them being
swallowed accidentally.
• Do NOT place your ngers inside the
shell, as you may hurt yourself or
cause damage to the PDX-8 or PDX-6.
Or when changing the head, do NOT
touch any of the internal parts. Also,
do not insert your ngers into the hole
of the mounting bracket.
Head Sensor
Rim Sensor
Placement
6 Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Excessive heat can deform or discolor the unit.
6 Do not allow rubber, vinyl, or similar materials to remain
on the unit for long periods of time. Such objects can
discolor or otherwise harmfully aect the nish.
Maintenance
6 For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a
mild, nonabrasive detergent. Afterwards, be sure to wipe
the unit thoroughly with a soft, dry cloth.
6 Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or
deformation.
Additional Precautions
6 Use a reasonable amount of care when using the unit’s
buttons, sliders, or other controls; and when using
its jacks and connectors. Rough handling can lead to
malfunctions.
6 When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way
you will avoid causing shorts, or damage to the cable’s
internal elements.
6 When you need to transport the unit, package it in the
box (including padding) that it came in, if possible.
Otherwise, you will need to use equivalent packaging
materials.
6 Due to the nature of the materials used in the sensor,
changes in room temperature may aect the sensitivity
of the sensor.
6 Roland and V-Drums are either registered trademarks or
trademarks of Roland Corporation in the United States
and/or other countries.
Rim Sensor
Copyright © 2014 ROLAND CORPORATION
All rights reserved. No part of this publication may be
reproduced in any form without the written permission
of ROLAND CORPORATION.
