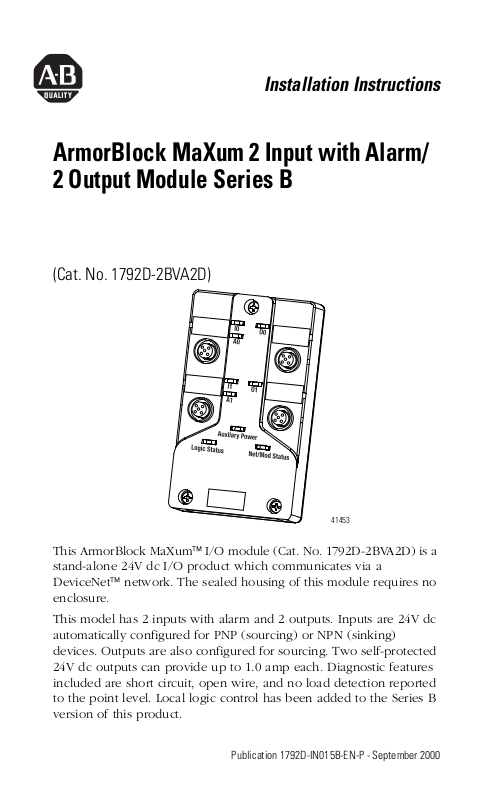

Installation Instructions
ArmorBlock MaXum 2 Input with Alarm/
2 Output Module Series B
(Cat. No. 1792D-2BVA2D)
41453
This ArmorBlock MaXum™ I/O module (Cat. No. 1792D-2BVA2D) is a
stand-alone 24V dc I/O product which communicates via a
DeviceNet™ network. The sealed housing of this module requires no
enclosure.
This model has 2 inputs with alarm and 2 outputs. Inputs are 24V dc
automatically configured for PNP (sourcing) or NPN (sinking)
devices. Outputs are also configured for sourcing. Two self-protected
24V dc outputs can provide up to 1.0 amp each. Diagnostic features
included are short circuit, open wire, and no load detection reported
to the point level. Local logic control has been added to the Series B
version of this product.
Publication 1792D-IN015B-EN-P - September 2000
2 ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B
Package Contents
Your package contains:
• 1 ArmorBlock MaXum Module
• Installation Instructions
(Please note: Cable bases are ordered and shipped separately.)
European Union Directive Compliance
If this product has the CE mark it is approved for installation within
the European Union and EEA regions. It has been designed and
tested to meet the following directives.
EMC Directive
This product is tested to meet Council Directive 89/336/EEC
Electromagnetic Compatibility (EMC) and the following standards, in
whole or in part, documented in a technical construction file:
• EN 50081-2 EMC - Generic Emission Standard, Part 2 Industrial Environment
• EN 50082-2 EMC - Generic Immunity Standard, Part 2 Industrial Environment
This product is intended for use in an industrial environment.
Low Voltage Directive
This product is tested to meet Council Directive 73/23/EEC Low
Voltage, by applying the safety requirements of EN 61131-2
Programmable Controllers, Part 2 - Equipment Requirements and
Tests.
For specific information required by EN 61131-2, see the appropriate
sections in this publication, as well as the following Allen-Bradley
publications:
• Industrial Automation Wiring and Grounding Guidelines For
Noise Immunity, publication 1770-4.1
• Automation Systems Catalog, publication B113
Publication 1792D-IN015B-EN-P - September 2000
ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B 3
Install Your ArmorBlock MaXum I/O Module
To install the module:
• Set the node address
• Mount the module to the cable base
• Connect the cord sets
• Communicate with the module
Each of these steps is explained in more detail in the following
procedures.
Set the Node Address
Valid node addresses are 00 to 63.
Set the node address using the rotary switches, RSNetWorx for
DeviceNet™, DeviceNetManager™, or other software configuration
tool. Setting the switches between 64 to 99 lets the software have
address control.
Each module is shipped set for node address 63. The switches are
located on the underside of the module. The two switches are:
• MSD (most significant digit)
• LSD (least significant digit)
To reset the node address, use a small blade screwdriver to rotate the
switches. Line up the small black dot on the switch with the number
setting you wish to use.
The rotary switches are read at module power up only. Settings
between 64 and 99 cause the module to use the last valid node
address stored internally. Example: The last setting was 40. If a
change is made to 68, and then you power up, the address will
default to 40.
Publication 1792D-IN015B-EN-P - September 2000
4 ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B
Refer to the illustration of the node address below.
Example: Node address is set at 62, see small black dots.
30703-M
The module is equipped with AutoBaud detect. AutoBaud lets the
module read the settings already in use on your DeviceNet network
and automatically adjusts to follow those settings.
Install the Module
This module mounts to the following cable bases:
• 1792D-CBFM for KwikLink™ flat media installation
• 1792D-CB12 for 12mm drop cable installation
• 1792D-CB18P for round media DeviceNet and output power
• 1792D-CB18PT for 4 connector blocks needing round media
DeviceNet and output power
• or other optional cable base assembly
IMPORTANT
The cable base should already be installed. See
publication 1792D-IN009B-EN-P for more
information on installing the cable base.
Publication 1792D-IN015B-EN-P - September 2000
ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B 5
To install the module:.
IMPORTANT
Proper alignment of the screws is necessary to
complete the connections between the module
contacts and the cable contacts.
1. Position the module over the mounted cable base. Align the
three captive screws in the module with the accepting
receptacles in the base.
2. Tighten the screws with a torque of 8 inch-pounds to secure
the module to the base.
Note: Dimensions change according to the cable base and module
combination used.
4.72 (120)
1.9 (48.26)
2.7 (68.6)
Align the
screws to
properly
assemble the
module to the
base.
Assembled Cable Base
1792D-CBFM is used
for this example.
Assembled
dimensions in
(mm)
30704-M
Publication 1792D-IN015B-EN-P - September 2000
6 ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B
Connect the Cord Sets to the MaXum Module
This module uses 5 pin micro (12mm) style PCB mounted connectors.
Four micro caps cover the connectors on your module. Remove the
caps and connect your cord sets to the appropriate ports.
Use the micro caps to cover and seal unused ports. A pinout diagram
for the connectors is shown next.

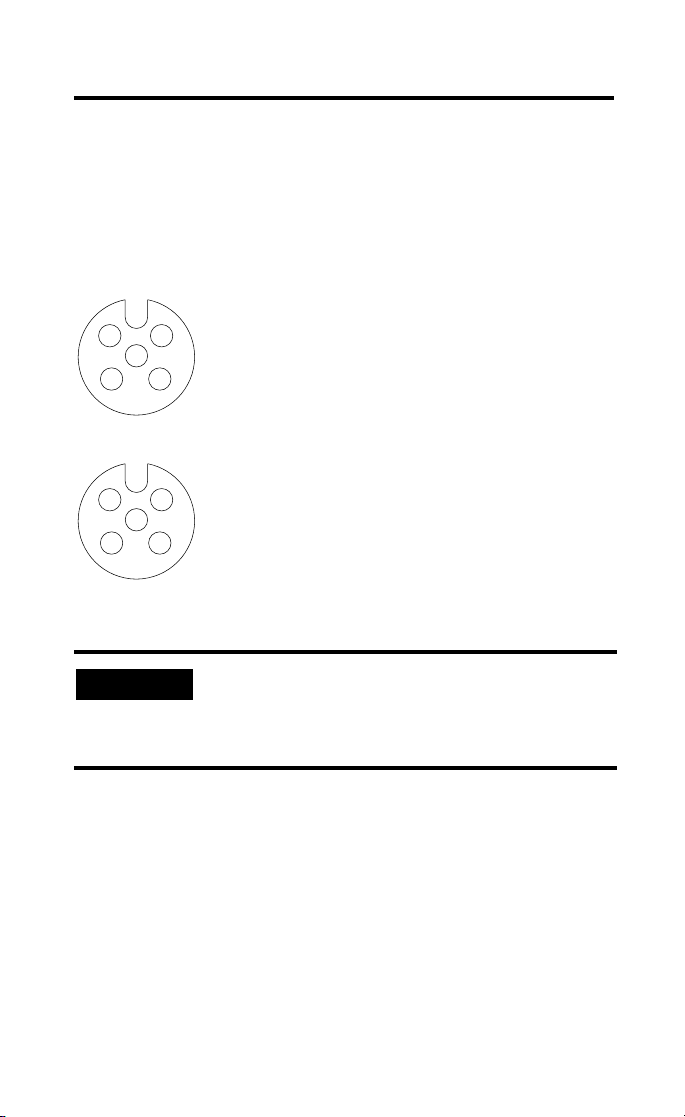

Input Micro-Connector
(View into Socket)
2
1
5
3
4
1
(Logic Ground is approximately 0.4V above DeviceNet V-measured at the module).
2
1
5
3
4
Please refer to publication 889-5.0 for Rockwell Automation cables
and cord sets offerings.
Pin 1 Sensor Source Voltage
Pin 2 Alarm
Pin 3 Return Logic Ground
Pin 4 Input
Pin 5 Not Used
Output Micro-Connector
(View into Socket)
Pin 1 Not used
Pin 2 Not used
Pin 3 Auxiliary Power Ground
Pin 4 Output
Pin 5 Not Used
1
41452
IMPORTANT
If the devices (sensors) connected to the input
connections require Class 2 power to operate, the
DeviceNet connections of this equipment must be
powered by a Class 2 source.
Publication 1792D-IN015B-EN-P - September 2000
ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B 7
ATTENTION
• Make sure all connectors and caps are
securely tightened to properly seal the
connections against leaks and maintain
IP67 requirements.
!
• For maximum noise immunity, input and
output cable return wires must be properly
terminated. When inputs and outputs are
connected in loopback, return wires should
be connected together.
• I/O cable length should be less than 30
meters.
I/O connectors for this module are shown below.
Connector A
Connector B
Input 0
Input A0
Input 1
Input A1
Auxiliary Power
Logic Status
I0
A0
I1
A1
O0
O1
Net/Mod Status
41454
Output 0
Output 1
Connector C
Connector D
Output Power and DeviceNet Cables
Output power and DeviceNet cables are described in the installation
publications for the cable base of your choice. Refer to the following
publications:
• 1792D-IN009B-EN-P ArmorBlock MaXum Cable Base
Installation Guide
• DN-6.7.2 DeviceNet Cable Planning and Installation Manual
Publication 1792D-IN015B-EN-P - September 2000
8 ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B
Communicate With Your ArmorBlock MaXum Module
This ArmorBlock module’s I/O is exchanged with the master through
a polled, change-of-state, or cyclic connection.
The module consumes and produces I/O data as shown:
Type of I/O Connections Consumes Produces
Cyclic 1 Byte 2 Bytes
Polled 1 Byte 2 Bytes
Change-of-State 1 Byte 2 Bytes
Cyclic - allows configuration of the block as an I/O client. The block
will produce and consume its I/O cyclically at the rate configured.
Polled - a master initiates communication by sending its polled I/O
message to the ArmorBlock module. This 2 input / 2 output module
consumes the message, updates outputs, and produces a response.
The response has input data, input faults, output faults, and the status
of the Auxiliary power.
Change-of-State - productions occur when an input changes or a
fault condition occurs. If no input or fault condition change occurs
within the expected packet rate, a heartbeat production occurs. This
heartbeat production tells the scanner module that the ArmorBlock
MaXum module is alive and ready to communicate. Consumption
occurs when data changes and the master produces new output data
to the I/O block.
Refer to the table below for the word/bit definitions.
Bit 0706050403020100
Produces 0
Produces 1
Consumes 0
Where: OW = Off Wire ISC-Input Sho rt Circuit in Sensor Source Voltage A=Alarm I = Input RSVD=Reserved
OPWR=Output Power (Auxiliary Power) OFLT=Output Fault O=Output
Publication 1792D-IN015B-EN-P - September 2000
OW-B OW-A ISC-B ISC-A A1 A0 I1 I0
RSVD OPWR RSVD RSVD RSVD RSVD OFLT1 OFLT0
RSVD RSVD RSVD RSVD RSVD RSVD O1 O0
ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B 9
The word/bit definitions are explained below.
Byte Bit Description
Produces 0 00-01
Produces 1 00-01
Consumes 0 00-01
Input status bits: When the bit is set (1), the input is on. Bit
00 = input 0, bit 01= input 1.
02-03
Alarm Status bit: Bit 02=Alarm A0, bit 03=Alarm A1.
04
Input Short Circuit Fault (ISC): ISC-A indicates a short circuit
for input 0.
05
Input Short Circuit Fault (ISC): ISC-B indicates a short circuit
for input 1.
06
Input Off Wire Fault (OW): OW-A indicates an off wire fault
for input 0.
07
Input Off Wire Fault (OW): ISC-B indicates an off wire fault
for input 1.
Output No load or Overload Fault (OFLT): When the bit is set
(1) an output fault has occurred. OFLT0=output 0,
OFLT1=output 1.
02-05
Reserved
06
Output Power Fault (OPWR): When the bit is set (1), Auxiliary
Power is not present.
07
Reserved
Output bits: When the bit is set (1), the output will be turned
on. Bit 00=output 0, bit 01=output 1.
02-07
Reserved
The DeviceNet Network uses advanced network technology,
producer/consumer communication, to increase network
functionality and throughput. Visit our website at
http://www.ab.com/networks
for producer/consumer technology
information and updates.
Troubleshoot with the Indicators
This module has the following indicators:
• Network/Module status indicator
• Logic status indicators
• Auxiliary power indicators
• Individual point status indicators for inputs 0 and 1 and
outputs 0 and 1
Publication 1792D-IN015B-EN-P - September 2000
10 ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B
Point indicators for this module are shown below.
Point indicators for inputs
I0 and for Alarm A0
Connector A
Point indicators for inputs
I1 and for Alarm A1
Connector B
Module Status
Indicators
Auxiliary Power
Logic Status
I0
A0
I1
A1
Net/Mod Status
O0
O1
Point indicators for
output O0
Connector H
Point indicators for
output O1
Connector D
LED Assignments
The following table describes the network and module status
indicator.
Net/Mod Status Indicator
Indication Status:
Off No power or auto bauding
Flashing Green/Off On line but not connected
Solid Green On line, link OK, connected
Flashing Red Recoverable fault - module configuration error
I/O connection fault - one or more I/O connections in the timed-out
state
Solid Red Unrecoverable fault
Communication failure - duplicate node address present or incorrect
baud rate
Green to Red to Off At powerup only - LED test
41454
Publication 1792D-IN015B-EN-P - September 2000
ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B 11
The following table describes logic status indicators.
Logic Status Indicators
State Status
Off Logic is disabled
Solid Green Logic is enabled
Flashing Green Local forces are applied and local logic is enabled
The following table describes auxiliary power indicators.
Auxiliary Power
Indication Status
None No Auxiliary Power
Solid Green Auxiliary Power Present
The following table describes I/O status indicators.
I/O Status Indicators
Function Module Status Indicator
Outputs Green
Inputs Green
Green
Module Status blink red
Module Status blink red
Module Status blink red
Module Status blink red
Green
Module Status blink red
Module Status blink red
Point Indicator
None
Yel lo w
Orange
Red
Orange
Red
None
Yel lo w
Red
Blink red
Condition
Output not energized
Output energized
Output shorted-auto restart
Output shorted-latching
Output no load-auto restart
Output no load-latching
No valid input
Valid input
Connector A or Connector B
short circuited
Connector A or Connector B
off-wire
For more information on indications, see the Technical Data,
publication 1792-TD001B-EN-P.
Publication 1792D-IN015B-EN-P - September 2000
12 ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B
Specifications
2 Input with Alarm / 2 Output Module - Cat. No. 1792D-2BVA2D
Input Specification Max. Min.
Inputs per block 2 - 3 wire or dry contact PNP or NPN devices or 2 - 4
Sensor Source Current (per input) 100mA -
Off-Wire Sense Current 0.5mA -
On-state Voltage 25V dc 10V dc
On-state Current 10mA 2mA
Off-state Voltage 5V dc -
Off-state Current - 1.5mA
Output Specification Max. Min.
Outputs per block 2 sourcing outputs labeled 00 and 01
Output Auxiliary Voltage 30V 10V
On-state Voltage Drop 1V -
On-state Current 1A -
Off-state Leakage 1.5mA -
Module Current (all outputs) 2A -
Surge Current - for 10ms,
repeatable every 2s
No Load Sense Current (On-state) 0.18A -
General Specifications
Indicators Net/Mod Status - red/green
Communication Rate •125Kbps @ 500 meters(1600 feet) for thick cable,
DeviceNet Power Voltage
Current
Refer to the graphs in the
Overview section of the
ArmorBlock I/O Family Technical
Data, pub. no.
1792-TD001B-EN-P.
Auxiliary Power Voltage
Current
wire PNP or NPN devices
2.4A -
Logic Status - red/green
Auxiliary Power - green
Point LED - yellow/orange/red
flat media length 375 meters
•250Kbps @ 200 meters(600 feet) for thick cable,
flat media length 150 meters
•500Kbps @ 100 meters (330 feet) for thick cable,
flat media length 75 meters
25V dc max
150mA max (no sensors)
30V dc max
2A max
11V dc min up to .8A
(2 sensors @100mA
per sensor)
10V dc min
2A max
Publication 1792D-IN015B-EN-P - September 2000
ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B 13
2 Input with Alarm / 2 Output Module - Cat. No. 1792D-2BVA2D
Dimensions (assembled to base)
inches - (Millimeters)
Environmental Conditions
Operational Temperature
Storage Temperature
Relative Humidity
Shock Operating
Non-operating
Vibration
Conductors Publication DN-6.7.2
General Specification
Enclosure Meets or exceeds IP67
Agency Certification
(when product is marked)
Technical Data (user information) Publication 1792-TD001B-EN-P
1.9H x 2.7W x 4.72D
(48.26)H x (68.6)W x (120)D
o
-25 to 60
(-13 to 140oF)
o
C (-13 to 176OF)
-25 to 80
5 to 100%
30g peak acceleration, 11 (+1) ms pulse width
50g peak acceleration, 11(+1)ms pulse width
Tested 10g @ 10-500Hz per IEC 68-2-6
• CSA certified
• CSA Class 1, Division 2, Groups A, B, C, D
certified
• UL listed
• CE marked for all applicable directives
Publication 1792D-IN015B-EN-P - September 2000
14 ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B
Hazardous Location Approval
The following information applies only to products marked
with Hazardous Location Approval, when operating in
hazardous locations:
Products marked “CL I, DIV 2, GP A, B, C, D” are suitable for use in
Class I Division 2 Groups A, B, C, D, Hazardous Locations and
nonhazardous locations only. Each product is supplied with markings
on the rating nameplate indicating the hazardous location
temperature code. When combining products within a system, the
most adverse temperature code (lowest “T” number) may be used to
help determine the overall temperature code of the system.
Combinations of equipment in your system are subject to
investigation by the local Authority Having Jurisdiction at the time of
installation.
WARNING
!
WARNING
EXPLOSION HAZARD -
• Do not disconnect equipment unless power
has been removed or the area is known to be
nonhazardous.
• Do not disconnect connections to this
equipment unless power has been removed
or the area is known to be nonhazardous.
Secure any external connections that mate to
this equipment by using screws, sliding
latches, threaded connectors, or other means
provided with this product.
• Substitution of components may impair
suitability for Class I, Division 2.
• If this product contains batteries, they must
only be changed in an area known to be
nonhazardous.
Use supply wires suitable for 30°C above
surrounding ambient.
!
Publication 1792D-IN015B-EN-P - September 2000
ArmorBlock MaXum 2 Input with Alarm/ 2 Output Module Series B 15
WARNING
When used in a Class I, Division 2, hazardous
location, this equipment must be mounted in a
suitable enclosure with proper wiring method that
complies with the governing electrical codes.
!
Les informations suivantes ne concernent que les produits
marqués pour une utilisation en environnements dangereux :
Les produits marqués « CL I, DIV 2, GP A, B, C, D » ne conviennent
qu’à une utilisation en environnements de Classe I Division 2
Groupes A, B, C, D dangereux et non dangereux. Chaque produit est
livré avec des marquages sur sa plaque d’identification qui indiquent
le code de température pour les environnements dangereux. Lorsque
plusieurs produits sont combinés dans un système, le code de
température le plus défavorable (code de température le plus faible)
peut être utilisé pour déterminer le code de température global du
système. Les combinaisons d’équipements dans le système sont
sujettes à inspection par les autorités locales qualifiées au moment de
l’installation.
AVERTISSEMENT
!
RISQUE D’EXPLOSION -
• Couper le courant ou s’assurer que
l’environnement est classé non dangereux
avant de débrancher l’équipement.
• Couper le courant ou s’assurer que
l’environnement est classé non dangereux
avant de débrancher les connecteurs. Fixer
tous les connecteurs externes reliés à cet
équipement à l’aide de vis, loquets
coulissants, connecteurs filetés ou autres
moyens fournis avec ce produit.
• La substitution de composants peut rendre cet
équipement inadapté à une utilisation en
environnement de Classe I, Division 2.
• S’assurer que l’environnement est classé non
dangereux avant de changer les piles.
Publication 1792D-IN015B-EN-P - September 2000
AVERTISSEMENT
!
Utiliser des fils d’alimentation qui conviennent à
une température de 30°C au-dessus de la
température ambiante.
AVERTISSEMENT
Pour une utilisation en environnement de classe i,
division 2 dangereux, cet equipement doit etre
monte dans un boitier avec un cablage approprie
conforme aux normes electriques en vigueur.
!
This product has been tested at an Open DeviceNet Vendor
Association, Inc. (ODVA) authorized independent test laboratory and
found to comply with ODVA Conformance Test. Please contact the
ODVA website (http://www.odva.org) for listing of products tested by
ODVA independent test labs for further details.
ArmorBlock, ArmorBlock MaXum, and KwikLink are trademarks of Rockwell Automation.
RSNetWorx for DeviceNet is a trademark of Rockwell Software Inc.
DeviceNetManager is a trademark of Rockwell Automation Allen-Bradley Inc.
DeviceNet is a trademark of Open DeviceNet Vendor Association (ODVA).
Publication 1792D-IN015B-EN-P - September 2000 PN 957395-30
Supersedes Publication 1792D-5.15 - October 1998 © 2000 Rockwell International Corporation . Printed in USA
Loading...
