RocketFish RF-RBREC User Manual

Wireless Amplified Audio Receiver
RF-RBREC
User Guide
Wireless Amplified Audio
Receiver

Contents

Introduction ...................................................................... 5
Features............................................................................... 7
Using your wireless receiver......................................13
Troubleshooting ............................................................20
Specifications..................................................................21
Legal notices ...................................................................22
One-year limited warranty .........................................25
2
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK: DO NOT REMOVE SCREWS, COVERS OR THE CABINENT. NO USER SERVICING PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WAR NIN G: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Important safety instructions

1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with a dry cloth. 7 Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
3RF-RBREC
9 Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer. 12 Unplug this apparatus during lightning storms or when unused for long
periods of time.
13 Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14 To reduce the risk of fire or electric shock, do not expose this device to
rain, moisture, dripping, or splashing, and no objects filled with liquids, such as vases, shall be placed on it.
15 The wall plug is the disconnecting device. The plug must remain readily
operable.
16 Batteries should not be exposed to excessive heat such as sunshine, fire,
or the like.
Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
War nin g: Read the Rating Label on the bottom of the unit for power input and other safety information.
Caution - Proper Installation
Install the system in a place which is level, dry and neither too hot nor too cold. The appropriate temperature is between 5o C and 35 o C.
Install the system in a location with adequate ventilation to prevent internal heat from building up inside the unit.
Leave sufficient distance between the system and TV.
Keep the system away from TV to avoid interference with TV.
Caution - Proper ventilation To avoid risk of electric shock and fire, and to prevent damage, locate
the apparatus as follows: Front: No obstructions and open spacing.
4
Sides / Top / Back: No obstructions should be placed in the areas shown by the dimensions below.
Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm (3-15/16") or more.

Introduction

15 cm
(5-
10 cm
Front view
15 cm
15
/16")
Side view
15 cm
15
(5-
/16")
15
/16")
(3-
(5-
15 cm
(5-
15
/16")
15
/16")
Congratulations on your purchase of a Rocketfish RF-RBREC Amplified Audio Receiver that is part of the Rocketboost™ system. The receiver uses the Rocketboost proprietary 2.4 GHz wireless communication technology. The receiver supports high-end surround systems including support of HD audio for new sources like Blu-ray. By using one or multiple receiver of RF-RBREC in combination with your Rocketfish RF-RBKIT Wireless Starter Kit, you can build up a
7.1-channel home theater or a multiple remote zones, and the system is compatible with the high definition Blu-ray technology.
Without the hassle of custom installation, the receiver offers quick setup and total audio entertainment, without having to hide speaker wires.
5RF-RBREC

How does Rocketboost™ work?

Rocketboost technology can connect all audio devices throughout your home to form a convenient, private, and secure home audio network.
Every Rocketboost network must contain a device called a manager, which directs network data traffic and helps devices join the network. The network can have only one manager, which is selected using the Hub switch on the back of all Rocketboost transmitters. See the User Guide for instructions on connecting (“joining”) devices to the network.
Each transmitter sends its own, two-channel stereo signal around the network, and any receiver can access the audio signal from any of the transmitters.
Rocketboost also features an innovative volume control that can be changed at the receiver or the transmitter. For example, when the transmitter's volume level is changed, all receivers listening to that signal have the same change in volume.
Rocketboost also features a global mute feature that instantly silences all connected devices. When turning off mute, only the signal stream that received the “unmute” command is effected.
We hope you enjoy your new Rocketboost system. Remember that it's designed to grow with your home entertainment needs, and that it's easy to add a new device to the network as you expand your entertainment system.
TM
6
TM
Manager
TM
TM

Features

• 2.4 GHz unlicensed band operation
• Up to 150 feet (45 meters) unobstructed operating range
• Superior bass sound effects
• Support for CD and HD audio signals
• Two stereo channels with 42 W per channel, capable of driving any passive speaker.
• Remote control for volume control

Package contents:

• Wireless receiver
• Rocketboost IR remote control
• AC cable (for receiver)
•User Guide
•Quick Start Guide
• Cable spool
• 2 x 3 foot speaker cable
7RF-RBREC

Front panel

9
TM
3
2
1
# Feature
Standby LED Turns red when the receiver is in standby mode.
1
Power /Join
2
button Power /Join
3
indicator BASS button Press to activate or deactivate Bass enhancement.
4
Bass indicator Lights when the bass enhancement is activated.
5
SOURCE indicator Lights when the receiver is receiving audio. If the light is not on, the
6
SOURCE button Press to select the audio source. Each press will toggle to the next
7
HD indicator Lights when the receiver is receiving HD audio signals. When HD is
8
IR sensor window Receives the signal from the remote control.
9
VOLUME knob Controls the volume level.
10
Press to turn the receiver on. Press and hold to initiate joining. Press again to go to standby.
Lights solidly when the device is joined to a network. Blinks when the device cannot find a network. Blinks quickly when joining a network.
sender may be switched off.
audio source.
on, audio quality (signal-to-noise ratio) is enhanced.
4
6
5
10
8
7
8

Back panel

AC IN
120V~,60Hz
SPEAKER-OUT (4-8 Ohm)
R
L
# Feature
Removable cable spool slots Use to mount the cable spool on the receiver.
1 & 3
AC IN connec tor Plug the AC power cord into this connector.
2
SPEAKER OUT jacks Connect your speakers to these jacks.
4

Remote control

1
2
3
4
5
1
2
6
7
8
3
4
# Feature
1
/| Standby/On button
2
Volume buttons (device) BASS button Press to activate or deactivate the BASS enhancement.
3
/
Press to turn the receiver on. Press again to go to standby.
Press to adjust the volume of the speaker system.
9RF-RBREC
# Feature
Next Source button Press to select the audio source. Each press toggles through all the
4
INPUT A Press to select between the audio source connecting SPEAKER Input A
5
INPUT B Press to select between the audio source connecting SPEAKER Input B
6
Volume buttons (stream)
7
8
/
(mute - all)
available sources on your network.
or Pre-in A (only applies when you are using the sender in the RF-RBKIT).
or Pre-in B (only applies when you are using the sender in the RF-RBKIT).
Press to adjust the volume of all devices receiving the same audio stream or tuned to a station.
Press to mute all devices. Press a second time to unmute the stream that was being listened too. This will unmute all nodes receiving that stream, but if there are other transmitters sending streams then they must be unmuted by pointing the remote at a device muted for that particular stream.

Setting up your wireless receiver

Setting up your remote control

The remote control comes from the factory with an insulating plastic tab which must be removed to enable the battery. Pull the tab out to enable the battery on the remote control.

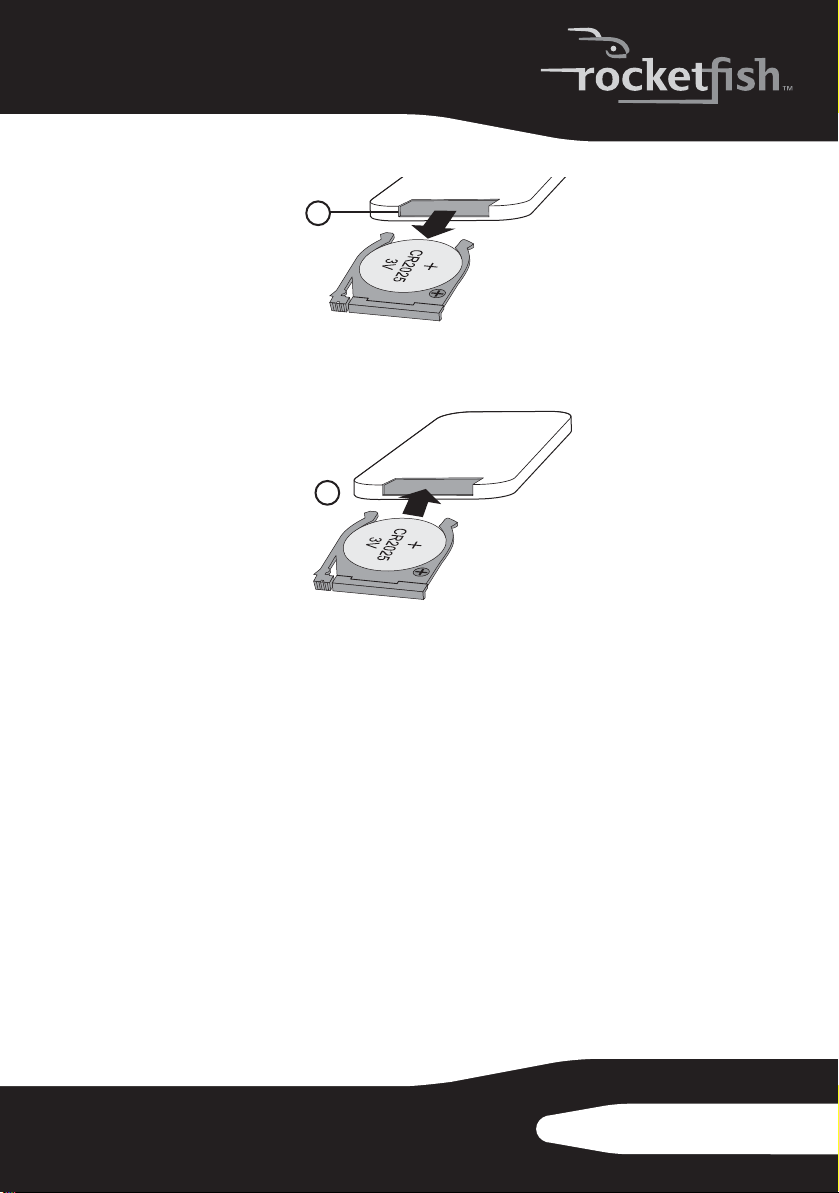

Replacing the remote control battery

10
To replace the battery:
1 Squeeze and pull to release the battery tray (1). You can remove the
battery tray (2) with your fingernails by using the spaces set back in the remote control.
1
2
2 Match the polarity on the lithium cell with a plus sign (+) on the battery
tray.
3
3 Slide the tray with the new battery into the battery compartment (3)
until it clicks into place.
Note: Replace with a CR2025 battery or equivalent.

Connecting the receiver

To connect the receiver:
1 Connect the right surround speaker to the right speaker terminal of the
receiver, using the supplied three-foot speaker wire, by connecting the red speaker wire to the red (+) terminals, and the black speaker wire to the black (-) terminals.
11RF-RBREC
2 Repeat Step 1 to connect the left speaker.
Right (rear) speaker
Left (rear) speaker
Receiver back
AC IN
SPEAKER-OUT (4-8 Ohm)
R
L
Note: Make sure the exposed tips of the speaker wires do not touch each other, and that they are fully inserted into the gaps.

Connecting the receiver to an AC power outlet

Caution: Connect the AC power plug to a wall outlet only after all speakers are connected to the receiver.
To connect the receiver to an AC power outlet:
1 Connect the female end of the AC power cord to the AC IN connector on
the back of the receiver.
To AC power outlet
Cable notch
12
2 Plug the other end of the AC power cable into a power outlet. The
standby indicator on the receiver turns on.
Cautions: To avoid risk of fire, and to prevent damage:
Do not use AC adapters other than the supplied AC adapter.
Do not use the supplied AC adapter for other equipment.
Tips:
Slide the cable spool (provided) into the slots on the back of the receiver from the top down.
Before connecting to the AC power outlet, wrap the excessive cable around the spool until the desired length is free.

Using your wireless receiver

General setup

Caution: Interference is possible from other devices that operat e in the same frequen cy band. You may have to move the sender and/or receiver around a bit to find an interference-free location when using. We recommend placing the receiver at least
two feet away from a router or 802.11n device.
A few configurations are shown here to give ideas for your own usage.
13RF-RBREC

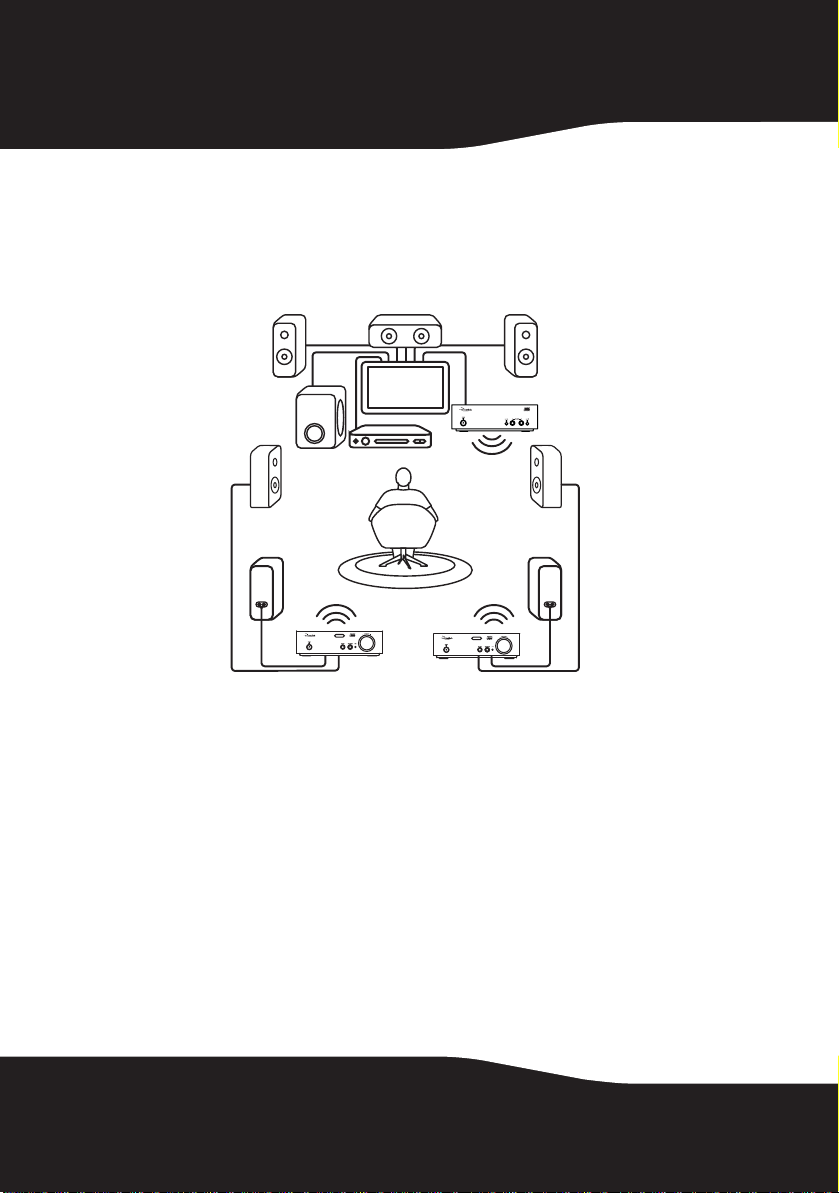

Building a 7.1-channel home theater system

To build a 7.1-channel home theater system, connect a receiver to your left surround speaker and left surround rear speaker, and then connect another receiver to your right surround speaker and right surround rear speaker the same way.
TV
Sender
Amplifier
Receiver
Connect an amplifier, surround speakers, and surround rear speakers using your sender-capable device and two receivers (sold separately).

Expanding the system in zone B

To expand your listening areas in other rooms, install additional receivers (sold separately) possibly in bedroom, kitchen and garage, or on the patio as you prefer.
Notes:
The receivers may be Rocketfish RF-RBREC Amplified Audio Receiver, Rocketfish RF-RBAUX Sender/Receiver System and RF-RBWS02 Rocketfish Outdoor Wireless Speaker, which need to be bought separately.
A single sending device can be “listened to” by up to 9 receiver devices in a Rocketboost network.
14
Receiver
The distance between sender and receiver is up to 150 ft. (45 meters) in an open space.
Do not place any objects on top of the sender, or it may affect the transmitting performance.
TV
Zone A
Zone B
Amplifier
Receiver
Sender
Connect the speakers by placing a receiver in another room.
15RF-RBREC

Establishing communication

To power on and switch to joining mode:
1 Press and hold the button on the hub for more than three seconds to
put it into joining mode (the unit will stay in joining mode for 30 seconds).
• The power-on indicator starts blinking fast.
• If the power-on indicator blinks at a slower rate, the link is not successful.
2 At the same time, press and hold the button on the receiver. The
power-on indicator starts blinking quickly.
• If the power-on indicator blinks at a slower rate, the link is not successful.
• The power-on indicator will light solidly if the link is activated between both the units.
Notes: You can also place other receivers in additional rooms. To add additional senders/receivers, connect each device to the hub by pressing the power buttons on both units to make the connection.
If the power-on indicators of the sender and receiver blink slowly after blinking quickly for 30 seconds, it means that there is no active link between the hub and receiver. Try to connect the system using the instructions above, using the power buttons on both units. For more information, please see “Troubleshooting.”
When you establish the link between the hub and multiple receivers for multi-zone playback, press and hold the buttons on the hub and one of your receivers at the same time for more than three seconds. Other receivers link with the sender the same way. When the “power-on” indicators on the sender and your receivers go solid, the link is successful.

Listening to the system

To listen to the system:
1 Make sure that the system is powered on and that there is an active link
between the hub and receiver. Make sure the sender is powered up, if it is different from the hub unit.
2 Turn down the volume level on your audio source to a minimum, making
sure the volume is not Zero. Otherwise no audio will be sent over the Rocketboost network. Then turn up the volume on your Receiver slowly until you hear the sound.
3 Press the SOURCE button on the receiver or the NEXT SOURCE button on the
remote control to select other audio sources.
16
4 Adjust the volume level on your audio source or use the remote control.
See the “To set up your remote control:” on page 17.

Adjusting the volume balance

The volume control on the receiver is only used to adjust the volume balance between the front and surround speakers. After the system is set up, we recommend that you adjust the volume balance one time.
Note: After the receiver volume is set, always adjust the volume using the remote control or volume buttons on your amplifier or external audio device.

Optimizing your surround sound

Wireless links create a small latency between the sender and receiver, and many A/V receivers let you adjust the delay between the various speakers in your surround system.
To optimize your system, we suggest that you subtract about 15 ms from the delay to the surround speakers, this will perfectly match your surround system.

Using the remote control

• To avoid possible failure, read the following instructions and handle the remote control properly.
• Do not drop or jar the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
Caution: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type of battery.
Note: Remove the battery from the remote control when it is not to be used for a long period. Otherwise it might be damaged due to battery leakage.
To set up your remote control:
1 Remove the insulation sheet before using the remote control for the first
time.
17RF-RBREC
2 Aim the remote control at the IR sensor on the front lens from a
maximum distance of 23 ft. (7 m) away and the maximum angle of +/- 30 degrees from the center line.

Controlling the device volume

Each device in a Rocketboost network has its own means of controlling volume output level.

Controlling the device volume

To control the volume from the sender to all devices connected to receivers at the same time:
1 Set the 4-Channel Lock on the back of the sender to Enable.
Note: Before setting the 4-channel lock to Enable, make sure that you have connected the receivers to this source. After you enable 4-channel lock, the receivers will not be selectable.
2
Either press the DEVICE buttons on the remote control or turn the volume knob on one of the receivers.
To control the volume from the sender to an individual device connected to a receiver:
The volume of an individual device can be changed by adjusting the volume on the receivers one by one.
1 Set the 4-Channel Lock at the rear sender to Disable. 2 Either press the DEVICE buttons on the remote control or turn the
volume knob on the receiver where you want the volume to change.
18
TM

Controlling the stream volume

To control the volume of all devices connected to the receivers listening to a particular stream of music:
1 Press the STREAM buttons on the remote control.
TM
19RF-RBREC

Muting all devices

The Mute button can mute all the devices in Rocketboost wireless audio system at the same time. If you press the button again, the muted stream at the device you are listening to will be unmuted. The other streams will remain muted. To unmute the stream to another device, you must point the remote at the device playing the muted stream.

Troubleshooting

Check this list for a possible solution before calling for service.
TM
20
Problem Solution
No sound • Make sure that the AC adapter is connected to the sender and the power cord is
connected to the receiver.
• Make sure that all of the cables are connected correctly.
• Make sure that the receiver is not muted. (The source indicator is blinking when it is muted.)
• Make sure that the power-on indicators are lit on both the sender and receiver. If the power-on indicators are lit solidly, the communication is working correctly. If they blink at a slower rate, see the “no communication between sender and receiver” section.
Problem Solution
No communicatio n between the sender and receiver
No response when you press any button
Connecting a source device
Connecting a device
When try ing to change the source on a Rocketfish unit the Power LED flashes 5 times.
• Make sure that the AC adapter is connected to the sender and the power cord is connected to the receiver.
• Once the power-on buttons have been held to turn on both sender and receiver and both units are in joining mode, the power-on indicators should blink quickly.
• If the power-on indicators on both units are solid on, then a communication link has been successfully established between the units. If the power indicators on both the units are blinking at a slower rate, press and hold the buttons on either sender or receiver for three seconds. This will put the unit into joining mode for about 30 seconds. During this time, press the button on the other unit for three seconds, so that it will also enter joining mode. The system proceeds with the connection process between the sender and receiver. During the joining mode, the power indicators on both sender and receiver blink at a faster rate. When an active link is established between the sender and receiver, the power-on indicators on both units are solid on and do not flash.
Note: Try pressing the buttons again if the power indicators are blinking at a slower rate after blinking fast for 30 seconds.
• Try disconnecting the main power to reset the device.
• If your network is already full with transmitters when joining is attempted, the Source LED will blink three times and then turn off. Remove (power down) a transmitting device and try again.
• When you try to join a device to a network that has too many nodes, the device will stay in joining mode until it times out (30 second timeout). Upon timeout the unit should be on and will flash the power ring LED in a slow blink indicating it is not connected to the network.
• Your RF-RBKIT sender is in four channel lock mode. By design, these channels are not available for access by other receivers as they form the rears/surrounds of your Home Theater system. If you do wish to use them, then you should remove the four channel lock mode by moving the switch on the back of the sender to disable four channel lock mode. Both sources will then be available for all receivers.

Specifications

Audio input - wireless
Audio output - high efficiency. Class D, speaker level
Transmission delay
Stereo, 16-bit, 48KHz, uncompressed Wireless audio system performance Signal-to-Noise Ratio: 94dB (96dB in HD mode).Total harmonic distortion: 1%
Supports 4 to 8 ohm speakers Audio output power: 2x42W (RMS) into 4 ohms
15 to 20 ms
21RF-RBREC
Power supply
Power consumption

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
AC 120V~60 Hz
30 W
22

FCC warning

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment.

Copyright

© 2009 Rocketfish. Rocketfish and the Rocketfish logo are trademarks of Best Buy Enterprise Services, Inc. Rocketboost and the Rocketboost logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.
For service and support call (800) 620-2790.
23RF-RBREC
24
One-year limited warranty
Rocketfish Products (“Rocketfish”) warrants to you, the original purchaser of this new RF-RBREC (“Product”), that the Product shall be free of defects in the original manufacture of the material or workmanship for one (1) year from the purchase of the Product (“Warranty Period”). This Product must be purchased from an authorized dealer of Rocketfish brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Rocketfish during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

How long does the coverage last?

The Warranty Period lasts for one year (365 days), beginning on the date you purchased the Product. The purchase date is printed on the receipt you received with the product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Rocketfish repair center or store personnel, Rocketfish will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or par ts. Products and parts replaced under this warranty become the property of Rocketfish and are not returned to you. If service of Products and parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Rocketfish Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the Product in the United States, Canada, and Mexico.

What does the warranty not cover?

This warranty does not cover:
• Customer instruction
• Installation
•Set up adjustments
•Cosmetic damage
25RF-RBREC
• Damage due to acts of God, such as lightning strikes
• Accident
• Misuse
•Abuse
•Negligence
• Commercial use
• Modification of any part of the Product, including the antenna
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Rocketfish to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. ROCKETFISH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. ROCKETFISH PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Rocketfish: For customer service please call 1-800-620-2790
www.rocketfishproducts.com Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2009 Best Buy Enterprise Services, Inc. All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
26
27RF-RBREC
www.rocketfishproducts.com (800) 620-2790
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN 55423-3645 USA
© 2009 Best Buy Enterprise Services, Inc.
All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc.
All other products and brand names are trademarks of their respective owners.
09-0475
ENGLISH
Loading...
