Ricoh SP6330 Hardware Manual

Download

Page 1

Guide to the Printer

Installing Options

Connecting the Printer Cables

Configuration

Operating Instructions

Hardware Guide

Paper and Other Media

Replacing Consumables and Maintenance Kit

Cleaning the Printer

Adjusting the Printer

Troubleshooting

Removing Misfed Paper

Appendix

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety

Information before using the machine.

Page 2

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and

benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

Do not copy or print any item for which reproduction is prohibited by law.

Copying or printing the following items is generally prohibited by local law:

bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licenses.

The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or

accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your

legal advisor.

Important

Contents of this manual are subject to change without prior notice.

In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result

of handling or operating the machine.

For good copy quality, the supplier recommends that you use genuine print cartridges from the supplier.

The supplier shall not be responsible for any damage or expense that might result from the use of parts other than

genuine parts from the supplier with your office products.

Some illustrations in this manual might be slightly different from the machine.

Certain options might not be available in some countries. For details, please contact your local dealer.

Page 3

Positions of WARNING and CAUTION labels...............................................................................................5

Power Switch Symbols...................................................................................................................................6

Manuals for This Printer......................................................................................................................................7

How to Read This Manual.................................................................................................................................8

Symbols...........................................................................................................................................................8

Model-Specific Information...............................................................................................................................9

List of Options...................................................................................................................................................10

Installing the Operating Instructions...............................................................................................................11

Installing the HTML Format Manuals..........................................................................................................11

Opening the HTML Format Manuals.........................................................................................................11

1. Guide to the Printer

Exterior: Front View..........................................................................................................................................13

Exterior: Rear View...........................................................................................................................................15

Interior...............................................................................................................................................................17

Control Panel....................................................................................................................................................19

Turning the Printer's Power On and Off..........................................................................................................21

Turning on the Power...................................................................................................................................21

Turning off the Power...................................................................................................................................21

Display Panel....................................................................................................................................................23

Reading the Display and Using Keys.........................................................................................................24

2. Installing Options

Available Options............................................................................................................................................25

Order of Option Installation........................................................................................................................25

Installing Options.........................................................................................................................................26

Caution when re-installing the controller board........................................................................................28

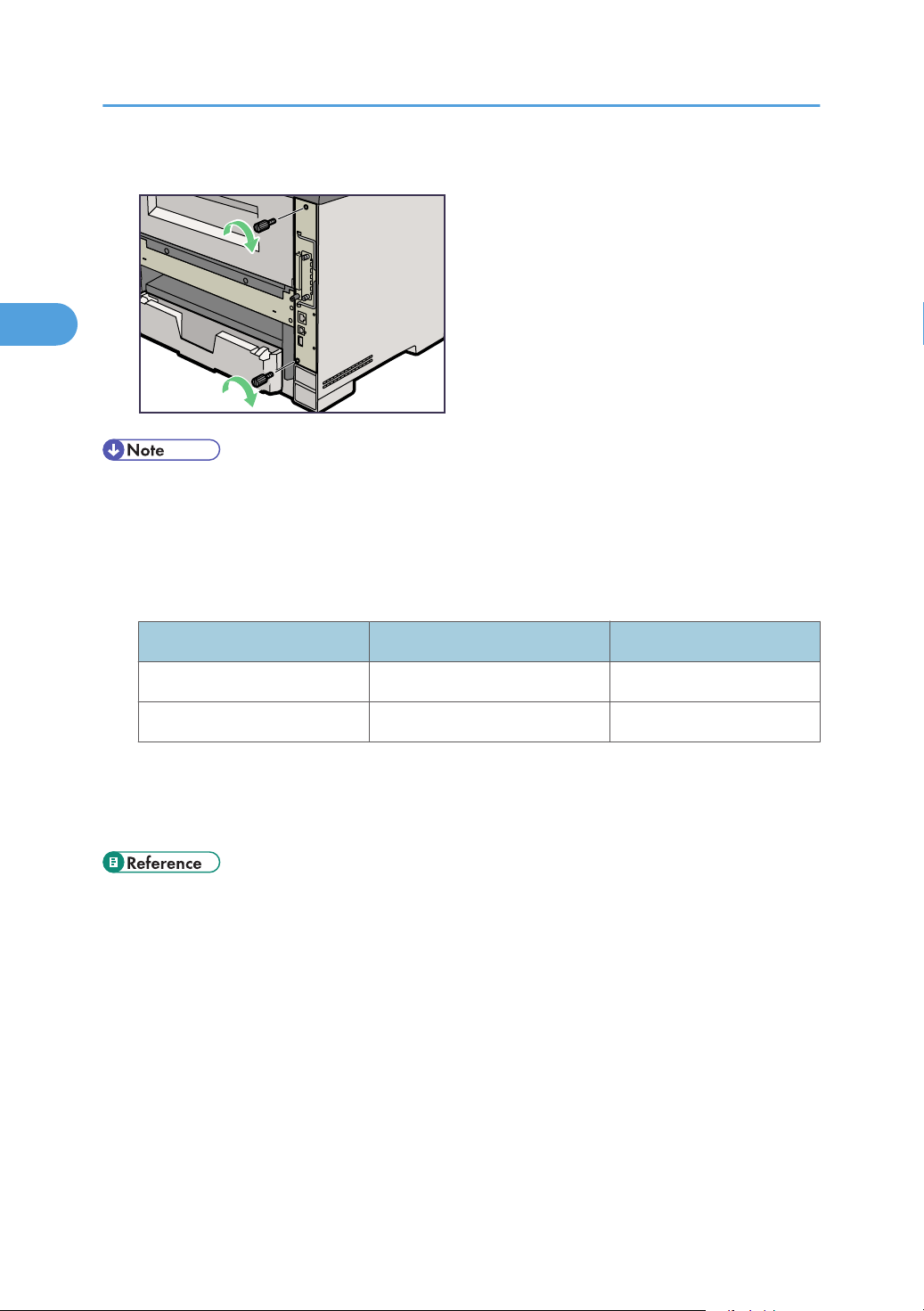

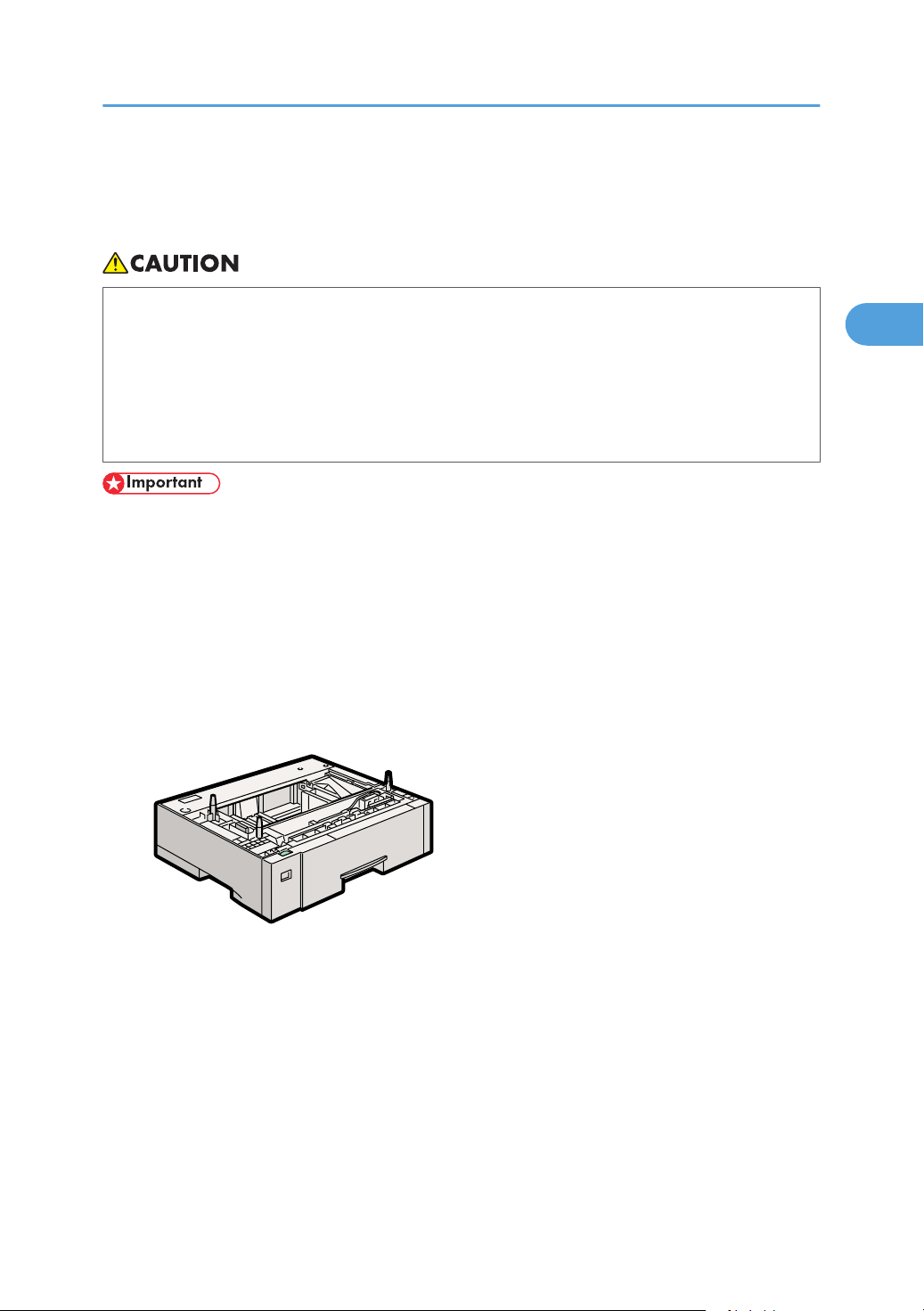

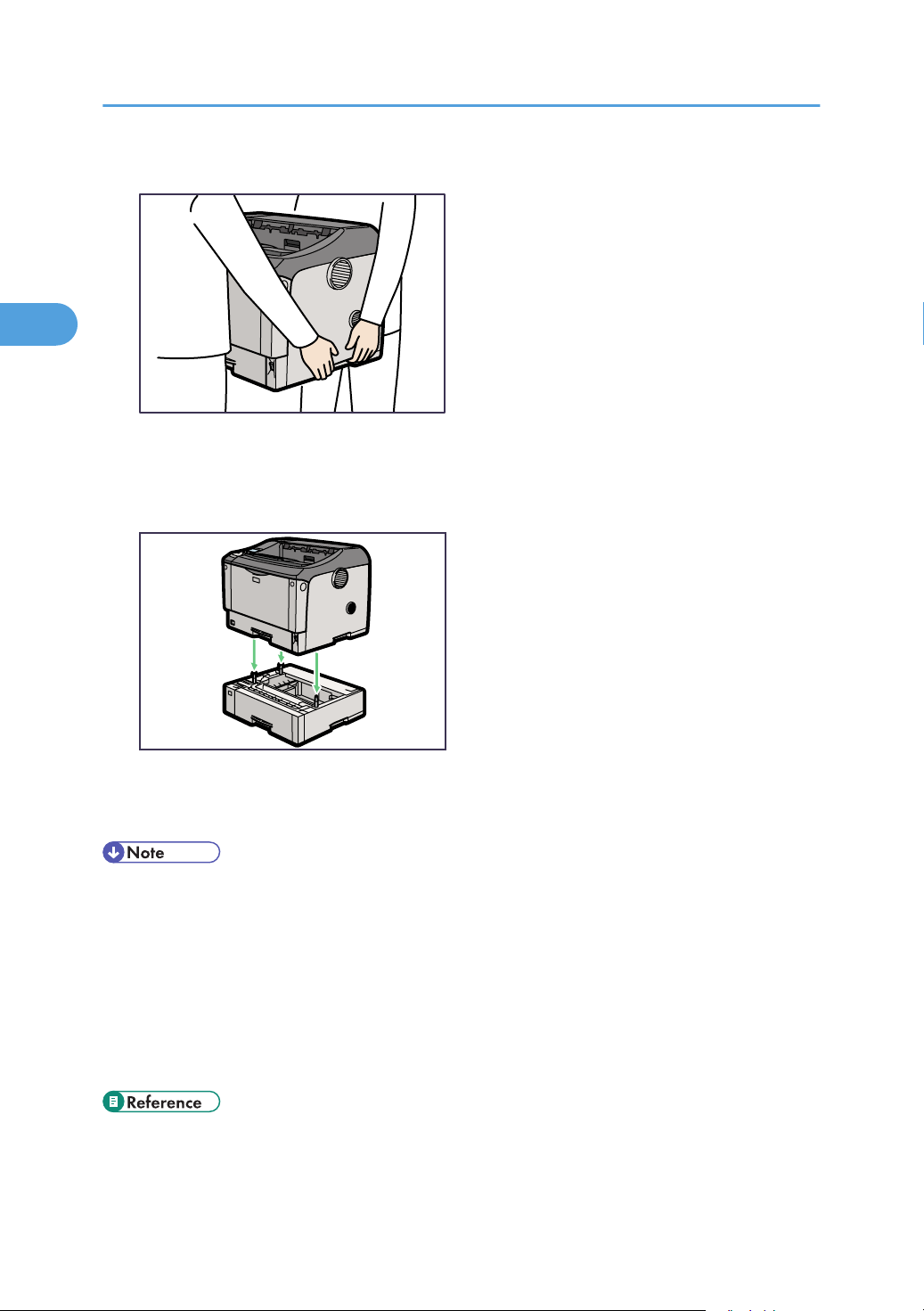

Attaching the Paper Feed Unit........................................................................................................................29

Attaching the Envelope Feeder.......................................................................................................................32

Installing the Memory Expansion Units..........................................................................................................34

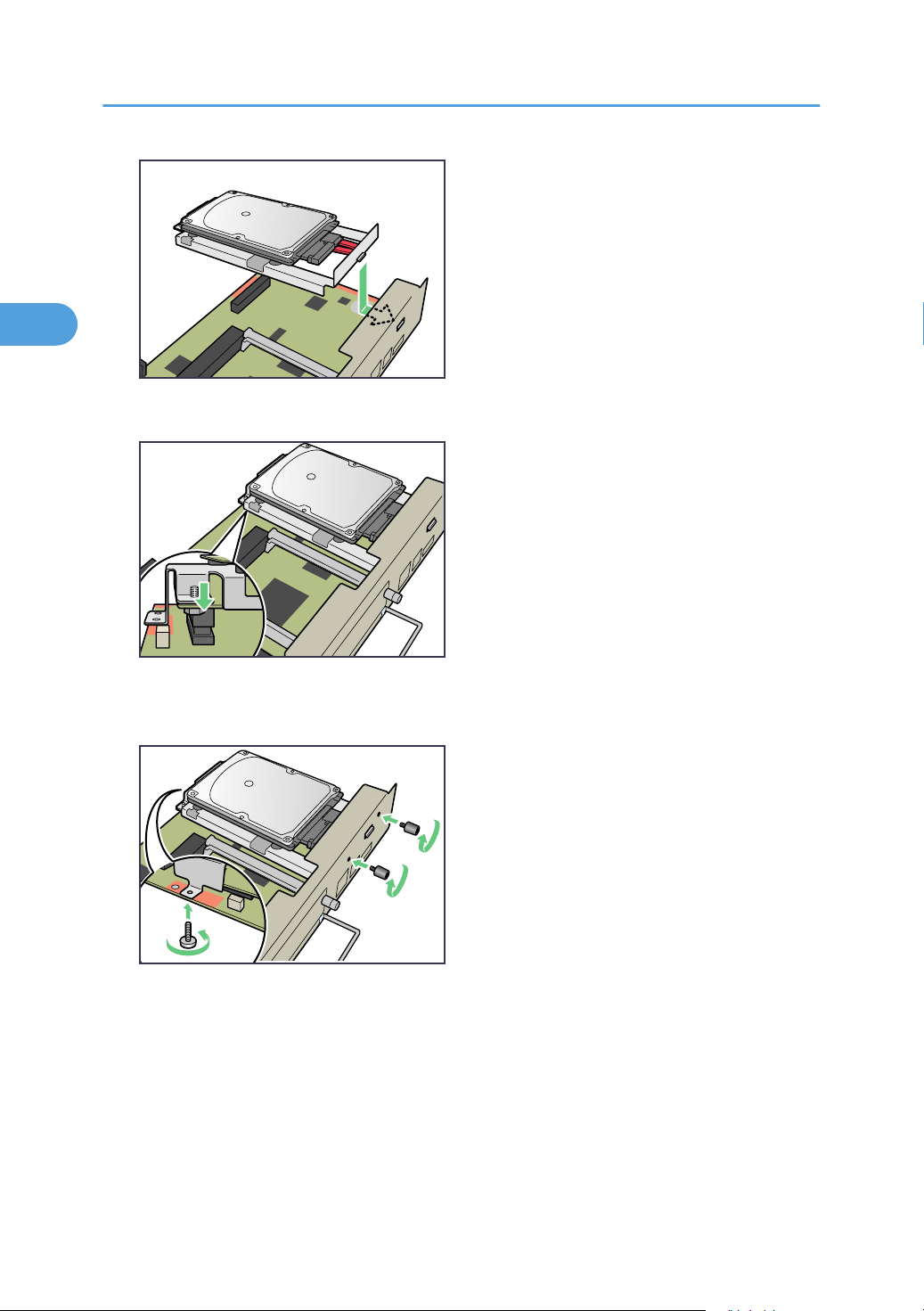

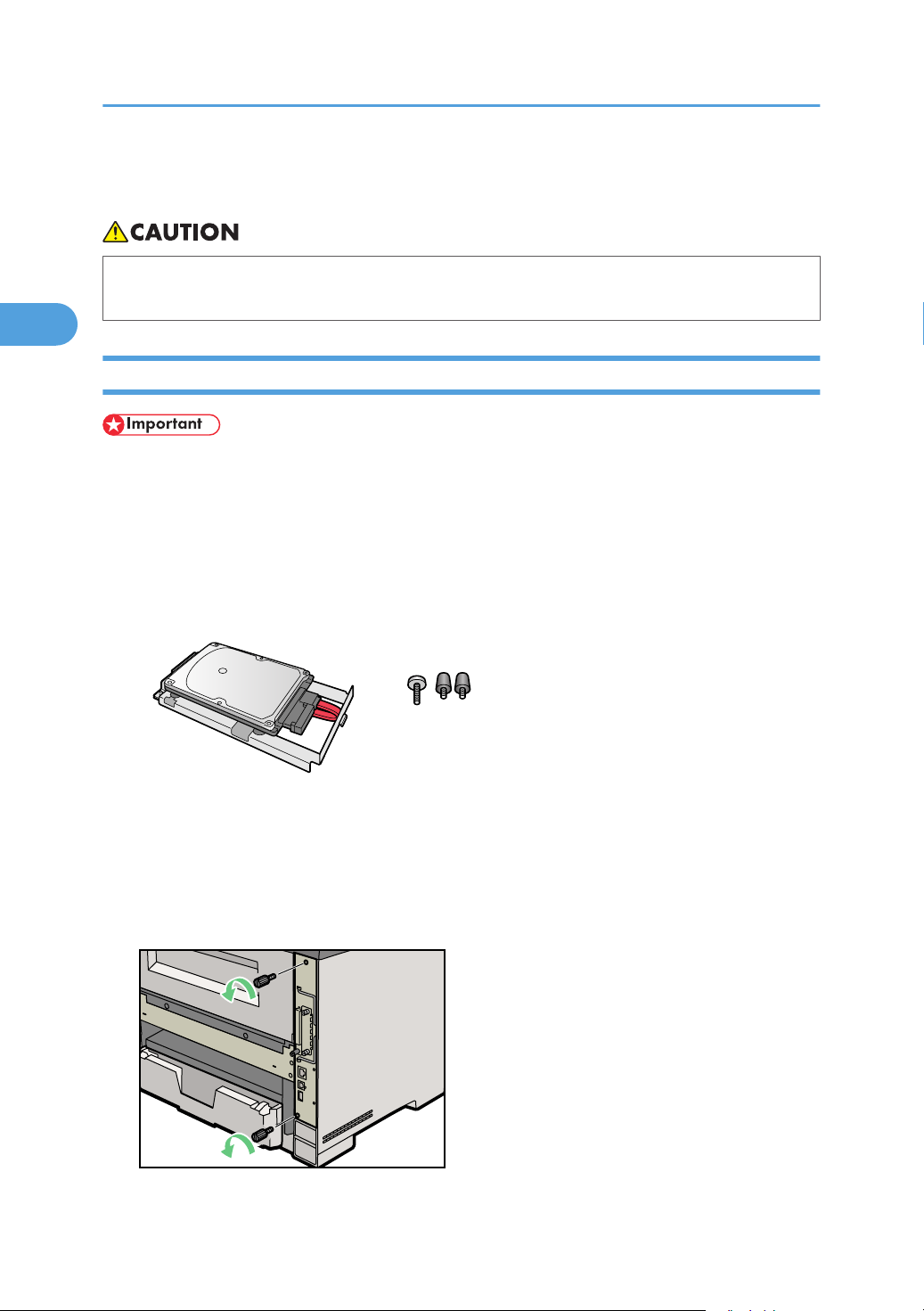

Installing the Hard Disk................................................................................................................................34

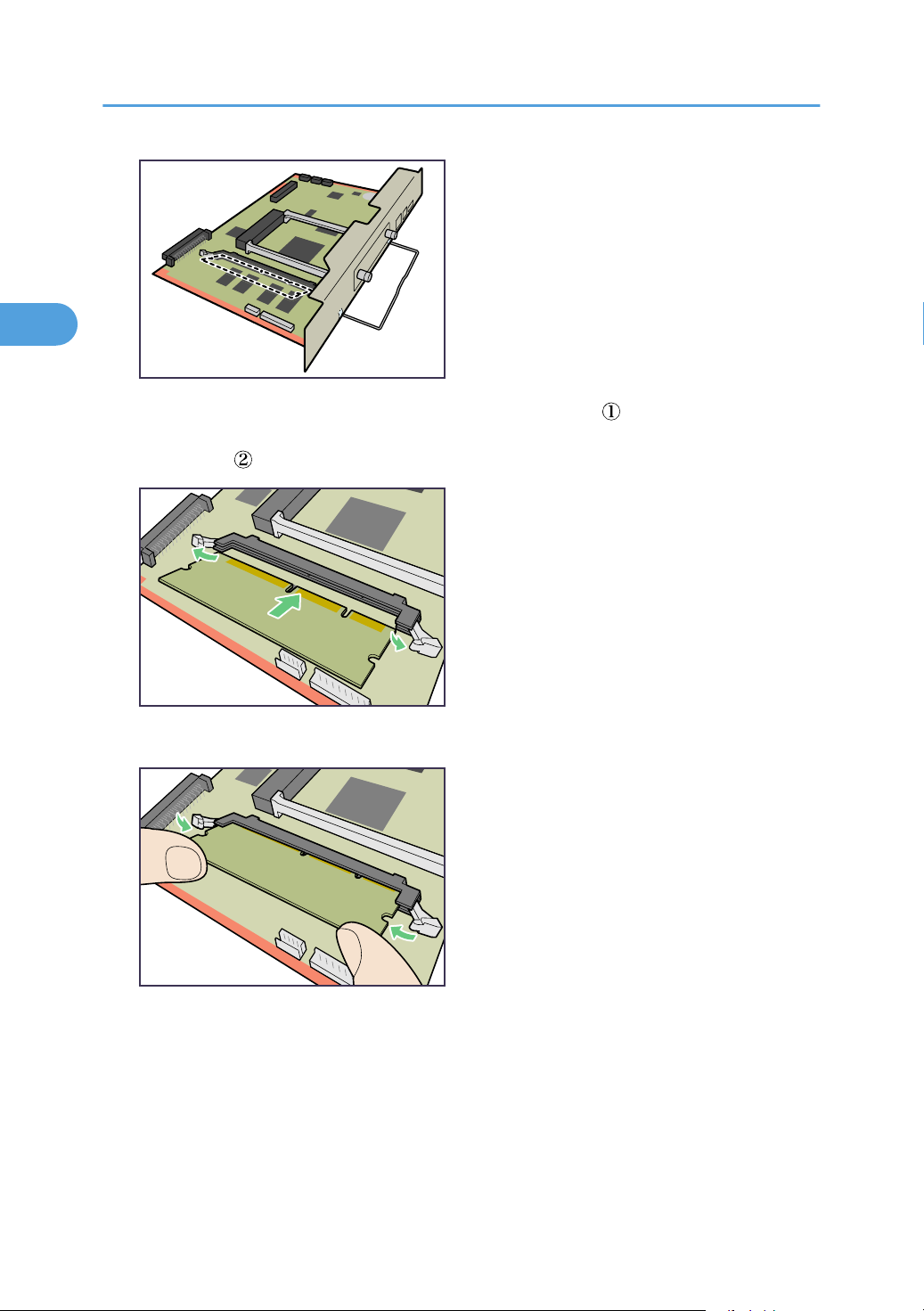

Installing the SDRAM Module....................................................................................................................38

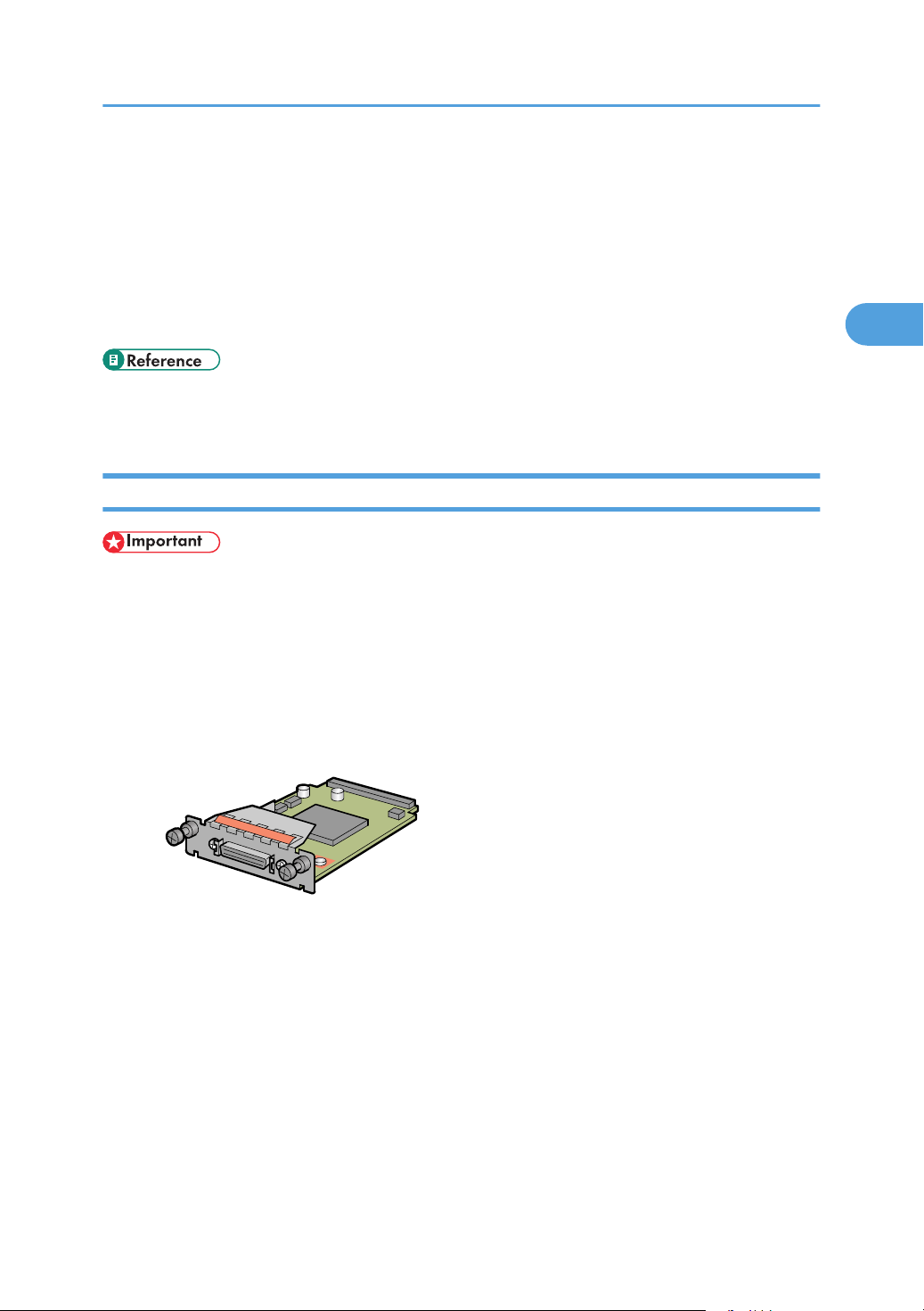

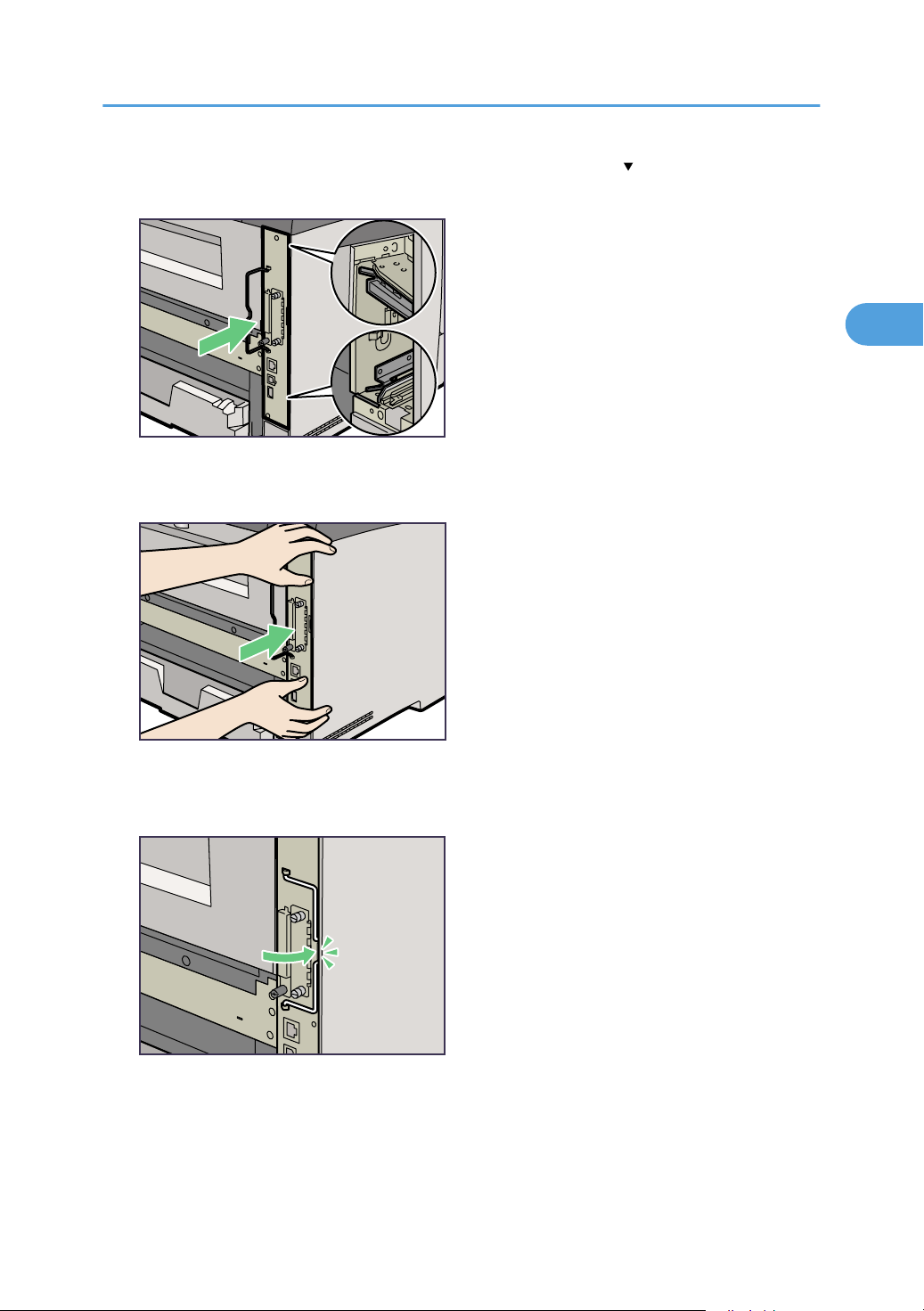

Installing the Interface Units.............................................................................................................................43

Installing the Wireless LAN Interface Unit..................................................................................................43

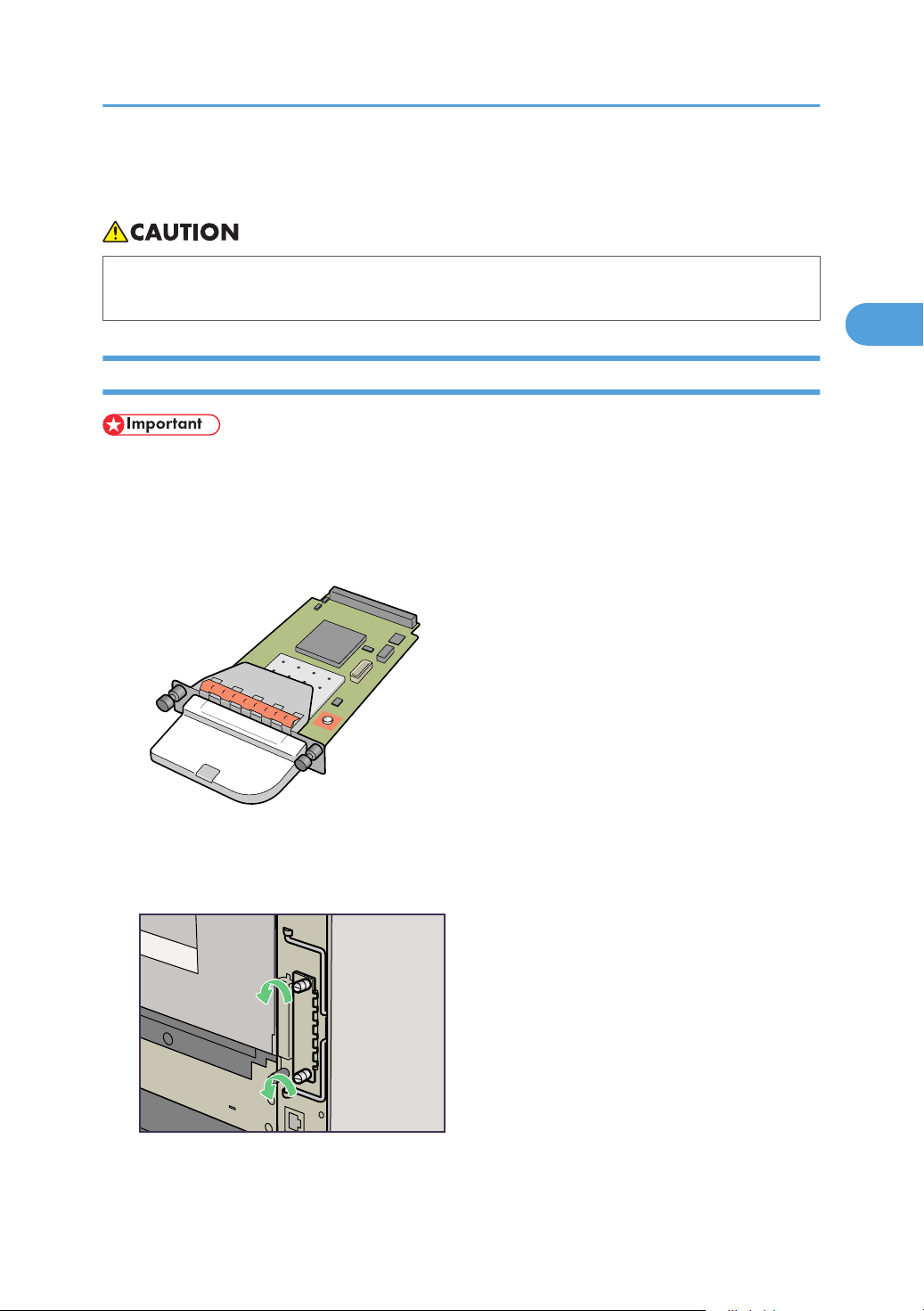

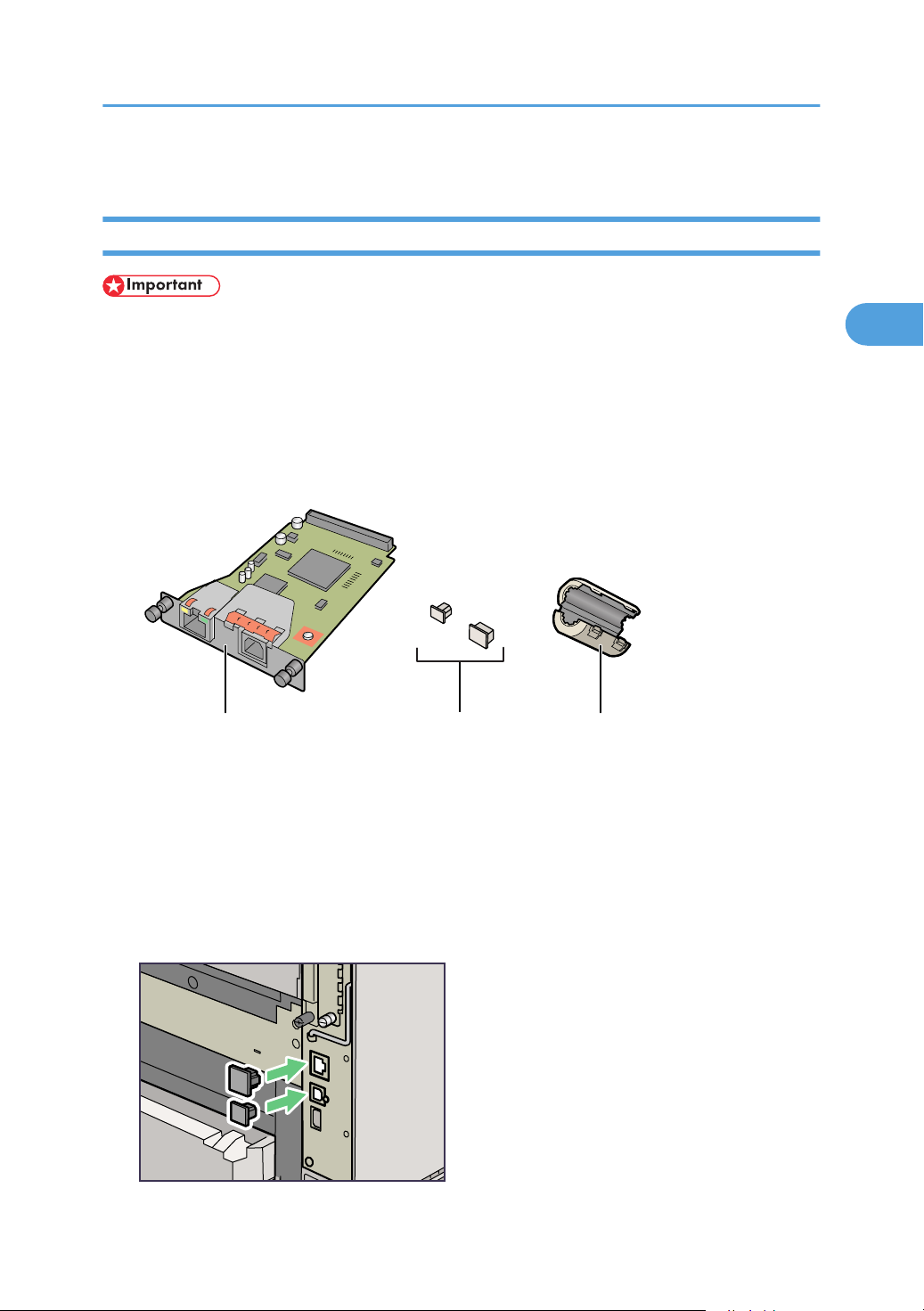

Installing the Gigabit Ethernet Board.........................................................................................................45

Page 4

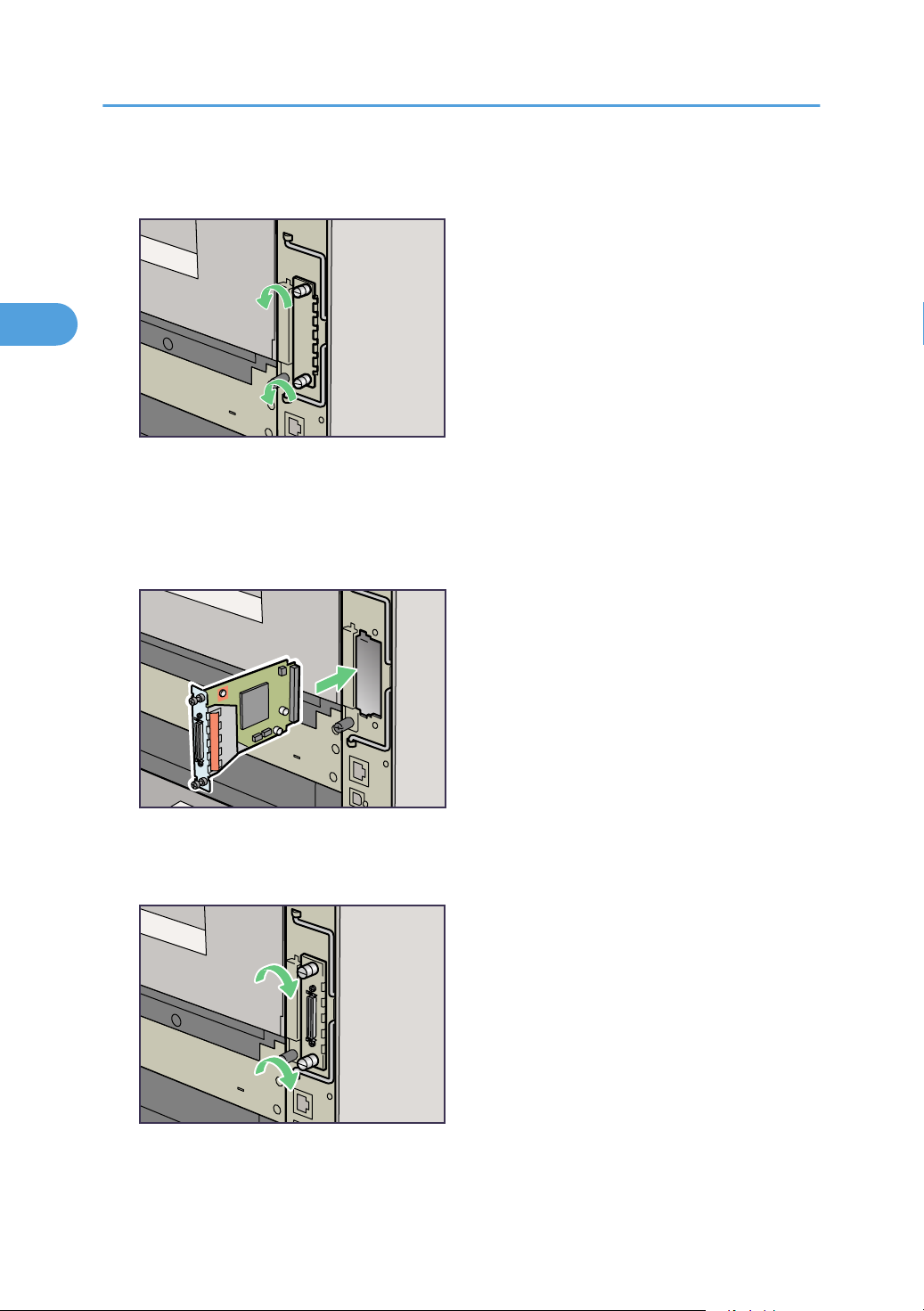

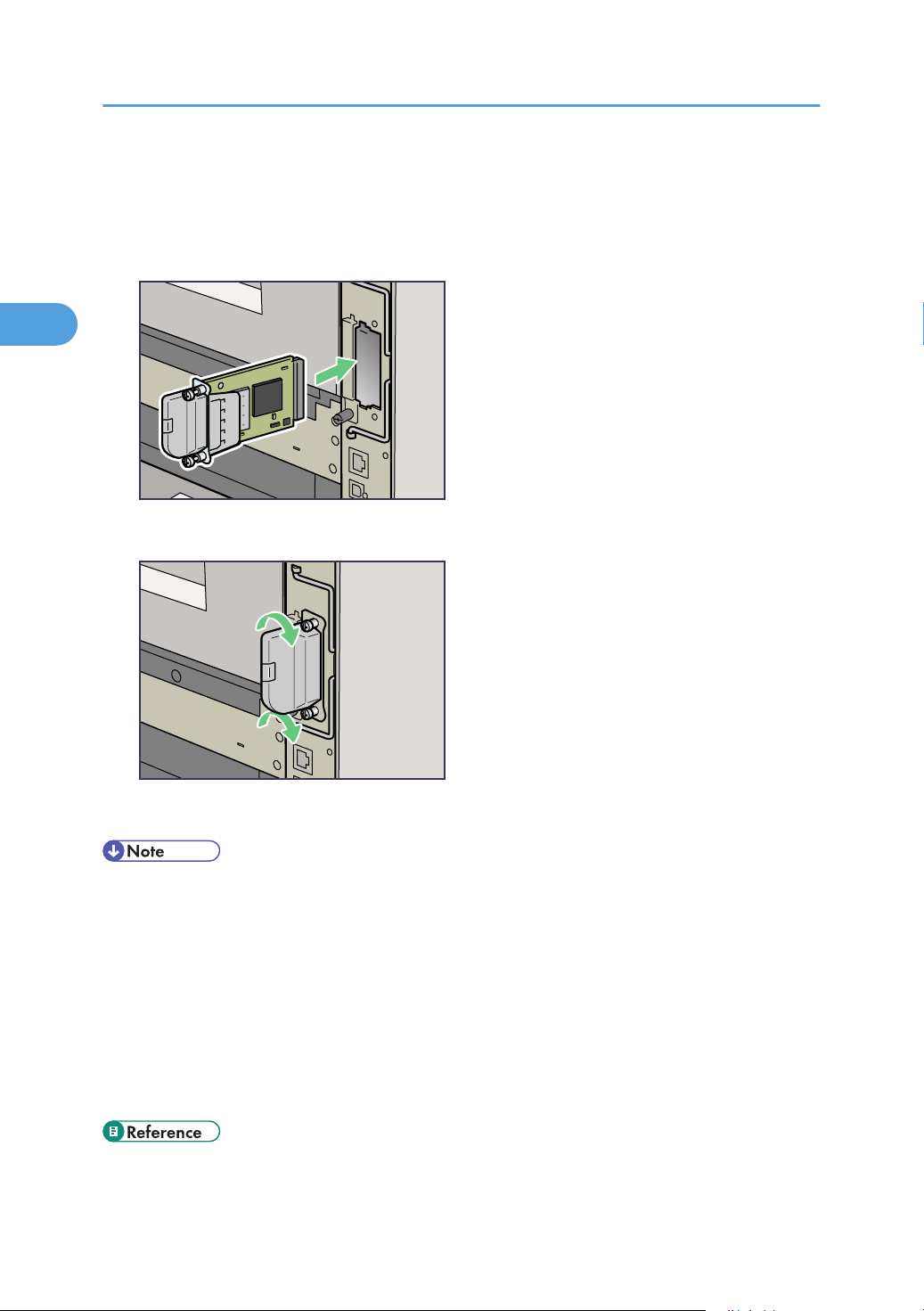

Installing the IEEE 1284 Interface Board...................................................................................................47

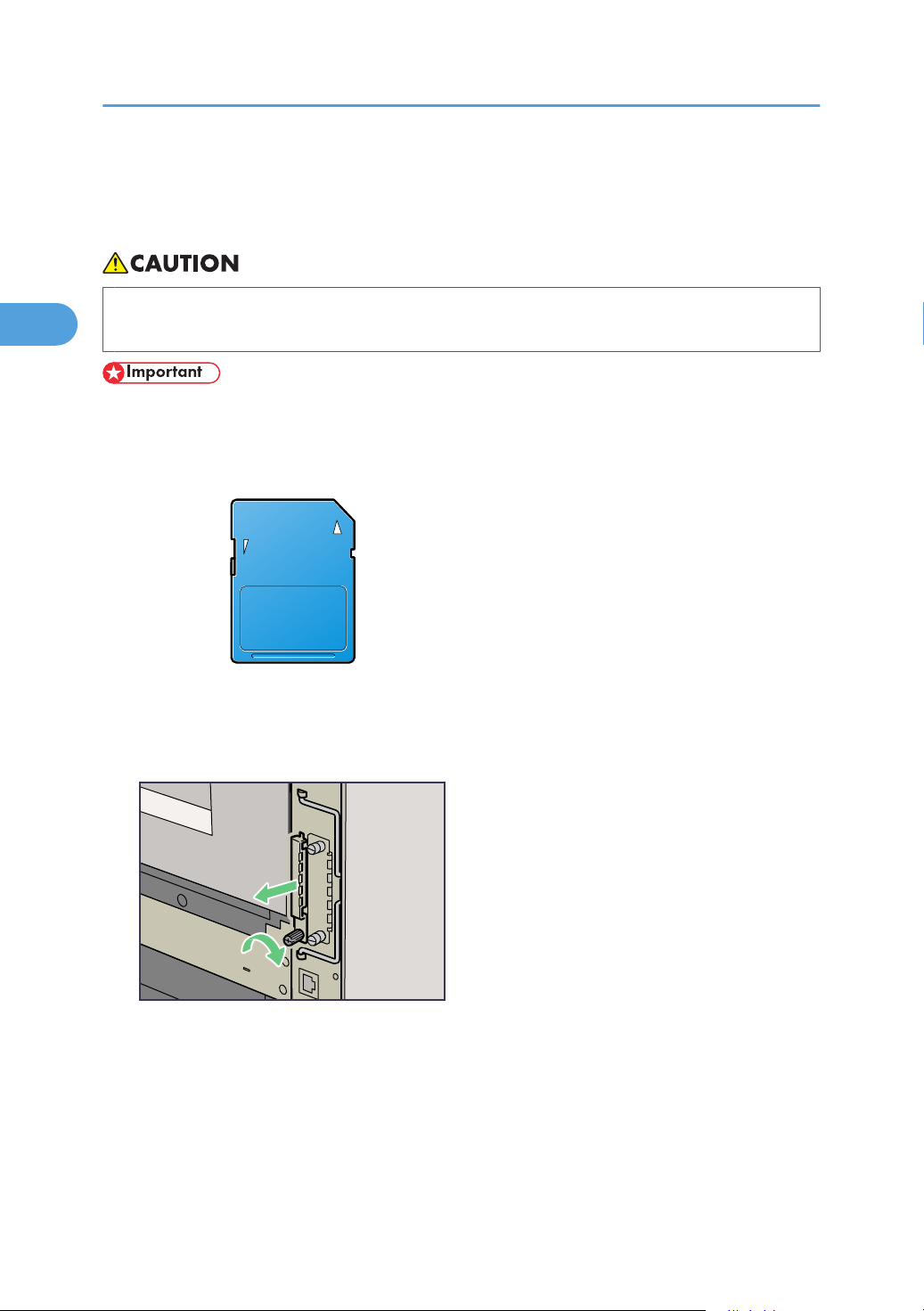

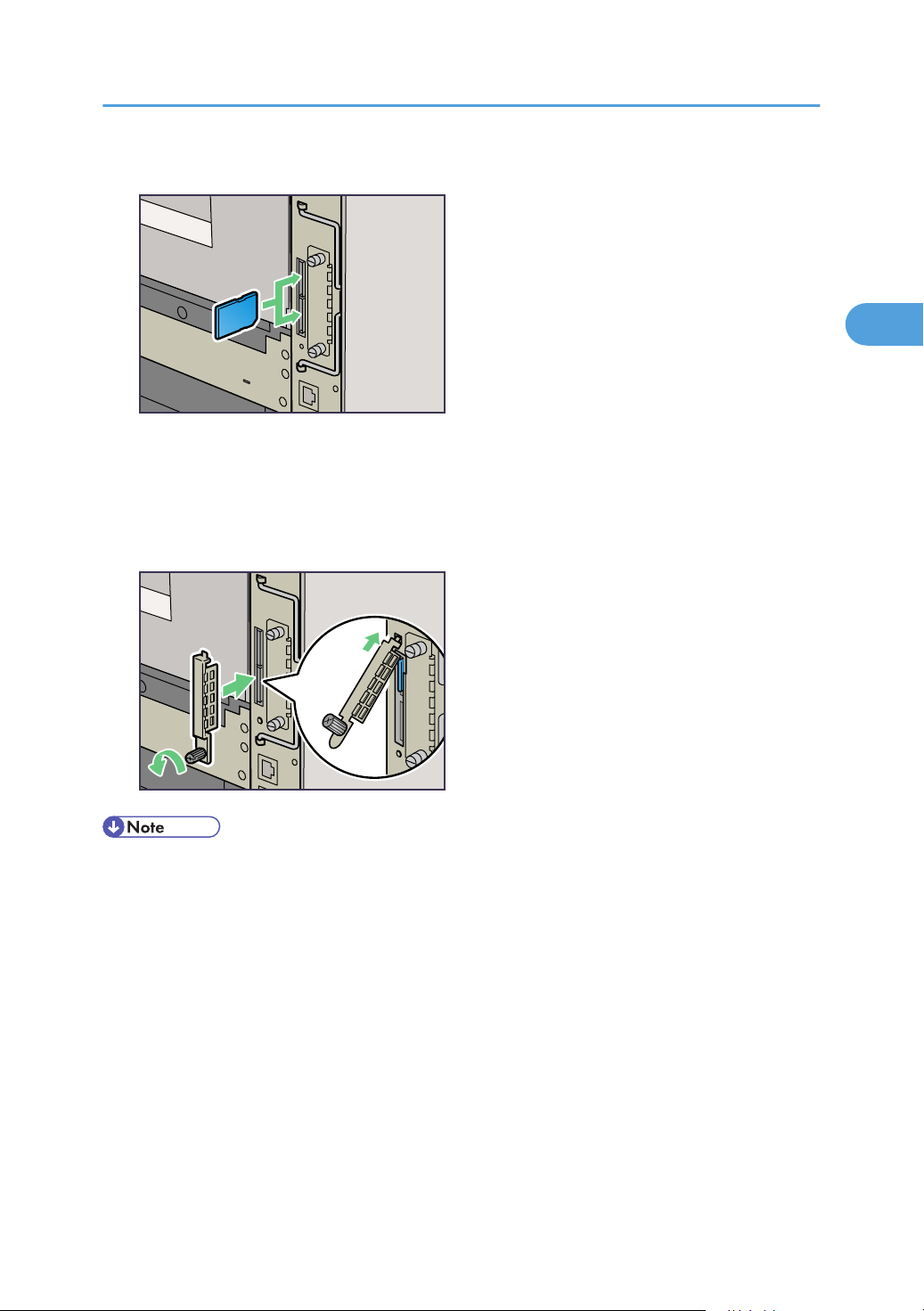

Installing SD Memory Card Options..............................................................................................................50

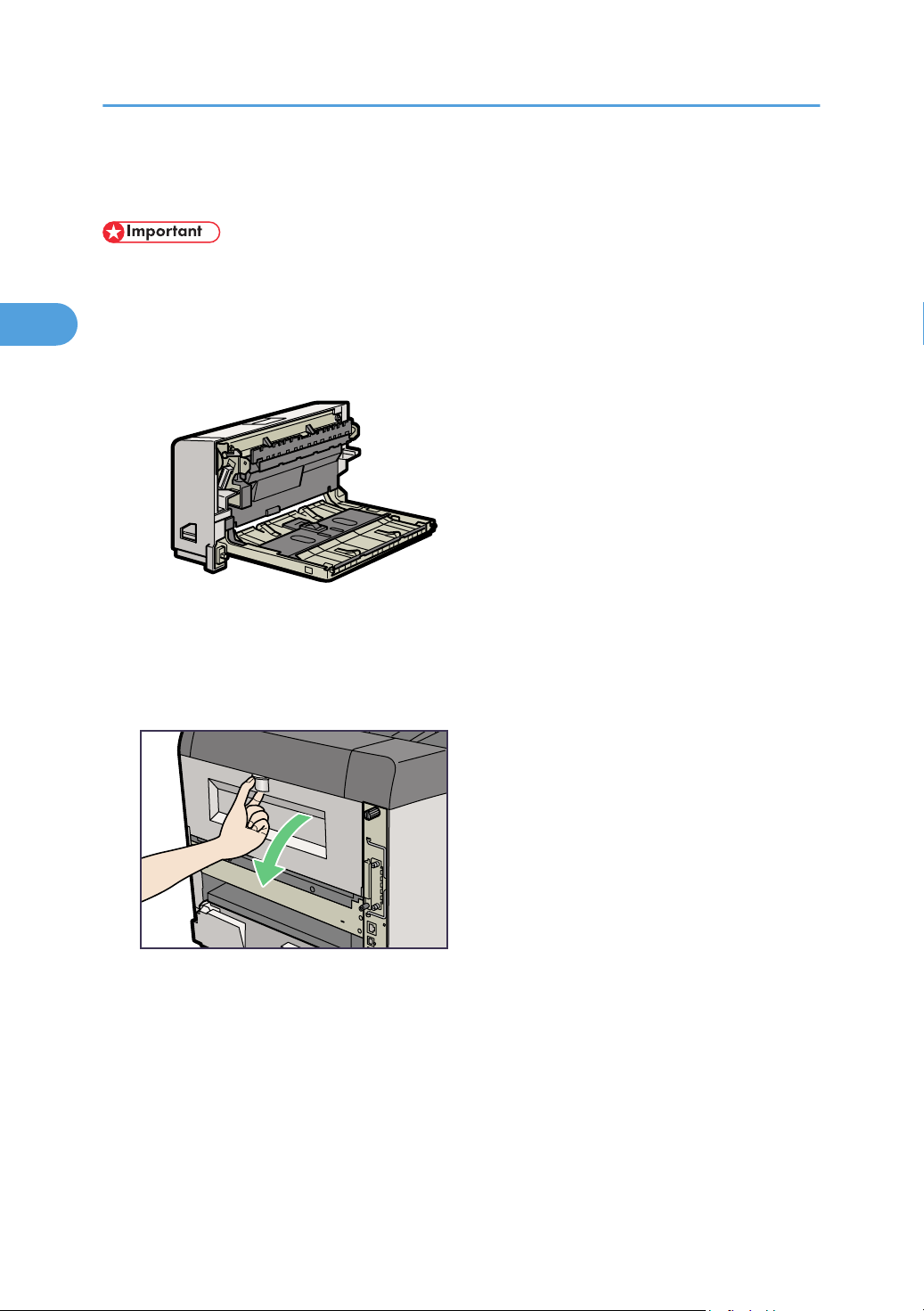

Attaching the Duplex Unit................................................................................................................................52

3. Connecting the Printer Cables

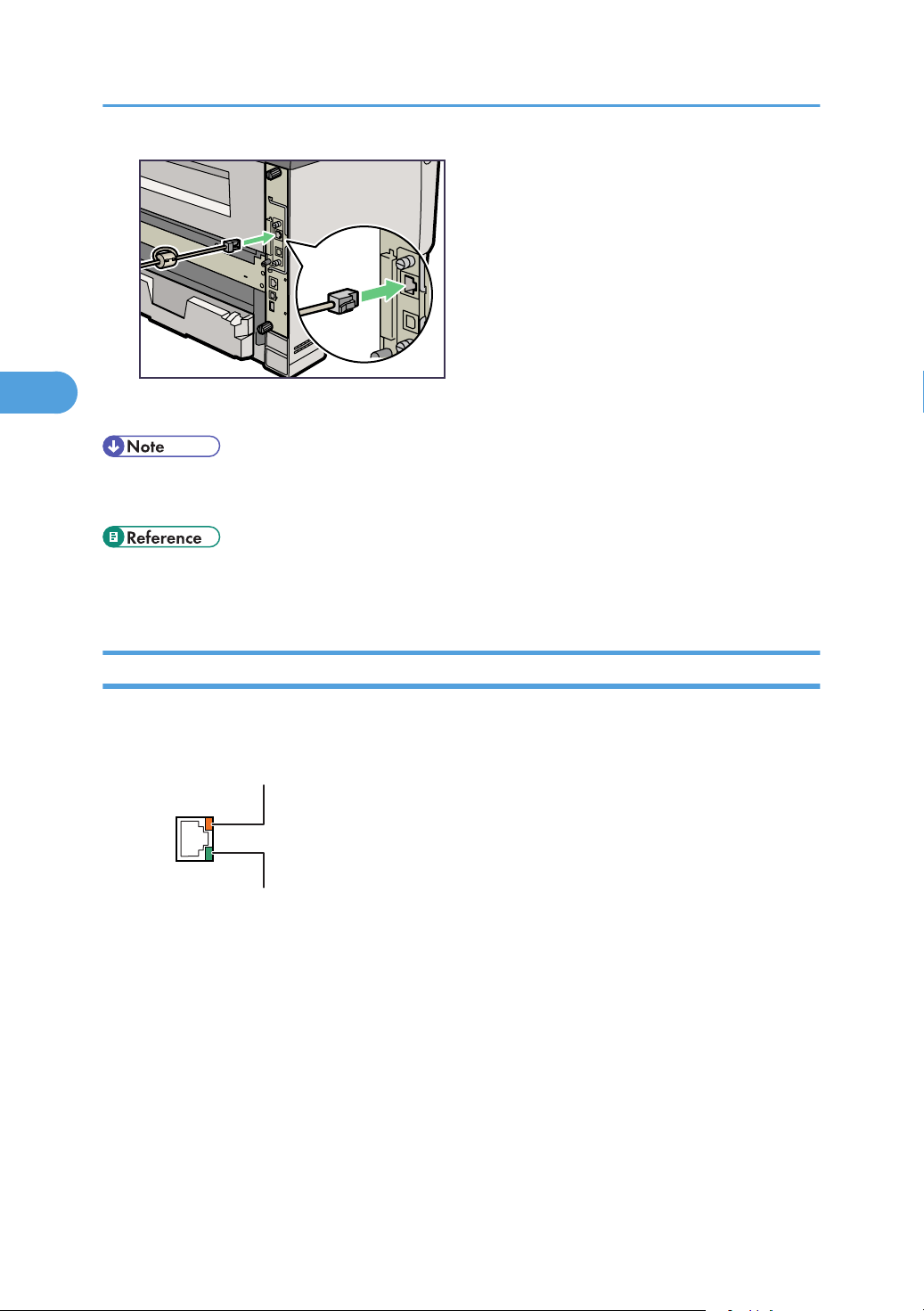

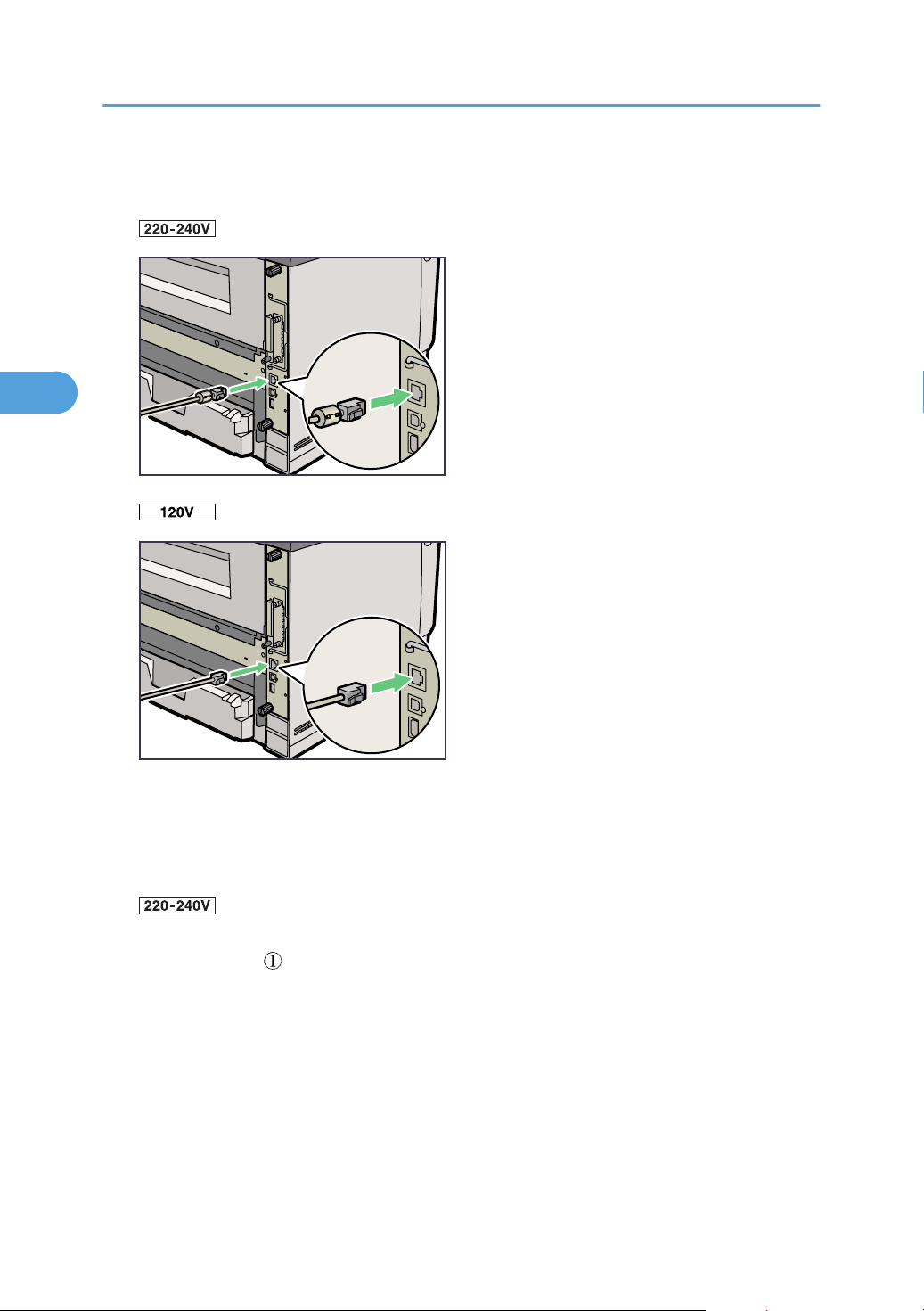

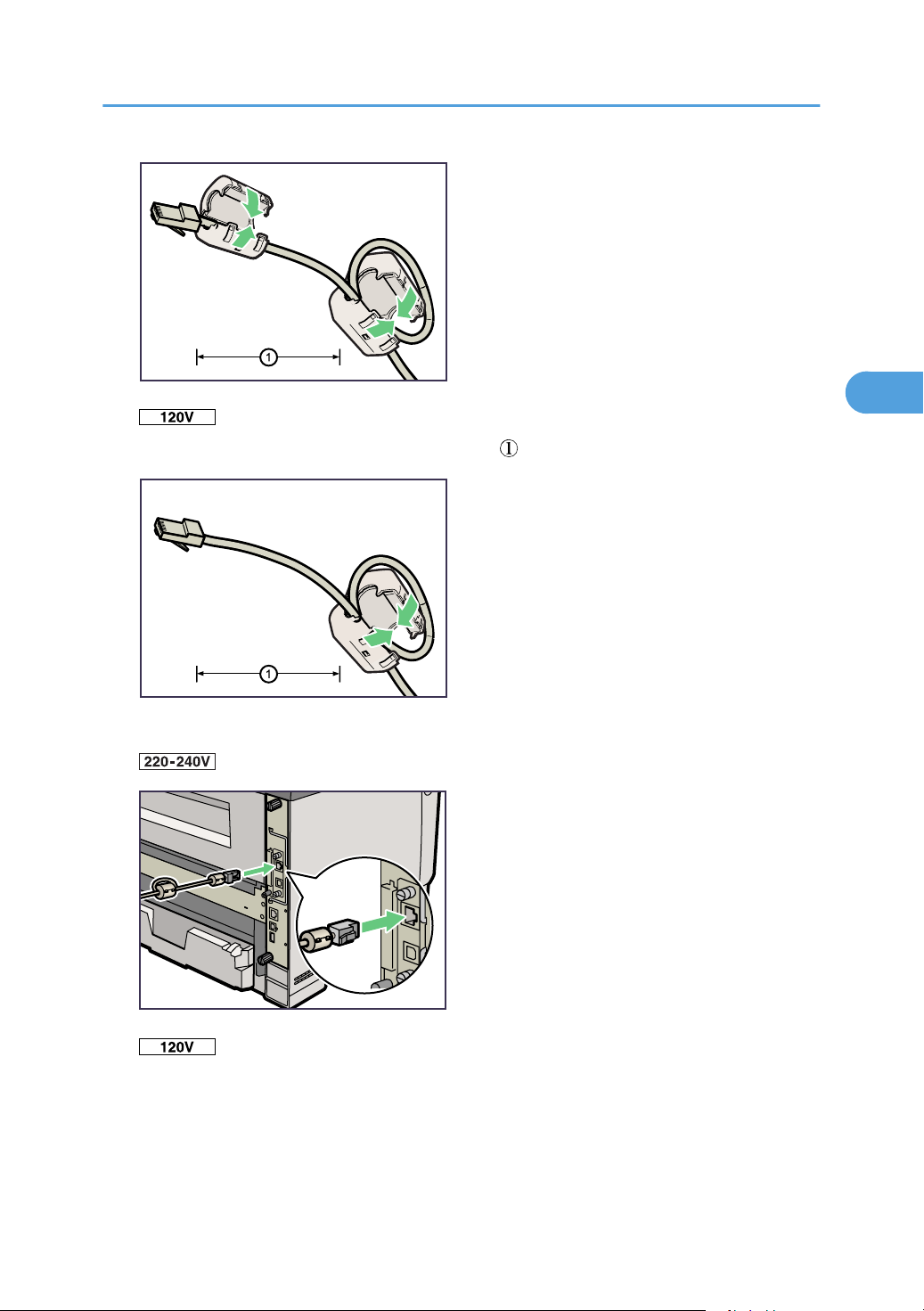

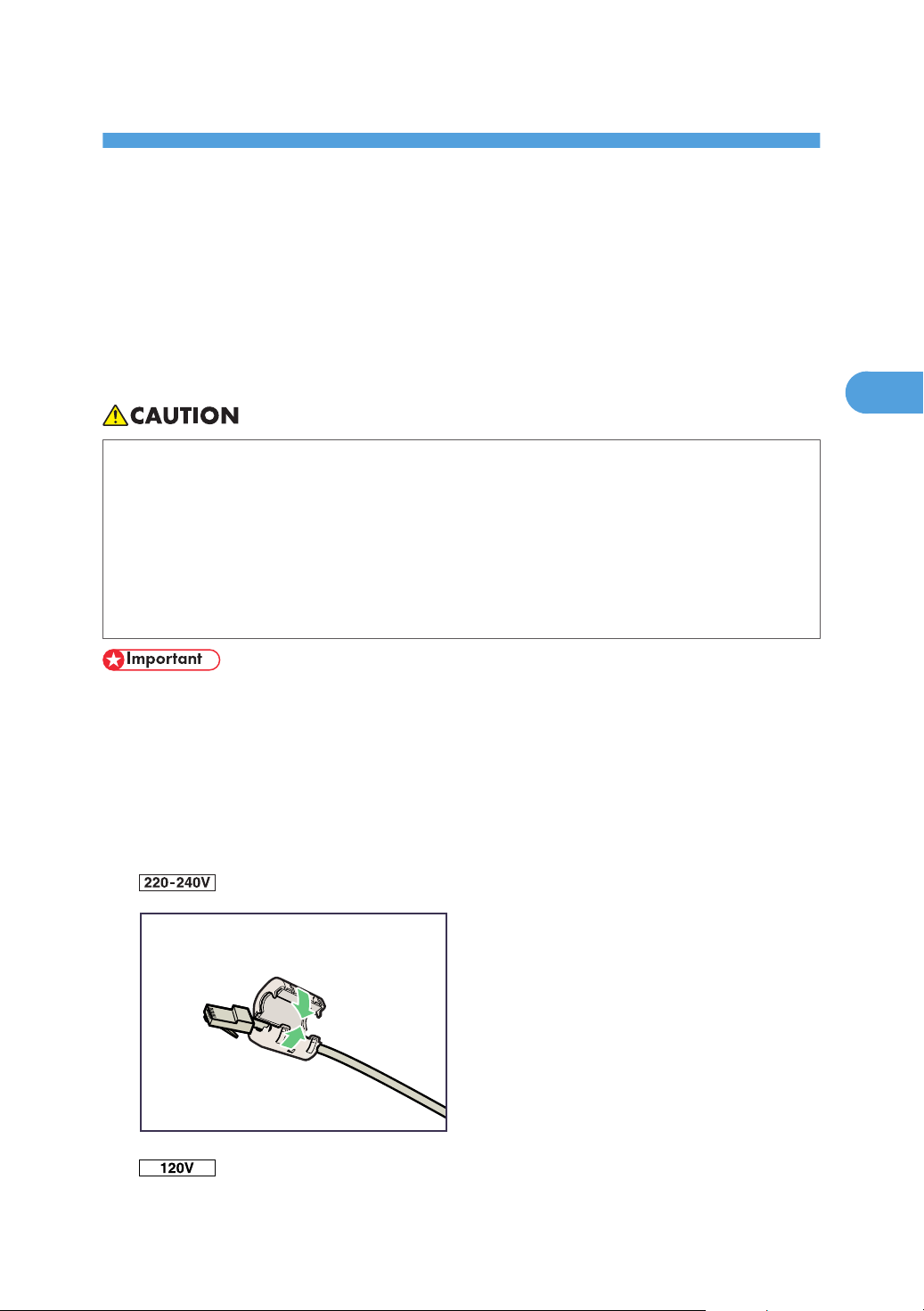

Ethernet Cable Connection.............................................................................................................................55

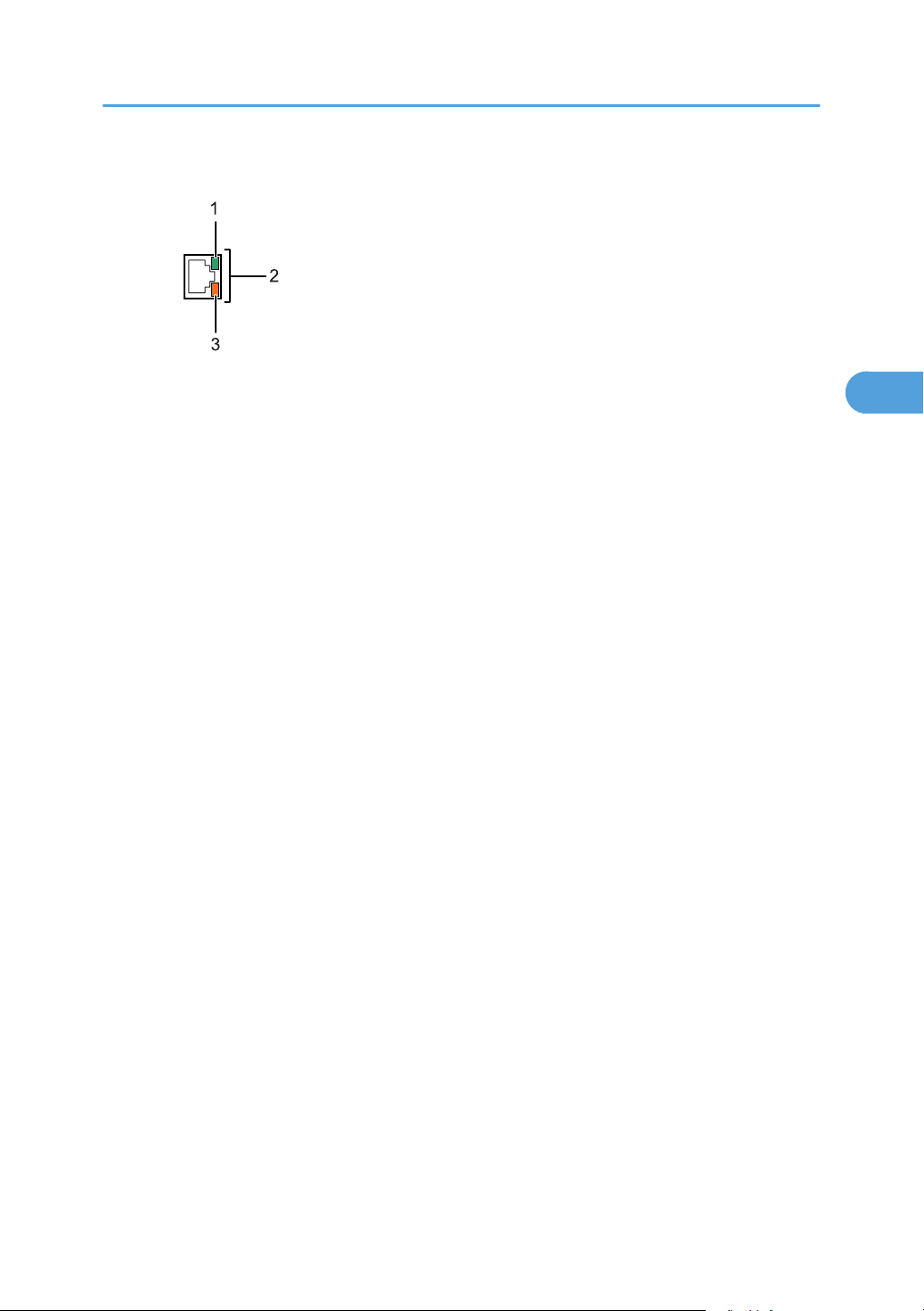

Reading the LED Lamps...............................................................................................................................58

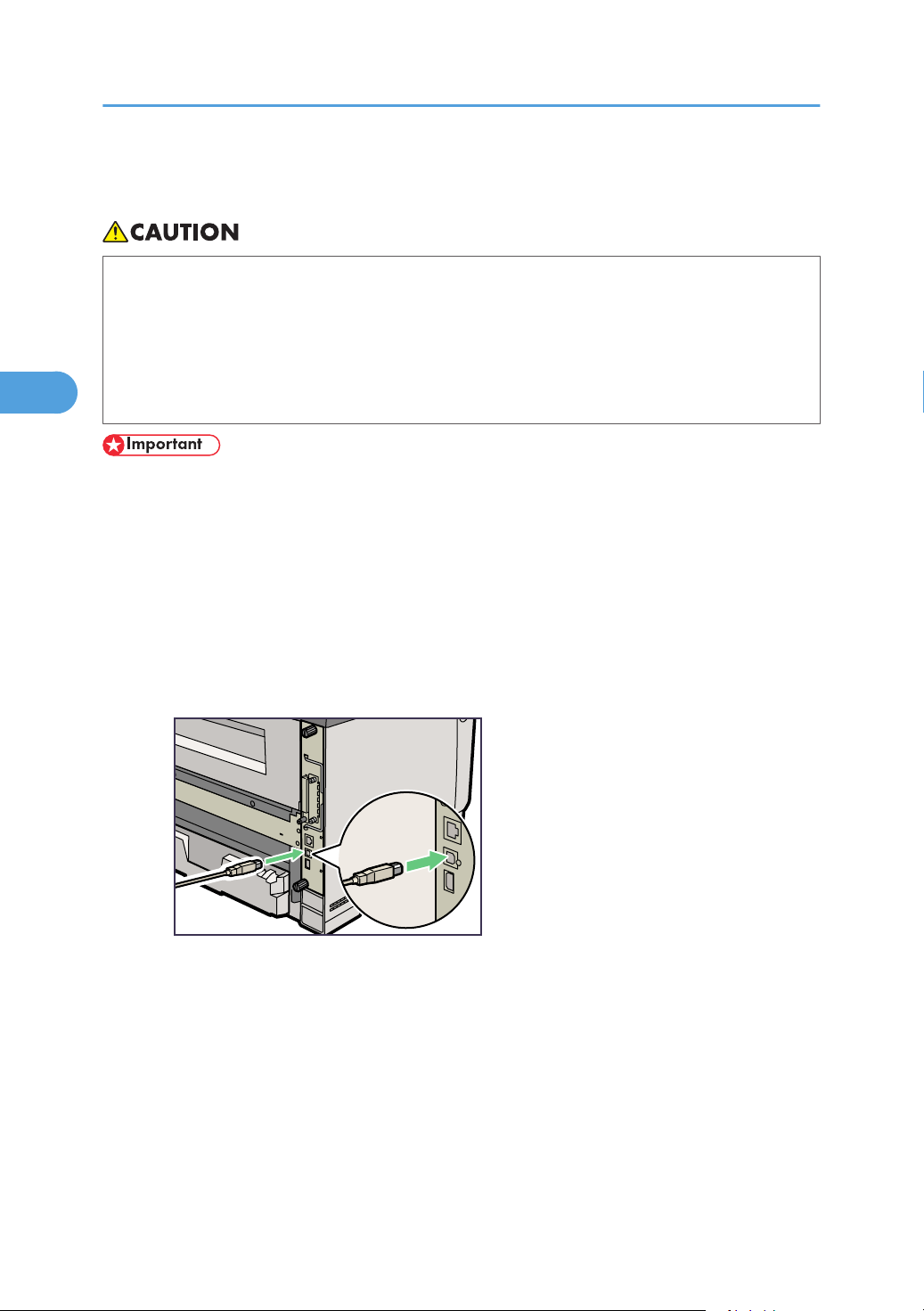

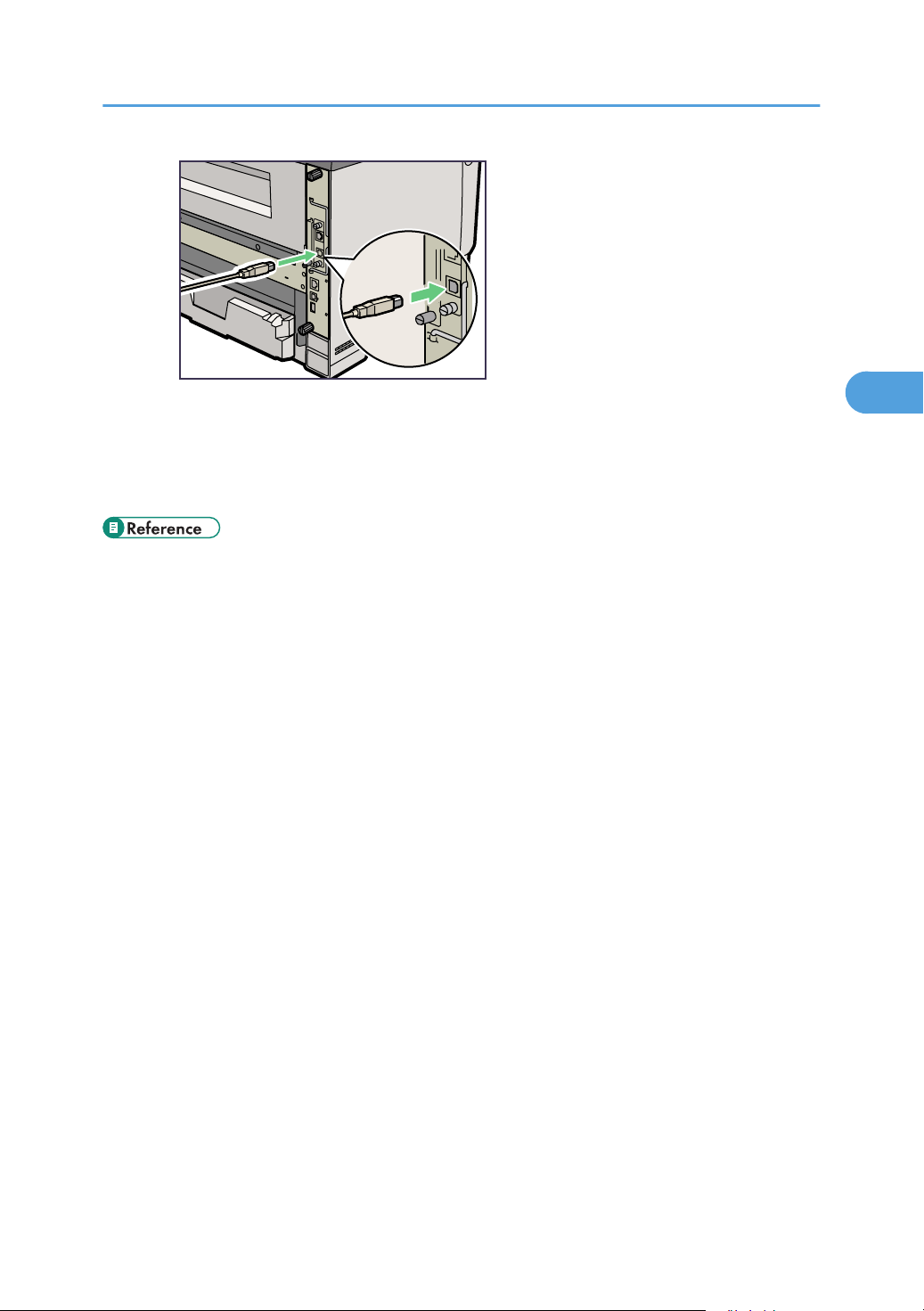

USB Cable Connection....................................................................................................................................60

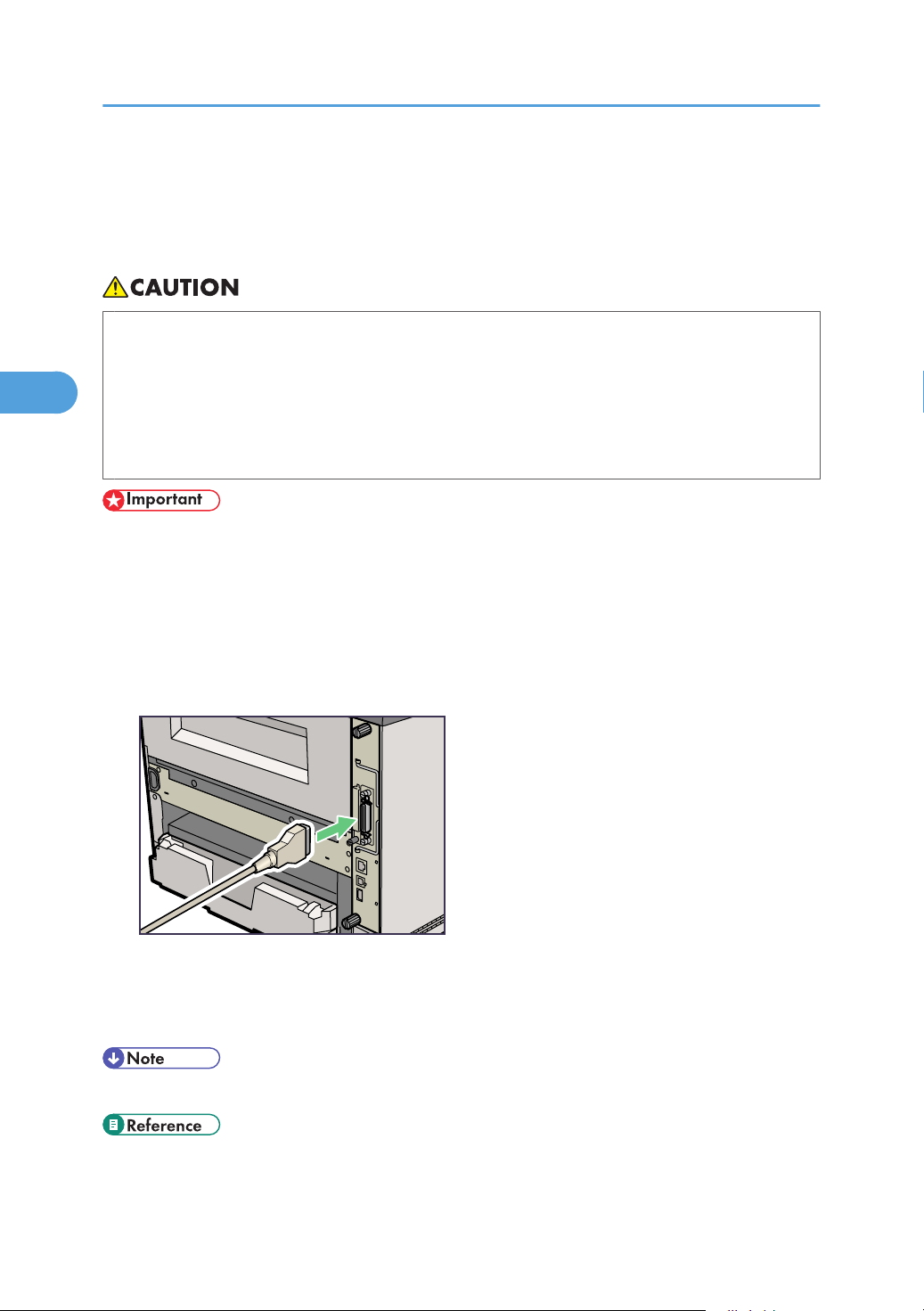

Parallel Cable Connection..............................................................................................................................62

4. Configuration

Ethernet Configuration.....................................................................................................................................63

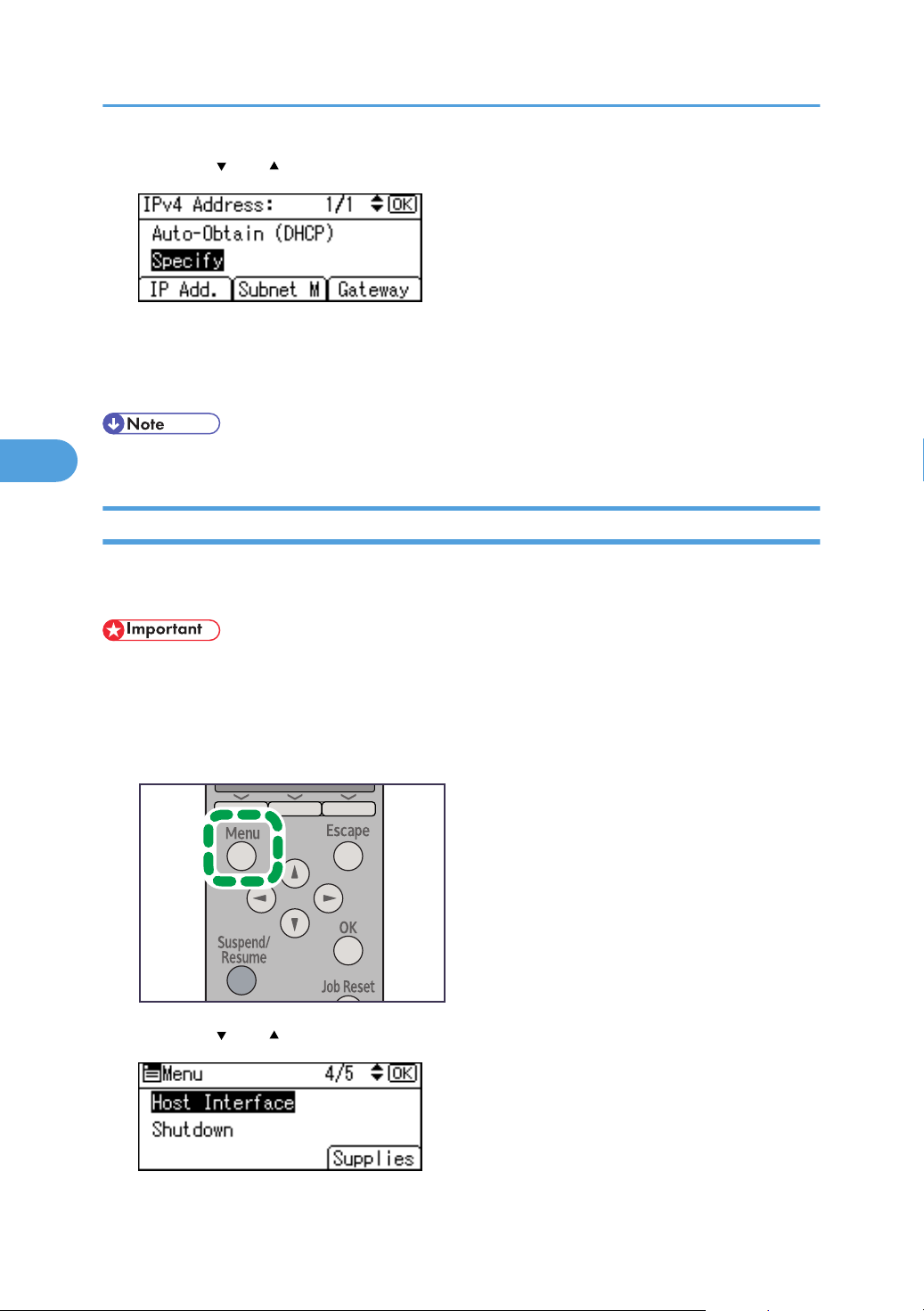

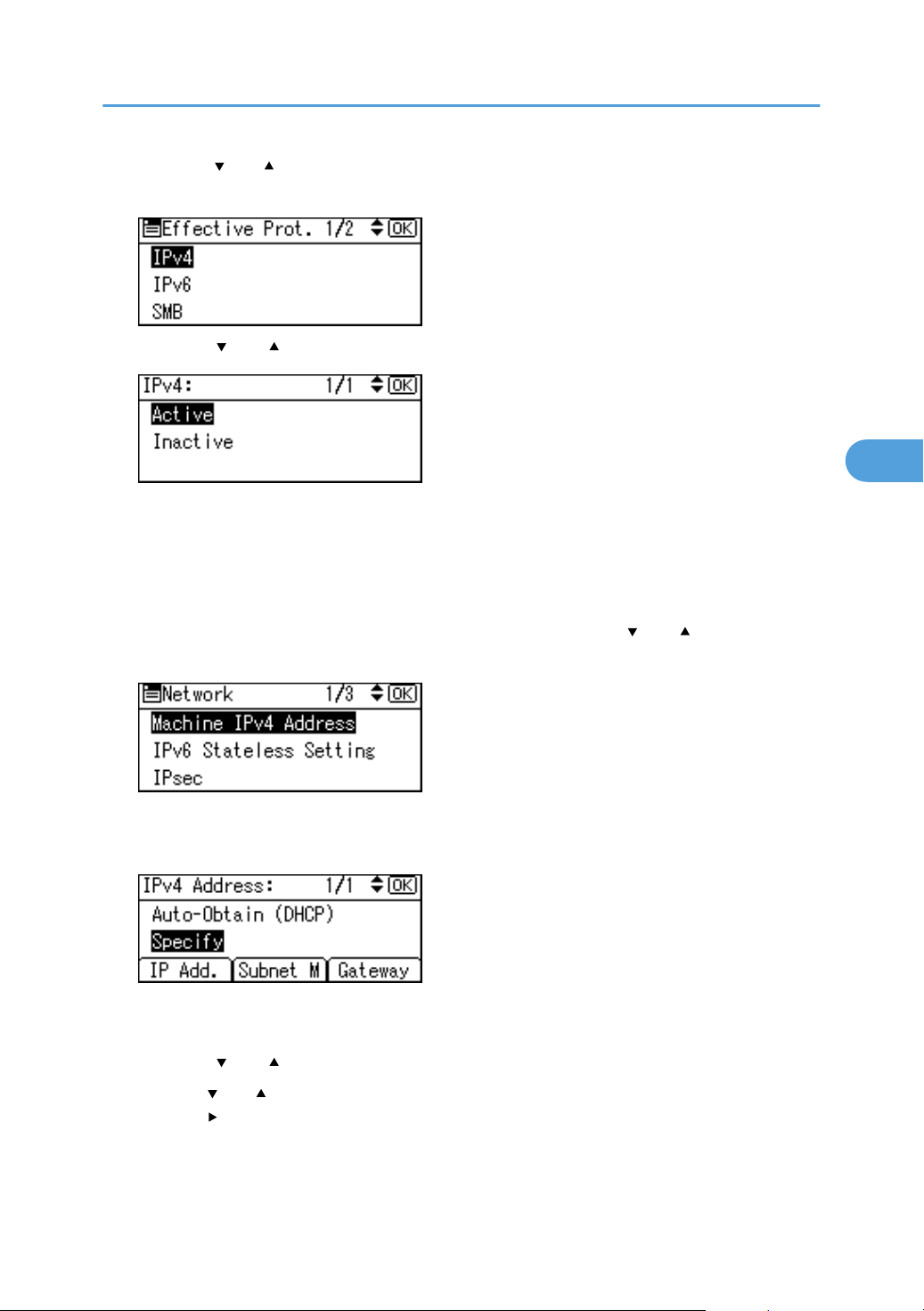

Specifying an IP Address (No DHCP)........................................................................................................64

Receiving an IP Address Automatically (DHCP)........................................................................................66

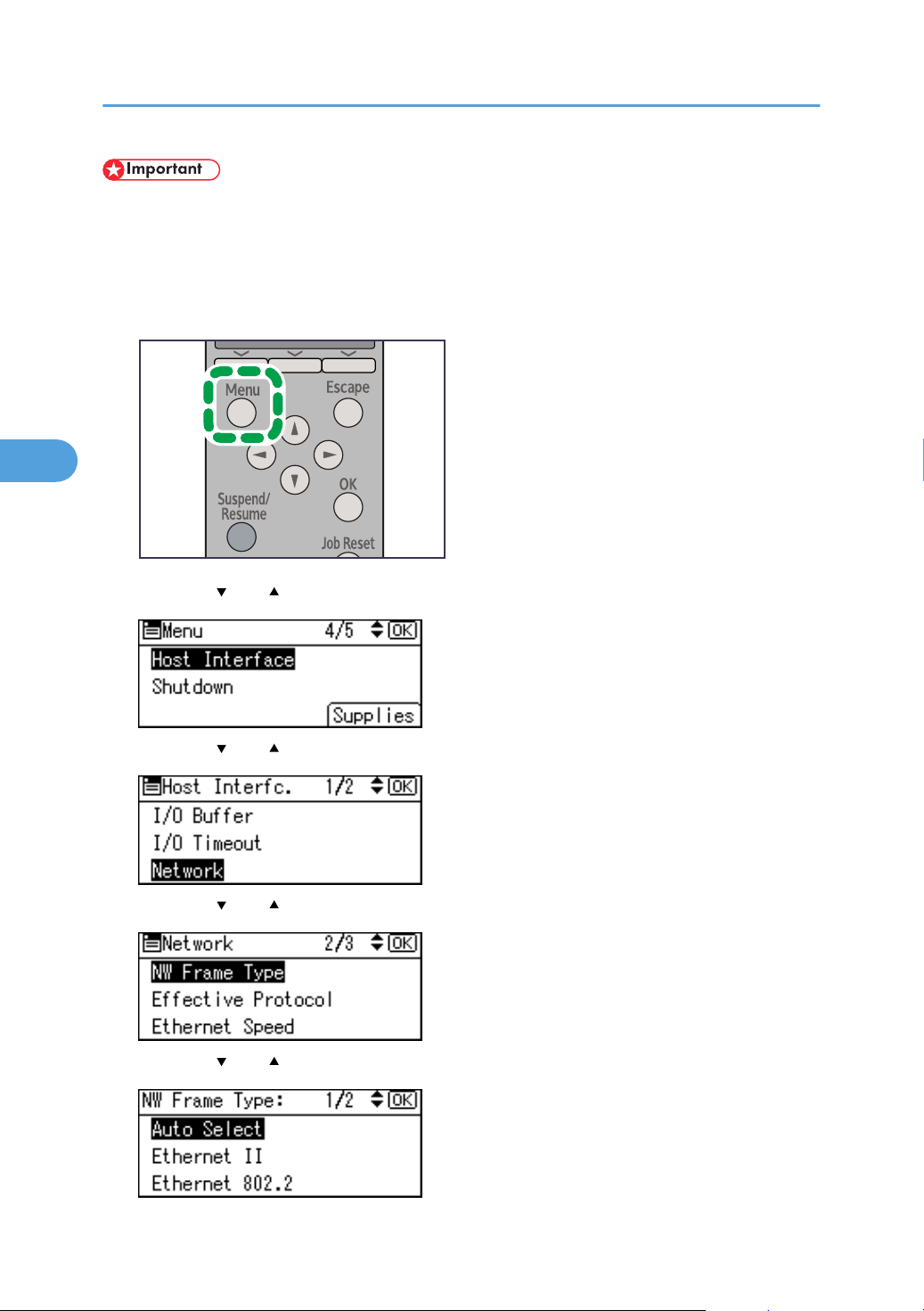

Configuring Network Settings When Using NetWare.............................................................................67

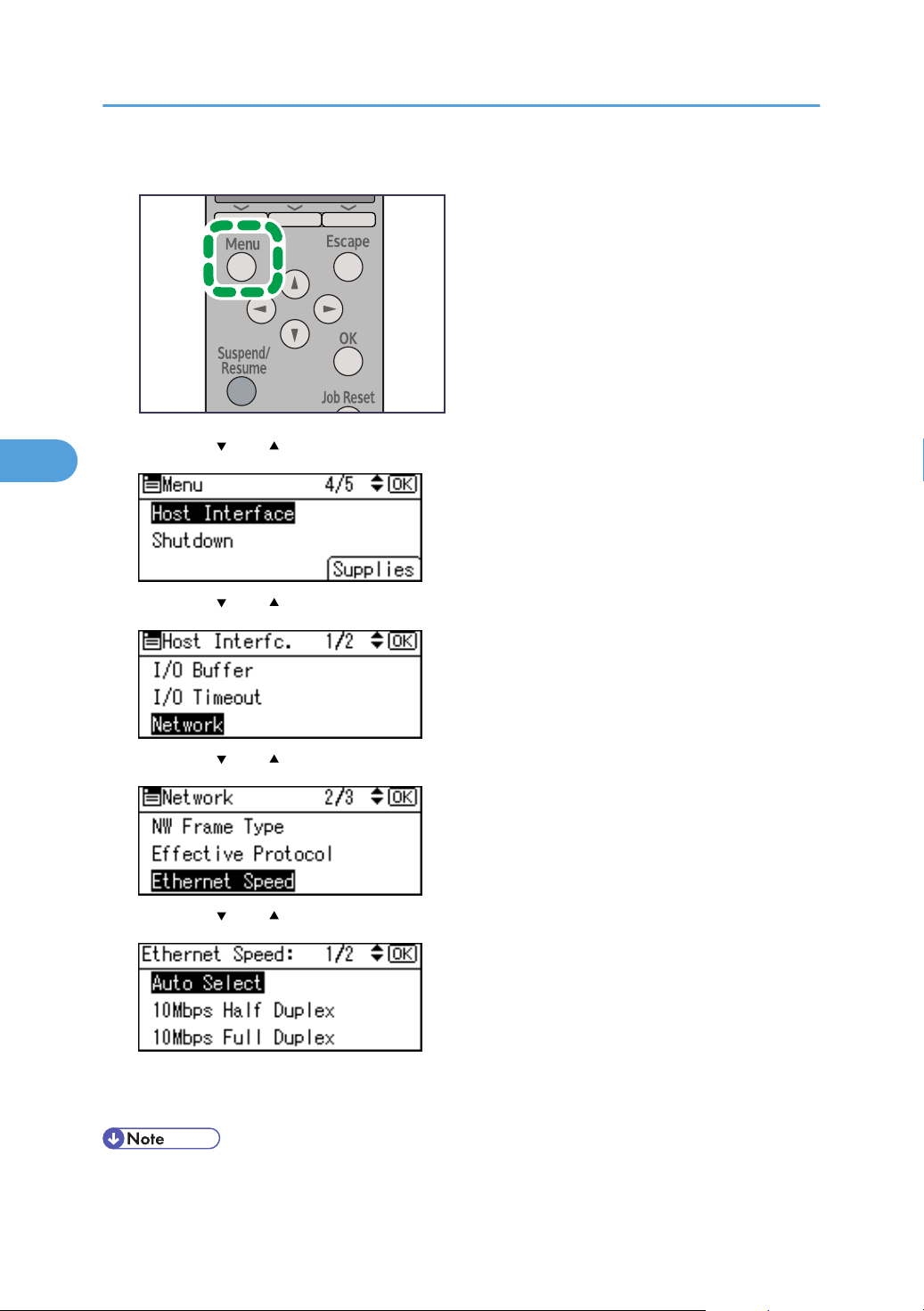

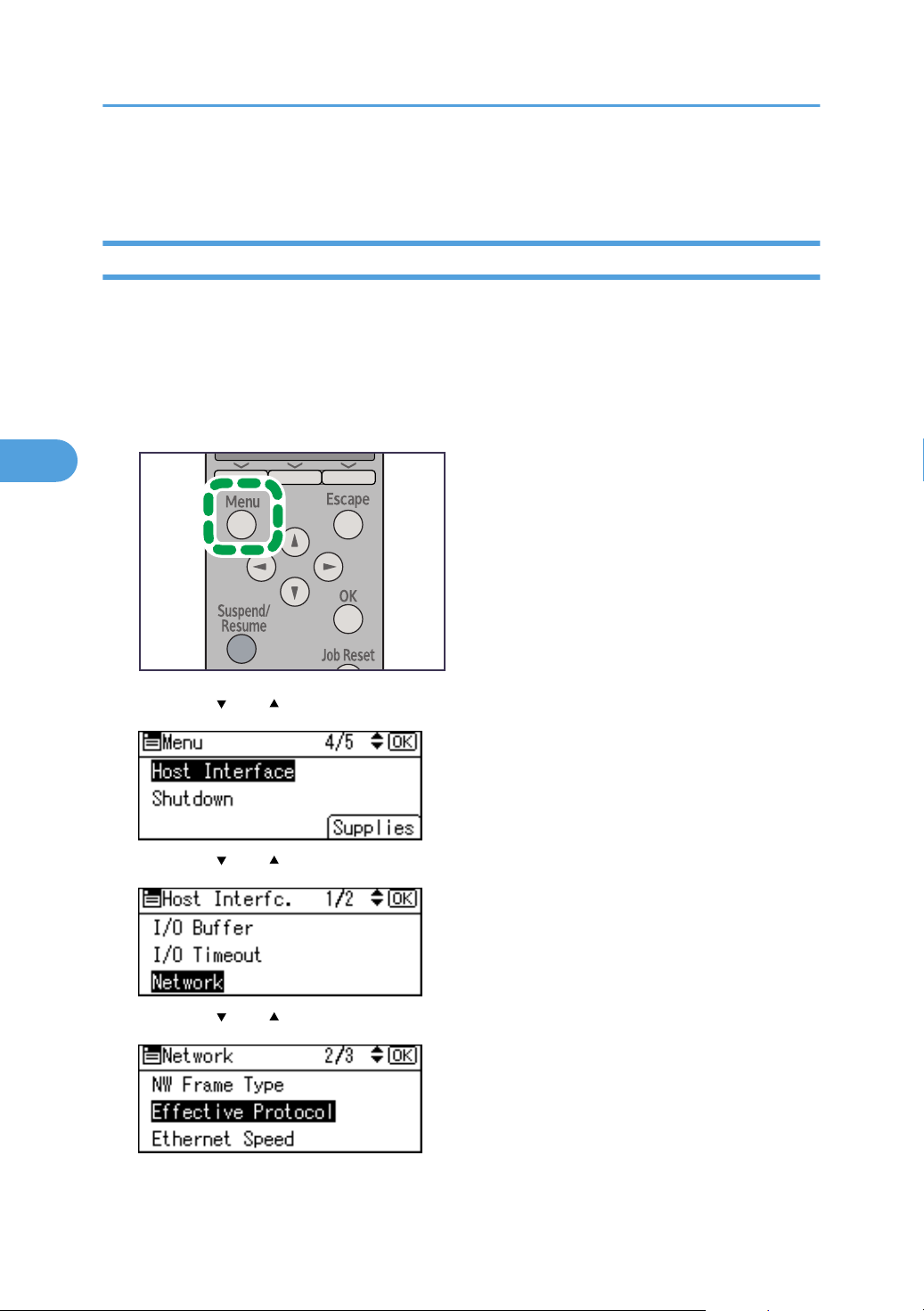

Setting the Ethernet Speed..........................................................................................................................69

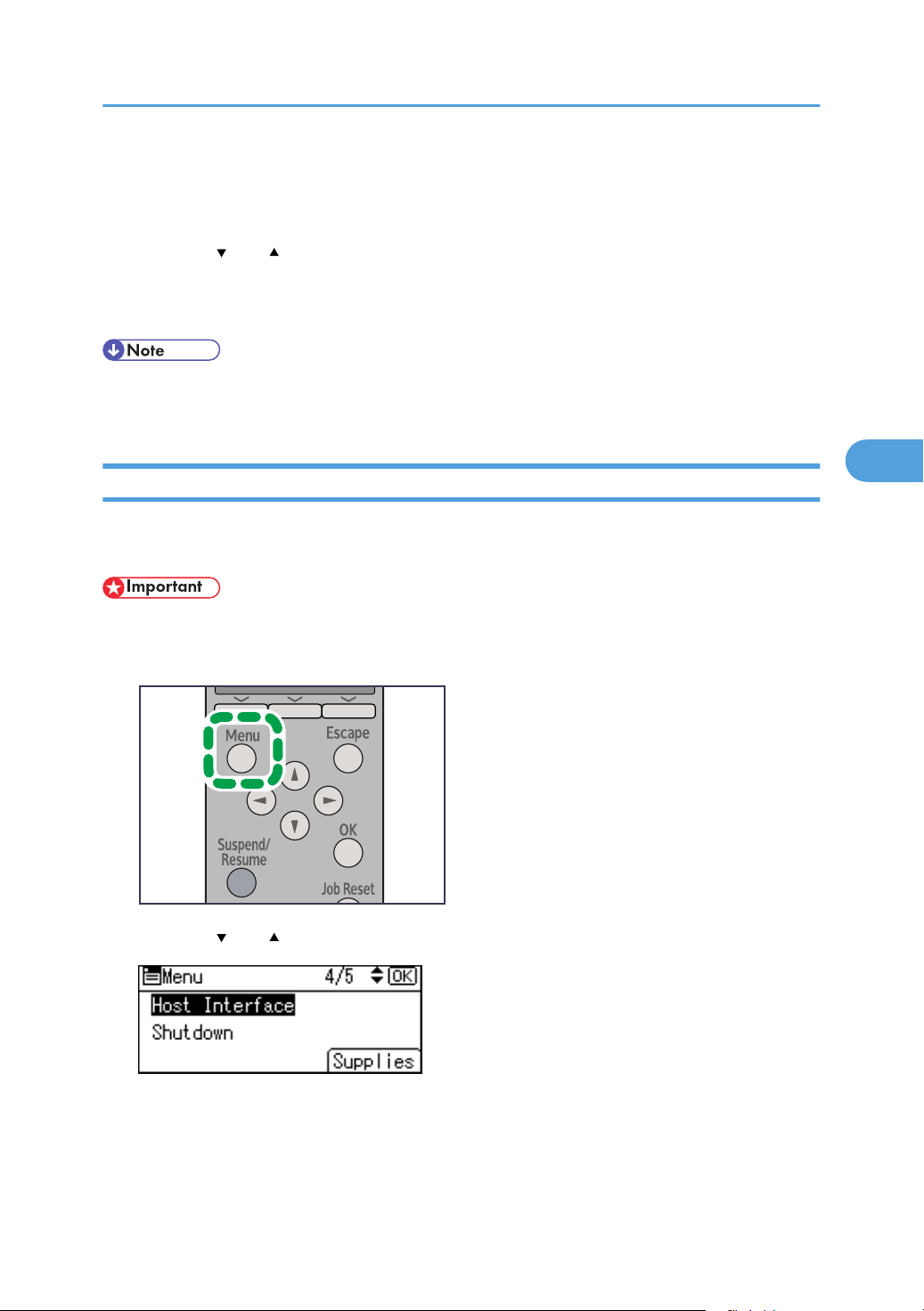

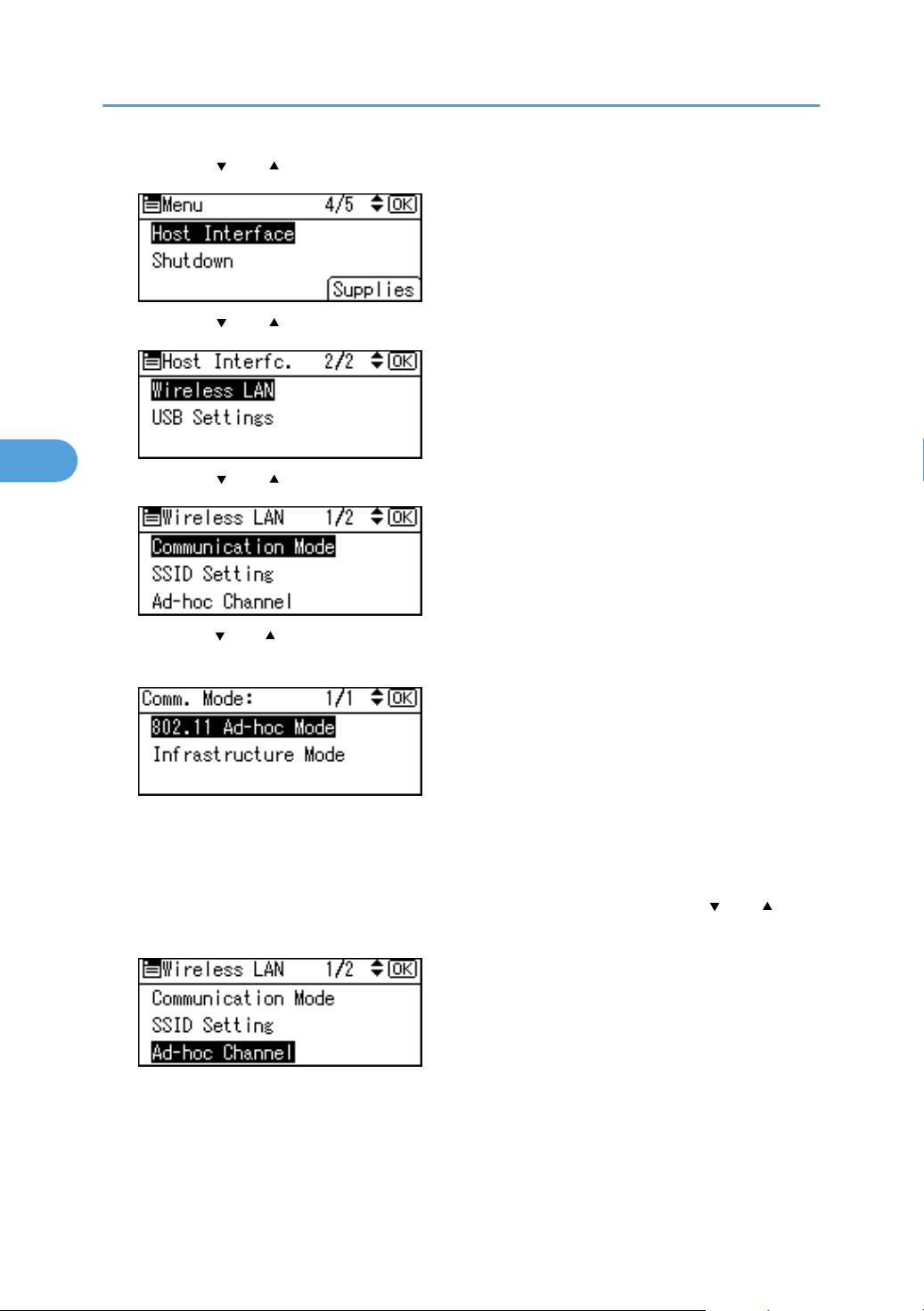

Wireless LAN Configuration...........................................................................................................................71

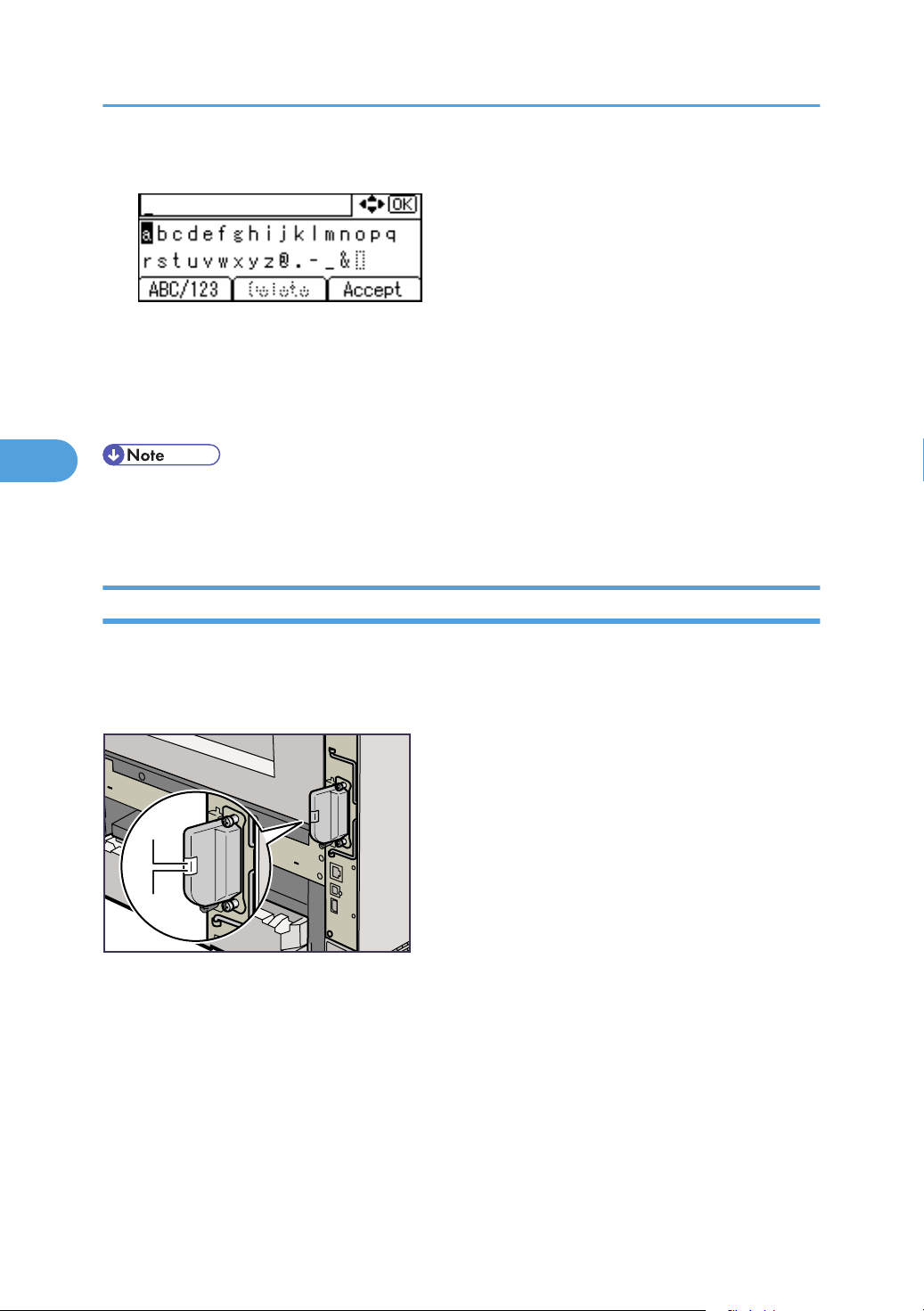

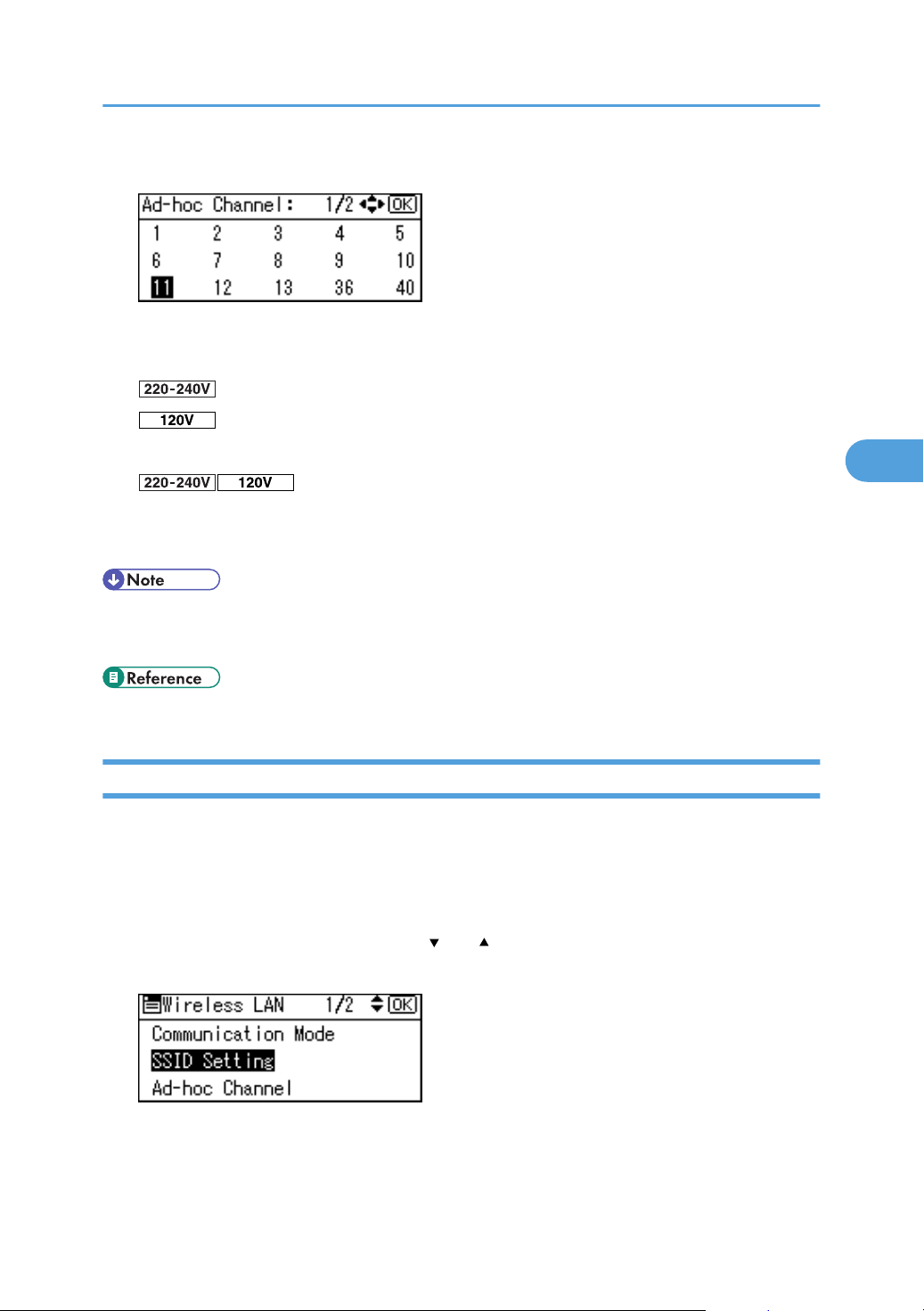

Setting the SSID............................................................................................................................................73

Confirming Wireless Network Connectivity...............................................................................................74

Cautions When Using a Wireless LAN......................................................................................................75

Setting Security Method of Wireless LAN......................................................................................................76

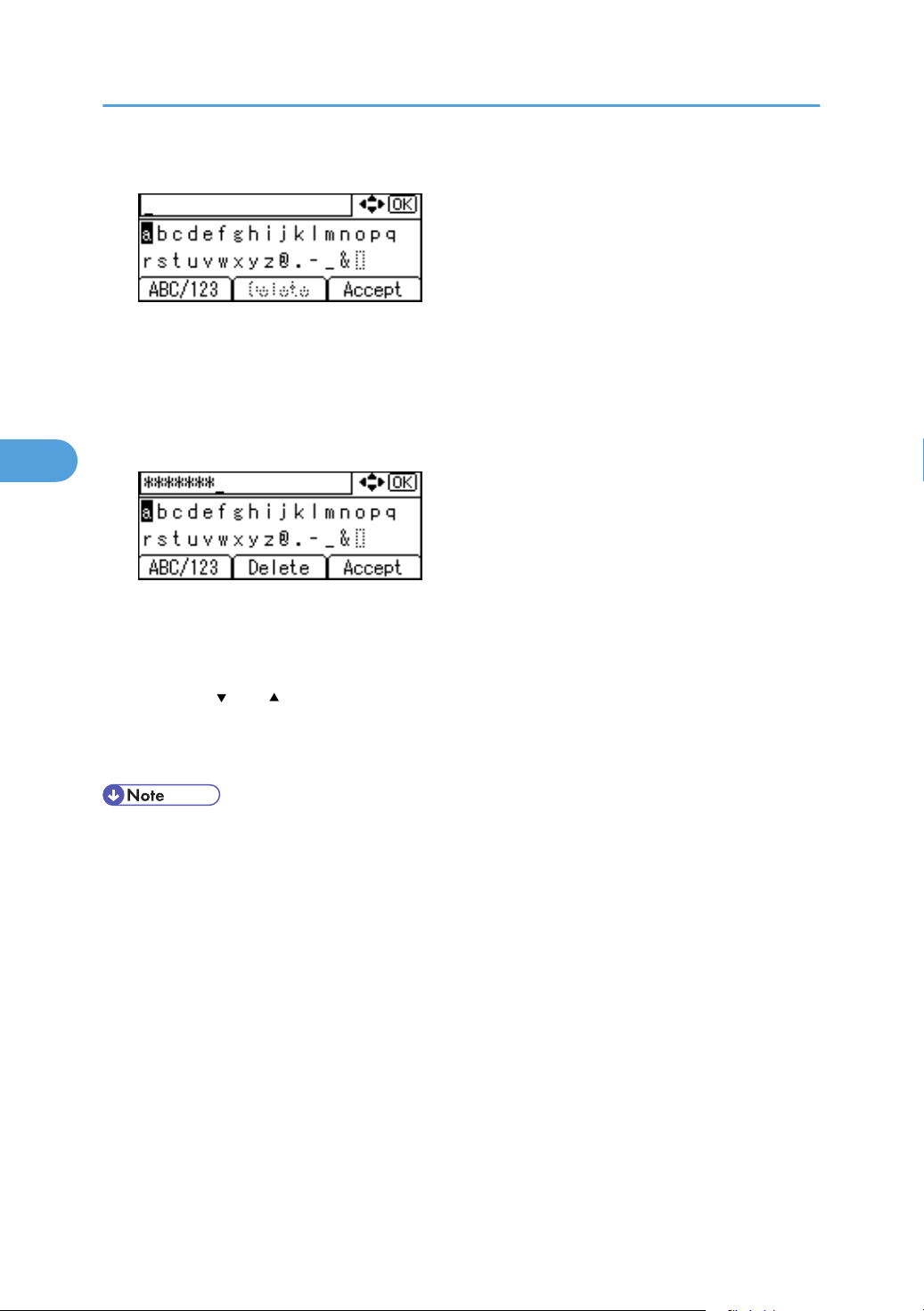

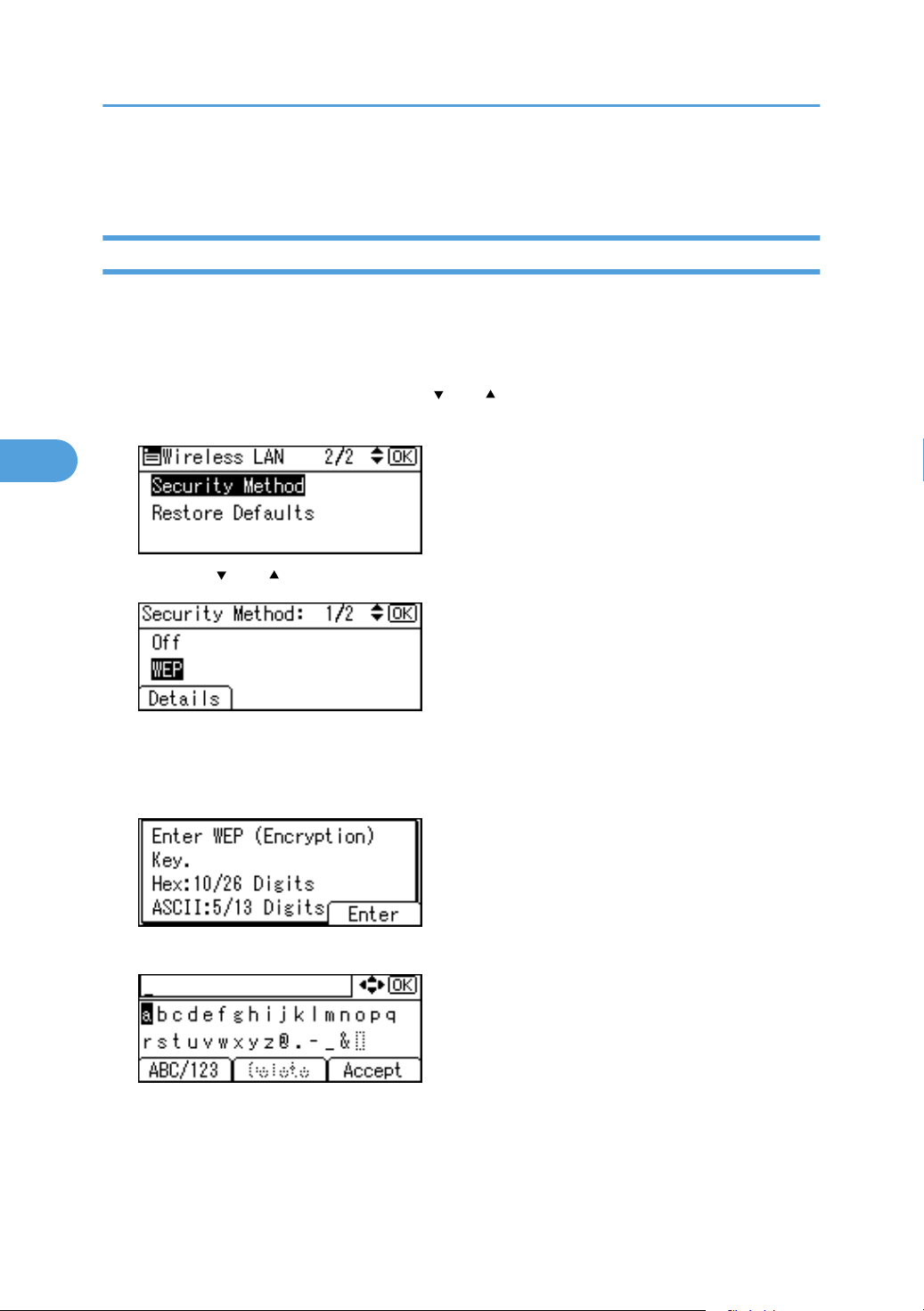

Setting a WEP Key.......................................................................................................................................76

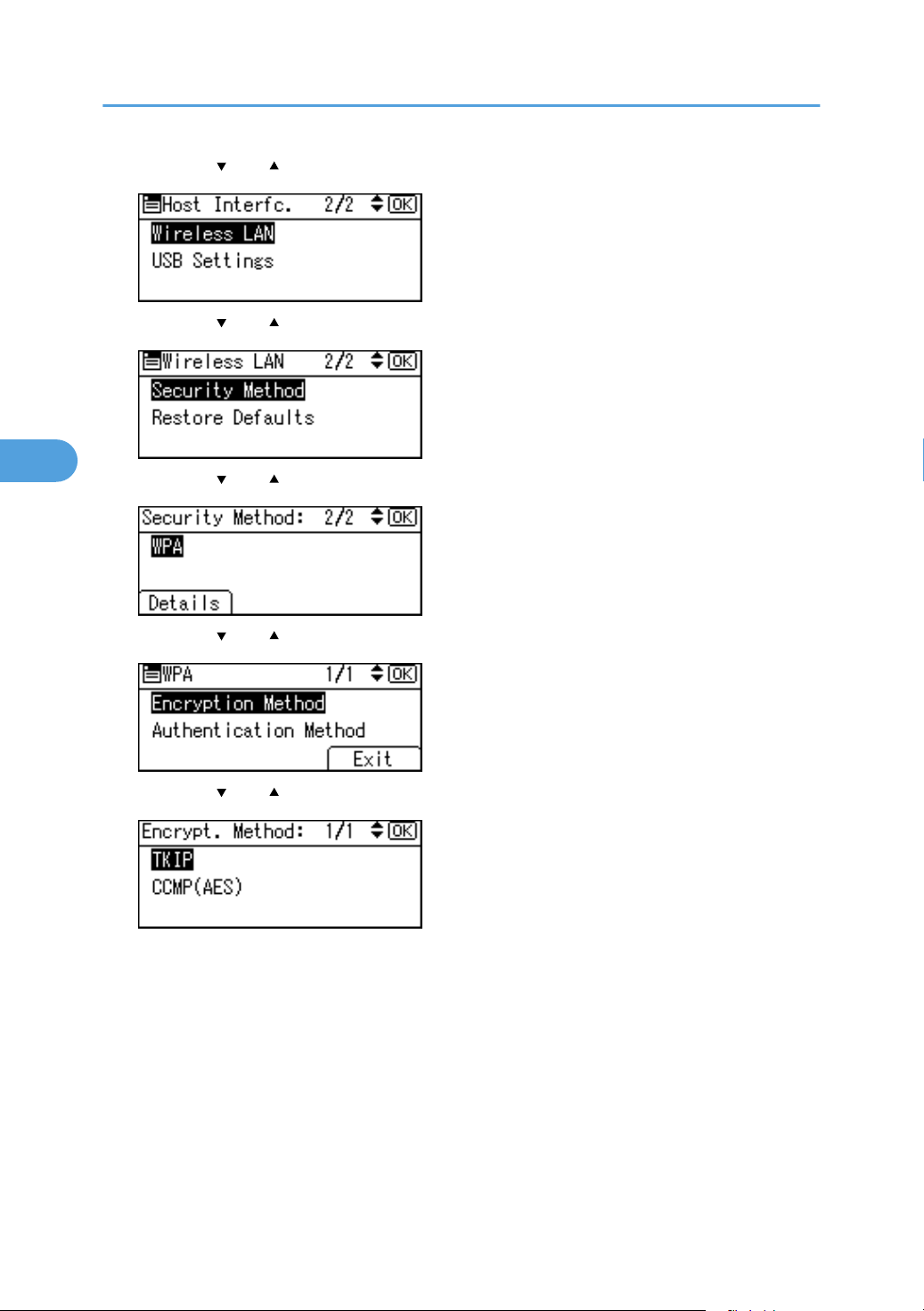

Setting WPA.................................................................................................................................................77

Configuring IEEE 802.1X (WPA/WPA2)......................................................................................................81

Installing a Site Certificate...........................................................................................................................81

Installing Device Certificate.........................................................................................................................81

Setting Items of WPA/WPA2.....................................................................................................................83

5. Paper and Other Media

Supported Paper for Each Tray.......................................................................................................................85

Paper Recommendations.................................................................................................................................88

Loading Paper..............................................................................................................................................88

Storing Paper................................................................................................................................................88

Types of Paper and Other Media..............................................................................................................88

Paper Not Supported by this Printer...........................................................................................................92

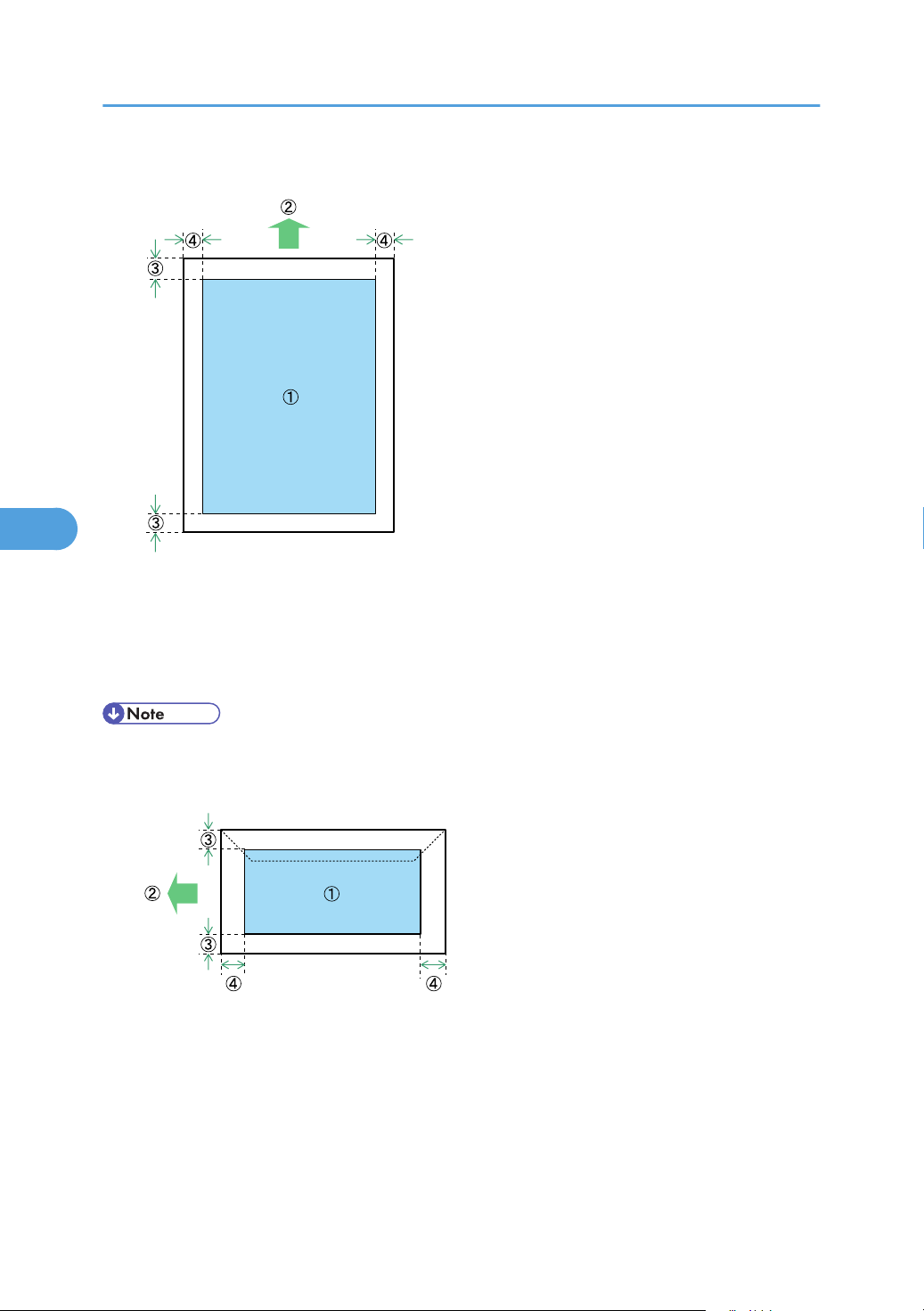

Print Area......................................................................................................................................................93

Page 5

Loading Paper..................................................................................................................................................96

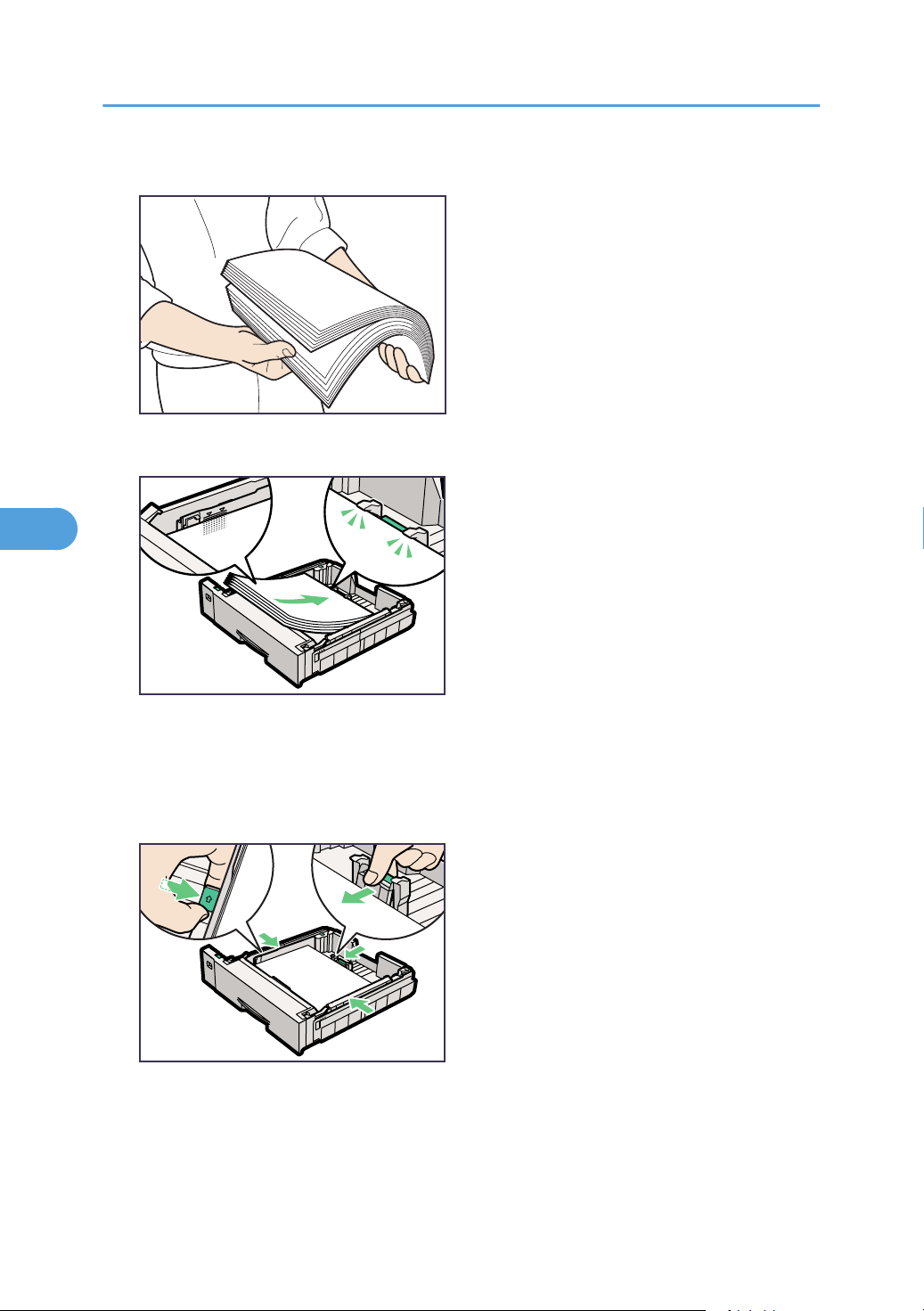

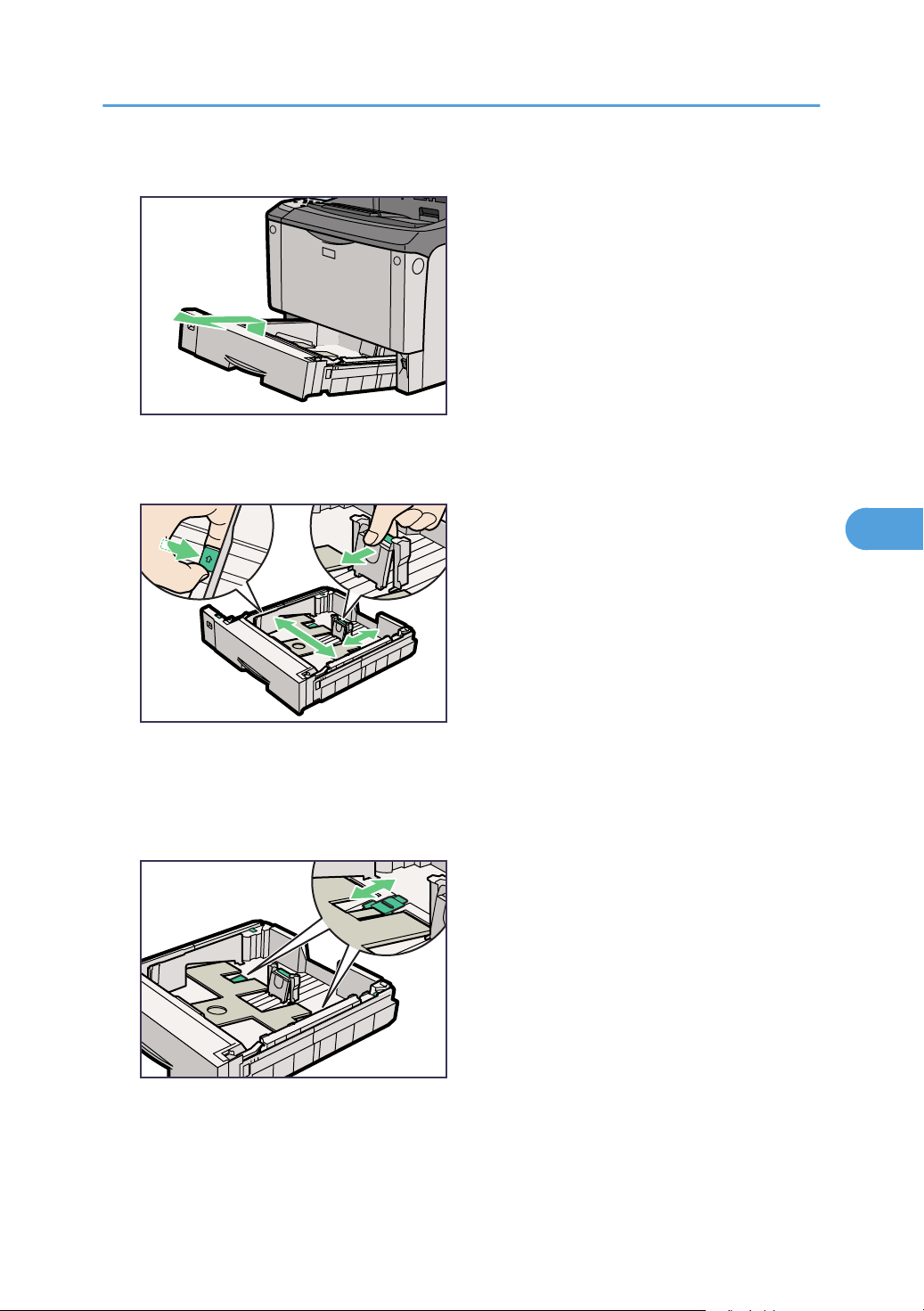

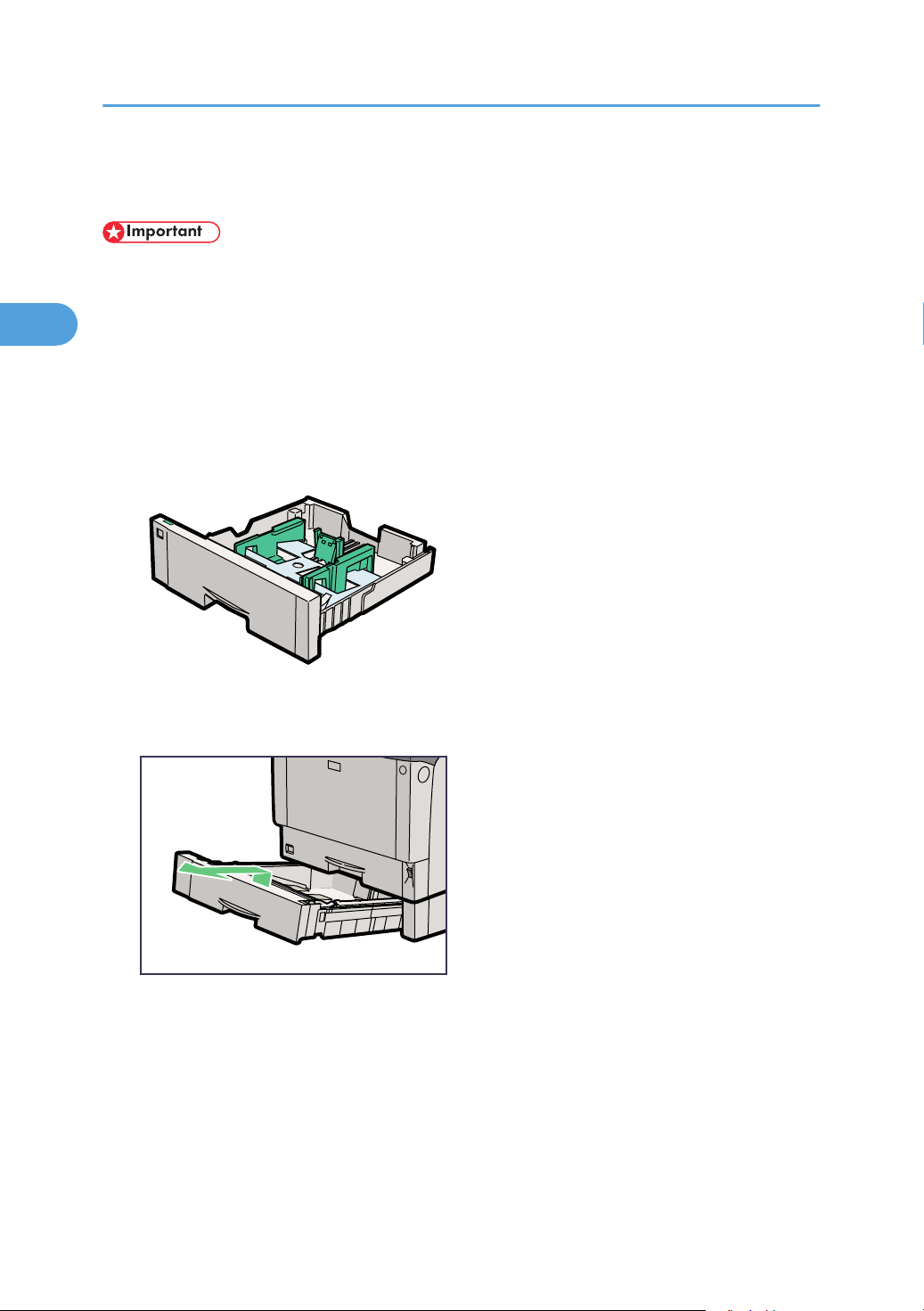

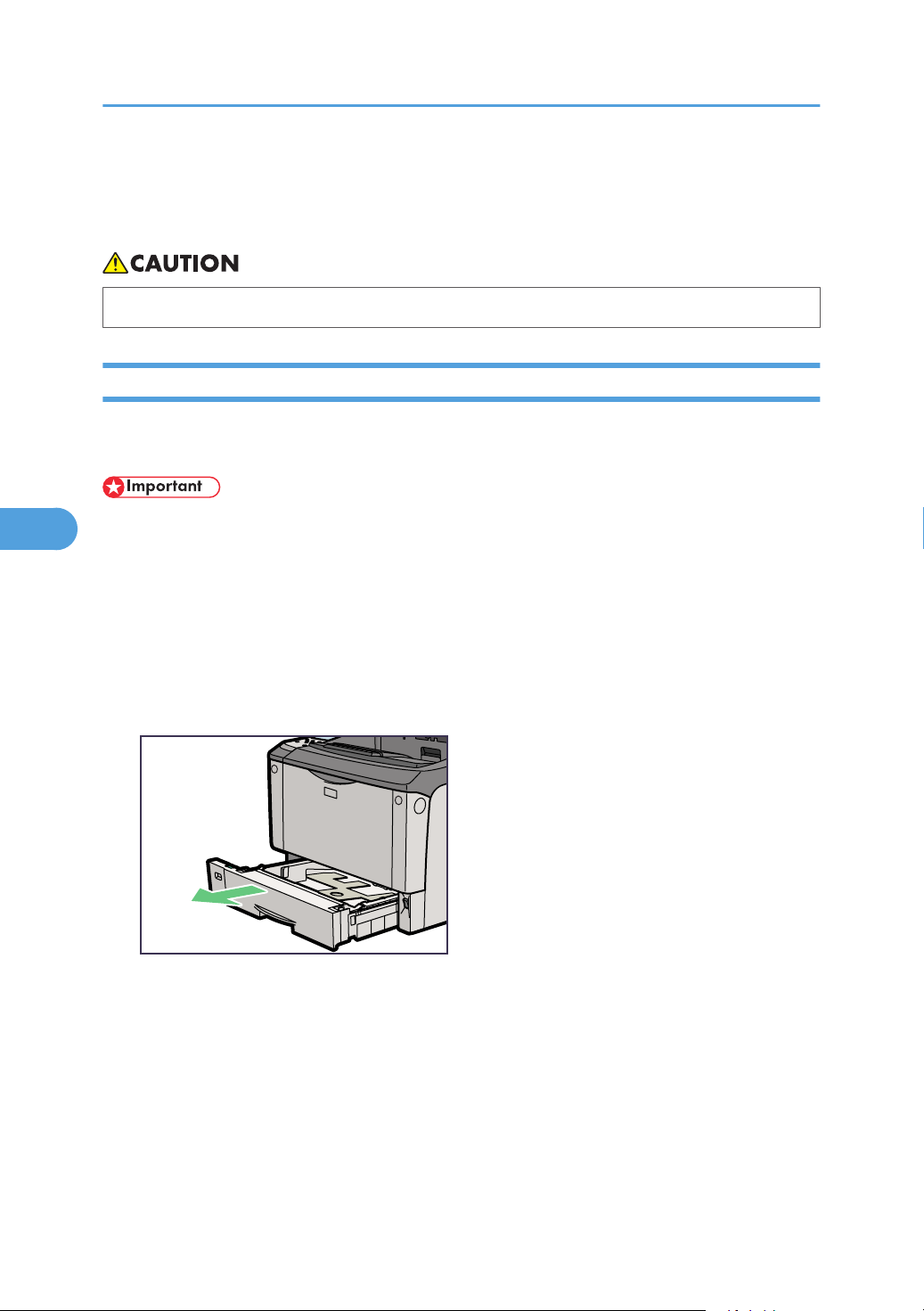

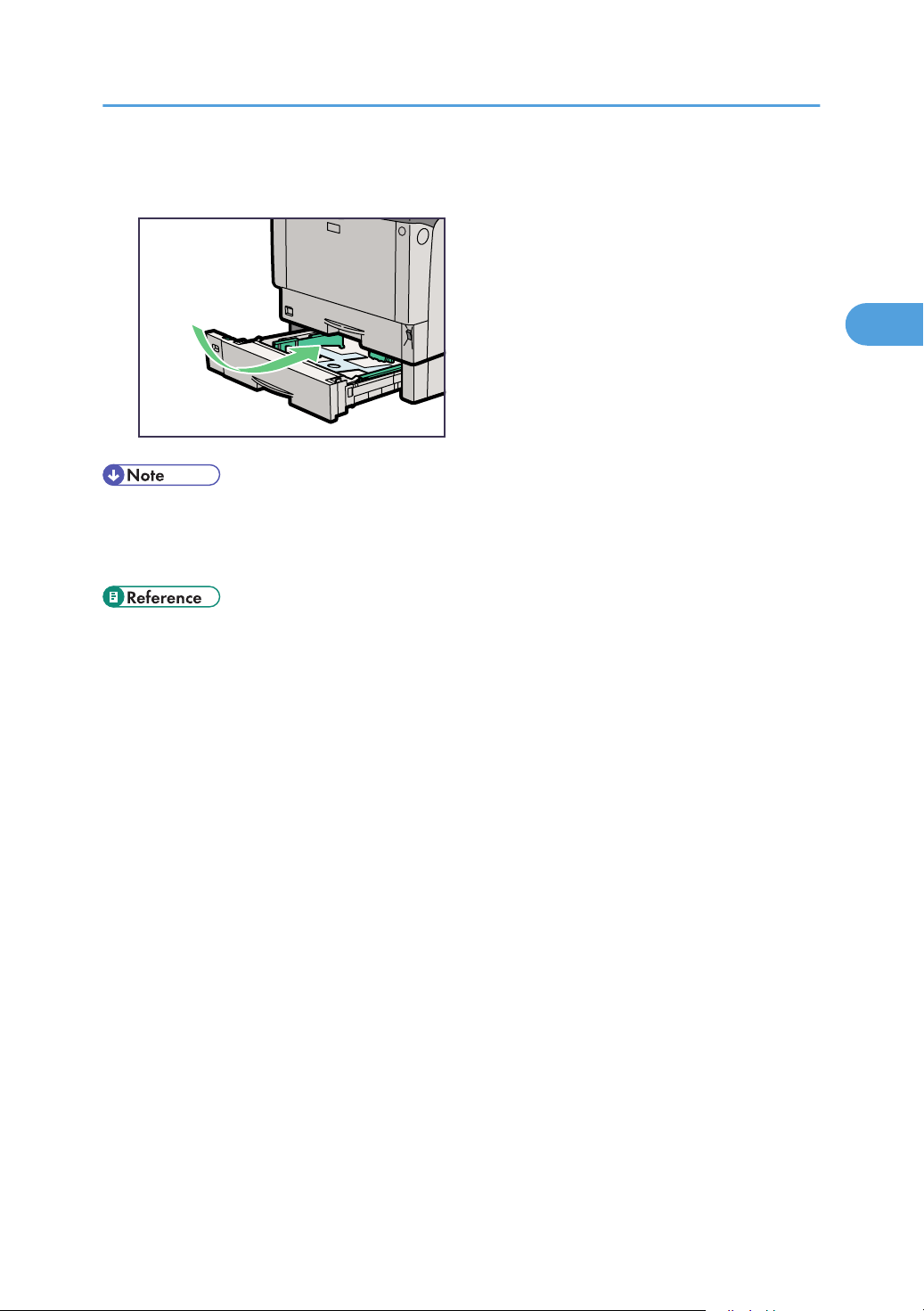

Loading Paper in Tray 1 and the Optional Paper Feed Unit....................................................................96

Loading Paper in the Bypass Tray............................................................................................................109

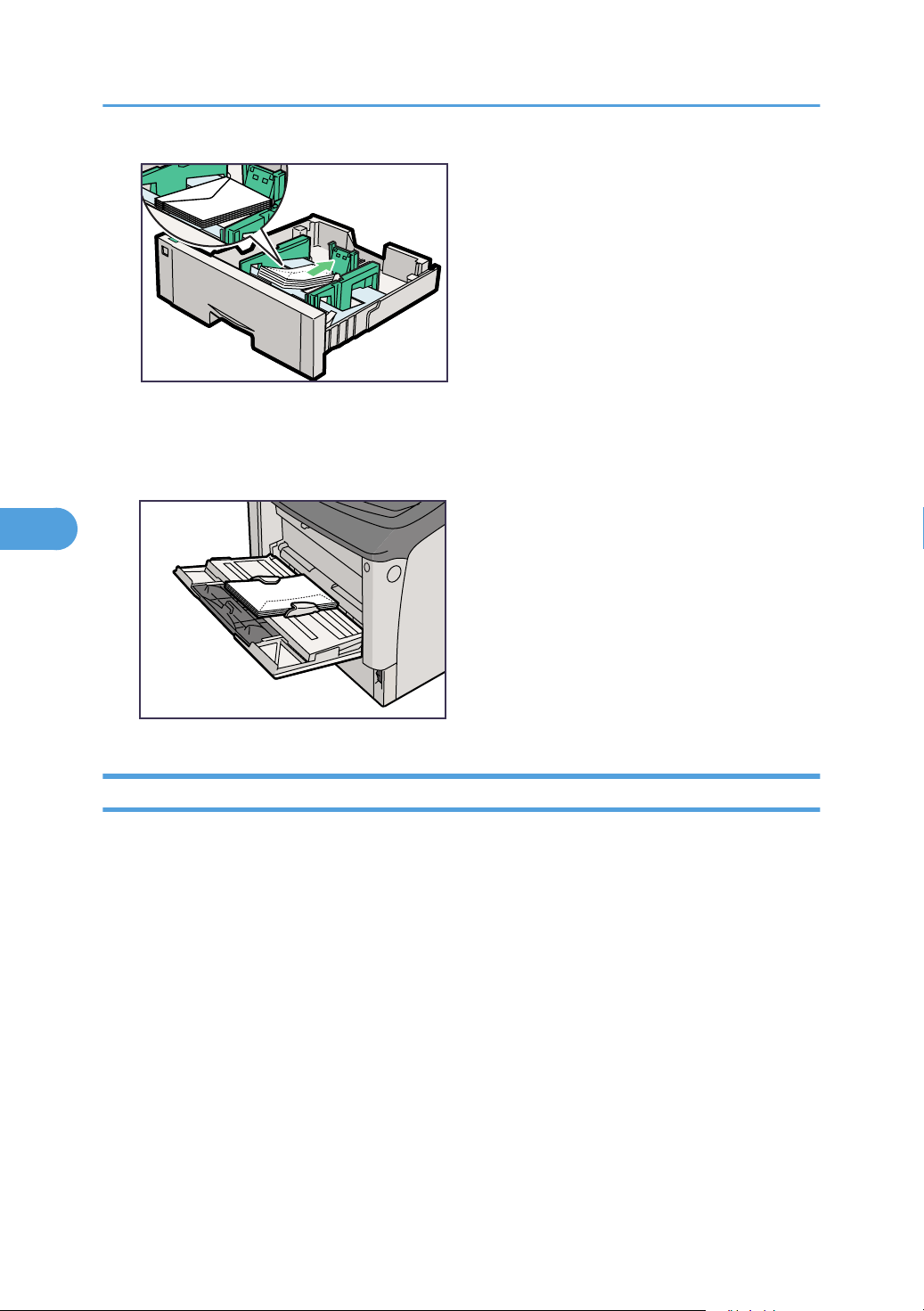

Loading Envelopes....................................................................................................................................115

Switching Between Paper Trays...............................................................................................................120

Printing on Orientation-Fixed or Two-Sided Paper................................................................................121

Using Paper Types that Have Unique Names.............................................................................................123

From Registration of User Paper Types to Use........................................................................................123

Registering Names to Paper Types..........................................................................................................124

Setting User Paper Types to Trays............................................................................................................125

Printing Using Registered Paper Types....................................................................................................126

6. Replacing Consumables and Maintenance Kit

Replacing the Toner Cartridge (Print Cartridge).........................................................................................127

Replacing the Maintenance Kit....................................................................................................................133

Before Replacing.......................................................................................................................................133

Replacing the Friction Pad........................................................................................................................134

Replacing the Paper Feed Roller..............................................................................................................136

Replacing the Transfer Roller....................................................................................................................140

Replacing the Fusing Unit.........................................................................................................................144

Replacing the Dustproof Filter..................................................................................................................148

7. Cleaning the Printer

Cautions to Take When Cleaning................................................................................................................151

Cleaning the Friction Pad..............................................................................................................................152

Cleaning the Paper Feed Roller....................................................................................................................154

Cleaning the Registration Roller...................................................................................................................157

8. Adjusting the Printer

Adjusting the Image Density.........................................................................................................................161

Adjusting Tray Registration...........................................................................................................................163

Reducing Paper Curl......................................................................................................................................166

9. Troubleshooting

Error and Status Messages that Appear on the Control Panel..................................................................169

Panel Tones....................................................................................................................................................178

Printer Does Not Print....................................................................................................................................179

Page 6

Checking the Port Connection..................................................................................................................181

Other Printing Problems.................................................................................................................................182

When You Cannot Print Properly.............................................................................................................182

Paper Misfeeds Occur Frequently...........................................................................................................184

The printed image is different from the image on the computer............................................................185

When Printer is Not Functioning Properly...............................................................................................187

Additional Troubleshooting...........................................................................................................................188

Using the Envelope Lever..............................................................................................................................190

When Printing on Envelopes Frequently..................................................................................................192

10. Removing Misfed Paper

Removing Misfed Paper................................................................................................................................195

Paper Misfeed Message (A).........................................................................................................................196

Paper Misfeed Message (B).........................................................................................................................200

Paper Misfeed Message (Y).........................................................................................................................206

Paper Misfeed Message (Z).........................................................................................................................207

Removing Misfed Paper Inside the Cover...............................................................................................207

Removing Misfed Paper Inside the Duplex Unit......................................................................................209

11. Appendix

Moving and Transporting the Printer............................................................................................................211

Moving the Printer.....................................................................................................................................211

Consumables..................................................................................................................................................213

Toner Cartridge (Print Cartridge).............................................................................................................213

Maintenance Kit........................................................................................................................................213

Specifications.................................................................................................................................................215

Mainframe.................................................................................................................................................215

Options.......................................................................................................................................................218

INDEX...........................................................................................................................................................221

Page 7

Positions of WARNING and CAUTION labels

BVP102

1234 5

BMU149S

BVN157

BVN233

This printer has labels for WARNING and CAUTION at the positions shown below. For safety, please follow the instructions and handle the printer as indicated.

Do not incinerate toner or toner containers. Toner dust may cause flashback when exposed to open flames.

The inside of this printer becomes very hot. Do not touch parts with this label (indicating a hot surface). Touching these parts will result in burns.

Page 8

BVP116

The printer weights approximately 22.5 kg (49.6 lb.). When moving the printer, detach the optional paper

BVN235

feed and duplex units first, and then use the inset grips on both sides to lift the printer. Otherwise the printer could break or cause injury if dropped.

The inside of this printer becomes very hot. Do not touch parts with this label (indicating a hot surface). Touching these parts will result in burns.

Power Switch Symbols

The meanings of the symbols for the switches on this machine are as follows:

• :POWER ON.

• :POWER OFF.

Page 9

Manuals for This Printer

Read this manual carefully before you use this printer.

Refer to the manuals that are relevant to what you want to do with the printer.

• Media differ according to manual.

• The printed and electronic versions of a manual have the same contents.

• Adobe Acrobat Reader/Adobe Reader must be installed in order to view the manuals as PDF files.

• A Web browser must be installed in order to view the html manuals.

Safety Information

Contains information about safe usage of this printer.

To avoid injury and prevent damage to the printer, be sure to read this.

Quick Installation Guide

Contains procedures for removing the printer from its box, connecting it to a computer, and installing its driver.

Hardware Guide (This manual)

Contains information about paper and procedures such as installing options, replacing consumables, responding to error messages, and resolving jams.

Software Guide

Contains information about using this printer, its software, and its security functions.

Security Guide

Contains information for administrators of the printer. It explains security functions that the administrators can use to prevent data tampering or unauthorized use of the printer. Also refer to this manual for the procedure for registering an administrator, as well as setting user and administrator authentication.

UNIX Supplement

For "UNIX Supplement", please visit our Web site or consult an authorized dealer.

This manual includes descriptions of functions and settings that might not be available on this printer.

• Manuals provided are specific to printer types.

Page 10

How to Read This Manual

Symbols

This manual uses the following symbols:

Indicates points to pay attention to when using the printer, and explanations of likely causes of paper misfeeds, damage to originals, or loss of data. Be sure to read these explanations.

Indicates supplementary explanations of the printer's functions, and instructions on resolving user errors.

This symbol is located at the end of sections. It indicates where you can find further relevant information.

[ ]

Indicates the names of keys on the printer's display or control panels.

Page 11

Model-Specific Information

BVP004

In this manual, the following symbols indicate information that relates to a specific printer model.

This indicates information about the 220 to 240 V model printer.

Read if you have purchased this model.

This indicates information about the 120 V model printer.

Read if you have purchased this model.

• Check the label behind the front cover of the printer to identify the printer's model.

• Dimensions in this manual are given in two units of measure: metric and inch. If your printer is the 220 to 240 V model, refer to the metric units. If your printer is the 120 V model, refer to the inch units.

Page 12

List of Options

This section provides a list of options for this printer, and how they are referred to as in this manual.

Option List Referred to as

Paper Feed Unit PB3090 Paper feed unit

Duplex Unit Type AD610 Duplex unit

Envelope Feeder Type 610 Envelope feeder

Hard Disk Drive Type 2670 Hard disk

Memory Unit Type G 128 MB 128 MB SDRAM module

Memory Unit Type G 256 MB 256 MB SDRAM module

Gigabit Ethernet Board Type A Gigabit Ethernet board

IEEE 802.11a/g Interface Unit Type L Wireless LAN interface unit

IEEE 802.11a/g Interface Unit Type M Wireless LAN interface unit

IEEE 1284 Interface Board Type A IEEE 1284 interface board

Data Overwrite Security Unit Type L Data overwrite security unit

SD card for NetWare Printing Type C NetWare card

VM Card Type K VM card

HDD Encryption Unit Type D HDD encryption unit

• For details about the specifications of each option, see "Specifications".

• p.215 "Specifications"

Page 13

Installing the Operating Instructions

This section explains how to use HTML format manuals.

Installing the HTML Format Manuals

The supplied “Manuals” CD-ROMs contain HTML format manuals. For easy access, we recommend you install the manuals on a computer.

• The system requirements for installing the manuals are as follows:

• Minimum display resolution: 800 × 600 pixels

• Recommended browsers:

• Microsoft Internet Explorer 4.01 SP2 or later

• Non-recommended browsers can display the simplified manual only.

• If you are using a Macintosh, click [Read HTML manuals] to view manuals.

1. Select a language and a product, and then click [OK].

2. Click [Install manuals].

If you want to read manuals from the CD-ROM, click [Read HTML manuals].

3. Install the manual you require according to the displayed instructions.

4. When installation is complete, click [Finish].

5. Click [Finish].

• Depending on the printer model, PDF manuals may be supplied in the CD-ROM. To open PDF manuals, click [Read PDF manuals] in step 2.

• If you cannot install a manual, copy the “MANUAL_HTML” folder to your computer's hard drive, and then run “Setup.exe”.

• To delete an installed manual, on the [Start] menu, point to [All Programs], then [Product Name], and then click [Uninstall]. Follow the instructions to delete the manual.

Opening the HTML Format Manuals

This section explains how to open the HTML format manuals.

Page 14

Opening from the Icon

This section explains how to open a manual using its desktop icon.

1. Double-click the icon on your desktop.

The browser opens and the manual appears.

Opening from the [Start] Menu

This section explains how to open a manual from the [Start] menu.

1. On the [Start] menu, point to [All Programs] (for operating systems other than Windows

XP: [Programs]), then [Product Name], and then click the manual you want to view.

The browser opens, and then the manual appears.

• Depending on the settings made during installation, menu folder names may differ.

Opening from the CD-ROM

This section explains how to open a manual from the supplied “Manuals” CD-ROM.

1. Click [Read HTML manuals].

2. Click the title of the manual you want to view.

The browser opens, and then the manual appears.

Page 15

1. Guide to the Printer

BVP011

This chapter explains the names and functions of the printer's components.

Exterior: Front View

This section introduces the names of the various parts on the front and right side of the printer and outlines their functions.

1. Paper Size Dial

Adjust this dial according to the size and feed direction of the paper loaded in the paper tray.

2. Bypass Tray Extension

Pull this out when loading a sheet that is longer than A4 on the Bypass Tray.

3. Bypass Tray

Use this tray to feed in thick paper, OHP transparencies, adhesive labels, envelopes, and sheets of non-standard length. When printing on custom paper size, printer driver settings are required.

Up to 100 sheets of plain paper (75 g/m2, 20 lb.) can be loaded on the Bypass Tray.

See p.85 "Supported Paper for Each Tray" and p.96 "Loading Paper".

4. Tray Extension

Pull this out if the paper you are loading is A4 or longer.

5. Control Panel

Features keys for printer operations and a display that shows the printer's operational status.

6. Output Tray (Standard Tray)

Prints are delivered here printed side facing down.

Page 16

1. Guide to the Printer

7. Paper Exit Cover

Open this cover to remove jammed paper.

8. Exhaust Vent

Releases hot air from the printer's interior to prevent internal components overheating.

The direction of exhaust from this vent can be adjusted.

Do not block or obstruct the printer's vents. Doing so can result in malfunctions caused by build up of heat inside the printer.

9. Front Cover Release Button

Press this to open the front cover.

10. Intake Vent

Draws cool air into the machine's interior to prevent internal components overheating.

To prevent dust entering the printer's interior, attach the dustproof filter to this vent.

Do not block or obstruct the printer's vents. Doing so can result in malfunctions caused by build up of heat inside the printer. See p.148 "Replacing the Dustproof Filter".

11. Power Switch

Press this to turn the printer's power on and off.

12. Friction Pad

This ensures only one sheet of paper is fed in at a time. If multi-sheet feeds occur, clean the friction pad carefully. If the message "Replace Maintenance Kit.", replace the friction pad with a new one.

13. Paper Tray (Tray 1)

Loads up to 500 sheets of plain paper (75 g/m2, 20 lb.) into this tray for printing.

The paper tray is identified as "Tray 1" on the display.

Page 17

8 9

BVN004

Exterior: Rear View

This section introduces the names of the various parts on the rear and left side of the printer and outlines their functions.

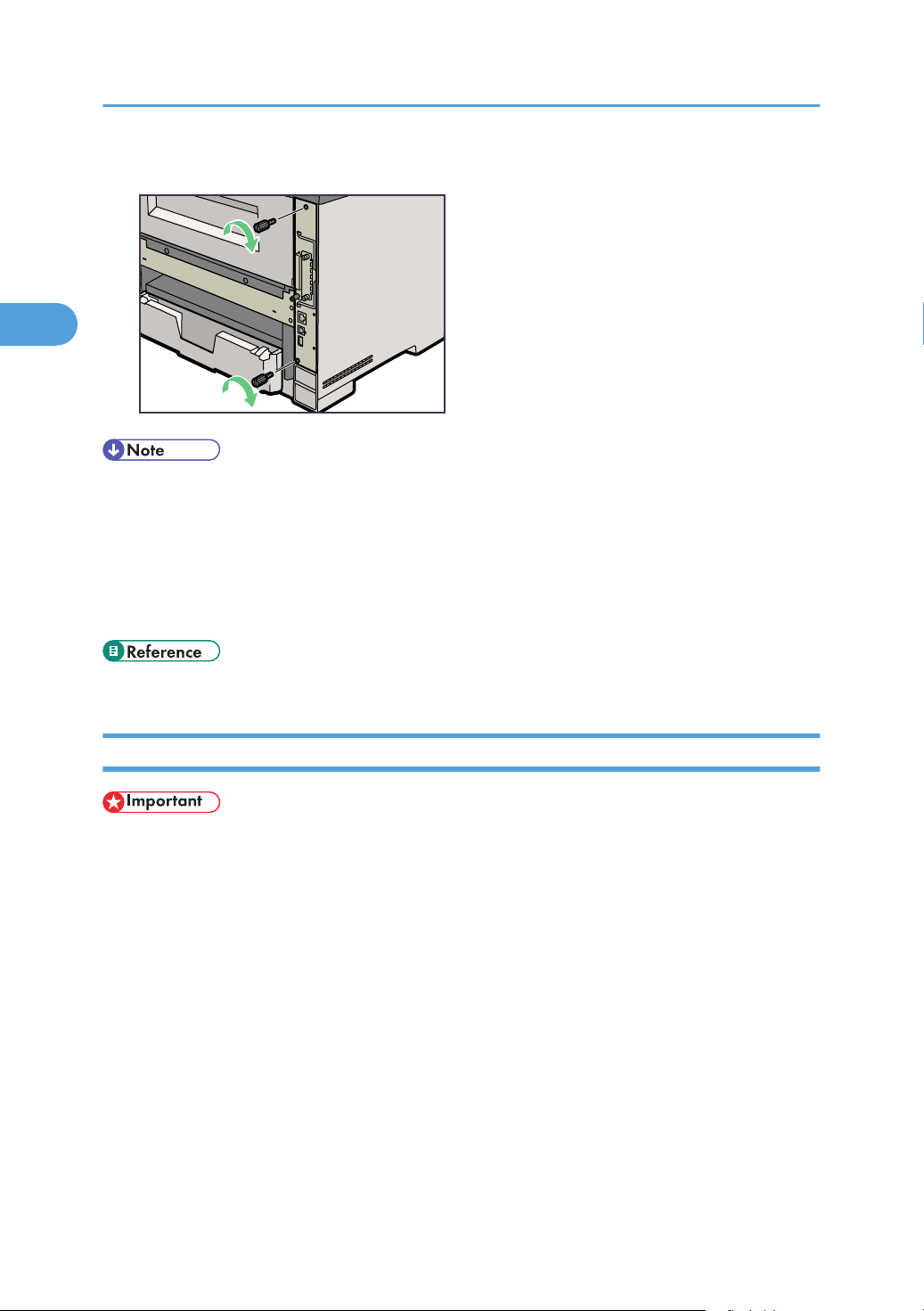

1. Rear Cover

Remove this to install the optional duplex unit or to replace the fusing unit.

2. Power Connector

Connect the power cord to the printer here. Insert the other end of the cable into a nearby wall outlet. Do not use extension leads or adaptor plugs to connect this printer to a wall outlet.

3. Paper Tray Cover

Keeps paper in the tray free of dust.

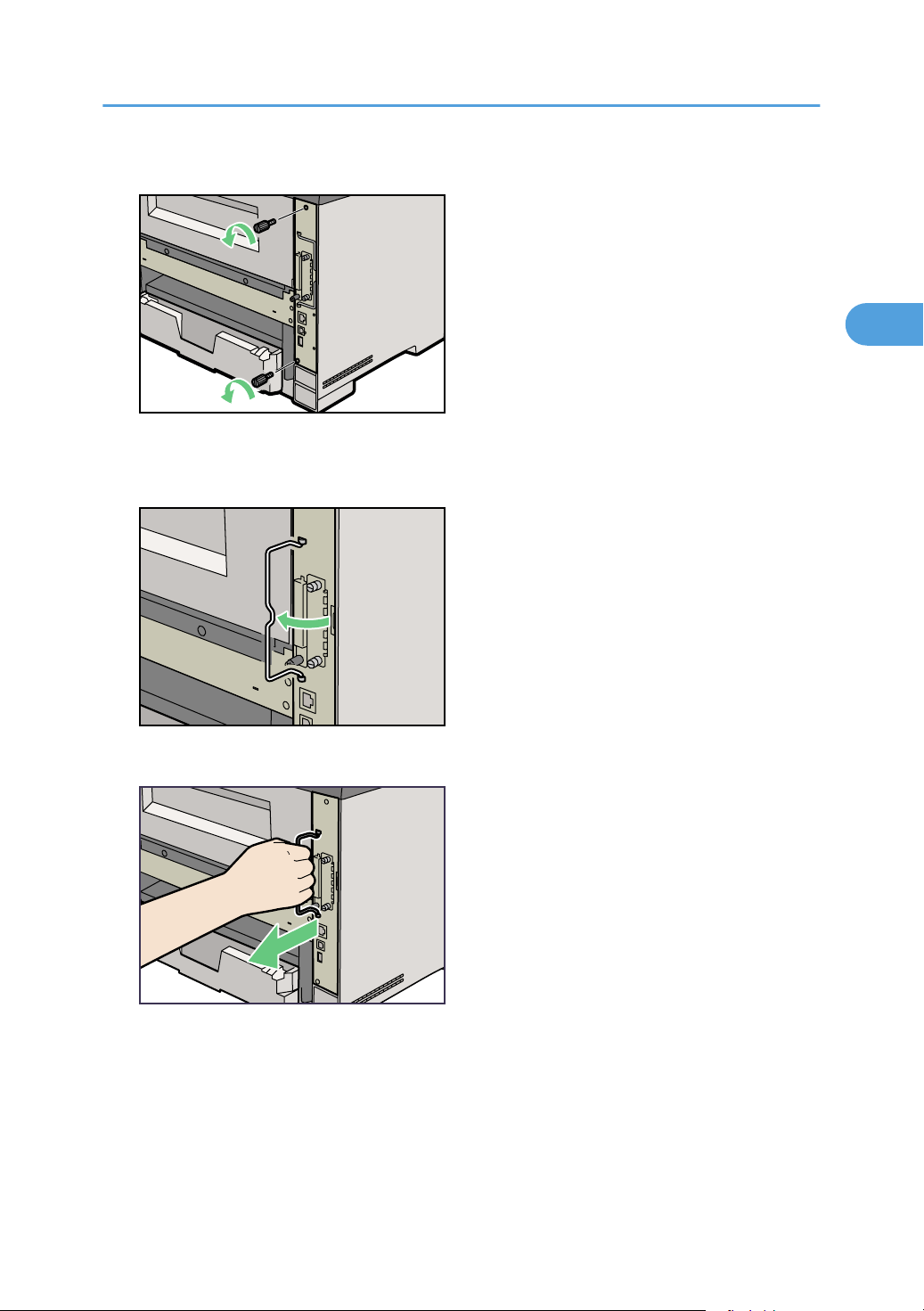

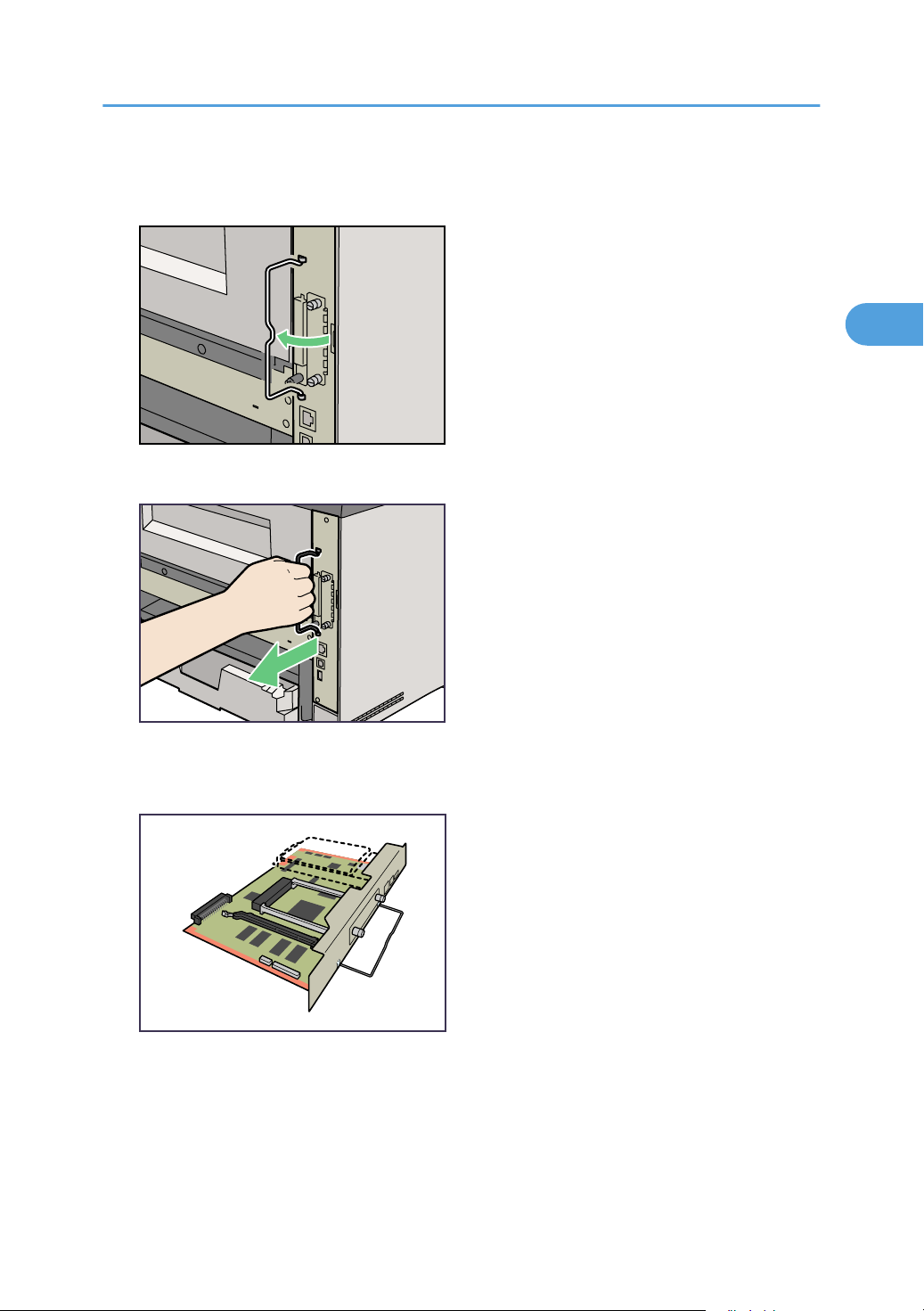

4. Controller Board

Slide this out to install the hard disk or SDRAM module.

5. Intake Vent

Prevents the printer's internal components overheating by letting in cool air through this vent.

Do not block or obstruct the ventilator areas. Doing so can result in malfunctions caused by build up of heat inside the printer.

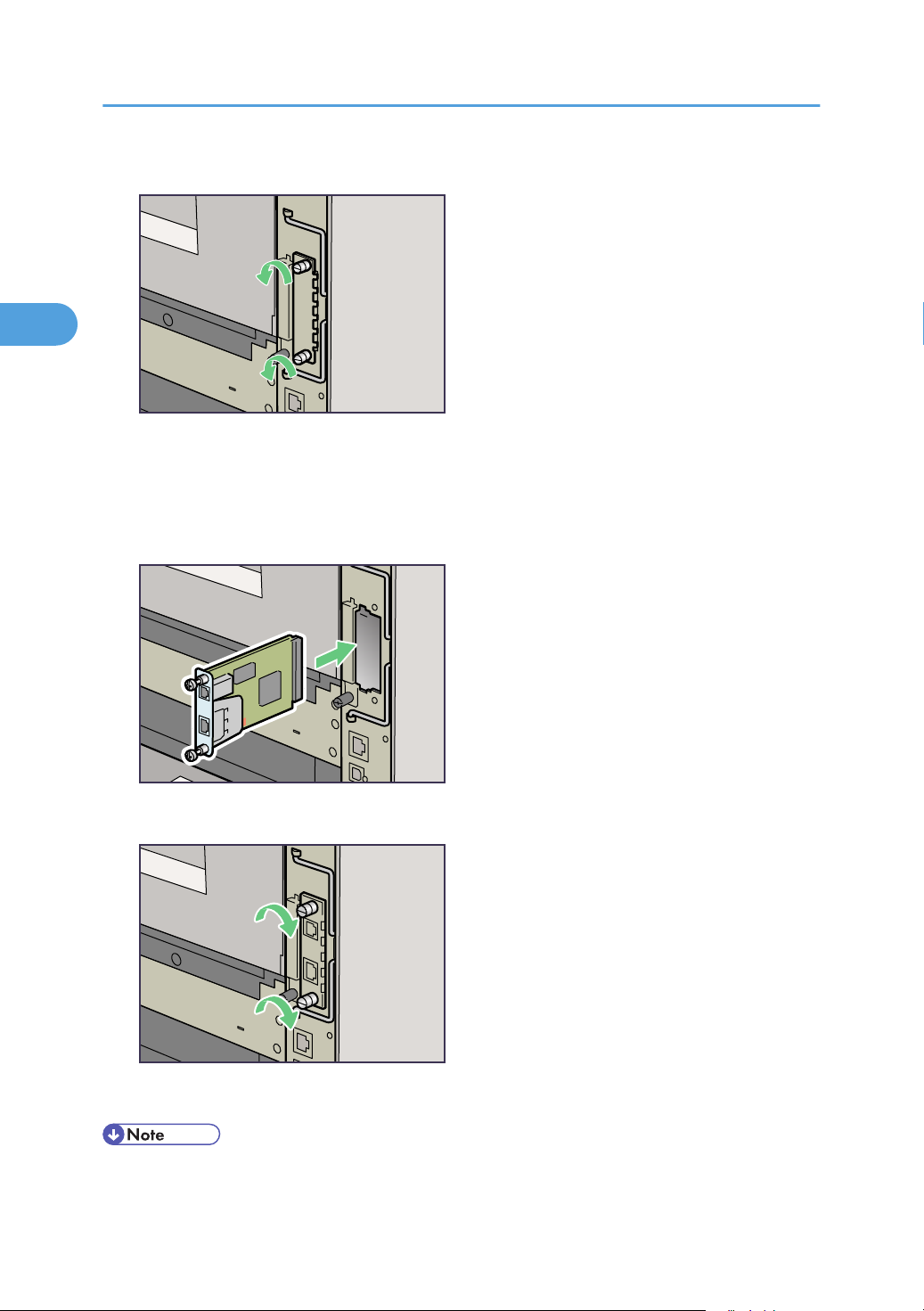

6. Optional Interface Board Slot

Install an optional interface board here. The Gigabit Ethernet board, Wireless LAN interface unit, or IEEE1284 interface board can be installed in this slot.

7. SD Card Slots

Remove the cover and install SD cards here. Install the data overwrite security unit or IPDS unit in the upper slot. Install the VM card in the lower slot.

8. Ethernet Port

Use this port to connect the printer to a network via an Ethernet cable (RJ-45 connector).

Page 18

1. Guide to the Printer

9. USB Port B

Use this port to connect a computer directly to the printer via a USB cable.

10. USB Port A

Use this port to connect an external device such as an IC card reader to the printer.

Page 19

Interior

[Front view] [Back view]

BVP007

12 34

Interior

1. Toner Cartridge (Print Cartridge)

Contains toner and the photo conductor unit.

When "Replace print cartridge." appears on the display, replace this unit.

2. Front Cover

Open this to access the printer's interior.

3. Guide Board

Open this to remove jammed paper.

4. Registration Roller

Pulls in sheets of paper for printing. Be sure to clean this roller if it becomes dirty.

See p.157 "Cleaning the Registration Roller".

5. Transfer Roller Cover

Open this to replace the transfer roller.

6. Transfer Roller

When "Replace Maintenance Kit." appears on the display, replace this roller.

7. Fusing Unit Lock Levers

Lift these levers to replace the fusing unit.

8. Fusing Unit

Fuses print images onto paper.

When "Replace Maintenance Kit." appears on the display, replace this unit.

Page 20

1. Guide to the Printer

9. Envelope lever

Use this lever if envelopes become wrinkled during printing. Raising or lowering the envelope lever according to the thickness of the paper you are printing on can improve print quality.

Page 21

Control Panel

543

BVP005

This section explains names and usage of the parts of the control panel.

Control Panel

1. Display

Displays current printer status and error messages.

Entering energy saver mode turns off the back light. For details about energy saver mode, see Software Guide.

2. Selection Keys

Correspond to the function items shown on the bottom line of the display.

3. Power Indicator

Remains lit while the power is on. It is unlit when the power is off or while the printer is in energy saver mode.

4. Alert Indicator

Lights up in red or yellow when a printer error occurs.

Red: printing is not possible/possible but print quality cannot be ensured.

Yellow: printer requires maintenance, such as replacing consumables, shortly.

Follow the instructions that appear on the display.

5. Data In Indicator

Blinks when the printer is receiving data from a computer. Lights up if there is data to be printed.

6. [Menu] Key

Press this key to configure and check the current printer settings.

While configuring settings, press this key to return to the initial screen.

7. Scroll Keys

Press to move the cursor in each direction.

When the [ ] [ ] [ ] [ ] keys appear in this manual, press the scroll key of the same direction.

Page 22

1. Guide to the Printer

8. [Suspend/Resume] Key

Press this key to suspend a print job. The key lights up while the job is suspended. To resume the job, press this key again.

9. [Escape] Key

Press this key to return to the previous display.

10. [OK] Key

Use this key to confirm settings, or setting values, or move to the next menu level.

11. [Job Reset] Key

Press this key to cancel an ongoing print job.

Page 23

BVN010

Turning the Printer's Power On and Off

This section explains the procedures for turning the printer's power on and off.

• It is dangerous to handle the plug with wet hands. Doing this may result in receiving an electric shock.

• Do not turn off the main power switch before following the shutdown procedure shown here. Doing so can result in damage to the hard disk or memory, leading to malfunction.

• Do not physically disturb the printer while printing is in progress. Doing so may damage the printer.

Turning on the Power

Use this procedure to turn on the printer's power.

1. Turn the printer's power switch to On.

When the printer has fully warmed up, a ready message appears on the display and you can begin printing.

Turning off the Power

Use this procedure to turn off the printer's power.

Page 24

BVP006

1. Guide to the Printer

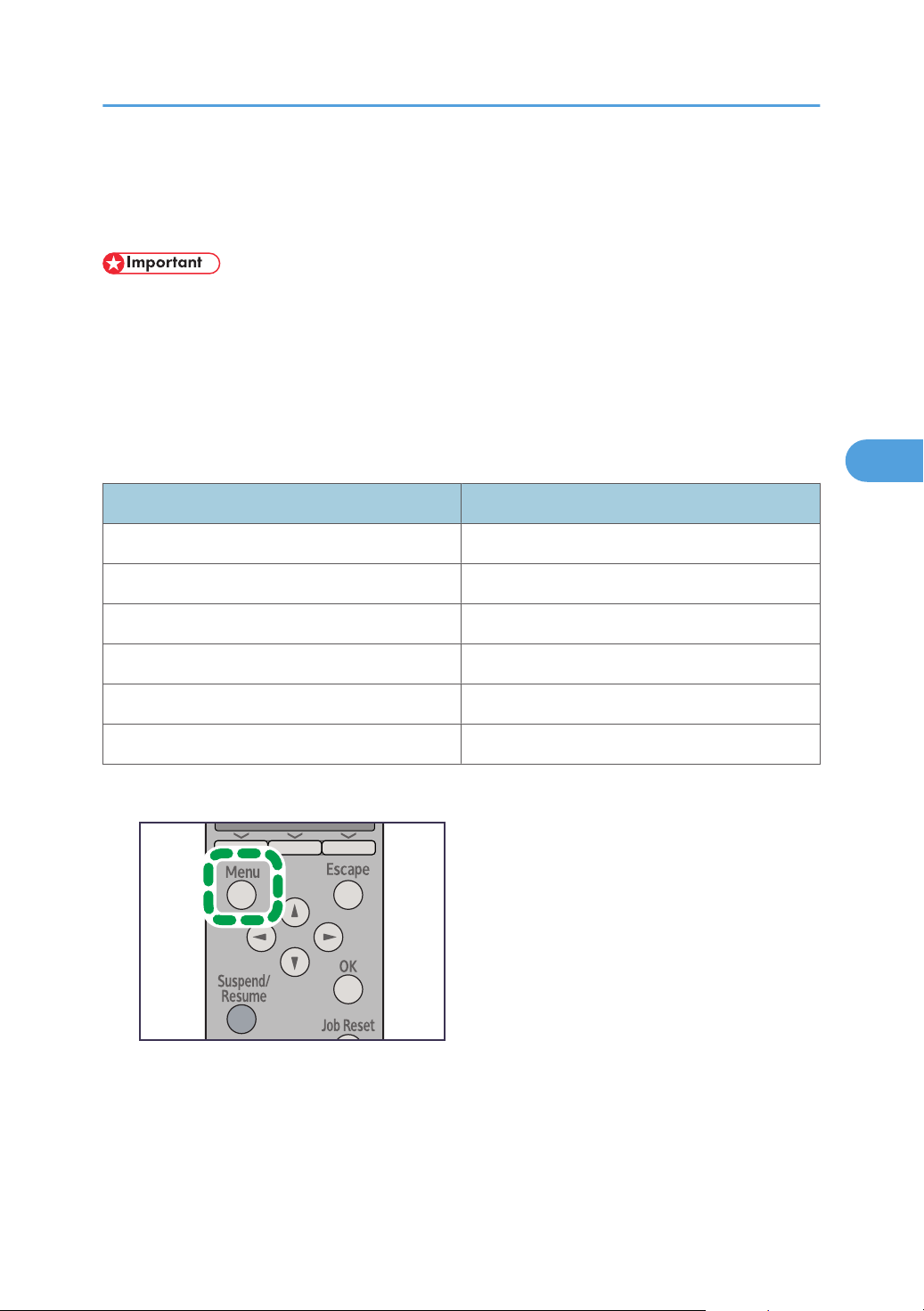

1. Press the [Menu] key.

2. Press the [ ] or [ ] key to select [Shutdown], and then press the [OK] key.

3. Press [Yes].

4. Wait until a screen prompting you to turn off the main power appears, then turn the power

switch to Off.

• Even if you follow the shutdown procedure, the printer might not shutdown in the following cases:

• If it is communicating with external devices.

• If the hard disk is active.

• If the printer's cover is opened.

Page 25

Display Panel

BVP008S

This section explains configuration using the initial screen of the display panel.

The items are highlighted when selected.

• Do not touch the display panel.

The following screen appears when you turn on the printer.

1. Operational Status or Messages

Displays the printer status or the messages.

2. [Option]

Press to display the status of options installed in the printer.

3. [Prt.Jobs]

Press to display print jobs sent from a computer.

4. [Supplies]

Press to display the menu of supplies for the printer.

Display Panel

• [Prt.Jobs] is displayed only when the hard disk is installed in the printer.

• By default, the remaining amount of toner is displayed. To not display the remaining amount of toner, press the [Menu] key, and then select [Maintenance] on the display. Select [General Settings], then [Display Supply Info], and then select [Off].

• Adjust the brightness if the screen is dark. To adjust the display contrast, press the [Menu] key, and then select [Maintenance] on the display. Select [General Settings] and then [Display Contrast].

Page 26

BVP009

1. Guide to the Printer

Reading the Display and Using Keys

1. Selection keys

Correspond to the function items shown on the bottom line of the display.

When this manual instructs you to "press [Option]", press the left selection key.

2. [Escape] key

Cancels an operation or returns to the previous display.

3. [OK] key

Confirms settings and setting values, or moves to the next menu level.

4. Scroll keys

Move the cursor in each direction.

When the [ ] [ ] [ ] [ ] keys appear in this manual, press the scroll key of the same direction.

Page 27

2. Installing Options

This chapter explains how to install various options for this printer.

Available Options

By installing options, you can improve printer performance and expand the available features.

• Before installing options, the printer should be turned off and unplugged for at least an hour. Components inside the printer become very hot, and can cause a burn if touched.

• Before moving the printer, unplug the power cable from the outlet. If the cable is unplugged abruptly, it could become damaged. Damaged plugs or cables can cause an electrical or fire hazard.

• When lifting the printer, use the grips on both sides. The printer could break or cause an injury if dropped.

• The voltage rating of the connector for options is 24 V DC or less.

Order of Option Installation

Installing multiple options in the following order is recommended:

1. Attach the paper feed unit (Paper Feed Unit PB3090).

Attach the paper feed unit to the bottom of the printer.

You can attach up to two paper feed units. Up to 1600 sheets of paper can be loaded.

2. Attach the envelope feeder (Envelope Feeder Type 610).

Replace the paper tray of the optional feeder with the envelope feeder.

3. Take out the controller board from the printer.

4. Install the hard disk (Hard Disk Drive Type 2670).

Install the hard disk to the controller board.

5. Install the SDRAM module (Memory Unit Type G 128MB/ 256MB).

Install the module to the SDRAM module slot on the controller board.

There are two types of memory unit: 128 MB and 256 MB.

Page 28

BVP115

2. Installing Options

6. Install the optional interface board.

Install the optional Gigabit Ethernet board, wireless LAN interface unit, or IEEE 1284 interface board in the slot.

7. Insert SD card options.

Install the security unit (Data Overwrite Security Unit Type L), or the VM card (VM Card Type K).

Insert these units into the SD card slot on the controller board.

8. Attach the duplex unit. (Duplex Unit Type AD610).

Attach the duplex unit to the rear of the printer.

Installing Options

Install options in the positions shown in the illustration.

Exterior

1. Paper feed unit (Tray 2 or Tray 3)

You can load up to 500 sheets (60-216 g/m2, 16-57 lb.) of plain paper into the tray.

See p.29 "Attaching the Paper Feed Unit".

2. Envelope feeder

You can load up to 60 envelopes (72-90 g/m2, 19-24 lb.) into the tray.

See p.32 "Attaching the Envelope Feeder".

3. Duplex unit

You can print on both sides of paper.

Page 29

BVN015

Available Options

Install the duplex unit by removing the rear cover of the printer.

See p.52 "Attaching the Duplex Unit".

• Up to two paper feed units can be attached.

• The upper optional paper feed unit is displayed with "Tray 2", and the lower unit is displayed with "Tray 3" on the display.

• The envelope feeder is a tray that slides into the optional paper feed unit. Without the optional paper feed unit, the envelope feeder cannot be used.

• Your printer can accommodate two optional paper feed units. The envelope feeder can be used in "Tray 2". The main unit's feed tray (Tray 1) cannot be used for this purpose.

Interior

1. Memory unit 128MB/ 256MB (SDRAM module)

Install 128 MB or 256 MB SDRAM module into the controller board slot.

See p.34 "Installing the Memory Expansion Units".

2. Optional cards

See p.50 "Installing SD Memory Card Options".

3. Optional interface boards

See p.43 "Installing the Interface Units".

4. Hard disk

See p.34 "Installing the Memory Expansion Units".

• You cannot install following options at the same time:

Page 30

2. Installing Options

• Wireless LAN interface unit

• Gigabit Ethernet board

• IEEE 1284 interface board

Caution when re-installing the controller board

This section describes handling the controller board when installing options.

If you slide out the controller board to install units, carefully read the instruction to re-install the controller board.

• The following may occur if the controller board is not properly installed:

• all control panel indicators are lit.

• no control panel indicators are lit.

• the error message appears on the display.

Re-install the controller board into the printer by pushing the bottom center area of the board.

Page 31

BVN016

Attaching the Paper Feed Unit

When installing multiple options, install the paper feed unit first.

• Before moving the printer, unplug the power cord from the outlet. If the cord is unplugged abruptly, it could become damaged. Damaged plugs or cords can cause an electrical or fire hazard.

• When lifting the paper feed unit, hold the bottom of it, and then lift it slowly. Lifting it carelessly or dropping it may cause an injury.

• The printer weighs approximately 22.5 kg (49.6 lb.). When lifting the printer, use the inset grips on both sides. Otherwise the printer could break or cause injury if dropped.

• Do not slide out more than one paper tray at a time. Fully extending more than one full tray at a time can cause the printer to topple over.

• The printer should always be lifted by at least two people.

• Check the printer nameplate to confirm the model code.

• Before using the new paper feed unit, you must make settings in the printer driver.

1. Check the package contains the following:

Paper Feed Unit (including a paper tray)

2. Turn off the power of the printer, and then unplug the printer's power cable and the interface

cable.

3. Remove the adhesive tape from the paper feed unit.

Page 32

BVN206

BVN020

2. Installing Options

4. Lift the printer using the inset grips on both sides of the printer.

5. Align the holes over the pins, and then lower the printer gently onto the paper feed unit.

There are three pins on the top of the paper feed unit that point straight up. On the bottom of the printer, there are three holes.

6. Attach the interface cable to the printer.

7. Plug the printer's power cord back into the wall outlet, and then turn on the power.

• After finishing installation, you can check whether the paper feed unit is properly installed: Print the configuration page from the [List/Test Print] menu. If it is installed properly, you will see "Optional Paper Feed Tray 2" or "Optional Paper Feed Tray 2, Optional Paper Feed Tray 3" for "Attached Equipment" on the configuration page.

• If the paper feed unit is not installed properly, reinstall it from the start. If you cannot install it properly even after attempting reinstallation, contact your sales or service representative.

• To attach two paper feed units at the same time, first stack them one upon the other, and then attach them as a single unit.

• "Test Printing", Quick Installation Guide.

• p.96 "Loading Paper"

Page 33

• p.163 "Adjusting Tray Registration"

Attaching the Paper Feed Unit

Page 34

BVP106

BVP002

2. Installing Options

Attaching the Envelope Feeder

• Pull out only one paper tray at a time. Having multiple paper trays fully extended could cause the printer to topple.

• The tray of the upper optional paper feed unit (Tray 2) is beneath the standard paper tray (Tray 1).

• Your printer can accommodate two optional paper feed units. The envelope feeder can be used in "Tray 2". The main unit's feed tray (Tray 1) cannot be used for this purpose.

1. Check the package contains the following:

Envelope Feeder

2. Pull out the optional paper tray (Tray 2) of the optional paper feed unit until it stops. After

that, lift it slightly, and then pull it out.

Page 35

BVP003

Attaching the Envelope Feeder

3. Lift the front end of the envelope feeder, and slide it carefully into the paper feed until it

stops.

• This unit is a tray that slides into the optional paper feed unit. Without the optional paper feed unit, this envelope feeder cannot be used.

• Keep the removed paper tray with paper in a cool dark place.

• p.96 "Loading Paper"

Page 36

BMU116S

BVN022

2. Installing Options

Installing the Memory Expansion Units

• Do not touch the inside of the controller board compartment. Doing so may cause a printer malfunction or a burn.

Installing the Hard Disk

• Before touching the hard disk, touch something metal to discharge any static electricity. Static electricity can damage the hard disk.

• Do not subject the hard disk to physical shocks.

• Before using the new hard disk, be sure to make the settings in the printer driver.

1. Check the package contains the following:

1. Hard disk

2. Screws

2. Turn off the power of the printer, and then unplug the power cable and interface cable.

3. Remove the two screws holding the controller board in place.

Page 37

The removed screws are required in fastening the controller board.

BVN023

BVN024

BVN025

4. Pull out the handle of the controller board.

5. Pull the handle, and then slide the controller board out.

Installing the Memory Expansion Units

6. Place the controller board on a flat surface.

The hard disk is installed in the slot shown in the illustration below.

7. Insert the protrusion on the front end of the hard disk board into the notch on the back panel

of the controller board.

Be sure to set the hard disk board parallel with the controller board.

Page 38

BVN026

BVN027

BVN028

2. Installing Options

8. Fit the hard disk on the connector of the controller board carefully.

9. Tighten the two screws by turning them clockwise with a coin, and then secure the hard disk

board by tightening the third screw from the under side of the controller board.

10. To install other options on the controller board, follow the installation procedure shown in

the documentation provided with the option.

Page 39

BVN029

BVN157

BVN030

Installing the Memory Expansion Units

11. Match the controller board to the top and bottom rail using the " " mark, and then slide it

into the printer slowly until it stops.

12. Hold the printer with one hand, and then push the lower handle of the controller board with

the palm of your other hand, until it stops.

Malfunctions can occur if the controller board is not set properly.

13. Push the handle of the controller board until it clicks.

Page 40

BVN031

2. Installing Options

14. Fasten the controller board to the printer with the two screws.

• Use a coin or similar object if the screws do not turn easily.

• After finishing installation, you can check whether the hard disk is properly installed: Print the configuration page from the [List/Test Print] menu. If it is installed properly, you will see "Hard Disk" for "Device Connection" on the configuration page.

• If the Hard disk is not installed properly, repeat the procedure from the start. If you cannot install it properly even after reinstallation, contact your sales or service representative.

• "Test Printing", Quick Installation Guide.

Installing the SDRAM Module

• Before touching the memory unit, ground yourself by touching something metal to discharge any static electricity. Static electricity can damage the memory unit.

• Do not subject the memory unit to physical shocks.

• The printer comes equipped with 256 MB of memory. This can be expanded to a maximum of 512 MB.

• Before using the new memory unit, be sure to make settings in the printer driver.

1. Turn off the power of the printer, and then unplug the power cable and interface cable.

Page 41

2. Remove the two screws holding the controller board in place.

BVN022

BVN023

BVN024

The removed screws are required in fastening the controller board.

3. Pull out the handle of the controller board.

Installing the Memory Expansion Units

4. Pull the handle, and then slide the controller board out.

5. Place the controller board on a flat surface.

The Memory Unit is installed in the slot shown in the illustration below.

Page 42

BVN032

BVN033

BVN034

2. Installing Options

6. Push out the latches at both ends of the memory module slot ( ). Align the notches on the

SDRAM module with the protrusions in the slot, and the carefully push in the SDRAM module at an angle ( ).

7. Holding the SDRAM module at an angle, press it down until it clicks into place.

Page 43

BVN029

BVN157

BVN030

Installing the Memory Expansion Units

8. Match the controller board to the top and bottom rail using the " " mark, and then slide it

into the printer slowly until it stops.

9. Hold the printer with one hand, and then push the lower handle of the controller board with

the palm of your other hand, until it stops.

Malfunctions can occur if the controller board is not set properly.

10. Push the handle of the controller board until it clicks.

Page 44

BVN031

2. Installing Options

11. Fasten the controller board to the printer with the two screws.

• Use a coin or similar object if the screws do not turn easily.

• After finishing the installation, you can check the memory unit is properly installed: Print the configuration page from the [List/Test Print] menu. If it is installed properly, the memory capacity will appear under "Total Memory" on the configuration page.

• The table below shows the total SDRAM module capacities.

Standard Extended Total

256 MB 128 MB 384 MB

256 MB 256 MB 512 MB

• If the memory unit is not properly installed, repeat this procedure. If you cannot install it properly even after reinstallation, contact your sales or service representative.

• Install the controller board carefully to prevent any malfunction.

• "Test Printing", Quick Installation Guide.

Page 45

BFL301S

BVN036

Installing the Interface Units

• Do not touch the inside of the controller board compartment. Doing so may cause a printer malfunction or a burn.

Installing the Wireless LAN Interface Unit

• Before you begin any installation, always ground yourself by touching something metal to discharge any static electricity. Static electricity can damage the unit.

• Do not subject the unit to physical shocks.

1. Check the package contains the following:

2. Turn off the power of the printer, and then unplug the power cable and the interface cable.

3. Remove the two screws and the slot cover of the wireless LAN interface unit mounting

bracket.

Page 46

BVN037

BVN038

2. Installing Options

When the wireless LAN unit is installed, the slot cover is no longer required. However, we recommend you keep the cover for future use.

4. Attach the wireless LAN interface unit.

Insert the end of the wireless LAN interface unit into the slot.

5. Fasten the wireless LAN interface unit to the controller board with the two screws.

Check the wireless LAN interface unit is connected firmly to be controller board.

• Use a coin or similar object if the screws do not turn easily.

• After finishing installation, you can check the wireless LAN interface unit is properly installed: Print the configuration page from the [List/Test Print] menu. If it is installed properly, "Wireless LAN" will appear for "Device Connection" on the configuration page.

• If the wireless LAN interface unit is not installed properly, reinstall it following this procedure. If you cannot install it properly even after attempting reinstallation, contact your sales or service representative.

• You need to make settings with the control panel before using the wireless LAN interface unit. For more information, see "Wireless LAN Configuration".

• "Test Printing", Quick Installation Guide

Page 47

123

BFL310S

BVN040

Installing the Interface Units

• p.71 "Wireless LAN Configuration"

Installing the Gigabit Ethernet Board

• The printer's Ethernet and USB ports are not available when the Gigabit Ethernet board is attached to the printer. Use the Ethernet and USB ports on the Gigabit Ethernet board.

• Before you begin any installation, always ground yourself by touching something metal to discharge any static electricity. Static electricity can damage the Gigabit Ethernet board.

• Do not subject the Gigabit Ethernet board to physical shocks.

1. Check the package contains the following:

1. Gigabit Ethernet Board

2. Protective caps (one each for the Ethernet port and the USB port)

3. Ferrite Core

2. Turn off the power, and then unplug the power cable.

3. Disconnect the cables from the Ethernet port and the USB port of the printer, and cover each

port with its protective cap.

Page 48

BVN036

BVN041

BVN042

2. Installing Options

4. Remove the two screws and the slot cover of the Gigabit Ethernet board mounting bracket.

When the Gigabit Ethernet board is installed, the slot cover is no longer required. However, we recommend you keep the cover for future use.

5. Attach the Gigabit Ethernet board to the controller board.

Insert the end of the Gigabit Ethernet board into the slot.

6. Fasten the Gigabit Ethernet board to the controller board with two screws.

Check the Gigabit Ethernet board is connected firmly to the controller board.

• Use a coin or similar object if the screws do not turn easily.

Page 49

BFL302S

Installing the Interface Units

• After finishing installation, check the Gigabit Ethernet board is installed properly: print the configuration page from the [List/Test Print] menu. If it is installed properly, you will see "Gigabit Ethernet" for "Device Connection" on the configuration page.

• If the Gigabit Ethernet board is not installed properly, reinstall it following this procedure. If you cannot install it properly even after attempting reinstallation, contact your sales or service representative.

• You need to make settings with the control panel before using the Gigabit Ethernet board. For details, see "Ethernet Configuration".

• "Test Printing", Quick Installation Guide.

• p.63 "Ethernet Configuration"

Installing the IEEE 1284 Interface Board

• Before you begin any installation, always ground yourself by touching something metal to discharge any static electricity. Static electricity can damage the IEEE 1284 interface board.

• Do not subject the IEEE 1284 interface board to physical shocks.

• For connection to the IEEE 1284 interface board, use a half pitch 36-pin interface cable.

1. Check the package contains the following:

2. Turn off the power, and then unplug the power cable.

Page 50

BVN036

BVN044

BVN045

2. Installing Options

3. Remove the two screws and the slot cover of the IEEE 1284 interface board mounting

bracket.

When the IEEE 1284 interface board is installed, the slot cover is no longer required. However, we recommend you keep the cover for future use.

4. Attach the IEEE 1284 interface board to the controller board.

Insert the end of the IEEE 1284 interface board into the slot.

Confirm that the IEEE 1284 interface board is firmly connected to the controller board.

5. Fasten the IEEE 1284 interface board to the controller board with two screws.

Check the IEEE 1284 interface board is connected firmly to the controller board.

Page 51

Installing the Interface Units

• After finishing installation, you can check the IEEE1284 interface board is properly installed: Print the configuration page from the [List/Test Print] menu. If it is installed properly, "Parallel Interface" will appear for "Device Connection" on the configuration page.

• If the board was not installed properly, repeat the procedure from step 2. If it cannot be installed correctly even after reattempting installation, contact your sales or service representative.

• "Test Printing", Quick Installation Guide.

Page 52

BFL308S

BVN047

2. Installing Options

Installing SD Memory Card Options

Installing the data overwrite security unit or VM card.

• Keep SD memory cards out of reach of children. If a child swallows a SD memory card, consult a doctor immediately.

• Do not subject the optional cards to physical shock.

1. Check the package contains the following:

2. Turn off the power, and then unplug the power cable.

3. Remove the screw and the cover of the card slot at the back of the printer.

Be sure to keep a screw removed during installation.

Page 53

BVN048

BVN049

Installing SD Memory Card Options

4. Insert the SD card into the slot until it clicks.

Insert the SD card in the appropriate slot as follows:

• Upper slot: Data overwrite security unit

• Lower slot: VM card

5. Reattach the cover over the optional card. Fasten the screw to secure the cover.

• Do not touch the card while the printer is in use. It may come loose, even if pushed only slightly. The slot cover must be reattached.

• Confirm that the card was correctly installed by printing the configuration page.

• If the card is not installed properly, repeat the procedure from the beginning. If it cannot be installed correctly even after reattempting installation, contact your sales or service representative.

• For details about printing the configuration page, see "Test Printing", Quick Installation Guide.

Page 54

BVN050

BVP103

2. Installing Options

Attaching the Duplex Unit

• If you attach the duplex unit and the paper feed unit, the paper feed unit must be attached prior to attaching the duplex unit.

• Check the printer nameplate to confirm the model code.

1. Check the contents of the box for the following items:

2. Turn off the power of the printer, and then unplug the power cable.

3. Remove the adhesive tape and paper.

4. Open the rear cover.

Page 55

BVN053

BVN054

BVN055

Attaching the Duplex Unit

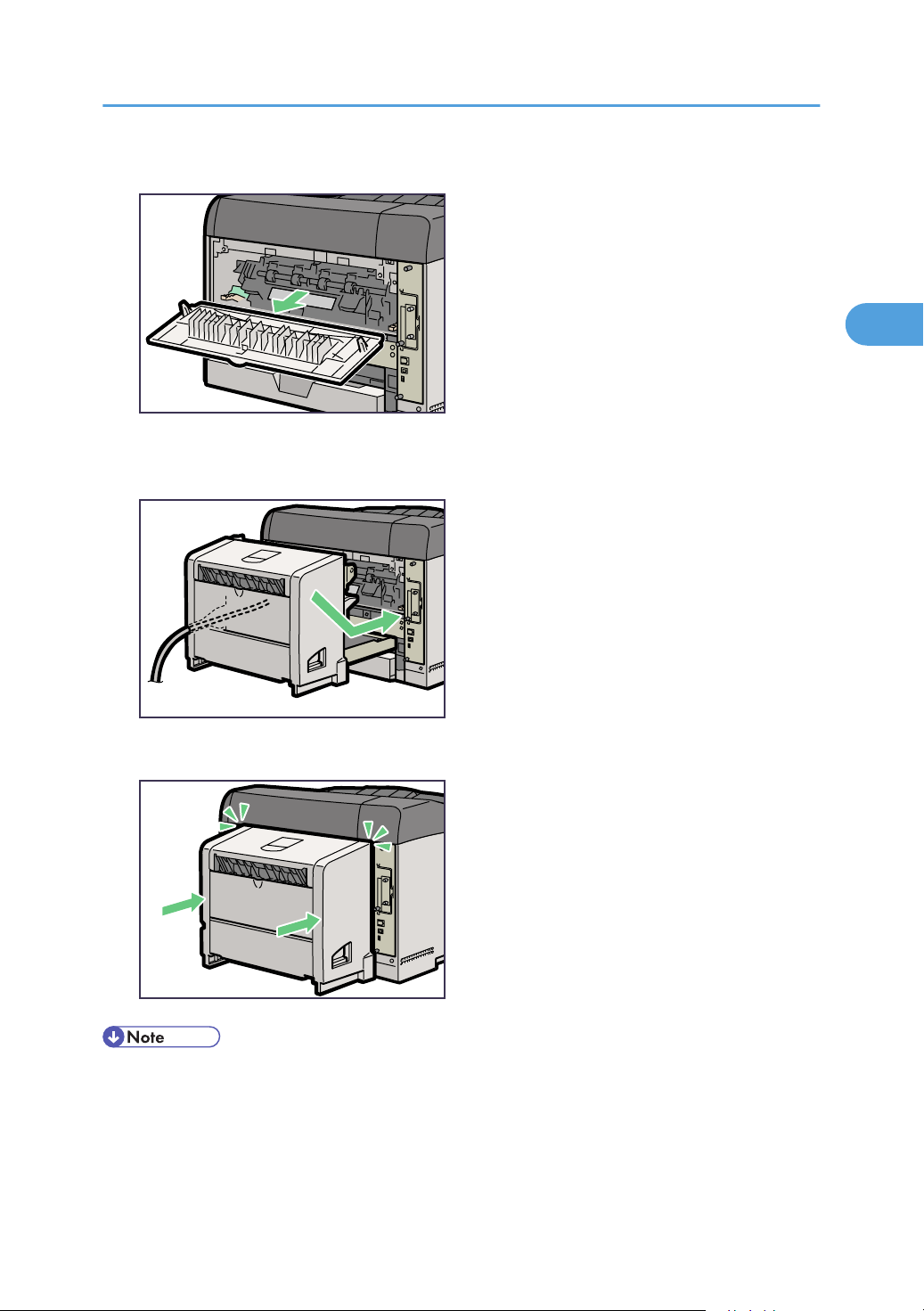

5. Lower the rear cover until it is horizontal, and then pull it away.

6. Place the power cable inside the slot on the side of the duplex unit, and then push the duplex

unit along the rails in the back of the printer.

7. Push the duplex unit securely into the printer.

• After finishing installation, you can check whether the duplex unit is properly installed: Print the configuration page from the [List/Test Print] menu. If it is installed properly, you will see "Duplex Unit" for "Attached Equipment" on the configuration page.

• If the duplex unit is not installed properly, repeat the procedure from the start. If you cannot install it properly even after reinstallation, contact your sales or service representative.

Page 56

2. Installing Options

• If the printing position is not correct, adjust the registration of the trays. For more information about adjusting the registration of the trays, see "Adjusting Tray Registration".

• When the duplex unit is installed, the rear cover is no longer required. However, we recommend you keep the cover for future use.

• Do not install the duplex unit if the paper tray cover is installed.

• "Test Printing", Quick Installation Guide.

• p.163 "Adjusting Tray Registration"

Page 57

3. Connecting the Printer Cables

BVN230

This chapter explains how to connect network and USB cables.

Ethernet Cable Connection

Prepare a hub and other network devices, and connect the Ethernet cable to the printer.

Connect 10BASE-T or 100BASE-TX cable to the printer's Ethernet port. For 1000BASE-T, the optional Gigabit Ethernet board is available.

• A network interface cable with a ferrite core must be used for RF interference suppression.

• For users outside the United States of America: properly shielded and grounded cables and connectors must be used for connections to a host computer (and/or peripheral) in order to meet emission limits.

• For users in the United States of America: properly shielded and grounded cables and connectors must be used for connections to a host computer (and/or peripheral) in order to meet FCC emission limits.

• Use shielded Ethernet cable. Unshielded cables create electromagnetic interference that could cause malfunctions.

• The Ethernet cable is not supplied with this printer. Select your cable according to the network environment.

Connecting to the standard Ethernet port

1. Attach the supplied ferrite core at the printer end of the Ethernet cable.

Page 58

BVN056

BVN152

3. Connecting the Printer Cables

Do not attach the ferrite core.

2. Connect the Ethernet cable to the Ethernet port.

3. Connect the other end of the cable to the network, such as a hub.

Connecting to the Ethernet port of the Gigabit Ethernet board

1. Attach the ferrite core to the Gigabit Ethernet cable.

Attach one ferrite core at the printer end of the Ethernet cable, and attach the other ferrite core about 10 cm (4 inches) ( ) from this core making a loop as shown.

Page 59

BVP104

BVN156

BVP105

Ethernet Cable Connection

Attach the other ferrite core about 10 cm (4 inches) ( ) from this core making a loop as shown.

2. Connect the Ethernet cable to the Gigabit Ethernet board.

Page 60

BVN058

BTH021S

3. Connecting the Printer Cables

3. Connect the other end of the cable to the network, such as a hub.

• The printer's Ethernet and USB port B are not available when the Gigabit Ethernet board is attached to the printer.

• "Network Connection", Software Guide.

• p.43 "Installing the Interface Units"

Reading the LED Lamps

For the standard Ethernet port

1. Indicator (yellow)

Lights up yellow when 100 BASE-TX is in operation. Goes off when 10 BASE-T is in operation.

2. Indicator (green)

Lights up green when 10 BASE-T is in operation. Goes off when 100 BASE-TX is in operation.

Page 61

For the Gigabit Ethernet board

BTH022S

1. Indicator (green)

When 10BASE-T is operating, the LED is lit green. When 100BASE-TX is operating, it is turned off.

2. Indicators (both green and yellow)

When 1000BASE-T is operating, both LED are lit.

3. Indicator (yellow)

When 100BASE-TX is operating, the LED is lit yellow. When 10BASE-T is operating, it is turned off.

Ethernet Cable Connection

Page 62

BVN061

3. Connecting the Printer Cables

USB Cable Connection

• USB connection is possible under Windows 2000/XP/Vista, Windows Server 2003/2003 R2/2008, Mac OS 9.x, and Mac OS X 10.3.3 or later.

• USB connection with Mac OS is only possible via the printer's USB port, not the Gigabit Ethernet board's USB port.

• The USB cable is not supplied with this printer. Select a cable that is suitable for use with your computer.

1. Connect the USB cable to the printer.

• Connecting the USB cable to the standard USB port B

Connect the square-shaped connector of the USB2.0 cable to the USB port B.

• Connecting the USB cable to the Gigabit Ethernet board USB port

Connect the smaller connector of the USB cable to the USB port of the Gigabit Ethernet board.

Page 63

BVN062

USB Cable Connection

2. Connect the opposite end's flat connector to the desired device such as your computer's USB

interface, or a USB hub.

The printer is now connected to the computer. The Plug and Play screen appears on the computer display. For details, see "Installing the Printer Driver Using USB", Software Guide for details.

• "Installing the Printer Driver Using USB", Software Guide

• p.43 "Installing the Interface Units"

Page 64

BVN063

3. Connecting the Printer Cables

Parallel Cable Connection

The type of cable required varies depending on the computer you are using. Make sure to use the interface cable compliant with your computer.

• The parallel interface cable is not supplied with the printer.

• The printer's parallel connection is a standard bidirectional interface that requires an IEEE 1284compliant half pitch 36-pin parallel cable and host computer parallel port.

• Use shielded interface cable. Unshielded cables create electromagnetic interference.

1. Turn off the printer and computer.

2. Connect the interface cable to the IEEE 1284 interface board.

3. Connect the other end of the interface cable to your computer, and then secure the cable.

The printer is now connected to the computer. Install the printer driver. For details, see "Preparation for Printing", Software Guide.

• For details about attaching the 1284 interface board, see "Installing the IEEE 1284 Interface Board".

• "Printing with Parallel Connection", Software Guide.

• p.43 "Installing the Interface Units"

Page 65

4. Configuration

This chapter explains supported network connections, and settings for the IP addresses and the Wireless LAN security.

Ethernet Configuration

Configure the following network settings according to the network environment using the control panel.

• The following table shows the control panel settings and their default values. These items appear in the [Host Interface] menu.

Setting Name Default

• DHCP: On

Machine IPv4 Address

IPv6 Stateless Setting Active

IPsec Inactive

NW Frame Type Auto Select

Effective Protocol

Ethernet Speed Auto Select

IEEE802.1X Auth.(Ethernet) Inactive

Restr.IEEE802.1X Auth.Def. -

LAN Type Ethernet

• IPv4 Address: 11.22.33.44

• Subnet Mask: 0.0.0.0

• Gateway Address: 0.0.0.0

• IPv4: Active

• IPv6: Inactive

• NetWare: Inactive

• SMB: Active

• AppleTalk: Inactive

• If DHCP is in use on your network, the IP address, subnet mask, and gateway address are all set automatically.

Page 66

BVP006

4. Configuration

• If the printer is already placed on a TCP/IP-capable environment, you can also use a Web browser to configure the IP address-related settings.

Specifying an IP Address (No DHCP)

Follow this procedure to assign a specific IP address to the printer. This is only necessary when you use the printer on a network without DHCP, or want to prevent the printer's IP address from changing.

Before beginning, make sure that you know the IP address, subnet mask and gateway address that the printer will use.

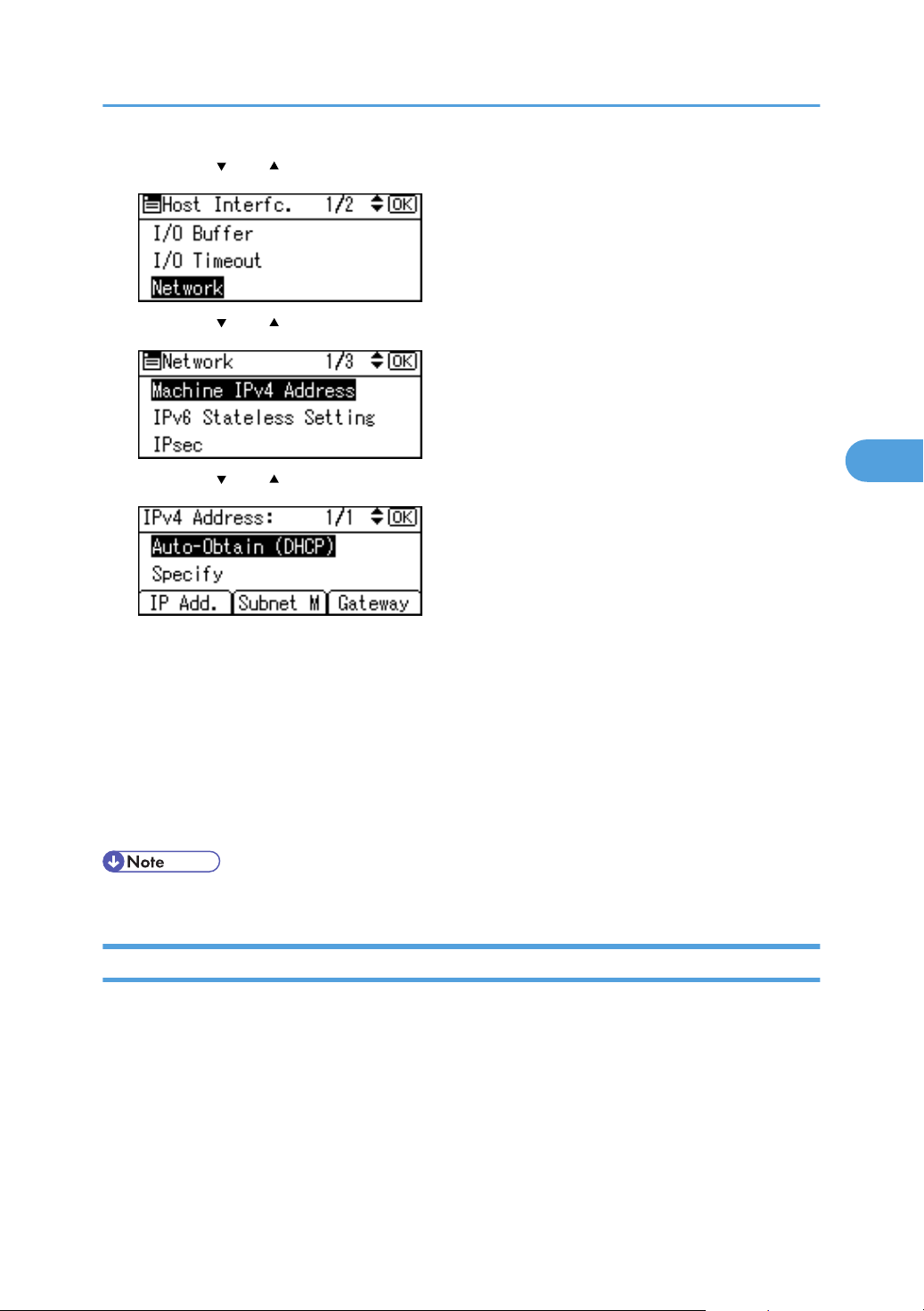

1. Press the [Menu] key.

2. Press the [ ] or [ ] key to select [Host Interface], and then press the [OK] key.

3. Press the [ ] or [ ] to select [Network], and then press the [OK] key.

4. Press the [ ] or [ ] key to select [Effective Protocol], and then press the [OK] key.

Page 67

Ethernet Configuration

5. Press the [ ] or [ ] key to select the appropriate network protocol, and then press the [OK]

key.

6. Press the [ ] or [ ] key to select [Active] or [Inactive], and then press the [OK] key.

Set other protocols you need to set in the same way.

• Select [Inactive] for unused protocols.

• Enable IPv4 to use the pure IPv4 environment of NetWare5/5.1, Netware 6/6.5.

7. Press the [Escape] key until the screen returns to the [Network] menu.

8. If you use IPv4, assign the IPv4 address to the printer. Press the [ ] or [ ] key to select

[Machine IPv4 Address], and then press the [OK] key.

To get the IP address for the printer, contact your network administrator.

9. To specify the IP address, press [IP Add.].

If you use IPv4, also assign the subnet mask and gateway address. To assign these, press [Subnet M] or [Gateway].

10. Press the [ ] or [ ] to enter the address, and then press the [OK] key.

Press the [ ] or [ ] key to enter the left-most entry field of the address. After entering the left field, press the [ ] key, and then you can enter the next field. After completing entry of the all fields, press the [OK] key. Use the same method to assign the subnet mask and gateway address.

• Change the IP address from “11.22.33.44” to an IP address supported by your network.

Page 68

BVP006

4. Configuration

11. Press the [ ] or [ ] key to select [Specify], and then press the [OK] key.

If you do not select [Specify] in this step, the address you set will not be saved.

12. Press the [Menu] key to return to the initial screen.

13. Print a configuration page to confirm the settings.

• For details about printing the configuration page, see "List/Test Print Menu", Software Guide.

Receiving an IP Address Automatically (DHCP)

Follow this procedure to set the printer to receive an IP address automatically using DHCP. The DHCP feature is active by default, so this procedure is only required if you have changed the default settings.

• When [Auto-Obtain (DHCP)] is selected, you cannot configure the IP address, subnet mask, or gateway address.

• Consult your network administrator for information about configuring network settings.

1. Press the [Menu] key.

2. Press the [ ] or [ ] key to select [Host Interface], and then press the [OK] key.

Page 69

Ethernet Configuration

3. Press the [ ] or [ ] key to select [Network], and then press the [OK] key.

4. Press the [ ] or [ ] key to select [Machine IPv4 Address], and then press the [OK] key.

5. Press the [ ] or [ ] key to select [Auto-Obtain (DHCP)], and then press the [OK] key.

The printer will automatically receive an IP address.

To check the detected addresses, press the following:

• [IP Add.] : IP address

• [Subnet M] : Subnet mask

• [Gateway] : Gateway address

6. Press the [Menu] key to return to the initial screen.

7. Print a configuration page to confirm the settings.

• For details about printing the configuration page, see "List/Test Print Menu", Software Guide.

Configuring Network Settings When Using NetWare

To use NetWare, select the appropriate NetWare frame type from the following.

• Auto Select

• Ethernet II

• Ethernet 802.2

• Ethernet 802.3

• Ethernet SNAP

Page 70

BVP006

4. Configuration

• Usually, you can use the default (Auto Select). When you first select [Auto Select], the frame type detected by the printer is adopted. However, if your network can use more than two frame types, the printer may fail to select the correct frame type with [Auto Select] selected. In this case, select the preferred frame type.

1. Press the [Menu] key.

2. Press the [ ] or [ ] key to select [Host Interface], and then press the [OK] key.

3. Press the [ ] or [ ] key to select [Network], and then press the [OK] key.

4. Press the [ ] or [ ] key to select [NW Frame Type], and then press the [OK] key.

5. Press the [ ] or [ ] key to select the frame type to use, and then press the [OK] key.

Page 71

Ethernet Configuration

6. Press the [Menu] key to return to the initial screen.

7. Print a configuration page to confirm the settings.

• For details about printing the configuration page, see "List/Test Print Menu", Software Guide.

Setting the Ethernet Speed

You can set the speed that the printer will use for Ethernet communications. In most cases, this should be left on the default setting, [Auto Select]. This setting allows two interfaces to automatically determine the optimum speed when they are connected.

Printer

Router/HUB

10 Mbps half duplex

10 Mbps full duplex

100 Mbps half duplex

100 Mbps full duplex

autonegotiation (auto selection)

• Connection cannot be established if the selected Ethernet speed does not match your network's transmission speed.

[10Mbps Half

Duplex]

- - - -

- - -

- - - -

[10Mbps Full

Duplex]

- - -

- -

[100Mbps

Half Duplex]

[100Mbps Full

Duplex]

[Auto Select]

• The auto-negotiation mechanism allows two interfaces to automatically determine an optimum Ethernet speed as soon as they are connected. We recommend you select [Auto Select].

Page 72

BVP006

4. Configuration

1. Press the [Menu] key.

2. Press the [ ] or [ ] key to select [Host Interface], and then press the [OK] key.

3. Press the [ ] or [ ] key to select [Network], and then press the [OK] key.

4. Press the [ ] or [ ] key to select [Ethernet Speed], and then press the [OK] key.

5. Press the [ ] or [ ] key to select the Ethernet speed, and then press the [OK] key.

6. Press the [Menu] key to return to the initial screen.

7. Print a configuration page to confirm the settings.

• For details about printing the configuration page, see "List/Test Print Menu", Software Guide.

Page 73

BVP006

Wireless LAN Configuration

Configure the following wireless LAN settings according to the network environment using the control panel.

• Ethernet and Wireless LAN cannot be used at the same time.

• To use wireless LAN, set as follows using the control panel: press the [Menu] key, select [Host Interface], [Network], [LAN Type], and then select [Wireless LAN]. In addition, you must set the IP address, subnet mask, gateway address, DHCP, Frame Type (NW), and active protocol as explained in "Ethernet Configuration".

• The following table shows the control panel settings and their defaults. These items appear in the [Host Interface] menu.

Setting Name Default

Communication Mode Infrastructure Mode

SSID Setting blank

Ad-hoc Channel 11

Security Method Off

Wireless LAN Signal -

Restore Defaults -

1. Press the [Menu] key.

Page 74

4. Configuration

2. Press the [ ] or [ ] key to select [Host Interface], and then press the [OK] key.

3. Press the [ ] or [ ] key to select [Wireless LAN], and then press the [OK] key.

4. Press the [ ] or [ ] key to select [Communication Mode], and then press the [OK] key.

5. Press the [ ] or [ ] key to select the transmission mode of the wireless LAN, and then press

the [OK] key.

• To communicate wirelessly with a device that does not require an SSID to be set, select [802.11 Ad-hoc Mode].

• The transmission mode of the wireless LAN can also be set using Web Image Monitor.

6. If [802.11 Ad-hoc Mode] is selected for [Communication Mode], press the [ ] or [ ] key

to select [Ad-hoc Channel], and then press the [OK] key.

Page 75

Wireless LAN Configuration

7. Press the scroll keys to select the Ad-hoc channel, and then press the [OK] key.

Select an Ad-hoc channel according to the IEEE 802.11 standard you are using.

When using IEEE 802.11 b/g:

Channels 1 to 13

Channels 1 to 11

When using IEEE 802.11 a:

Channels 36,40,44,48

8. Press the [Menu] key to return to the initial screen.

9. Print a configuration page to confirm the settings.

• For details, see Web Image Monitor Help, and “Using Web Image Monitor”, Software Guide.

• For details about printing the configuration page, see "List/Test Print Menu", Software Guide.

• p.63 "Ethernet Configuration"

Setting the SSID

When [Communication Mode] is set to [Infrastructure Mode] or [802.11 Ad-hoc Mode], you must specify the Service Set Identifier (SSID) of the wireless access point that the printer will connect to for network access.

Ask the network administrator for the SSID to use.

1. In the [Wireless LAN] menu, press the [ ] or [ ] key to select [SSID Setting], and then press

the [OK] key.

If an SSID has been set, you can check the current SSID setting.

2. Press [Enter].

Page 76

BVN064

4. Configuration

3. Press the scroll keys to enter characters, and then press [Accept].

You can switch among upper/lower cases, numeric codes, and symbols by pressing [ABC/123].

The characters that can be used are ASCII 0 × 20-0 × 7e (32 bytes).

4. Press the [Menu] key to return to the initial screen.

5. Print a configuration page to confirm the settings.

• The SSID can also be set using a Web browser. For details, see the Web Image Monitor Help, and "Configuring the Network Interface Board", Software Guide. For details about printing the configuration page, see "List/Test Print Menu", Software Guide.

Confirming Wireless Network Connectivity

After you have installed the wireless LAN interface unit, use the following procedure to check for wireless LAN connectivity.

Make sure the LED on the wireless LAN interface unit is lit.

1. If the printer is connected to an operational network and is communicating normally, the lower indicator will be lit orange.

2. If the wireless LAN unit is receiving power, the upper indicator will be lit green.

Page 77

Wireless LAN Configuration

Cautions When Using a Wireless LAN

A wireless LAN uses radio waves instead of cables to send and receive data. Because radio waves usually pass through walls and other obstructions, the following problems may arise if you do not configure wireless security settings.

Information leakage

Information such as IDs, passwords, credit card numbers, and e-mail content may be seen by an unauthorized 3rd party.

Unauthorized network access

• Damage to or alteration of data and/or system configurations by viruses or other malware.

• Impersonation of legitimate network users, resulting in data theft.

• Theft of sensitive or confidential data.

To minimize the possibility of these threats, it is recommended that you check the available features of this printer, wireless access points, and other equipment that uses the wireless LAN, and configure security settings for the wireless LAN.

Page 78

4. Configuration

Setting Security Method of Wireless LAN

Setting a WEP Key

If the wireless network uses WEP to encrypt transmitted data, the corresponding WEP key must be set to the printer to allow communications with other network devices.

Ask the network administrator for the WEP key to use.

1. In the [Wireless LAN] menu, press the [ ] or [ ] key to select [Security Method], and then

press the [OK] key.

2. Press the [ ] or [ ] key to select [WEP], and then press [Details].

When activating the WEP setting, you will need to enter the WEP key. If you have not entered the key, be sure to enter it.

3. A confirmation message appears. Press [Enter].

4. Press the scroll keys to enter characters, and then press [Accept].

• When entering a character, pressing [Accept] will mask it with an asterisk for security reasons.

• When using 64-bit WEP, up to 10 hexadecimal characters or five ASCII characters can be entered. When using 128-bit WEP, up to 26 hexadecimal characters or 13 ASCII characters can be used.

Page 79

BVP006

Setting Security Method of Wireless LAN

• Up to 10 or 26 hexadecimal characters and 5 or 13 ASCII characters can be entered.

• For ASCII character strings, uppercase and lowercase letters are differentiated, so be sure to enter characters in the required case.

5. Press the [ ] or [ ] key to select [WEP], and then press the [OK] key.

6. Press the [Menu] key to return to the initial screen.

7. Print a configuration page to confirm the settings.

• The WEP key can also be set using a Web browser. For details, see the Web Image Monitor Help.

• For details about printing the configuration page, see "List/Test Print Menu", Software Guide.

Setting WPA

In the case of using WPA on a network, activate the WPA setting to be used for communication along with WPA. Consult your network administrator for information about making authentication settings.

• For setting WPA, installing the optional HDD or the optional Data Storage Card is required.

1. Press the [Menu] key.

2. Press the [ ] or [ ] key to select [Host Interface], and then press the [OK] key.

Page 80

4. Configuration

3. Press the [ ] or [ ] key to select [Wireless LAN], and then press the [OK] key.

4. Press the [ ] or [ ] key to select [Security Method], and then press the [OK] key.

5. Press the [ ] or [ ] key to select [WPA], and then press [Details].

6. Press the [ ] or [ ] key to select [Encryption Method], and then press the [OK] key.

7. Press the [ ] or [ ] key to select encryption method, and then press the [OK] key.

Consult your network administrator for information about making encryption settings.

Encryption settings are as follows:

• [TKIP]

Uses the same algorithm as RC4, but further reduces vulnerability using methods such as key mixing.

• [CCMP(AES)]

Increases security using AES (Advanced Encryption Standard).

Wait for two seconds. The display returns to the [WPA] menu.

Page 81

Setting Security Method of Wireless LAN

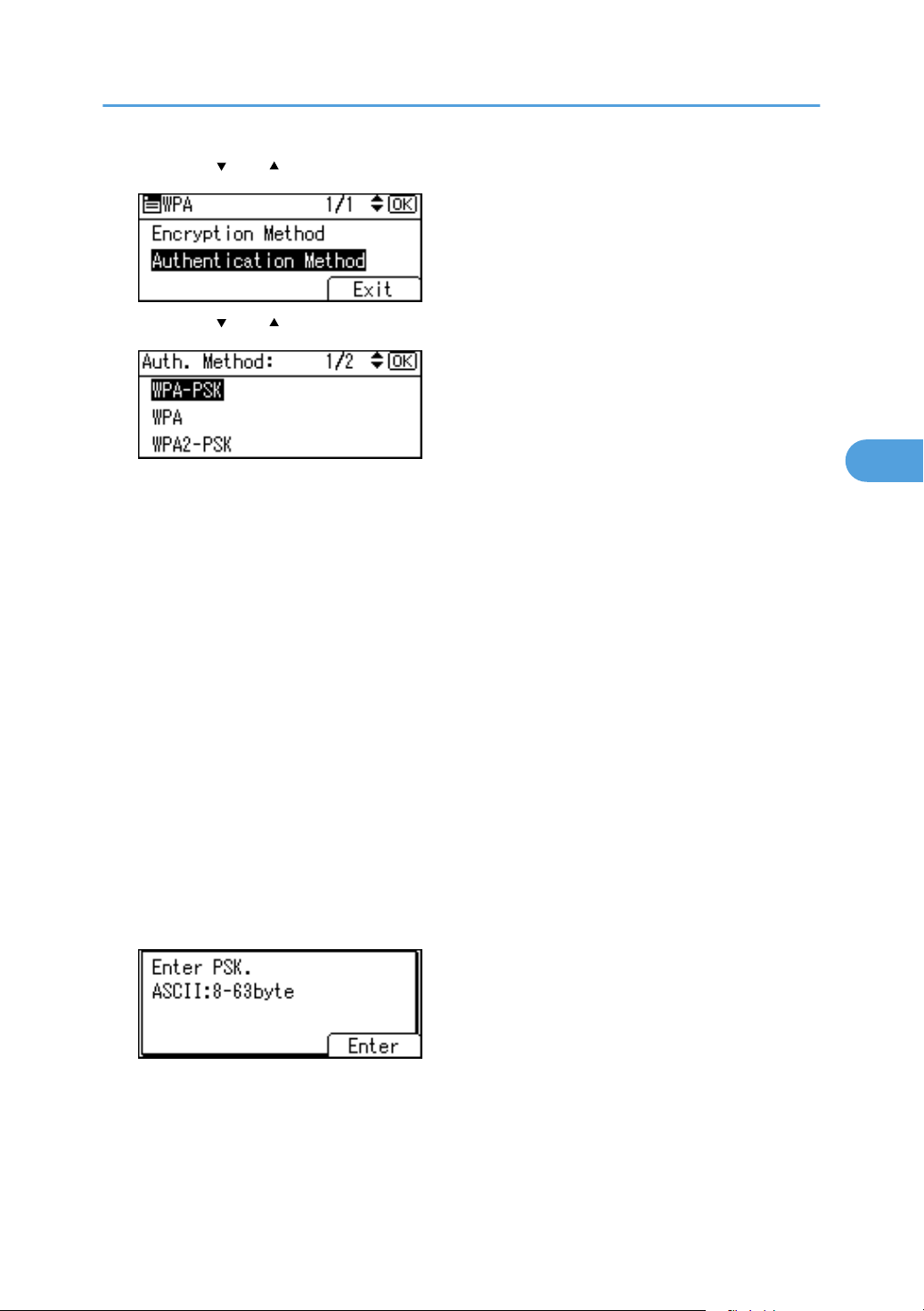

8. Press the [ ] or [ ] key to select [Authentication Method], and then press the [OK] key.

9. Press the [ ] or [ ] key to select authentication method, and then press the [OK] key.

Authentication settings are as follows:

• [WPA-PSK]

Performs authentication using an encryption key (a Pre-Shared Key) that is shared by the access point and client.

• [WPA]

WPA uses CA certificates and a RADIUS server to provide secure wireless communication.

• [WPA2-PSK]

As with WPA-PSK, authenticate using the encryption key (a Pre-Shared Key) shared by the access point and client.

• [WPA2]

WPA2 is an expanded version of WPA that fully supports IEEE802.11i.

10. If [WPA] or [WPA2] is selected in step 9, a confirmation message appears. Press the [OK]

key.

Wait for two seconds. The display returns to the [WPA] menu.

11. If [WPA-PSK] or [WPA2-PSK] is selected in step 9, a confirmation message appears. Press

[Enter].

Page 82

4. Configuration

12. Press the scroll keys to enter the Pre-Shared Key, and then press the [OK] key.

• When entering a character, pressing [OK] will mask it with an asterisk for security reasons.

• Enter the Pre-Shared Key using between 8 and 63 ASCII characters.

• Uppercase and lowercase letters are differentiated, so be sure to enter characters in the required case.

13. When all characters have been entered, press [Accept].

Wait for two seconds. The display returns to the [Authentication Method] menu.

14. Press the [Escape] key.

15. Press [Exit].

16. Press the [ ] or [ ] key to select [WPA], and then press the [OK] key.

17. Press the [Menu] key to return to the initial screen.

18. Print a configuration page to confirm the settings.

• For details about printing a configuration page, see "List/Test Print Menu", Software Guide.

Page 83

Configuring IEEE 802.1X (WPA/WPA2)

WPA/WPA2 uses an authentication server to provide greatly enhanced security compared to WPA-PSK/ WPA2-PSK

IEEE 802.1X (WPA/WPA2) can be configured using Web Image Monitor's administrator mode.

To configure the settings when using Ethernet; select [Host Interface] and [IEEE802.1X Auth.(Ethernet)] in [Network] on the display, and then select [Active].

To configure the settings when using a wireless LAN; configure WPA using the control panel or Web Image Monitor.

• To set WPA/WPA2 for the wireless LAN, you must enable SSL.

• To set WPA/WPA2 for the wireless LAN, you must use Web Image Monitor.

Installing a Site Certificate

1. Access the authentication server and obtain the CA certificate.

Methods of obtaining certificates differ according to the operating system you are using.

2. Start your Web browser.

3. Enter "http://(printer's address)/" in the address bar of a Web browser.

4. Enter your user name and password, and then click [Login].

For details about the login user name and password, contact your administrator.

5. Click [Configuration].

6. Click [Site Certificate] in the “Security” area.

7. Click [Browse] on the “Site Certificate to Import” window, and then select the CA certificate

you obtained.

8. Click [Import].

9. Click [OK].

10. Click [Logout].

11. Quit the Web browser.

Installing Device Certificate

Depending on the settings of your choice, certain steps in the following procedure may not be required.

1. Start your Web browser.

Page 84

4. Configuration

2. Enter "http://(printer's address)/" in the address bar of a Web browser.

3. Enter your user name and password, and then click [Login].

For details about the login user name and password, consult your administrator.

4. Click [Configuration].

5. Click [Device Certificate] in “Security” area.

6. Check [Certificate 2] on the “Device Certificate” window, and then click [Request].

7. Enter appropriate “Common Name” and “Country Code” on “Certificate Information”

page, and then click [OK].

8. “Updating...” appears. Wait for about 2 minutes, and then click [OK].

9. Click [Details], shown in the “Device Certificate” window as the memo pad icon for

“Requesting”.

10. Select all, and then copy the entire “Text for Requested Certificate” text that is displayed in

the “Certificate Status” window.

11. Access the certificate authority server, and then obtain the CA signified certificate using the

text copied into “Text for Requested Certificate” windows.

Obtaining the certificate differs depending on the environment you want to use.

12. Click [Certificate 2] on “Device Certificate” window, and then click [Install].

13. Using a text editor, open the CA signified certificate downloaded in step 11, and then copy

over all the text.

14. In the [Install Certificate] window, paste all the text copied into the CA signified certificate.

15. Click [OK].

16. “Updating...” appears. Wait for about one or two minutes, and then click [OK].

Check that the “Device Certificate” shows “Installed”.

17. Click [Certificate 2] on “Certification”, and then click [OK].

18. Click [Logout].

19. Quit the Web browser.

• You can select any Certificate between 1 and 4 in the "Device Certificate" window. Be sure to select the same Certificate number in both the "Device Certificate" window and the "Certification".

• If you request two certificates simultaneously, the certificate authority might not display either certificate. Click [Cancel Request] to cancel the request.

• Click [Cancel Request] to cancel the request for the server certificate.

• If "Not found" appears after clicking [OK] in steps 8 and 16, wait one or two minutes, and then click [Refresh].

Page 85

Configuring IEEE 802.1X (WPA/WPA2)

Setting Items of WPA/WPA2

1. Start your Web browser.

2. Enter "http://(printer's address)/" in the address bar of a Web browser.

3. Enter your user name and password, and then click [Login].

For details about the login user name and password, consult your administrator.

4. Click [Configuration], and then click [Wireless LAN Settings] in the “Interface” area.

5. Select [Infrastructure Mode] in “Communication Mode”.

6. Enter the alphanumeric characters (a-z, A-Z, or 0-9) in [SSID] according to the access point

you want to use.

7. Select [WPA] in “Security Method”.

8. Select [TKIP] or [CCMP (AES)] in “WPA Encryption Method” according to the access point

you want to use.

9. Select [WPA] or [WPA2] in “WPA Authentication Method”.

10. Click [OK].

11. Click [Logout].

12. Quit the Web browser.

• You can select [Certificate 1] or [Certificate 2] in the “Device Certificate” window. Note that if you select [Certificate 1] in the “Device Certificate” window, you must select [Certificate 1] in the “IEEE

802.11a” list in the “Certification” window.

• If there is a problem with settings, you might not be able to communicate with the printer. To identify the problem, print a network summary.

• If you cannot identify the problem, reset the printer interface to normal, and then repeat the procedure from the beginning.

Page 86

4. Configuration

Page 87

5. Paper and Other Media

This chapter explains the paper sizes and types supported by this printer, and how to load paper in the paper trays.

Supported Paper for Each Tray

This section describes the paper size, feed direction, and the maximum amount of paper that can be loaded into each paper tray in this printer.

• The following symbols and terminology are used to represent the feed direction.

In this manual On the display Paper feed direction

(Feed direction)

• Be careful of the paper feed direction. The direction is determined for each paper size.

Input Paper Sizes Tray 1

Metric version / Inch version

220-240 V A3 , A4 , A5 , 81/2" × 11" (Letter)

120 V

The following sizes are supported but not indicated on the tray dial. You should set the tray dial to " ", and select the paper size with the control panel.

220-240 V

A4 , 11" × 17" , 81/2" × 14" (Legal) , 81/2" × 13" (Foolscap) , 81/2" × 11" (Letter)

Metric version / Inch version

B4 JIS , B5 JIS , A5 , A6 , 8K , 16K , 11" × 17" , 81/2" × 14" (Legal) , 81/2" × 13" (Foolscap) , 81/4" × 13" (Folio) , 8" × 13" (F/GL) , 71/4" × 101/2" (Executive)

, 51/2" × 81/2" (Half Letter)

Short-edge feed direction

81/2×11

Long-edge feed direction

81/2×11

Page 88

5. Paper and Other Media

Metric version / Inch version

A3 , B4 JIS , A4 , B5 JIS , A5 , A6 , 8K , 16K ,

120 V

Tray 1 supports custom size paper, approximately 90 - 297 mm (3.6 - 11.7 inches) in width, and 148 - 432 mm (5.9 - 17 inches) in length. Set as custom size using the control panel and printer driver.

The supported size may differ depending on the printer language you use.

Input Paper Sizes Paper Feed Unit (Tray 2/3)

A3 , A4 , 11" × 17" , 81/2" × 14" (Legal) , 81/2" × 11" (Letter)

The following sizes are supported but not indicated on the tray dial. You should set the tray dial to " ", and select the paper size with the control panel.

81/4" × 13" (Folio) , 8" × 13" (F/GL) , 71/4" × 101/2" (Executive) , 51/2" × 81/2" (Half Letter)

Metric version / Inch version

B4 JIS , B5 JIS , A5 , A6 , 8K , 16K , 81/2" × 13" (Foolscap) , 81/4" × 13" (Folio)

, 8" × 13" (F/GL) , 71/4" × 101/2" (Executive)

Tray 2/3 supports custom size paper, approximately 182 - 297 mm (7.2 - 11.7 inches) in width, and 148 - 432 mm (5.9 - 17 inches) in length.

Input Paper Sizes Bypass Tray

The following paper size is supported but the paper size should be set with the control panel.

There is no dial on the tray.

Metric version / Inch version

A3 , B4 JIS , A4 , B5 JIS , A5 , A6 , 8K , 16K , 11" × 17" , 81/2" × 14" (Legal)

, 81/2" × 13" (Foolscap) , 81/2" × 11" (Letter) , 81/4" × 13" (Folio) , 8" × 13" (F/GL) ,

71/4" × 101/2" (Executive) , 51/2" × 81/2" (Half Letter) , 41/8" × 91/2" (Com#10 Env.) , C5 Env. , C6 Env. , DL Env. , 37/8" × 71/2" (Monarch Env.)

Bypass Tray supports custom size paper, approximately 64 - 305 mm (2.6 - 12 inches) in width, and 148 - 1260 mm (5.9 - 49.6 inches) in length. Set as custom size using the printer driver.

The supported size may differ depending on the printer language you use.

See p.96 "Loading Paper".

Page 89

Supported Paper for Each Tray

Input Paper Sizes Envelope Feeder Unit

The following paper size is supported but the paper size should be set with the control panel.

There is no dial on the tray.

Metric version / Inch version

Com#10 Env. , C5 Env. , C6 Env. , DL Env. , Monarch Env.

See p.96 "Loading Paper".

Paper Weight and Number of Sheets to Be Set

Supported paper weight

Tray 1 60 - 216 g/m2 (16 - 57 lb.) 500 (75 g/m2, 20 lb.)

Bypass Tray 52 - 216 g/m2 (14 - 57 lb.) 100 (75 g/m2, 20 lb.)

Paper Feed Unit (Tray 2, Tray3)60 - 216 g/m2 (16 - 57 lb.) 500 (75 g/m2, 20 lb.)

Envelope Feeder See p.96 "Loading Paper".

Check that the top of the stack is not higher than the limit mark inside the tray.

Paper Size Supported by Both Side Printing

The following paper sizes can be printed on both sides:

Metric version / Inch version

A3 , B4 JIS , A4 , B5 JIS , A5 , 8K , 16K , 11" × 17" , 81/2" × 14" (Legal) , 81/2" × 13" (Foolscap) , 81/2" × 11" (Letter) , 81/4" × 13" (Folio) , 8" × 13" (F/GL) , 51/2" × 81/2" (Half Letter)

Maximum number of sheets

(plain paper)

For other kind of papers, see p.88 "Types of Paper and Other Media".

• The envelope feeder unit requires the installation of the optional paper feed unit.

• Custom paper size is not supported by both sides printing.

• JIS stands for "Japanese Industrial Standard".

Page 90

5. Paper and Other Media

Paper Recommendations

Loading Paper

• Do not use ink-jet printer paper because it may stick to the fusing unit and cause a paper misfeed.

• When printing on OHP transparencies that have a print side, load them with the print side facing up on the bypass tray. Not taking this precaution may cause them to stick to the fusing unit and cause misfeeds.

• Set the paper as described below.

• Tray 1: Print side facing down

• Bypass Tray: Print side facing up

• Paper Feed Unit (Tray 2, Tray 3): Print side facing down

• Print quality cannot be guaranteed if paper other than the ones recommended is used. For more information about recommended paper, contact your sales or service representative.

• Do not use paper that has already been printed onto by other printers.

Storing Paper

• Paper should always be stored properly. Improperly stored paper might result in poor print quality, paper misfeeds, or printer damage. Recommendations are as follows:

• Avoid storing paper in humid areas.

• Avoid exposing paper to direct sunlight.

• Store on a flat surface.

• Keep paper in the package in which the paper came.

Types of Paper and Other Media

Plain Paper

Paper thickness 60 - 105 g/m2 (16 - 28 lb.)

Printer setup Make the following setting using the control panel:

Select [Paper Input] [Paper Type: (tray name)] [No Display (Plain Paper)].

Page 91

Paper Recommendations

Printer driver setup Click [Plain (60 to 105 g/m2)] or [Plain & Recycled] in the "Paper

Type:" list.

Enabled paper feeding tray Any input tray can be used.

Number of sheets that can be set Tray 1: 500

Tray 2, Tray 3 (Paper Feed Unit): 500

Bypass Tray: 100

• Make sure paper is not stacked higher than the upper limit mark ( ) inside the tray. Make sure paper is not stacked higher than the paper guides inside the bypass tray.

Both-sided printing Possible

Additional cautions When printing on 91 - 130 g/m2 paper, print speed is slightly

slower to when printing on paper of 60 - 91 g/m2.

Letterhead

Printer setup Make the following setting using the control panel:

Select [Paper Input] [Paper Type: (tray name)] [Letterhead].

Printer driver setup Click [Letterhead] in the "Paper Type:" list.

Both-sided printing Possible

Thick Paper

Paper thickness 105 - 216 g/m2 (28 - 57 lb.)

• [Thick Paper 1]: 105 - 157 g/m2 (28 - 42 lb.)

• [Thick Paper 2]: 157 - 216 g/m2 (42 - 57 lb.)

Printer setup Make the following setting using the control panel:

Select [Paper Input] [Paper Type: (tray name)] [Thick Paper 1] or [Thick Paper 2].

Printer driver setup Click [Thick 1 (105 to 157 g/m2)] or [Thick 2 (157 to 216 g/

m2)] in the "Paper Type:" list.

Page 92

5. Paper and Other Media

Enabled paper feeding tray Any input tray can be used.

• Make sure paper is not stacked higher than the upper limit mark ( ) inside the tray. Make sure paper is not stacked higher than the paper guides inside the bypass tray.

Both-sided printing Not possible

Additional cautions Print speed is slightly slower than when using plain paper.

OHP transparencies

Printer setup Make the following setting using the control panel:

Select [Paper Input] [Paper Type: Bypass Tray] [OHP (Transparency)].

Printer driver setup Click [Transparency] in the "Paper Type:" list.

Enabled paper feeding tray This paper type can be printed only from the bypass tray.

Number of sheets that can be set Bypass Tray: 1 sheet

Both-sided printing Not possible

Additional cautions • Print speed for OHP transparencies is slower than for plain

paper.

• Depending on the setting made for mode switching, the printer goes into standby mode 30 or 40 seconds after receiving a job.

• We recommend you use a 4000 ANSI lumen or brighter overhead projector to project OHP transparencies.

• When printing on OHP transparencies that have a print side, load them with the print side facing up on the bypass tray.

• When printing multiple pages, remove output sheet as it comes out. Do not leave multiple sheets remaining on the output tray.

Envelopes

Printer setup Make the following setting using the control panel:

Select [Paper Input] [Paper Type: (tray name)] [Envelope].

Page 93

Printer driver setup Click [Envelope] in the "Paper Type:" list.

Enabled paper feeding tray Tray 2 (Envelope Feeder)

Bypass Tray

• Make sure paper is not stacked higher than the upper limit mark ( ) inside the tray. Make sure paper is not stacked higher than the paper guides inside the bypass tray.

Both-sided printing Not possible

Additional cautions • Check the print side is facing up.

• Check there is no air in the envelopes before loading.

• For better print quality, we recommend the right, left, top, and bottom print margins to be at least 20 mm (0.8") each.

• Load only one size and type of envelope at a time.

• Before loading envelopes, flatten their leading edges (the edge going into the printer) by running a pencil or ruler across them.

Paper Recommendations

• Some kinds of envelope might cause misfeeds, wrinkles or print poorly.

• Print quality on envelopes may be uneven if parts of an envelope have differing thicknesses. Print one or two envelopes to check print quality.

• The following can occur when printing on envelopes:

• creased long edges

• smudged backs

• blurred print

If envelopes are printed over with solid black, white streaks might appear where the envelopes overlap. Using the envelope lever can resolve these problems. For more information about the envelope lever, see p.190 "Using the Envelope Lever".

• Load envelopes with the print side down in the envelope feeder.

• Load envelopes with flaps closed to the left side of the tray. When printing with a printer driver, select the [Rotate by 180 Degrees] check box on the "Detailed Settings" tab.

Page 94

BVP114

BVN072

5. Paper and Other Media

• Load envelopes with the print side facing up on the bypass tray.

• Load envelopes with flaps closed to the left side of the tray. When printing with the printer driver, select the [Rotate by 180 Degrees] check box on the "Detailed Settings" tab.

Paper Not Supported by this Printer

Avoid using the following paper as they are not supported by this printer.

• Paper meant for ink-jet printers

• Bent, folded, or creased paper

• Curled or twisted paper

• Torn paper

• Wrinkled paper

• Damp paper

• Paper that is dry enough to emit static electricity

• Paper that has already been printed onto, except a preprinted letterhead paper.

Malfunctions are especially likely when using paper printed on by other than a laser printer (e.g. monochrome and color copiers, ink-jet printers, etc.)

• Special paper, such as thermal paper, aluminum foil, carbon paper and conductive paper

Page 95

• Paper whose weight is heavier or lighter than the limitation

• Paper with windows, holes, perforations, cutouts, or embossing

• Adhesive label paper on which glue or base paper is exposed

• Paper with clips or staples

• Envelopes in the following conditions:

• damp

• excessively curled or twisted

• stuck together

• damaged in any way

• with stamps attached

• with windows, holes, perforations, cutouts or embossing

• with metal clasps, string ties or metal folding bars

• designed to be interlocked

• with nicked edges or bent corners

• with rough, wrinkled or laid finishes

Paper Recommendations

• with any exposed adhesive, when the flap is in the sealed or closed position

• When paper with holes such as punch holes is used, paper jam may occur, or the paper size may not be detected correctly.

Print Area

The following shows the print area for this printer. Be sure to set the print margins correctly by the application.

Page 96

BFL350S

BFL351S

5. Paper and Other Media

Paper

1. Print area

2. Feed direction

3. Approx. 4.2 mm (0.18 inches)

4. Approx. 4.2 mm (0.18 inches)

• The print area may vary depending on the paper size, printer language and printer driver settings.

Envelope

1. Print area

2. Feed direction

3. Approx. 10 mm (0.39 inches)

4. Approx. 15 mm (0.59 inches)

Page 97

Paper Recommendations

• The print area may vary depending on the paper size, printer language and printer driver settings.

Page 98

BVN076

5. Paper and Other Media

Loading Paper

This describes how to load paper into the paper tray and Bypass Tray.

• Do not pull out the paper tray forcefully. If you do, the tray might fall and cause an injury.

Loading Paper in Tray 1 and the Optional Paper Feed Unit

The following example explains loading procedure for the standard paper tray (Tray 1). The same procedure can be used for the optional paper feed unit.

• Make sure paper is not stacked above the limit mark inside the tray. Misfeeds might occur.

• Do not put different types of paper in a single paper tray.

• Up to 500 sheets of paper can be loaded in the paper feed unit. This means a maximum of 1,500 sheets can be simultaneously loaded when two additional paper feed units are installed.

• Confirm that paper fits under the rear guide.

• Do not slide the paper tray in with force. If you do, the front and side guides might move.

1. Lift the paper tray slightly, and then pull it out until it stops.

Page 99

BVN218

BVN219

BVN220

Loading Paper

2. Lift the front side of the tray, and then pull it out of the printer.

3. Pinch the green clips on the side guide and the end guide, and then adjust the guides to the

paper size being loaded.

4. Slide the two green switches into one of the two positions according to the thickness of the

paper you are loading. If the paper is 157 g/m2 (42 lb.) or thicker, slide both switches into the rear (thick) position. If the paper is lighter than 157 g/m2 (42 lb.), slide both switches into the forward (thin) position.

Make sure that the positions of both switches are the same.

Page 100

BVN209

BVN221

BVN081

5. Paper and Other Media

5. Fan the paper before loading paper in the paper tray.

6. Load paper into the tray with the print side down.

7. Adjust the paper guides to close any gaps.

Do not move paper loaded in the tray more than a few millimeters.
