NEW MÉGANE HATCH
THE NEW MÉGANE HATCH
THE UNIQUE SENSATION OF A DESIGN THAT TURNS HEADS AND QUICKENS
PULSES, WITH LINES THAT PROMISE PLEASURE AND PEACE IN ONE.
CONTROL AND PRECISION;
WHERE PRACTICALITY IS PERFECTLY FUSED WITH PASSION.
DESIGN THAT SPEAKS FOR ITSELF
LOVE AT FIRST SIGHT.
With its eye-catching design, the new Mégane Hatch delivers a real
promise of both dynamism and reliability. Swooping, steeply raked
headlights, fluid and forceful lines, harmonious proportions... The precision
of its lines takes your breath away, as does the outstanding quality of its
finish. With the new Mégane Hatch the mix of seduction and sportiness
is clear to see.
POWER WITH HARMONY
BETWEEN PRECISION AND RESPONSIVENESS,
A DRIVE THAT’S UNFORGETTABLE.
This is where control and driving pleasure combine.
Its extraordinary roadholding is evident as soon as you take the first corner. The precise steering and the stability provided by a state-of-the-art lower,
wider chassis mean ultimate responsiveness, in a nutshell; you’re in complete control.
Certainly one of Renault's headline acts is the latest evolution of the renowned 1.9 dCi turbodiesel engine. In this most recent update it boasts a revised
variable-geometry turbocharger that delivers faster response and power delivery. The result is a powerful yet quiet engine that is respectful of the
environment earning the eco
The all new 1.4 TCe (Turbo Control efficiency) – an advanced petrol engine that illustrates Renault's experience in downsized engines. Despite boasting
the power of a comparable 1.8 litre engine and the torque of a 2.0 litre, its CO
you choose: petrol, TCe or dCi. Unrivalled road holding, dynamic performance, instant gratification… who could resist such a potent combination?
2
symbol in recognition of its low emissions.
2
emissions are less than those of a 1.6 litre model. Whichever engine
Features mentioned may vary and be optional according to model.
RENAULT SAFETY
PROTECTION REACHES NEW LEVELS.
Renault has always committed itself to making excellence in safety a prime concern. The first car ever in its class to achieve 5 stars at the Euro NCAP
safety trials: The new Mégane Hatch demonstrates how we’ve now taken steps towards even higher levels of driving security. Control under difficult
conditions has been improved with ESP (Electronic Stability Programme), combined with CSV Understeer Control for maximum efficiency, particularly
on slippery surfaces.
Thanks to a new system of high-performance braking, stopping distances for the new Mégane Hatch rank among the shortest on the market. There’s
a heavily reinforced body structure and cutting edge dual-chamber airbags – where deployment is both faster and better adjusted, thanks to new
crash sensors. Because Renault always goes the extra mile when it comes to your safety.
The new Mégane Hatch dCi carries the eco2 symbol. The new Mégane engines combine performance, economy and,
respect for the environment. Everything possible has been done to ensure that its impact on the environment is as limited
as possible, from its creation right through to end-of-life. The new Mégane Hatch is built in an ISO 14001 certified factory.
95% of the car is recyclable at the end of the vehicle’s useful life, while 11% of the plastic used in its production is recycled.
INTUITIVE TECHNOLOGY
INNOVATION AT YOUR FINGERTIPS.
The new Mégane Hatch offers supreme levels of comfort and
ergonomics. For even more enjoyable travel, each of the versions
presents an extensive range of high-end technologies that are both
practical and simple to use.
This equipment includes, depending on the version, a Renault card,
dual-zone climate control, superior sound systems, and a built-in
satellite navigation system. Typical of the interior design of the new
Mégane Hatch, the instruments combine analogue (tachometer) and
digital (speedometer) display, making them easy to read at a glance.
Features mentioned may vary and be optional according to model.
INTERIOR AND EXTERIOR TRIM
DYNAMIQUE. LOADED WITH EQUIPMENT
Sporty and high-tech.
The Dynamique trim provides a charcoal interior, with dashboard and upholstery in dark carbon or optional carbon leather. The leather steering wheel
and 16" aluminium rims enhance the sporty character of the Mégane Dynamique.
1
1. INTERIOR
Dark Carbon interior with anti-whiplash front
headrests which allow the height and tilt to be
adjusted to reduce the risk of whiplash.
2. ALLOY RIMS
16" Alloy Sport rims.
34
3. FOG LIGHTS
Improve visibility in foggy or
rainy conditions.
FRONT DOOR MIRRORS
4.
Electric adjustable and electrically folding.
5. CARMINAT TOMTOM
Navigation system programmed with South African maps. 2D
colour navigation with 7" screen and central console control.
TomTom Home application allows for the management and
access to online services, map downloads, points of interest,
online commands, access to the Mapshare community, etc.
Fitted as standard on the TCe 130 and 1.9dCi Dynamique.
BLUETOOTH® DVD
Managed from the central multimedia control panel, the 2D
5
67
8910
navigation features a seven-inch colour display.
8. RENAULT CARD
For keyless starting by remote control and locking/ unlocking
of the doors and boot. To fire up the engine insert the card and
press the 'Start/Stop' button.
9. CRUISE CONTROL / SPEED LIMITER
Allows you to set a cruising speed or a maximum speed.
10. AUTOMATIC LIGHT AND RAIN SENSORS
The front windscreen wipers are activated and adjust their
wiping speed depending on how heavily it is raining. A light
sensor automatically activates the headlights at dusk or when
you enter a parking garage or tunnel.
6. RADIO CD MP3
Connect your digital MP3 player using
the USB and iPod ports and control the
system using the commands on the
steering wheel. This radio is also
compatible with the Bluetooth
7. INSTRUMENT PANEL
Designed with three reading levels it
allows you to read information faster
and more accurately. There is a rev
counter with analogue display,
speedometer with digital display and
colour-coded cruise control symbols.
®
system.
COLOURS
Glacier White (369) Pearl Black (676)Oyster Grey (RNG)Mercury (D69) Ruby Red (NNJ)Stone (HNK)
Note: Printing limitations do not permit the subtle paint shades to be shown with complete accuracy.
TECHNICAL SPECIFICATIONS
1.6 16V DYNAMIQUE 1.4 TCe 130 DYNAMIQUE 1.9 dCi DYNAMIQUE
ENGINE 1.6 16V 1.4 Turbo 1.9dCi
Fuel injection type Multipoint sequential Multipoint sequential with Turbo Direct commonrail with turbo
Number of cylinders / valves 4 in-line / 16 4 in-line / 16 4 in-line / 8
Displacement (cc) 1598 1397 1870
Power (kW @ rpm)
Torque (NM @ rpm) 151 at 4 250 190 at 2 250 300 at 1 750
Fuel requirement Unleaded Petrol Unleaded Petrol Diesel
TRANSMISSION
Number of forward gears
STEERING
Power assisted - electric Standard Standard Standard
PERFORMANCE
Acceleration: 0 - 100 km/h (secs) 10.5 9.6 9.5
Maximum speed (km/h) 195 200 210
AERODYNAMICS
Drag coefficient/Area (Cd/A) 2.21/0.33 2.21/0.33 2.21/0.33
SUSPENSION
Front: Pseudo Mac-Phearson Pseudo Mac-Phearson Pseudo Mac-Phearson
Rear: Flexible beam Flexible beam Flexible beam
FUEL CONSUMPTION
Litres /100 km (Urban cycle) 9.3 8.8 6.2
Litres /100 km ( Extra-urban cycle) 5.6 5.3 4.5
Litres /100 km (Combined cycle) 6.9 6.6 5.1
CO2 emissions (g/km) 163 153 135
eco2 No No Yes
Fuel tank capacity (litres) 60 60 60
SEATING
No. of seats 5 5 5
WEIGHT & VOLUMES
Maximum load volume (litres) 1162 1162 1162
Minimum load volume (litres) 372 372 372
Gross train weight (kg) 3034 3113 3113
Gross vehicle weight (kg) 1734 1813 1813
Kerb weight excluding driver (kg) 1215 1310 1310
Maximum payload including driver (kg) 425 425 425
Maximum towing weight unbraked - driver only (kg) 645 690 690
BRAKES
Bosch 8.0 system Anti-lock Brakes Standard Standard Standard
EBD (Electronic Brake-Force Distribution) Standard Standard Standard
Emergency Brake Assist (EBA) Standard Standard Standard
Front: Ventilated discs Ventilated discs Ventilated discs
Rear: Solid discs Solid discs Solid discs
WHEELS & TYRES
Wheels size 6.5 J16 6.5 J16 6.5 J16
Wheels type Alloy Alloy Alloy
Tyres 205/55/ R16 205/55/ R16 205/55/ R16
Spare wheel 16" steel 16" steel 16" steel
WARRANTY / SERVICE / MAINTENANCE
3 Year / 100 000 km mechanical warranty Standard Standard Standard
6 Year anti-corrosion warranty Standard Standard Standard
5 Year / 100 000 km service plan Standard Standard Standard
83 at 6 000 96 at 5 500 96 at 3 750
6-speed manual 6-speed manual 6-speed manual
STANDARD TRIM LEVEL FEATURES
DYNAMIQUE 1.6 16V TCe 130 1.9 dCi
DRIVING & SAFETY
Cruise control with speed limiter • • •
Emergency spare wheel • • •
Front fog lamps • • •
Renault card • • •
Driver & passenger airbag •••
Side airbags •••
Curtain airbags (front & rear) •••
ABS + EBA (Emergency Brake Assist) •••
EBD (Emergency Brakeforce Distribution) •••
R.A.I.D (Renault Anti Intrusion Device) •••
Auto locking doors (motion) •••
Isofix mountings •••
ESP with ASR (Anti -Skid Regulation)
COMFORT & CONVENIENCE
Automatic lights and wipers • • •
Electric front windows (driver's one touch) • • •
Smoker pack • • •
IN-CAR ENTERTAINMENT
4x15W RDS radio with single CD MP3 with Bluetooth
& multifunctional TunePoint • • •
Arkamys 3D Sound 4x 30W RDS Radio CD MP3
with Bluetooth and USB connection
Standard • Not Available _ Optional
°
°°°
°°°
Renault South Africa reserves the right to modify its models without notice, likewise their characteristics, equipment and accessories.
DYNAMIQUE 1.6 16V TCe 130 1.9 dCi
COMMUNICATION & NAVIGATION
Carminat TomTom
EXTERIOR EQUIPMENT
°
16" alloy wheels • • •
17" alloy wheels
Electrically operated heated folding door mirrors • • •
°°°
Non-metallic paint • • •
Metallic paint
Sunroof-electric panoramic with sunblind & autoclosure
Tinted windows • • •
°°°
°°°
HEATING & VENTILATION
Dual zone climate control • • •
INSTRUMENTS & CONTROLS
Leather steering wheel • • •
SEATING & TRIM
60:40 split folding rear seats • • •
60:40 split folding rear seats with armrest (with leather)
Dark charcoal upholstery • • •
°°°
Height adjustable headrests • • •
Height adjustable passenger seat • • •
Leather upholstery - "Riviéra" dark grey
SECURITY EQUIPMENT
°°°
Deadlocking • • •
••
DIMENSIONS (mm)
DIMENSIONS
A Wheelbase 2,640
B Overall length 4,295
C Front overhang 862
D Rear overhang 792
E Front track 1,546
F Rear track 1,547
G Overall width without exterior mirrors / with exterior mirrors 1,808 / 2,037
H Overall height 1,471
H1 Unladen height with hatch open 1,989
J Unladen sill height 749
K Ground clearance 120
L Cabin length 1,702
M Front elbow room 1,476
M1 Rear elbow room 1,417
N Front shoulder room 1,420
N1 Rear shoulder room 1,363
P Front headroom measured at 14° 890
Q Rear headroom measured at 14° 884
Q1 Rear headroom (perpendicular to centre-line of rear wheels) 876
Y Upper boot aperture width / maxi 940 / 1067
Y1 Lower boot aperture width 1,010
Y2 Inside width between wheel arches 1,152
Z Height of rear opening 575
Z1 Maximum loading length 1,550
Z2 Height up to the parcel shelf 510
Z3 Load length behind rear bench seat 862
BOOT VOLUME (dm3 standard ISO)
minimum / + stowage under boot-floor 372 / +33
maximum up to first-row seats and up to roof 1,129

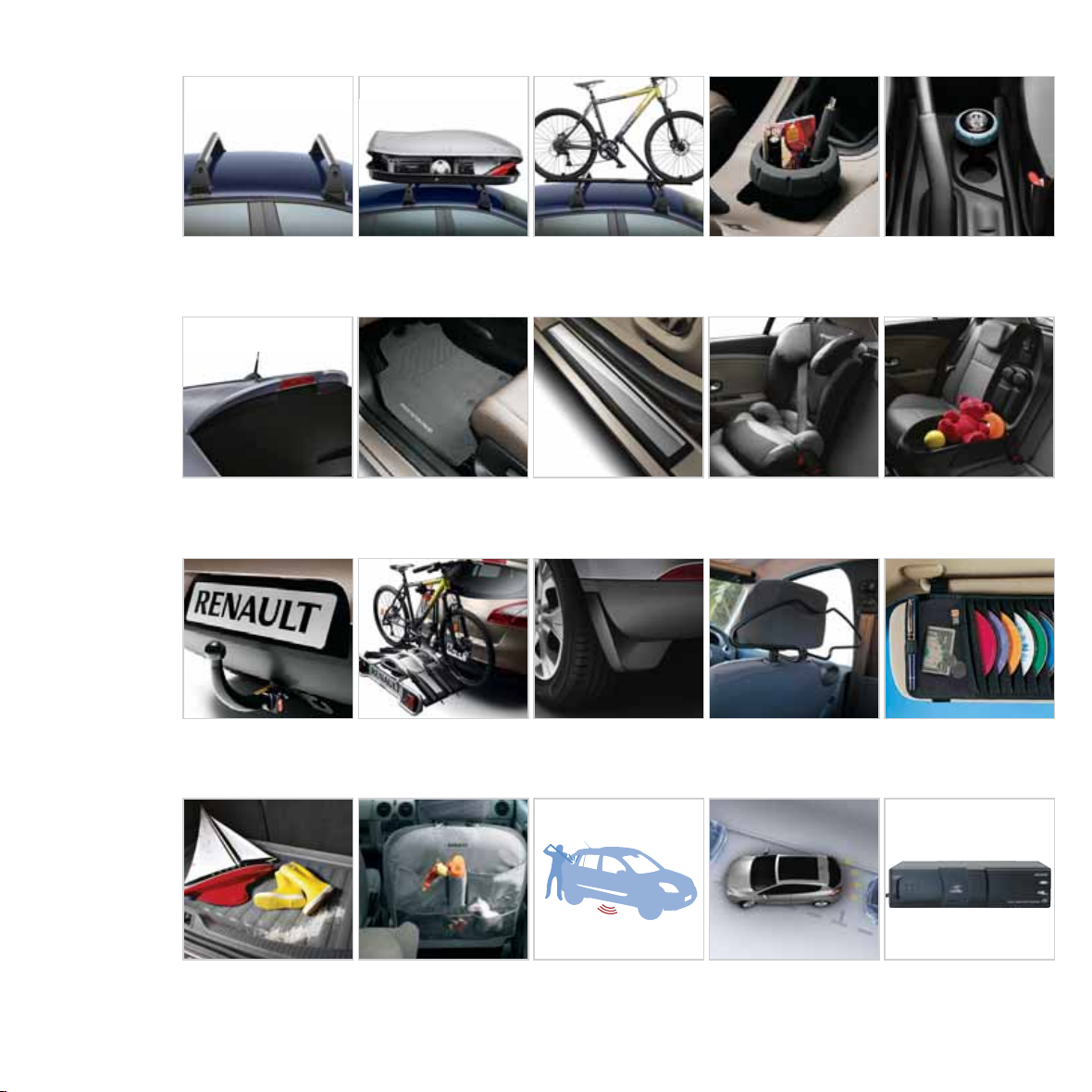

OPTIONAL ACCESSORIES
A RANGE OF CUSTOMISATION
ACCESSORIES FOR NEW RENAULT MÉGANE
The new Mégane Hatch comes with a wide range of optional customisation accessories designed to
bring out the best in looks, enhance travelling comfort, connectivity and security-related equipment.
You can make your Mégane even more outstanding with a wide range of customised accessories to
enhance its dynamic design.
The choice is yours: starting with grille trims, as well as a front spoiler, mud flaps and lastly the rear
diffuser with twin exhaust outlets. To emphasise the stunning appearance of your Mégane, you can
also opt for the rear spoiler and 'Avanza' alloy wheels.
Exterior body trim decals
MÉGANE
ACCESSORIES
Chrome exhaust outlet
Grille trims
Exhaust outlet Sport rear spoiler
EXTERIOR STYLING
Sport kits have been developed to allow owners to personalise the exterior of their
car and further enhance new Mégane's inherently dynamic looks. The new Mégane
Hatch can be equipped with:
• grille trims which give a new Mégane Coupé feel to the front-end styling
• a rear diffuser incorporating twin exhaust tailpipes
• a rear lip spoiler
• a front spoiler
• extended sills.
Extra-tinted glass and a selection of 17" light alloy wheels are also available to
round off new Mégane’s great exterior looks.
Sport body kit
Alloy wheels Carpet mats Mud flaps Organiser box
Actual accessories may vary from photographs shown and are subject to change without notice.
NEW MÉGANE OPTIONAL ACCESSORIES
ALUMINIUM TOURING LINE ROOF BARS
Silvery grey roof bars with plane-wing
aluminium section. Weight limit: 80kg.
SPORT REAR SPOILER
Aerodynamic rear spoiler.
Fitted on a base.
SWAN NECK TOW BAR
Tow safely with a Renault towbar!
With its elegant design, the ball can be
removed using tools to preserve the
aesthetics of your Mégane.
TOURING LINE 380 ROOF BOX
Neat & aerodynamic. Opens both sides
and can be locked in the open position
for easy loading. 380l capacity. Maximum
weight limit: 75kg.
CARPET MATS
Made-to-measure floor mats in various
styles and finishes, plain and Mégane
branded.
BICYCLE CARRIER ON TOWBAR
Carry up to 3 bikes. Can be tilted to allow
access to the boot. Compatible with all
bikes with a frame diameter between 22
and 70mm.
IMPULSION 55 BICYCLE CARRIER
Anti-theft system on bike fastener.
Can carry all types of bikes up to 55mm.
FRONT DOOR SILLS
Aluminium appearance. Set of 2. Protects
the door sill plate.
MUDFLAPS
Protect the bottom of the car body from
mud splashes or chipping. Black PVC.
ORGANISER BOX
A handy organiser box that fits in the
space intended for the cup holder (portable
ashtray). Ideal for small items like cell
phone, MP3, etc.
KID PLUS CHILD SEAT
For children from 4 to 10 years.
.
Weight 6.8kg
COAT HANGER ON HEAD RESTRAINT
Allows clothes to be hung on the back of
the seat without creasing.
LIGHT BOX
Light Box placed in the cup holder
(portable ashtray) within easy reach of
the front seats. Contains a portable torch.
REAR CENTRAL STORAGE
Both handy and ingenious it can be used
for storage or as an armrest and can be
carried like a bag. Portable, attached to
the centre of the rear seat.
CD STORAGE SUNVISOR POUCH
Attached to the sunvisor, it can hold up to
12 CDs and other odds and ends.
SIMPLE LOAD LINER
This convenient boot box is made of semirigid material and allows you to carry all
kinds of items. It’s waterproof, so you can
take it out to hose it off, and it fits perfectly
into the boot of your Mégane.
SEAT BACK PROTECTIVE COVER
Protective apron protecting the rear of the
seat. Fitted with several pockets permitting
all types of storage.
COMPACT ALARM
Keep your Mégane safe and secure.
Audible remote alarm system warns
against attempted intrusions.
Actual accessories may vary from photographs shown and are subject to change without notice.
PARK DISTANCE CONTROL SENSORS
Detects obstacles which could be
impacted by the vehicle whilst reversing.
MP3 CD SHUTTLE
MP3 CD Shuttle that is compatible with
all "Expert" and "Non-expert" radios.
RENAULT CONFIANCE
PEACE OF MIND NOW COMES STANDARD
AN ALL-ENCOMPASSING CARE PACKAGE SPECIFICALLY DESIGNED
TO ENSURE CONTINUED PEACE OF MIND MOTORING.
3 year/100 000km
warranty
Roadside security
Fixed price menu
5 year/100 000km
Competitive pricing &
availability of spare parts
Call 0861 RENAULT or 0861 736 2858
or visit us on www.renault.co.za for more information.
*Model dependent
Terms and conditions apply. Visit www.renault.co.za for more information.
service plan*
24 Hour roadside
assistance plan
Courtesy car
Prompt and efficient
customer care
0909/5238
•
NEW MÉGANE HATCH
www.renault.co.za
011 454 6160
•
CUBE DESIGN
Renault Customer Care Direct Line: 0861 RENAULT or 0861 736 2858
Renault South Africa (Pty) Ltd. reserves the right to modify its models without notice, likewise their characteristics, equipment and accessories.
recommends
Printed September 2009
Loading...
