REMKO VRS User Manual

REMKO VRS

Universal Heaters

Operation · Technology · Spare Parts

Edition GB – T09

3

Contents

Safety information

Unit description

Safety devices

Installation instructions

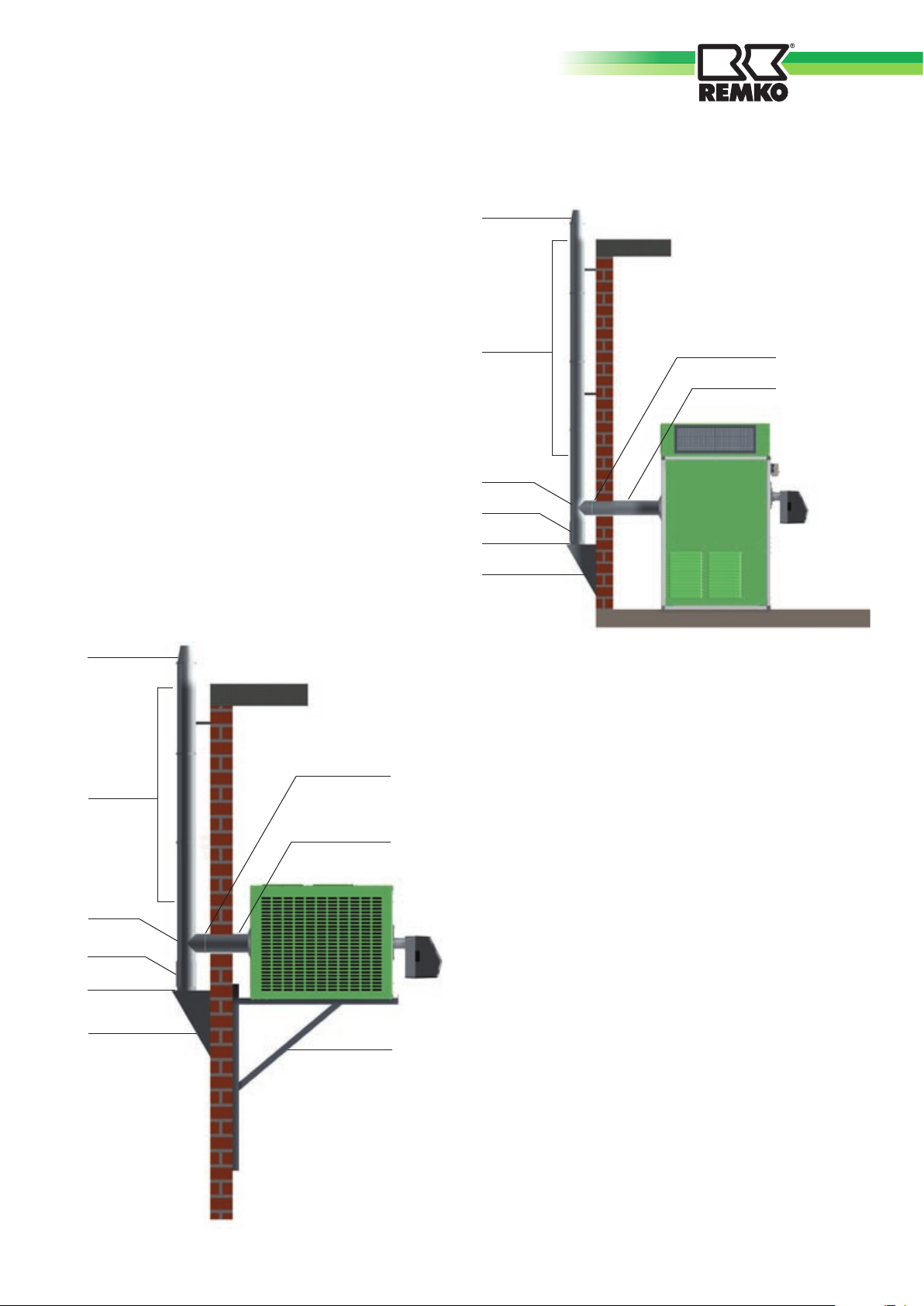

Chimney duct

Installation and assembly

Commissioning

Switching off

Care and maintenance

Troubleshooting

Maintenance log

Intended use

Customer service and warranty

4

4

6

7

10

12

14

15

16

18

20

21

21

Environmental protection and recycling

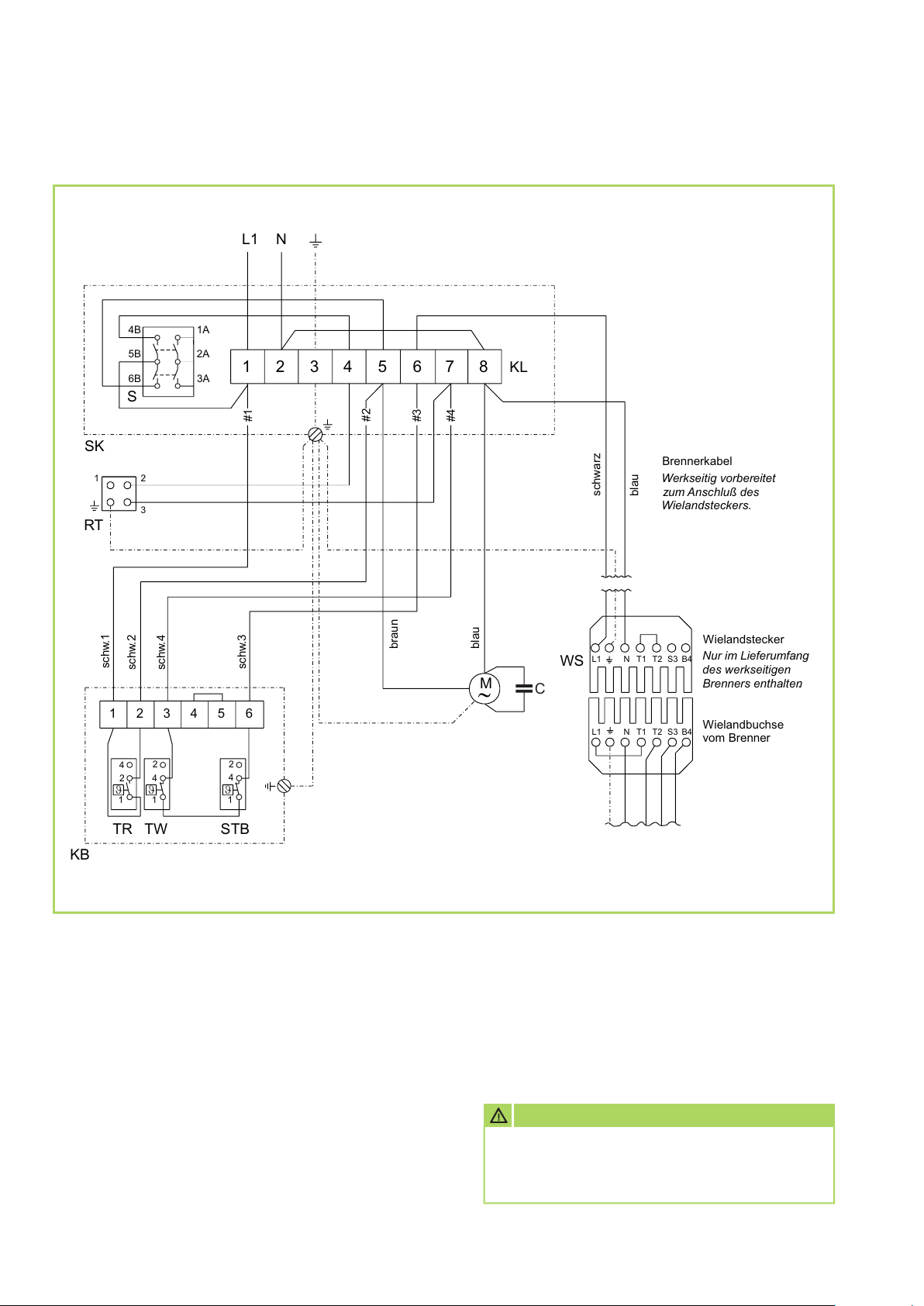

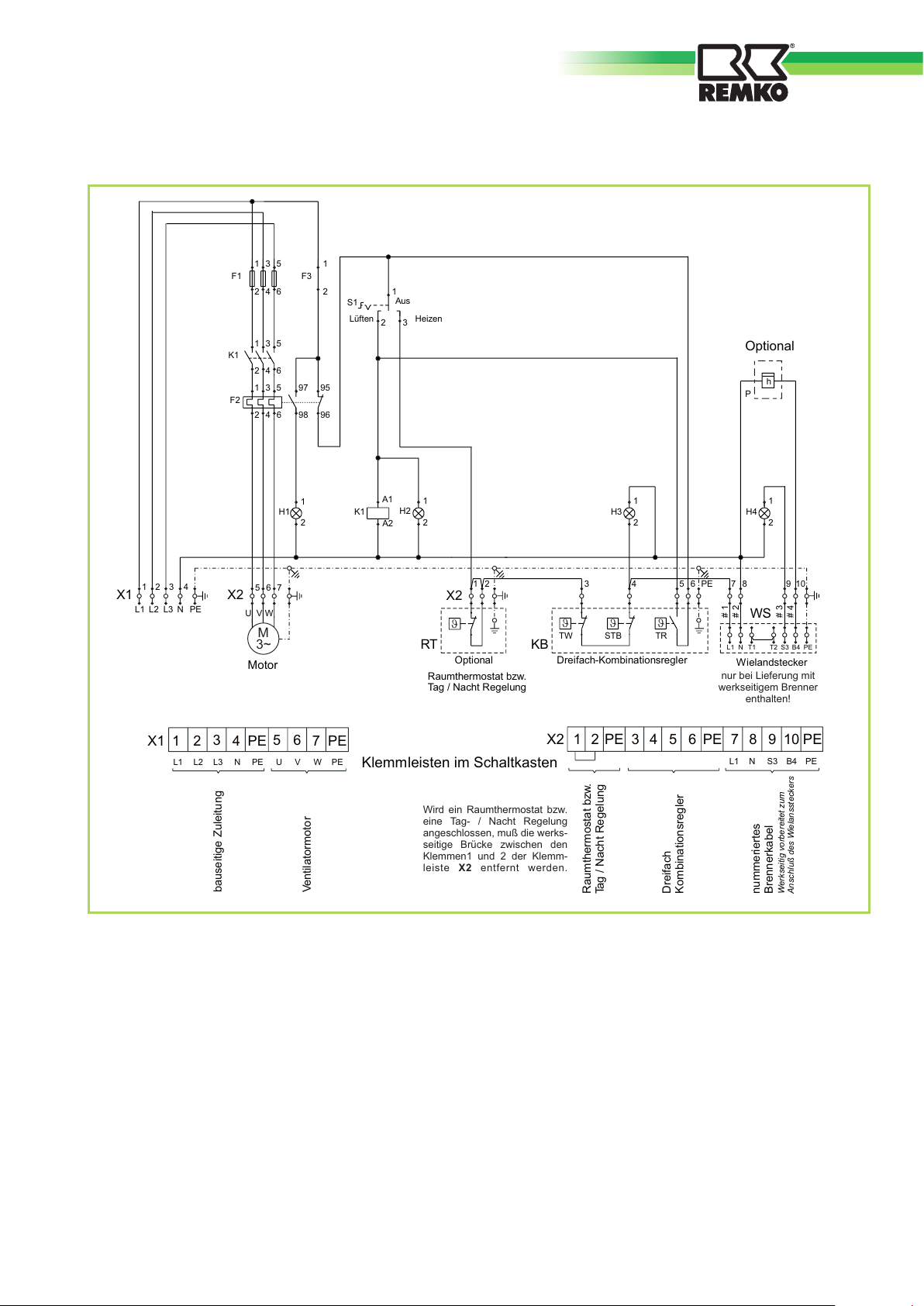

Wiring diagram 230V

Wiring diagram 400V direct starting

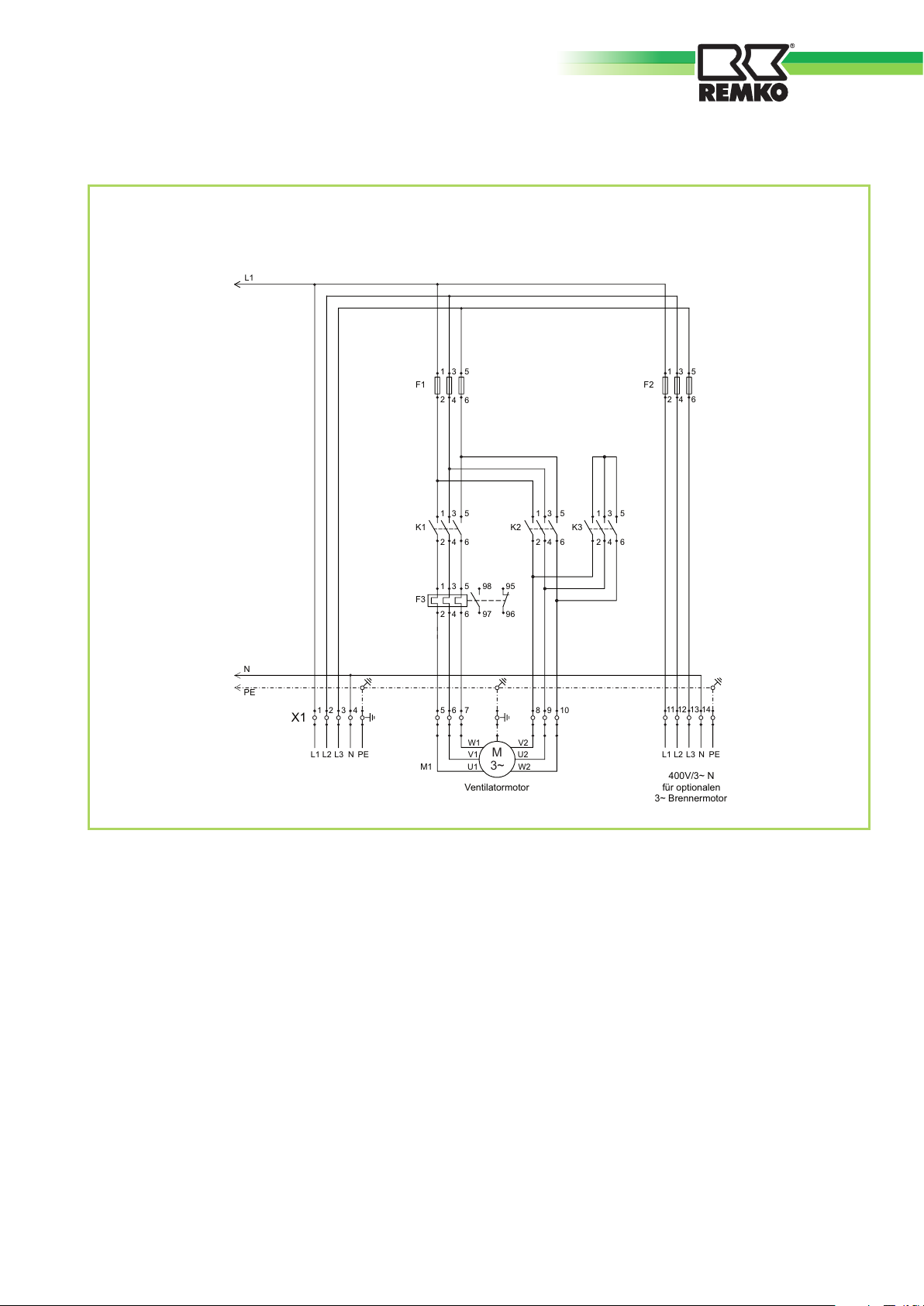

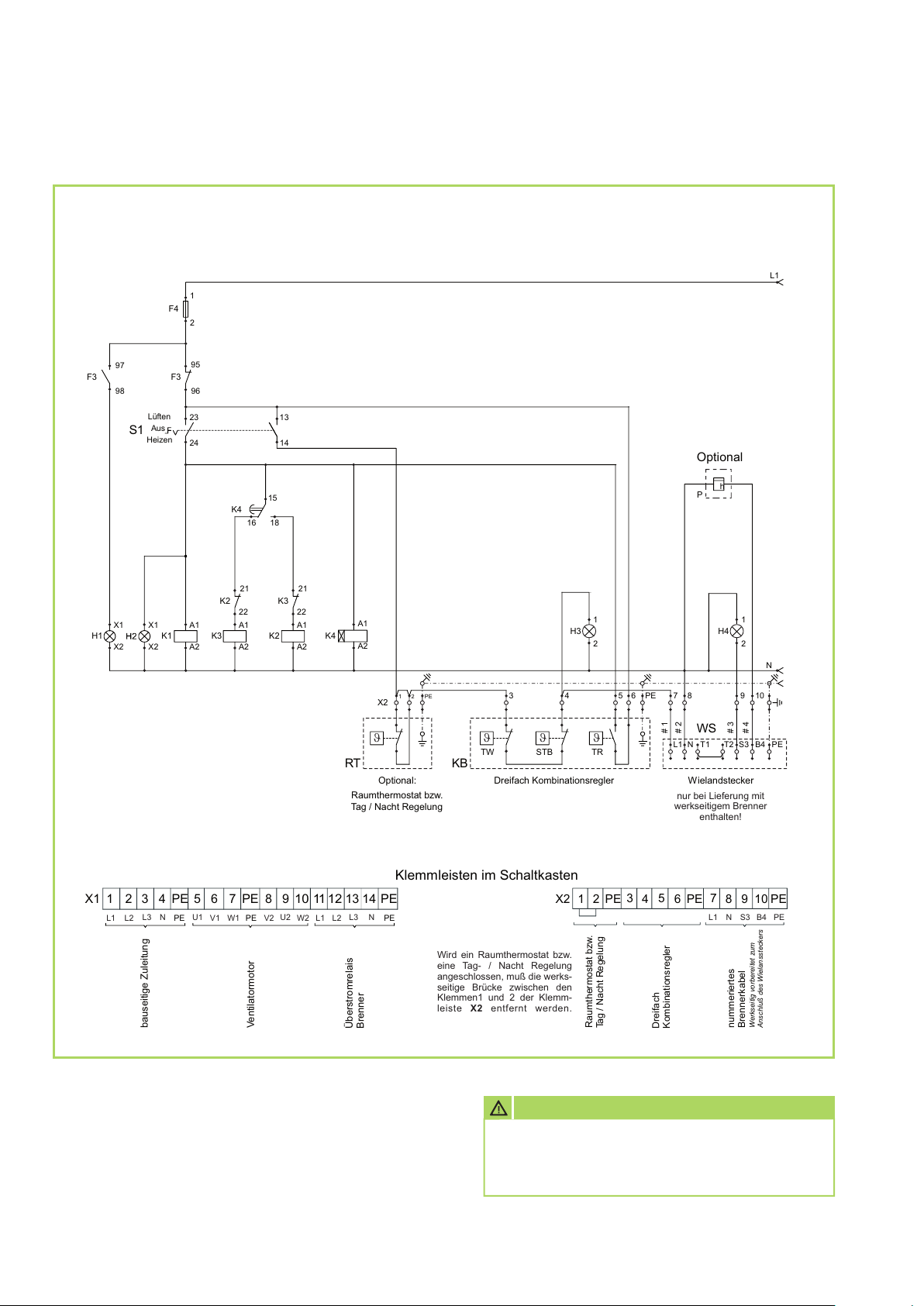

Wiring diagram 400V Y/Δ starting

Wiring diagram 400 V fan motor

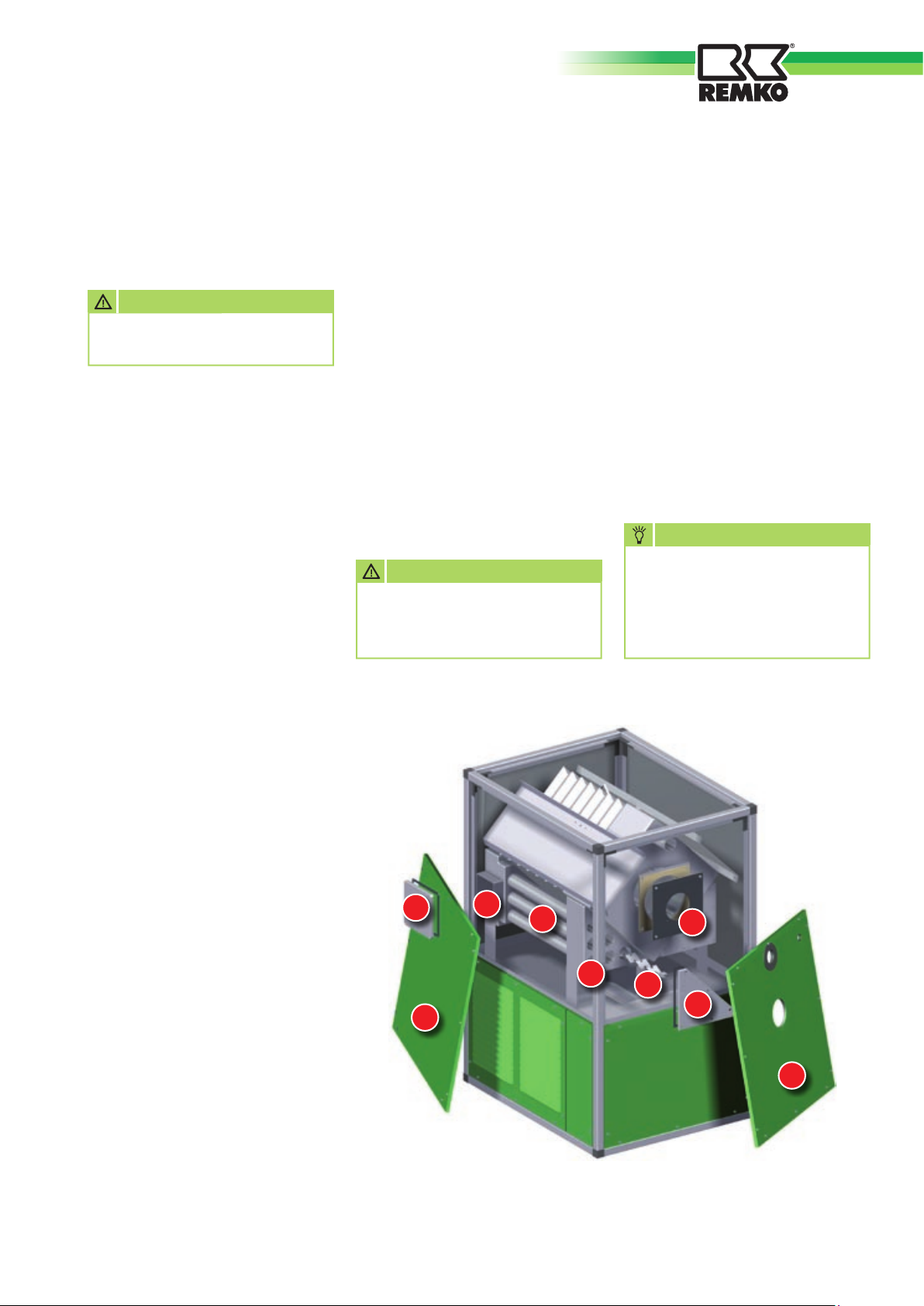

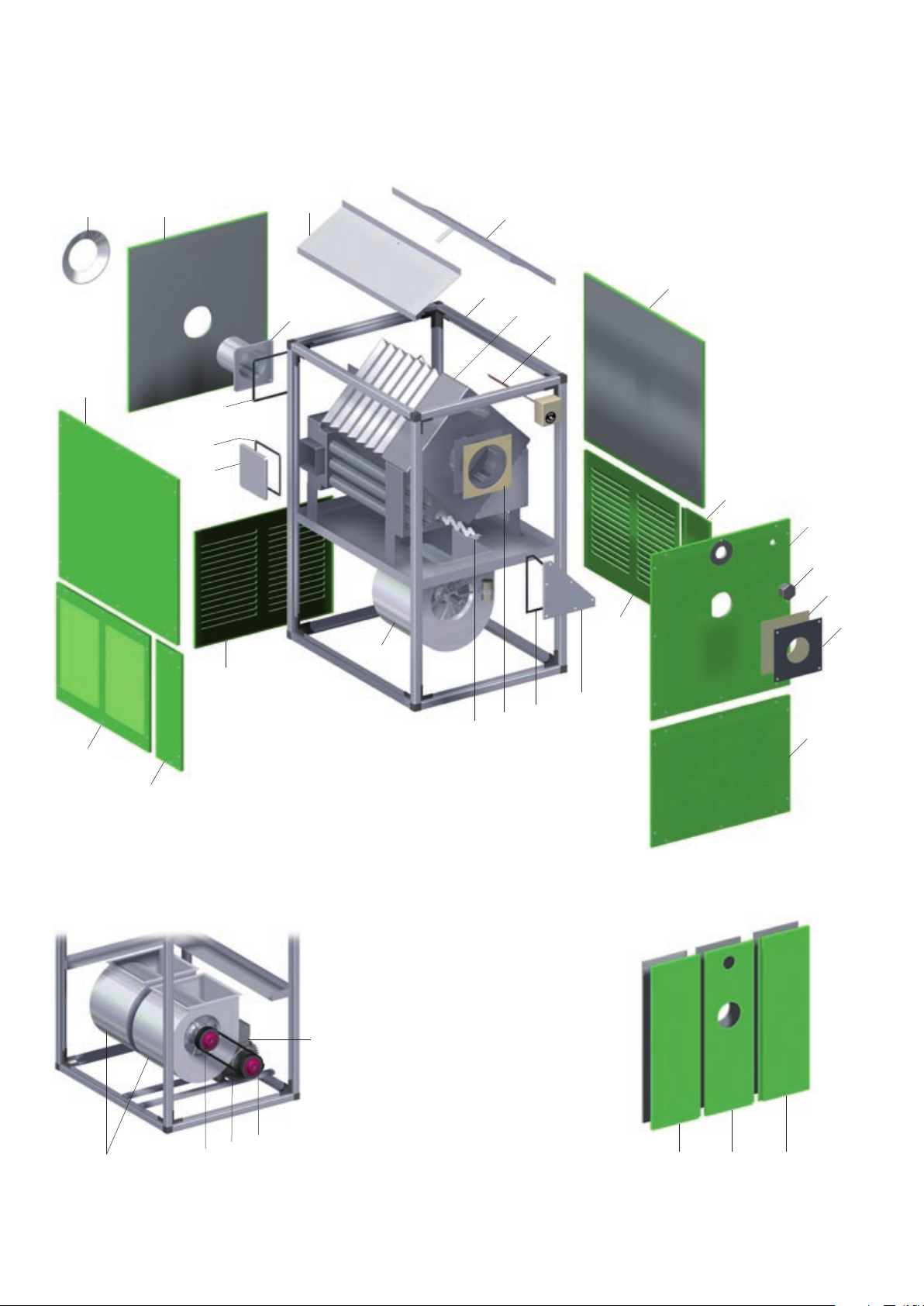

Exploded drawing

Spare parts list

Appliance specifications

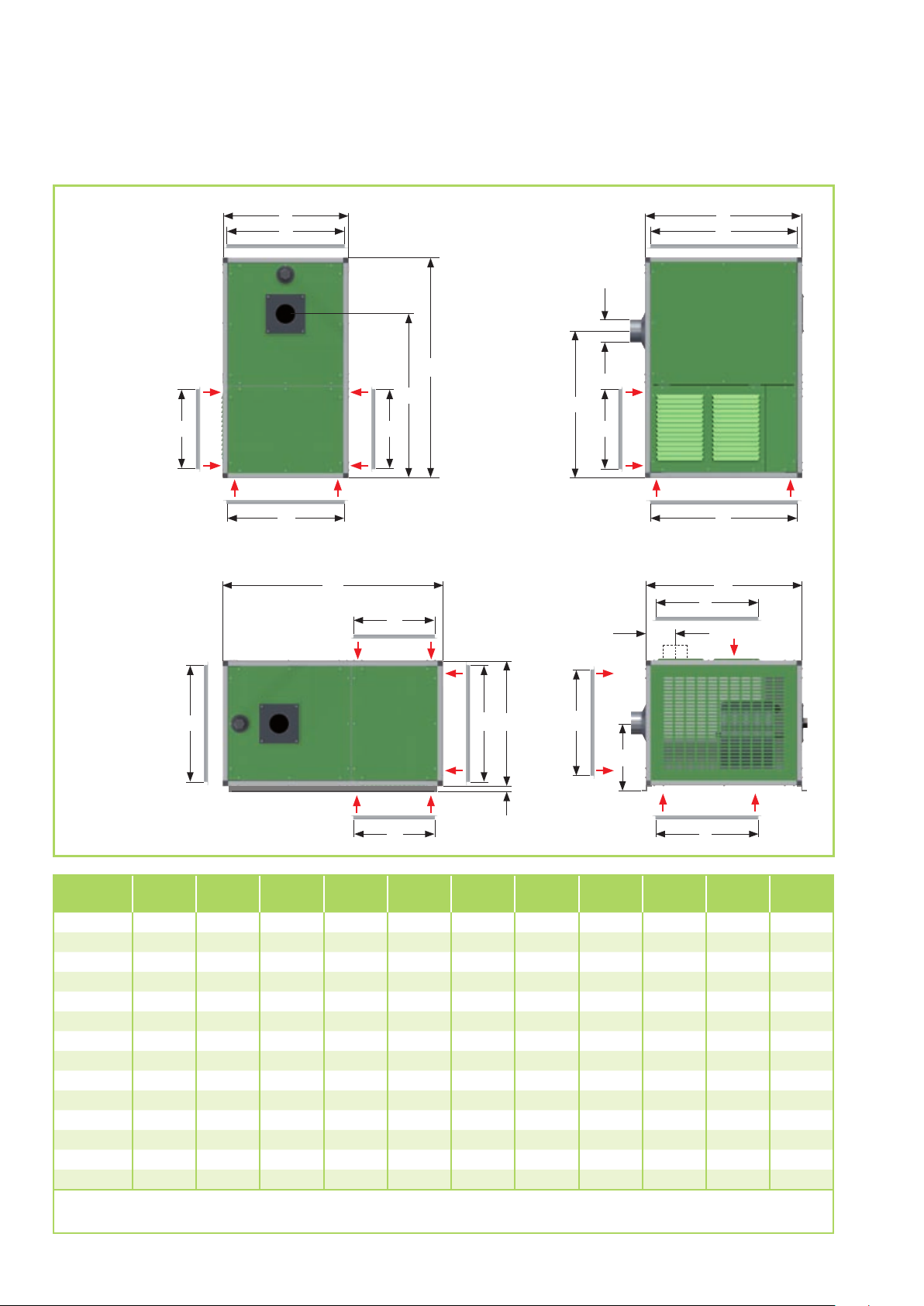

Unit dimensions

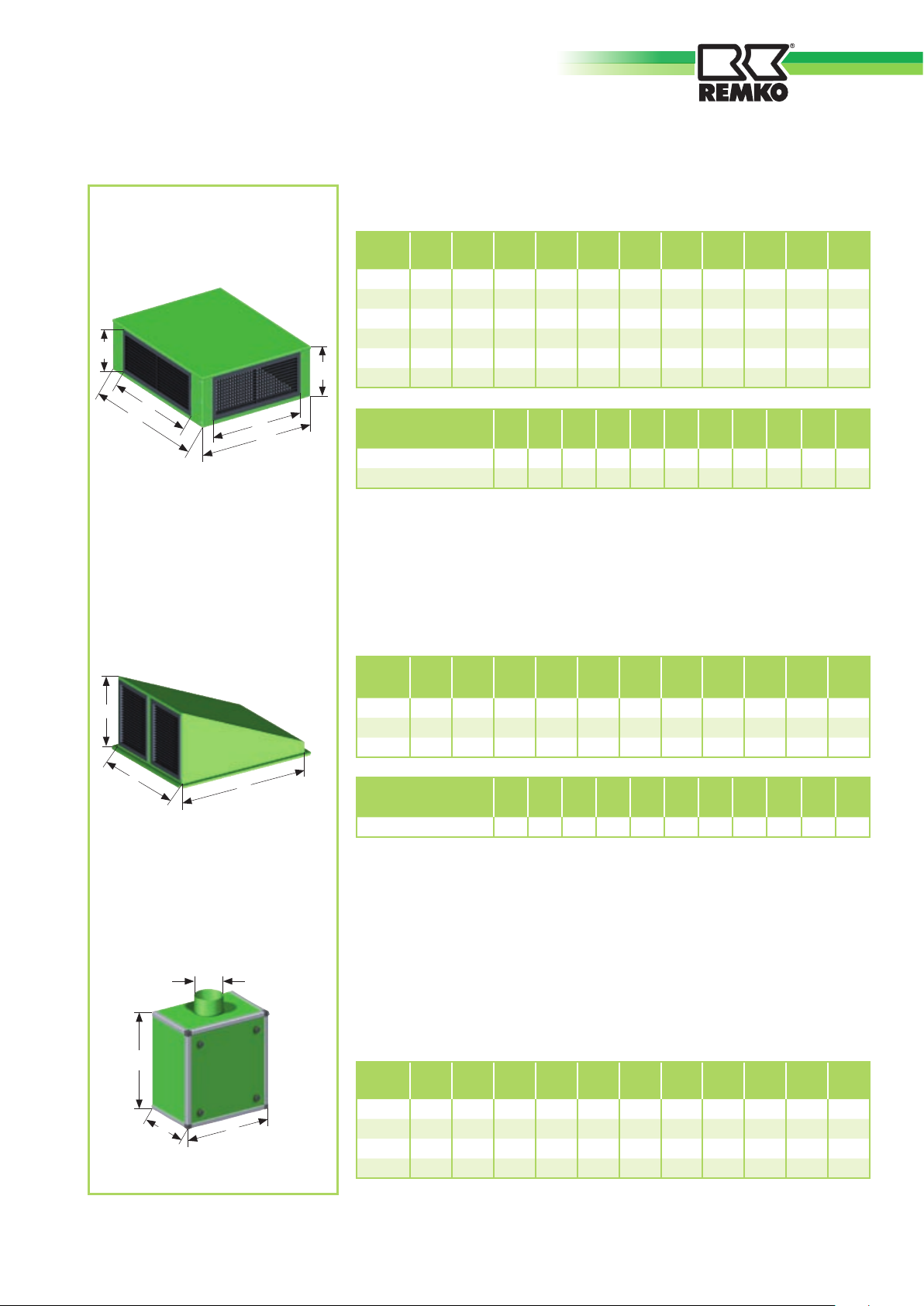

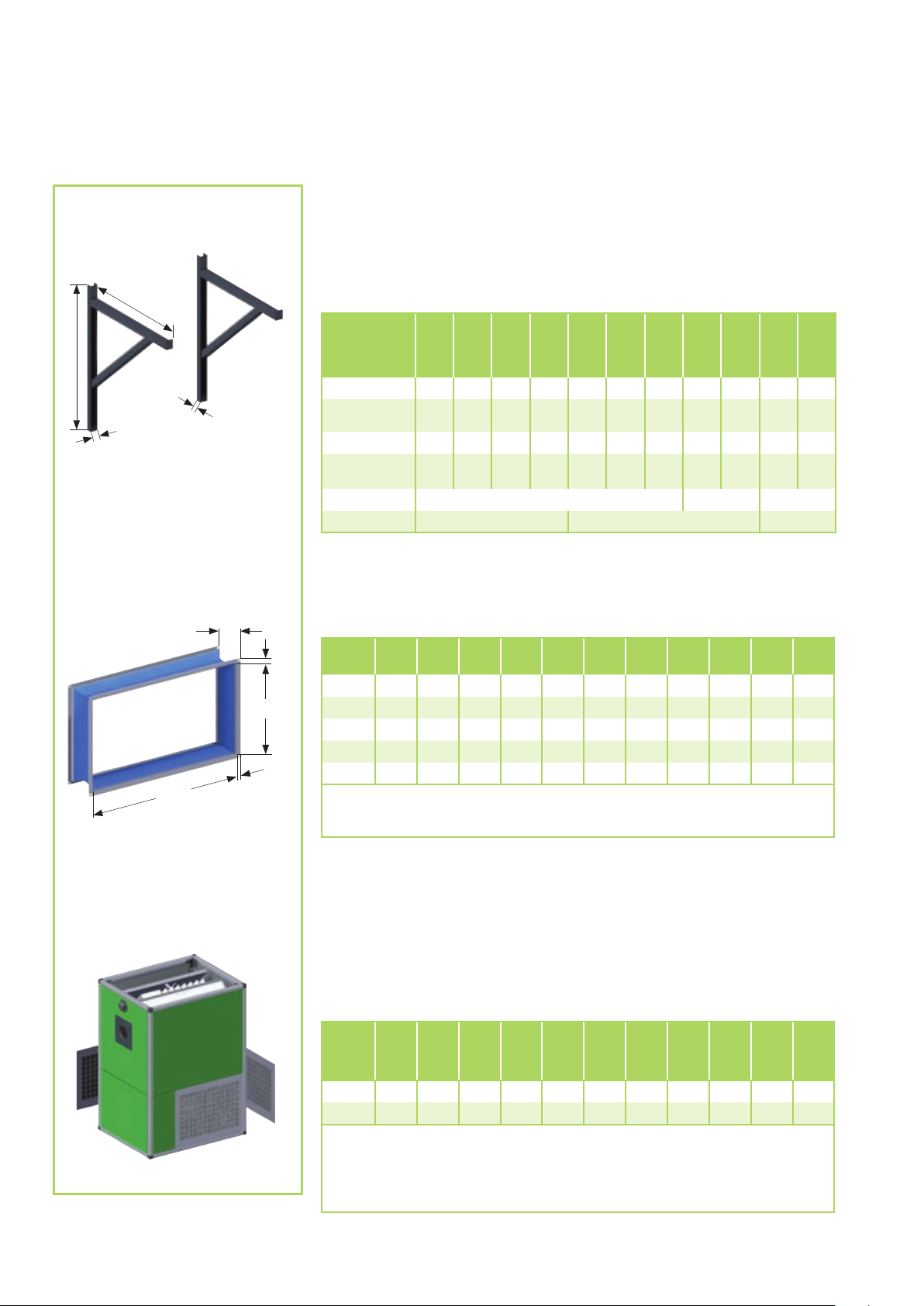

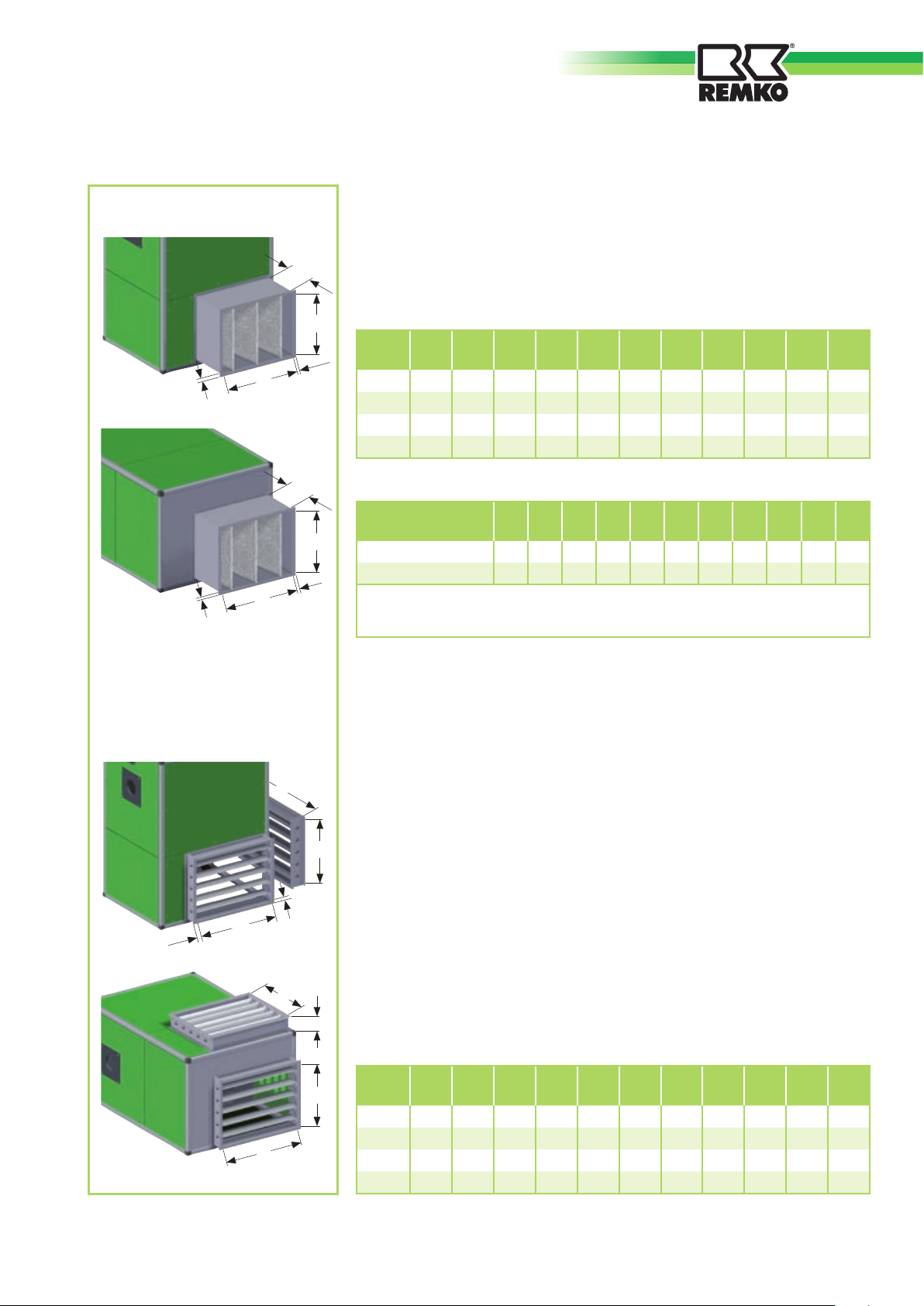

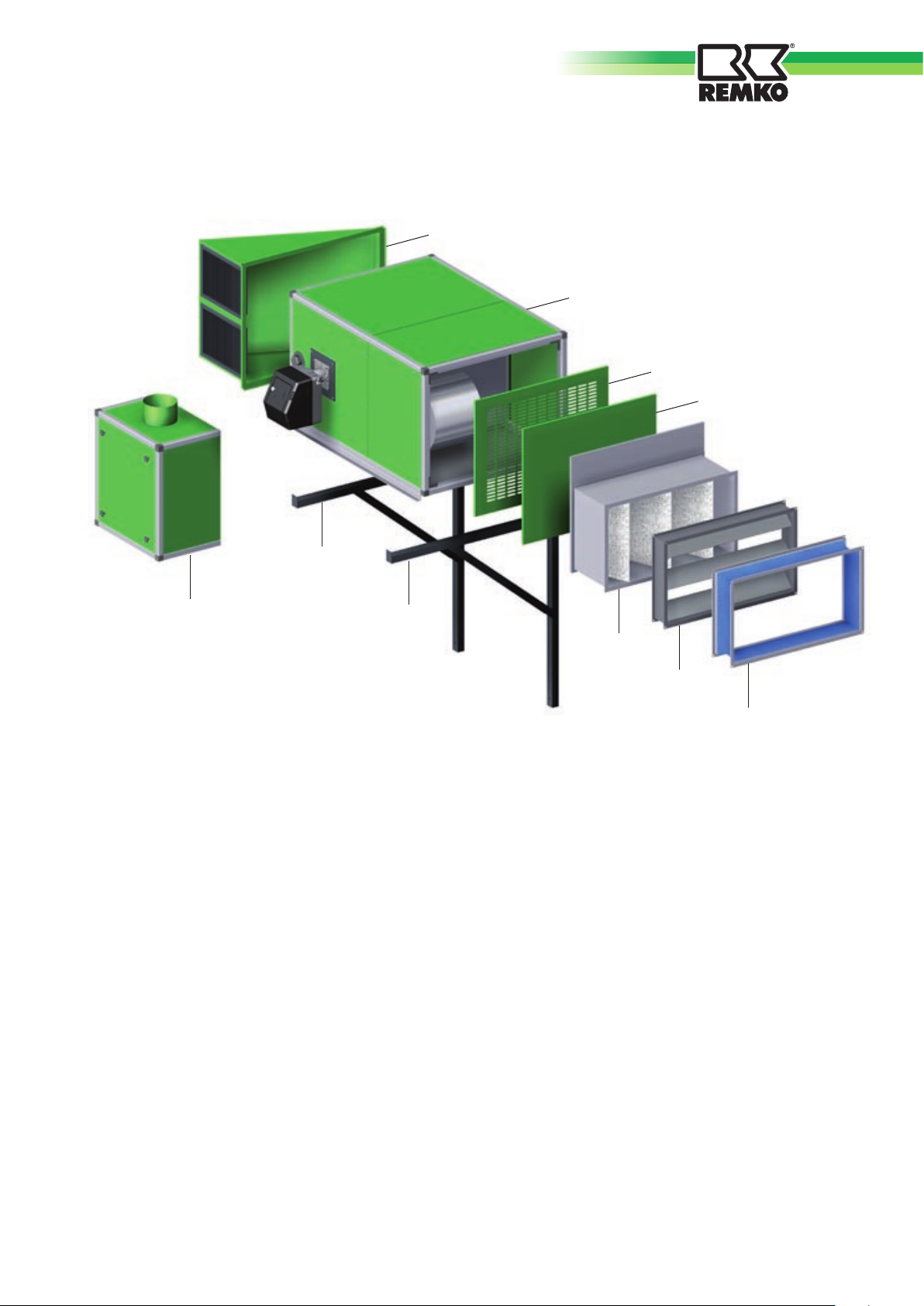

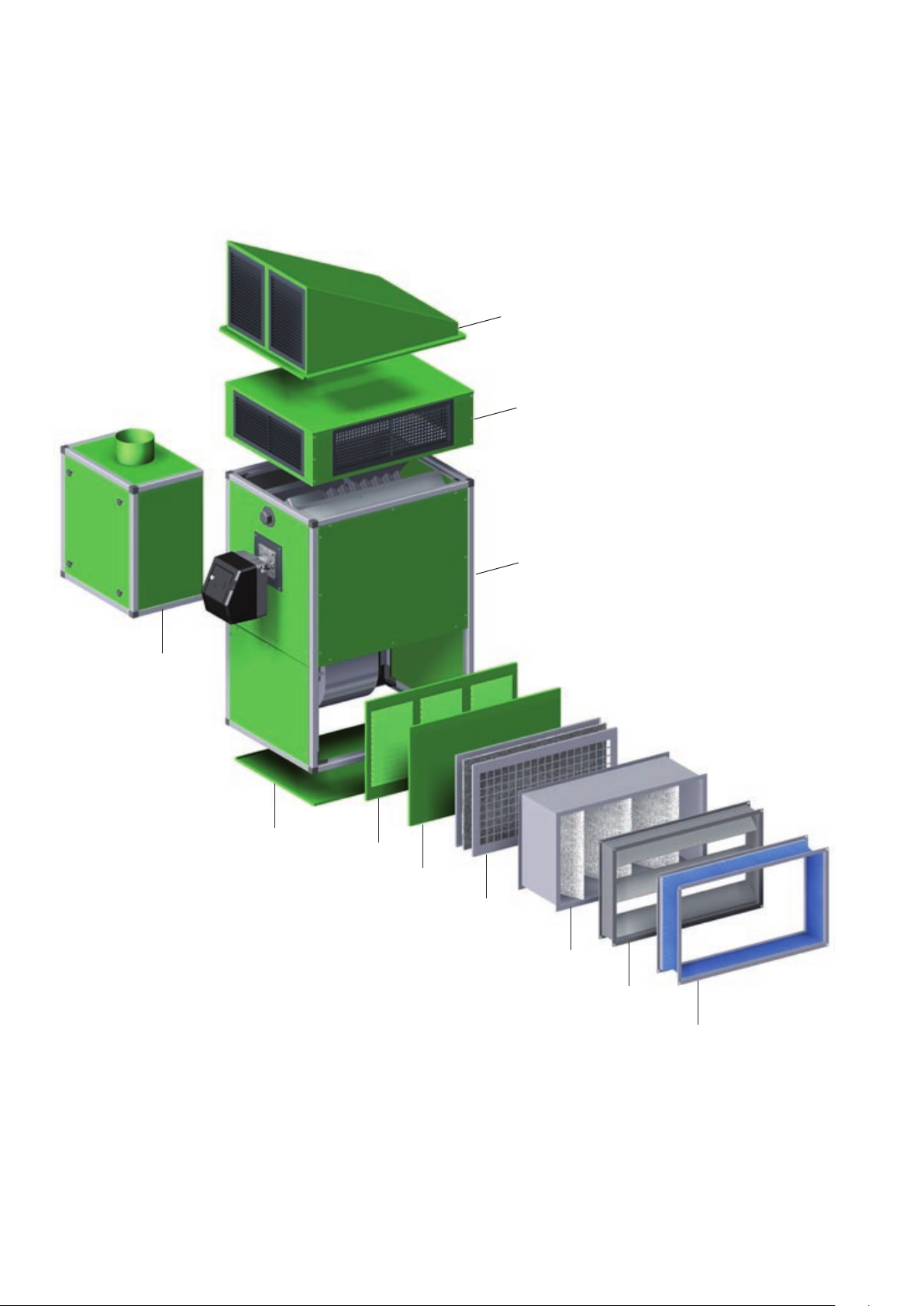

Accessories

Technical data

Technical data of drive

These operating instructions must be read thoroughly
before commissioning/using the units!

21

22

23

24

25

26

27

28

30

31

34

35

Made by REMKO

These instructions are part of the unit and must always be kept near
to the site of installation or on the unit.

Subject to changes, errors and typographical errors excepted!

4

REMKO VRS

Safety information Unit description

Operation of the heaters must always take place in compliance with
the local building and fire protection regulations and regulations of the
employers‘ liability insurance associations.

The heaters were subjected to
extensive material, functional and
quality inspections and tests prior
to delivery. However, the heaters
may constitute a hazard if used by
untrained personnel, improperly or
not for the intended purpose.

The following information must be
observed:

■ The heaters must only be used

by persons who have been
trained in its operation.

■ The heaters must be installed

and operated in a manner that
excludes any risk to persons
through radiated heat and the
risk of fire.

■ The heaters must only be in-

stalled and operated in rooms if
they are supplied with a suffi­cient air volume for combustion.

If this cannot be ensured, the
burner must be supplied with
fresh air from outside via a
separate air intake system.

■ The heaters must only be

installed on a flame-retardant
surface.

■ The heaters must only be

attached to constructions
designed to the take the weight
or to ceilings of flame retardant
materials with sufficient load
bearing capacity.

■ Attachment must take place

using suitable anchors to be atta­ched to the heater.

■ The heaters must not be installed

and operated in locations
where there is a risk of fire and
explosion.

■ A protection zone of 1 m dis-dis-

tance must be kept free.

■ The air intake grilles must always

be kept free of dirt and loose
objects.

■ Never insert foreign objects into

the heater.

■

The heaters must not be ex-The heaters must not be ex-

posed to a direct jet of water,
e.g. high-pressure cleaning

equipment, etc.

■ Never allow water to enter the

inside of the heater.

■ All electrical cables of the heaters

must be protected against dam­age (e.g. also from animals).

■

Portable fuel tanks must only be

installed and used in compliance
with the technical directives for
flammable liquids „TRbF 20“.

NOTE

Only type tested hot air heat­ers with forced-air oil burners
complying with
DIN EN 230 and DIN EN 267
must be used.

ATTENTION

Where delivery from the
factory takes place without fan
burner and a different make of
burner is used, the suitability
of the burner for the particular
type of hot air heater must be
ensured.

The heaters are stationary, directly
fired hot air heaters with heat ex­changer and chimney connection.
The heaters can be fired with fuel
oil EL, diesel fuel and liquid or
natural gas.

The heaters are designed
exclusively for operation with
separate fan burners in single-

stage operation.

Standard two-stage fan burners
can also be used to prevent the
formation of condensation during
start-up (as starting relief) in the
partial load range.

For reliable discharge of the
exhaust fumes via the roof, the
heaters must be connected to a
suitable chimney system.

The heaters are provided with
standard single-stage, low noise/
low maintenance radial fans and
mounted and electrically wired
switching and control units.

The heaters are built to give many
years of efficient service due to
their robust design and the use of
high-quality materials.
Further plus points include quick
and easy installation and ease of
servicing.

The heaters comply with the basic
health and safety requirements of
the pertinent EU regulations and
are easy to operate.

NOTE

The heaters are not suitable for
domestic heating or similar.

■ The heaters must be installed

outside traffic zones, e.g. also
the operating areas of cranes.

5

Heater applications

Mode of operation

The directly fired hot air heaters
supply instantaneous heat.
The heaters are designed exclu­sively for industrial and commercial
use.
The heaters can be fitted with inlet
and outlet air ducts with appropri­ate dimensioning.

There are generally no operating
restrictions with regard to the site
of installation.

Heater applications also include:

■

Heating workshops

■

Heating warehouses

■

Heating exhibition halls

■

Heating fair halls

■

Heating light-weight construc-Heating light-weight construc-

tion halls

■

Heating showrooms

■

Heating in horticulture and

agriculture

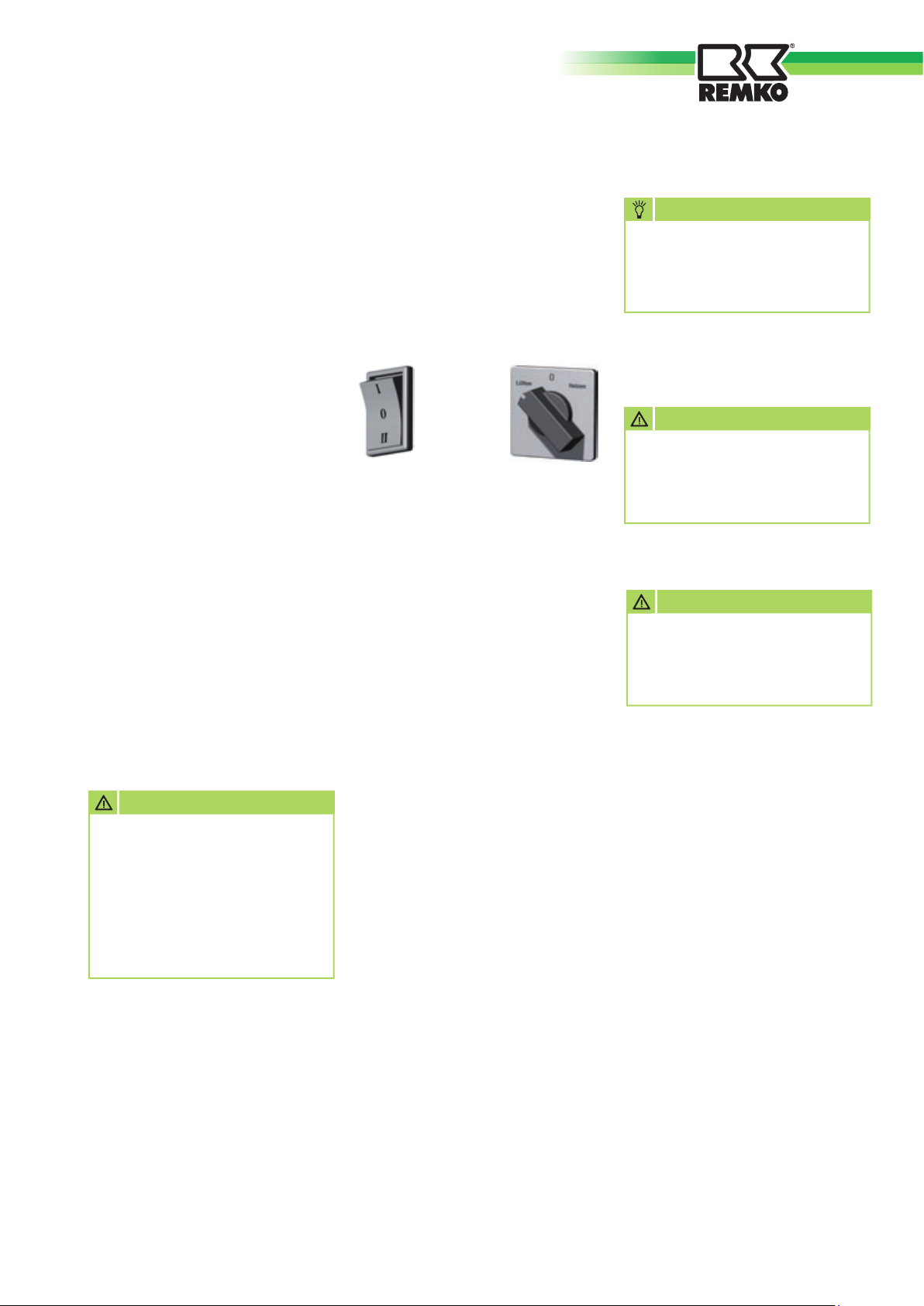

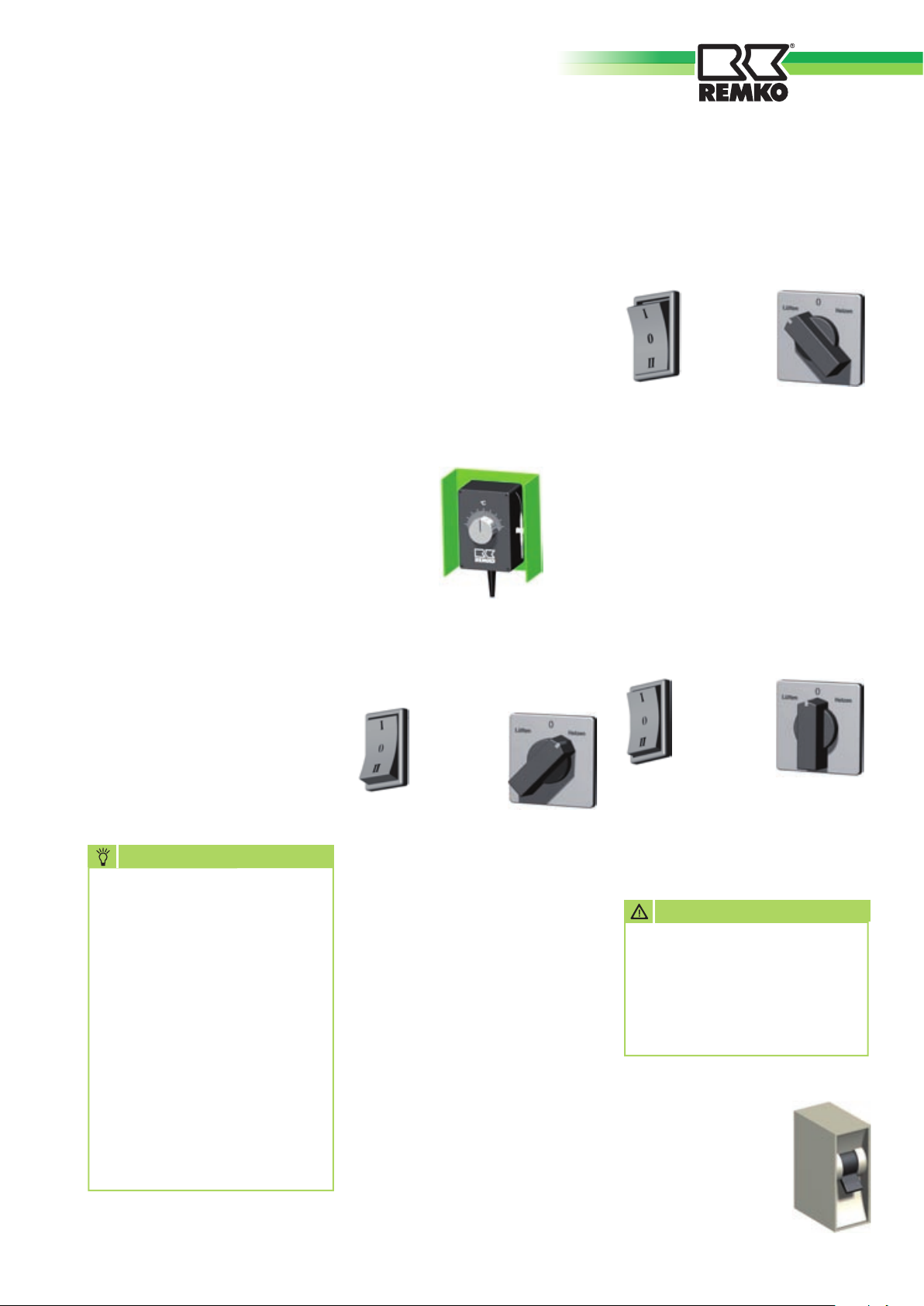

After switching on the heaters by
setting the switch to the „Heat“ or
„I“ position, the forced-air burner
starts.

The „Burner“ indicator light on the
control box lights up for control
purposes in the case of the 400V
heater types.
The combustion chamber with
heat exchanger is now heated.

After reaching the set tempera­ture, the supply air fan switches on
automatically.
The „Fan“ indicator light on the
control box lights up in the case of
the 400V heater types.
Hot air is blown out.

When using a room thermostat,
the described sequence is auto­matically repeated depending on
the heat requirement.

All heater functions take place
fully automatically and are reliably
monitored by means of the triple
function combination controller
and burner relay (integral part of
the force-air burner).

In the event of irregularities or
extinguishing of the flame, the
burner is shutdown by the burner
relay and interlocked.

The fault indicator light of the
burner relay and the „Burner“
fault indicator light on the control
box light up in the case of the
400V heater types.
Restarting can only take place after
manual release of the burner relay.

The safety temperature limiter
(STB) interrupts the burner func­tion on overheating.
Manual release of the STB can take
place only when the heater has
cooled down.

The fan motor in the case of the
400V heater types is monitored
by means of a thermal overcurrent
relay.

On motor overload, operation is
interrupted by the relay and the
red „Fan“ fault indicator light on
the control box lights up.
Release is only possible after reset­ting the relay in the control box.

The heaters are intended
exclusively for industrial and
commercial use. They are not
intended for domestic heating
or similar.

After switching off the heater via
the switch or room thermostat,
the supply air fan continues to run
until the combustion chamber and
heat exchanger have cooled down
and subsequently switches off
automatically.

ATTENTIONATTENTION

The heaters must never be
disconnected from the mains
supply before the cooling
down phase has ended (except
in emergency situations).

NOTE

Before releasing the burner
relay or overcurrent relay,
the cause of shutdown must
always be determined first.

6

REMKO VRS

STB

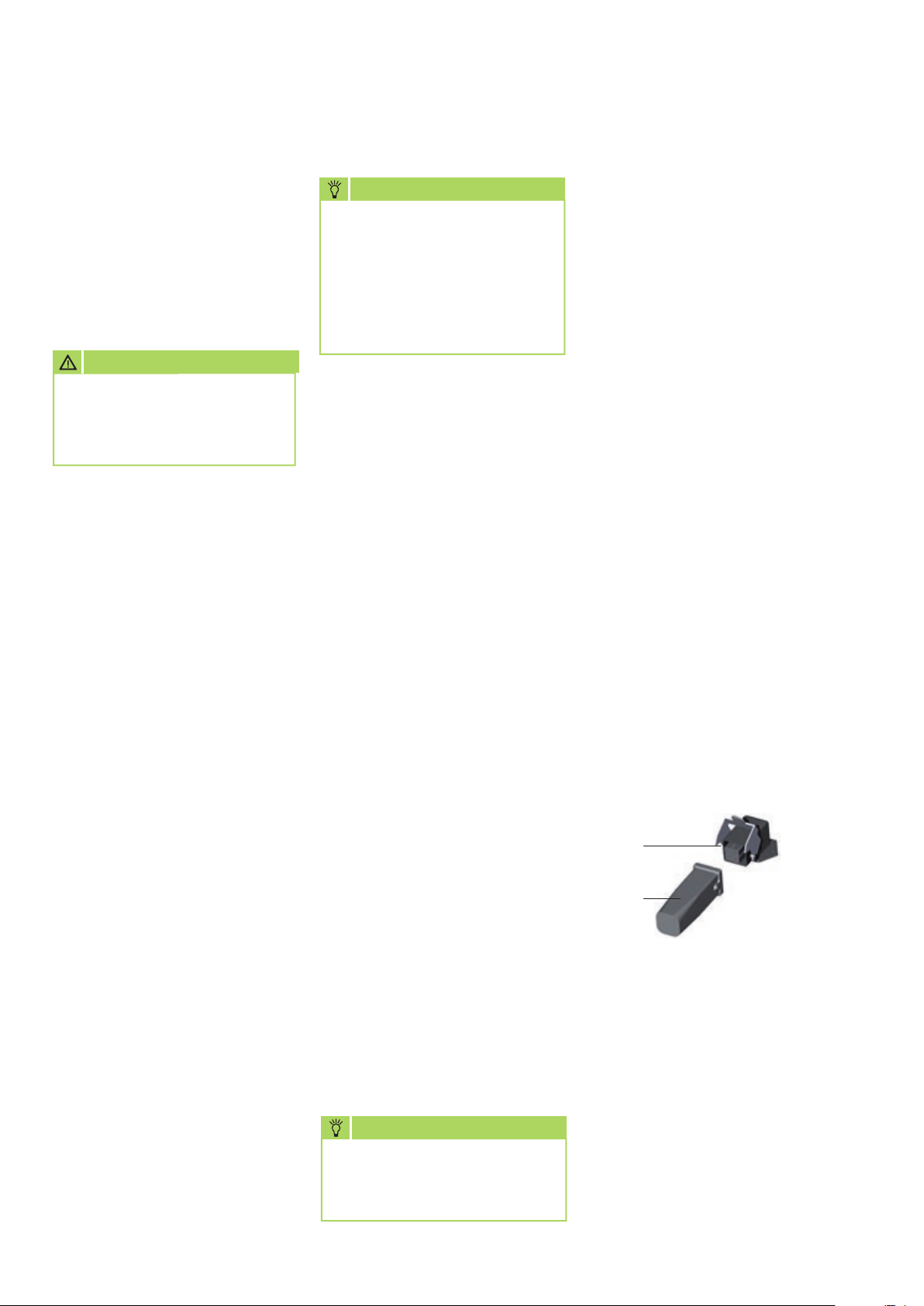

1

2

3

4

5

6

20

80

80

90

70

70

60

50

40

30

°C °C

TR

TW

RK-WTHC-2280

# 1102572

Safety devices

Triple function combination controller according to DIN 3440

Oil or gas-fired hot air heaters must be fitted with intrinsically safe
control devices complying with DIN 3440.

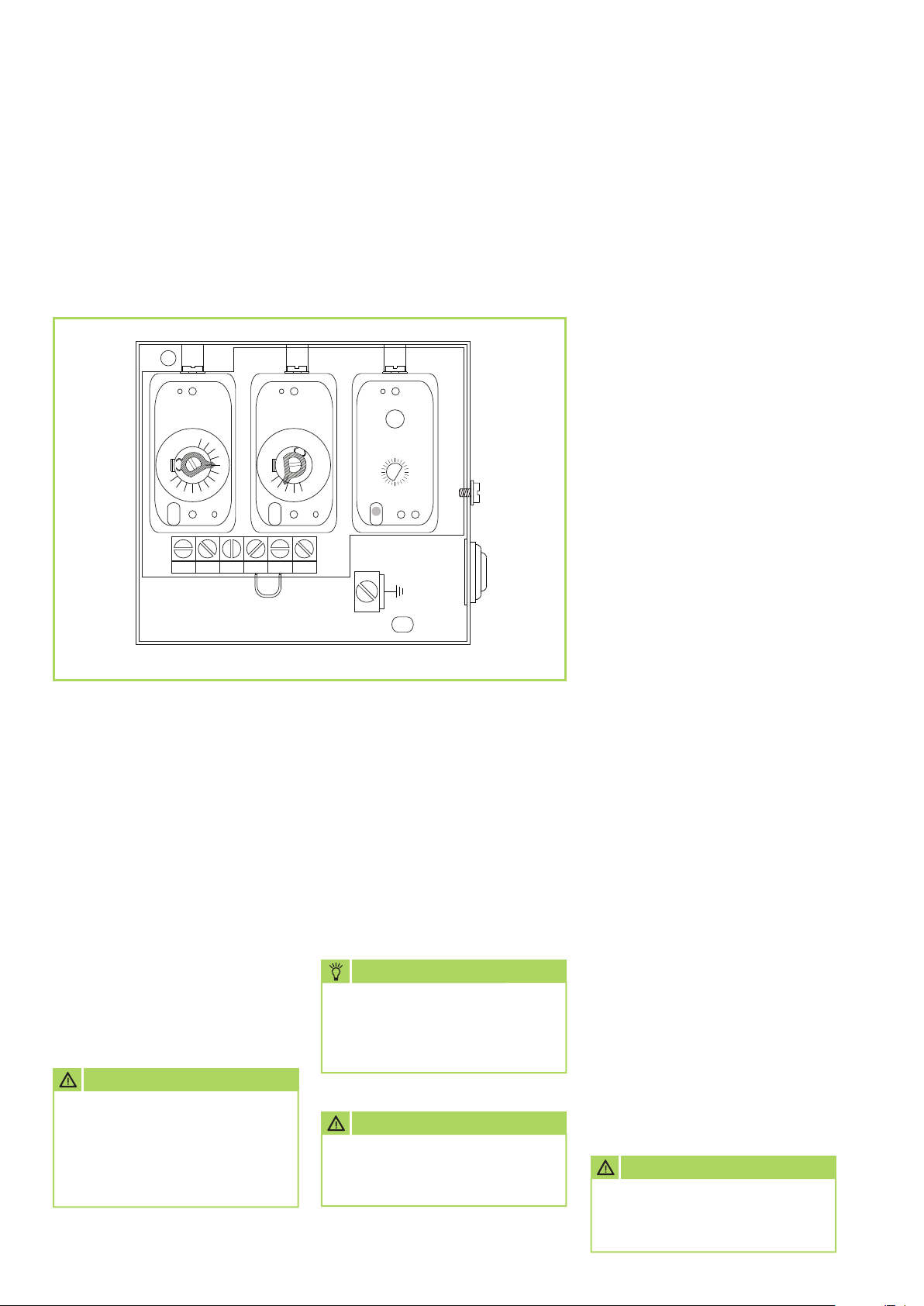

REMKO triple function combination controller

Controller shown without housing cover

Triple function combination
controller

The triple function combination
controller has a sensor monitor
and is cold resistant to -20°C.
The heater switches off at a tem­perature below -20°C and switches
on again when the temperature
rises.

In the event of damage to the sen­sor or capillary tube and on reach­ing a temperature of about 220°C,
the filling medium is drained and
the combination controller switch­es off towards the safety side. The
combination controller is no longer
functional and must be replaced.

For replacement of the triple func­tion combination controller, the
following information must also
be observed:

The three functions of the
combination controller:

1. Fan controller (TR)
Controls the fan on and off
function. The switching point
can be set via the „TR control
lever“.

Set value about 40°C

2. Temperature monitor for the
burner (TW)

The temperature monitor limits
the air outlet temperature. The
switching point can be set via the
„TW control lever“.
Set value about 80 – 85°C

ATTENTION

To prevent the operating tem­perature being exceeded again,
the operating conditions of the
heater must be checked prior
to resetting/releasing the STB.

3. Safety temperature limiter (STB)
The STB controls the tempera­ture monitor.

Switching point permanently
set to 100°C.

A restarting lockout prevents
the burner from being restarted.
The reset button (RESET) must
be actuated manually from
outside with the housing cover
closed.

NOTE

When replacing the triple
function combination control­ler, only a REMKO original
replacement must be used!

ATTENTION

safety devices must not be
overridden or blocked during
heater operation.

■

The capillary tubes must not

be damaged or bent during
installation.

■

Any bending must take place

only on the capillary tube and
not on the sensor.

■

To ensure that the heater func-

tions reliably, the sensors must
always lie freely in the hot air
stream.

■

The sensors must always be

free of dust and dirt.

■

Capillary tubes and sensors

must not be damaged in any
way.

■

The sensors must not have

contact with the combustion
chamber or other metal parts.

ATTENTION

Installation and assembly
must be carried out carefully
and professionally.

7

Installation instructions

Installation of the heaters must
generally take place in compliance
with the directives of the buil­ding regulations (LBO) and the
Ordinance on Firing Installations
(FeuVO) of the respective federal
state.

The First Ordinance on the imple­mentation of the Federal Immissi­on Control Act (1st BImSchG) and
the subsequently issued statutory
requirements of the Ordinance
on Small Firing Installations (1st
BImSchV) must also be taken into
account.

Hot air heaters in particular are ex­cluded in some respects however.

NOTE

Only type tested hot air heat­ers with forced-air oil burners
(complying with DIN EN 267)
or gas burners (complying with
DIN EN 676) must be used.

NOTE

Where delivery from the fac­tory takes place with an oil or
gas burner, separate operating
instructions for the burner are
enclosed.

ATTENTION

The heaters must be in­stalled and mounted so that
they are easily accessible for
monitoring,repair and mainte­nance.

ATTENTION

Low or excess pressure in the
installation location must be
avoided as this can result in
combustion problems.

Selection of site of
installation

The following must be observed
when selecting the site of
installation:

1. Fire protection and operational
hazards.

2. Function:
Room heating free blowing or
with duct system.

Observe pressure conditions at
site of installation .

3. Operational requirements:
Heat requirements, air volume
flow, air circulation and out­side air operation, humidity, air
distribution, room temperature,
space requirement.

4. Option for connection to a
chimney system.

Oil and gas-fired hot air heaters
(also with a nominal heat output
above 50 kW) may generally be
installed outside heating rooms in
compliance with the Ordinance on
Firing Installations (FeuVo).

The guidelines of the building su­pervisory authority for the „instal­lation of heat generating systems“
must be observed.

Locations in which flammable sub­stances or mixtures are processed,
stored or produced in quantities
liable to be hazardous in the event
of ignition may be subject to ex­ceptions if it is ensured by suitable
measures that the substances or
mixtures cannot ignite due to the
heat generating system.

Combustion air supply

A sufficient supply of combustion
air must generally be ensured by
the respective requirements of the
building supervisory authority.

Extracts from M-FeuVO (Speci­men Firing Ordinance) (may vary
between federal states).

(1) For non-roomsealed heating

appliances with a total nominal
heat output of up to 35 kW,
the combustion air supply is
deemed verified if the heating
appliances are installed in a
room with:

1. Minimum one door leading
to the outside or one window
that can be opened (rooms
leading outdoors) and having
a cubic capacity of minimum 4
m3 per kW total nominal heat
output.

2. An opening leading to the
outside with an internal cross­section of minimum 150 cm2
or two opening each 75 cm2
or pipes leading to the outside
having cross-sections equiva­lent to the flow.

(2) For non-roomsealed heating

appliances with a total nomi­nal heat output of more than
35 kW and not more than 50
kW, the combustion air supply
is deemed as verified if the
heating appliances are installed
in rooms that comply with the
requirements specified in Sec­tion 1 No. 2.

(3) For non-roomsealed heating

appliances with a total nominal
heat output of more than 50
kW, the combustion air supply
is deemed as verified

s

s

s

8

REMKO VRS

s

s

s

if the appliances are installed in
rooms that have an opening or
pipe leading to the outside.
The cross-section of the opening
must be minimum 150 cm2 and
2 cm2 more for each kW nominal
heat output above 50 kW nominal
heat output.
The pipes must be dimensioned
equivalent to the flow.
The necessary cross-section may
be divided into maximum two
openings or pipes.

(4) Combustion air openings and

pipes must not be sealed or
closed unless it is ensured by
separate safety devices that the
heating appliance can only be
operated when the closure is
open. The necessary cross-sec­tion must not be constricted by
the closure or grille.

(5) A sufficient combustion air

supply can be verified for non­roomsealed heating appliances
using a different method than
that specified in paragraphs 1
to 3.
For example by:
A continuous pipe of sufficient
cross-section connected to the
burner or its burner housing
leading to the outside. This
cross-section must be adapted
to the available suction capac­ity and the pipe resistances
(including air inlet grille) so that
perfect combustion is ensured.

Installation

■

The heaters must only be

installed and operated in rooms
if they are supplied with suf­ficient air volume for combus­tion and the exhaust fumes are
discharged to the outside via a
suitable chimney system

■

Non-roomsealed heating appli-

ances may be installed in rooms
or buildings from which air is
extracted with the aid of fans or
ventilation systems, etc., only if:

1. Simultaneous operation of
the heating appliances and air
suction system(s) is prevented
by means of safety devices.

2. The chimney duct is moni­tored by means of special safety
devices.

3. The exhaust fumes of the
heating appliances are filtered
via the air suction system(s).

4. It is ensured by the type of
construction or dimensioning of
the system that no dangerous
low-pressure can occur.

■

The heaters must be installed

on sturdy, flame retardant sur­faces and outside traffic zones,
e.g. also the operating areas of
cranes.

■

The heaters must be installed

and operated in a manner that
excludes any risk to persons
through radiated heat and the
risk of fire.

■

The heaters must be installed

and mounted so that they are
easily accessible for repair and
maintenance.

■

Operating elements whose

improper operation can result
in dangerous operating condi­tions must be protected against
unauthorised use if they are
generally accessible.

■

Direct suction of the outside air

with the standard combustion
chamber is not recommended.
During installation of the
mixed-air flaps (accessories),
these must be connected work­ing in opposite directions.
The supplied fresh air volume
should not exceed 30%.

■

The heaters must not be in-

stalled and operated in rooms
and locations subject to fire and
explosion.

NOTE

The heaters are suitable for the
use of inlet and outlet sided
accessories.

ATTENTION

Standard type heaters are not
suitable for exclusive use as
ventilation units.

■

The heaters must be installed

so that they do not consti­tute a hazard or unreasonable
nuisance, e.g. through shocks,
vibrations or noise.

9

Floor mounting

The heaters must be installed on
stable, flame retardant surfaces
and outside traffic zones, e.g. the
operating areas of cranes.

For the protection of the heaters
against damage in commercial
locations, for unhindered mainte­nance and repair of the heater and
burner as well as unhindered air
suction and blowing, a protection
zone at a distance of 1 m around
the heating appliance must be kept
free.

This protection zone must be
marked by a sign with the follow­ing inscription:

Protection zone

Keep free at a distance of

1 m

A permanent barrier for frequently
accessed areas is recommended.

Wall mounting

The wall to be used for mounting
purposes must be of flame retard­ant materials. The loading bear­ing capacity of the wall must be
verified (reinforcements must be
provided if necessary).

The brackets must be firmly fas­tened to the wall and the heaters
securely fixed to these.

Sufficient free space for main­tenance of the heat exchanger,
burner, fan and chimney system
must be provided.

■

Operating devices for the

heater and fuel supply must
be able to be operated from
ground level.

■

Where auxiliary equipment is

required for monitoring, main­tenance and repair, this must be
provided by the operator.

Suspended heater installation

The heaters must only be attached
to constructions designed to take
the weight or to ceilings of flame
retardant materials with sufficient
load bearing capacity.

Attachment must take place using
suitable anchors to be securely
attached to the heater.

The requirements specified in the
Section „Wall mounting“ must be
observed.

Room heating

Hot air heaters must only be oper­ated in closed rooms and halls via
a room thermostat.

Fuel supply

The fuel supply must be installed in
compliance with the requirements
of DIN 4755 for oil-fired hot air
heaters, DIN 4756 and DVGW
worksheet G 600 for gas-fired hot
air heaters and TRF for liquid gas.

It must be ensured for fuel oil
piping in particular that the cross­section of the piping is of sufficient
size.
The suction height, total pipe
resistances and increased viscosity
at low temperatures must be taken
into account in dimensioning of
the system.
Suitable, separate oil supply units
must be provided if necessary.
The pipes must be installed so
that they are easy to vent and
protected against corrosion and

mechanical damage.

ATTENTION

The measured pressure in the
suction pipe should not exceed
minus 0.3 bar; it can be maxi­mum minus 0.4 bar.

Electrical installation

ATTENTION

Electrical heater connection
must be carried out by au­thorised specialists as defined
in DIN EN 60335-1 and VDE

0116.

It must be ensured that an im­permissible undervoltage due to
intermittent system overload is not
possible.

The cables used for connection
of the heaters must have a cross­section of sufficient size in order
to avoid any impermissible voltage
drop when the fans start.

For connection of the 400V
type heaters, the correct phase
sequence of the rotating field
(clockwise) must be ensured.
Incorrect connection can result in
an incorrect direction of rotation of
the fan.

An emergency switch must be pro­vided at an easily accessible point
in the installation room for heaters
with a nominal heat output from
50 kW.

ATTENTION

All switches, if generally ac­cessible, must be protected
against damage and unauthor­ised use.

s

s

s

10

REMKO VRS

s

s

s

Chimney duct

Annual inspection
and maintenance

Depending on the particular
operating conditions, the heating
appliances should be inspected by
an expert for reliable operation as
necessary, however at least once a
year.

The operator is obliged to have
the heating appliances inspected
at least once a year for correct
operation, reliability, efficiency and
maintenance of emission limits by
a representative of the manufac­turer or other authorised specialist.
The measurement of combustion
values must take place in accord­ance with the statutory require­ments of the Federal Immission
Control Act (BImSchV).

Where faults are discovered,
the operator must be notified
that he is obliged to arrange for
immediate repair or replacement of
components.

The following applies:
Repairs to limiting devices, auto­matic actuators, flame monitoring
devices and other safety devices
must only be carried out by the
respective manufacturer or his
representative on the individual
device.

NOTE

It is recommended to conclude
a maintenance contract with
an authorised specialist com­pany for regular maintenance
and cleaning.

The heaters must be connected to
a suitable and approved chimney
system.

NOTE

The erection of the chimney
system requires permission in
any event.

Chimney systems are structural
systems in or on buildings which
are solely intended for discharging
exhaust fumes from heat generat­ing systems safely via the roof.

The following are of particular
importance for the planning and
erection of chimney systems:

■

The respective Ordinance on

Firing Installations (FeuVo),

■

The respective building regula-

tions (LBO).

■

DIN 18160, part 1, design and

performance.

■

DIN 4705, part 1, calculation of

firing installations.

■

Technical directives for gas

installation DVGW-TRGI 1996

For the design and installation of
chimney systems, the following
must be observed:

■

Installation and erection of the

chimney system must be carried
out professionally and in com­pliance with the respectively
applicable regulations.

■

The dimensions of the chimney

pipe must correspond to the
power of the unit, structural
conditions and specific require­ments.

■

Chimney systems must be di-

mensioned according to internal
cross-section and height so that
the exhaust fumes are dischar­ged to the outside in all normal
operating conditions and no
dangerous positive pressure can
occur with respect to rooms

■

The outlets of chimney systems

must rise minimum 40 cm abo­ve the ridge or be minimum 1
m away from the roof.

■

Where dynamic pressures are to

be expected, e.g. due to down
winds or from neighbouring
buildings, the chimney coping
must be designed appropriately.

■

In the case of roof or wall

openings, the chimney system
must be lead through tubular
sleeve or shaft to enable free
expansion of the chimney pipe
on heating.

■

Connection of the heating ap-

pliance must take place tightly
sealed and protected against
accidental loosening by means
of rivet or screw.

■

Horizontal chimneys should

preferably be kept as short as
possible.

■

A reclosable measuring open-

ing must be provided in the
chimney pipe downstream of
the appliance connection at a
distance of 2 x D ( Ø).

ATTENTION

It must be ensured that no
back pressure occurs due to an
incorrectly installed chimney
duct.

11

Application examples:

Example of vertical installation

REMKO chimney system ASD

Double-walled stainless steel
Outdoor installation

REMKO chimney system ASE

Single-walled stainless steel
Indoor installation

The chimney system components
are easily connected by insertion
and securing with clamps.

All REMKO stainless steel chimney
systems are generally approved for
building installation by the Institute
for Structural Engineering.

Example of horizontal installation

1

1

2

7

8 / 9

3

4

5

6

7

Legend:

2

1 = Chimney outlet seal AS-ME-D

8 / 9

2 = Chimney pipe AS-1000-D

3 = T-connection AS-T90-D

3

4 = Door for cleaning AS-RT-D

5 = Base plate AS-GI-D

4

6 = Wall bracket AS-WK-D

5

6

12

7 = Transitional piece AS-ÜGI-D

8 = Chimney pipe AS-1000-E

9 = Chimney pipe AS-500-E

12 = Wall bracket

We reserve the right to make dimensional and design changes in the interest of technical advances.

12

REMKO VRS

Installation and assembly

For installation of the heating
appliances, the requirements
and regulations applicable in the
respective federal state must be
observed.

The following must also be
observed:

ATTENTION

Die Transportpalette bzw.
die The transport pallet and
timbers must be removed
prior to installation.

■

The heating appliances must be

securely installed.

■

The heating appliances must

be floor-mounted securely
and stress-free, preferably on
a separate vibration damped
base.

■

It must be ensured that the

fan output (nominal pressure)
corresponds to the respective
air-sided resistances.
Measure rated current!

■

The air inlets and outlets must

be kept free.

■

A suffi cient supply of combus- A sufficient supply of combus-

tion air must be ensured.

■

In the event that excess or low

pressure or high air contamina­tion should occur in the instal­lation room, a separate burner
fresh air intake unit (accessory)
must be installed.

■

Where high air contamination

is expected in the installation
room, the circulated air should
be drawn in via appropriate
filters (accessory).

The resistance on the air inlet
side should be noted and the
fan power adjusted accor­dingly!

NOTE

Air intake must only take place
via the air intake openings
provided.
If the heater does not have an
air intake at the bottom, this
must be sealed to prevent the
intake of extraneous air.

Chimney connection

Connection must comply with DIN
18160, part 1 and the dimensions
with DIN 4705, part 1.

■

Correct chimney duct installati-

on must be ensured.

■

The chimney connection must

be connected correctly and in
compliance with the applicable
regulations.

■

The chimney connection

must only be connected to a
previously approved chimney
system.

Electrical connection

Electrical connection of the heating
appliance must be carried out by
authorised specialists as defined in
DIN EN 60335-1 and VDE 0116.

■

An emergency switch must be

provided at an easily accessible
point for heaters with a nominal
heat output above 50 kW.

■

The emergency switch must be

protected against unauthorised
use.

NOTE

All electrical wiring terminals
must be checked for tightness
and retightened if necessary.

Room thermostat connection

The room thermostat (accessory)
must be mounted at a position
which is easy to access for tem­perature control.

The thermostat sensor may not be
located directly in the hot/cold air
stream and should not be mounted
directly on a cold
surface.

The procedure is the same for the
installation of an automatic day/
night temperature control or other
temperature controls available as
accessories.

230V type heaters

The connection of a room thermo­stat or a day/night temperature
control for 230V types takes place
in the control box at the ther­mostat plug socket provided as
standard.

Connection must be carried out as
follows:

1

2

Disconnect the existing shunt plug
and connect thermostat plug 2 to
thermostat plug socket 1 on the
control box.

Thermostat plugs are available as
an accessory (EDP No. 1101020)
for control units supplied without
these standard plugs.

13

400V type heaters

1 2

Gas connection

The connection of a room thermo-he connection of a room thermo­stat or a day/night temperature
control takes place for these types
at the respective terminal strips in
the control box.

Connection must be carried out as
follows:

Remove the factory cable link and
connect the wires of the respective
control unit to the terminals.

The separate wiring diagrams of
the control unit and appliance
must be observed!

400 V direct and Y / Δ starting

Terminal strip X2

factory cable

link

■

The burner must be set to the

full heat load of the appliance.

■

The combustion chamber must

not be overloaded
(increased condensate forma­tion).

■

The exhaust fume temperature

should be about 180 Kelvin
above room temperature.

There is otherwise the risk
of increased condensate
formation

■

The separate operating instruc-

!

tions of the factory supplied
burner must be observed.

■

When using forced-air burners

of other manufacturers, their
suitability for the appliance
must be verified (hot air heater
type).

A sufficient gas volume and gas
pressure corresponding to the
power of the heating appliance
must constantly be available whilst
the appliance is in use.

■

Installation of the gas connec-

tion must only be carried out by
authorised specialists.

■

To be observed are DIN 4756

or the DVGW worksheet G 600
for gas-fired hot air heaters and
TRF for liquid gas.

■

Gas pressure regulating devices

and shut-off valves must be
provided on site.

■

The cable cross-section must

be dimensioned, taking into
account the installed load of the
appliance, total line resistance
and gas pressure.

Burner installation

The factory supplied forced air­burner is mounted on the front
of the appliance with a clamping
flange.

The following must be observed:

■

Only type-tested hot air heat- type-tested hot air heat-

ers with forced-air oil burners
complying with DIN EN 267 or
forced-air gas burners (comp­lying with DIN EN 676) may be
used.

■

Power limitation for single-

stage burner operation (up to
70 kW) is not required for hot
air heaters.

Fuel oil connection

A sufficient and correct fuel supply
must be ensured.

■

The suction pipe must be provi-

ded with a foot valve in the fuel
oil tank.

■

Free flowing fuel oil must be

available in sufficient quantity
also at low outside tempera­tures.
Paraffin formation can occur
already from about 5°C depen­ding on the fuel oil quality.

Appropriate measures must be
taken to prevent this occurring!

NOTE

Prior to initial use, the gas
supply pipe must be cleaned
thoroughly and checked for
leaks!

ATTENTION

Installation, adjustment and
maintenance of the gas supply
must only be carried out by
specialists authorised by GVU!

14

REMKO VRS

Commissioning

Commissioning of fan motor

Testing drive

1. The mounting screws of the
complete drive must be checked
for tightness.

2. The initial tension of the drive
belt(s) must be checked.

ATTENTION

The fan must be checked for
correct direction of rotation.

Current consumption
measurement

1. To prevent incorrect measure­ments, the grilles in the air
duct or air outlet hood must be
opened.
All supplied air inlet and metal
panels must be mounted on the
appliance.

2. Check the system voltage for
correctness.

3. Carry out the necessary meas­urements and adjust settings as
required.

NOTE

In order to exclude measure­ment errors, each phase should
be measured separately.

■

Direct starting

The measured rated current
must not exceed the value
shown on the motor rating
plate.

Check the thermal overcurrent
relay appropriate to the rated
current of the drive motor and
adjust if necessary.

■ Y / Δ - starting
The measured rated current
must not exceed the value
shown on the motor rating
plate.

NOTE

The rated current of the drive
motor must be multiplied by
the factor 0.58.
Check the setting of the
thermal overcurrent relay with
respect to the calculated value
and correct if necessary.

Thermal overcurrent relay

The function of the overcurrent
relay or its setting can be checked
by removing a fuse.
A correctly operating relay must
operate after about 30 seconds.

ATTENTION

The thermal overcurrent relay
must only be operated in a
manual mode.
Under no circumstances must
the relay switch on again
automatically

Excessive current
consumption

If the fan motor should consume
excessive current despite correct
electrical connection and sufficient
system voltage, under no circum­stances must the overcurrent relay
be set higher or overridden.

In this case, the air-sided resist­ances (inlet/outlet side) must be
checked for correct dimensioning.
Suitable measures must be pro­vided for this purpose.

Commissioning

Commissioning of the unit and the
forced-air burner must take place
by the manufacturer or a specialist
authorised by the same. All regu­lating, control and safety devices
must be checked for their proper
functioning and correct adjust­ment.

■

The commissioning of oil and

gas-fired heating appliances
must always be carried out by
authorised specialists.

■

All bolts and nuts of the fan

and burner mounts must be
checked for tightness.

■

All air outlet grilles must

be opened and adjusted if
necessary.

■

The settings and function of

the triple function combination
controller must be checked.

■

Switch on the local main switch

or fuses.

■

Set the room thermostat

higher than the existing room
temperature.

■

Open the fuel supply and

switch the switch to the „Heat“
position.

Factory supplied oil burners
start with a delay due to the
standard oil preheating (up to
VRS 50)!

■

The fuel oil or gas flow rate

must be adjusted appropriate to
the heat load of the appliance.

See appliance rating plate!

15

■

T he burner must be set to the

values specified by the manu­facturer, however at least to the
values specified by the Federal
Immission Control Act.

Heating

The appliances operate fully auto­matically depending on the room
temperature.

Ventilate

1. Set the switch on the control
box to the „II“ or „Ventilate“
position.

■

A measuring report must be

prepared and handed to the
operator for safe keeping.

■

The operator must familiarise

himself with the operation of
the system.

■

The responsible authori-

ties must be provided with a
declaration from the specialist
company and certificate of the
installer.

Information on corrosion in
heat exchangers.

■

It must be ensured that the

exhaust fume temperature
difference of 180 Kelvin is not
reached.

This prevents the risk of cool­ing below the dew point and
related corrosion in the heat
exchanger to a large extent.

NOTE

If the heaters are not set to
their nominal heat load (see
rating plate) or are dimensi­oned too large for the neces­sary heat requirement, the bur­ners operate in an intermittent
mode.

As the necessary operating
temperature of the heat ex­changer cannot be reached in
intermittent operation, increa­sed condensation unavoidably
occurs with the consequence
of higher corrosion in the heat
exchanger.

1. Switch on the local main switch
or fuse(s).

2. Open the fuel supply.

3. Set the desired temperature on
the room thermostat.

3. Set the switch on the control
box to the „I“ or „Heat“
position.

230V type

400V type

It should be noted that the forced­air burner starts immediately on
heat demand (except VRS 25 and

50), however the supply air fan

initially starts automatically when
the set temperature is reached.

This prevents cold air from being
blown out.

In this switch position, the supply
air fan runs continuously.
The appliances can be used for air
circulation or ventilation purposes.
Thermostatic control is not
possible.

Switching off

Set the switch on the control box
to the „0“ position.

The supply air fan continues to
operate to cool the heat exchanger
and can start several times up to
final switch off.

ATTENTION

The heater must never be
disconnected from the mains
supply via the main or emer­gency switch before the cooling
down phase has ended (except
in emergency situations).

For extended periods of
non-use, the units
should be disconnected
from the power supply
and the fuel supply
shut-off.

I

0

16

REMKO VRS

Rußschichtdicke [mm]

0

1,0 2,0 3,0 4,0

Wirkungsgradverluste [%]

Anstieg der Abgastemperatur [K]

40

0

80

120

160

200

6

0

8

10

12

14

4

2

Cleaning and maintenance

The operator is obliged to have the
system inspected at least once a
year for correct operation, reli-reli­ability, efficiency and maintenance
of emission limits by an authorised
specialist

ATTENTION

Prior to carrying out main­tenance or repairs, the unit
must be disconnected from the
mains supply.

ATTENTION

It does not suffice to switch off
the unit only via the switch!

■

The complete heating appliance

including heat exchanger, com­bustion chamber and forced­air burner must be cleaned to
remove adhering dust and dirt.

■

The combustion residues in the

combustion chamber and heat
exchanger must be removed by
suitable means.

■

The limitation of exhaust fume

losses must be maintained in
accordance with § 1, paragraph
1 of the Ordinance on Small
Firing Installations (1st BIm­SchV).

■

The verification of work carried

out by authorised specialists in
addition to the usual reports
must be provided in any event.

ATTENTION

Adjustment and maintenance
of the forced-air burner must
only be carried out by autho­rised specialists.

NOTE

It is recommended to conclude
a maintenance contract with
an authorised specialist com­pany for regular maintenance
and cleaning.

ATTENTION

Soot deposits

Small soot deposits on the heat
transfer surfaces of the combus-combus­tion chamber and heat exchanger
degrade heat emission.
This reduces the overall efficiency
of the system.

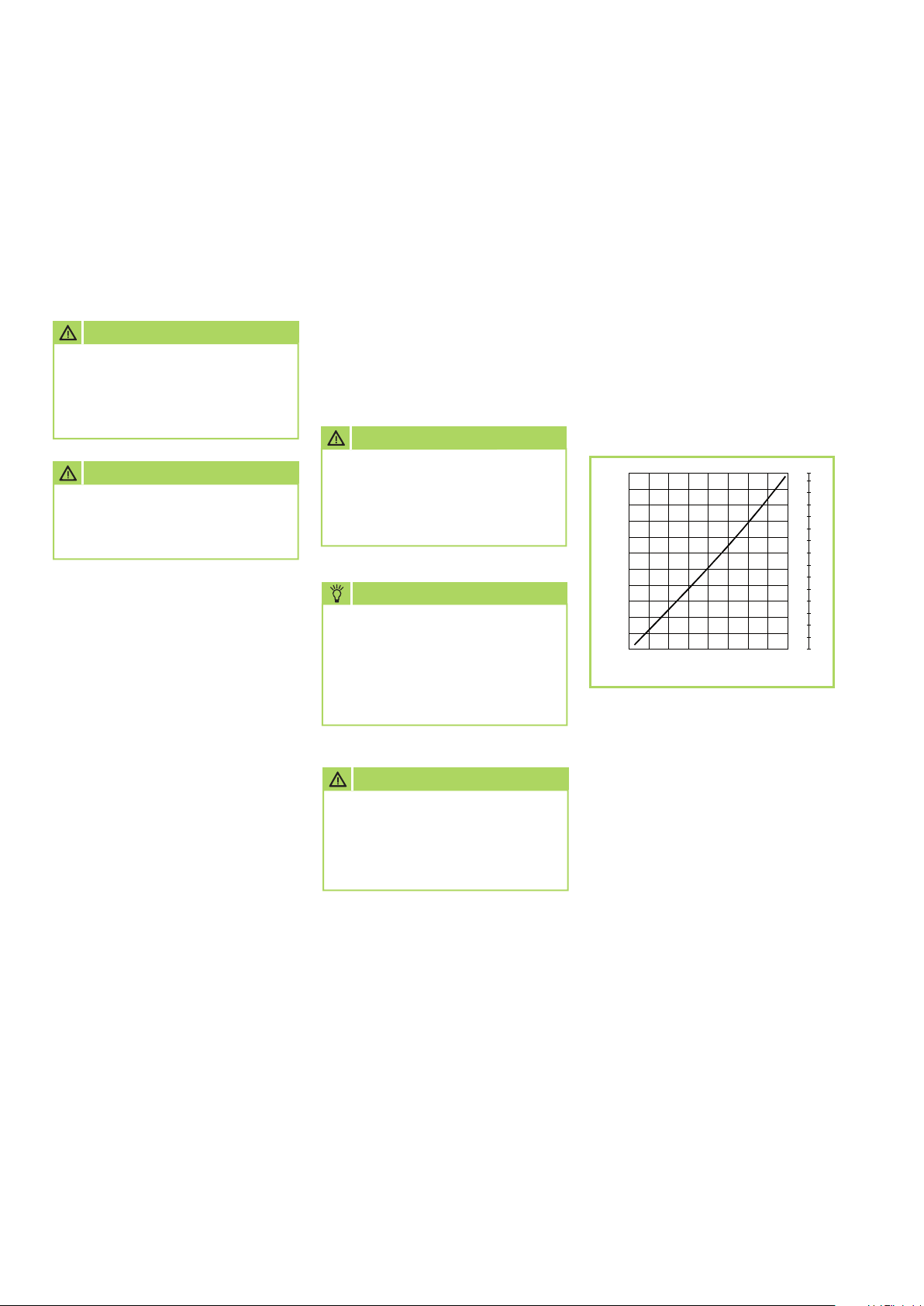

A soot layer of 1 mm thickness
causes an exhaust fume tempera­ture increase of about 50 K
(see diagram).

This shows that an optimal burner
setting and regular maintenance
are essential for maintaining the
efficiency and emission limits.

■

■

■

The V-belt tension and motor

mount must be checked at
regular intervals.

Wearing parts such as flue gas

brakes, seals, oil filter element
and oil nozzles, etc. must be
checked and replaced if neces­sary.

The maintenance instructions of

the separate forced-air burner
must be observed in any event.

If the operational cleaning and
burner adjustment intervals are
not maintained, the warranty
will be invalidated!

17

Cleaning the combustion
chamber and heat exchanger

1. Disconnect the appliance from
the mains supply.

ATTENTION

It does not suffice to switch off
the unit only via the switch!

2. Shut off the fuel supply.

Remove the following

components:

1. The forced-air burner.

2. Burner plate  with burner

flange.

3. Front  lining plate(s).

4. One side  lining plate (left or

right depending on structural
conditions).

10. The combustion residues in the
combustion chamber must be
removed though the burner
opening also using a suitable
vacuum cleaner.

A special boiler cleaning set
for the REMKO industrial
vacuum cleaner is available as
an accessory.

11. After cleaning, all parts must
be carefully refitted in reverse
order.

ATTENTION

The burner and all control
units must be checked for per­fect functioning.

12. The correct assignment of the
exchanger tubes and correct
seating of all seals must be
ensured.

Damaged or deformed seals
must be replaced.

13. Burner maintenance must be
carried out as specified in the
separate operating instructions
of the burner.

NOTE

The limitation of exhaust fume
losses must be maintained in
accordance with §11 of the
Ordinance on Small Firing
Installations (1st BImSchV).

5. The two front  inspection

covers.

6. The side  inspection cover.

7. Remove the flue gas brakes

 from the heat exchanger

tubes and clean or replace if
damaged.

The correct assignment of
the exchanger tubes must be
ensured!

8. Clean the heat exchanger

tubes  with suitable cleaning
agents to remove adhering
combustion residues.

9. Remove the combustion resi­dues from the front and rear
collection boxes  with a
suitable vacuum cleaner.

5

8

7

8

1

6

4

3

2

Fig. VRS 50 vertical
without burner

18

REMKO VRS

Troubleshooting

The heater does not start

■

Check the local mains supply

connection.

■

Check the fuses in the control

box.
(Only 400V three-phase type)

■

Set the switch to the „I“ or

Heat position.

■

Check that the „Burner“ indi-

cator light on the control box
(only 400V type) is illuminated.

■

Check the thermostat connec-

tion or room thermostat cable.

■

Check the room thermostat

setting.
The temperature set must be
higher than the existing room
temperature.

■

Check whether the safety tem-

perature limiter (STB) may have
operated.

Possible causes:

■

The heaters could not cool

down because the power supply
was interrupted.
A brief interruption of the pow­er supply can also cause the STB
to operate.

■

The temperature of the air
being blown out is too high due
to incorrectly installed chimney
ducts or adjusted grilles.

■

The fan was overloaded and the

thermal overcurrent relay of the
400V type heater or thermal
contacts in the fan motor of
the 230V type heater have
operated.

■

The V-belt for the fan drive is

loose or faulty.

■

The air inlet or outlet is not free.

■

Check the temperature control

thermostat (TR) for correct
functioning and adjustment.

The burner does not start

■

Check the oil filter for clogging.

Replace clogged filter(s).

■

Check that the shut-off valve

on the oil filter is open.

■

Check the fuel tank for suffi -or suffi-

cient fuel.

■

Check the fuel and filter for

paraffin separation.

Paraffin separation can occur
already below 5°C.

■

Check the oil hoses for damage

and leaks.

Air may also be sucked in!

■

Check the safety temperature

limiter (STB).

■

Check the temperature monitor

(TW).

ATTENTION

Prior to carrying out main­tenance or repairs, the unit
must be disconnected from the
mains supply.

■

Check the temperature monitor

(TW) for correct functioning
and adjustment.

ATTENTION

Prior to releasing a safety
device, the cause of operation
must be located and
eliminated.

NOTE

Safety devices must not be
overridden or blocked during
heater operation!

19

■

Check the capillary tubes and

sensors of the triple function
combination controller for dam­age and correct positioning of
the sensors.

■

Check whether the fault indi-

cator light of the burner relay is
illuminated.

The supply air fan does not
start

Set the switch to the „II“ or „Ven­tilate“ position.

The supply air fan should now
start!

NOTE

If no result is achieved after
carrying out all functional
checks, an authorised service
station should be contacted.

ATTENTION

■

If the fault indicator light is

illuminated, release the burner
relay by pressing the fault
button.

The fault indicator light
extinguishes and the burner
attempts to start!

■

With VRS 25 and 50 heating

appliances, the burner starts
with a delay due to the oil pre­heating
(only factory supplied burners)

ATTENTION

If the burner should shutdown
after starting due to a fault, a
release attempt can only take
place after five minutes.

No further release attempts
should be made in any event
due to a risk of deflagration.

230V type

400V type

If the fan does not start:

■

Check the local mains supply
connection.

■

Check the fan and drive for

smooth operation.

■

Check the V-belt of the fan

drive.

■

Check the electrical cables at

the fan motor for damage.

■

Check the fan to ascertain

whether it was overloaded
and if the thermal overcurrent
relay of the 400V type heater
or thermal contacts in the fan
motor of the 230V type heater
have operated.

■

Check the capacitor in the fan

of the 230V type heater.

Repairs to the electrical instal­lation and burner must only
be carried out by authorised
specialists for safety reasons.

ATTENTION

Adjustment and maintenance
of the appliance and forced-air
burner must only be carried
out by authorised specialists!

20

REMKO VRS

Maintenance log

Model: .................................. Model No.: ...................................

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Appliance cleaned – externally –
Appliance cleaned – internally –
Fan blades cleaned
V-belt tension checked
V-belt replaced
Combustion chamber cleaned
Heat exchanger cleaned
Flue gas brakes replaced
Inspection cover seals replaced
Burner gasket flange replaced
Fuel filter replaced
Safety devices checked
Appliance checked for damage
All mounting screws checked
Electrical safety check
Burner maintenance *)
Trial run

✍

*) The forced-air oil or forced-air gas burner must only be maintained by authorised specialists and adjusted in compliance with the statu-

tory requirements (1st BImSchV (German Air Pollution Control Act)). A measuring report must be prepared and kept safe.

Remarks: ............................................................................................................................................................

............................................................................................................................................................................

............................................................................................................................................................................

1. Date: .................

..............................

Signature

6. Date: ................

..............................

Signature

11. Date: ..............

..............................

Signature

2. Date: ................

..............................

Signature

7. Date: ................

..............................

Signature

12. Date: ..............

..............................

Signature

3. Date: ................

..............................

Signature

8. Date: ................

..............................

Signature

13. Date: ..............

..............................

Signature

4. Date: ................

..............................

Signature

9. Date: ................

..............................

Signature

14. Date: ...............

..............................

Signature

5. Date: ................

..............................

Signature

10. Date: ..............

..............................

Signature

15. Date: ..............

..............................

Signature

16. Date: ...............

..............................

Signature

The unit must only be serviced by authorised specialists in compliance with the statutory requirements.

17. Date: ..............

..............................

Signature

18. Date: ..............

..............................

Signature

19. Date: ..............

..............................

Signature

20. Date: ..............

..............................

Signature

21

Intended use

Owing to their design and equip­ment, the devices are intended
solely for heating and ventilation
purposes in industrial or commer­cial use (not for domestic heating).

With appropriate fan and motor
dimensioning, the design of the
unit allows the use of air inlet
and outlet side air ducts and unit
accessories.

Standard appliances are not suit-suit­able for exclusive use as ventilation
units.

The units must only be operated
by suitably trained personnel.

The manufacturer disclaims all
liability for any damage attributed
to failure to observe relevant in­structions, statutory requirements
applicable at the place of use
or unauthorised changes to the
unit.

ATTENTION

Customer service and
warranty

A precondition for any warran­ty claims is that the dealer or his
customer has completed and
returned the enclosed „Warranty
Document” to REMKO GmbH &
Co. KG at the time of sale and
commissioning.

The units were repeatedly tested
for perfect functioning at the
factory. However, if faults should
occur which cannot be cleared by
the operator via troubleshooting
measures, your specialised dealer
or contract partner should be
contacted.

NOTE

Adjustment and maintenance
must only be carried out by
authorised specialists.

Environmental
protection and
recycling

Disposal of packaging

Think of the environment when
disposing of the packaging
material.
Our units are carefully packed for
transport and delivered in sturdy
cardboard packaging and
on a wooden pallet if necessary.
The packaging materials are en­vironmentally-friendly and can be
recycled.
The reuse of packaging material
makes a valuable contribution to
the reduction of waste and the
preservation of raw materials.

Packaging materials must be
disposed of at the appropriate
facilities.

Disposal of old appliance

Our production is subject to cons­tant quality controls.

Only high-quality materials are
used, the majority of which are
recyclable.

Copyright
Any copying of this docu­ment in whole or part or use
for purposes other than the
intended is strictly forbidden
without the prior written
permission of

& Co. KG

REMKO GmbH

.

NOTE

Use for any other purpose than
that described in these operat­ing instructions is not permit­ted.Failure to observe this rule
will invalidate all liability and
warranty.

Make your contribution towards
environmental protection by dis­posing of your old appliance in an
environmentally friendly manner.

Only dispose of old appliances at
recycling sites or where suitable
facilities exist.

22

REMKO VRS

2

3

1

5B

2A

#2

#3

#4

#1

schwarz

blau

blau

braun

L1

N T1T2S3 B4

1

4
2

1

4

2

1

1

4

2

schw.1

schw.2

schw.4

schw.3

M

4B 1A

6B 3A

1 2 3 4 5 6 7 8

2 3 4 5 6

L1 N

S

KL

SK

WS

RT

TR TW STB

KB

Wielandbuchse
vom Brenner

Wielandstecker

Nur im Lieferumfang
des werkseitigen

Brenners enthalten.

Brennerkabel

Werkseitig vorbereitet

zum Anschluß des

Wielandsteckers.

L1

N T1T2S3 B4

C

J J J

Wiring diagram 230V

Fan motor: 230V/1~
Burner motor: 230V/1~

Legend:

C = Capacitor
KB = REMKO triple function combination controller
KL = Terminal strip in control box
M = Fan motor
RT = Thermostat socket
S = Switch
SK = Control box
STB = Safety temperature limiter
TR = Fan controller
TW = Temperature monitor
WS = Wieland connector

(only factory supplied burners)

We reserve the right to make dimensional and design changes in the interest of technical advances.

An emergency switch must be provided at an
easily accessible point in the installation room
(however outside any danger zone) .

This switch must be protected against
unauthorised use!

ATTENTION

Electrical appliance connection must only be
carried out by authorised specialists in com­pliance with DIN EN 60335-1/VDE 0116.

23

Wiring diagram 400V direct starting

N PE

X1

1 2 3 4

F1

12345

6

K1

12345

6

F2

12345

6

95

9698

97

U

V

W

X2

5 6 7

F3

1

2

S1

1

2 3

H1

1

2

H2

1

2

Aus

Lüften Heizen

K1

A1

A2

H3

1

2

5 6

TR

4

3

TW STB

KB

PE

RT

X2

1 2

L1 L2 L3

H4

Optional

h

P

7 8 9 10

L1 N T1 T2S3B4 PE

Motor

Optional

Raumthermostat bzw.
Tag / Nacht Regelung

Dreifach-Kombinationsregler

X1 1 2

3

4

5 6

PE7PE

U V WPEL1 L2 L3 N

bauseitige Zuleitung

Ventilatormotor

PE

X2 1 2 3 456 7 8 9 10

nummeriertes

Brennerkabel

Raumthermostat bzw.

Tag / Nacht Regelung

Dreifach

Kombinationsregler

PE

S3 B4 PEL1 N

PE PE

Werkseitig vorbereitet zum

Anschluß des Wielanssteckers

Wielandstecker

# 1

# 2

# 3

# 4

M

3~

1

2

nur bei Lieferung mit

werkseitigem Brenner

enthalten!

Wird ein Raumthermostat bzw.
eine Tag- / Nacht Regelung
angeschlossen, muß die werks-
seitige Brücke zwischen den
Klemmen1 und 2 der Klemm-
lei st e X 2 e ntfernt werden.

Klemmleisten im Schaltkasten

WS

J

J J J

Fan motor: 400V/3~ (up to 2.2 kW)
Burner motor: 230V/1~

Legende:

F1 = Fuse block (fan motor)
F2 = Thermal overcurrent relay (fan motor)
F3 = Control fuse
H1 = Fan fault indicator light
H2 = Fan operating indicator light
H3 = Burner operating indicator light
H4 = Burner fault indicator light
K1 = Fan contactor
KB = REMKO triple function combination controller
M = Fan motor
P = Time counter (optional)

RT = Room thermostat or control (optional)
S1 = Switch
STB = Safety temperature limiter
TR = Fan controller
TW = Temperature monitor
X1 = Terminal strip 1 in control box
X2 = Terminal strip 2 in control box

We reserve the right to make dimensional and design changes in the interest of technical advances.

24

REMKO VRS

Klemmleisten im Schaltkasten

Lüften

Aus

Heizen

K4

F4

1

2

S1

23

24

13

14

16

15

18

K3

21

22

A1

A2

K2

21

22

F3

97

98

H1

X1X2X1

X2

K1

A1

A2

K3

A1

A2

K2

A1

A2

F3

95

96

H3

1

2

N

L1

7 8 9 10

L1 N T1 T2 S3 B4 PE

6

TR

K4

3

TW

RT

X2

1 2

PE

H4

1

2

h

Optional

P

4

STB

KB

PE5

Dreifach Kombinationsregler Optional:

Raumthermostat bzw.
Tag / Nacht Regelung

Wielandstecker

# 1

# 2

# 3

# 4

X1 1 2 3 4 6 7 PE

PE

bauseitige Zuleitung

Ventilatormotor

8 9PE 5

10 11 12

PE

PE

13 14

PE

Überstromrelais

Brenner

X2 1 2

345

6

7

8 9 10

nummeriertes

Brennerkabel

Raumthermostat bzw.

Tag / Nacht Regelung

Dreifach

Kombinationsregler

PEPE PE

Werkseitig vorbereitet zum

Anschluß de s Wielanssteckers

Wird ein Raumthermostat bzw.
eine Tag- / Nacht Regelung
angeschlossen, muß die werks-
seitige Brücke zwischen den
Klemmen1 und 2 der Klemm-
lei ste X2 en tf ernt we rd en.

L1 L2

L3

N

U1

V1 W1U2V2 W2

L1 L2

L3

N

PEB4S3NL1

WS

nur bei Lieferung mit

werkseitigem Brenner

enthalten!

J J J J

Wiring diagram 400V Y/Δ starting

Fan motor: 400V/3~ (up to 3.0 kW)
Burner motor: 230V/1~

An emergency switch must be provided at an
easily accessible point in the installation room for
heaters with a nominal heat output from 50 kW.

The emergency switch must be protected against
damage and unauthorised use!

We reserve the right to make dimensional and design changes in the interest of technical advances.

ATTENTION

Electrical appliance connection must only be
carried out by authorised specialists in com­pliance with DIN EN 60335-1/VDE 0116.

25

Wiring diagram 400V fan motor

L1

PEL1 L2 L3 N

L1 L2 L3 N PE

U1

V1

W1

W2

U2

V2

N

PE

X1

M1

F3

K1 K2 K3

F1 F2

1 2 3 4 5 6 7 8 9 10

11 12 13 14

2 4

6

1

3 5

2 4

6

1 3 5

2 4

6

1 3 5

2 4

6

1 3 5

2

4 6

1 3 5

2

4 6

1 3 5

97 96

98 95

Ventilatormotor

400V/3~ N

für optionalen

3~ Brennermotor

M

3~

Fan motor: 400V/3~ (from 3.0 kW)
Burner motor: (400V/3~ optional)

Legende:

F1 = Fuse block, fan motor
F2 = Fuse block, burner motor (optional)
F3 = Thermal overcurrent relay, fan motor
F4 = Control fuse
H1 = Fan fault indicator light
H2 = Fan operating indicator light
H3 = Burner operating indicator light
H4 = Burner fault indicator light
KB = Triple function combination controller
K1 = Supply contactor
K2 = Delta contactor
K3 = Star contactor

M1 = Fan motor
RT = Room thermostat or control (optional)
P = Time counter (optional)
S1 = Switch
STB = Safety temperature limiter
TR = Fan controller
TW = Temperature monitor
X1 = Terminal strip 1 in control box
X2 = Terminal strip 2 in control box

K4 = Time limit relay

We reserve the right to make dimensional and design changes in the interest of technical advances.

26

REMKO VRS

Exploded drawing VRS 25 - 200

22

2

23

18

19

20

21

25

1

24

3

9

13

2

11

6

4

7

8

13

11

Fig. Fan with belt drive

17

Fig. VRS 50 standard type

30

29

15

12

14

5

Replacement for Pos. 6 from size
130 to 200

10

34

33

We reserve the right to make dimensional and design changes in the interest of technical advances.

26 27 26

31

32

27

Spare parts list

No. Designation VRS 25 VRS 50 VRS 75 VRS 100 VRS 130 VRS 170 VRS 200

EDP No. EDP No. EDP No. EDP No. EDP No. EDP No. EDP No.

1 Unit frame, complete

2 Lining plate, insulated

3 Combustion chamber, complete

4 Screw cap

5 Burner chamber flange sealing

6 Lining plate, insulated

7 Seal

8 Burner plate

9 Combination controller

10 Metal panel Pos. III/V

11 Metal panel

12 Inspection cover, front

13 Air inlet plate Pos. I/II

14 Sealing per metre

15 Flue gas brake

17 Air inlet plate Pos. III/V

18 Inspection cover seal

19 Inspection cover, lateral

20 Seal for exhaust pipe adapter

21 Exhaust pipe adapter

Rosette for exhaust fume

22

connection

23 Lining plate, insulated

24 Air baffle, right

25 Air baffle, left

26 Lining plate, insulated

27 Intermediate plate, insulated

29 Fan (230V/1~)

30 Electric motor (400V/3 ~)

31 Motor V-belt wheel

32 V-belt Depending on the respective appliance type and pressure

33 Fan V-belt wheel

34 Radial fan

not shown control box, complete

not shown:

Metal panel Pos. I/II

Metal panel Pos. IV

Air inlet plate Pos. IV

Spare parts for appliance size VRS 270 - 540 available on request!

1103200 1103201 1103202 1103203 1103204 1103205 1103205

1103210 1103211 1103212 1103213 1103214 1103215 1103215

1103170 1103171 1103172 1103173 1103174 1103175 1103176

1103219 1103220 1103220 1103220 1103220 1103220 1103220

1102948 1102949 1102949 1102949 1102949 1102949 1102949

1103231 1103232 1103232 1103233 — — — — — —

1102950 1102951 1102951 1102951 1102951 1102951 1102951

1103235 1103236 1103236 1103236 1103236 1103236 1103236

1102572 1102572 1102572 1102572 1102572 1102572 1102572

1103238 1103239 1103239 1103240 1103241 1103242 1103242

1103256 1103257 1103258 1103259 — — — — — —

1103245 1103246 1103247 1103248 1103249 1103250 1103250

1103260 1103261 1103261 1103262 1103263 1103264 1103264

1103255 1103255 1103255 1103255 1103255 1103255 1103255

1102953 1102954 1102955 1102956 1102967 1102957 1102957

1103260 1103261 1103261 1103262 1103268 1103269 1103269

1103273 1103273 1103274 1103274 1103275 1103275 1103275

1103278 1103278 1103279 1103279 1103280 1103280 1103280

1102947 1102947 1102947 1102947 — — — — — —

1103283 1103283 1103284 1103284 — — — — — —

1103285 1103285 1103286 1103286 1103287 1103287 1103287

1103290 1103291 1103291 1103292 1103293 1103294 1103294

1103180 1103181 1103182 1103182 1103183 1103184 1103184

1103180 1103181 1103182 1103182 1103183 1103184 1103184

— — — — — — — — 1103190 1103191 1103191

— — — — — — — — 1103195 1103196 1103196

1103238 1103239 1103239 1103240 1102974 1102975 1102975

290105 291105 292105 293105 294105 295105 296105

290109 291109 292109 293109 294109 295109 296109

When ordering spare parts, please always also quote the model number and model (see rating plate) in addition to the

EDP number!.

28

REMKO VRS

Appliance specifications - vertical

HB 90

HG

BK

VRS 50 - vertical

BB

SB

B

F

FK

JK

SG

We reserve the right to make dimensional and design changes in the interest of technical advances.

29

Appliance specifications - horizontal

HB 90

KN

VRS 50 - horizontal/left

S

BB

BK

KN

Legend:

B = Metal panel Pos. I-III
BB = Metal panel Pos. IV
BK = Burner box
F = Dust filter 3-sided for free air intake
FK = Dust filter for duct connection
HG = Air outlet hood 3 or 4-sided
S = Air inlet including grille Pos. IV
SB = Air inlet including grille Pos. I-III
SG = Flexible pipe
HB 90 = Air outlet hood for direct outlet, front/rear
KN = Wall bracket
JK = Shutter flap

FK

JK

SG

We reserve the right to make dimensional and design changes in the interest of technical advances.

30

REMKO VRS

Unit dimensions

Vertical unit

Horizontal unit

B
E

Pos. II Pos. I

G G

Pos. IV

E

For horizontal units, only use the rear chimney connection!
C A

Pos. I Pos. IV

A
D

Rø

C

S

G

F

Pos. III

G

Pos. IV

D

K

P

Pos. I

E E B K

Z

Schematic dia­gram VRS 50

Dim. in
mm

A
B
C
D
E
F
G
H
K
P
R ø
S
Z
Weight kg

Weights without burner and other accessories.
The dimensions D/E/K and G refer only to REMKO air inlet and outlet accessories.

VRS 25 VRS 50 VRS 75 VRS 100 VRS 130 VRS 170 VRS 200 VRS 270 VRS 340 VRS 440 VRS 540

850 1000 1250 1250 1525 1650 1650 1690 1690 2305 2305
600 800 800 900 1005 1190 1190 1290 1290 1770 1770

1200 1400 1400 1500 1735 1900 1900 2400 2400 3270 3270

755 925 1175 1175 1450 1580 1580 1570 1570 2155 2155
525 725 725 825 915 1115 1115 1170 1170 1620 1620
815 900 900 910 1075 1160 1160 2055 2055 2865 2865
550 550 550 550 590 590 590 695 695 1060 1060
335 435 435 485 540 635 635 685 685 925 925
525 725 725 780 930 1045 1045 1170 1170 1620 1620
190 190 190 190 270 240 240 - - - - - - - ­150 150 180 180 200 200 200 300 300 350 350
955 1050 1050 1100 1230 1330 1330 1090 1090 1535 1535

35 35 35 35 35 35 35 40 40 40 40

150 240 310 360 550 730 820 832 874 1542 1792

We reserve the right to make dimensional and design changes in the interest of technical advances.

Pos. II

G

Pos. III

H

Pos. II

K

31

Accessories

Air outlet hood type HG

For direct air outlet to 2, 3 or 4 sides, with built-in air directing shutter
flaps. All flaps are individually horizontally and vertically adjustable..

Dim. in mmVRS 25VRS50VRS75VRS

D
E
H

L

V

D

K

E

L
V

H

K

Blowing range in
metres

front + rear 11 17 28 28 28 28 34 20 22 18 20
right + left 10 16 22 23 25 30 28 18 20 20 22

The values always refer only to the specified positions.

850 1000 1250 1250 1525 1650 1650 1600 1600 2155 2155
600 800 800 900 1005 1190 1190 1200 1200 1620 1620
300 300 300 300 360 360 360 560 560 760 760
260 260 260 260 260 260 260 460 460 660 660
650 750 1050 1050 1250 1500 1500 1250 1250 1650 1650
450 650 650 750 850 850 1050 800 800 1250 1250

VRS 25VRS50VRS75VRS

100

VRS
130

100

VRS
170

VRS

130

VRS
200

VRS
170

VRS
270

VRS
200

VRS
270

VRS
340

VRS
340

VRS
440

VRS
440

VRS
540

VRS
540

Air outlet hood type HB-90 For direct air outlet to the front or rear, with built-in air directing shutter

flaps. All flaps are individually horizontally and vertically adjustable.

Dim. in mmVRS 25VRS50VRS75VRS

H

D
E
H

800 950 1200 1200 1480 1600 1600 1570 1570 2155 2155
550 750 750 850 960 1150 1150 1170 1170 1620 1620
370 470 670 770 770 770 870 1135 1135 1500 1500

100

VRS
130

VRS
170

VRS
200

VRS
270

VRS
340

VRS
440

VRS
540

E

D

Blowing range in
metres

front/rear 14 20 26 29 30 32 34 22 24 20 22

VRS 25VRS50VRS75VRS

100

VRS

130

VRS
170

VRS
200

VRS
270

VRS
340

VRS
440

VRS
540

Burner box type BK With connection for fresh air inlet pipe for combustion air. Recommended

also for a high dust occurrence or possible lack of air in the installation

Rø

room.
The connection can be positioned at all four side positions as required.

H

T

A

Dim. in mmVRS 25VRS50VRS75VRS

100
A
H
Rø
T

600 800 800 900 900 900 900 880 880 1055 1055
620 820 820 920 900 900 900 880 880 1065 1065
150 150 150 150 200 200 200 200 200 200 200
400 400 500 500 600 600 600 750 750 900 900

VRS
130

VRS
170

VRS
200

VRS
270

VRS
340

VRS
440

VRS
540

We reserve the right to make dimensional and design changes in the interest of technical advances.

32

REMKO VRS

Accessories

Wall bracket type KN

A (A1)

U-profile construction for mounting vertical or horizontal units
on walls with a minimum thickness of 24 cm (structural calculation
required).
Recommended is the use of continuous M 16 steel reinforced threaded
bolts (local mounting material)

B (B1)

D

Appliance
type dim.

in mm

A (vertical)

C

A1
(horizontal)

B (vertical)
B1

(horizontal)

C

D

VRS 25VRS50VRS75VRS

670 870 870 970 1070 1270 1270 1430 1430 -- --

970 1120 1430 1430 1780 2010 2010 2800 2800 -- --

820 1020 1020 1120 1220 1380 1380 2010 2010 -- --

1120 1320 1600 1600 2010 2200 2200 2200 2200 -- --

55 80 120

VRS

VRS

VRS

VRS

100

130

170

200

270

45 50

VRS
340

VRS
440

VRS
540

Flexible pipe type SG Flexible connection (vibration isolation) between unit and air duct system.

Mounting option Pos. I, II, III, IV or also combined.

max. 150

K(D)

Z

G(E)

Z

Dim. in mmVRS 25VRS50VRS75VRS

D

E

G

K

Z

Dimensions in brackets only for air outlet and
direct duct connection to air inlet Pos. IV

790 940 1190 1190 1465 1590 1590 1170 1170 1620 1620
540 740 740 840 945 1130 1130 1570 1570 2155 2155
485 485 485 485 545 630 630 695 695 1060 1060
465 670 670 765 895 1085 1085 1170 1170 1620 1620

30 30 30 30 30 30 30 30 30 35 35

100

VRS
130

VRS

170

VRS
200

VRS
270

VRS

340

VRS
440

VRS
540

Dust filter type F for free air intake Plate filter consists of 2 grille frames with intermediate,

easy to replace filter mats with the filter class G3.

Further filter classes are available on request.

1 set dust filters F always consists of air inlet Pos. I + II + III..

➠

Pos. II

We reserve the right to make dimensional and design changes in the interest of technical advances.

➠

Pos. III

Pos. I

Tech-

➠

nical
data

F m

A m/s

F m2 = Filter area in m2
A m/s = Flow in m/s
Initial pressure loss about 100 Pa at standard pressure.
With a change of filter class, the changed pressure loss must be taken into account!

VRS 25VRS50VRS75VRS

2

0.79 1.02 1.24 1.28 1.18 1.70 1.70 2.46 2.46 5.15 5.15

0.6 0.9 1.2 1.5 2.1 1.6 2.0 2.2 2.3 2.5 2.9

100

VRS
130

VRS

170

VRS
200

VRS
270

VRS

340

VRS
440

VRS
540

33

Accessories

Dust filter Type FK for duct inlet

Z

Z

K

➠

➠

K

➠

➠

Y

G

Z

Pos. I

Y

G

Z

Pos. IV

Duct filter with easy to change insertion filters with the filter class G3.
Further filter classes are available on request.

Any unused air inlet openings must be closed with appropriate metal
plates.

Dim.
in mm

G

K

Y

Z

Technical data

Filter area in m
Flow in in m/s 0.65 0.98 1.06 1.08 1.13 1.18 1.33 1.52 1.67 1.94 2.12

Initial pressure loss about 100 Pa at standard pressure and 2-sided air intake.
With a change of filter class, the changed pressure loss must be taken into account!

VRS 25VRS50VRS75VRS

485 485 485 485 545 630 630 695 695 1060 1060
465 660 660 765 895 1085 1085 1170 1170 1620 1620
480 480 480 480 690 690 690 530 530 605 605

30 30 30 30 30 30 30 30 30 35 35

VRS 25VRS50VRS75VRS

2

0.72 0.96 1.36 1.76 2.16 2.88 2.88 4.82 4.82 9.18 9.18

100

VRS
130

100

VRS
170

VRS

130

VRS
200

VRS
170

VRS
270

VRS
200

VRS
270

VRS
340

VRS
340

VRS
440

VRS
440

VRS
540

VRS
540

Shutter flaps Type JK Shutter flaps in galvanised metal housing with connection frame.

➠

Pos. III

➠

K

Z

Z

K

➠

➠

K

➠

➠

Pos. I

➠

G

Pos. IV

➠

The torsionally stiff aluminium flaps can be continuously adjusted via
hand lever or electric shutter motor (accessory).
Combined flaps for controlling recirculating air/outside air conditions are
connected with linkages working in opposite directions.

G

Combination options:

Pos. I + II Pos. I + IV
Pos. I + III Pos. II + IV
Pos. II + III Pos. III + IV

Any unused air inlet openings must be closed with appropriate metal
plates.

Y

Dim.

G

in mm

G

K

Y

Z

VRS 25VRS50VRS75VRS

485 485 485 485 545 630 630 695 695 1060 1060
465 660 660 765 895 1085 1085 1170 1170 1620 1620
120 120 120 120 120 120 120 180 180 180 180

30 30 30 30 30 30 30 30 30 35 35

100

VRS
130

VRS
170

VRS
200

VRS
270

VRS
340

VRS
440

VRS
540

We reserve the right to make dimensional and design changes in the interest of technical advances.

34

REMKO VRS

Technical data

Series

Nominal heat load kW 33 62 89 125 160 208 249 277 332 442 543

Nominal heat output kW 29 57 83 116 149 193 232 254 305 405 499

Rated air volume flow 1) m3/h 1,760 3,950 5,270 7,950 9,800 12,000 13,900 18,960 22,680 30,480 37,170

Fuel Fuel oil EL according to DIN 51603-1 or diesel fuel, natural or liquid gas

Oil flow rate (fuel oil EL) kg/h 2.8 5.2 7.5 10.6 13.5 17.5 21.0 23.4 28.0 37.3 45.8

Danfoss oil nozzle

Pump pressure about

Gas flow rate (natural gas H) m3/h 3.2 6.0 8.6 12.1 15.4 20.0 24.0 26.7 32.0 42.7 52.5

Gas flow rate (natural gas L) m3/h 3.8 7.0 10.1 14.2 18.1 23.5 28.2 31.4 37.6 50.0 61.50

Gas flow rate (liquid gas) m3/h 1.3 2.4 3.4 4.9 6.2 8.0 9.6 10.6 12.8 – –

Exhaust fume mass flow VAf 3)

Exhaust fume temp. about

required chimney draft Pa 0

Exhaust fume loss VA min./max

Furnace resistance Pa 6 8 18 20 25 31 38 55 60 60 65

2)

2)

4) °C 170 - 200 185 - 200

. % 7 / 9 7 / 9 7 / 9 7 / 9 7 / 9 7 / 9 7 / 9 8 / 9 8 / 9 8 / 9 8 / 9

VRS 25VRS 50VRS 75VRS

100

USG 0.75 1.5 1.75 3.0 3.0 4.0 5.0 4.5 5.5 7.5 9.0

bar 12 11 14 11 14 10/15 9/14 13/18 13/18 14/19 15/18

kg/h 49 95 140 195 250 325 390 420 506 690 865

VRS
130

VRS

170

VRS

200

VRS

270

VRS

340

VRS
440

VRS
540

Sound pressure level LpA 1m 5)

Power supply V/Hz 230/1~/50 400/3~N/50

Rated current 6) A 2.2 4.5 2.8 3.7 3.7 3.7 5.2 8.8 11.4 15.5 2x11.4

Power consumption

Power consumption 7) kW 0.21 0.21 0.45 0.45 0.45 0.35 0.35 0.35 0.35 1.9 1.9

Chimney connection ø mm 150 150 180 180 200 200 200 300 300 350 350

Weight

1) Air flow at Δt 40K / 1.2 kg/m3

2) The specified nozzle sizes and pump pressures result from
adjustments on the test stand.
The oil flow rate was determined by volumetric measurement.
Owing to product-specific nozzle and pressure tolerances as well as
the oil temperature, the values shown are only guide values.

3) About volume with oil operation

4) Measured temperature less room temperature

5) Noise emission measurement (without burner) DIN 45635-01-KL3

6) Heater without burner

7) For factory supplied burners

8) For standard type, without burner and other accessories

8)

6)

dB(A) 57 58 63 60 65 65 65 79 80 82 80

kW 0.20 0.515 1.1 1.5 1.5 1.5 2.2 4.0 5.5 7.5 2 x 5.5

kg 150 240 310 360 550 730 820 832 874 1542 1792

Calorific value Hi in normal
condition:

Fuel oil EL 11.86 kWh/kg
Natural gas H 10.35 kWh/m
Natural gas L 8.83 kWh/m
Propane gas 25.99 kWh/m
Propane gas 12.87 kWh/kg

3
3
3

max. air inlet temperature 40°C/max. air outlet temperature 100°C

We reserve the right to make dimensional and design changes in the interest of technical advances.

35

Technical data of drive

Electric motor(s) Fan(s) V-belt wheels

Type

VRS

25

50

75

100

130

170

200

270

340

440

540

Nom. press

external

.

Electrical

connection

Power con-

Pa V kW A rpm rpm mm Ø mm Ø dB(A)

S)

110

230/1~ 0.20 2.20 840 DD 9/9 900 Direct drive 57
170 230/1~ 0.245 2.60 860 DD 10/10 900 Direct drive 58
220 400/3~N 0.37 1.10 1410 10/10 E 1000 SPZ 1 100 140 62
280 400/3~N 0.37 1.10 1410 10/10 E 1130 SPZ 1 100 125 64

S)

60

230/1~ 0.515 4.50 800 DD 10/10 900 Direct drive 58
140 400/3~N 1.1 2.80 1420 10/10 E 1140 SPZ 1 100 125 64
200 400/3~N 1.5 3.70 1420 10/10 E 1260 SPZ 2 100 112 65
330 400/3~N 2.2 5.20 1440 10/10 E 1420 SPZ 2 112 112 66
470
100

Y/Δ 400/3~N

S)

400/3~N 1.1 2.80 1420 10/8 Z 880 SPZ 1 100 160 63
160 400/3~N 1.5 3.70 1420 10/8 Z 1010 SPZ 2 100 140 64
230 400/3~N 1.5 3.70 1420 10/8 Z 1140 SPZ 2 100 125 65
300 400/3~N 2.2 5.20 1440 10/8 Z 1290 SPZ 2 112 125 67
430
80

Y/Δ 400/3~N

S)

400/3~N 1.5 3.70 1420 10/10 Z 1010 SPZ 2 100 140 60
170 400/3~N 2.2 5.20 1440 10/10 Z 1150 SPZ 2 112 140 62
240
350
100

Y/Δ 400/3~N
Y/Δ 400/3~N

S)

400/3~N 1.5 3.70 1420 12/12 Z 780 SPZ 2 100 180 65
170 400/3~N 2.2 5.20 1440 12/12 Z 900 SPZ 2 112 180 67
260 400/3~N 2.2 5.20 1440 12/12 Z 1010 SPZ 2 112 160 69

S)

50

400/3~N 1.5 3.70 1420 15/11 Z 630 SPZ 2 100 224 65
130 400/3~N 2.2 5.20 1440 15/11 Z 720 SPZ 2 112 224 66
170
260

410
70
140
220
340
50

90
210
290
400
60
100
190
280

50

90
200
290
380

50

90
210
300
390

Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N

S)

Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N

S)

Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N

S)

Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N

S)

Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N

S)

Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N
Y/Δ 400/3~N

400/3~N 2.2 5.20 1440 15/15 Z 720 SPZ 2 125 250 65

2 x 11.0 2 x 21.0 1470

sumption

Rated

current

Rated
speed

Type Speed Type Motor

Fan

3.0 7.00 1450 10/10 E 1620 SPZ 2 140 125 69

3.0 7.00 1450 10/8 Z 1440 SPZ 2 112 112 69

3.0 7.00 1450 10/10 Z 1300 SPZ 2 112 125 63

3.0 7.00 1450 10/10 Z 1440 SPZ 2 112 112 64

3.0 7.00 1450 15/11 Z 810 SPZ 2 112 200 68

3.0 7.00 1450 15/11 Z 900 SPZ 2 112 180 71

4.0 8.80 1445 15/11 Z 1030 SPZ 2 160 224 73

3.0 7.00 1450 15/15 Z 830 SPZ 2 160 280 66

4.0 8.80 1445 15/15 Z 920 SPZ 2 160 250 68

5.5 11.40 1460 15/15 Z 1030 SPZ 2 160 224 71

4.0 8.80 1445

4.0 8.80 1445

5.5 11.40 1450

5.5 11.40 1450

7.5 15.20 1450

5.5 11.40 1450

7.5 15.20 1450

7.5 15.20 1450

11.0 21.00 1470

7.5 15.20 1450

11.0 21.00 1470

11.0 21.00 1470

11.0 21.00 1470

11.0 21.00 1470
2 x 5.5 2 x 11.4 1450
2 x 5.5 2 x 11.4 1450
2 x 5.5 2 x 11.4 1450
2 x 5.5 2 x 11.4 1450

AT15/15 GL2
AT15/15 GL2
AT15/15 GL2
AT15/15 GL2
AT15/15 GL2
AT15/15 GL2
AT15/15 GL2
AT15/15 GL2
AT15/15 GL2
AT18/18 GL2
AT18/18 GL2
AT18/18 GL2
AT18/18 GL2
AT18/18 GL2

TLZ 560A
TLZ 560A
TLZ 560A
TLZ 560A
TLZ 560A

810 SPZ 3 90 160 79

910 SPZ 3 90 140 80
1025 SPZ 2 140 200 81
1025 SPZ 2 140 200 80
1155 SPZ 3 125 160 80

910 SPZ 2 140 224 80
1025 SPZ 3 125 180 81
1025 SPZ 3 125 180 81
1155 SPA 3 140 180 82

660 SPZ 3 125 280 82

810 SPA 3 140 250 82

820 SPA 3 140 250 81

920 SPA 3 140 224 80

930 SPA 3 140 224 80

515 SPZ 2 140 400 80

580 SPZ 2 140 355 80

580 SPZ 2 140 355 78

650 SPZ 2 140 315 80

815 SPA 3 140 250 83

Sound pres­sure level

G)

S)

= Units with standard pressure

G)

=

Noise emission measurement (without burner) DIN 45635-01-KL33

REMKO EUROPE-WIDE

… and somewhere near you!

Take advantage of our experience and consulting services

Consulting

Through intensive training, we ensu­re that the expert knowledge of our
consultants is always up-to-date. This
has given us the reputation of being
more than just a good, reliable supplier:
REMKO, a partner
who helps solve problems.

Sales

REMKO not only has an extensive sales
network in Germany and abroad, but
also unusually highly qualified sales
experts.
REMKO field representatives are more
than just salesmen, they are also custo­mer consultants in air conditioning and
heating technology.

Customer service

Our units operate precisely and reliably.
If a fault should occur, REMKO Custo­mer Service is there to help you. Our ex­tensive network of experienced specialist
dealers guarantees our customers a fast
and reliable service at all times.

REMKO GmbH & Co. KG
Air Conditioning and
Heating Technology

Im Seelenkamp 12 · 32791 Lage
P.O.Box 1827 ·D-32777 Lage
Telephone [phone]
Fax [phone]
E-mail [e-mail]
URL www.remko.de

Subject to technical changes, information supplied without liability!
