REMKO VRS-B Universal oil/gas automatic heaters

Operation Technology Spare Parts

Edition GB – P07

REMKO – powerful like a bear.

Page 2

Page 3

Operating Instructions

Read these instructions carefully before setting up/operating the unit!

Our guarantee becomes null and void if the unit is used, set up or maintained improperly,

or if modifications are made to the supplied unit without our prior consent.

Subject to alterations!

Stationary Warm Air Heating Systems

REMKO VRS 40-B to VRS 450-B

vertical Unit horizontal Unit

Contents Page

Safety Instructions 4

Description of the Unit 4

Safety Device 5

Prior to Setup 6

Exhaust Connection 9

Setup and Assembly 10

Starting 11

Unit Shut Down 12

Maintenance and Service 13

Technical Data 14

Always keep these operating instructions near or on the unit!

Contents Page

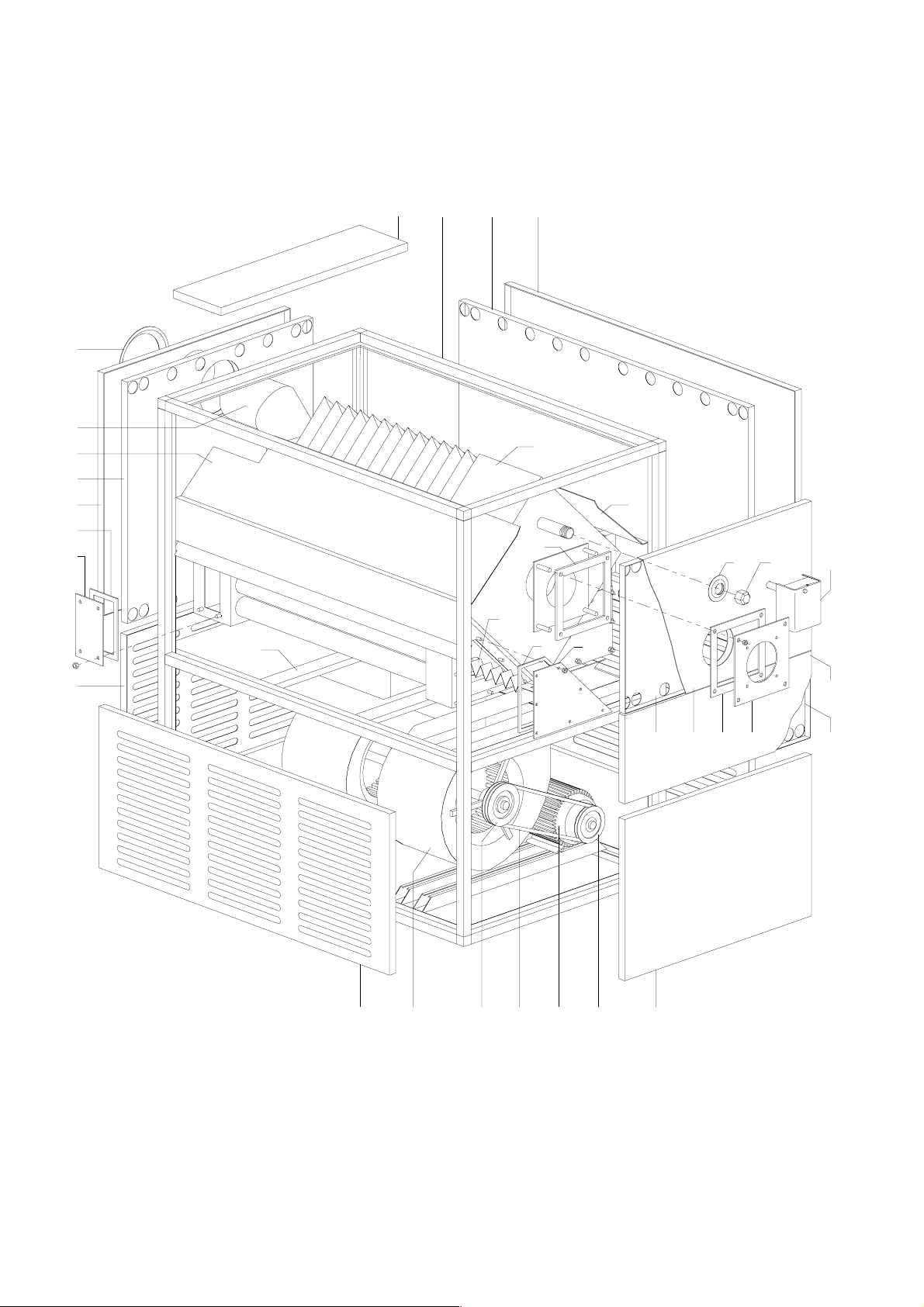

Exploded View 16

Spare Part List 17

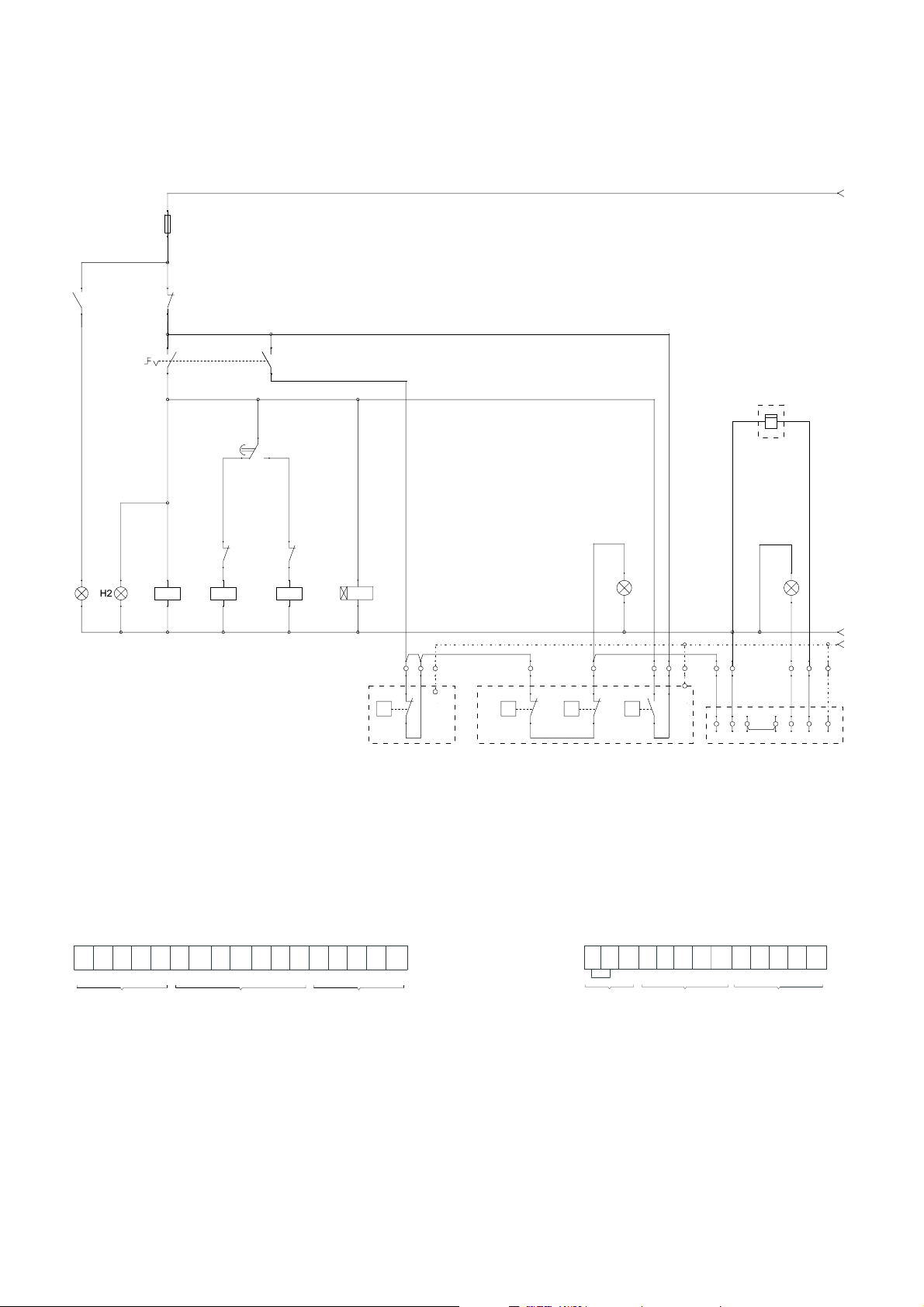

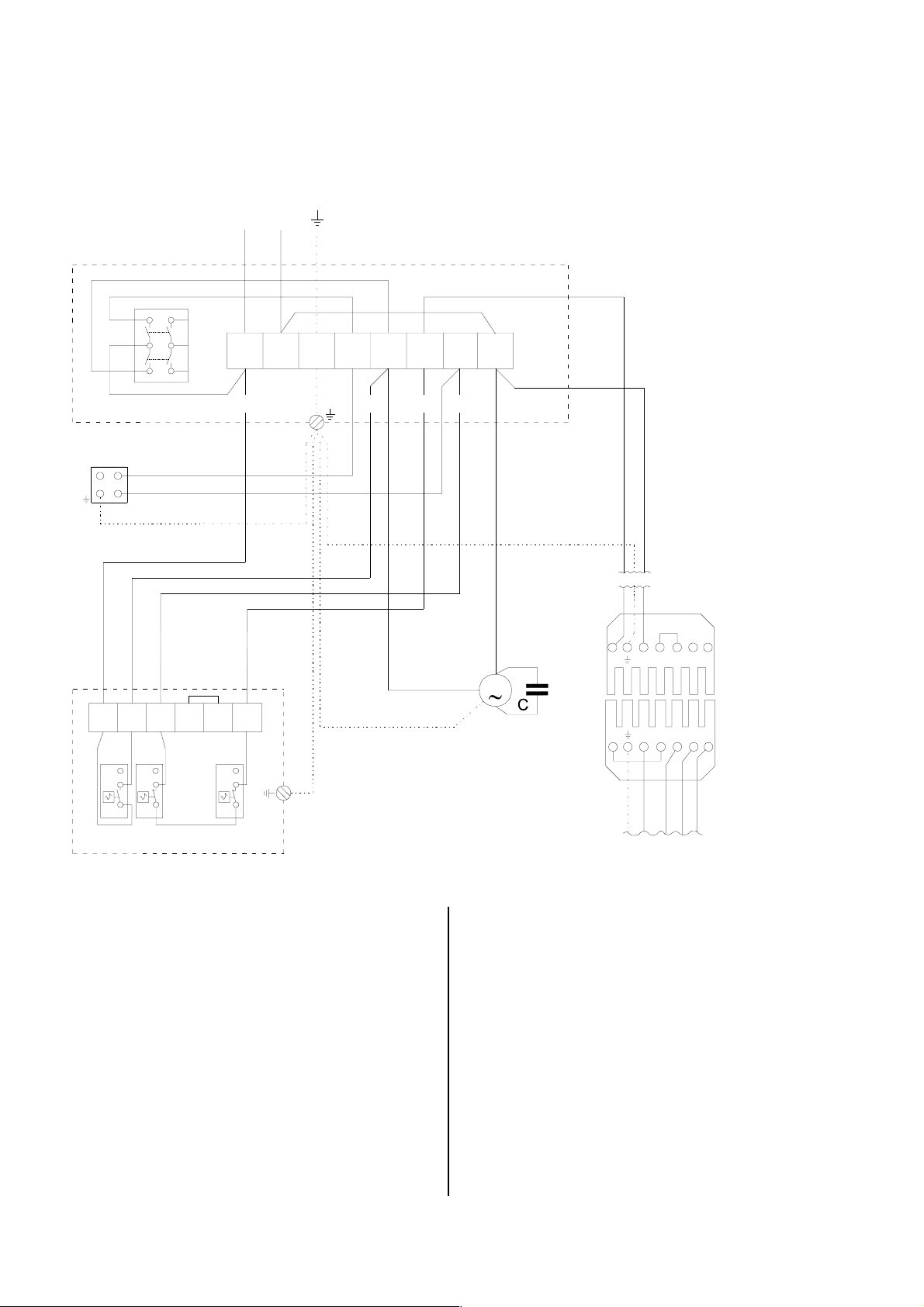

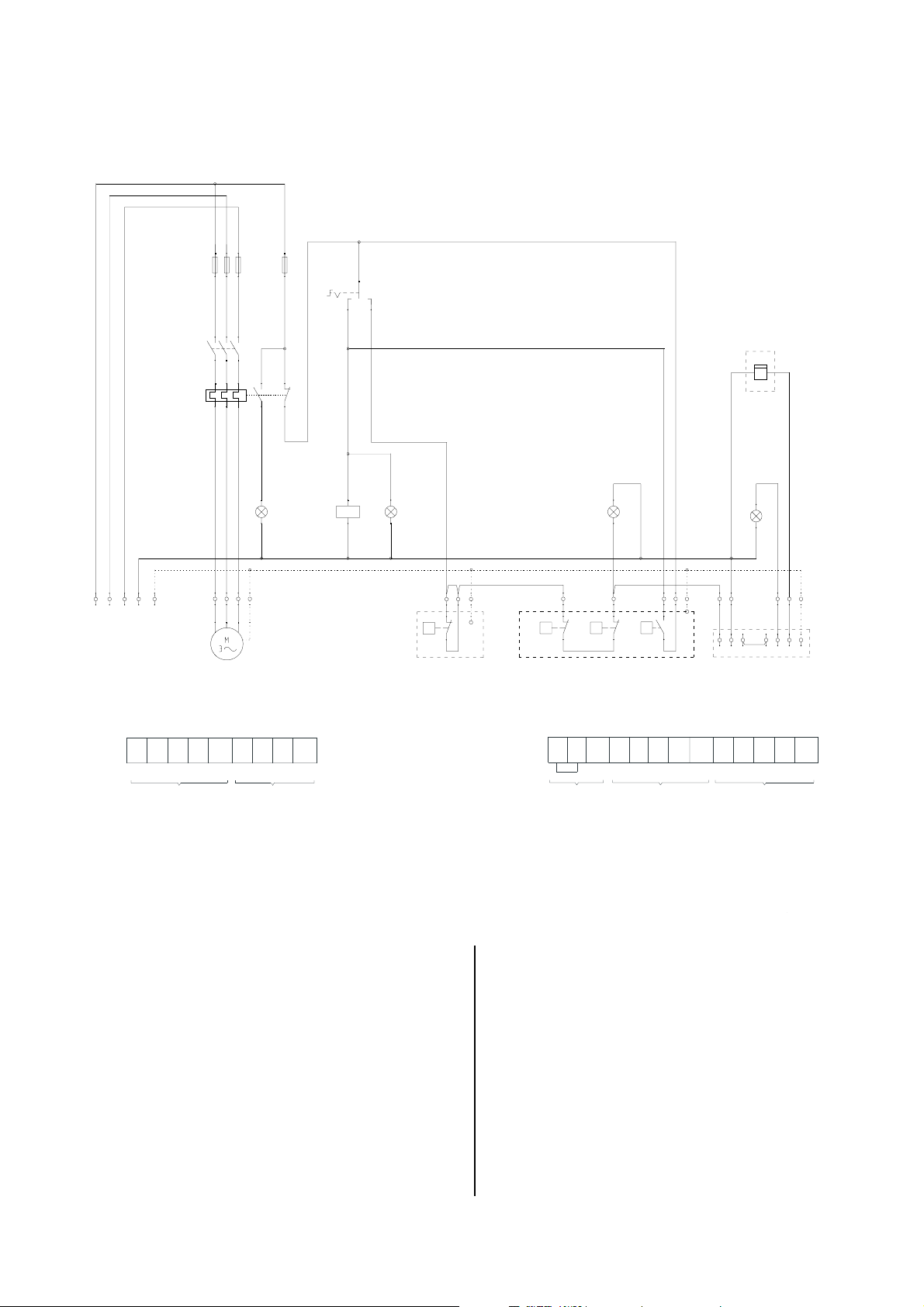

Wiring Diagram 230 V 18

Wiring Diagram 400V Direct Start 19

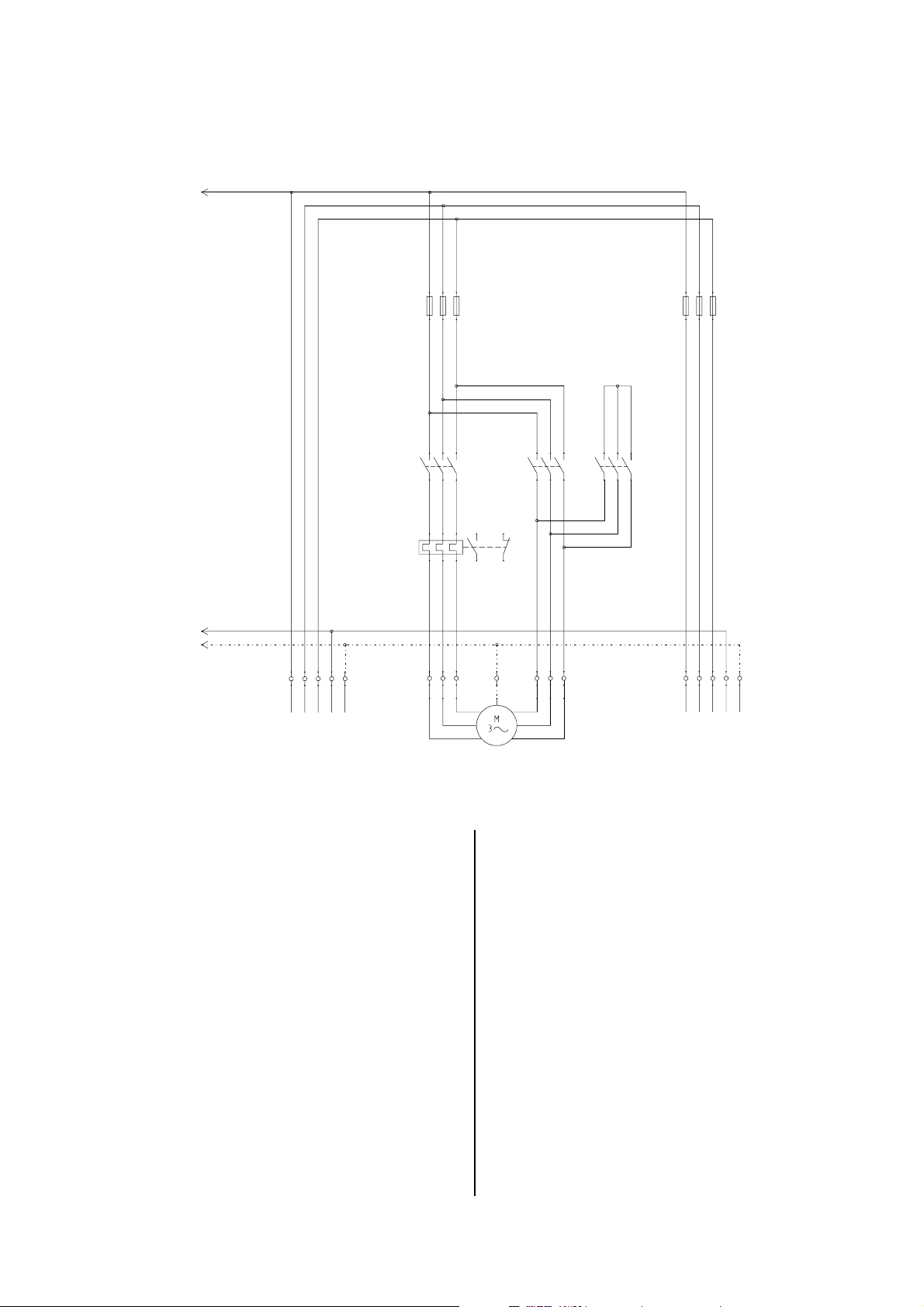

Wiring Diagram 400V

Troubleshooting 22

Service and Guarantee 22

Maintenance Log 23

Y / ∆ 20

Y / ∆ Fan motor 21

Page 4

Safety Instructions

Make sure to observe relevant local building and fire protection codes and abide by professional association regulations when the units are in operation!

à Before performing any maintenance or repair work,

make sure to unplug the units from the power supply!

Remove fuses or switch off the customer-supplied main switch.

It is not sufficient to switch off the units with the operating switch!

à The units may only be operated by persons who

have received proper training in their operation.

à The units must be installed and operated in such a

way that people are not exposed to radiant heat and fires cannot occur.

à The units may only be installed and operated in

closed rooms where the units have adequate air supply for combustion.

If this cannot be guaranteed, a separate burnerdriven device that sucks in fresh air from the outside must be installed.

à The units may only be set up on a non-flammable

surface.

à The units may only be attached to non-flammable,

sturdy structures or ceilings made from the materials with sufficient load-bearing capacity.

à The units are to be attached with sturdy mounts

which are fixed on the unit.

à The units may not be set up or operated in surround-

ings susceptible to fire or explosions.

Description of the Unit

The units (automatic heaters) have been designed for universal, fully-automatic and smooth operation. They are fired directly with heating oil, diesel or natural/liquid gas.

Function and Design

The units have been designed for operation with a separate forced-air burner in single-stage operation. 2-stage burners may only be operated to prevent condensation from accumulating during startup in partial load range.

It is essential to connect the units to an exhaust system approved by the state building authorities.

The units are equipped with single setting, quiet radial ventilators with drive motors requiring little maintenance and with integrated switches and control devices depending on the type of unit.

The units meet the basic safety and health requirements found in the relevant EU regulations. They are safe and easy to operate.

The robust design and clean processing of these highquality units ensure a long service life and smooth operation. They can also be assembled quickly, easily and affordably and are easy to service.

Operating Locations of the Units

The units are direct-fired devices that supply instantaneous heat. They are only used for industrial and commercial purposes. There are generally no restrictions as to where they can be used.

à The units must be set up outside of traffic zones,

e.g. away from cranes.

à A safety zone of 1 m is to be maintained around the

units.

à The protective air suction grille must always be kept

free of dirt and loose objects.

à Never insert foreign objects into the units.

à Do not expose the units to a direct stream of water.

à Never let water get inside the units.

à All of the units’ electrical cords are to be protected

from damage (e.g. caused by animals, etc.).

Do not bypass or block safety mechanisms while

the unit is in operation.

These units have not been designed for heating

private residences or similar spaces.

REMKO automatic heaters supply heat or regulate the temperature of:

à Workshops à Warehouses à Exhibition spaces à Trade show spaces à Temporary structures for warehousing à Showrooms à Greenhouses etc.

Proper Use

The units have been designed and equipped exclusively for industrial and commercial heating and ventilation purposes.

The manufacturer assumes no liability for damage resulting from non-compliance with manufacturer specifications and legal requirements, or if modifications are made to the units.

Page 5

Operation

Safety Device

Triple combination control

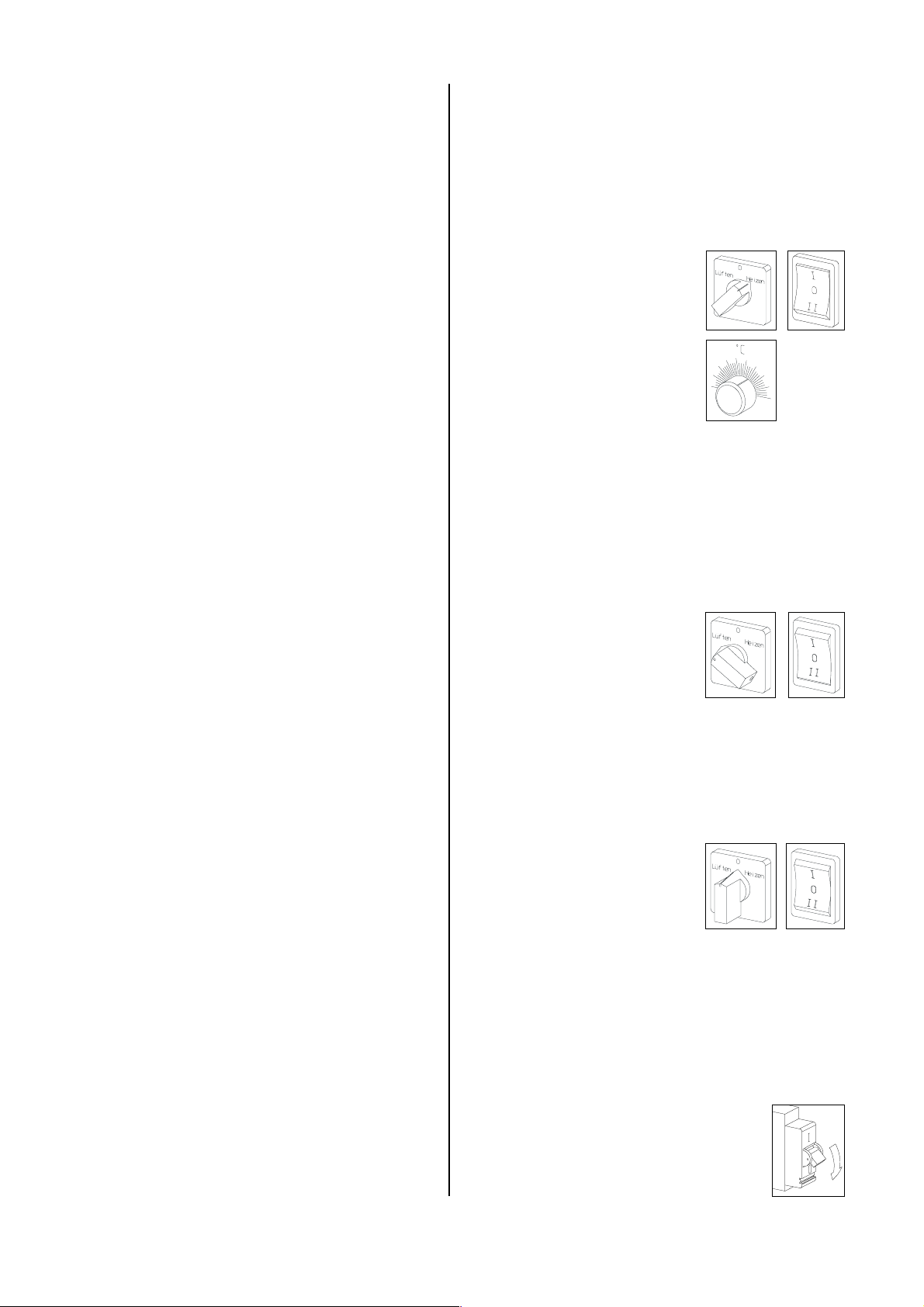

After switching on the unit by setting the operating switch to „I” or “Heizen” (heating), the forced-air burner turns on automatically.

For the 400 V model, the “burner“ operating light is illuminated on the control box for monitoring purposes. The combustion chamber with heat-exchanger now heats up until the target temperature is reached.

After the set target temperature is reached, the air supply fan switches on automatically. The “Fan” operating light on the control box also lights up on the 400 V model for monitoring purposes. Warm air is blown out.

Depending on how much heat is required, the process described is repeated.

If heating mode is controlled via a room thermostat or other temperature regulating device (operating switch set to „I” or “Heizen” (heating), the units function fullyautomatically based on amount of heat required.

All of the unit functions are performed automatically and monitored by the triple combination control and the automatic burner relay (part of the forced-air burner).

After the device is switched off with the operating switch or the room thermostat, the air supply fan runs for a certain amount of time to cool the combustion chamber with heat-exchanger and then switches off. This process can be repeated several times.

The device has 3 safety functions:

à Fan control thermostat (TR) à Temperature monitor (TW)

à Safety temperature limiter (STB)

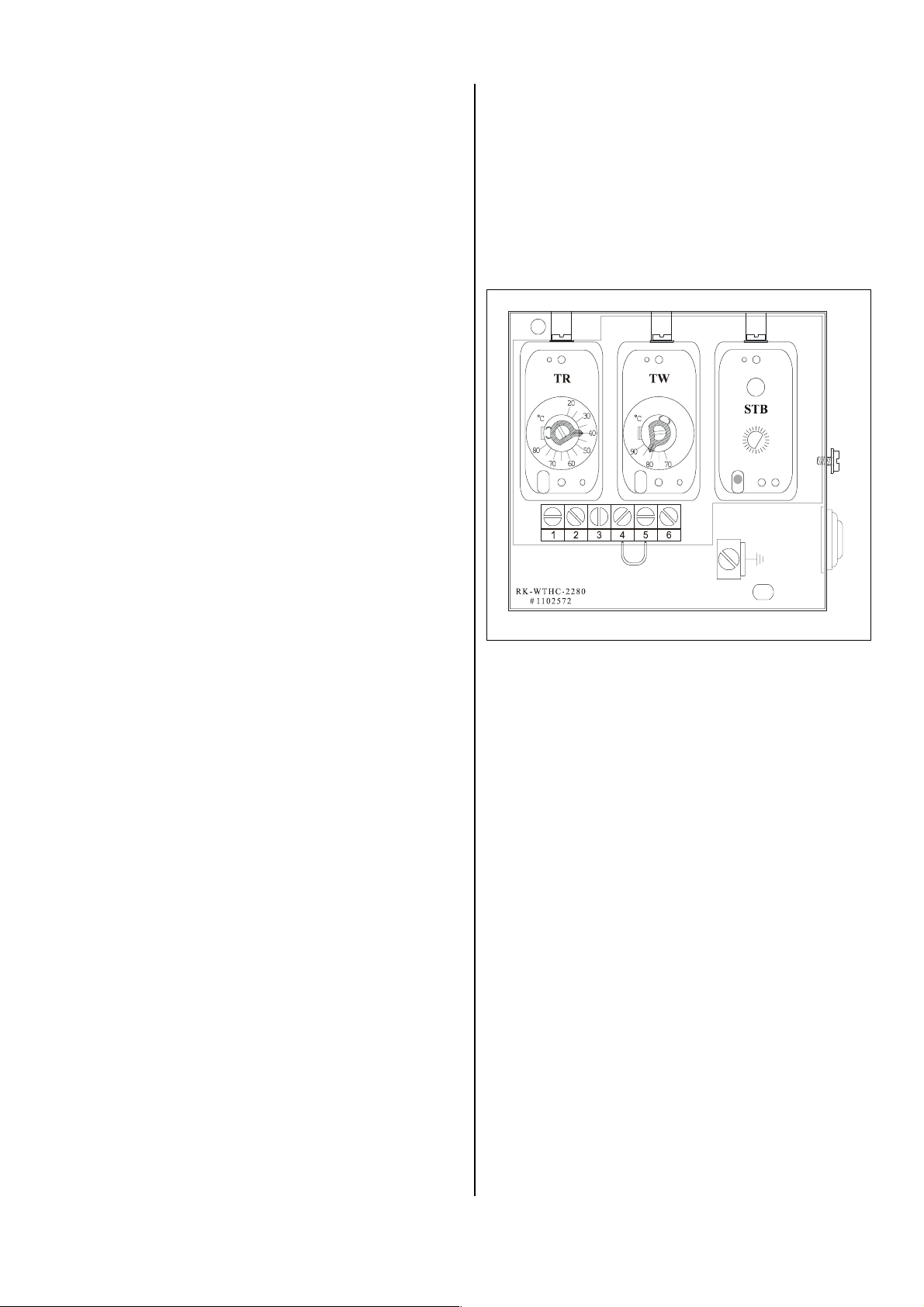

Fig. Without housing cover

Never interrupt (except in emergency situations) the power supply until the cool-down phase is completely finished.

Our guarantee does not cover damages caused to the unit by overheating.

If the flame burns irregularly or goes out, the unit is switched off by the automatic burner relay.

The automatic burner relay’s malfunction light as well as the “Burner” malfunction light (the 400 V mode only) on the control box light up. The unit may only be restarted after the automatic burner relay has been manually released.

The safety temperature limiter (STB) interrupts operation of the unit or burner when extreme overheating occurs or if the TW ceases functioning. The STB can only be manually released after the unit has cooled.

For units in the 400 V series, the fan motor is also monitored by a thermal overcurrent relay.

If the motor becomes overloaded, operation is interrupted by the relay and the red malfunction lamp “Ventilator” (fan) on the control box lights up. Release is only possible after the control box has been opened.

Before releasing the overcurrent relay, the possible

causes of the malfunction must be investigated.

The 3 functions of the triple combination control

1. Fan control thermostat (TR)

The fan control thermostat switches the circulating air fan off and on. The switching point is set via the temperature control thermostat “TR”.

Rated value approx. 40°C.

2. Temperature monitor (TW)

When the unit is in heating mode, the temperature monitor limits both the temperature of the unit and the air being blown out. The switching point is set via the temperature control thermostat “TW”.

Rated value approx. 80 to 85°C.

3. Safety temperature limiter (STB)

The STB controls the temperature monitor.

The switching point is fixed.

The burner is prevented from being restarted if the STB is activated. The reset button is operated from outside.

Before the STB is released (to restart operation), the reason the STB was activated must be deter-

mined.

Page 6

Important information about the triple combination control

The device is equipped with a sensor monitoring feature and is cold-resistant down to -20°C; below -20°C the device switches off; when the temperature rises above this temperature, it switches on again.

When the sensor or the capillary tube is damaged, or when an overtemperature of approximately 220°C is reached, the filling medium is emptied and the device performs a safety switch-off operation.

The device is no longer operable and must be replaced.

The triple combination control may only be re-

placed with an original REMKO spare part!

Installation and assembly must be performed safely

and properly.

Make sure to observe the following general instructions as well.

à When the safety facility has to be replaced, take care

not to damage or excessively bend the capillary tubes.

à Bends may only occur on the capillary tubes and not

on the sensor.

à To ensure that the unit functions properly, the sen-

sors must always rest loosely in the warm air current.

à The sensors must always be free from dust and dirt. à When mounting, the sensor and the capillary tubes

may not be damaged or bended sharply edged.

à The sensors may not come into contact with the

combustion chamber or other metal parts.

à The sensors must be fixed in the mounting brackets

provided by the factory.

Do not bypass or block safety mechanisms while

the unit is in operation.

Prior to Setup

When setting up the units, the relevant regional building and fire protection codes of the respective region must be observed.

Selecting the Setup Location

When selecting a location to set up the units, the requirements must be adjusted with respect to:

1. Fire protection and operating hazards.

2. Function.

When the units are used to heat rooms, when it is necessary to adjust to the amount of pressure in the room, etc.

3. Operating needs.

Heating requirements, rated air output, need for circulation or outside air, humidity, room temperature, air distribution, space needs, etc.

4. How the unit is connected to the exhaust system.

Oil and gas-fired warm air generators (including those with a rated heat capacity of more than 50 kW) may generally be set up outside of heating rooms in compliance with the German fire ordinance.

For rooms where slightly flammable materials or mixtures are processed, stored or produced that could be dangerous if ignited, exceptions may be made if appropriate measures are taken to ensure that the materials or mixtures cannot catch fire.

The unit must be set up and assembled in such a way that it is easily accessible for monitoring, re-

pair and maintenance work.

Air Supply for Combustion

An adequate supply of air for combustion must be ensured by meeting the relevant building requirements.

Excerpts from the German fire ordinance:

(1) For furnaces with a total rated heat output of up to

35 kW that are dependent on the air in the room, evidence of an adequate air supply for combustion has been provided if the furnaces are set up in a room that has:

1. A minimum of one door to the outside or a window that can be opened (rooms with a connection to the outside) and a room capacity of at least 4 m

2. An opening leading to the outside with a crosssection of at least 150 cm which are each 75 cm with equivalent cross-sections for air flow.

(2) For furnaces with a total rated heat output of more

than 35 kW and less than 50 kW that are dependent on the air in the room, evidence of an adequate air supply for combustion has been provided if the furnaces are set up in rooms that meet the requirements of Para. 1, No. 2.

per kW of total rated hear output or

or two openings

or lines to the outside

Page 7

(3) For furnaces with a total rated heat output of more

than 50 kW that are dependent on the air in the room, evidence of an adequate air supply for combustion has been provided if the furnaces are set up in rooms that have an opening or a line leading to the outside.

The cross-section of the opening must be at least 150 cm² plus and additional 2 cm² rated heat output which is above 50 kW.

The lines’ cross-sections must have equivalent measurements for air flow. The required crosssection may not divided among any more than 2 openings or lines.

(4) Combustion air openings and lines may not be

closed or blocked unless the safety mechanisms can ensure that the furnace can only be operated when the flap is closed. The required cross-section may not be constricted by the flap or the grille.

(5) As an exception to Paras. 1 to 3, for furnaces de-

pendent on air in the room, evidence of an adequate air supply for combustion can be provided other ways.

For example by: A continuous line to the outside with a sufficient

cross-section that is attached to the burner or its lining. This must be adjusted to the suction capacity of the burner and the line resistances (including the protective air suction grille) so that combustion is assured.

for each kW of

à The units must be set up and operated in such a way

that people are not exposed to exhaust or radiant heat and fires cannot occur.

à The units must be set up in such a way that they do

not cause any hazards or unreasonable annoyances, e.g. tremors, vibrations or noise.

à The units must be set up and installed in such a way

that they are easily accessible for monitoring, repair and maintenance work.

à Operating elements which can result in dangerous

operating conditions when used improperly must be protected from unauthorised operation if they are generally accessible.

à We do not recommend suctioning in outside air di-

rectly with the standard combustion chamber. When mounting the mixed air flaps (accessories), they must be attached in the opposite direction. The percentage of fresh air supplied may not exceed 30%.

à The units may not be set up or operated in rooms or

areas susceptible to fire or explosions.

The units are suitable for operation when accesso-

ries are attached to the air intake or outlet sides.

The units are not suitable exclusively for use

as air supply units.

Important Information about Safe Setup

à The units may only be set up and operated in rooms

where there is enough air for combustion and the expelled air is guided to the outside via an exhaust system.

à Units dependent on air in the room may only be set

up in rooms or buildings from which air is suctioned out by means of fans (such as ventilation or exhaust systems) if:

1. Safety mechanisms prevent the units and the air suctioning system(s) from operating simultaneously.

2. The expulsion of exhaust is monitored by special safety devices.

3. The exhaust produced by the units is expelled by means of the air suctioning system(s).

4. The design or dimensions of the system ensure that no dangerous negative pressure can be produced.

à The units must be placed firmly on a suitable, non-

flammable surface outside of traffic zones, for example, away from cranes.

Heating Rooms

The units only may be operated in closed rooms or warehouses if they have been equipped with a suitable room temperature control thermostat (room thermostat).

Setup on the Ground

The units must be placed firmly on non-flammable surface outside of traffic zones, e.g. away from cranes.

A safety zone of 1 m must be maintained around the units to protect them from damage in commercial rooms, to ensure unhindered access for maintenance and repair work on the unit and burner and, if necessary, to prevent air intakes and outlets from blockage.

This safety zone is to be identified with a warning sign that says:

Maintain a Safety Zone of 1 m

We recommend clearly marking heavily trafficked areas.

Page 8

Wall Assembly

Fuel Supply

The wall where the unit is to be assembled may not be made of flammable materials. Its load-bearing capacity must be tested and, if necessary, reinforced.

Consoles must be anchored firmly to the wall and the units attached here. There must be adequate room to perform maintenance work on the heat-exchanger, burner, fan and exhaust system.

You must observe the following.

à Operating mechanisms for the unit and the combus-

tion air supply must be able to be operated from the ground.

à Tools needed for monitoring, service and repair work

must be supplied by the operator.

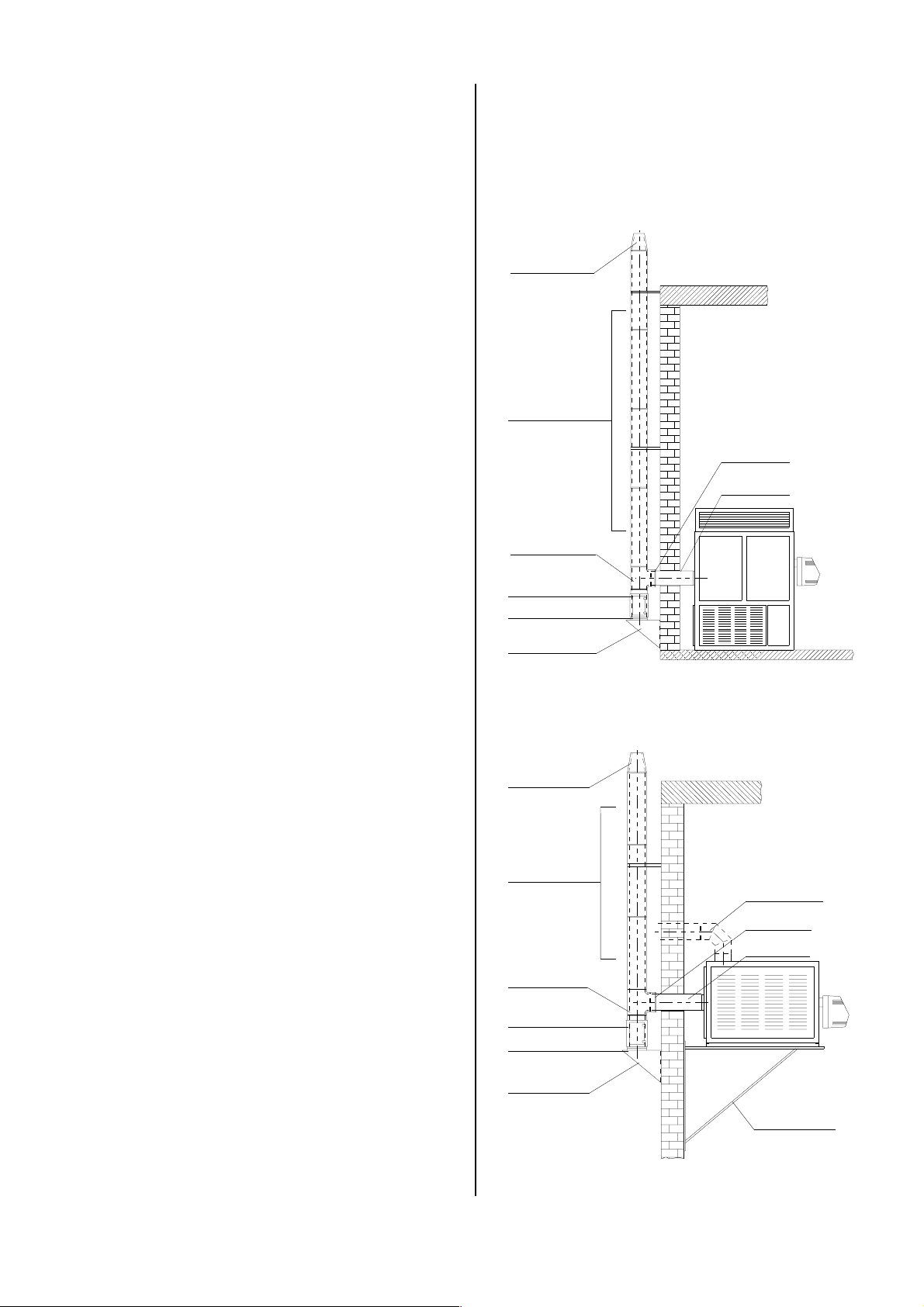

Assembling Suspended Units

The units may only be attached to sturdy structures or ceilings that are made of non-flammable materials and have adequate load-bearing capacity.

Sturdy mounts fixed on the unit are used to attach it. In addition, the requirements listed in the section “Wall Assembly” must be observed.

Outside Setup

Units that are set up outside must be adequately protected from weather conditions so that they do not have any harmful effects or cause any unreasonable annoyances during operation.

The units may only be equipped with armatures and control devices that are suitable for outside use. If not, the control devices and switches must be protected accordingly.

Power Supply

Prior to performing the electrical installation in line with local requirements, check whether it is possible for even a temporary power overload to cause an impermissible undervoltage.

Particularly for heating oil lines, make sure that the cross-section of the lines corresponds to the suction height, the total line resistance and increased viscosity at lower temperatures and, if necessary, it is possible to connect an oil transport device.

The lines must be placed in such a way that they are easily ventilated and are protected from corrosion and mechanical damage.

The measured pressure of the suction line should

not exceed -0.3 bar. It may be a maximum of -0.4 bar.

Annual Inspection and Service

The operator must have the unit checked and serviced as necessary, at least once a year, by a representative of the manufacturing company or another authorised individual in accordance with the operating conditions.

The units must be checked for operational readiness, functional safety, efficiency and compliance with emission limits.

The operator must be informed if defects are found. He must then have the unit serviced immediately or its components replaced.

The following applies:

Maintenance work on limiting devices, selfadjusting devices and flame monitoring devices as well as on other safety mechanisms may only be performed by the respective manufacturer or his representatives.

On the other hand, the individual contracted to service the unit may only replace components or assemblies with those provided by the manufacturer or his representatives.

The units are intended to be used exclusively for industrial and commercial purposes. They are not

intended to heat residences or similar rooms.

To connect the units, the line cross-sections are to be placed in such a way that they do not caused the burner voltage to lower to an impermissible level when the fan is started.

When connecting the units in the 400 V series, make sure that the phase sequence of the rotational field is correct. The fan could rotate in the wrong direction if this connection is not correct.

An easily accessible emergency switch must be attached in the setup room, but not close to hazardous areas.

All generally accessible switches must be

protected against damage and unauthorised use!

Page 9

Exhaust Connection

The unit is to be connected to suitable exhaust systems whose design has been approved.

Examples of Use

Double-sided exhaust system / stainless-steel / outside assembly.

Installation of an exhaust system always requires a permit.

Exhaust systems are structural systems located either in or on buildings whose sole purpose is to expel exhaust from heating appliances safely above the roof.

When planning for the exhaust system, please observe the following:

à The exhaust system must be installed and assem-

bled properly and in accordance with the relevant regulations.

à The dimensions of the exhaust lines must be ad-

justed to the capacity of the unit and the construction height.

à The dimensions of the exhaust systems must ensure

that the exhaust is expelled to the outside regardless of the operating conditions and guarantee that no positive pressure is produced in the rooms. These dimensions are based on the cross-section and height, and to the extent required, the heat penetrability resistance and internal surface.

à The exhaust system openings must stick out at least

40 cm beyond the top of the roof or be at least 1 m away from the surface of the roof.

à If impact pressures, e.g. from fall winds or neigh-

bouring buildings, are anticipated, the top of the chimney should be shaped accordingly.

à The exhaust system must be attached securely and

properly according to the manufacturer’s specifications.

à In roof structures, the exhaust system must be led

through a pipe casing or a chute to allow the exhaust line to expand when heated.

Upright unit assembly

AS-ME-D

AS-1000-D

WS-ÜGI-D

WS-1000-E

AS-T90-D

AS-RT-D

AS-GI-D

AS-WK-D

Assembly of the unit on its side

AS-ME-D

à The unit connection must be impermeable and se-

cured with rivets or screws from becoming accidentally loose.

à It is preferable to have a horizontal exhaust line that

is as short as possible.

Incline 2 % = 2 cm/m.

à You should plan to have a closable opening for per-

forming measurements at a distance of 2 x haust pipe behind the unit connection.

Under certain circumstances, it is possible to measure the exhaust opening.

à The double-walled, REMKO stainless steel exhaust

systems have been approved by the Institut für Bautechnik (German Institute for Construction Engineering) in accordance with DIN 18160 Part 1.

Make sure to maintain a safe distance to flammable materials!

∅ ex-

AS-1000-D

AS-RB90-E

AS-ÜGI-D

AS-500-E

AS-T90-D

AS-RT-D

AS-GI-D

AS-WK-D

Wallconsole

Page 10

Setup and Assembly

Unit Setup

Thermostat Connection

When setting up the units, the regional provisions and regulations must be observed.

The units may only be operated with accessories that have either been approved by the manufacturer or supplied with the units.

Proceed as follows to set up the units:

1. Remove the transport pallets or crates or other packaging material before set up/assembly.

à Check the units for any damage. à When assembling, place the units securely on the

ground, preferably on a separate platform and ensure that they are current-free.

à Make sure that the fan capacity (rated pressure) has

been adjusted to the corresponding resistance on the air side.

Measure rated current.

à Make sure that air can flow freely into and out of the

units.

à Make sure that there is a sufficient supply of air for

combustion.

à If there are unfavourable pressure conditions in the

setup room or strong air impurities, install a burnerdriven device that sucks in fresh air from the outside.

à Guide the suctioned air via appropriate filters

(accessories) if the air in the setup room is expected to be quite dirty.

Pay attention to the resistance on the air intake side and adjust the fan capacity accordingly.

Air may only be suctioned in via the air intake openings for this purpose. If the bottom of the unit

has not been equipped for air intake, it must be closed to prevent the incorrect intake of air.

Exhaust Connection

The exhaust connection must be made properly in accordance with the relevant regulations.

à Proper exhaust expulsion must be ensured. à The exhaust connection may only be made to a pre-

viously approved exhaust system.

The room thermostat (accessory) or day/night regulator (accessory) is connected via special connections. You must observe the following.

à The room thermostat (accessory) must be placed in

the most ideal location in the room for regulating temperature.

à The thermostat sensor may not be exposed directly

to a particularly cold or warm air current.

à The process is the same for installation of an auto-

matic day/night temperature regulator (accessory).

230 V/1~ model

For the control boxes of the 230 V / 1~ model, a room thermostat or a day/night temperature control mechanism is connected to the thermostat sockets standard for this series .

The connection is made as follows.

400 V / 3~ models

The connection of a room thermostat or a day/night temperature control mechanism is made to the corresponding terminal strips.

The connection is made as follows: Remove the bridge and assign the terminal strips with

the corresponding wires of the control mechanism.

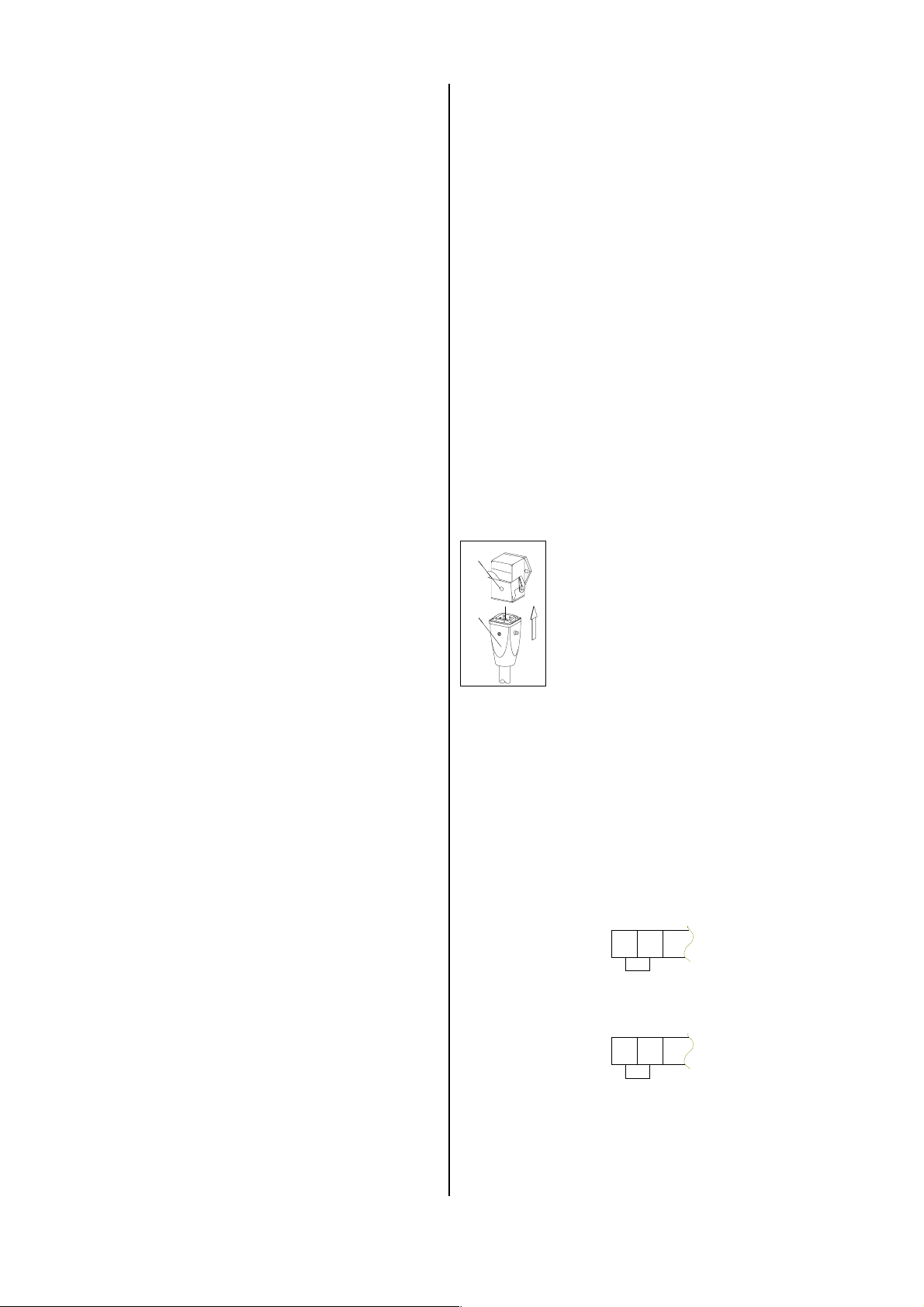

400 V / 3~, Direkt Start

Terminal strip X2

400 V / 3~, Y / ∆ Start

Unplug the existing bridge plug and connect the Thermostat plug 2 to the Thermostat socket 1 on the control box.

When using control units without a standard series thermostat plug, it can be purchased as an accessory.

Ref. no. 1101020.

Bridge

Electrical Installation

The electrical connection of the units may only be performed by authorised personnel in accordance with the relevant regulations (including any local ones).

à An easily accessible emergency switch must be at-

tached in the setup room.

Terminal strip X2

Bridge

Page 11

Fan Motor Connection

Starting

Fan Motor Operation

The units are completely wired at the factory. If modifications are made or the fan motors are re-

placed, make sure that the motor is properly connected.

Burner Installation

The forced-air burner supplied by the manufacturer is attached to the front of the unit with a clamp flange.

You must observe the following: à Only forced-air burners with automatic burners that

have a 5 sec. safety period may be used.

à It is not necessary to limit the capacity in single-

stage burner operation for the warm air generator.

à The burner must be adjusted to the full heat load of

the unit.

à The combustion chamber may not be operated be-

low capacity.

à The exhaust temperature may not fall below 180 de-

grees Kelvin above the room temperature.

Condensation accumulation.

à Follow the operating instructions of the burner sup-

plied by the manufacturer.

à If burners from other manufacturers are used, they

must be checked for compatibility with the unit.

Heating Oil Connection

Check the drive.

1. Check that the tightening screws of the complete drive are secure.

2. Check the initial tension of the drive belt.

3. Check the rotational direction of the fan.

Measuring the rated current and current consumption

1. To prevent inaccurate measurements, open the grille

in the air duct or the blow-out cover and attach all air suction grilles to the unit.

2. Check the available power supply.

3. Measure the current. – Rated current for direct start

The measured rated current may not exceed the value on the type plate of the motor.

The thermal overcurrent relay must be adjusted to the rated current of the drive motor.

– Rated current for Y / ∆ start.

The measured rated current may not exceed the value on the type plate of the motor.

Multiply the rated current of the drive motor by a factor of 0.58 and adjust the thermal overcurrent relay to the calculated value.

Each phase should be measured separately to prevent inaccurate measurements.

Make sure that there is an adequate supply of fuel. à The suction line must be equipped with a valve at the

end of the hose in the tank.

à Even when outside temperatures are low, a sufficient

amount of heating oil must be able to flow freely. Paraffin can accumulate at temperatures starting at approximately 5 °C depending on the quality of the heating oil.

Appropriate measures must be taken to prevent this from happening.

Gas Connection

Depending on the capacity of the unit, the required quantity of gas must always be available and the necessary gas pressure present during unit operation.

à The installation of the gas connection must be per-

formed by authorised personnel.

à Gas pressure regulators and shut-off valves are to

be supplied by the manufacturer.

à The line cross-section must correspond to the con-

nection values of the units, the total line resistance and the gas pressure.

Prior to initial operation, the gas supply line must be

thoroughly cleaned and tested for impermeability!

Thermal Overcurrent Relay

To check the function of the overcurrent relay or its set value, remove a fuse. If the unit is functioning and set properly, the relay should activate after approximately 30 seconds.

Important Hints about the Thermal Overcurrent Relay

The thermal overcurrent relay may only be operated when the relay is set to manual (H). The relay may not automatically switch on again after it has cooled.

When the relay is set to automatic (A), the possibility that damage will occur cannot be ruled out.

There is no guarantee claim!

Current Consumption too High

If the motor is consuming too much current despite a proper electrical connection and adequate power supply, the thermal overcurrent relay may not be set higher or bypassed under any circumstances.

To correct the problem, the air intakes and outlets (possible air compression) must be checked and appropriate action taken.

Page 12

Initial operation

Heating Mode

Initial operation of the unit and its forced-air burner must be performed by the manufacturer or one of its authorised service representatives. During this process, all regulating, control and safety mechanisms must be checked to ensure that they are functioning properly and set correctly.

à Oil and gas-fired units may only be put into initial op-

eration by authorised personnel.

à Make sure that the fan’s screws and bolts and

burner attachments are secure.

à Open the blow-out grille if necessary and adjust it as

required.

à Check the settings of the triple combination control. à Switch the customer-supplied main switch or fuse on. à Set the room thermostat to a higher value than the

current room temperature.

à Open the fuel supply and set the operating switch to

“Heizen” (heating).

If the oil burner was supplied by the manufacturer, (up to VRS 50) the burner start is delayed as a result of the standard oil preheating process.

à Adjust the throughput for the heating oil or gas to

meet the heating capacity of the unit.

See the unit’s type plate.

à Set the burner to the optimum values in accordance

with the manufacturer’s specifications.

à Measure the chimney draught when cold and hot. à Keep a protocol of measurements and submit it to

the operator for safekeeping. Familiarise the operator with the system

à Give the statement confirming the authorised com-

pany status and the company certificate of the respective installation company to the relevant authorities.

The unit runs fully automatically with the temperature which has been pre-selected on the room thermostat.

Proceed as follows to put the unit into heating mode.

1. Turn the customer-supplied main switch or the fuse on.

2. Open the fuel supply.

3. Set the operating switch to “Heizen” (heating) or “I”.

4. Adjust the room thermostat to the room temperature you want.

When heat is necessary, the forced-air burner switches on automatically. The air supply fan only switches on once the target temperature has been reached. This prevents cold air from being blown out.

Ventilation

In this position only the supply air fan runs and the unit can be used for air circulation.

1. Set the operating switch to “Lüften” (fan) or “II”.

2. Keep in mind that the unit’s fan runs continuously.

It is not possible to control it with a thermostat

Unit Shut Down

Important information about corrosion in the heatexchanger

à The exhaust gas temperature difference may not

fall below 180 Kelvin.

This keeps the temperature from falling below the dew point and prevents the resulting corrosion in the heatexchanger.

à If the unit is not set to its rated heat load or it is too

large for the necessary heat requirements, the burner only runs in cyclical operation. Because the required operating temperature is not reached in cyclical operation, more condensation accumulates and there is more corrosion in the heat-exchanger.

Set the operating switch to “0”.

Keep in mind that the air supply fan continues running to cool down the heat-exchanger and can run several times before the unit is finally switched off.

Never interrupt (except in emergency situations) the power supply until the cool-down phase is completely finished.

Our guarantee does not cover damages caused to the unit by overheating.

If the unit is taken out of operation for a longer period of time, the customersupplied main switch or the fuse should be switched off and the fuel supply closed off.

Page 13

Maintenance and Service

Prior to doing any maintenance or repair work on the unit, unplug it from the power supply. It is not

adequate to switch off the unit with the operating switch!

Adjustments or maintenance work on the unit or forced-air burner may only be performed by

authorised personnel!

à Dust and dirt must be cleaned from the unit including

from the heat-exchanger, combustion chamber and forced-air burner. Combustion residue in the combustion chamber and in the heat-exchanger must be removed.

à The V-belt tension and the motor mount must be

checked on a regular basis.

à Parts that wear out, e.g. flue gas brakes, oil nozzles,

oil filter inserts, seals etc. must be checked, cleaned and replaced if necessary.

à Make sure to comply with waste gas emission limits

in accordance with regulations.

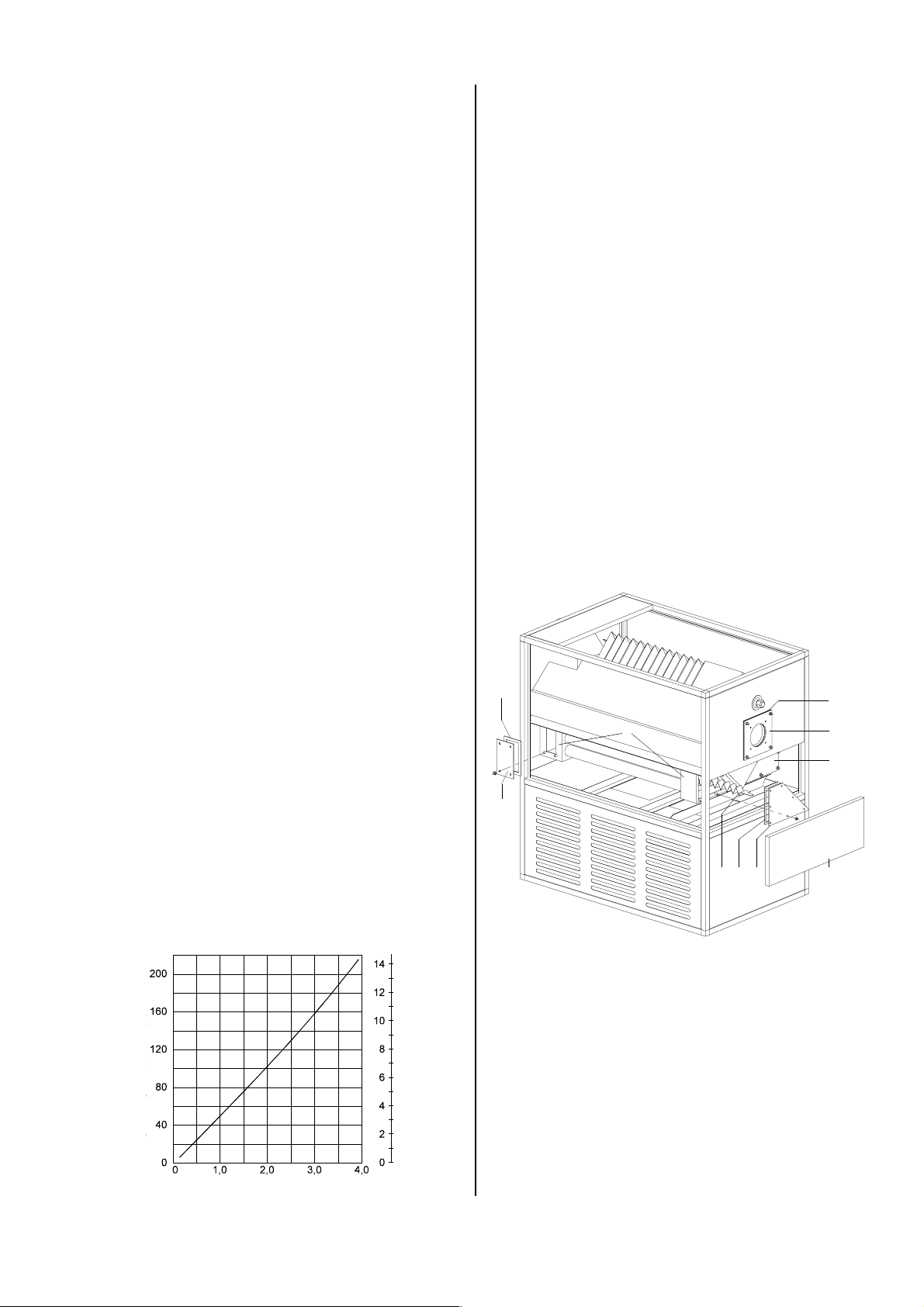

Cleaning the Combustion Chamber and the HeatExchanger

1. Unplug the unit from the power supply

2. Disassemble the following parts: – Lining plate(s), front middle 1, – Inspection cover, front 2, – Lining plate, side (not shown), – Inspection cover, side 6.

3. Remove the flue gas brakes 4 on both sides from the heat-exchanger lines and clean the flue gas brakes. Replace them if necessary!

4. Clean the combustion residue from the heatexchanger lines with a suitable cleaning brush.

5. Remove the accumulated combustion residue with a industrial vacuum cleaner from the front and back collection boxes.

A special cleaning set for the REMKO industrial vacuum cleaner can be purchased as an accessory.

6. Reassemble all parts in the reverse order.

7. Make sure that the heat-exchanger lines are connected properly and that seals 3 and 7 are positioned correctly.

Seals that have been damaged or malformed must be replaced.

Important Information on Servicing the Unit

à If the cleaning and burner adjustment intervals are

not observed, the guarantee becomes null and void.

à It is therefore absolutely necessary to keep records

that work has been performed by authorised personnel in addition to creating standard protocols.

à We recommend entering into a maintenance con-

tract for the regularly scheduled maintenance and service work.

Soot deposits

Even when there is only a small amount of soot buildup, the heating surfaces become insulated and the firing efficiency falls.

A 1 mm thick layer of soot causes an increase in the exhaust gas temperature of approx. 50 K (see diagram).

4 3 2

shown VRS 80 without burner

8. Disassemble the burner with burner plate 8 and the seal 9.

9. Clean the combustion residue from the furnace through the burner opening.

With cleaning brush and industrial vacuum cleaner.

10. Attach the burner with burner plate 8. Replace seal 9 if necessary.

11. Service the burner in accordance with the separate operating instructions.

Increase in exhaust temp. [K]

Thickness of soot layer [mm]

Loss of efficiency [%]

Check the burner and all regulating devices to ensure that they are functioning properly and set

them to the optimum values.

Page 14

Technical Data

REMKO VRS

40-B 60-B 80-B 120-B 150-B 210-B 250-B 310-B 380-B 450-B

Rated heat power kW 44 60 88 132 165 222 276 330 413 495

Rated heat output kW 40 55 80 120 150 200 250 300 375 450

Rated air output 1) m³/h 3400 4650 6800 9750 11700 15700 19300 23600 29500 35200

Rated pressure, external 2) Pa 50 80 70 120 60 80 80 90 120 110

Fuel Heating oil EL or natural/liquid gas

Oil throughput (heating oil EL) kg/h 3,7 5,1 7,4 11,1 13,9 18,7 23,3 27,8 34,8 41,6

Gas throughput (natural gas H) m³/h 4,2 5,8 8,5 12,7 15,9 21,4 26,6 31,8 39,8 47,7

Gas throughput (natural gas L) m³/h 5,0 6,8 9,9 14,9 18,7 25,1 31,2 37,4 46,8 56,0

Gas throughput (liquid gas) m³/h 1,7 2,3 3,4 5,1 6,4 8,6 10,6 12,7 – –

Exhaust mass current VAf 3) kg/h 75 102 149 224 279 376 462 552 684 815

Exhaust temperature approx. 4) °C 195 200 195 195 200 205 205 200 200 200

Required chimney draught Pa 0

Exhaust loss VA max. % 9

Furnace resistance Pa 18 18 32 29 54 66 55 60 60 65

Electrical connection 2) V 230 / 1~

400 / 3~ N

Frequency Hz 50

Rated current

Power consumption

2) 5)

A 4,5 5,5 2,65 3,6 5,1 6,8 8,8 11,4 17,6 17,6

2) 5)

kW 0,51 0,75 1,1 1,5 2,2 3,0 4,0 5,5 8,0 8,0

Power consumption 6) W 210 210 210 450 450 350 350 350 1900 1900

Exhaust gas connection Ø mm 150 150 180 180 180 200 250 250 300 300

Weight 7) kg 190 260 305 365 450 680 735 930 1055 1240

1) air current at ∆t 40K / 1.2 kg/m³

2) for standard compression

3) approx. quantity for oil operation

4) measured temperature minus room temperature

5) unit without burner

6) for manufacturer-supplied burner

7) for standard model, without burner and other accessories

Heating value Hi in its normal state

heating oil EL 11,86 kWh/kg natural gas H 10,38 kWh/m³ natural gas L 8,83 kWh/m³ liquid gas 25,89 kWh/m³ liquid gas 12,87 kWh/kg

Max. suction temperature 40 °C / max. outgoing temperature 100 °C

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

Page 15

Technical Data

REMKO

VRS

Typ

40-B

60-B

80-B

120-B

150-B

210-B

250-B

310-B

380-B

450-B

1) = Noise measuring (without burner) DIN 45635 -01 – KL3

Rated

pressure

∆

ext.

Pa V kW A 50 230 / 1~ 0,51 4,50 900 D 10/10 900 SPZ 1 —— —— 61

130 Y 400 / 3~ N 0,55 1,42 1400 10/10 E 1050 SPZ 1 75 100 69 210 Y 400 / 3~ N 0,75 1,86 1400 10/10 E 1190 SPZ 1 85 100 71 290 Y 400 / 3~ N 1,10 2,65 1410 10/10 E 1326 SPZ 1 90 95 71 400 Y 400 / 3~ N 1,10 2,65 1410 10/10 E 1494 SPZ 1 106 100 72

80 230 / 1~ 0,75 5,50 1380 10/10 E 1020 SPZ 1 75 106 65

190 Y 400 / 3~ N 1,10 2,65 1410 10/10 E 1150 SPZ 1 85 106 67 290 Y 400 / 3~ N 1,10 2,65 1410 10/10 E 1280 SPZ 1 100 112 68 350 Y 400 / 3~ N 1,50 3,60 1410 10/10 E 1365 SPZ 1 106 112 69 480

70 Y 400 / 3~ N 1,10 2,65 1410 10/8 Z 960 SPZ 1 85 125 63

190 Y 400 / 3~ N 1,50 3,60 1410 10/8 Z 1135 SPZ 1 90 112 64 280 Y 400 / 3~ N 1,50 3,60 1410 10/8 Z 1260 SPZ 1 100 112 65 430 500 120 Y 400 / 3~ N 1,50 3,60 1410 10/10 Z 1150 SPZ 1 85 125 71 230 340 460

60 130 210 300 410

80 150 270 370 510

80 200 240 330 410

90 150 230 350 490

120 180 260 350 400 / 3~ N 2x 7,5 2x 15,4 1450 18/13 E 1015 SPZ 2 140 200 83 480 400 / 3~ N 2x 7,5 2x 15,4 1450 18/13 E 1085 SPZ 2 150 200 84

110 180 260 350 450

Electrical

connection

∆ 400 / 3~ N

∆ 400 / 3~ N ∆ 400 / 3~ N

Y / ∆ 400 / 3~ N

∆ 400 / 3~ N ∆ 400 / 3~ N

Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N

Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N Y / ∆ 400 / 3~ N

Electric motor(s) Fan(s) V-belt discs

Rated

power con-

sumption

2,20 5,10 1415 10/10 E 1530 SPZ 1 132 125 70

2,20 5,10 1415 10/8 Z 1445 SPZ 1 112 112 67 2,20 5,10 1415 10/8 Z 1530 SPZ 1 132 125 68

2,20 5,10 1415 10/10 Z 1290 SPZ 1 100 112 73 2,20 5,10 1415 10/10 Z 1445 SPZ 2 106 106 74 3,00 6,80 1430 10/10 Z 1634 SPZ 2 160 140 75 2,20 5,10 1415 12/12 Z 820 SPZ 2 80 140 68 2,20 5,10 1415 12/12 Z 920 SPZ 2 90 140 70 3,00 6,80 1430 12/12 Z 1030 SPZ 2 132 180 72 3,00 6,80 1430 12/12 Z 1145 SPZ 2 125 160 74 3,00 6,80 1430 12/12 Z 1275 SPZ 2 160 180 76 3,00 6,80 1430 15/11 Z 750 SPZ 2 118 224 69 4,00 8,80 1435 15/11 Z 835 SPZ 2 106 180 70 5,50 11,40 1450 15/11 Z 945 SPZ 2 132 200 72 5,50 11,40 1450 15/11 Z 1035 SPZ 2 160 224 73

2x 4,0 2x 8,8 1435 15/11 E 1160 SPZ 2 106 132 75

4,00 8,80 1435 15/15 Z 845 SPZ 2 106 180 72

5,50 11,40 1450 15/15 Z 955 SPZ 2 132 200 74 2x 3,0 2x 6,8 1430 15/15 E 1000 SPZ 2 140 200 76 2x 3,0 2x 6,8 1430 15/15 E 1085 SPZ 2 140 180 78 2x 4,0 2x 8,80 1435 15/15 E 1150 SPZ 2 106 132 80

5,50 11,40 1450 15/15 Z 855 SPZ 2 132 224 73

5,50 11,40 1450 15/15 Z 905 SPZ 2 140 224 75 2x 3,0 2x 6,8 1430 15/15 E 975 SPZ 2 125 180 76 2x 4,0 2x 8,8 1435 15/15 E 1085 SPZ 2 106 140 78 2x 5,5 2x 11,4 1450 15/15 E 1195 SPZ 2 132 160 81 2x 4,0 2x 8,8 1435 18/13 E 870 SPZ 2 112 180 79 2x 5,5 2x 11,4 1450 18/13 E 905 SPZ 2 140 224 80 2x 5,5 2x 11,4 1450 18/13 E 975 SPZ 2 132 200 81

2x 4,0 2x 8,8 1435 15/11 Z 895 SPZ 2 112 180 74 2x 4,0 2x 8,8 1435 15/11 Z 950 SPZ 2 106 160 75 2x 4,0 2x 8,8 1435 15/11 Z 1015 SPZ 2 106 150 77 2x 5,5 2x 11,4 1450 15/11 Z 1085 SPZ 2 150 200 78 2x 5,5 2x 11,4 1450 15/11 Z 1160 SPZ 2 160 200 79

Rated

current

Revolu-

tions

min-1

Model

Revolu-

tions

min-1

Model Motor Fan

ø mm ø mm dB(A)

Sound

pressure

level

pA 1m

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

Page 16

Exploded View

3 41

25 a/b 20

24 23 2122

1514

1716

Fig. VRS 80 vertical unit

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

Page 17

Spare Part List

No. Description 40-B 60-B 80-B 120-B 150-B 210-B 250-B 310-B 380-B 450-B

Ref. No. Ref. No. Ref. No. Ref. No. Ref. No. Ref. No. Ref. No. Ref. No. Ref. No. Ref. No.

1 Lining plate, top 2 Unit frame, cpl. 3 Insulation for side lining 4 Lining plate, side 5 Comb. chamber cpl. (Standard) 5 Comb. chamber cpl. (Inox) 6 Air guiding plate, right 7 Seal comb. chamber flange 8 Rosette

9 Screw cap 10 Triple combination control 11

Flue gas brake

Seal for inspection cover

Inspection cover, front

Insulation, front/top

Lining plate, front/top

Seal

Burner plate

Lining plate, front/middle

Insulation, front/middle

Blind plate

Belt disc, motor

Fan motor 400V / 3~/ N

V-belt

Belt disc, fan

25a

Fan

25b

Fan, cpl. (230 V / 1~ / N)

Slotted plate, side

Slotted plate, back

Assembly plate

Inspection cover, side

Seal for inspection cover

Lining plate, back

Insulation, back

Air guiding plate, left

Exhaust gas connection

Rosette, exhaust connection

Not pictured Seal for exhaust connection Control box, cpl. (230 V) Control box, cpl. (400 V) Control box, cpl. ( Y / ∆ )

1104201 1104202 1104202 1104203 1104204 1104205 1104205 1104206 1104207 1104208 1104209 1104210 1104211 1104212 1104213 1104214 1104214 1104215 1104216 1104217

1104218 1104219 1104220 1104221 1104222 1104223 1104223 ———— ———— ————

1104227 1104228 1104229 1104230 1104231 1104232 1104232 1104233 1104234 1104235

1104237 1104238 1104239 1104240 1104241 1104242 1104243 1104244 1104245 1104246 1104248 1104249 1104250 1104251 1104252 1104253 1104254 1104255 1104256 1104257

1104258 1104259 1104260 1104261 1104262 1104263 1104263 1104264 1104265 1104266

1104267 1104267 1104267 1104267 1104267 1104268 1104268 1104375 1104375 1104375 1104269 1104269 1104269 1104269 1104269 1104269 1104269 1104269 1104269 1104269

1103219 1103219 1103219 1103219 1103219 1103219 1103219 1103219 1103219 1103219

1102572 1102572 1102572 1102572 1102572 1102572 1102572 1102572 1102572 1102572

1102953 1102954 1102955 1102955 1102955 1102957 1102957 1102958 1102958 1102959

1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255

1104271 1104272 1104272 1104273 1104273 1104274 1104274 1104275 1104276 1104277 1104279 1104280 1104280 1104281 1104281 1104282 1104282 ———— ———— ———— 1104286 1104287 1104287 1104288 1104288 1104289 1104289 1104290 1104291 1104291

1104292 1104292 1104292 1104292 1104292 1104293 1104293 1103234 1103234 1103234

1104294 1104294 1104294 1104294 1104294 1104295 1104295 1103237 1103237 1103237 1104297 1104298 1104298 1104299 1104299 1104300 1104300 1104301 1104302 1104302 1104304 1104305 1104305 1104306 1104306 1104307 1104307 ———— ———— ————

1104311 1104312 1104312 1104313 1104314 1104315 1104315 1104316 1104317 1104317

dependent on the unit model and compression

compression dep. ———— ———— ———— ———— ———— ———— ———— ————

1104318 1104319 1104320 1104320 1104321 1104322 1104322 1104322 1104323 1104324

1104326 1104327 1104327 1104328 1104329 1104330 1104330 1104331 1104323 1104323

dependent on the unit model and compression

1104333 1104333 1104333 1104333 1104333 1104334 1104334 1104335 1104336 1104336

1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255

1104338 1104339 1104340 1104341 1104341 1104342 1104343 1104344 1104345 1104345 1104347 1104348 1104349 1104350 1104350 1104351 1104352 ———— ———— ————

1104356 1104357 1104358 1104359 1104360 1104361 1104361 1104362 1104363 1104364

1104366 1104367 1104368 1104369 1104369 1104370 1104371 1104372 1104373 1104373

1103285 1103285 1103286 1103286 1103286 1103287 1103288 1103288 1103289 1103289

1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255 1103255

dependent on the unit model and compression

Attention: The Spare Parts List VRS B applies only for standard model units

When ordering spare parts, always specify the unit no.!

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

Page 18

Wiring Diagram 230 V

Fan motor: 230 V / 1~

Burner motor: 230 V / 1~

230V

50 Hz

L1 N

4B 1A

6B 3A

12345678

schw.1

schw.2

black 1

black 2

23456

TR TW STB

black 4

schwarz

blau

blue

black

braun

schw.4

schw.3

black 3

2 4

brown

blau

blue

T1 T2

NT1T2S3 B4

Burner cable

Prepared at the factory for connection to the wieland socket

Wieland plug

S3 B4

Included with purchase of burner.

Wieland socket from the burner

C Capacitor KB REMKO Triple Combination Control KL Terminal strip in the control box M Fan motor RT Thermostat socket S Operating switch SK Control box STB Safety temperature limiter TR Fan control thermostat TW Temperature monitor WS Wieland plug

(Only for factory-installed burner

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

An easily accessible emergency switch must be attached in the setup room, but not close to hazardous areas.

This switch must be protected from damage and unauthorised use!

The electrical connections should only be made by authorised personnel.

)

Page 19

Wiring Diagram 400 V Direct Start

Fan motor: 400 V / 3~ (up to 2,2 kW)

Burner motor: 230 V / 1~

1 2 3 PE4

L1 L2 L3

400 V / 50 Hz /

3~ N PE

N PE

12345

5 6 7 PE

U V

Motor Optional:

9698

Aus

Off

2 3

Heat Fan

Lüften Heizen

Room thermostat or day / night regulator

Optional

1 2 PE

C° C°C°

C°

TW STB

Triple combination control

5 6

7 8 9 10 PE

# 1

# 2

# 3

# 4

L1 N T1 T2S3B4 PE

Wieland plug

Included with purchase

of burner.

X1 1 2

auseitige Zuleitung

Supply line

UVWPEL1 L2 L3 N

Fan motor

Ventilatormotor

PE7PE

F1 Fuse block, fan motor F2 Thermal overcurrent relay, fan motor F3 Control fuse H1 Malfunction lamp, fan H2 Operating lamp, fan H3 Operating lamp, burner H4 Malfunction lamp, burner K1 Contactor, fan motor KB REMKO triple combination control M Fan motor P Running hour meter (optional)

If a room therm ostat or a day/ night control mec hanism is connected, the factor y-installed bridge between terminals 1 and 2 of the termi nal strip X2 must be removed.

RT Room thermostat or regulator (optional) S1 Operating switch STB Safety temperature limiter TR Fan control thermostat TW Temperature monitor X1 Terminal strip 1 in the control box X2 Terminal strip 2 in the control box

X2 1 2 3 4

PE PE

Raumthermostat bzw.

Tag / Nacht Regelung

Room thermostat or

day / night regulator

678910

S3 B4 PEL1 N

nummeriertes

Dreifach

Triple

Kombinationsregler

combination control

Brennerkabel

Prepared at the factory

numbered

burner cable

Werkseitig vorbereitet zum

Anschluß des Wielanssteckers

for connection to the

wieland socket

The electrical connections should only be made by authorised personnel.

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

Page 20

Wiring Diagram 400 V Y / ∆

Fan motor: 400 V / 3~ (over 3,0 kW)

Burner motor: 230 V / 1~

Fan

Aus

Off

Heat

Lüften

Heizen

Optional

N PE

1 2

C°

Optional: Room thermostat or day / night regulator

C°

STB

C°

7 8 9 10

PE5

# 1

# 2

L1 N T1 T2 S3 B4 PE

Triple combination control Wieland plug

Included with purchase

of burner

# 3

# 4

X1 1 2 3 4 6 7 PE

U1 V1 W1PEL1 L2 L3 N

bauseitige Zuleitung

Supply line

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

89PE 5 10 11 12

V2 U2 W2

Ventilatormotor

Fan motor

Terminal strips in the control box

If a room therm ostat or a day/

13 14

Überstromrelais

Brenner

Thermal overcurrent

PEL1 L2 L3 N

relay, burner

night control mec hanism is connected, the factor y-installed bridge between terminals 1 and 2 of the termi nal strip X2 must be removed.

X2 1 2

345

PE PE

Raumthermostat bzw.

Room thermostat or

Tag / Nacht Regelung

day / night regulator

Dreifach

Triple

Kombinationsregler

combination control

8910

S3 B4 PEL1 N

nummeriertes

Brennerkabel

Werkseitig vorbereitet zum

Anschluß des Wiel anssteckers

Prepared at the factory

for connection to the

numbered

burner cable

wieland socket

Page 21

Wiring Diagram 400 V Y / ∆ Fan motor

Fan motor: 400 V / 3~ (over 3,0 kW)

Burner motor: (400 V / 3~ optional)

N PE

13 5

F1 F2

13 5

K1 K2 K3

24 6

13 5

24 6

12 34PE 56 7 89 10PE 11 12 13 14 P

PEL1 L2 L3 N

400V / 50 Hz / 3~ N PE Fan motor 400V / 50 Hz / 3~ N PE

98 95

97 96

13 5

24 6

13 5

24 6

13 5

L1 L2 L3 N PE

for optional

3~ burner motor

F1 Fuse block, fan motor F2 Fuse block, burner motor (optional) F3 Thermal overcurrent relay, fan motor F4 Control fuse H1 Malfunction lamp, fan H2 Operating lamp, fan H3 Operating lamp, burner H4 Malfunction lamp, burner KB REMKO triple combination control K1 Contactor, power supply K2 Contactor, delta connection K3 Contactor, star connection K4 Timing relay M1 Fan motor RT Room thermostat or regulator (optional)

We reserve the right to make modifications in dimensions and construction in the interests of technical progress.

P Running hour meter (optional) S1 Operating switch STB Safety temperature limiter TR Fan control thermostat TW Temperature monitor X1 Terminal strip 1 in the control box X2 Terminal strip 2 in the control box

An easily accessible emergency switch must be attached in the setup room, but not close to hazardous areas.

This switch must be protected from damage and unauthorised use!

The electrical connections should only be made by

authorised personnel.

Page 22

Troubleshooting

For safety purposes, repair work on the electrical components and the burner may only be per-

formed by authorised personnel.

The unit does not start

à Check the power supply. à Check the fuses in the control box.

Only for units in the 400 V, 3 phase current series.

à Check the temperature monitor . à Check the safety temperature limiter. à Keep in mind: before resetting the STB, it is abso-

lutely necessary to determine the reason it was activated and take appropriate measures.

The following are possible causes: – The unit could not cool down because the power

supply was interrupted. Even short interruptions can activate the STB.

– The temperature of the air being blown out is too

high because the grilles have not been properly adjusted.

– The fan was overloaded and the thermal overcur-

rent relay of the 400 V series was activated or the thermal contacts in the fan motor of the 230 V se-

ries were activated. – The V-belt of the fan drive is loose or defective – Air intakes and outlets are blocked.

à Check the operating and/or main switch. à Check the room thermostat setting.

The room thermostat must be set higher than the room temperature..

à Set the operating switch to “Lüften” (fan) or “II”.

If the air supply fan starts now, look for the problem in the burner.

The burner does not start

à Check whether the fuel filter is dirty. à Check that all shut-off valves in the fuel supply are

open.

à Check that there is enough fuel in the fuel container. à Check whether paraffin has accumulated in the heat-

ing oil or in the fuel filter.

This can occur at temperatures below 5 °C.

à Check oil lines for damage.

Leaks can cause air intake.

à Use suitable means to ensure that the safety tem-

perature limiter (STB) and the temperature monitor (TW) are functioning properly.

à Check the sensors and capillary pipes of the triple

combination control for damage and ensure that the sensor has been properly positioned.

à Check whether the burner malfunction control lamp

on the automatic burner relay is illuminated.

à Release the automatic burner relay by pressing the

malfunction button if the malfunction lamp lights up.

The malfunction light goes out and the burner tries to start.

à Keep in mind that the units up to VRS 60 have a de-

layed start due to the oil preheating process.

Important information about resetting the burner

à If, during the start phase, the unit is switched off

again due to a malfunction, it may only be restarted after 5 minutes have elapsed.

à Take any steps necessary to prevent another reset.

Danger of deflagration.

The air supply fan does not start

à Set the operating switch to “Lüften” (fan) or “II”.

The air supply fan should now start.

à Check that the fan and the fan drive are running

smoothly.

à Check the V-belt on the fan drive. à Check the electric cord on the fan motor for damage. à Check whether the capacity of the fan was ex-

ceeded.

The thermal overcurrent relay (400 V series) or the thermal contacts (230 V series) in the fan motor have been activated.

à Check the operating capacitor of the fan.

Only for the 230 V series.

à Use suitable means to ensure that the fan control

thermostat (TR) are functioning properly.

Please carry out an electrical safety test after having finished service on the unit.

Should the unit still not function properly after performing these checks, please contact an author-

ised service centre.

Service and Guarantee

For the guarantee to be valid, the customer must completely fill out the “guarantee certificate” enclosed with all heating units and send it back to REMKO GmbH & Co. KG in a timely manner after purchasing of the unit and putting it into operation.

The units have undergone several tests to ensure proper functioning at the factory. If there are still malfunctions that cannot be fixed by the operator using the troubleshooting instructions, please contact your dealer or contract partner.

Page 23

Maintenance Log

Model: : ................................ Model No.: : ......................................

Burner : ................................ Burner No.: : ......................................

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Clean unit -surfaceClean unit -interiorClean fan Clean combustion chamber Clean heat exchanger Clean/replace waste gas suppressor Replace seals -inspection coverReplace seals –burnerClean/replace filter -fuelCheck safety mechanisms Electric safety inspections Check protective mechanisms Check unit for damage Maintenance –burner Test run

Remarks: ......................................................................................................................................................................

......................................................................................................................................................................................

1. Date: ...................... 2. Date: ...................... 3. Date: ...................... 4. Date: ...................... 5. Date: ......................

................................... ................................... ................................... ................................... ...................................

Signature Signature Signature Signature Signature

6. Date: ...................... 7. Date: ...................... 8. Date: ...................... 9. Date: ...................... 10. Date: ....................

................................... ................................... ................................... ................................... ...................................

Signature Signature Signature Signature Signature

11. Date: .................... 12. Date: .................... 13. Date: .................... 14. Date: .................... 15. Date: ....................

................................... ................................... ................................... ................................... ...................................

Signature Signature Signature Signature Signature

16. Date: .................... 17. Date: .................... 18. Date: .................... 19. Date: .................... 20. Date: ....................

................................... ................................... ................................... ................................... ...................................

Signature Signature Signature Signature Signature

Maintenance work may only be performed by authorised personnel; settings must comply

with legal specifications. A corresponding test log must be kept.

Page 24

REMKO GmbH & Co. KG

Klima- und Wärmetechnik

D-32791 Lage • Im Seelenkamp 12 D-32777 Lage • PO Box 1827 Phone +49 (5232) 606 - 0 Fax +49 (5232) 606260 E-Mail: [email protected] Internet: www.remko.de
