INSTRUCTION MANUAL
MANUAL INFLATION
BLOOD PRESSURE MONITOR
Model HEM-412CREL
TM
TM
2
TABLE OF CONTENTS
Introduction …………………………………………………………… 3
Important Safety Notes ……………………………………………… 4
Know Your Unit ……………………………………………………… 5
Quick Reference Guide ……………………………………………… 6
A Few Words About Blood Pressure………………………………7-10
Battery Installation/Replacement ………………………………… 11
Care and Maintenance……………………………………………… 12
Suggestions Before Taking A Measurement …………………………13
How To Apply The Arm Cuff …………………………………… 14, 15
How To Take A Measurement ………………………………… 16, 17
How To Use The Memory Function ………………………………… 18
Error Indicators ……………………………………………………… 19
FCC Statement ……………………………………………………… 20
Warranty Information ………………………………………………21
Specifications………………………………………………………… 22
Blood Pressure Log ………………………………………………… 23
3
INTRODUCTION
Thank you for purchasing the ReliOn HEM-412CREL Manual Inflation
Blood Pressure Monitor.
Fill-in for future reference
DATE PURCHASED: ______________
SERIAL NUMBER: ________________
Staple your purchase receipt here.
The monitor features an easy-to-squeeze inflation bulb that allows
you to quickly inflate the cuff. The measurement reading is clearly
displayed on a large digital panel.
Omron digital blood pressure monitors use the oscillometric method
of blood pressure measurement. This means the monitor detects
your blood’s movement through your brachial artery and converts the
movements into a digital reading. An oscillometric monitor does not
need a stethoscope so the monitor is simple to use.
The ReliOn HEM-412CREL Manual Inflation Blood Pressure Monitor
is intended for home use.
SAVE THESE INSTRUCTIONS
4
IMPORTANT SAFETY NOTES
To assure the correct use of the product basic safety measures should
always be followed including the precautions listed below:
Read all information in the instruction book and any other literature
included in the box before using the unit.
Contact your physician for specific information about your blood
pressure. Follow the instructions of your healthcare provider.
Operate the unit only as intended. Do not use for any other purpose.
The unit is intended for use in measuring blood pressure and pulse
rate in adult patient population. Do not use on infants.
Do not use a cellular phone near the unit. It may result in
operational failure.
Changes or modifications not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair the
unit or components.
5
KNOW YOUR UNIT
Systolic Blood Pressure Display
ON/Off Button
Air Release Button
Air
Inflation Bulb
Air Plug
Air Tube
(Connects to
the air plug)
Air Tube
Arm Cuff
Diastolic Blood Pressure /
Pulse rate Display
Air Plug
Air Tube
(Connects to
the air plug)
MEMORY Button
6
QUICK REFERENCE GUIDE
1. Avoid eating, smoking, and exercising for at least 30 minutes before
taking a measurement.
2. Put your left arm through the cuff loop. The bottom of the cuff
should be about 1/2 inch above the elbow. The cuff tab should lie
over the brachial artery on the inside of the arm.
3. Pull the cuff so that it is tightened evenly around your arm. Insert one
finger under cuff to check fit. Press the sewn hook material firmly
against the pile side of the cuff. Make sure that your skin will not be
pinched in the D-ring once you inflate the cuff. Immediately deflate
the cuff and readjust it if skin becomes pinched.
4. Sit in a chair with your feet flat on the floor and place your left arm
on a table so that the cuff is at the same level as your heart.
5. Turn the monitor on, and after the Ready To Measure Symbol ( )
appears next to a zero on the digital panel, rapidly squeeze the
inflation bulb to inflate the cuff. Stop pumping when the numbers
on the display are approximately 40 mmHg higher than your
normal systolic blood pressure. Do not inflate higher than 280 mmHg.
6. The cuf
f will deflate automatically. Remain still throughout
the entire reading.
7. When measurement is complete, the monitor alternately displays
your blood pressure/pulse rate on the digital panel. Press the Air
Release Button to remove air in the cuff.
8. Wait 2-3 minutes before taking another blood pressure measurement.
7
A FEW WORDS ABOUT BLOOD PRESSURE
Blood pressure is the force on the walls
of your blood vessels as blood flows
through them.
Your heart is like a pump. When
it contracts, or beats, it sends a surge
of blood through the blood vessels
and pressure increases. This is called
your systolic pressure.
When your heart relaxes between
beats, your blood pressure decreases.
This is called your diastolic pressure.
When a doctor takes your blood
pressure, he or she measures
both your systolic and diastolic
pressures and records them as
numbers. For example, if your blood
pressure reading is 120/76 (120 over
76), your systolic is 120 and your
diastolic is 76. The numbers are
expressed in millimeters of mercury
120/76 mmHg.
Heart Contracts
(Pressure Increases)
Heart Relaxes
(Pressure Decreases)
Systolic
(Upper Number)
Diastolic
(Lower Number)
8
A FEW WORDS ABOUT BLOOD PRESSURE
These two numbers provide important information about your health.
When blood pressure is consistently above normal it is called
hypertension (high blood pressure).
Your new ReliOn HEM-412CREL Manual Inflation Blood Pressure
Monitor measures your systolic and diastolic blood pressure for you,
then displays the results on an easy-to-read digital panel!
9
A FEW WORDS ABOUT BLOOD PRESSURE
Your blood pressure changes constantly. Blood pressure changes from
day to day and minute to minute according to your body’s condition.
For example, when you are exercising or angry your blood pressure
increases, but when you are relaxing or sleeping your blood
pressure decreases. These changes are completely normal. Your ReliOn
HEM-412CREL Manual Inflation Blood Pressure Monitor is
especially helpful when tracking changes in blood pressure because
it travels anywhere and takes just seconds to use.
NOTE: One or two readings will not determine your normal blood pressure.
It is very important to take regular, daily measurements and
to keep accurate records. In partnership with your doctor, an
accurate record of your blood pressure over a period of time
can be a valuable aid in diagnosing and preventing potential
health problems.
Fluctuation Throughout a Day
(Case: Male, 35 years of age)
6AM 12 6PM 12
200
150
100
50
Systolic Blood Pressure
Diastolic Blood Pressure
Morning Afternoon
Gets
up
Arrives
at the
company
Discussion
on the
telephone
Argument
in a meeting
Leaves the
company
Dinner Sleeps
mm Hg
10
A FEW WORDS ABOUT BLOOD PRESSURE
• There is not a universally accepted definition of hypotension (low blood
pressure,) but a systolic pressure below 100 mmHg is usually
regarded as hypotension.
The World Health Organization (WHO) and The International Society
of Hypertension (ISH) jointly developed the following Blood Pressure
Classification. This classification, however, is only a general guideline
because your optimum blood pressure depends on your age, morbidity,
and treatment strategy by a physician. CONSULT YOUR PHYSICIAN
TO DETERMINE YOUR OPTIMUM BLOOD PRESSURE.
Systolic Diastolic
(mmHg) (mmHg)
Optimal < 120 < 80
Normal < 130 < 85
High-Normal 130-139 85-89
Stage 1 Hypertension (mild) 140-159 90-99
Stage 2 Hypertension (moderate) 160-179 100-109
Stage 3 Hypertension (severe) ≥ 180 ≥ 110
Diastolic
mmHg
Stage 3 Hypertension
110
Stage 2 Hypertension
100
Stage 1 Hypertension
90
High-Normal
85
Normal
80
Optimal
120
130 140
Systolic mmHg
180
160
11
BATTERY INSTALLATION / REPLACEMENT
1. Slide the battery cover off in the direction
of the arrow.
2. Install 4 “AA” size batteries so + (positive)
and – (negative) polarities match the polarities
of the battery compartment as indicated.
3. Replace the battery cover.
NOTE: If the Low Battery Indicator appears on the
display, replace all four batteries.
Long-life alkaline batteries are recommended.
12
CARE AND MAINTENANCE
To k eep your digital blood pressure monitor in the best condition and
protect the unit from damage follow the directions listed below:
Clean the monitor with a soft dry cloth. Do not use any abrasive or
volatile cleaners. Do not attempt to clean the cuff. Never immerse the
monitor or any components in water.
Store the monitor in a safe and dry location. Do not fold the cuff
and tubing tightly. Do not subject the monitor to extreme hot or cold
temperatures, humidity and direct sunlight.
Av oid subjecting the monitor to strong shocks, such as dropping the
unit on the floor.
Remove the batteries if the unit will not be used for three months or
longer. Always replace all the batteries with new ones at the same time.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
13
SUGGESTIONS BEFORE TAKING
A MEASUREMENT
1. Avoid eating, smoking, and exercising for 30 minutes before
taking a measurement. Rest for at least 15 minutes before
taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements
during stressful times.
3. Remove tight-fitting clothing from your left arm.
4. Measurements should be taken in a quiet place.
5. Sit in a chair with your feet flat on the floor. Rest your left arm
on a table so that the cuff is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement does not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at the same time each day for consistency.
8. Wait 2-3 minutes between measurements. The wait time allows the
arteries to return to the condition prior to taking the blood pressure
measurement. You may need to increase the wait time depending on
your individual physical characteristics.
14
HOW TO APPLY THE ARM CUFF

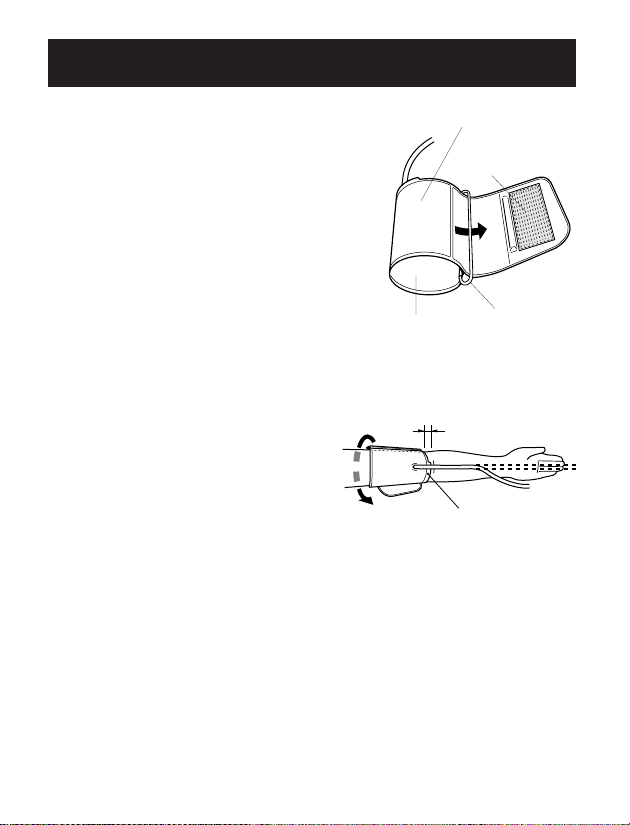

1. If the cuff is assembled correctly, the
sewn hook material will be on the
outside of the cuff loop and the
metal D-ring will not touch your skin.
2. Pass the end of the cuff furthest
from the tubing through the metal
D-ring to form a loop. The smooth
cloth should be on the inside of
the cuff loop.
3. Put your left arm through the cuff
loop. The bottom of the cuff should
be approximately 1/2 inch above
the elbow. The cuff tab on the cuff
should lie over the brachial artery
on the inside of the arm. Tube
should run down center of arm even
with middle finger.
Pile Material
Cuff tab
1/2 inch (12.7 mm)
D-Ring
Smooth Cloth
Sewn Hook
Material
15
HOW TO APPLY THE ARM CUFF
4. Pull the cuff so that the top and bottom edges are
tightened evenly around your arm.
5. When the cuff is positioned correctly, press the
sewn hook material FIRMLY against the pile side
of the cuff.
6. Make certain the cuff fits snug around your arm.
The cuff should make good contact with your skin.
7. Sit in a chair with your feet flat on the floor and
place your arm on a table so that the cuff is at the
same level as your heart.
8. Relax your arm and turn your palm upward.
9. Be sure there are no kinks in the air tubing.
NOTE: If your arm circumference size is 13 inches to 17 inches you
will need the large adult cuff. The large adult cuff is an accessory item
sold separately. You may purchase the large adult cuff at Walmart
(model H-003DREL).
16
HOW TO TAKE A MEASUREMENT
Please read “A Few Suggestions Before Blood Pressure
Measurement”and “How To Apply The Arm Cuff” before
taking a reading.
1. Press the ON/OFF Button.
a) All display symbols appear for about one second.
This is the initial LCD Test.
b) The display symbols disappear and the Deflation
Indication Symbol ( ) starts to flash.
c) When the monitor completes the necessary
preparations before measurement, the Heart Symbol
( ) appears next to a zero.
NOTE: Wait for the Heart Symbol ( )
before taking a measurement.
2. Begin inflating the cuff by rapidly squeezing the inflation
bulb until you have reached approximately 40 mmHg higher
than your normal systolic reading. If your normal systolic
blood pressure is unknown, inflate the cuff to 180 mmHg.
Do not inflate higher than 280 mmHg
Initial
LCD Test
Ready
To Measure
Deflation
Indication
17
HOW TO TAKE A MEASUREMENT
3. Remain still. The cuff will begin to deflate automatically.
4. As the cuff deflates, decreasing numbers
appear on the display. The Heart Symbol
( ) flashes at every heartbeat.
5. When measurement is complete, the Heart
Symbol ( ) stops flashing and your blood
pressure and pulse rate are displayed alternately.
6. When the Deflation Indication Symbol
( ) appears on the display, push the
Air Release Button to release any
air left in the cuff.
Indicated
Value Drops
Pulse Reading
Display
(for approx. 2 sec.)
Measuring
Blood Pressure
Reading Display
(for approx.
3.5 sec.)
18
HOW TO USE THE MEMORY FUNCTION
This monitor has a memory capable of storing fourteen (14) sets
of readings. Every time you complete the measurement, the monitor
automatically stores blood pressure and pulse rate.
• Press the ON/OFF Button
• Press the MEMORY Button to recall stored readings while the
Heart Symbol ( ) is displayed.
• When fourteen (14) sets of readings are stored in memory, the oldest
set will be deleted to store a new set.
• To delete stored readings, press the MEMORY Button and the ON/OFF
Button simultaneously for 2 seconds. All the readings will be deleted.
NOTE: You can not delete the stored readings partially.
19
ERROR INDICATORS
Error Symbol
Correction
Cause
Cuff under-inflated.
Residual air pressure
in cuff.
Movement during
Measurement
No pulse or blood pressure
reading due to very weak
artery pulse.
Cuff over-inflated (more
than 300 mmHg).
Batteries have run down.
Press Air Release Button
for 4-5 seconds to release
air pressure in cuff.
Carefully read and
repeat steps listed
under “How To Take
A Reading.”
Replace all four
“AA” batteries.
Wait 2-3 minutes and take
another measurement.
Repeat steps listed under
“How To Take A Reading”.
Inflate the cuff 40 mmHg
higher than the previous
inflation value.
20
FCC STATEMENT
Note:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)
This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. The product generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If the product does cause harmful interference to radio or television
reception, which can be determined by turning the product on and off, the
user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE
(for Canada only)
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “ Digital Apparatus”, ICES-003 of the Canadian
Department of Communications. Cet appareil numérique respecte les limites
de bruits radioeléctriques applicables aux appareils numériques de Clase B
prescrites dans la norme sur le materiel brouilleur: “Appareils Numériques”,
ICES-003 édictée par le minister des communications.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
21
WARRANTY INFORMATION
Your HEM-412CREL Manual Blood Pressure Monitor, excluding the monitor cuff, is
warranted to be free from defects in materials and workmanship appearing within 5 years,
when used in accordance with the instructions provided with the monitor. The monitor cuff
is warranted to be free from defects in materials and workmanship appearing within one
year, when the monitor is used in accordance with the instructions provided with the monitor.
The above warranties extend only to the original retail purchaser.
We will, at our option, repair or replace without charge any monitor or monitor cuff covered
by the above warranties. Repair or replacement is our only
responsibility and your only remedy under the above warranties.
To obtain warranty service, ship the monitor and all of the components, together with proof
of purchase and a note explaining the problem with $5.00 for return shipping and insurance to:
Omron Healthcare, Inc.
Attn: Repair Department
300 Lakeview Parkway
Vernon Hills, IL 60061
Be sure to include the model number, your name and your phone number on the enclosed
note and any other correspondence.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THE APPLICABLE WRITTEN
WARRANTY ABOVE. Some states do not allow
limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER INCIDENTAL,
CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES OR DAMAGES. Some states do
not allow the exclusion or limitation of incidental
or consequential damages, so the above exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may
vary from state to state.
FOR CUSTOMER SERVICE
Call toll free: 1-800-634-4350
Limited Warranties
22
SPECIFICATIONS
Model: HEM-412CREL
Display: LCD Digital Display
Measurement Range: Pressure: 0 to 280 mmHg
Pulse: 40-180/min.
Accuracy/Calibration: Pressure: ±3mmHg or 2% of reading
Pulse: ±5% of reading
Inflation: Manual by inflation bulb
Deflation: Automatic pressure release valve
Rapid Air Release: Push button valve
Pressure Detection: Capacitive pressure sensor
Measurement Method: Oscillometric method
Pulse Wave Detection: Capacitive pressure sensor
Power Source: 4 "AA" batteries
Battery Life: Approximately 1000 uses
Operating Temperature/ 50°F to 104°F (10°C to 40°C)
Humidity: 30 to 85% RH maximum
Storage Temperature/ -4°F to 140°F (-20°C to 60°C)
Humidity: 10 to 95% RH maximum
Console Weight: Approximately 13 oz. (350g) with cuff,
exclude batteries
Outer Dimensions: Approximately 4 1/8" (w) x 3 3/8" (h)
x 4 1/2" (d) (106mm x 84mm x 116mm)
Cuff Dimensions: Approximately 5 3/4" (w) x 18 7/8" (l)
(145mm x 480mm)
Arm Circumference Range: Approximately 9'' to 13'' (220mm - 320mm)
Accessories: Arm cuff, Inflation bulb, Instruction manual
UPC Code: 6 81306 61112 3
NOTE: These specifications, to improve performance, are subject to change without notice.
23
BLOOD PRESSURE LOG
DATE: AM: SYS/DIA./PULSE: PM: SYS/DIA./PULSE:
Made in China
Manufactured by:
OMRON HEALTHCARE, INC.
300 Lakeview Parkway
Vernon Hills, Illinois 60061
www.omronhealthcare.com
Copyright © 2003 Omron Healthcare, Inc.
412CRELINST Rev A
Loading...
