Rand McNally TND Tablet 80 User Manual

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet that is on a different circuit from the GPS unit.

•Consult the dealer or an experienced radio/TV technician for help.

When using the device, ensure that the antenna of the device is at least 20 cm away from all persons.

IC Compliance Statement

This device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1.This device may not cause interference, and

2.This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

IC Caution

Intentional or unintentional changes or modifications to the equipment not expressly approved by Rand McNally could void the user’s authority to operate the equipment.

IC attestation de conformité

Ce dispositif est conforme à la norme FCC Partie 15 et aux norme(s) RSS permis-exempte(s) d’Industrie Canada. L’opération est soumise aux deux conditions suivantes:

3.Ce dispositif ne peut pas provoquer d’interférence nocive et

4.Ce dispositif doit accepter toute interference reçue, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Attention

Les changements ou modifications à l’équipement, que ce soient intentionnelles ou non, non expressément approuvés par Rand McNally pourraient annuler l’autorisation de l’utilisateur à utiliser cet équipement.

IC: 10199A-01001A

TND™ Tablet User Manual

i

About GPS

The Global Positioning System (GPS) is a constellation of satellites that a GPS receiver uses to calculate geographical positions. To determine a position, data from at least three satellites is required. To determine elevation, the data from four or more satellites is required. Accuracy of the positioning varies from 10 feet to several hundred feet, depending on vehicle placement and the surrounding environment.

Geographical terrain (such as mountains), man-made structures (such as highway overpasses, bridges, and tall buildings), as well as weather

can interfere with the GPS signal. For best GPS reception, position the device and mount with a clear line of sight to the sky. Some vehicles may have a limited view of the sky due to metal sun shields or a metallized windshield coating.

Map data includes the geographical coordinates for address locations and points of interest (POIs). With GPS reception, your device calculates a route to your selected location.

Customer Support

Call toll-free:

800-333-0136

Service hours:

Monday through Friday, 7 a.m. to 6 p.m. CT (Except official holidays)

E-mail:

[e-mail]

TND™ Tablet User Manual

ii

Table of Contents

1.	Your Device ......................................................................................................	1-3
	Safety Information ...................................................................................................	1
	What’s Included .....................................................................................................	2
	Install the Mount.......................................................................................................	2
	TND™ Tablet hardware..............................................................................................	3
2.	Getting Started ..................................................................................................	4-9
	Connecting to Wi-Fi .................................................................................................	4
	Registration .........................................................................................................	4
	Using Android .........................................................................................................	5
	Settings ......................................................................................................	6-8
	Main Menu .........................................................................................................	9
3.	Truck GPS ..................................................................................................	10-57
	A. Main Menu ......................................................................................................	11
	B. Settings ...................................................................................................	12-18
	Guide to Truck Tools and Device Preferences ......................................................	12
	Truck Info .......................................................................................................	13
	Warnings .......................................................................................................	14
	General Preferences ......................................................................................	15-16
	Route Preferences ..............................................................................................	17
	Map Preferences ................................................................................................	18

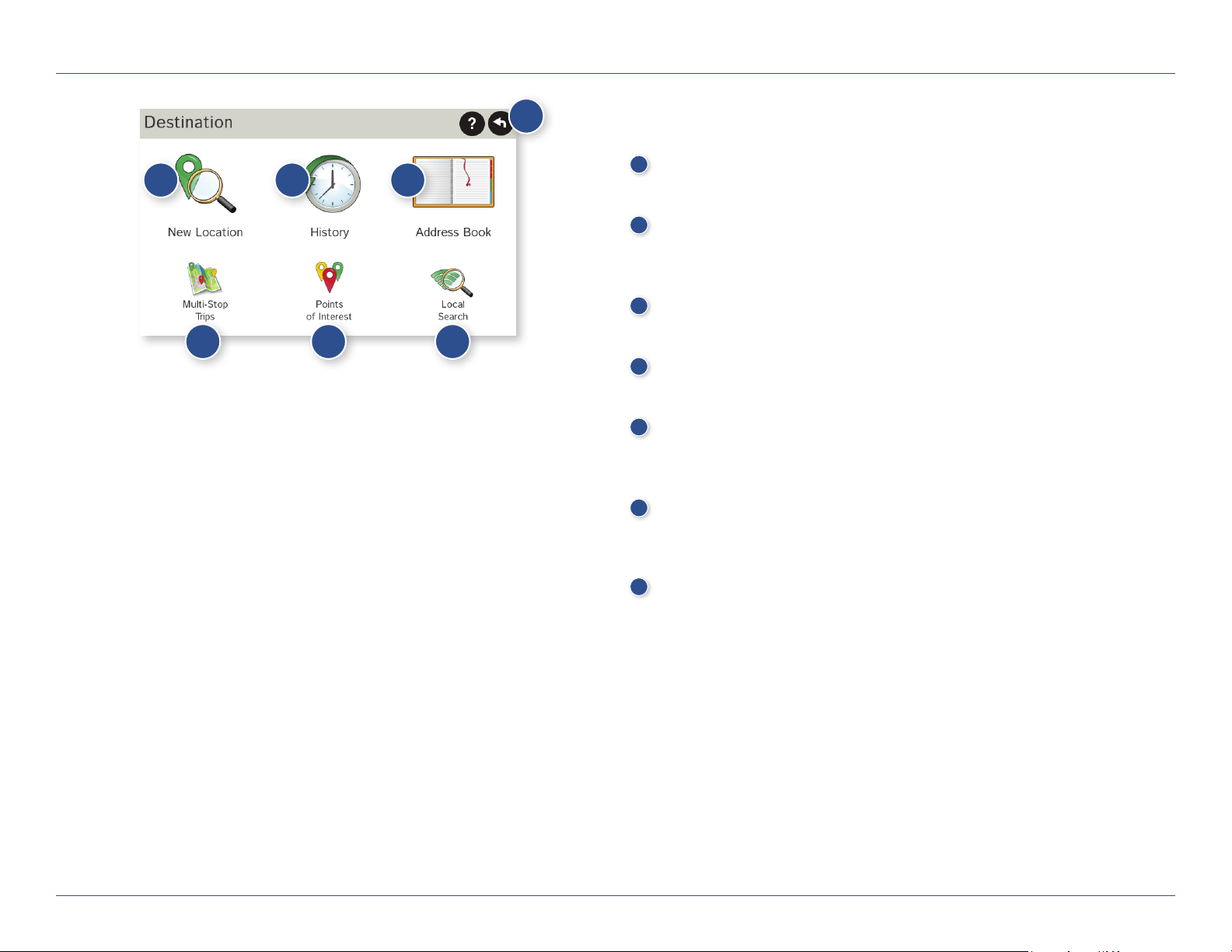

	C. Destinations................................................................................................	19-38
	Helpful Tips .......................................................................................................	20

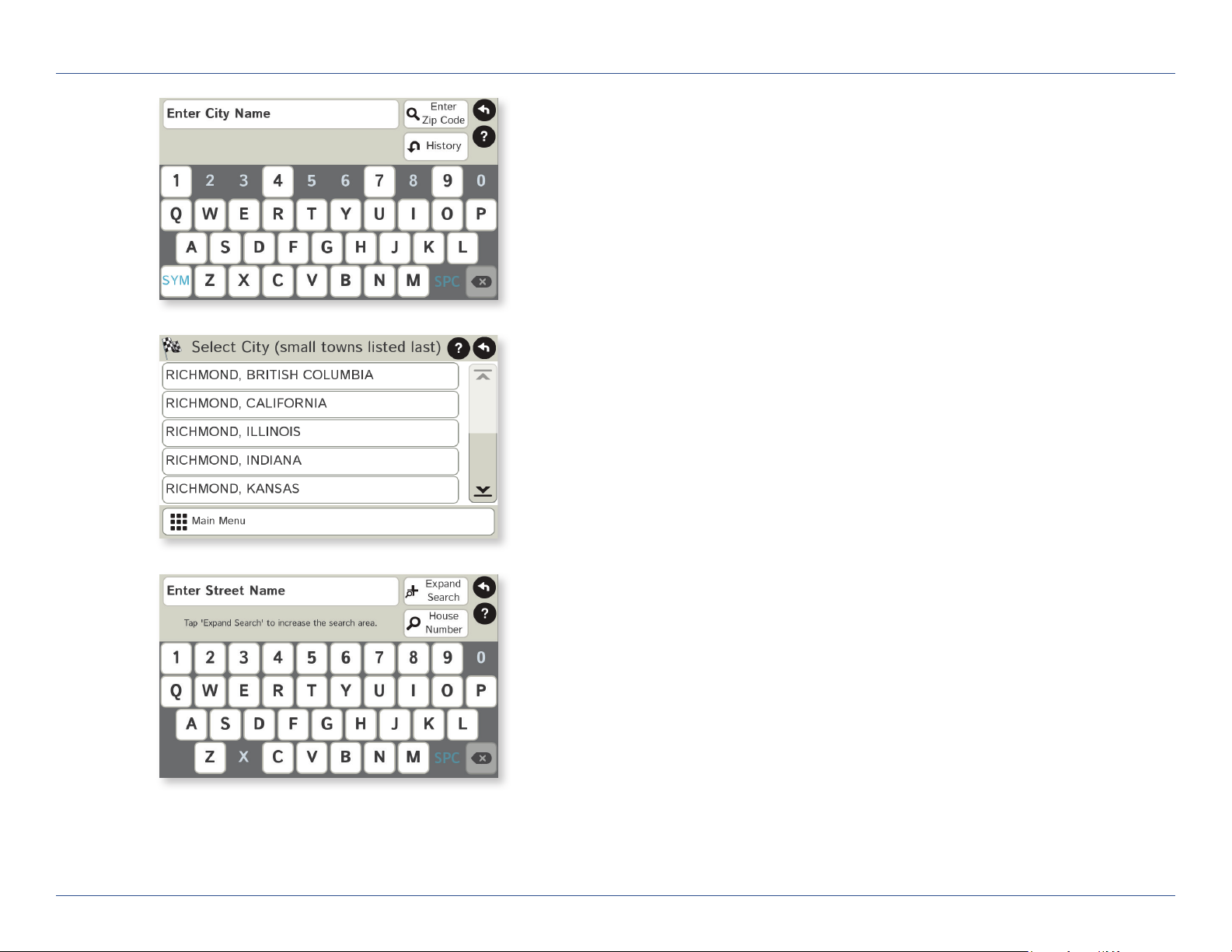

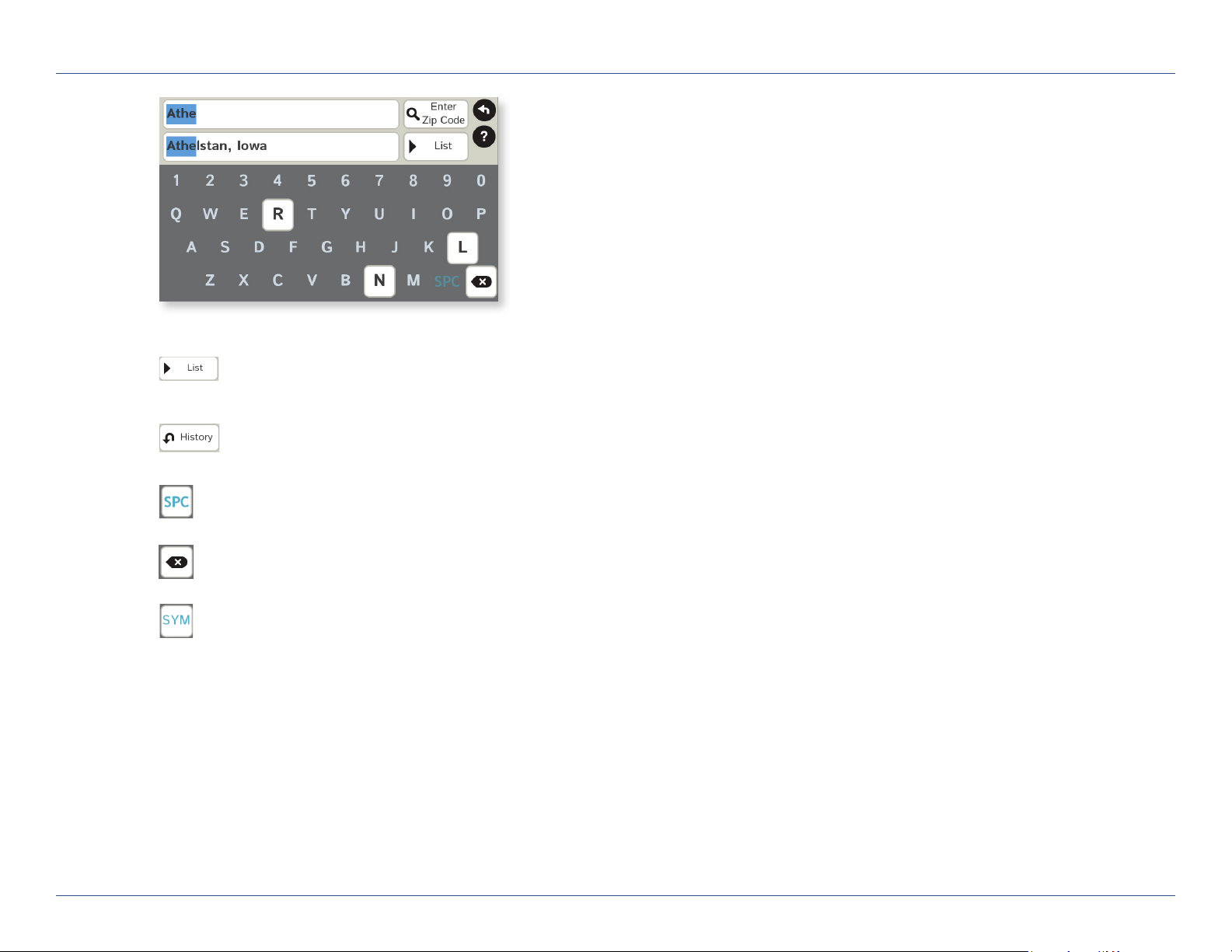

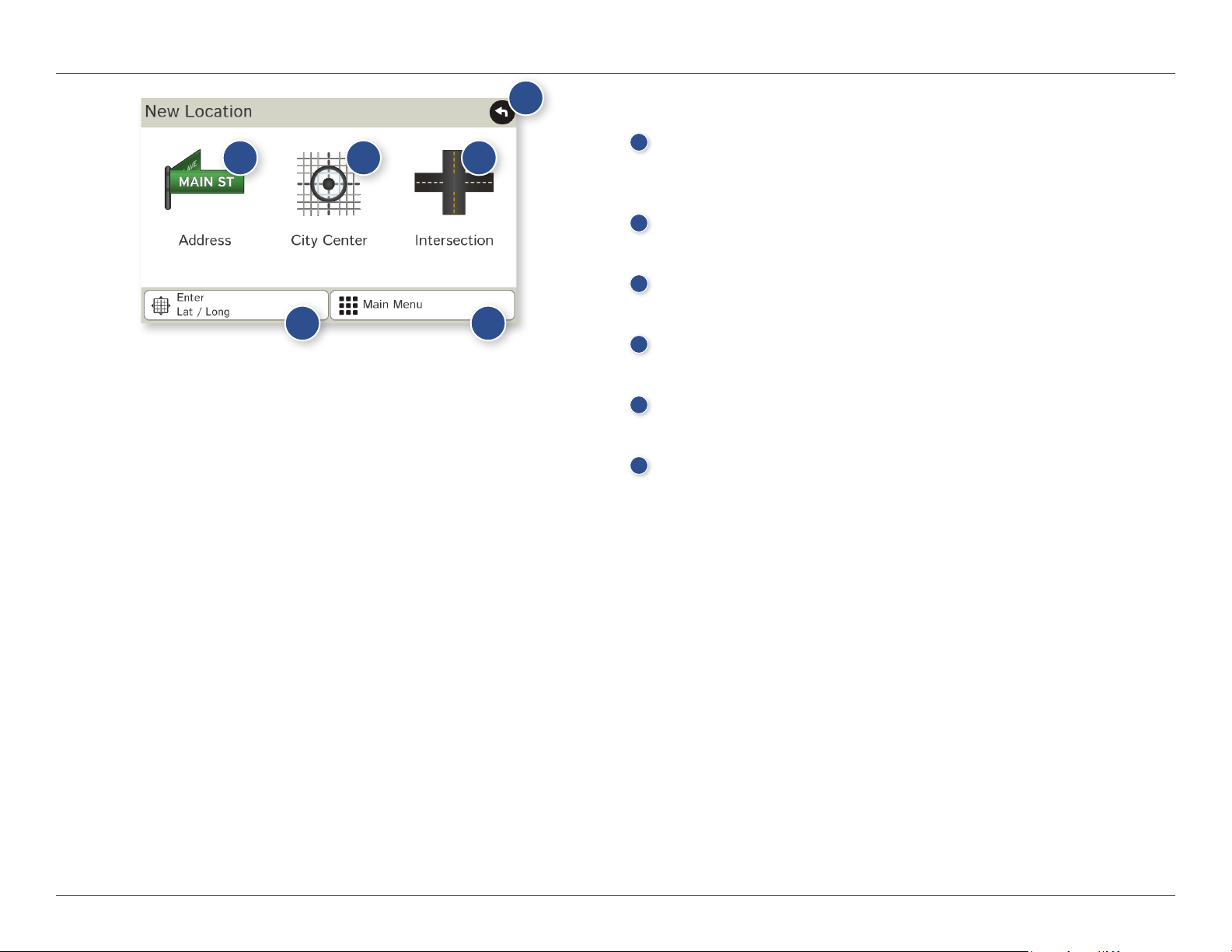

	New Location ...............................................................................................	21-24

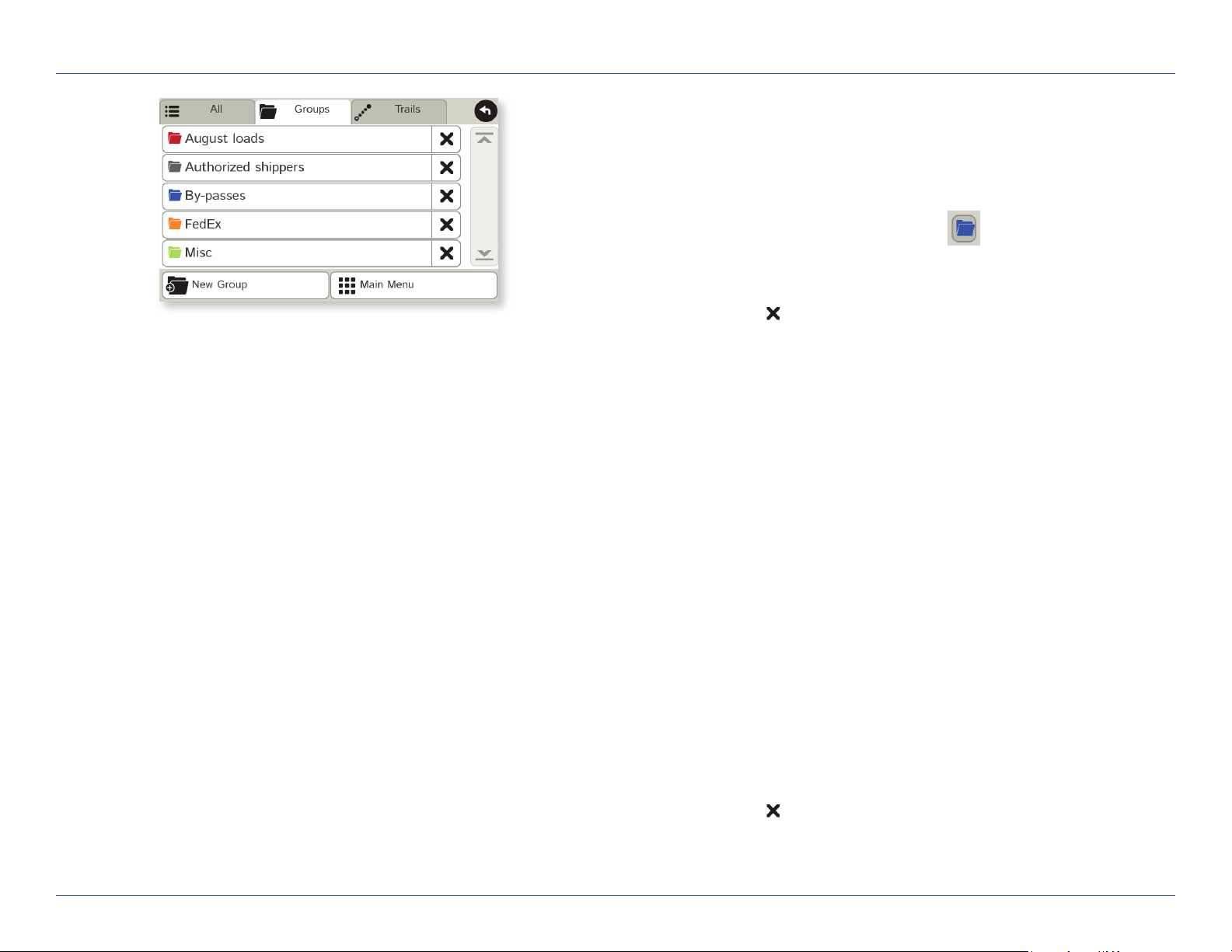

	Address Book ...............................................................................................	25-26

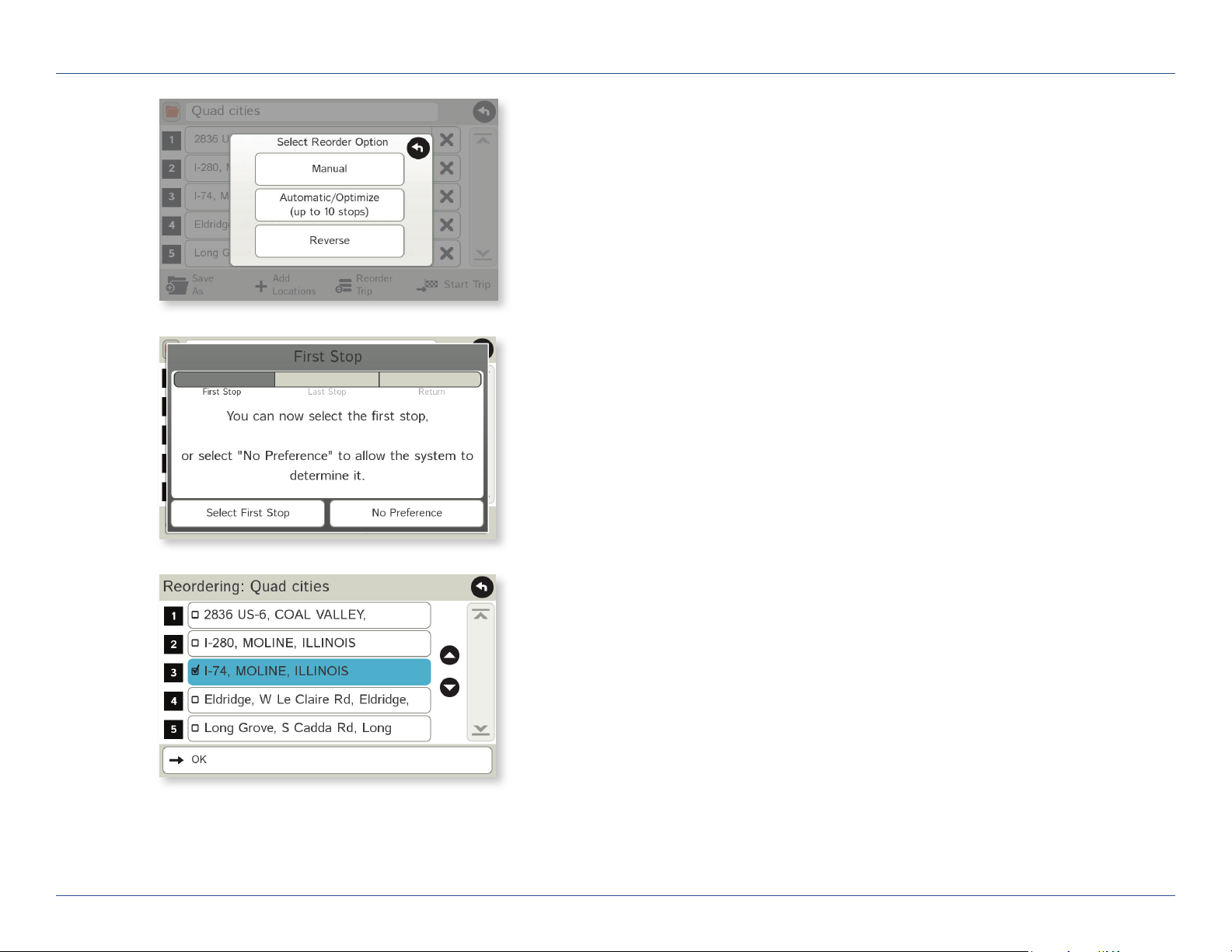

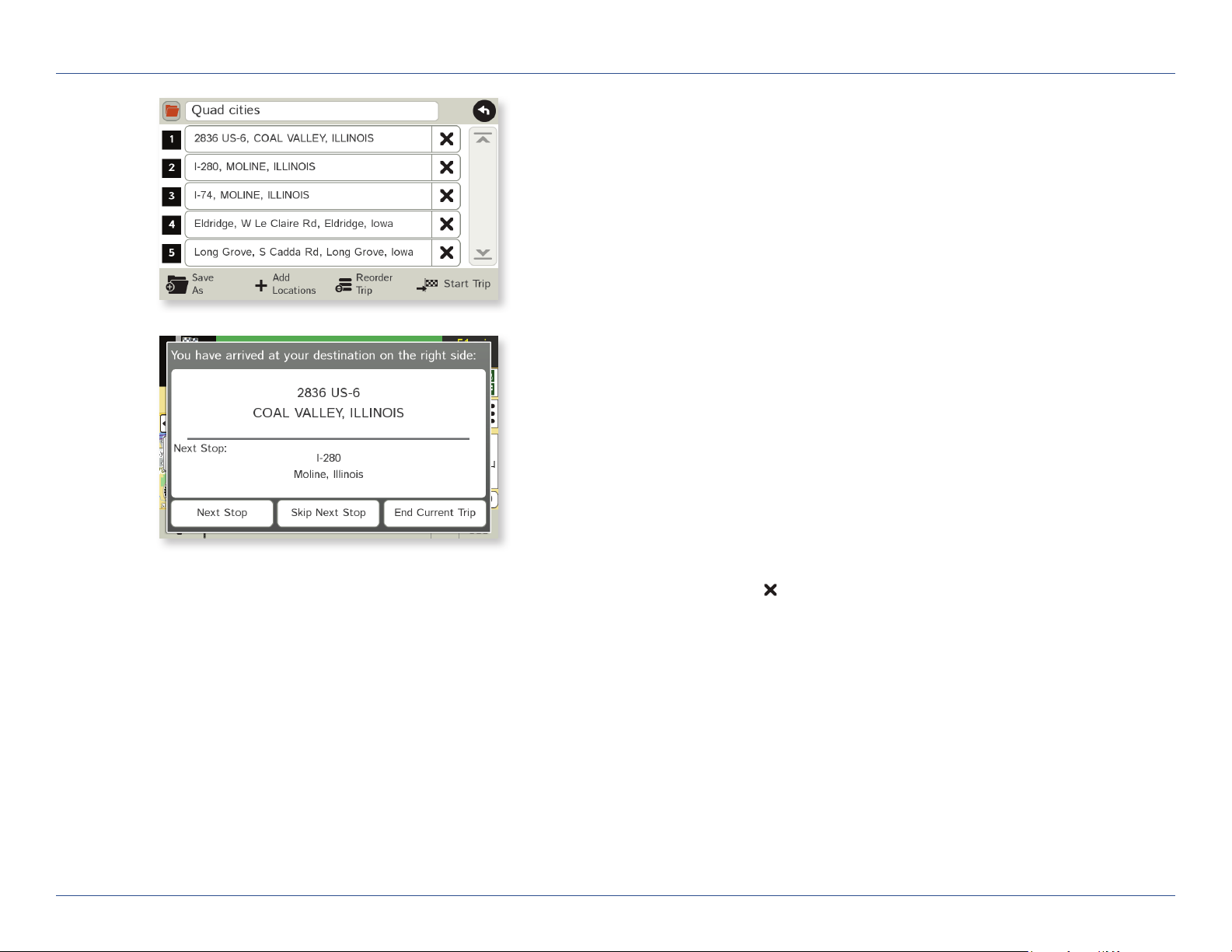

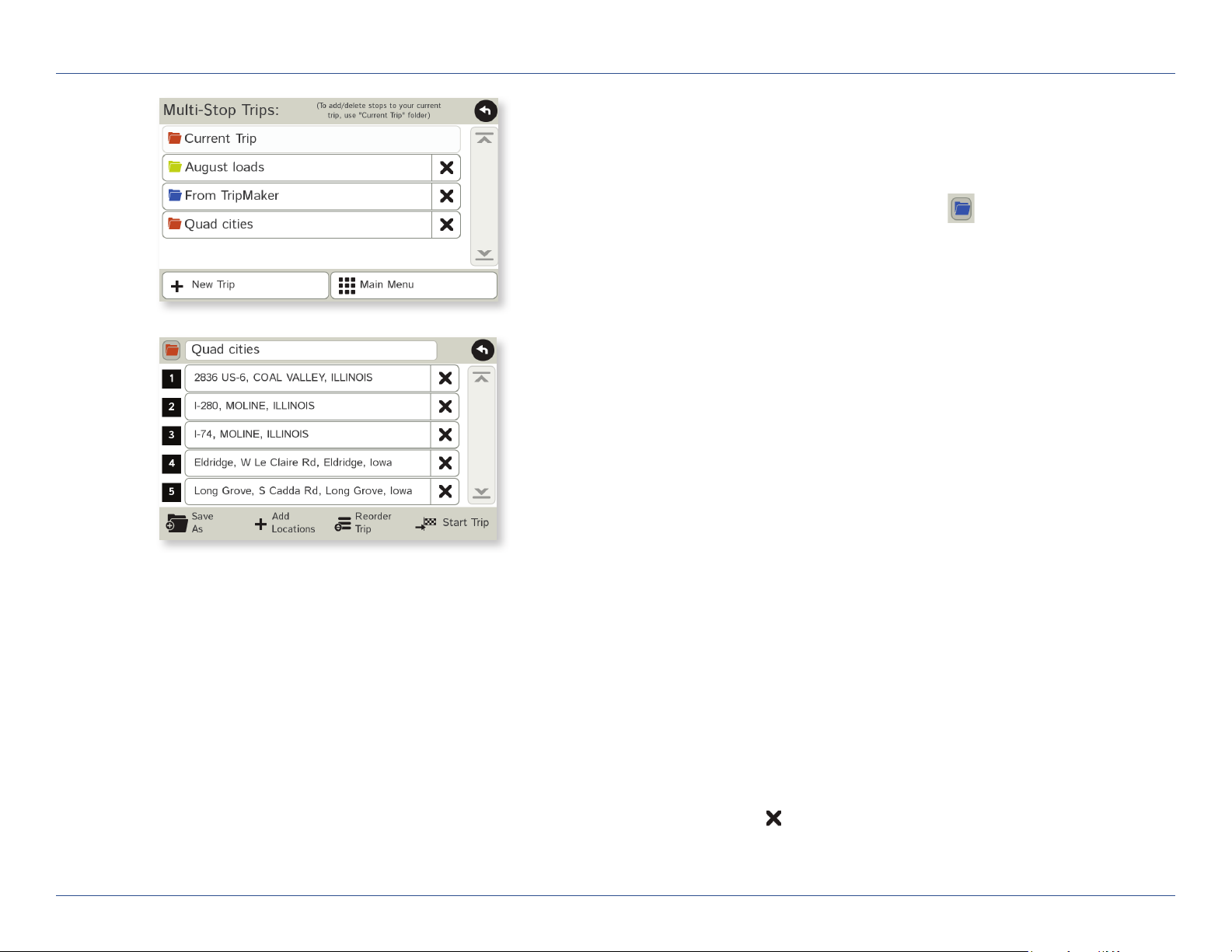

	Multi-Stop Trips ............................................................................................	27-29

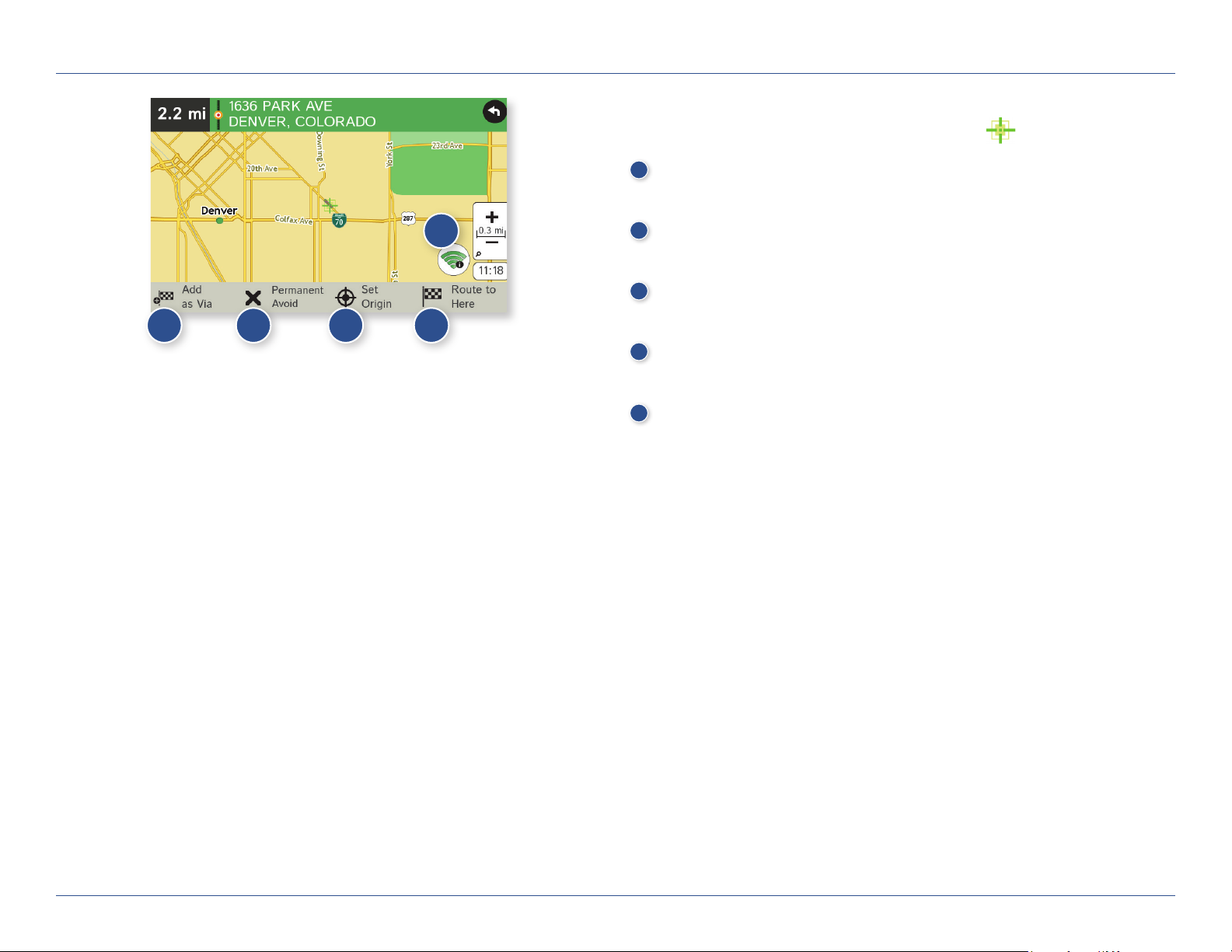

	Tap Map .......................................................................................................	30

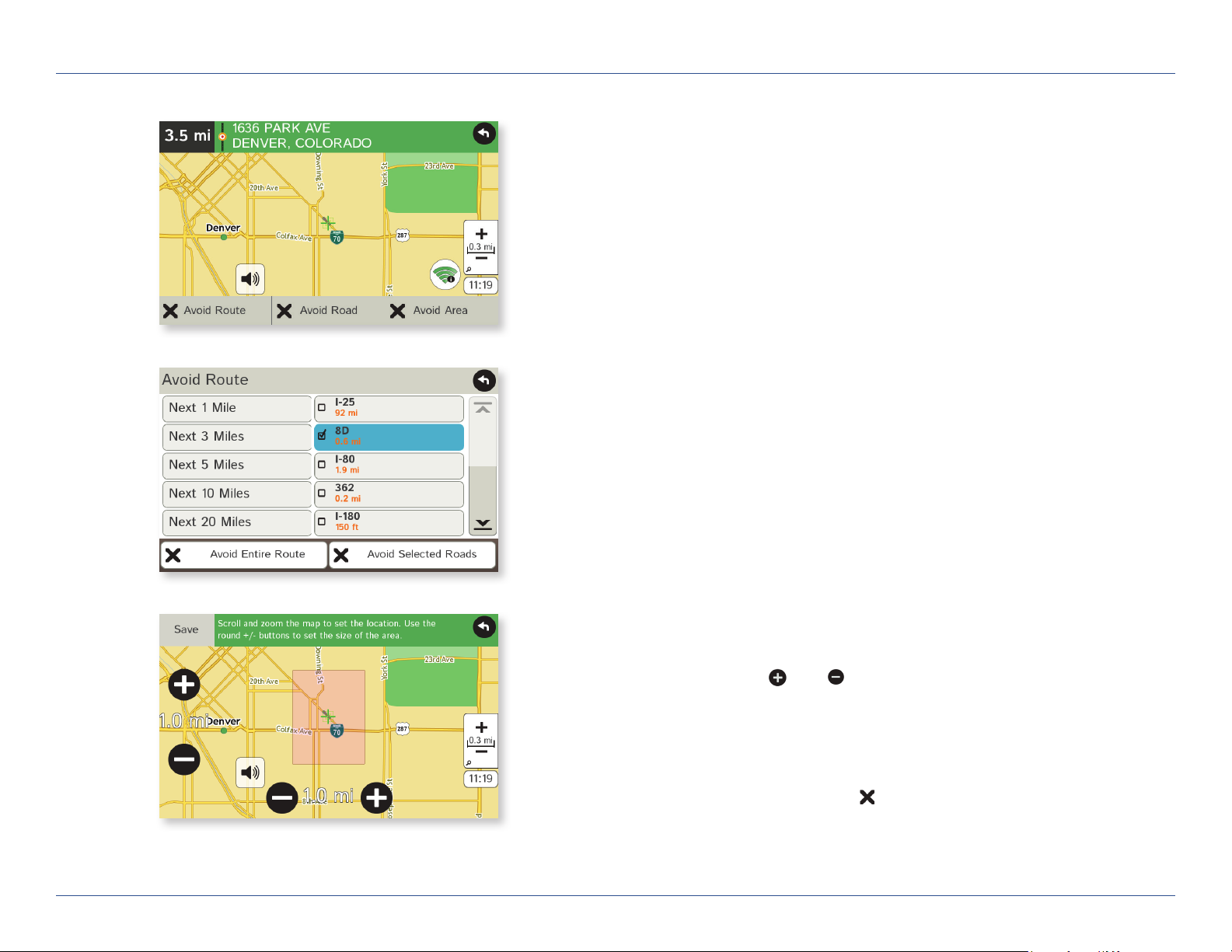

	Avoid List .......................................................................................................	31

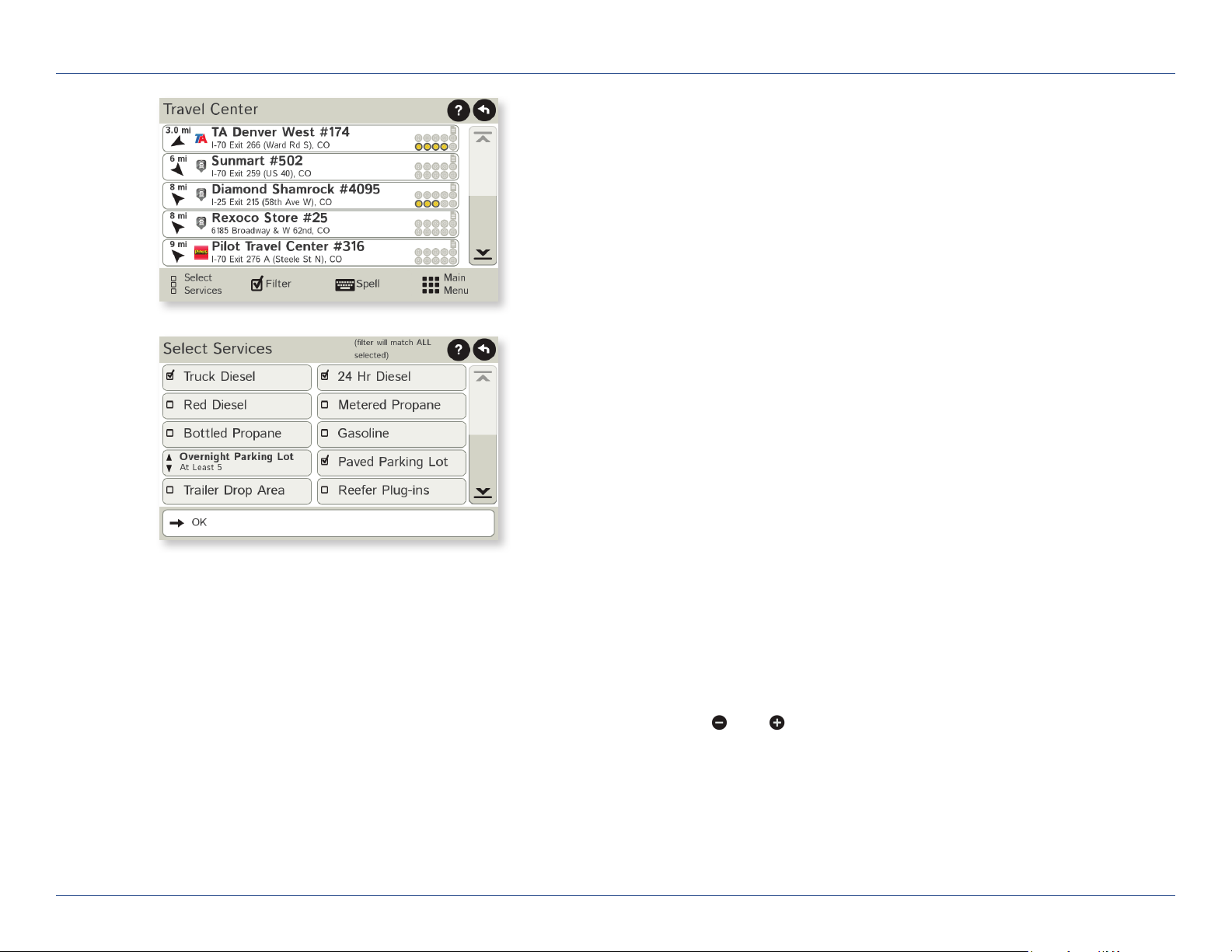

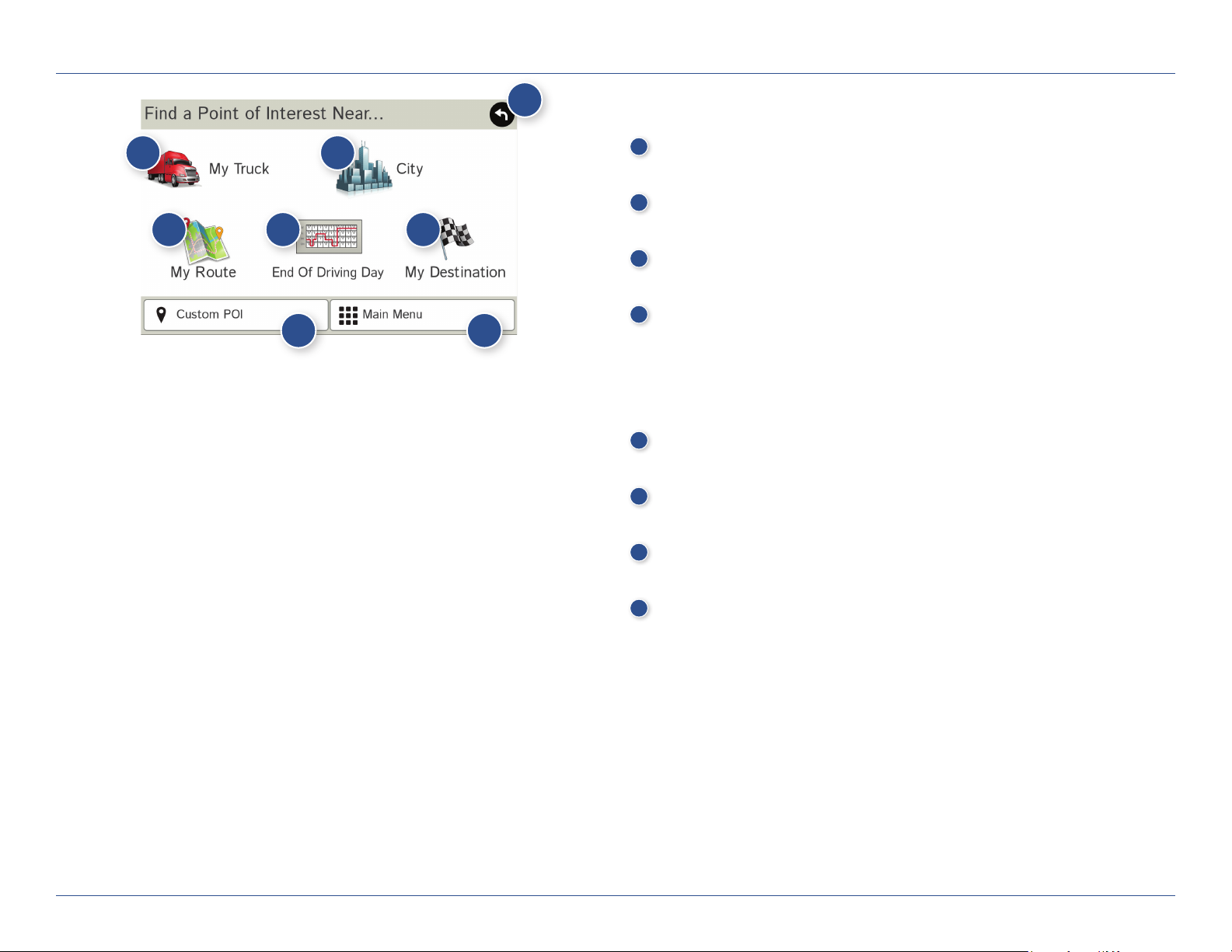

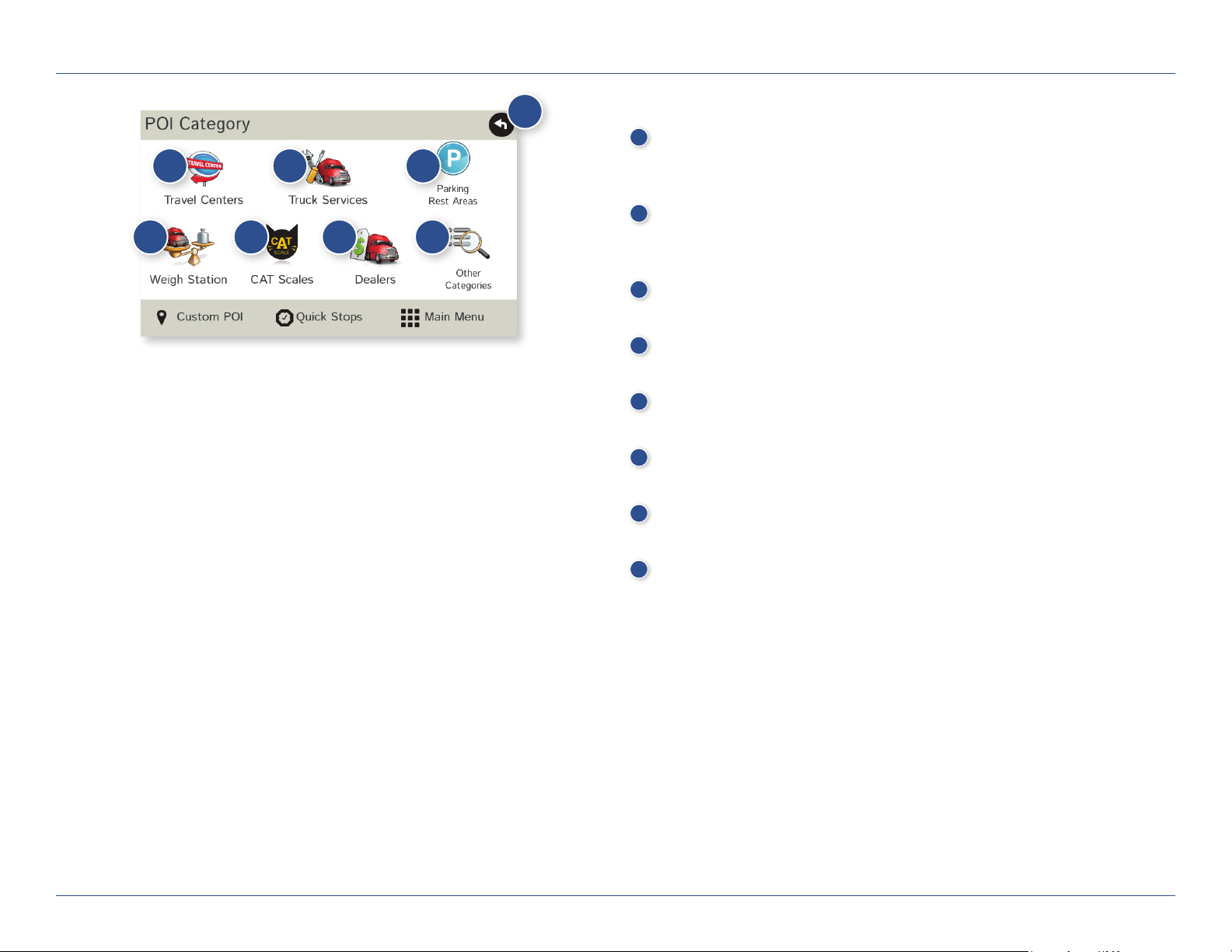

	Points of Interest (POIs) .................................................................................	32-35

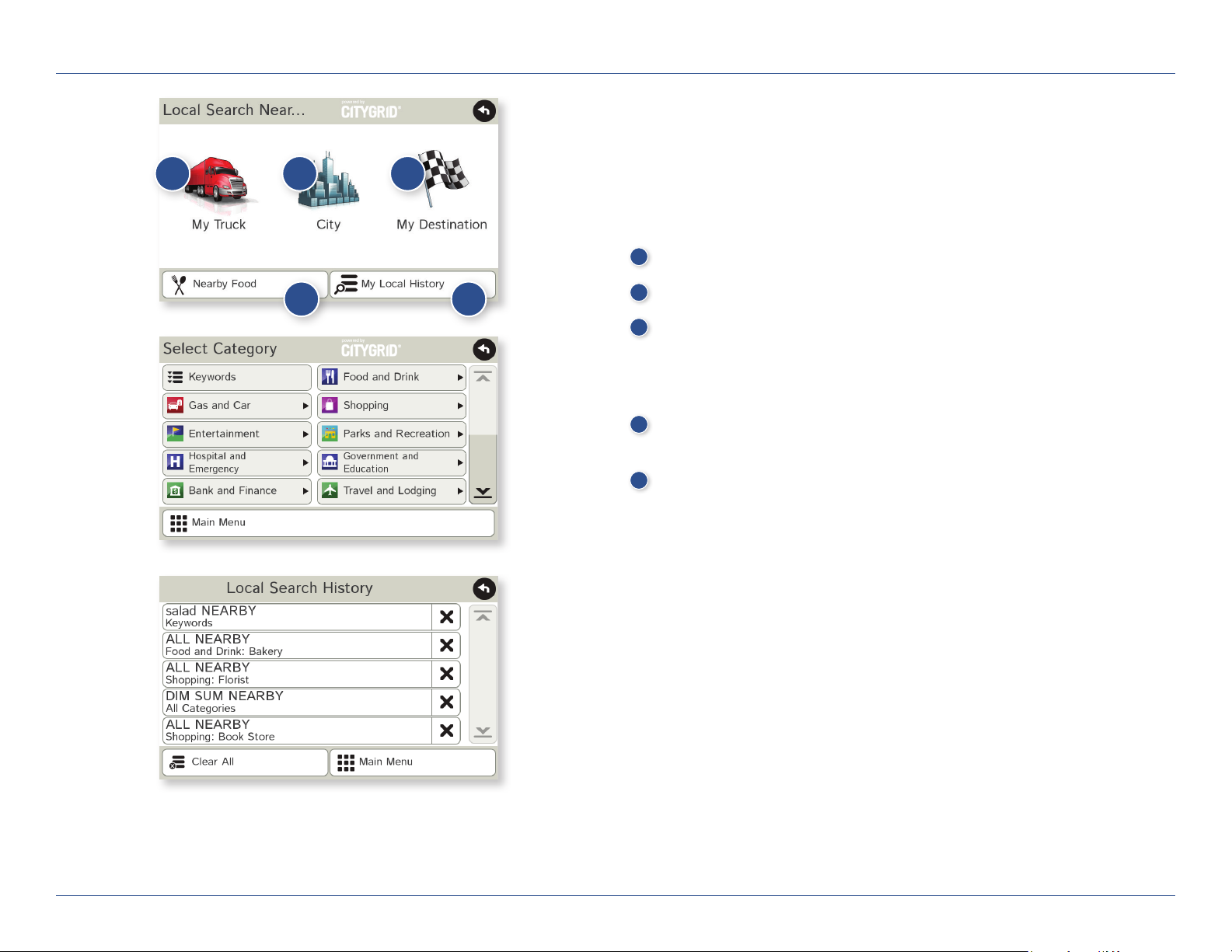

	Local Search ......................................................................................................	36

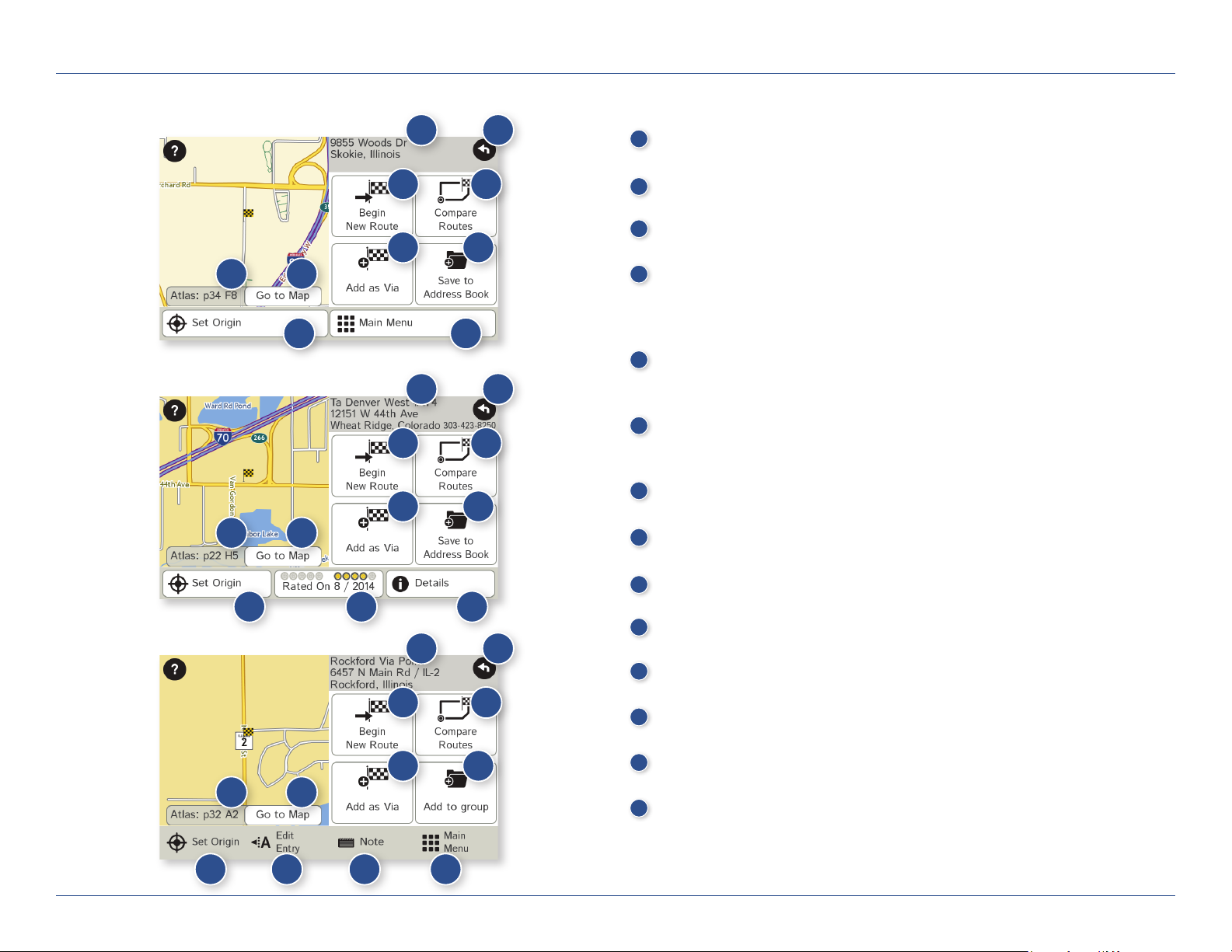

	Confirmation Windows ......................................................................................	37

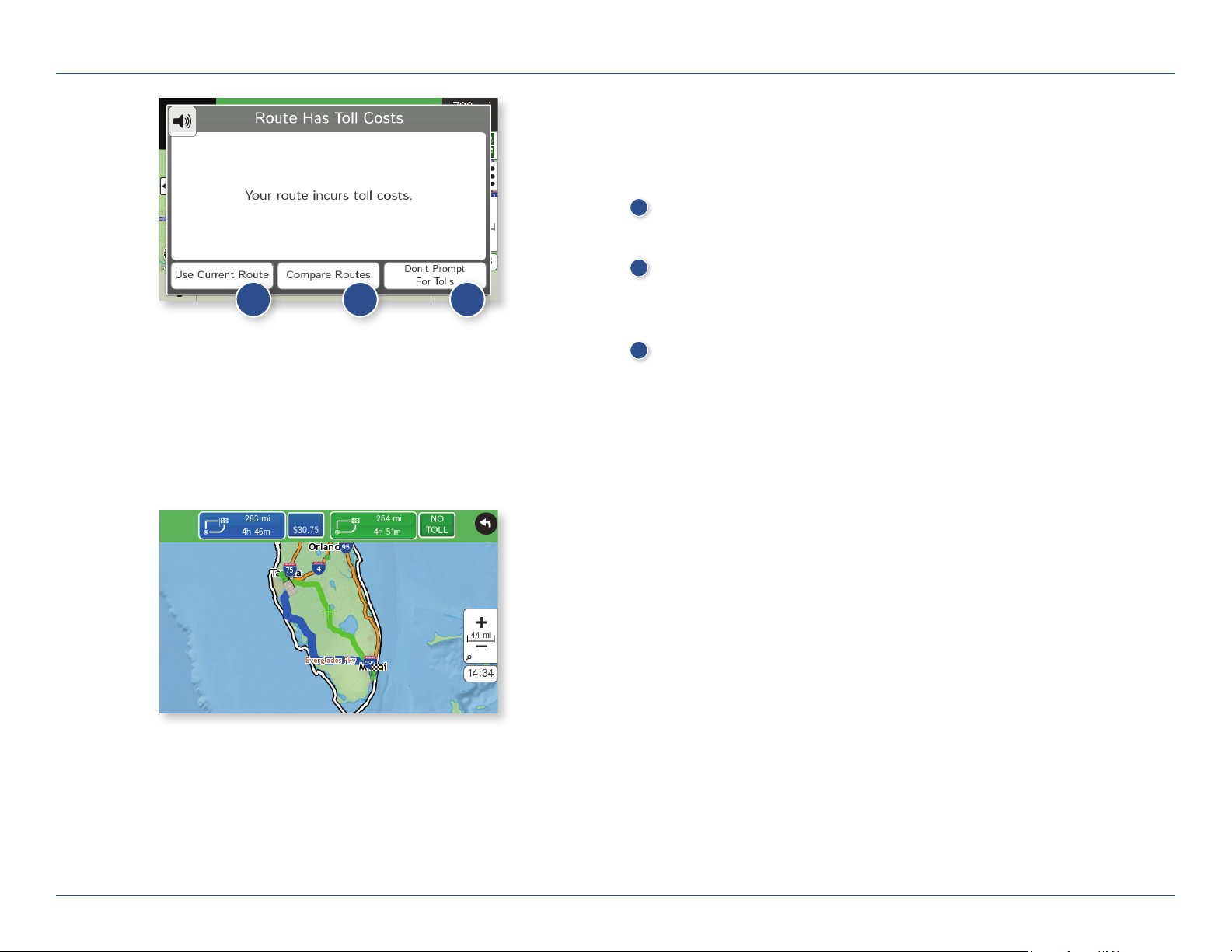

	Toll Costs, Route Compare .................................................................................	38

D. Maps & Routing .........................................................................................	39-45

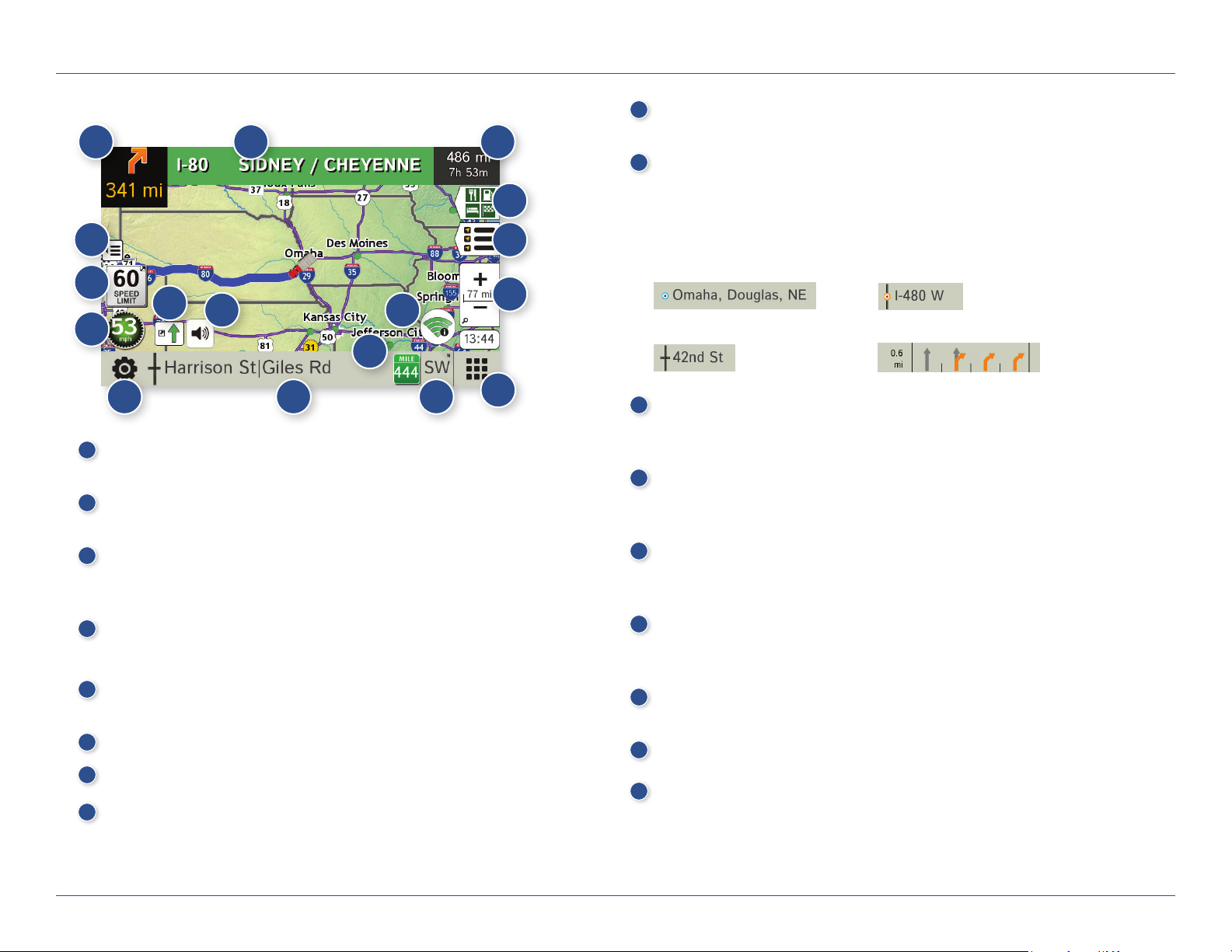

Route Map Window ..........................................................................................	39

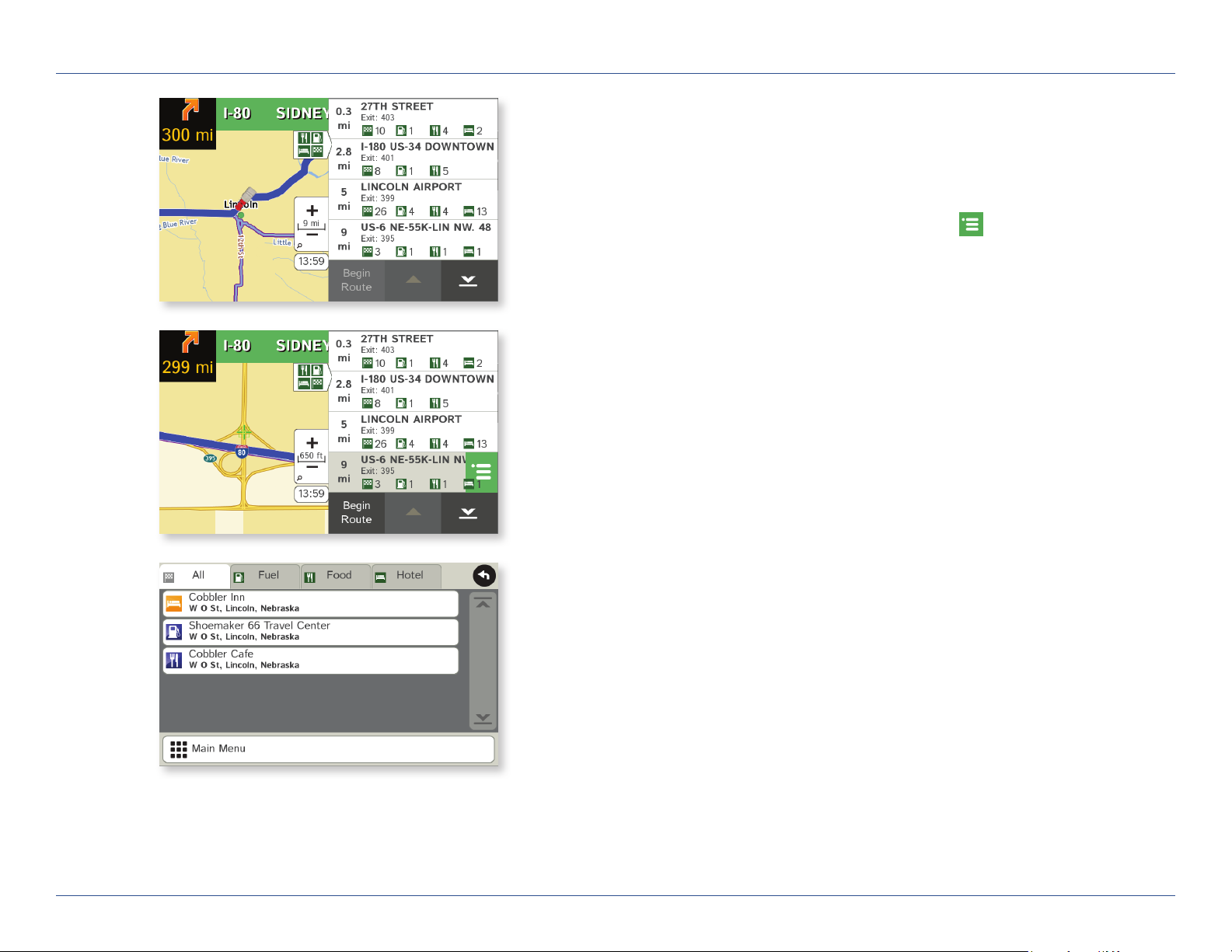

Exits Quick View.................................................................................................	40

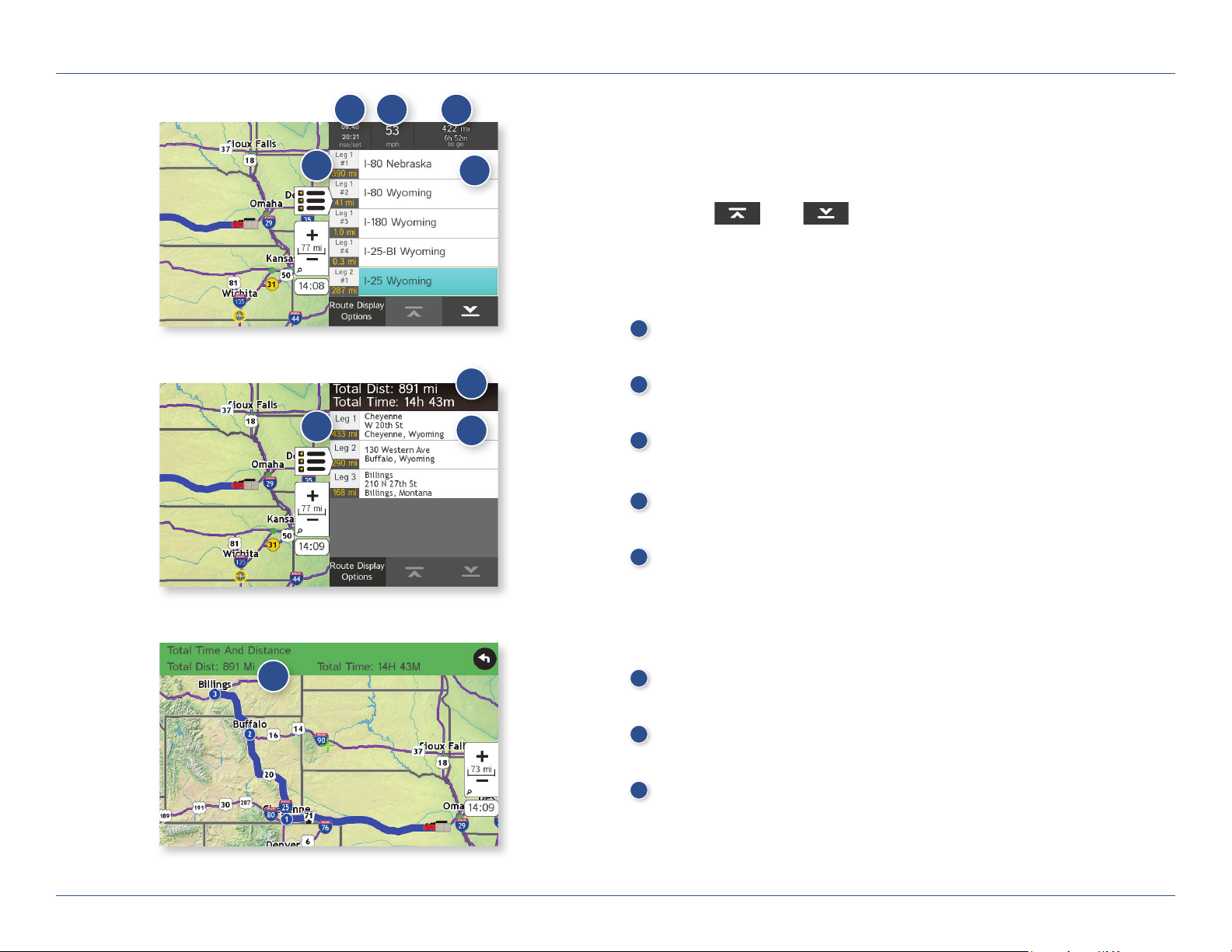

Directions Slide-Out List ....................................................................................	41

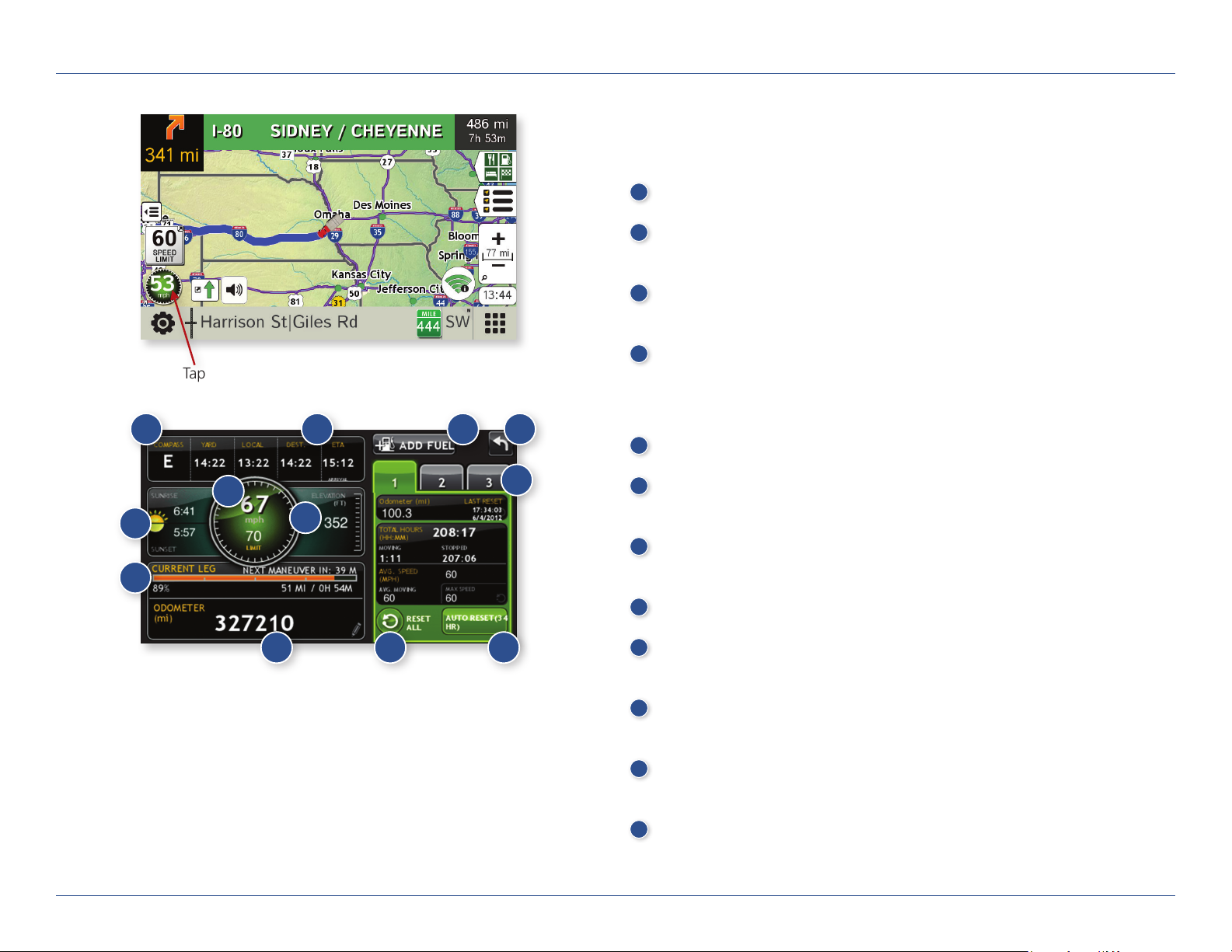

Virtual Dashboard .........................................................................................	42-43

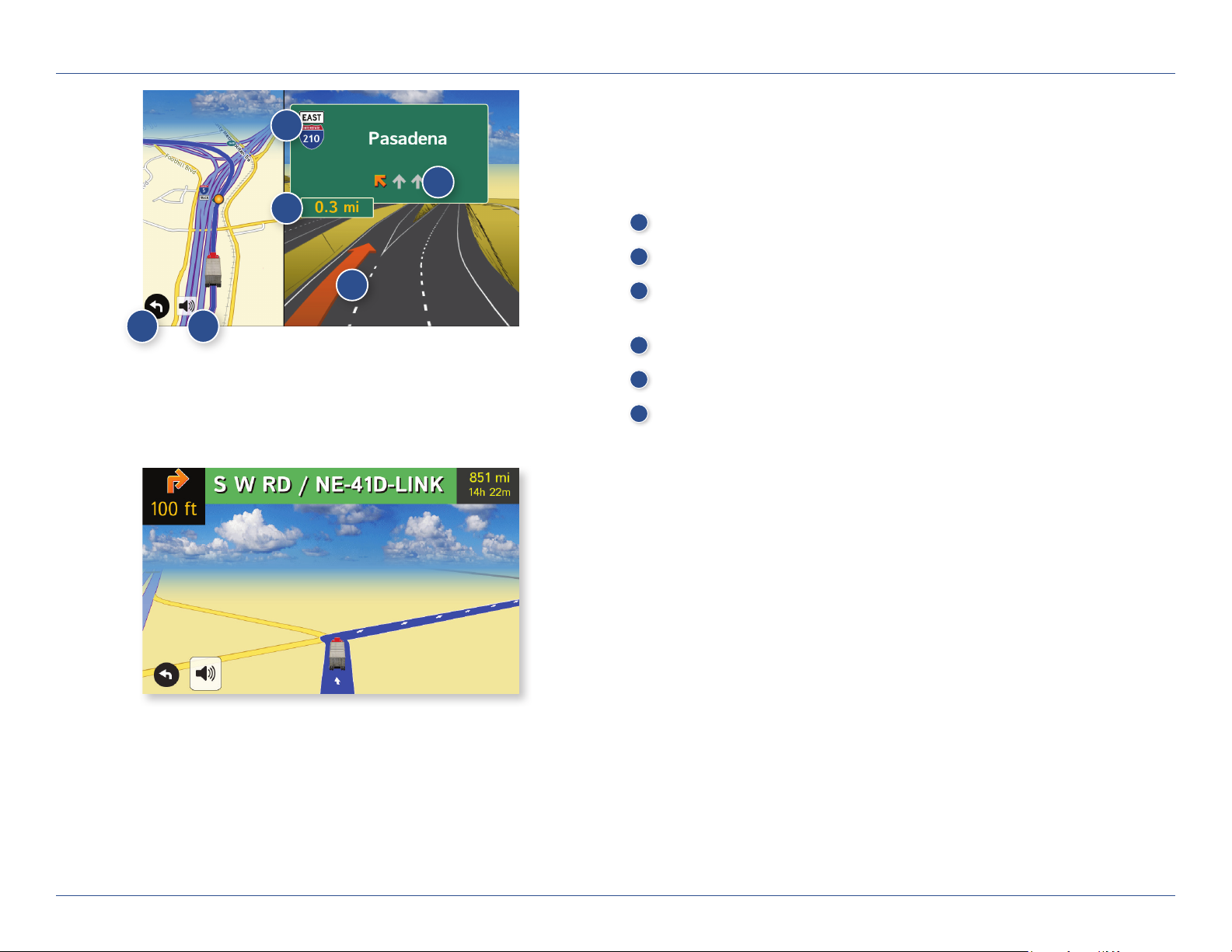

Junction View, Turn View ...................................................................................	44

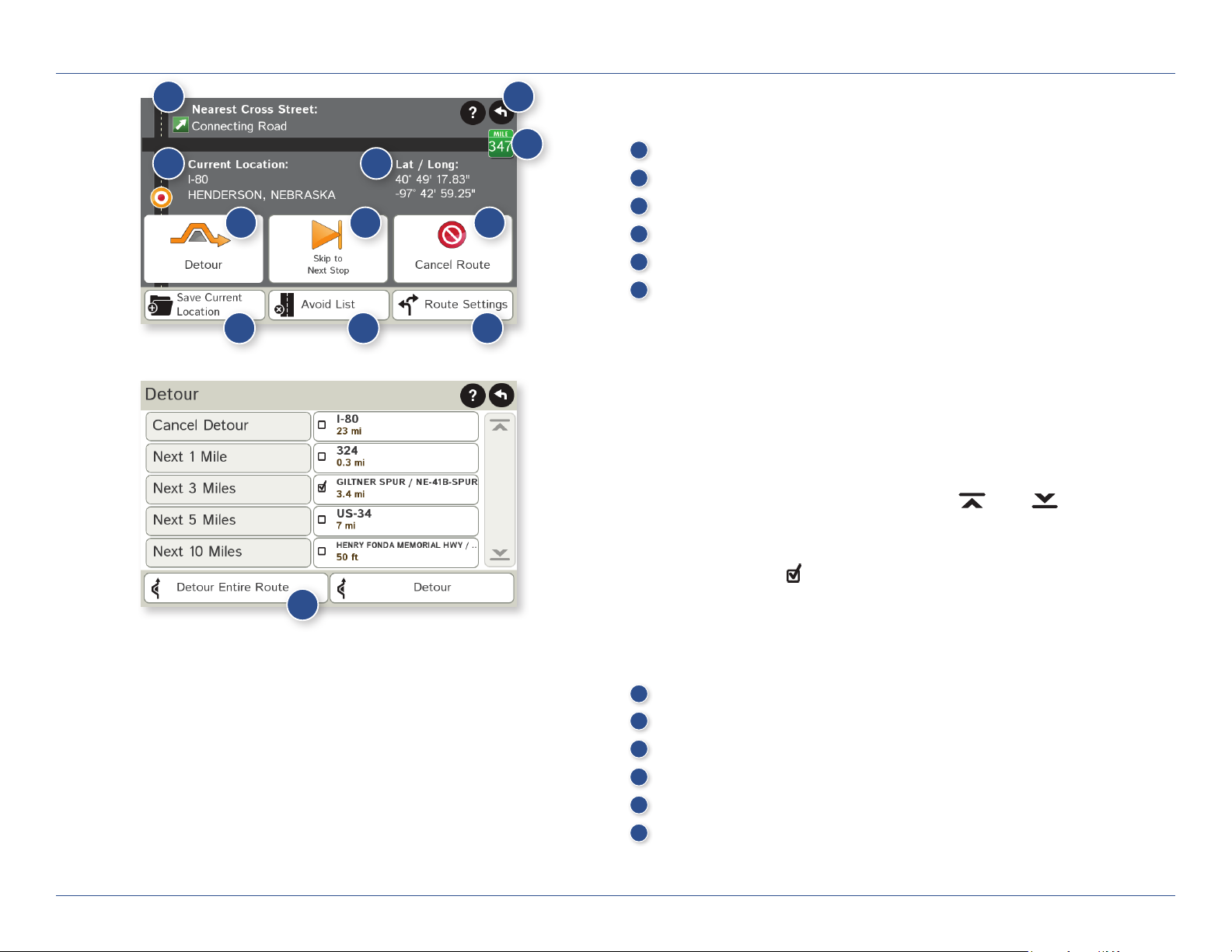

Location and Route Options ...............................................................................	45
E. Tools & Features..........................................................................................	46-57
Weather .......................................................................................................	46

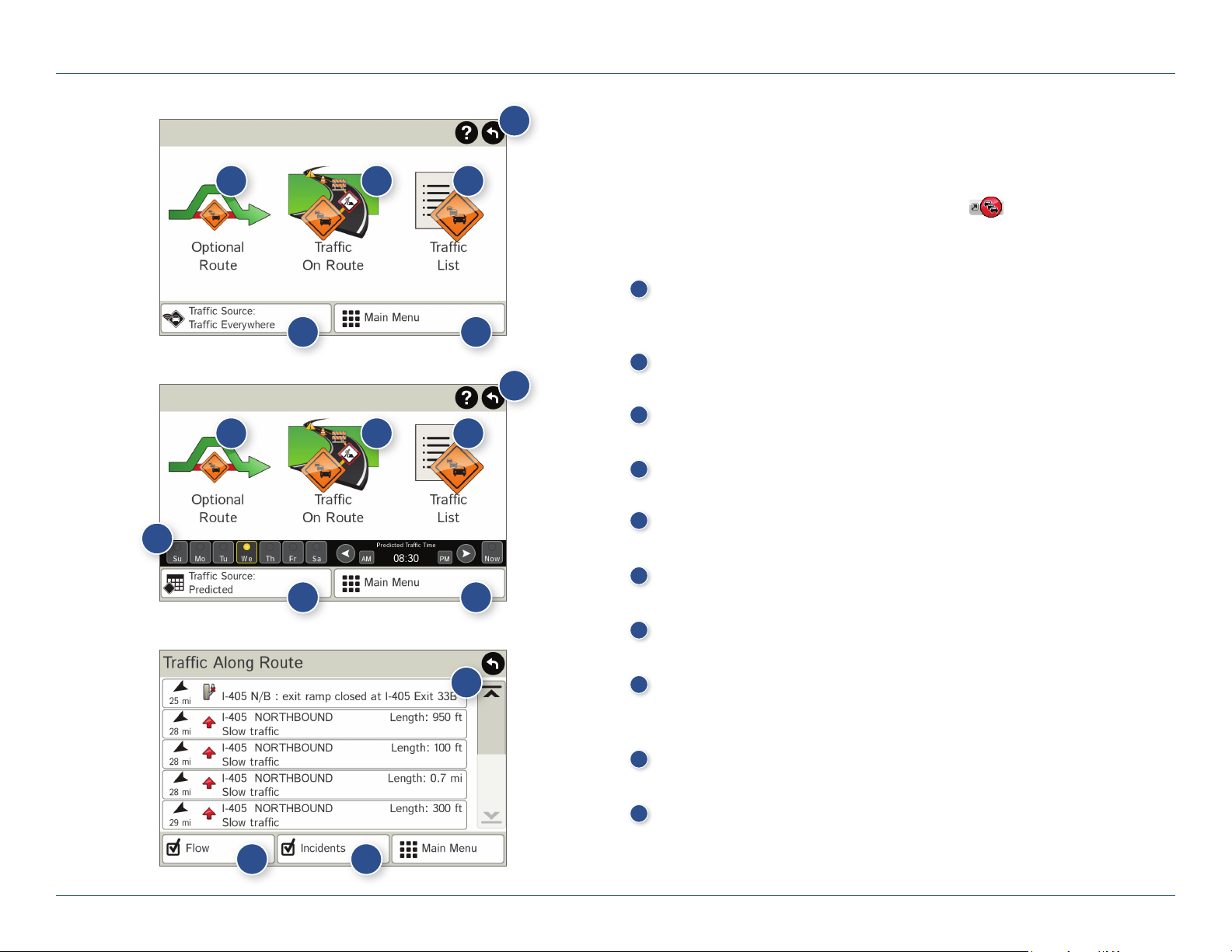

Traffic ..................................................................................................	47-48

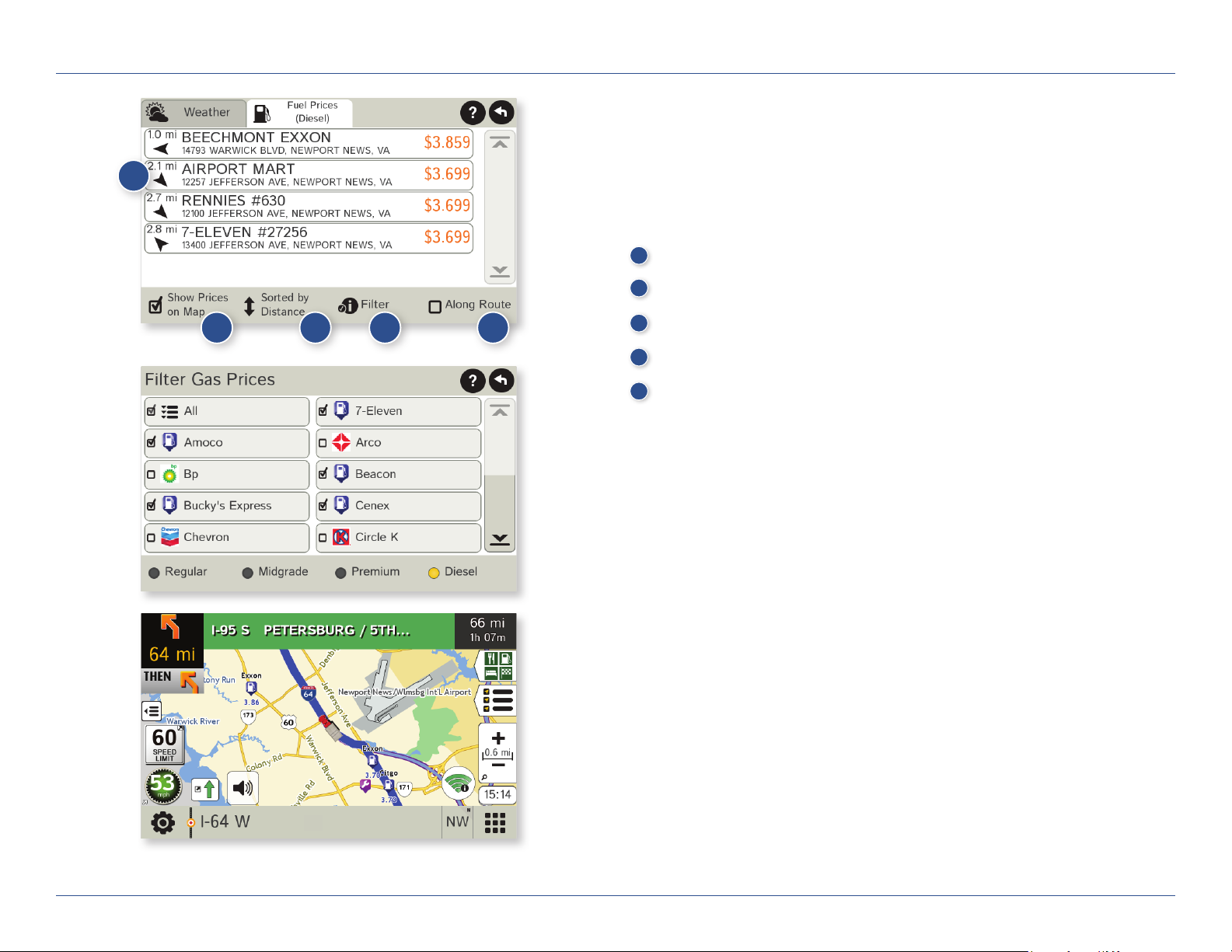

Fuel Prices .......................................................................................................	49
Truck Tools .......................................................................................................	50

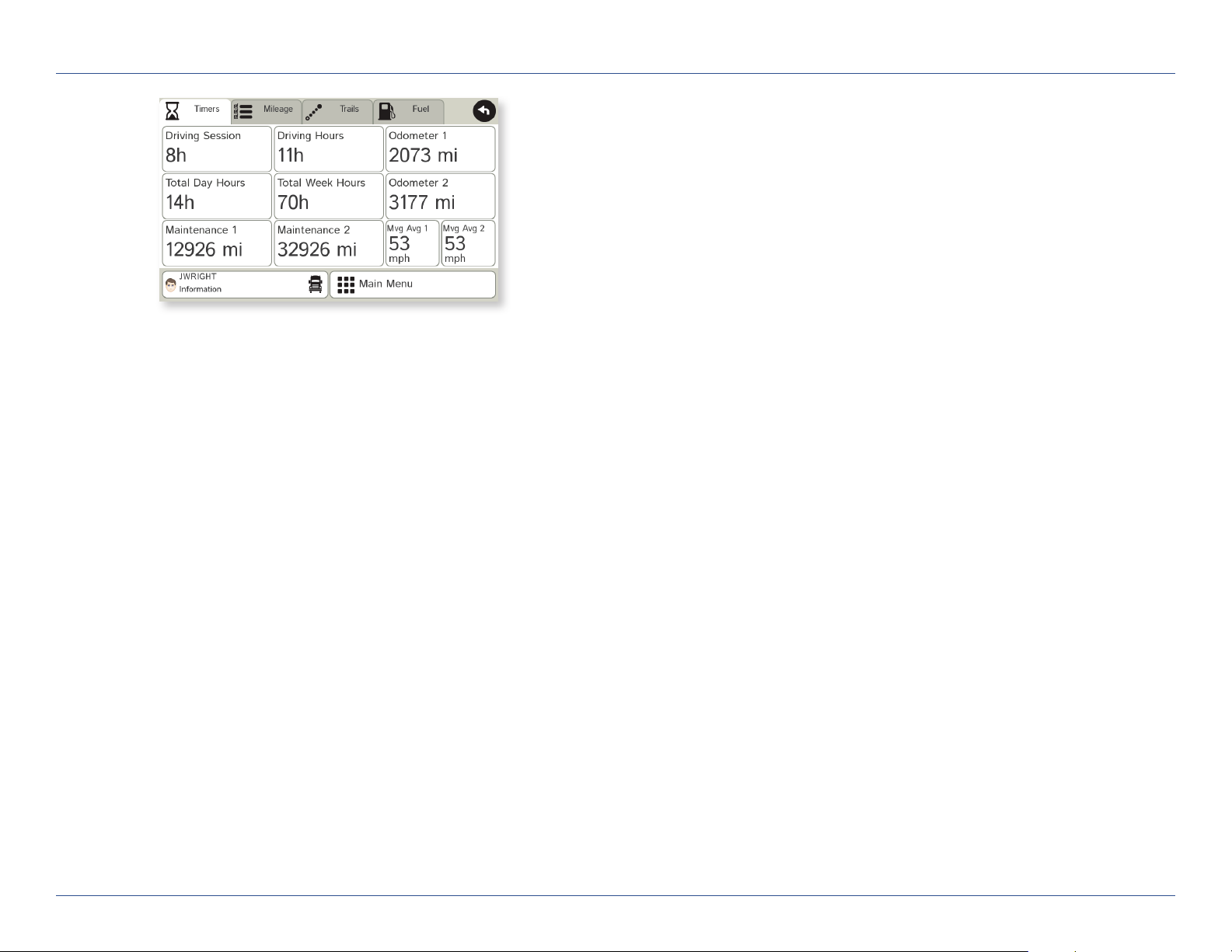

Timers .......................................................................................................	51

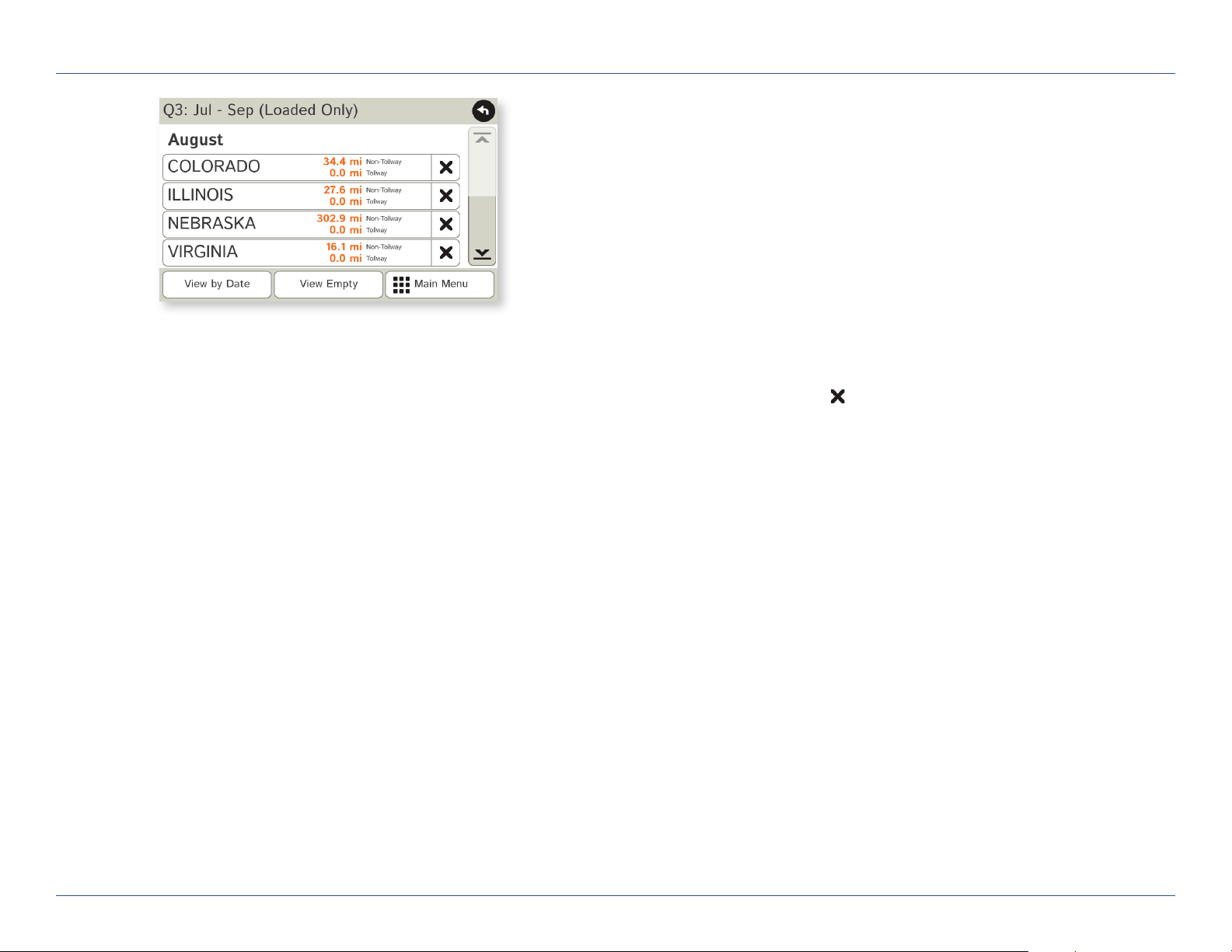

Mileage .......................................................................................................	52

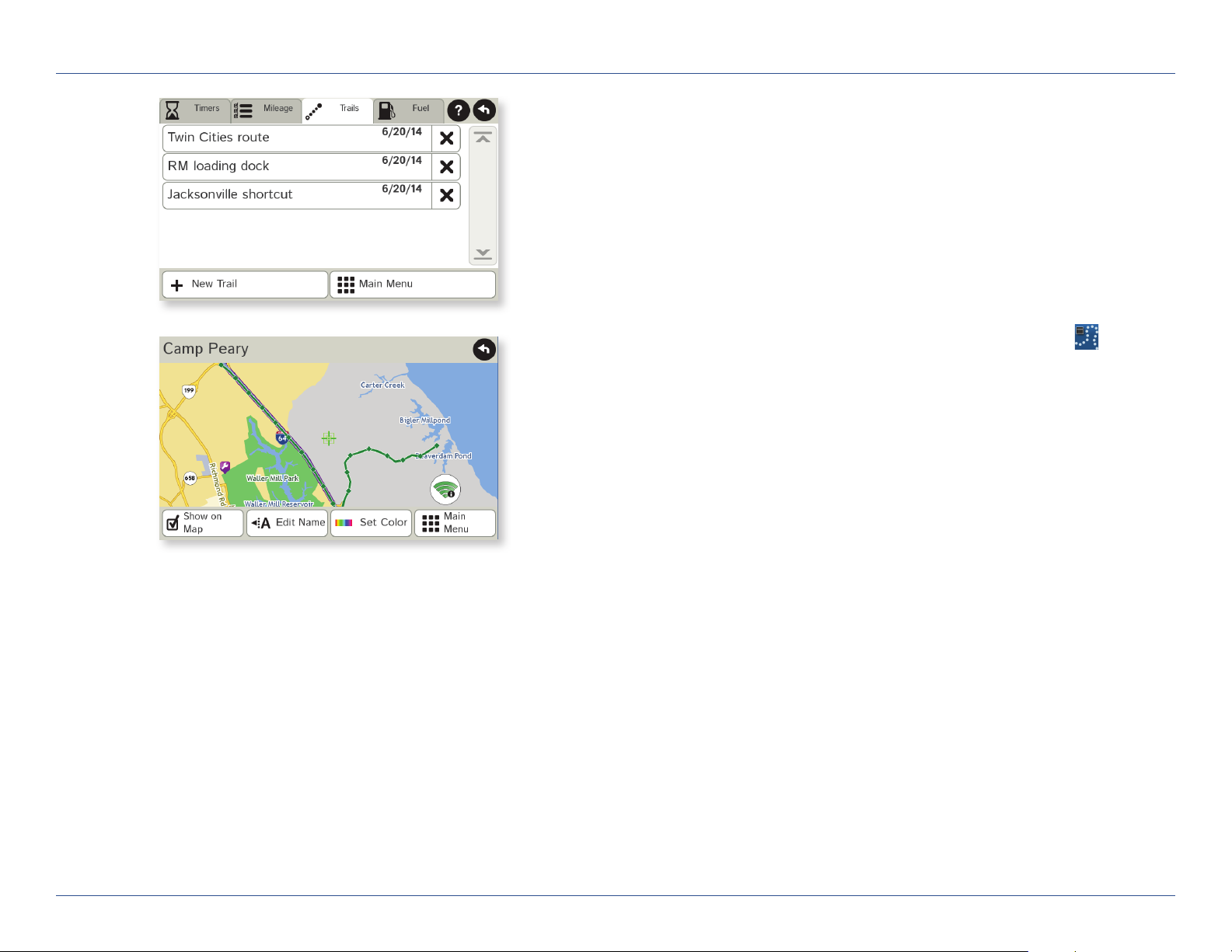

Trails .......................................................................................................	53

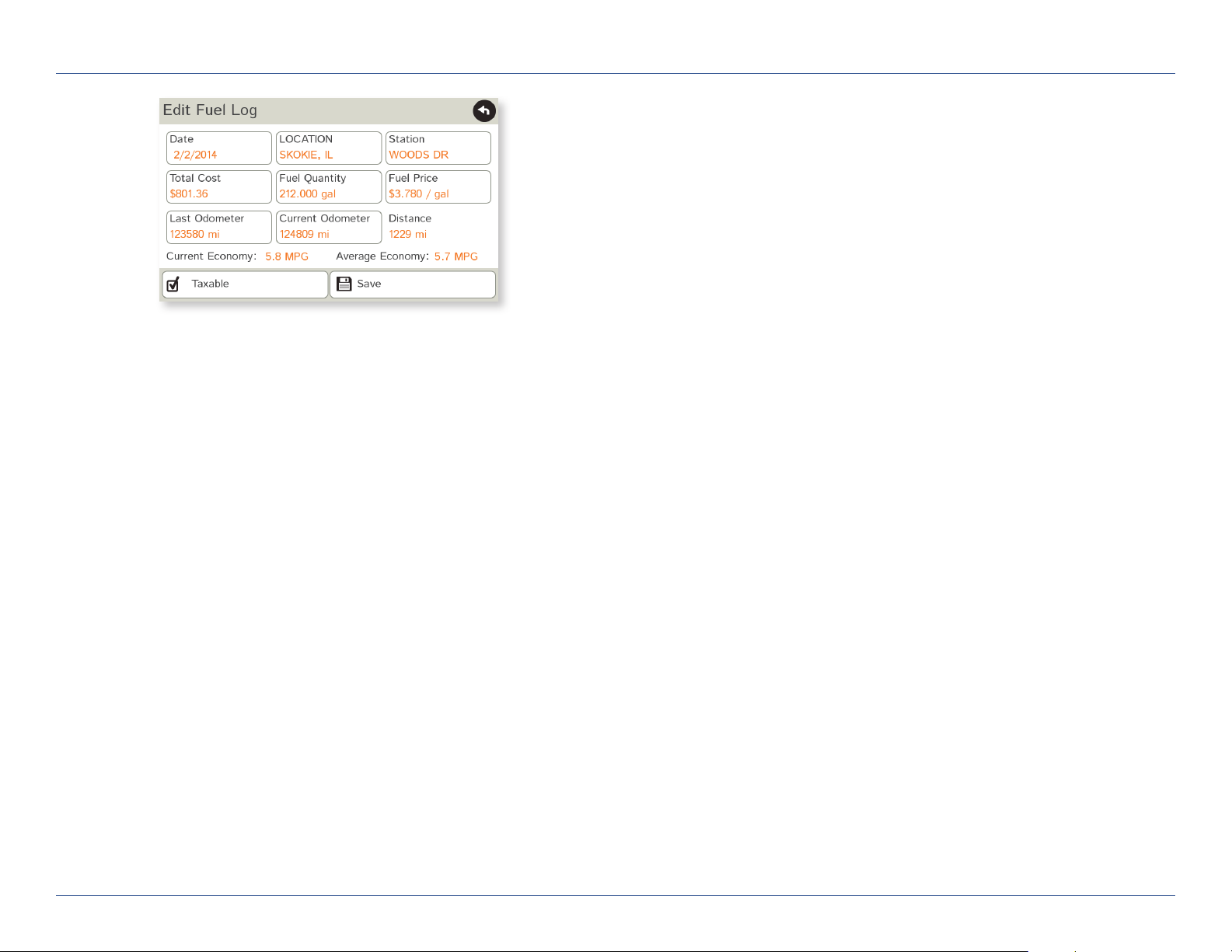

Fuel Logs .......................................................................................................	54

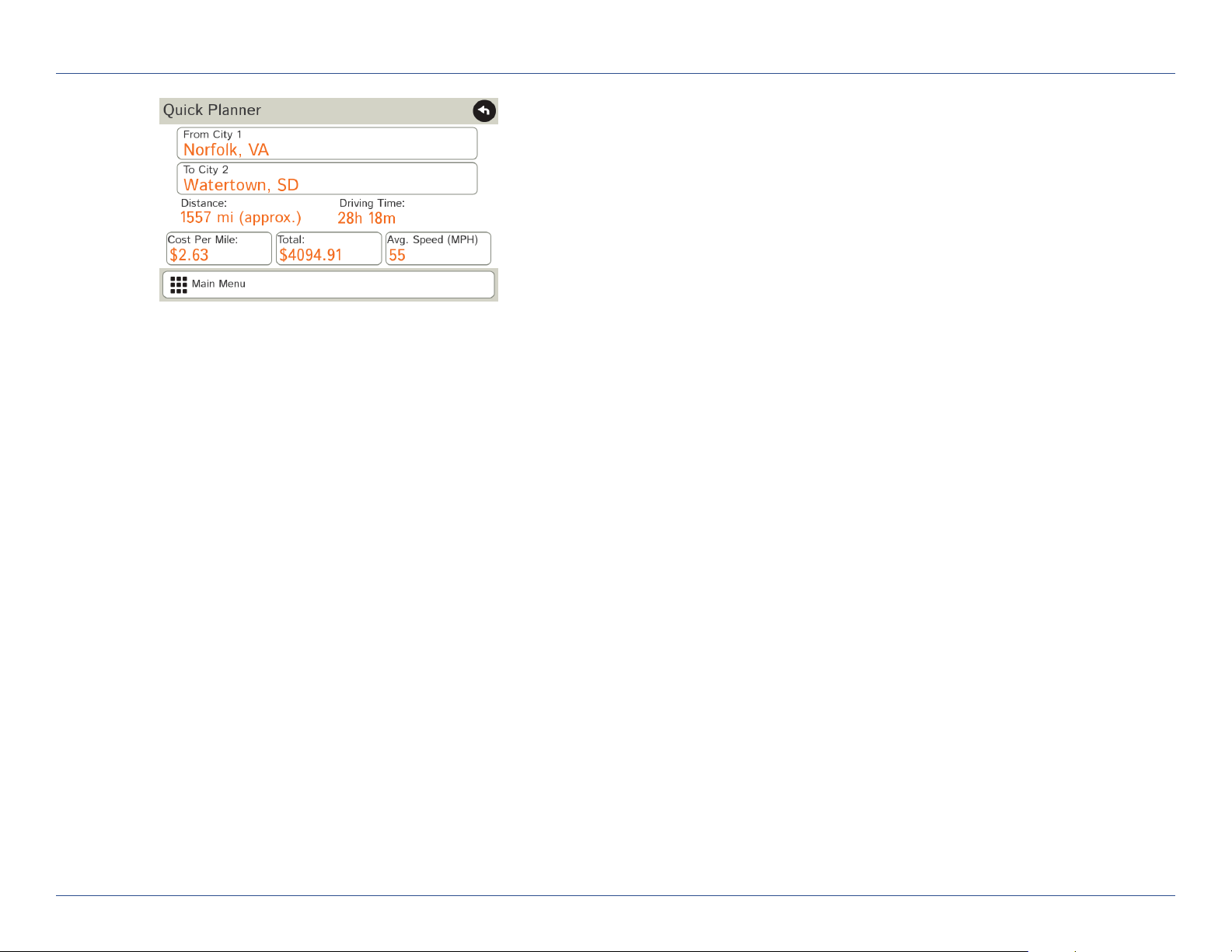

Quick Planner ..................................................................................................	55

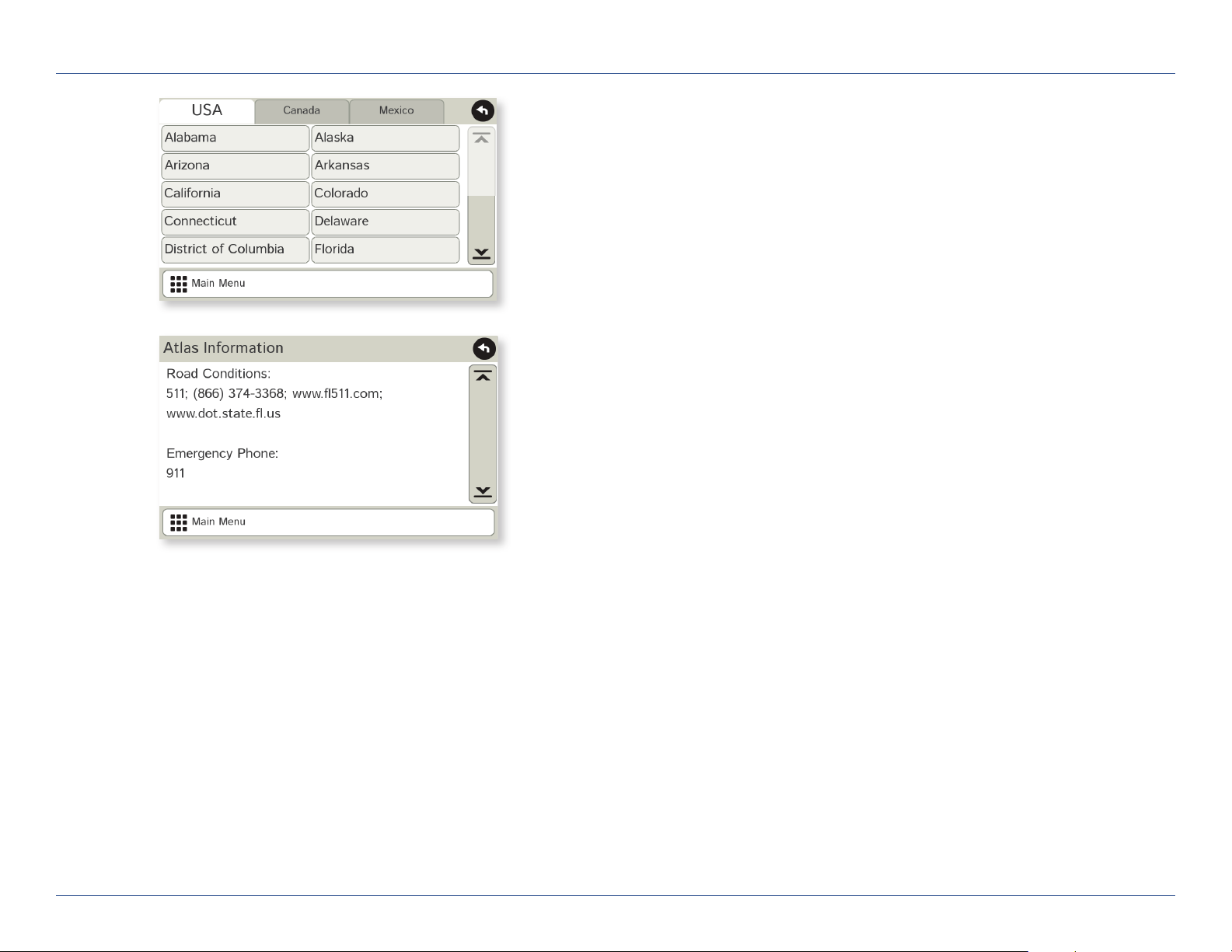

Road Atlas Information ......................................................................................	56

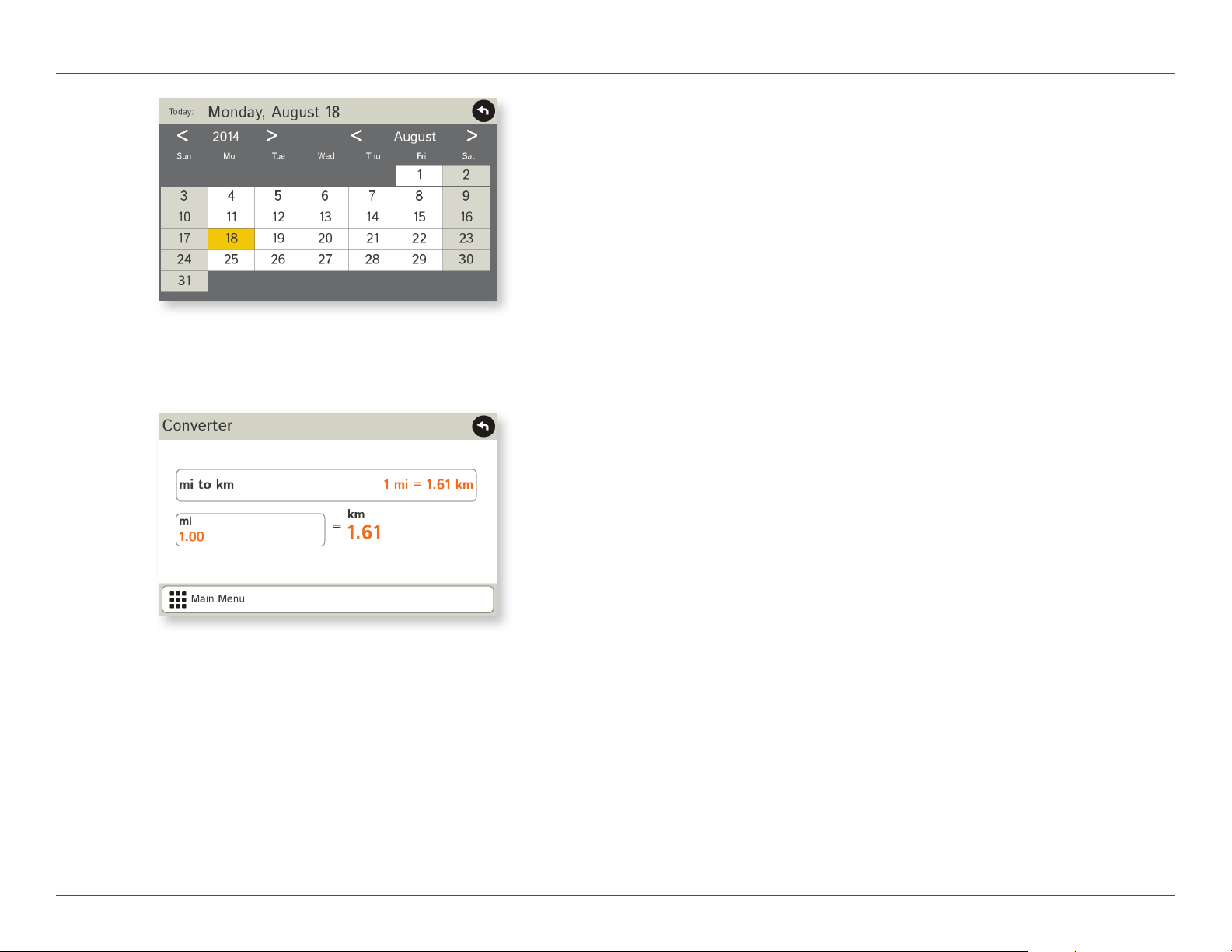

Calendar .......................................................................................................	57
Notepad .......................................................................................................	57
Unit Converter....................................................................................................	57
Calculator .......................................................................................................	57

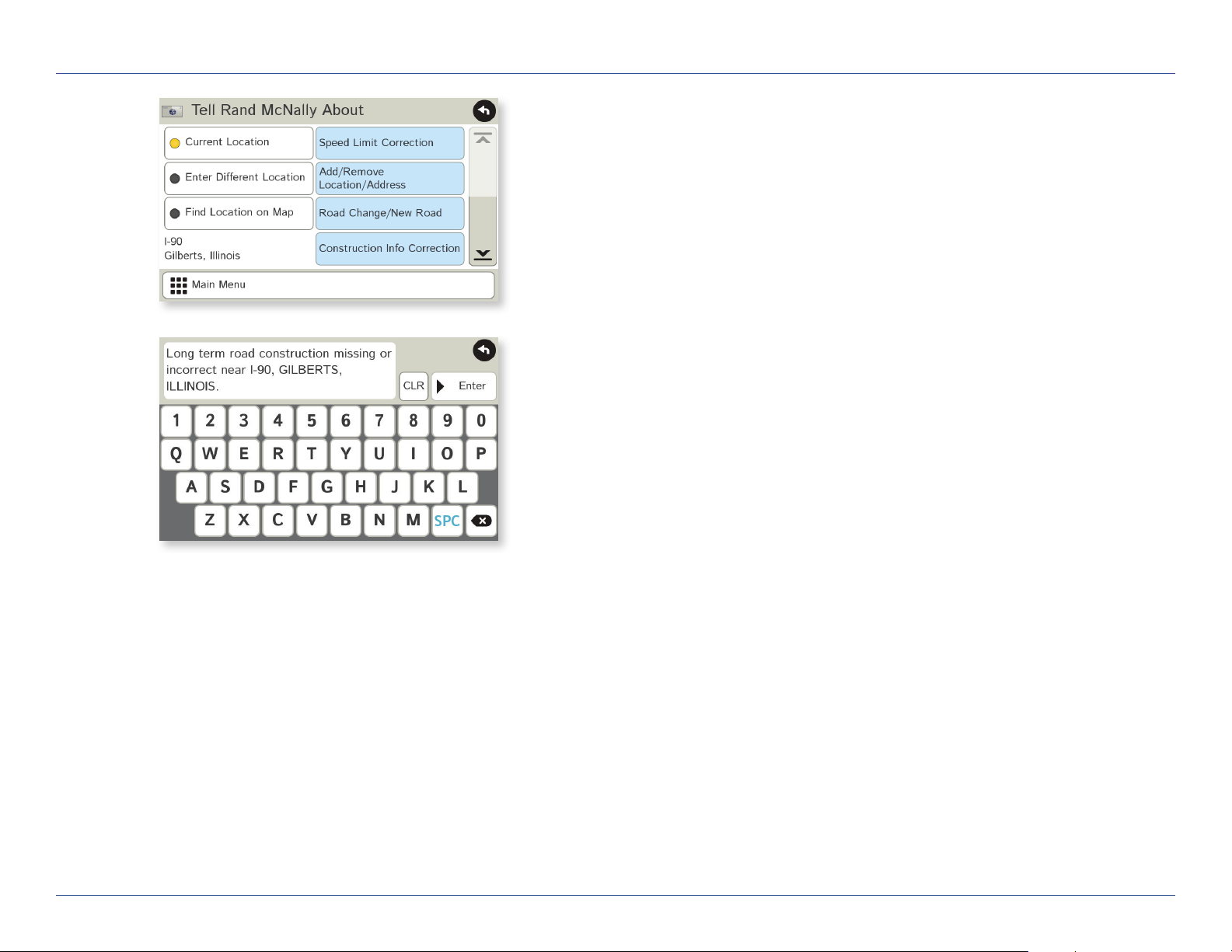

F. Tell Rand .......................................................................................................	58

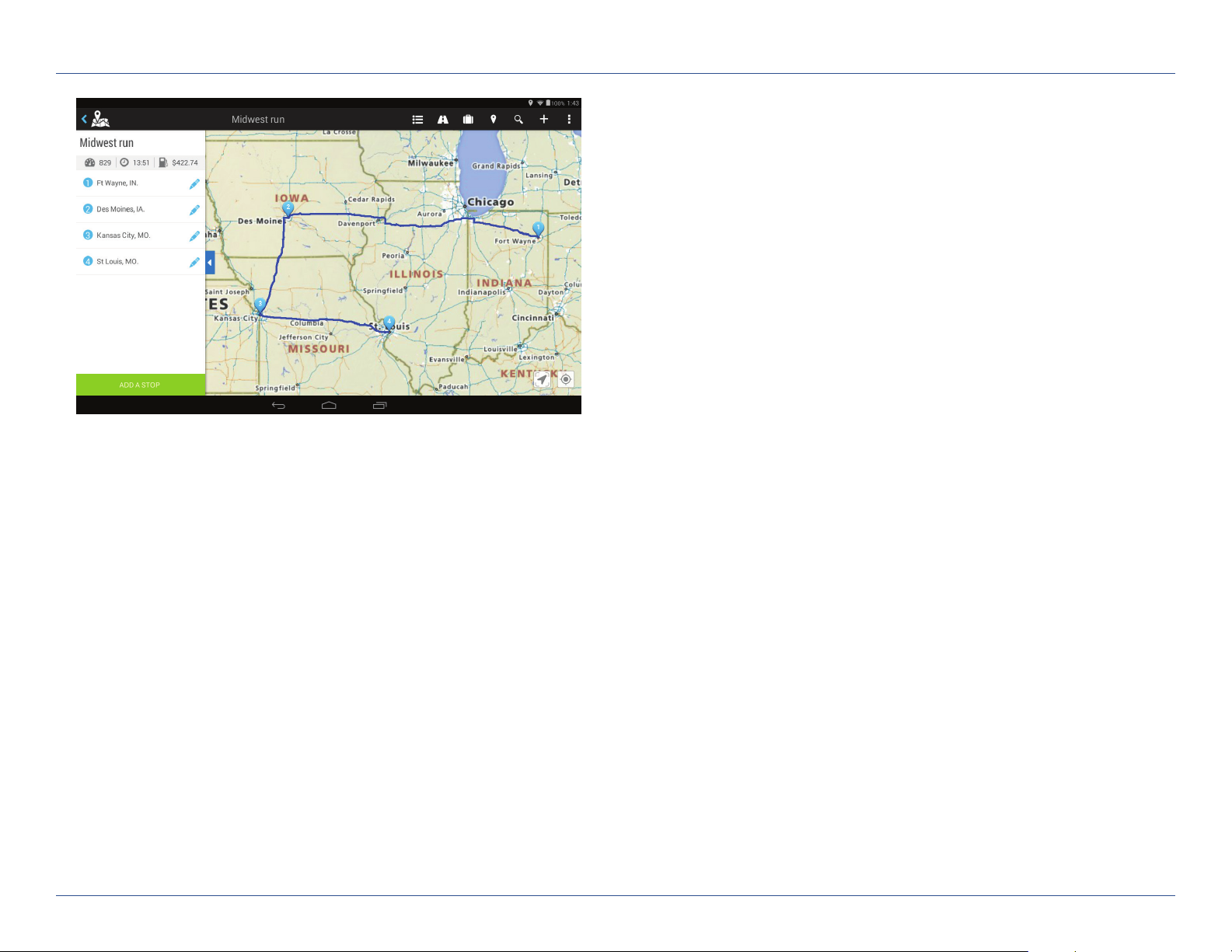

4. TripMaker® .......................................................................................................	59

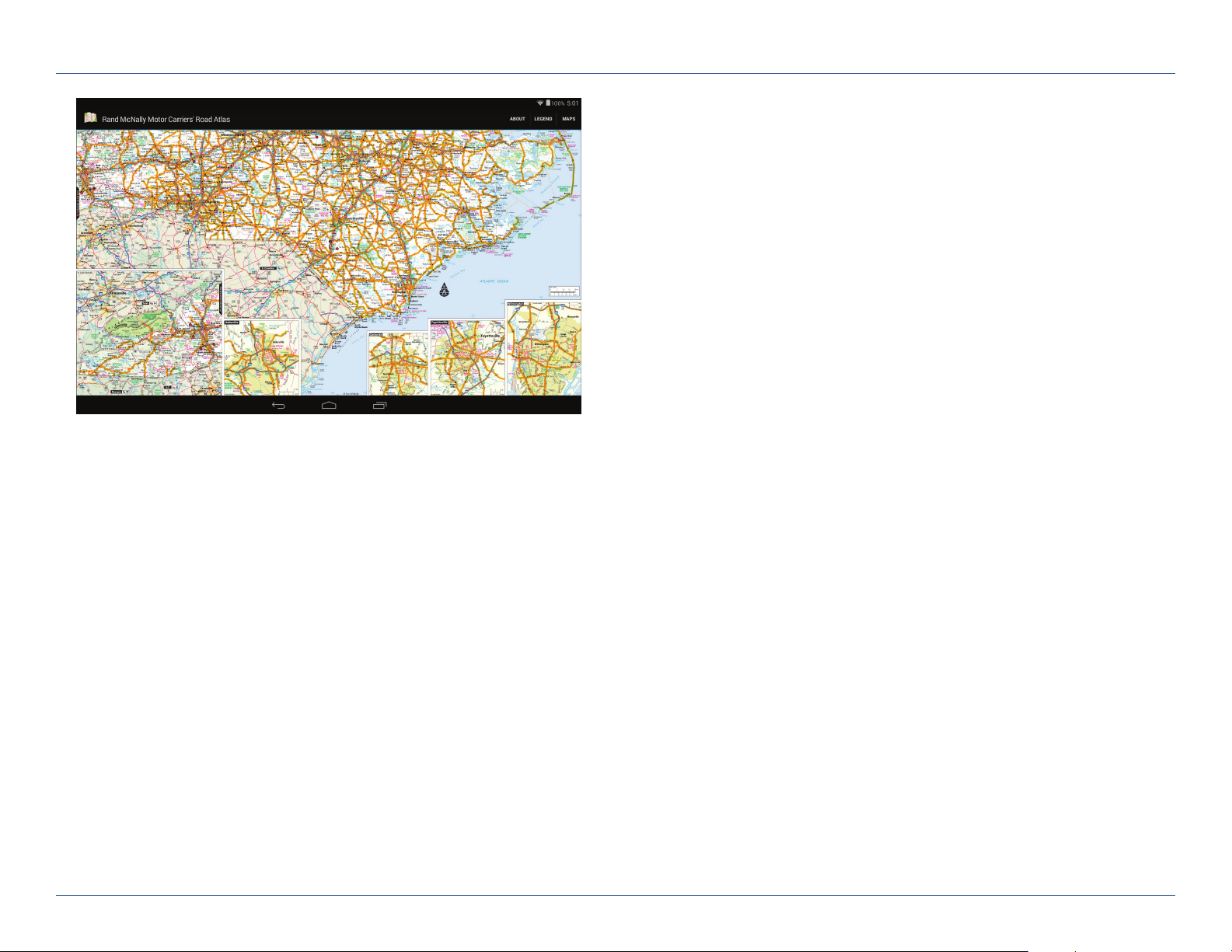

5. Motor Carriers’ Road Atlas .................................................................................	60
6. Dash Cam .......................................................................................................	61
7. Preloaded Apps ...................................................................................................	62
8. Rand McNally Market ..........................................................................................	63
9. More Information .................................................................................................	64

TND™ Tablet User Manual

iii

1. Your Device

Caution: Important Safety Information

Navigation

•Use this device at your own risk.

•Use this device only when it is safe to do so.

•Look at the display only when it is safe to do so.

•Traffic regulations always have priority over any instructions from the navigation system.

•Follow navigation system instructions only when local regulations and road traffic allow you do so.

•Make sure that the mount is securely mounted and properly adjusted before each trip.

•Note: If you do not understand the spoken instructions or are unsure of what to do next, refer to the navigation map on your navigation device.

Installation

•Make sure that the mount does not impair the driver’s visibility.

•Do not attach the mount within the airbag deployment zone.

•When installing the mount, make sure that it does not pose a risk in the event of an accident.

•Do not run cables directly next to safety-relevant devices and power supplies.

•After installation, check all safety-relevant equipment.

•Connect the wall charger to a 120V or 240V outlet only.

•Connect the vehicle charger to a 12V outlet only.

Device

•Do not use sharp-edged objects on the device touch screen.

•The device is not waterproof and is not protected against water damage.

•Protect the device from extreme temperatures. Operating temperature for the device is between 32 degrees F and 120 degrees F.

•Do not open the navigation device casing.

•Do not attempt to replace the battery. Contact Rand McNally Customer Support with questions about the battery.

•Always follow local regulations when disposing of this device.

•Note: Make sure that there are no kinks in the cable and that it will not be damaged by any sharp objects.

•Note: Use only a moist cloth to clean the navigation device.

•Note: Do not pull the cable to unplug the unit.

TND™ Tablet User Manual

1

1. Your Device

What’s Included

Rand McNally TND™ Tablet

•Two-piece mount:

-Magnet with GPS boost

-Bracket with suction cup

•Quick Start Guide

•Anti-glare screen protector

•Vehicle charger

•Wall charger

•USB cable

Install the Mount

Note: Follow all local regulations governing the placement of the mount.

1.Select an area with a line of sight to the sky and GPS satellites.

2.Clean and dry the mounting area.

3.Remove the suction cup protective film.

4.Attach the two pieces of the mount together.

5.Adjust the angle of the mount.

6.Pull the suction cup lever up to release suction.

7.Plug the power cord into the mount and the vehicle’s 12-volt power source.

8.Place and hold the mount suction cup against the mounting surface.

9.Press the suction cup lever down until it snaps into place.

10.Snap the tablet onto the mount.

11.Adjust the tablet so that it can be easily seen and does not block the driver’s line of sight.

TND™ Tablet User Manual

2

1. Your Device

TND™ Tablet Hardware

Volume
Down Up Power	Dash cam

Mini HDMI

(video out)

Micro USB			Video in
(power)			Micro USB
SD card			(power)
Audio out

Main Menu

TND™ Tablet User Manual

3

2. Getting Started

Connecting to Wi-Fi

When you first turn on your tablet, you’ll be asked to select a Wi-Fi network to connect to the Internet. A Wi-Fi connection is required

to browse the web, download apps, and use Internet-enabled features such as weather and traffic. Choose your wireless access point or hotspot from the list and type in your password.

Note: If you skip this step, you will not be able to use all the features of your tablet. The Truck GPS app, however, does not require a Wi-Fi connection.

Registration

In the next step, you’ll be prompted to register your tablet with Rand McNally. Your registration ensures that you have access to the latest information and updates, as well as customer support.

TND™ Tablet User Manual

4

2. Getting Started

Using Android

Swipe down at left		Swipe down at right
to view notifications		to view settings

1GPS is on

2Wi-Fi is on

1		3								3	Indicates remaining battery power
	2				4						Current time
										4
											View installed apps
									5	5

6Tap or swipe right to view second home screen

7Back

8Return to last home screen

9View open apps

6

7		8		9

TND™ Tablet User Manual

5

2. Getting Started

Settings

Swipe down from the right to view quick settings:

•Brightness

•Wi-Fi – Shows available networks

•Auto-rotation – Controls whether the screen rotates when you rotate the tablet

•Battery power

•Airplane mode – Turns off Wi-Fi and data transmission

•Bluetooth – Pairs other devices

•Location – Set mode (high accuracy recommended)

•Screenshot – Saves an image of the current screen

•Volume

TND™ Tablet User Manual

6

2. Getting Started

All Settings

Wireless and Networks

•Wi-Fi – View and connect to available Wi-Fi networks.

•Bluetooth – Pair with another device using Bluetooth.

•Data usage – Monitor how much data has been used by different apps.

Device

•Home – Select a different launcher. This will change the home screen that appears when the tablet powers on.

•Sound – Set volumes for different features and enable/disable sounds.

•Display – Set brightness, wallpaper, and appearance.

•Storage – View how much internal storage is available on your tablet.

•Battery – View time spent on battery and battery power used by different apps.

•Apps – View apps. Swipe right to view: downloaded, on SD card, running, all.

TND™ Tablet User Manual

7

2. Getting Started

All Settings

Personal

•Location – View location mode, requests, and reporting. High accuracy mode is recommended.

•Security – Enable screen security (each time the screen turns on) and encryption (each time the tablet powers on). Also view passwords, device administration, and credential storage.

•Language & input – Set language and keyboard information, as well as speech options and pointer speed.

•Backup & reset – Back up the data stored on your tablet.

Accounts

•Add accounts – Add your email or other accounts.

System

•Date & time – Set date and time, time zone, and clock format.

•Accessibility – Enable spoken feedback to help blind and low-vision users.

•Printing – Enable printing services.

•About tablet – View network status and version numbers.

TND™ Tablet User Manual

8

			2. Getting Started > Main Menu
			IntelliRoute® TND™ Main Menu (See page 11.)
		1
			TripMaker®
1	2	2

Use the online planning tool to plan a trip with multiple via points and transfer it to the navigation app as a multi-stop trip. (See help available online.)

3Motor Carriers’ Road Atlas (See page 60.)

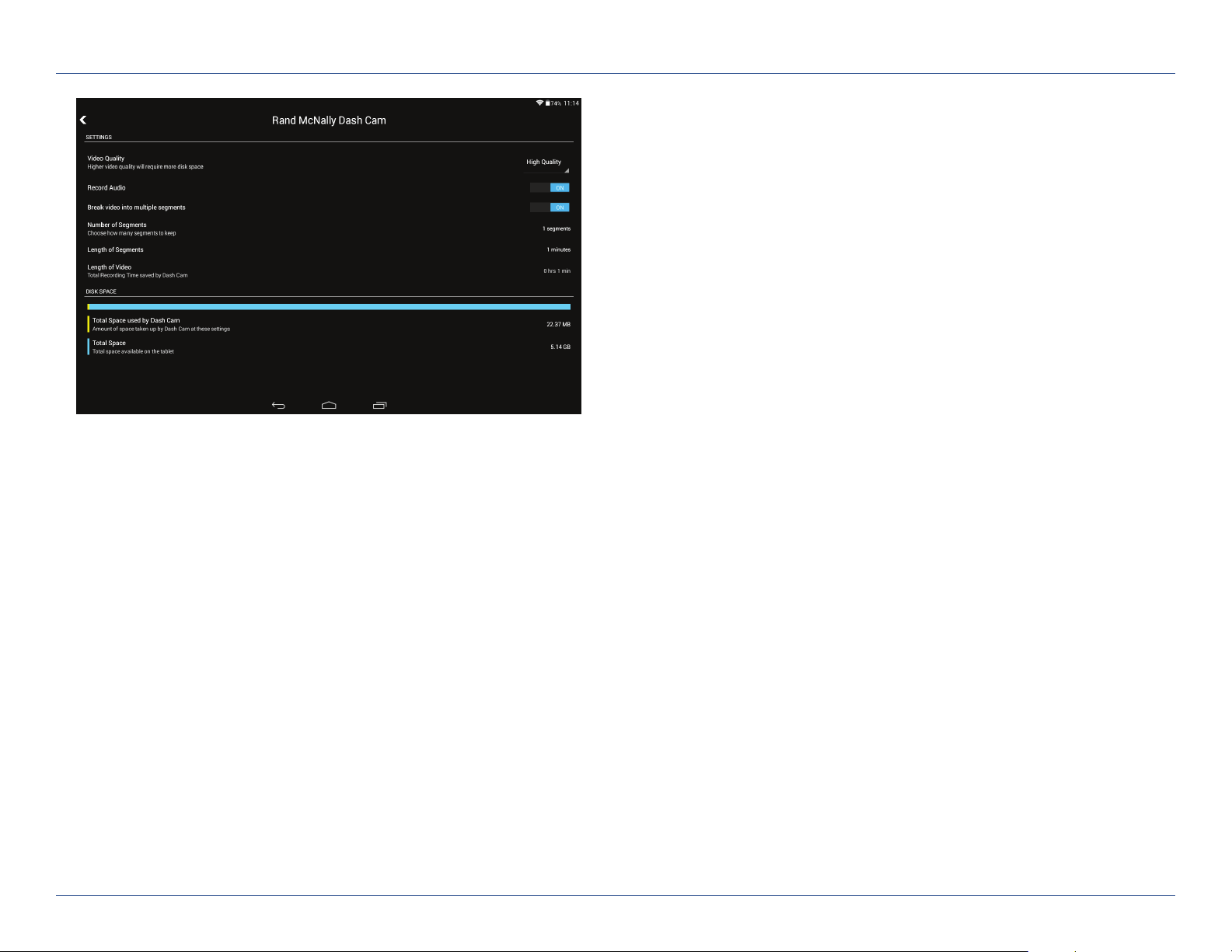

4Dash Cam (See page 61.)

5Fuel Manager (For assistance with Fuel Manager and all other apps, see help within each app.)

3

4

5

The bottom three buttons on the home screen can be changed according to your preferences. (To replace with other apps, open the app tray by tapping the upper right corner of the screen. Select Rand McNally Launcher and Truck Widget settings. Tap a box and select a shortcut, or tap applications to view more. Tap Save.)

TND™ Tablet User Manual

9

3. Truck GPS

Notes on using the Truck GPS app:

•When your tablet is attached to the magnetic mount, the GPS boost within the mount will provide accurate GPS location, even without a Wi-Fi connection.

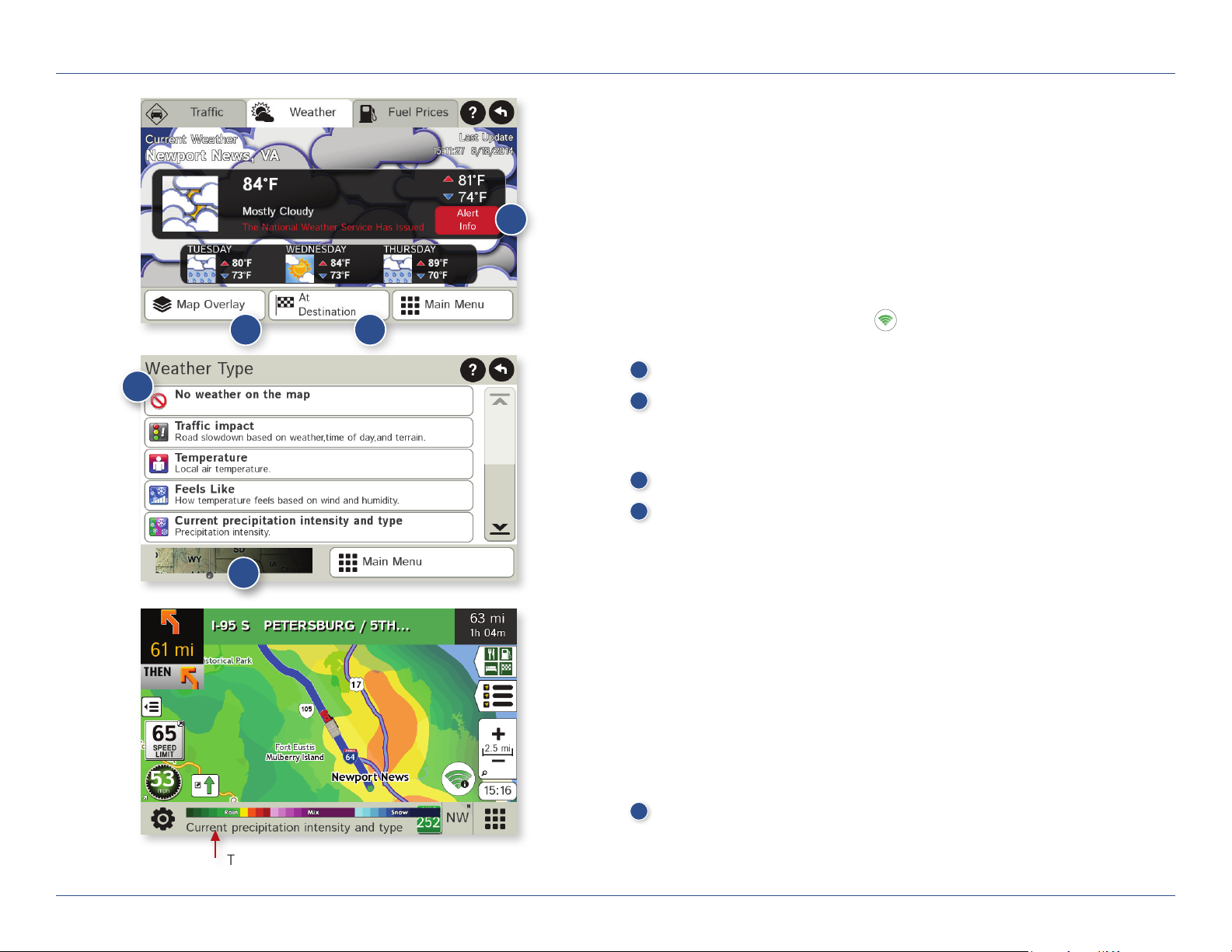

•Weather, traffic, fuel prices, and local search within the Truck GPS app require a Wi-Fi connection.

•To exit the Truck GPS app at any time, swipe down from the top of the screen or up from the bottom to view the Android menu bars. Or tap the main menu button on the front of the device.

TND™ Tablet User Manual

10

3A. Truck GPS > Main Menu

1

2

3

IntelliRoute® TND™ Main Menu

Driver Info

1

Switch between two driver profiles, for team driving. Turn team driving

on in Preferences > General. (See page 15.)

4

5

6

Load Option*

2

Specify in Preferences whether the trailer is always loaded or

whether you want to be prompted each time a route is calculated.

(See page 15.) (Does not display if load option is set to

Always Loaded.)

Driver Status*

3

7

8

9

Select driver status.

Note: Set Driver Status to Automatic to start/stop driving timers when

the vehicle moves/stops. (See page 16). However, when the driver status

is set to Automatic mode, tapping the driver status buttons on the

Main Menu temporarily overrides the automatic setting.

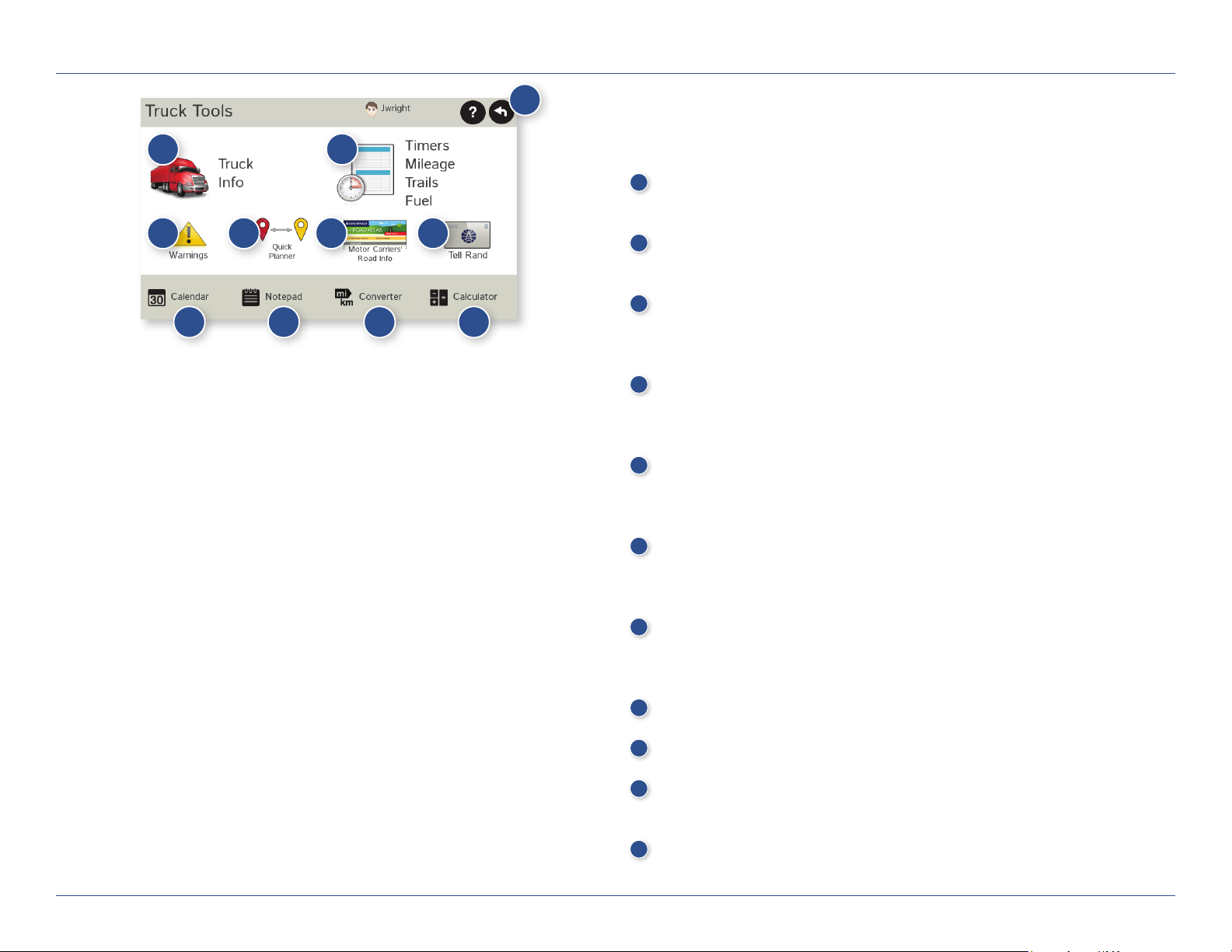

Truck Tools

4

Select to enter truck information, set warnings, and access other tools.

(See page 13.)

Go To Map

5

Tap to view location on the map.

Choose Destination

6

Tap to select an address or point of interest (POI).

Preferences

7

Tap to set device, route, or map options. (See page 12.)

Mute/Unmute the Speaker

8

Tap to mute or unmute spoken instructions.

Note: You can also tap this icon when it appears on the map screen

to mute/unmute.

Volume

9

Tap to increase or decrease spoken instructions volume.

*Note: Not available in Car Mode.

TND™ Tablet User Manual

11

3B. Settings

1. Tap and to view the options.

2.Tap the option to be set.

3.Enter the new information.

4.Tap Back to save changes.

Truck Tools	Page
Truck Info
Hazmat Type...........................................	13
Height ..................................................	13
Number of Axles....................................	13
Trailers ..................................................	13
Truck ETA Adjustment............................	13
Weight (Empty) .....................................	13
Weight (Loaded) ....................................	13
Width ..................................................	13
Warnings
Auto Dismiss Warnings..........................	14
Construction Area..................................	14
State or Province Border/
Time Zone Change Warning ...........	14
Curve Warnings.....................................	14
Driving Day.............................................	14
Driving Session.......................................	14
Engine Brake Warnings..........................	14
Hill Warnings .........................................	14
Narrow Road Warnings..........................	14
On Duty Day ..........................................	14
On Duty Week ......................................	14
Speed ..................................................	14
Speed Limit Display ...............................	14
State/Province Border Alert ....................	14
Toll Booth Alert ......................................	14
Warning/Alert Prompts ..........................	14
Warning Display Size..............................	14
Weigh Station .......................................	14

Device Preferences	Page
General
Align screen ...........................................	16
Brightness ..............................................	15
Clock Setting .........................................	16
Contact & About....................................	16
Day/Night Map Color ............................	15
GPS Status .............................................	16
Keyboard ...............................................	16
Language ..............................................	16
Load Option ..........................................	16
Mileage Log ..........................................	15
My Custom POIs ....................................	15
Reset Truck Timers .................................	15
Screen Click ...........................................	16
Screen Snapshot Button ........................	16
Shortcut Button .....................................	16
Skin Style - Day ......................................	15
Skin Style - Night ...................................	15
Team Driving..........................................	15
Tutorial .................................................	16
Units ..................................................	16
Update Driver Status .............................	15
Vehicle Type ...........................................	15
Voice Name ...........................................	16
Yard Time Zone .....................................	15

Device Preferences	Page
Route
Cross-Country Borders	..........................17
Dirt Roads ..............................................	17
Fast Recalc .............................................	17
Ferries ..................................................	17
Freeways ...............................................	17
Junction View Distance..........................	17
Manage Avoid List .................................	17
Recalculation .........................................	17
Route ..................................................	17
Tollways .................................................	17
Truck ETA Adjustment...........................	17
Tunnels ..................................................	17
Turn Announcements.............................	17
Turn View Distance ................................	17
U-Turns ..................................................	17
Map
Address Book Icons ...............................	18
Bus Icon..................................................	18
Car Icon .................................................	18
Map Auto Zoom ...................................	18
Map Style ..............................................	18
POI Icons ...............................................	18
Route Color ...........................................	18
Truck Icon ..............................................	18
Truck POI Icons ......................................	18

TND™ Tablet User Manual

12

				3B. Settings
Truck Info	Options		Truck Info	Options
Hazmat Type	None		Width	Use the + and - buttons or enter a numeric
	Explosives			value by tapping the calculator.
	Gases
	Flammable Liquids		Trailers	Straight
	Flammable Solids			48’
	Oxidizers			53’
	Poison			Double
	Radioactive			Triple
	Corrosives
	Other		ETA Adjustment	Increase ETA more
	PIH			Increase ETA some
				ETA ok
Weight (Empty)	Use the + and - buttons or enter a numeric			Decrease ETA some
	value by tapping the calculator.			Decrease ETA more
Weight (Loaded)	Use the + and - buttons or enter a numeric			Set adjustments to your ETA due to weather
				or traffic conditions. You can add (increase)
	value by tapping the calculator.
				time to make the trip take longer or
	See Load Option in			subtract (decrease) time to make the trip
	Preferences › General (page 15)			take less time.
	or on the Main Menu (page 11).
Height	Use the + and - buttons or enter a numeric		Number of Axles	Use the + and - buttons.
	value by tapping the calculator.

TND™ Tablet User Manual

13

3B. Settings

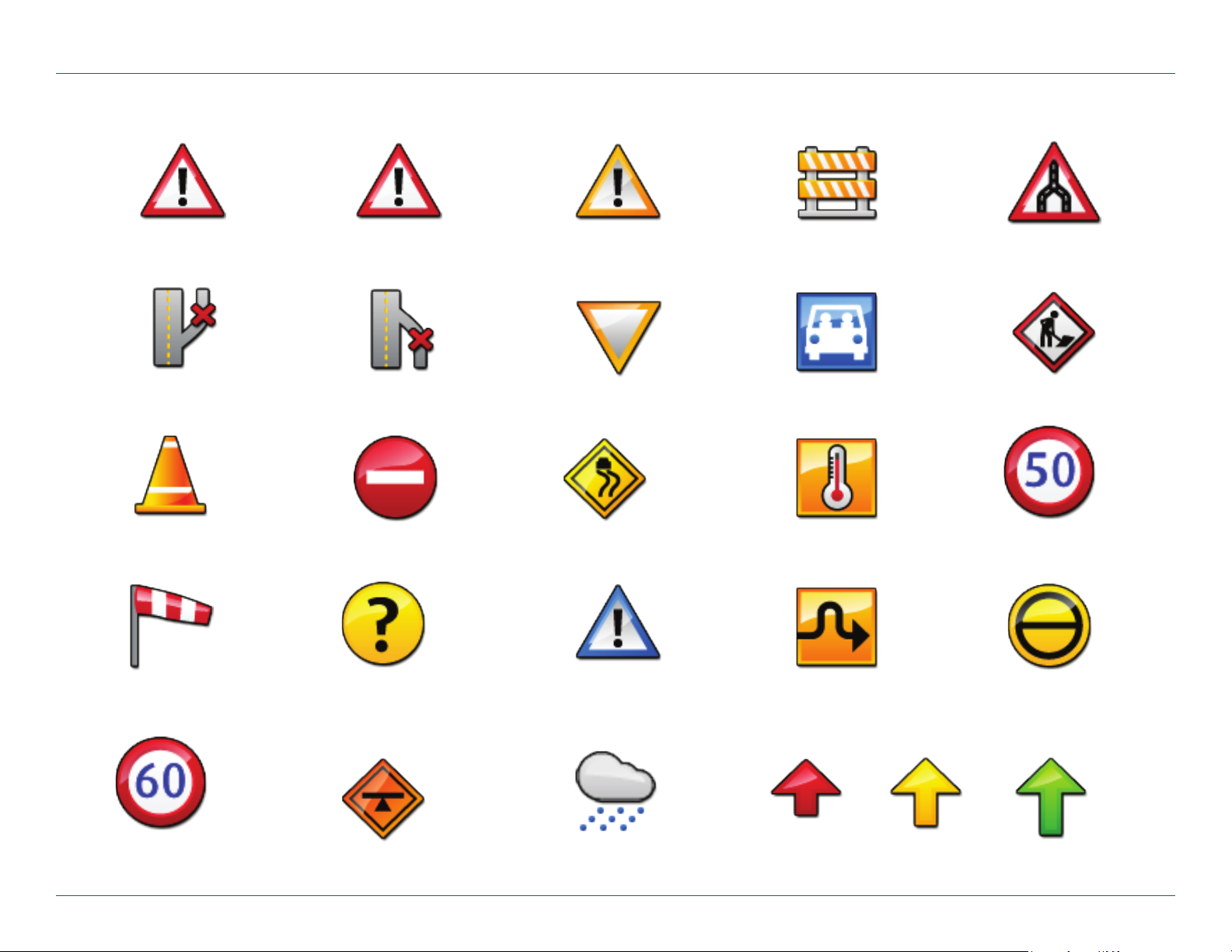

Warnings	Options
Warning/Alert Prompts	None
	Audio & Visual
	Visual
	Audio
Auto Dismiss Warnings	Never
	After 10 seconds
	After 30 seconds
	Height and weight violations will not be
	auto dismissed.
Warning Display Size	Full screen
	Small bar
	Height and weight restrictions will always
	display in full screen.
Curve Warnings	Set warning distance to curves by using the
	+ and - buttons.
Hill Warnings	Set warning distance to hills by using the
	+ and - buttons.
Engine Brake Warnings	Set warning distance to locations where
	engine braking is prohibited by using the +
	and - buttons
Narrow Road Warnings	Set warning distance to narrow roads by
	using the + and - buttons.
Driving Session	Set when to be warned before reaching the
	driving session limit.
Driving Day	Set when to be warned before reaching
	the driving hours limit.
On Duty Day	Set when to be warned before reaching the
	duty hours limit.
On Duty Week	Set when to be warned before reaching the
	duty week limit.
Speed Limit Display	None
	Truck only (limited)
	Show car (if no truck limit is available)

Warnings	Options
State/Province
Border Alert	Set warning distance to state/province
	borders by using the + and - buttons.
State or Province Border/
Timezone Change	Off
	On
Toll Booth Alert	Set warning distance to toll booths
	by using the + and - buttons.
Weigh Station	Set warning distance to weigh stations
	by using the + and - buttons.
Construction Area	Set warning distance to construction
	areas by using the + and - buttons.
Speed	Set warning distance to speed limit
	changes by using the + and - buttons.
	Set the amount over the posted limit at
	which the warning appears.
	Set a user-defined maximum speed to
	be warned whenever the truck exceeds
	that speed, regardless of posted
	speed limits.

Note: To turn warnings off completely, tap the - button until “off” displays.

TND™ Tablet User Manual

14

3B. Settings

General Preferences	Options
Skin Style - Day	Ice
	Carbon
	Classic
Skin Style - Night	Ice
	Carbon
	Classic
Vehicle Type	Truck
	Car
	Bus
	Controls how routes are calculated.
	Note: Some tools and settings may not
	be available in car mode.
Yard Time Zone	Hawaii
	Alaska
	Pacific Time
	Arizona
	Mountain Time
	Central Time
	Eastern Time
	Indiana (East)
	Atlantic (Canada)
	Newfoundland
Team Driving	Turn team driving on and set profiles
	to keep separate driving timers for
	two team members.
Day/Night Mode	Always day
	Always night
	Automatic

General Preferences	Options
Brightness	Set separately for day and night modes.
My Custom POIs	Tap Manage Custom POIs to specify how
	custom POIs are displayed on the map: set
	image, warning distance, warning type, and
	street/city/state level map display. Tap the “x”
	to delete any set of POIs.
	(See page 32 for Custom POIs.)
Update Driver Status	Automatic
	Main Menu buttons
	Timers Inactive
	Specify how driver status is changed.
	Note: When in Automatic mode,
	tapping the driver status buttons on the
	Main Menu will temporarily override
	the automatic setting.
Reset Truck Timers	Automatic
	Manual
Mileage Log	Truck only
	Car only
	Truck & Car
	Don’t log mileage
	(See page 52 for mileage.)

TND™ Tablet User Manual

15

3B. Settings

General Preferences	Options
Load Option	Prompt
	Always loaded
	Specify whether mileage should be
	calculated with the truck empty, always
	loaded, or whether to display a prompt
	for each route. When set to Prompt,
	each time you tap Begin New Route,
	a window displays asking if the truck is
	loaded or empty.
Screen Click	Click off
	Click on
Tutorial	View on-device tutorial
Keyboard	ABC
	Computer (QWERTY)
Voice Name	Samantha
	Tom (English only)
	Claudia (No street names)
Language	English
	Español
	Français
	For the screen and spoken instructions.
Units	U.S. Standard
	Metric
	Auto Select
Clock Setting	12-hour clock
	24-hour clock

General Preferences	Options
Screen Snapshot Button	Off
	On
Shortcut Button	Main Menu
	Go to Map
	The shortcut button appears in the bottom
	right corner of the screen.
Align screen	Calibrate the touch screen.
	Note: Select this option if your device
	seems to have buttons that are hard
	to tap.
GPS Status	Tap to show details about your location.
Contact & About	Tap to show version information
	and copyrights.

TND™ Tablet User Manual

16

3B. Settings

Route Preferences	Options

Note: The default settings for your device are already optimized for truck routing. Use the options below to fine-tune these settings.

A route may still include a roadway or maneuver set to Avoid if the only legal route found contains these types of roads or the route is over several hundred miles.

Truck ETA Adjustment	Increase ETA more (by 15%)
	Increase ETA some (by 5%)
	ETA ok
	Decrease ETA some (by 5%)
	Decrease ETA more (by 10%)
	Set adjustments to your ETA due to
	weather or traffic conditions. You can
	add (increase) time to make the trip
	take longer or subtract (decrease) time
	to make the trip take less time.
Recalculation	Manual recalculate
	Auto recalculate
Route	Fastest route
	Shortest route
Freeways	Allow all (default)
	Avoid freeways
	Prefer freeways
	Avoid small roads
Tollways	Allow tollways
	Avoid tollways
U-Turns	Allow u-turns
	Avoid u-turns
Ferries	Allow ferries
	Avoid ferries
Cross-Country Borders	Allow cross borders
	Avoid cross borders
Dirt Roads	Allow dirt roads
	Avoid dirt roads

Route Preferences	Options
Tunnels	Allow tunnels
	Avoid tunnels
Manage Avoid List	Roads
	States/Provinces
	Areas
	Routes
	To avoid a state or province select it from
	this list. Tap on the map and select a road,
	area, or route to add it to the Avoid List. Tap
	the x to remove. (See page 31.)
Fast Recalc	Off
	On
	Fast recalc calculates a route to a midpoint
	between your location and the destination,
	rather than recalculating the entire route
	from scratch. Best used on a long route
	that has short distances between
	intersections.
Turn Announcements	Set three distances at which you want
	to be warned about an upcoming turn.
	The first announcement will be the farthest
	from the turn and the third the closest to
	it.
Turn View Distance	Set the distance before the maneuver at
	which the local street turn view screen
	appears. (Note: In 3D map view, this
	warning is not needed and will be
	turned off.)
Junction View Distance	Set the distance before the maneuver
	at which the highway junction view
	screen appears.

TND™ Tablet User Manual

17
