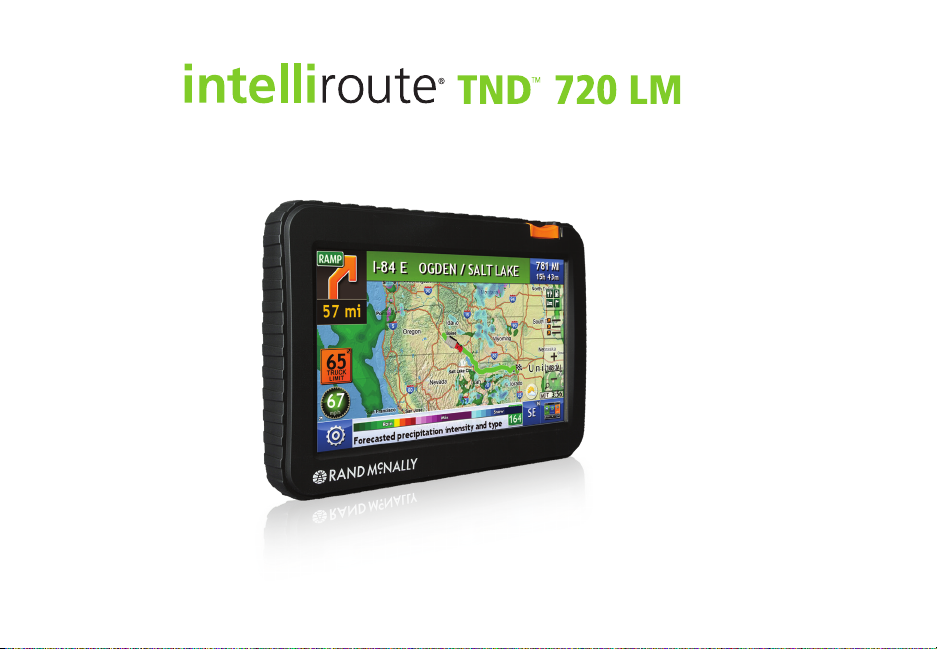

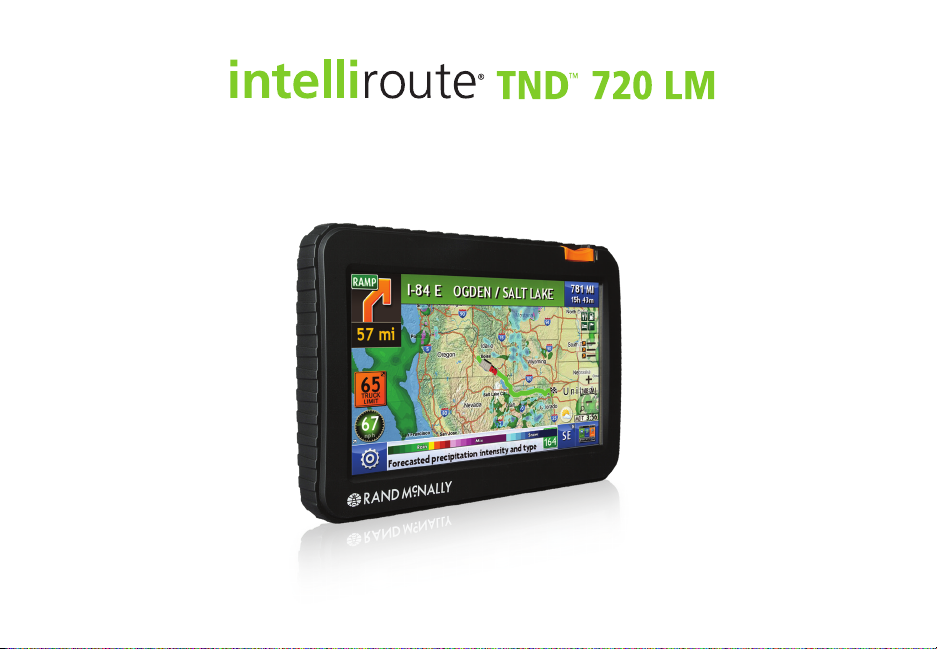

Rand McNally TND 720 LM, TND 720 Quick Start Guide

Quick Start Guide .......................................1

Guide de Démarrage Rapide.................... 22

Guía de Inicio Rápido ............................... 44

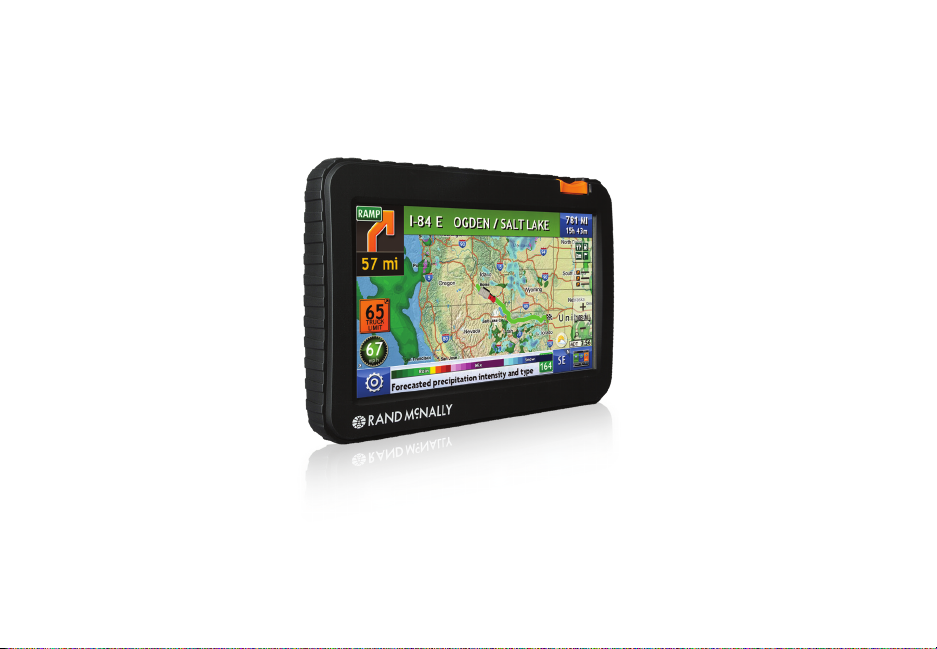

Important Information About Your IntelliRoute® TND™ 720 LM

WI-FI®: Some features of this device require wireless connectivity, which requires a supporting feature (such as a smartphone
with tethering) and data plan from your wireless service provider. As the user, you are responsible for all data charges. Please
contact your wireless service provider to make sure you do not exceed the limits of your data plan.

Rand Mcnally dock: Keep your device up to date by downloading the Rand McNally Dock for your home computer
at www.randmcnally.com/dock and connecting your device with the USB cable provided.

leaRn MoRe: Access Tutorial & Tips under Preferences > General on your device for more information, or visit
www.randmcnally.com/support to download the user manual.

PoWeR BUTTon: Press and hold the orange power button to turn the device on or off. The power button can also
be used for quick access to certain features while the device is running. See Preferences > General > Quick Power Press
for options. A red light indicates the battery is charging; a green light indicates the battery is fully charged.

ReseT: Use the reset button on the back of the device to restart. This will cancel the current route, but preferences,
address book, and other personal data will be saved.

Some screens include help tips. Tap this button to access.

1

2

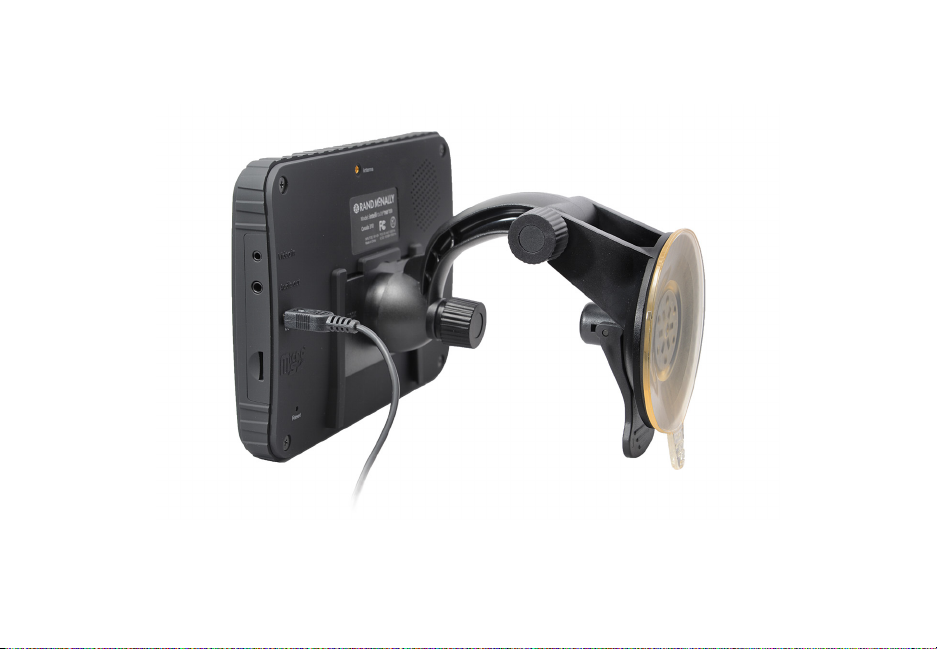

Install the Mount

noTe: Follow all local regulations governing the placement of the mount.

Select an area with a line of sight to the sky and GPS satellites to ensure reliable GPS information.

1. Clean and dry the mounting area.

2. Remove the suction cup protective film.

3. Adjust the angle of the mount using the thumbscrew.

4. Pull the suction cup lever up to release suction.

5. Plug the power cord into the device and the vehicle’s 12-volt power source.

6. Slide the device onto the mount.

7. Place and hold the mount suction cup against the mounting surface.

8. Press the suction cup lever down until it snaps into place.

9. Adjust the device so that it can be easily seen and does not block the driver’s line of sight.

3

Main Menu

1

Enter truck information and access

truck-specific use tools.

2

Show location on the map and view

navigation instructions.

3

Choose a destination.

4

Select device, route and map preferences.

5

Mute/unmute the speaker.

6

Adjust speaker volume.

7

Indicates charge when running on battery.

8

Change driver profile, trailer load,

or driver status.

noTe: From other screens, tap the Main Menu
icon in the bottom right corner to return
to the Main Menu.

noTe: Help and tutorials are available in Preferences.

4

7

1

4 5

8

2

3

6

Enter Truck Information and Set Warnings

1. Tap Truck Tools > Truck Info or Warnings.

2. Tap

and to view options.

3. Tap the option button to be changed.

On the left,
tap on an
option

4. Enter new settings.

5. Tap

to save changes.

Set Routing and Device Options

1. Tap Preferences.

2. Tap the General, Route or Map tab.

3. Tap

and to view options.

4. Tap the option button to be changed.

5. Enter new settings.

6. Tap

to save changes.

On the left,
tap on an
option

On the right,
enter settings
for the option

On the right,
enter settings
for the option

5

Destination

1

Route to a new location. (See page 7.)

2

Return to a previously entered address.

3

Access the Address Book.
Plan a multi-stop trip.

4

Route to a point of interest. (See page 10.)

5

Run an Internet search for local businesses.

6

(noTe: This feature requires a Wi-Fi connection.)

Run a local search near:

7

Your truck

8

A particular city

9

Your destination

10

Search for local restaurants.

11

Access recent searches.

6

1 2 3

4 5 6

7 8 9

10 11

Route to a New Location

1. Tap Choose Destination > New Location.

2. Tap Address.

3. Enter the name of the city. (noTe: As you type, the keyboard

displays only the next possible letter.)

4. Prompts appear in the top bar. Tap the city to select. Or, tap

List to view cities beginning with the letter(s) you entered.

5. Enter the street name. (noTe: If the letters you need do not

appear, tap Expand Search.)

6. Enter the house number. (noTe: To enter the house number

before the street, tap the house number button
in the previous step.)

See Confirm Destination Window (page 8.)

Tips

• You can also route to a new location by City Center,
Intersection, or Latitude/Longitude, or choose
Address > Zip Code Search.

• View recent destinations by tapping Choose Destination >
History. View recent cities by tapping Choose Destination
> New Location > Address > History.

• View saved locations by tapping Choose Destination >
Address Book.

7

Confirm Destination Window

1

Destination address.

2

Begin route to destination.

Compare a primary and alternate route and choose one.

3

4

Add the location as a via point on the way to

a previously entered destination.*

5

Save the location to the Address Book.

6

Cross reference to printed Rand McNally

Motor Carriers’ Road Atlas.

7

View the map.

8

Change the starting location for a route to the

location displayed here.

9

Return to Main Menu.

Return to previous window.

10

*To manage via points, Tap Choose Destination > Multi-Stop
Trips. You can add up to 50 destinations in a multi-stop trip, and

optimize routing for trips of up to 10 stops.

8

6 7

8

noTe: This window may include

additional buttons based on the
type of destination selected.

1

2

4

10

3

5

9

Route Map Window

1

Repeat spoken next-maneuver instructions.

2

Name of street you will turn onto next.

3

Show arrival time, remaining time, or other options.

4

Slide out to show upcoming exit information.

5

Directions list slideout. Tap Route Display Options

1

13

to select turn-by-turn, highway, or map view.

6

Zoom in/zoom out.

7

Access Wi-Fi connected services.

8

Return to Main Menu.

9

Current direction. Tap to select a map display option (Heading

12

11

Up, North Up, or 3D View). Also displays Wi-Fi® status.

10

View current road name, upcoming cross road name, or city, county and state.

11

View and save current location, detour, or cancel a route.

12

Tap on the current speed to display the Virtual Dashboard.

(noTe: Turns red for speed warnings; set in Truck Tools > Warnings.)

13

Current speed limit—orange for truck limit, white for general limit. Tap to open a “Tell Rand” about speed limits.

14

Mute the speaker.

2

14

10

3

4

5

7

6

8

9

9

Find a Point of Interest (POI)

Tap Choose Destination > Points of Interest.

1

Find popular truck-friendly POIs near your current location.

2

3

Search for a POI:

2

Near your truck

3

In a particular city

4

Along your route

5

Along the last 30 minutes of your driving day

(using the time remaining in Truck Tools > Timers)

6

Near your destination

POI Categories

7

Select a category.

8

Find restaurants, hotels, and other subcategories.

9

View custom POIs that have been uploaded through

the Rand McNally Dock.

10

4

5 6

1

7

8

9

Find a Point of Interest (POI) - continued

10

Tap location to select.

11

View and edit ratings and comments.

12

Tap to search by available services.

13

Apply or remove services filter for search results.

14

Search POI by name.

10

11

Junction View

When on a route, Junction View displays when you have an upcoming maneuver.
Once past the maneuver, Junction View closes and the previous window displays.

1

Signs to follow for the next maneuver.

2

Number and direction of lanes for the next maneuver.

3

Distance to the upcoming maneuver. Distance decreases as you

approach the ramp.

4

Lane assist arrow.

5

Mute the speaker.

6

Return to previous window.

12 13

56

14

1

2

3

4

11

Virtual Dashboard

1

Current direction of travel.

2

Displays current time at the yard, current location

and your destination.

3

Sunrise and sunset times based on vehicle location

(latitude/longitude) and day.

4

Current speed (above) and posted speed limit (below).

5

Elevation at current location.

6

Percentage of current trip completed, distance to next

maneuver, and the number of miles and time spent
on the trip to this point.

7

Return to the Route Map Window.

8

Gather trip information for up to three trips. Includes odometer settings, hours, and speeds.

9

Reset trip information for the selected trip (Tab 1, Tab 2 or Tab 3).

10

Select to automatically reset the information in each tab after the vehicle has remained stationary

for the specified number of hours.

11

View fuel logs and add fuel purchase information.

12

Match with truck's odometer to automatically update new fuel logs.

Tap the pencil to edit.

12

1

3

4

6

12

7

2

11

8

5

9

10

View Timers and Logs

1. Tap Truck Tools > Timers, Logs, Trails, Fuel.

2. Tap Timers to view timers, odometer readings, and average speed.

3. Tap on a field to change or reset the number.

noTe: Countdown timers are controlled by the Driver Status
(Driving, On Duty, or Off Duty) selected on the Main Menu.

To switch driver profiles, tap the driver information field.

4. Tap Logs to view a list of mileage logs by quarter.

5. Tap on a quarter to view individual logs by state.

noTe: You can export logs to your computer through the
Rand McNally Dock.

13

View Trails and Fuel

1. Tap Truck Tools > Timers, Logs, Trails, Fuel.

2. Tap Trails to record a “bread-crumb” path of GPS
coordinates where your truck has traveled.

3. Tap any record to view the trail, edit the name
or set the color.

4. Tap Show on Map to display the trail on the
Route Map Window.

5. Tap Fuel to view a list of fuel logs by quarter.

6. Tap on a quarter to view individual logs by state.

7. Tap Add Fuel to record the date, location and cost
of fuel purchase.

8. Tap on a field to make changes.

9. Check Taxable to include the purchase in the fuel log.

10. Tap Save.

14

Wi-Fi

For information on setting up a Wi-Fi hotspot through your cellular phone or laptop computer, please visit
www.randmcnally.com/wifihelp for basic instructions, or contact your wireless carrier.

noTe: Wi-Fi connectivity requires a supporting feature and data plan from your wireless service provider.
As the user, you are responsible for all data charges. Please contact your wireless service provider to make sure
you do not exceed the limits of your data plan.

Once you have established a Wi-Fi hotspot:

1. From the Main Menu, tap Preferences. Or tap the WiFi
connected services icon on the map screen.

2. Tap WiFi in the bottom right corner.

3. Tap Enable WiFi to search for available hotspots.

4. Tap the hotspot you want to connect to.

5. Enter the network password.

6. Tap Disable WiFi to turn Wi-Fi connectivity off.
(noTe: Disable to save battery power.)

15

Weather

noTe: This feature requires a Wi-Fi connection.

To view current weather information and the three-day forecast
for your location, tap the Wi-Fi connected services icon ( ) on
the map screen.

1

Tap to view details for current weather alerts.

2

View weather information at your destination.

(noTe: You can view weather information at any other
location by tapping the map at the desired location and
then the Weather icon.)

3

Display weather on the map as you drive.

4

Select from a variety of weather types.

5

Slide to adjust the transparency of the overlay on the map.

noTe: Use the slider to readjust for visibility when
switching between day and night modes.

noTe: The speed of the weather display will depend on
the speed of your Internet connection.

16

1

3

4

2

5

Fuel Prices

noTe: This feature requires a Wi-Fi connection.

Tap the Wi-Fi connected services icon ( ) on the map screen.
Then tap the Fuel tab.

1

Check to show fuel prices on the map screen.

2

Sort results by distance or price.

3

Set filters for type and brand of fuel.

4

Choose to search near your vehicle or along your route.

Traffic Everywhere

Live traffic information is available as a premium service on
the Rand McNally Dock. (See page 18.) Get traffic conditions
and alerts right on your TND™. Traffic information is available
with a Wi-Fi connection wherever you receive a data signal
on your smartphone, even in rural areas.

1 2 3 4

17

More Information

For a detailed description of the features of your device, please see the IntelliRoute® TND™ 720 LM User Manual. The User
Manual can be downloaded from the Rand McNally Dock, and is also available at www.randmcnally.com/support.

Rand McNally Dock

The Rand McNally Dock enables you to receive software upgrades and access map updates, construction updates, and
additional features. Simply download the Dock software for your PC or Mac at www.randmcnally.com/dock and connect
your device using the USB cable provided.

With the Rand McNally Dock, you can also:

• Purchase Traffic Everywhere

• Export mileage and fuel logs to your home computer

• Upload custom POIs, such as red light cameras and railroad crossings, to your device

• Download the User Manual

• Access the Rand McNally support site and online store

• Read product news and announcements

• Send feedback and suggestions to Rand McNally through “Tell Rand”

18

Warnings, End-User License Agreement, and Warranty

Pay attention to road conditions and street signs, and obey all traffic and safety laws. Traffic laws and current traffic conditions must always be observed and take precedence over

the instructions issued by the TND
conflict. Some states prohibit the use of windshield mounts and may otherwise restrict the usage of navigation and other electronic devices in the vehicle. It is the User’s responsibility to ensure
compliance with all laws and regulations. The use of the navigation system does not relieve the User of his/her responsibilities. The User is ultimately responsible for the vehicle under his/her control
and should be aware of the surroundings at all times.

If after reading these statements the User decides not to accept these terms, the User should not use the TND
Rand McNally hereby grants you (“User”) a single-user non-exclusive, non-transferable license to use the Rand McNally IntelliRoute

™

product” (including software and associated data) ) for User’s own internal business or personal use and not for resale, sublicense or commercial use.

the “TND

™

This TND

product and the software incorporated in it and related documentation are furnished under license and may be used only in accordance with this license. Except as permitted by such
license, the contents of this TND
McNally. This TND
product and the software incorporated in the TND
the property of Rand McNally and its licensors and are protected by U.S. copyright, trademark and patent laws and international treaties.

THE USER MAY NOT:

• Use the TND

• Use the TND

™

product and software contain proprietary and confidential information of Rand McNally and its licensors. Rand McNally grants User a limited license for use of this TND™

™

product on a network or file server, time-sharing or to process data for other persons.

™

product to create any routing tables, files, databases or other compendiums.

• Copy, loan or otherwise transfer or sublicense the TND

• Modify, or adapt the TND

• Alter, remove or obscure any copyright notice, trademark notice, or proprietary legend from the TND
This license will terminate automatically if User fails to comply with any of the terms of this license and User agrees to stop using the TND

product and is not obligated to furnish any revisions or updates to User.
RM Acquisition, LLC d/b/a Rand McNally warrants that the TND™ product, and the component parts thereof, will be free of defects in workmanship and materials for a period of one (1) year from

the date of first use as determined by contact with GPS satellites. This warranty may be enforced by the first consumer purchaser (“Customer”), provided that the product is utilized within the
U.S.A. or Canada.

Rand McNally will, without charge, repair or replace (with a new or newly reconditioned unit), at its option, defective TND™ products or component parts. For repair or replacement of defective
TND™ products, Customer must contact Rand McNally at 1-800-333-0136 for return authorization and instructions. Customer will be required to have the product registered via the Rand McNally
Dock or, if Customer is unable to register the product electronically, Customer will be required to provide proof of date of first Customer purchase, such as a duplicate copy of a sales receipt, for the
warranty to be valid. When the product is connected to the Rand McNally Dock, the Dock will record the date of first use of the device based on contact with GPS satellites. The Customer must pay
any initial shipping charges required to ship the product for warranty service, but the return charges will be at Rand McNally’s expense, if the product is repaired or replaced under warranty.

Repairs or replacements have a 90-day warranty. If the product sent in is still under its original warranty, then the new warranty is 90 days or to the end of the original one (1) year warranty,
depending on which is longer.

This warranty gives the Customer specific rights. Other rights may be available to Customer which vary from state to state.

™

product navigation system. The User should be aware of situations where current traffic conditions and the instructions from the navigation system may be in

™

product.

™

product and software may not be disclosed to third parties, copied or duplicated in any form, in whole or in part, without the prior written permission of Rand

™

product for its normal operation. By using the TND™ product, User acknowledges that the content of this document and the TND™ product are

™

™

product in any way, or decompile, disassemble, reverse engineer or reduce to human readable form the TND™ product and software incorporated therein.

product, its software or content.

™

product, its software or content.

®

TND™ trucking navigation product (hereinafter referred to as

™

product. Rand McNally may revise or update the TND™

19
