PLD187V

OWNER'S MANUAL

Mobile Video System

Anti Theft Flip Down Detachable Panel

VFD Moving Display

Car DVD/VCD/CD/MP3 Player

AM/FM Digital Pll Tuning Radio

Auxiliary Input Function

Parental Control

Remote Control

www.pyleaudio.com

CONTENTS

Safety Information.......................................................................................

Disc Notes ..................................................................................................

Installation ..................................................................................................

Electric Connection ....................................................................................

Remote Control ..........................................................................................

Basic Operation ........................................................................................

MP3/WMA/JPEG Disc Play .....................................................................

AUX Operation .......................................................................................

On-Screen Display Function ...................................................................

Multi-Audio Language Function ...............................................................

Multi-Subtitle Language Function ............................................................

Multi-Angle Function .............................................................................

Title Menu Function ...............................................................................

Setup .........................................................................................................

General Setup ........................................................................................

Speaker Setup .......................................................................................

Dolby Digital Setup ................................................................................

Preferences Setup .................................................................................

Defaults Table ........................................................................................

Specifications ...........................................................................................

Trouble Shooting ......................................................................................

2

3

4

7

8

10

14

14

15

16

16

16

16

17

17

19

19

20

21

22

23

1

SAFETY INFORMATION

CAUTION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD
PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DVD PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners.Use of this
copyright protection technology must be authorized by Macro vision Corporation,
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This DVD Player is designed and manufactured to respond to the Region
Management Information that is recorded on a DVD disc. If the Region number
described on the DVD disc does not correspond to the Region number of this
DVD Player, this DVD Player cannot play this disc.

2

DISC NOTES

Disc formats supported by this
player

VIDEO

MPM

CD-RW

DVD
12 cm disc
(Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3

P

3

12 cm disc

Discs which cannot be played
with this player

DVD-ROM
DVD-R/DVD-RAM
CDV
CD-G

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.

A disc should always be kept in its
case when not in use to prevent from
damaging.
Do not place discs in the following
places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.

Note:

A disc may become somewhat scratched
(although not enough to make it

unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.

Label side
up

Do nottouch
the
underside
of thedisc

Do not
bend

Wipe the disc from
center
toward theoutside
edge

Preparing New Discs with

Rough

Spots

A new disc may have rough edges on
its inside and outside edges.If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc.Therefore,
remove the rough edges in advance
by using a ball point pen or pencil as
shown on the right.To remove the
rough edges, press the sid e of the pen
or pencil against the inside and outside
edges of the disc.

Rough spots
on
outside edge

Ball pointpen
or pencil

Rough spots
on inside
edge

3

INSTALLATION

NOTES:

Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure

it is

all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use

of

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or

other

modifications of the vehicle.

Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit might not give its

optimum

performance.

'

30

Avoid installing the unit where it would be subject to high temperature, such
as from
subject to dust,

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN
Front-mount)
screw holes at the sides of
illustrated installation methods.

direct sunlight, or from hot air, from the heater, or where it would be

dirt or excessive vibration.

or "Rear"(DIN Rear-mount installation, utilizing threaded

the unit chassis). For details, refer to the following

4

INSTALLATION

DASH BOARD

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

KEY PLATE

1.WHILE INSTALLING THE FRONT PANEL, PLEASE MOUNT THE LEFT SIDE FIRST,
AND MAKE THE DIRECTION HOLE ON THE FRONT PANELAIM AT THE LEFT GUIDE

ON THE UNIT

2.THAN PUSH THE RIGHT SIDE TO THE RIGHT GUIDEMOUNT

METALMOUNTING
STRAP

CONSOLE

SLIDE BRACKET
HOUSING

HEX BOLT

KEY PLATE

PLASTIC TRIM OUT

3.PUSH IT TO INSTALL THE

FRONT PANEL COMPLETELY .

5

INSTALLATION

CAUTION: DO NOT INSTALL THE DETACHABLE PANEL BEFORE

CONNECTING THE WIRE.

1. The unit is designed for negative terminal of the battery which is connected to the
vehicle metal. Please confirm it before installation.

2. If the car interior is extremely hot, as after being parked in the sun, do not use the
player until the car has been driven for a while to cool off the interior.

3. Press the OPEN button to flip down the front panel (see fig.1), Slide the guide knob
to remove the right side first, then take away the front panel. (see fig.2) and put it in the
protective case (see fig.3) for safe keeping.

4. Install the front panel back into its bracket and then push it back to the position for
playing (see fig.4).

FRONT PANEL

GUIDE KNOB

OPEN BUTTON

(FIG.1)

PROTECTIVE CASE

FRONT PANEL

FRONT PANEL

(FIG.3) (FIG.4)

6

(FIG.2)

ELECTRIC CONNECTION

WIRING CONNECTION

MAIN UNIT

ANTENNA CONNECTOR

IGNITION

SWITCH(B+)

MEMORY

BACK-UP(B+)

GROUND(B-)

ANTENNA

AUTO

RED

YELLOW

BLACK

BLUE

FRONT

Lch SPK.

REAR

Lch SPK.

CHOKE
BOX

FUSE

WHITE/BLACK

GREEN/BLACK

WHITE

GREEN

AUX(optional)

RCA CABLE

REAR RCAOUTPUT

CABLE (optional)

FRONT RCA OUTPUT

CABLE

(FOR RCALINE OUT VERSION ONLY)

GREY

GREY/BLACK

VIOLET

VIOLET/BLACK

FRONT

Rch SPK.

REAR

Rch SPK.

VIDEO INYELLOW
RCH INRED

LCHINWHITE

GREY SUBWOOFER
VIDEO OUT2 YELLOW

COAXIAL OUT BROWN
RCH RED

LCH WHITE

FRONT RCA RED R

VIDEO OUT 1YELLOW

FRONT RCA WHITE L

7

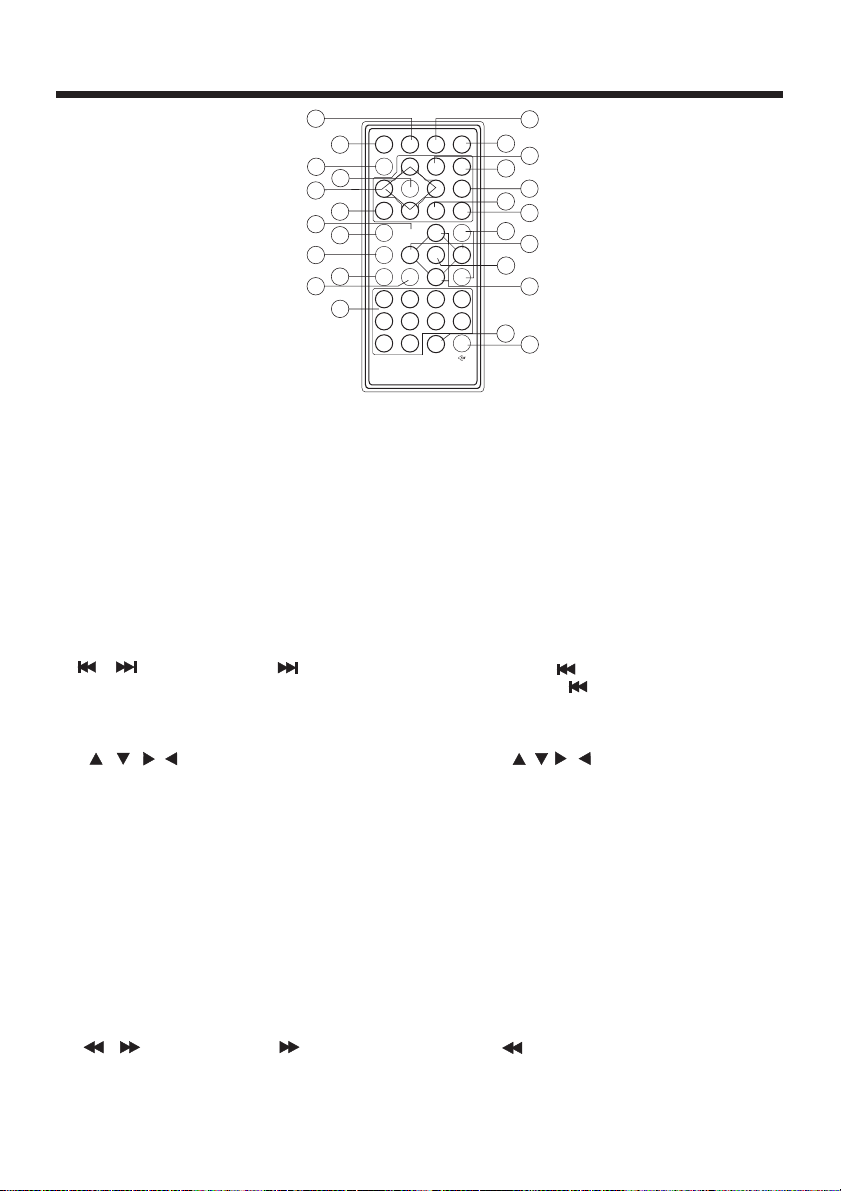

REMOTE CONTROL

1. CLK

2. MODE

3. STOP

4. SETUP

5. MO/ST(AUDIO)

6. SUBTITLE
LO/DX

7. REPEAT

8. GOTO

9. /

10. SEL

11. VOL+/VOL-

12. / / /

13.MENU
SUB WOOFER

14.BAND(OSD)

15.POWER

16.PLAY/PAUSE

17.MUTE

18.TITLE/PBC

(A/P)

19. SLOW

20.ANGLE

21.EQ

22. /

23.ENTER

24. 0 - 9

25.+10

16

15

14

23

12

6

8

4

20

7

21

24

3

17

1

2

18

5

19

22

9

10

11

25

13

Press it to change the display to clock display.
Press it to change between RADIO ,DISC and AUX IN mode.
Press it to stop playback.
Display the SETUP menu.
In radio mode, press it to select STEREO or MONO mode (In disc
mode,press it to changing of the AUDIO soundtrack on multi­audio soundtrack DVD disc. Changing of the sound mode of the

VCD/CD disc)
Changing of the SUBTITLE language on multi-subtitle language
DVD disc. In radio mode,.Press this button for distance reception
when you are located at weak signal location, depress it for
stronger signal.
Switch the Repeat mode of DVD/VCD/CD/MP3 disc.
Disc search button, cooperatively used with numeric buttons
Press to skip to the next track & press to skip back one track.
(Note: In DVD mode, press continually the twice to skip back one)
Press it repeatedly to change mode through volume ,bass, treble,
balance and fader modes.
Press it to adjust volume level
In case of the SETUP MENU mode, / / / buttons served as
cursor buttons to select item left/right,ahead/back.
Press it to display the root menu of the DVD disc.Press and hold
for more than 2 seconds can have SUBWOOFER, press it again
for more than 2 seconds to release this mode.
Display statistical disc information during playback (To change
the band in radio stations)
Press it to turn on the unit ,press it again to turn off.
Press once to pause a play, press again to resume playback.
Press it to mute down sound.
Display the TITLE menu that is stored in DVD disc changing
between PBC ON and PBC OFF on the VCD disc.(Auto store
and preset scan function in radio stations .)

Changing for slow forward/reverse playback motion

Changing of the view angle on multi-angle DVD disc.
Press it to turn to equalization function.
Press to start forward rapidly & to reverse rapidly.
Confirm the Track/Chapter selected with the number key or
selected with the cursor buttons on TV screen.
Numeric buttons.
Tens digit select button, cooperatively used with numeric buttons.

888

REMOTE CONTROL

Preparing the Remote Control

Inserting the Batteries

1.First push to inside as the direction indicated by the arrow (See )And then

Remove the battery holder as the direction indicated by the arrow (See ).

2.Replace the battery Set a new battery property with (+)side up as illustrated

(See ).

3

3.Insert the battery holder. Push in the holder to the original position(See ).

1

2

4

Using the Remote Control

Face the remote control towards the player frontfaceIR mark (remote control

receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

signal

To prevent damage to the unit, be sure to follow the connection diagram

(page 7).

9

BASIC OPERATION

1

5

13

17

15

2

18

22

16

4

14

12

6

3

8

7

10

11

9

21

20

19

EJ

1.OPEN BUTTON

Press it to flip down the front panel then you can insert the cd disc into the cd
compartment. And you can find the (EJECT)button .Press it to eject the disc.

2-3.VOL+/VOL- & SEL BUTTON

Press it to change audio mode through volume, bass, treble, balance, and fader
modes. Rotate VOL + /VOL- knob to adjust the selected mode.(The correspon­ding value will show on the display.)

A.Volume:Adjust volume level by
using VOL + / VOL - knob..
Note: The unit is initially set to

volume mode.

VOLUME 6

C.Treble:Press SEL button two times.

Adjust treble level by using VOL + / -

knob.

TREBLE -2

..........................

E.Fader:Press SEL button four times.
Adjust sound balance between front

and rear speakers by using VOL + /
VOL - knob.

B.Bass:Press SEL button one time.
Adjust bass level by using VOL + / VOL­knob.

BASS +8

..........................

D.Balance:Press SEL button three times.
Adjust sound balance between left and

right speakers by using VOL + / VOL -

knob.

Balance

-2

Fader

0

10

BASIC OPERATION

4.BAND BUTTON

In RADIO mode, press the BAND button on the front panel or on the remote
control to select your desired radio band and word which band is selected will be
displayed on LCD. Press it to change the bands as below :

FM MW LW

For 3 Bands (Europe)

5.EQ BUTTON

Press it to turn to equalization function and to select desired audio mode.
There are four kinds of mode as below:

JAZZ CLAS POP ROCK

6-7-8-9-10-11.PRESET STATION

A.To memorize the current frequency, press any one of the six preset buttons[1-6]

on the front panel or on the remote controller hold for more than 2 seconds.
B.To recall the preset memory, press one of the preset buttons [1-6].
C.Press button to select the first track/chapter to play.

D.Long press button to select repeat mode as follow.

1/TOP

a.In the state of VCD/CD/MP3 disc playing, press the button on the front panel

to select the first track/chapter to play.(depend on the disc used for VCD)

b.In the state of DVD disc playing, the 1TOP button is not available.

2/RPT

VCD/CD:

REP-ONE REP-ALL

FM MW

For 2 Bands (Europe)

FM AM

For 2 Bands (USA)

DVD:

CHAPTER REPEAT ON TITLE REPEAT ON

REPEAT OFF

a.Continuously repeat at the current chapter/track, when selected

REP-ONE mode.

b.Select REP-ALL mode to continuously repeat all chapter/track on the

current disc.

c.REPEAT feature does not support VCD2.0 (with PBC ON).
E.Long press button to scan disc.

3/INT

a.In the state of CD disc playing,press the 3/INT button on the front panel

to play the previous 6 seconds part of each track/chapter on disc.
b.In the state of DVD/MP3 disc playing, the 3/INT button is not available.
c.In the state of VCD disc playing , long press the 3/INT button, the screen will

display as follow (long press it again will release this mode.):

SELECT DIGEST TYPE:
TRACK DIGEST
DISC INTERVAL
TRACK INTERVAL

11

BASIC OPERATION

1). You can use the buttons on the remote control to select the item,
and then press the ENTER button to confirm .

2).

In Track Digest OR Disc/Track Interval MODE.

You can use the buttons to select the items ,and then press the
ENTERtoconfirm.
You can also select the items using the corresponding number buttons, and
then press the ENTER to confirm .

d.In the state of DVD disc playing , long press the 3/INT button, the screen will

display as follow (long press it again will release this mode.):

// /

// /

SELECT DIGEST TYPE:
TITLE DIGEST
CHAPTER DIGEST
TITLE INTERVAL
CHAPTER INTERVAL

1). you can use the buttons on the remote control to select the item,
and then press the ENTER button to confirm .

2).

In Title/Chapter Digest OR Interval MODE.Title/Chapter

You can use the buttons to select the items ,and then press the
ENTER to confirm .
You can also select the items using the corresponding number buttons, and
then press the ENTER to confirm .

F. Long press to play disc in random.

In the DVD/VCD/CDdisc playing, press the 4/RDM button on the front panel
to play in random (depend on the disc used for VCD).

4/RDM

// /

// /

12.AS/PS BUTTON

When shortly pressing the APS button on the front panel or the A/P button on the
remote controller, the radio searches for each preset station. When the field
strength level is more than the threshold level of stop level, the radio is holding at
that preset number for few seconds with releasing mute, and then searches again.
In FM band, FM 1,FM 2 and FM 3 is checked one at a time When long pressing the
APS or A/P button (more than 1 second), the radio searches from the current
frequency and checks the signal strength level until 1 cycle search is finished.
And then 6 strongest stations are preset to the corresponding preset number.
The AS operation is implemented in the each band of selected band. When the
AS operation is finished, the radio executes the preset scan.

13.MU BUTTON

Press it to mute down sound. Press it again to release this mode and recover
previous volume level.

14.CLK BUTTON

Press it to change the display to clock display. Press it again to return to previous
display. In clock display, press and hold for about 2 seconds until the hour display
flashes. Rotate VOL+/- button to adjust hours ,press CLK button to flash minute
then Rotate VOL+/- button to adjust minutes.

12

BASIC OPERATION

15.PWR BUTTON

Press it to turn on the unit. Press it again to turn off.

16. BUTTON

Pressing during playback will stop play temporary. Return to normal playback,
press once again.

17. / BUTTONS

A.When long Pressing the / button (more than 2 seconds ) during play.The

speed of rapid forward/reverse changes according to the disc as follow.
DVD/VCD/CD/MP3:

Normal Playback 2x 4x 8x 16x

B.Shortly press the / button during playback to skip to next track or back

one track.(Note: In DVD mode, press continually the button twice to skip to
back one track.)
Note:For some VCD 2.0 dics (PBC-playback control), and buttons
may be unavailable.

C.Press UP or DN button on the remote controller or / on the fornt panel

to manually tune up or down for your desired station. Press them hold for more
than 2 seconds to automatically tune up or down for the stronger station.

18.MOD BUTTON

Press it repeatedly select DISC ,AUX IN , RADIO mode.

19.EJECT BUTTON

In CDP playing ,Press the eject button to eject the disc form the disc slot.

20.FLASHING LED

If the front panel is not on the main unit, LED will be flashing.

21.RESET BUTTON

RESET button is placed on the housing and must be activated with either a
ballpoint pen or thin metal object. The RESET button is to be activated for
the following reasons:
A. Initial installation of the unit when all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.
Note:If press RESET button , the unit can't work yet, please use a cotton swab
soaked in isopropyl alcohol to clean the socket on the back of the front panel.

22.ST BUTTON

Press ST button to select stereo or mono reception for radio stations.

13

BASIC OPERATION

MP3/WMA/JPEG DISC PLAY

1.When inserting an MP3/WMA/JPEG disc
Ex: When Mp3 file is detected.

56

4

00:56 04:07

3

003/112

2

Mp3

Mp3

1

Mp3

..............

K

woman

new

Repeat one

P

1

ton

Instopmode,use/// ontheremotecontroltoselect the item or folder,
then press ENTER button to confirm.
Pressing REPEAT button repeatedly can select two kinds of repeat play mode.

2. REP-ONE:
Play the same song over and over again.

3. REP-ALL:
Play all songs in the discover and over again.
In the playback, use or to skip an item ahead or back.
In the playback, when long pressing the / button on the front panel (more
than2 seconds ) or short press on the remote control to rapid forward/

/

reverse.

1

.Current track(file)(highlighted bar)
.Current track (file) number/total

2

number of tracks(files) in the current
folder.

.Elapsed playing time of the current

3

track(

not available for JPEG disc)

.total playing time.

4

( not available for

JPEG disc)

.Selected playback mode

5

.Operation mode icon. (Play),

6

(stop), (pause), (forward)
(reverse).

AUX OPERATION

When the unit connect external A/V , you can press MODE to switch the AUX
input mode.

14

BASIC OPERATION

ON-SCREEN DISPLAY FUNCTION

Press the button during
playback to display the contents of the
current disc on the screen.
Example :

1. DVD:
A.Press for the first time:

OSD

OSD

2.Example for VCD/SVCD/CD:
A.Press for the first time:

OSD

SINGLE ELAPSED

TRACK 01/16 00:49

TITLE ELAPSED

TT 01/01 CH 01/38 0:02:06

Title Number, Total Title Number,
Chapter Number, Total Chapter Number
of this Title of the disc currently being
played will be shown on the screen,
along with the elapsed time.

B.Press for the second time:

C.Press for the third time:

D.Press for the fourth time:

E.Press for the fifth time:

OSD

TITLE REMAIN

TT 01/01 CH 01/38 3:24:36

OSD

CHAPTER ELAPSED

TT 01/01 CH 01/38 0:02:56

OSD

CHAPTER REMAIN

TT 01/01 CH 01/38 0:04:32

OSD

The message on the screen will be
cleared.

B.Press for the second time:

C.Press for the third time:

D.Press for the fourth time:

E.Press for the fifth time:

OSD

SINGLE REMAIN

TRACK 01/16 02:45

OSD

TOTALELAPSED

TRACK 01/16 00:60

OSD

TOTALREMAIN

TRACK 01/16 78:46

OSD

The message on the screen will be
cleared for SVCD and VCD.

NOTE:
For CD and MP3,the message will
always display on the screen.

3.Example for MP3:
Each time is pressed, the message

OSD

displayed on screen changes as follows:

SINGLE ELAPSED SINGLE REMAIN

15

BASIC OPERATION

Multi-audio Language Function

For DVD:

AUDIOPress during playback.

Each time the button is pressed,
number of the audio soundtrack
language changes on sequential order.
NOTES:

- The language number is different
according to the disc.

- Some disc only contain one language
soundtrack

- When no different language
soundtrack are recorded will be
display at screen left top corner.

For VCD/CD:

AUDIOPress during playback. It is

possible to switch the sound between
monaural and stereo sound.

MONO LEFT MONO RIGHT

STEREO

MIX-MONO

Title Menu Function

For DVD:

If the DVD has multiple titles recorded
on the disc. It can select preferred title
from the title menu to start playback.

- Press during playback.The title

- Press the cursor button shown in TV

For VCD:

control while the disc is playing, you can
switch between "PBC on"and "PBC off"
mode.

TITLE

menu is display.

screen, select preferred title by the
cursor button and confirmed by
ENTER key.

TITLE/PBCPress button on the remote

- When no different subtitle language
are recorded, will be displayed
at screen left top corner.

Multi-angle Function
(for DVD Only)

Press ANGLE during playback. Each
time the button is pressed, number of
the angle changes in sequential order.
Notes:

- The angle number is different
according to the disc.

- The function only work for disc having
scenes recorded at different angles.

- When no different angle are recorded,

will be displayed at screen left top

corner.

Multi-subtitle Language

Function

(for DVD Only)

Press during playback.

SUBTITLE

Each time the button is pressed, number of
the subtitle language changes in
sequential order.
Notes:

The language number is different

­according to the disc.

- Some discs only contain one subtitle

language.

16

SETUP

GENERAL SETUP

--- GENERAL PAGE ---

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Spdif Output

Captions

Screen Saver

Last Memory

LB

ON

ENG

SPDIF/RAW

ON

ON

ON

Go To General Setup Page

1. Press button on the remote

SETUP

control .

2.The SETUP menu is displayed.

3.Select the preferred item by using the
/ / / buttons

4.Press ENTER button.

a.GENERAL SETUP

This setup page includes the item
of TV display & audio output feature.
The detail please refer to

GENERAL SETUP MENU.

b.SPEAKER SETUP

This is to activate the audio output
from DOLBY AC3 5.1 DOWNMIX
to 2 channel mode. Please refer to

SPEAKER SETUP MENU.

c.DOLBY DIGITAL SETUP

Please refer to

DOLBY DIGITAL

SETUP.

d.PREFERENCE SETUP

This setup page includes all the
configuration of support feature.
The detail please refer to

PREFERENCES SETUP MENU.

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Normal/PS

Normal/LB

Wide

Spdif Output

Captions

Screen Saver

Last Memory

Set TV Display Mode

Video
Material

4:3

Normal

TV Screen

Pan Scan

Letter-box

Wide(16:9)

1.TV DISPLAY SETUP

This is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected TV set.

Normal/PS (For 4:3 TV)

Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the
left and right edges are cut off.)

Normal/LB (For 4:3 TV)

Played back in letterbox style.
(If connected to wide-screen TV, black
bands appear at top and bottom of the
screen.)

Wide (For 16:9 TV)

Select when a wide-screen TV set is
connected.

17

SETUP

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Spdif Output

Captions

Screen Saver

Last Memory

ON

OFF

TV Display

Angle Mark

Osd Lang

Spdif Output

Captions

Screen Saver

Last Memory

Set Angle Mark

2.ANGLE MARK DISPLAY SETUP

If it is set to ON, when the multi-angle
DVD disc is playing, (the angle
mark) will appears on the screen; if is

4.SPDIF OUTPUT

This is to activate the audio output
from SPDIF OFF mode to SPDIF/RAW
mode to SPDIF/PCM mode.

set to OFF, the mark will not appear.

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Spdif Output

Captions

Screen Saver Screen Saver

Last Memory

English

French

German

Spanish

Italian

Portuguese

TV Display

Angle Mark

OSD Lang

Spdif Output

Captions

Last Memory

DOLBY

-----General setup page----

SPDIF OFF

SPDIF/RAW

SPDIF/PCM

Setup SPDIF

DOLBY

-----General setup page----

ON

OFF

Set OSD Language

3.OSD LANG TYPE SETUP

Select the preferred OSD language
by using the / buttons.

Closed Caption

5.CAPTIONS SETUP

Activate the CAPTIONS feature by

selecting ON. And release this feat­ure by selecting OFF.

18

SETUP

DOLBY

-----General setup page----

TV Display

Angle Mark

OSDLang

Spdif Output

Captions

Screen Saver

Last Memory

ON

OFF

Screen Saver

6.SCR SAVER SETUP

Select the SCR SAVER output
ON/OFF.

DOLBY

-----General setup page----

TV Display

Angle Mark

OSD Lang

Spdif Output

Captions

Screen Saver

Last Memory

ON

OFF

SPEAKER SETUP

--- SPEAKER SETUP PAGE ---

DOLBY

-----Speaker Setup Page----

DOWNMIX

Set Downmix Mode

This is to activate the audio output from
DOLBY AC3 5.1 DOWNMIX to 2 channel
mode. Select the preferred SPEAKER
connection by using the cursor buttons.
Select the LT/RTto activate the Dolby
surround compatible output.
Select the STEREO to activate simple
stereo mode.

LT/RT

STEREO

DOLBY DIGITAL SETUP

DOLBY

-----Dolby Digital Setup----

FULL

6/8

DYNAMIC

4/8

2/8

OFF

Set Last Memory State

7.LAST MEMORY SETUP

Select the LAST MEMORY output
ON/OFF.

Set DRC OFF

DYNAMIC RANGE CONTROL

Select DRC and adjust the dynamic
range of a Doby Digital encoded
program. There are 8 steps between
full compression and off compression.

19

SETUP

PREFERENCES SETUP

--- PREFERENCES PAGE ---

DOLBY

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

PAL

AUTO

NTSC

Disc Menu

Parental

Password

Default

Set TV standard

1.TV TYPE SETUP

This player can play discs recorded

in either PAL or NTSC format.Select
NTSC format, when you connected to
NTSC TV.Select PAL format, when
you connected to PAL TV.Select AUTO
format, the player TV output format
will according to the DVD disc format..

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

Preferred Audio Language

2.AUDIO LANGUAGE SETUP

Select the preferredAUDIO sound­track by using the cursor buttons.

English

French

Spanish

German

Italian

Portuguese

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

English

French

Spanish

German

Italian

Portuguese

OFF

Preferred Subtitle Language

3.SUBTITLE LANGUAGE SETUP

Select the preferred SUBTITLE
language by using the cursor buttons.

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

English

French

Spanish

German

Italian

Portuguese

Preferred Menu Language

4.DISC MENU LANGUAGE SETUP

Select the preferred DISC MENU
language by using the cursor
buttons.

20

SETUP

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

1KID SAF

2G

3PG

4PG13

5PGR

6R

7NC 17

8 ADULT

OFF

Set Parental Control

5.PARENTAL

Select suitable parental guidance by
the cursor buttons and conformed by
pressing ENTER button.

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

CHANGE

Default

Change Password

6.PASSWORD

Select the change and press ENTER
button. Type the old password (The
initial factory code is ) and key
in 4 characters password now you
want to use, and retype again to
confirm key in correctly.

1379

DOLBY

-----Preference Page----

TV Type

Audio

Subtitle

Disc Menu

Parental

Password

Default

RESET

Load Fcatory Setting

7.DEFAULTS

Select reset to become factory initial
setting.

DEFAULTS TABLE

TV DISPLAY

ANGLE MARK

GENERAL SETUP

SPEAKER SETUP

DOLBY DIGITAL

PREFERENCES

21

OSD LANGUAGE

SPDIF OUPUT

CAPTIONS

SCR SAVER

LAST MEMORY

DOWNMIX

DYNAMIC

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

NORMAL/LB

ON

ENGLISH

SPDIF/RAM

ON

ON

ON

STEREO

OFF

AUTO

ENGLISH

OFF

ENGLISH

8 ADULT

1379

SPECIFICATION

GENERAL

Supply Voltage :12v Dc (11v-15v)
Current Consumption More Then 10 A

SIGNAL SYSTEM

DISCS PLAYED

:

:Compositive Video 1.0vp-p 75

(1)Dvd-video Disc

5"(12 Cm) Single-sided, Single-layer
5"(12 Cm) Single-sided, Double-layer

(2)Compact Disc (cd-da, Video Cd)

5"(12cm) Disc

AUDIO SIGNAL OUTPUT :
CHARACTERISTICS

RADIO

FM TUNER SECTION

Tuning Range :87.5-107.9MHz
IF Range :10.7MHz
Usable sensitivity(30dB) :15dB

AM TUNER SECTION

Frequency Range :530-1710KHz
IF Range :450KHz
Usable sensitivity(30dB) :45dB

NOTE:

Specifications and design are subject to modification, without notice, due to
improvements in technology.

2ch&4ch Line Out

(1)Frequency Response 20 Hz - 20 Khz

(2)S/n Ratio 90 Db (jis)

(3)WowAnd Flutter

Below Measurable Limits

22

TROUBLE SHOOTING

Before going through the check list, check wiring connection. If any of the problems
persist after check list has been made, consult your nearest service dealer.

SYMPTOM CAUSE SOLUTION

If the power supply is properly
connected to the car accessory
terminal,switch the ignition key

"ACC"

to

Replace the fuse

Remove the disc in the player,
then put a new one

Insert the compact disc with
the label facing upward

Clean the disc or try to play a
new one

Cool off or until the ambient
temperature return to normal

Please switch to correct color
system from menu

Make proper connection
according to wire connection

For safety reasons no television
/video images are displayed while
the vehicle is moving.
Engaging the parking brake will
cause images to be displayed.

Please the television mode of
the choice accommodation

Change the disc

Change the disc
Record JPEG files using a
compliant application

Press the RESET button.
Front panel is not properly fixed
into its place

Insert the antenna cable firmly

Select a station manually

“”

No power

Disc can not be
loaded or ejected

Television/video
imageappears
black-white

No television/video
image appears

No color in picture

JPEG disc can
not be played
back

The operation keys
do not work

The radio does not
work

The car ignition switch is
not on

The fuse is blown

Presence of disc inside the
player.

Inserting the disc in reverse
direction

The disc is extremely dirty
or defective

Temperature inside the car
is too high

The color system is
set incorrectly

The unit is not connected
to the parking brake
detection switch

The parking brake is not
engaged

Thediscformatisnot

accordingto the TV-set
used (PAL/NTSC)

No JPEG files are recorded
on the disc.

JPEG files are not recorded
in a compliant formant

The built-in microcomputer
is not operating properly
due to noise

The antenna cable is not
connected

The signals are too weak

23

888-J9080-05
