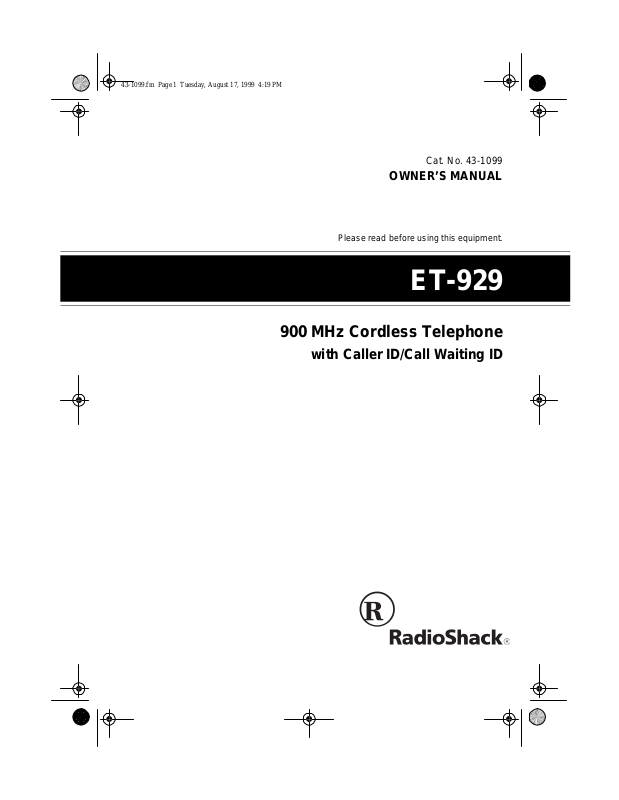

Cat. No. 43-1099
OWNER’S MANUAL
Please read before using this equipment.
ET-929
900 MHz Cordless Telephone
with Caller ID/Call Waiting ID
y
g
g
y
y
g
g
y
y
y
43-109 9.fm Page 2 Tue sday, Aug ust 17, 1999 4: 19 PM
FEATURES
Your RadioShack ET-929 900 MHz
Cordless Telephone uses advanced
technology to give you superior audio
quality and extended range, while its
cordless operation lets you move freely
around your home or office.
The ET-929’s Caller ID unit records
each caller’s telephone number (and
name, if available in your area) and the
date and time of the call, as provided by
your local phone company to Caller ID
service subscribers. And, if you subscribe to Call Waiting with Caller ID, the
ET-929 can show you the incoming caller information, even when you are already on the phone.
Your ET-929 has these features:
900 MHz Operation
— Provides longer
range and less interference than many
other cordless phones.

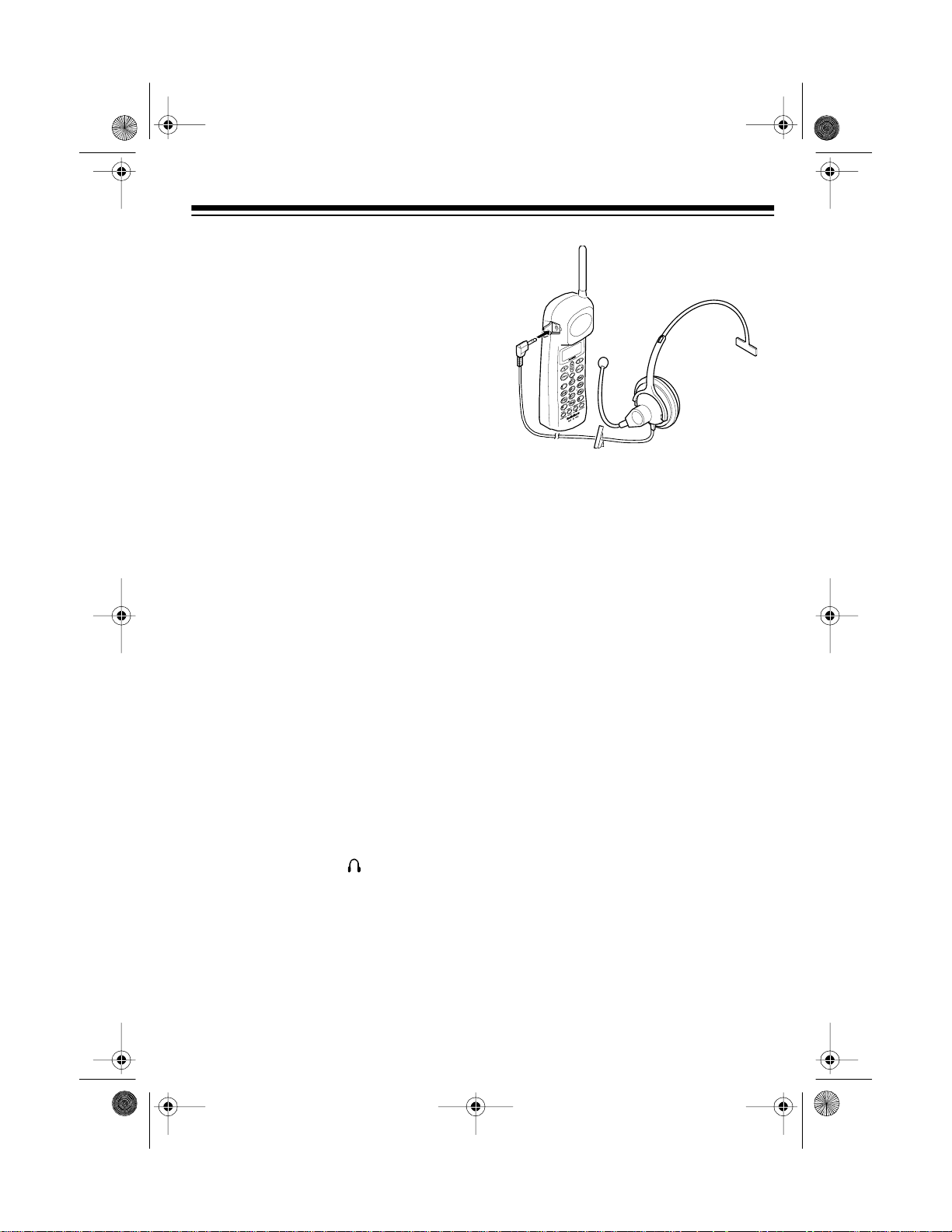

Headset Jack
— lets you connect an
optional headset (available from yo ur local RadioShack store) for hands-free
convenience.
Volume Control
— so you can adjust
the volume you hear through the handset.
Pro
rammable Ringer
— choose from
four tone/volume settings for the handset’s ringer.
3-Line Liquid Cr
stal Displa
— lets
you see who is trying to reach you before you answer the phone.
Facedown or F aceup Hand set Char
— you can place the hands et on the
in
base facedown or faceup (to show the
Caller ID display, for example).
Wall Mountable
— you can mount the
ET-929 on a wall to save s pace on your
desk top.
Ample Talk and Stan db
Time
— the
supplied battery (when fully charged)
provides about 7 hours of talk time or 7
days of standby time.
Caller ID Memor
— stores up to 30
Cal l e r ID re cord s.
-
®
20-Number Memor
Dialing
— lets
you store up to 20 phone numbers in
memory for easy dialing.
— lets you send a signal from the
Pa
e
base to the handset to page someone or
to help you locate the handset if you
have misplaced it.
© 1998 Tandy Corporation.
COM-LOK and RadioShack are registered trademarks used by Tandy Corporation.
All Rights Reserved.
COM-LOK
less phone users cannot use your phone
line when the handset is on the base.
Securit
automatically prevents other cordless
phone users from using your phone line
while the handset is off the base.
— ensures that other cord-
Access-Protection Code
—
2
CAUTION
43-109 9.fm Page 3 Tue sday, Aug ust 17, 1999 4: 19 PM
Autotalk — you can set the ET-929 so
you can answer a call simply by lifting
the handset from the base.
Tone or Pulse Dialing — lets you use
your phone with tone or pulse (rotary) dialing and lets you switch from pulse to
tone dialing for long-distance, bank-byphone, or other special services.
Super CCT Noise-Reduction Circuitry
— provides clear telephone conversations with sound clarity comparable to
that of a corded phone.
Redial — lets you quickly redial the last
number dialed.
Flash — sends an electronic switchhook signal for use with special phone
services, such as Call Waiting.
Hearing-Aid Compatibility — lets you
use the ET-929 with hearing aids that
have a T (telephone) switch.
This telephone has been tested and
found to comply with all applicable UL
and FCC standards.
Important Caller ID Information
To use the phone’s Caller ID and Call
Waiting with Caller ID features, you
must be in an area where those services
are available and you must subscribe to
those services through your local pho ne
company.
Where Caller ID is offered, one or more
options are generally available:
• caller’s number only
• caller’s name only
• caller’s name and number
Warning: To prevent f ire or shoc k
hazard, do not expose this product
to rain or moisture.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-S ERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
!
We recommend you record your
phone’s serial number here. The number is on the bottom of the base.
Serial Number: __________________
This symbol is intended to alert you to
the presence of uninsulated dangerous vo ltage wi thin the product’s enclosure that might be of sufficient
magnit ude t o con st itute a r isk of el ectric shock. Do not open the product’s
case.
This symbol is intended to inform you
that important operating and mainte-
!
nance i nstruct ions ar e incl uded in the
literature accompanying this product.
3
43-109 9.fm Page 4 Tue sday, Aug ust 17, 1999 4: 19 PM
Important:
• Cordless phones such as this one
require AC power to operate. W hen
the power is off, you cannot make or
receive calls using your ET-929. To
be safe, you should also have a
phone that does not need AC power
to operate (not a cordless phone),
so you can still make and receive
calls if there is an AC power failure.
• Your phone operates on standard
radio frequencies as allocated by
the FCC. It is possible for other radio units operating nearby on similar
frequencies to unintentionally intercept your conversation or cause interference. This possible lack of
privacy can occur with any cordless
phone.
READ THIS BEFORE
INSTALLATION
Your ET-929 conforms to federal regulations, and you can connect it to most
telephone lines. However, each device
that you connect to the telephone line
draws power from the line. We refer to
this power draw as the device’s
equivalence number
is on the bottom of the base.
If you are using more than one phone or
other device on th e line, add up all the
RENs. If the total is more than five, your
phones might not ring. In rural areas, a
total REN of three might impair ringer
operation. If ringer operation is impaired,
remove a device from the line.
, or REN. The REN
ringer
FCC STATEMENT
Your ET-929 complies with Part 68 of
FCC Rules
provide the FCC registration number
and the REN to your phone company.
These numbers are on the bottom of the
base.
Note: You must not connect your phone
to any of the following:
• coin-operated syste ms
• party-line systems
• most electronic key phone systems
The ET-929 complies with the limits for
a Class B digital device as specified in
Part 15 of
vide reasonable protection against radio and TV interference in a residential
area. However, your equipment might
cause TV or radio interference even
when it is operating properly. To eliminate interference, you can try one or
more of the following corrective measures:
• Reorient or relocate the receiving
antenna.
• Increase the distance between the
equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and t he radio or TV.
Consult your local RadioShack store if
the problem still exists.
. You must, upon request,
FCC Rules
. These limits pro-
4
g
43-109 9.fm Page 5 Tue sday, August 17, 1999 4: 19 PM
CONTENTS
Installation ............................................................................................................ 6
Mounting the Phone ........................................................................................ 6
On a Desk .......... .............. ................................... .................................... .. 6
On a Wall Plate ....... ............................ ........................................... ........... 7
Directly On a Wall ..................................................................................... 8
Connecting and Charging the Battery Pack .................................................... 9
Setting the Dialing Mode ............................................................................... 11
Setting the Ringer’s Tone and Volume .......................................................... 12
Turning Autotalk On/Off ................................................................................. 12
Storing Your Area Code ................................................................................ 13
Setting Caller ID with Call Waiting ................................................................. 13
Operation ............................................................................................................ 14
Making Calls .................................................................................................. 14
Answering Calls ............................................................................................. 14
Setting the Handset Volume .......................................................................... 14
Changing the Channel ............................................... ............ ..... ....... ....... ..... 14
Using REDIAL ............................................................................................... 15
Using FLASH ................................................................................................. 15
Using Tone Services on a Pulse Line ............................................................ 15
Paging ........................................................................................................... 16
Memory Dialing ............................................................................................. 16
Storing a Number and Name in Memory ................................................ 16
Editing or Deleting a Memory Number .................................................... 18
Entering a Pause .................................................................................... 18
Dialing a Memory Number ...................................................................... 18
Chain-Dialing Service Numbers .............................................................. 19
Testing Stored Emergency Numbers ...................................................... 19
Using a Headset ............................................................................................ 19
Caller ID Operation ............................................................................................ 20
Reviewing Caller ID Records ........................................................................ 20
Caller ID Me ssages ................................................................................ 21
Dialing from a Caller ID Record ..................................................................... 21
Storing a Caller ID Record to Memory .......................................................... 22
Deleting Caller ID Records ............................................................................ 22
Troubleshootin
Care and Maintenance ....................................................................................... 25
Replacing the Battery Pack ........................................................................... 26
The FCC Wants You to Know ........................................................................ 27
Lightning ........................................................................................................ 27
................................................................................................. 23
5
43-109 9.fm Page 6 Tue sday, August 17, 1999 4: 19 PM
INSTALLATION
MOUNTING THE PHONE
You can place the phone on a desk or
table, mount it on a s tandard wall plate,
or mount it directly on a wall.
Select a location that is:
• near an AC outlet
• near a telephone line jack
• out of the way of normal activities
• away from electrical machinery,
electrical appliances, metal walls or
filing cabinets, wireless intercoms,
alarms, and room monitors
• away from other cordless phones
The base’s location affects the handset’s range. If you have a choice of several locations, try each to see which
provides the best performance.
Caution:
designed specifically for your ET-929.
Use only the supplied adapter.
The supplied AC adapter was
On a Desk
Follow these steps when you place the
base on a desk or table.
1. Insert the bracket’s tabs into the
base’s upper tab slots as shown,
then press down on the bracket’s
clips and insert them into the clip
slots.
Clip Slots
Clips
Uppe r Tab Slots
2. Plug one end of the supplied long
modular cord into the
on the back of the base.
TEL LINE
jack
Notes:
• Your telephon e connects directly to
a modular phone line jack. If your
phone line jack is not a modular
jack, you can update the wiring
yourself, using jacks and adapters
available from your local RadioShack store. Or, you can let the
telephone company update the wiring for you.
• The USOC number of the jack to be
installed is RJ11C, or RJ11W for a
wall plate jac k .
6
3. Plug the modular cord’s other end
into a modular phone line jack.
43-109 9.fm Page 7 Tue sday, August 17, 1999 4: 19 PM
4. Insert the supplied AC adapter’s
barrel plug into the
DC IN 9V
jack on
the back of the base.
5. Route the adapter’s cord through
the strain relief slot on the bracket.
Strain
Relief Slot
Lower
Tab
Slots
Tabs
Clip Slots
2. Plug one end of the supplied short
modular cord into the
TEL LINE
jack
on the back of the base.
6. Plug the adapter into a standard AC
outlet.
7. Lift the base’s antenna to a vertical
position.
On a Wall Plate
1. Insert the bracket’s tabs into the
base’s lower tab slots as shown,
then press down on the bracket’s
clips and insert them into the clip
slots.
3. Insert the supplied AC adapter’s
barrel plug into the
DC IN 9V
jack on
the back of the base.
4. Route the adapter’s cord through
the narrow groove on the bottom of
the bracket.
Narrow
Groove
7
/16"
3
15/16
43-109 9.fm Page 8 Tue sday, August 17, 1999 4: 19 PM
5. Plug the modular cord into the wall
plate jack, then align the bracket’s
keyhole slots with the wall plate
studs and slide the base do wnward
to secure it.
6. Plug the adapter into a standard AC
outlet.
7. Press and lift out the handset holder, rotate it 180
, then snap it back
×
into place.
Directly On a Wall
For this mounting method, you need two
screws (not supplied) with heads that fit
into the keyhole s lots on the bottom of
the base.
1. Drill two holes 3
15
/
16
inches (100 mm)
apart. Then thread a
screw into each hole,
"
letting the heads extend about
5
/
16
inch (8
mm) from the wall.
2. Insert the bracket’s tabs into the
base’s lower tab slots as shown,
then press down on the bracket’s
clips and insert them into the clip
slots.
Lower
Tab
Slots
Tabs
5
Clip Slots
3. Plug one end of the supplied long
8. Lift the base’s antenna to a vertical
position.
modular cord into the
on the back of the base.
TEL LINE
jack
8
43-109 9.fm Page 9 Tue sday, August 17, 1999 4: 19 PM
4. Insert the supplied AC adapter’s
barrel plug into the
the back of the base.
5. Route the modular and adapter
cords through the grooves on the
bottom of the bracket.
DC IN 9V
jack on
8. Plug the adapter into a standard AC
outlet.
Grooves
6. Align the keyhole slots with the
mounting screws and slide the ba se
downward to secure it.
7. Plug the modular cord into a modular phone line jack.
9. Press and lift out the handset holder, rotate it 180
into place.
10. Lift the base’s antenna to a vertical
position.
, then snap it back
×

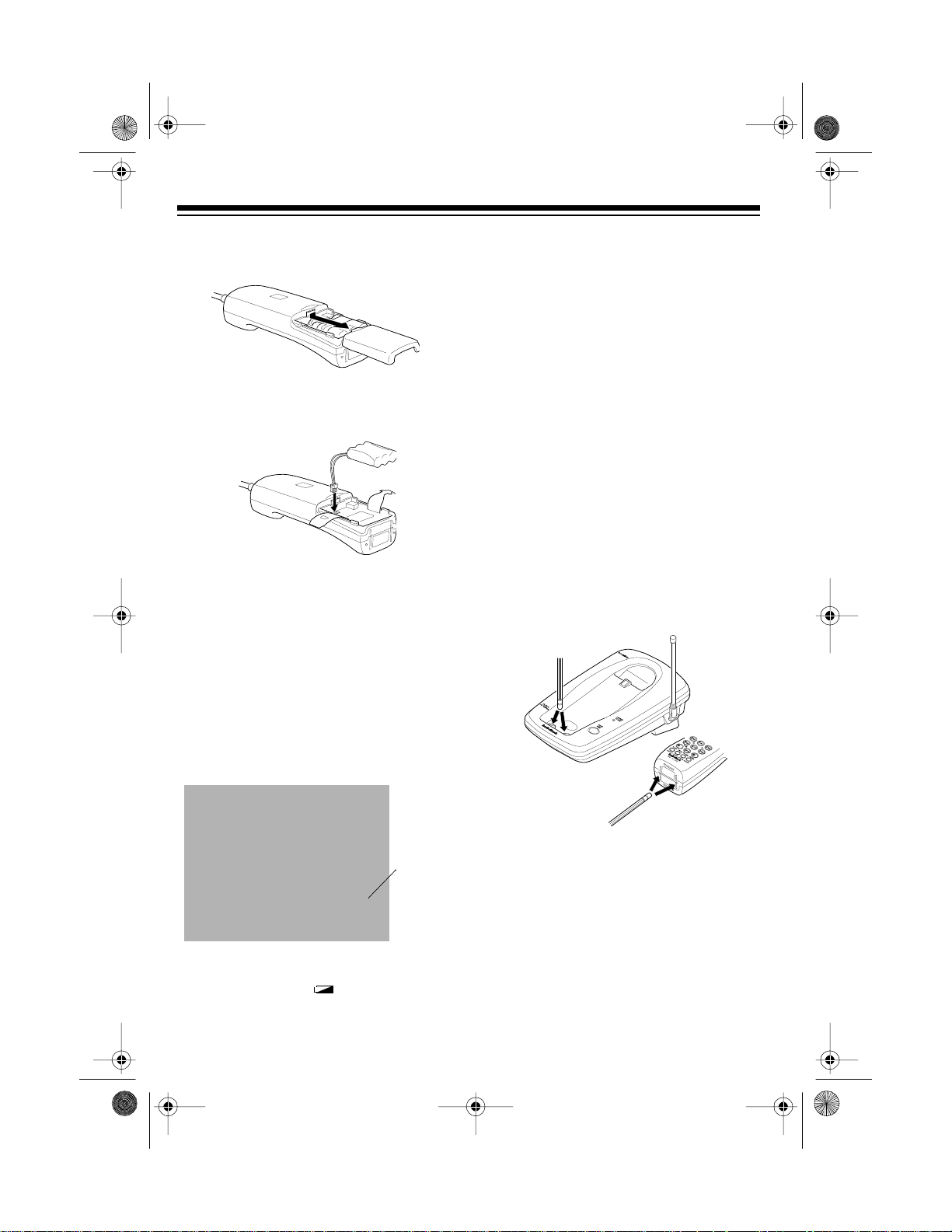

CONNECTING AND
CHARGING THE BATTERY
PACK
The ET-929 comes with a rechargeable
nickel-cadmium battery pack in the
handset, but not connected. Before using your phone, you must connect the
battery pack, then charge it for about 14
hours.
9
Loading...
