Radio Shack ET-925 User Manual
43-109 5.fm Page 1 Tuesday, August 17, 1999 3:37 PM
Cat. No. 43-1095
OWNER’S MANUAL
Please read before using this equipment.
ET-92 5
900 MHz Dual Keypad
Cordless Speakerphone
y
y
y
y
ging
g
g
43-109 5.fm Page 2 Tuesday, August 17, 1999 3:37 PM
FEATURES
Your RadioShack ET-925 900 MHz
Dual Keypad Cordless Speakerphone
uses the 900 MHz band which means
less interference, clearer sound, and
greater range than 46/49 MHz cordless telephones.
And, its headset jack m eans you can
connect an optional headset for handsfree convenience while you use the
ET-925.
Its features include:
900 MHz Operation
— provides longer range and less interference than
many other cordless phones.
Speakerphone
— lets you make or
answer calls without using the handset
or a headset.
Dual Ke
— a full set of keys on
pads
both the ET-925’s handset and base
let you use either keypad to make and
answer calls or program the phone’s
features.
40 Channels
— automatically selects
a clear channel when you make or answer a call. You can also manually
change channels during a call.
Super CCT Noise-Reduction Circuitr
— provides clear telephone
conversations, giving you sound clarity
comparable to that of a corded phone.
Securit
Access-Protection Code
—
automatically prevents other cordless
phone users from using your phone
line while the handset is off the base.
®
COM-LOK
— ensures that other
cordless phone users cannot use y our
phone line when the hands et is o n t he
base.
Redial
— lets you quickly redial the
last number dialed.
20-Number Memor
Dialing
— lets
you store up to 20 numbers in memory
— 10 on the handset and 10 on the
base — for easy dialing.
Pa
— lets you send a paging signal from the base to the handset to
page someone or locate the handset if
you misplace it.
— sends a n electronic switch-
Flash
hook signal for use with special phone
services, such as Call Waiting.

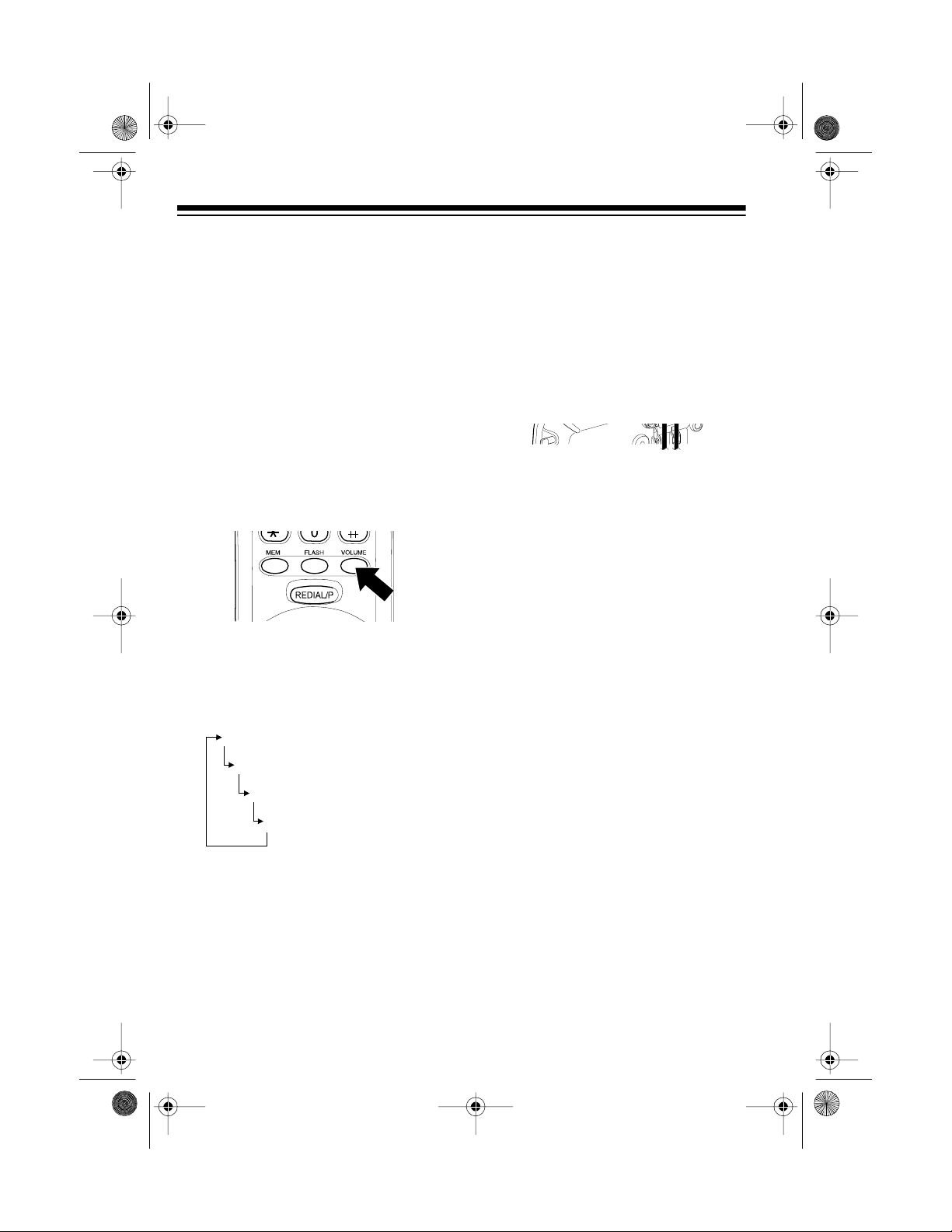

Volume Control
— lets you adjust
the volume you hear through the
handset.
Pro
rammable Ringer
— lets you
select from four ringer tone/volume
settings.
Tone/Pulse Dialin
— lets you use
your phone with either type of service.
© 1997 Tandy Corporation.
COM-LOK and RadioShack are registered trademarks used by Tandy Corporation.
All Rights Reserv ed .
2
CAUTION
43-109 5.fm Page 3 Tuesday, August 17, 1999 3:37 PM
Auto Talk — you can answer a call by
just lifting the handset from the base.
Hearing-Aid Compatibility — lets
you use your phone with heari ng aids
that have a T (telephone) switch.
This telephone has been tested and
found to comply with all applicable UL
and FCC standards.
Important Note: Cordless phones
such as this one require AC power to
operate. When the AC power is off,
you cannot dial out or receive incoming
calls using your ET-925. To be safe,
you should also have a phone that
does not need AC power to operate
(not a cordless ph one) so you can still
make and receive calls if there is an
AC power failure.
We recommend you record your
phone’s serial number here. The number is on the bottom of the base.
Warning: To reduce the risk of fire
or shock hazard, do not expose
this product to rain or moisture.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
This symbol is inten ded to alert yo u
to the p r es en c e o f un in su lated d an gerous voltage within the product’s
enclosure that mi ght be of suff icient
magnitude to constitute a risk of
electric shock. Do not open the
product’s case.
This symbol is intended to inform
you that important operating and
!
maintenance instructions are included in the literature accompanying this product.
!
Serial Number __________________
3
43-109 5.fm Page 4 Tuesday, August 17, 1999 3:37 PM
READ THIS BEFORE
INSTALLATION
Each device that you connect to the
phone line draws power from the phone
line. We refer to this power draw as the
device’s
REN. The REN is on the bottom of the
base.
If you are using more than one phone or
other device on the line, add up all the
RENs. If the tot al is more tha n five, your
phones might not ring. In rural areas, a
total REN of three might impair ringer
operation. If ringer operation is impaired, remove a device from the line.
ringer equivalence numb er
, or
FCC STATEMENT
This telephone complies with Part 68 of
FCC Rules
provide the FCC Registration Number
and the REN to your phone com pany.
These numbers are on the bottom of
the base.
Note:
phone to any of the following:
• coin-operate d syste ms
• party-line systems
• most electronic key phone systems
. You must, upon request,
You must not connect your
4
g
43-109 5.fm Page 5 Tuesday, August 17, 1999 3:37 PM
CONTENTS
Installation ............................................................................................................... 6
Selecting a Location ........................................................................................... 6
Placing the Base on a Desk Top .................................................................. 6
Mounting the Base on a Wall Plate .............................................................. 7
Mounting the Base Directly on the Wall ....................................................... 8

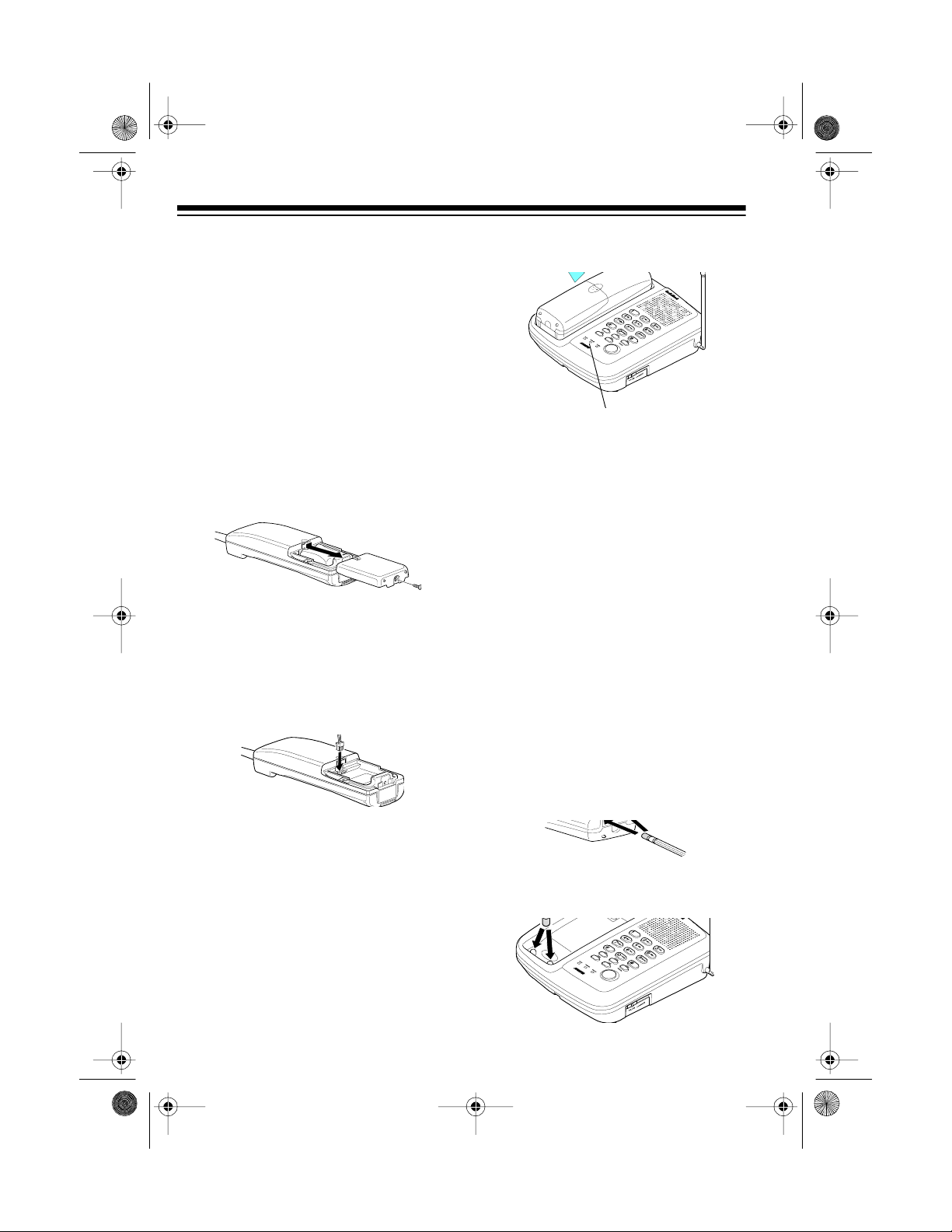

Connecting and Charging the Battery Pack ..................................................... 10
Setting the Dialing Mode .................................................................................. 11
Setting the Ringer ............................................................................................ 12
On the Handset ......................................................................................... 12
On the Base ............................................................................................... 12

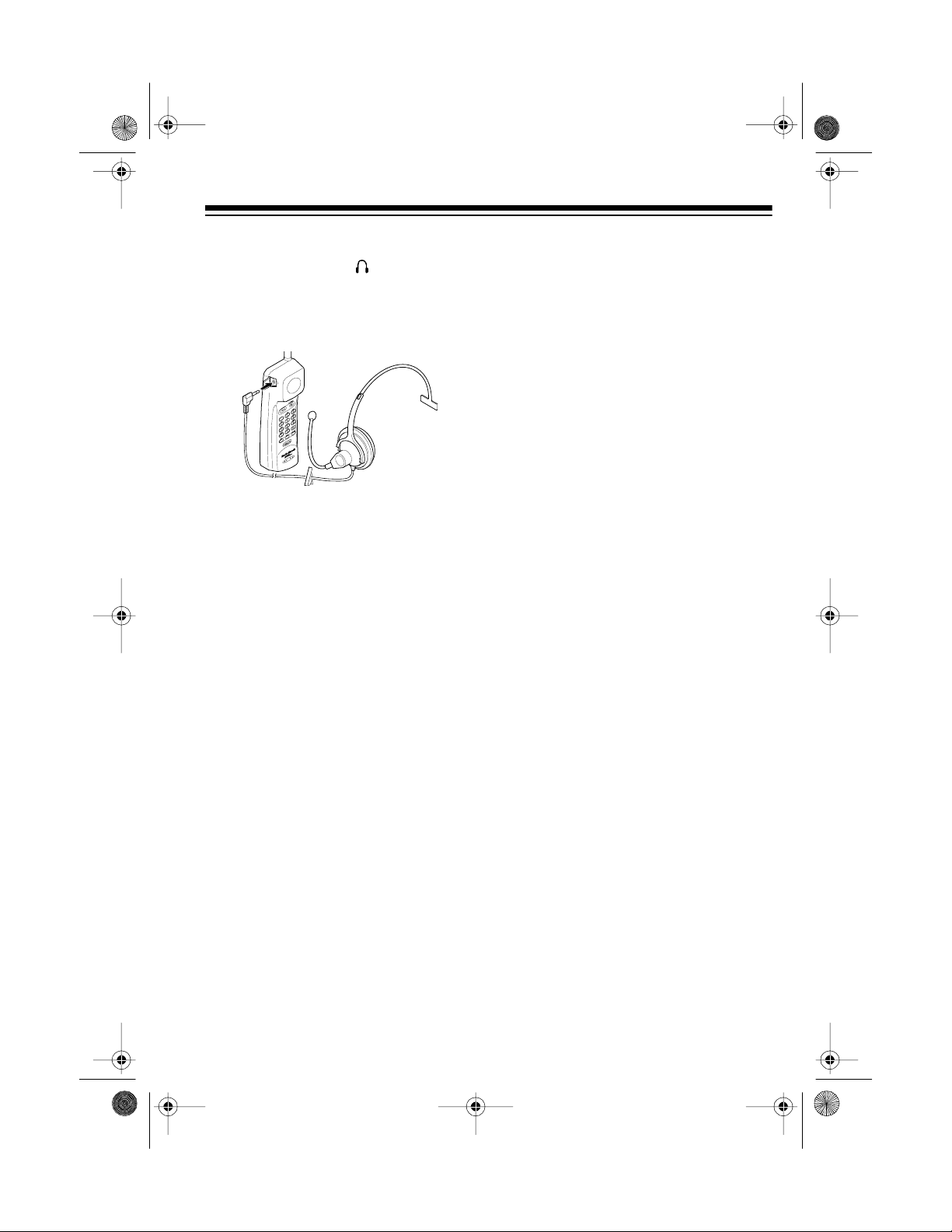

Using a Headset ............................................................................................... 12
Operation ............................................................................................................... 14
Making and Receiving Calls ............................................................................. 14
Using the Handset ..................................................................................... 14
Using the Speakerphone ........................................................................... 14
Switching Between the Handset and Speakerphone ................................ 15
Using Both the Handset and Speakerphone ............................................ . 15

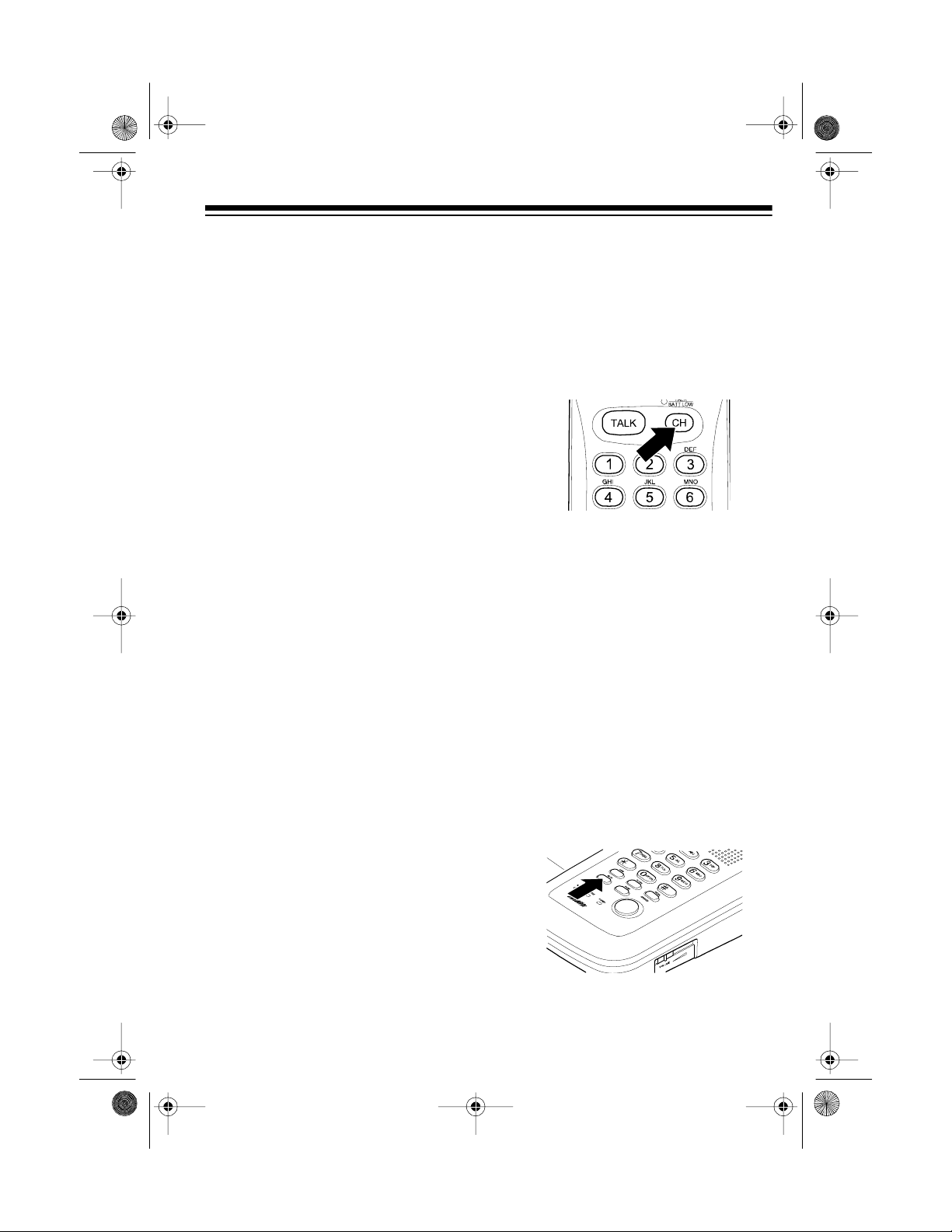

Changing the Channel ............................................................................... 15
Using Mute ....................................................................................................... 15
Using Redial ..................................................................................................... 16
Using Flash ...................................................................................................... 16
Using Tone S ervices on a Pulse Line ............................................................... 16
Paging .............................................................................................................. 17
Memory Dialing ................................................................................................ 17
Storing a Number in Memory ..................................................................... 17
Entering a Pause ....................................................................................... 18
Dialing a Memory Number ......................................................................... 19
Chain-Dialing Service Numbers ................................................................. 19
Testing Stored Emergency Numbers ......................................................... 19
Troubleshootin

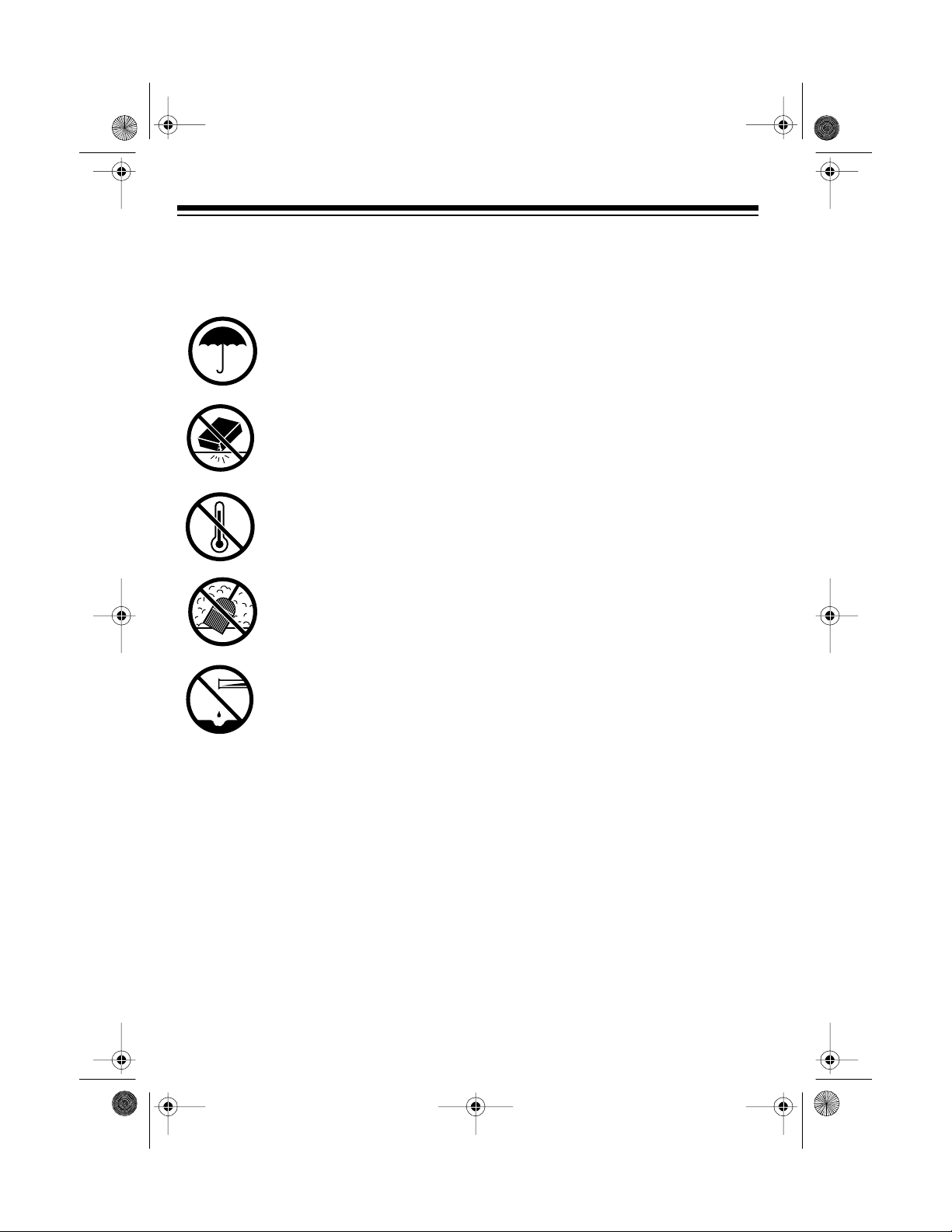

Care and Maintenance ......................................................................................... 22

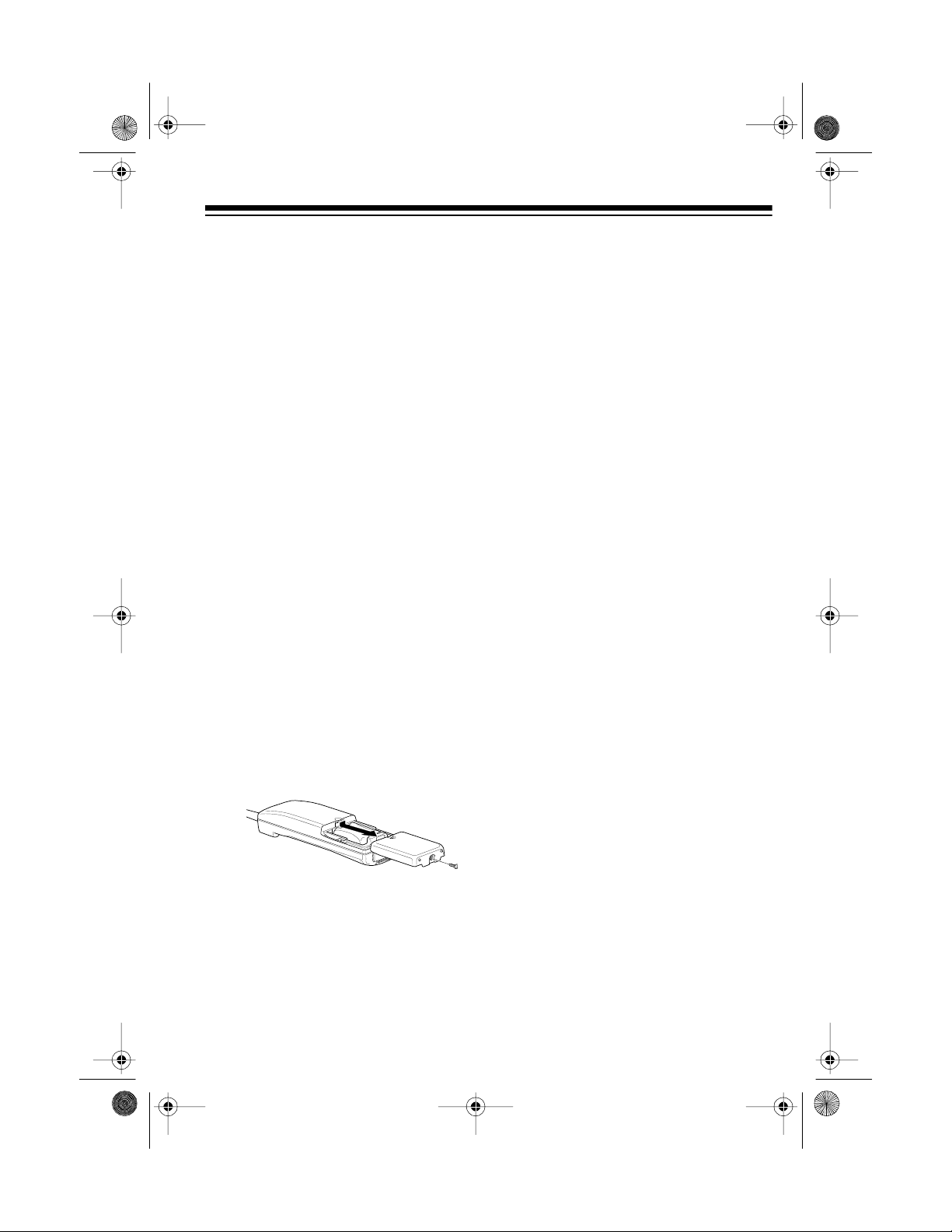

Replacing the Battery Pack .............................................................................. 23
The FCC Wants You to Know .......................................................................... 24
Lightning ........................................................................................................... 24
................................................................................................... 20
5
43-109 5.fm Page 6 Tuesday, August 17, 1999 3:37 PM
INSTALLATION
SELECTING A
LOCATION
You can place the ET-925’s base on a
desk top or table, or mount it on a wall.
Select a location that is:
• near an AC outlet
• near a telephone line jack
• out of the way of normal activities
• away from electrical machinery,
electrical appliances, metal walls
or filing cabinets, wireless intercoms, alarms, and room monitors
• away from other cordless phones
The base’s location affects the handset’s range. If you have a choice of
several locations, try each to see
which provides the best performance.
Caution:
AC adapter was designed specifically
for your ET-925. Use only the supplied
adapter.
The supplied RadioShack
Placing the Base on a
Desk Top
Follow these steps when you place the
base on a desk, shelf, or table.
1. Plug one en d of the supp lied long
modular cord into the
jack on the back of the base.
2. Plug the modular cord’s other end
into a modular phone line jack.
TEL LINE
Notes:
6
• Your telephone connects directly
to a modular telephone line jack. If
your phone line jack is not a modular jack, you can update the wiring yourself, using jacks and
adapters available at your local
RadioShack store. Or, you can let
the phone company update the
wiring for you.
• The USOC number of the jack to
be installed is RJ11C (RJ11W if
you want to mount it on a wall
plate).
3. Insert the supplied AC adapter’s
barrel plug into the
on the back of the base.
DC IN 9V
jack
43-109 5.fm Page 7 Tuesday, August 17, 1999 3:37 PM
4. Route the adapt er’s cord through
the strain relief slot on the base.
Strain Relief
Slot
5. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.
6. Lift the base’s antenna to a vertical position.
Mounting the Base on a
Wall Plate
1. Plug one end of the supplied short
modular cord into the
jack on the back of the base.
TEL LINE
2. Route the modular cord through
the upper groove on the bot tom of
the base.
Upper
Groove
3. Insert the supplied AC adapter’s
barrel plug into the
DC IN 9V
jack
on the back of the base.
4. Route the adapter ’s cord through
the right side of the strain relief
slot on top of the base and
through both the upper and lower
grooves on the bottom of the
base.
Strain Relief
Slot
Upper
Groove
Lower
Groove
7
43-109 5.fm Page 8 Tuesday, August 17, 1999 3:37 PM
5. Plug the short modular cord into
the wall plate jack, press the excess cord into the slot in the center of the base, then align the
base’s keyhole slots with t he wall
plate studs and slide the base
downward to secure it.
Slot for
Excess
Cord
6. Press and lift out the handset
holder, turn it over and rotate it
180°, then snap it back into pla ce
so it holds the handset.
Mounting the Base Directly
on the Wall
For this mounting method, you need
two flat-head wood screws (not supplied) with heads that fit into the keyhole slots on the bottom of the base.
1. Drill two holes 3
5
/
16
inches apart. Then
thread a screw into
each hole, letting the
heads extend about
3
/16 inch from the
wall.
2. Plug one en d of the supp lied long
modular cord into the
jack on the back of the base.
3
/
16
16
35/
TEL LINE
7. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.
8. Lift the base’s antenna to a vertical position.
8
3. Route the modular cord through
the upper and lower grooves on
the bottom of the base.
Upper
Groove
Lower
Groove
43-109 5.fm Page 9 Tuesday, August 17, 1999 3:37 PM
4. Insert the supplied AC adapter’s
barrel plug into the
DC IN 9V
jack
on the back of the base.
5. Route the adapt er’s cord through
the right side of the strain relief
slot on top of the base and
through both the upper and lower
grooves on the bottom of the
base.
Strain Relief
Slot
Upper
Groove
Lower
Groove
7. Plug the modular cord into a modular phone line jack.
8. Press and lift out the handset
holder, rotate it 180°, then snap it
back into place so it holds the
handset.
6. Align the keyhole slots with the
mounting screws and slide the
base downward to secure it.
9. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.
10. Lift the base’s antenna to a vertical position.
9
Loading...
