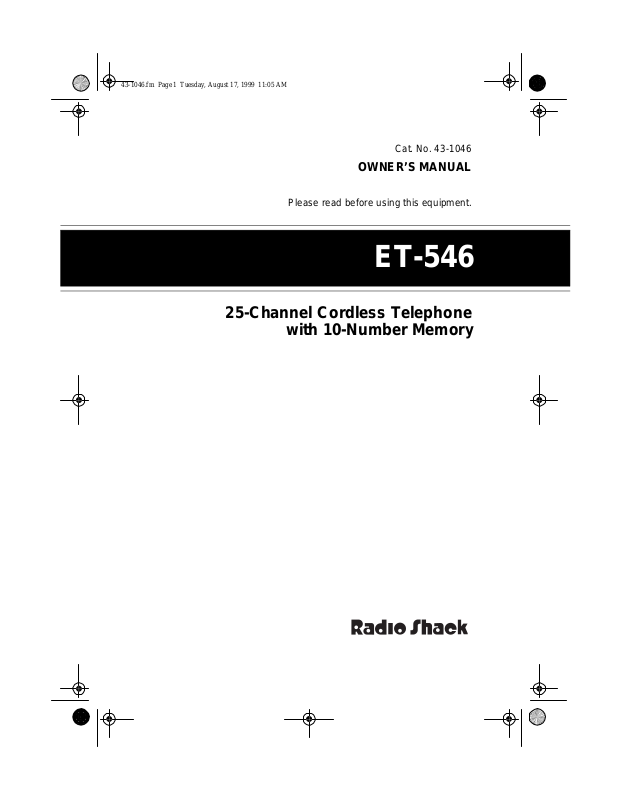

25-Channel Cordless Telephone
Cat. No. 43-1046
OWNER’S MANUAL
Please read before using this equipment.
ET-546
with 10-Number Memory
y
y
y
y
g
g
43-104 6.fm Page 2 Tuesday, August 17, 1999 11:05 AM
Your Radio Shack ET-546 25-Channel Cordless Telephone with 10-Number Memory includes t he latest advances in cordless phone technology. It in­cludes the following features:
25-Channel Auto-Scan
— automati­callly selects the channel w ith the best performance and least interference. You can also change the channel man­ually.
Advanced Super CCT Circuitr
— provides clarity comparable to a cord­ed phone, reduces background noise, and increases effective operating dis­tance.
10-Number Memor
— lets you store 10 phone numbers in memory for easy dialing.
COM-LOK
— ensures that other cord­less phone users cannot use your phone line while the handset is on the base.
Automatic Securit
Access Code
— changes each time you return the handset to the base to help prevent other cordless phone users from using your phone line while the handset is off the base.
— sends an electronic switch-
Flash
hook signal for use with special phone services such as call waiting.
Redial
— quickly redials the last num-
ber dialed, with the touch of a button.
Touch To ne or Pulse (Rota r
— lets you connect y our phone to
in
) Dial-
either type of service.
Hearin
-Aid Compatibility
— lets you use your phone with he aring aids that have a T (telephone) switch.
We recommend you record your phone’s serial number in the space be­low. The serial is on the bottom panel of the base.
Serial Number:__________________ Please read this owner’s manual care-
fully so you ca n enjoy all of your tele­phone’s features.
Important:
Cordless phones such as this one require AC power to operate. When the A C power is off, you c annot dial out or receive incoming calls using your cordless phone. For th is reason, the cordless phone should not be your only telephone. To be safe, you should also have a phone that does not re­quire AC power to operate (not a cord­less phone) so you can still make a nd receive calls if there is an AC power failure.
© 1996 Tandy Corporation.
COM-LOK and Radio Shack are registered trademarks used by Tandy Corporation.
All Rights Reserv ed .
2
43-104 6.fm Page 3 Tuesday, August 17, 1999 11:05 AM
This telephone has been tested and found to comply with all applicable FCC and UL standards.
Note: Your 25-Channel Cordless Tele­phone with 10-Number Memory op er­ates on standard radio frequencies, as allocated by the FCC. Therefore, it is possible for other radio units operating on similar frequencies, within a certain area, to inadvertently intercept your conversations and/or cause interfer­ence on your cordless telephone. Thi s lack of privacy can occur with any cordless telephone.
Warning: To prevent fire or shock haz­ard, do not expo se t his product to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO U SER-SE RVICE­ABLE PARTS INSIDE. REFER SERVIC­ING TO QUALIFIED PERSONNEL.
This sym bol is in te nd ed to a le rt yo u to the pr e s en ce of unins u la ted dan­gerous voltage within the product’s enclos u re t h at m ig ht b e of s ufficie nt magnitude to constitute a risk of electric shock. Do not open the product’s case.
!
READ THIS BEFORE INSTALLATION
We have designed your t elephone to conform to federal regulations, and you can connect it to most telephone lines. However, each device that you connect to the phone line draws power from the phone line. We refer to this power draw as the device’s ringer equivalence number, or REN. The REN is shown on the b ottom of your phone.
If you are using more than one phone or other device on the line, add up all the RENs. If the total is more than five, your phone might no t ring. In rural ar­eas, a total REN of three might impair ringer operation. If ringer operation is impaired, remove a device from the line.
FCC STATEMENT
This telephone complies with Part 68
FCC Rules
of quest, provide the registration number and the REN to your phone com pany. These numbers are located on the bot­tom of your phone.
Note: You must not connect your phone to any of the following:
. You must, upon re-
This symbol is intended to inform you that important operating and
!
maintenance instructions are in­cluded in th e l itera ture a ccomp an y­ing this product.
• Coin-operated systems
• Party-line systems
• Most electronic key phone sys­tems
3
g
43-104 6.fm Page 4 Tuesday, August 17, 1999 11:05 AM
CONTENTS
Preparatio n ........................................................................................................... 5
Connecting the Battery .................................................................................... 5
Installing the Handset’s Antenna.................................................................. .....5
Selecting a Location ........................................................................................ 5
Placing the Base on a Desk Top ............................................................... 6
Mounting the Base on a Wall Plate ........................................................... 6
Mounting the Base Directly on the Wall .................................................... 7
Charging the Battery ........................................................................................ 9
Setting the Dialing Mode ................................................................................. 9
Setting the Ringer On/Off .............................................................................. 10
Operation ............................................................................................................ 11
Making/Answering a Call ............................................................................... 11
Using the Handset at the Base ............................................................... 11
Using the Handset Away from the Base ................................................. 11
Reducing Interference ............................................................ .. ....... .......... .. .. 12
Redial ............................................................................................................ 12
Using Flash .................................................................................................... 12
Using Tone Services on a Pulse Line............................................................. 13
Using Page .................................................................................................... 13
Memory Dialing .............................................................................................. 14
Storing a Number in Memory .................................................................. 14
Entering a Pause in a Memory Number .................................................. 15
Dialing a Stored Number ......................................................................... 15
Chain Dialing Service Numbers .............................................................. 15
Testing Stored Emergency Numbers ...................................................... 15
Troubleshootin
Care and Maintenance ....................................................................................... 18
Replacing the Battery .................................................................................... 19
The FCC Wants You to Know ........................................................................ 19
Lightning ........................................................................................................ 20
4
................................................................................................. 16
43-104 6.fm Page 5 Tuesday, August 17, 1999 11:05 AM
PREPARATION
CONNECTING THE BATTERY
Before you use your phone for the first time, you must connect the battery, then charge it for about 12-15 hours.
Slide off the battery compartment cov­er on the back of the handset. Connect the battery to the pins inside the bat­tery compartment.
Then replace the cover, install the handset’s antenna, mount the phone (see “Selecting a Location”), and follow the instructions under “Charging the Battery.”
SELECTING A LOCA T ION
You can place your phone on a desk, shelf, or table, or mount it on a wall. Select a location that is:
• Near an AC outlet
• Near a telephone line jack
• Out of the way of normal activities
• Away from fluorescent lights, elec­trical machinery, electrical appli­ances, and metal walls or filing cabinets
• Away from computers, remote control toys, wireless intercoms, alarms, and room monitors
The base’s location affects the phone’s range. If you have a choice of several locations, try each to see which pro­vides the best performance.
Notes:
INSTALLING THE HANDSET’S ANTENNA
Insert the antenna into the hole at the top of the handset, then rotate the an­tenna clockwise until it is secure.
• If the phone line jack is not a mod­ular jack, you must update the wir­ing. You can do this yourself, using jacks and adapters avail­able at your local Radio Shack store, or you can let the phone company update the wiring for you.
• The phone company will charge you for the install ation of the nec­essary jacks.
5
43-104 6.fm Page 6 Tuesday, August 17, 1999 11:05 AM
• The USOC number of the jack to be installed is RJ11W for a wall jack or RJ11C for a baseboard jack.
Caution: You must use a 120 VAC/12 VDC adapter that delivers at least 200 milliamps. Its plug must correctly fit the phone’s adapter meets these requirements. Using an adapter that does not meet these requirements could dam age the phone or the adapter.
12VDC
jack. The supplied
Placing the Base on a Desk Top
Follow these steps when you place the base on a desk, shelf, or table.
5. Place the handset upright over the charging contacts on the top of the base (see “Charging the Bat­tery”).
Note: The phone will not charge if you try to use the charging con­tacts on the side of the bas e while it is flat on a desk top.
6. Move the base’s antenna to a ver­tical position.
Mounting the Base on a Wall Plate
You need a short modular cord (such as Radio Shack C at. No. 27 9-390, not supplied) and a standard wall plate for this mounting method.
1. Plug one end of the supplied mod­ular cord into the on the back of the base.
2. Plug the modular cord’s other end into a modular phone line jack.
3. Insert the supplied AC adapter’s barrel plug into the the back of the base.
4. Plug the adapter into a standard AC outlet.
6
TEL. LINE
12VDC
jack on
jack
1. Plug one end of the short modular cord into the back of the base.
TEL. LINE
jack on the
43-104 6.fm Page 7 Tuesday, August 17, 1999 11:05 AM
2. Route the short cord downward through the slot on the base’s bot­tom and under the clips as shown.
3. Route the other end of the short cord through the hole in the bracket’s center.
4. Attach the supplied bracket to the bottom of the base by inserting the tabs on the bracket into the slots on the base, then sliding the bracket up.
5. Insert the supplied AC adapter’s barrel plug into the
12VDC
jack on the back of the base. Then plug the adapter into a standard AC outlet.
6. Plug the modular cord into the wall plate’s jack.
7. Align the bracket’s keyhole slots with the wall plate studs and slide the base downward to secure it.
7
43-104 6.fm Page 8 Tuesday, August 17, 1999 11:05 AM
8. Carefully place the handset in the cradle at the top of t he base and make sure it is secure.
9. Move the base’s antenna to a ver­tical position.
Note: If you later want to mount the base on a desktop, press
PUSH
on the bottom of the base and slide the brack­et down to remove it.
Mounting the Base Directly on the Wall
You need two w ood screws (not sup­plied) for this mounting method.
15
1. Drill t wo holes 3 Then thread a screw into each hole, letting the heads extend inch from the wall.
/16 inches apart.
1
2. Plug one end of the supplied mod­ular cord into the
TEL. LINE
jack
on the back of the base.
3. On the bottom of the base, route the modular cord downward and under the slot’s clips as shown.
4. Attach the bracket to the b o tto m of the base by ins erting the tabs on the bracket into the slots on the base, then sliding the bracket up.
/
4
5. Insert the supplied AC adapter’s barrel plug into the
12VDC
jack on the back of the base. Then plug the adapter into a standard AC outlet.
8
