2.4 GHz 2-Line Digital Spread Spectrum Cordless Phone

with Call Waiting/Caller ID

Owner’s Manual

Please read before using this equipment.

Important Information

This telephone has been tested and found to comply with all applicable UL and FCC standards.

WARNING:

shock hazard, do not expose this product to rain or moisture.

CAUTION:

ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

To reduce the risk of fire or

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

TO REDUCE THE RISK OF

This symbol is intended to alert you to the presence of uninsulated dangerous voltage within the product’s enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product’s case.

This symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product.

READ THIS BEFORE INSTALLATION

We have designed your phone to conform to federal regulations, and you can connect it to most telephone lines. However, each phone and each device, such as a telephone or answering machine, that you connect to the telephone line draws power from the telephone line. We refer to this power draw as

2001 RadioShack Corporation.

RadioShack and RadioShack.com are trademarks used by RadioShack Corporation.

the device's ringer equivalence number, or REN. The REN is on the bottom of your phone.

If you use more than one phone or other device on the line, add up all of the RENs. If the total is more than five (three in rural areas), your telephones might not ring. If ringer operation is impaired, remove a device from the line.

Important:

one require AC power to operate. When the AC power is off, you cannot dial out or receive incoming calls using your cordless phone. For this reason, this phone should not be your only telephone. To be safe, you should also have a phone that does not require AC power to operate (not a cordless phone) so you can still make and receive calls if there is an AC power failure.

Some cordless phones operate at frequencies that might cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless phone should not be placed near or on top of a TV or VCR.

Cordless phones such as this

FCC STATEMENT

Your phone complies with Part 68 of

Rules

. You must, upon request, provide the FCC registration number and the REN to your telephone company. Both numbers are on the bottom of your phone.

Note:

You must not connect your phone to:

• coin-operated systems

• party-line systems

• most electronic key telephone systems

FCC

Important Information

THE FCC WANTS YOU TO KNOW

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

Rules

. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

FCC

you of your right to file a complaint with the FCC.

Also, the phone company can make changes to its lines, equipment, operations, or procedures that could affect the operation of this telephone. The telephone company notifies you of these changes in advance, so you can take the necessary steps to prevent interruption of your telephone service.

LIGHTNING

Your telephone has built-in protection circuits to reduce the risk of damage from surges in telephone line and power line current. These protection circuits meet or exceed the FCC requirements. However, lightning striking the telephone or power lines can damage your telephone.

Lightning damage is not common. Nevertheless, if you live in an area that has severe electrical storms, we suggest that you unplug your phone when storms approach to reduce the possibility of damage.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your local RadioShack store or an experienced radio/TV technician for help.

If you cannot eliminate the interference, the FCC requires that you stop using your cordless phone.

In the unlikely event that this phone causes problems on the phone line, the phone company can temporarily discontinue your service. If this happens, the phone company attempts to notify you in advance. If advance notice is not practical, the phone company notifies you as soon as possible and advises

Important Information

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Never install telephone wiring during a lightning storm.

4. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

5. Never touch uninstalled telephone wires or terminals unless the telephone line

has been disconnected at the network interface.

6. Use caution when installing or modifying telephone lines.

7. Do not fix the AC power supply cord to building surfaces with metal fittings (if the product has an AC power cord).

8. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

9. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

10. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

11. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided.

12. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your local power company.

14. Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

15. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

16. To reduce the risk of electric shock, do not disassemble this product. Take it to a qualified service technician when service or repair work is required. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when the product is subsequently used.

17. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power cord plug is damaged or frayed.

• If liquid has been spilled into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

13. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be stepped on.

Important Information

• If the product has been dropped or the cabinet has been damaged.

• If the product exhibits a distinct change in performance.

18. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

19. Do not use the telephone to report a gas leak in the vicinity of the leak.

BATTERY SAFETY INSTRUCTIONS

Caution:

read and follow these instructions.

1. Use only the appropriate type and size

2. Do not dispose of the battery pack in a

3. Do not open or mutilate the battery

4. Exercise care in handling the battery

5. Charge the battery pack provided or

To reduce the risk of fire or injury,

battery pack specified in the instruction manual provided for this product.

fire. The cell may explode. Check with local codes for possible special disposal instructions.

pack. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

pack in order not to short it with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.

identified for use with this product only in accordance with the instructions and limitations specified in the instruction manual provided for this product.

6. Observe proper polarity orientation between the battery pack and battery charger.

SAVE THESE INSTRUCTIONS

Important Information

Contents

Features .................................................................................................................................. 8

Installation ....................................................................................................................... ..... 10

Mounting the Phone ........................................................................................................ 10

Connecting to the Phone Lines ................................................................................ 10

On a Desk Top ......................................................................................................... 11

On a Wall Plate or Wall ............................................................................................ 11

Connecting, Charging, and Replacing the Battery Pack ................................................. 12

Setting the Dialing Mode ................................................................................................. 13

Adjusting the Ringer ........................................................................................................ 14

On the Handset ........................................................................................................ 14

On the Base ............................................................................................................. 14

Setting Auto Talk ............................................................................................................. 14

Setting Caller ID/Call Waiting .......................................................................................... 14

Storing Your Area Code .................................................................................................. 15

Basic Operation .................................................................................................................... 16

Using the Handset ................................... ................................. ... ... ................................. 16

Making a Call ............................. ... ... ................................. ... ... ................................. 16

Answering a Call ...................................................................................................... 16

Selecting the Channel .............................................................................................. 16

Setting the Handset Volume .................................................................................... 16

Using the Speakerphone ................................................................................................. 16

Making a Call ............................. ... ... ................................. ... ... ................................. 16

Answering a Call ...................................................................................................... 17

Adjusting the Speakerphone Volume ....................................................................... 17

Using Mute .......................................................... .................................. ... ................ 17

Putting a Call on Hold ..................................................................................................... 17

Switching Between the Handset and Speakerphone ...................................................... 17

Using Both the Handset and Speakerphone ................................................................... 18

Making a Conference Call ............................................................................................... 18

3-Way Conferencing ................................................................................................ 18

4-Way Conferencing ................................................................................................ 18

Using the Phone with Extension Phones ........................................................................ 19

Using Redial .................................................................................................................... 19

Using Flash ............................ ... ................................. ... .................................. ... ............. 19

Using Tone Services on a Pulse Line .............................................................................. 19

Using the Paging/Intercom Features ............................. ... .................................... ........... 19

Using a Headset ................................... .................................. .. ... .................................. .. 20

Memory Dialing ..................................................................................................................... 21

Storing a Number in Memory .......................................................................................... 21

In the Handset ................................................................ .. .................................. ... .. 21

Editing or Deleting a Number in the Handset’s Memory .......................................... 22

In the Base ..................................................... ................................. ......................... 22

Entering a Pause ..................................................................................... ... .. ........... 22

Contents

Testing Stored Emergency Numbers ....................................................................... 23

Reviewing Memory Numbers (Handset Only) ................................................................ 23

Dialing a Memory Number .............................................................................................. 23

Chain-Dialing Service Numbers ................................................. ... ................................. 23

Caller ID Operation (Handset Only) .................................................................................... 24

Reviewing Caller ID Records .......................................................................................... 24

Caller ID Messages ........................................................................................................ 24

Adding/Deleting the Area Code ...................................................................................... 25

Dialing Numbers from a Caller ID Record ...................................................................... 25

Storing a Caller ID Record to Memory ............................................................................ 25

Deleting Caller ID Records ............................................................................................. 25

Troubleshooting ................................................................................................................... 26

Care .............................................................................................................................. .. 27

Contents

Features

Your RadioShack 2.4 GHz 2-Line Digital Spread Spectrum Cordless Speakerphone uses advanced cordless telephone technology to give you superior audio quality and extended range. The phone lets you place an d receive calls on two separate telephone lines. It is designed to exacting standards that ensure reliability, long life, and outstanding performance.

The phone’s Caller ID unit records each caller’s telephone number (and name, if available in your area) and the date and time of the call, as provided by your local phone company to Caller ID service subscribers. If you subscribe to Call Waiting with Caller ID, the phone can show you the incoming caller information, even when you are already on the phone.

Your phone has these features:

2.4 GHz Operation

with less interference than many other cordless phones.

Spread Spectrum Technology

the signal across several frequencies, providing additional security for your phone conversations.

Caller ID Memory

ID records (40 for each line).

Speakerphone

calls without using the handset.

Dual Keypads

phone’s handset and base let you use either keypad to make and answer calls or use the phone’s features.

Backlight

when you press a button or when a call comes in to facilitate operation in a dark room.

— lights the handset’s keypad

— provides longer range

— spreads

— stores up to 80 Caller

— lets you make or answer

— a set of keys on both the

40-Number Memory Dialing

store up to 40 numbers in memory (30 on the handset and 10 on the base) for easy dialing.

Paging/Two-Way Intercom System

you send a signal from the base to the handset, or from the handset to the base, to page someone or locate the handset when it is away from the base. If someone answers, you can use the phone as an intercom.

3-Line Liquid Crystal Display

view an entire Caller ID record on one screen.

Volume Control

ume you hear through the handset.

Adjustable Ringer

or low volume for the ringers or turn it off on the handset and the base.

Facedown or Faceup Handset Charging

— you can place the handset on the base facedown or faceup.

Ample Talk and Standby Time

plied battery pack provides 6 hours of continuous talk time or 7 days of standby time (when fully charged).

35 Channels

channel when you make or answer a call.

Security Access-Protection Code

matically prevents other cordless phone users from using your phone line while the handset is off the base.

Two-Line Telephone System

easily handle two telephone lines at the same time. You can use both lines to make 3 or 4 way conference calls, or one line for data communication while you are talking on the other.

— lets you adjust the vol-

— lets you choose high

— automatically selects a clear

— lets you

— lets

— lets you

— the sup-

— auto-

— lets you

Features

Line Status Indicators

available, in use, or on hold.

— show if a line is

Headset Jack

calls with handsfree convenience using an optional headset.

Auto Talk

can answer a call by just lifting the handset from the base.

Any Key Answer

so you can press any key to answer a call when the handset is away from the base.

Redial

— lets you quickly redial any of the last three numbers dialed on the handset, or the last number dialed on the base.

Flash

— sends an electronic switchhook signal for use with special phone services, such as Call Waiting.

Tone/Pulse Dialing

phone with either type of service, and you can easily switch from pulse to tone dialing for long-distance, bank-by-phone, or other special services.

Hearing-Aid Compatibility

your phone with hearing aids by setting the handset volume to loud.

— lets you make or answer

— you can set the phone so you

— you can set the phone

— lets you use your

— lets you use

IMPORTANT CALLER ID INFORMATION

To use the phone’s Caller ID and Caller ID with Call Waiting features, you must be in an area where those services are available and you must subscribe to those services through your local phone company.

Where Caller ID is offered, one or more options are generally available:

• caller's number only

• caller's name only

• caller's name and number

Features

Installation

MOUNTING THE PHONE

You can place the phone’s base on a desk or table, or mount it on a standard wall plate or directly on a wall. Choose a location that is:

• near an AC outlet

• near a modular telephone line jack

• out of the way of normal activities

• away from electrical machinery, electri-

cal appliances, metal walls or filing cabinets, wireless intercoms, alarms, and room monitors

• away from other cordless phones

The base’s location affects the handset’s range. If you have a choice of several locations, try each to see which provides the best performance.

Connecting to the Phone Lines

To take full advantage of the phone’s capabilities, you must have two phone lines with separate phone numbers. If you have only one line, you can order a second from your phone company.

You can connect the phone to the lines in one of three ways:

• connect two lines through a two-line

modular phone jack

• connect two lines through two one-line

modular phone jack

• connect one line through a one-line

modular phone jack.

Notes:

• Your telephone connects directly to a modular telephone line jack. If your telephone wiring does not have a modular jack, you can update the wiring yourself using jacks and adapters (available at your local RadioShack store), or have the telephone company update the wiring for you. You must use compatible modular jacks that are compliant with Part 68 of

• The line that connects a two-line phone jack to the phone company wiring must be twisted-pair cable. Otherwise, you might hear interference (crosstalk) between the two lines.

• The USOC number of the two-line jack to be installed is RJ14C (RJ14W for a wall plate). The USOC number of a single-line jack is RJ11C.

Cautions:

Its center tip must be set to positive and its plug must fit the phone's jack. The supplied adapter meets these specifications. Using an adapter that does not meet these specifications could damage the phone or the adapter.

• Always connect the AC adapter to the phone before you connect it to AC power. When you finish, disconnect the adapter from AC power before you disconnect it from the phone.

• The supplied RadioShack adapter was designed specifically for your phone. Use only the supplied adapter.

FCC Rules

You must use a Class 2 power source that supplies 9V DC

and delivers at least 400 mA.

DC IN 9V

Installation

On a Desk Top

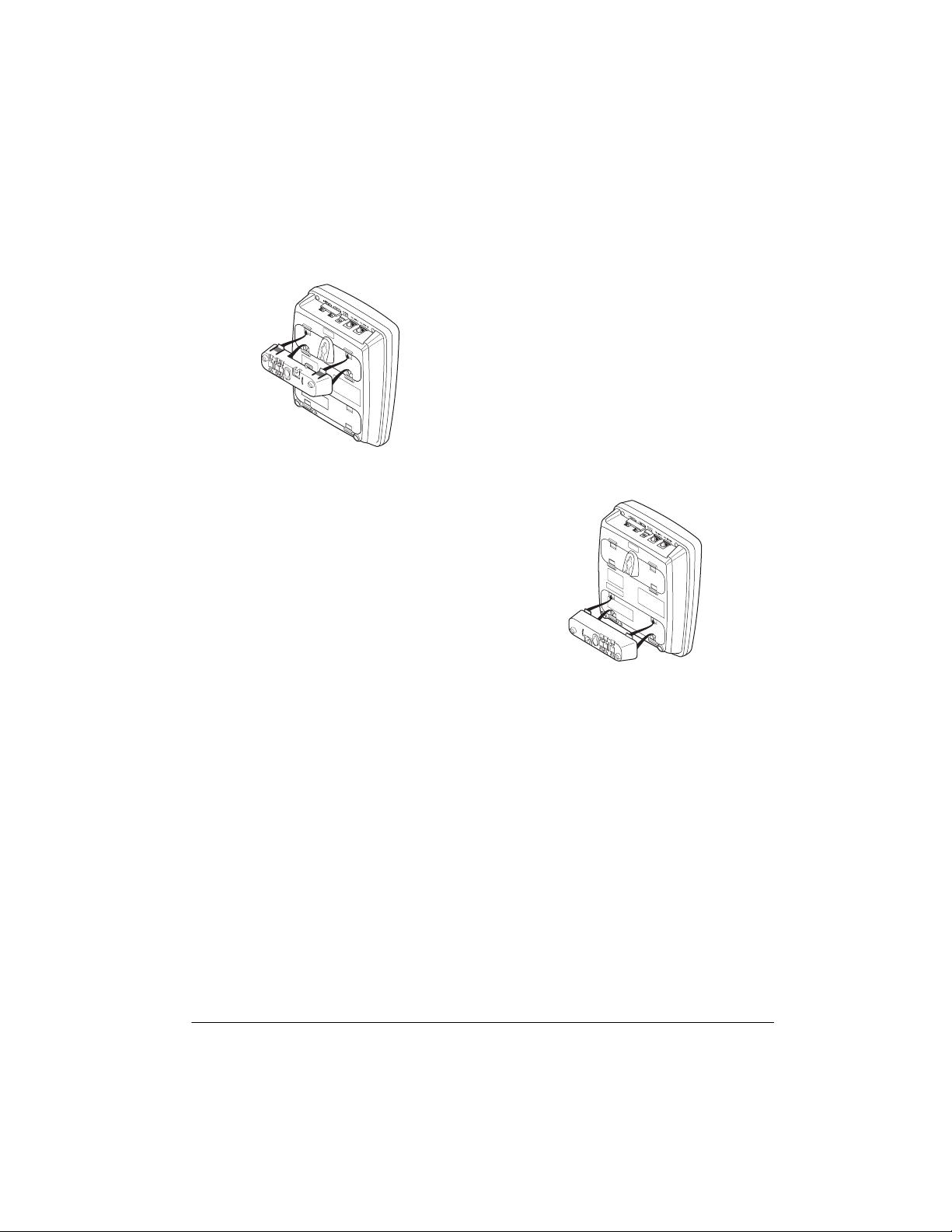

1. Insert the bracket’s tabs into the base’s upper tab slots, then press down on the bracket’s clips and insert them into the clip slots.

To connect the phone to a two-line

phone jack

long two-line modular cord into the

LINE

Route the cord through the strain-relief slot on the bracket.

Note:

line phone jack with a two-line cord, do not connect a third line to the jack or the phone will not operate properly. Instead, you can connect another phone device, such as a fax machine or modem.

To connect the phone to two one-line phone jacks

plied long two-line modular cord into

LINE

plied) into the both cords through the strain-relief slot on the bracket.

To connect the phone to a single oneline phone jack

plied long modular cord into the

LINE

cord through the strain-relief slot on the bracket.

3. Plug the supplied AC adapter’s barrel plug into the

, plug one end of the supplied

1/2

jack on the back of the phone.

If you connect the phone to a two-

TEL LINE 2

, plug one end of the sup-

1/2

and plug another cord (not sup-

TEL LINE 2

jack. Route

, plug one end of the sup-

1/2

TEL LINE 2

DC IN 9V

jack. Route the

jack on the back of

TEL

the base and route the adapter’s cord through the strain relief slot on the bottom of the bracket.

4. Plug the adapter into a standard AC outlet.

5. Connect the phone cord(s) to the modular phone line jack(s).

6. Raise the base’s antenna to a vertical position.

On a Wall Plate or Wall

1. Insert the bracket’s tabs into the base’s lower tab slots, then press down on the bracket’s clips and insert them into the clip slots.

2. Connect the phone line(s) as described in “On a Desk Top”. Use the shorter modular cord to mount the phone on the wall plate.

3. Insert the supplied AC adapter’s barrel plug into the

DC IN 9V

the base.

4. Route the adapter’s cord through the narrow groove on the bracket. If you are using two phone cords, route the second cord through one of the wide grooves on the bracket.

5. Plug the other end of the short modular cord into the wall plate jack, then align the keyhole slots with the wall plate studs and slide the base downward to

jack on the back of

Installation

secure it. If you are using two phone cords, plug the second cord into the second phone jack.

6. Plug the adapter into a standard AC outlet.

7. Press and lift out the handset holder, flip it over, then snap it back into place.

8. Raise the base’s antenna to a vertical position.

Note:

To mount the phone directly on a wall,

you need two screws of at least 1

/8 inch long (not supplied) with heads that fit into the keyhole slots on the bottom of the base. Follow the steps under “On a Wall Plate or Wall” on Page 11, then apply these additional instructions for placement on a wall.

1. Drill two holes 3 apart. Then thread a screw into each hole, letting the heads extend about

/16 inches (100 mm)

inch (3 mm) from the wall.

2. Plug one end of the supplied long modular cord into the

TEL LINE 1/2

jack on the

back of the base. To connect the phone to two one-line

jack, plug another cord (not supplied) into the

TEL LINE 2

jack.

3. Route the adapter cable and modular cord(s) through the grooves on the bracket.

4. Align the base’s keyhole slots with the mounting screws and slide the base downward to secure it.

CONNECTING, CHARGING, AND REPLACING THE BATTERY PACK

The phone comes with a rechargeable nickel-cadmium battery pack installed in the handset, but not connected. Before using your phone, you must connect the battery pack, then charge it for about 24 hours.

1. Press down then slide off the battery compartment cover.

2. Lift the battery pack out of the compartment.

3. Plug the battery pack’s connector into the socket in the compartment (the connector fits only one way), replace the battery pack, then replace the cover.

To charge the battery pack, simply place th e handset on the base, facing either up or

down. The base’s CHARGE indicator lights. Recharge the battery pack when

flashes on the handset’s display.

Important:

erly connected before you try to charge it. The CHARGE indicator lights when the handset is on the base even if the battery pack is not properly connected.

Notes:

• When you first use the phone after

Be sure the battery pack is prop-

charging or recharging the battery pack, the phone might not work and you might hear an error tone when you press

LINE 2

. If this happens, return the handset to the base for about 5 seconds. This resets the security accessprotection code.

Bem

Bem 8Wjj[ho

8Wjj[ho

BemBem

8Wjj[ho8Wjj[ho

LINE

• Using a pencil eraser, clean the charging contacts on the handset and the base about once a month.

Installation

• If the handset’s display is blank and the phone does not work, recharge the battery pack. (The battery power might be too low to light the display.)

• If the battery pack becomes weak during a call, the handset beeps every 3 sec-

Bem

Bem 8Wjj[ho

8Wjj[ho

onds and happens, you cannot make another call on the phone until you recharge the battery pack.

• About once a month, fully discharge the battery pack by keeping the handset off the base until wise, the battery pack loses its ability to fully recharge.

• If the battery pack is completely discharged or the base loses power while the handset is away from it, place the handset on the base to reset the security access-protection code. If the handset loses power, recharge the battery pack.

The supplied battery pack should last about one year. If the battery pack does not hold a charge for more than 2 hours after an overnight charge, replace it with a new 3.6-volt, 600 mAh battery pack with a connector that fits the socket in the battery compartment. You can order a replacement battery pack through your local RadioShack store.

Note:

To avoid losing memory numbers, install and begin charging the new battery pack within 2 minutes.

Warning:

promptly and properly. Do not burn or bury it (see “Battery Safety Instructions” on Page 5 for additional information on proper battery handling).

If you have trouble replacing the battery, take the phone to your local RadioShack store for assistance.

BemBem

Dispose of the old battery pack

flashes. When this

8Wjj[ho8Wjj[ho

Bem

Bem 8Wjj[ho

8Wjj[ho

BemBem

8Wjj[ho8Wjj[ho

flashes. Other-

Important:

RBRC on the nickel-cadmium (Ni-Cd) battery indicates RadioShack is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient alternative to placing used Ni-Cd batteries into the trash or the municipal waste stream, which may be illegal in your area. Please call 1-800-THE-SHACK (1800-843-7422) for information on Ni-Cd battery recycling and disposal bans/restrictions in your area. RadioShack’s involvement in this program is part of the company’s commitment to preserving our environment and conserving our natural resources.

The EPA certified

Battery Recycling Seal

SETTING THE DIALING MODE

Your phone comes set for tone dialing. If you have pulse service, you need to change the dialing mode. If you are not sure which type of service you have, do this test.

LINE 1

Press SPEAKER indicator lights. Listen for a dial tone, then press any number other than

Note:

If your phone system requires that you dial an access code (9, for example) before you dial an outside number, do not press the access code either.

If the dial tone stops, you have touch-tone service. If the dial tone continues, you have pulse service.

To set the dial mode, press up the phone if necessary, then hold down

FLASH

on the base until the phone beeps. Then press #/ mode or tone mode. The phone beeps.

on the base. The LINE 1

LINE 1

7777

on the base to set to pulse

TONE

∗∗∗∗

6666

on the base to set to

to hang

Installation

Note:

The phone exits setting mode if a call

LINE 1

or page is received, or if you press

LINE 2

ADJUSTING THE RINGER

The phone lets you control its base and handset ringer volume separately. You can choose from a high or low ringer setting or turn the ringer off for the base and the handset.

On the Handset

In the standby mode, press the handset’s ringer volume. The display

H_d][h

H_d][h >_]^

>_]^

H_d][h

H_d][h Bem

shows

H_d][hH_d][h

You can also turn off the ringer. In the standby mode, press and hold phone beeps and you place the handset face-up on the base,

2H_d][hýE\\4

2H_d][hýE\\42H_d][hýE\\4

You can still make or receive a call even when the ringer is turned off. When you have an incoming call, the base unit (if you have not set phone connected to the same line rings, and

â9Wbbá

â9Wbbáâ9Wbbá

To turn the ringer back on, simply press

VOL

setting.

RING VOL

appears on the handset’s display.

. The ringer is restored at the

>_]^>_]^

H_d][h

H_d][h E\\

H_d][hH_d][h

appears.

H_d][hH_d][h

On the Base

RING VOL

Set

, or

RING VOL

not sound when a call is received, but the handset (when it is off the base with the ringer not turned off) and any other phone connected to the same line still ring.

on the back of the base to HI,

OFF

for each line (L1 and L2). With

OFF

set to

, the base’s ringer does

DEL/VOL

Bem

BemBem

DEL/VOL

E\\

appears. When

E\\E\\

OFF

) and any other

H_d][h

H_d][h >_]^

H_d][hH_d][h

to set

until the

DEL

>_]^

>_]^>_]^

SETTING AUTO TALK

Your phone is preset so you must press

LINE 2

or turned on, you can answer a call by lifting the handset from the base (or any key on the handset if the handset is away from the base).

Note:

ly. For example, when you turn auto talk on for Line 1 only, you must press swer a call on line 2.

Follow these steps to turn auto talk on or off.

1. Lift the handset and hold down

2. Use

3. A menu appears with

4. Press

SETTING CALLER ID/CALL

to answer a call. With auto talk

Auto talk is set for each line separate-

LINE 2

HOLD

display with the pointer at

B_d[

B_d[ ((((

B_d[B_d[

Press

EdEd

setting.

to the base.

9Wbb[h

9Wbb[h ?:

?: I[jkf

until

9Wbb[h9Wbb[h

TONE

∗∗∗∗

. Then press

SELECT/CH

E\\

appears indicating the selected

E\\E\\

CID/HOLD

I[jkf

appears on the

?:?:

I[jkfI[jkf

B_d[

B_d[ ''''

B_d[B_d[

6666

7777

or #/

to select

CONF

9999

7kje

7kje JWba

JWba

7kje7kje

JWbaJWba

to change the setting.

and return the handset

WAITING

If you have Call Waiting and Caller ID service, you can set the phone to show Caller ID information for an incoming call even while you are already on the phone.

Note:

Caller ID/Call Waiting function is set

for each line separately.

1. Lift the handset and hold down

HOLD

display with

until

9Wbb[h

9Wbb[h ?:

9Wbb[h9Wbb[h

B_d[

B_d[ ''''

B_d[B_d[

?: I[jkf

I[jkf

?:?:

I[jkfI[jkf

selected.

appears on the

LINE

to an-

CID

B_d[

B_d[ ''''

B_d[B_d[

selected.

CID

Installation

2. Use

B_d[

B_d[ ((((

B_d[B_d[

TONE

∗∗∗∗

6666

. Then press

or #/

7777

CONF

to select

9999

B_d[

B_d[ ''''

B_d[B_d[

3. A menu appears with

CONF

Press press

EdEd

setting.

E\\

E\\E\\

9999

to select

SELECT/CH

appears indicating the selected

to change the setting.

7kje

7kje JWba

JWba

7kje7kje

JWbaJWba

9?:9M

9?:9M9?:9M

selected.

, then

5. Press

SELECT/CH

code, then press the handset to the base to store your new entry.

to store the area

CID/HOLD

and return

4. Press

CID/HOLD

to the base to store the new setting.

and return the handset

STORING YOUR AREA CODE

You can store your local area code in the phone’s Caller ID record so it does not show the area code if the received call is from your local area. If for some reason you need to dial the area code (or store it in memory), you can add it afterwards. See “Adding/Deleting the Area Code” on Page 25.

Note:

If your calling area requires 10-digit dialing including area code, do not enter the area code but leave this option blank.

Follow these steps to store your area code.

B_d[

B_d[ ''''

B_d[B_d[

CID

1. Lift the handset and hold down

HOLD

display with

2. Use

B_d[

B_d[ ((((

B_d[B_d[

9Wbb[h

9Wbb[h ?:

until

9Wbb[h9Wbb[h

B_d[

B_d[ ''''

B_d[B_d[

TONE

∗∗∗∗

. Then press

6666

?: I[jkf

I[jkf

?:?:

I[jkfI[jkf

selected.

7777

or #/

CONF

appears on the

to select

9999

7kje

7kje JWba

3. A menu appears with

CONF

Press then press

4. Enter your three-digit area code. If you make a mistake, repeatedly press

TONE

over the incorrect digit, then enter the correct number.

Note:

it appears on the display. To delete the area code, press then enter your area code. Or you can

∗∗∗∗

use sor and edit the area code.

9999

twice to select

SELECT/CH

6666

If an area code is already stored,

TONE

or #/

6666

7777

to move the cursor

DEL/VOL

or #/

JWba

7kje7kje

7777

selected.

JWbaJWba

7h[W

7h[W 9eZ[

7h[W7h[W

three times,

to move the cur-

9eZ[

9eZ[9eZ[

∗∗∗∗

Installation

Basic Operation

Note:

You can use the keypad on either the handset or the base to operate the phone. To make a call with the speakerphone, you must use the base’s keypad; to make a call with the handset, you must use the handset’s keypad.

USING THE HANDSET

Making a Call

To make a call using the handset, lift the handset and press

B_d[

B_d[ ((((

appears on the handset’s display to-

B_d[B_d[

gether with current volume setting, and the same line’s indicator on the base flashes green. Dial the number. Within a few seconds, the display starts to count the elapsed time.

Note:

or that line at the base or the extension phone. Press the other line button.

Or, you can enter the number before pressing pears on the display. After confirming the number is correct, press

To end a call, press handset or place the handset on the base.

â8Wi[á

â8Wi[áâ8Wi[á

B_d[

B_d[ ((((

on the display, someone is using

B_d[B_d[

LINE 1

?d Ki[

Ki[

?d?d

Ki[Ki[

LINE 2

. The entered number ap-

LINE 1

LINE 2

appears above

LINE 1

LINE 2

B_d[

B_d[ ''''

B_d[B_d[

on the

B_d[

B_d[ ''''

B_d[B_d[

To answer a call, lift the handset and press the ringing line button. If auto talk is on, lift the handset from the base, or if the handset is away from the base, press any key. The display changes to show the elapsed time on the call. If you receive a call on one line while you are using the handset to talk on the other, you hear a three-ring tone through the handset. Press the line button for the incoming call’s line. The current call is automatically put on hold.

If both lines have an incoming call, pressing a key answers the line that began ringing first.

Selecting the Channel

The phone has 35 channels (frequency pairs used between the base and handset). If a call disconnects for no reason, press

LECT

/CH on the handset to select a different

channel.

SE-

Setting the Handset Vo lume

To increase or decrease the handset’s volume during a call, press you press the button, the volume setting changes and the display shows the level as

Lebk c[

Lebk c[ Bem

Bem, Lebkc[

Lebk c[Lebk c[ Lebkc[

Lebkc[ CWn_ckc

Lebkc[Lebkc[

Lebkc[ C[Z_kc

BemBem

Lebkc[Lebkc[

CWn_ckc

CWn_ckcCWn_ckc

DEL/VOL

C[Z_kc, Lebkc[

C[Z_kcC[Z_kc

. Each time

Lebkc[ >_]^

>_]^

Lebkc[Lebkc[

>_]^>_]^

, or

Answering a Call

â9Wbbá

B_d[ý'

B_d[ý'B_d[ý'

â9Wbbá

appears on the

â9Wbbáâ9Wbbá

B_d[ý(

B_d[ý(B_d[ý(

(whichever

Basic Operation

When a call comes in, display, along with is ringing). Then the display shows the caller’s name (if available) and number (if you subscribe to Caller ID), and the indicator for that line flashes at the base.

Note:

To help you tell which line is ringing, each line has a distinctive tone.

USING THE SPEAKERPHONE

Making a Call

To make a call using the speakerphone,

LINE 1

press then dial the number. The LINE 1 SPEAKER or LINE 2 SPEAKER indicator lights green on the base, and

LINE 2

, listen for the dial tone,

â8Wi[á

â8Wi[áâ8Wi[á

and

B_d[ý'

B_d[ý'B_d[ý'

B_d[ý(

B_d[ý(B_d[ý(

ap-

pear on the handset’s display as a reminder that the line is in use.

If either line indicator is flashing, someone at the handset is using the line. Press the line button for a line that is not in use.

To end a speakerphone call, simply press

LINE 1

LINE 2

. The line indicator turns off.

Answering a Call

To answer a call using the speakerphone,

LINE 1

press ing), or any number key to answer a call. The SPEAKER indicator for the selected line

â8Wi[á

lights.

â8Wi[áâ8Wi[á

handset’s display as a reminder that the line is in use.

If you receive an incoming call on a line while you are talking on the speakerphone on the other line, the other line’s indicator flashes and you hear a low ring if you have set

VOL

for that line to any position other than

OFF

. Press the line button for the incoming call. The current call is automatically put on hold.

and

LINE 2

(whichever is flash-

B_d[ý'

B_d[ý'B_d[ý'

B_d[ý(

B_d[ý(B_d[ý(

appear on the

RING

Note:

Mute is released when you press

TERCOM

button to switch the line.

HOLD

, or you press either line

IN-

PUTTING A CALL ON HOLD

HOLD (CID/HOLD

Press put a call on hold. The indicator for that line lights red on the base, and the handset dis-

â>ebZá

play shows While a call is on hold, you can temporarily place the handset on the base or use the other phone line without disconnecting the current call.

To release a line from hold and continue your conversation, press that line’s button. You can also release a call from hold by lifting the handset if the handset is on the base, or picking up an extension phone.

You can alternate between the two lines by pressing sired line.

Note:

Pressing while a call is on hold does not release the hold. Press the line button that is on hold.

â>ebZá

â>ebZáâ>ebZá

HOLD

, then the button for the de-

on the handset) to

above the line number.

HOLD

(or

CID/HOLD

) again

If both lines have an incoming call, pressin g a number key answers the line that began ringing first.

Adjusting the Speakerphone Volume

To set the speakerphone’s volume, slide

VOLUME

on the right side of the base.

Using Mute

While talking on the speakerphone, you can temporarily turn off the phone’s microphone by pressing hear you. The line indicator flashes red when a line is muted. Press your conversation.

MUTE

so the other party cannot

MUTE

again to resume

Basic Operation

SWITCHING BETWEEN THE HANDSET AND SPEAKERPHONE

To switch to the speakerphone while you are using the handset, press handset, then press that line’s button (

LINE 2

or To switch to the handset while you are using

the speakerphone, just lift the handset off the base. Or, if the handset is off the base, press

HOLD

ton (

) on the base.

on the base, then press that line’s but-

LINE 1

LINE 2

CID/HOLD

) on the handset.

on the

LINE 1

USING BOTH THE HANDSET AND SPEAKERPHONE

To use the handset to join a call at the base, or to use the base to join a conversation at the handset, press the line button for the line in use. You hear a busy tone: before the tone ends, press the line button again.

During the call, you can hang up the base or the handset and the call can continue. To end the call, you must hang up both the base and handset.

Note:

If you hear a high-pitched noise from the base’s speaker, the handset and the base are too close together.

To talk with two parties using both lines, see “4-Way Conferencing.”

MAKING A CONFERENCE CALL

3-Way Conferencing

the other, press the line button you want to hang up.

If you want to talk on one line without disconnecting the other, press then the button for the line you want to talk on. To return to a 3-way conversation, press

CONF

Note:

one outside line and the two keypads, see “Using the Paging/Intercom Features” on Page 19.

CONF

or To make a 3-way conference using

9999

HOLD

CID/HOLD

4-Way Conferencing

Follow these steps to use both lines to set up a four-way call. The procedure is the same for the handset and the base.

1. Make a 3-way conference call on one keypad (handset or base).

2. Press handset) to page the other keypad. The outside lines are put on hold.

INTERCOM

(

8888

INTCM

on the

Follow these steps to use both phone lines to set up a 3-way call. The procedure is the same for the handset and the base.

1. Place the first call on hold.

2. Make or answer a call on the other line.

3. Once you have the second party on the line, press set) to bring in the first party. Both line indicators on the base light green. The handset display shows above conference call using the handset,

8Wi[á

8Wi[á8Wi[á

speakerphone for conference.

4. To end the conference call, press one line button, then the other. If you want to hang up one line and continue talking on

CONF (CONF

B_d[ý'

B_d[ý' B_d[ý (

B_d[ý'B_d[ý '

B_d[ý'

B_d[ý' B_d[ý(

and

B_d[ý'B_d[ý'

B_d[ý (

B_d[ý (B_d[ý(

B_d[ý(

B_d[ý(B_d[ý(

9999

on the hand-

â9ed\[h[dY[á

â9ed\[h[dY[áâ9ed\[h[dY[á

if you are making a

â9ed\

â9ed\â9ed\

if you are using the

Basic Operation

3. At the other keypad press

INTCM

8888

to answer the page, then

CONF (CONF

press on either keypad.

4. To end the conference call, press

LINE 2

and

LINE 2

If you want to hang up one line and continue talking on the other, press the line button that you want to hang up.

Note:

You can also make a conference call using both the phone and an extension phone (See “Using the Phone with Extension Phones” on Page 19).

on one keypad, then press

on the other keypad.

INTERCOM

9999

on the handset)

LINE 1

USING THE PHONE WITH EXTENSION PHONES

The phone detects when an extension phone is in use. The corresponding line indicator

?d Ki[

flashes on the base and handset’s display along with

To join the conversation from the handset or base, press the line button for the line in use. While the busy tone is sounding, press the line button again.

Note:

If you hang up the phone and someone is still on that line on an extension, the phone’s line indicator(s) might not stay lit.

Ki[

flashes on the

?d?d

Ki[Ki[

B_d[

B_d[ ''''

B_d[B_d[

B_d[

B_d[ ((((

B_d[B_d[

For example, if you have Call Waiting, press

FLASH

to answer an incoming call without disconnecting the current call. Press again to return to the first call.

Note:

If you do not have any special servic-

FLASH

es, pressing current call.

might disconnect the

FLASH

USING TONE SERVICES ON A PULSE LINE

Some special services, such as bank-byphone, require tone signals. If you have pulse service, you can still use these special tone services by following these steps.

USING REDIAL

You can quickly dial any of the last three numbers dialed on the handset using either

REDIAL

LINE 2

RE-

line 1 or line 2. Repeatedly press

PAUSE

on the handset until the number de-

sired appears, then press To dial the last number dialed on the base,

LINE 1

press

DIAL

PAUSE

Notes:

• Each keypad has a separate redial memory. You cannot redial a number you dialed on one keypad using the redial key on the other.

• You can redi al the number yo u original ly dialed on Line 1 using Line 2, as long as you use the same keypad as previous.

• The redial memory holds up to 32 digits, so you can redial long distance as well as local numbers.

LINE 2

LINE 1

on the base then

USING FLASH

FLASH

performs the electronic equivalent of a switchhook operation for special services, such as Call Waiting.

Dial the service’s main number. When the

TONE

∗∗∗∗

service answers, press ditional numbers you dial are sent as tone signals.

When you hang up, the phone automatically resets to pulse dialing.

USING THE PAGING/ INTERCOM FEATURES

You can use the phone as a two-way pager and intercom between the base and the handset. This is useful if the handset is away from the base and you want to locate it, or if you want to have a conversation between the handset and the base.

To page the handset from the base, press

TERCOM

FW]_d]

FW]_d]FW]_d]

Press the page.

To page the base from the handset, press

8888

FW]_ d]

FW]_ d] 8Wi[

FW]_ d]FW]_ d]

play. Press swer the page. handset’s display.

. The handset and base ring, and

appears on the handset’s display.

INTCM

8888

on the handset to answer

?dj[hYec

?dj[hYec?dj[hYec

INTCM

. The base and handset ring, and

8Wi[

8Wi[8Wi[

appears.

appears on the handset’s dis-

INTERCOM

on the base to an-

?dj[hYec

?dj[hYec?dj[hYec

appears on the

6666

. Any ad-

IN-

Basic Operation

Note:

The paging ends in one minute if no-

body answers. Press

TCM

again.

INTERCOM

To end an intercom call, press

INTERCOM

8888

INTCM

8888

IN-

During a call, you can page someone at either the base or the handset to join the conversation. Press

INTERCOM

8888

INTCM

The current call is placed on hold.

DEL/VOL

•

on the handset also controls

the connected headset’s volume.

• If you place the handset on the base to recharge it while the headset is connected, be sure the handset seats properly.

With a headset connected, you make or an-

swer calls as usual using the keys on the handset.

To transfer the call, press

INTCM

again when the person at the base or

INTERCOM

8888

handset answers. To start a 3-way call, tell the person at the

base or handset to press the line button for the call, then press the same button twice on your keypad when they answer the page.

Notes:

• You ca nnot page the base or handset if it is already in use.

• If a call comes in during an intercom conversation, either of the intercom parties can answer the call as they normally would. Simply press the ringing line’s button. The intercom call automatically disconnects.

USING A HEADSET

You can talk with hands-free convenience using an optional headset that has a 3/32-inch (2.5-mm) plug. Contact your local RadioShack store for a suitable headset.

You can use a handset holder (available from your local RadioShack store) to hang the handset on your belt for greater convenience. When you finish using the headset, disconnect it from the handset and close the rubber cover to protect the jack.

To connect the headset, open the rubber cover on the side of the handset, then insert the headset’s plug into the jack.

Notes:

• Connecting a headset disconnects the handset’s earpiece and microphone, but it does not affect the phone’s speakerphone.

Basic Operation

Memory Dialing

You can store up to 30 numbers in the handset’s memory and another 10 in the base’s memory, then dial a stored number by pressing a memory location number. You can also store a name with each number in the handset’s memory.

Each number you store can be up to 20 digits long, and each name can be up to 13 characters.

You cannot dial a number stored in one memory location (the base or the handset) using the keypad on the other.

STORING A NUMBER IN MEMORY

Note:

The phone beeps five times and exits the storing process if you wait more than 20 seconds between each key press.

In the Handset

1. Lift the handset.

2. Hold down list of memory location numbers (and names, if any) appears.

3. Select an empty memory location (or the one you want to replace) by entering the location number (

INTCM

list. Precede a single digit number with a

(for example, 01, 02, 03, and so on.).

Note:

beeps, you have made an entry error and the number was not stored. Reenter the location number correctly.

4. Press If you do not want to enter a name, skip to Step 6.

MEM

CONF

If the phone sounds five quick

SELECT/CH

C[ceho

C[ceho Ijeh[

until

C[cehoC[ceho

01–30

9999

to scroll through the

Ijeh[

Ijeh[ DWc[

Ijeh[Ijeh[

Ijeh[

Ijeh[Ijeh[

) or using

DWc[

appears.

DWc[DWc[

and a

8888

5. To enter a name, use the number keys. Refer to the letters on the number keys

to select the desired letter. Press the key once for the first letter in the upper case, press twice for the second letter in the upper case, and so on. To enter the lower case letter, press four times (or five times) to display the first letter in lower case, five or six times for the second letter, and so on.

For example, to enter John: press once; upper case

six times; lower case

five times; lower case Finally, press 6 five times; lower case appears.

To enter two letters from the same key in a row, press the next position. For example to enter AB, press

7777

, the cursor moves to the next posi-

tion, then press To enter a space, press #/

out entering any character. To enter a number, repeatedly press the

corresponding number key until the number appears.

To enter a special character, use time you press 0, the following characters appear in this order:

∗∗∗∗

If you make a mistake, use or #/ error, then enter the correct character, or press delete all characters, hold down

VOL

( )

# – &

(space)

7777

to move the cursor over the

DEL/VOL

for at least 1 second.

@@@@

appears. Then press

eeee

appears. Press

7777

to move the cursor to

7777

;

appears. Then press #/

twice so

&&&&

to delete a character. To

^^^^

appears.

8888

appears.

7777

twice with-

TONE

∗∗∗∗

. Each

DEL

dddd

6666

Memory Dialing

6. Press appears.

7. Enter the number and any tone and pause entries (see “Using T one Services on a Pulse Line” on Page 19 and “Entering a Pause”).

SELECT/CH

Ijeh[

Ijeh[ DkcX[h

Ijeh[Ijeh[

DkcX[h

DkcX[hDkcX[h

INTCM

O[i

O[iO[i

phone beeps, and appears.

=e 8WYa

=e=e

memory numbers.

CONF

DeDe

8WYa

— Returns you to the list of

8WYa8WYa

9999

to move the cursor to

, then press

SELECT/CH

C[cehodd

C[cehodd :[b[j[Z

C[cehoddC[cehodd

. The

:[b[j[Z

:[b[j[Z:[b[j[Z

Note:

Each tone or pause entry uses

one digit of memory.

8. Press

To replace a stored number, simply store a new one in its place.

SELECT/CH

C[cehodd

C[cehodd Ijeh[Z

and

C[cehoddC[cehodd

C[ceho

seconds, Steps 3–8 to store more numbers.

C[ceho Ijeh[

C[cehoC[ceho

. The phone beeps

Ijeh[Z

appears. After 2

Ijeh[ZIjeh[Z

Ijeh[

appears. Repeat

Ijeh[Ijeh[

Editing or Deleting a Number in the Handset’s Memory

Follow these steps to edit or delete a number stored in the handset’s memory.

1. Lift the handset.

2. Hold down list of memory location numbers (and names, if any) appears.

3. Choose a memory location you want to edit or delete by pressing

CONF

ber (01–30).

4. Press

C[cehodd

C[cehoddC[cehodd

appear. Press choose an option, follow the instructions listed, then press

;Z_j

;Z_j C[cehodd

;Z_j;Z_j

described in Steps 5–8 of “In the Handset” under “Storing a Number in Memory” on Page 21.

:[b[j[

:[b[j[ C[cehodd

:[b[j[:[b[j[

you to confirm the deletion. Press

MEM

9999

, or entering the location num-

SELECT/CH

:[b[j[

:[b[j[ C[cehodd

:[b[j[:[b[j[

C[cehodd

C[cehoddC[cehodd

C[cehodd

C[cehoddC[cehodd

C[ceho

C[ceho Ijeh[

until

C[cehoC[ceho

. Three options,

C[cehodd

C[cehoddC[cehodd

INTCM

8888

SELECT/CH

— Edit the record as

— The display prompts

Ijeh[

Ijeh[Ijeh[

8888

, and

CONF

and a

INTCM

=e 8WYa

=e=e

9999

;Z_j

;Z_j;Z_j

8WYa

8WYa8WYa

8888

5. When you finish editing or deleting memory numbers, press the handset to the base to exit the

eho

Ijeh[

Ijeh[Ijeh[

display.

ehoeho

MEM

In the Base

1. Press blinks.

2. Enter the number (up to 20 digits) and any tone or pause entries (see “Using Tone Services on a Pulse Line” on Page 19 or “Entering a Pause”).

3. Press ory location number (0–9) where you want to store the number. A tone sounds to indicate that the number is stored.

To clear a stored number, simply store a new number in its place. Or, press Then press the memory location number (0–

) you want to clear. The phone beeps.

Use the supplied memory directory sticker to record your stored numbers. Peel the backing from the sticker and attach it to the base.

Entering a Pause

In some telephone systems, you must dial an access code (9, for example) and wait for a second dial tone before you can dial an outside number. You can store the access code with the phone number. However, you should also store a pause after the access code to allow the outside line time to connect.

MEM

. The CHARGE indicator

MEM

again, then enter the mem-

or return

C[c#

C[c#C[c#

MEM

twice.

Memory Dialing

To enter a 2-second pause, press

PAUSE

. The handset display shows pause entry. For a longer pause, repeatedly press

REDIAL/PAUSE

REDIAL

FFFF

for

Testing Stored Emergency Numbers

If you store an emergency service’s number (police department, fire department, ambulance) and you choose to test the stored number, make the test call during the late evening or early morning hours to avoid peak demand periods. Also, remain on the line to explain the reason for your call.

REVIEWING MEMORY NUMBERS (HANDSET ONLY)

To review your memory numbers, press

MEM

. The first three memory location num-

&'–&)

bers ( with each number (or not store a name). If necessary, scroll through the list by repeatedly pressing

9999

location number (01, 02, 03, and so on). To see the stored phone numbers, press

7777

. An arrow to the right of the number means it is longer than 14 digits. Press #/ again to see the rest of the number. Repeatedly press display.

) appear with the name stored

&'&'

&)&)

2ýC[cehoddý4

2ýC[cehoddý42ýC[cehoddý4

INTCM

8888

, or by entering the two-digit

TONE

∗∗∗∗

6666

to return to the name

if you did

CONF

7777

DIALING A MEMORY NUMBER

To dial a number stored in the handset’s memory, lift the handset and press first three memory location numbers appear. Choose a memory location ( ing number keys or repeatedly pressing

INTCM 2

. The phone automatically dials the number.

Note:

first, then choose a memory number to dial. To dial a number stored in the base’s memo-

ry, press dial tone, press location number for the number you want to dial.

Note:

tion, the base beeps 5 times.

CONF

LINE 1

9999

, then press

LINE 2

MEM

You can also press

If you select an empty memory loca-

01–30

LINE 1

. When you hear a

and enter the memory

CHAIN-DIALING SERVICE NUMBERS

For quick recall of numbers for special services (such as alternate long distance or bank-by-phone), store each group of numbers in its own memory location.

To use the stored special service numbers, dial the service’s main number first. Then, at the appropriate place in the call, press and the number for the memory location where the additional information is stored.

MEM

) by press-

LINE 1

. The

LINE

LINE 2

MEM

8888

To exit the memory number list, press To see a stored name and phone number at

the same time, press cursor is by a memory location number. To exit this display without storing any changes, hold down

DEL/VOL

SELECT/CH

until the display clears.

MEM

when the

Memory Dialing

Caller ID Operation (Handset Only)

If you subscribe to Caller ID service from your phone company, the phone company sends information about the call, as well as the time and date, between the first and second rings of every call you receive. Although the Caller ID memory is on the handset, it also records the call you receive on the speakerphone.

The phone displays this information when it receives a call, and it stores up to 80 Caller ID records — 40 each for both lines — for later review. It also shows if caller information is unavailable or if the name and number were blocked by the caller (see “Caller ID Messages”).

If you subscribe to Call Waiting with Caller ID, you will hear a tone through the handset when a call comes in, then the Caller ID record appears. If you want to answer the in-

FLASH

coming call, press previous phone conversation, press again.

If the phone’s Caller ID memory becomes full, any new call replaces the oldest call’s record.

. To resume the

FLASH

REVIEWING CALLER ID RECORDS

To review the Caller ID records, lift the hand-

CID/HOLD

CONF

set if necessary and press bers of new and total numbers of Caller ID records for each line appear. Press

6666

then press

Note:

shows the number of Caller ID records, so you can see if you have new records to review.

7777

or #/

to select the line you want to view,

INTCM

8888

If the handset is faceup on the base, it

9999

. Num-

TONE

∗∗∗∗

Repeatedly press the Caller ID records from the newest to the

INTCM

8888

oldest, or the records. To scroll quickly through the records, hold down

The top line of each record shows the date, time and the number of calls from that number. The second line shows the caller’s name, and the third line shows the caller’s phone number.

To exit the Caller ID record display, press

CID/HOLD

CALLER ID MESSAGES

Display Description

B_d[ý'ý

B_d[ý'ý B_d[ý(

B_d[ý(

B_d[ý'ýB_d[ý'ý

B_d[ý(B_d[ý(

NNý

NNý NN

D;M

D;MD;M JJB

JJB

JJBJJB

Fh_lWj[

Fh_lWj[ DWc[

Fh_lWj[Fh_lWj[

Fh_lWj[

Fh_lWj[ DkcX[h

Fh_lWj[Fh_lWj[ Kdademd

Kdademd DWc[

KdademdKdademd

Kdademd

Kdademd DkcX[h

KdademdKdademd ?dYecfb[j[

?dYecfb[j[ :WjW

?dYecfb[j[?dYecfb[j[

DWc[

DWc[DWc[

DkcX[h

DkcX[hDkcX[h

NNýNNý

NNNN

NNý

NNý NN

NNýNNý

NNNN

DWc[

DWc[DWc[

DkcX[h

DkcX[hDkcX[h

:WjW

:WjW:WjW

CONF

9999

to scroll through

to scroll back through

CONF

9999

Shows the number of new Caller ID records (records you have not reviewed) and the total number of records for each line.

The caller has blocked the Caller ID information from being sent.

The caller is not within a caller ID service area.

Appears if there was an error during the transmission of Caller ID information. Minor electrical disturbances can affect Caller ID information. Occasional errors are normal. If the phone frequently displays

fb[j[

fb[j[ ZWjW

ZWjW

fb[j[fb[j[

ZWjWZWjW

local phone company or RadioShack store for assistance.

INTCM

8888

?dYec#

?dYec#?dYec#

, contact your

Caller ID Operation (Handset Only)

ADDING/DELETING THE AREA CODE

When the area code of the received call is the same as the one you stored (see “Storing Your Area Code” on Page 15), the caller ID record does not show the area code. If it is different, the record shows the area code.

However, you can add or delete the area code on the display. When the record is on

the display, press code. Pressing 3 again deletes or adds the area code.

When you dial the number or store it into memory, the phone dials or stores the number as it appears on the display.

to add or delete the area

Recall the record you want to store. If you

SELECT

INTCM

, then

DeDe

H[#

H[#H[#

want to add or delete the area code, press

MEM

I[b[Yj

I[b[Yj BeYWj_ed

BeYWj_ed

Press Choose a memory location (01–30) by press-

ing number keys or by repeatedly pressing

8888

If the selected location is empty, the phone beeps to confirm that it stored the number, then the Caller ID record appears.

If a record exists in the selected location,

fbWY[

fbWY[fbWY[

confirm the replacement. Press

CONF

press

I[b[YjI[b[Yj

INTCM

C[ceho5

C[ceho5C[ceho5

CONF

appears, prompting you to

9999

to move the cursor to

SELECT/CH

BeYWj_edBeYWj_ed

9999

, then press

appears.

8888

O[i

O[iO[i

DIALING NUMBERS FROM A CALLER ID RECORD

To dial a local number stored in a Caller ID

LINE 1

record, recall the record, then press

LINE 2

. If it is a long distance call, press 1 ( appears before the displayed number) before you press to add or delete the area code, press 3 before you press

Notes:

• You can use either line to make a call. For example, you can use line 2 to make a call to the number stored in the line 1 Caller ID memory.

• If a Caller ID record does not contain a phone number (if it was blocked by the caller, for example), you cannot dial from that record.

LINE 1

LINE 2

. If you want

STORING A CALLER ID RECORD TO MEMORY

Follow these steps to store the name and number from a Caller ID record into a memory location.

DELETING CALLER ID RECORDS

You can delete Caller ID records individually or all at once.

''''

To delete a single record, recall it, then press

DEL/VOL

ing you to confirm the deletion. Move the cursor to

VOL

To delete all the records at once, display the number list menu, select the line, and press

DEL/VOL

you to confirm the deletion. Press

CONF

or then press

:[b[j[

:[b[j[ C[iiW][5

:[b[j[:[b[j[

O[i

, then press

O[iO[i

:[b

:[b 7bb

:[b:[b

9999

to move the cursor to

SELECT/CH

C[iiW][5

C[iiW][5C[iiW][5

7bb, B_d[

B_d[ d5

7bb7bb

B_d[B_d[

appears, prompt-

SELECT/CH

appears, prompting

d5d5

DEL/VOL

8888

O[i

O[iO[i

DEL

INTCM

DeDe

Caller ID Operation (Handset Only)

Troubleshooting

We do not expect you to have any problems with your phone, but if you do, the following suggestions might help.

Problem Suggestion

The phone does not work or works poorly.

The handset stops working or works poorly during a call.

Low volume of unusual sounds. Someone has picked up another phone on the same phone

Severe noise interference. Keep the handset and base away from computers, remote

The phone cannot be operated at a useful distance from the base because the signal becomes weak or noisy (handset’s range has decreased).

The handset battery pack does not charge.

Be sure the base’s phone line cord and AC adapter are correctly and securely connected.

Be sure the handset’s battery pack is connected and charged. Return the handset to the base for a few seconds to reset the

security access-protection code. Move the handset closer to the base. Lift the base’s antenna to a vertical position. Be sure the handset’s battery pack is charged. (If the battery

power is too low, display)

line. Hang up the other phone.

control toys, wireless microphones, alarm systems, intercoms, room monitors, fluorescent lights, and electrical appliances.

Move to another location or turn off the source of the interference.

Hang up and redial the number. Lift the base’s antenna to a vertical position. Be sure neither antenna is touching a metal surface. Recharge the battery pack.

Check the charging contacts on the handset and base. If they are dirty, clean them with a pencil eraser.

Be sure the battery pack is connected correctly (see “Connecting, Charging, and Replacing the Battery Pack” on Page 12).

Be sure the handset is properly seated on the base. Replace the battery pack.

Bem

Bem 8Wjj[ho

8Wjj[ho

BemBem

8Wjj[ho8Wjj[ho

does not flash on the handset’s

Troubleshooting

Problem Suggestion

The handset does not ring or receive a page.

You have an incoming call, but do not receive any Caller ID information.

Lift the base’s antenna to a vertical position. Move the handset closer to the base. Move the handset and base away from other electrical

devices. Set the ringer volume to either high or low. Recharge the battery pack. If the base loses power while the handset is off of it, the secu-

rity access-protection code might change. Restore power to the base, then place the handset back on the base and leave it there for a few seconds.

Check the number of devices connected to your phone line and add up the RENs. See “Read This Before Installation” on Page 2.

Let the phone ring twice before you answer so the system has time to record the Caller ID information.

Check that the system is correctly and securely connected. Call your phone company to verify that your Caller ID service

is active.

If you still have problems, disconnect the phone. If other phones on the same line work properly, the fault is in this phone or its installation. If you cannot find the problem, take your phone to your local RadioShack store for assistance.

CARE

Keep the phone dry; if it gets wet, wipe it dry immediately. Use and store the phone only in normal temperature environments. Handle the phone carefully; do not drop it. Keep the phone away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new.

Modifying or tampering with the phone’s internal components can cause a malfunction and might invalidate its warranty and void your FCC authorization to operate it. If your phone is not performing as it should, take it to your local RadioShack store for assistance. If the trouble is affecting the telephone lines, the phone company can ask you to disconnect your phone until you have resolved the problem.

Troubleshooting

Limited One-Year Warranty

This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for one (1) year from the date of purchase from Radi oSha ck company- owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT T O ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limit ation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise provided by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation, set-up service adjustment or reinstallat i on. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102

We Service What We Sell

12/99

RadioShack Corporation Fort Worth, Texas 76102

43-1704

UCZZ01753BZ

08A01

Printed in China

Radio Shack Digital Spread Spectrum Cordless Phone User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
