Radio Shack CTR-91 Owner's Manual

14-861a.fm Page 1 Tuesday, September 19, 2000 3:26 PM

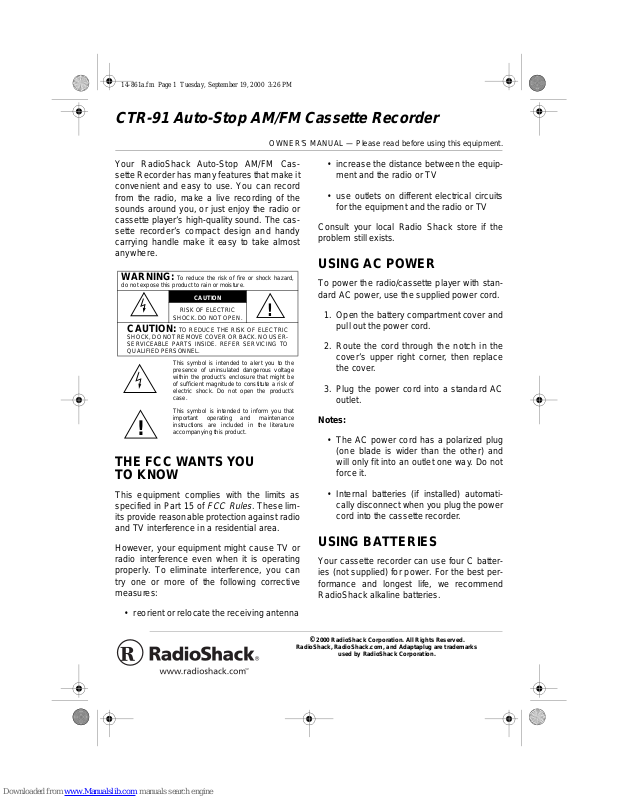

CTR-91 Auto-Stop AM/FM Cassette Recorder

OWNER’S MANUAL — Please read before using this equipment.

Your RadioShack Auto-Stop AM/FM Cas­sette Recorder has ma ny feat ures tha t ma ke it
convenient and easy to use. You can record
from the radio, make a live recording of the
sounds around you, or just enjoy the radio or
cassette player’s high-quality sound. The cas­sette recorder’s compact design and handy
carrying handle make it easy to take almost
anywhere.

WARNING:

do not expose this product to rain or moisture.

CAUTION:

SHOCK, DO NOT REMOVE COVER OR BACK. NO USER­SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.

!

To reduce the risk of fire or shock hazard,

CAUTION

RISK OF ELECTRIC

SHOCK. DO NOT OPEN.

TO REDUCE THE RISK OF ELECTRIC

This symbol is intended to alert you to the
presence of uninsulated dangerous voltage
within the product’s enclosure that might be
of sufficient magnitude to constitute a risk of
electric shock. Do not open the product’s
case.

This symbol is intended to inform you that
important operating and maintenance
instructions are included in the literature
accompanying this product.

!

THE FCC WANTS YOU
TO KNOW

• increase the distance between the equip­ment and the radio or TV

• use outlets on different electrical circuits
for the equipment and the radio or TV

Consult your local Radio Shack store if the
problem still exists.

USING AC POWER

To power the rad io/cassett e player with stan­dard AC power, use the supplied power cord.

1. Open the battery compartment cover and
pull out the power cord.

2. Route the cord through the notch in the
cover’s upper right corner, then replace
the cover.

3. Plug the power cord into a standard AC
outlet.

Notes:

• The AC power cord has a polarized plug
(one blade is wider than the other) and
will only fit into an outlet one way. Do not
force it.

This equipment complies with the limits as
specified in Part 15 of

FCC Rules

. These lim­its provide re as ona ble protection agains t radi o
and TV interference in a residential area.

However, your equipment might cause TV or
radio interference even when it is operating
properly. To eliminate interference, you can
try one or more of the following corrective
measures:

• reorient or relocate the receiving antenna

• Internal batteries (if installed) automati­cally disconnect wh en you plu g the pow er
cord into the cassette recorder.

USING BATTERIES

Your cassette recorder can use four C batter­ies (not supplied) for power. For the best per­formance and longest life, we recommend
RadioShack alkaline batteries.

2000 RadioShack Corporation. All Rights Reserved .

©

RadioShack, RadioShack.com, and Adaptaplug are trademarks

used by RadioShack Corporation.

14-861a.fm Page 2 Tuesday, September 19, 2000 3:26 PM

Cautions:

• Use only fresh batteries of the required
size and recommended type.

• Do not mix old and new batteries, differ­ent types of batteries (standard, alkaline,
or rechargeable), or rechargeable batter­ies of different capacities.

Follow these steps to install batteries.

1. Press do wn the t abs on th e batte ry com­partment cover and lift the cover off.

2. Place the batteri es in the compartmen t a s
indicated by the polarity symbols (+ and
–) marked inside.

3. Replace the cover.

When the sound becomes weak or distorted
or the radio/cassette player stops operating
properly, replace the batteries.

Warning:

and properly. Do not burn or bury them.

Caution:

cassette player with batteries for a week or
longer, remove the batteries. Batteries can
leak chemicals that can destroy electronic
parts.

Dispose of old batteries promptly

If you do not plan to use the radio/

these specifications could damage the
cassette recorder or the adapter.

• Always connect the DC adapter to the
cassette recorder before you co nne ct i t to
the power source. When you finish, dis­connect the adapter from the power
source before you disconnect it from the
cassette recorder.

Follow these steps to power the cassette re­corder from a DC power source.

1. Set the adapter’s voltage switch to 6V, if
necessary.

2. Connect the Adaptaplug to the DC
adapter’s cord so the tip reads TIP–.

3. Insert the barrel plug into the recorder’s

DC 6V

jack.

4. Plug the other end of the adapter into the
12V power source.

Notes:

• If the cassette recorder does not operate
properly when you use DC power, be
sure the 12V source (such as a cigarette­lighter socket) is clean and that the
adapter’s plug is pushed all the way into
socket.

USING DC POWER

You can power the cassette recorder from a
12V power source (such as a vehicle’s
cigarette-lighter socket) using a 6V, 300 mA
DC adapter and a size M Adaptaplug™
connector (neither supplied). Both are
available at your loc al RadioShack store.

Cautions:

You must use a power source
that supplies 6V DC and deliv-

!

ers at least 300 mA. Its center
tip must be set to negative and its plug
must fit the cassette recorder’s
jack. Using an adapter th at does not me et

DC 6V

• Disconnect the adapter when you are not
using the cassette recorder.

• Internal batteries (if installed) automati­cally disconnect when you plug the

DC 6V

adapter into the

2

jack.

14-861a.fm Page 3 Tuesday, September 19, 2000 3:26 PM

RECORD

from the radio or live, using the
built-in MIC.

PLAY

REWIND

tape to the desired location.

FAST-F

forward a tape to the de­sired location.

STOP/EJECT

stop tape play, recording,
fast-forwarding, or rewind­ing, or to open the cas­sette compartment door.

PAUSE

rarily st op a tape. Press
again to resume play, re­cording, rewinding, or fast­forwarding.

Notes:

• The radio/cassette player ’s

• Auto-stop automatically

• The radio/cassette player’ s sensitive AM/FM

• The AM loop antenna is built-In. To get the

— press to record

— press to rewind a

— press to fast-

— press to

— press to tempo-

automatic level control cir­cuitry automatically adjusts
the recording level.

has no effect on

UME

recording.

stops a tape when it
reaches its end during both
play and recording.

circuitry picks up even distant stations.

best AM reception, rotate the radio.

VOL-

FUNCTION RADIO OFF/TAPE–AM/FM

slide to AM or FM to turn on the radio. Slide
to

OFF/TAPE

the cassette functions.

Ferrite-Magnet Dynamic

— provides superb

Speaker

sound from the radio and
tape recorder.

to turn off the radio or to use

VOLUME

adjust the sound volume.

— rotate to

—

Telescoping FM Antenna

— extend fully for best FM
reception.

Built-in Microphone

— lets you make live
recordings.

Tuning Control

tate to select the de­sired AM or FM
station.

DC 6V Adapter Jack

— allows you to power
the radio/cassette
player using an option­al DC adapter.

— ro-

LISTENING SAFELY

To protect your hearing, follow these guide­lines.

• Set the volume to the lowest setting
before you begin listening. After you
begin listening, adjust the volume to a
comfortable level.

• Do not listen at extremely high volume
levels. Extended high-volume listening
can lead to permanent hearing loss.

• Once you set the volume, do not increase
it. Over time, your ears adapt to the vol­ume level, so a volume level that does
not cause discomfort might still damage
your hearing.

USING THE RADIO

FUNCTION

1. Set

FM

).

2. Use the tuning control to tune to the
desired station.

3. Adjust

3

to the desired band (AM or

VOLUME

as desired.

14-861a.fm Page 4 Tuesday, September 19, 2000 3:26 PM

4. Set

FUNCTION

RADIO OFF/TAPE

to

to turn

off the radio.

LOADING A CASSETTE TAPE

1. Take up any slack in the tape by turning
the cassette’s hub with a pencil or your
finger. If you do not remove excess slack,
the tape might become tangled in the
record/playback mechanism.

2. Press

STOP/EJECT

to open the cassette

compartment door.

3. Load the cassette with its open edge fac­ing up, its full reel to the right, and the
desired side facing out.

4. Gently close the compartment door.

PLAYING A CASSETTE TAPE

FUNCTION

1. Set

2. Load a cassette tape.

3. Press

4. Adjust

PLAY

VOLUME

RADIO OFF/TAPE

to

.

as desired.

.

because they are thin and can easily tan­gle in the playback mechanism.

• Before you load a cassette tape for
recording, turn the cassette’s hub with
your finger or a pencil to move the tape
past its leader.

Recording from the Radio

1. Load a blank cassette tape or one you
want or record over into the cassette
compartment.

FUNCTION

2. Set

3. Adjust the tuning control to the station
you want to record.

4. Press

RECORD

lock down and recording begins.

5. To monitor the recording, adjust
as desired.

6. To stop the recording, press

PLAY

Both
remove the ca ssette, press
again.

to the desired band.

PLAY

. Both

and

RECORD

and

RECORD

VOLUME

STOP/EJECT

release. To

STOP/EJECT

.

5. Press

STOP/EJECT

to stop the tape. I f you
let the tape run to the end, play stops
automatically.

RECORDING

Caution:

recording, be sure its erase-protection tabs
are in place. If you force down
that side’s erase-pro tectio n tab i s mis sing, yo u
can damage the record me chanism (see “Pre­venting Accidental Erasure” on Page5).

Notes:

Before you load a cassette tape for

RECORD

when

• Tape quality greatly affects the quality of
the recording. We recommend regular
length (60- or 90-minutes) normal-bias
cassette tapes. We do not recommend
long-play cassette tapes such as C-120s

Recording with the Built-In
Microphone

1. Load a blank cassette tape or one you
want or record over into the cassette
compartment.

FUNCTION

2. Set

3. Press

RECORD

4. To stop the recording, press

PLAY

Both
remove the ca ssette, press
again.

4

RADIO OFF/TAP E

to

.

RECORD

and

STOP/EJECT

release. To

STOP/EJECT

.

.

Erase-Protection
Ta b Se ns or

14-861a.fm Page 5 Tuesday, September 19, 2000 3:26 PM

TAPE TIPS

Restoring Tape Tension and
Sound Quality

After you play a cassette tape several times,
the tape might become tightly wound on the
reels. This can cause pl ayback soun d quality
to deteriorate.

To restore the sound quality, fast-forward the
tape from the beginning to the end of one
side, then completely rewind it. Then loosen
the tape reels by gently tapping each edge of
the cassette on a flat surface.

Caution:

sette when tapping it. Do not touch the ex­posed tape or allow any sharp objects near
the cassette.

Erasing Tapes

To record over a cassette tape, simply record
as usual. The cassette deck records over the
previous recording.

You can quickly era se bo th sid es of a casset te
tape using a RadioShack bulk tape eraser.

Note

the recorded sound might not be erased prop­erly.

Preventing Accidental Erasure

Cassette tapes have two erase-protection
tabs — one for each side. When a tab is in
place, you can record on that side.

To prevent accidental erasure of a tape re­cording, use a screwdriver to remove one or
both of the cassette tape’s erase-protection
tabs. This prevents
pressed.

Be careful not to damage the cas-

: If you use metal or high-bias type tape,

RECORD

from being

cover only the hole originally covered by the
erase-protection tab.

Caution:

Removing the erase-protection tabs
does not prevent a bulk eraser from erasing a
cassette tape.

Cleaning the Tape-Handling Parts

Dirt, dust, or parti cles of the tape’s c oat ing ca n
accumulate on the tape he ads and othe r parts
that the tape touches. This can greatly reduce
the performance of the cassette player. After
every 20 hours of tape pla yer operati on, foll ow
these steps to clean the tape-handling parts
or use a RadioShac k cassette deck cleani ng
kit.

1. Remove the batteries and disconnect any
other power source.

2. Open the cassette compartment door and

PLAY

press
parts.

3. Hold down the erase­protection tab sensor
inside the cassette
compartment, then
press
expose the record/
playback and erase
heads.

4. Use a cotton swab dipped in tape head
cleaning solution or denatured alcohol to
gently clean the capstan, pinch roller,
tape guides, and tape heads.

Erase Head

to expose the tape-handling

RECORD

to

Record/Playback
Head

Capstan

If you later decide to record on a tape side af­ter you have removed the erase-protection
tab, place a piece of strong plastic tape over
that side’s erase-protection hole. Be sure you

Tape Guides

Pinch Roller

5

14-861a.fm Page 6 Tuesday, September 19, 2000 3:26 PM

5. Press

CARE

Keep the cassette recorder dry; if it gets wet,
wipe it dry immediately. Use and store the
cassette reco rder only in nor mal temperature
environments. Handle the cassette recorder
carefully; do not drop it. Keep the cassette re-

STOP/EJECT

and close the cas­sette compartment door, th en re ins ta ll th e
batteries or reconnect the power source.

corder away from dust and dirt, and wipe it
with a damp cloth occasionally to keep it look­ing new.

Modifying or tampering with the cassette re­corder’s internal components can cause a
malfunction and might invalidate its warranty
and void your FCC authorization to operate it.
If your cassette recorder is not performing as
it should, take it to your local RadioShack
store for assistance.

SPECIFICATIONS

Cassette Player

Tape Speed ........................................................................................................................................... 1

Playback ........................................................................................................................... Monaural, dual track

Erase .................................................................................................................................................... Magnet

Recorder .............................................................................................................................................. DC bias

Motor ........................................................................................................................................... 6V DC Motor

Radio

Frequency Range: ................................................................................ AM: 530–1710 kHz; FM: 88–108 MHz

Power ............................................................... AC Power Cord: 120V 60 Hz; Battery 6V DC (4 C Batteries);

DC: DC 6V jack (using optional DC adapter)

Antennas ................................................................. AM: Ferrite loopstick antenna; FM: Telescoping antenna

7

/8 ips

Specifications are typical; individual units might vary. Specifications are subject to change and improvement
without notice.

Limited Ninety-Day Warranty

This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90)
days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT
AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE
WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY
OR RESPONSIBILITY TO CUSTOMER OR ANY OTH ER PERSON OR ENTI TY WITH RESPECT TO ANY LIABI LITY, LOSS OR DAM­AGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH
OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME,
DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF
RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitati on s on how l ong an im pli ed warra nty la sts or the excl usio n or limitation of incidental or consequ ential dam­ages, so the above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date
to any RadioShack store. RadioShack will, at its option, unless otherwise provided by law: (a) correct the defect by product repair without
charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase price. All replaced
parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and prod­ucts may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the
original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnor­mal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or
current; (b) any repairs other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as fuses or batter­ies; (d) cosmetic damage; (e) transporta tion, sh ipping or in surance cos ts; or (f) costs of p roduct re mova l, installatio n, set -up service adjust­ment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102

We Service What We Sell

12/99

09A00
14-861A Printed in the Philippines
