Q-See DVR, Q25DVR4ES User Manual

Q25DVR4ES

Economy Series

User Manual

Contact Us:

Q-See Products

8015 E. Crystal Dr

Anaheim, CA 92807

Website:

http://www.q-see.com

Customer Service:

Phone: [phone] x 538
Email: [e-mail]

Tech Support:

Phone: [phone] x 539
Email: [e-mail]

Fax:

714-998-3509

Q-See Q25DVR4ES User's Manual

Page 1

Rev 101207

Q-See Q25DVR4ES User's Manual

Page 25

Table of Contents

Page 2

Q-See Q25DVR4ES User's Manual

Q-SEE Product Warranty

Thank you for choosing our products.
All of our products users have a conditional free warranty repair service for hardware
within 12 months starting from purchase date, and a free exchange service within one
month (valid for manufacturing defects).
Permanent upgrading service is provided for the software.
Liability Exclusions:
Any product malfunction, abnormalities in operation or damage caused by following
reasons are not within the free service scope of our company.
Please select payable service.
(1) Equipment damage caused by improper operation
(2) Improper environment and conditions in/on which the equipment operates, e.g.,
improper power, environment temperature, humidity and lightening strike etc. that cause
equipment damage.
(3) Damage caused by acts of nature: earthquake and fire etc.
(4) Equipment damage caused by the maintenance of personnel not authorized by our
company.
(5) Product sold over 12 months ago.
In order to provide various services to you, please complete registration procedure after
you purchase the product. Cut off or copy User's Information Card and fax or mail it to us
after the card is filled in. You can also register the product by going to the
website and clicking on the Register link.

www.q-see.com

Customer Information Card

User's Name Mr./Mrs.
Company Name

Postal Address
Postal code

Phone Number
E-mail
Model Number of

Product
Serial Number of

Product
Purchase Date
Distributor

1.DVR Features 3

2.Layout 3

2.1Front Panel 3

2.2Rear Panel 4

2.3Remote Control 4

3.Installation 5

3.1Installing Hard Drive 5

3.2Connecting Camera and TV Monitor 6

3.3Connecting Power Supply .6

4.System Boot 6

4.1Detecting Installed Hard Drive 6

4.2Recovering Lost Data 7

4.3Restore Recording Feature 7

4.4Main Screen 7

5.DVR Setup 8

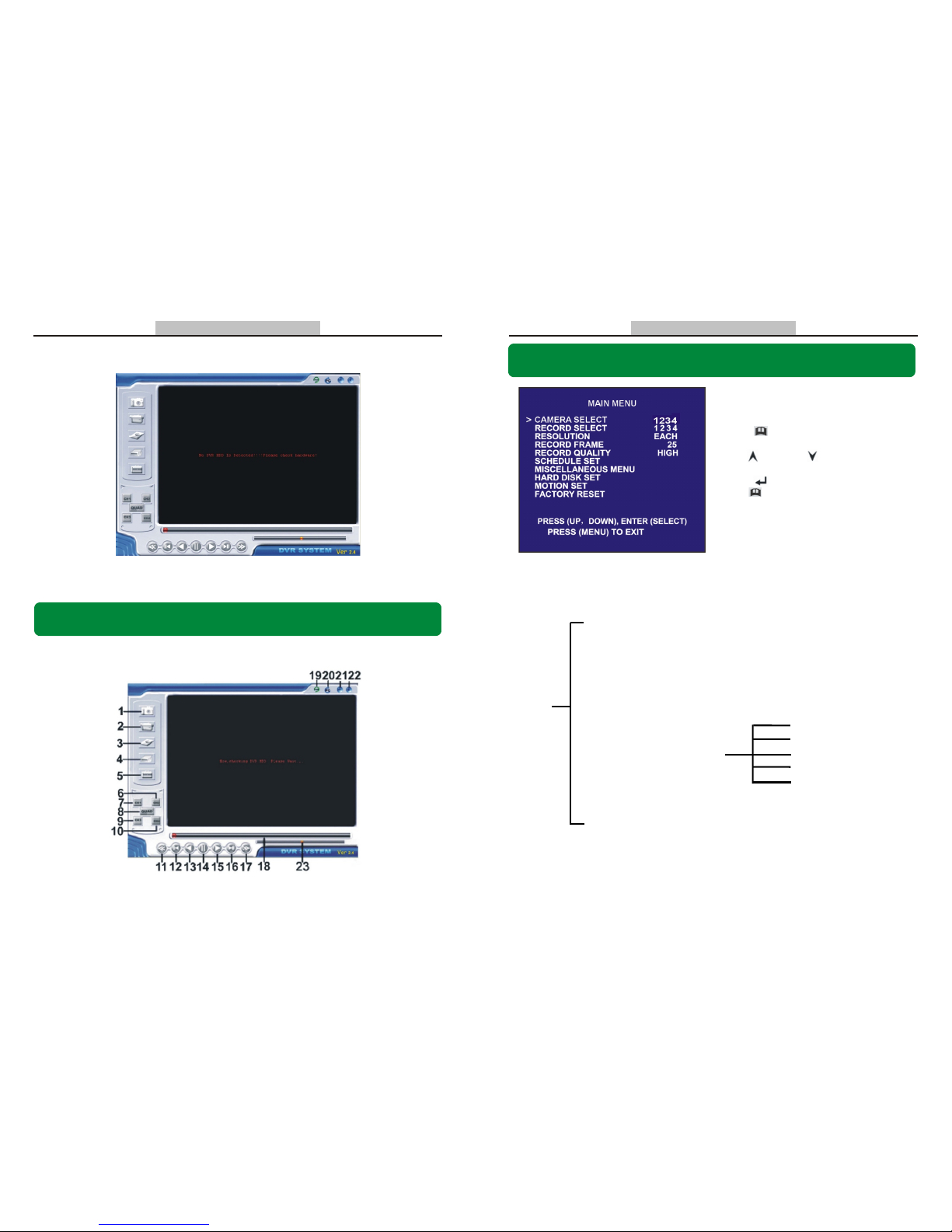

5.1Setup Menu 8

5.2Camera Select 9

5.3Record Select 9

5.4Record Mode 9

5.5Recording Frame Rate 10

5.6Recording Quality 10

5.7Schedule Set 11

5.8Sub Menu - Auto Record 11

5.9Sub Menu - Password Enable 11

5.10Sub Menu - Password Change 12

5.11Sub Menu - Color Set 12

5.12Sub Menu - Time Set 13

5.13Hard Disk Setup 13

5.14Motion Setup 14

5.15NTSC/PAL Output Selection 15

5.16Factory Reset 15

6.Recording 16

6.1Start Recording 16

6.2Stop Recording 16

6.3Recording Time on Hard Drive 17

7.Playback 17

8.USB DVR Access 18

8.1 Program Installation 18

8.2 Program Buttons 19

9.Specifications 22

10.Appendix 24

10.1System Connection Diagram 24

10.2DVR Accessories (included) 24
Q-SEE Product Warranty ..25

Chapter 10: Appendix - 10.1 System Connection Diagram

Page 24

Q-See Q25DVR4ES User's Manual

Chapter 1: DVR Features

4 Channel BNC Camera Input.
1 Channel BNC Video Output.
Video Source Option: NTSC / PAL.
Motion Detection with Sensitivity and Area Settings.
Time Schedule Recording / Motion Triggered Recording.
One ATA-100 Hard Disk Interface.
USB 2.0 Back up to computer.
With Remote Control & Removable Hard Drive Tray.

Chapter 2: Layout - 2.1 Front Panel

1.FUNCTION KEYS

2.REMOVABLE HARD DRIVE TRAY

3.SELECTION / DIRECTION KEYS

4.HDD LOCK

Page 3

Q-See Q25DVR4ES User's Manual

11 22 33

44

Chapter 10: Appendix - 10.2 DVR Accessories (included)

Q-See Q25DVR4ES User's Manual

Page 23

Q-See Q25DVR4ES User's Manual

Chapter 2: Layout - 2.2 Rear Panel

Chapter 2: Layout-2.3 Remote Control

1. 1 x BNC VIDEO OUTPUT

2. FAN

3. 4 X BNC VIDEO INPUT

4. 12V DC POWER SUPPLY

5. USB 2.0 PORT

11 22 33

44

55

Page 4

13. MENU Enter or exit setup menu

15. SEL/Edit Modify item

06. Rewind

08. Forward

10. Pause

01. CH1 Select or enlarge CH1

03. CH3 Select or enlarge CH3

04. CH4 Select or enlarge CH4

05. QUAD Quad View

02. CH2 Select or enlarge CH2

07. Play recording list

09. Record

11. Stop recording

14. UP Move up prompt

16. DOWN Move down prompt

Camera Specifications
