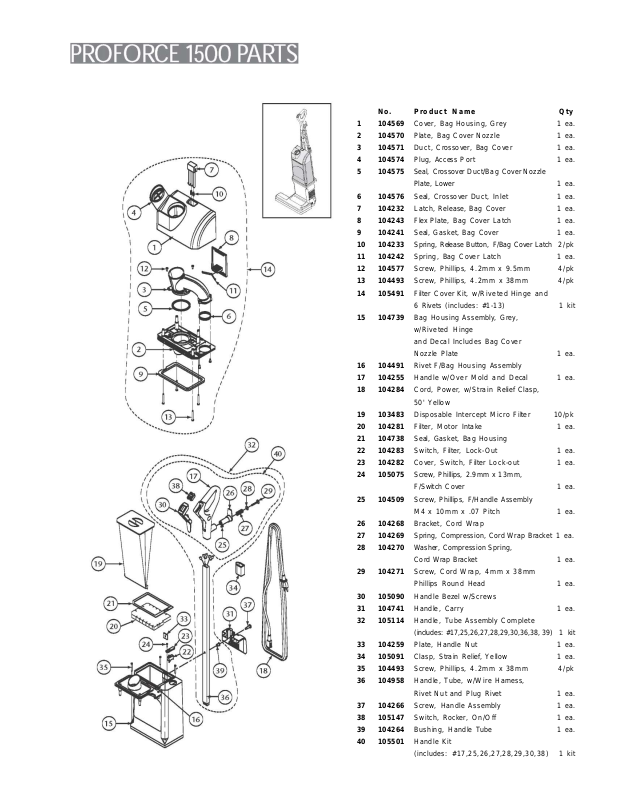

Proteam 1500 Owner's Manual

No. Product Name

1 104569 Cover, Bag Housing, Grey 1 ea.
2 104570 Plate, Bag Cover Nozzle 1 ea.
3 104571 Duct, Crossover, Bag Cover 1 ea.
4 104574 Plug, Access Port 1 ea.
5 104575 Seal, Crossover Duct/Bag Cover Nozzle

Plate, Lower 1 ea.

6 104576 Seal, Crossover Duct, Inlet 1 ea.
7 104232 Latch, Release, Bag Cover 1 ea.
8 104243 Flex Plate, Bag Cover Latch 1 ea.
9 104241 Seal, Gasket, Bag Cover 1 ea.
10 104233 Spring, Release Button, F/Bag Cover Latch 2/pk
11 104242 Spring, Bag Cover Latch 1 ea.
12 104577 Screw, Phillips, 4.2mm x 9.5mm 4/pk
13 104493 Screw, Phillips, 4.2mm x 38mm 4/pk
14 105491 Filter Cover Kit, w/Riveted Hinge and

6 Rivets (includes: #1-13) 1 kit

15 104739 Bag Housing Assembly, Grey,

w/Riveted Hinge
and Decal Includes Bag Cover

Nozzle Plate 1 ea.

16 104491 Rivet F/Bag Housing Assembly
17 104255 Handle w/Over Mold and Decal 1 ea.
18 104284 Cord, Power, w/Strain Relief Clasp,

50' Yellow

19 103483 Disposable Intercept Micro Filter 10/pk
20 104281 Filter, Motor Intake 1 ea.
21 104738 Seal, Gasket, Bag Housing
22 104283 Switch, Filter, Lock-Out 1 ea.
23 104282 Cover, Switch, Filter Lock-out 1 ea.
24 105075 Screw, Phillips, 2.9mm x 13mm,

F/Switch Cover 1 ea.

25 104509 Screw, Phillips, F/Handle Assembly

M4 x 10mm x .07 Pitch 1 ea.

26 104268 Bracket, Cord Wrap
27 104269 Spring, Compression, Cord Wrap Bracket 1 ea.
28 104270 Washer, Compression Spring,

Cord Wrap Bracket 1 ea.

29 104271 Screw, Cord Wrap, 4mm x 38mm

Phillips Round Head 1 ea.

30 105090 Handle Bezel w/Screws
31 104741 Handle, Carry 1 ea.
32 105114 Handle, Tube Assembly Complete

(includes: #17,25,26,27,28,29,30,36,38, 39) 1 kit

33 104259 Plate, Handle Nut 1 ea.
34 105091 Clasp, Strain Relief, Yellow 1 ea.
35 104493 Screw, Phillips, 4.2mm x 38mm 4/pk
36 104958 Handle, Tube, w/Wire Harness,

Rivet Nut and Plug Rivet 1 ea.

37 104266 Screw, Handle Assembly 1 ea.
38 105147 Switch, Rocker, On/Off 1 ea.
39 104264 Bushing, Handle Tube 1 ea.
40 105501 Handle Kit

(includes: #17,25,26,27,28,29,30,38) 1 kit

Qty

No. Product Name

Qty

1 104306 Wheel, Rear 2/pk
2 104250 Air Duct Assembly 1 ea.
3 104957 Motor Assembly Kit w/Jumpers

(includes: C, D) 1 ea.

4 104504 Bearing, Pivot 2/pk
5 103532 Foam, Sound, Motor Housing Front Panel 1 ea.
6 104536 Motor Housing, Charcoal 1 ea.
7 103533 Foam, Sound, Motor Housing Left Panel 1 ea.
8 103531 Foam, Sound, Motor Housing Rear Panel 1 ea.
9 104245 Bulkhead, Black 1 ea.
10 104253 Seal, Lower Air Duct , Nitrile 1 ea.
11 104249 Motor Mount, Upper Nitrile 1 ea.
12 104247 Motor Mount, Lower Nitrile 1 ea.
13 105136 Filter, Exhaust, High Filtration 1 ea.
14 104246 Cover, Filter Cartridge, Charcoal 1 ea.
15 104578 Air Duct, Upper ProForce 1500 1 ea.
16 104209 Screw, Phillips, 4.2mm x 12mm,

F/Upper Air Duct 2/pk

17 104267 Screw, Phillips, 4.2mm x 19mm F/Lower

Air Duct 2/pk

18 105488 Motor Housing Sound Filter Kit,

(includes: #5, 7, 8) 1 kit

19 105489 Air Duct Kit (includes: #2, 10, 17) 1 kit
20 104494 Power Nozzle Cover w/Detent Springs

& Decal 1 ea.

21 104279 Switch, Safety, Power Nozzle Lockout 1 ea.
22 104212 Circuit Breaker 1 ea.
23 104496 Screw, Phillips, 2.9mm x 13mm,

F/Brush Retainer 4/pk

24 104499 Retainer, Brush Roll 2/pk
25 104216 Brush Roll, Power Nozzle, 14" 1 ea.
26 104218 Bumper, Power Nozzle, Vinyl 1 ea.
27 104736 Seal, Base Cover, Air Duct, Left,

7.5" Long 1 ea.

28 104737 Seal, Base Cover, Air Duct, Right, 5.5" Long 1 ea.
29 104500 Brace, Formed Wire, F/Power Nozzle Base 2/pk
30 104221 Baseplate, Power Nozzle 1 ea.
31 104497 Screw, Phillips, 4.2mm x 32mm

F/Base Cover 8/pk

32 104501 Roller, Front 2/pk
33 104502 Shaft, Front Roller Axle 2/pk
34 104503 Clamp, Rear Wheel 1 set
35 104495 Screw, Phillips, 4.2mm x 19mm

F/Powerhead 5/pk

36 104227 Sleeve, Hose, Air Duct 1 ea.
37 104230 Hose, Power Nozzle to Air Duct, Lower 1 ea.
38 104217 Belt, Drive, F/Brush Roll 1 ea.
39 104506 Motor, Power Nozzle with Crimps 1 ea.
40 104498 Grommet, Vibration, Power Nozzle

Motor, Nitrile 2/pk

41 104224 Cover, Air Duct, Power Nozzle 1 ea.
42 104226 Board, Vacuum Operation Indicator 1 ea.
43 104507 Spring, Detent, Upright Lock 2/pk
44 105371 Screw, Phillips, 4.2mm x 19mm, F/Power

Nozzle Motor 2/pk

45 105281 Carbon Brush Set for ProForce Motor 1 Set

105755 Wire Harness Kit includes:
